MAERSK KLEVEN
9085546 | D5RZ8 | MSK by ************************** Last update: Sat Jun 24 2023
General Info
Ship Name:MAERSK KLEVEN
IMO Code:9085546
Call Sign:D5RZ8
Line Operator:MSK
Class Name for Sister Ships:KLE
Year Built:1996
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:
Also Known As (old names):-
Size Summary
ISO Bays:073
Max ISO Row:16
Center Line Row:Yes
Max Above ISO Tier:96
Min Above ISO Tier:80
Max Below ISO Tier:18
Min Below ISO Tier:02
Total TEU:7,490
Centers of Gravity
LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

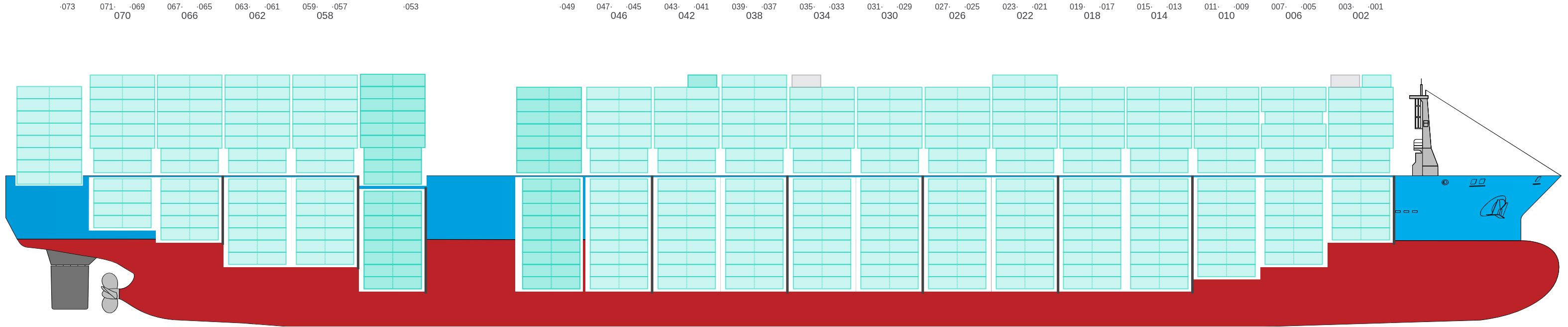

Side View
![Side view of MAERSK KLEVEN](/vessel-images/c89f4193-4be6-414b-8b53-d90fb376506b-sideView.png?v=1687629817207)
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

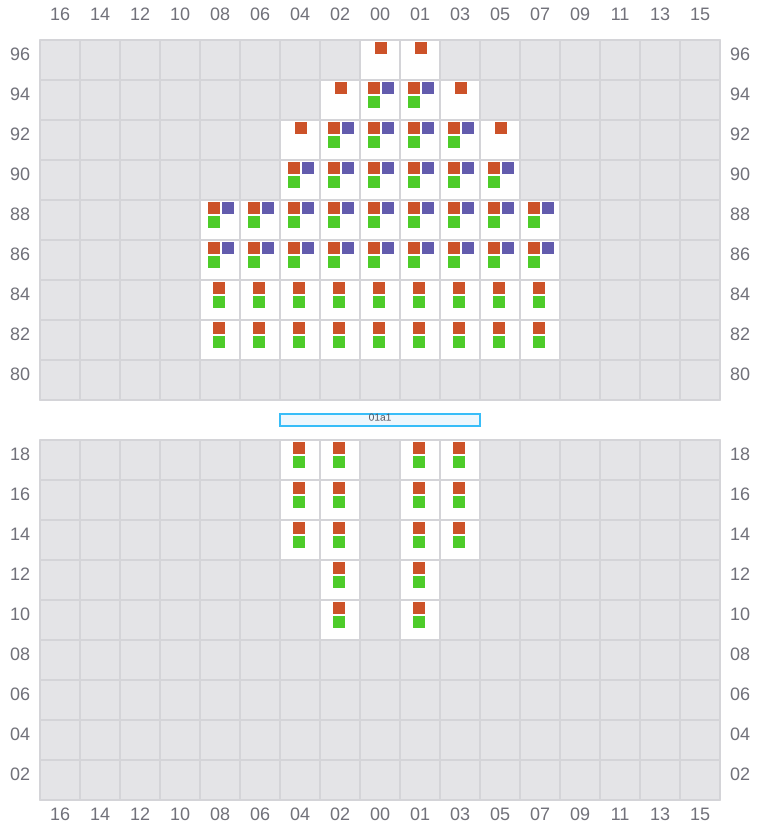

001 (002)
- →
![Bay 001 view and slots of MAERSK KLEVEN](/vessel-images/c89f4193-4be6-414b-8b53-d90fb376506b-b001.png?v=1687629817207)

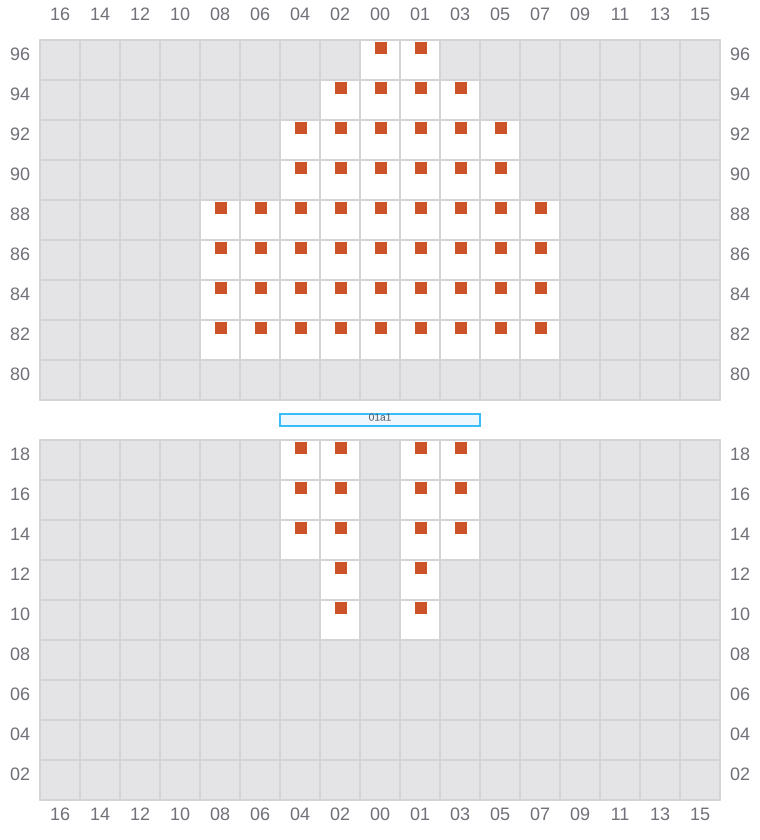

003
- ←
![Bay 003 view and slots of MAERSK KLEVEN](/vessel-images/c89f4193-4be6-414b-8b53-d90fb376506b-b003.png?v=1687629817207)

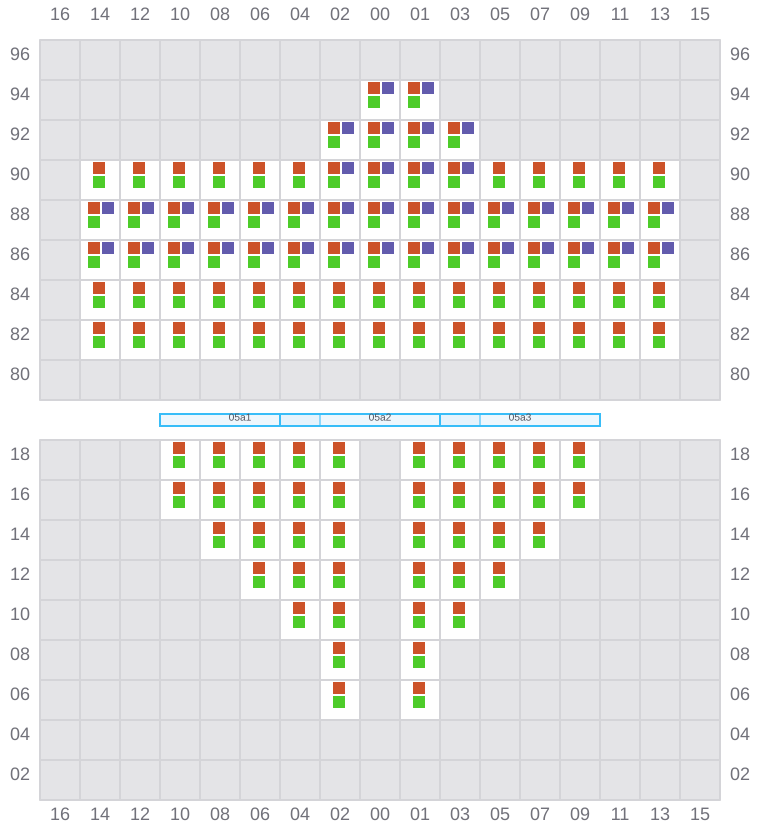

005 (006)
- →
![Bay 005 view and slots of MAERSK KLEVEN](/vessel-images/c89f4193-4be6-414b-8b53-d90fb376506b-b005.png?v=1687629817207)

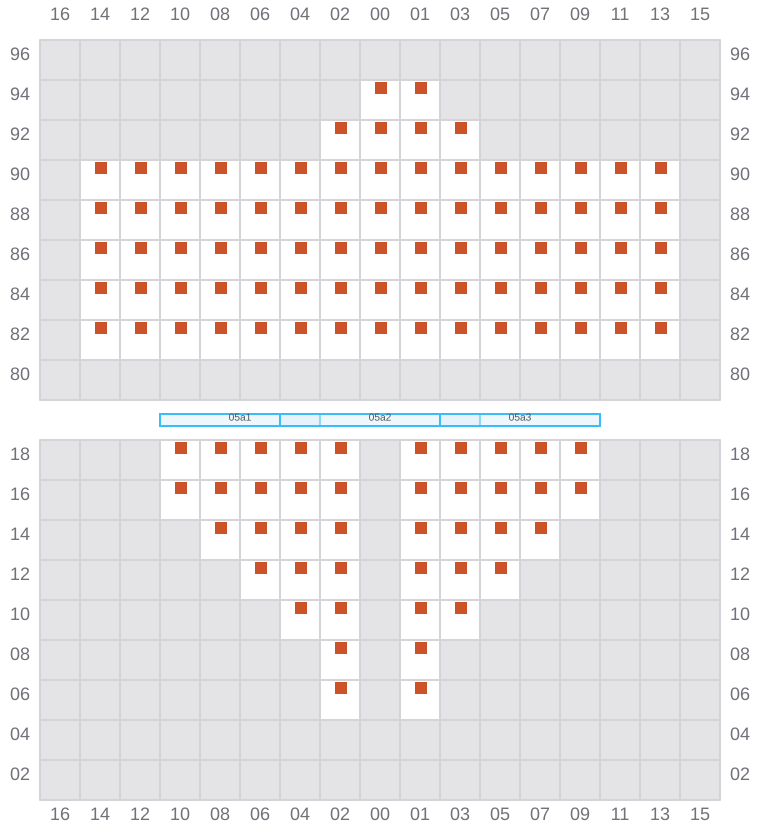

007
- ←
![Bay 007 view and slots of MAERSK KLEVEN](/vessel-images/c89f4193-4be6-414b-8b53-d90fb376506b-b007.png?v=1687629817207)

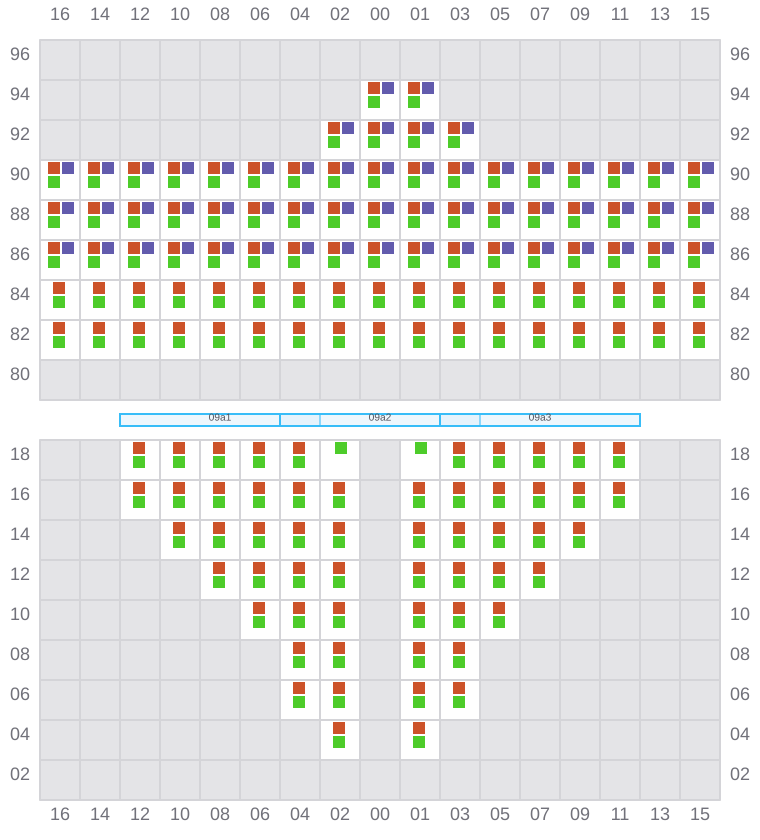

009 (010)
- →
![Bay 009 view and slots of MAERSK KLEVEN](/vessel-images/c89f4193-4be6-414b-8b53-d90fb376506b-b009.png?v=1687629817207)

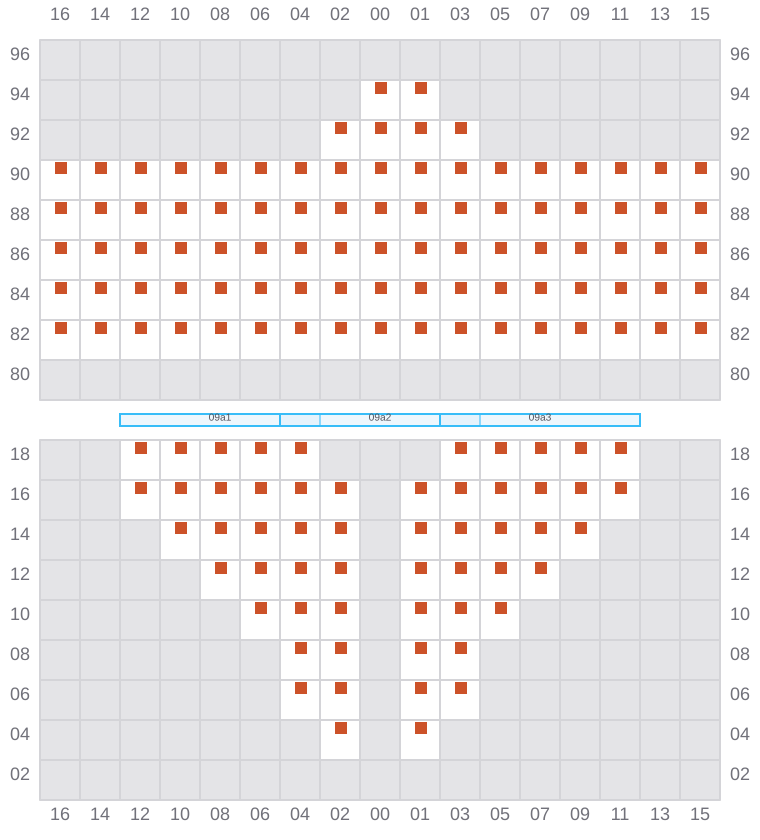

011
- ←
![Bay 011 view and slots of MAERSK KLEVEN](/vessel-images/c89f4193-4be6-414b-8b53-d90fb376506b-b011.png?v=1687629817207)

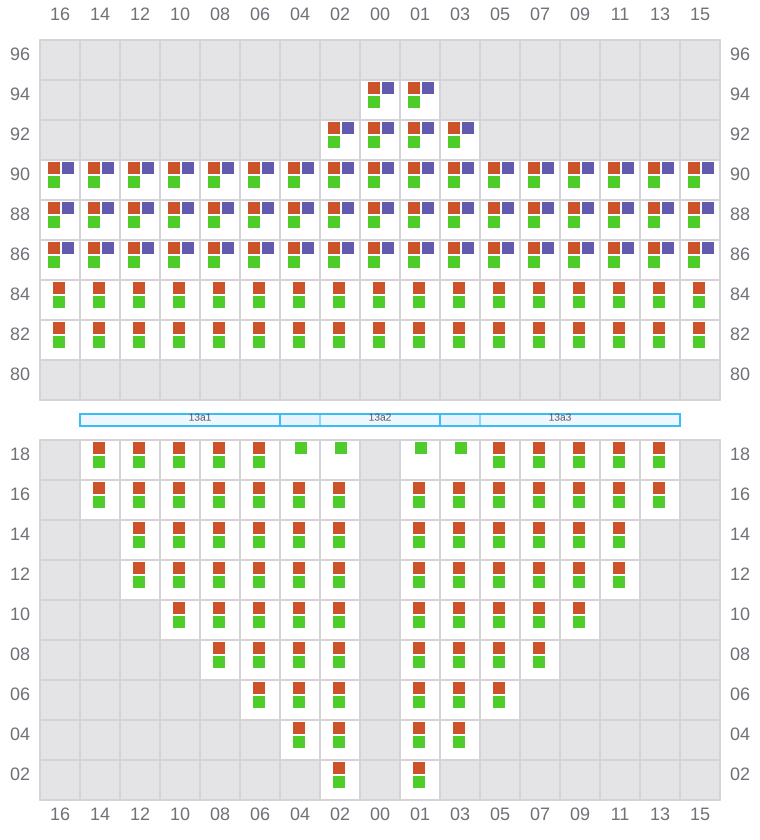

013 (014)
- →
![Bay 013 view and slots of MAERSK KLEVEN](/vessel-images/c89f4193-4be6-414b-8b53-d90fb376506b-b013.png?v=1687629817207)

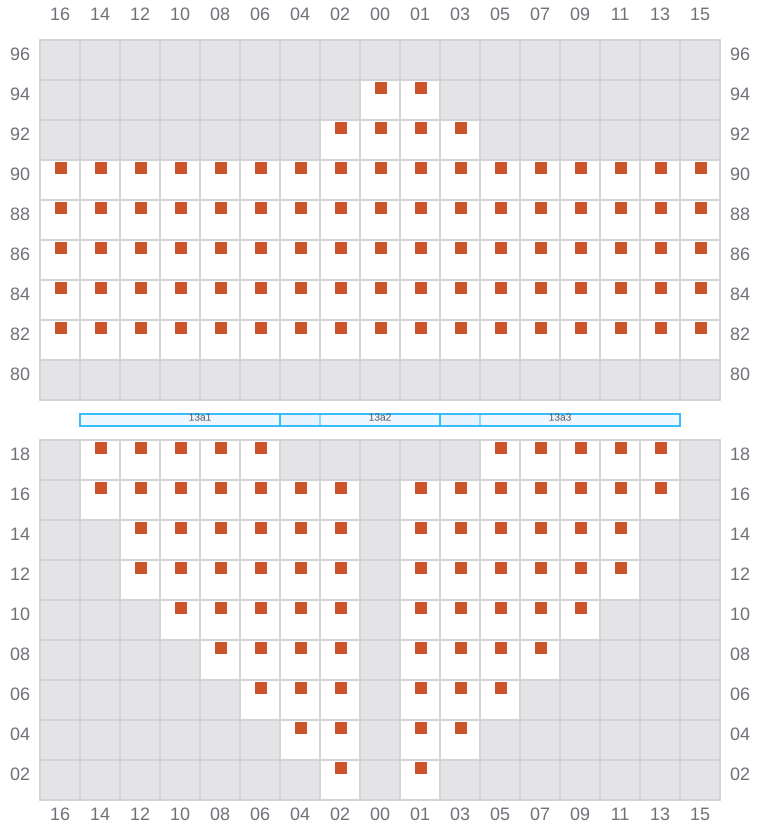

015
- ←
![Bay 015 view and slots of MAERSK KLEVEN](/vessel-images/c89f4193-4be6-414b-8b53-d90fb376506b-b015.png?v=1687629817207)

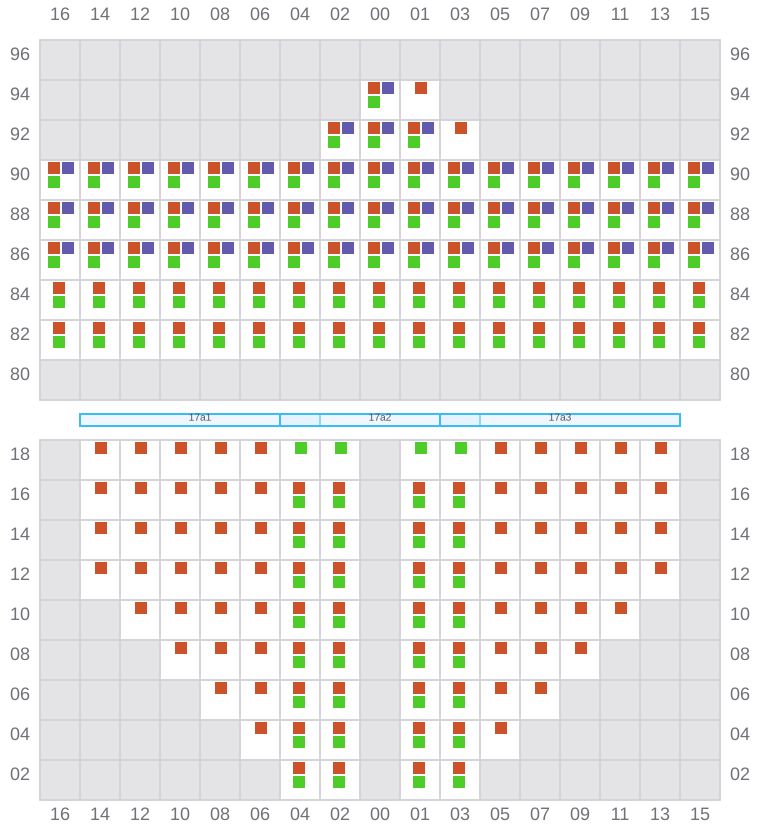

017 (018)
- →
![Bay 017 view and slots of MAERSK KLEVEN](/vessel-images/c89f4193-4be6-414b-8b53-d90fb376506b-b017.png?v=1687629817207)
019
- ←
- → / ?
![Bay 019 view and slots of MAERSK KLEVEN](/vessel-images/c89f4193-4be6-414b-8b53-d90fb376506b-b019.png?v=1687629817207)

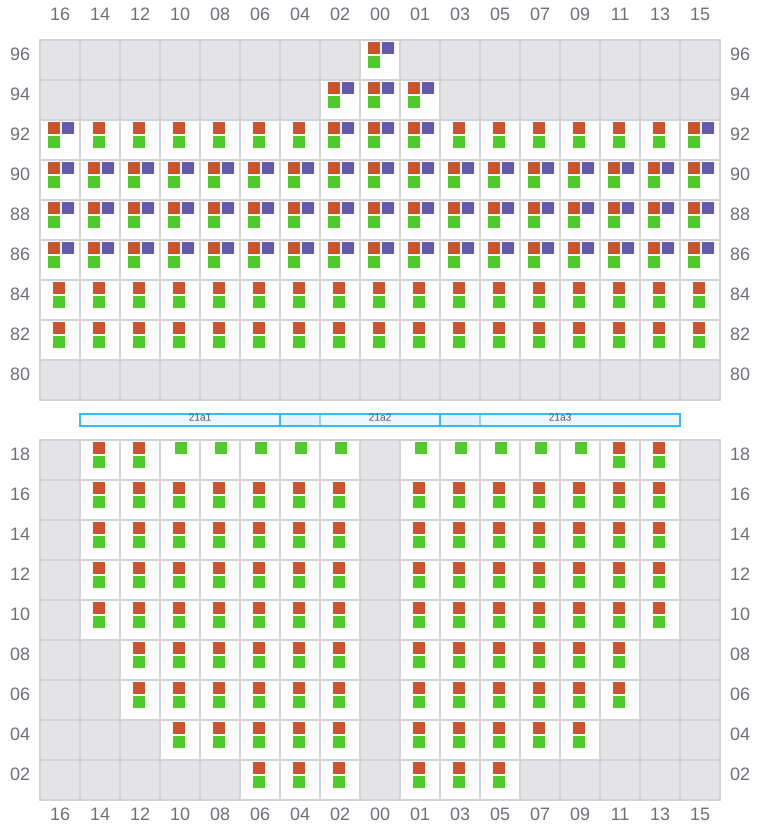

021 (022)
- →
![Bay 021 view and slots of MAERSK KLEVEN](/vessel-images/c89f4193-4be6-414b-8b53-d90fb376506b-b021.png?v=1687629817207)

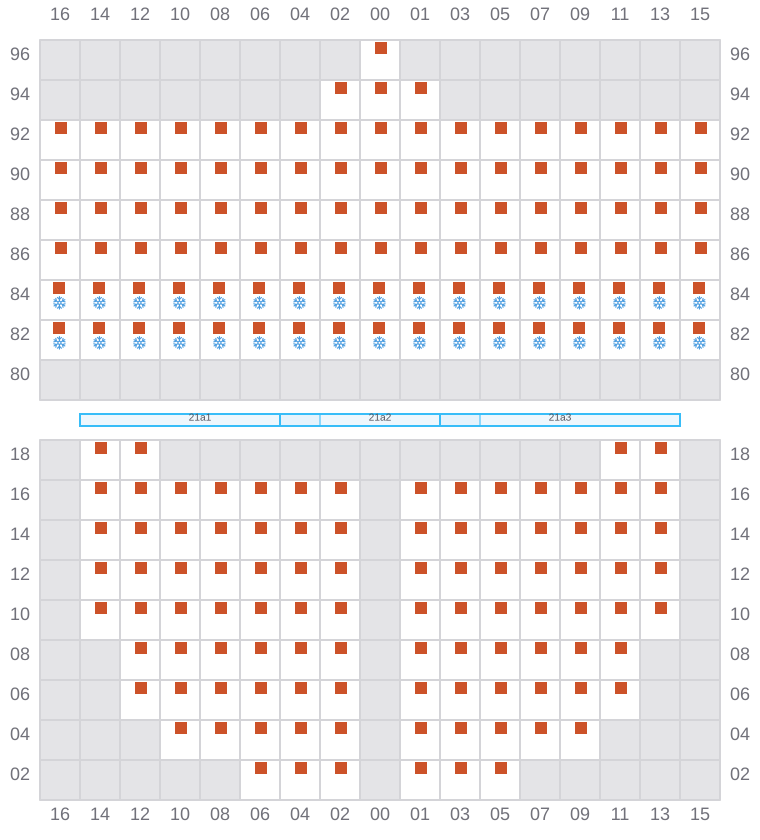

023
- ←
- → / ?
![Bay 023 view and slots of MAERSK KLEVEN](/vessel-images/c89f4193-4be6-414b-8b53-d90fb376506b-b023.png?v=1687629817207)

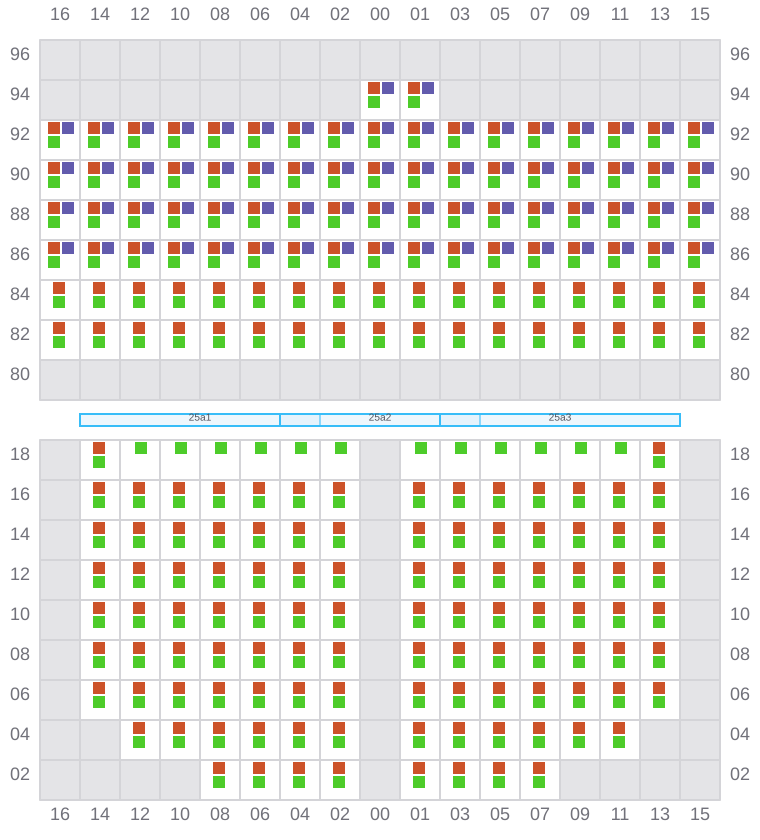

025 (026)
- →
![Bay 025 view and slots of MAERSK KLEVEN](/vessel-images/c89f4193-4be6-414b-8b53-d90fb376506b-b025.png?v=1687629817207)

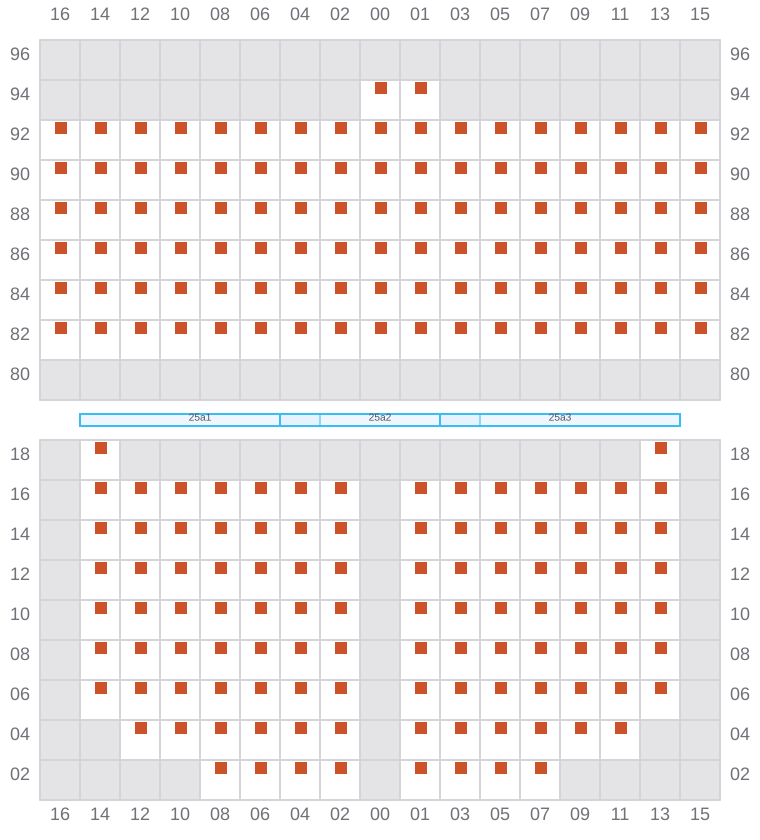

027
- ←
![Bay 027 view and slots of MAERSK KLEVEN](/vessel-images/c89f4193-4be6-414b-8b53-d90fb376506b-b027.png?v=1687629817207)

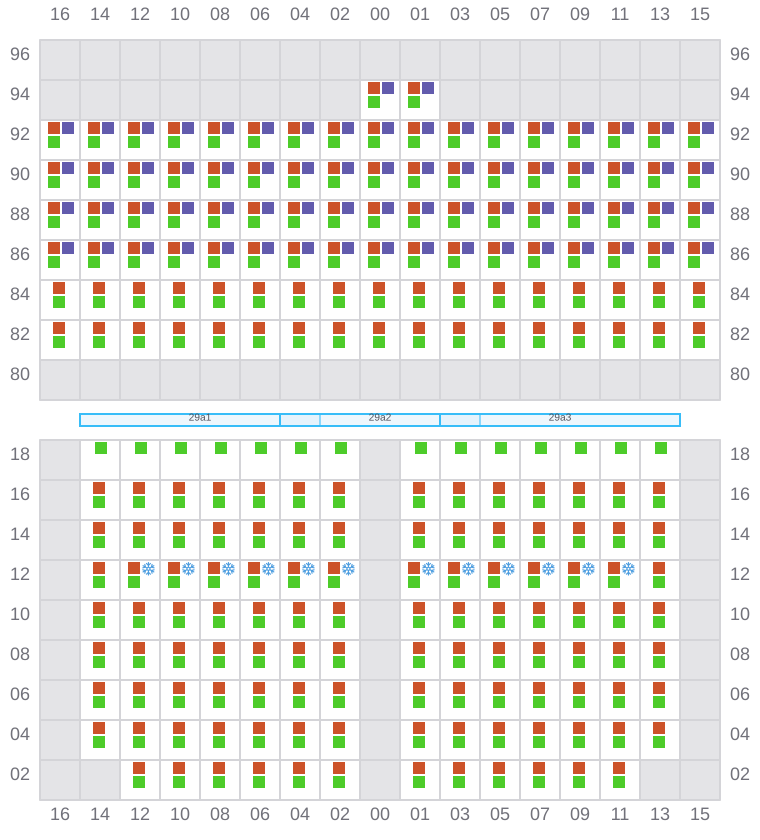

029 (030)
- →
- ? / →
![Bay 029 view and slots of MAERSK KLEVEN](/vessel-images/c89f4193-4be6-414b-8b53-d90fb376506b-b029.png?v=1687629817207)

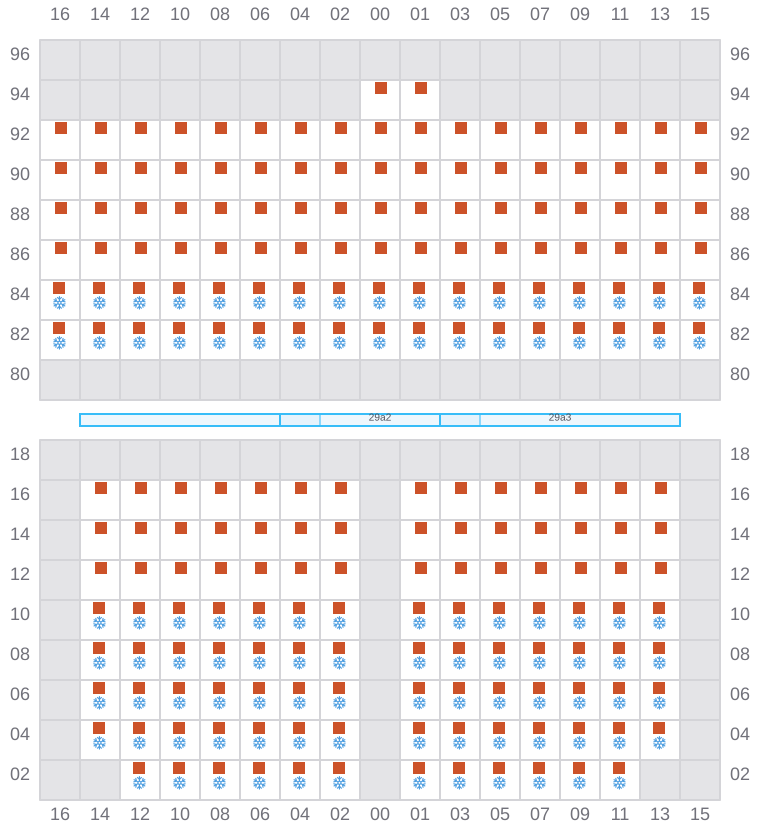

031
- ←
- →
![Bay 031 view and slots of MAERSK KLEVEN](/vessel-images/c89f4193-4be6-414b-8b53-d90fb376506b-b031.png?v=1687629817207)

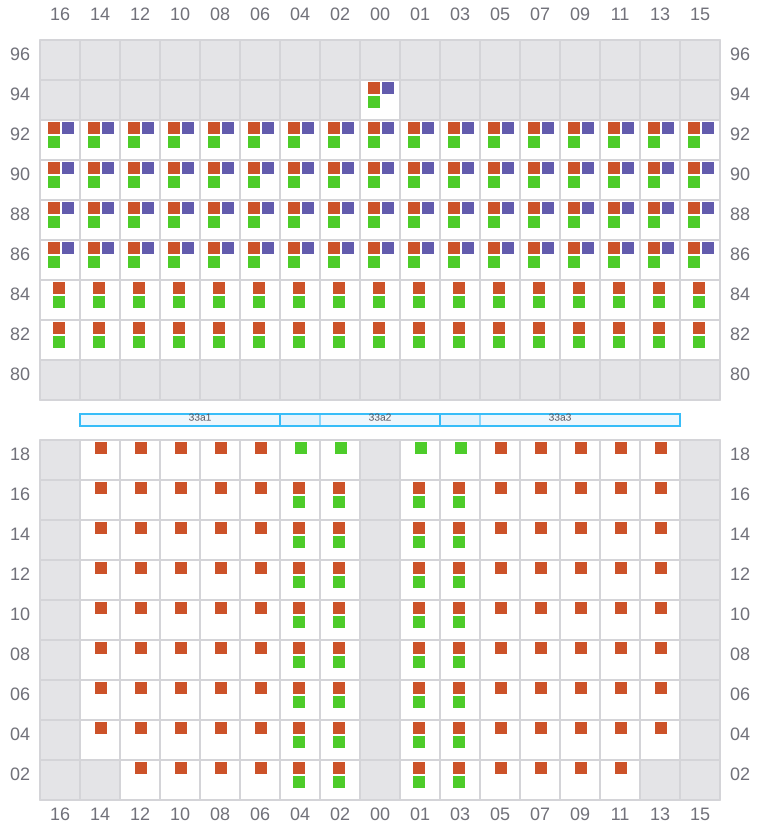

033 (034)
- →
![Bay 033 view and slots of MAERSK KLEVEN](/vessel-images/c89f4193-4be6-414b-8b53-d90fb376506b-b033.png?v=1687629817207)

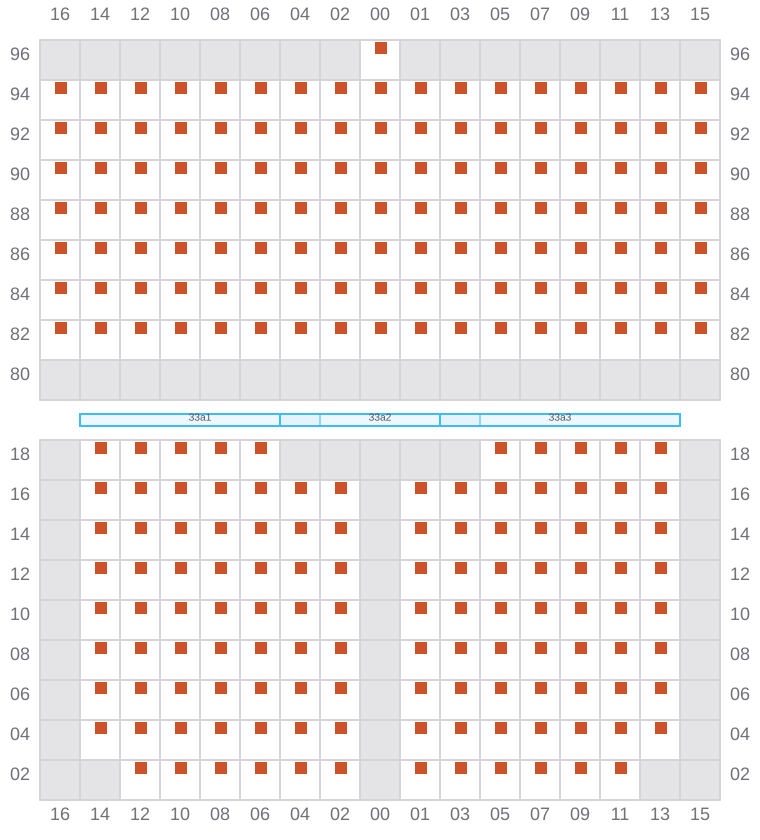

035
- ←
![Bay 035 view and slots of MAERSK KLEVEN](/vessel-images/c89f4193-4be6-414b-8b53-d90fb376506b-b035.png?v=1687629817207)

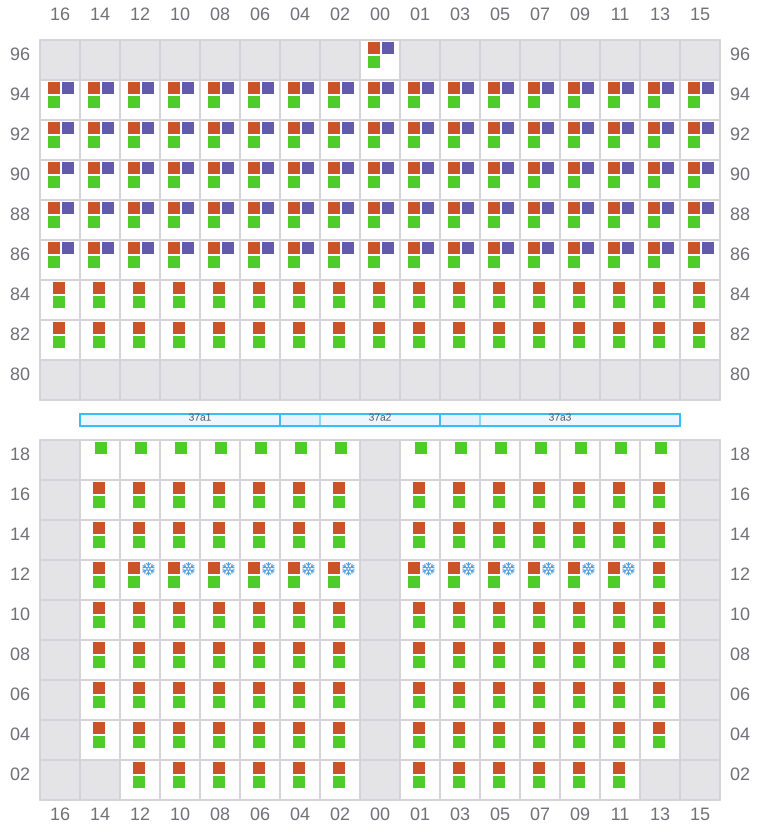

037 (038)
- →
- ? / →
![Bay 037 view and slots of MAERSK KLEVEN](/vessel-images/c89f4193-4be6-414b-8b53-d90fb376506b-b037.png?v=1687629817207)

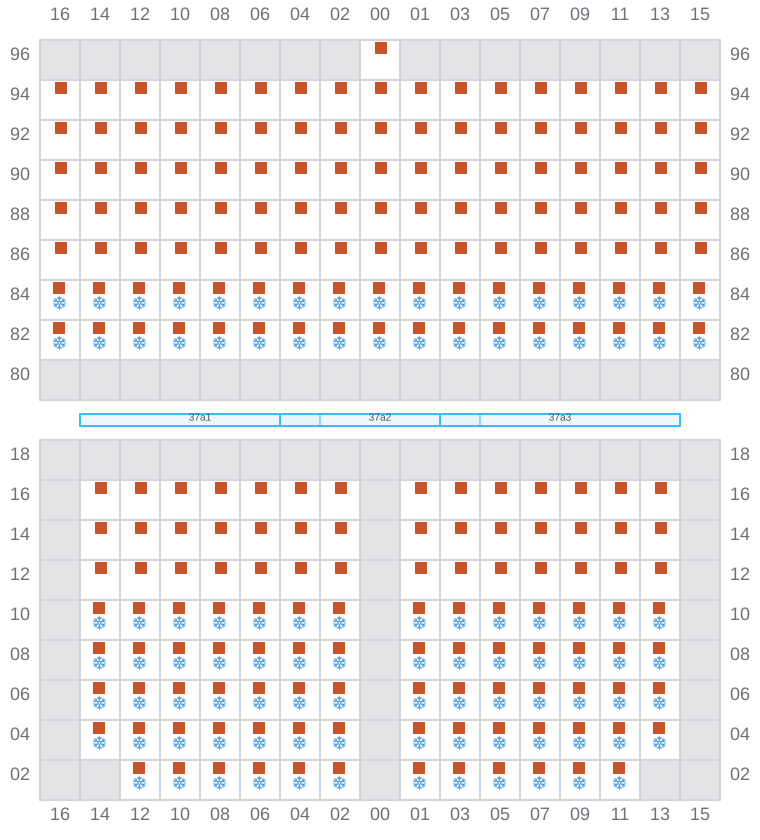

039
- ←
- →
![Bay 039 view and slots of MAERSK KLEVEN](/vessel-images/c89f4193-4be6-414b-8b53-d90fb376506b-b039.png?v=1687629817207)

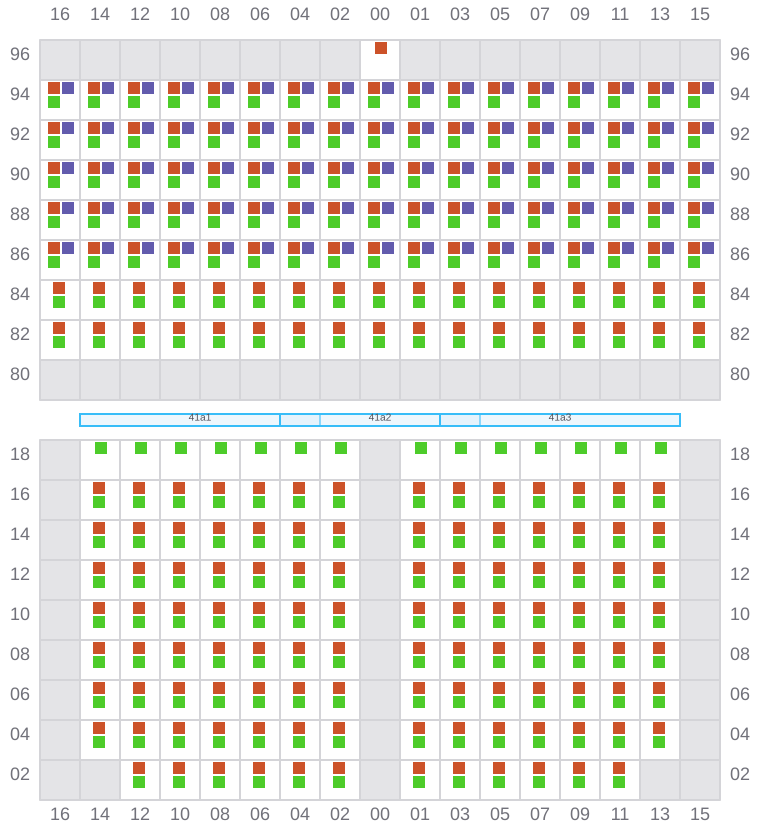

041 (042)
- →
![Bay 041 view and slots of MAERSK KLEVEN](/vessel-images/c89f4193-4be6-414b-8b53-d90fb376506b-b041.png?v=1687629817207)

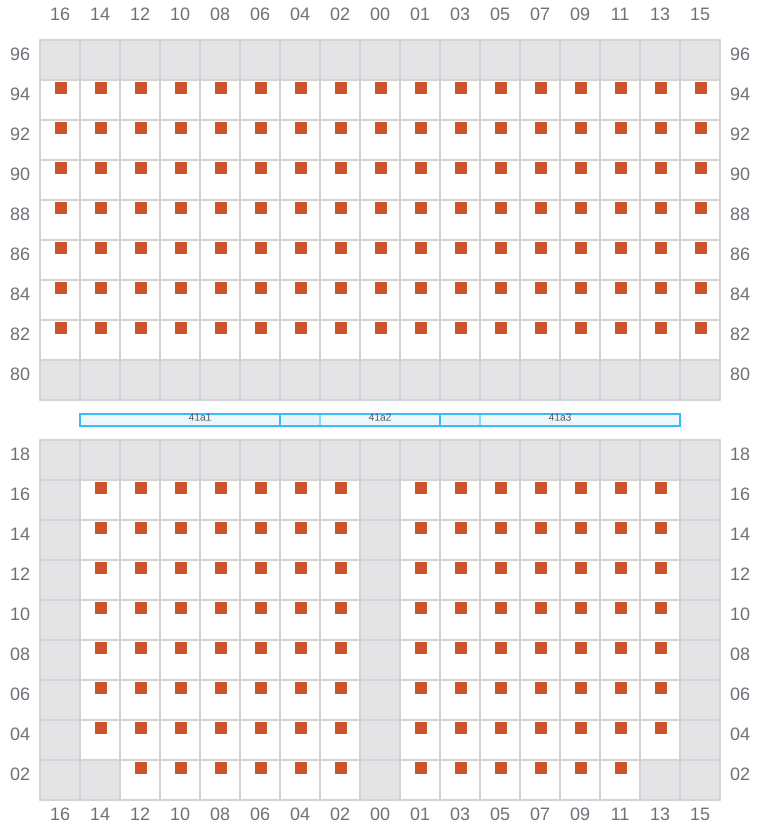

043
- ←
![Bay 043 view and slots of MAERSK KLEVEN](/vessel-images/c89f4193-4be6-414b-8b53-d90fb376506b-b043.png?v=1687629817207)

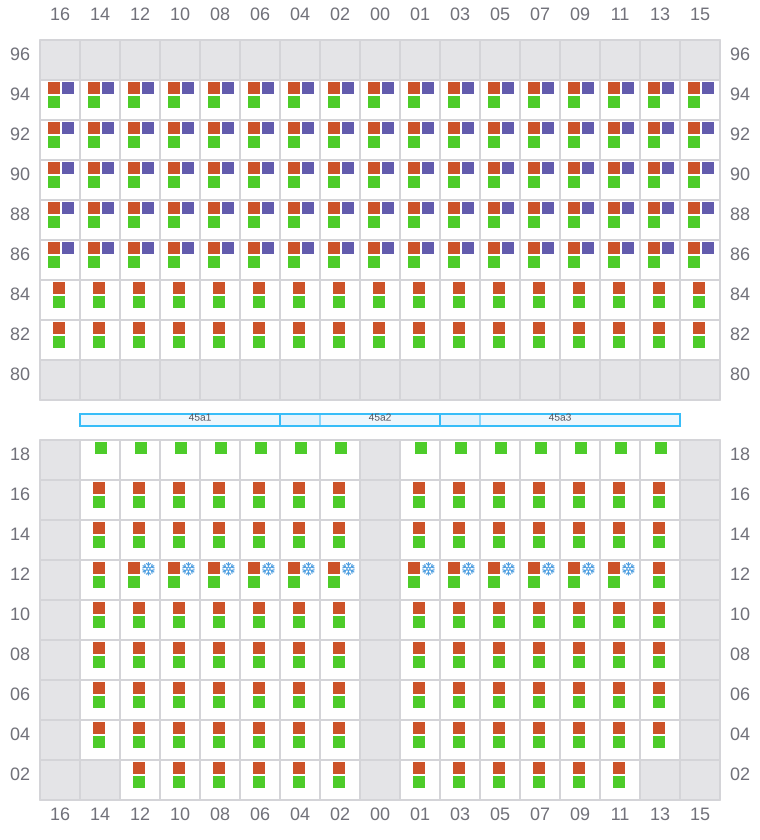

045 (046)
- →
- ? / →
![Bay 045 view and slots of MAERSK KLEVEN](/vessel-images/c89f4193-4be6-414b-8b53-d90fb376506b-b045.png?v=1687629817207)

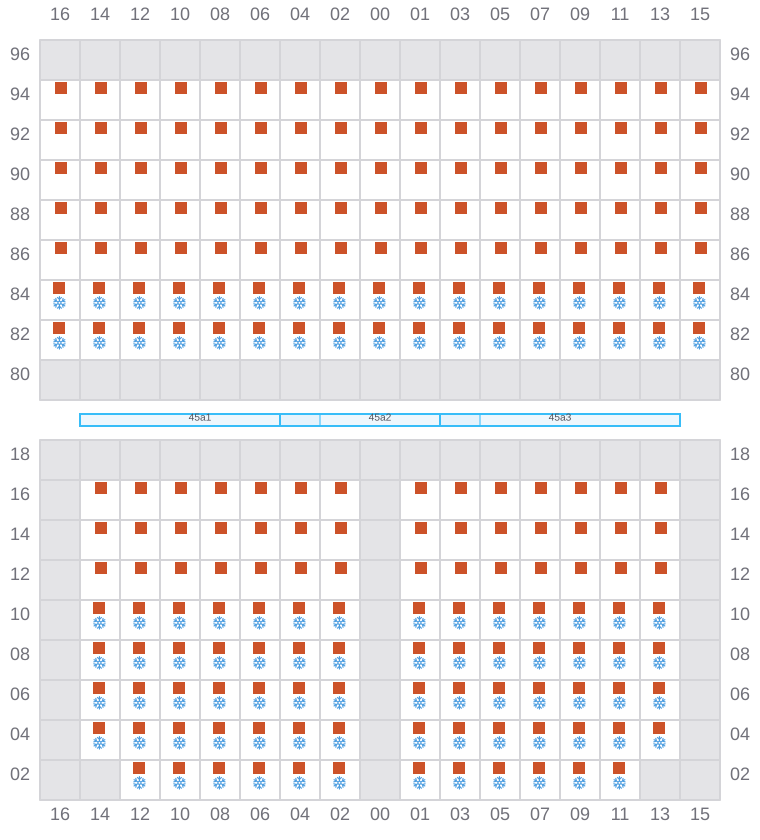

047
- ←
- →
![Bay 047 view and slots of MAERSK KLEVEN](/vessel-images/c89f4193-4be6-414b-8b53-d90fb376506b-b047.png?v=1687629817207)

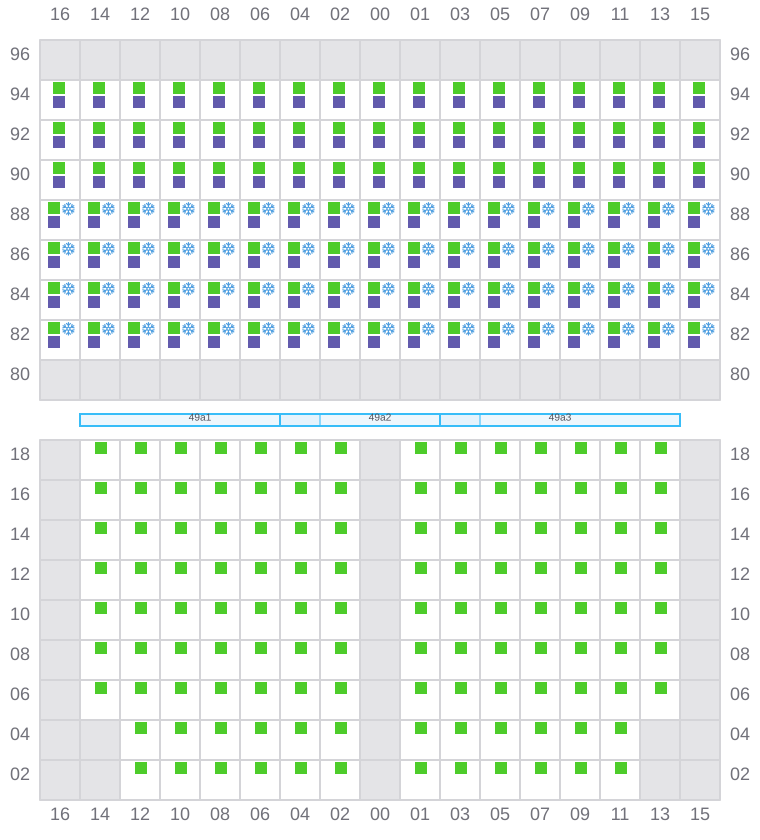

049 (050)
- →
- → / ?
![Bay 049 view and slots of MAERSK KLEVEN](/vessel-images/c89f4193-4be6-414b-8b53-d90fb376506b-b049.png?v=1687629817207)
051
![Bay 051 view and slots of MAERSK KLEVEN](/vessel-images/c89f4193-4be6-414b-8b53-d90fb376506b-b051.png?v=1687629817207)

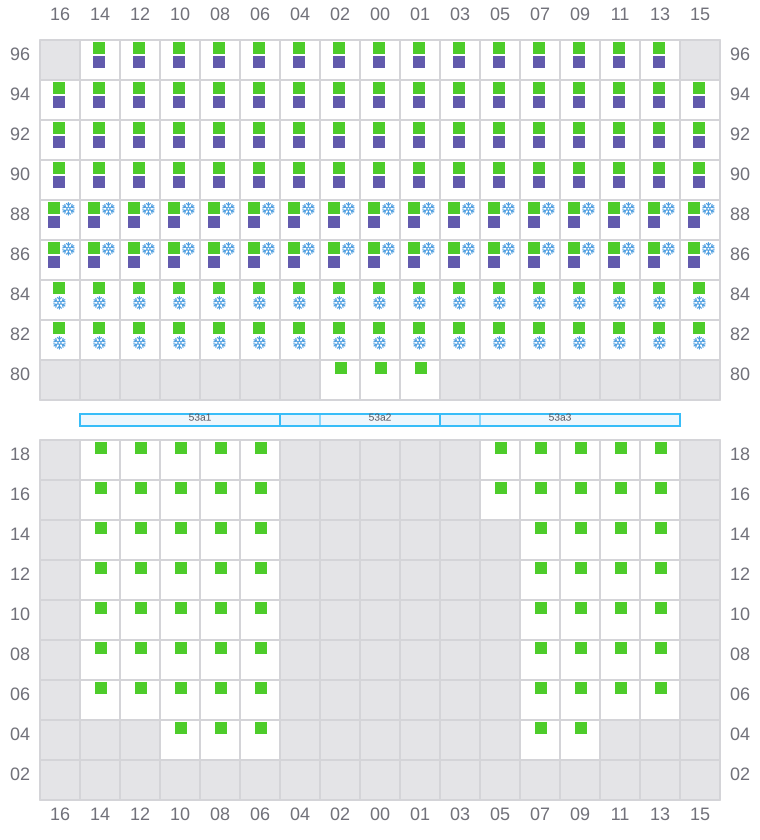

053 (054)
- →
- ← / ?
![Bay 053 view and slots of MAERSK KLEVEN](/vessel-images/c89f4193-4be6-414b-8b53-d90fb376506b-b053.png?v=1687629817207)
055
![Bay 055 view and slots of MAERSK KLEVEN](/vessel-images/c89f4193-4be6-414b-8b53-d90fb376506b-b055.png?v=1687629817207)
057 (058)
- →
- ← / →
![Bay 057 view and slots of MAERSK KLEVEN](/vessel-images/c89f4193-4be6-414b-8b53-d90fb376506b-b057.png?v=1687629817207)
059
- ←
- ? / →
![Bay 059 view and slots of MAERSK KLEVEN](/vessel-images/c89f4193-4be6-414b-8b53-d90fb376506b-b059.png?v=1687629817207)

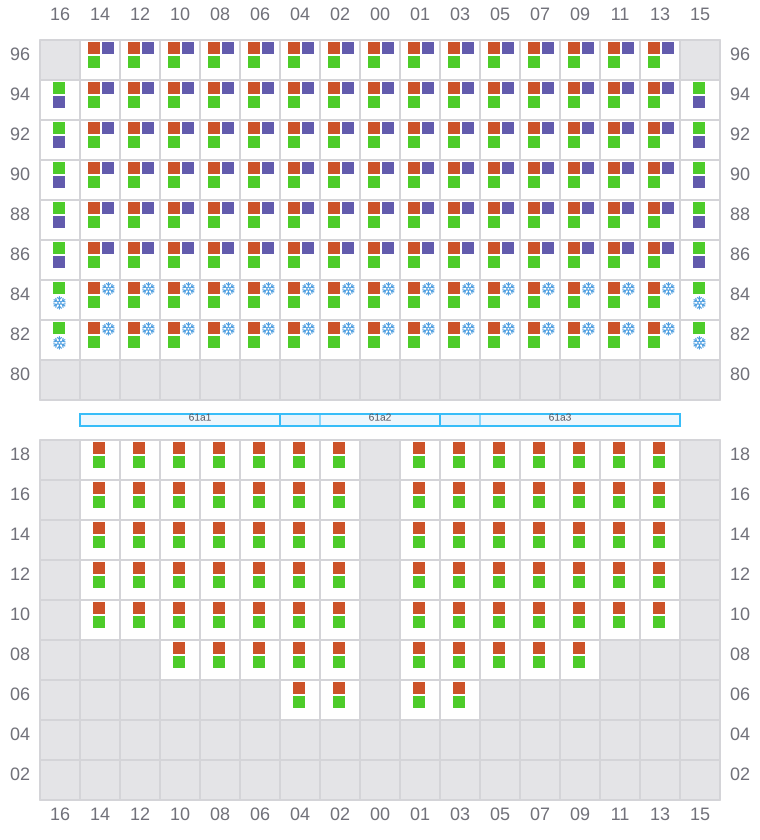

061 (062)
- →
- ← / ?
![Bay 061 view and slots of MAERSK KLEVEN](/vessel-images/c89f4193-4be6-414b-8b53-d90fb376506b-b061.png?v=1687629817207)

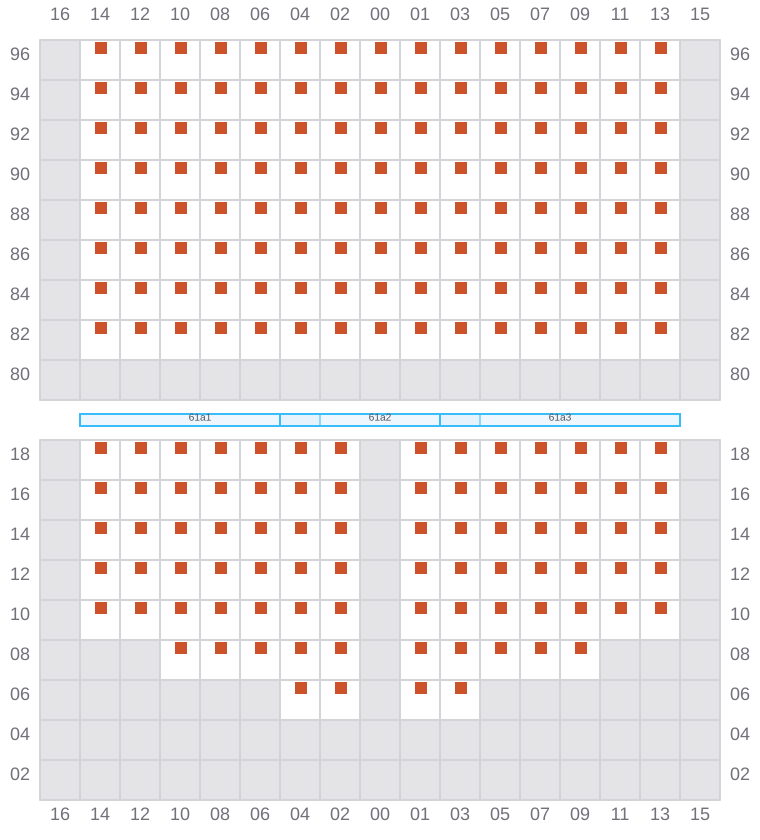

063
- ←
![Bay 063 view and slots of MAERSK KLEVEN](/vessel-images/c89f4193-4be6-414b-8b53-d90fb376506b-b063.png?v=1687629817207)

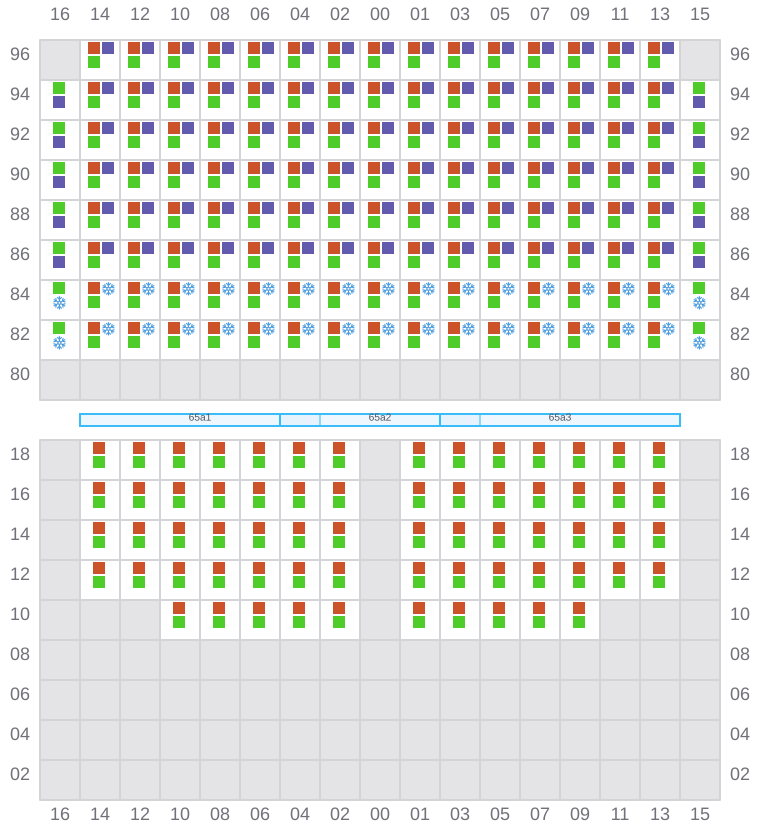

065 (066)
- →
- ← / ?
![Bay 065 view and slots of MAERSK KLEVEN](/vessel-images/c89f4193-4be6-414b-8b53-d90fb376506b-b065.png?v=1687629817207)

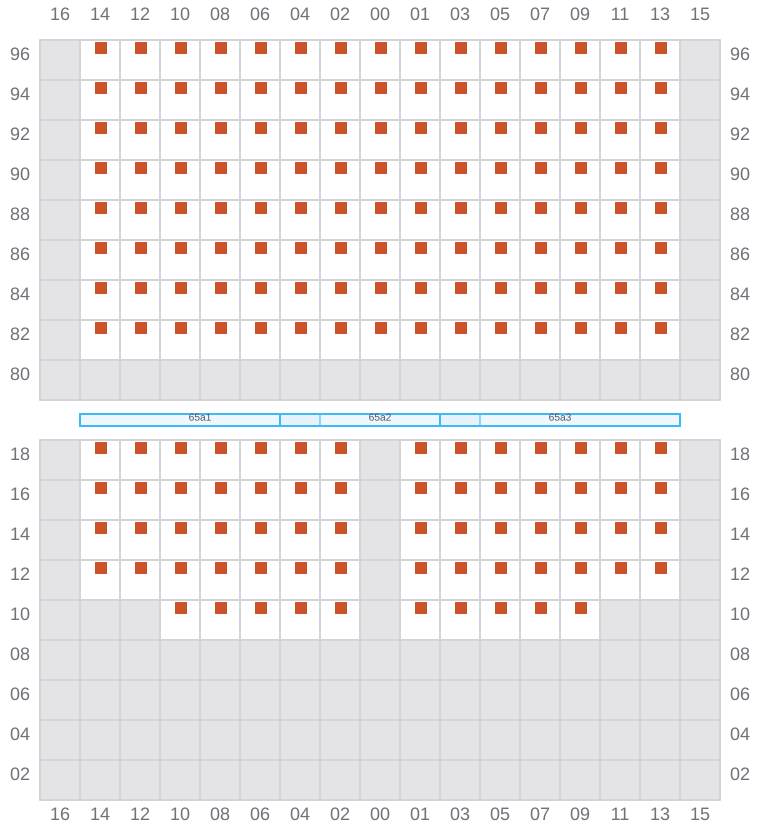

067
- ←
![Bay 067 view and slots of MAERSK KLEVEN](/vessel-images/c89f4193-4be6-414b-8b53-d90fb376506b-b067.png?v=1687629817207)

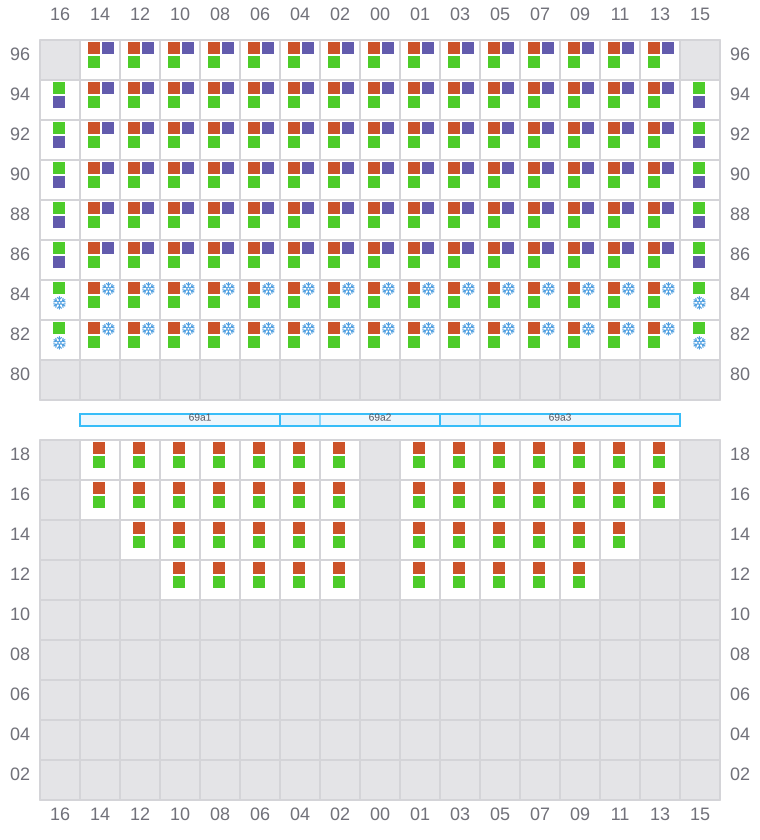

069 (070)
- →
- ← / ?
![Bay 069 view and slots of MAERSK KLEVEN](/vessel-images/c89f4193-4be6-414b-8b53-d90fb376506b-b069.png?v=1687629817207)

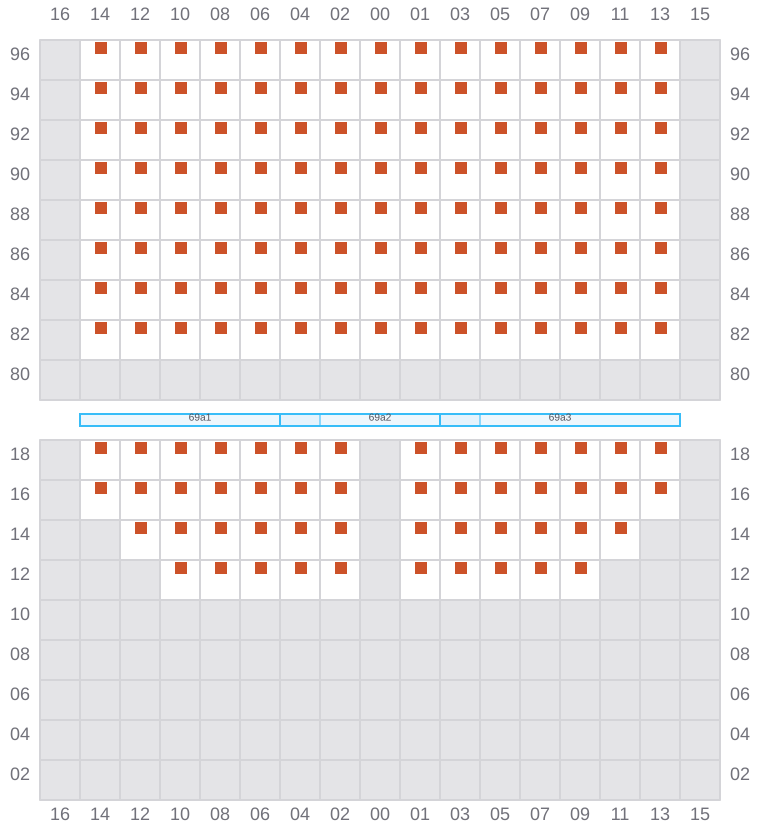

071
- ←
![Bay 071 view and slots of MAERSK KLEVEN](/vessel-images/c89f4193-4be6-414b-8b53-d90fb376506b-b071.png?v=1687629817207)

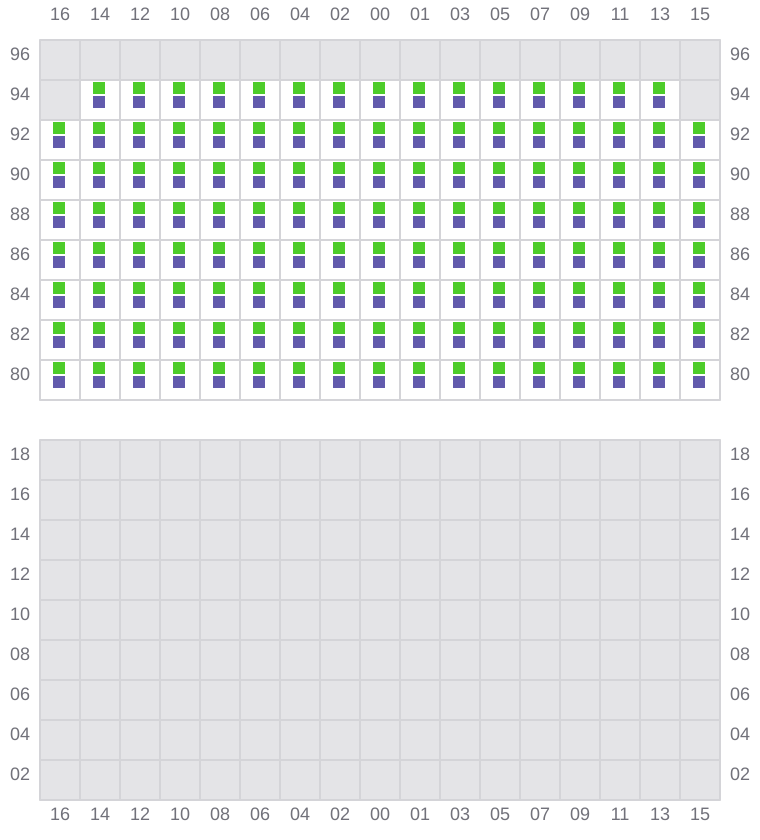

073 (074)
- → / ?
![Bay 073 view and slots of MAERSK KLEVEN](/vessel-images/c89f4193-4be6-414b-8b53-d90fb376506b-b073.png?v=1687629817207)
