MAERSK KLEVEN
9085546 | D5RZ8 | 90855 by ********* Last update: Mon May 06 2024

General Info

Ship Name:MAERSK KLEVEN
IMO Code:9085546
Call Sign:D5RZ8
Line Operator:90855
Class Name for Sister Ships:MAE
Year Built:1996
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-

Size Summary

ISO Bays:073
Max ISO Row:16
Center Line Row:Yes
Max Above ISO Tier:96
Min Above ISO Tier:80
Max Below ISO Tier:18
Min Below ISO Tier:02
Total TEU:7,424

Centers of Gravity

LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

Side View

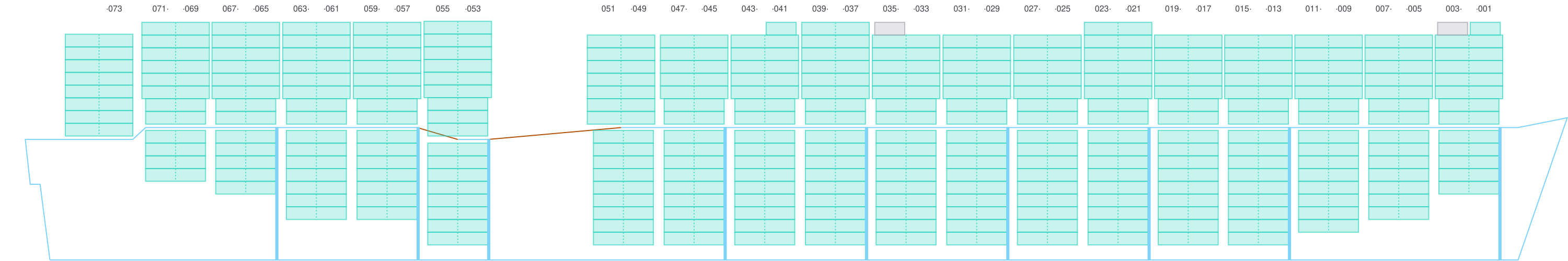

Side view of MAERSK KLEVEN

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot

001 (002)

  • →

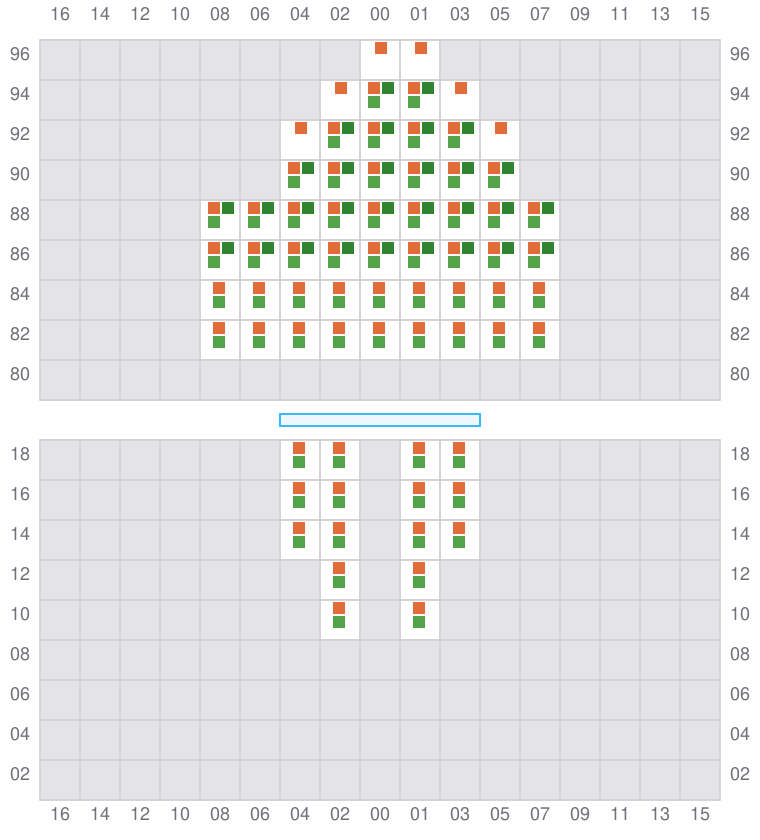

Bay 001 view and slots of MAERSK KLEVEN

003

  • ←

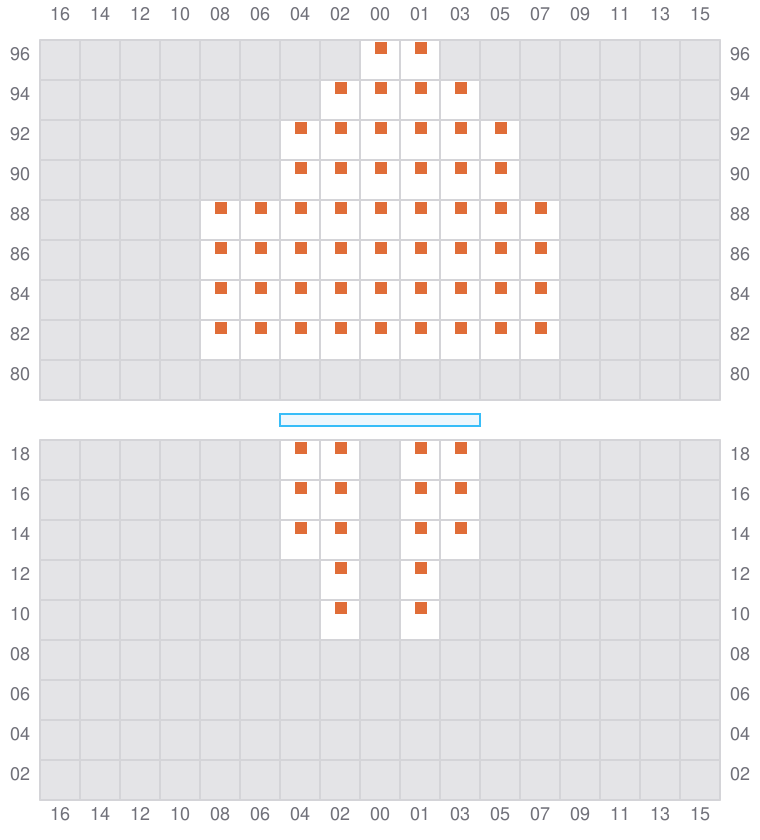

Bay 003 view and slots of MAERSK KLEVEN

005 (006)

  • →

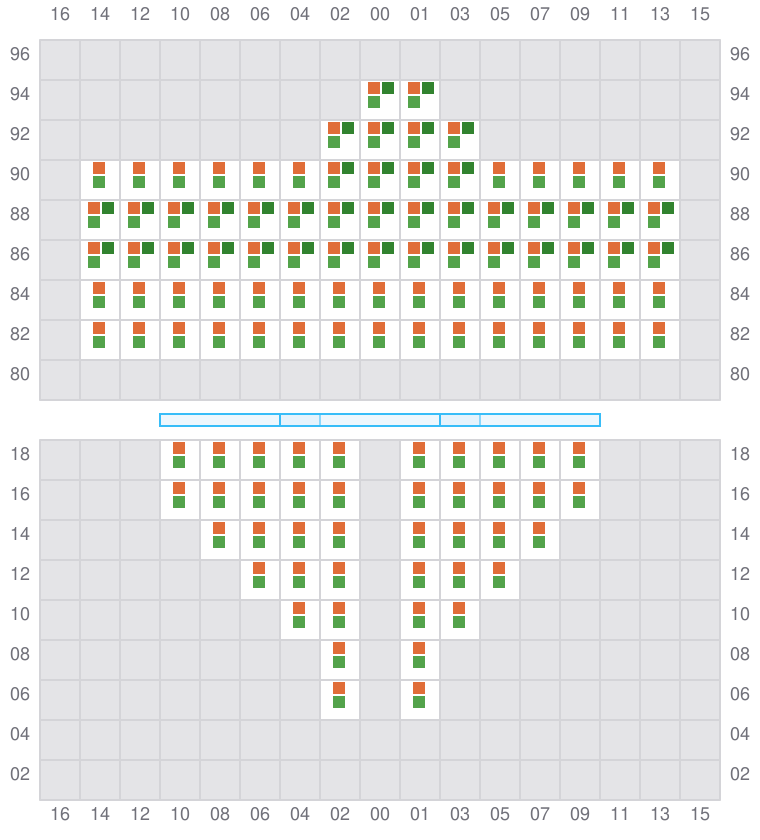

Bay 005 view and slots of MAERSK KLEVEN

007

  • ←
Bay 007 view and slots of MAERSK KLEVEN

009 (010)

  • →

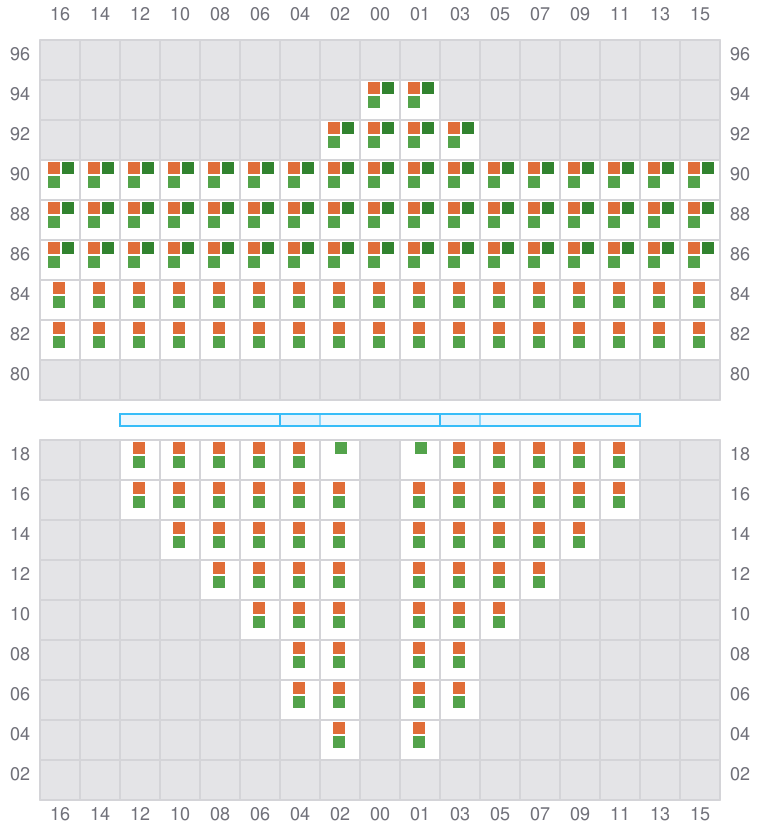

Bay 009 view and slots of MAERSK KLEVEN

011

  • ←

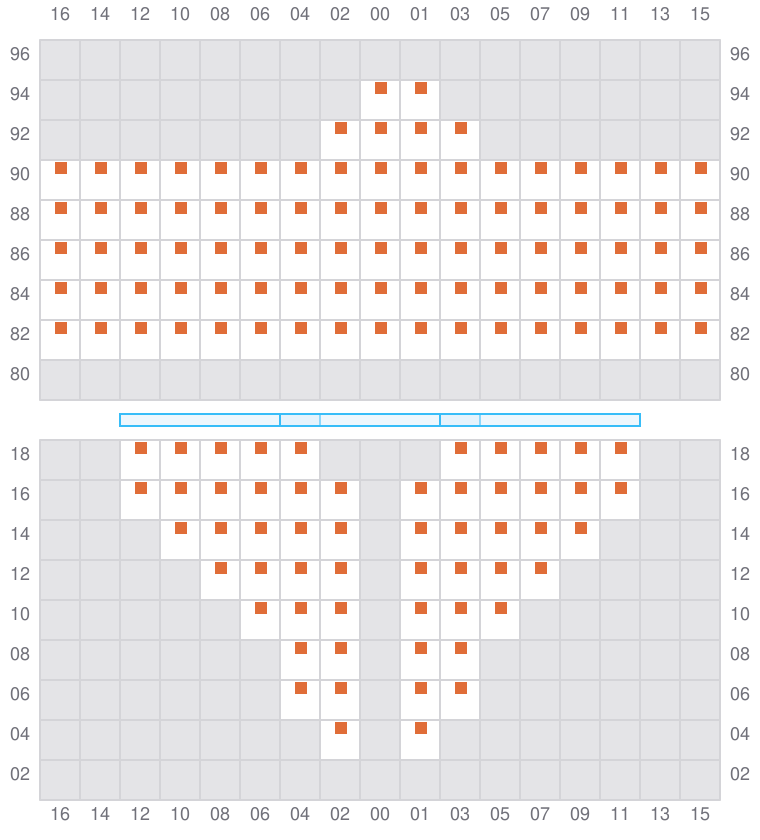

Bay 011 view and slots of MAERSK KLEVEN

013 (014)

  • →

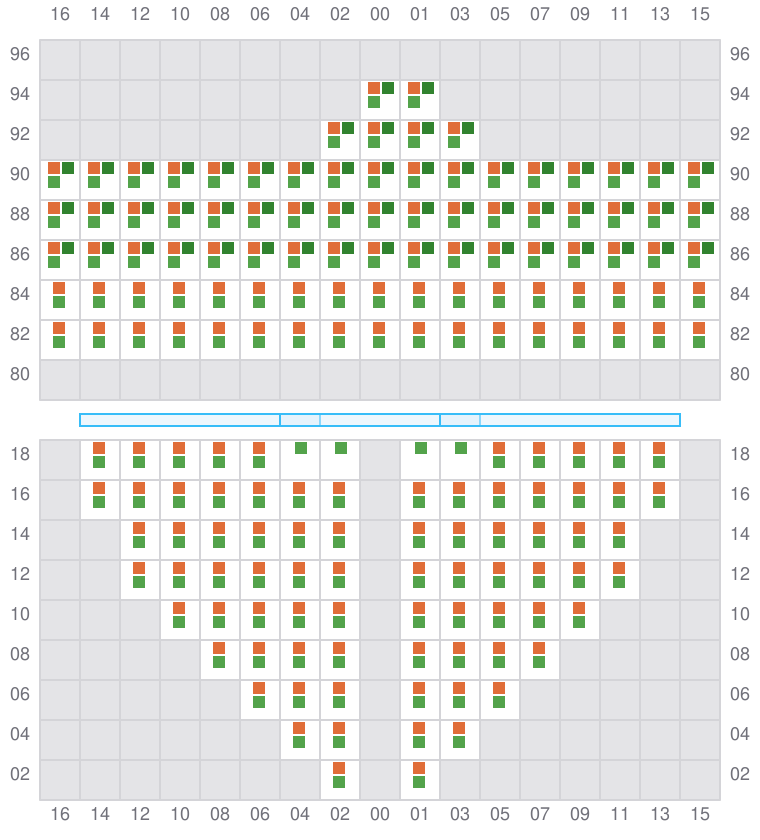

Bay 013 view and slots of MAERSK KLEVEN

015

  • ←

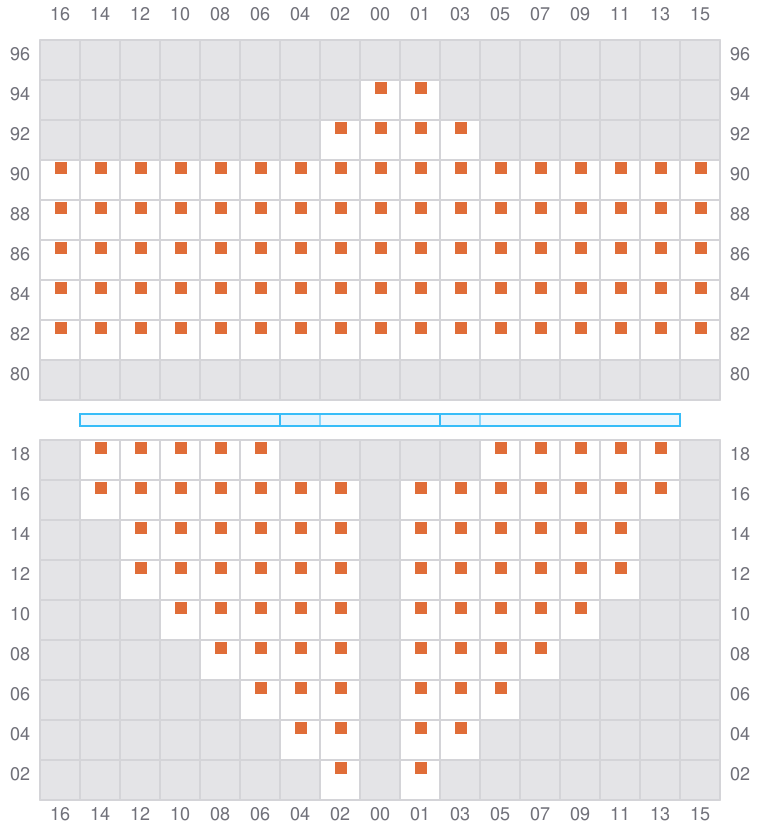

Bay 015 view and slots of MAERSK KLEVEN

017 (018)

  • →

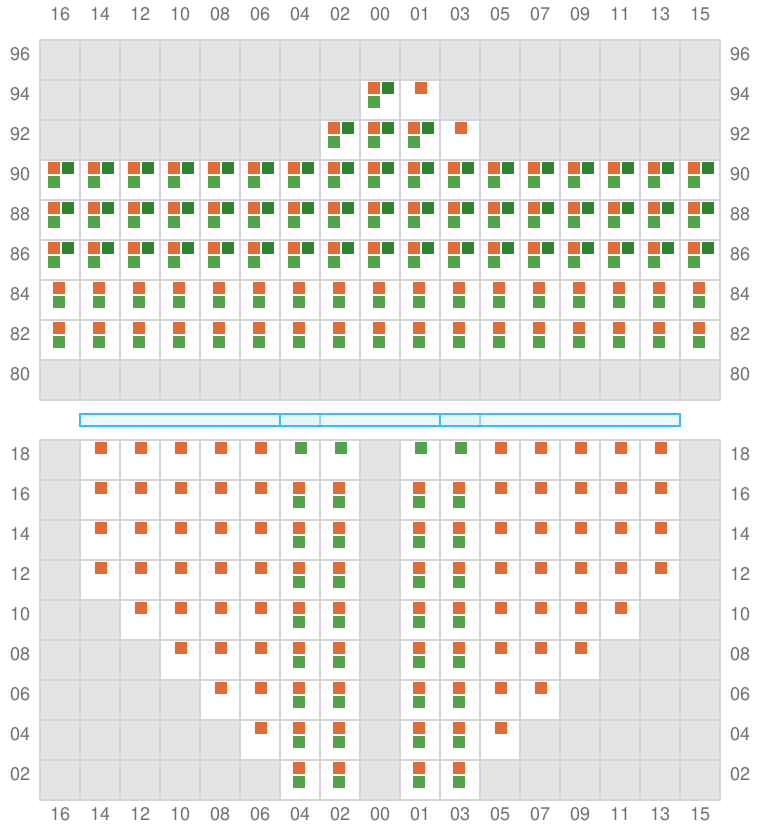

Bay 017 view and slots of MAERSK KLEVEN

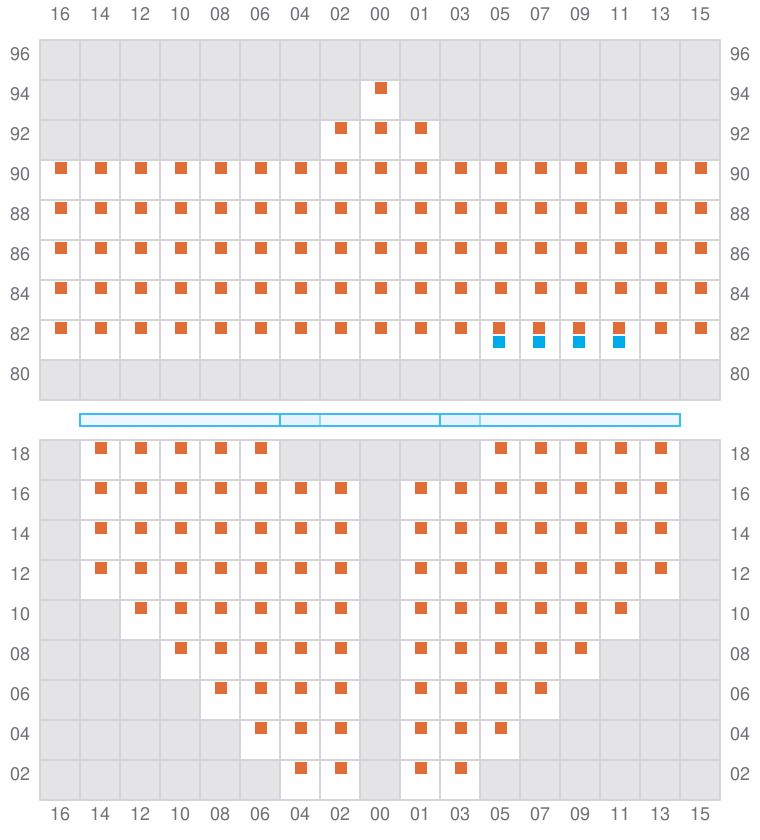

019

  • ←
  • → / ?
Bay 019 view and slots of MAERSK KLEVEN

021 (022)

  • →

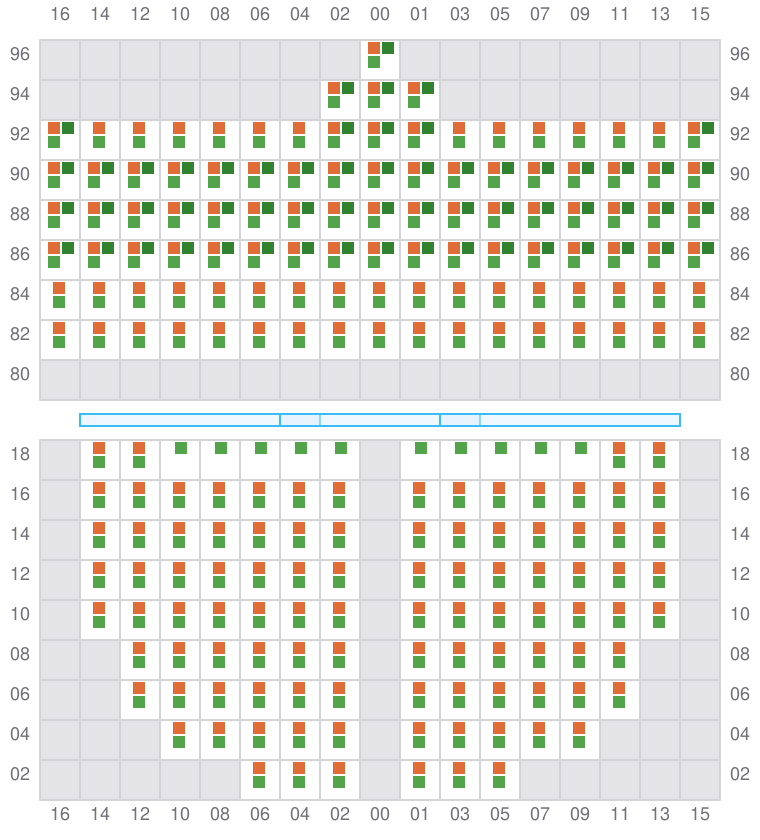

Bay 021 view and slots of MAERSK KLEVEN

023

  • ←
  • → / ?

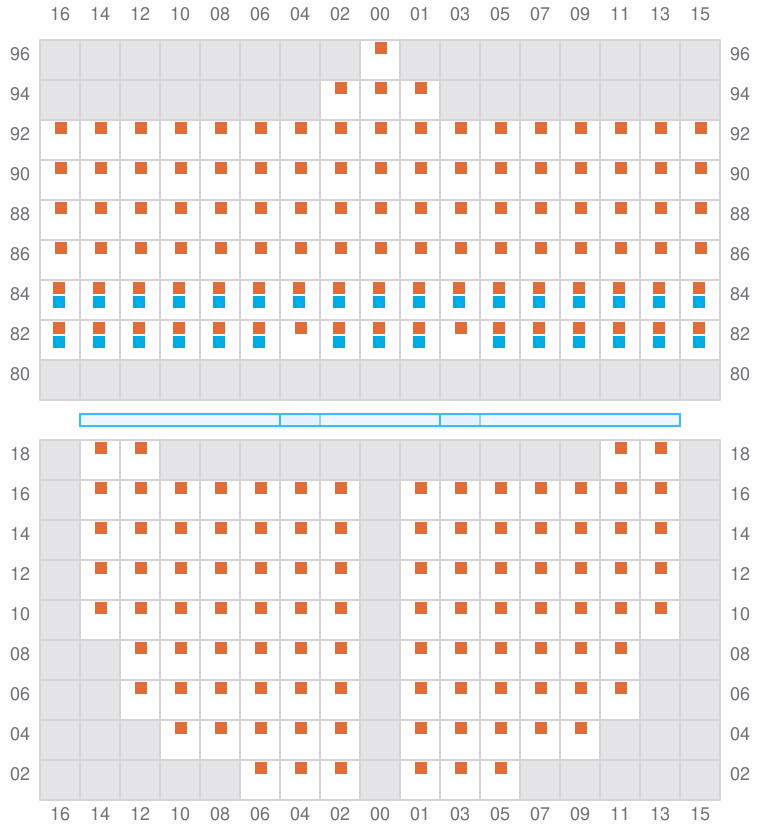

Bay 023 view and slots of MAERSK KLEVEN

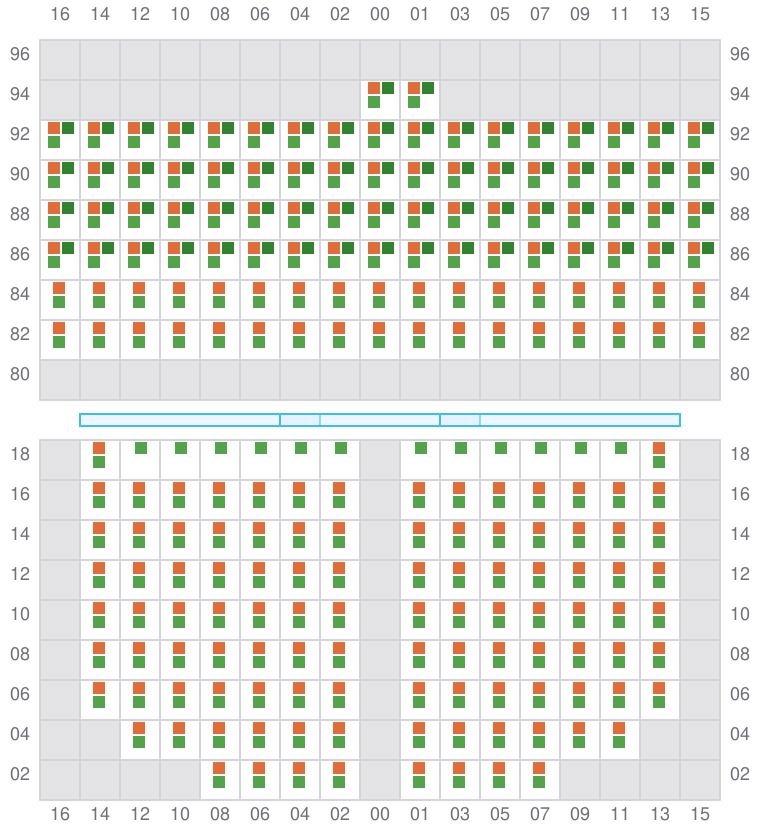

025 (026)

  • →
Bay 025 view and slots of MAERSK KLEVEN

027

  • ←

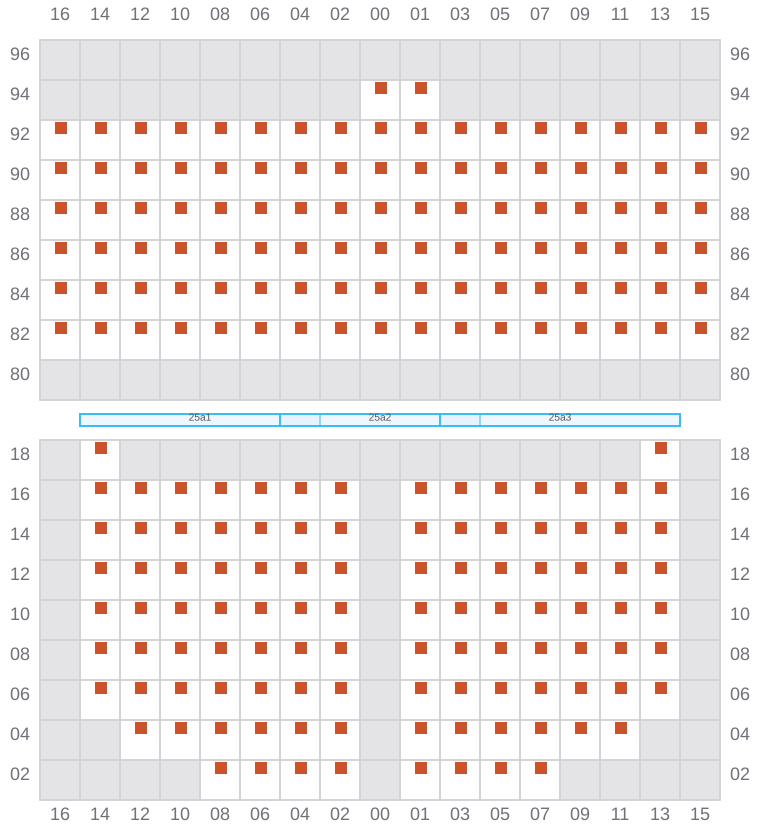

Bay 027 view and slots of MAERSK KLEVEN

029 (030)

  • →
  • ? / →
Bay 029 view and slots of MAERSK KLEVEN

031

  • ←
  • →

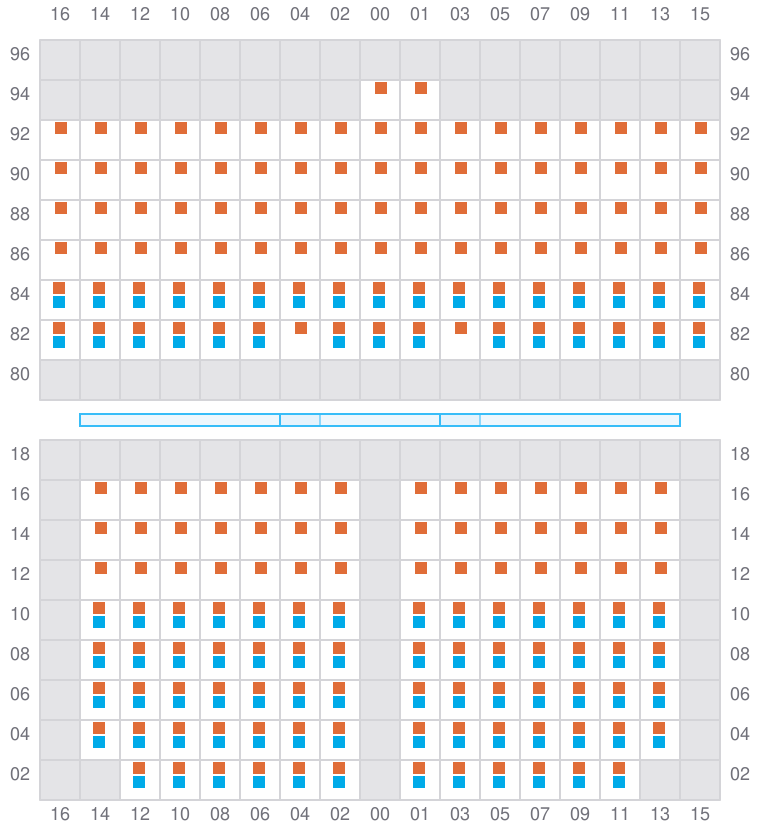

Bay 031 view and slots of MAERSK KLEVEN

033 (034)

  • →
Bay 033 view and slots of MAERSK KLEVEN

035

  • ←

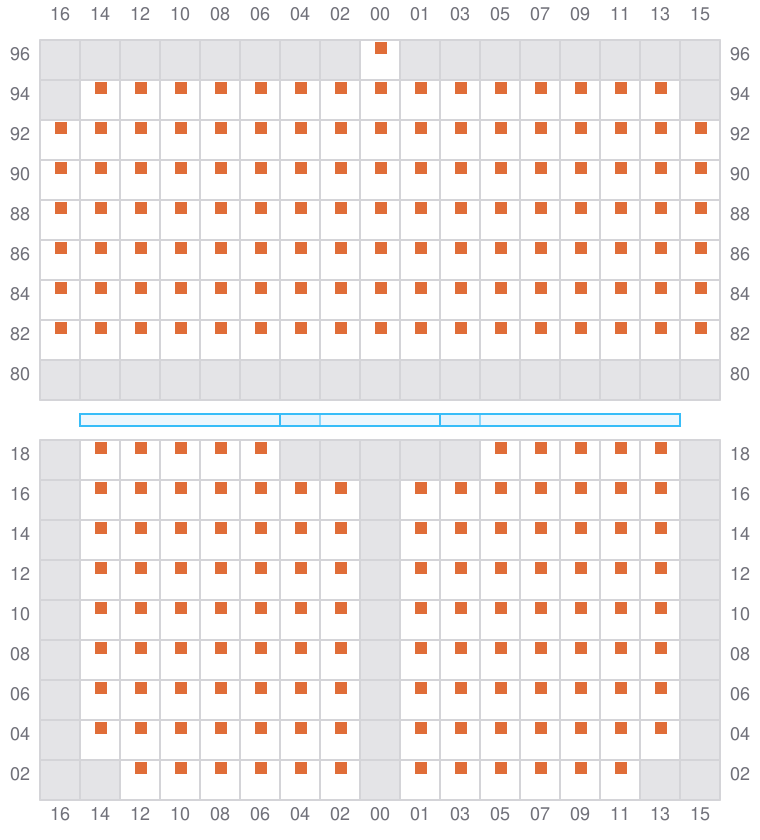

Bay 035 view and slots of MAERSK KLEVEN

037 (038)

  • →
  • ? / →

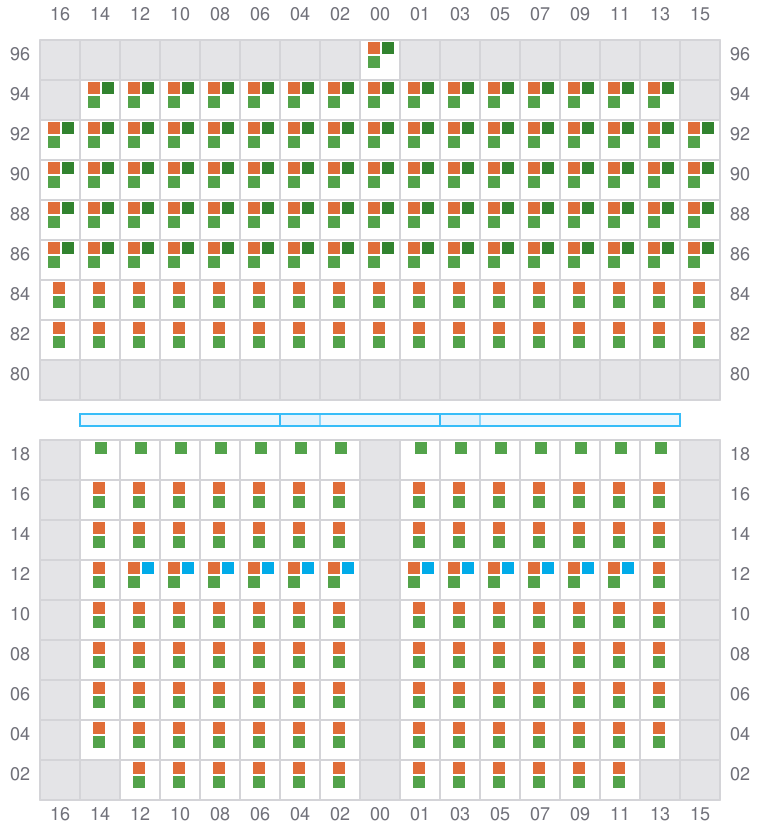

Bay 037 view and slots of MAERSK KLEVEN

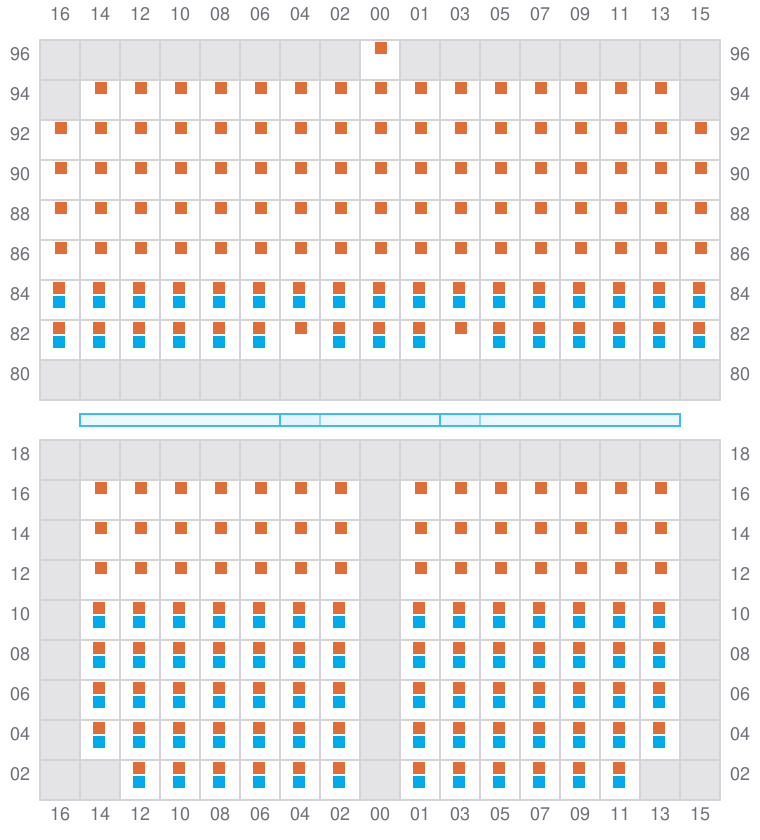

039

  • ←
  • →
Bay 039 view and slots of MAERSK KLEVEN

041 (042)

  • →

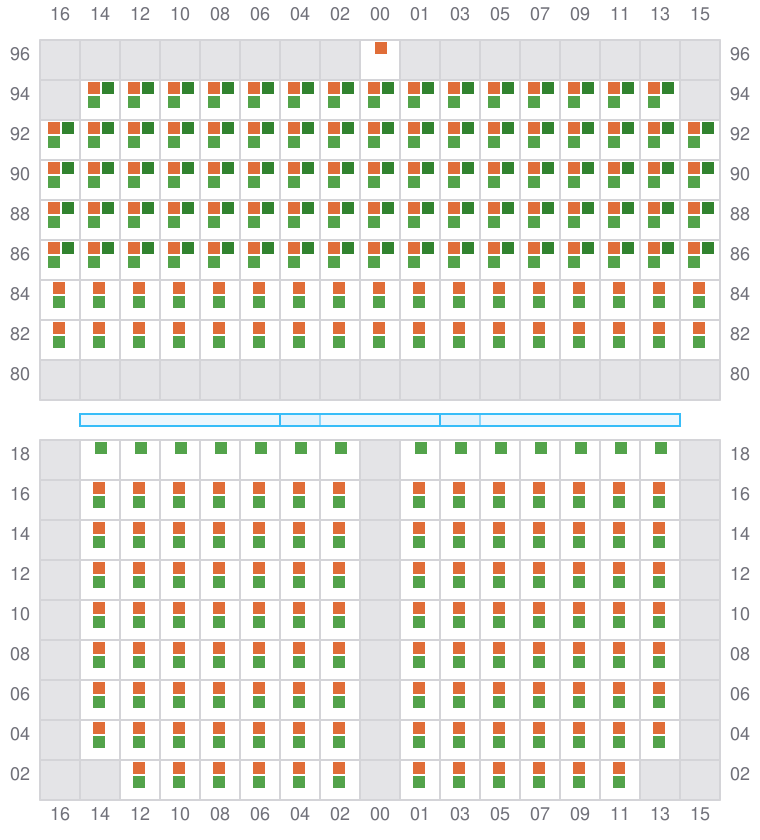

Bay 041 view and slots of MAERSK KLEVEN

043

  • ←

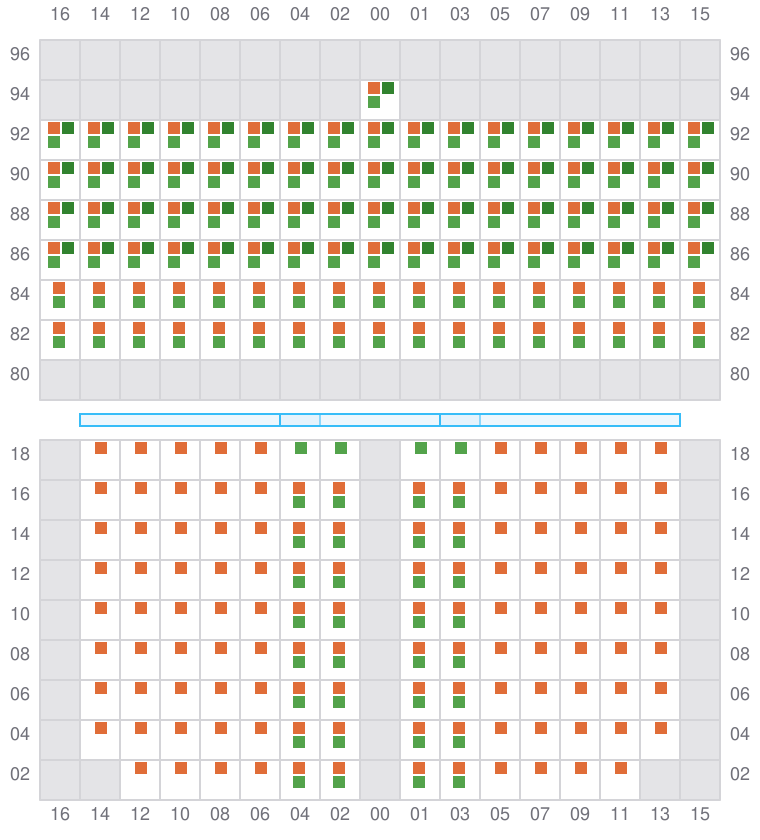

Bay 043 view and slots of MAERSK KLEVEN

045 (046)

  • →
  • ? / →
Bay 045 view and slots of MAERSK KLEVEN

047

  • ←
  • →

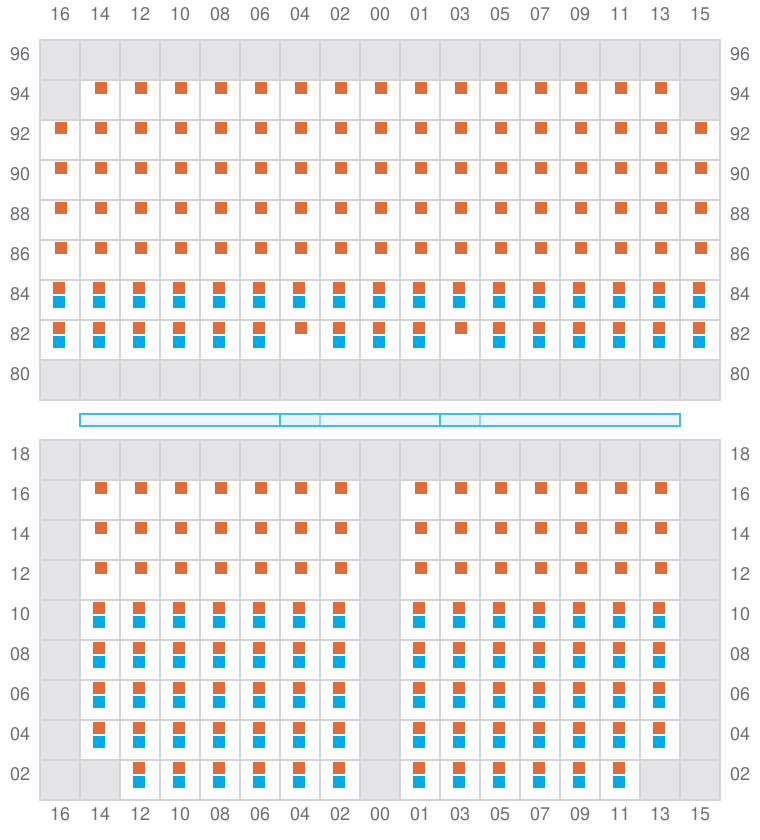

Bay 047 view and slots of MAERSK KLEVEN

049 (050)

  • →
  • → / ?

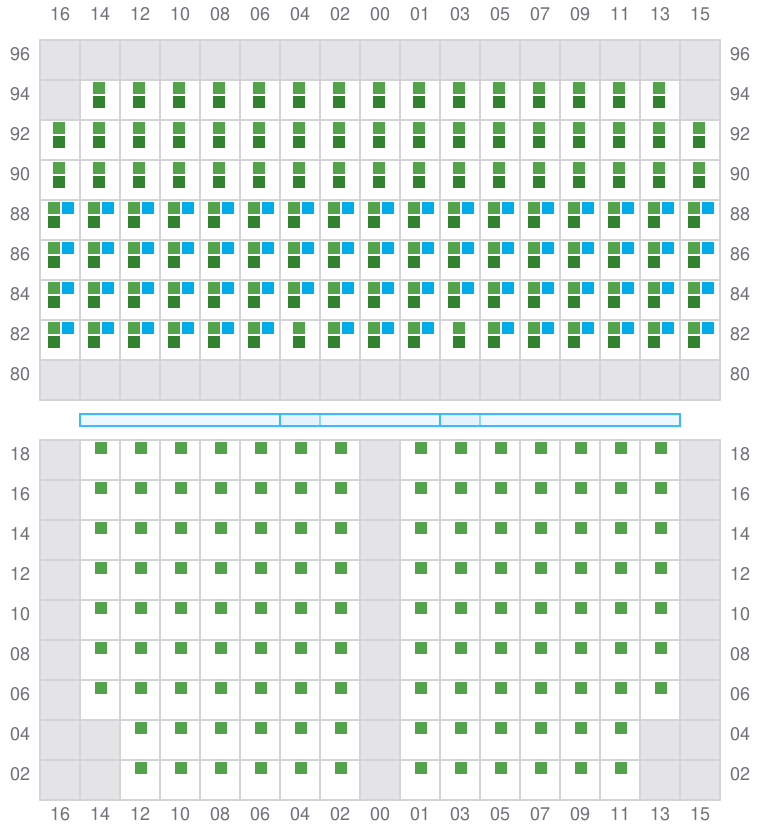

Bay 049 view and slots of MAERSK KLEVEN

051

Bay 051 view and slots of MAERSK KLEVEN

053 (054)

  • →
  • ← / ?

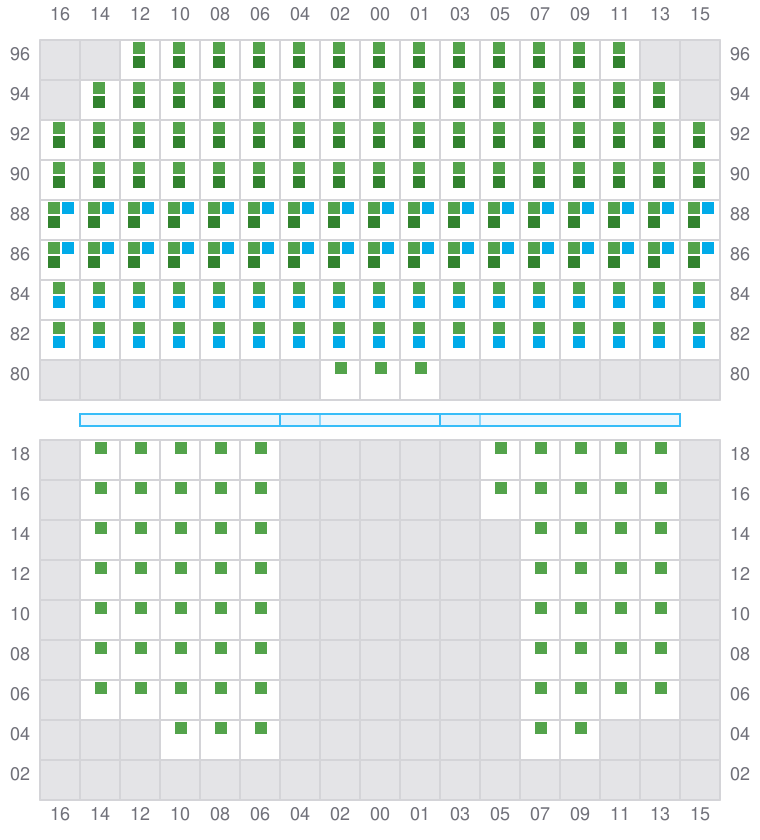

Bay 053 view and slots of MAERSK KLEVEN

055

Bay 055 view and slots of MAERSK KLEVEN

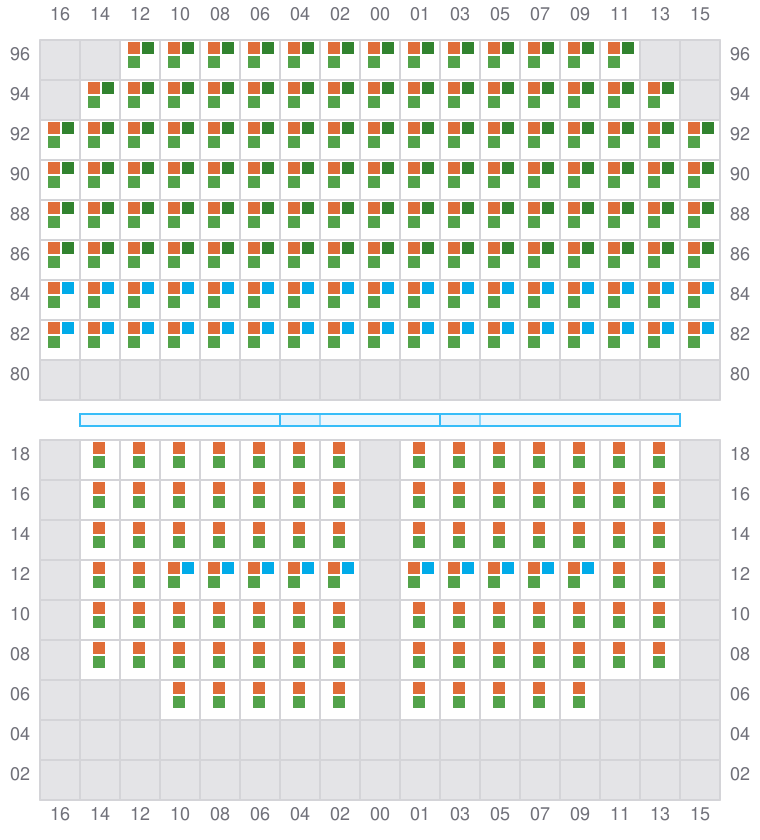

057 (058)

  • →
  • ← / →
Bay 057 view and slots of MAERSK KLEVEN

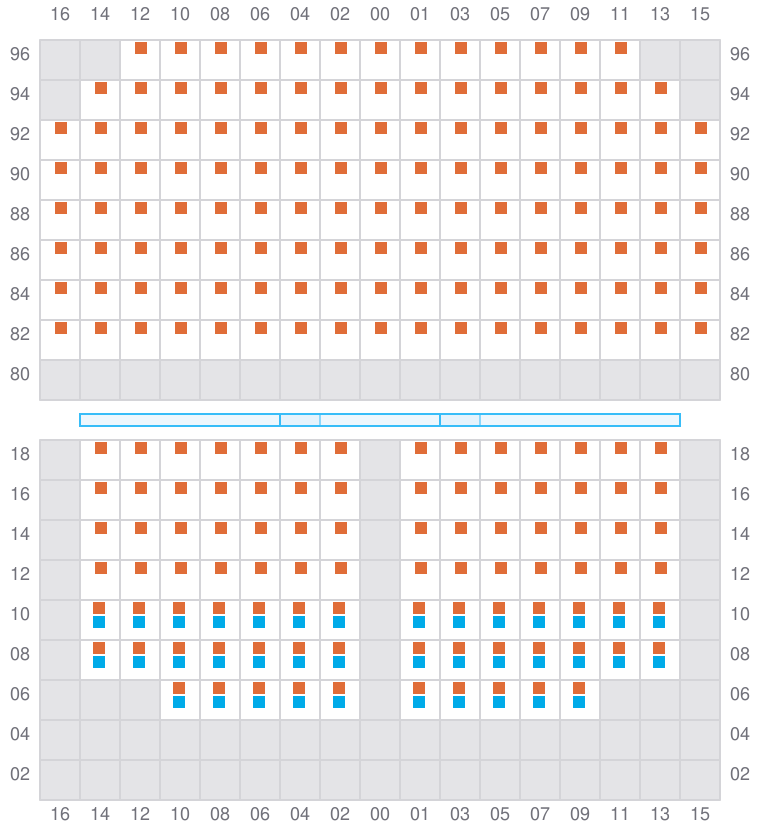

059

  • ←
  • ? / →
Bay 059 view and slots of MAERSK KLEVEN

061 (062)

  • →
  • ← / ?
Bay 061 view and slots of MAERSK KLEVEN

063

  • ←

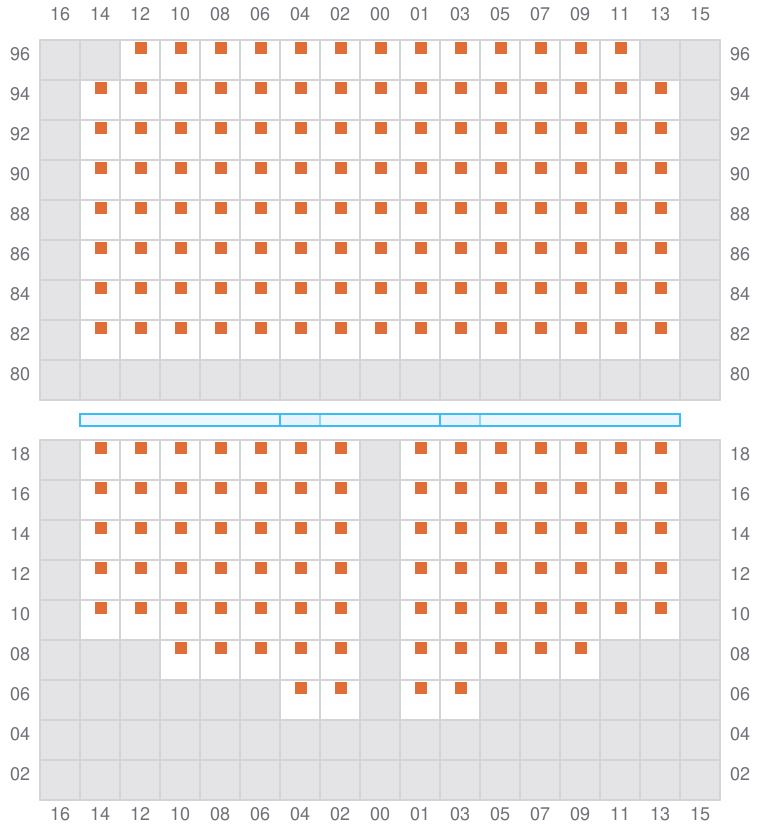

Bay 063 view and slots of MAERSK KLEVEN

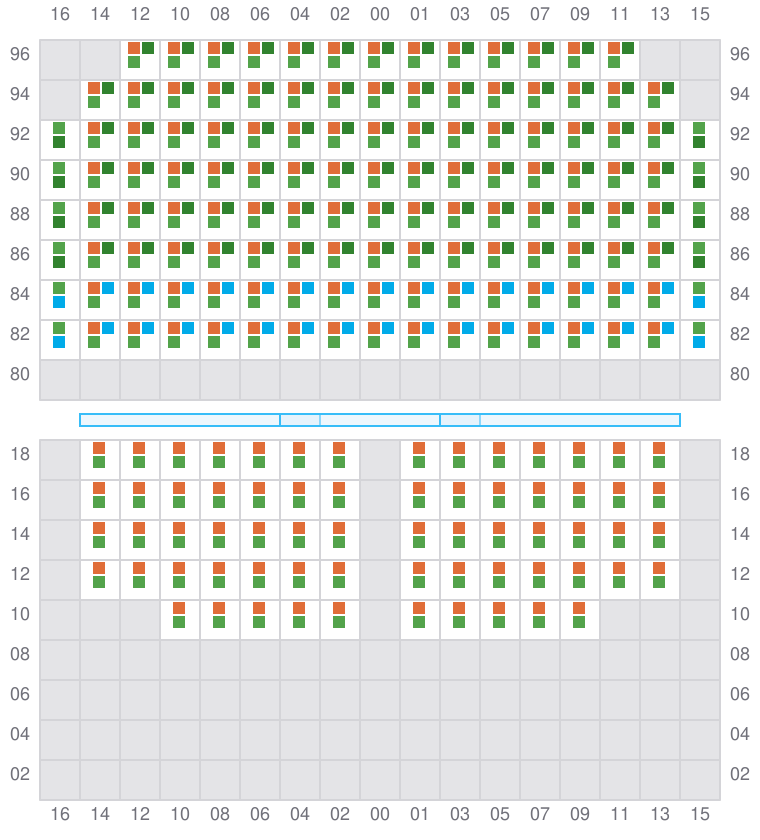

065 (066)

  • →
  • ← / ?
Bay 065 view and slots of MAERSK KLEVEN

067

  • ←

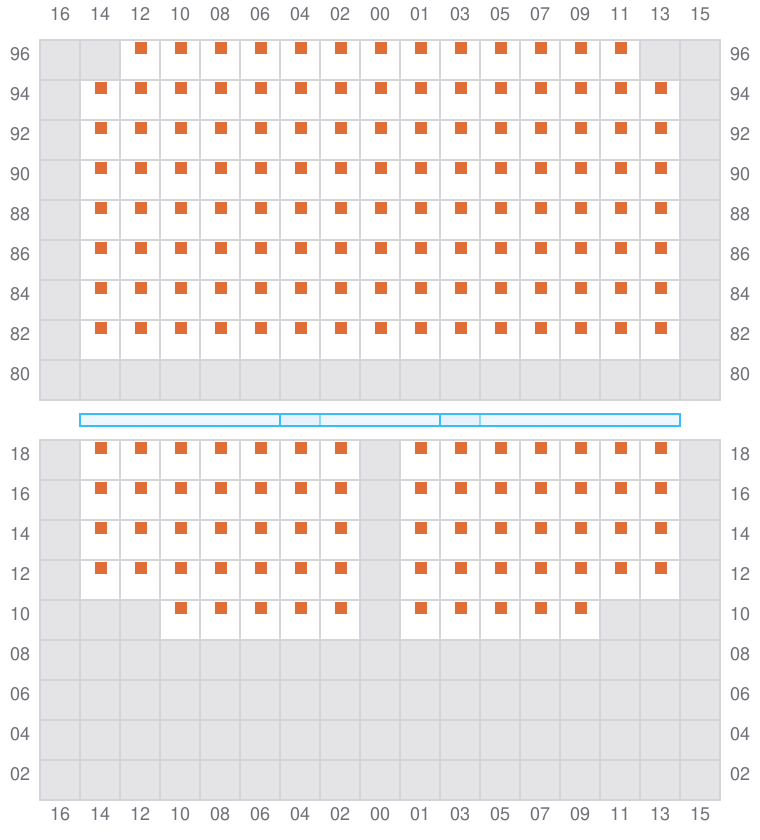

Bay 067 view and slots of MAERSK KLEVEN

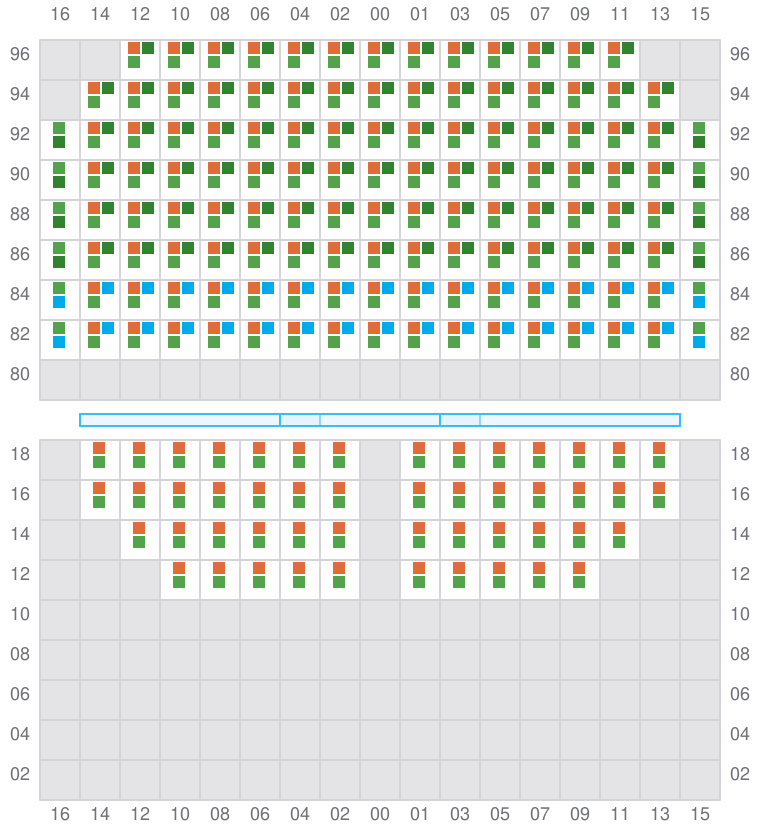

069 (070)

  • →
  • ← / ?
Bay 069 view and slots of MAERSK KLEVEN

071

  • ←

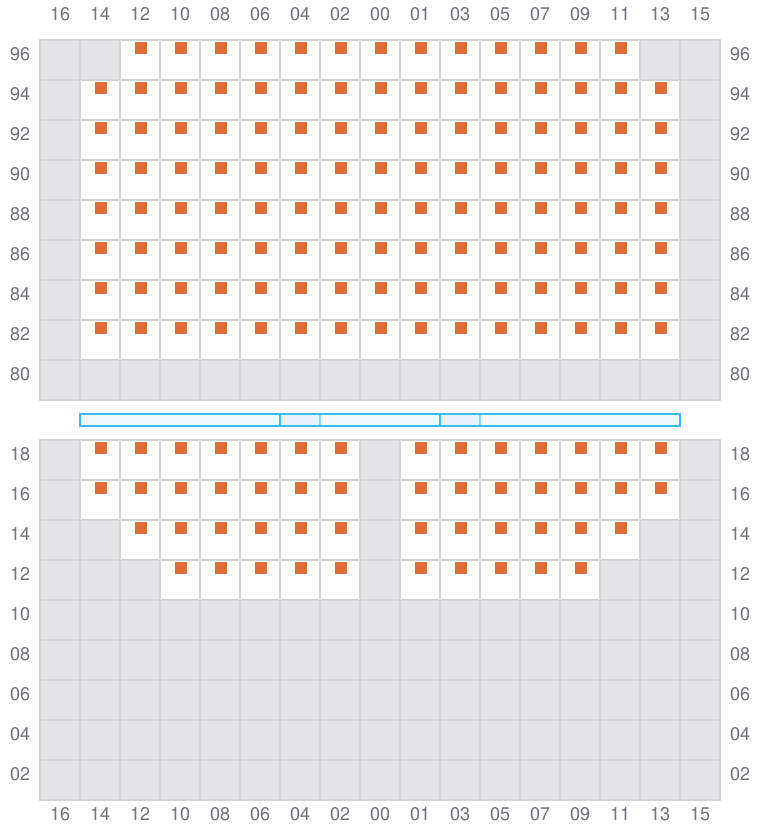

Bay 071 view and slots of MAERSK KLEVEN

073 (074)

  • → / ?

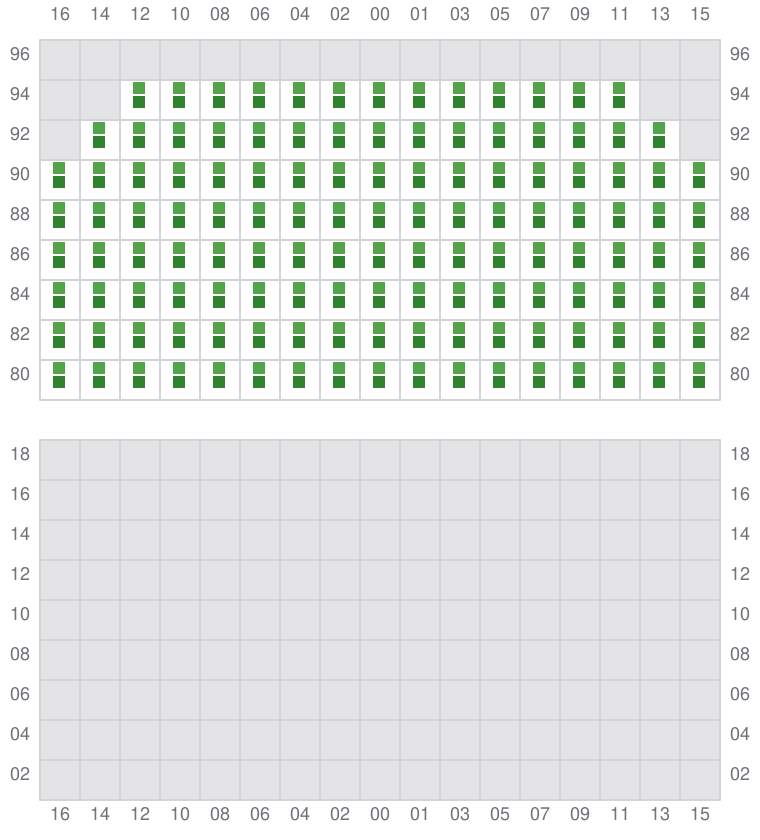

Bay 073 view and slots of MAERSK KLEVEN
