MAERSK KOTKA
9085534 | D5OV9 | MSK by ************************** Last update: Sat Jun 24 2023

General Info

Ship Name:MAERSK KOTKA

IMO Code:9085534

Call Sign:D5OV9

Line Operator:MSK

Class Name for Sister Ships:MTK

Year Built:1996

Position Format:Bay, Row, Tier

Allowed Containers:20, 40, 45

LPP (LBP):0.00

LOA (Length Overall):0.00

Stern to AFT PP:-

Features Informed:

Also Known As...:-

Size Summary

ISO Bays:073

Max ISO Row:16

Center Line Row:Yes

Max Above ISO Tier:96

Min Above ISO Tier:80

Max Below ISO Tier:18

Min Below ISO Tier:02

Total TEU:7,424

Centers of Gravity

LCG Values:Known

LCG Data:100%

VCG Values:Known

VCG Data:100%

TCG Values:Known

TCG Data:100%

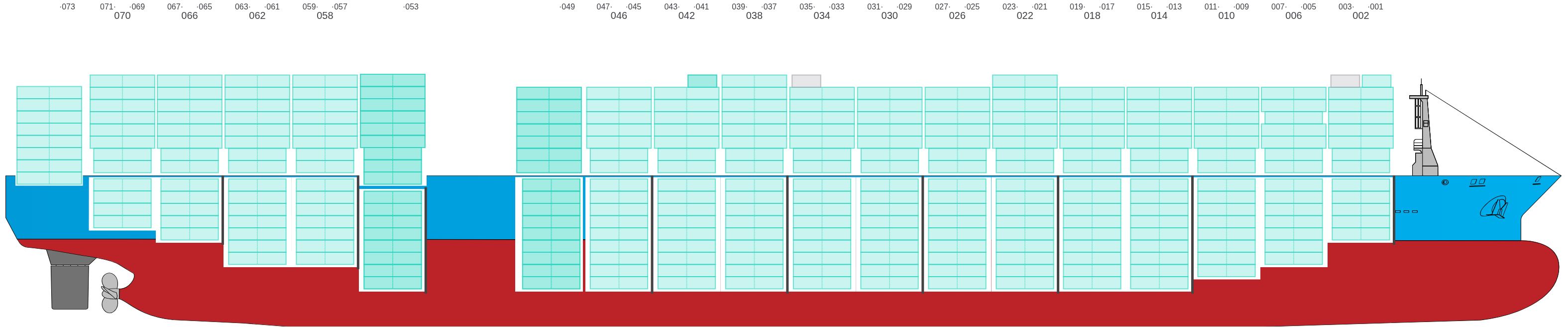

Side View

Side view of MAERSK KOTKA

ISO Bays

Legend

20'
40'
45'
Reefer
Restricted slot ×

001 (002)

→

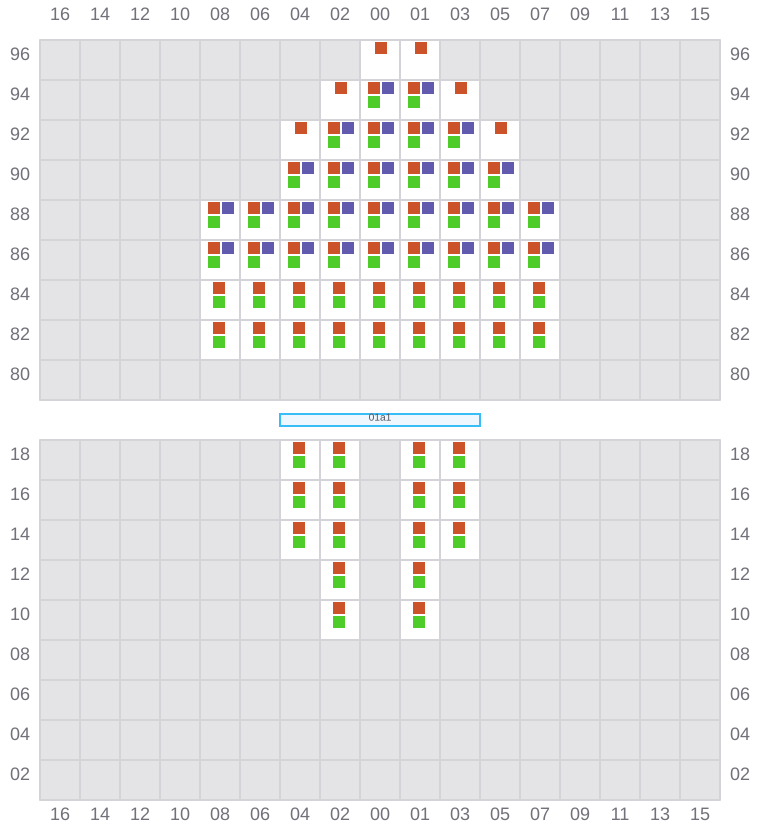

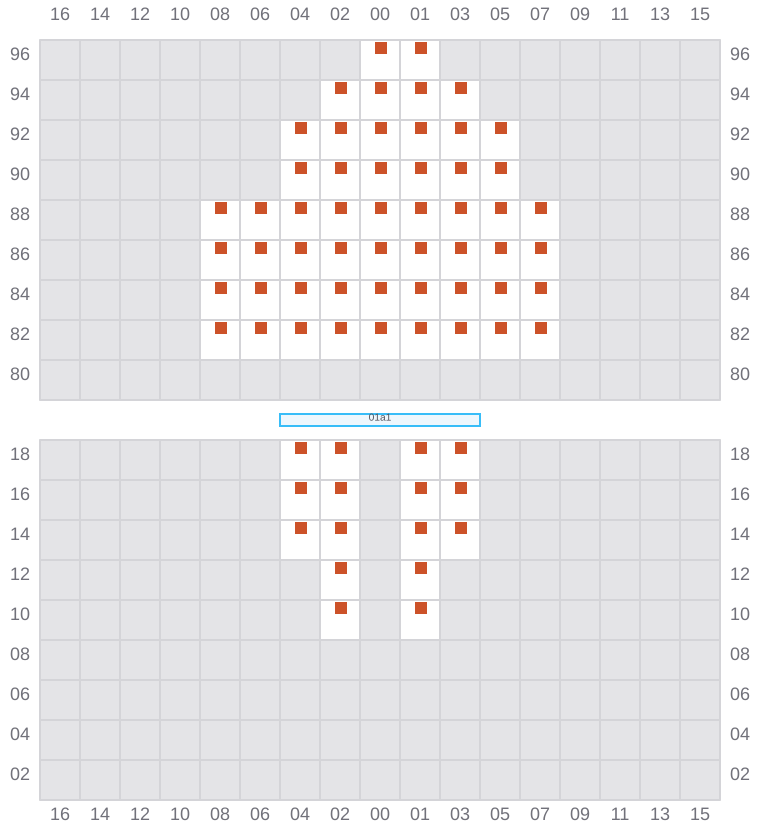

Bay 001 view and slots of MAERSK KOTKA

003

←

Bay 003 view and slots of MAERSK KOTKA

005 (006)

→

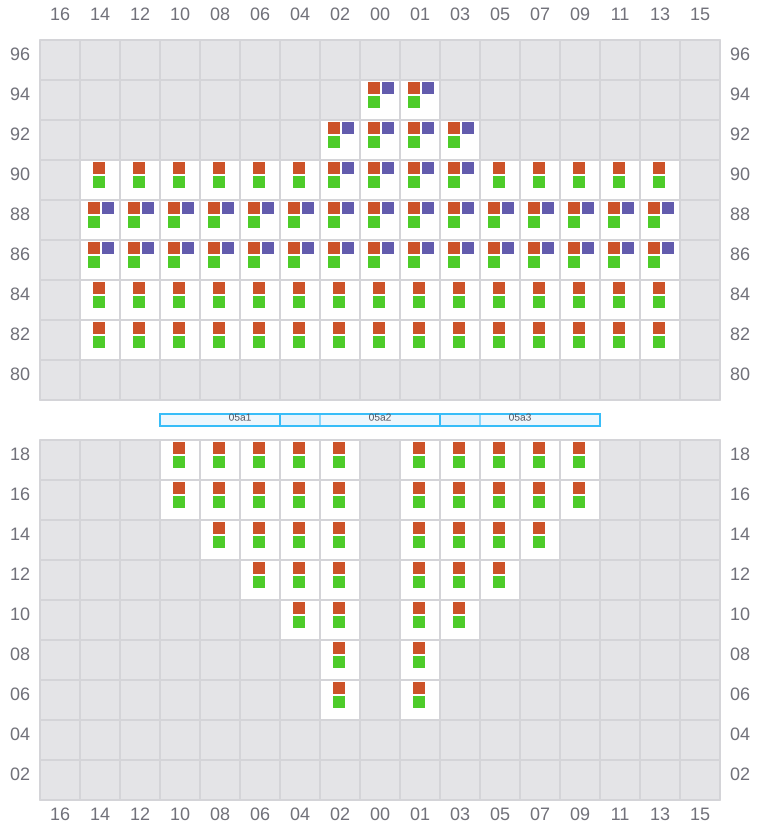

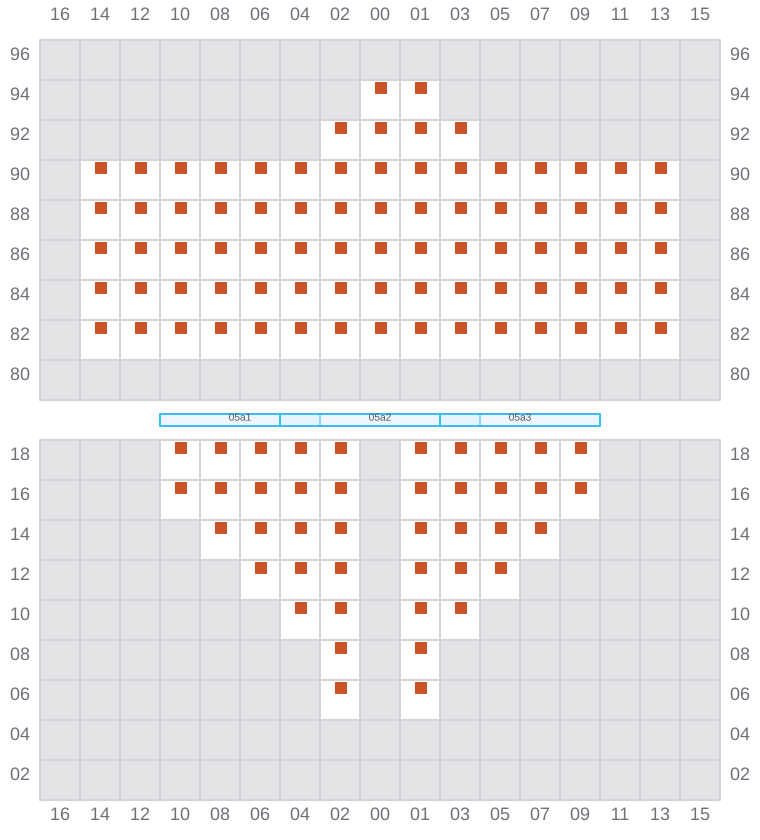

Bay 005 view and slots of MAERSK KOTKA

007

←

Bay 007 view and slots of MAERSK KOTKA

009 (010)

→

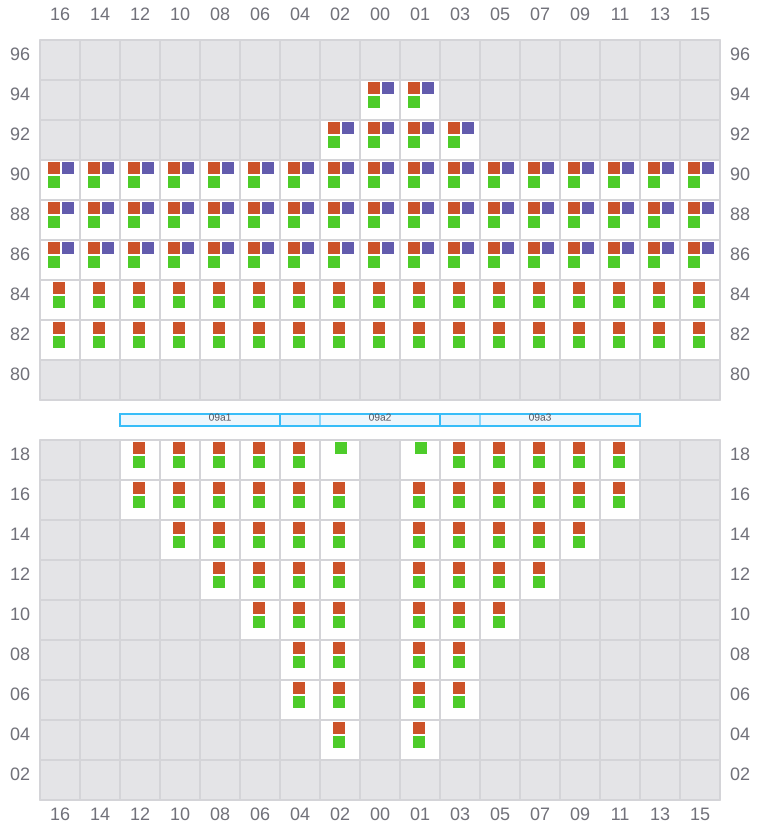

Bay 009 view and slots of MAERSK KOTKA

011

←

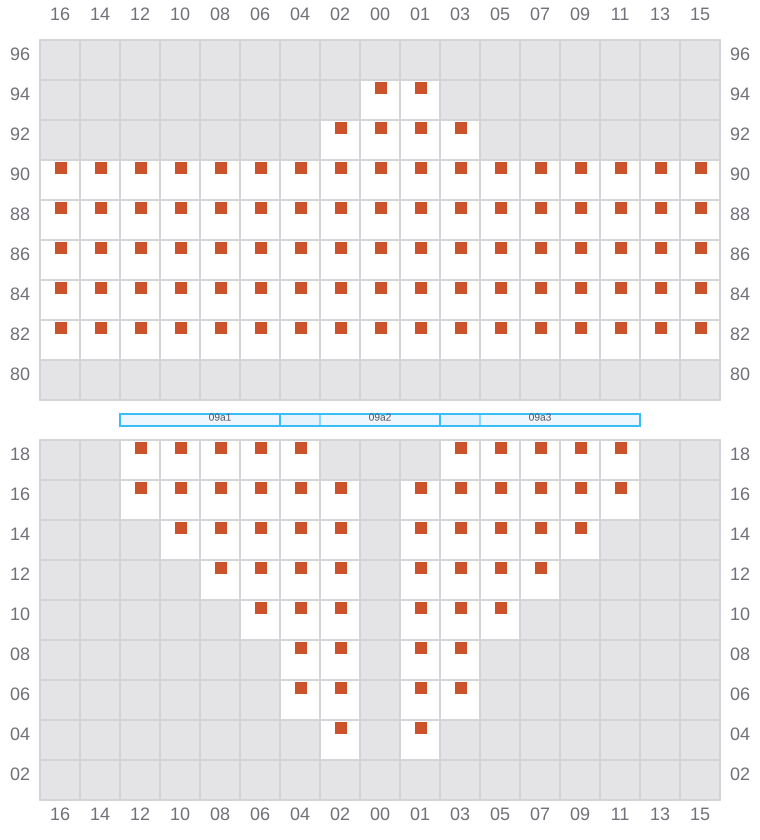

Bay 011 view and slots of MAERSK KOTKA

013 (014)

→

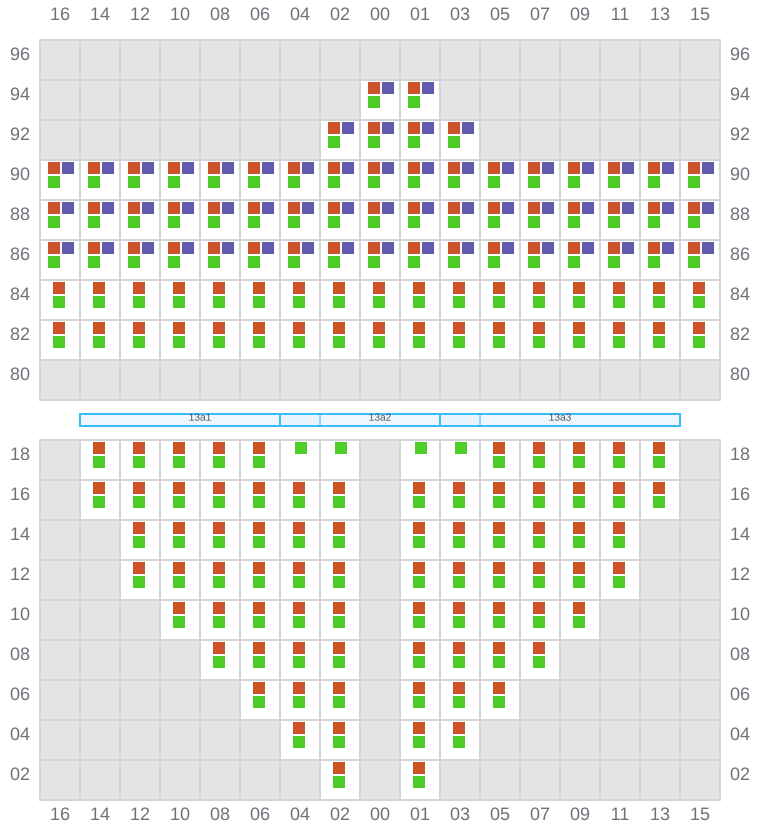

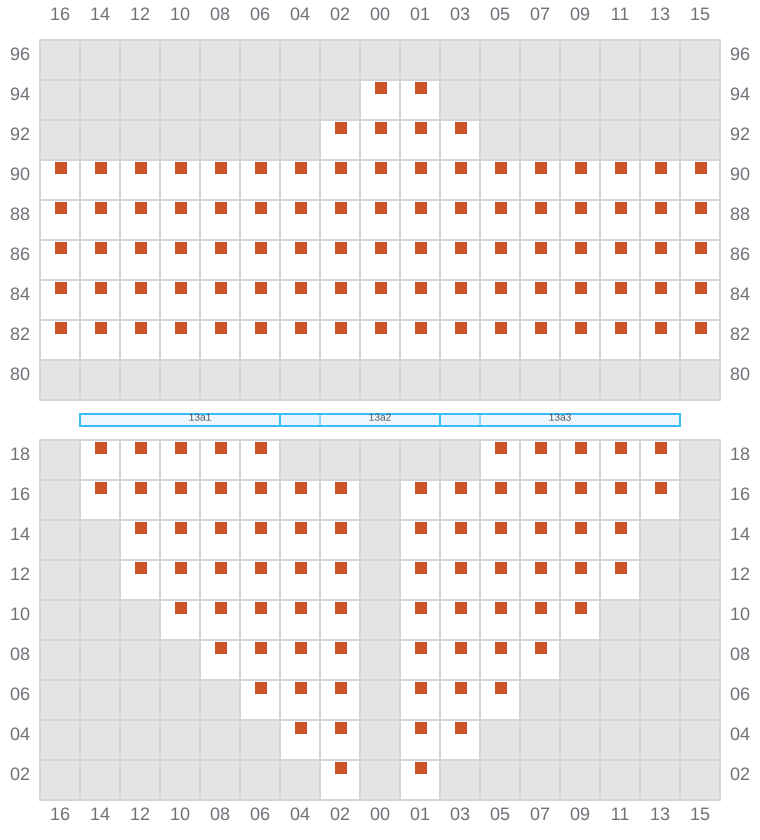

Bay 013 view and slots of MAERSK KOTKA

015

←

Bay 015 view and slots of MAERSK KOTKA

017 (018)

→

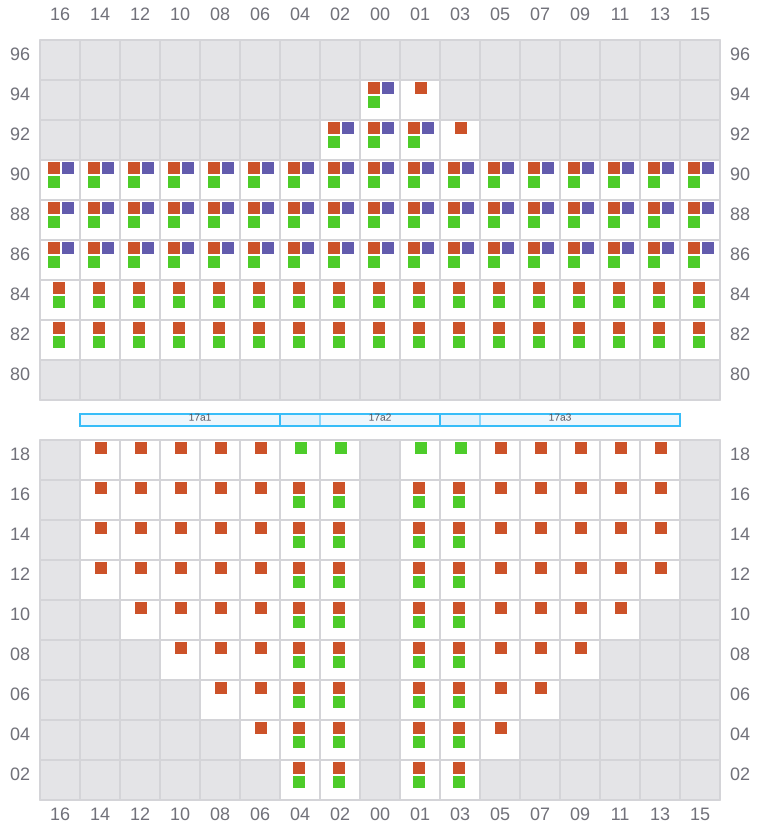

Bay 017 view and slots of MAERSK KOTKA

019

←
^→ / _?

Bay 019 view and slots of MAERSK KOTKA

021 (022)

→

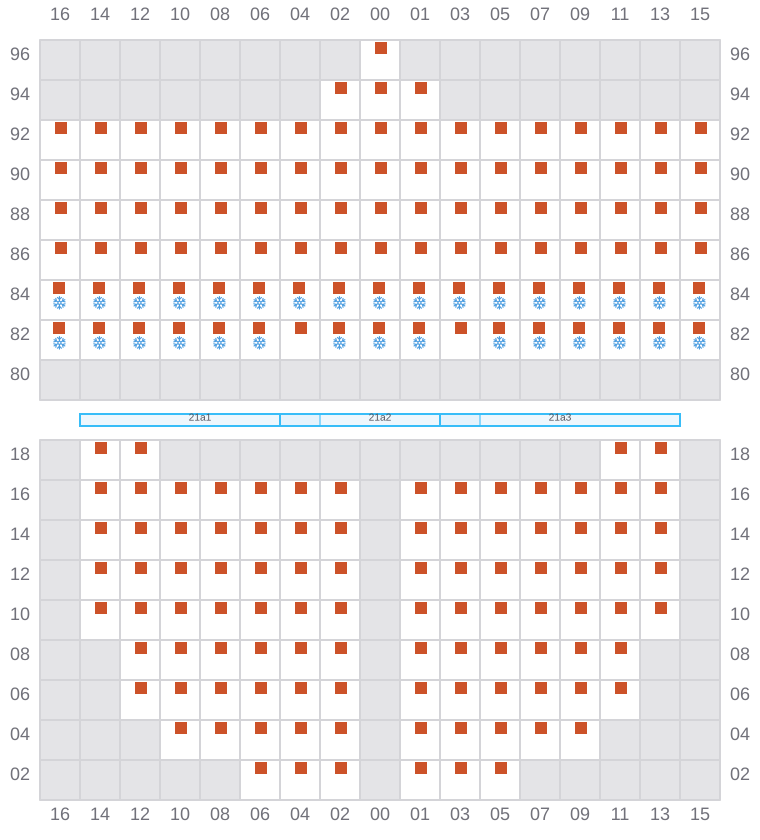

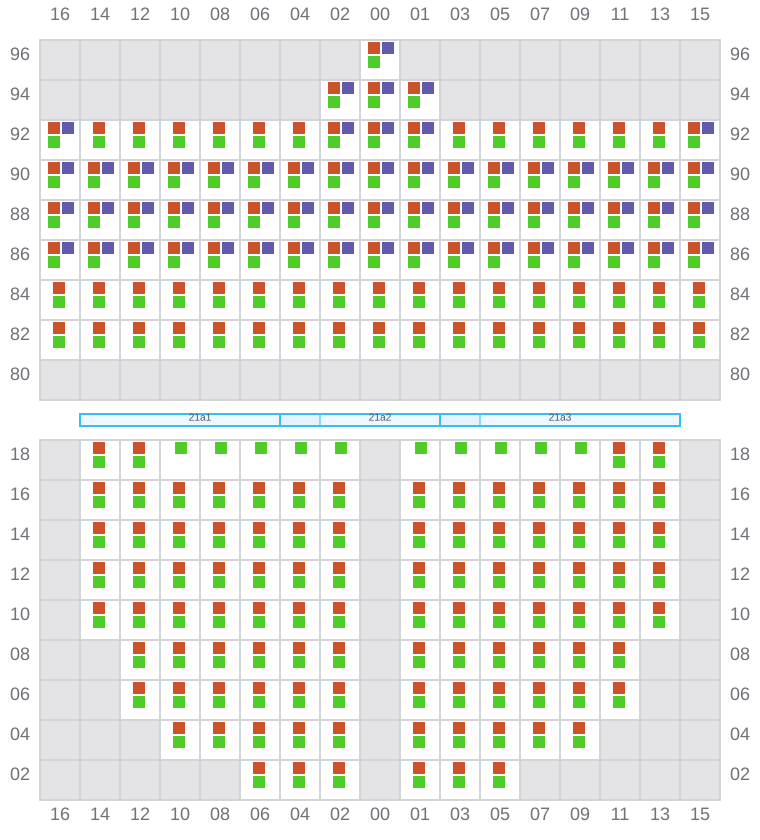

Bay 021 view and slots of MAERSK KOTKA

023

←
^→ / _?

Bay 023 view and slots of MAERSK KOTKA

025 (026)

→

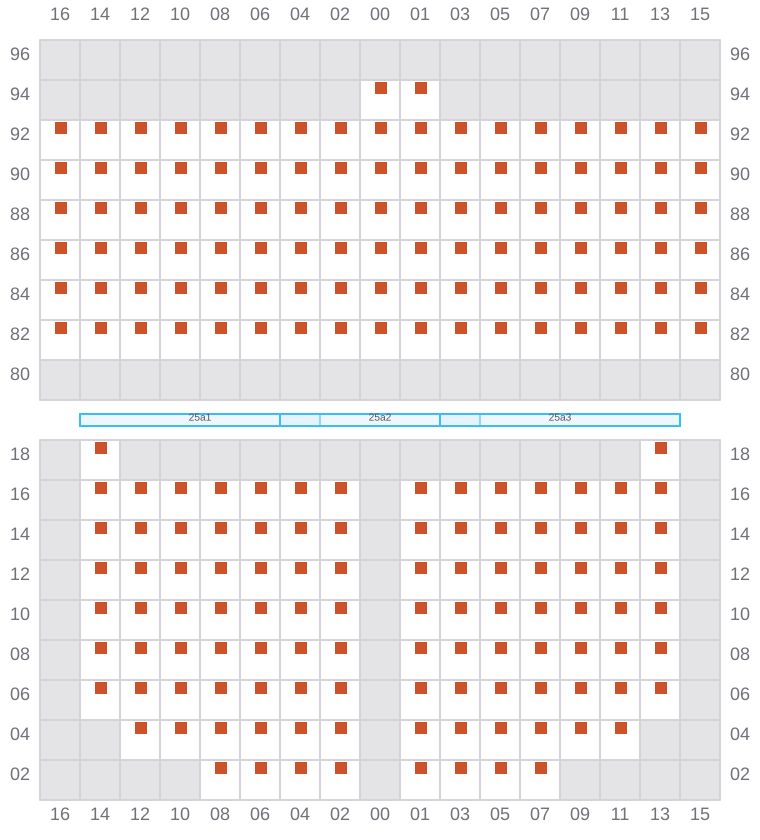

Bay 025 view and slots of MAERSK KOTKA

027

←

Bay 027 view and slots of MAERSK KOTKA

029 (030)

→
^? / _→

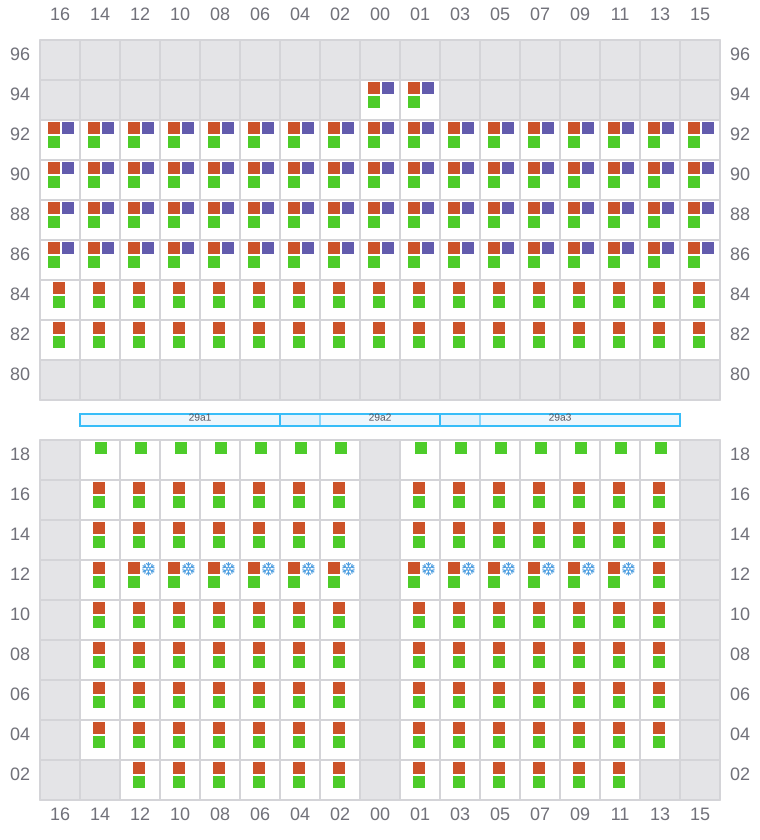

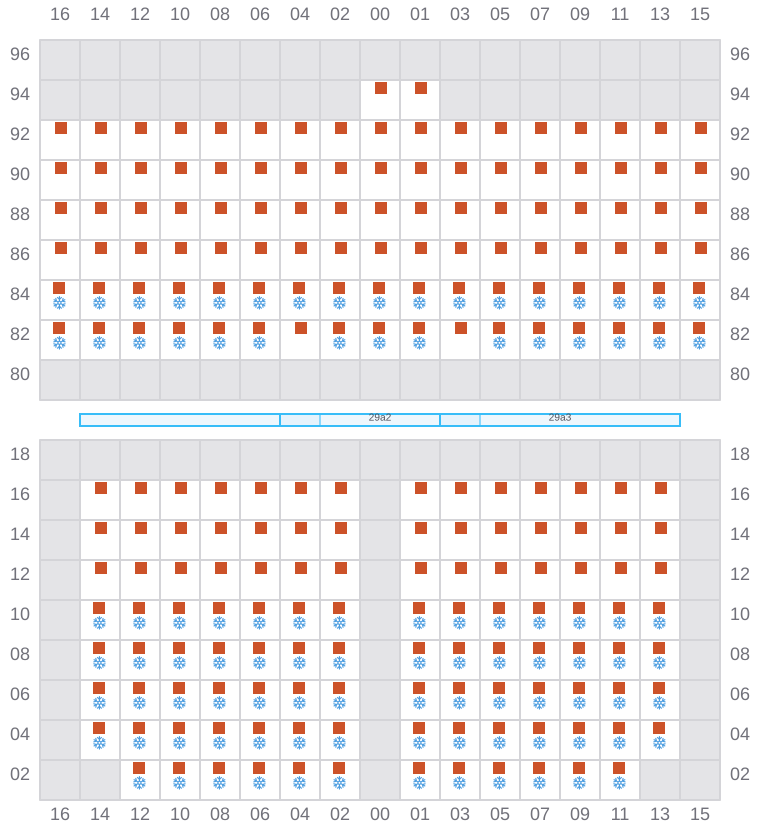

Bay 029 view and slots of MAERSK KOTKA

031

←
→

Bay 031 view and slots of MAERSK KOTKA

033 (034)

→

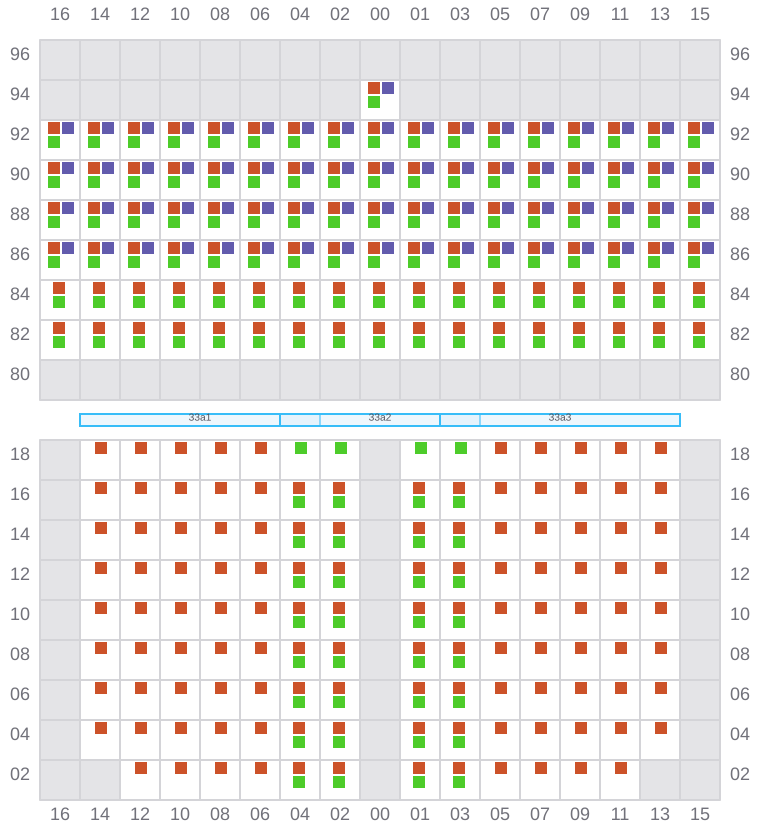

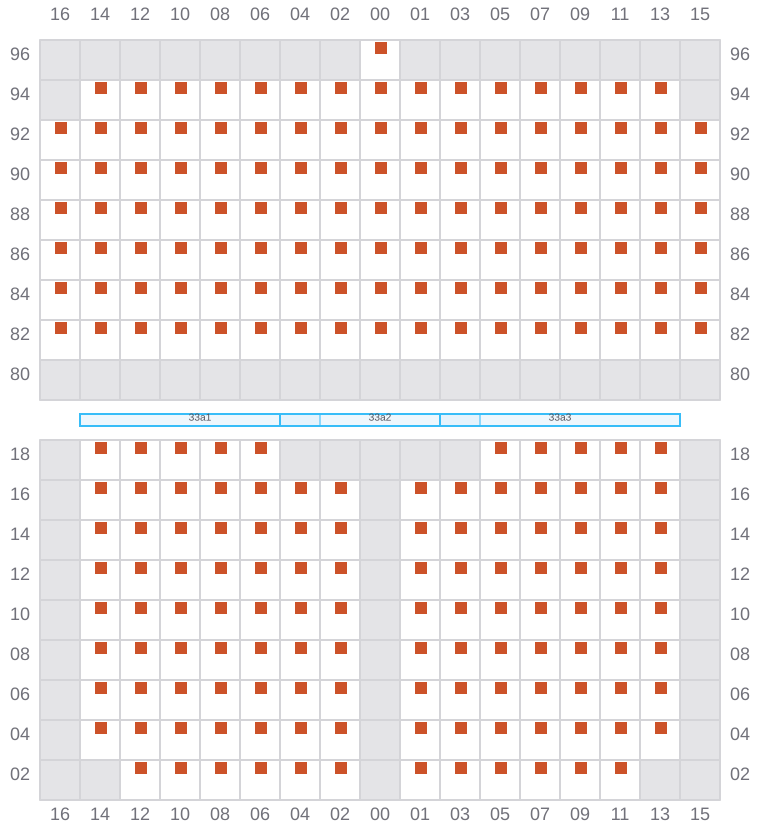

Bay 033 view and slots of MAERSK KOTKA

035

←

Bay 035 view and slots of MAERSK KOTKA

037 (038)

→
^? / _→

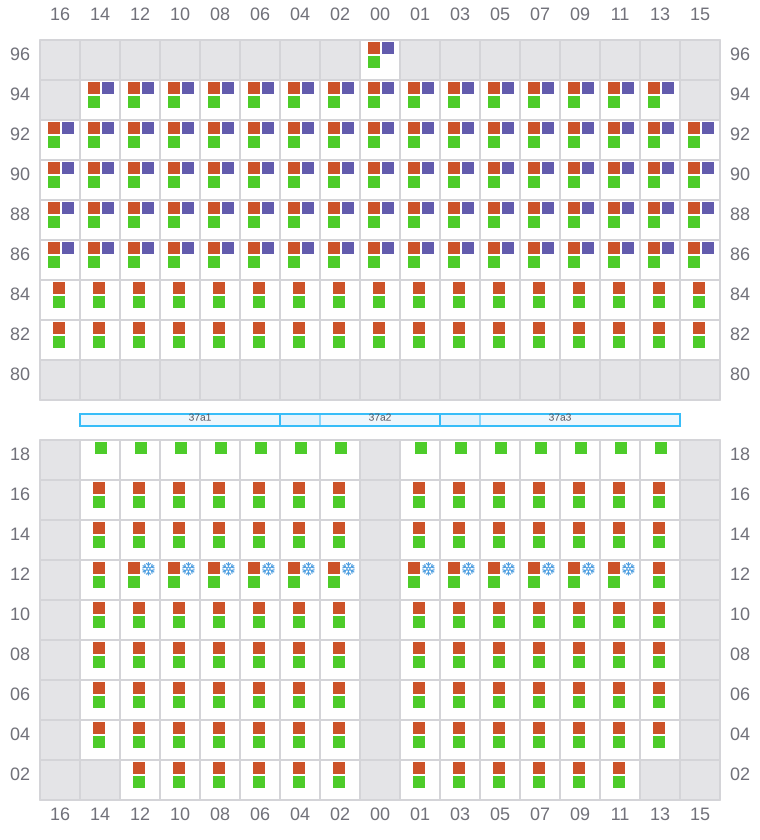

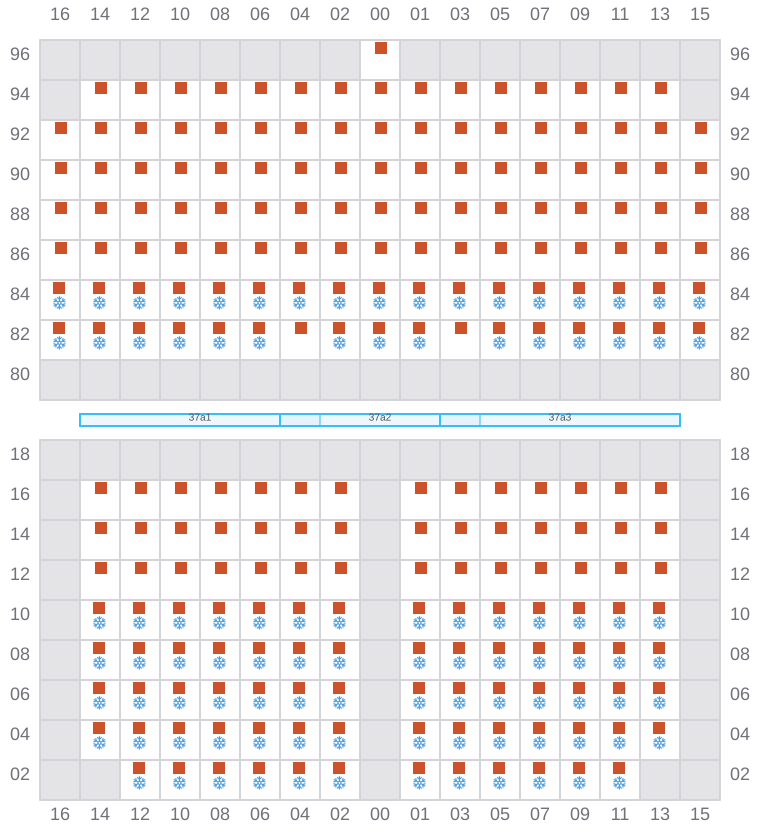

Bay 037 view and slots of MAERSK KOTKA

039

←
→

Bay 039 view and slots of MAERSK KOTKA

041 (042)

→

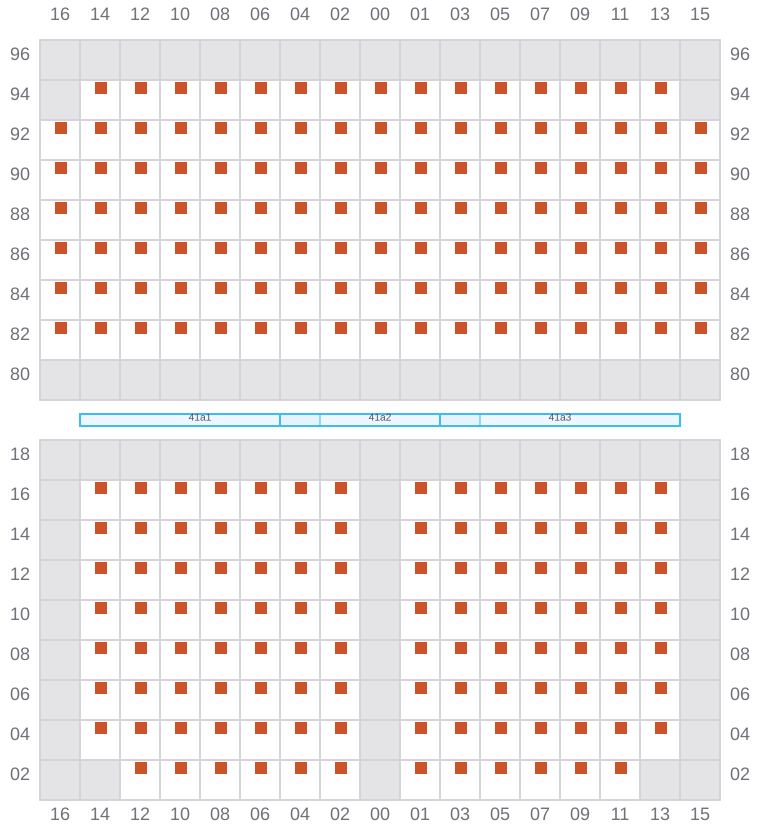

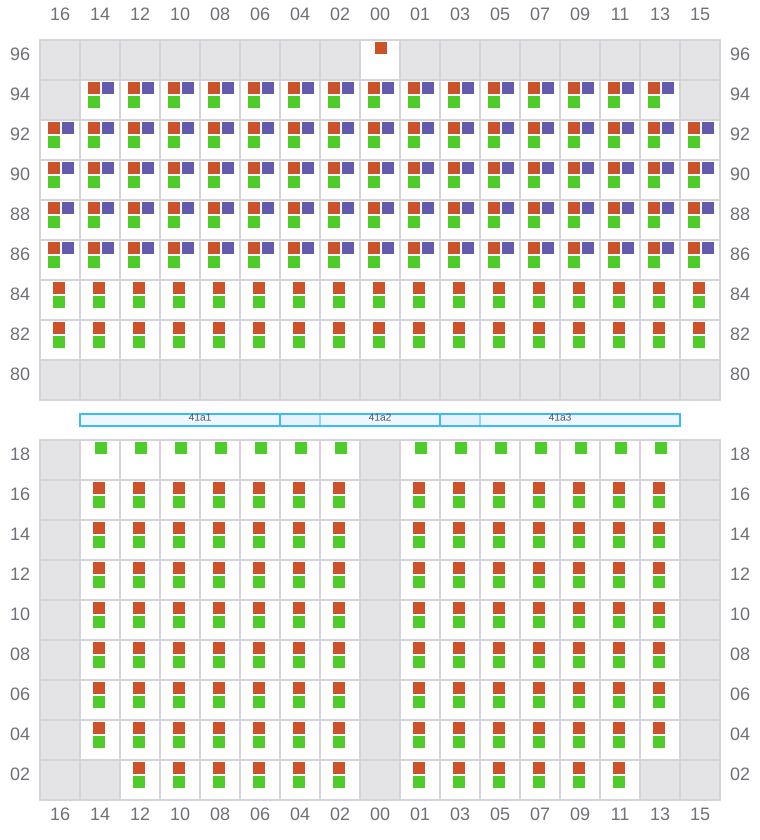

Bay 041 view and slots of MAERSK KOTKA

043

←

Bay 043 view and slots of MAERSK KOTKA

045 (046)

→
^? / _→

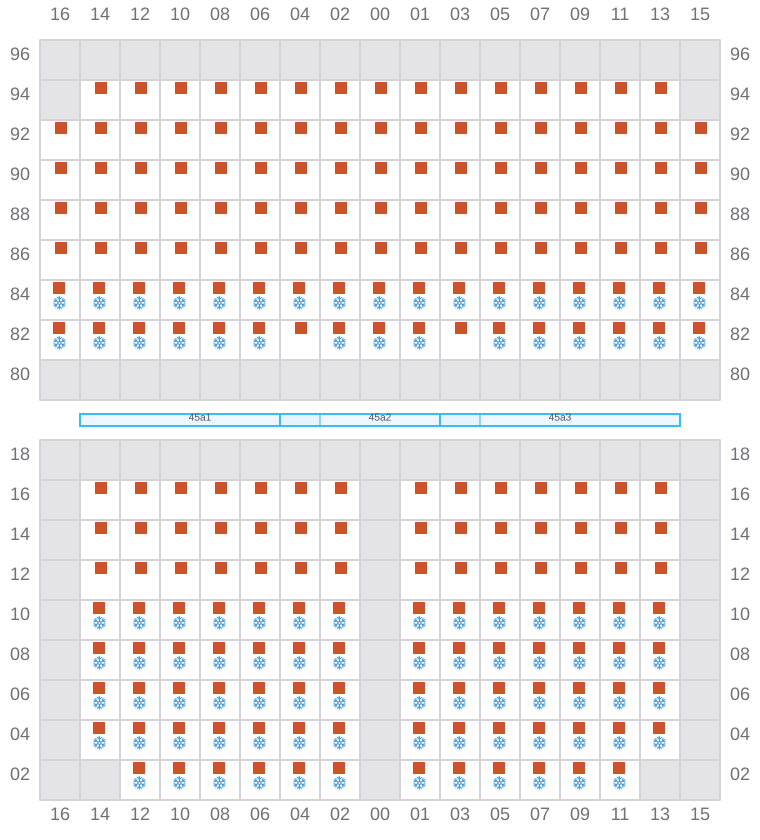

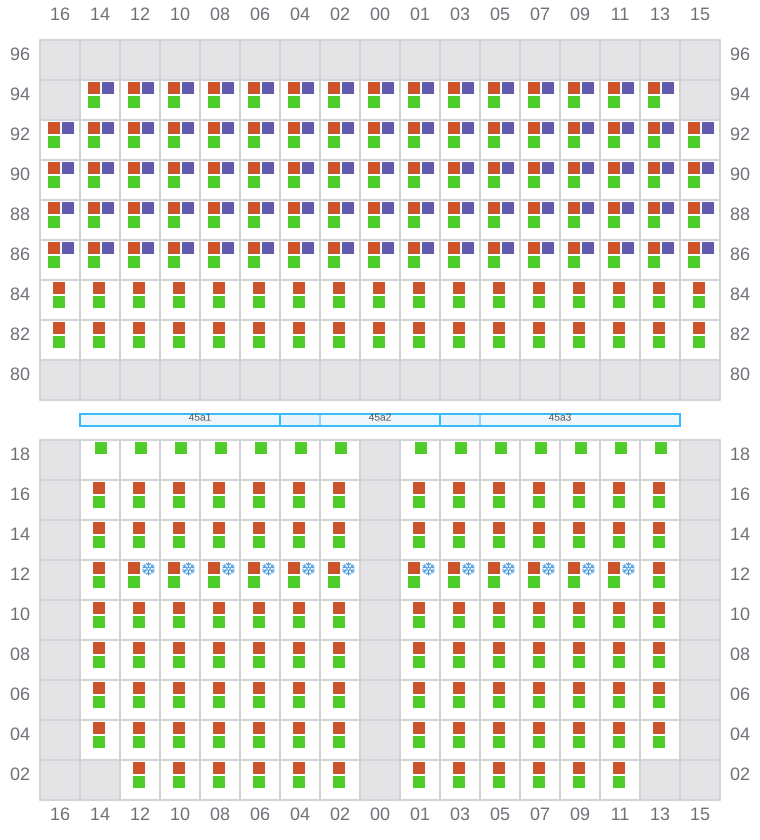

Bay 045 view and slots of MAERSK KOTKA

047

←
→

Bay 047 view and slots of MAERSK KOTKA

049 (050)

→
^→ / _?

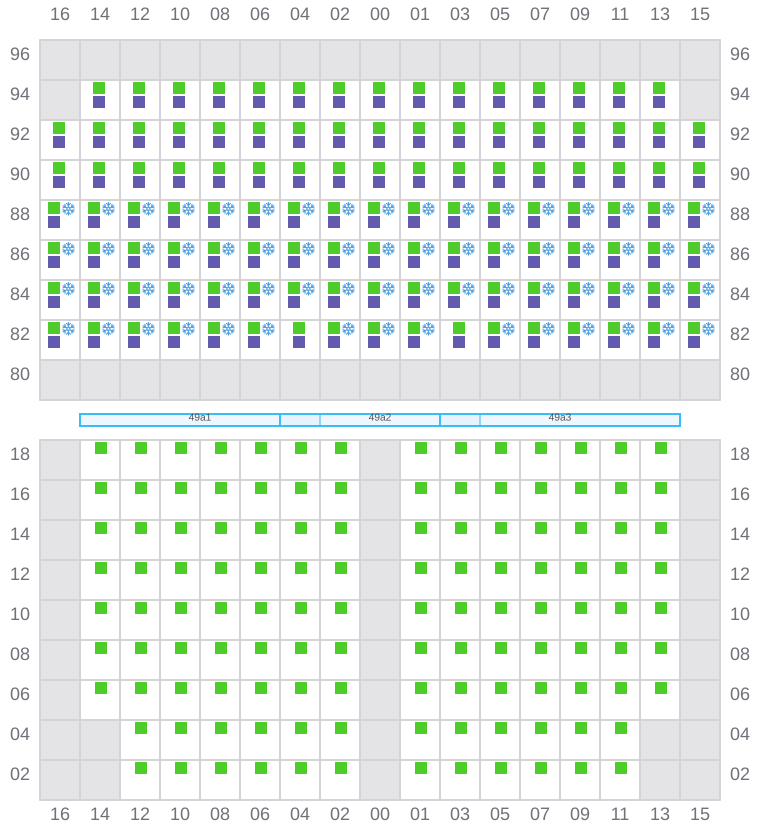

Bay 049 view and slots of MAERSK KOTKA

051

Bay 051 view and slots of MAERSK KOTKA

053 (054)

→
^← / _?

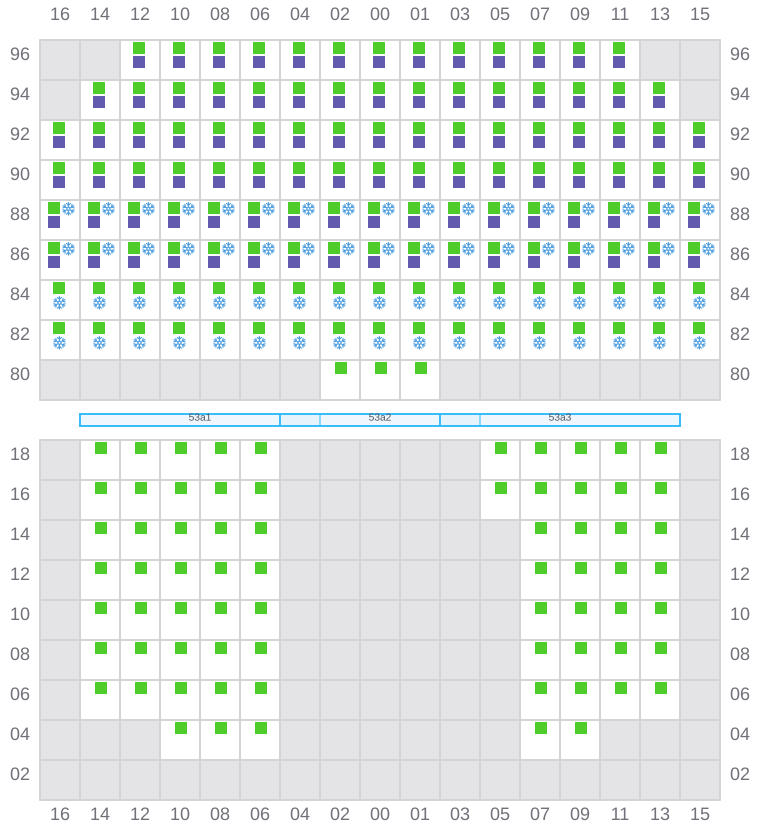

Bay 053 view and slots of MAERSK KOTKA

055

Bay 055 view and slots of MAERSK KOTKA

057 (058)

→
^← / _→

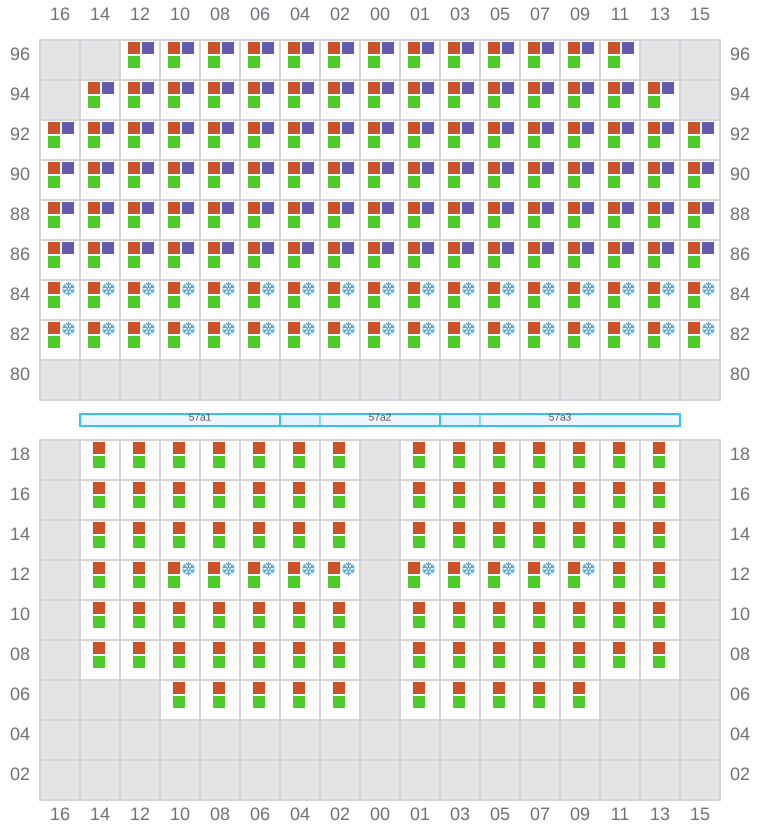

Bay 057 view and slots of MAERSK KOTKA

059

←
^? / _→

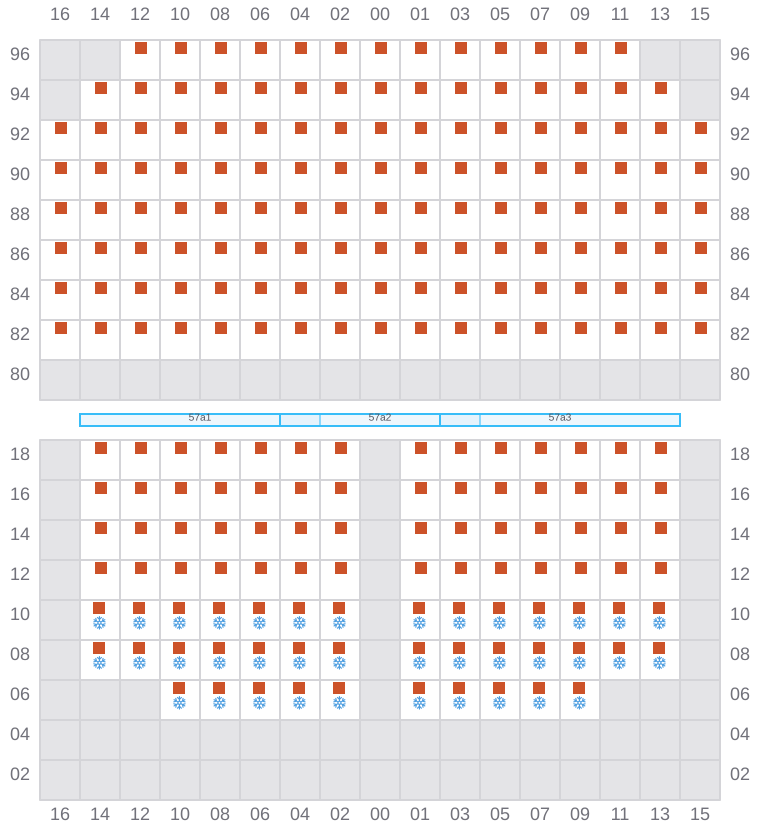

Bay 059 view and slots of MAERSK KOTKA

061 (062)

→
^← / _?

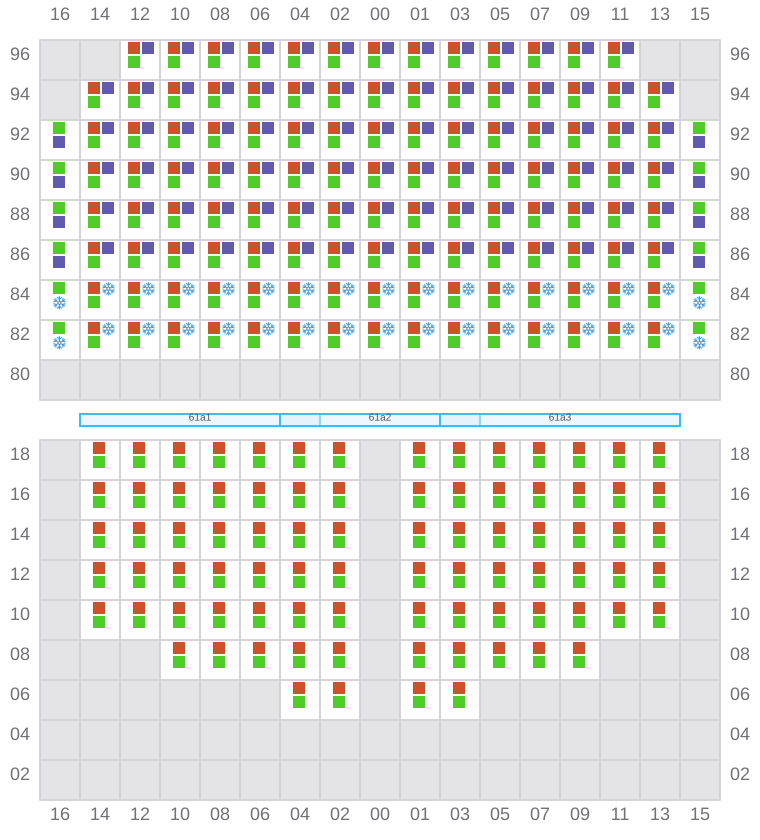

Bay 061 view and slots of MAERSK KOTKA

063

←

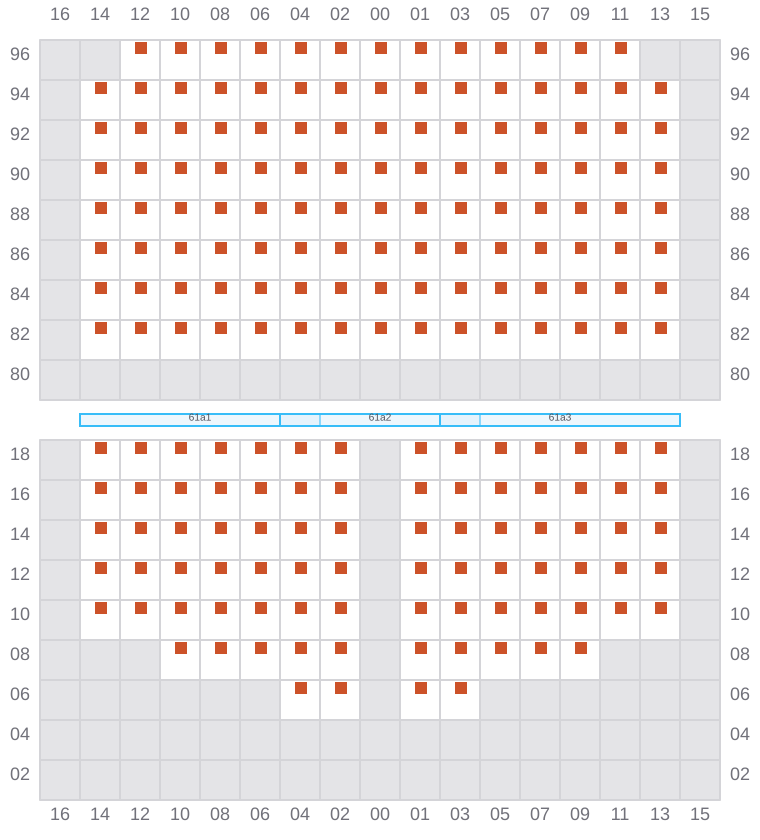

Bay 063 view and slots of MAERSK KOTKA

065 (066)

→
^← / _?

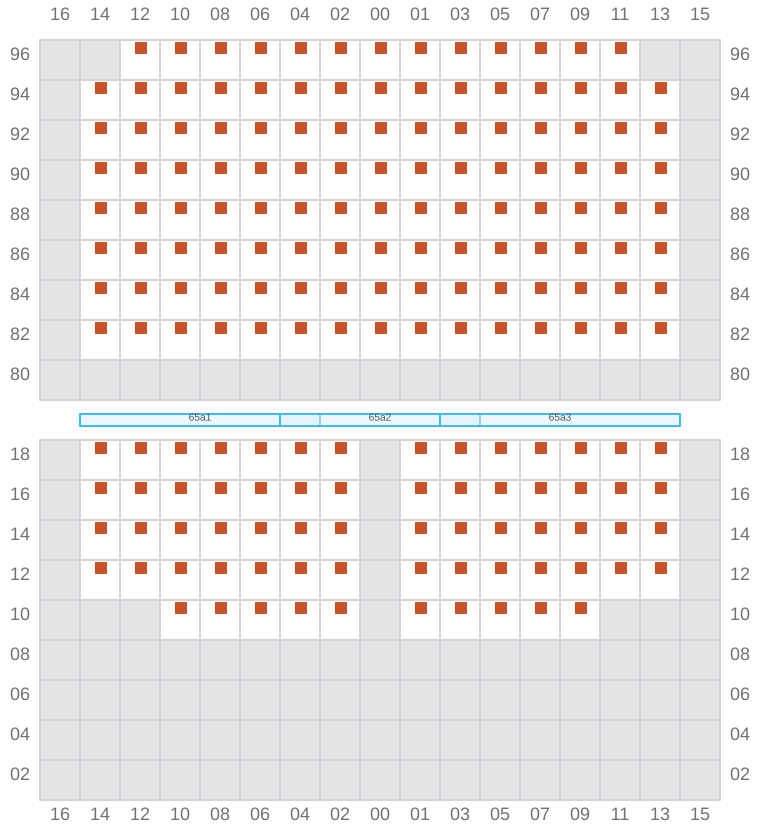

Bay 065 view and slots of MAERSK KOTKA

067

←

Bay 067 view and slots of MAERSK KOTKA

069 (070)

→
^← / _?

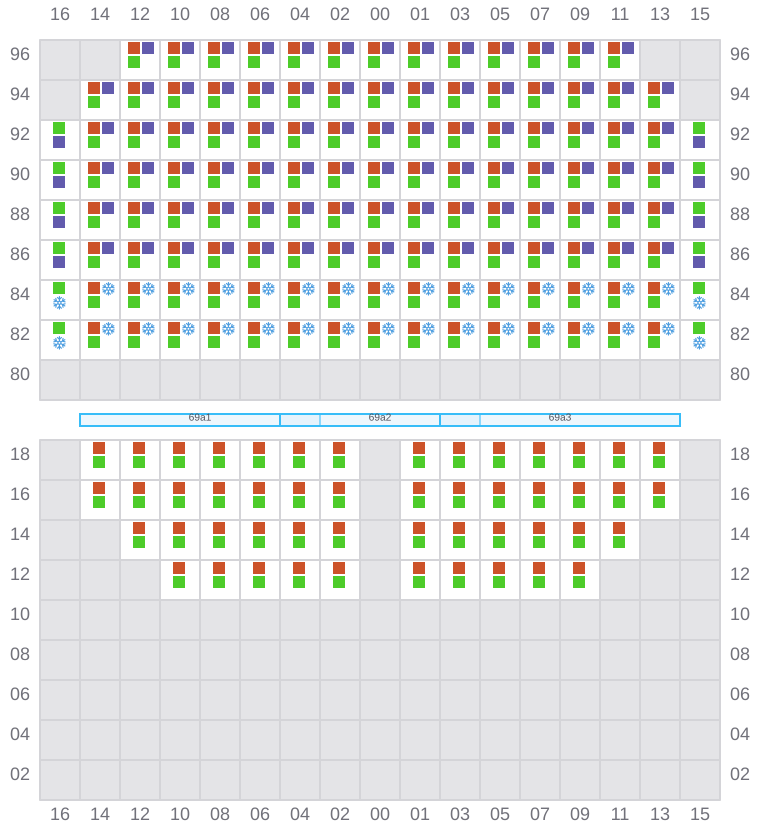

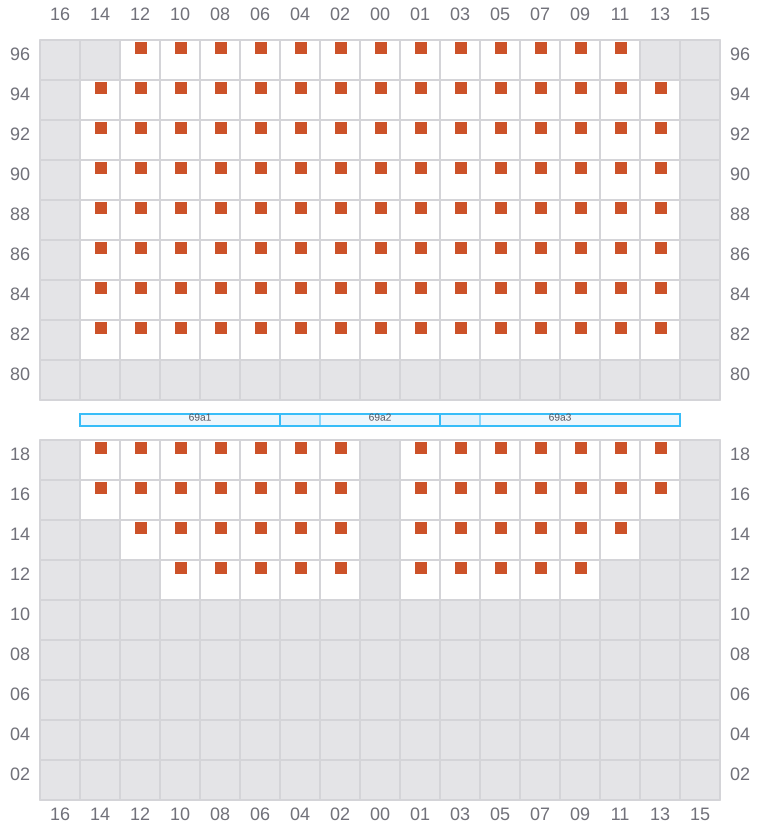

Bay 069 view and slots of MAERSK KOTKA

071

←

Bay 071 view and slots of MAERSK KOTKA

073 (074)

^→ / _?

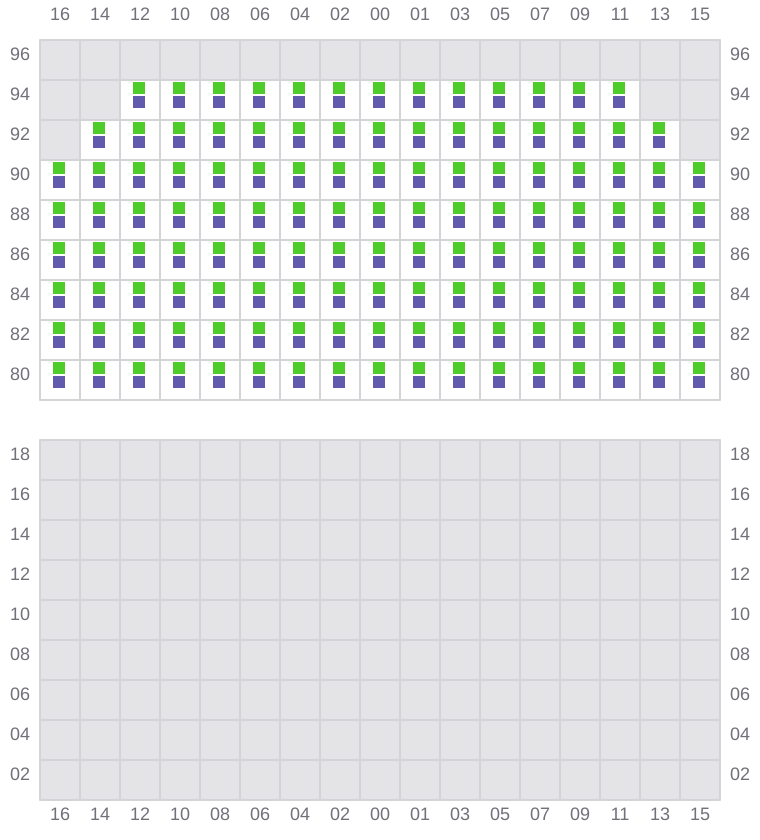

Bay 073 view and slots of MAERSK KOTKA
