MAERSK KOWLOON
9290476 | D5NU6 | MSK by ************************** Last update: Sat Jun 24 2023

General Info

Ship Name:MAERSK KOWLOON
IMO Code:9290476
Call Sign:D5NU6
Line Operator:MSK
Class Name for Sister Ships:KOW
Year Built:2005
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):286.00
LOA (Length Overall):299.99
Stern to AFT PP:-
Features Informed:
Also Known As...:-

Size Summary

ISO Bays:069
Max ISO Row:16
Center Line Row:Yes
Max Above ISO Tier:94
Min Above ISO Tier:82
Max Below ISO Tier:18
Min Below ISO Tier:02
Total TEU:7,471

Centers of Gravity

LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

Side View

Side view of MAERSK KOWLOON

Hatch-Covers View

Deck view of MAERSK KOWLOON

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot

001 (002)

  • →

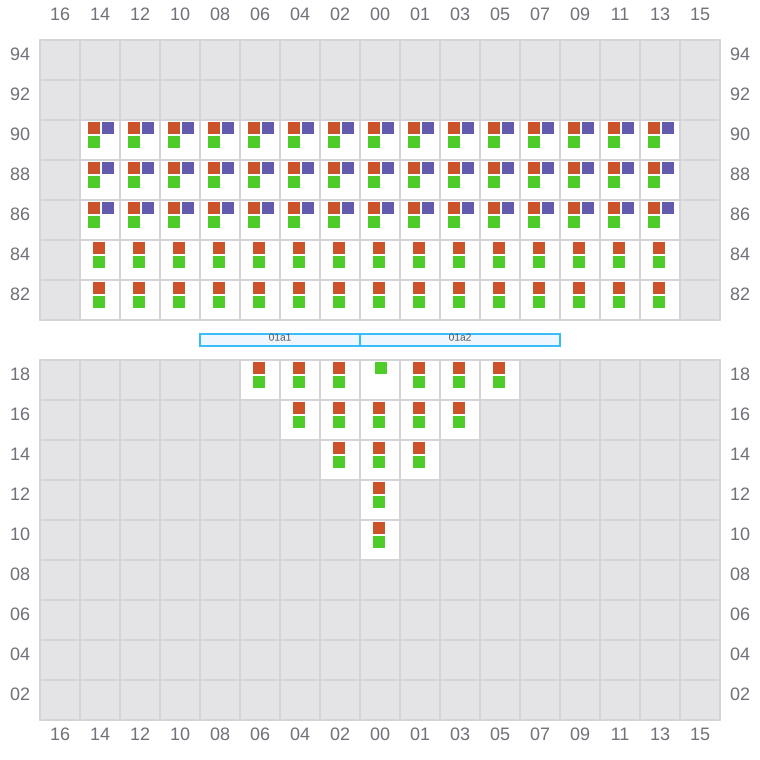

Bay 001 view and slots of MAERSK KOWLOON

003

  • ←
  • → / ?

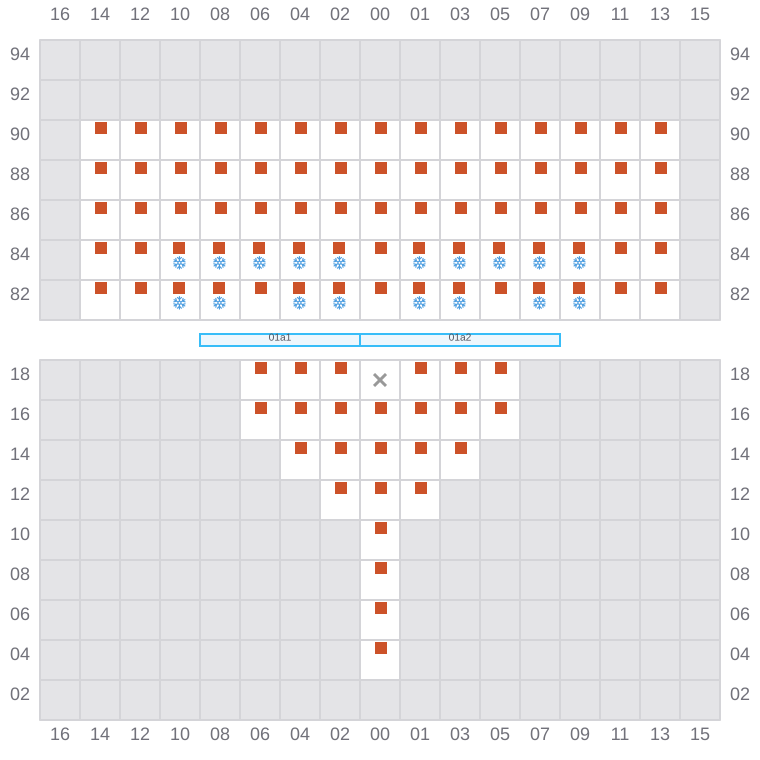

Bay 003 view and slots of MAERSK KOWLOON

005 (006)

  • →

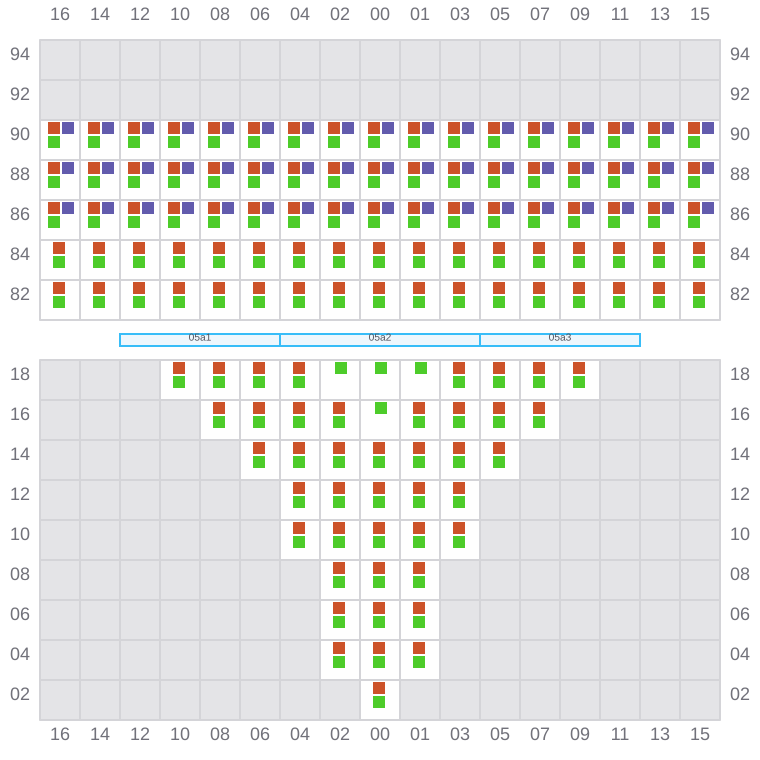

Bay 005 view and slots of MAERSK KOWLOON

007

  • ←
  • → / ?

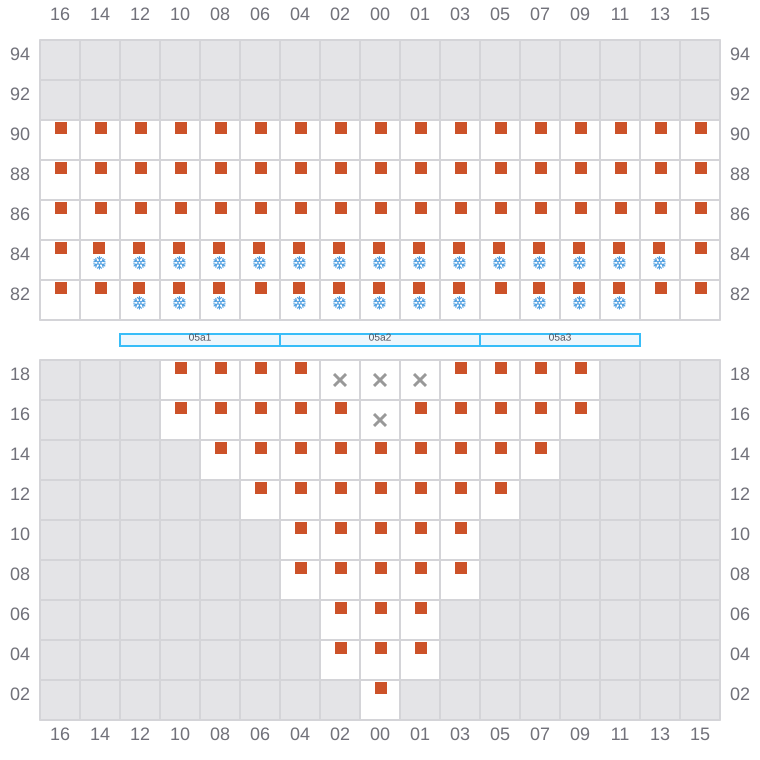

Bay 007 view and slots of MAERSK KOWLOON

009 (010)

  • →
Bay 009 view and slots of MAERSK KOWLOON

011

  • ←
  • → / ?

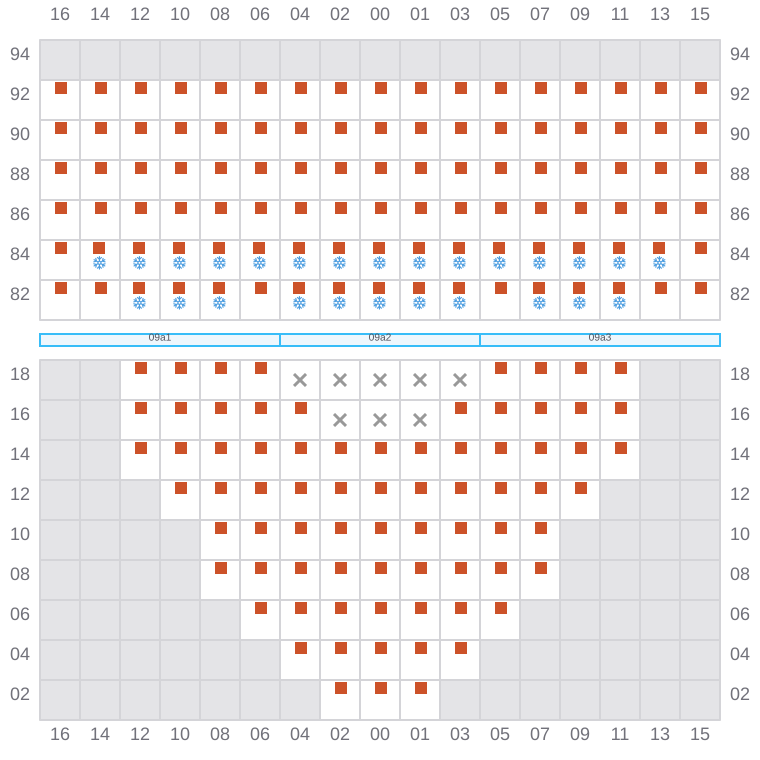

Bay 011 view and slots of MAERSK KOWLOON

013 (014)

  • →
Bay 013 view and slots of MAERSK KOWLOON

015

  • ←
  • → / ?
Bay 015 view and slots of MAERSK KOWLOON

017 (018)

  • →

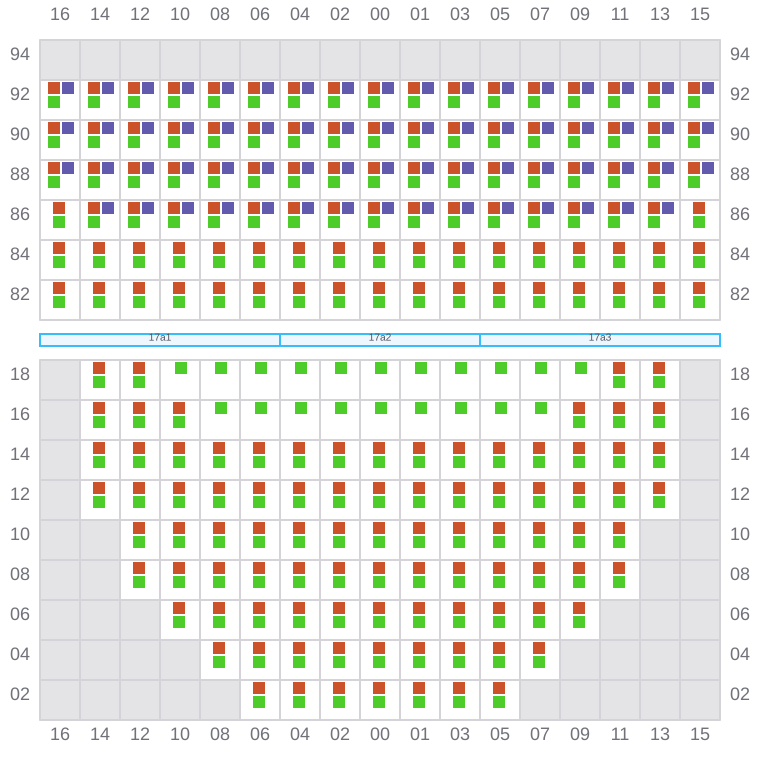

Bay 017 view and slots of MAERSK KOWLOON

019

  • ←
  • → / ?

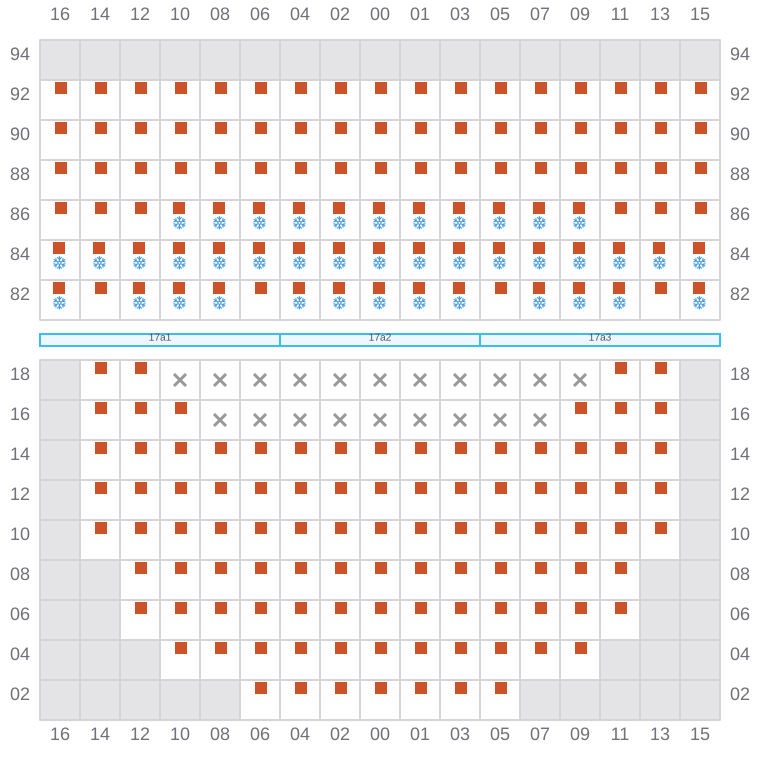

Bay 019 view and slots of MAERSK KOWLOON

021 (022)

  • →

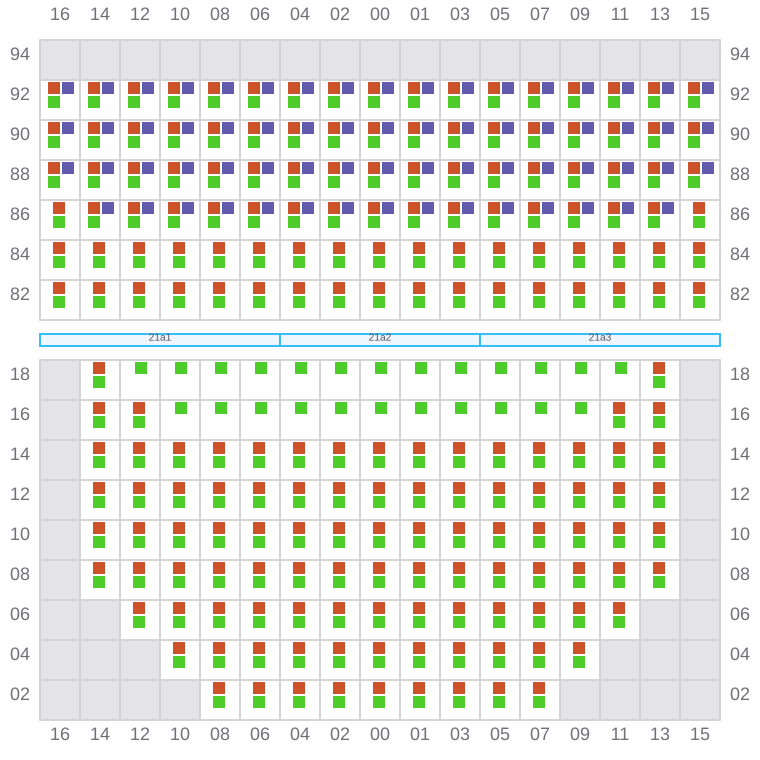

Bay 021 view and slots of MAERSK KOWLOON

023

  • ←
  • → / ?

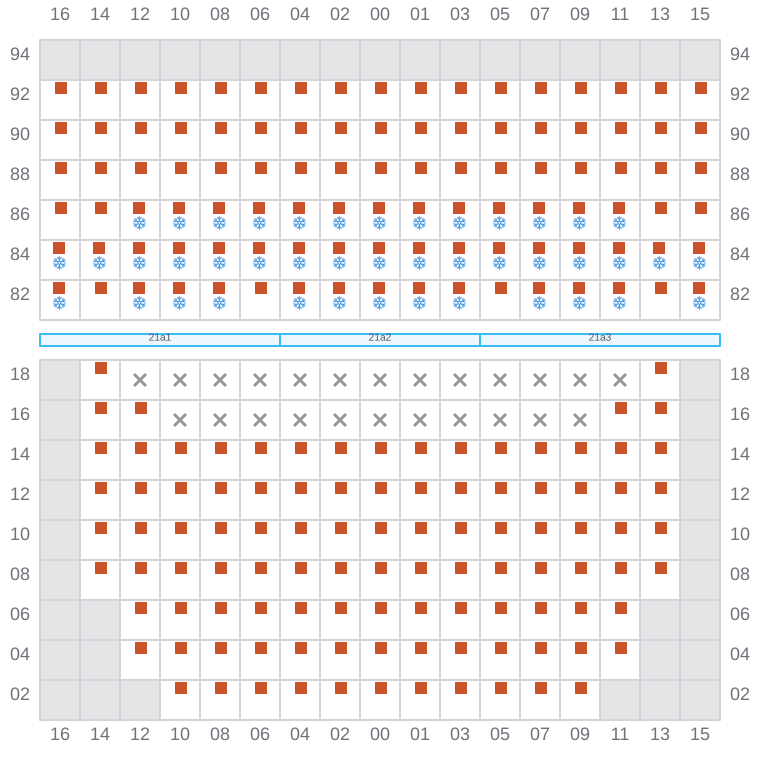

Bay 023 view and slots of MAERSK KOWLOON

025 (026)

  • →

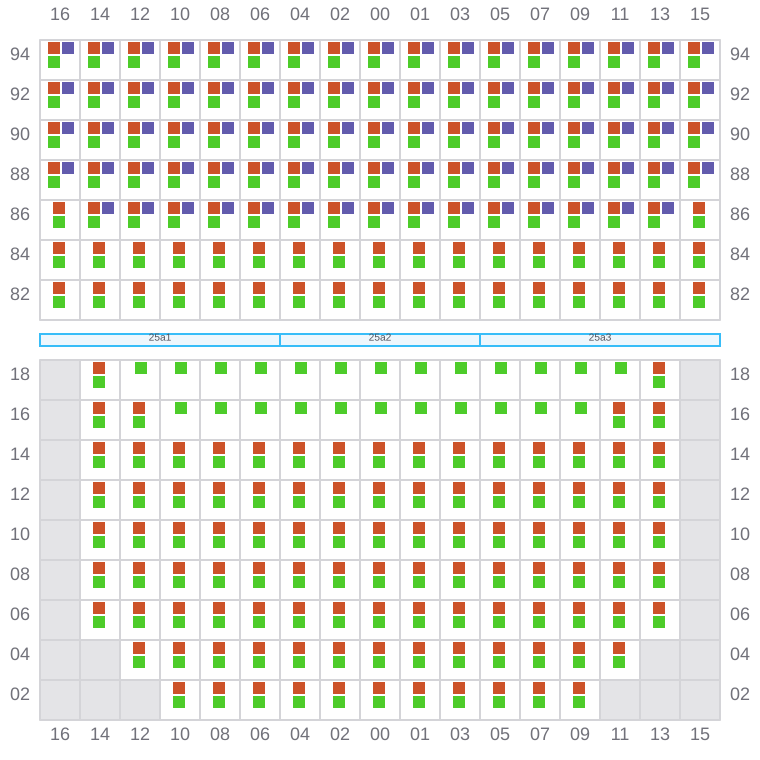

Bay 025 view and slots of MAERSK KOWLOON

027

  • ←
  • → / ?

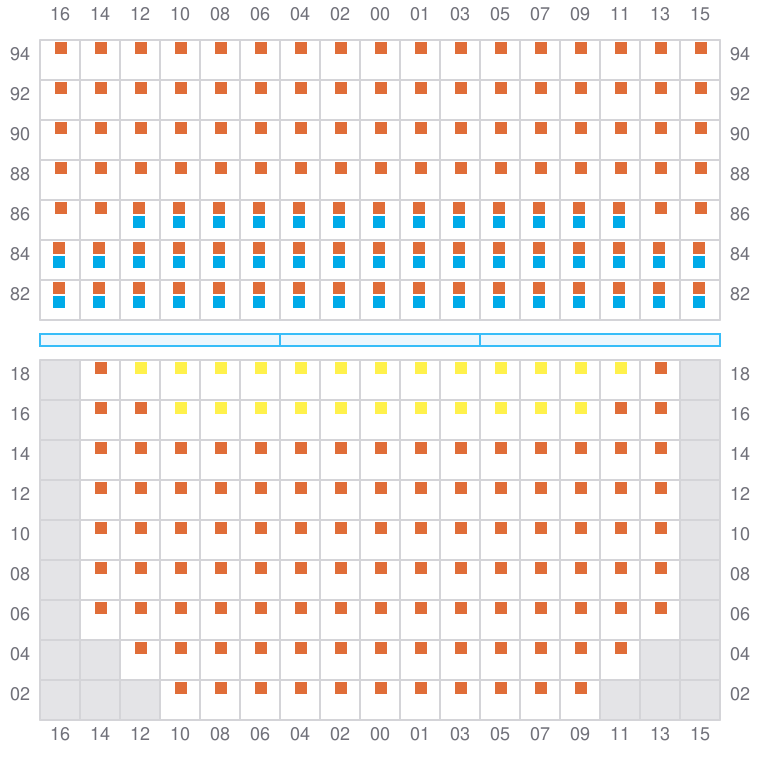

Bay 027 view and slots of MAERSK KOWLOON

029 (030)

  • →
Bay 029 view and slots of MAERSK KOWLOON

031

  • ←
  • → / ?
Bay 031 view and slots of MAERSK KOWLOON

033 (034)

  • →

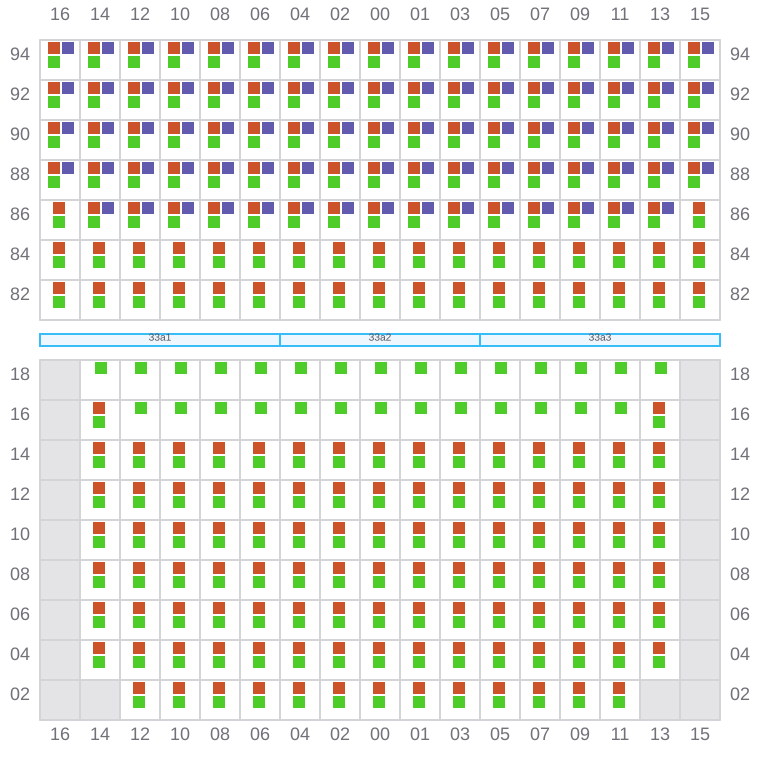

Bay 033 view and slots of MAERSK KOWLOON

035

  • ←
  • → / ?
Bay 035 view and slots of MAERSK KOWLOON

037 (038)

  • →

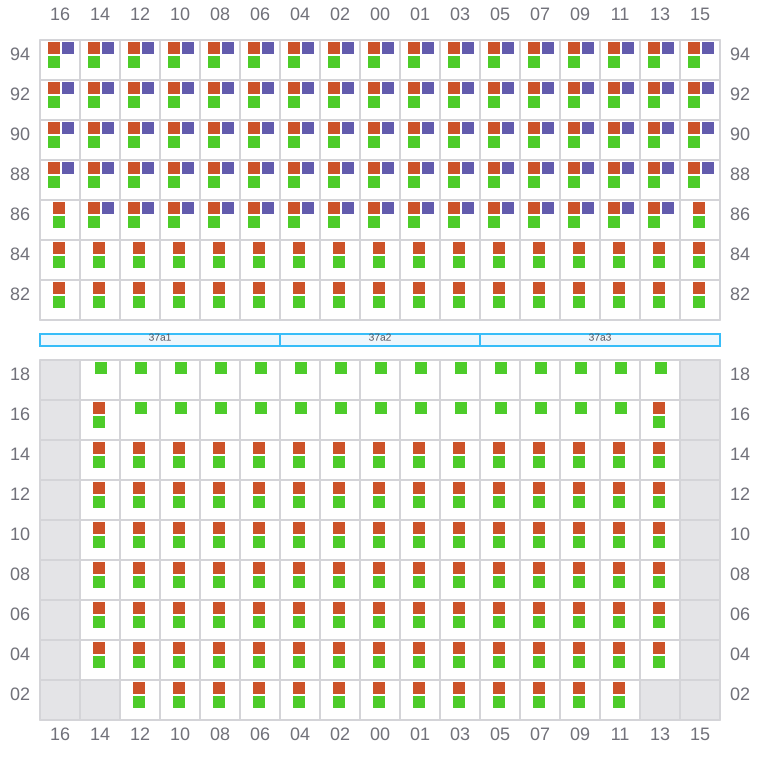

Bay 037 view and slots of MAERSK KOWLOON

039

  • ←
  • → / ?
Bay 039 view and slots of MAERSK KOWLOON

041 (042)

  • →
Bay 041 view and slots of MAERSK KOWLOON

043

  • ←
  • → / ?

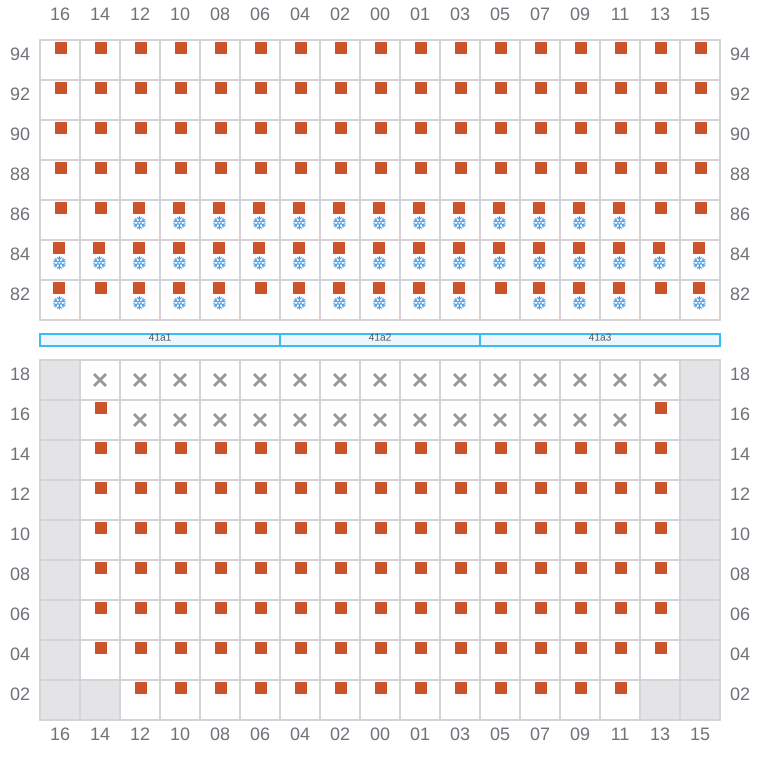

Bay 043 view and slots of MAERSK KOWLOON

045 (046)

  • →
Bay 045 view and slots of MAERSK KOWLOON

047

  • ←
  • → / ?

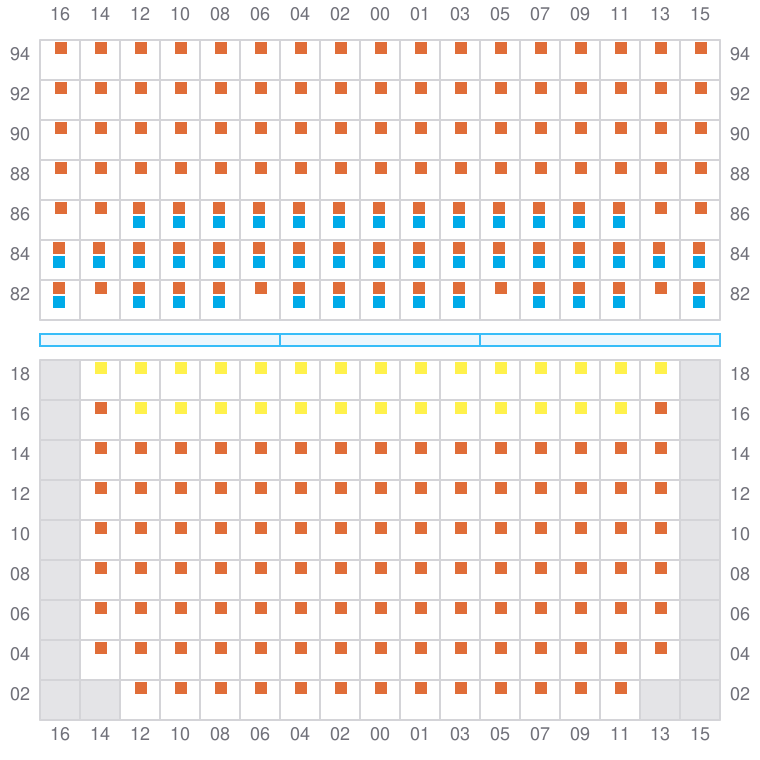

Bay 047 view and slots of MAERSK KOWLOON

049 (050)

  • →

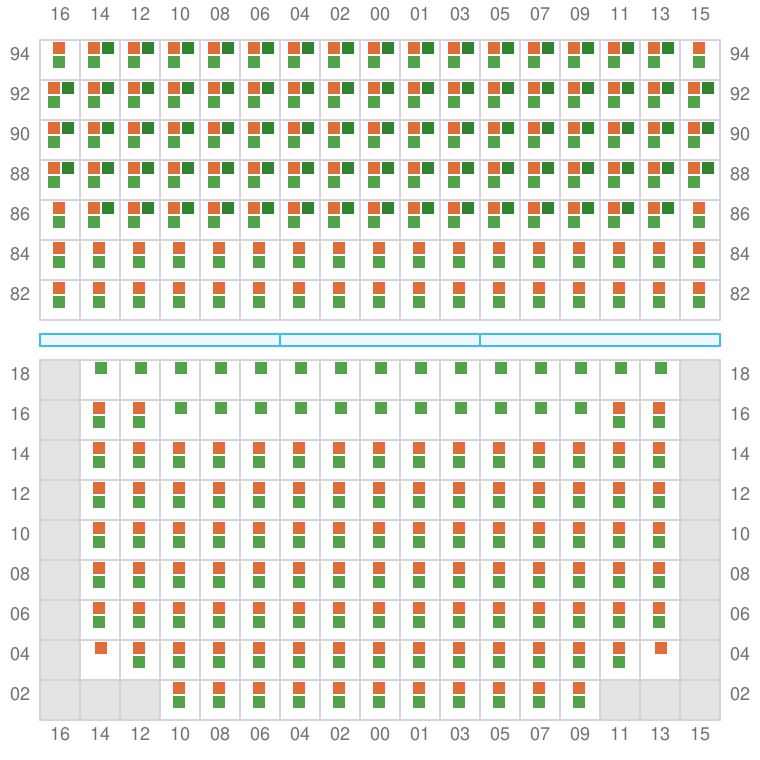

Bay 049 view and slots of MAERSK KOWLOON

051

  • ←
  • → / ?

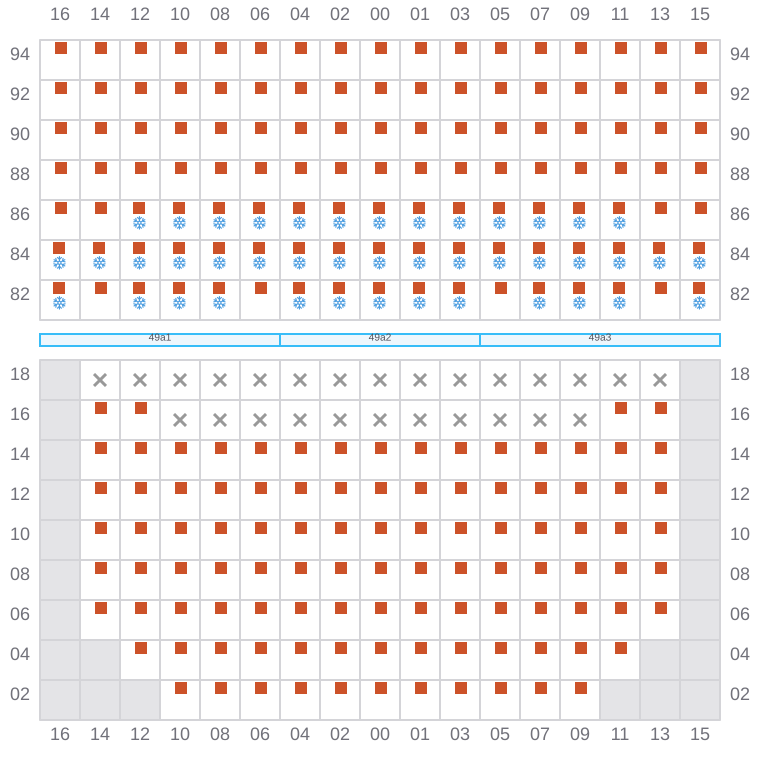

Bay 051 view and slots of MAERSK KOWLOON

053 (054)

  • →

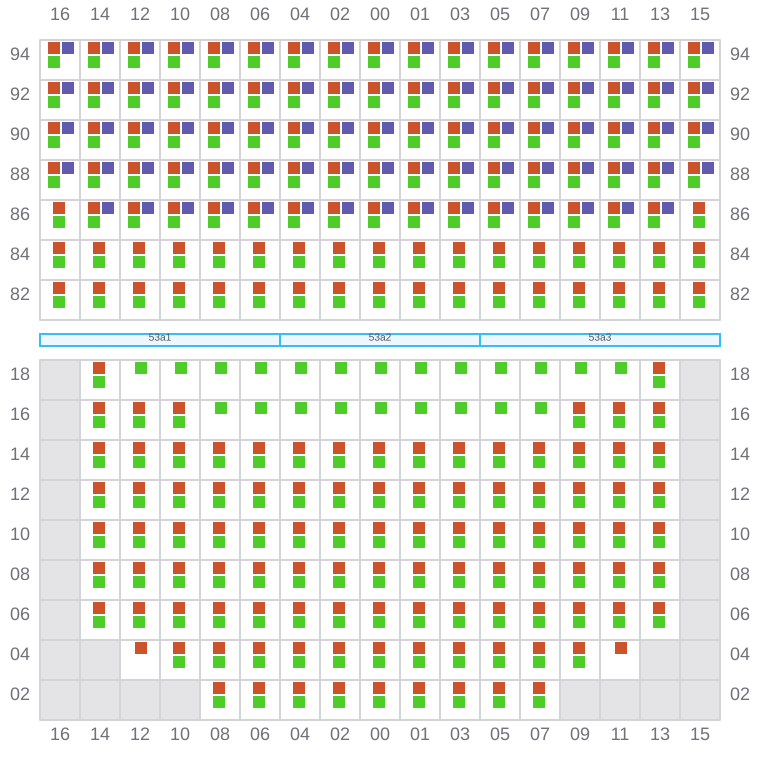

Bay 053 view and slots of MAERSK KOWLOON

055

  • ←
  • → / ?

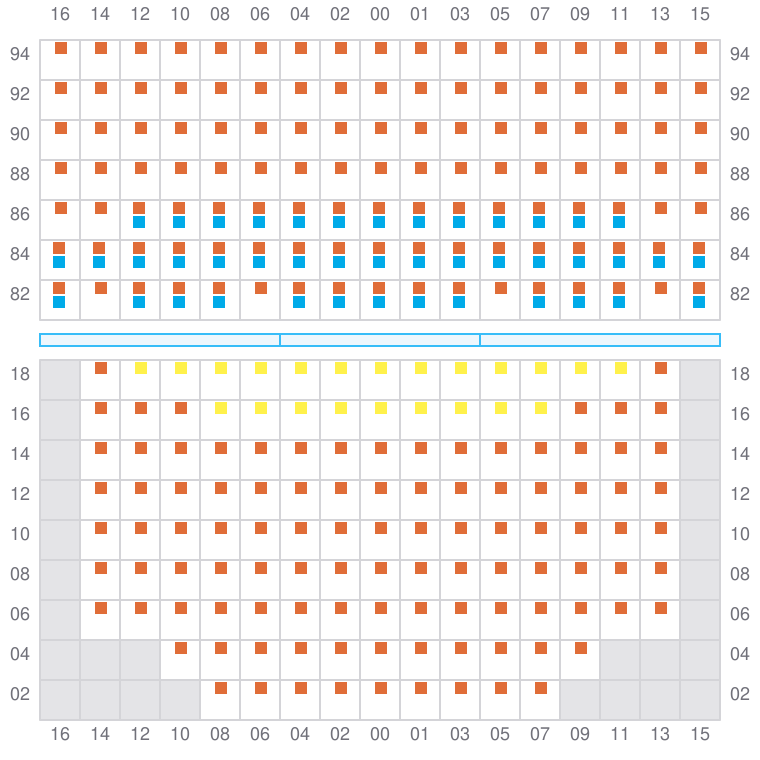

Bay 055 view and slots of MAERSK KOWLOON

057 (058)

  • →

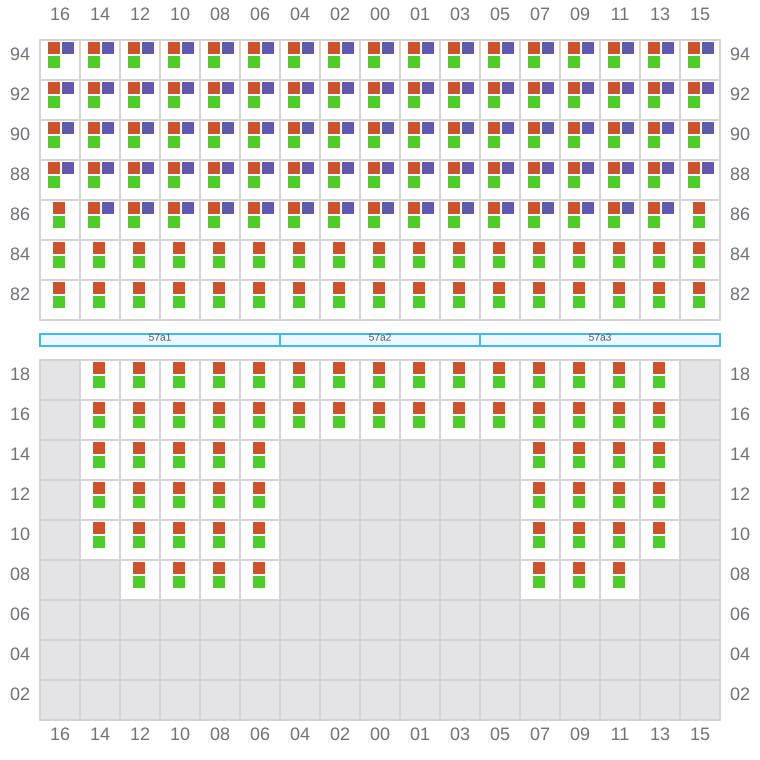

Bay 057 view and slots of MAERSK KOWLOON

059

  • ←
  • → / ?

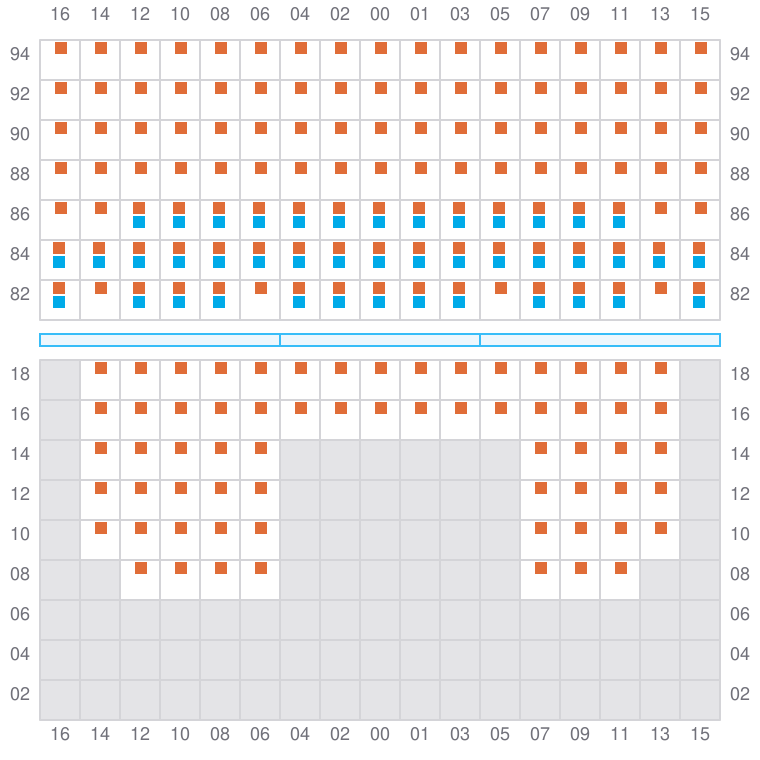

Bay 059 view and slots of MAERSK KOWLOON

061 (062)

  • →

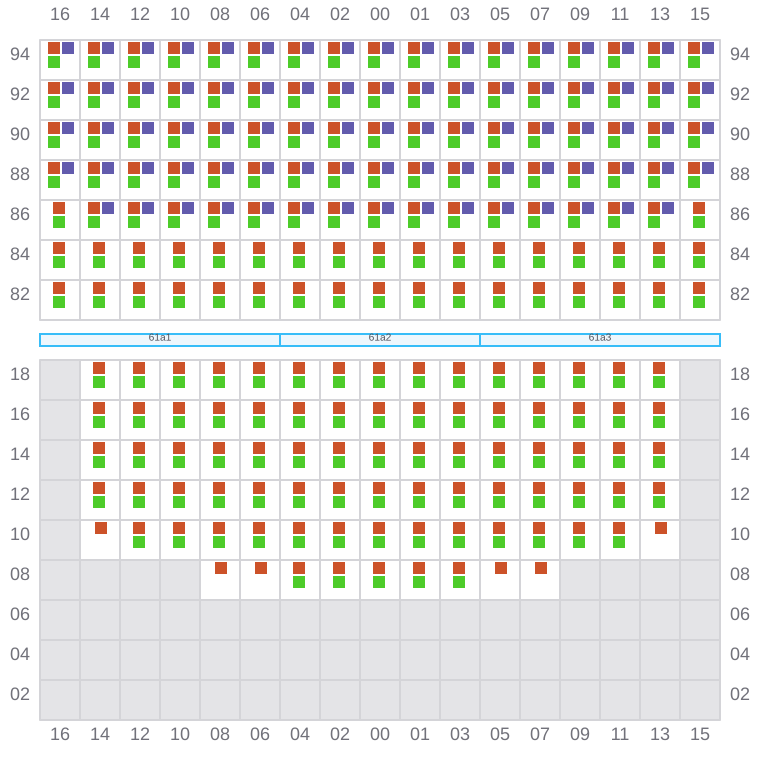

Bay 061 view and slots of MAERSK KOWLOON

063

  • ←
  • → / ?

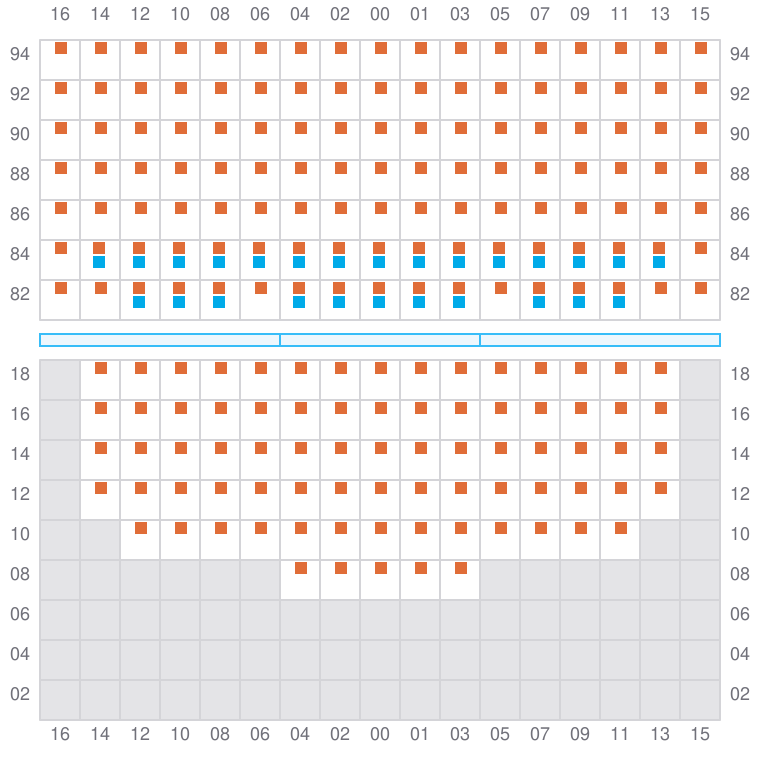

Bay 063 view and slots of MAERSK KOWLOON

065 (066)

  • →

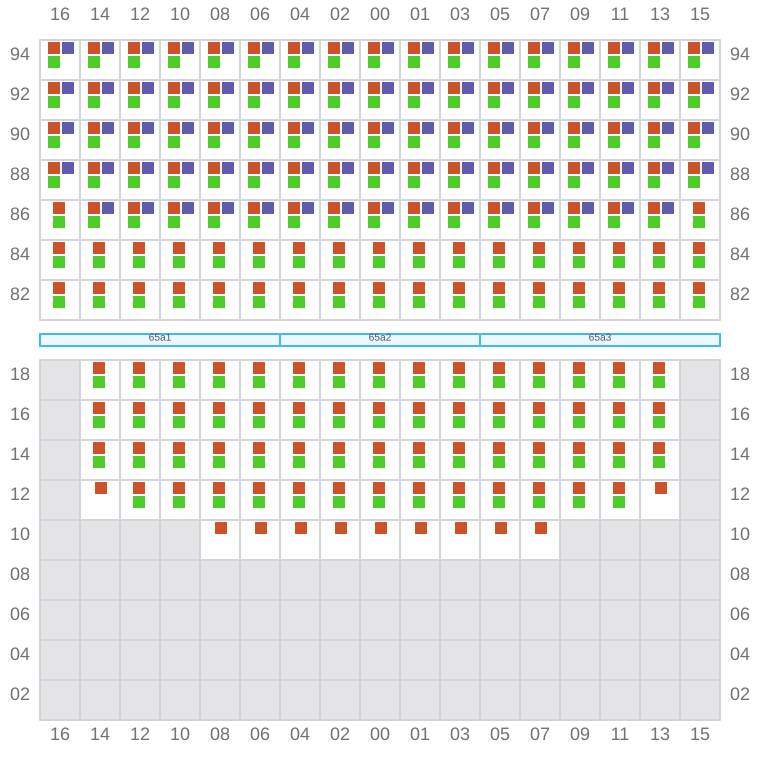

Bay 065 view and slots of MAERSK KOWLOON

067

  • ←
  • → / ?

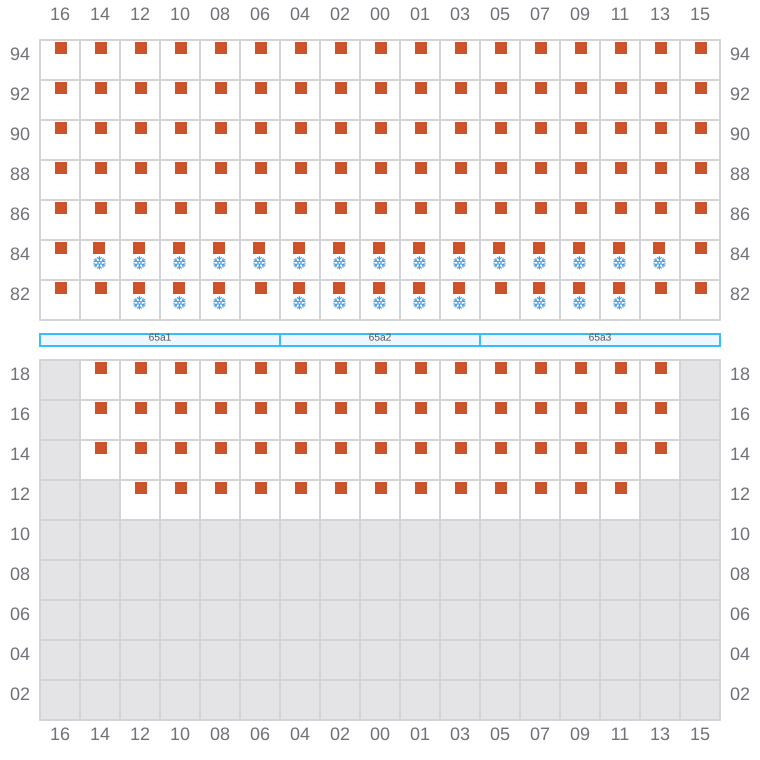

Bay 067 view and slots of MAERSK KOWLOON

069 (070)

  • → / ?

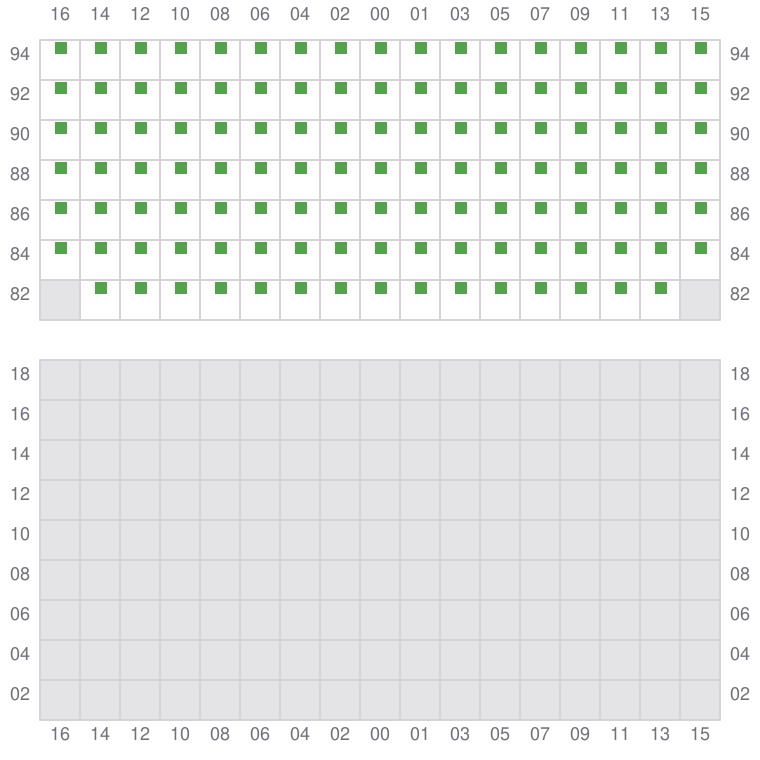

Bay 069 view and slots of MAERSK KOWLOON
