MAERSK LABERINTO
9526978 | OZJF2 | 9526978 by ********* Last update: Thu Mar 28 2024

General Info

Ship Name:MAERSK LABERINTO
IMO Code:9526978
Call Sign:OZJF2
Line Operator:9526978
Class Name for Sister Ships:997
Year Built:2012
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-

Size Summary

ISO Bays:069
Max ISO Row:18
Center Line Row:No
Max Above ISO Tier:96
Min Above ISO Tier:78
Max Below ISO Tier:18
Min Below ISO Tier:02
Total TEU:9,306

Centers of Gravity

LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

Side View

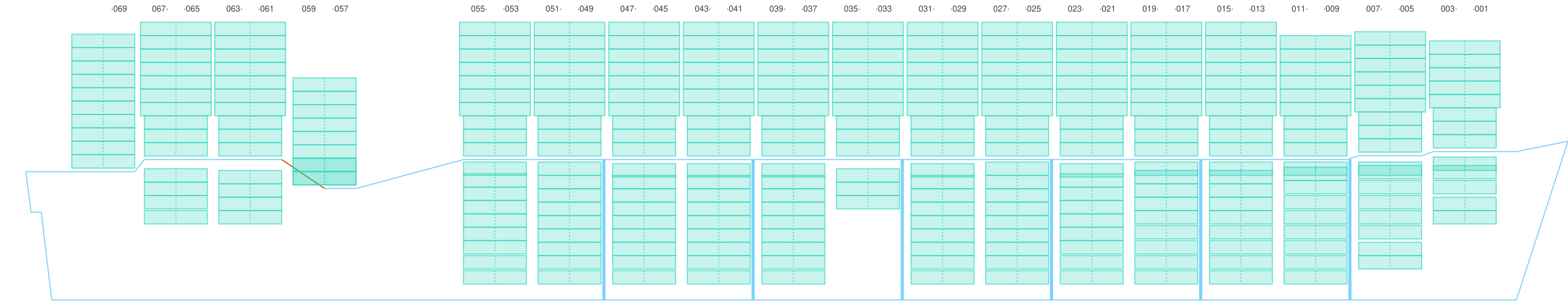

Side view of MAERSK LABERINTO

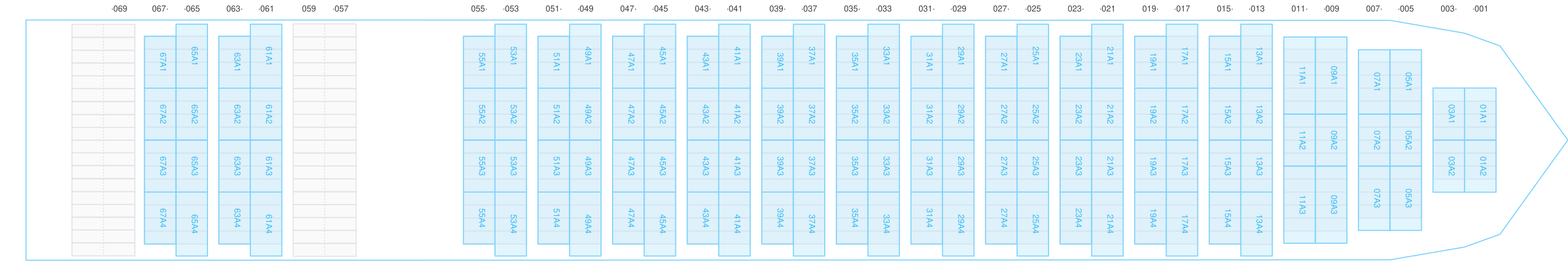

Hatch-Covers View

Deck view of MAERSK LABERINTO

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot

001 (002)

  • →

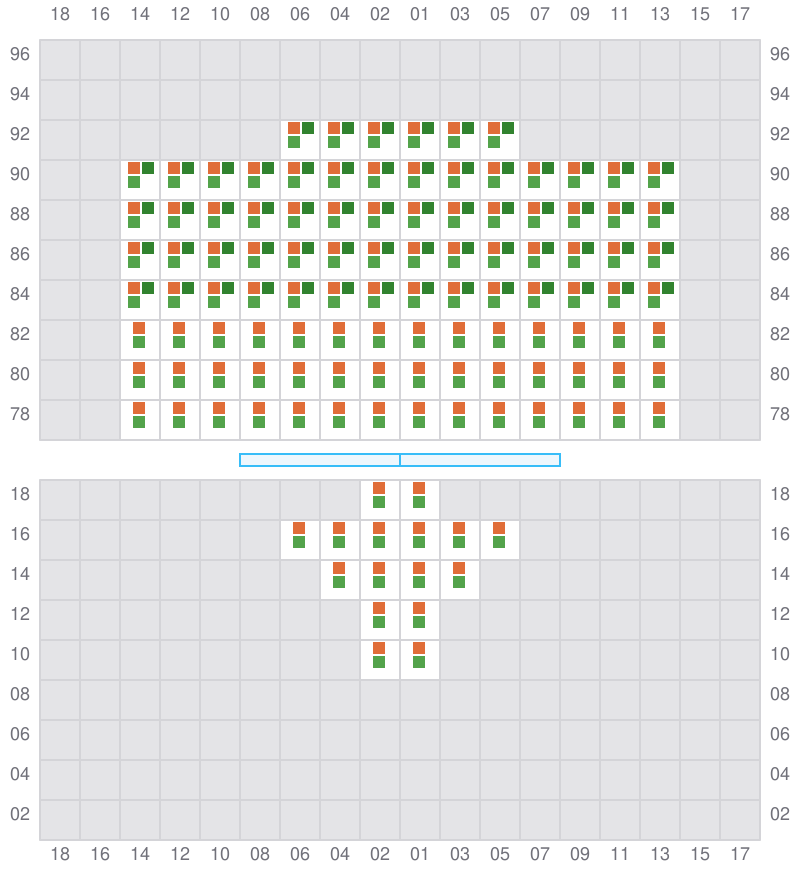

Bay 001 view and slots of MAERSK LABERINTO

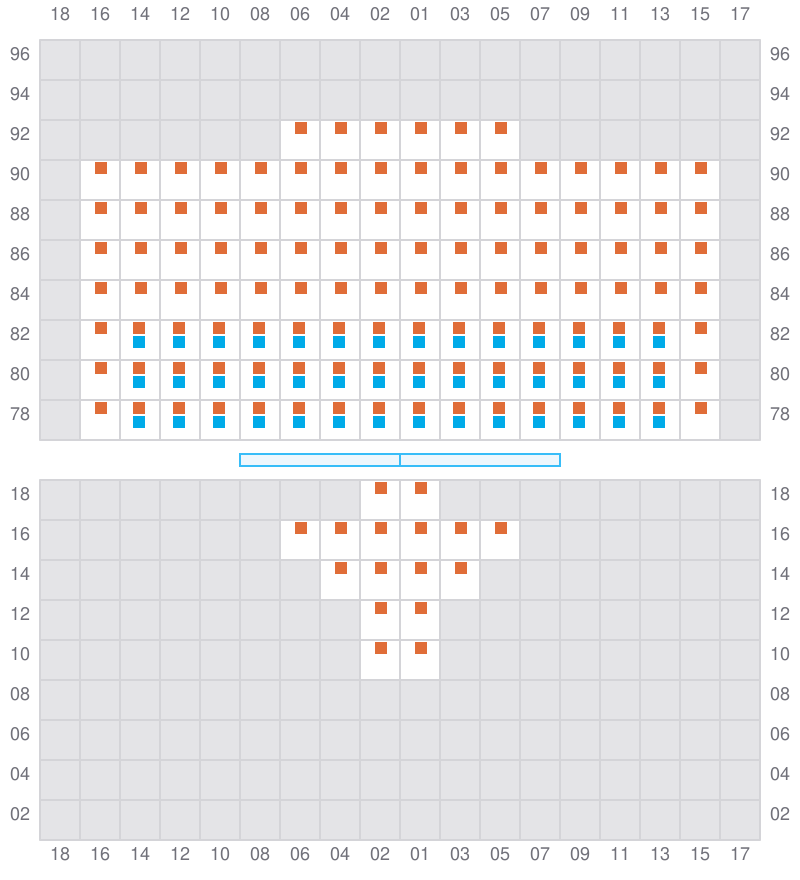

003

  • ←
  • → / ?
Bay 003 view and slots of MAERSK LABERINTO

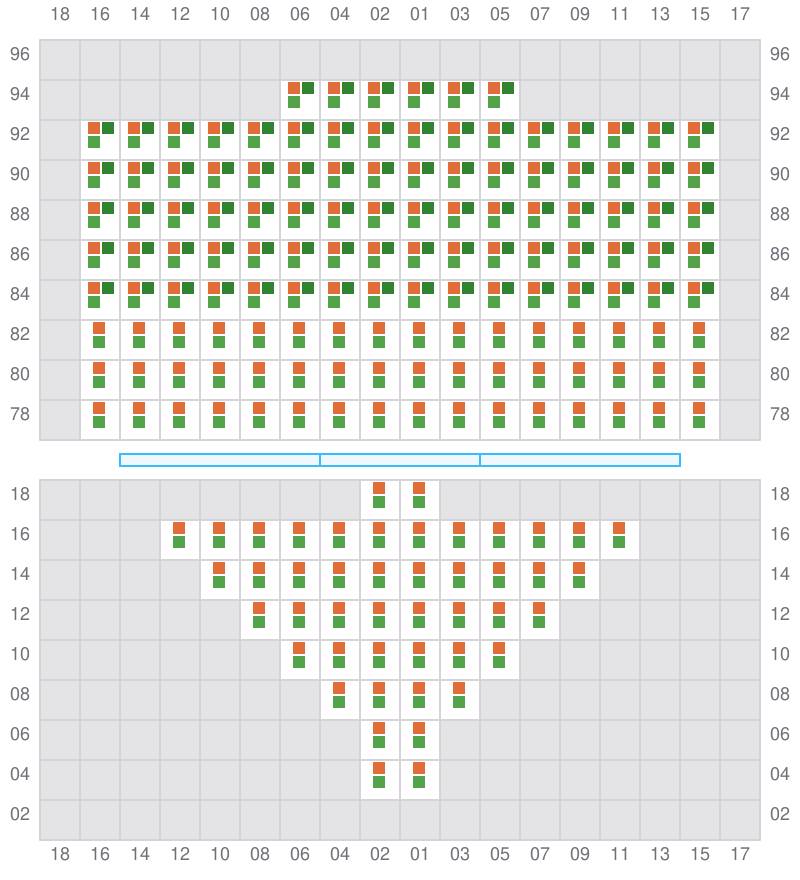

005 (006)

  • →
Bay 005 view and slots of MAERSK LABERINTO

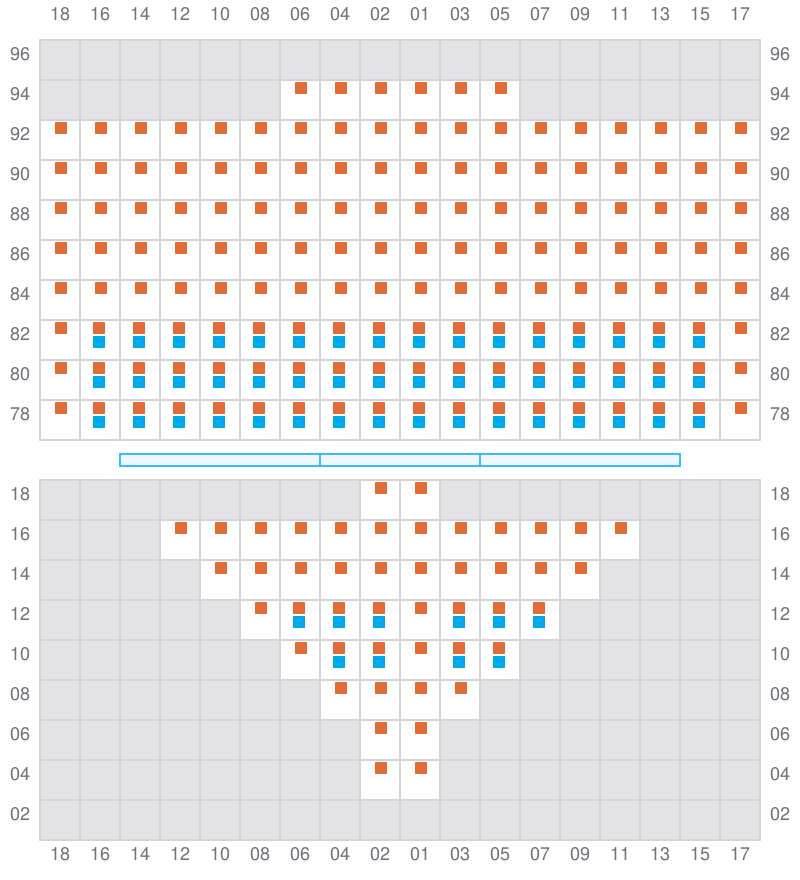

007

  • ←
  • →
Bay 007 view and slots of MAERSK LABERINTO

009 (010)

  • →

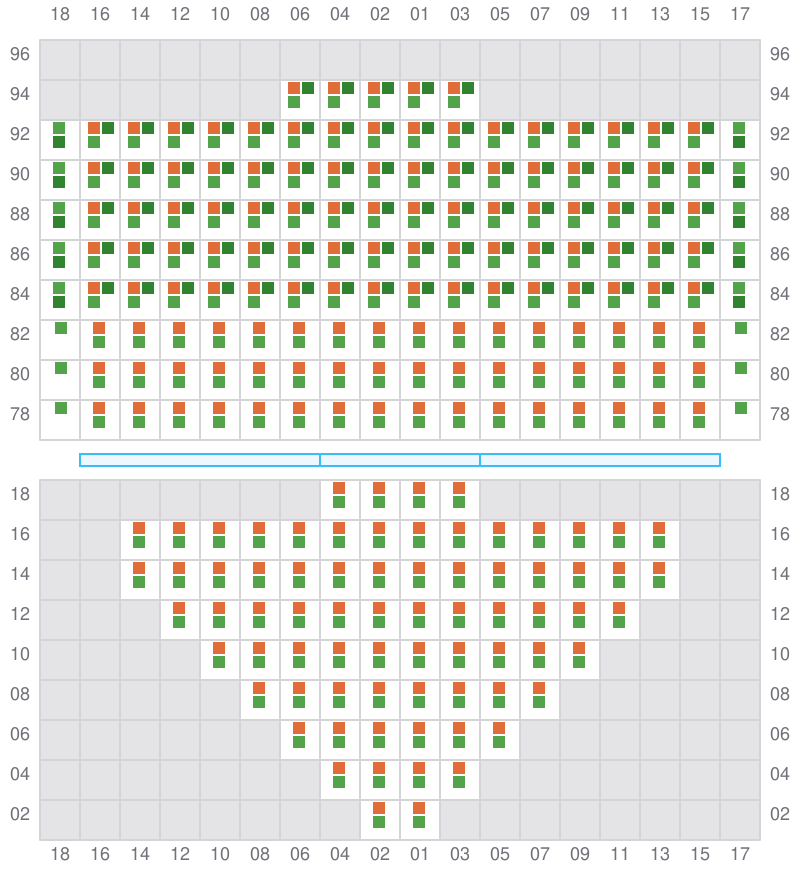

Bay 009 view and slots of MAERSK LABERINTO

011

  • ←
  • →

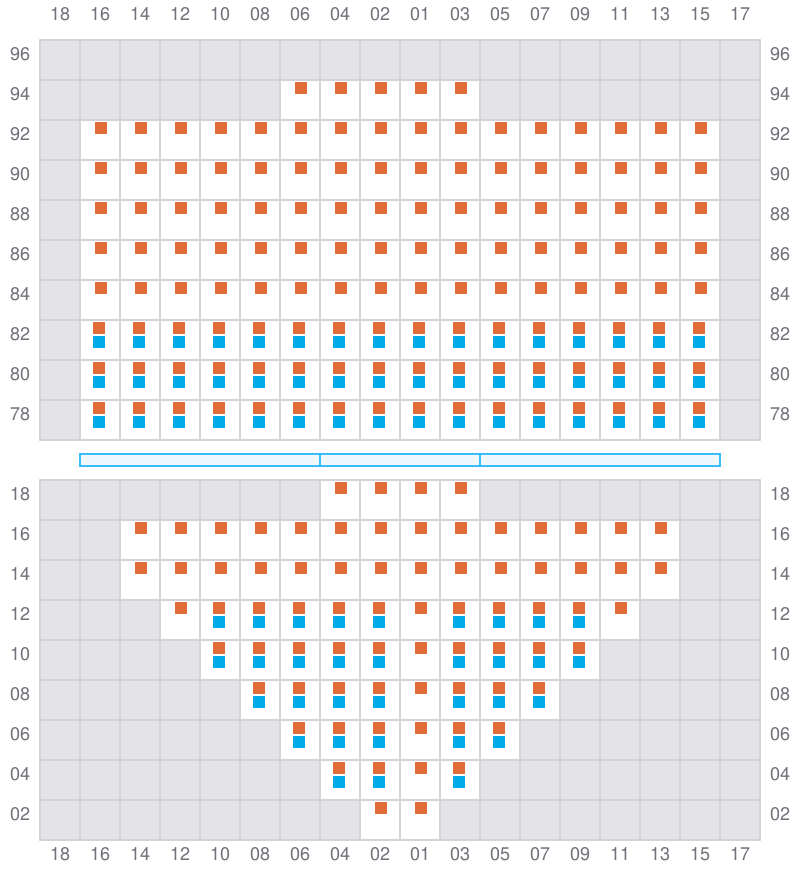

Bay 011 view and slots of MAERSK LABERINTO

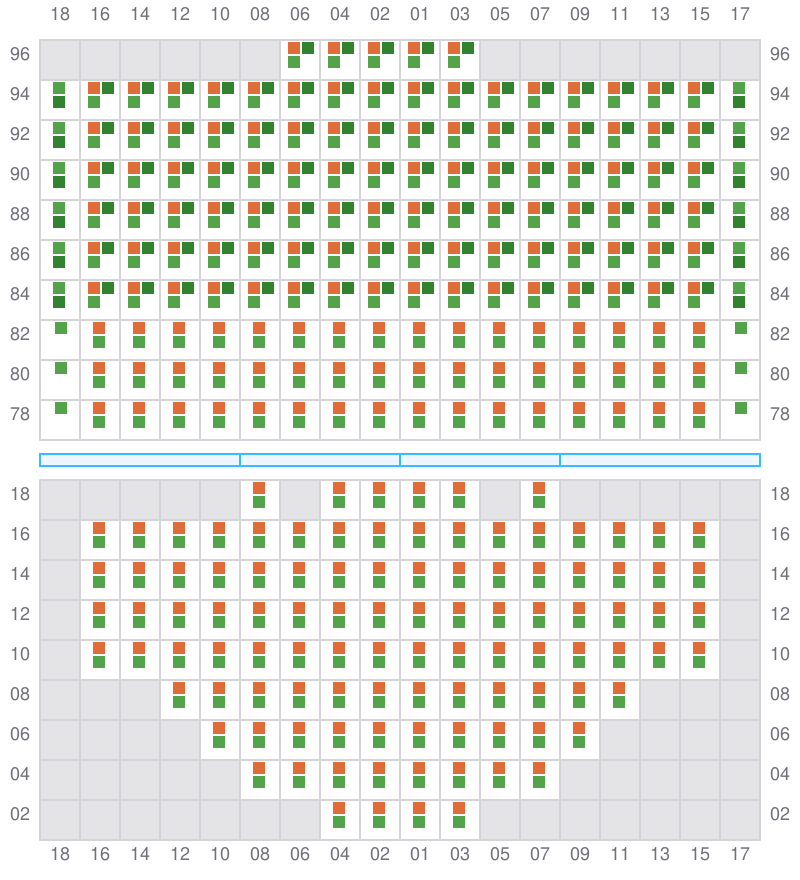

013 (014)

  • →
Bay 013 view and slots of MAERSK LABERINTO

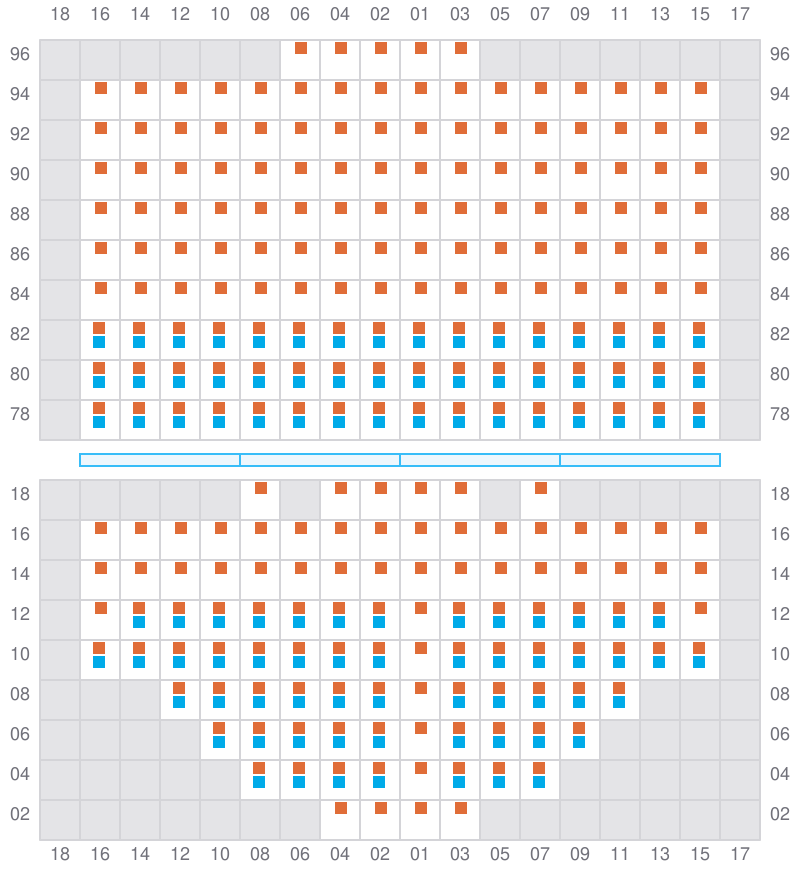

015

  • ←
  • →
Bay 015 view and slots of MAERSK LABERINTO

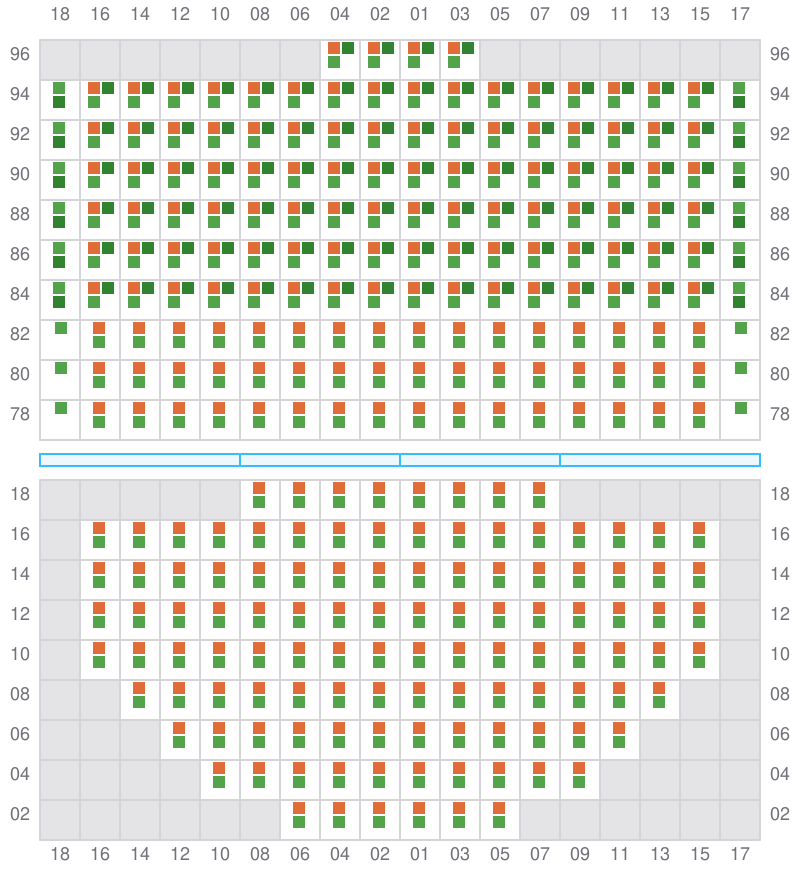

017 (018)

  • →
Bay 017 view and slots of MAERSK LABERINTO

019

  • ←
  • →

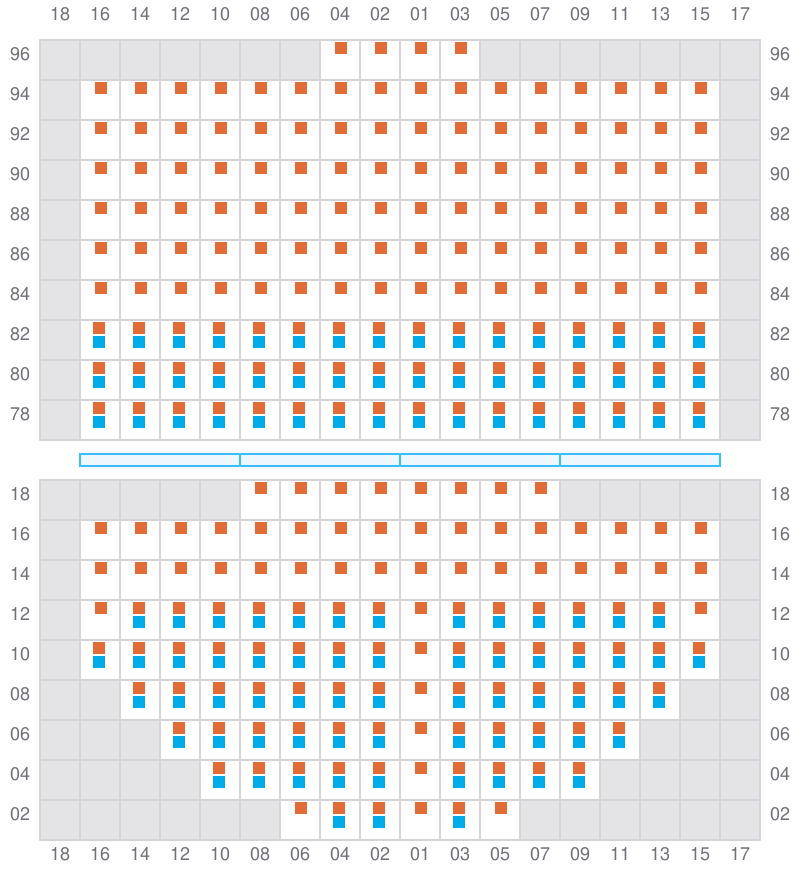

Bay 019 view and slots of MAERSK LABERINTO

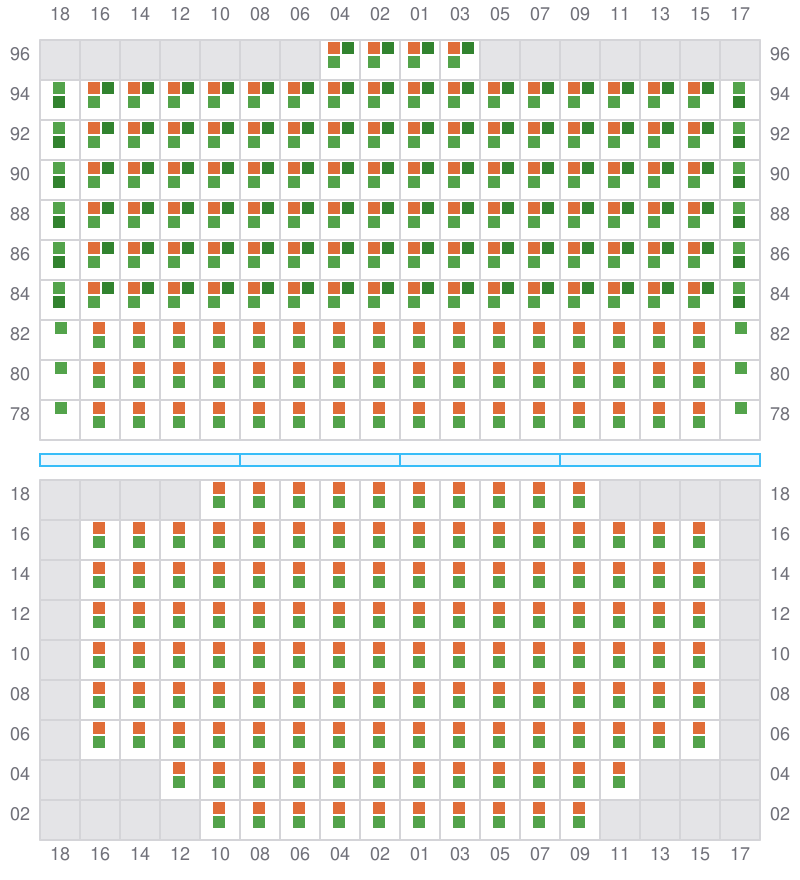

021 (022)

  • →
Bay 021 view and slots of MAERSK LABERINTO

023

  • ←
  • →

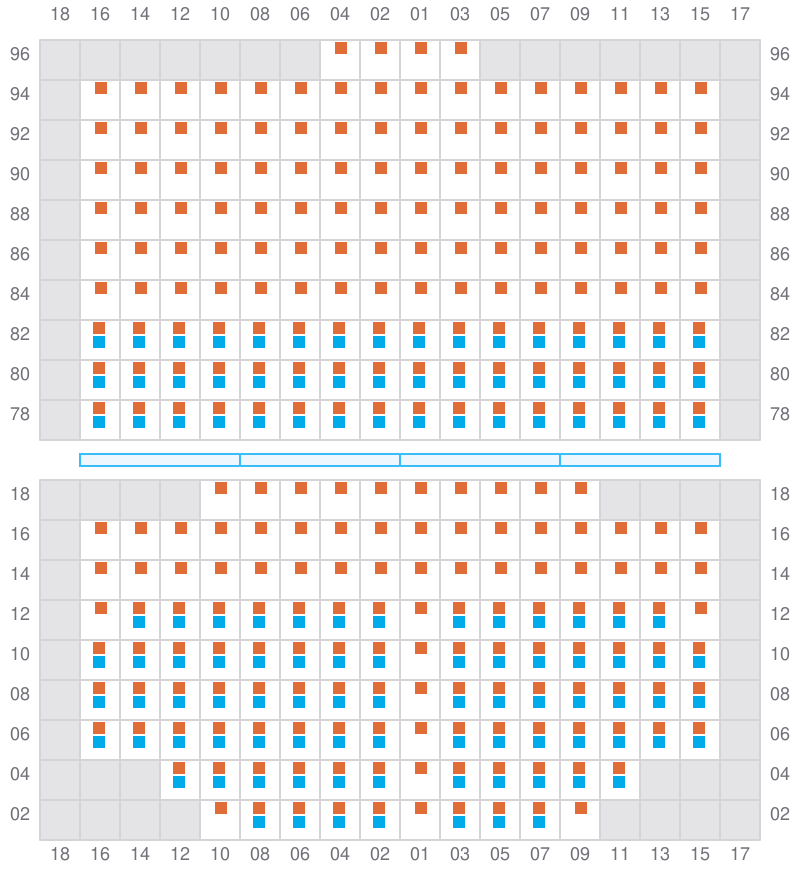

Bay 023 view and slots of MAERSK LABERINTO

025 (026)

  • →
Bay 025 view and slots of MAERSK LABERINTO

027

  • ←
  • →

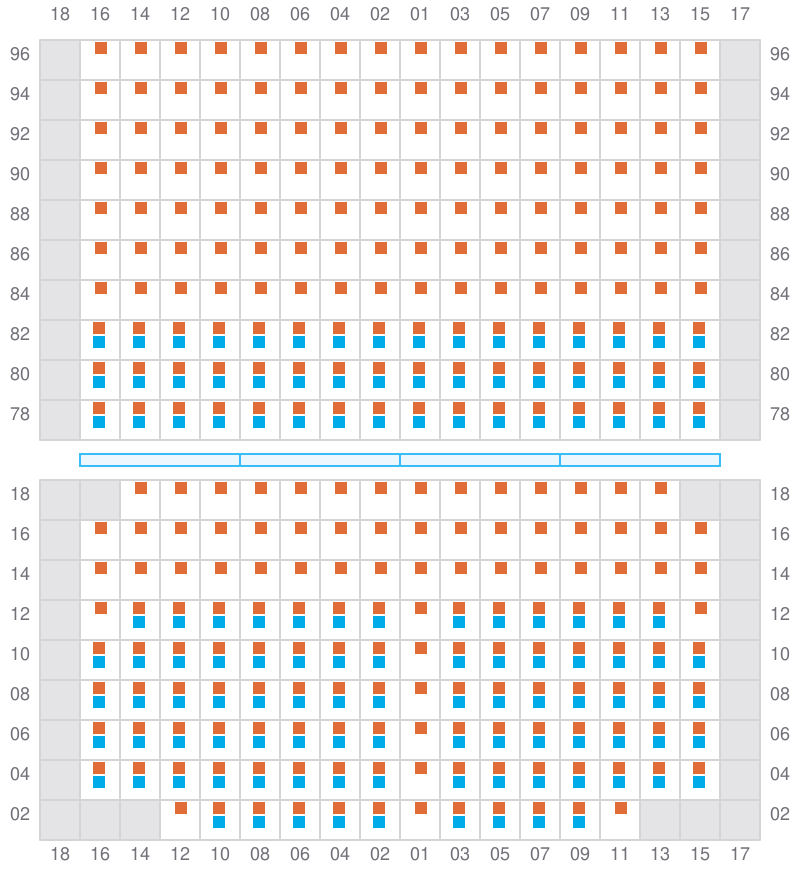

Bay 027 view and slots of MAERSK LABERINTO

029 (030)

  • →
Bay 029 view and slots of MAERSK LABERINTO

031

  • ←
  • →

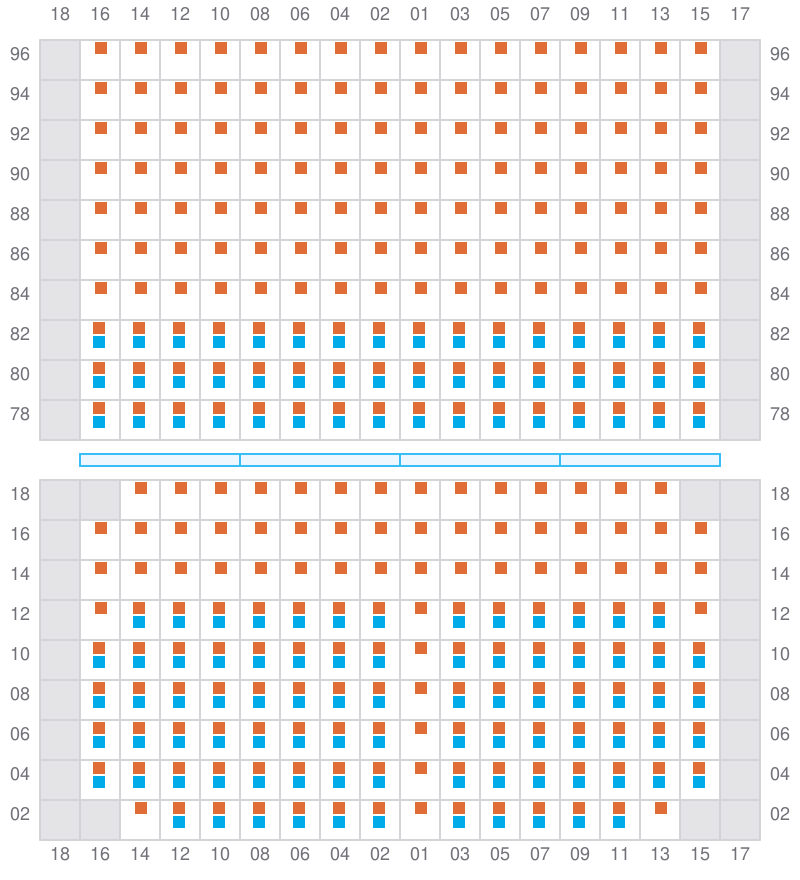

Bay 031 view and slots of MAERSK LABERINTO

033 (034)

  • →
Bay 033 view and slots of MAERSK LABERINTO

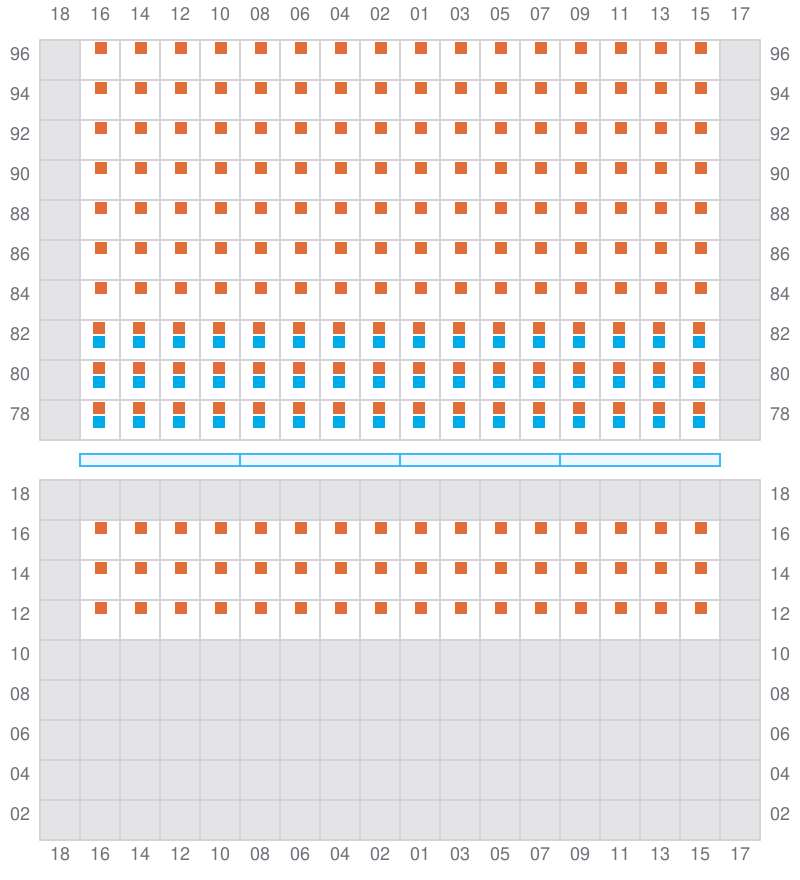

035

  • ←
  • → / ?
Bay 035 view and slots of MAERSK LABERINTO

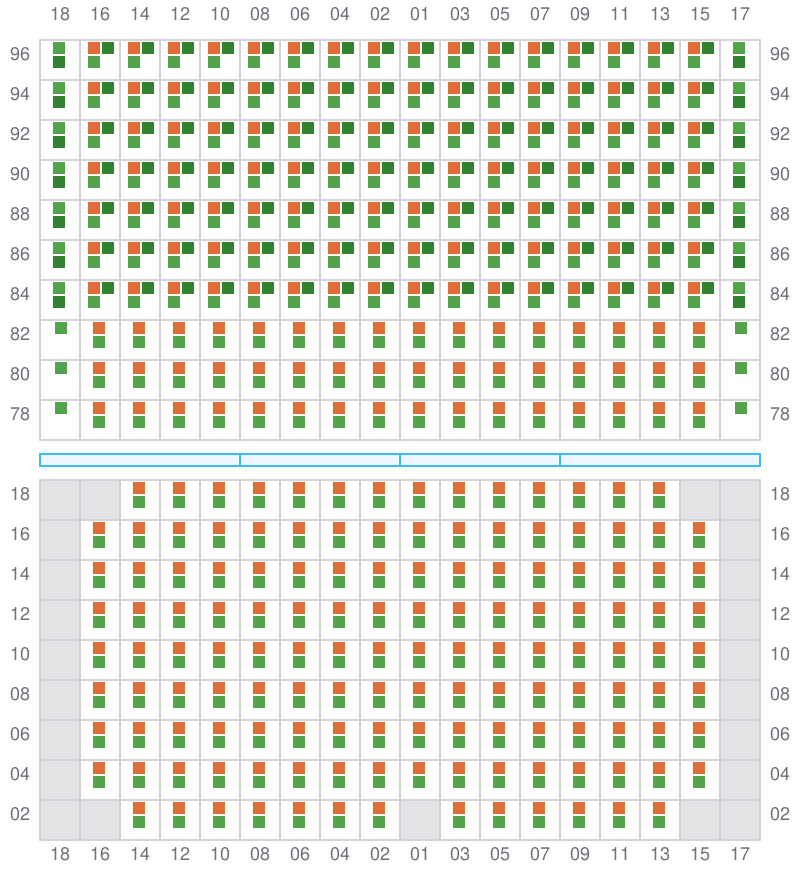

037 (038)

  • →
Bay 037 view and slots of MAERSK LABERINTO

039

  • ←
  • →

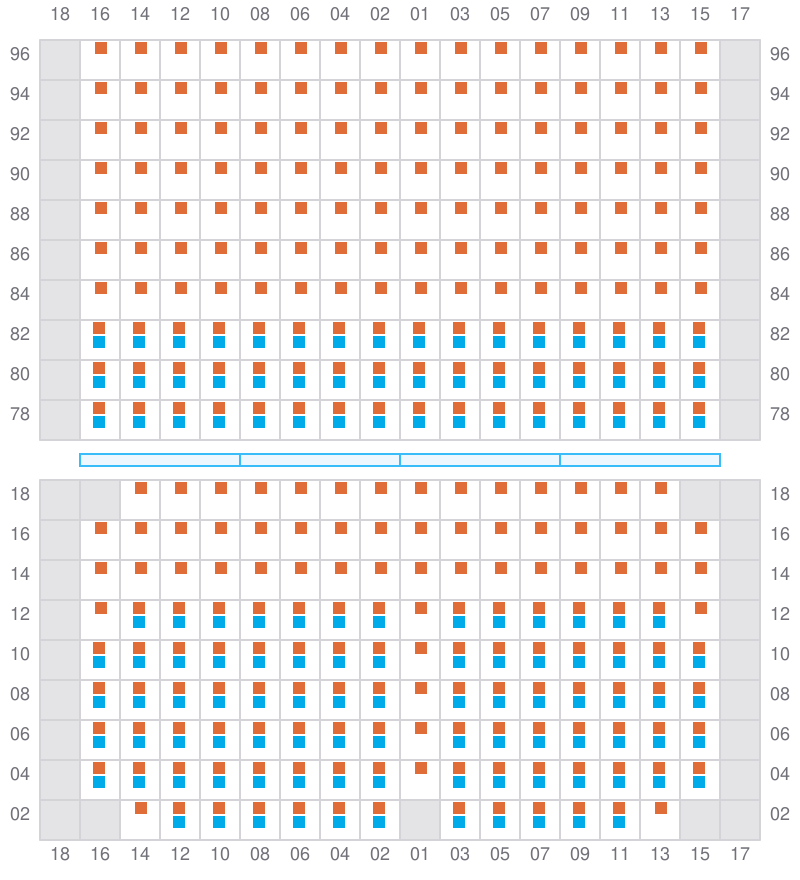

Bay 039 view and slots of MAERSK LABERINTO

041 (042)

  • →
Bay 041 view and slots of MAERSK LABERINTO

043

  • ←
  • →
Bay 043 view and slots of MAERSK LABERINTO

045 (046)

  • →
Bay 045 view and slots of MAERSK LABERINTO

047

  • ←
  • →

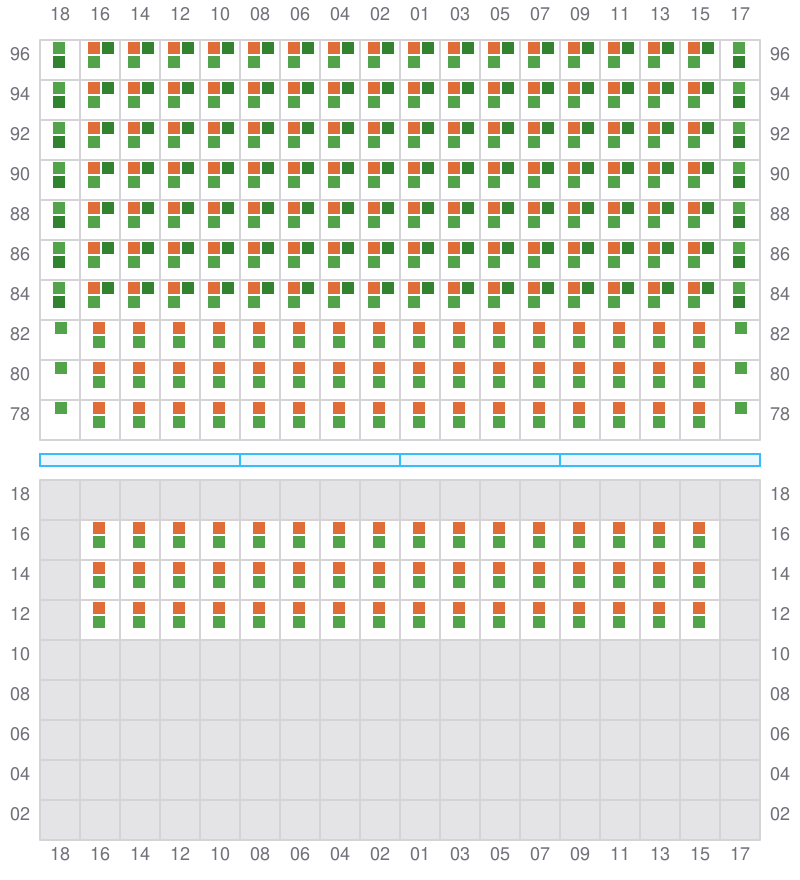

Bay 047 view and slots of MAERSK LABERINTO

049 (050)

  • →

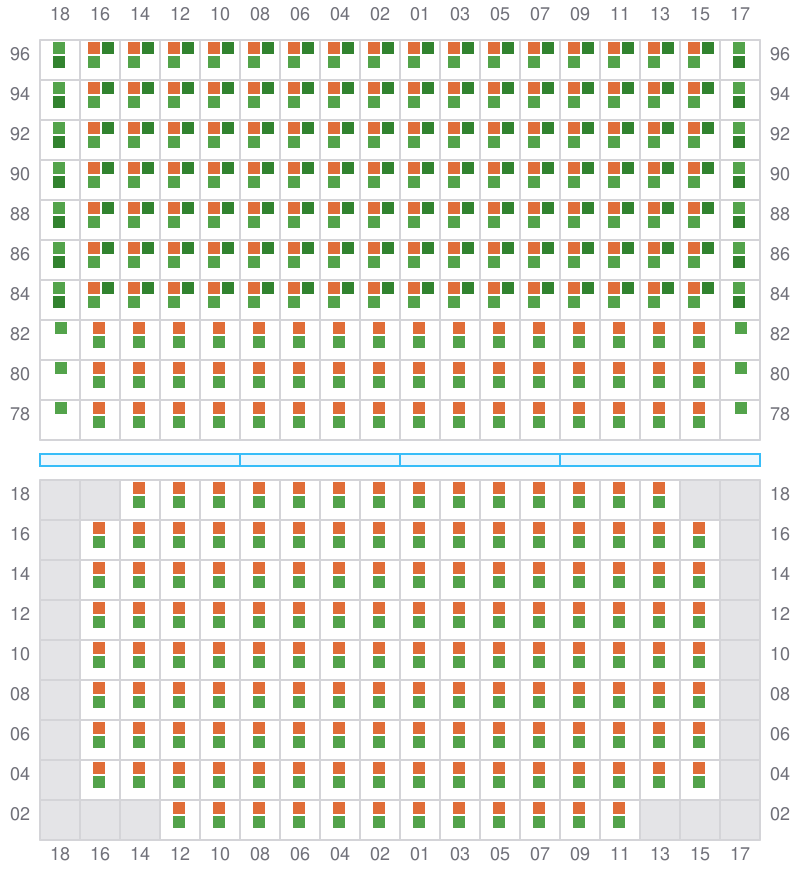

Bay 049 view and slots of MAERSK LABERINTO

051

  • ←
  • →
Bay 051 view and slots of MAERSK LABERINTO

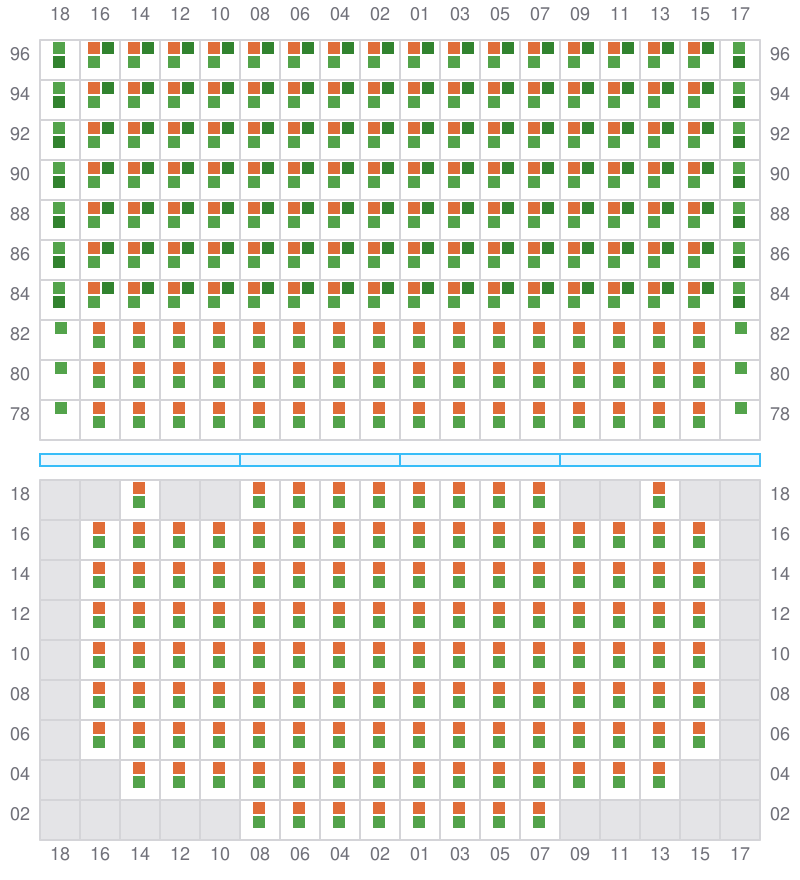

053 (054)

  • →
Bay 053 view and slots of MAERSK LABERINTO

055

  • ←
  • →

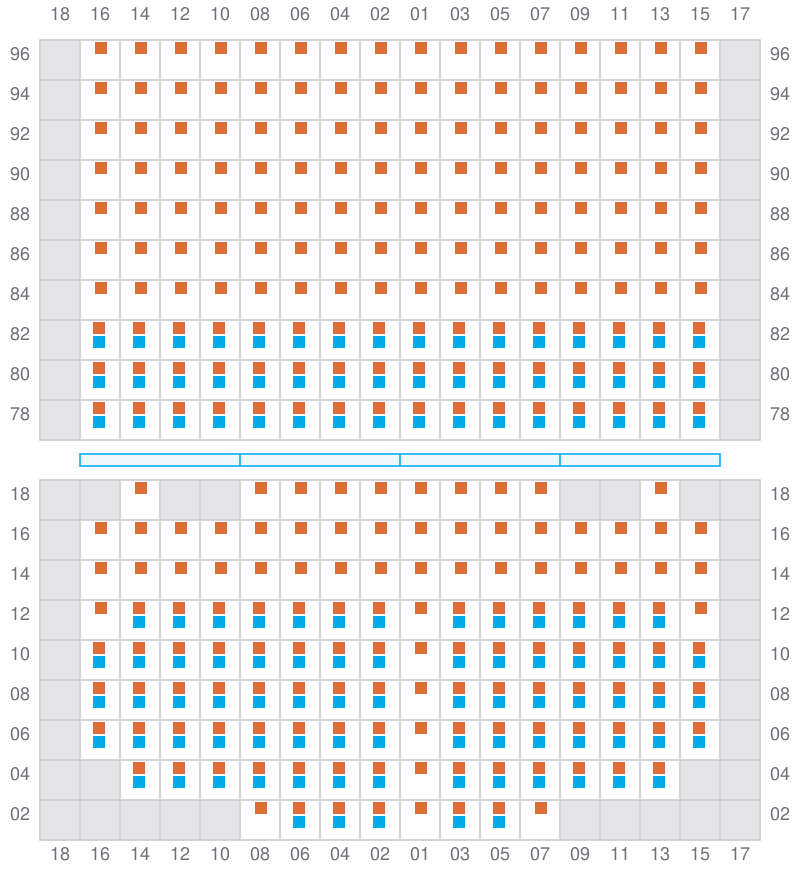

Bay 055 view and slots of MAERSK LABERINTO

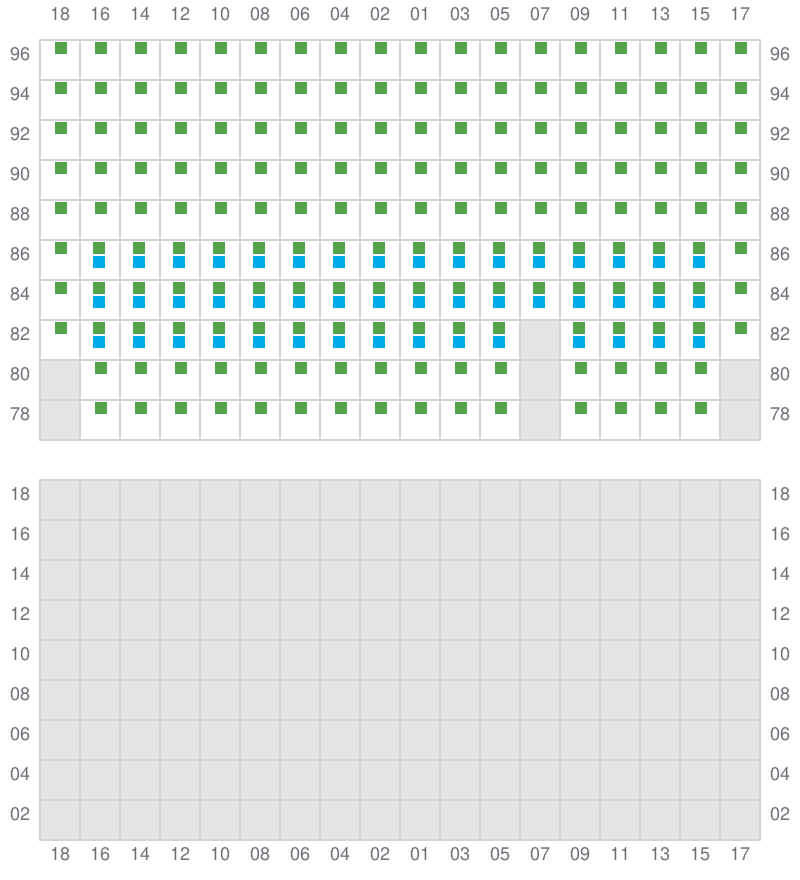

057 (058)

  • → / ?
  • ← / ?
Bay 057 view and slots of MAERSK LABERINTO

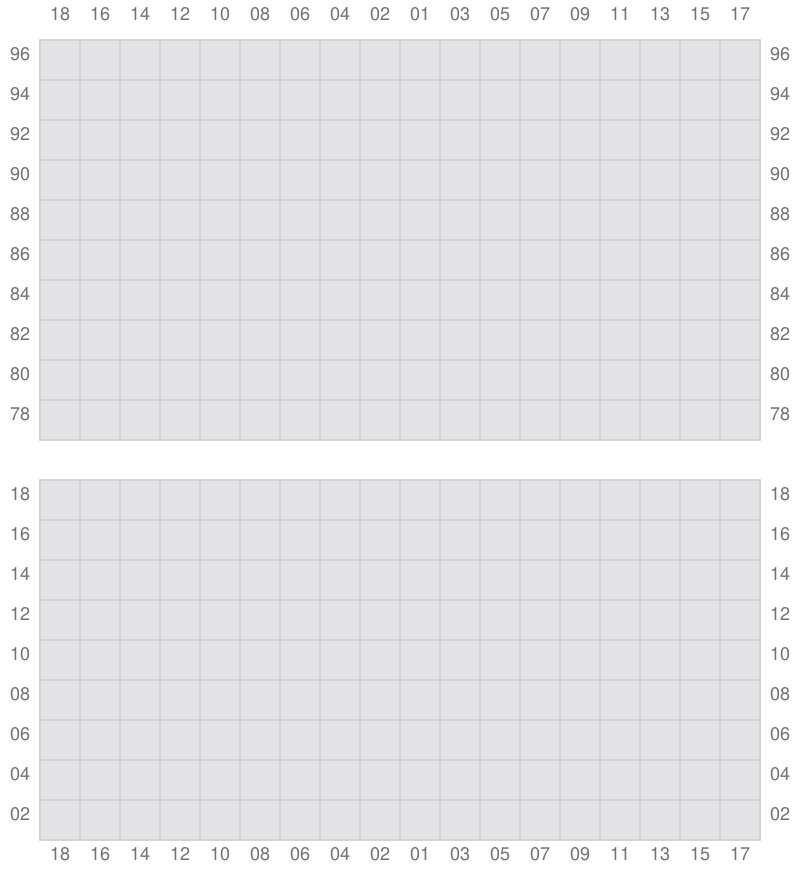

059

Bay 059 view and slots of MAERSK LABERINTO

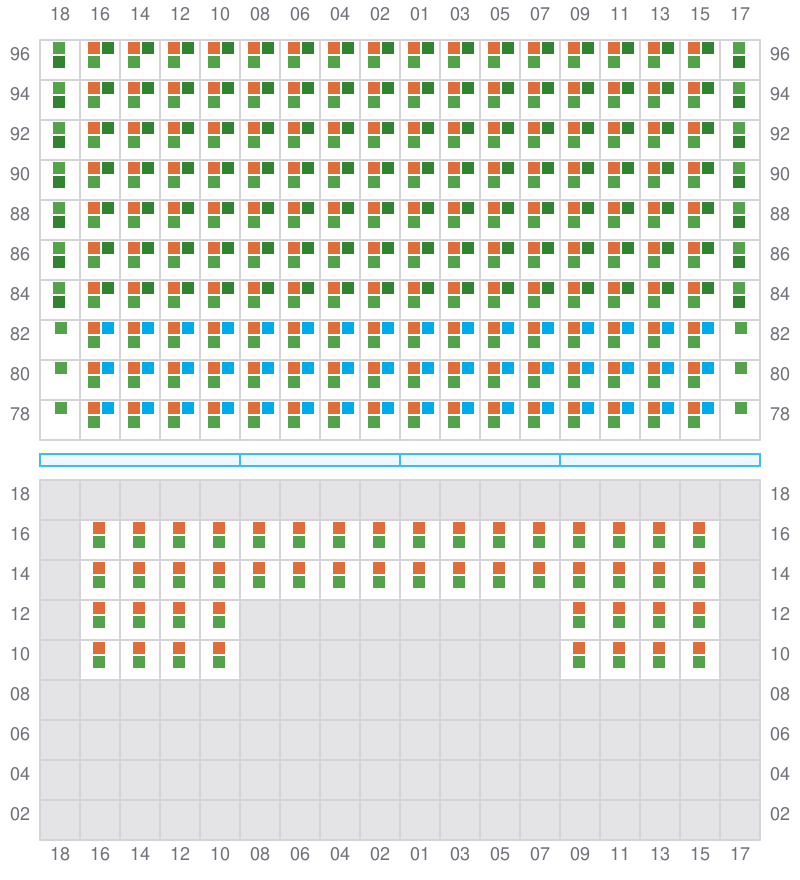

061 (062)

  • →
  • ← / ?
Bay 061 view and slots of MAERSK LABERINTO

063

  • ←
  • ? / →

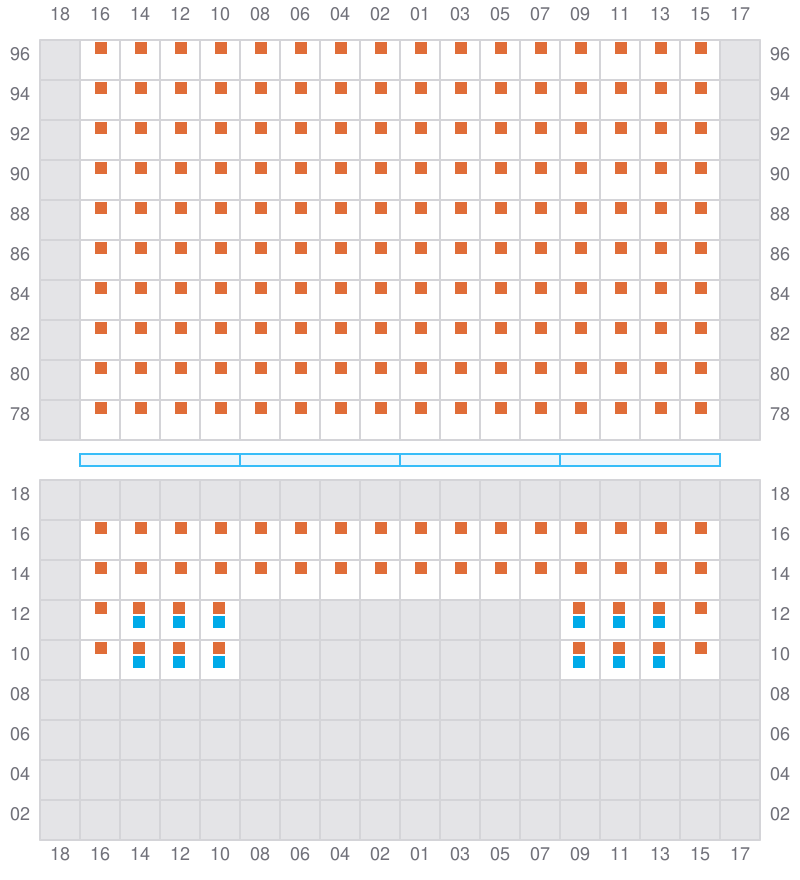

Bay 063 view and slots of MAERSK LABERINTO

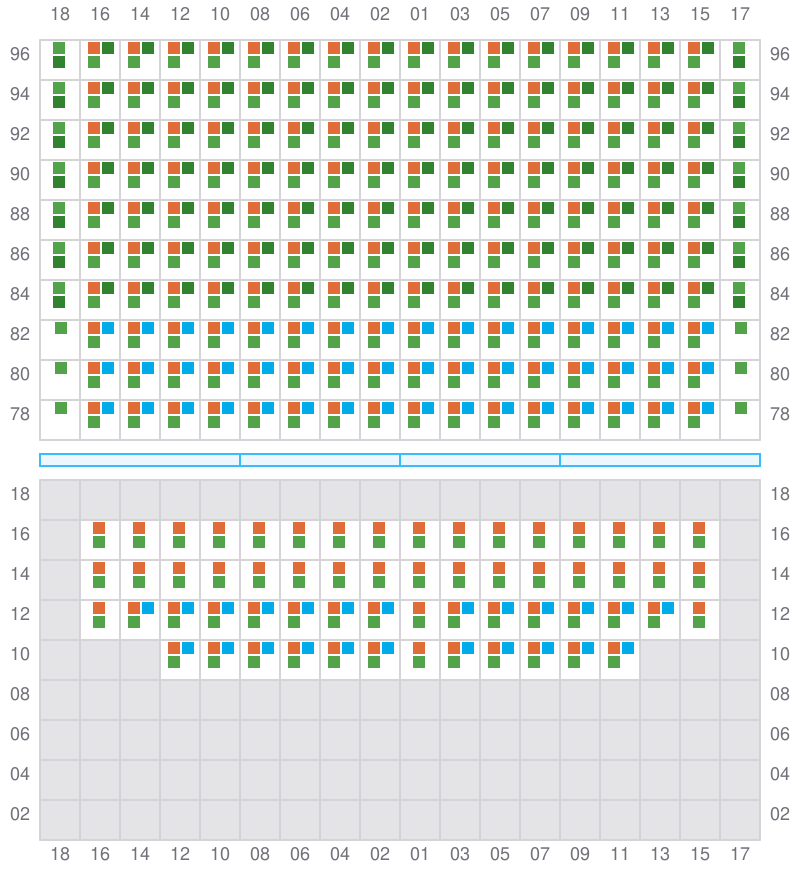

065 (066)

  • →
  • ←
Bay 065 view and slots of MAERSK LABERINTO

067

  • ←

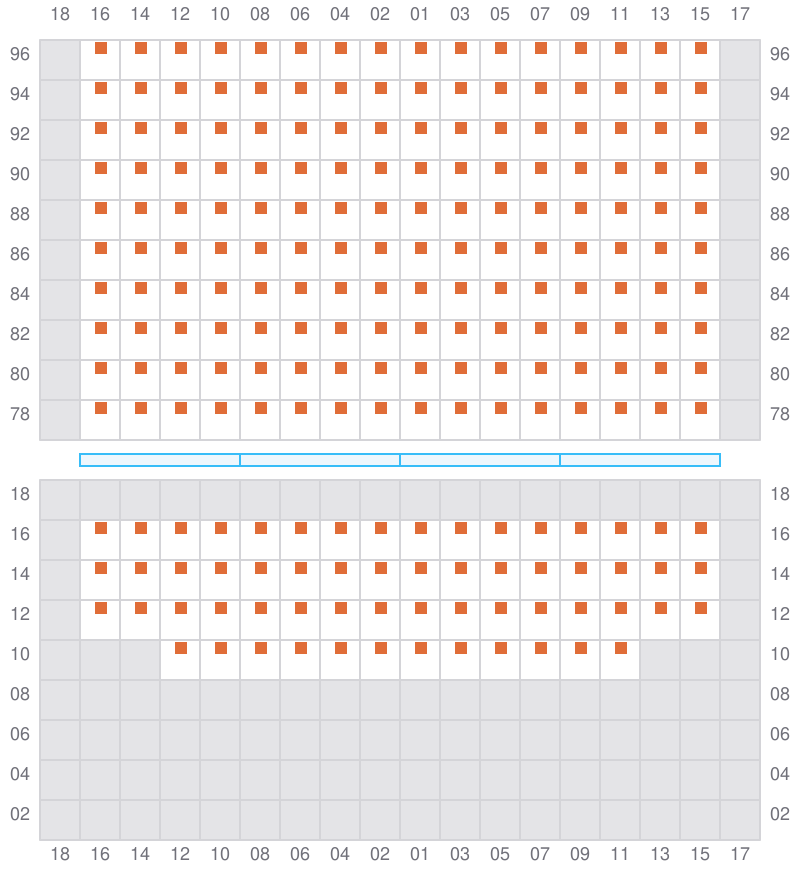

Bay 067 view and slots of MAERSK LABERINTO

069 (070)

  • → / ?
  • ← / ?

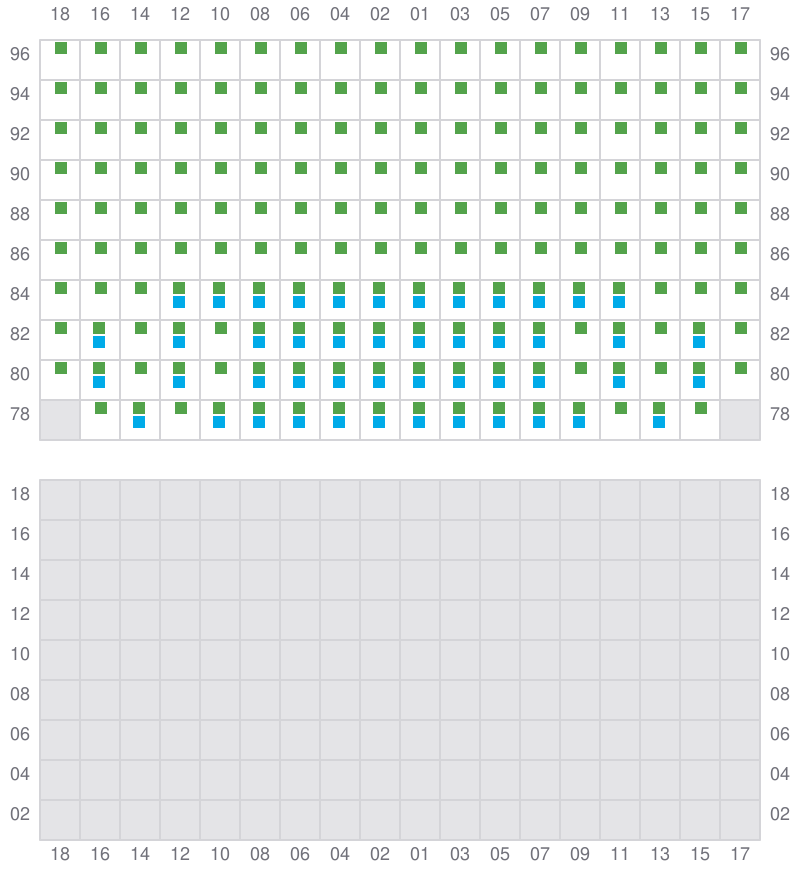

Bay 069 view and slots of MAERSK LABERINTO
