MAERSK LETICIA
9526916 | OZJI2 | 9526916 by ********* Last update: Fri Jun 28 2024

General Info

Ship Name:MAERSK LETICIA
IMO Code:9526916
Call Sign:OZJI2
Line Operator:9526916
Class Name for Sister Ships:MSL
Year Built:2011
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-

Size Summary

ISO Bays:069
Max ISO Row:18
Center Line Row:No
Max Above ISO Tier:92
Min Above ISO Tier:72
Max Below ISO Tier:18
Min Below ISO Tier:02
Total TEU:9,246

Centers of Gravity

LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

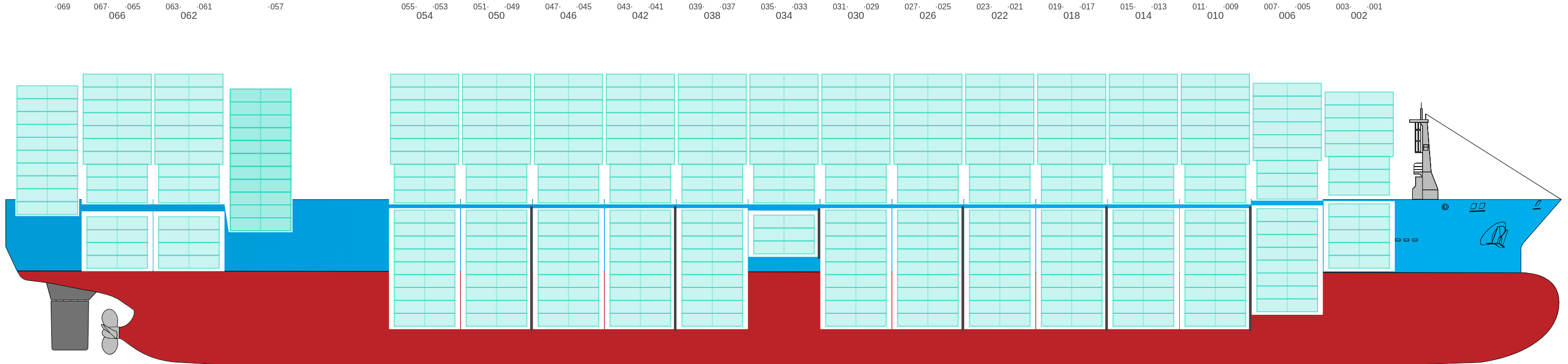

Side View

Side view of MAERSK LETICIA

Hatch-Covers View

Deck view of MAERSK LETICIA

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot

001 (002)

  • →
Bay 001 view and slots of MAERSK LETICIA

003

  • ←
  • → / ?
Bay 003 view and slots of MAERSK LETICIA

005 (006)

  • →
Bay 005 view and slots of MAERSK LETICIA

007

  • ←
  • →
Bay 007 view and slots of MAERSK LETICIA

009 (010)

  • →
  • → / ?
Bay 009 view and slots of MAERSK LETICIA

011

  • ←
  • →
Bay 011 view and slots of MAERSK LETICIA

013 (014)

  • →
  • → / ?
Bay 013 view and slots of MAERSK LETICIA

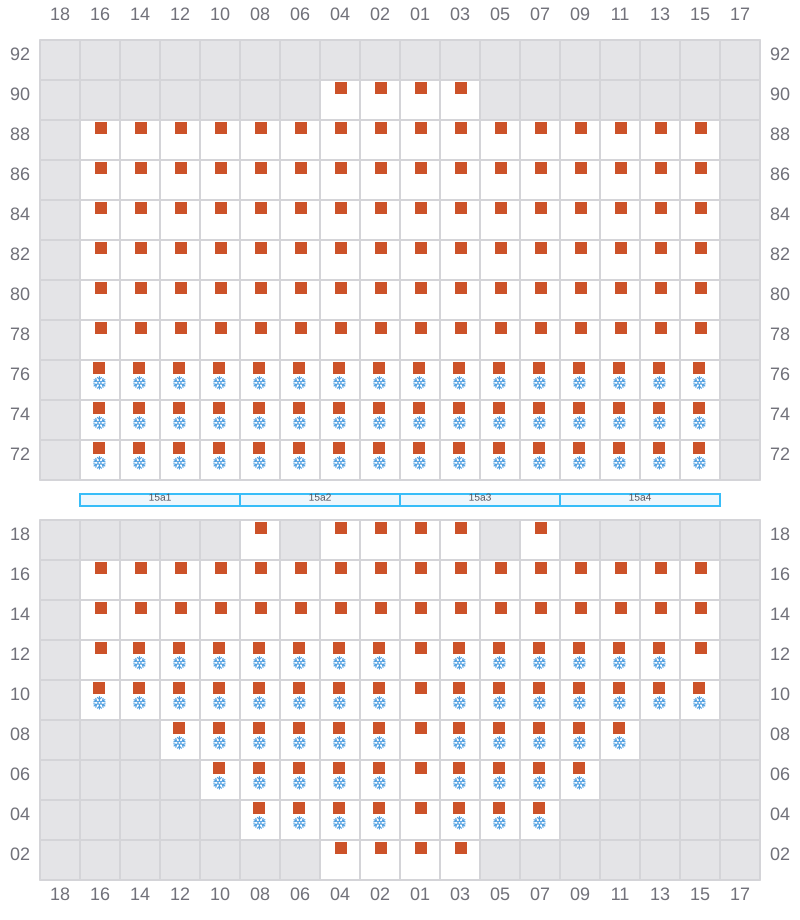

015

  • ←
  • →
Bay 015 view and slots of MAERSK LETICIA

017 (018)

  • →
  • → / ?
Bay 017 view and slots of MAERSK LETICIA

019

  • ←
  • →
Bay 019 view and slots of MAERSK LETICIA

021 (022)

  • →
  • → / ?
Bay 021 view and slots of MAERSK LETICIA

023

  • ←
  • →
Bay 023 view and slots of MAERSK LETICIA

025 (026)

  • →
  • → / ?
Bay 025 view and slots of MAERSK LETICIA

027

  • ←
  • →
Bay 027 view and slots of MAERSK LETICIA

029 (030)

  • →
  • → / ?
Bay 029 view and slots of MAERSK LETICIA

031

  • ←
  • →
Bay 031 view and slots of MAERSK LETICIA

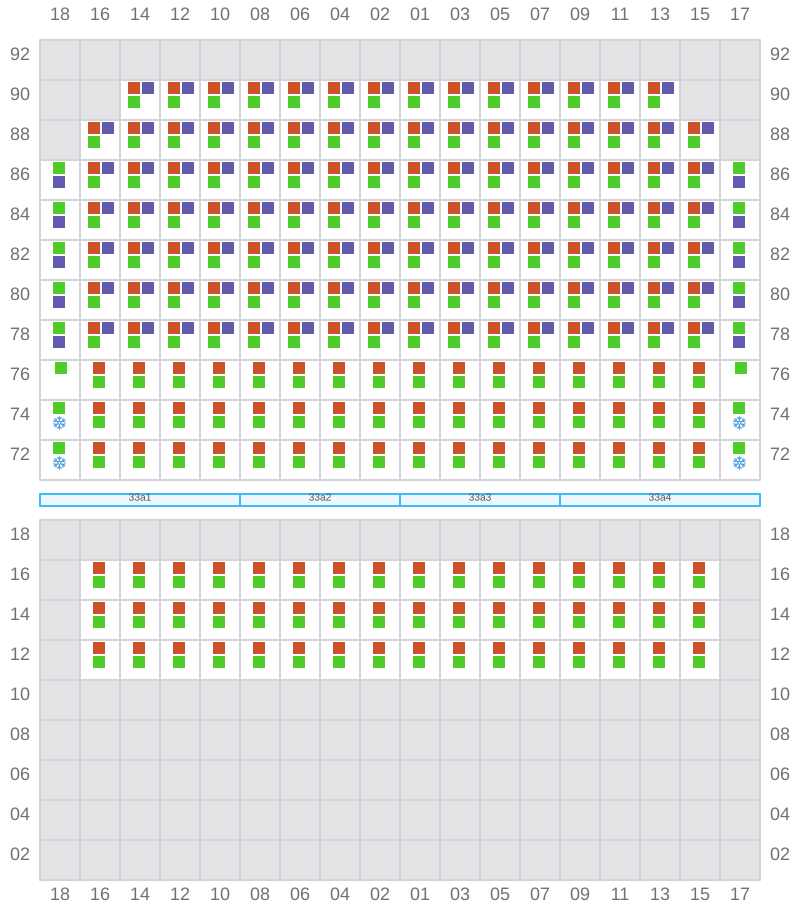

033 (034)

  • →
  • → / ?
Bay 033 view and slots of MAERSK LETICIA

035

  • ←
  • → / ?
Bay 035 view and slots of MAERSK LETICIA

037 (038)

  • →
  • → / ?
Bay 037 view and slots of MAERSK LETICIA

039

  • ←
  • →
Bay 039 view and slots of MAERSK LETICIA

041 (042)

  • →
  • → / ?
Bay 041 view and slots of MAERSK LETICIA

043

  • ←
  • →
Bay 043 view and slots of MAERSK LETICIA

045 (046)

  • →
  • → / ?
Bay 045 view and slots of MAERSK LETICIA

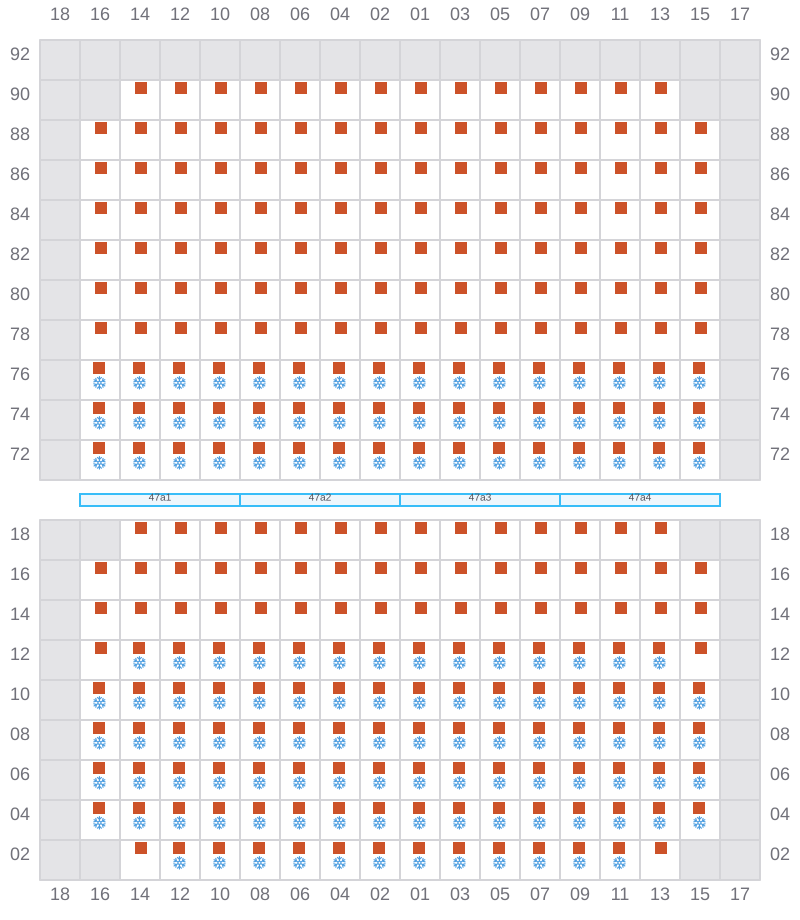

047

  • ←
  • →
Bay 047 view and slots of MAERSK LETICIA

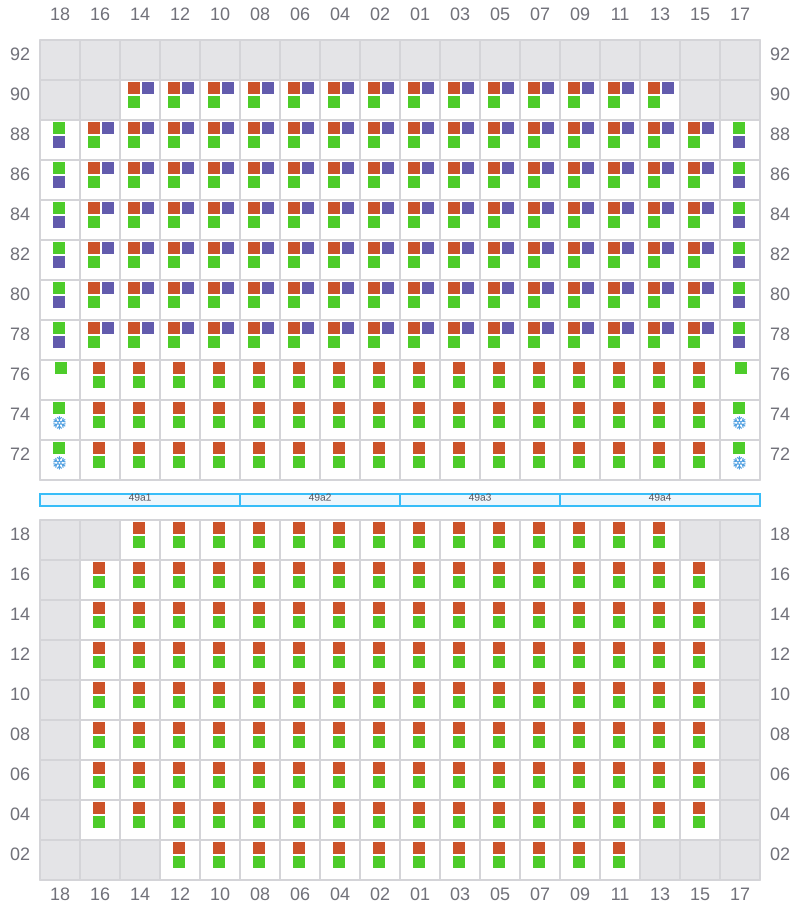

049 (050)

  • →
  • → / ?
Bay 049 view and slots of MAERSK LETICIA

051

  • ←
  • →
Bay 051 view and slots of MAERSK LETICIA

053 (054)

  • →
  • → / ?
Bay 053 view and slots of MAERSK LETICIA

055

  • ←
  • →
Bay 055 view and slots of MAERSK LETICIA

057 (058)

  • → / ?
  • ← / ?
Bay 057 view and slots of MAERSK LETICIA

059

Bay 059 view and slots of MAERSK LETICIA

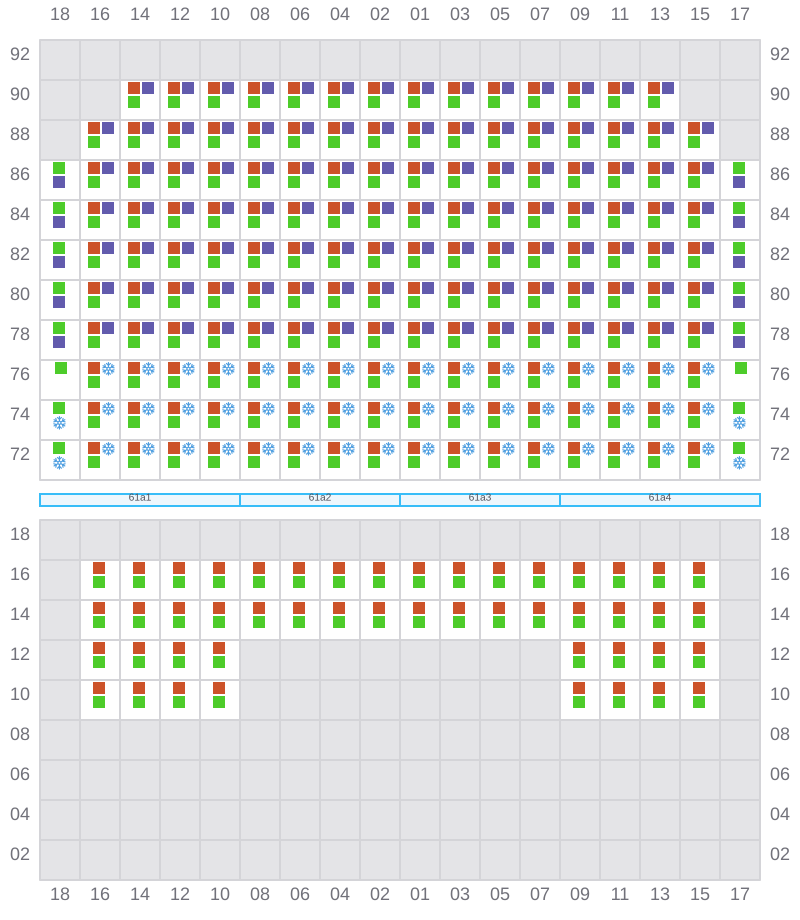

061 (062)

  • →
  • ← / ?
Bay 061 view and slots of MAERSK LETICIA

063

  • ←
  • ? / →
Bay 063 view and slots of MAERSK LETICIA

065 (066)

  • →
  • ←
Bay 065 view and slots of MAERSK LETICIA

067

  • ←
Bay 067 view and slots of MAERSK LETICIA

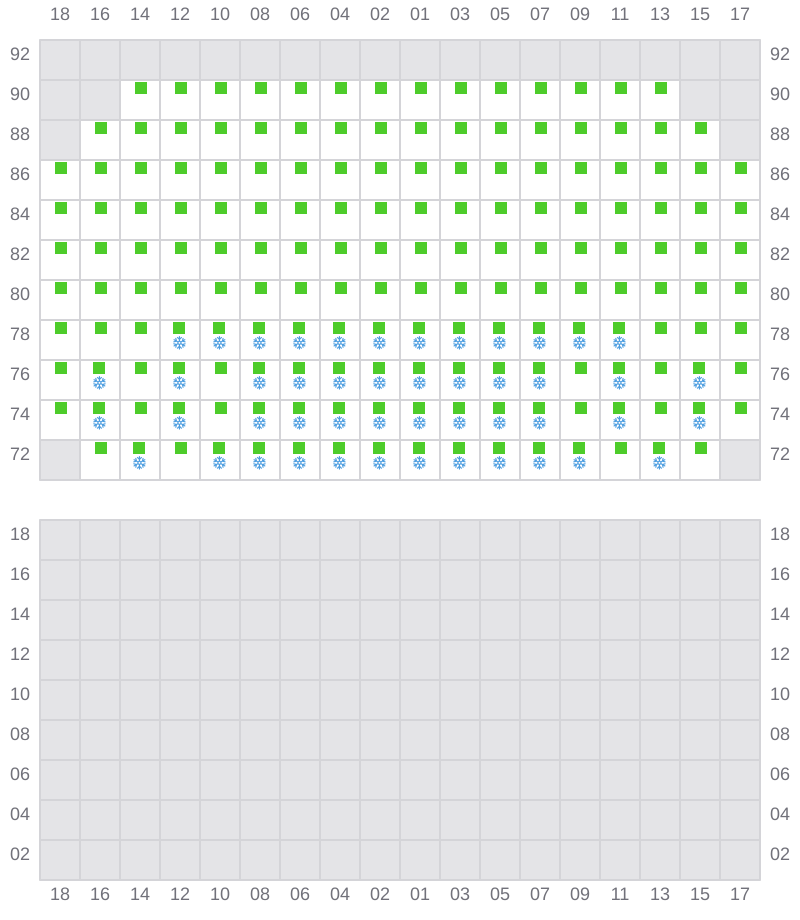

069 (070)

  • → / ?
  • ← / ?
Bay 069 view and slots of MAERSK LETICIA
