MAERSK LIMA
9526875 | OZJM2 | MSK by *********************** Last update: Tue Feb 04 2025

General Info

Ship Name:MAERSK LIMA
IMO Code:9526875
Call Sign:OZJM2
Line Operator:MSK
Class Name for Sister Ships:MKLI
Year Built:2011
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-

Size Summary

ISO Bays:069
Max ISO Row:18
Center Line Row:No
Max Above ISO Tier:92
Min Above ISO Tier:72
Max Below ISO Tier:18
Min Below ISO Tier:02
Total TEU:9,246

Centers of Gravity

LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

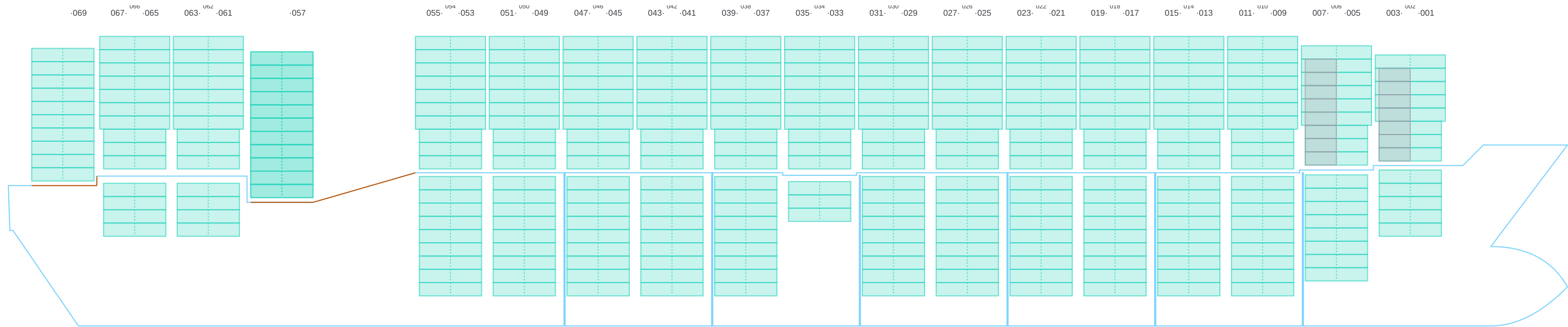

Side View

Side view of MAERSK LIMA

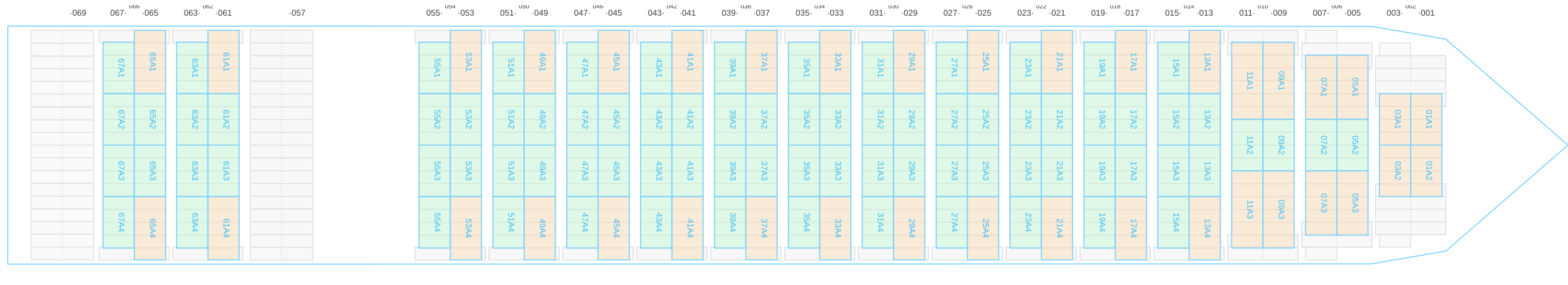

Hatch-Covers View

Deck view of MAERSK LIMA

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot ×

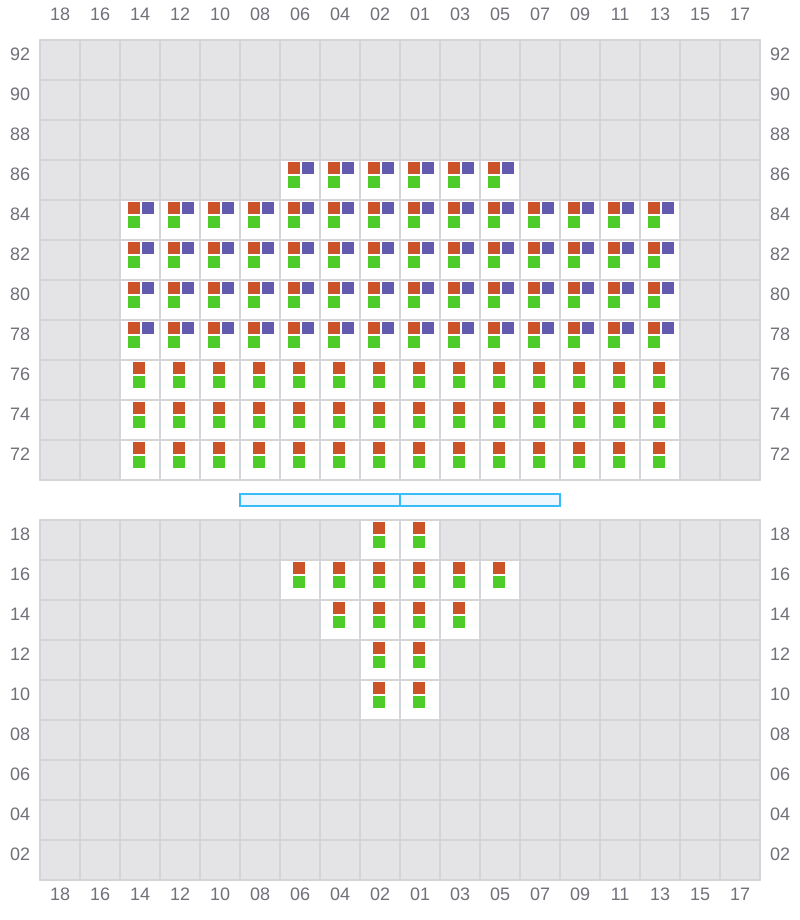

001 (002)

  • →
  • →
Bay 001 view and slots of MAERSK LIMA

003

  • ←
  • → / ?
  • →

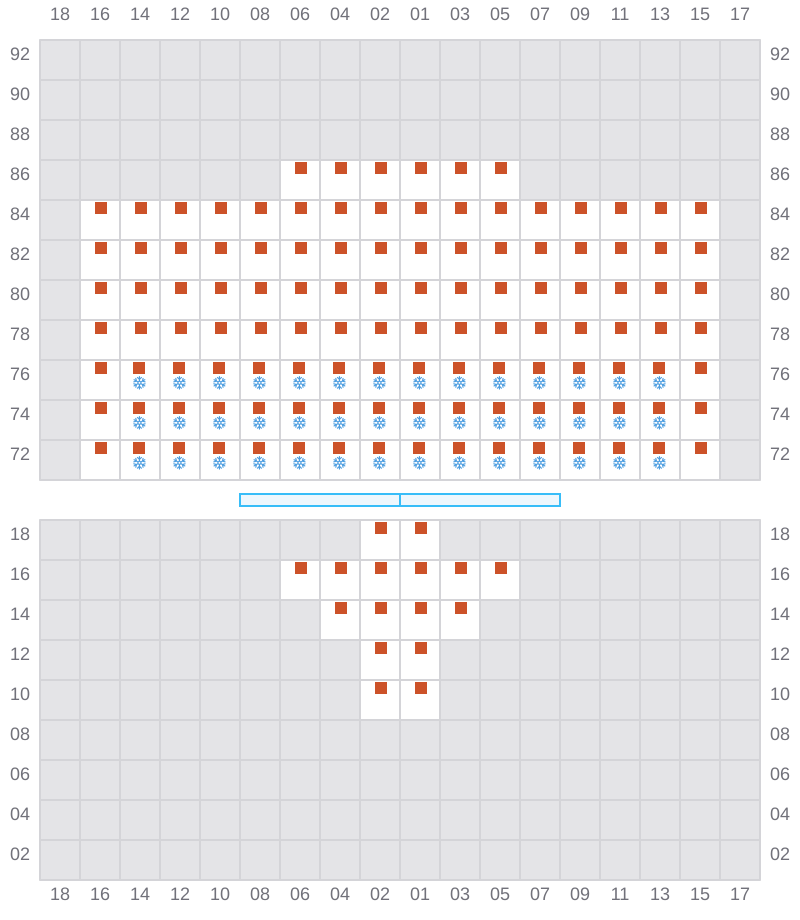

Bay 003 view and slots of MAERSK LIMA

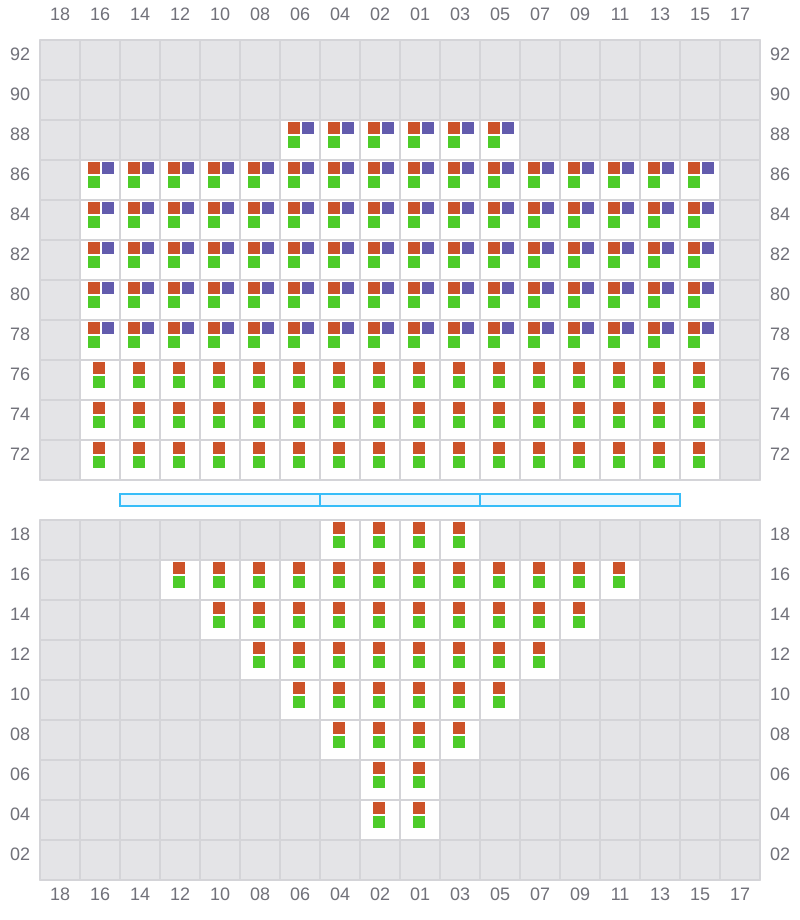

005 (006)

  • →
  • →
Bay 005 view and slots of MAERSK LIMA

007

  • ←
  • →
  • →

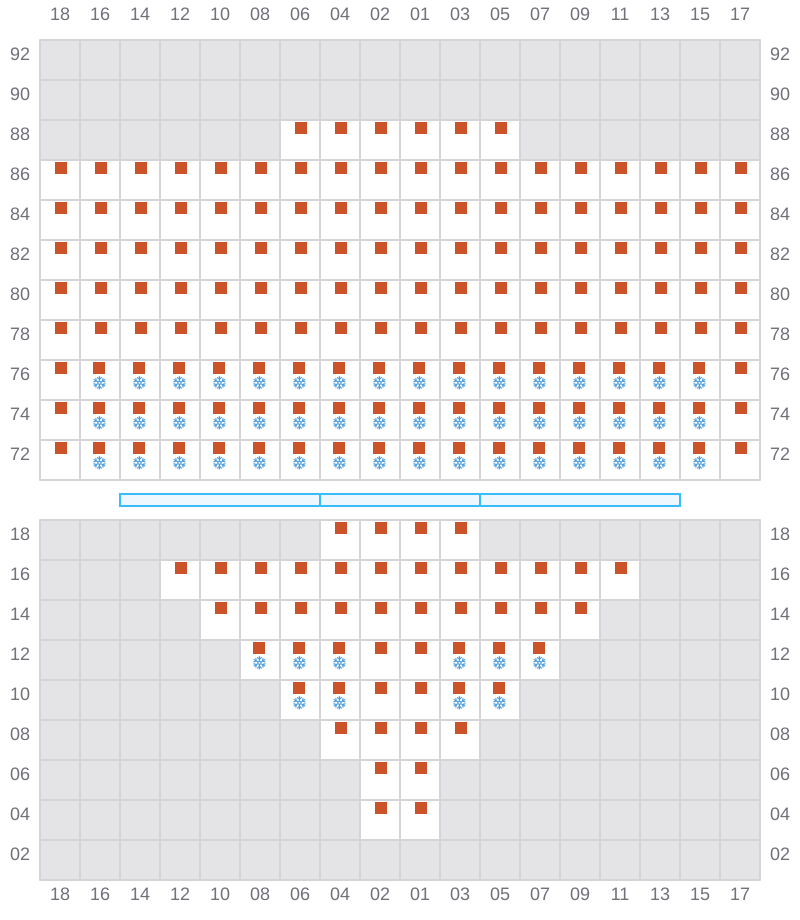

Bay 007 view and slots of MAERSK LIMA

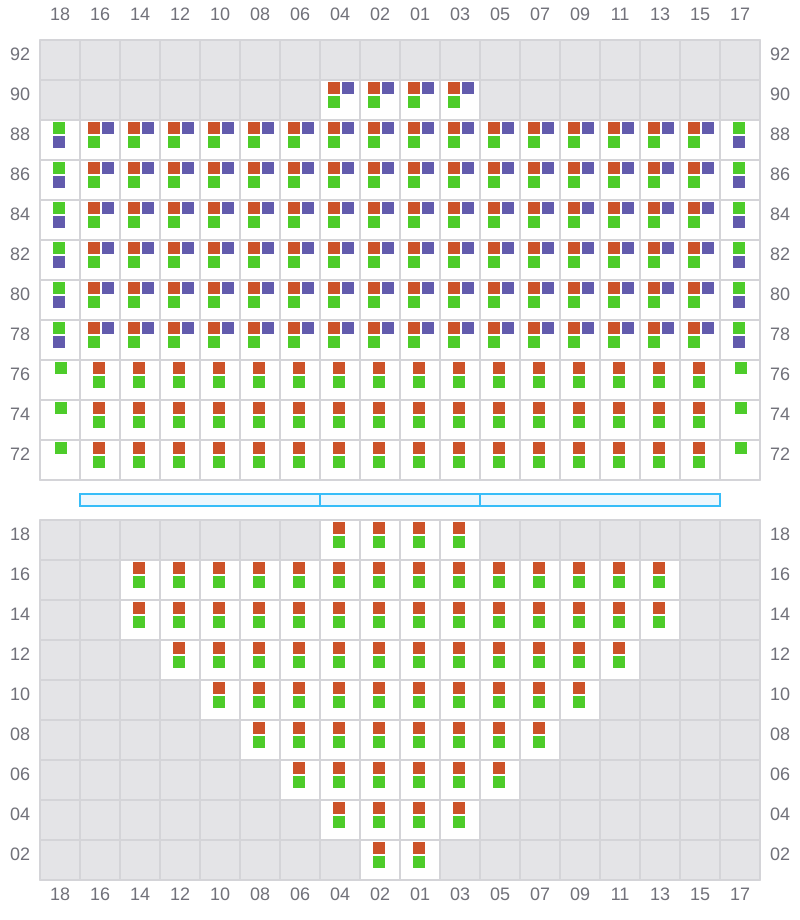

009 (010)

  • →
  • →
Bay 009 view and slots of MAERSK LIMA

011

  • ←
  • →
  • →

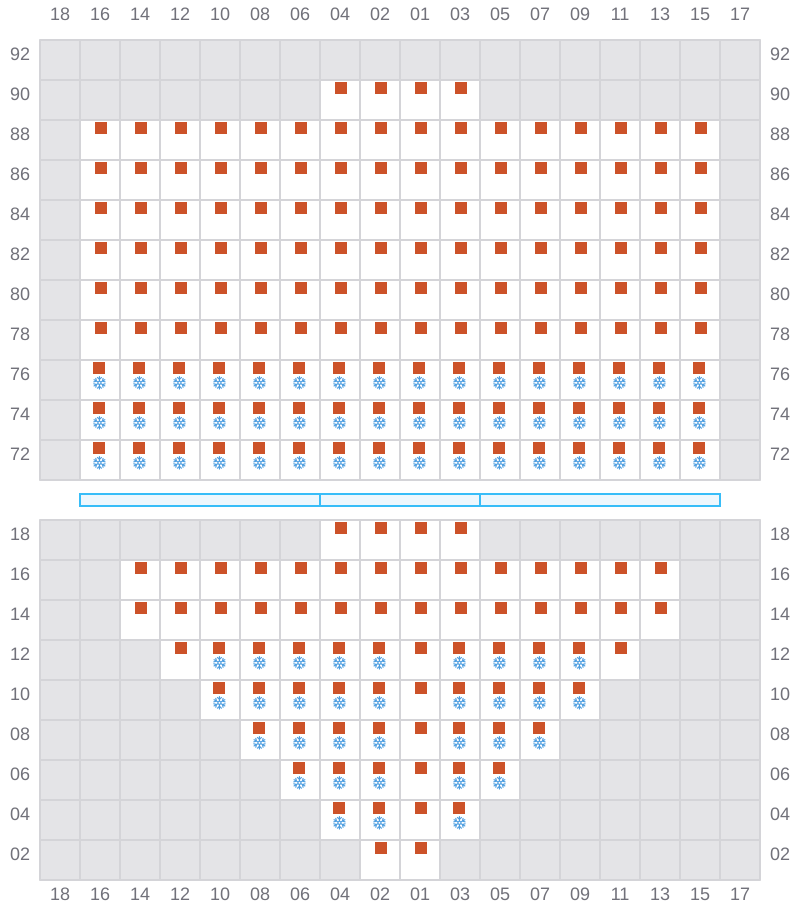

Bay 011 view and slots of MAERSK LIMA

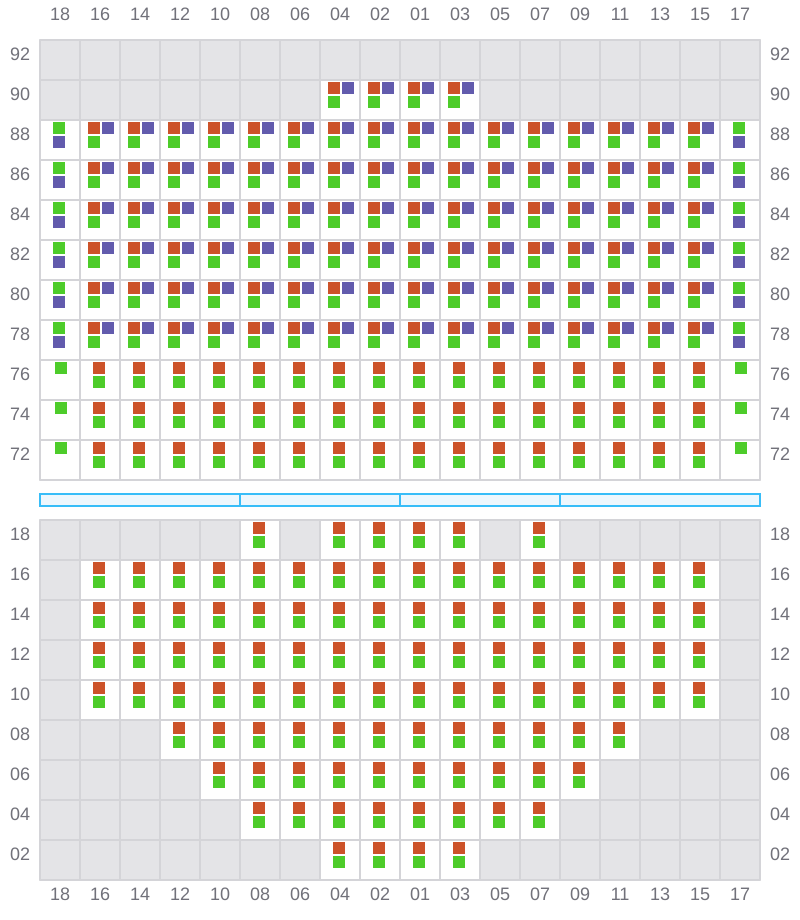

013 (014)

  • →
  • →
Bay 013 view and slots of MAERSK LIMA

015

  • ←
  • →
  • →

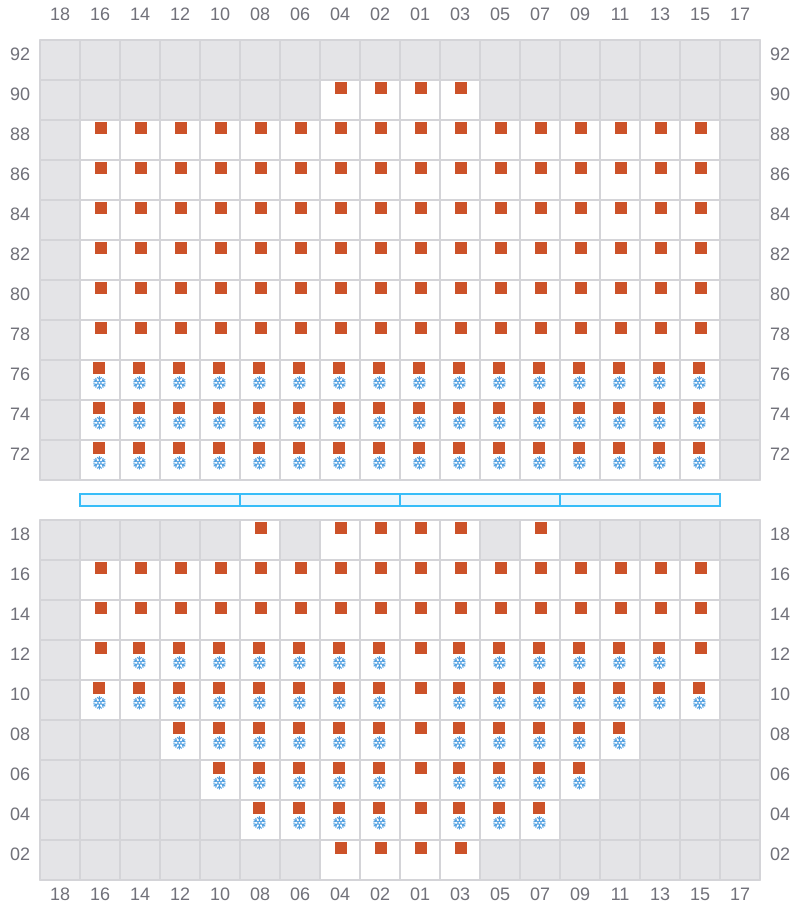

Bay 015 view and slots of MAERSK LIMA

017 (018)

  • →
  • →

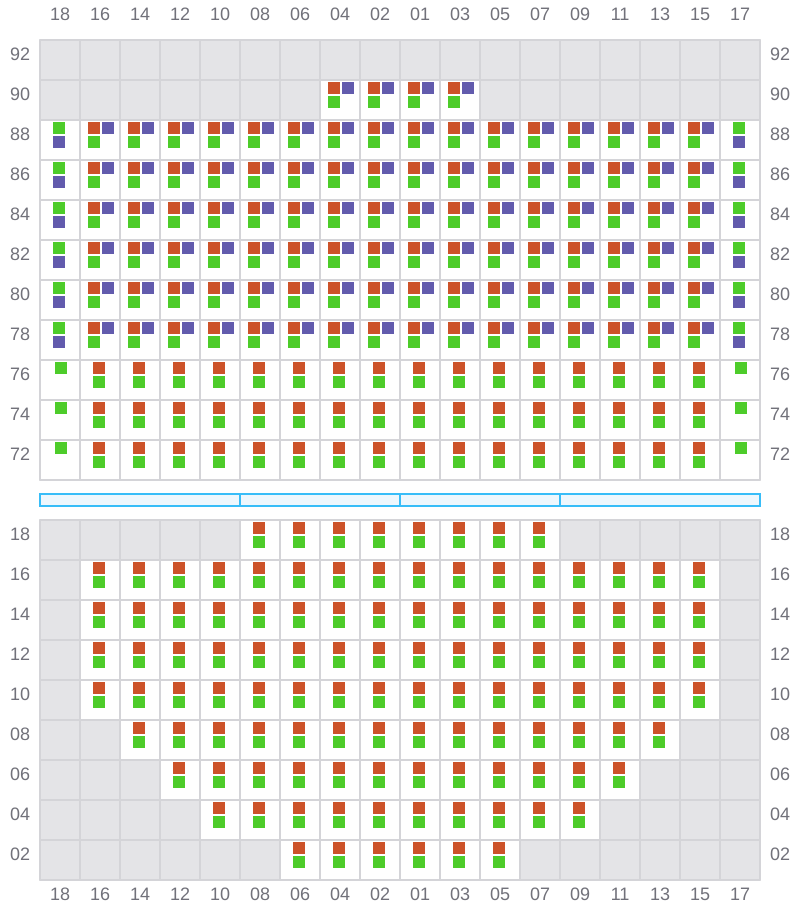

Bay 017 view and slots of MAERSK LIMA

019

  • ←
  • →
  • →

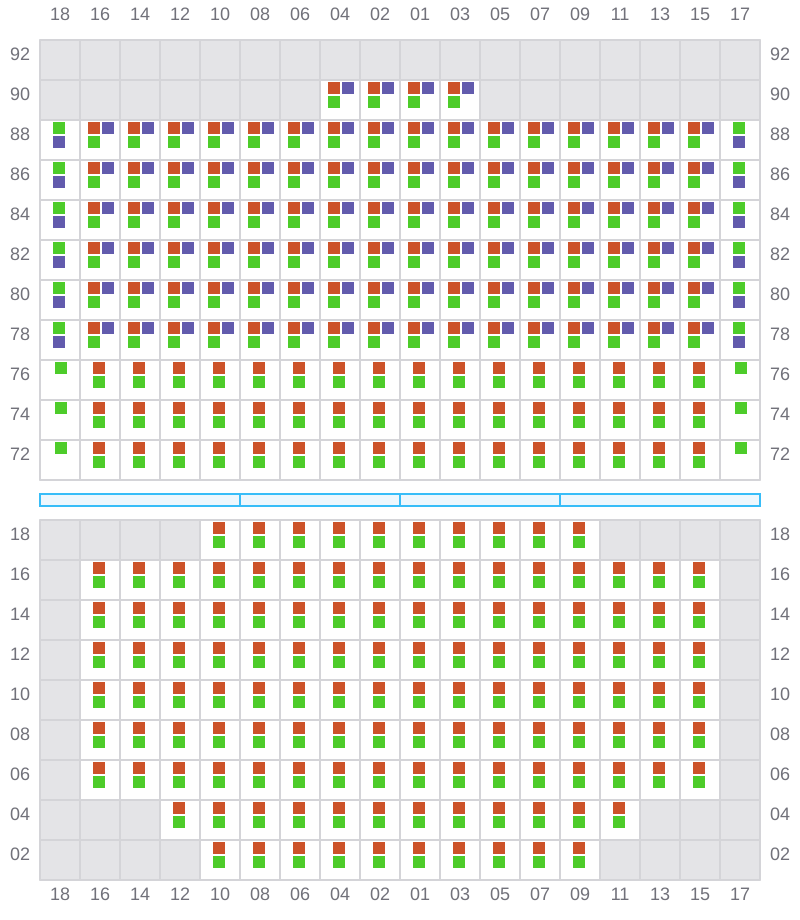

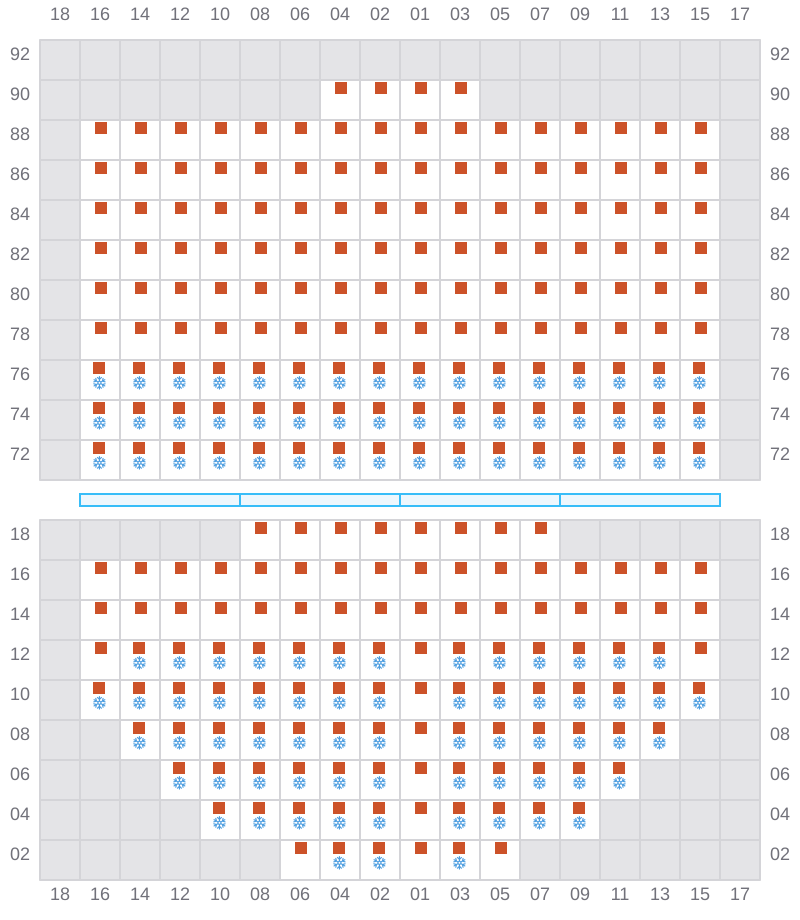

Bay 019 view and slots of MAERSK LIMA

021 (022)

  • →
  • →
Bay 021 view and slots of MAERSK LIMA

023

  • ←
  • →
  • →

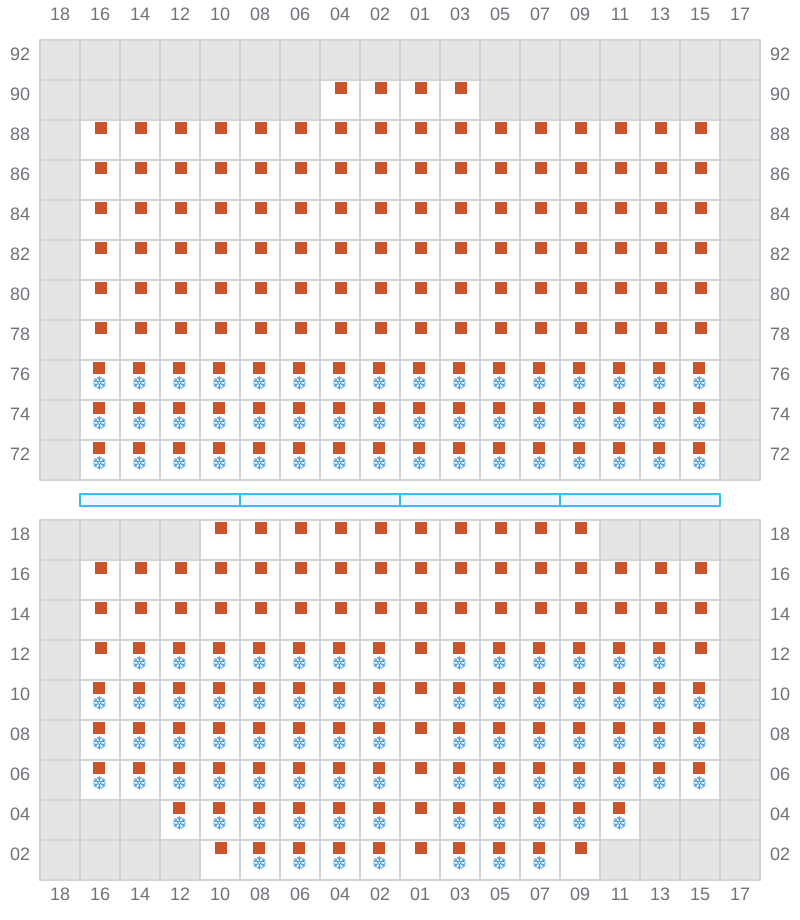

Bay 023 view and slots of MAERSK LIMA

025 (026)

  • →
  • →

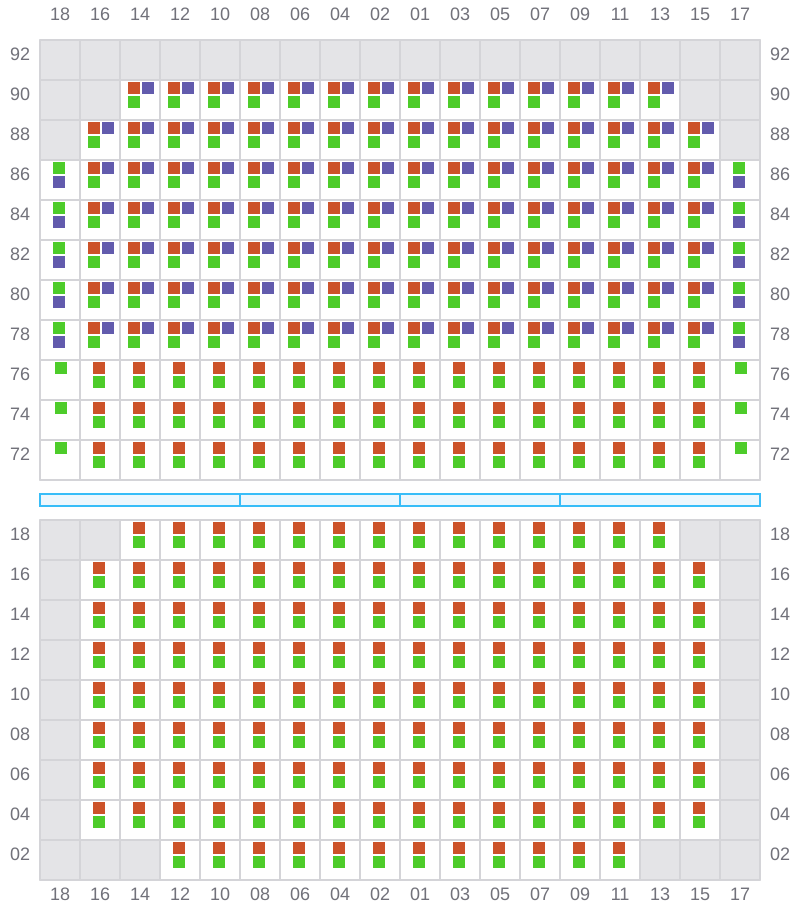

Bay 025 view and slots of MAERSK LIMA

027

  • ←
  • →
  • →
Bay 027 view and slots of MAERSK LIMA

029 (030)

  • →
  • →

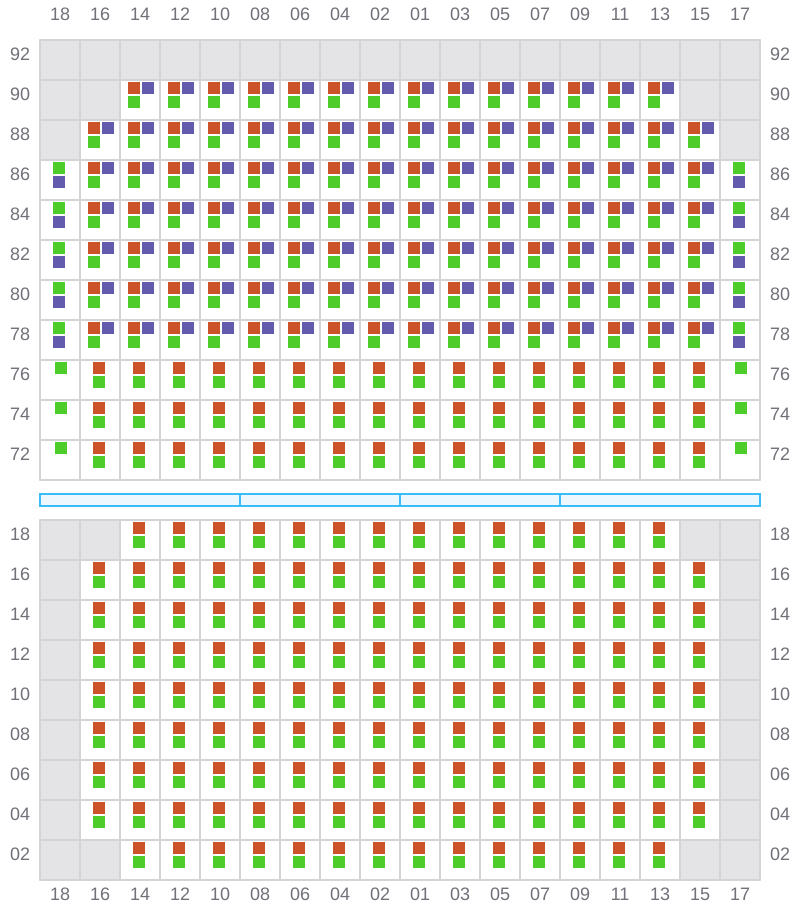

Bay 029 view and slots of MAERSK LIMA

031

  • ←
  • →
  • →

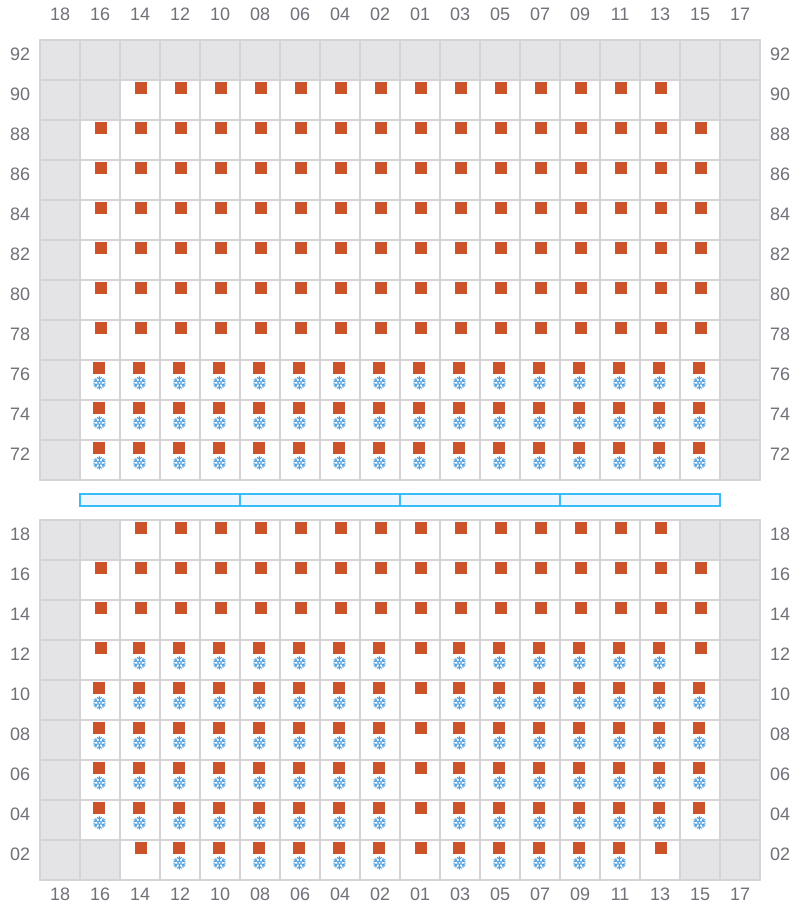

Bay 031 view and slots of MAERSK LIMA

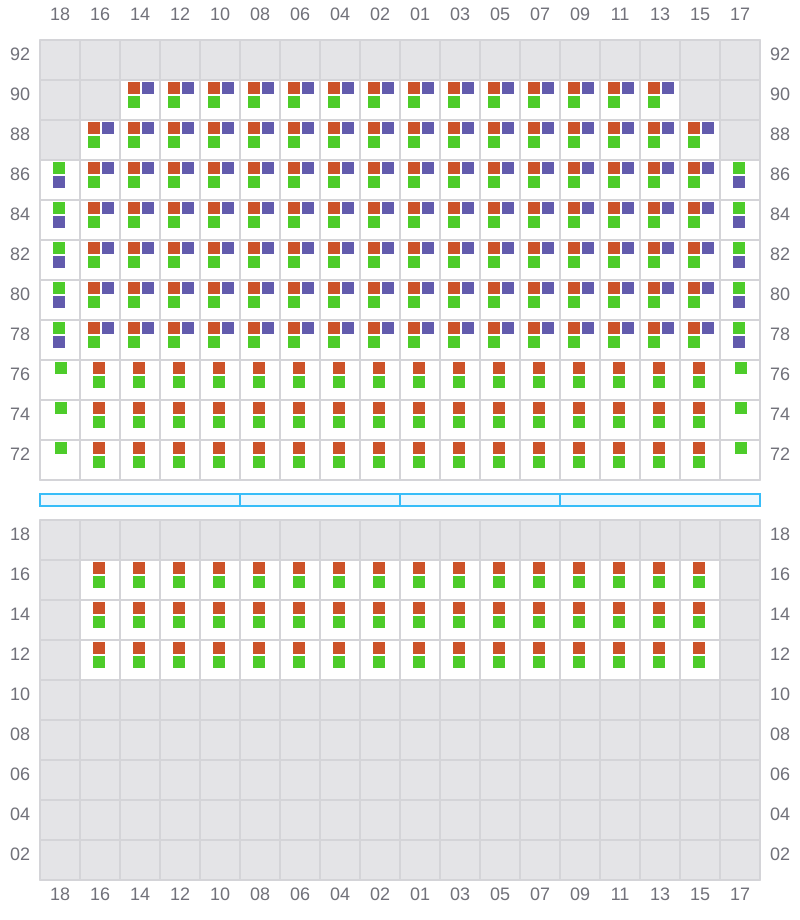

033 (034)

  • →
  • →
Bay 033 view and slots of MAERSK LIMA

035

  • ←
  • → / ?
  • →
Bay 035 view and slots of MAERSK LIMA

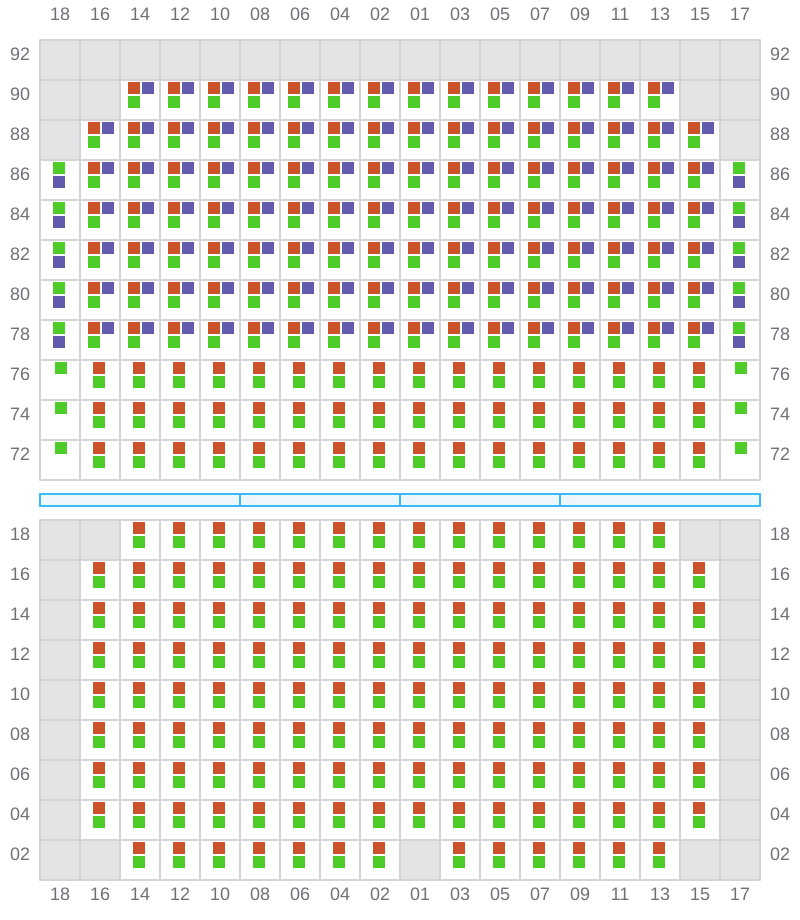

037 (038)

  • →
  • →
Bay 037 view and slots of MAERSK LIMA

039

  • ←
  • →
  • →

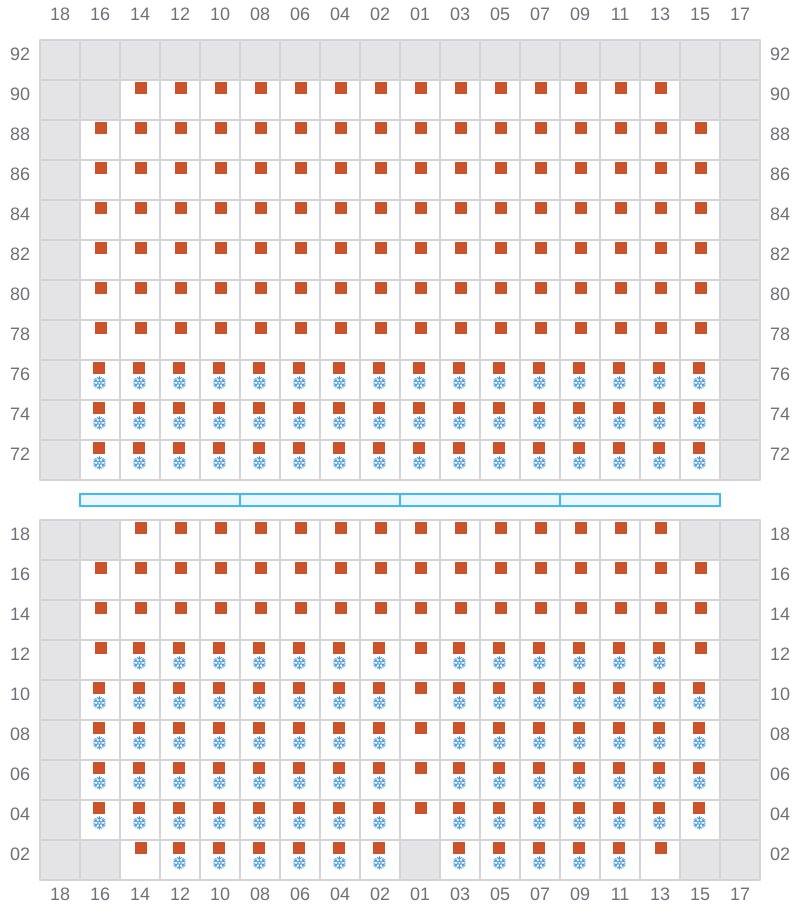

Bay 039 view and slots of MAERSK LIMA

041 (042)

  • →
  • →
Bay 041 view and slots of MAERSK LIMA

043

  • ←
  • →
  • →
Bay 043 view and slots of MAERSK LIMA

045 (046)

  • →
  • →

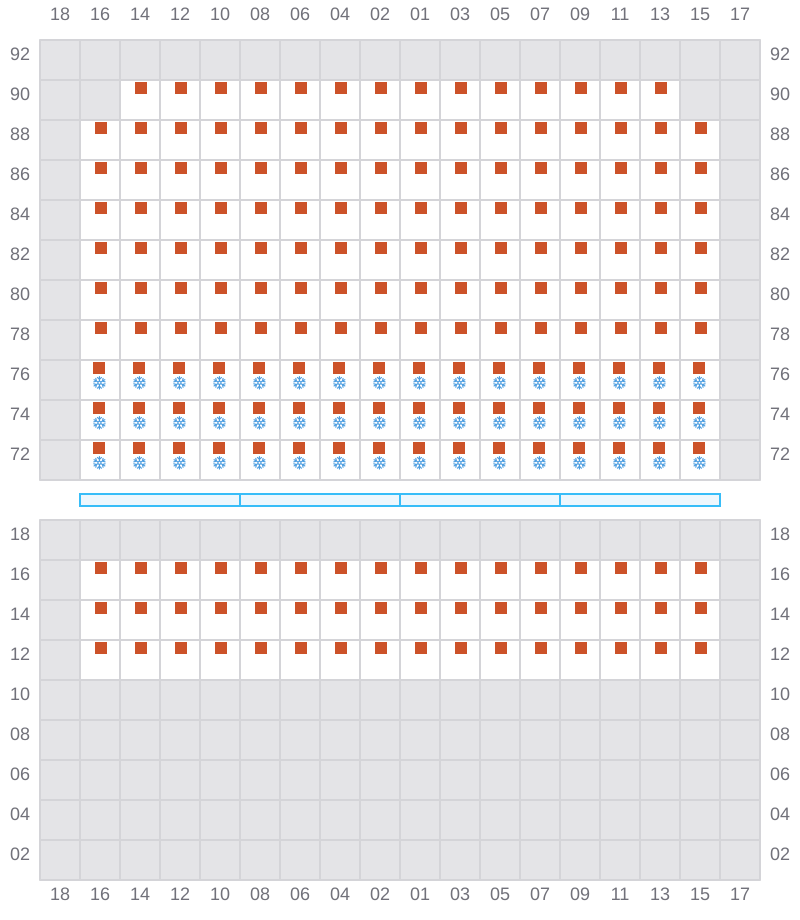

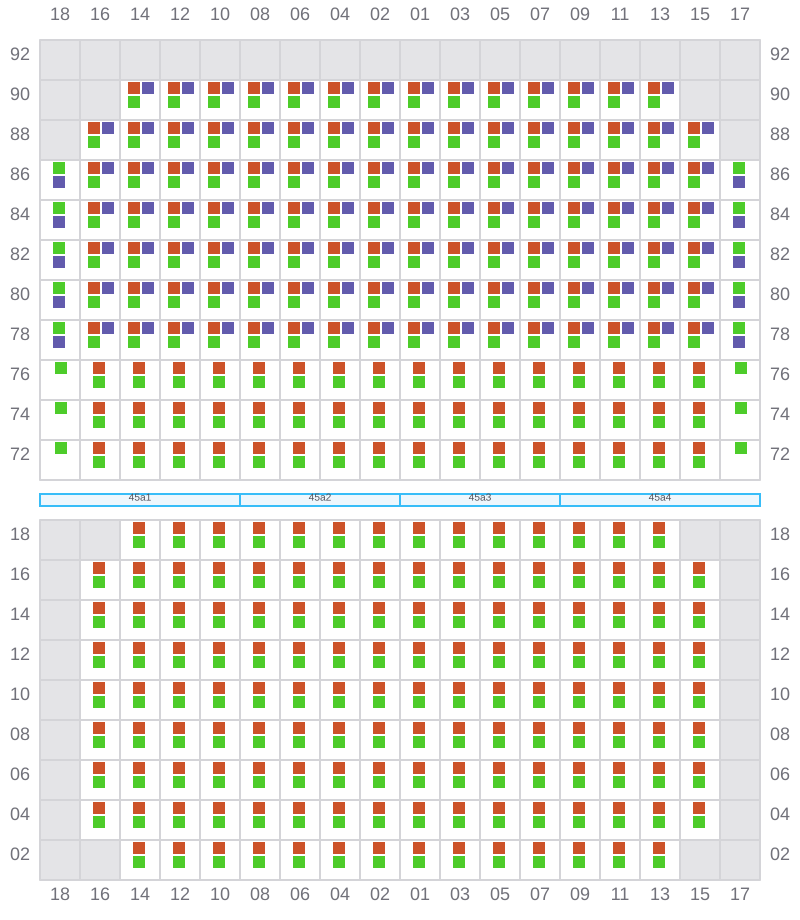

Bay 045 view and slots of MAERSK LIMA

047

  • ←
  • →
  • →
Bay 047 view and slots of MAERSK LIMA

049 (050)

  • →
  • →

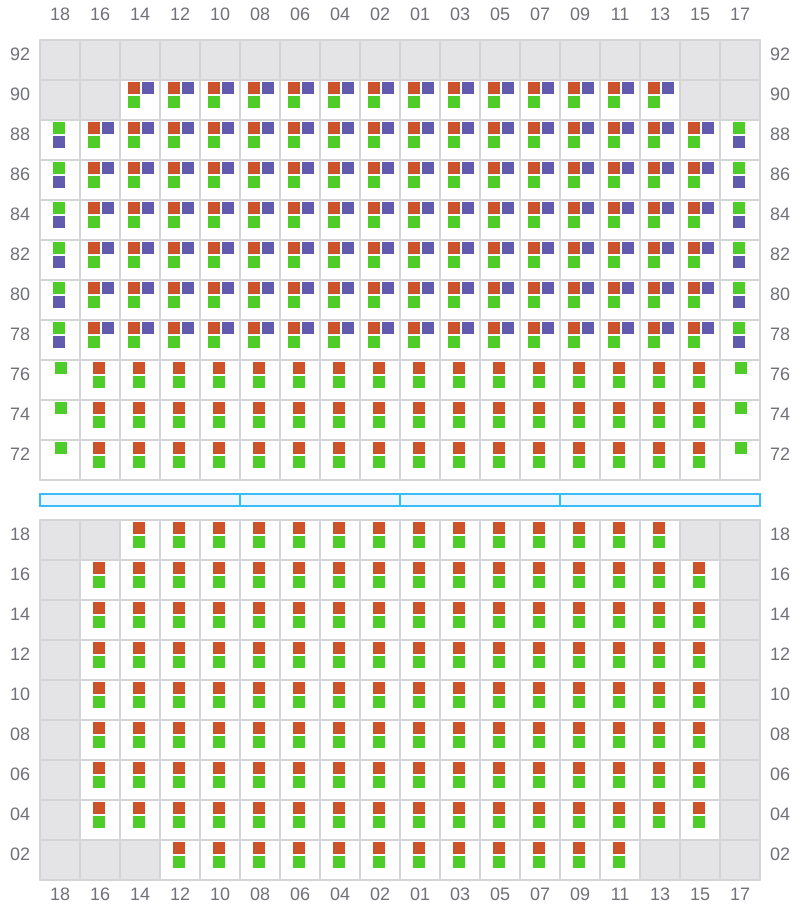

Bay 049 view and slots of MAERSK LIMA

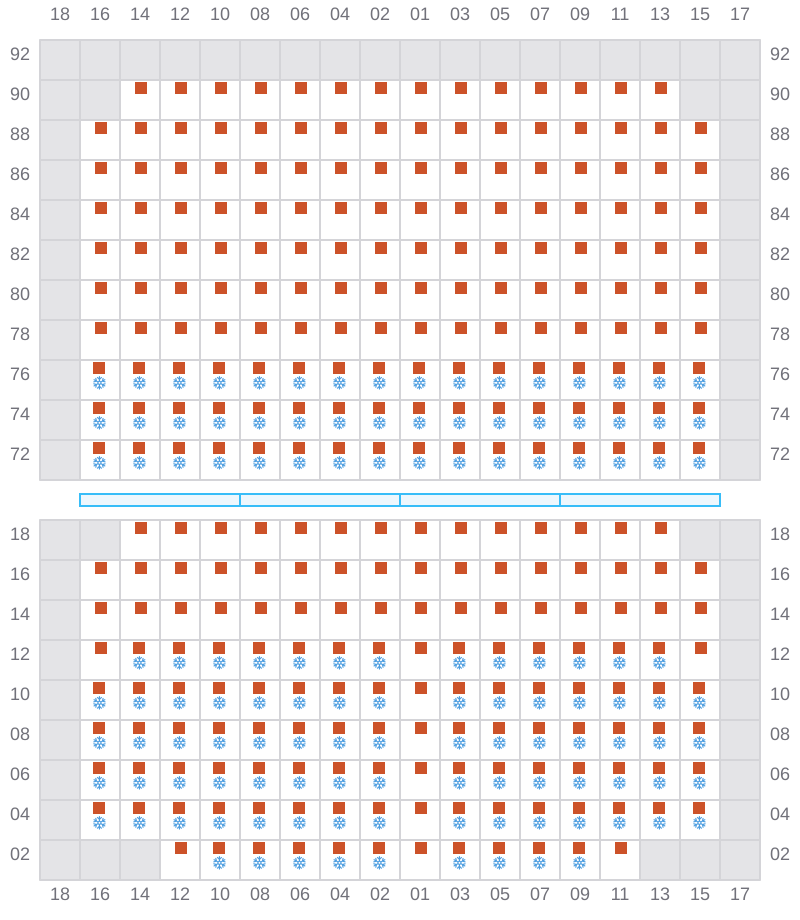

051

  • ←
  • →
  • →
Bay 051 view and slots of MAERSK LIMA

053 (054)

  • →
  • →

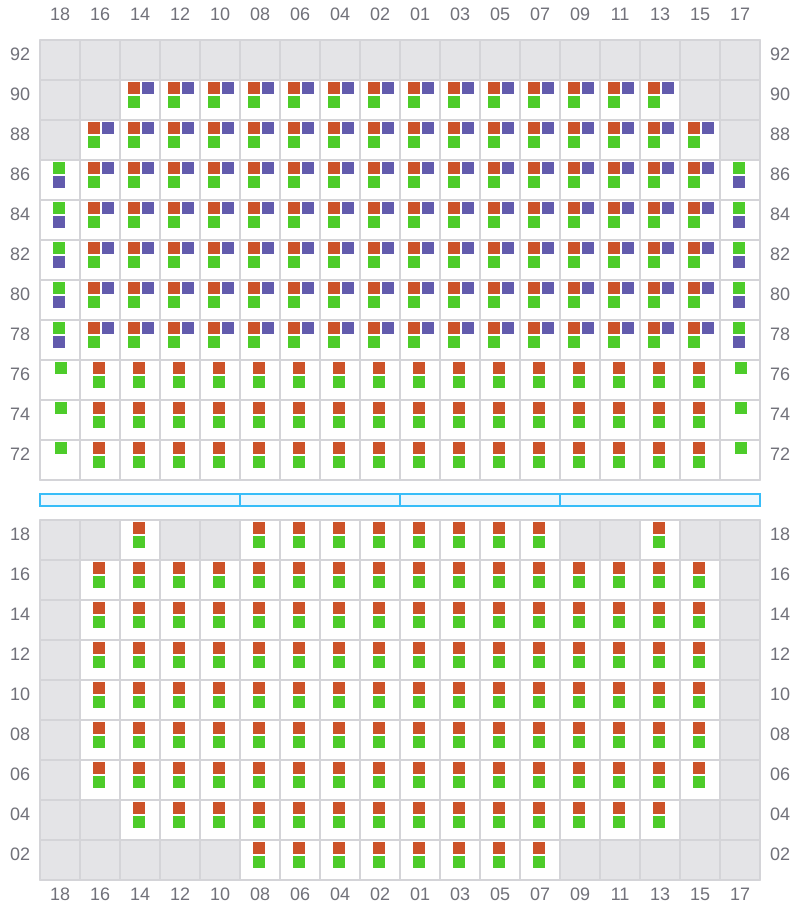

Bay 053 view and slots of MAERSK LIMA

055

  • ←
  • →
  • →
Bay 055 view and slots of MAERSK LIMA

057 (058)

  • → / ?
  • ← / ?
  • → / ?

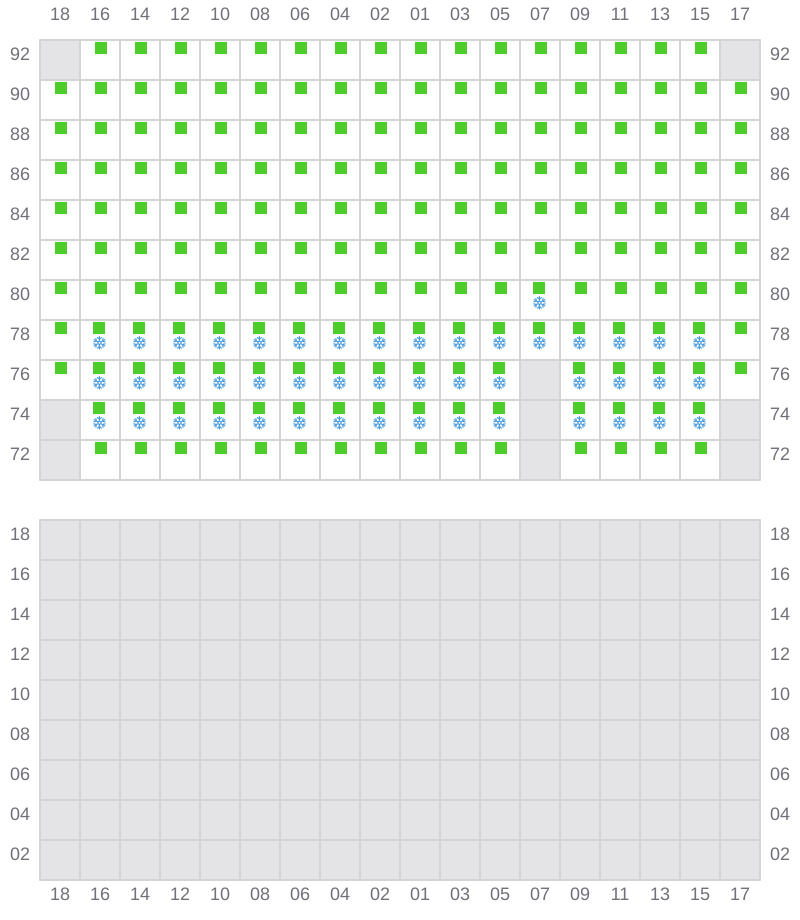

Bay 057 view and slots of MAERSK LIMA

059

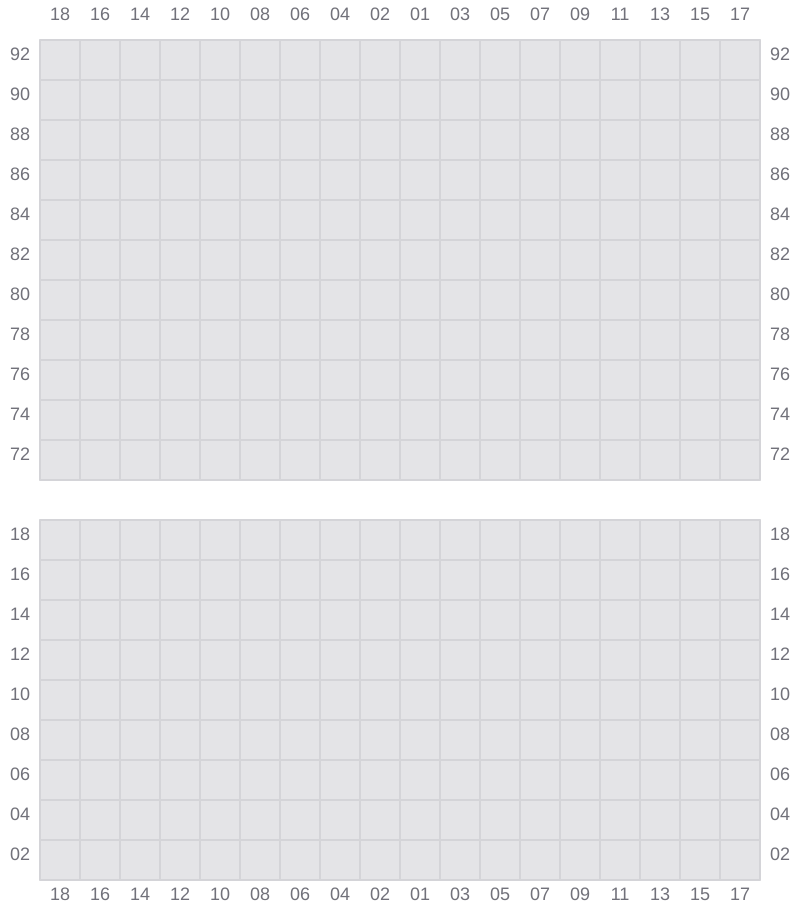

Bay 059 view and slots of MAERSK LIMA

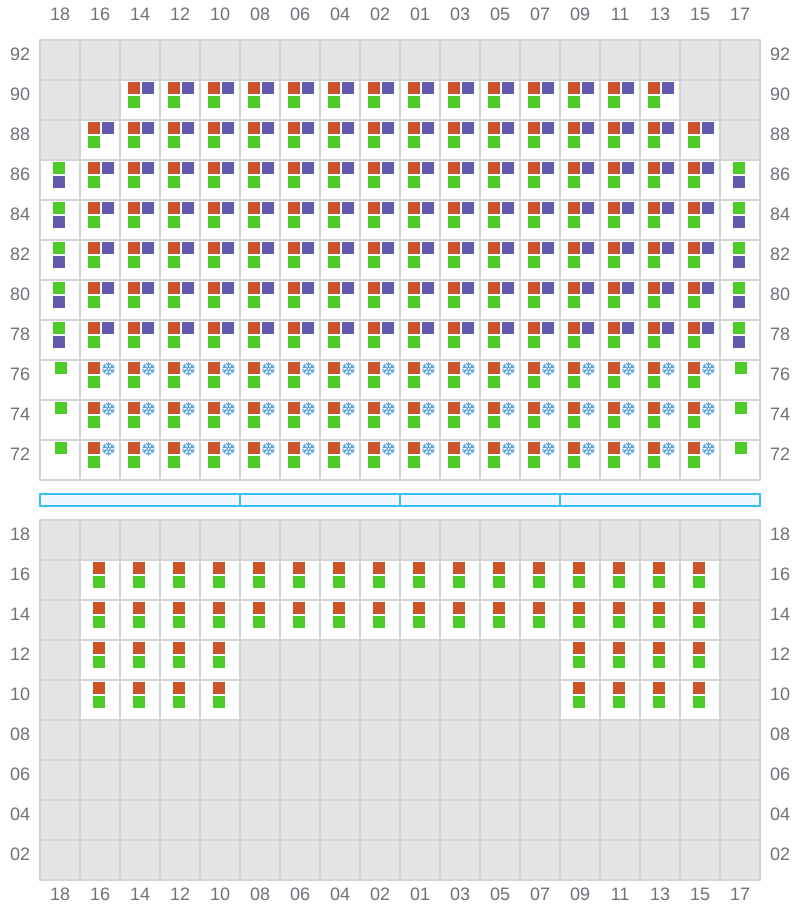

061 (062)

  • →
  • ← / ?
  • →
Bay 061 view and slots of MAERSK LIMA

063

  • ←
  • ? / →
  • →

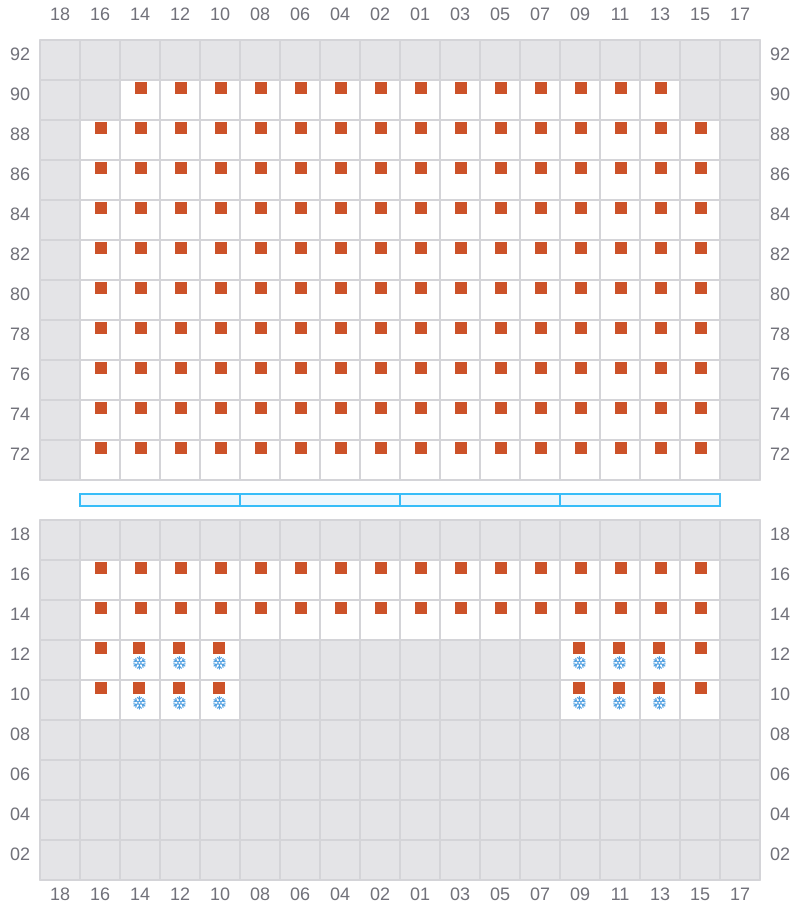

Bay 063 view and slots of MAERSK LIMA

065 (066)

  • →
  • ←
  • →

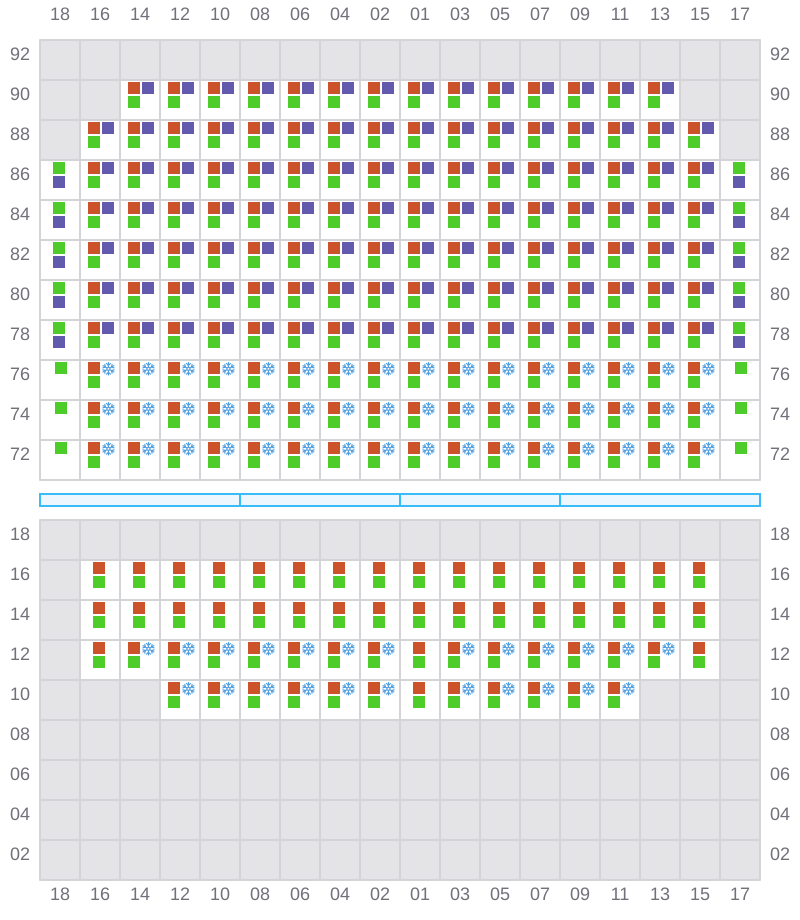

Bay 065 view and slots of MAERSK LIMA

067

  • ←
  • →

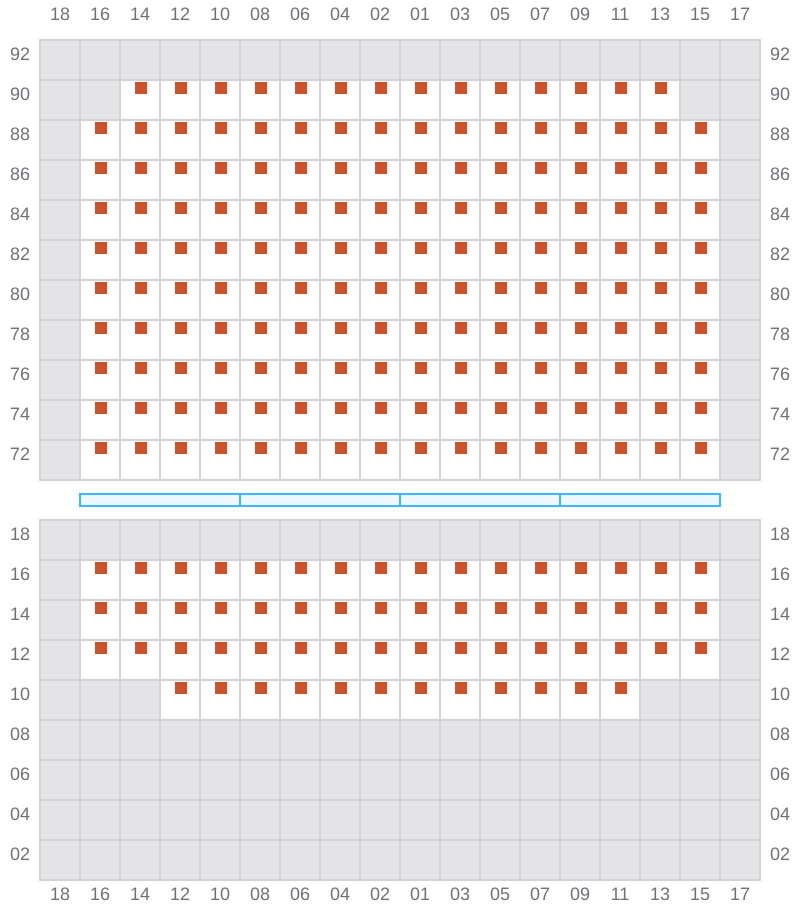

Bay 067 view and slots of MAERSK LIMA

069 (070)

  • → / ?
  • ← / ?
  • → / ?

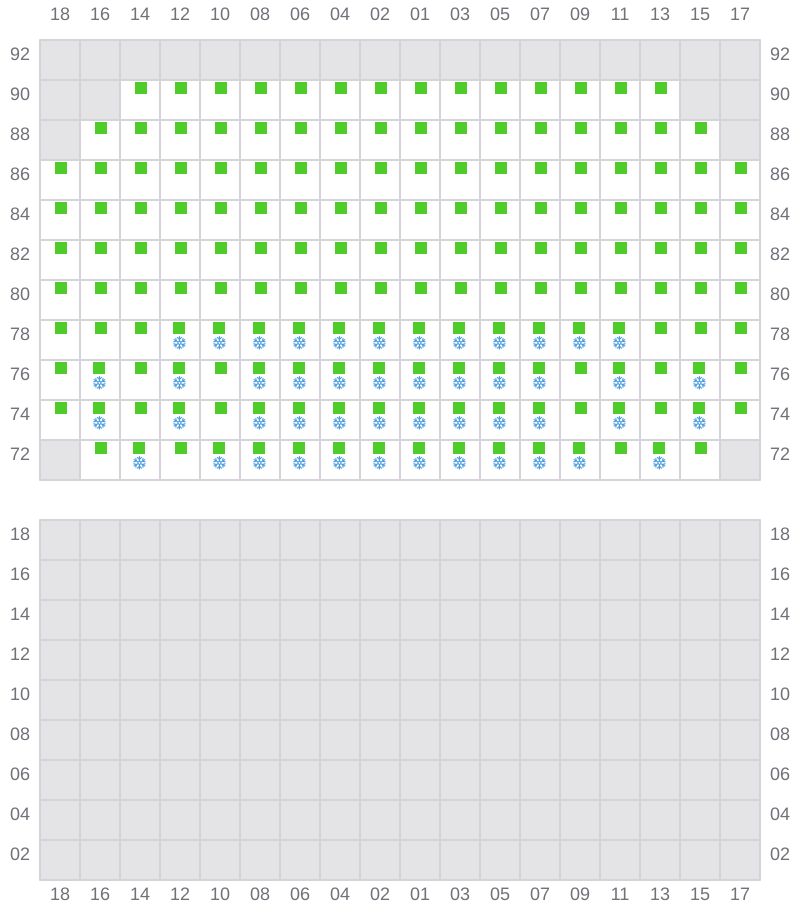

Bay 069 view and slots of MAERSK LIMA
