MAERSK LINS
9527025 | OZGK2 | 9527025 by ********* Last update: Thu Mar 28 2024
General Info
Ship Name:MAERSK LINS
IMO Code:9527025
Call Sign:OZGK2
Line Operator:9527025
Class Name for Sister Ships:1AM
Year Built:2012
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As (old names):-
Size Summary
ISO Bays:069
Max ISO Row:18
Center Line Row:No
Max Above ISO Tier:96
Min Above ISO Tier:78
Max Below ISO Tier:18
Min Below ISO Tier:02
Total TEU:9,160
Centers of Gravity
LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

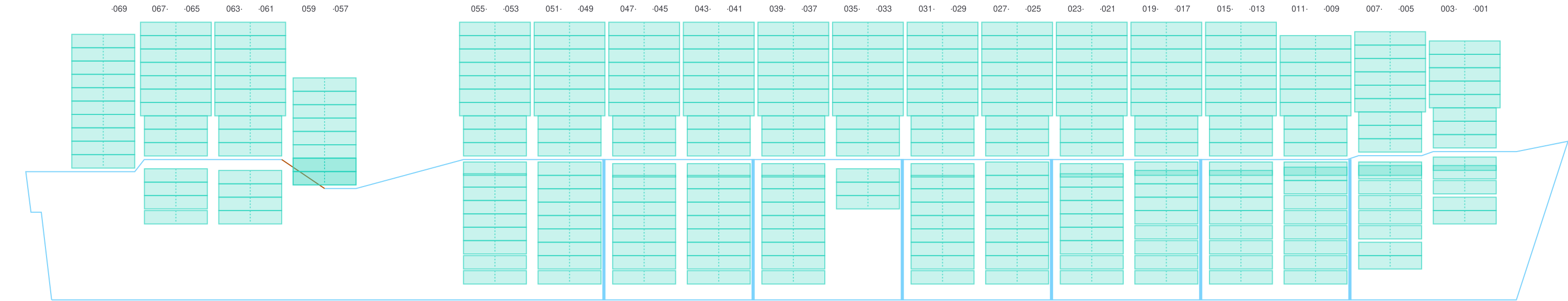

Side View
![Side view of MAERSK LINS](/vessel-images/9f68e7b1-920d-4b66-ac18-839ca4280f00-sideView.png?v=1711655247730)

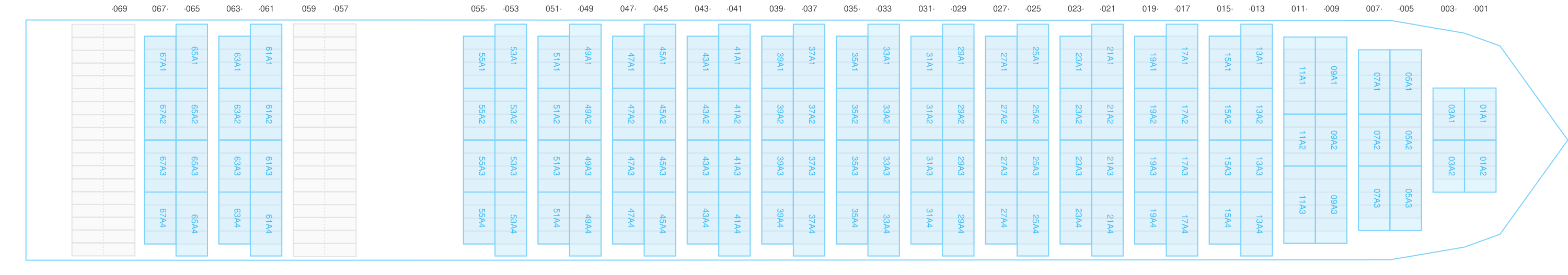

Hatch-Covers View
![Deck view of MAERSK LINS](/vessel-images/9f68e7b1-920d-4b66-ac18-839ca4280f00-deckView.png?v=1711655247730)
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

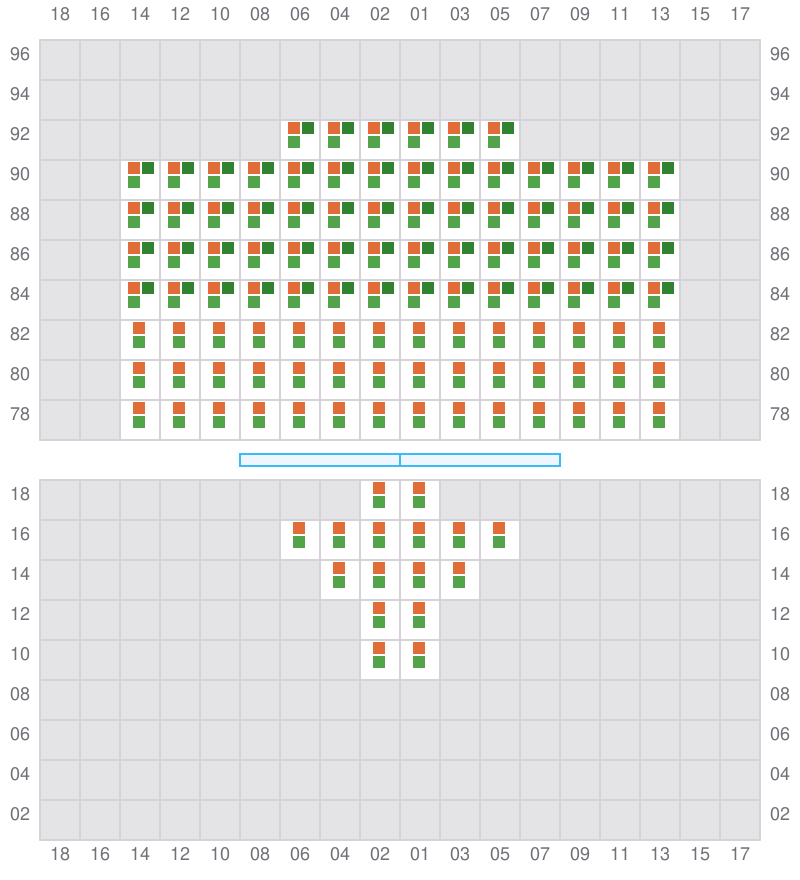

001 (002)
- →
![Bay 001 view and slots of MAERSK LINS](/vessel-images/9f68e7b1-920d-4b66-ac18-839ca4280f00-b001.png?v=1711655247730)

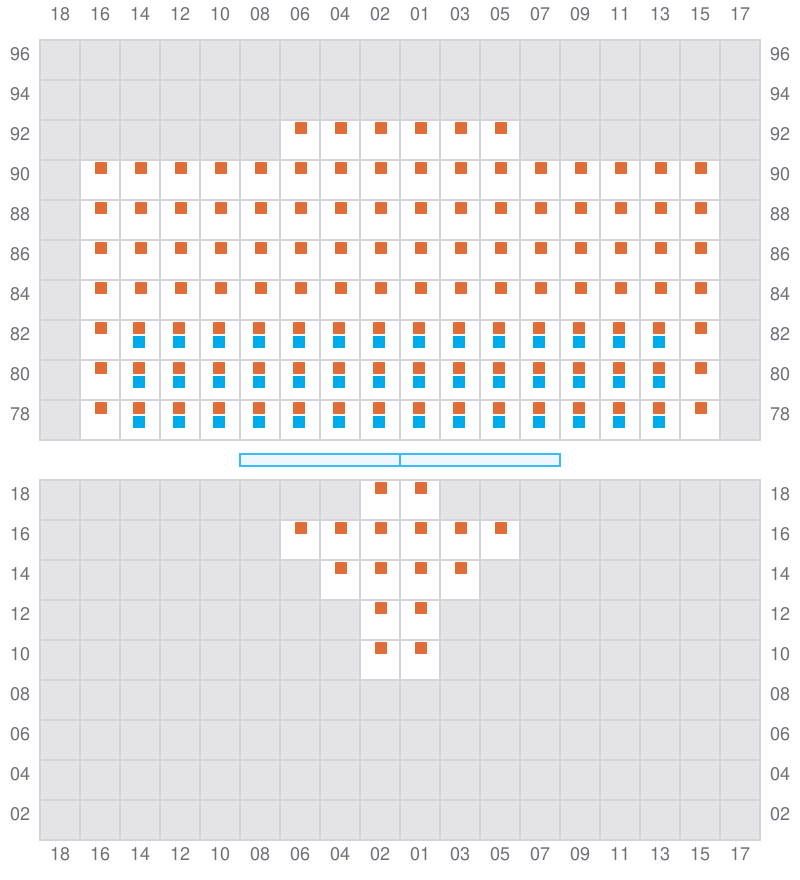

003
- ←
- → / ?
![Bay 003 view and slots of MAERSK LINS](/vessel-images/9f68e7b1-920d-4b66-ac18-839ca4280f00-b003.png?v=1711655247730)

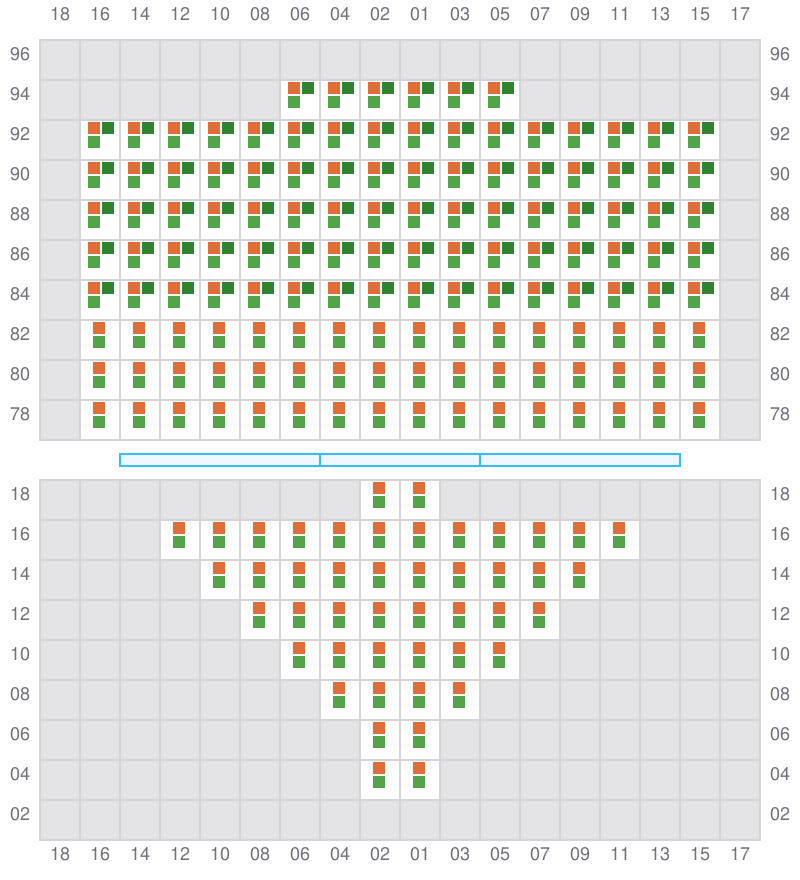

005 (006)
- →
![Bay 005 view and slots of MAERSK LINS](/vessel-images/9f68e7b1-920d-4b66-ac18-839ca4280f00-b005.png?v=1711655247730)

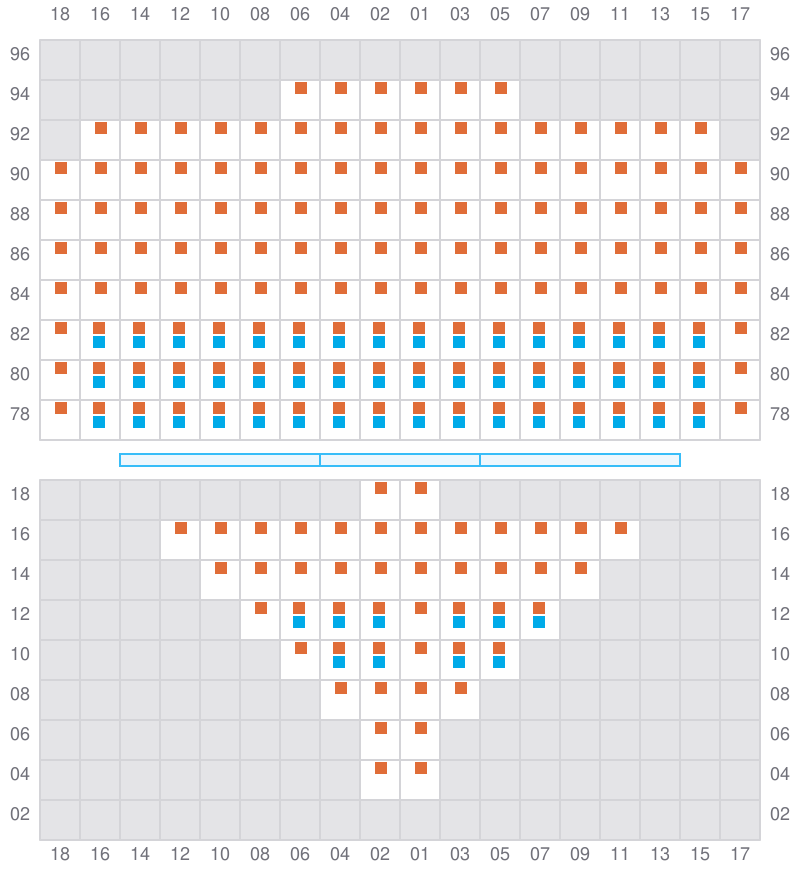

007
- ←
- →
![Bay 007 view and slots of MAERSK LINS](/vessel-images/9f68e7b1-920d-4b66-ac18-839ca4280f00-b007.png?v=1711655247730)

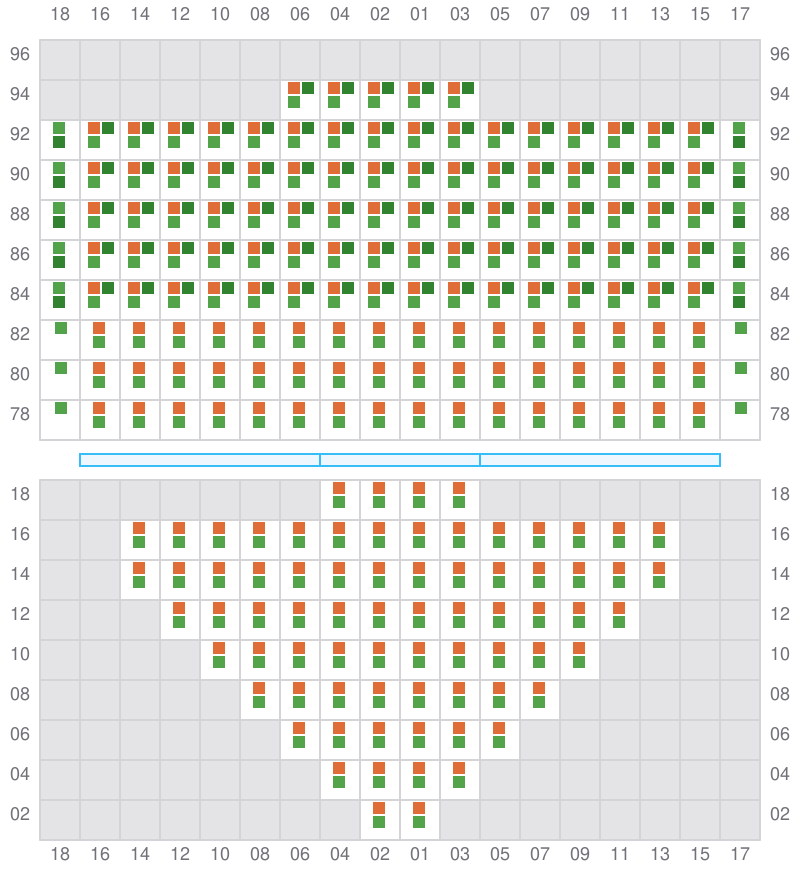

009 (010)
- →
![Bay 009 view and slots of MAERSK LINS](/vessel-images/9f68e7b1-920d-4b66-ac18-839ca4280f00-b009.png?v=1711655247730)

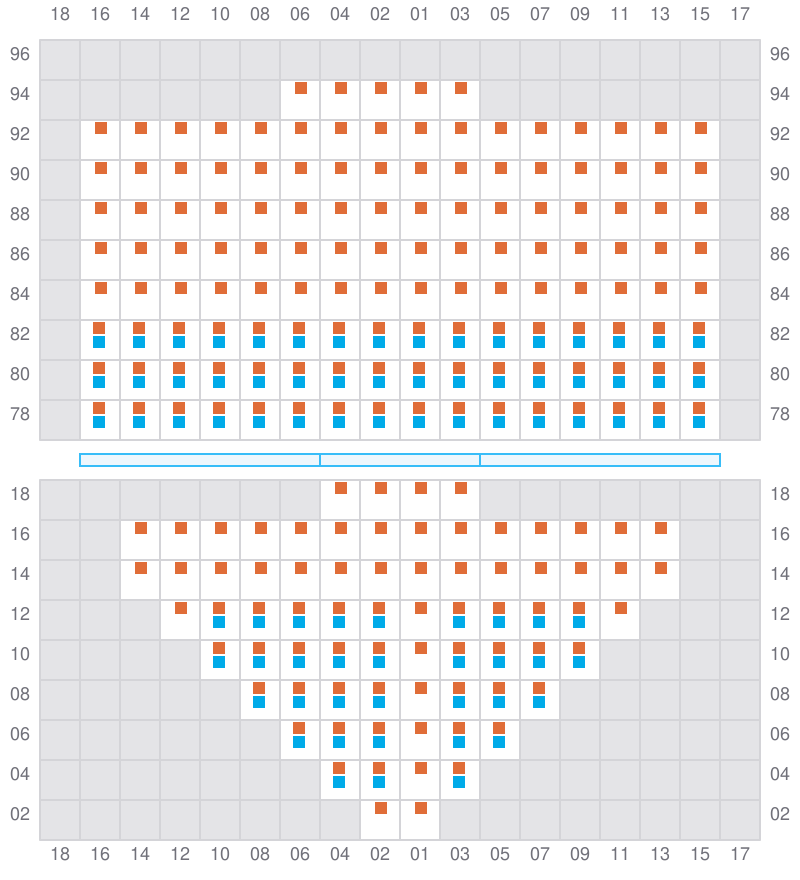

011
- ←
- →
![Bay 011 view and slots of MAERSK LINS](/vessel-images/9f68e7b1-920d-4b66-ac18-839ca4280f00-b011.png?v=1711655247730)

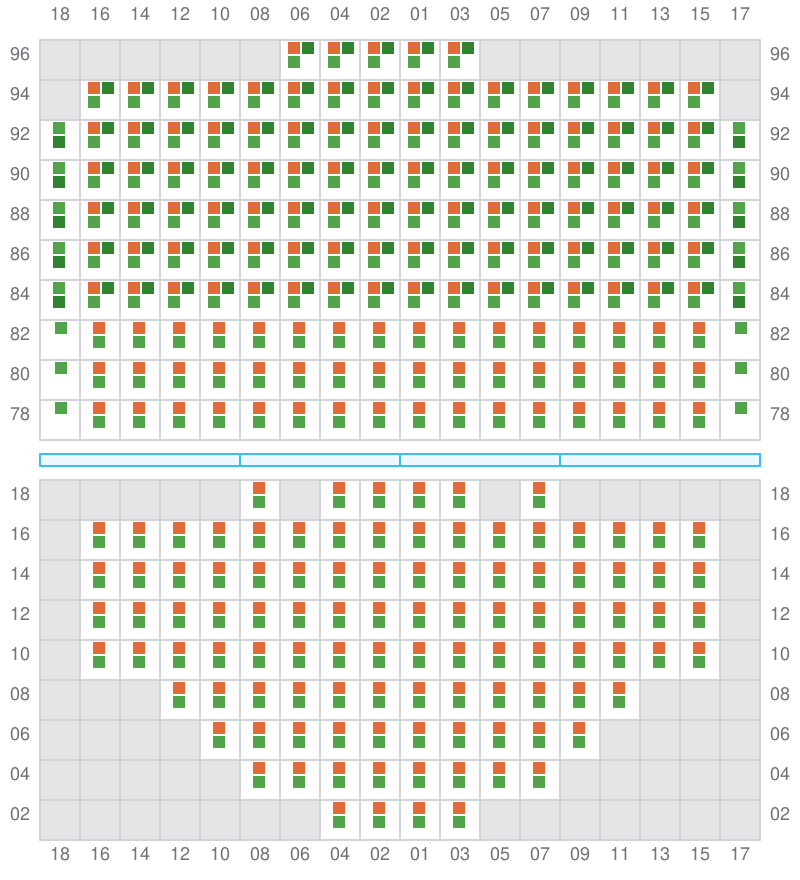

013 (014)
- →
![Bay 013 view and slots of MAERSK LINS](/vessel-images/9f68e7b1-920d-4b66-ac18-839ca4280f00-b013.png?v=1711655247730)

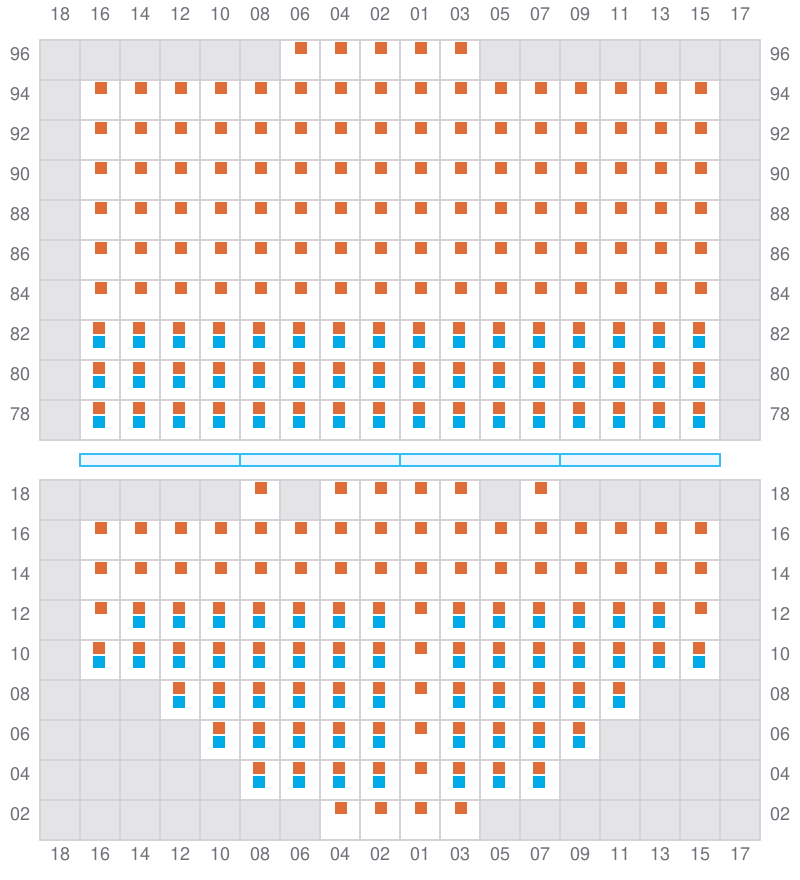

015
- ←
- →
![Bay 015 view and slots of MAERSK LINS](/vessel-images/9f68e7b1-920d-4b66-ac18-839ca4280f00-b015.png?v=1711655247730)

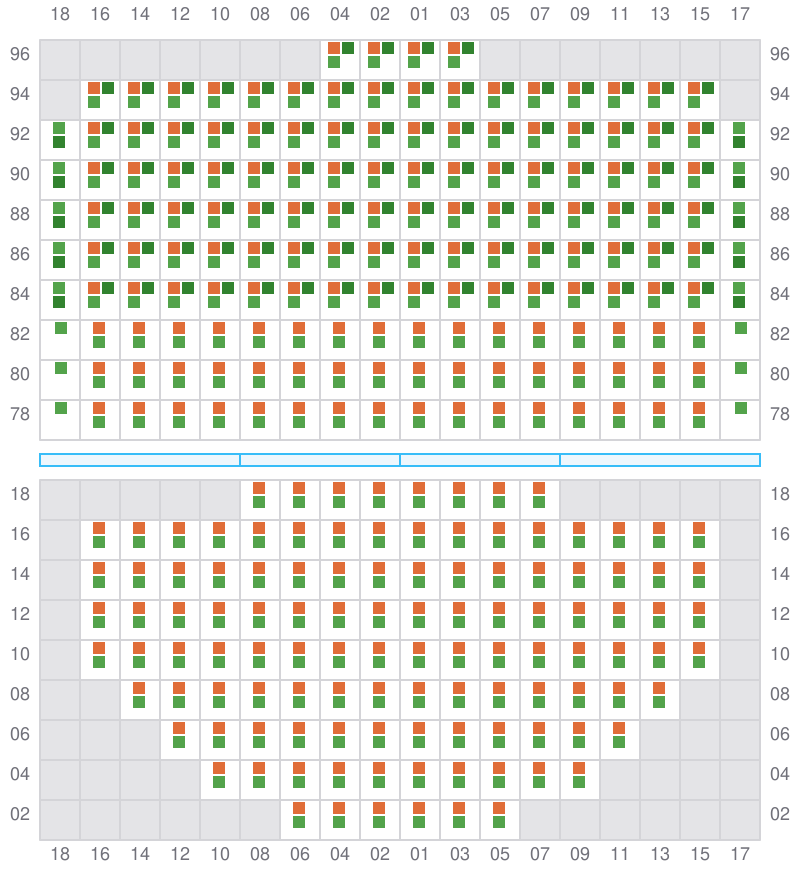

017 (018)
- →
![Bay 017 view and slots of MAERSK LINS](/vessel-images/9f68e7b1-920d-4b66-ac18-839ca4280f00-b017.png?v=1711655247730)

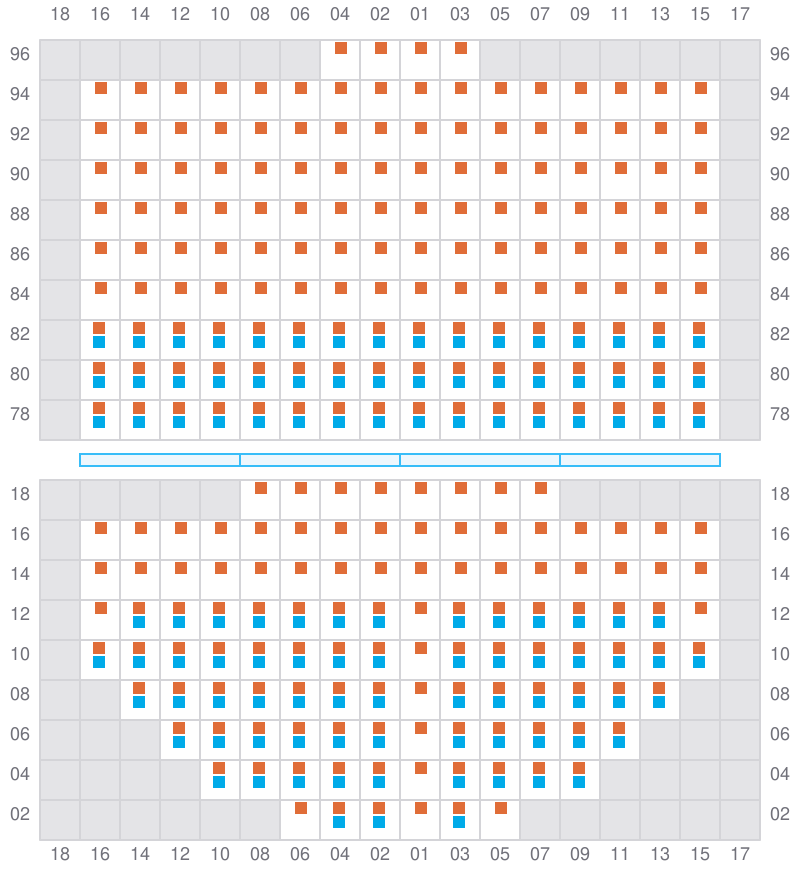

019
- ←
- →
![Bay 019 view and slots of MAERSK LINS](/vessel-images/9f68e7b1-920d-4b66-ac18-839ca4280f00-b019.png?v=1711655247730)

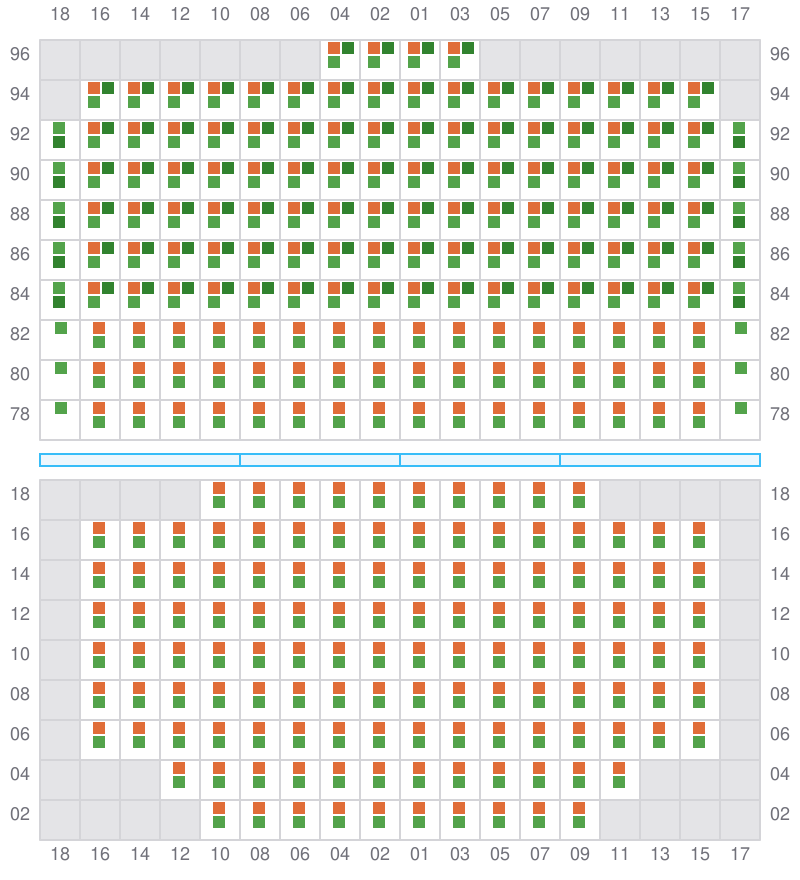

021 (022)
- →
![Bay 021 view and slots of MAERSK LINS](/vessel-images/9f68e7b1-920d-4b66-ac18-839ca4280f00-b021.png?v=1711655247730)

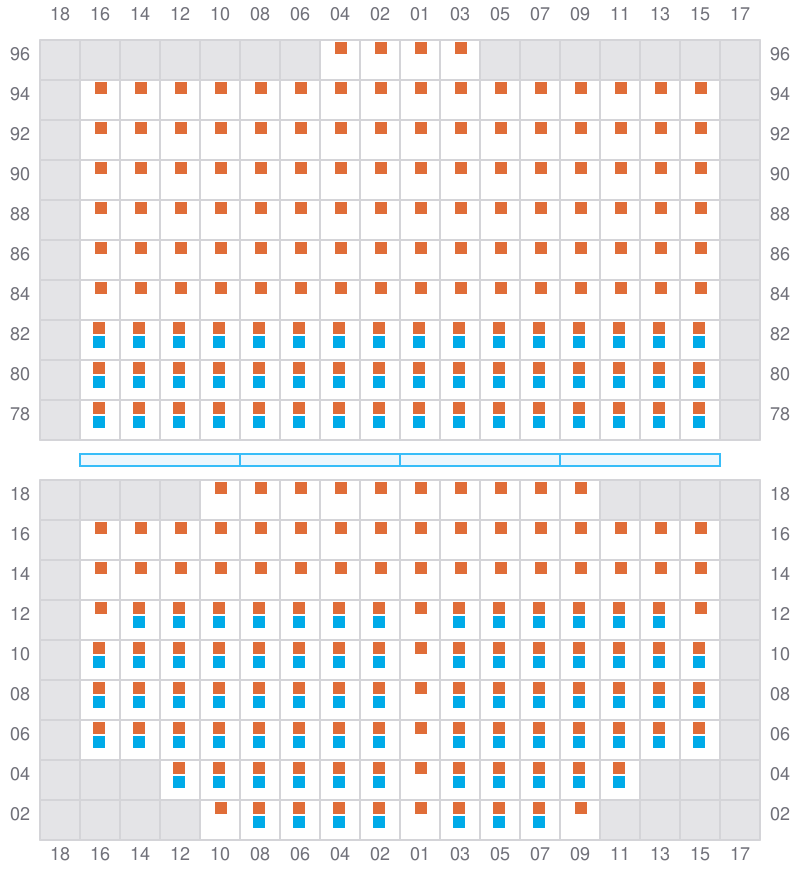

023
- ←
- →
![Bay 023 view and slots of MAERSK LINS](/vessel-images/9f68e7b1-920d-4b66-ac18-839ca4280f00-b023.png?v=1711655247730)

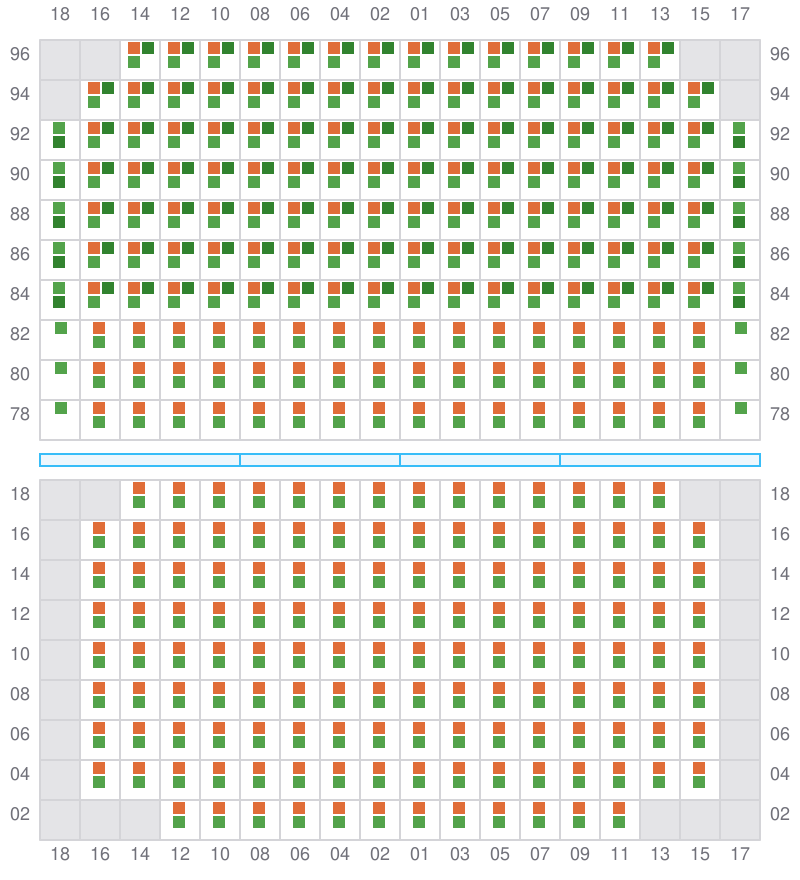

025 (026)
- →
![Bay 025 view and slots of MAERSK LINS](/vessel-images/9f68e7b1-920d-4b66-ac18-839ca4280f00-b025.png?v=1711655247730)
027
- ←
- →
![Bay 027 view and slots of MAERSK LINS](/vessel-images/9f68e7b1-920d-4b66-ac18-839ca4280f00-b027.png?v=1711655247730)
029 (030)
- →
![Bay 029 view and slots of MAERSK LINS](/vessel-images/9f68e7b1-920d-4b66-ac18-839ca4280f00-b029.png?v=1711655247730)

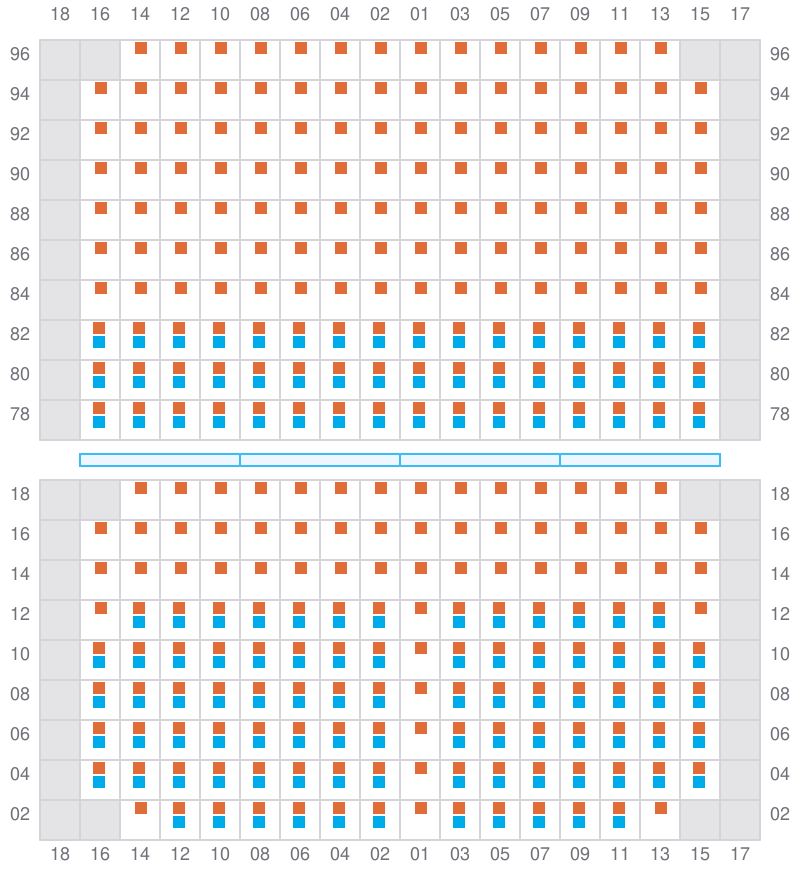

031
- ←
- →
![Bay 031 view and slots of MAERSK LINS](/vessel-images/9f68e7b1-920d-4b66-ac18-839ca4280f00-b031.png?v=1711655247730)

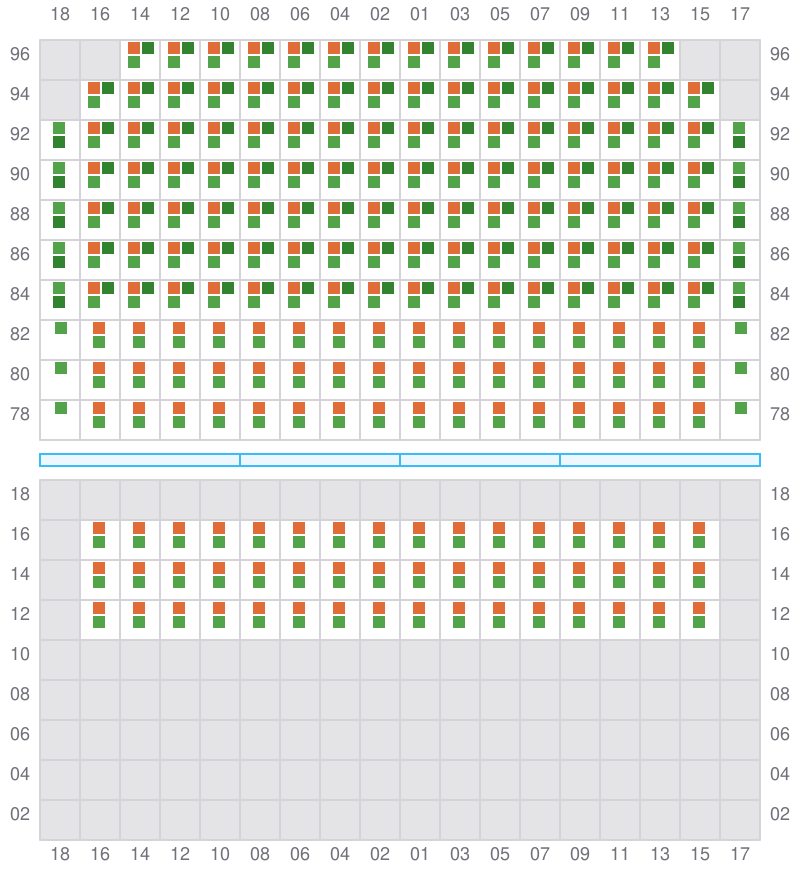

033 (034)
- →
![Bay 033 view and slots of MAERSK LINS](/vessel-images/9f68e7b1-920d-4b66-ac18-839ca4280f00-b033.png?v=1711655247730)

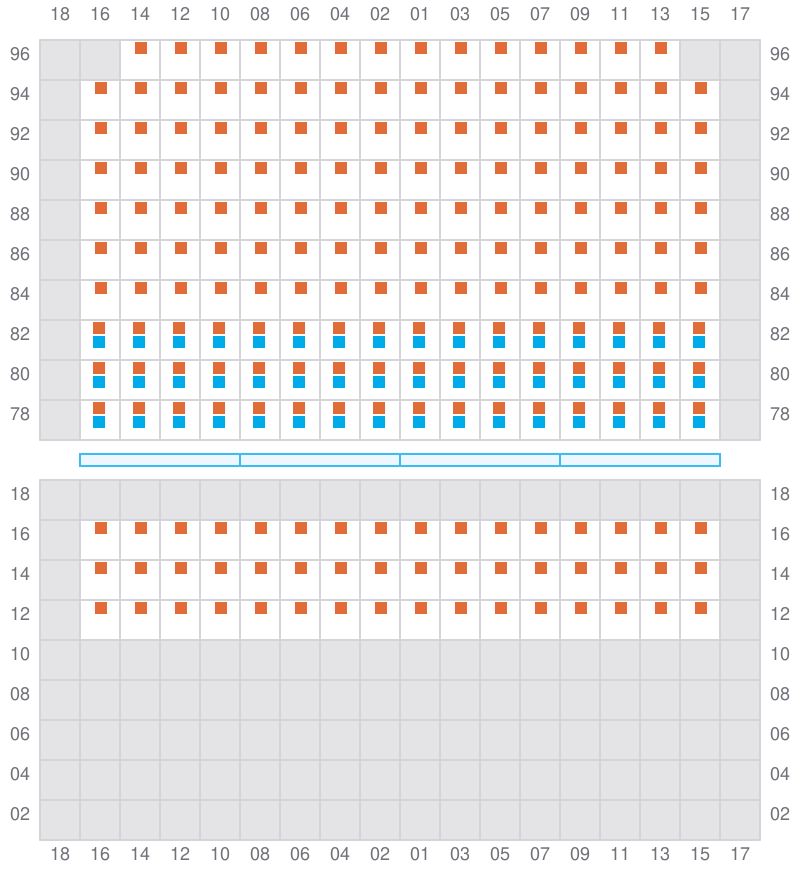

035
- ←
- → / ?
![Bay 035 view and slots of MAERSK LINS](/vessel-images/9f68e7b1-920d-4b66-ac18-839ca4280f00-b035.png?v=1711655247730)
037 (038)
- →
![Bay 037 view and slots of MAERSK LINS](/vessel-images/9f68e7b1-920d-4b66-ac18-839ca4280f00-b037.png?v=1711655247730)

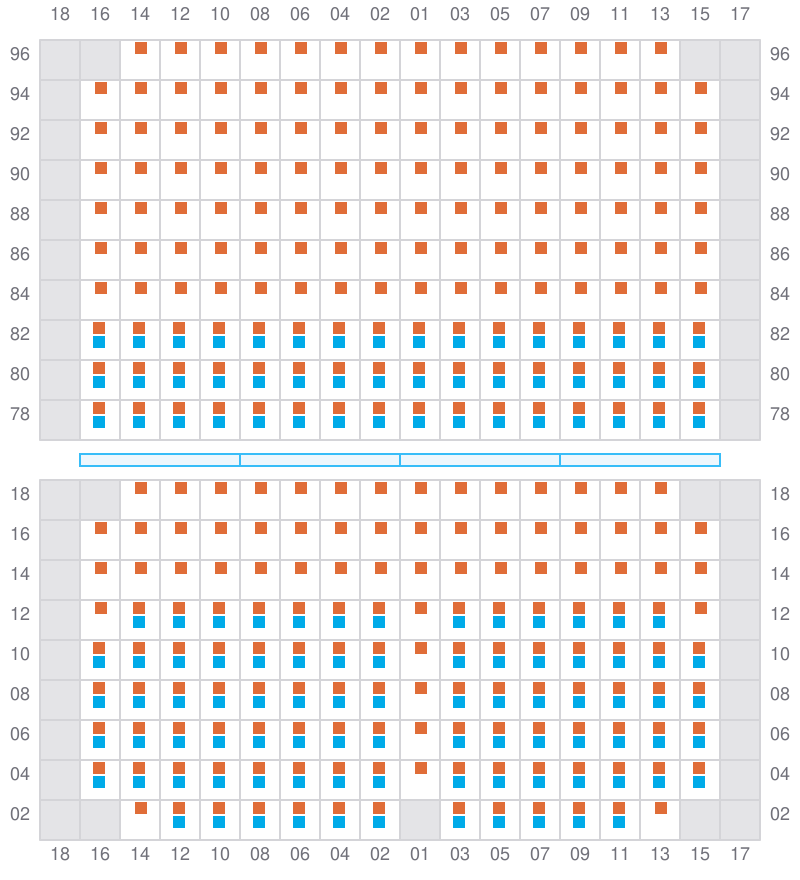

039
- ←
- →
![Bay 039 view and slots of MAERSK LINS](/vessel-images/9f68e7b1-920d-4b66-ac18-839ca4280f00-b039.png?v=1711655247730)
041 (042)
- →
![Bay 041 view and slots of MAERSK LINS](/vessel-images/9f68e7b1-920d-4b66-ac18-839ca4280f00-b041.png?v=1711655247730)
043
- ←
- →
![Bay 043 view and slots of MAERSK LINS](/vessel-images/9f68e7b1-920d-4b66-ac18-839ca4280f00-b043.png?v=1711655247730)
045 (046)
- →
![Bay 045 view and slots of MAERSK LINS](/vessel-images/9f68e7b1-920d-4b66-ac18-839ca4280f00-b045.png?v=1711655247730)
047
- ←
- →
![Bay 047 view and slots of MAERSK LINS](/vessel-images/9f68e7b1-920d-4b66-ac18-839ca4280f00-b047.png?v=1711655247730)
049 (050)
- →
![Bay 049 view and slots of MAERSK LINS](/vessel-images/9f68e7b1-920d-4b66-ac18-839ca4280f00-b049.png?v=1711655247730)

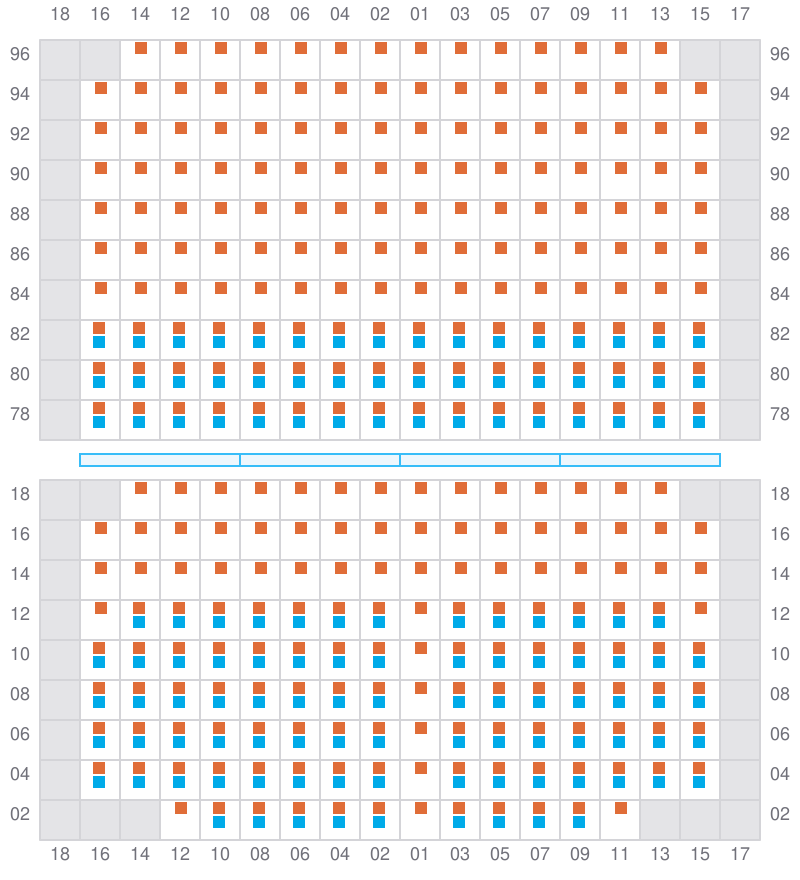

051
- ←
- →
![Bay 051 view and slots of MAERSK LINS](/vessel-images/9f68e7b1-920d-4b66-ac18-839ca4280f00-b051.png?v=1711655247730)

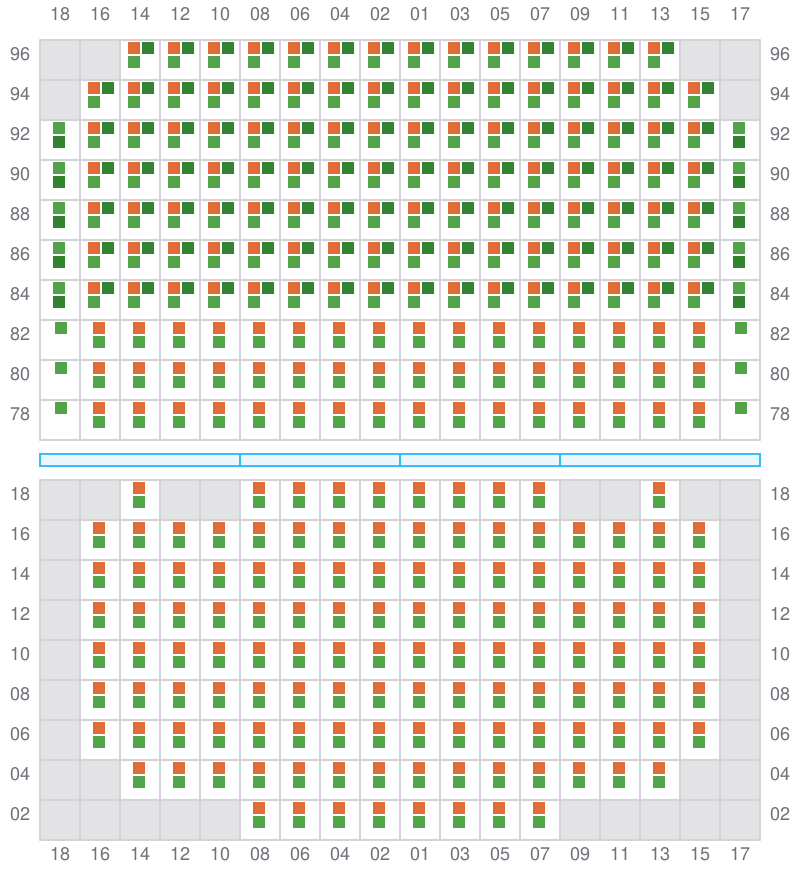

053 (054)
- →
![Bay 053 view and slots of MAERSK LINS](/vessel-images/9f68e7b1-920d-4b66-ac18-839ca4280f00-b053.png?v=1711655247730)

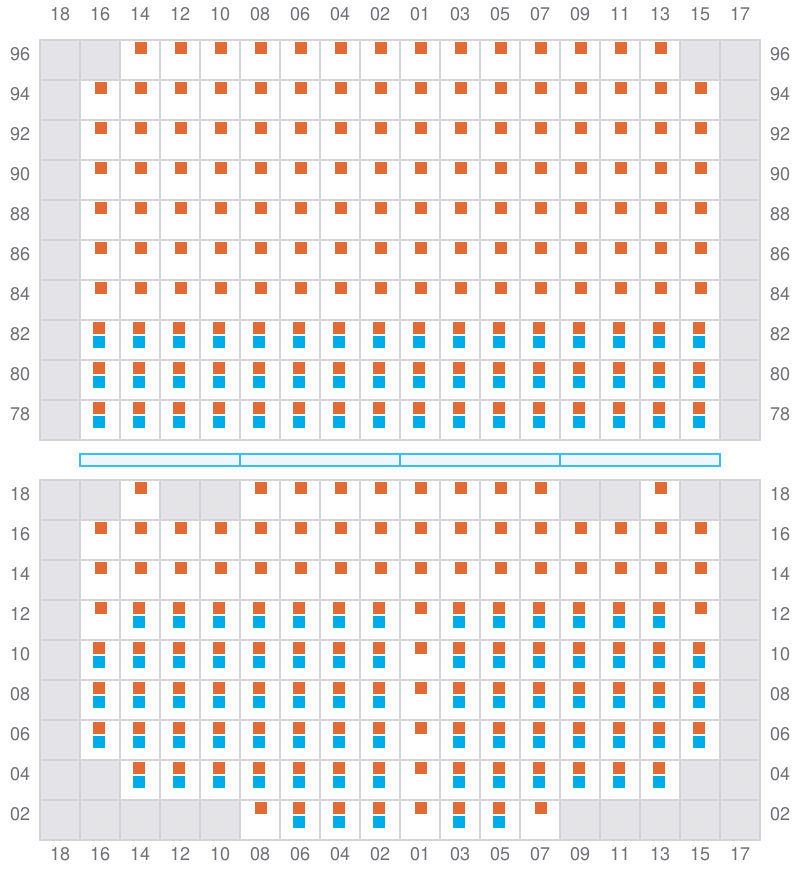

055
- ←
- →
![Bay 055 view and slots of MAERSK LINS](/vessel-images/9f68e7b1-920d-4b66-ac18-839ca4280f00-b055.png?v=1711655247730)

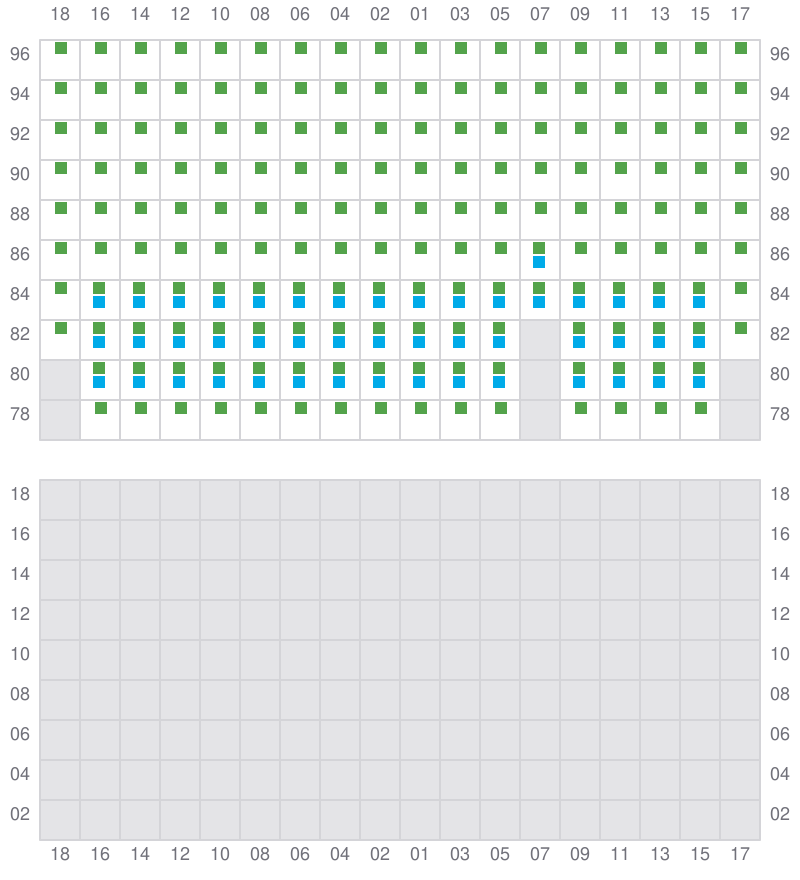

057 (058)
- → / ?
- ← / ?
![Bay 057 view and slots of MAERSK LINS](/vessel-images/9f68e7b1-920d-4b66-ac18-839ca4280f00-b057.png?v=1711655247730)

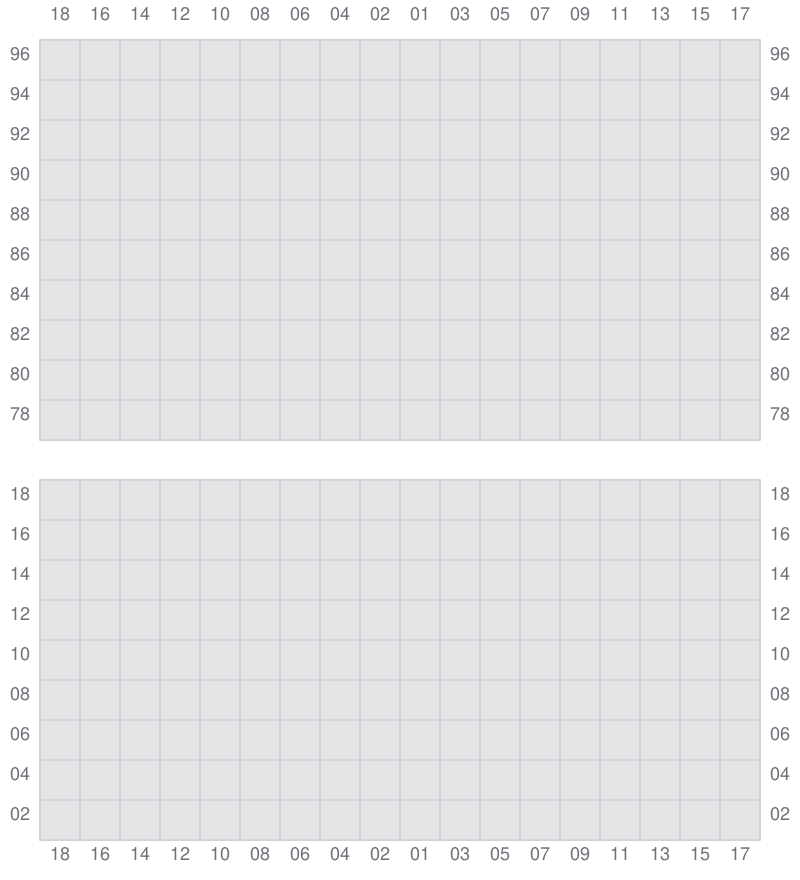

059
![Bay 059 view and slots of MAERSK LINS](/vessel-images/9f68e7b1-920d-4b66-ac18-839ca4280f00-b059.png?v=1711655247730)

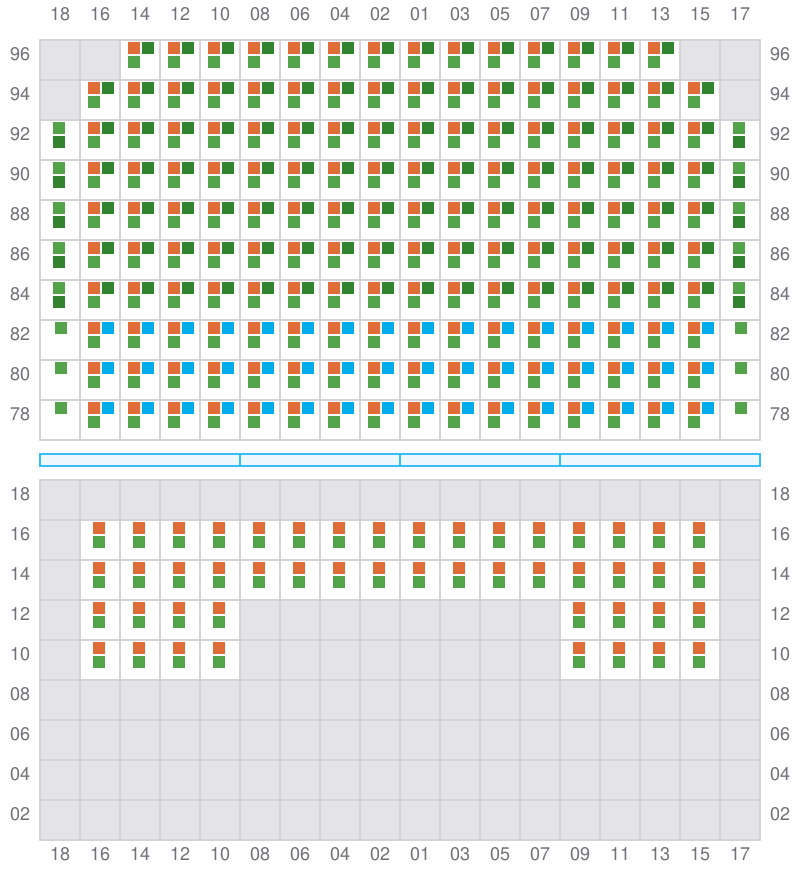

061 (062)
- →
- ← / ?
![Bay 061 view and slots of MAERSK LINS](/vessel-images/9f68e7b1-920d-4b66-ac18-839ca4280f00-b061.png?v=1711655247730)

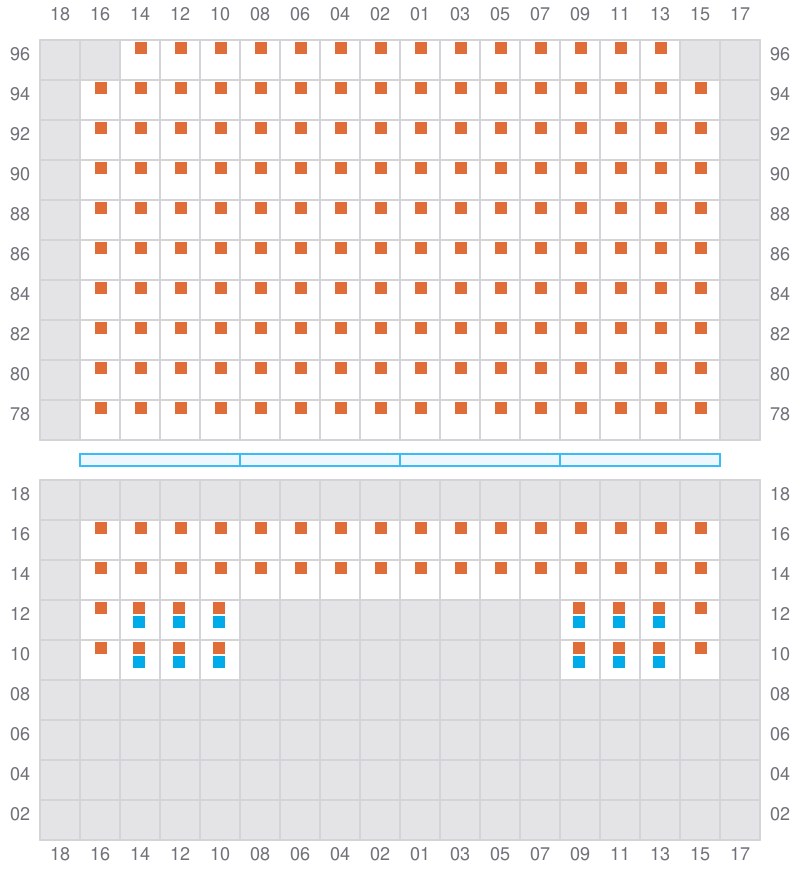

063
- ←
- ? / →
![Bay 063 view and slots of MAERSK LINS](/vessel-images/9f68e7b1-920d-4b66-ac18-839ca4280f00-b063.png?v=1711655247730)

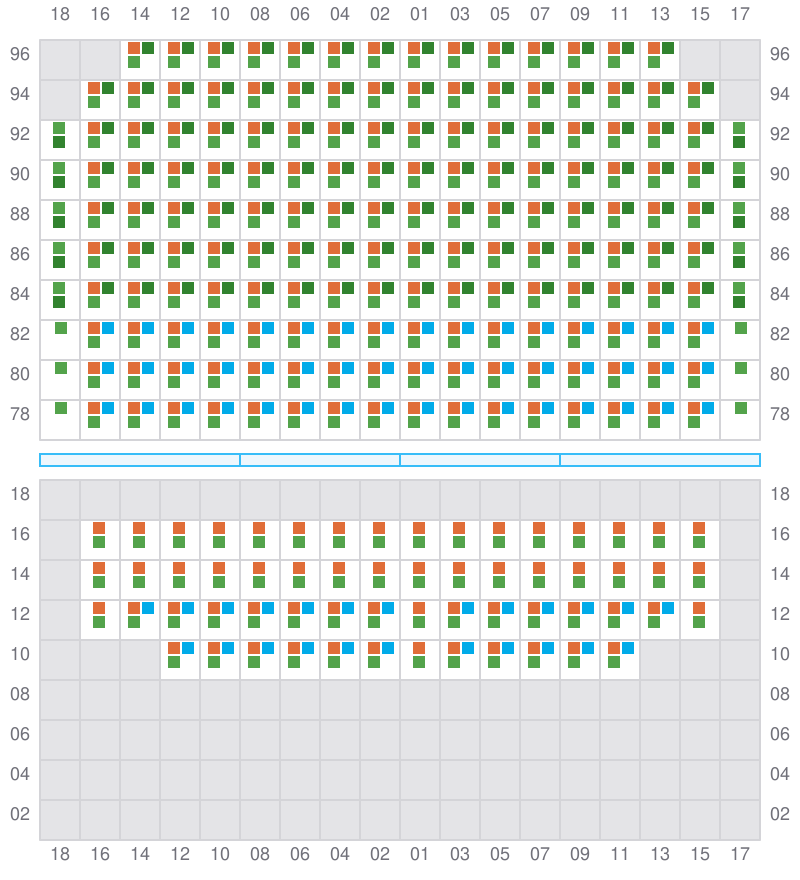

065 (066)
- →
- ←
![Bay 065 view and slots of MAERSK LINS](/vessel-images/9f68e7b1-920d-4b66-ac18-839ca4280f00-b065.png?v=1711655247730)

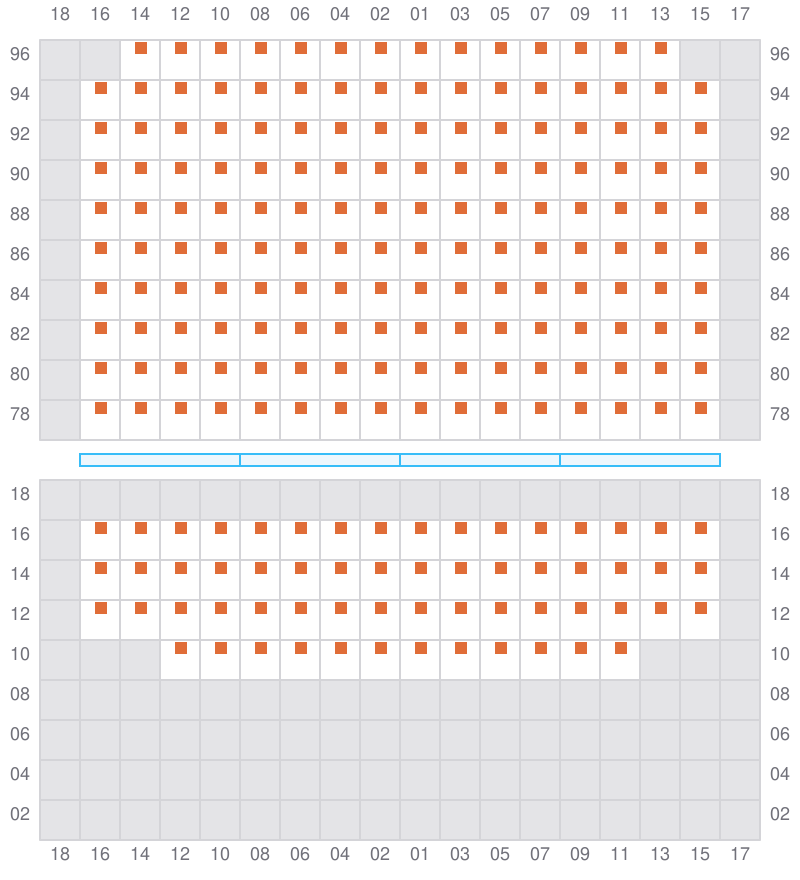

067
- ←
![Bay 067 view and slots of MAERSK LINS](/vessel-images/9f68e7b1-920d-4b66-ac18-839ca4280f00-b067.png?v=1711655247730)

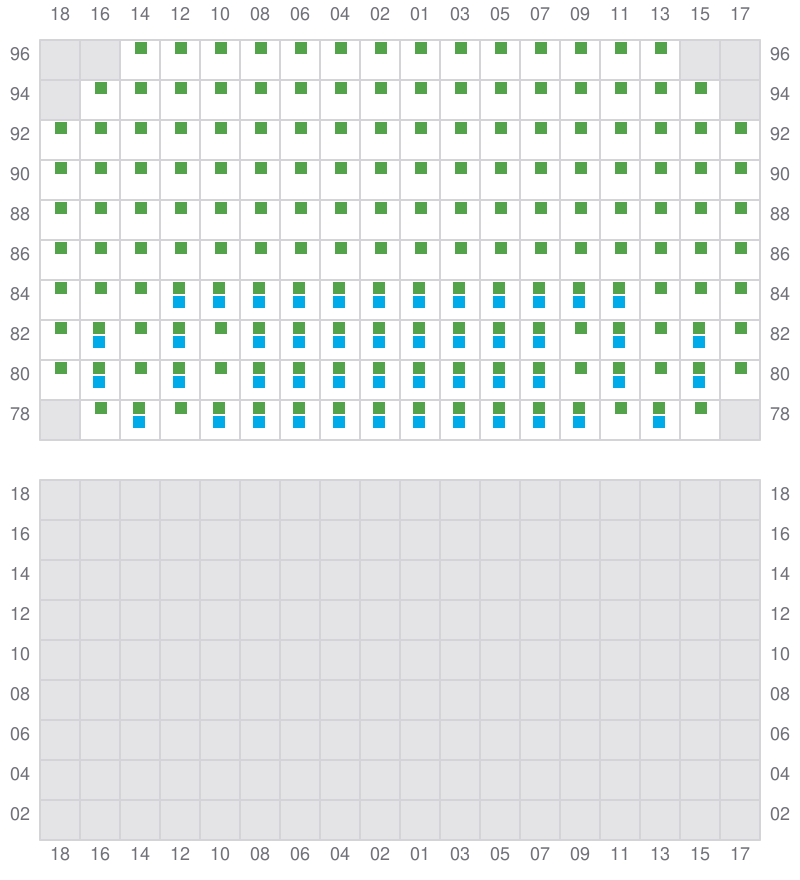

069 (070)
- → / ?
- ← / ?
![Bay 069 view and slots of MAERSK LINS](/vessel-images/9f68e7b1-920d-4b66-ac18-839ca4280f00-b069.png?v=1711655247730)
