MAERSK LIRQUEN
9526887 | OZHU2 | MSK by ************************** Last update: Sat Jun 24 2023

General Info

Ship Name:MAERSK LIRQUEN
IMO Code:9526887
Call Sign:OZHU2
Line Operator:MSK
Class Name for Sister Ships:LQN
Year Built:2011
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:
Also Known As...:-
40' Bays Location:-

Size Summary

ISO Bays:069
Max ISO Row:18
Center Line Row:No
Max Above ISO Tier:92
Min Above ISO Tier:72
Max Below ISO Tier:18
Min Below ISO Tier:02
Total TEU:9,246

Centers of Gravity

LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

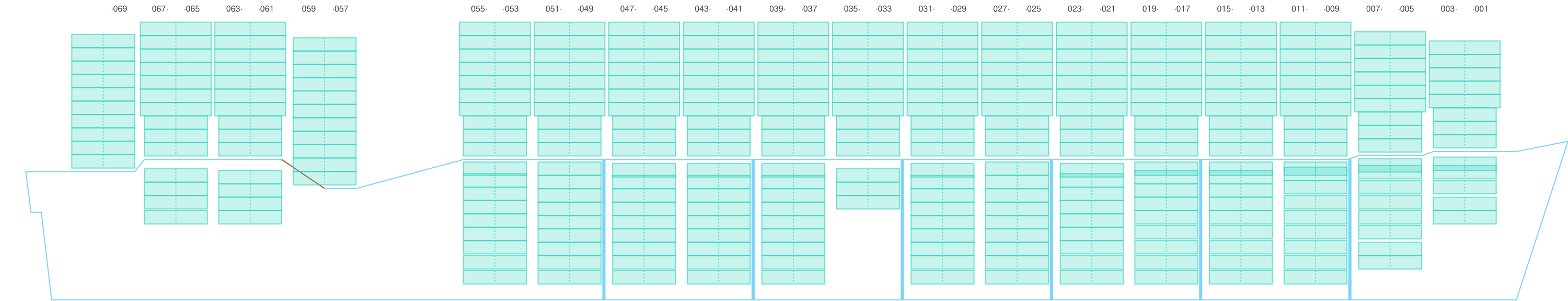

Side View

Side view of MAERSK LIRQUEN

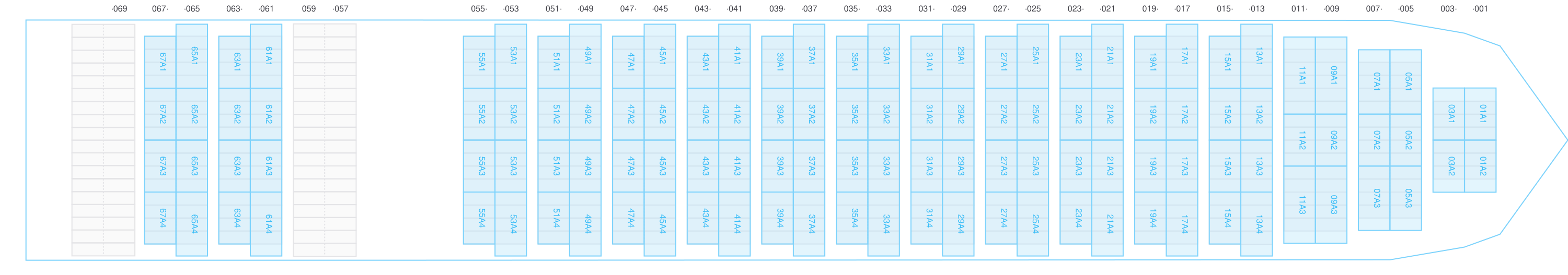

Hatch-Covers View

Deck view of MAERSK LIRQUEN

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot ×

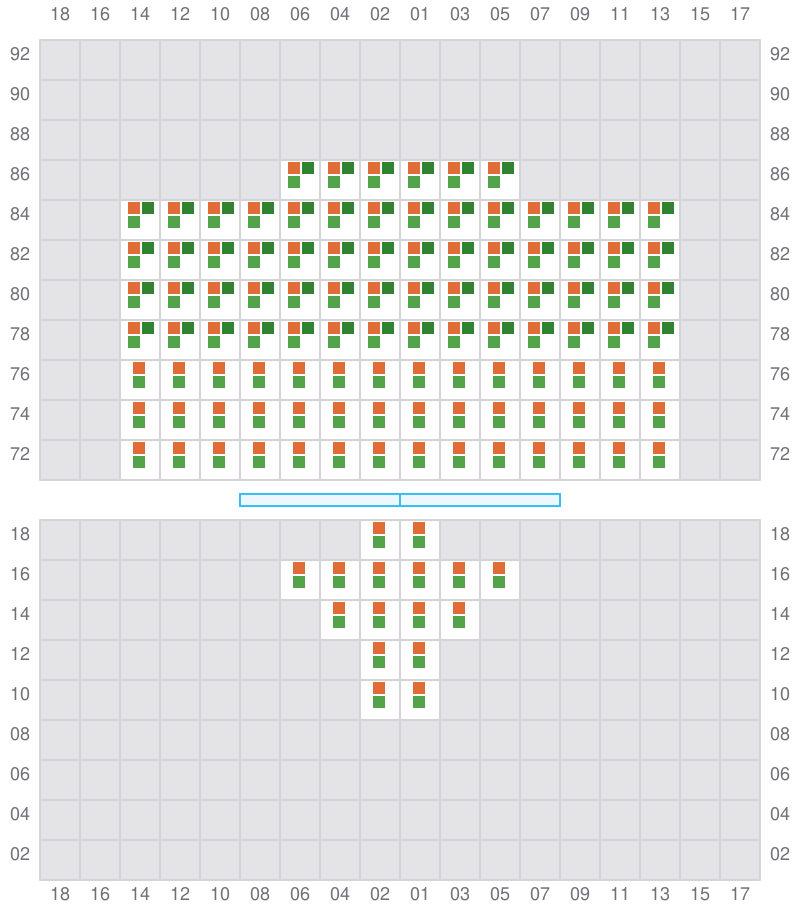

001 (002)

  • →
Bay 001 view and slots of MAERSK LIRQUEN

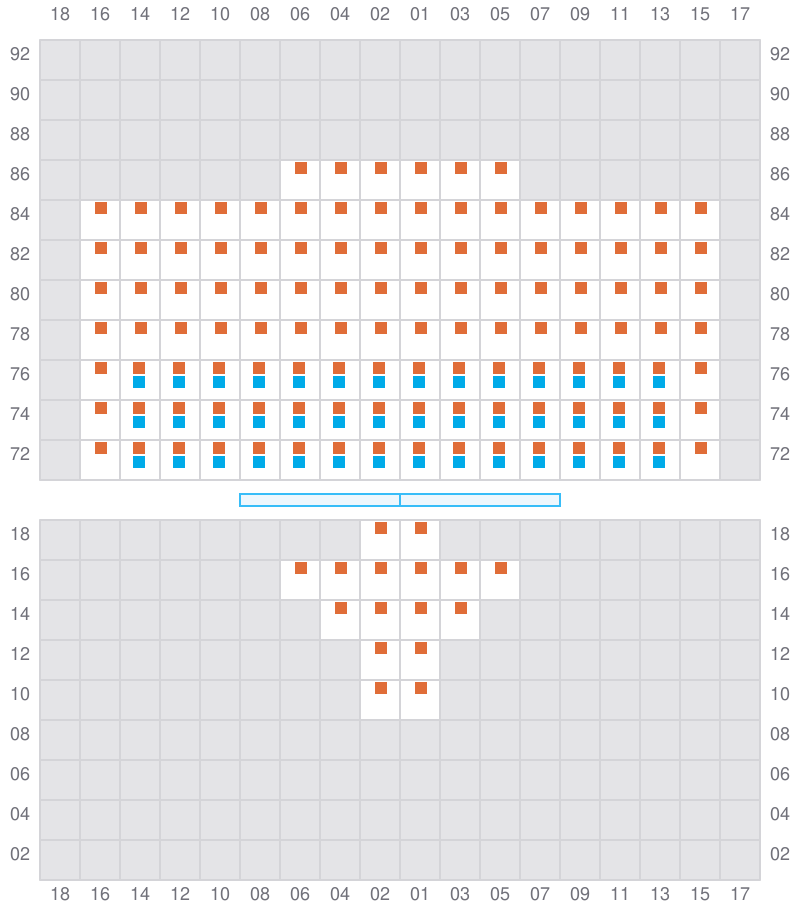

003

  • ←
  • → / ?
Bay 003 view and slots of MAERSK LIRQUEN

005 (006)

  • →

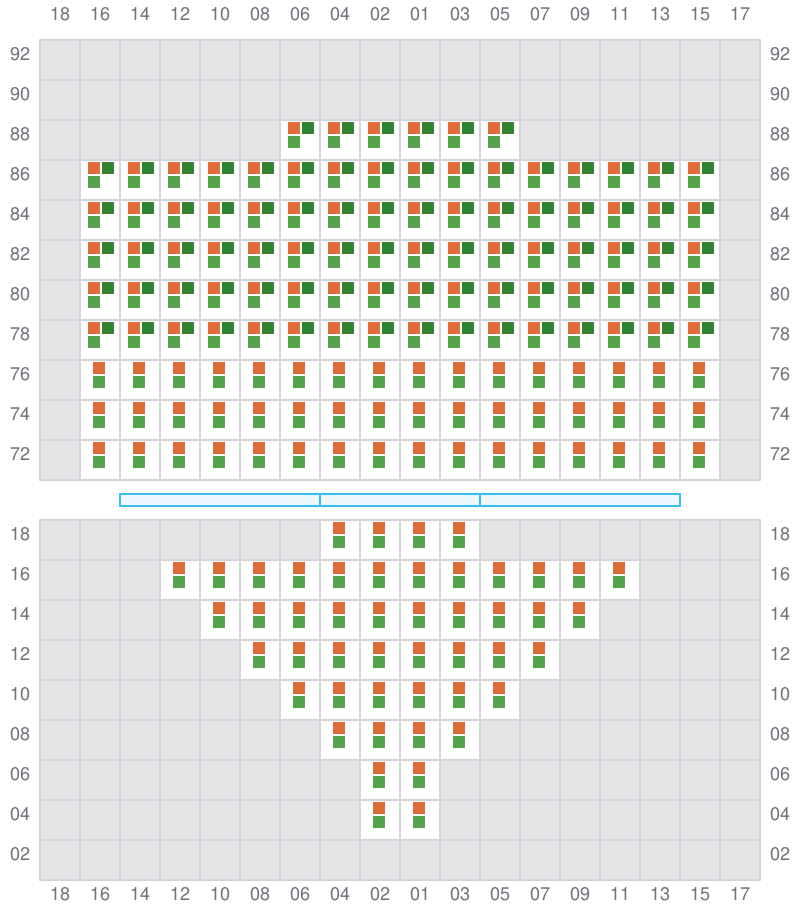

Bay 005 view and slots of MAERSK LIRQUEN

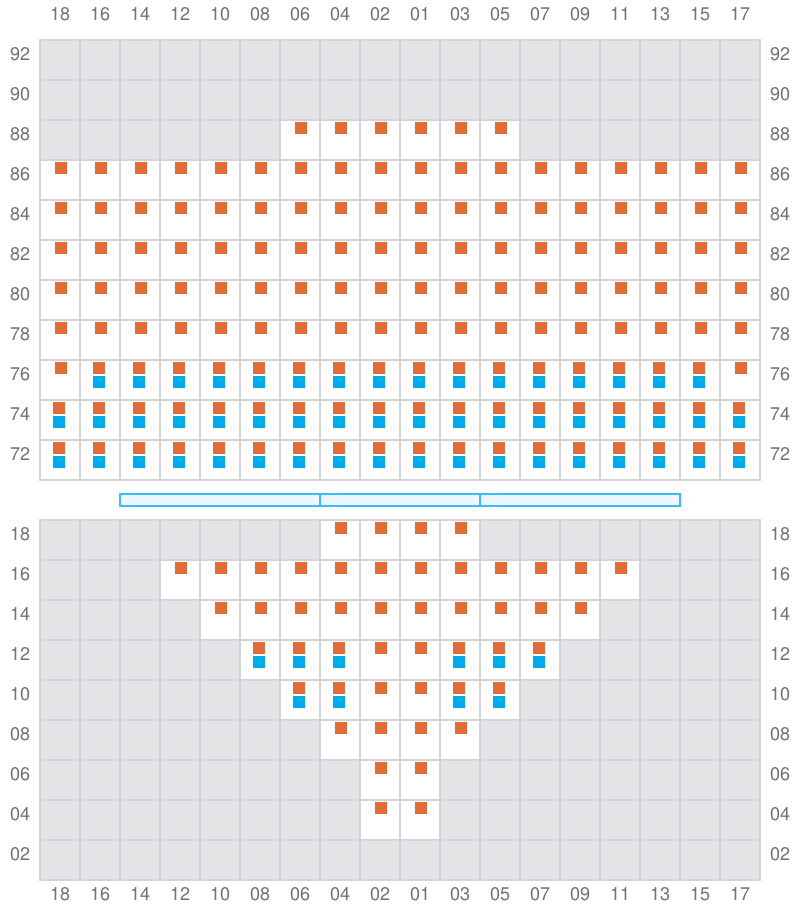

007

  • ←
  • →
Bay 007 view and slots of MAERSK LIRQUEN

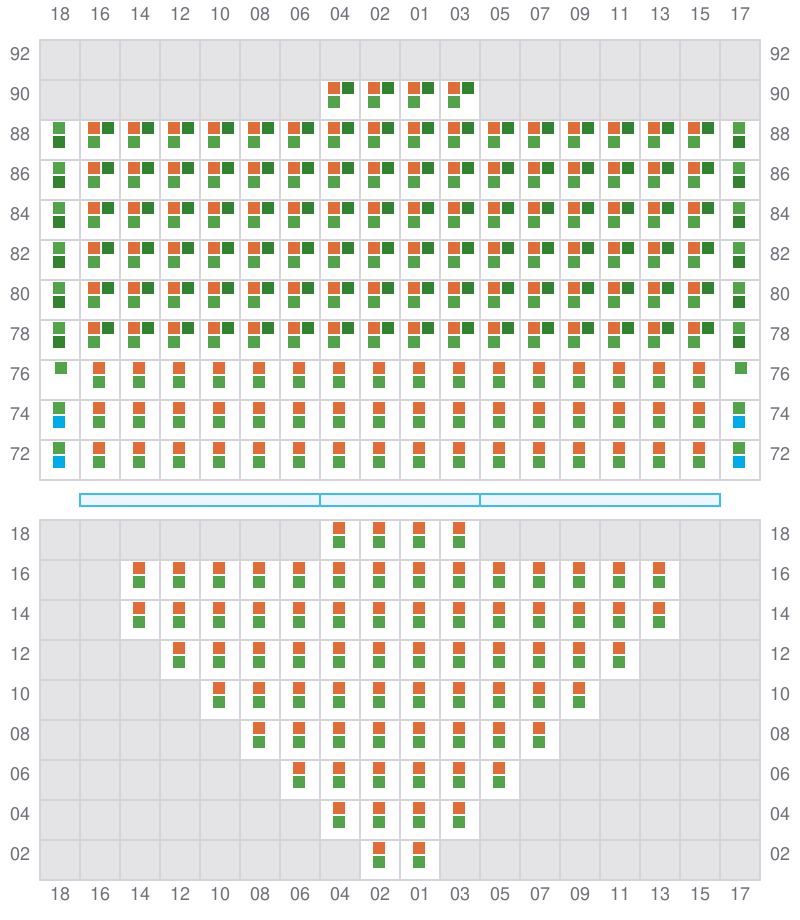

009 (010)

  • →
  • → / ?
Bay 009 view and slots of MAERSK LIRQUEN

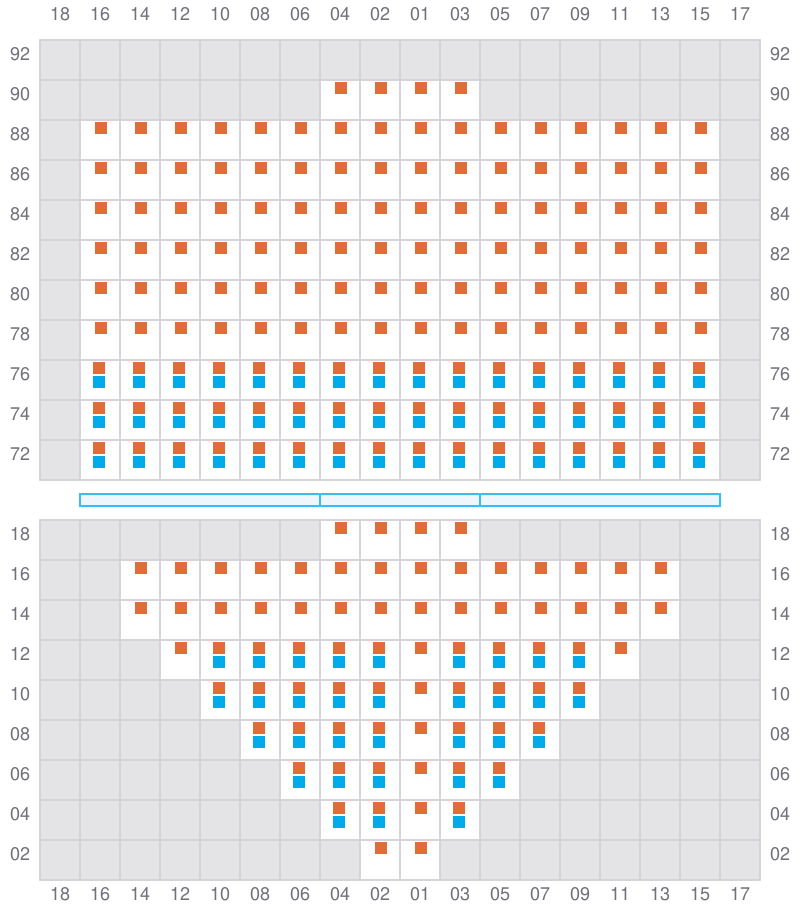

011

  • ←
  • →
Bay 011 view and slots of MAERSK LIRQUEN

013 (014)

  • →
  • → / ?

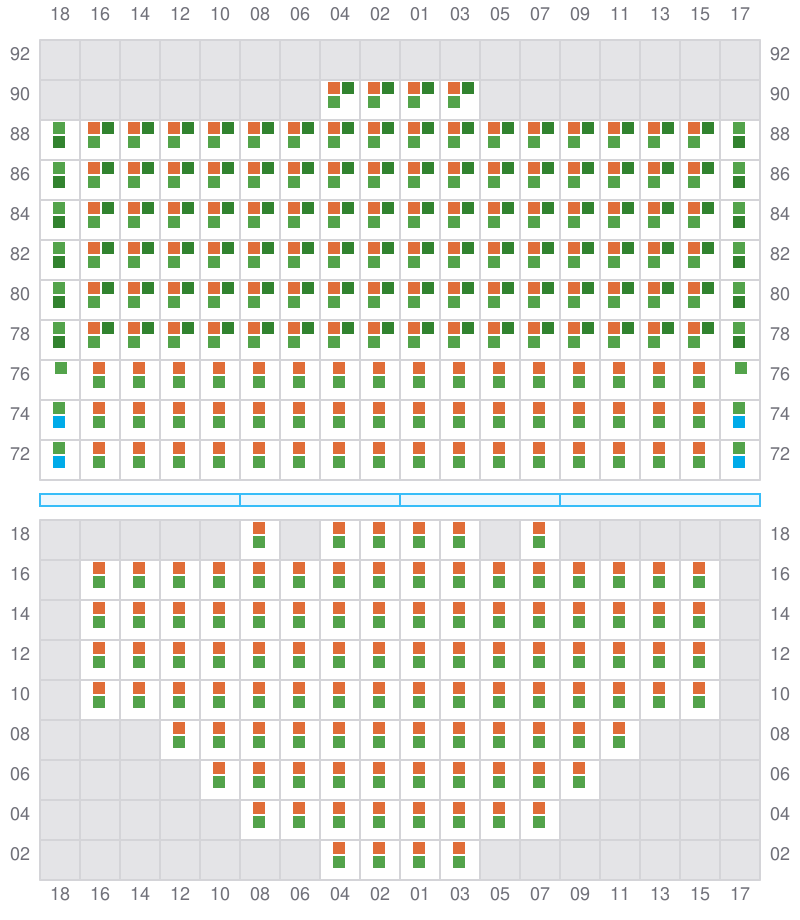

Bay 013 view and slots of MAERSK LIRQUEN

015

  • ←
  • →
Bay 015 view and slots of MAERSK LIRQUEN

017 (018)

  • →
  • → / ?

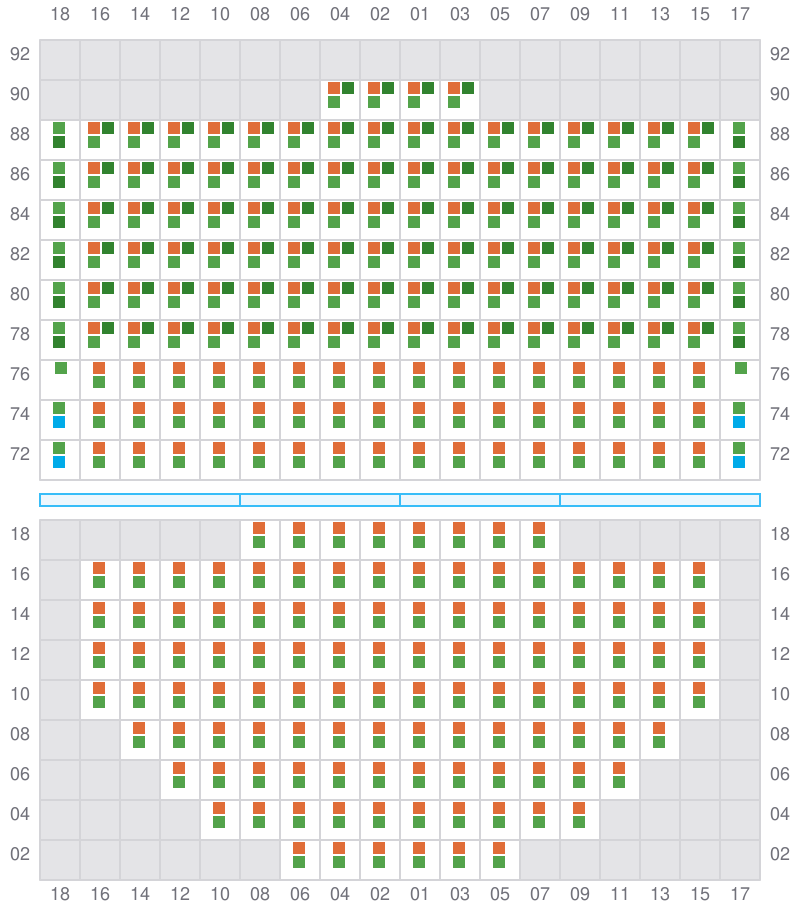

Bay 017 view and slots of MAERSK LIRQUEN

019

  • ←
  • →

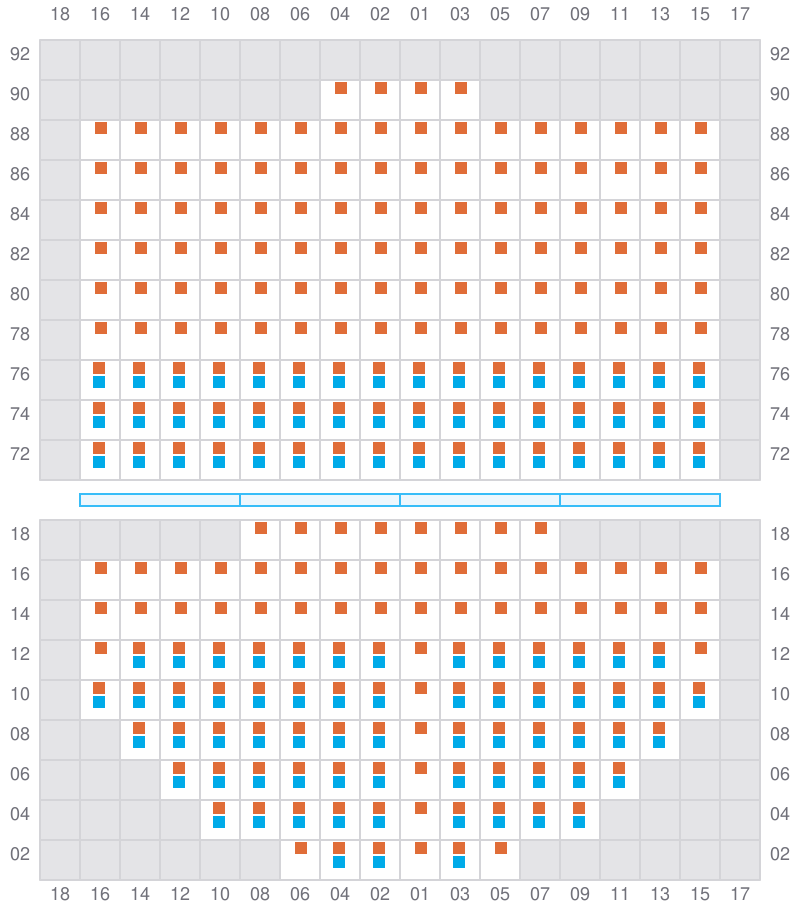

Bay 019 view and slots of MAERSK LIRQUEN

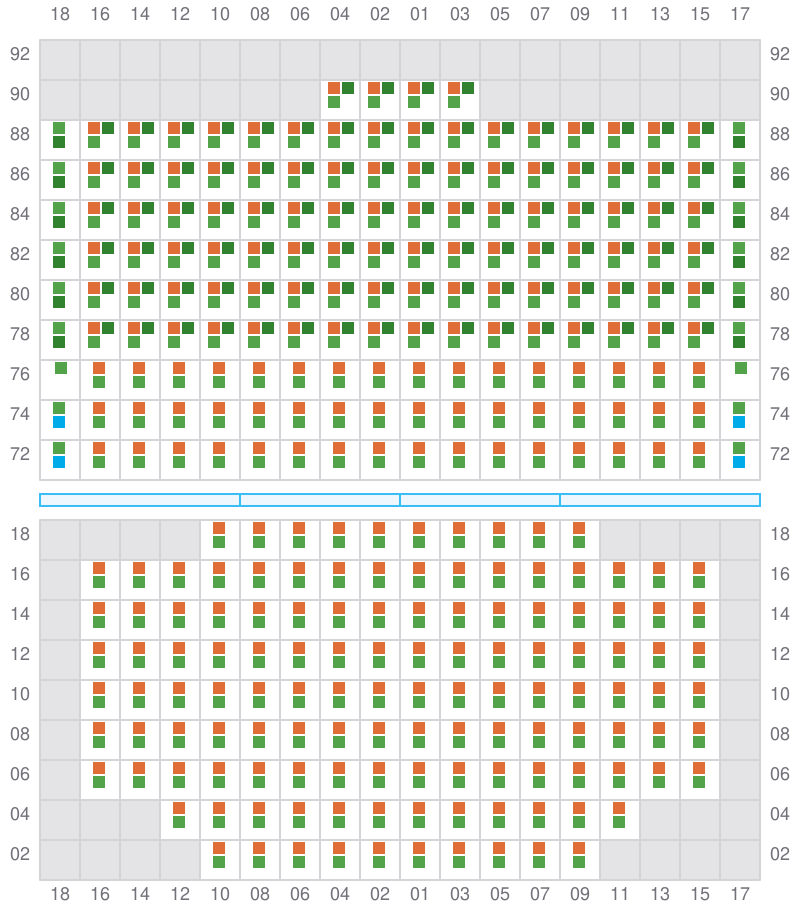

021 (022)

  • →
  • → / ?
Bay 021 view and slots of MAERSK LIRQUEN

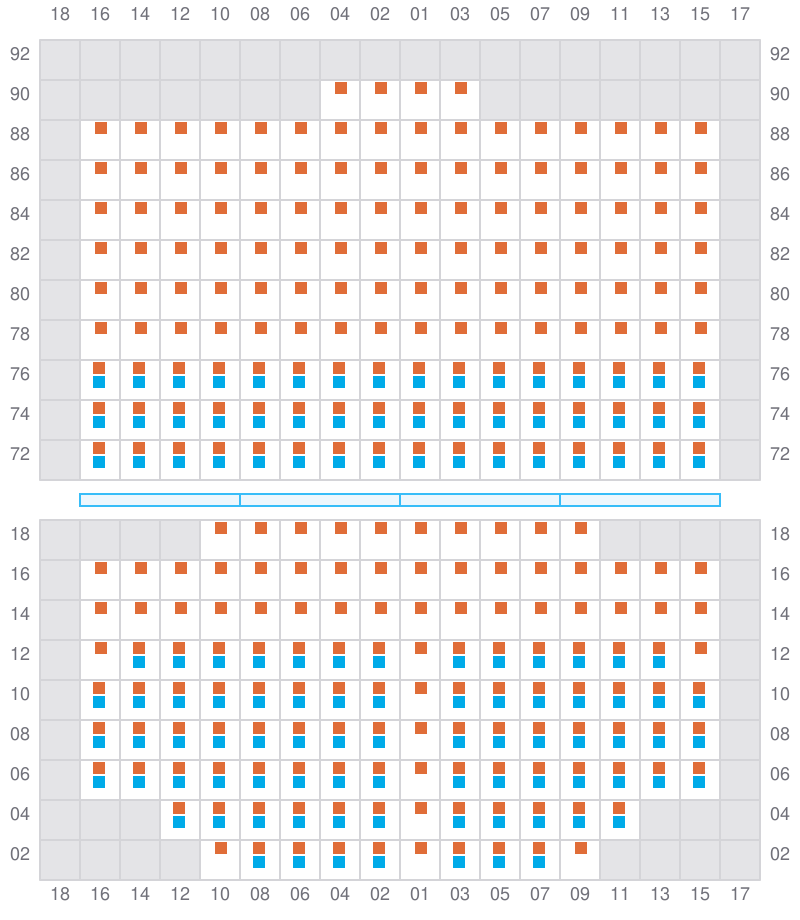

023

  • ←
  • →
Bay 023 view and slots of MAERSK LIRQUEN

025 (026)

  • →
  • → / ?
Bay 025 view and slots of MAERSK LIRQUEN

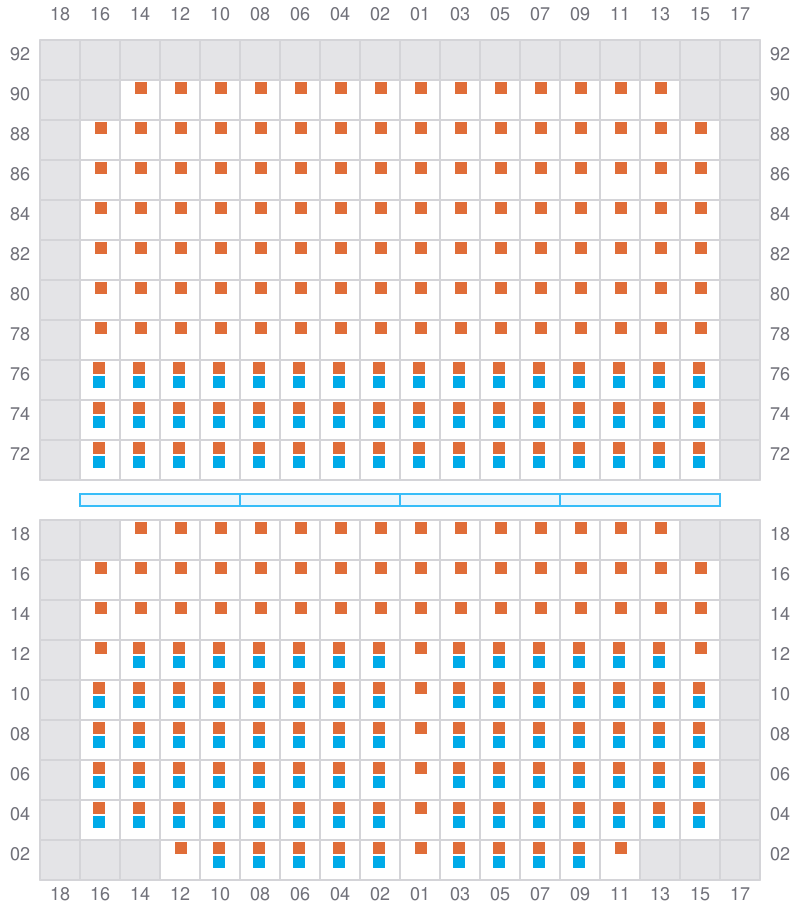

027

  • ←
  • →
Bay 027 view and slots of MAERSK LIRQUEN

029 (030)

  • →
  • → / ?
Bay 029 view and slots of MAERSK LIRQUEN

031

  • ←
  • →

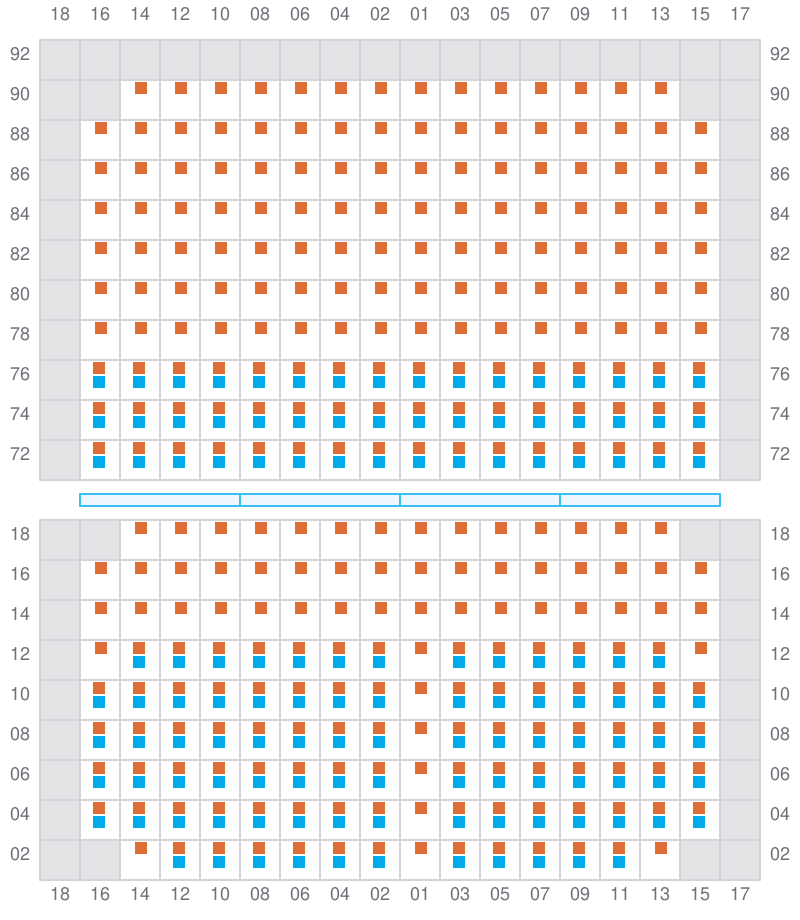

Bay 031 view and slots of MAERSK LIRQUEN

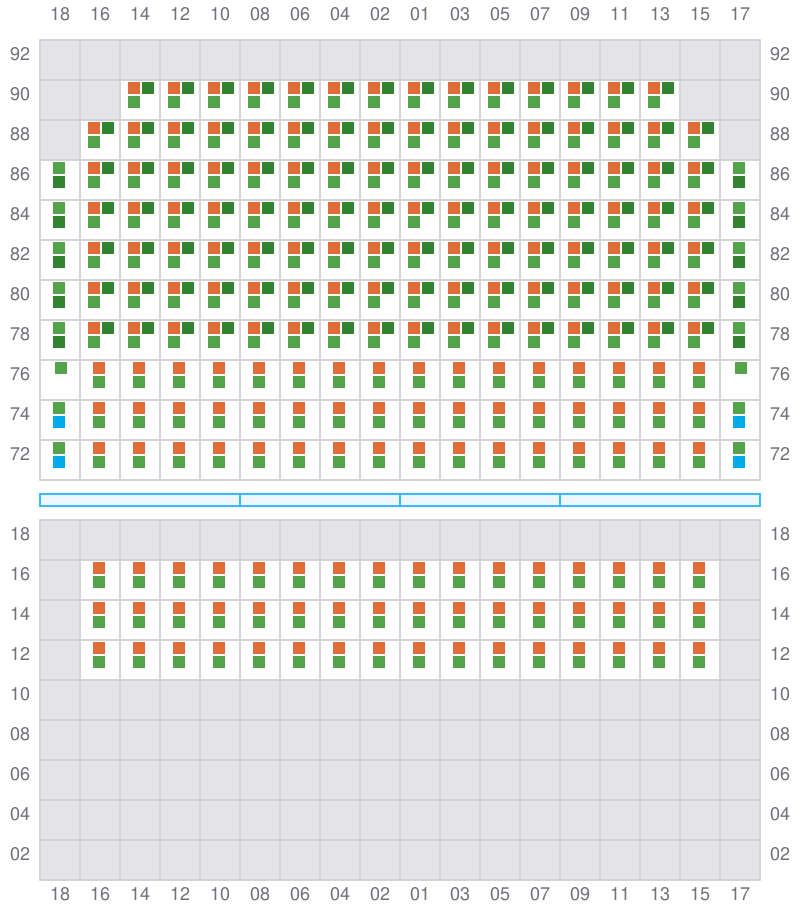

033 (034)

  • →
  • → / ?
Bay 033 view and slots of MAERSK LIRQUEN

035

  • ←
  • → / ?

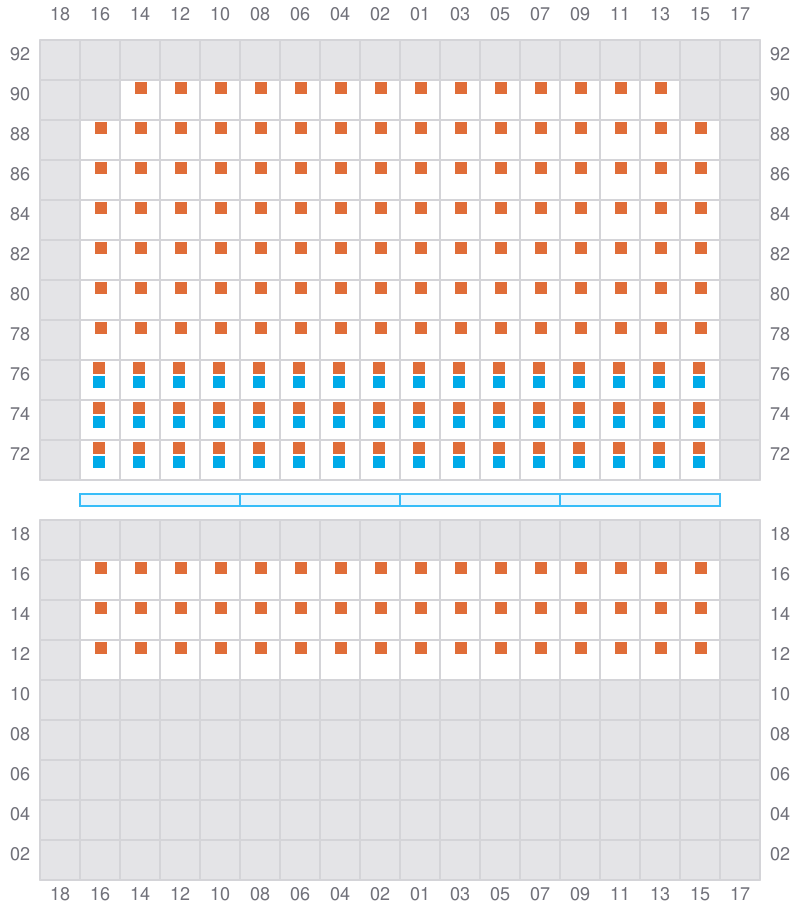

Bay 035 view and slots of MAERSK LIRQUEN

037 (038)

  • →
  • → / ?

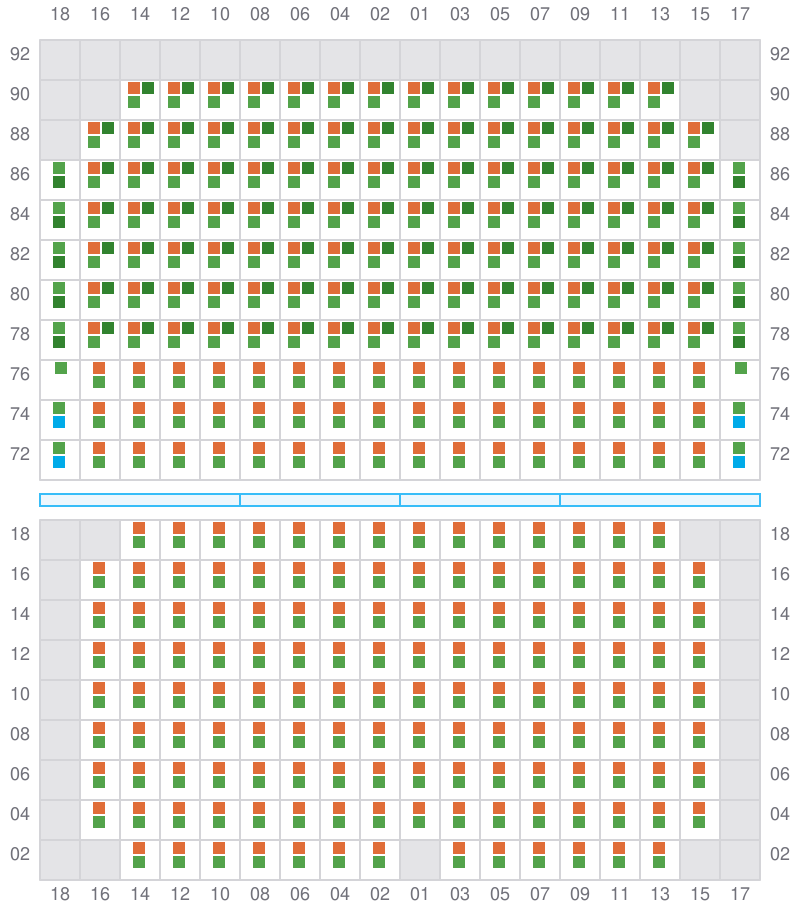

Bay 037 view and slots of MAERSK LIRQUEN

039

  • ←
  • →

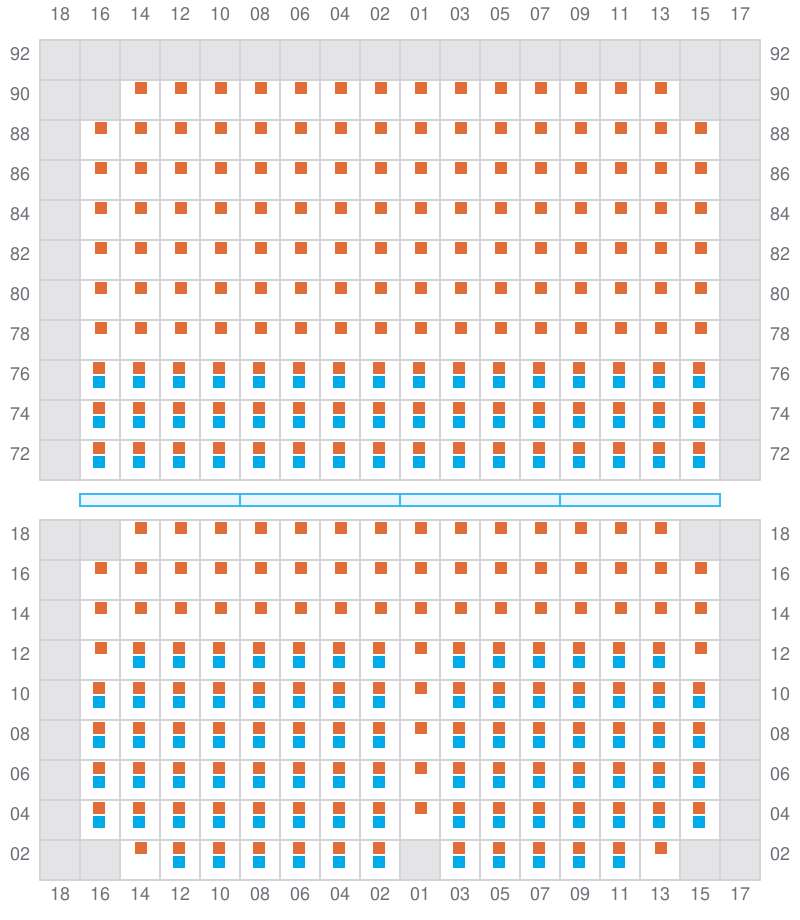

Bay 039 view and slots of MAERSK LIRQUEN

041 (042)

  • →
  • → / ?

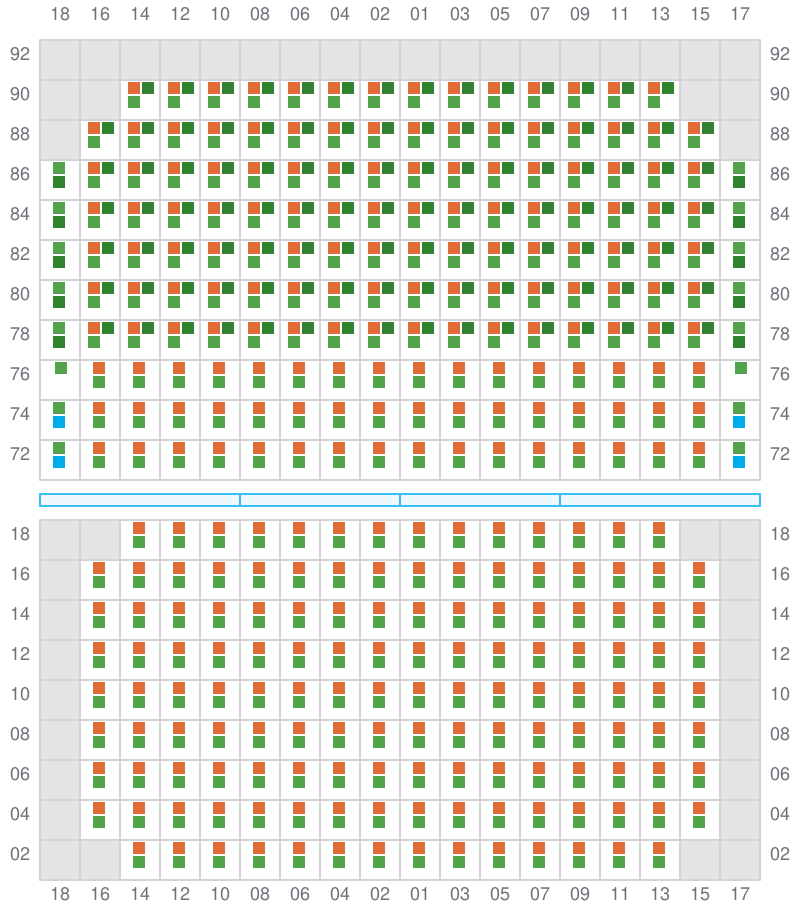

Bay 041 view and slots of MAERSK LIRQUEN

043

  • ←
  • →
Bay 043 view and slots of MAERSK LIRQUEN

045 (046)

  • →
  • → / ?
Bay 045 view and slots of MAERSK LIRQUEN

047

  • ←
  • →

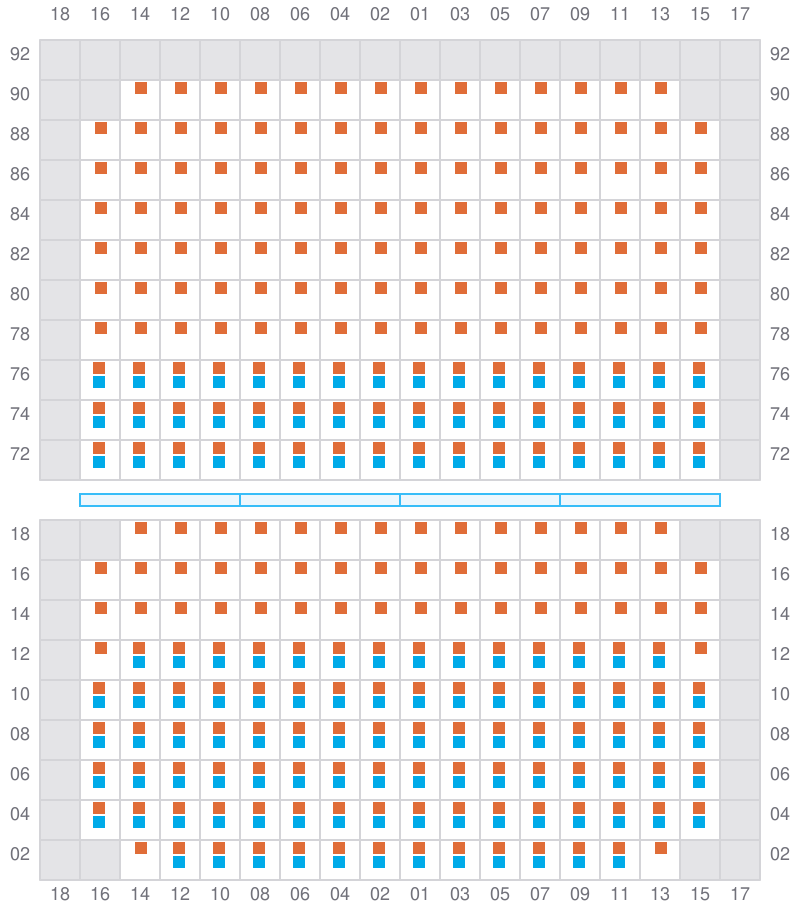

Bay 047 view and slots of MAERSK LIRQUEN

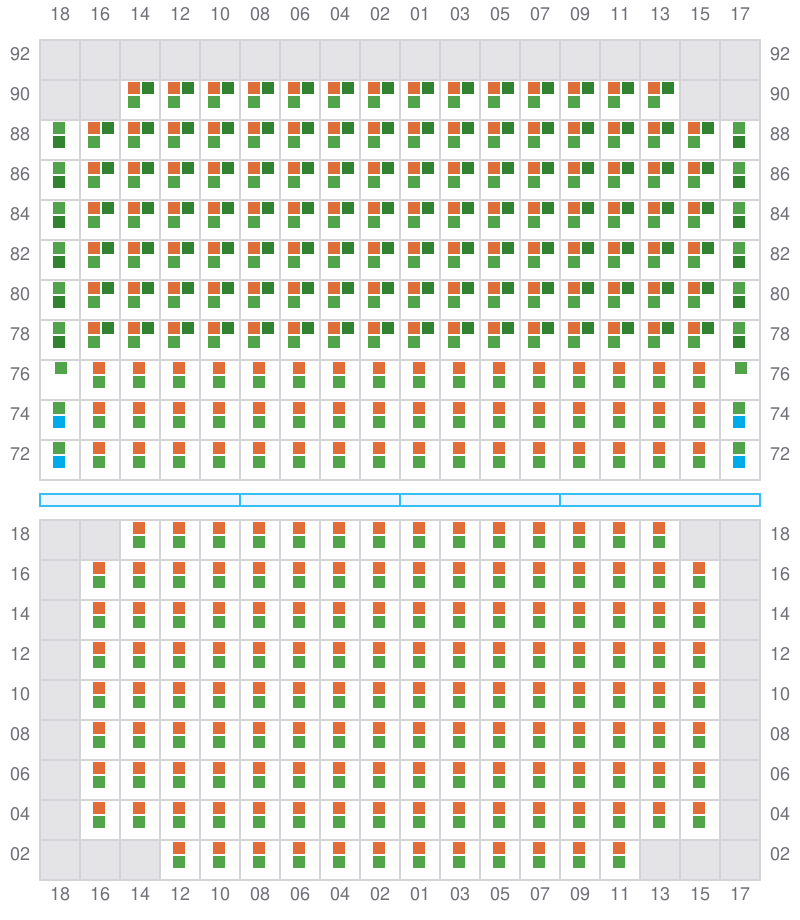

049 (050)

  • →
  • → / ?
Bay 049 view and slots of MAERSK LIRQUEN

051

  • ←
  • →

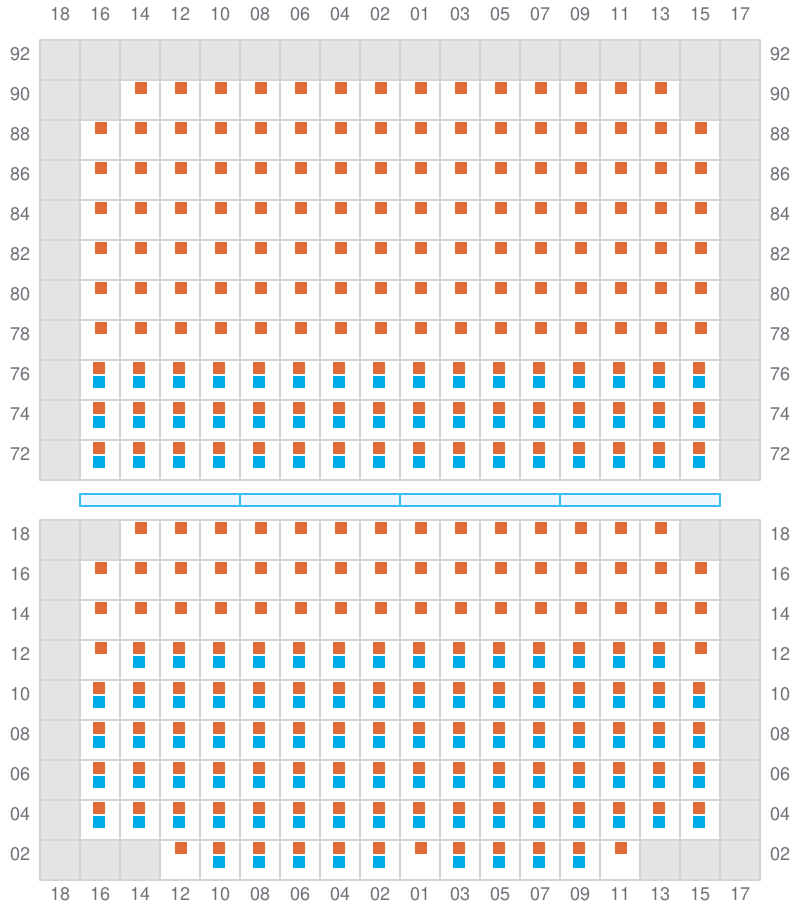

Bay 051 view and slots of MAERSK LIRQUEN

053 (054)

  • →
  • → / ?

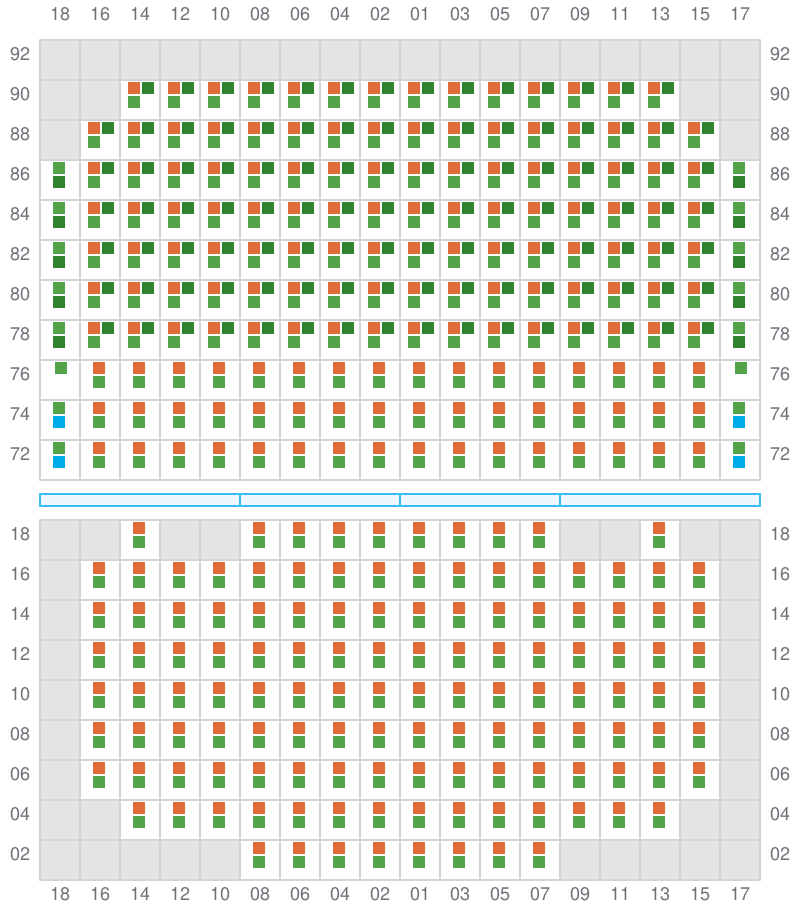

Bay 053 view and slots of MAERSK LIRQUEN

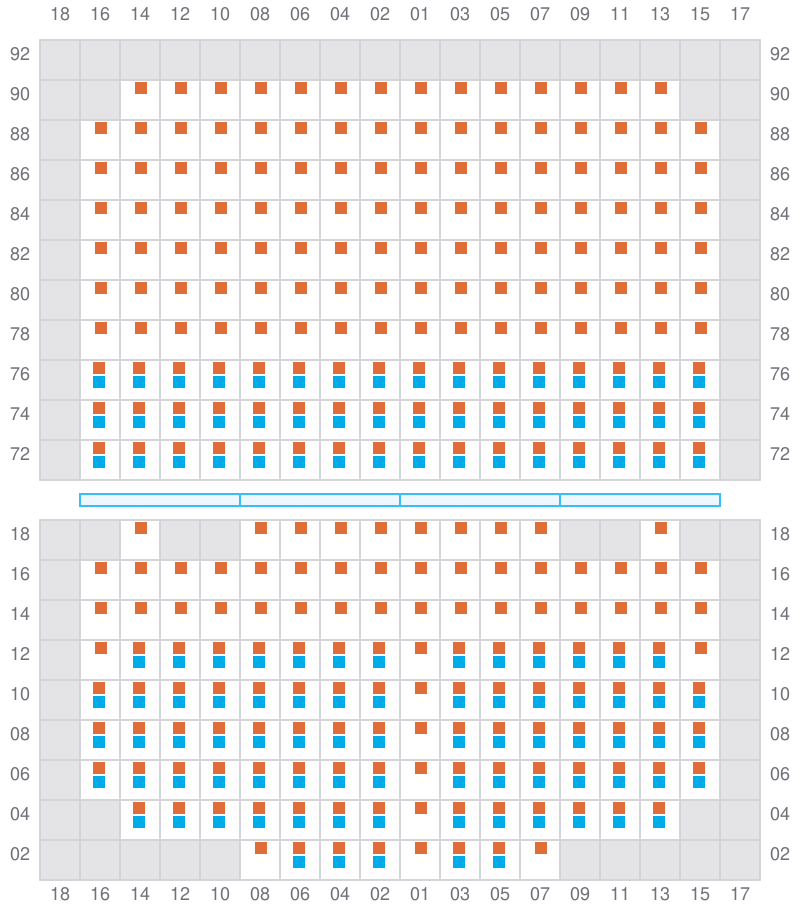

055

  • ←
  • →
Bay 055 view and slots of MAERSK LIRQUEN

057 (058)

  • → / ?
  • ← / ?
Bay 057 view and slots of MAERSK LIRQUEN

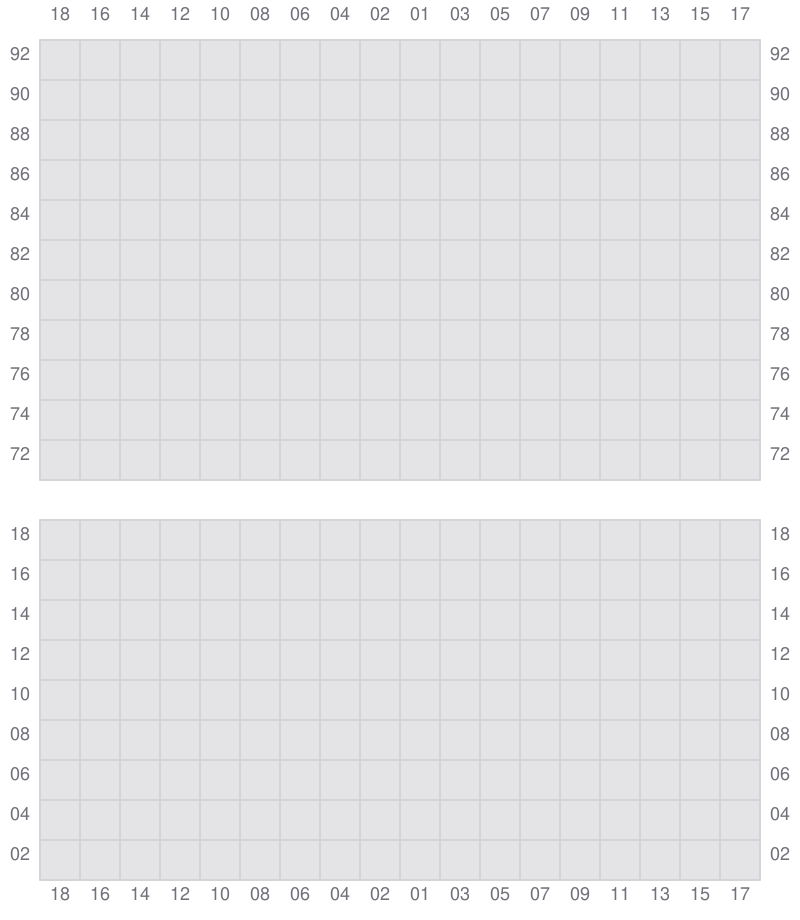

059

Bay 059 view and slots of MAERSK LIRQUEN

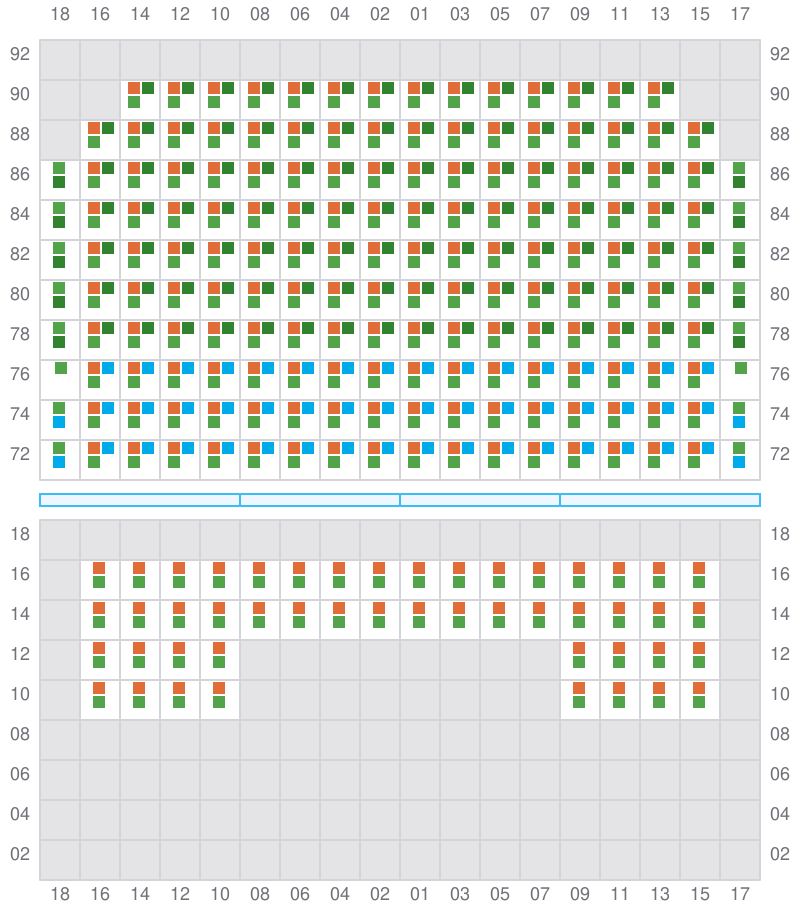

061 (062)

  • →
  • ← / ?
Bay 061 view and slots of MAERSK LIRQUEN

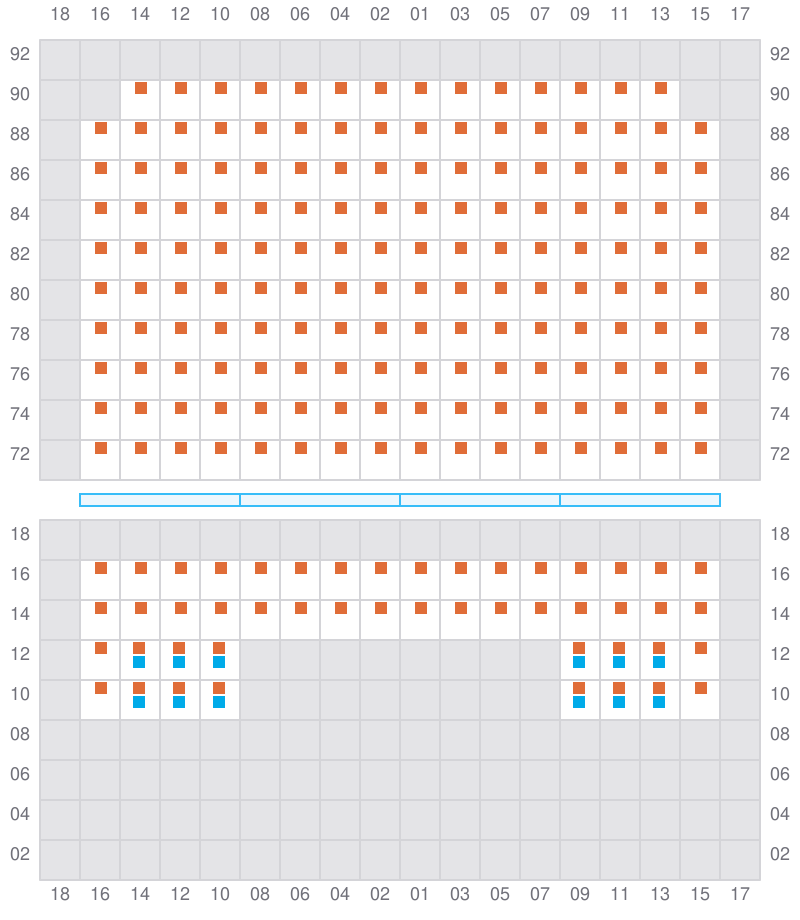

063

  • ←
  • ? / →
Bay 063 view and slots of MAERSK LIRQUEN

065 (066)

  • →
  • ←

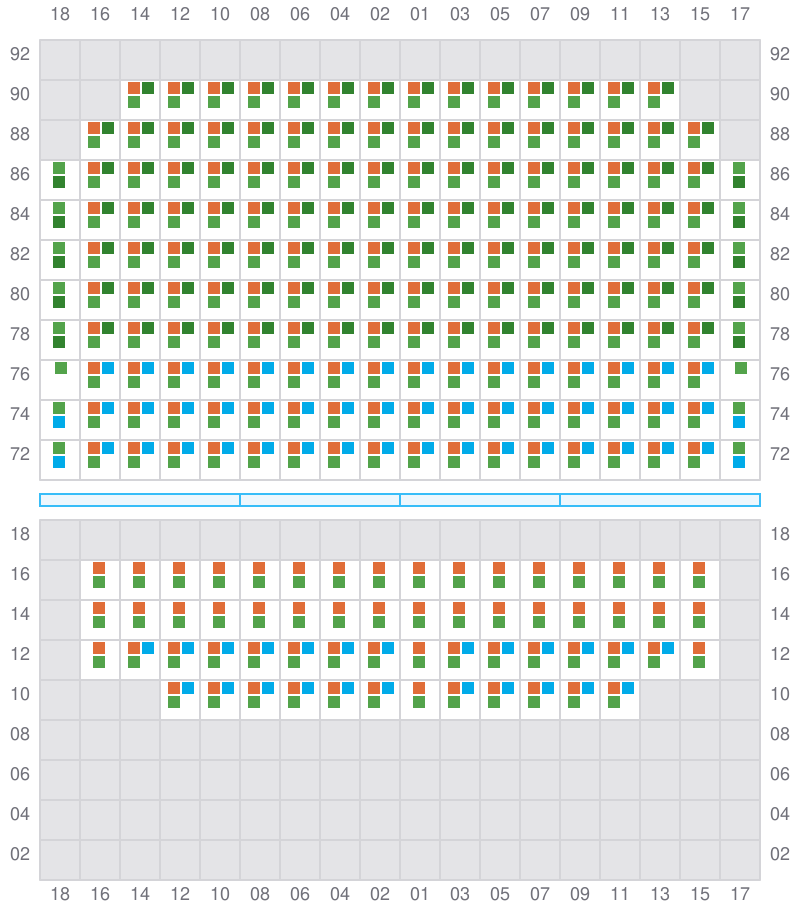

Bay 065 view and slots of MAERSK LIRQUEN

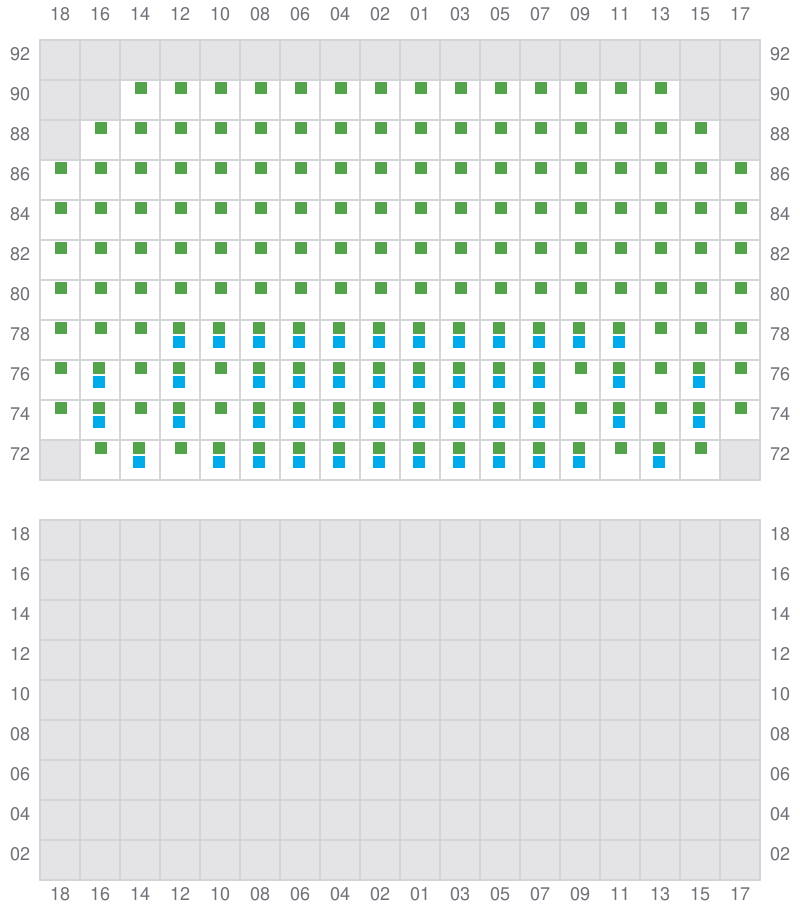

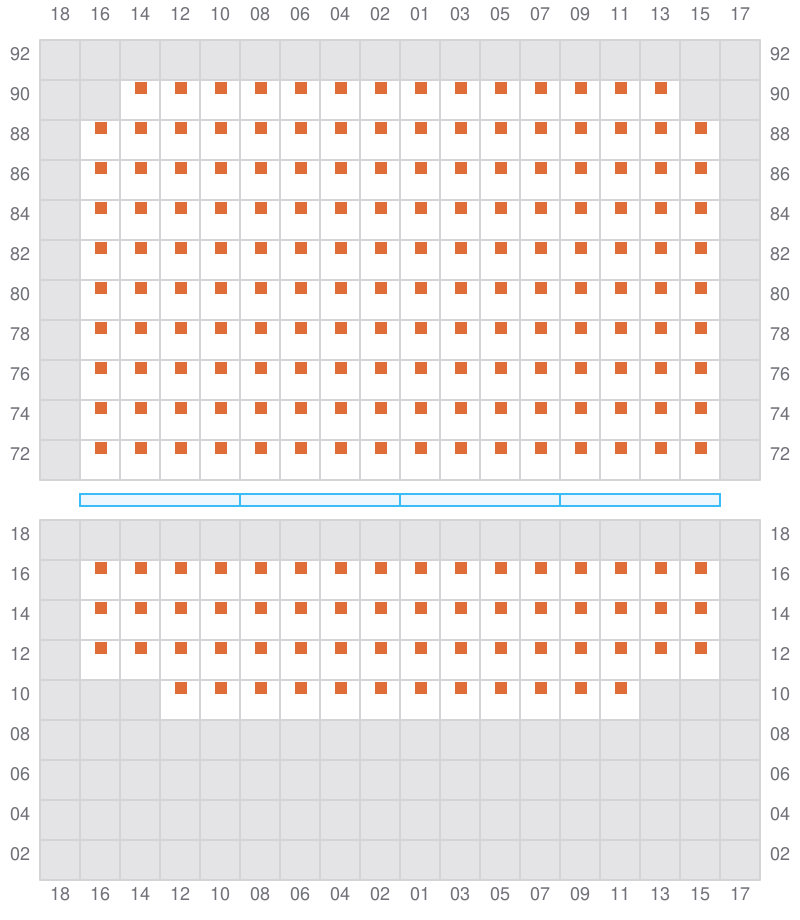

067

  • ←

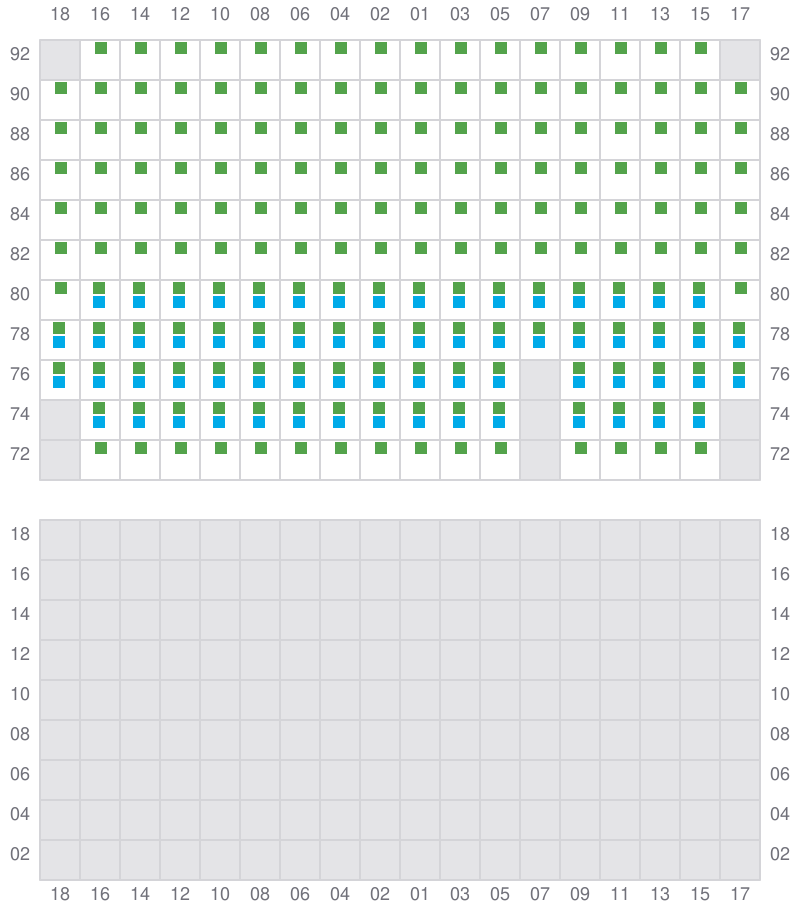

Bay 067 view and slots of MAERSK LIRQUEN

069 (070)

  • → / ?
  • ← / ?
Bay 069 view and slots of MAERSK LIRQUEN
