MAERSK LONDRINA
9527037 | OZIB2 | 9527037 by ************************** Last update: Mon Jul 22 2024

General Info

Ship Name:MAERSK LONDRINA
IMO Code:9527037
Call Sign:OZIB2
Line Operator:9527037
Class Name for Sister Ships:MAERSKLONDRINA
Year Built:2012
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-

Size Summary

ISO Bays:071
Max ISO Row:18
Center Line Row:No
Max Above ISO Tier:96
Min Above ISO Tier:78
Max Below ISO Tier:18
Min Below ISO Tier:02
Total TEU:9,164

Centers of Gravity

LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

Side View

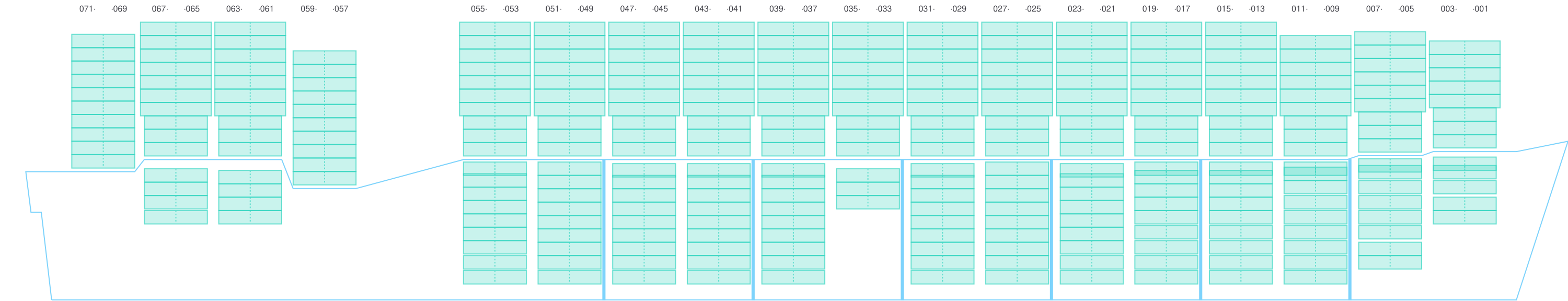

Side view of MAERSK LONDRINA

Hatch-Covers View

Deck view of MAERSK LONDRINA

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot

001 (002)

  • →

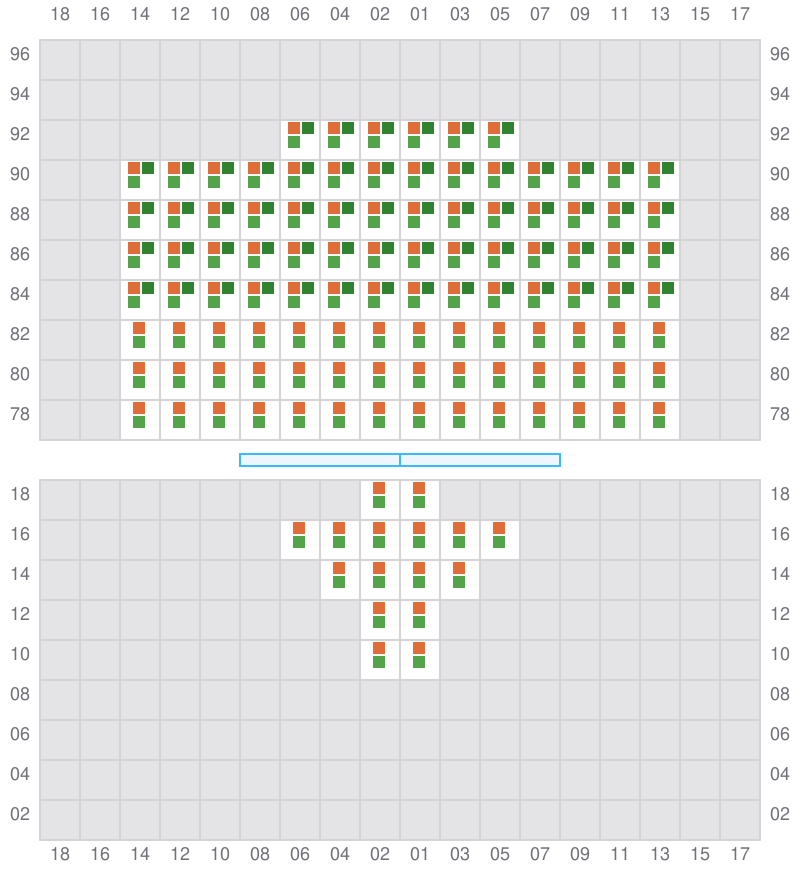

Bay 001 view and slots of MAERSK LONDRINA

003

  • ←
  • → / ?

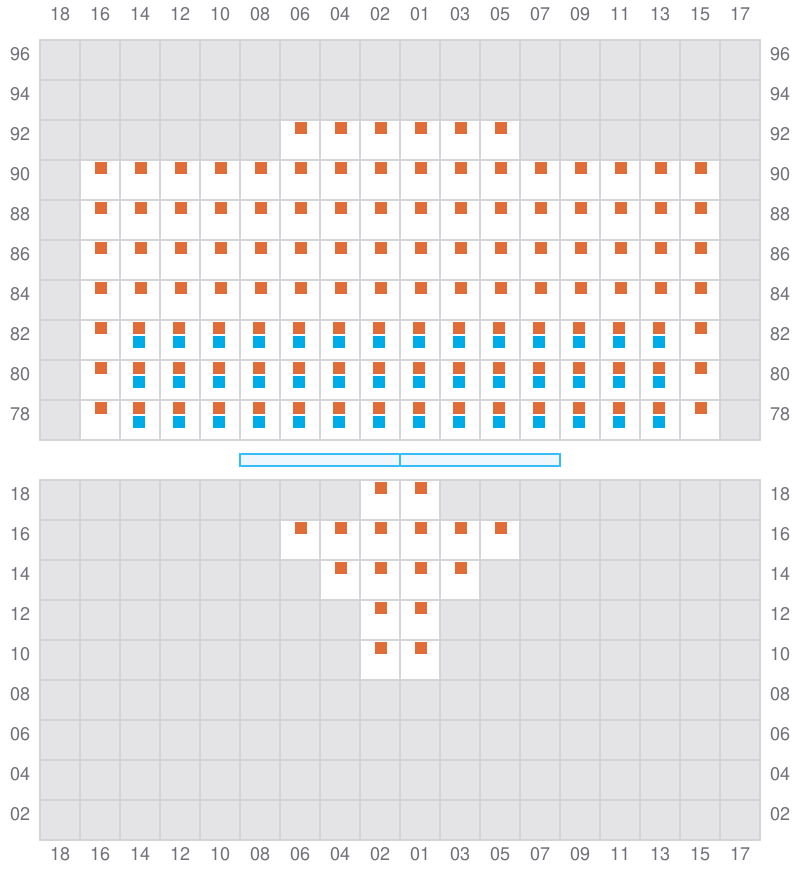

Bay 003 view and slots of MAERSK LONDRINA

005 (006)

  • →

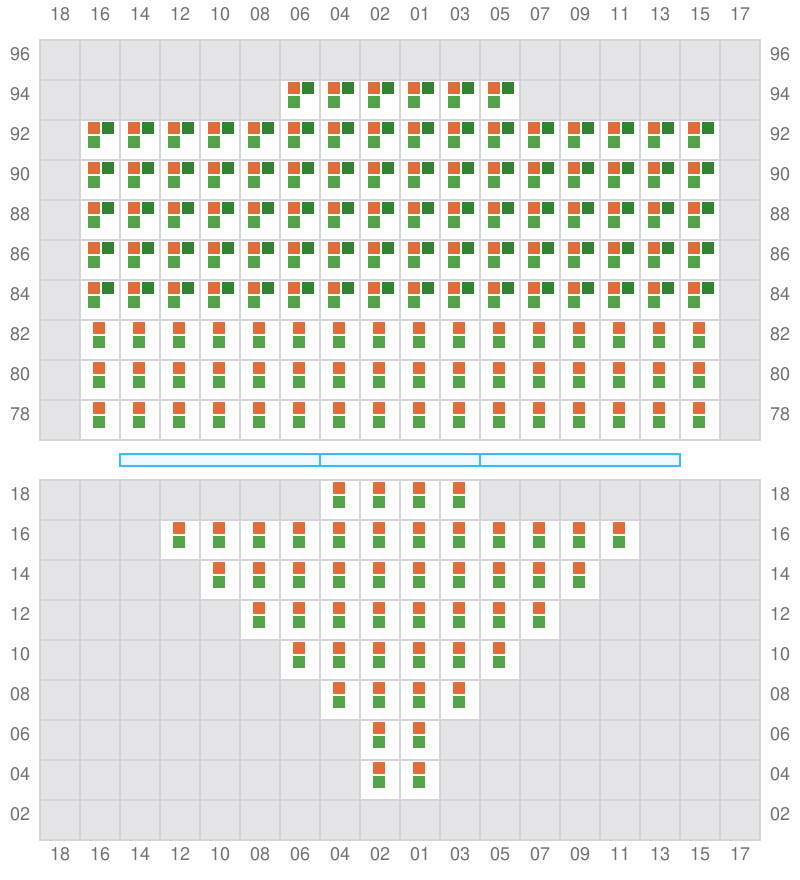

Bay 005 view and slots of MAERSK LONDRINA

007

  • ←
  • →
Bay 007 view and slots of MAERSK LONDRINA

009 (010)

  • →

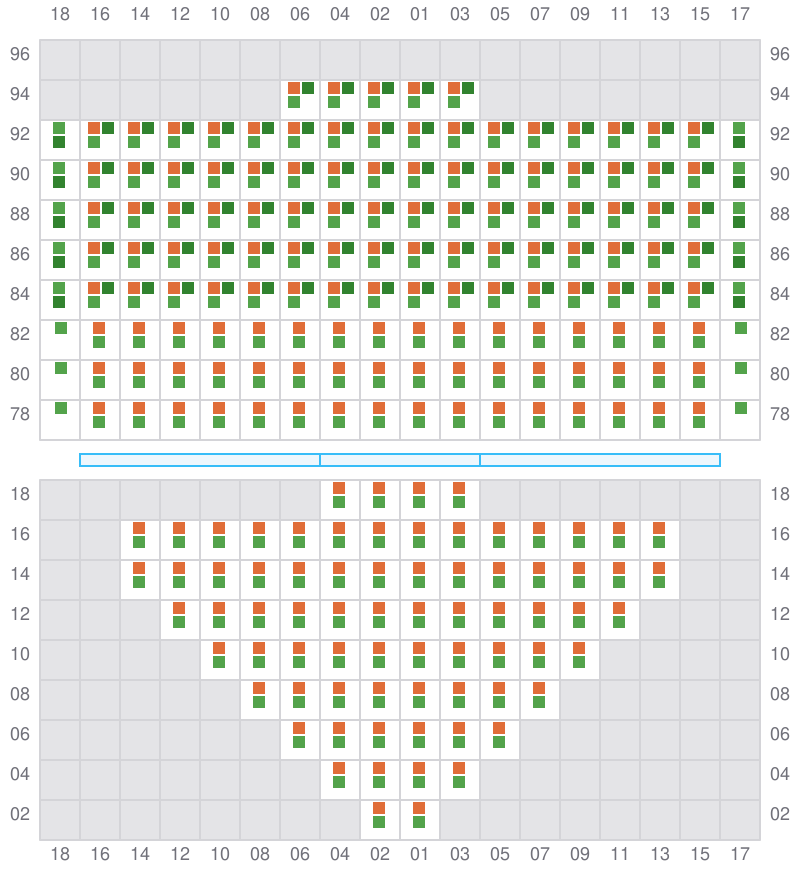

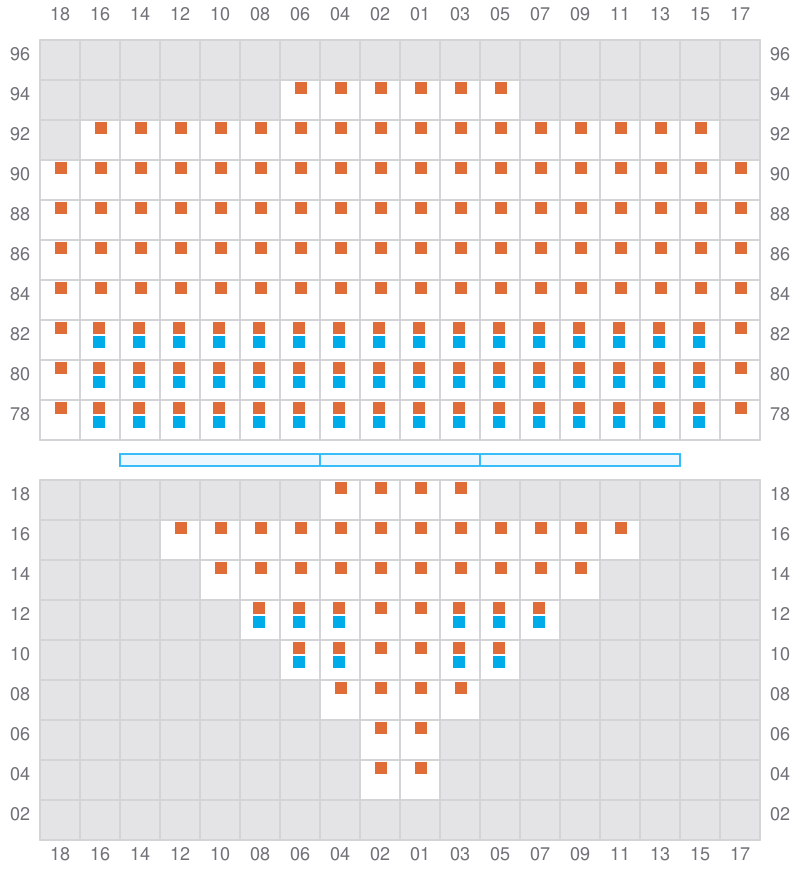

Bay 009 view and slots of MAERSK LONDRINA

011

  • ←
  • →

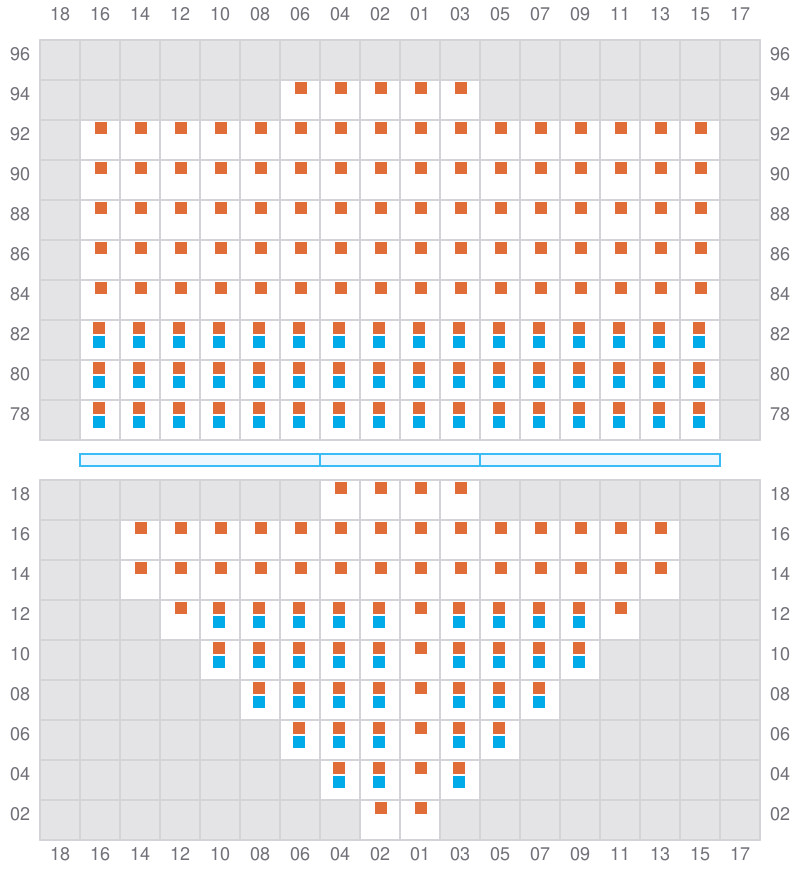

Bay 011 view and slots of MAERSK LONDRINA

013 (014)

  • →

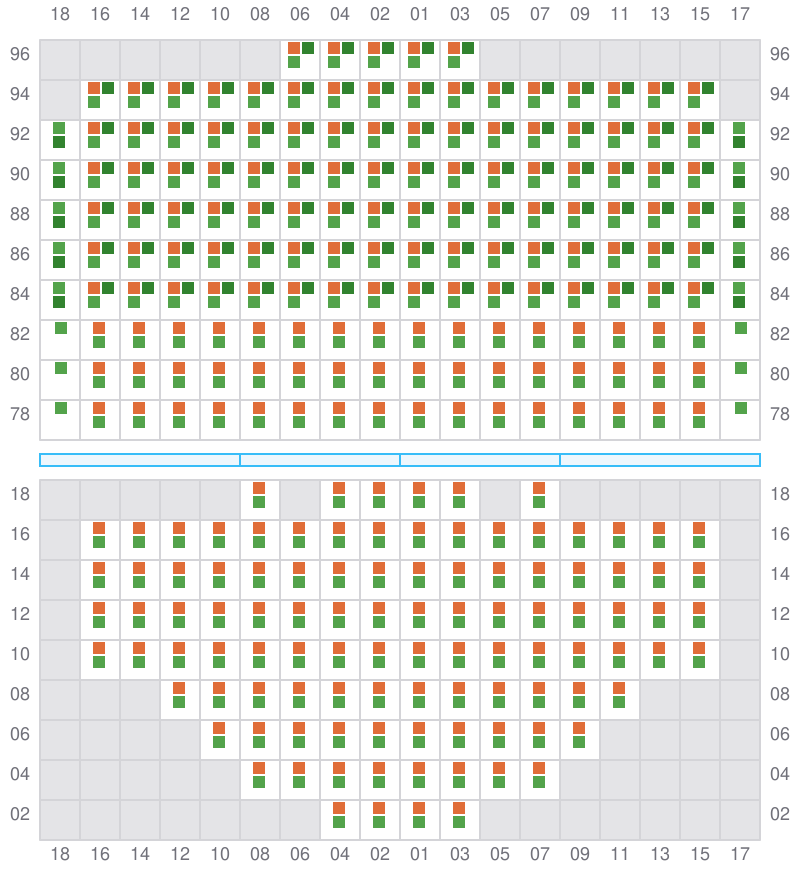

Bay 013 view and slots of MAERSK LONDRINA

015

  • ←
  • →

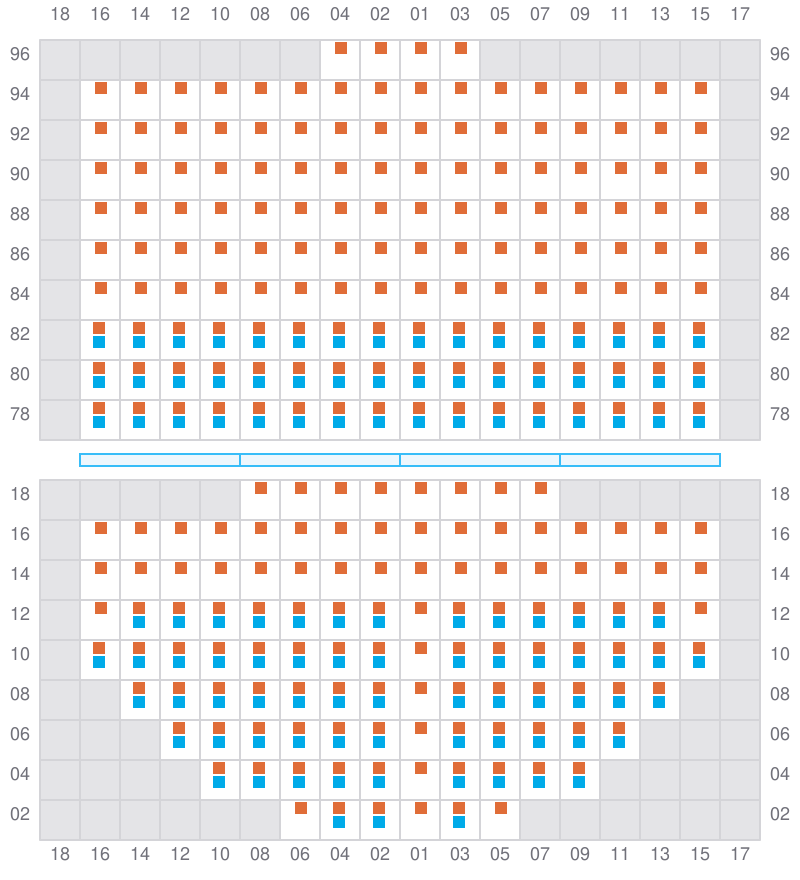

Bay 015 view and slots of MAERSK LONDRINA

017 (018)

  • →

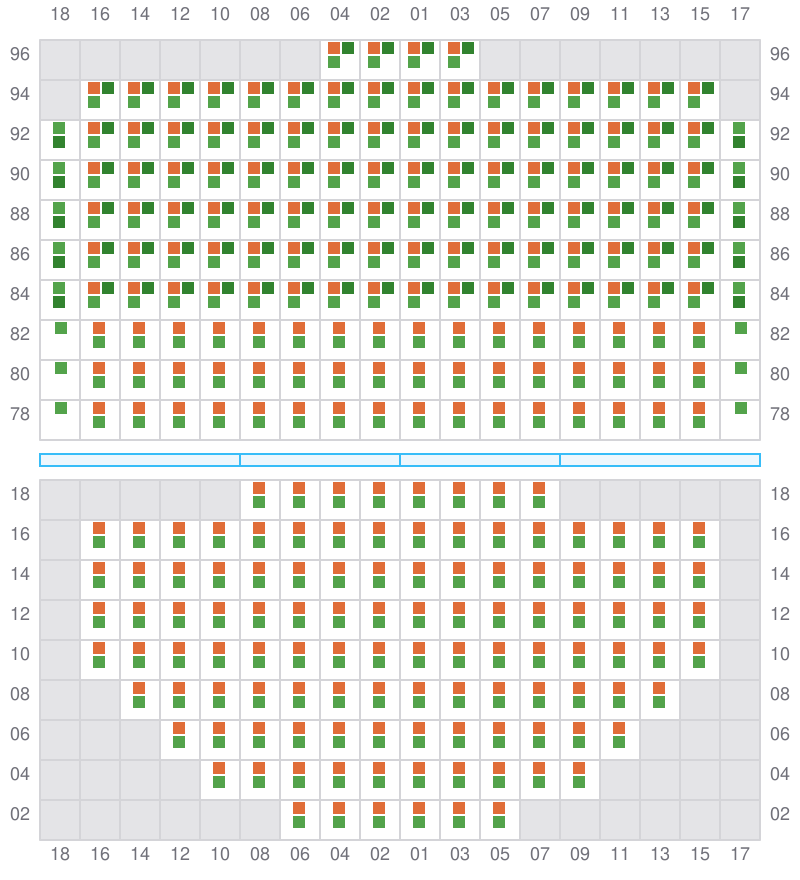

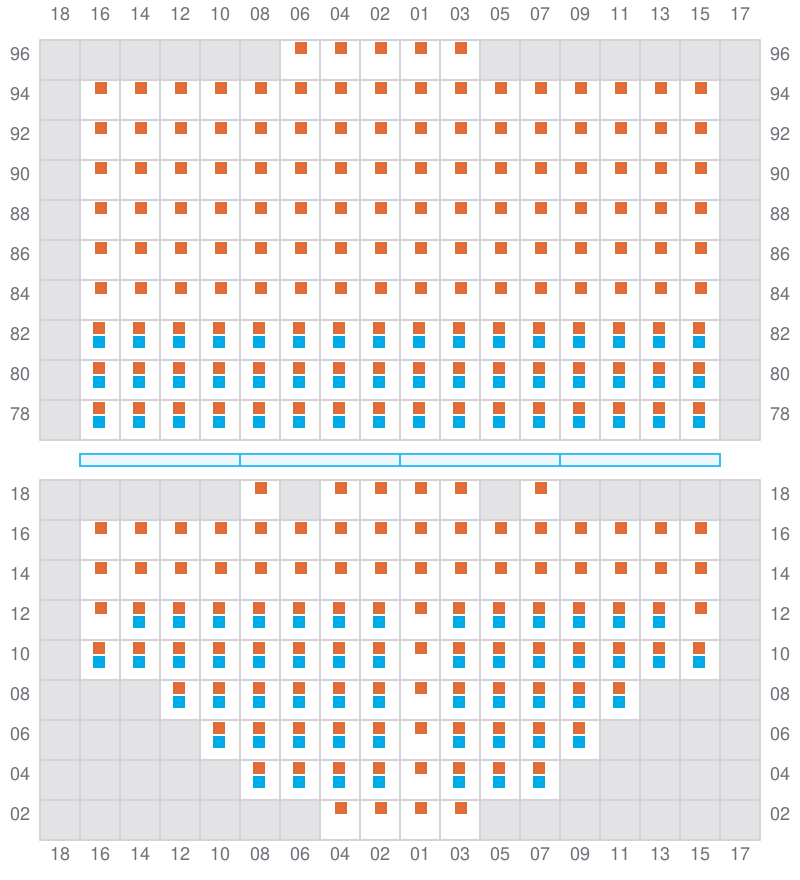

Bay 017 view and slots of MAERSK LONDRINA

019

  • ←
  • →
Bay 019 view and slots of MAERSK LONDRINA

021 (022)

  • →

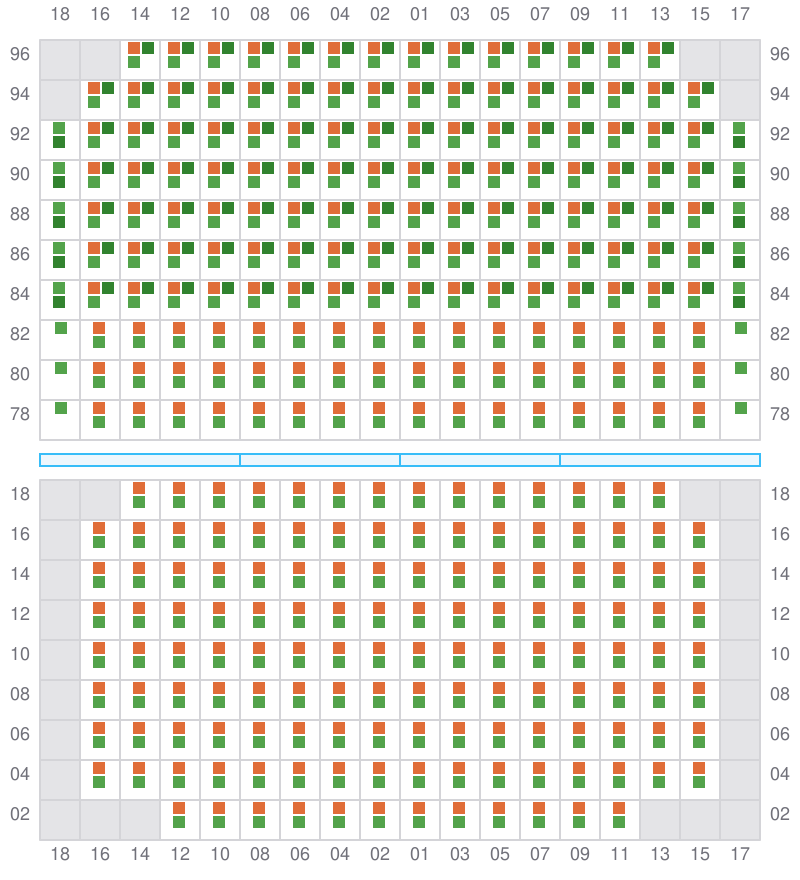

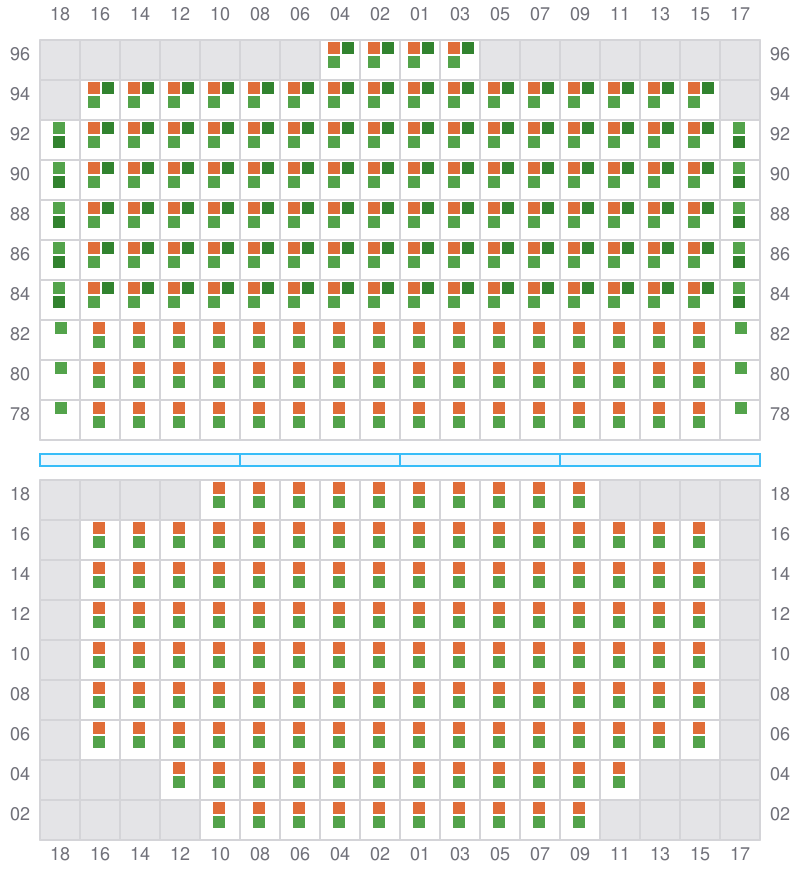

Bay 021 view and slots of MAERSK LONDRINA

023

  • ←
  • →

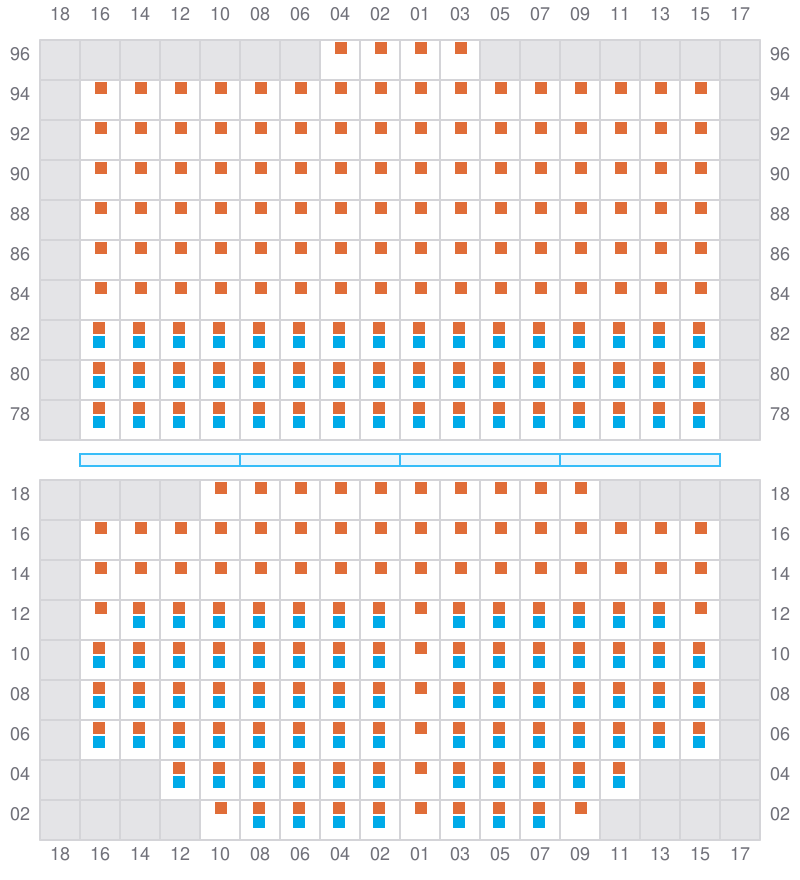

Bay 023 view and slots of MAERSK LONDRINA

025 (026)

  • →
Bay 025 view and slots of MAERSK LONDRINA

027

  • ←
  • →
Bay 027 view and slots of MAERSK LONDRINA

029 (030)

  • →
Bay 029 view and slots of MAERSK LONDRINA

031

  • ←
  • →

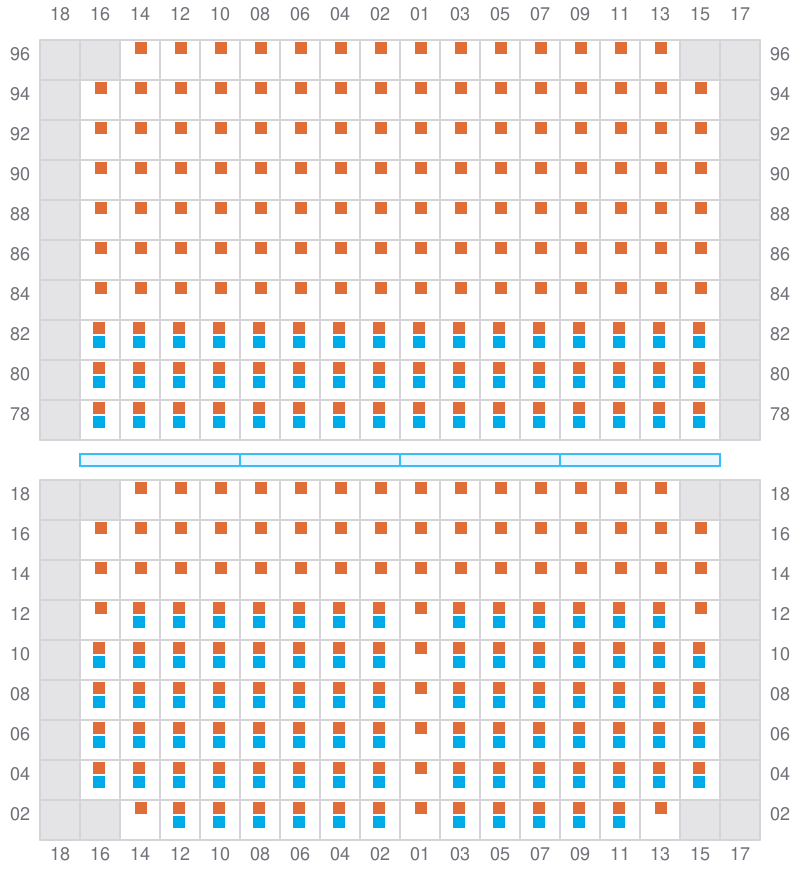

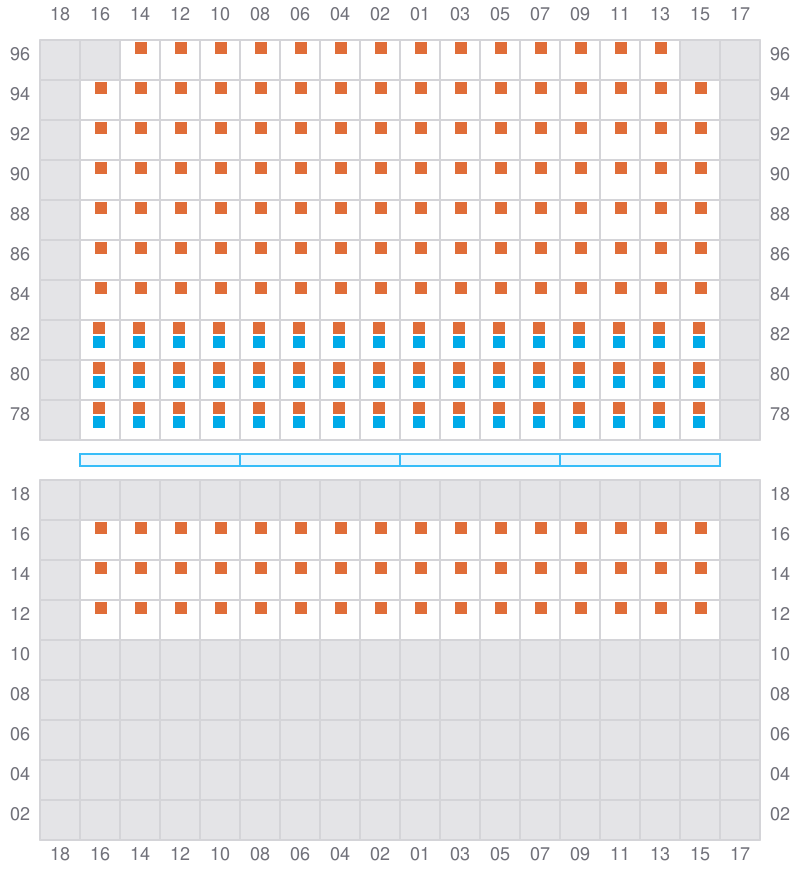

Bay 031 view and slots of MAERSK LONDRINA

033 (034)

  • →

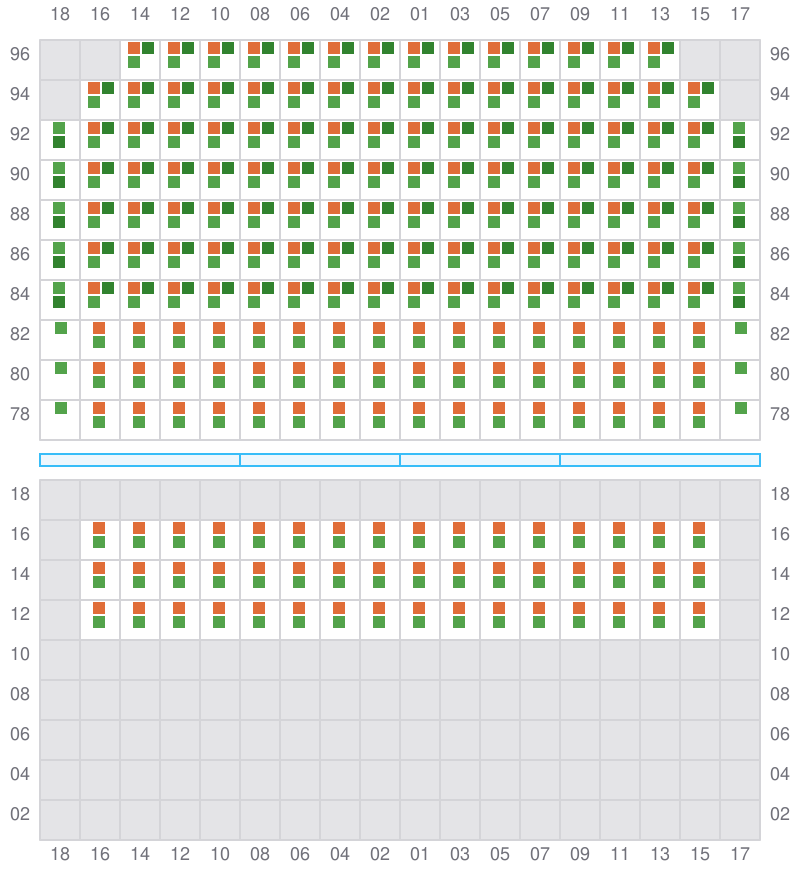

Bay 033 view and slots of MAERSK LONDRINA

035

  • ←
  • → / ?
Bay 035 view and slots of MAERSK LONDRINA

037 (038)

  • →

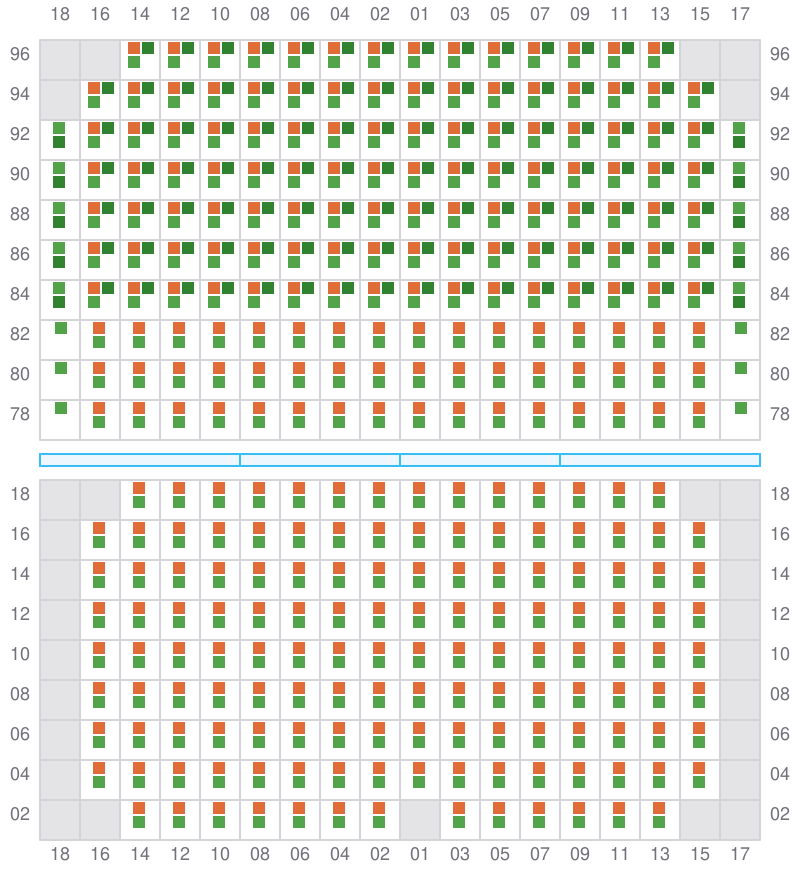

Bay 037 view and slots of MAERSK LONDRINA

039

  • ←
  • →

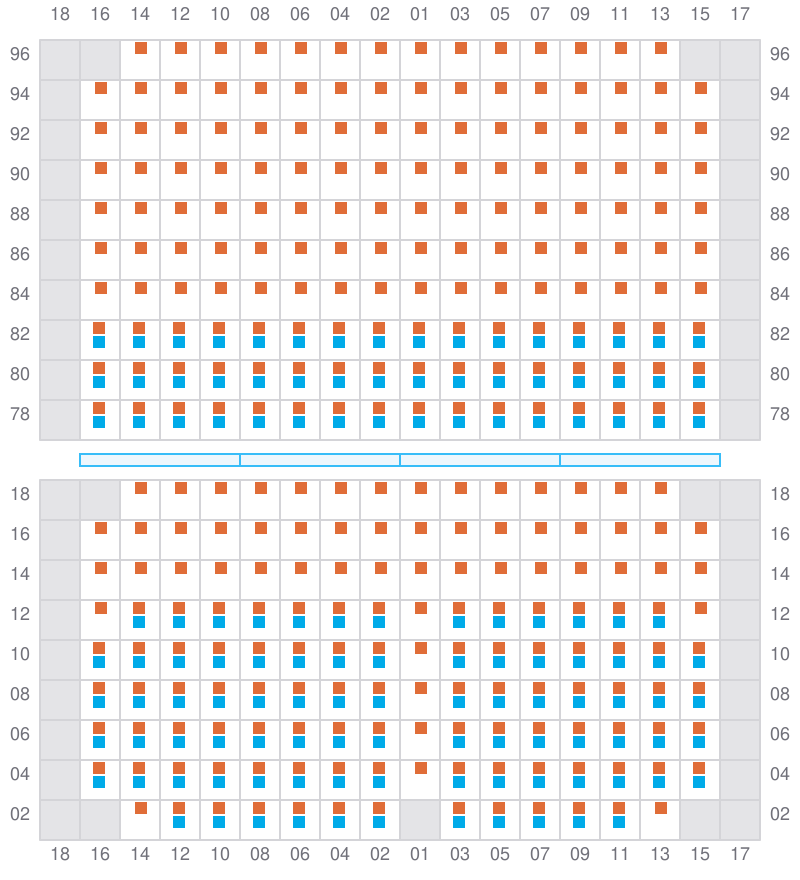

Bay 039 view and slots of MAERSK LONDRINA

041 (042)

  • →
Bay 041 view and slots of MAERSK LONDRINA

043

  • ←
  • →
Bay 043 view and slots of MAERSK LONDRINA

045 (046)

  • →
Bay 045 view and slots of MAERSK LONDRINA

047

  • ←
  • →
Bay 047 view and slots of MAERSK LONDRINA

049 (050)

  • →
Bay 049 view and slots of MAERSK LONDRINA

051

  • ←
  • →

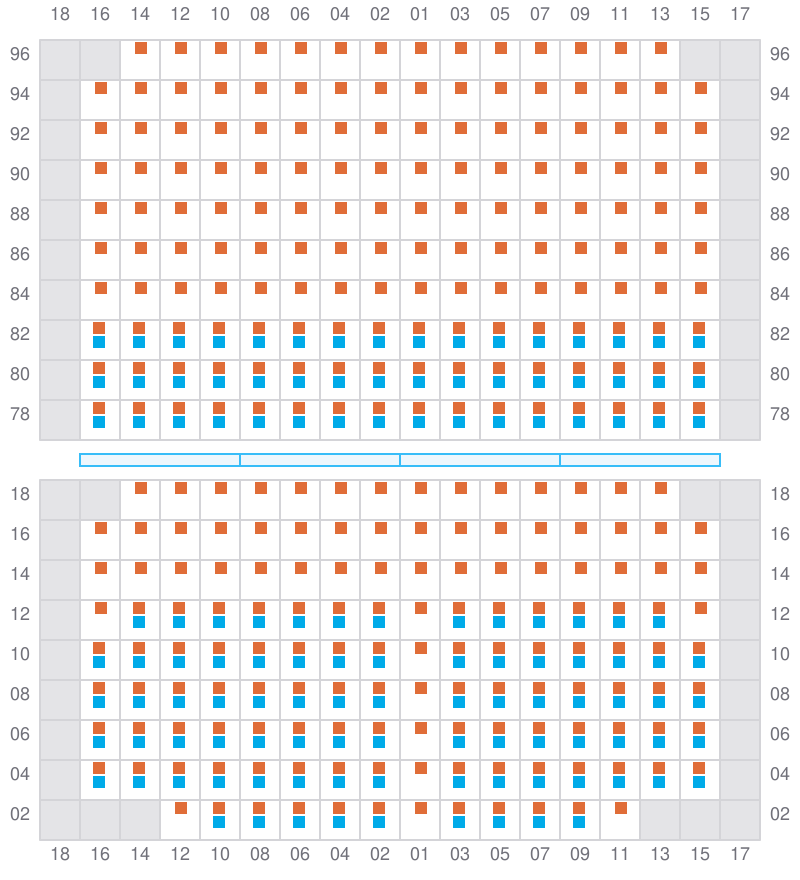

Bay 051 view and slots of MAERSK LONDRINA

053 (054)

  • →

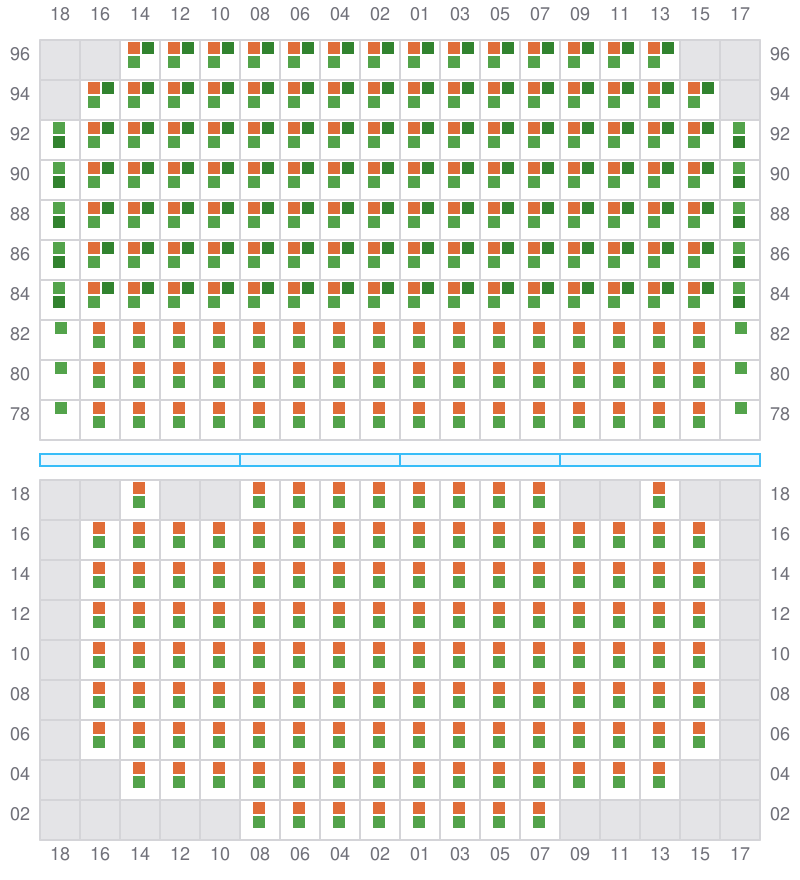

Bay 053 view and slots of MAERSK LONDRINA

055

  • ←
  • →

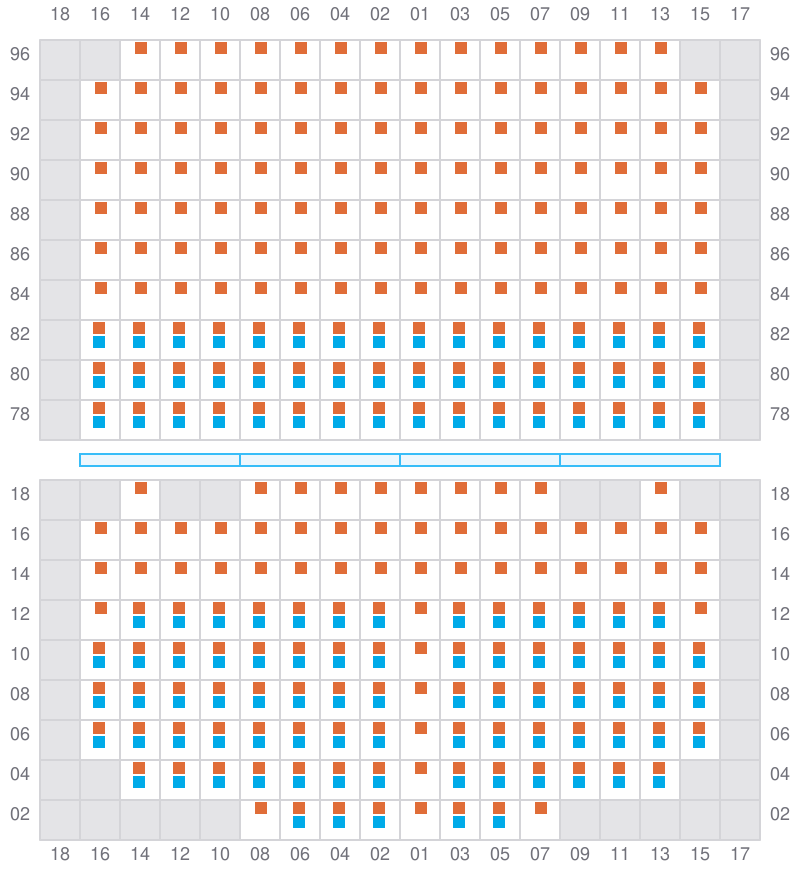

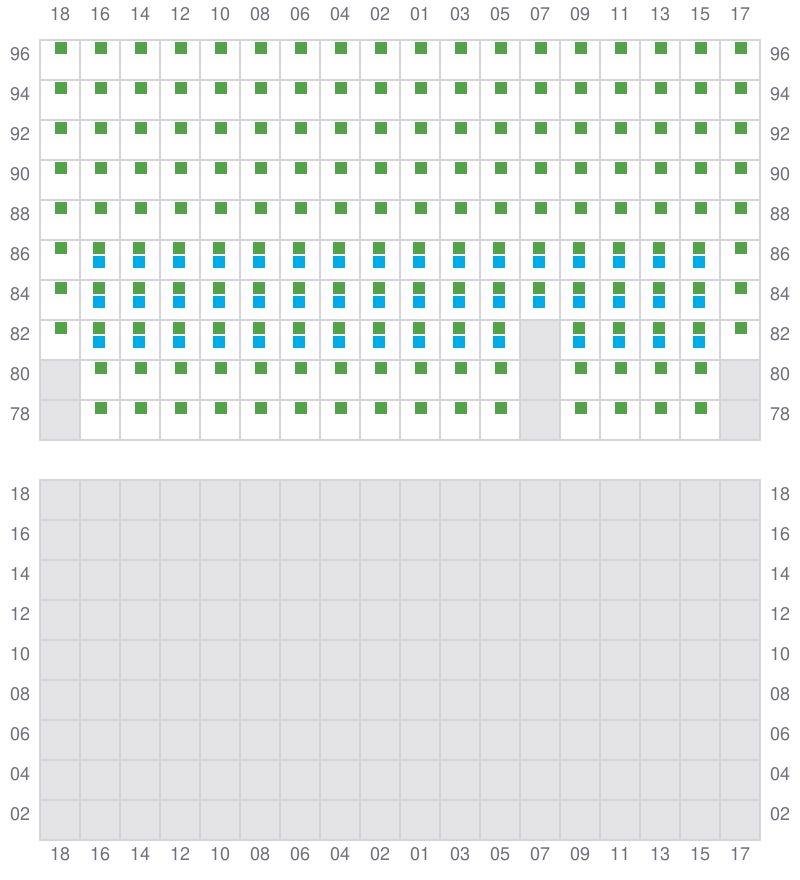

Bay 055 view and slots of MAERSK LONDRINA

057 (058)

  • → / ?
  • ← / ?
Bay 057 view and slots of MAERSK LONDRINA

059

  • ← / ?

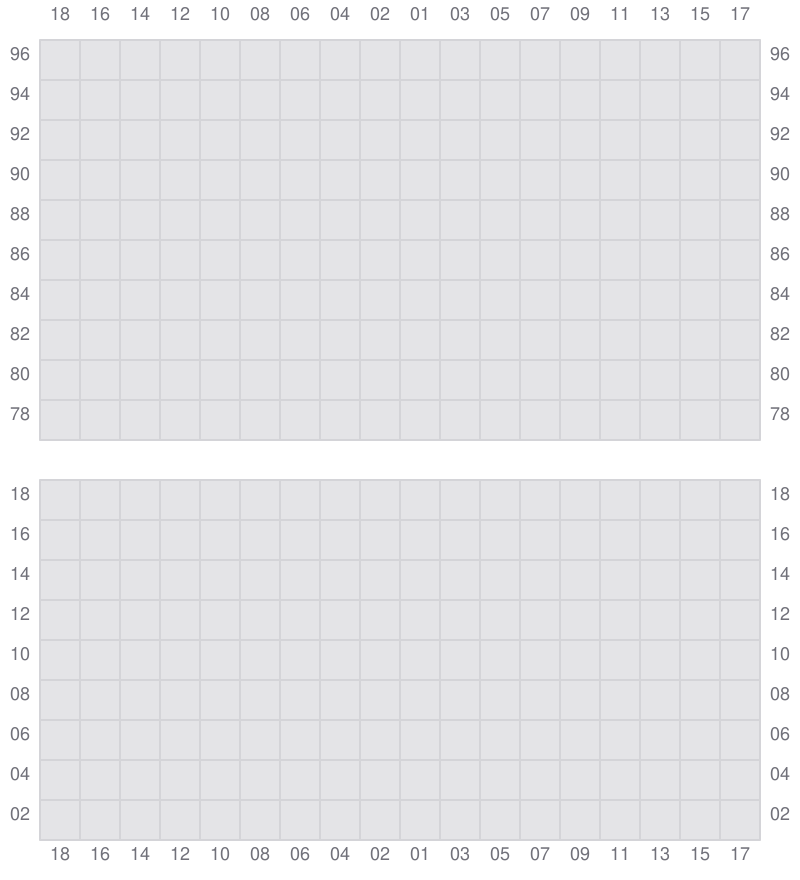

Bay 059 view and slots of MAERSK LONDRINA

061 (062)

  • →
  • ← / ?

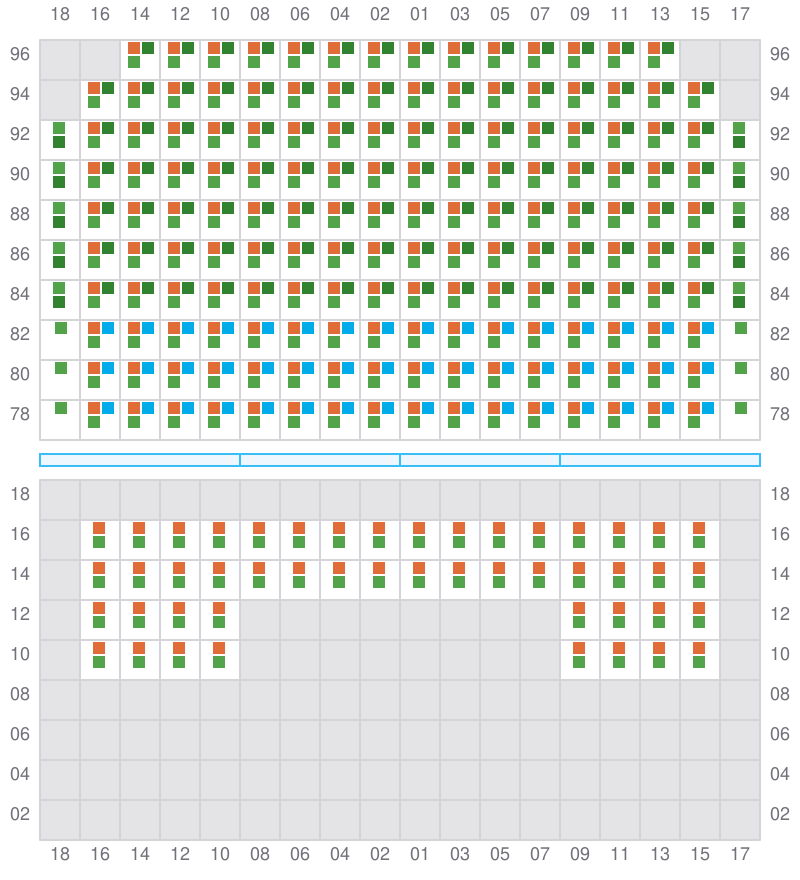

Bay 061 view and slots of MAERSK LONDRINA

063

  • ←
  • ? / →

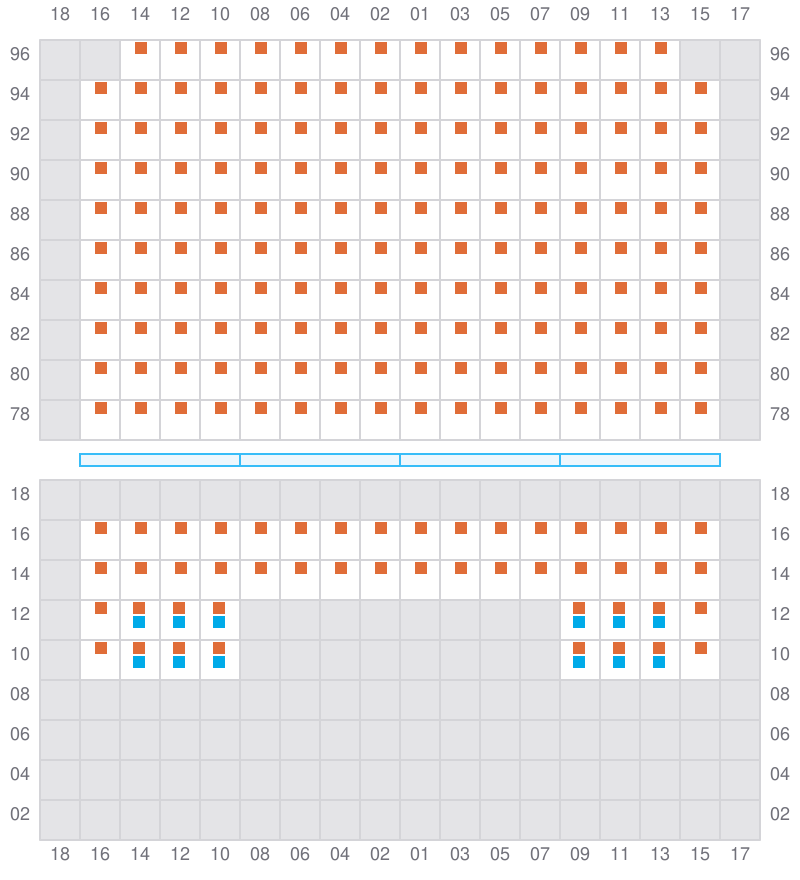

Bay 063 view and slots of MAERSK LONDRINA

065 (066)

  • →
  • ←

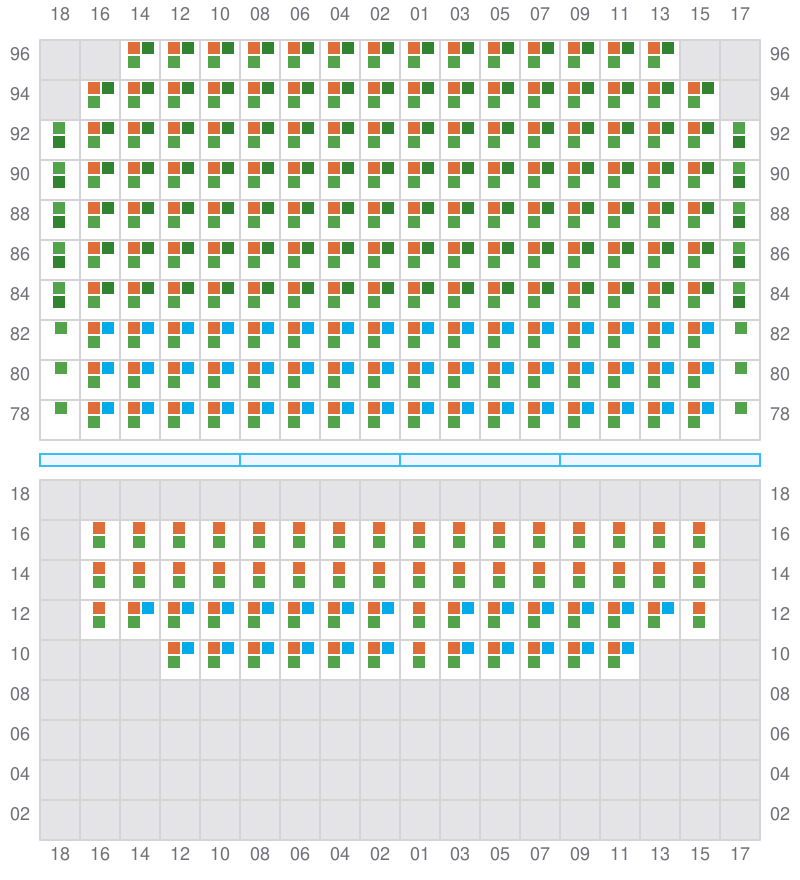

Bay 065 view and slots of MAERSK LONDRINA

067

  • ←

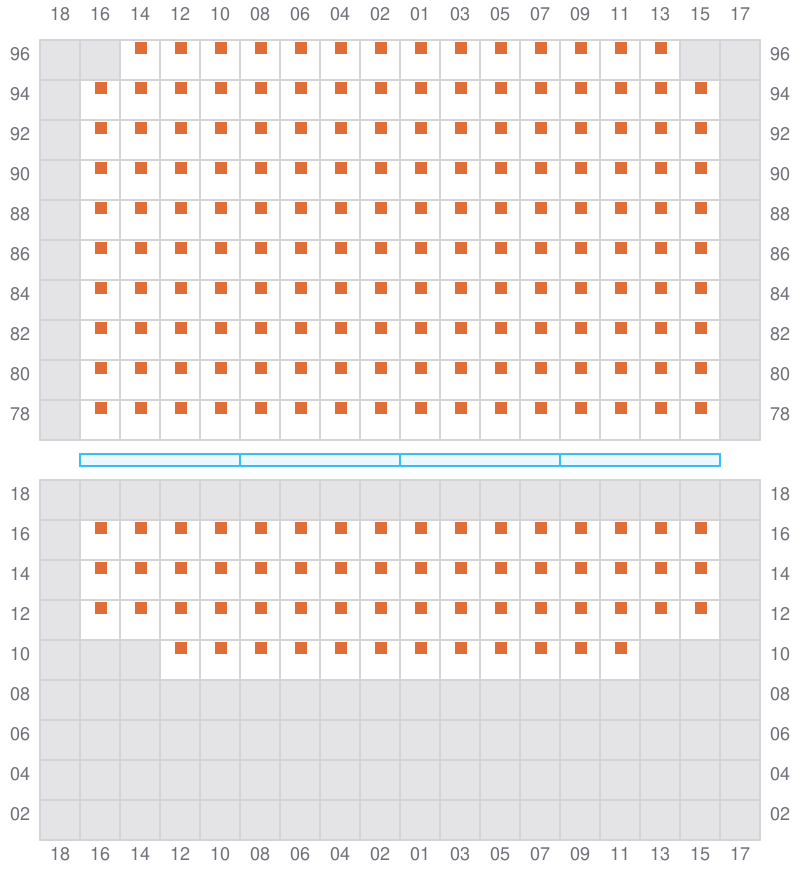

Bay 067 view and slots of MAERSK LONDRINA

069 (070)

  • → / ?
  • ← / ?

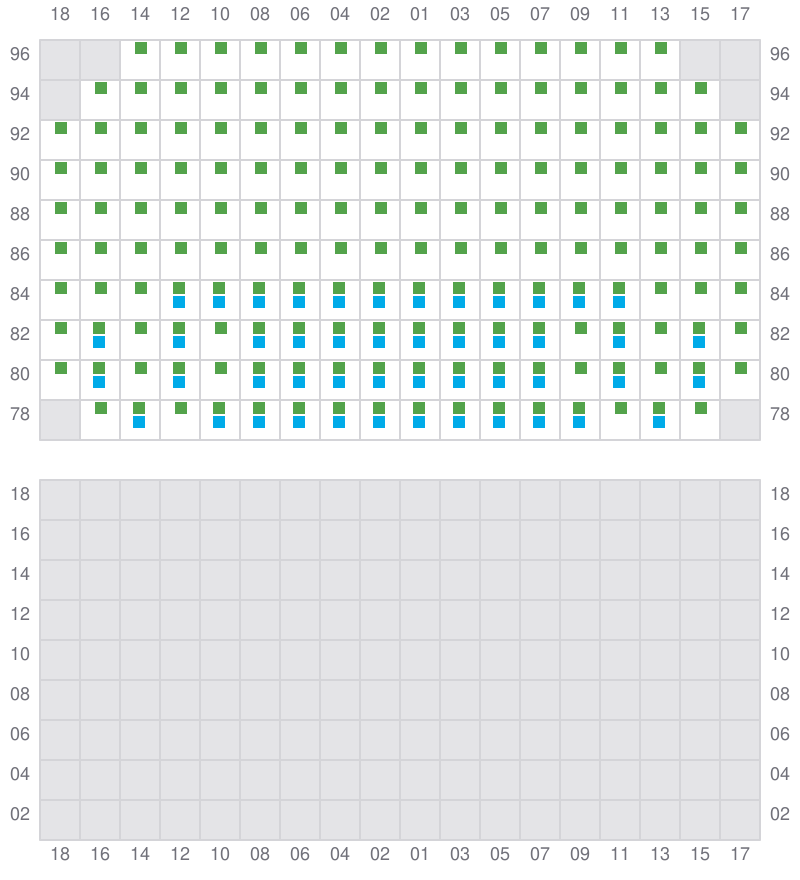

Bay 069 view and slots of MAERSK LONDRINA

071

  • ← / ?
Bay 071 view and slots of MAERSK LONDRINA
