MAERSK MAKUTU
9318319 | VROX8 | 9318319 by ********* Last update: Thu Mar 21 2024

General Info

Ship Name:MAERSK MAKUTU

IMO Code:9318319

Call Sign:VROX8

Line Operator:9318319

Class Name for Sister Ships:5G4

Year Built:2007

Position Format:Bay, Row, Tier

Allowed Containers:20, 40, 45

LPP (LBP):277.00

LOA (Length Overall):292.08

Stern to AFT PP:-

Features Informed:Standard

Also Known As (old names):-

Size Summary

ISO Bays:069

Max ISO Row:12

Center Line Row:Yes

Max Above ISO Tier:94

Min Above ISO Tier:80

Max Below ISO Tier:16

Min Below ISO Tier:02

Total TEU:4,719

Centers of Gravity

LCG Values:Known

LCG Data:100%

VCG Values:Known

VCG Data:100%

TCG Values:Known

TCG Data:100%

Side View

Side view of MAERSK MAKUTU

Hatch-Covers View

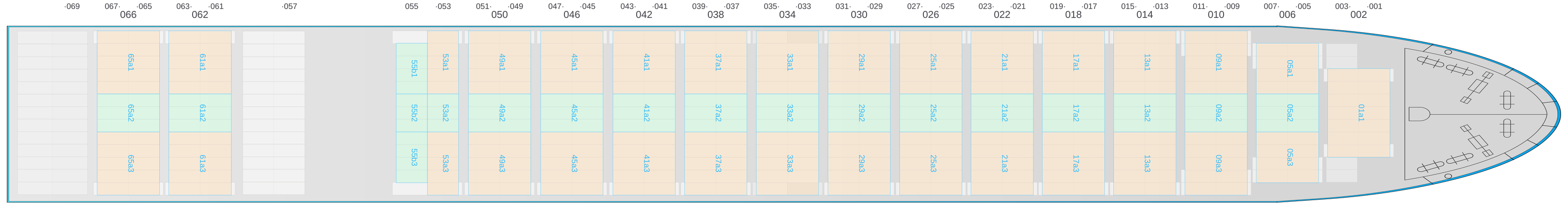

Deck view of MAERSK MAKUTU

ISO Bays

Legend

20'
40'
45'
Reefer
Restricted slot

001 (002)

→

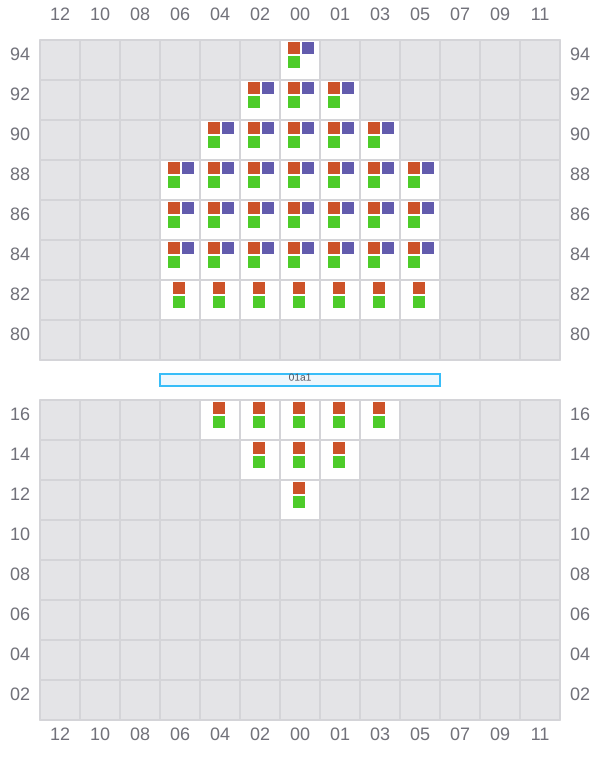

Bay 001 view and slots of MAERSK MAKUTU

003

←

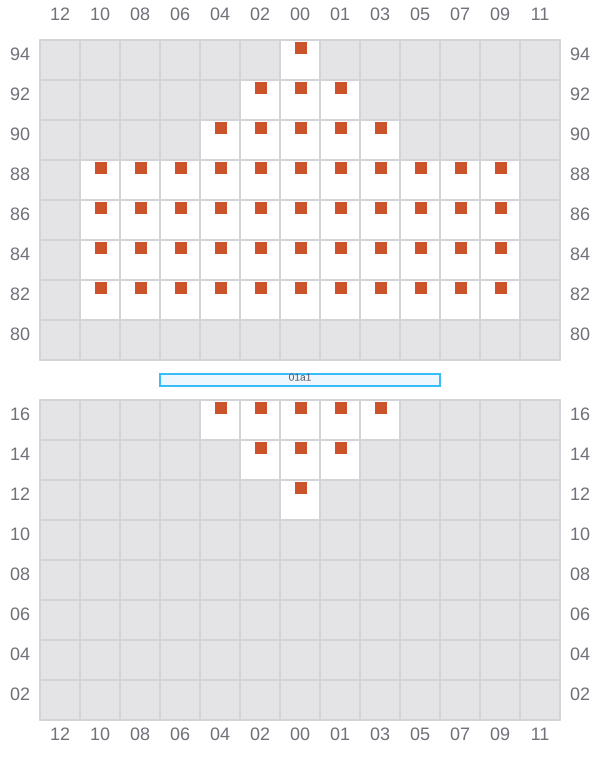

Bay 003 view and slots of MAERSK MAKUTU

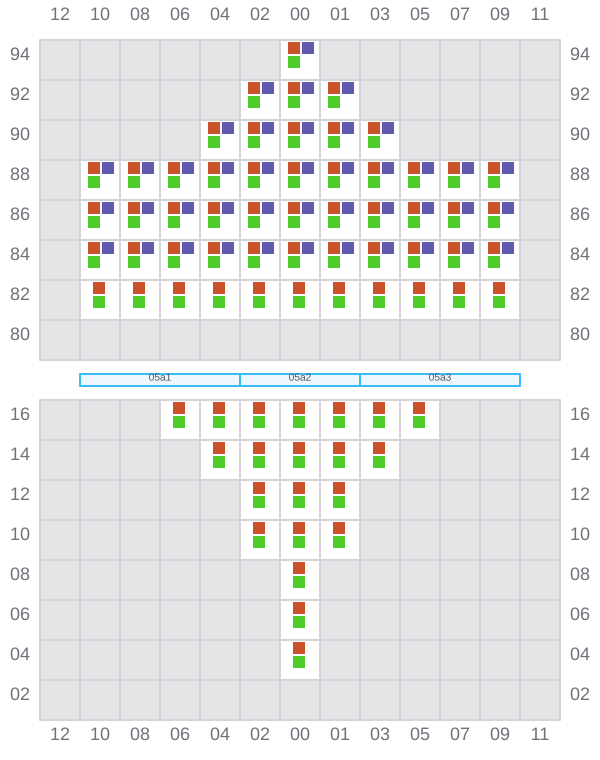

005 (006)

→

Bay 005 view and slots of MAERSK MAKUTU

007

←
^→ / _?

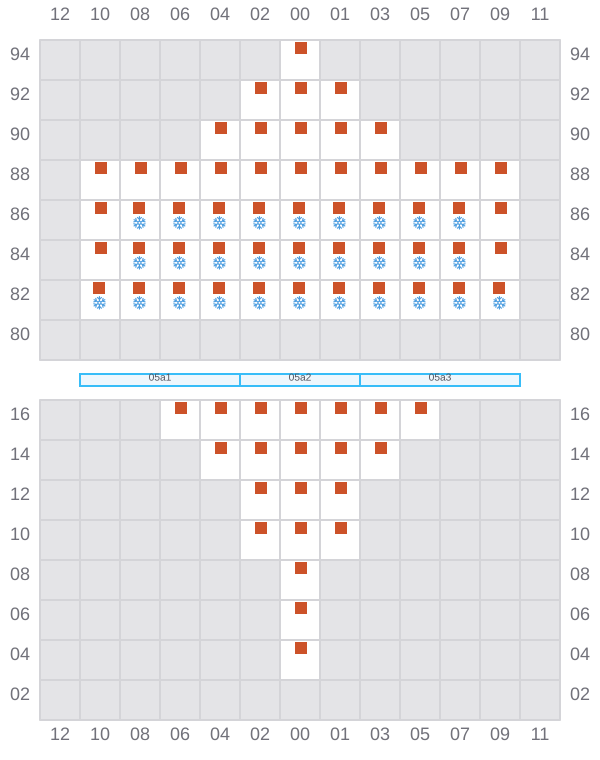

Bay 007 view and slots of MAERSK MAKUTU

009 (010)

→

Bay 009 view and slots of MAERSK MAKUTU

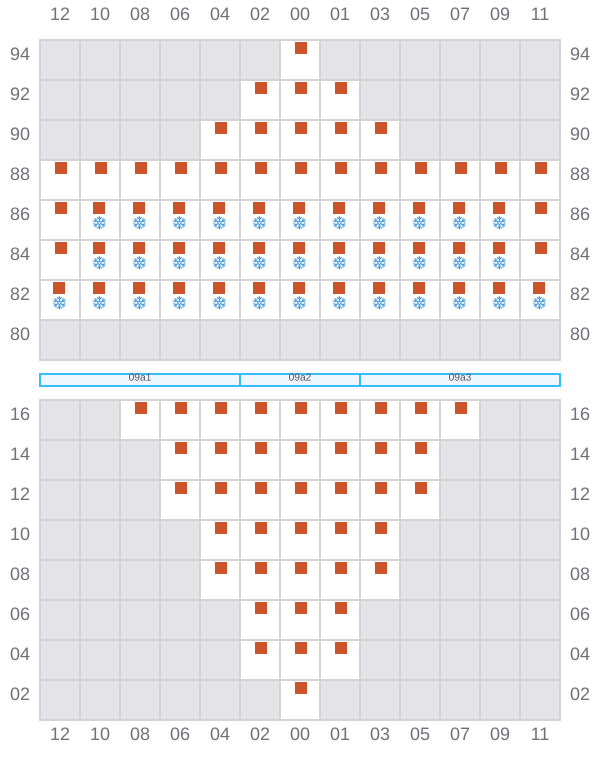

011

←
^→ / _?

Bay 011 view and slots of MAERSK MAKUTU

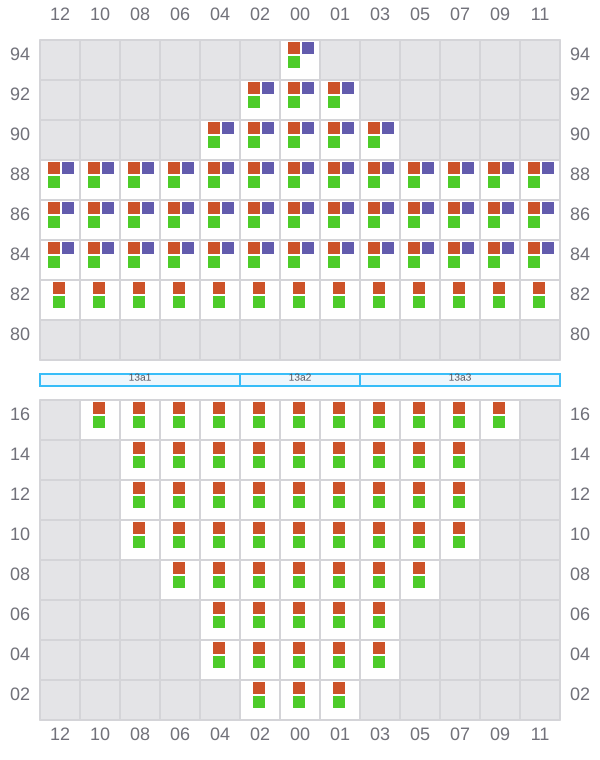

013 (014)

→

Bay 013 view and slots of MAERSK MAKUTU

015

←
^→ / _?

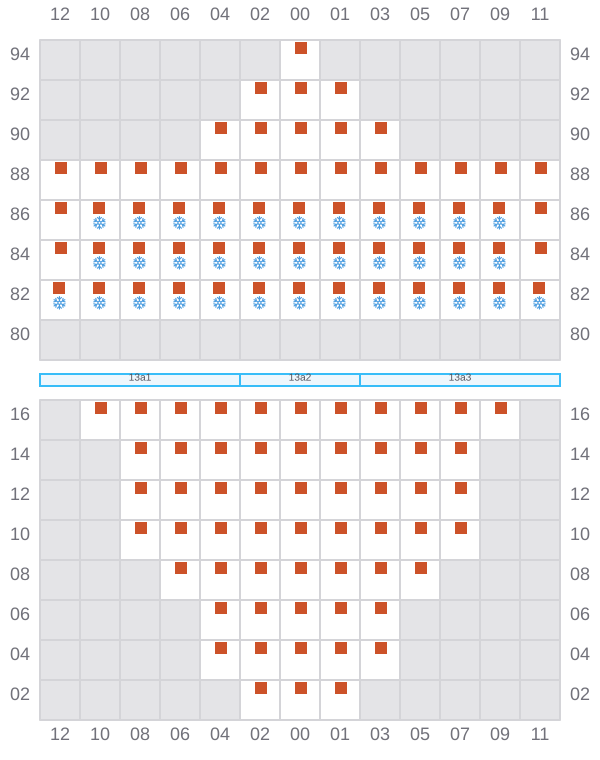

Bay 015 view and slots of MAERSK MAKUTU

017 (018)

→

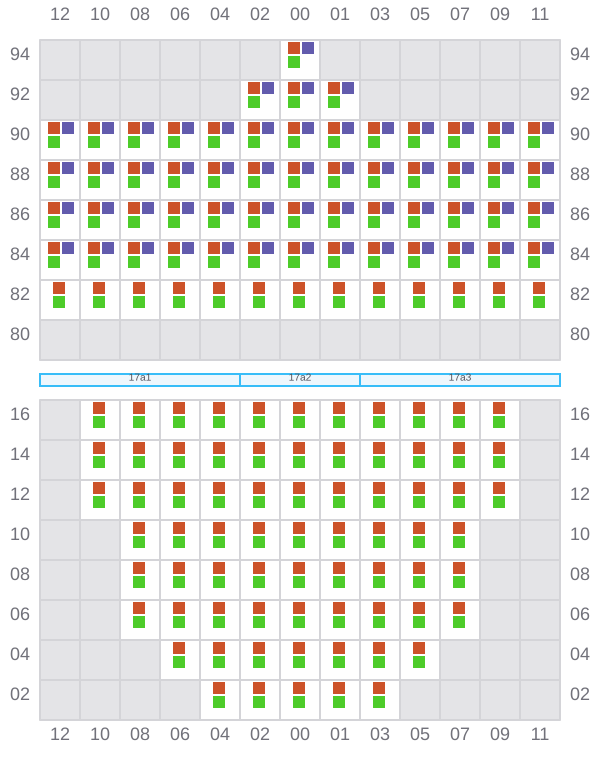

Bay 017 view and slots of MAERSK MAKUTU

019

←
→

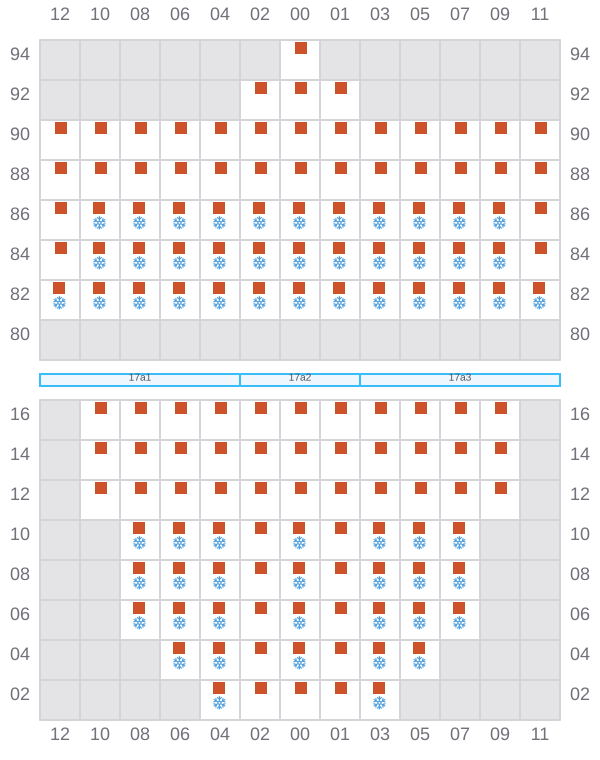

Bay 019 view and slots of MAERSK MAKUTU

021 (022)

→

Bay 021 view and slots of MAERSK MAKUTU

023

←
→

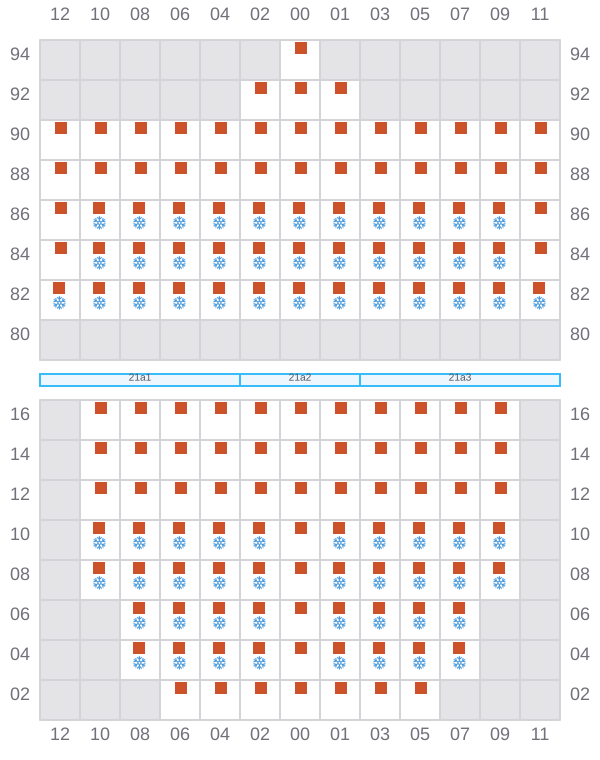

Bay 023 view and slots of MAERSK MAKUTU

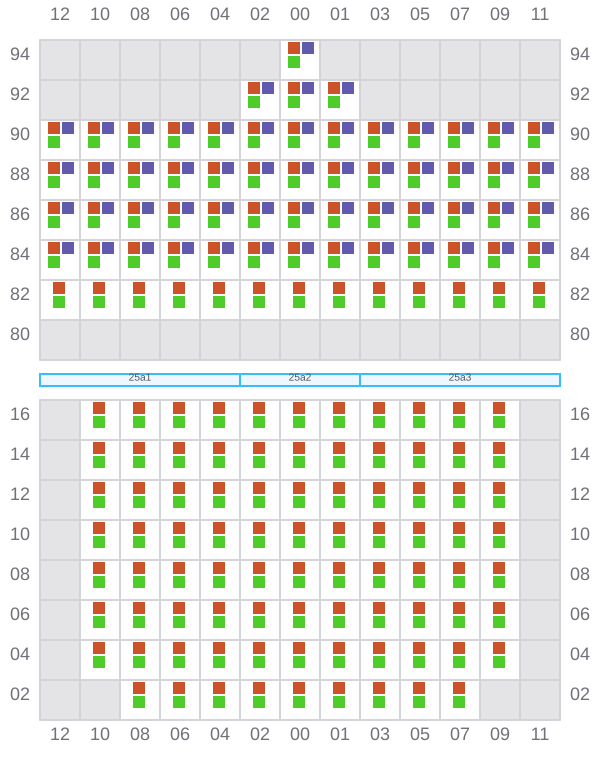

025 (026)

→

Bay 025 view and slots of MAERSK MAKUTU

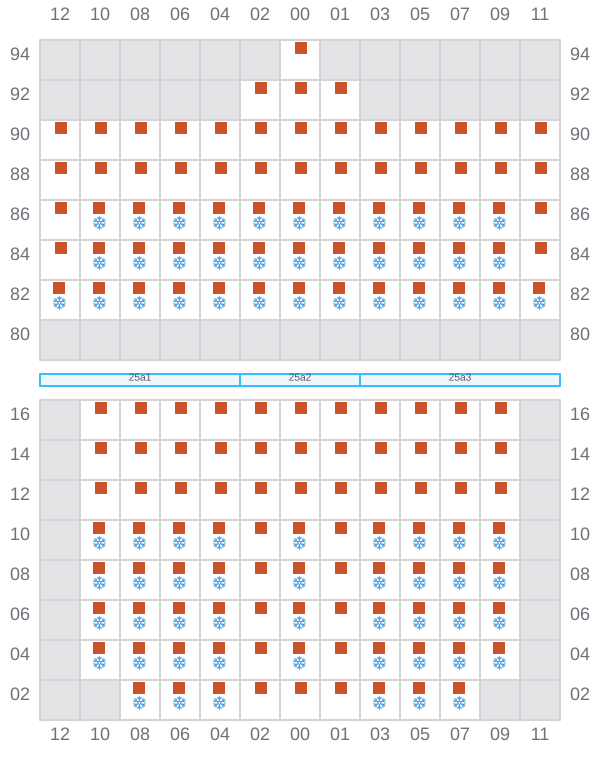

027

←
→

Bay 027 view and slots of MAERSK MAKUTU

029 (030)

→

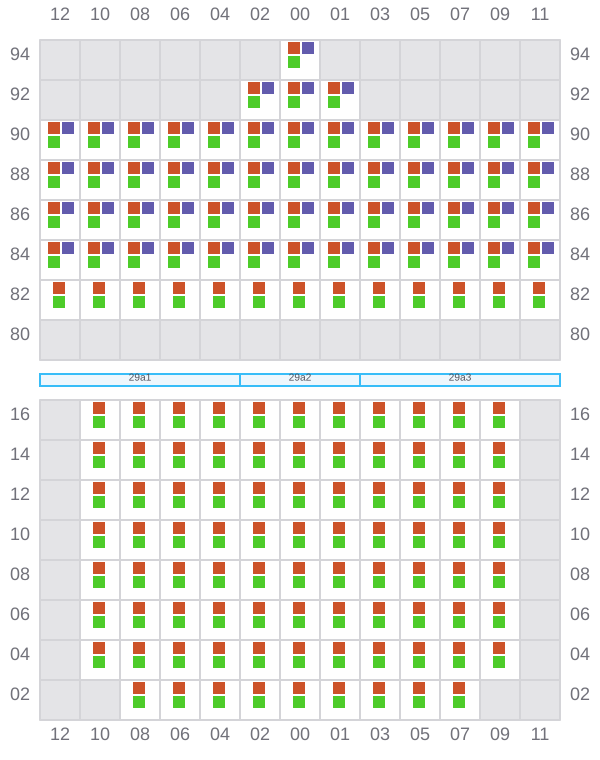

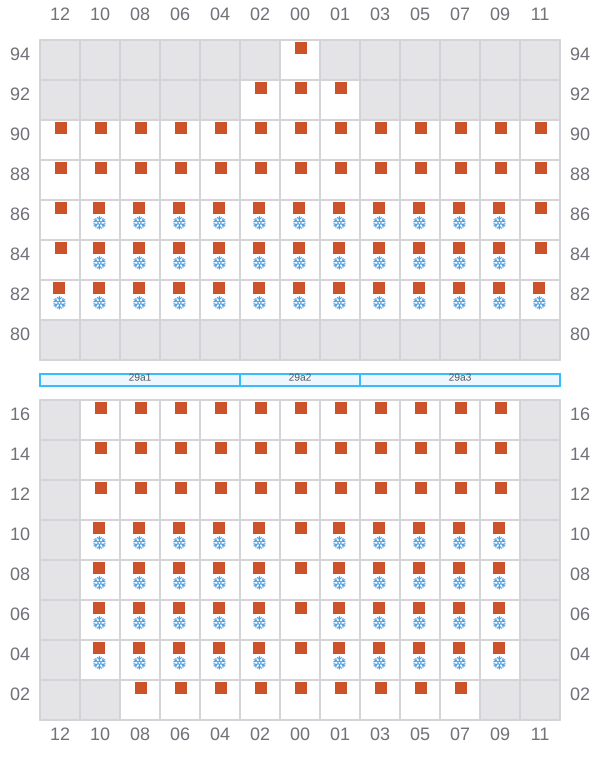

Bay 029 view and slots of MAERSK MAKUTU

031

←
→

Bay 031 view and slots of MAERSK MAKUTU

033 (034)

→

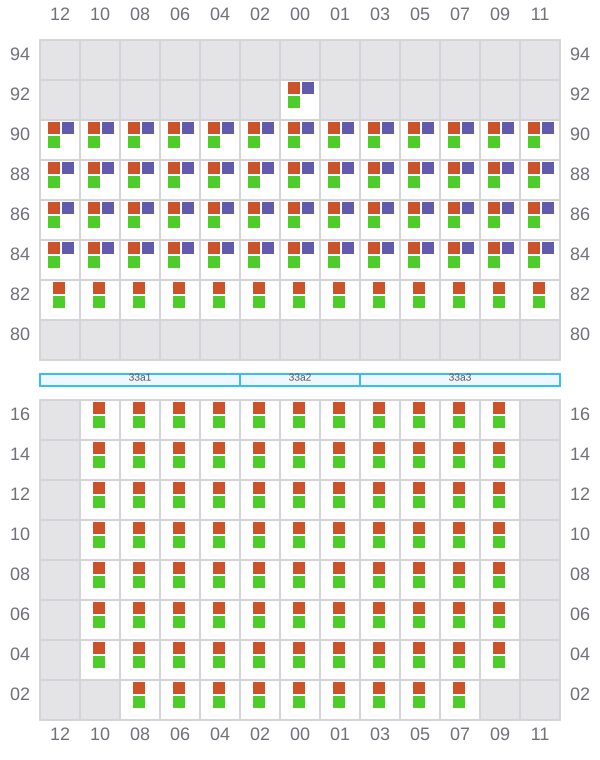

Bay 033 view and slots of MAERSK MAKUTU

035

←
→

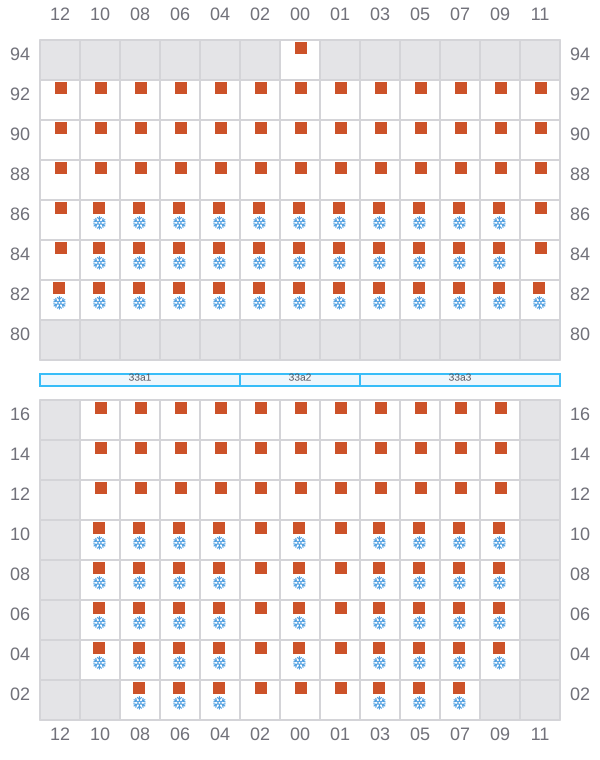

Bay 035 view and slots of MAERSK MAKUTU

037 (038)

→

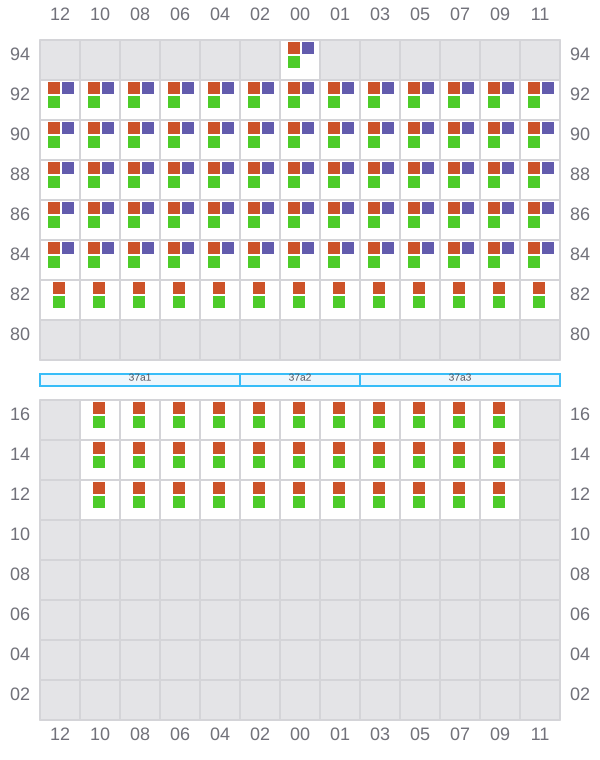

Bay 037 view and slots of MAERSK MAKUTU

039

←
^→ / _?

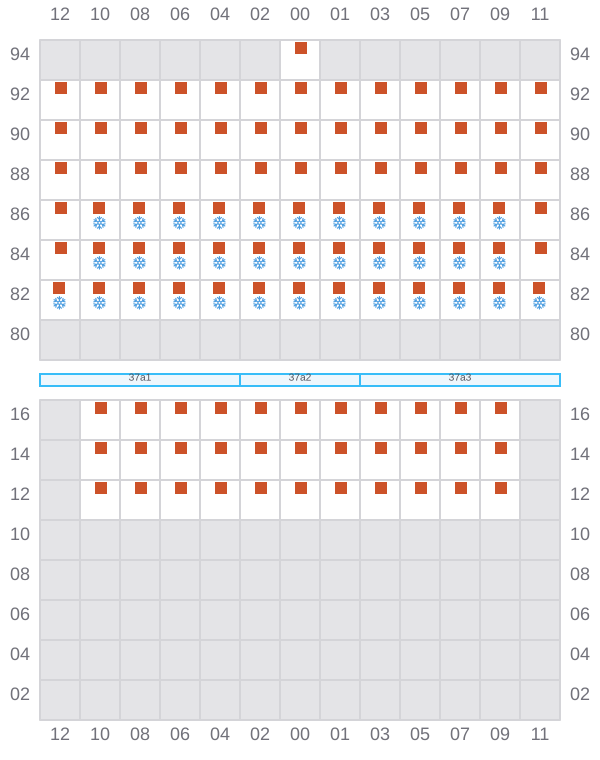

Bay 039 view and slots of MAERSK MAKUTU

041 (042)

→

Bay 041 view and slots of MAERSK MAKUTU

043

←
→

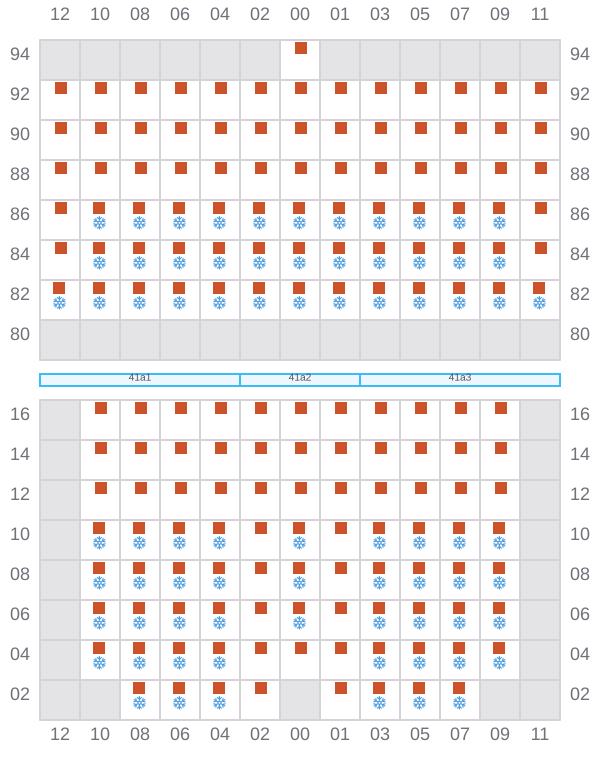

Bay 043 view and slots of MAERSK MAKUTU

045 (046)

→

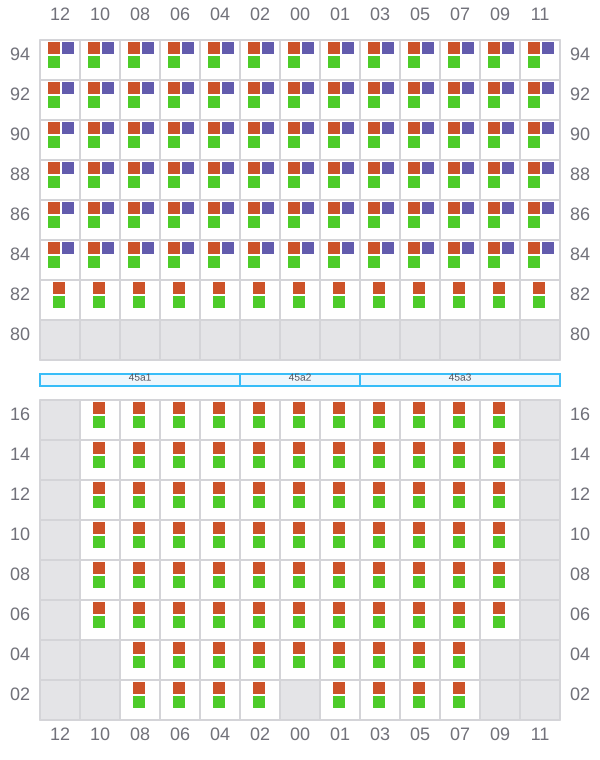

Bay 045 view and slots of MAERSK MAKUTU

047

←
→

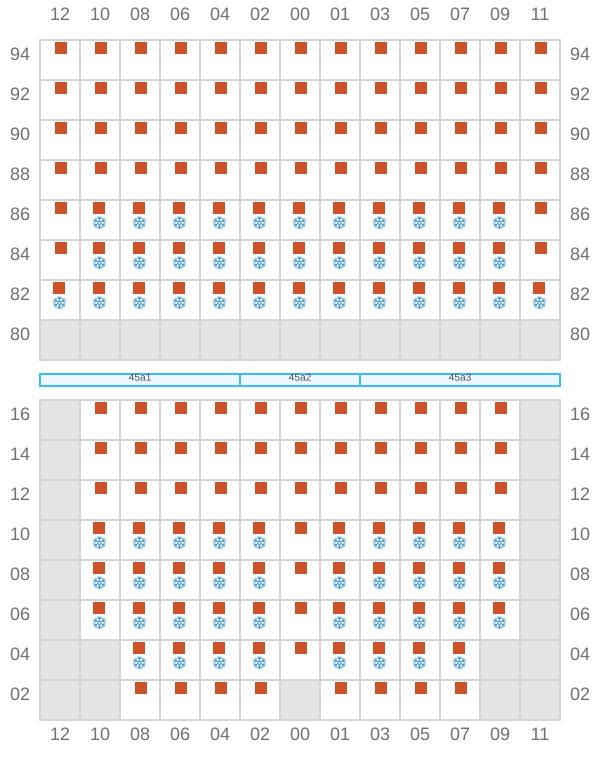

Bay 047 view and slots of MAERSK MAKUTU

049 (050)

→

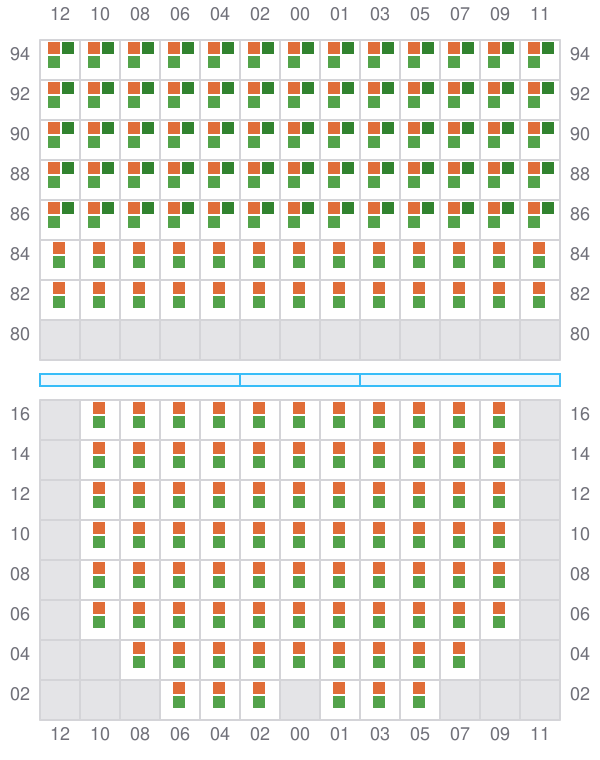

Bay 049 view and slots of MAERSK MAKUTU

051

←
→

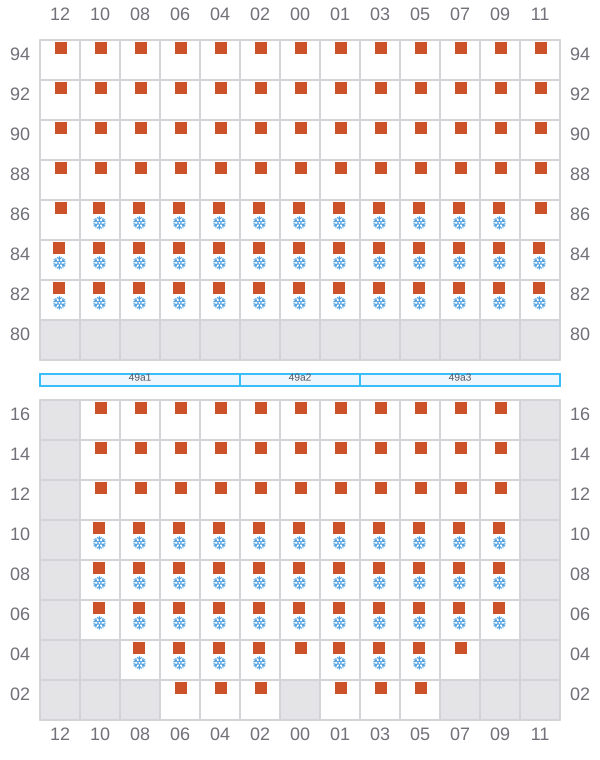

Bay 051 view and slots of MAERSK MAKUTU

053 (054)

→
^→ / _?

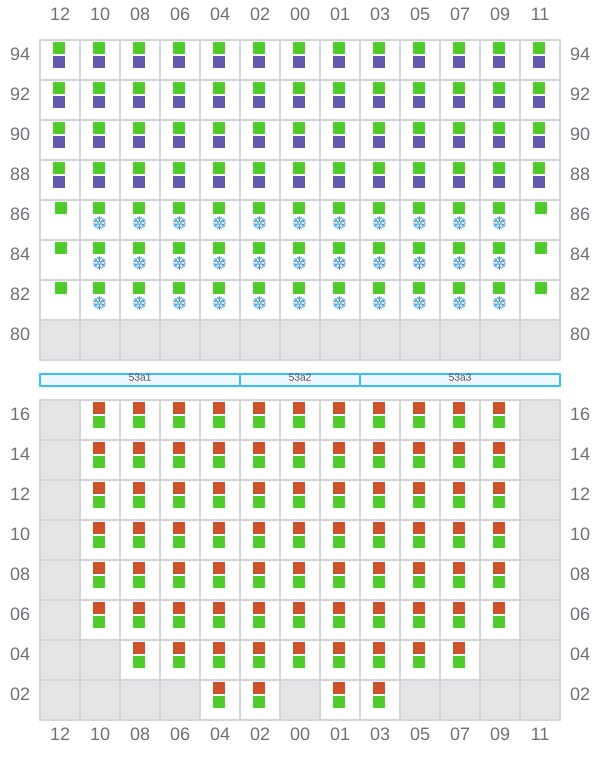

Bay 053 view and slots of MAERSK MAKUTU

055

^? / _←
^? / _→

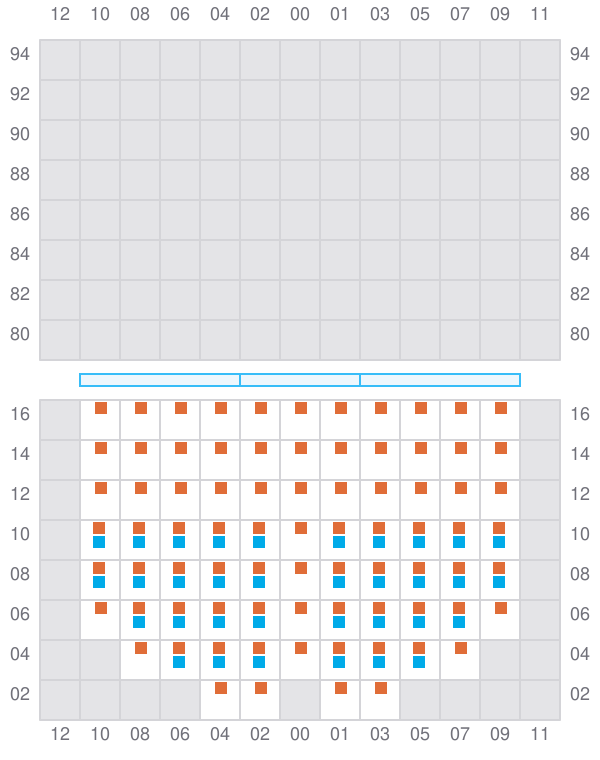

Bay 055 view and slots of MAERSK MAKUTU

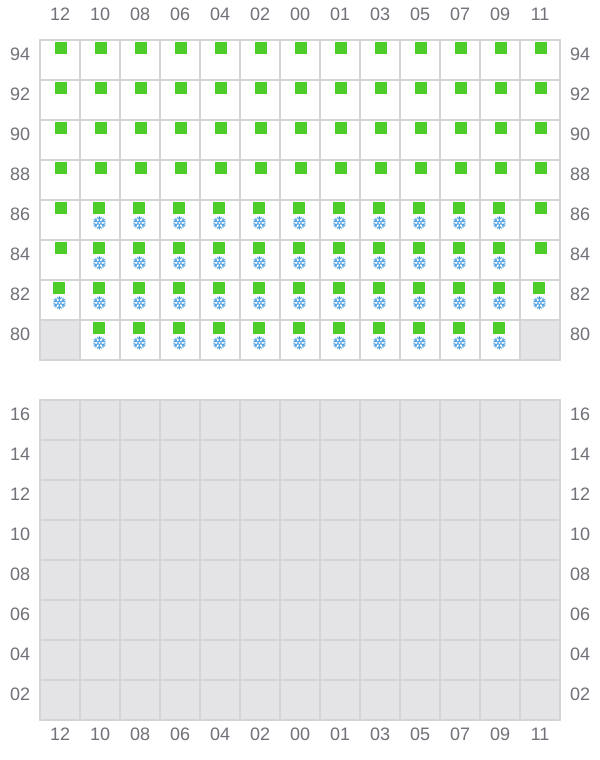

057 (058)

^→ / _?
^← / _?

Bay 057 view and slots of MAERSK MAKUTU

059

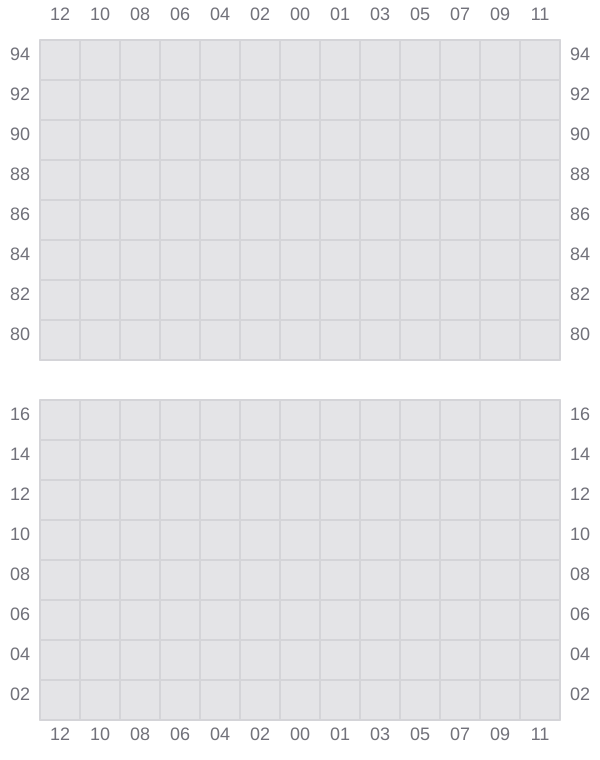

Bay 059 view and slots of MAERSK MAKUTU

061 (062)

→
^← / _?

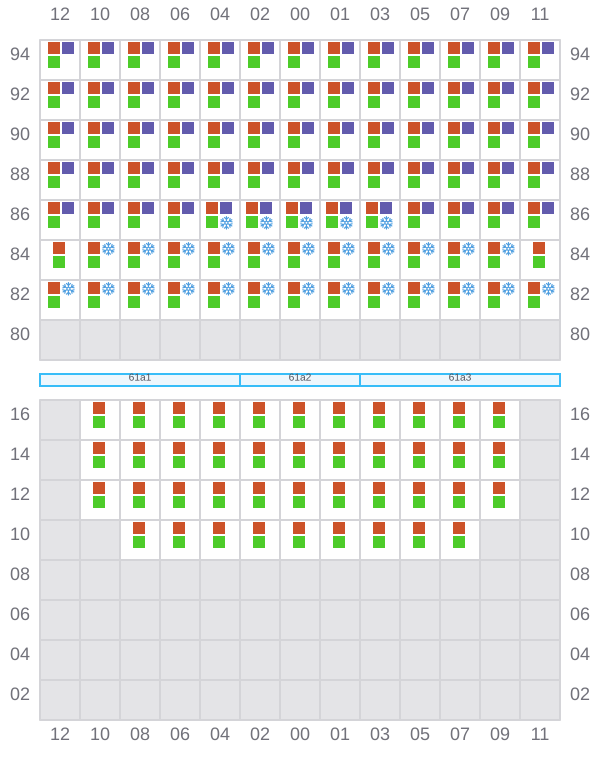

Bay 061 view and slots of MAERSK MAKUTU

063

←
^? / _→

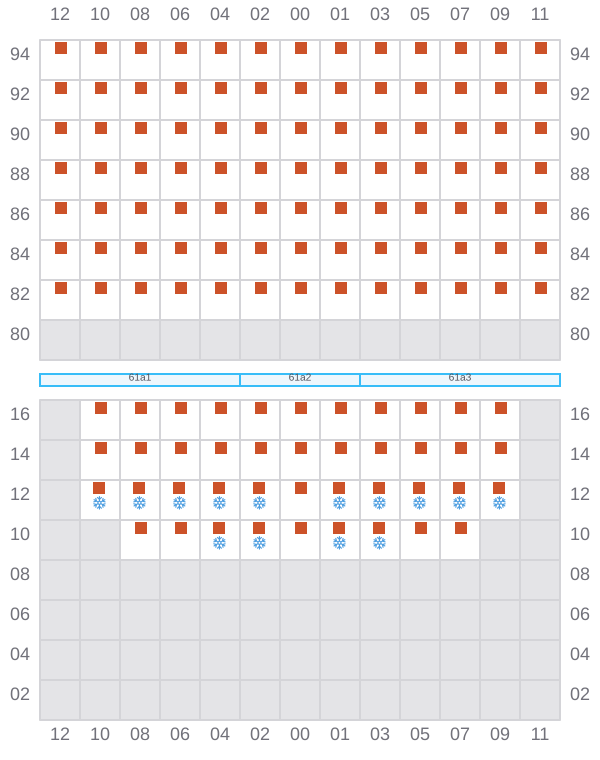

Bay 063 view and slots of MAERSK MAKUTU

065 (066)

→
^← / _?

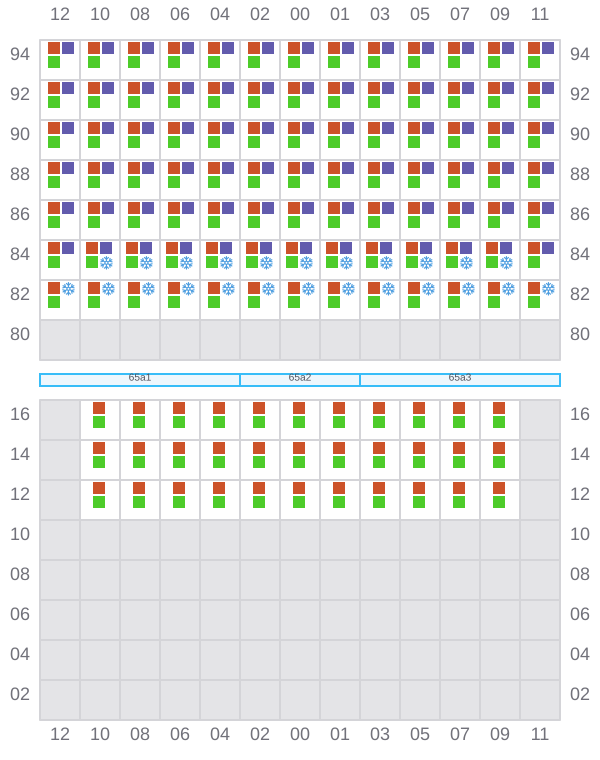

Bay 065 view and slots of MAERSK MAKUTU

067

←

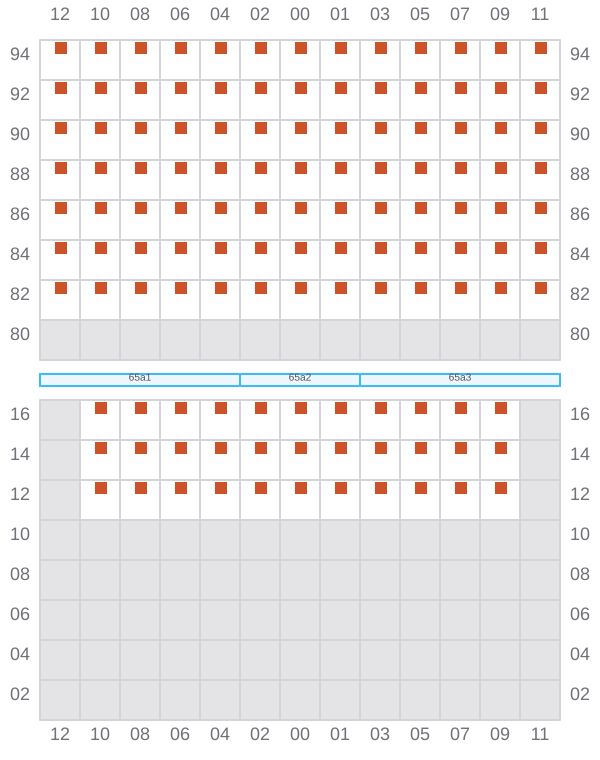

Bay 067 view and slots of MAERSK MAKUTU

069 (070)

^→ / _?
^← / _?

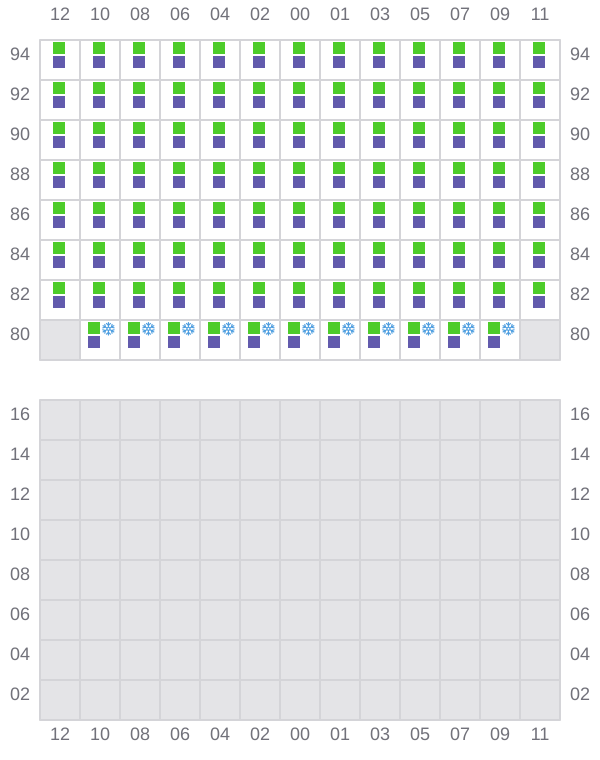

Bay 069 view and slots of MAERSK MAKUTU
