MAERSK MONTANA
9305312 | WCDP | MSK by ************************** Last update: Sun Jun 25 2023

General Info

Ship Name:MAERSK MONTANA
IMO Code:9305312
Call Sign:WCDP
Line Operator:MSK
Class Name for Sister Ships:MMA
Year Built:2006
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):277.00
LOA (Length Overall):292.08
Stern to AFT PP:-
Features Informed:
Also Known As...:-

Size Summary

ISO Bays:069
Max ISO Row:12
Center Line Row:Yes
Max Above ISO Tier:94
Min Above ISO Tier:80
Max Below ISO Tier:16
Min Below ISO Tier:02
Total TEU:4,769

Centers of Gravity

LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

Side View

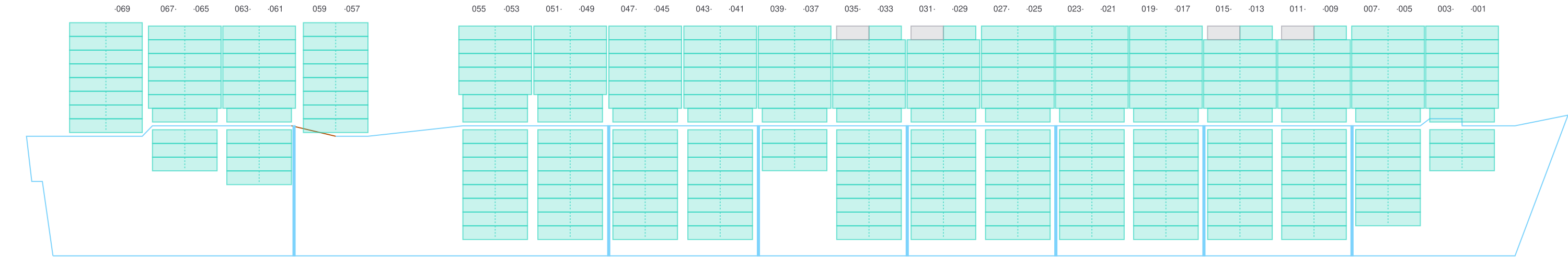

Side view of MAERSK MONTANA

Hatch-Covers View

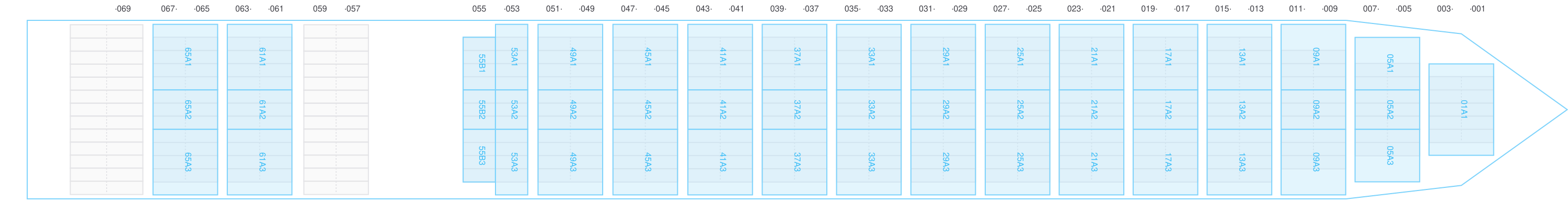

Deck view of MAERSK MONTANA

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot

001 (002)

  • →

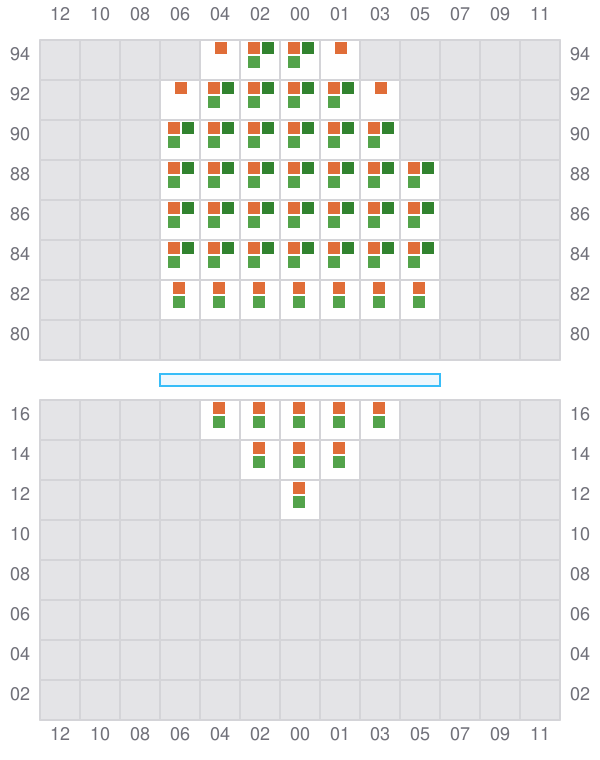

Bay 001 view and slots of MAERSK MONTANA

003

  • ←

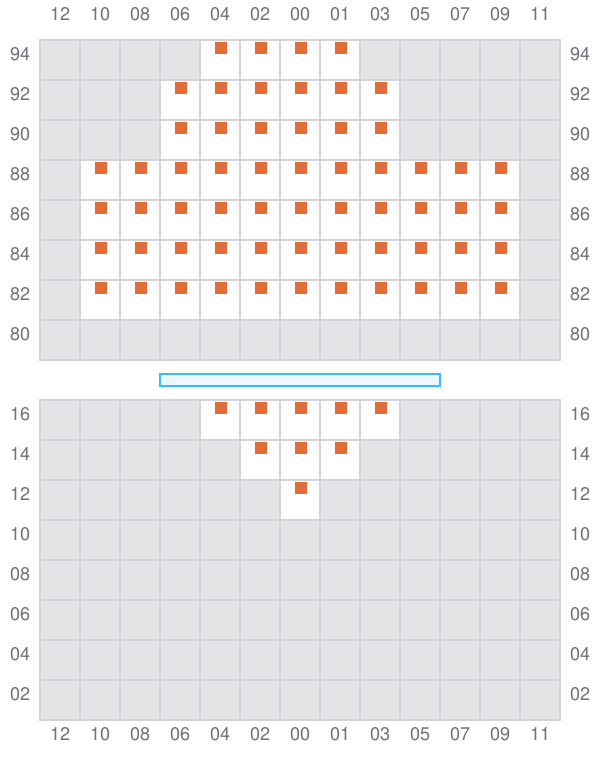

Bay 003 view and slots of MAERSK MONTANA

005 (006)

  • →

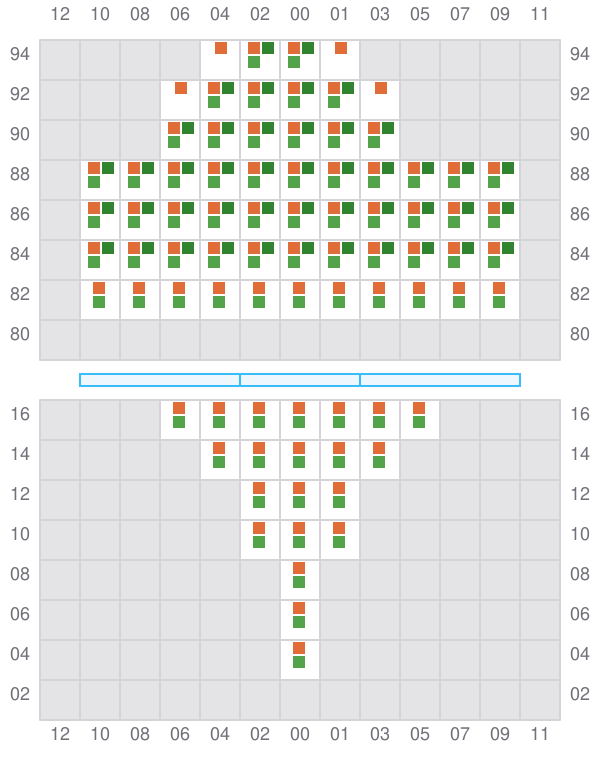

Bay 005 view and slots of MAERSK MONTANA

007

  • ←
  • → / ?

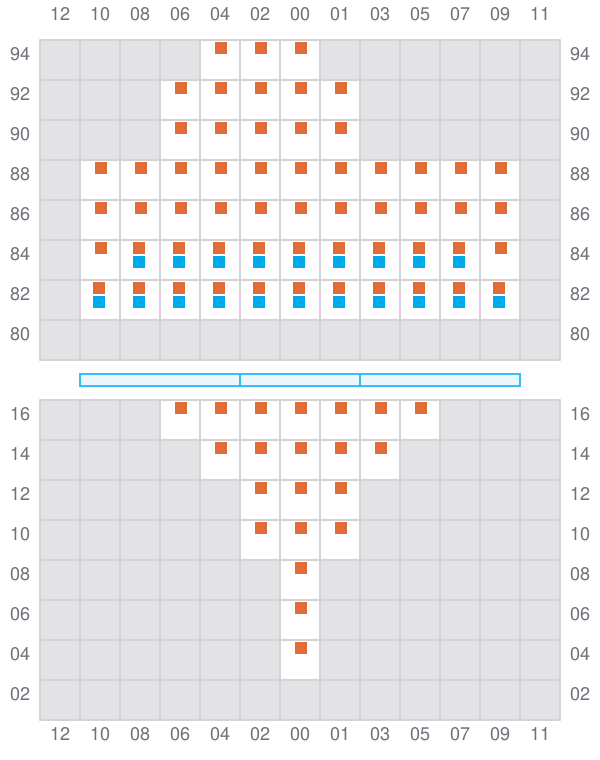

Bay 007 view and slots of MAERSK MONTANA

009 (010)

  • →

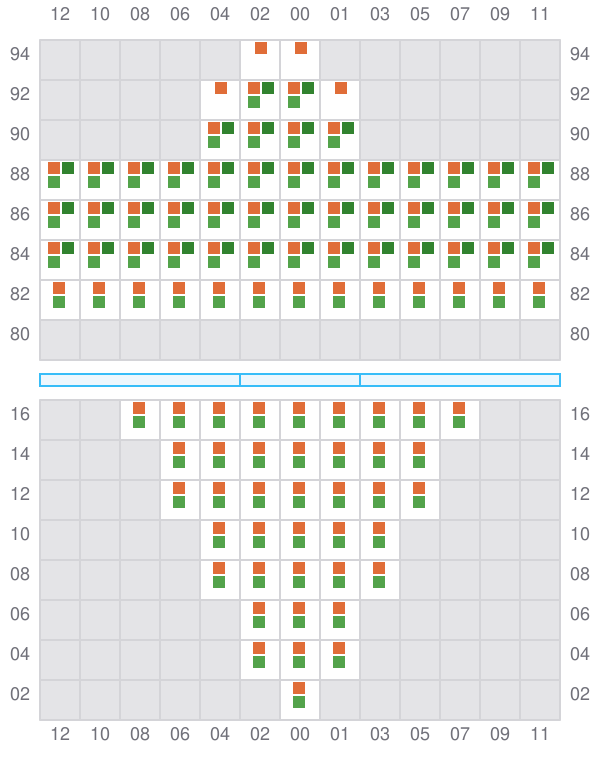

Bay 009 view and slots of MAERSK MONTANA

011

  • ←
  • → / ?
Bay 011 view and slots of MAERSK MONTANA

013 (014)

  • →

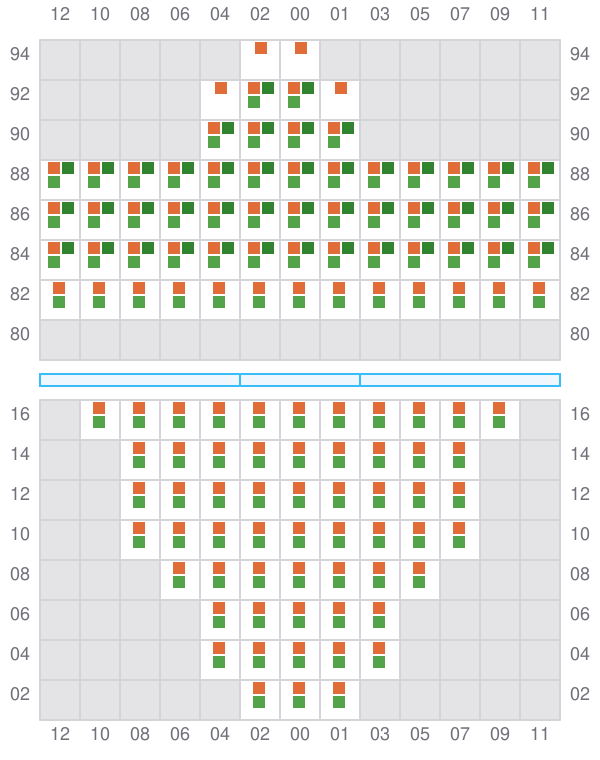

Bay 013 view and slots of MAERSK MONTANA

015

  • ←
  • → / ?

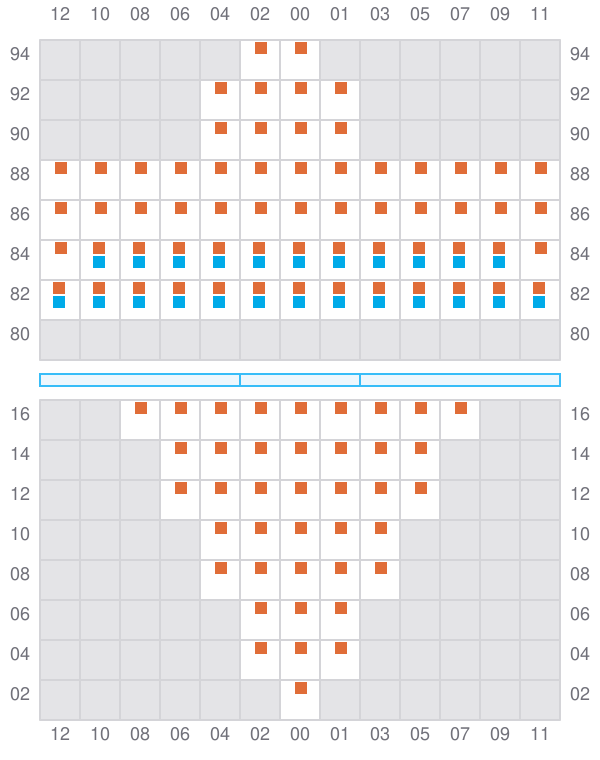

Bay 015 view and slots of MAERSK MONTANA

017 (018)

  • →

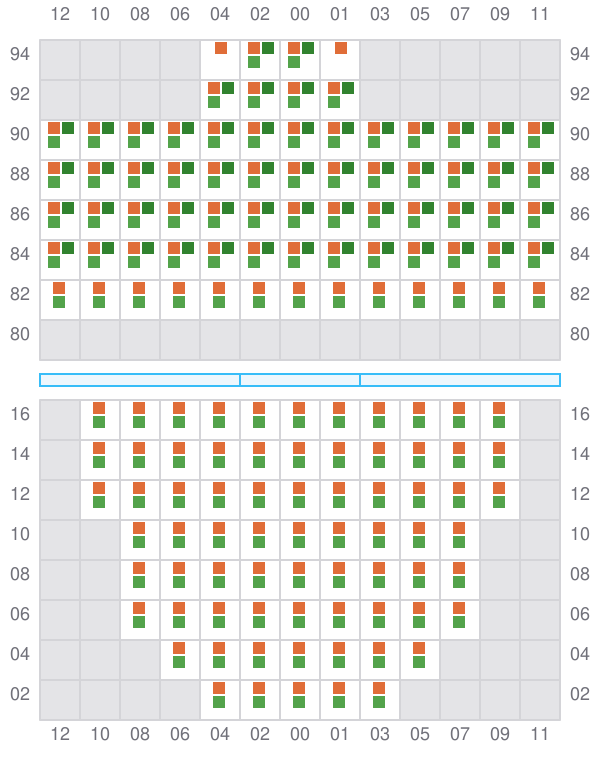

Bay 017 view and slots of MAERSK MONTANA

019

  • ←
  • →

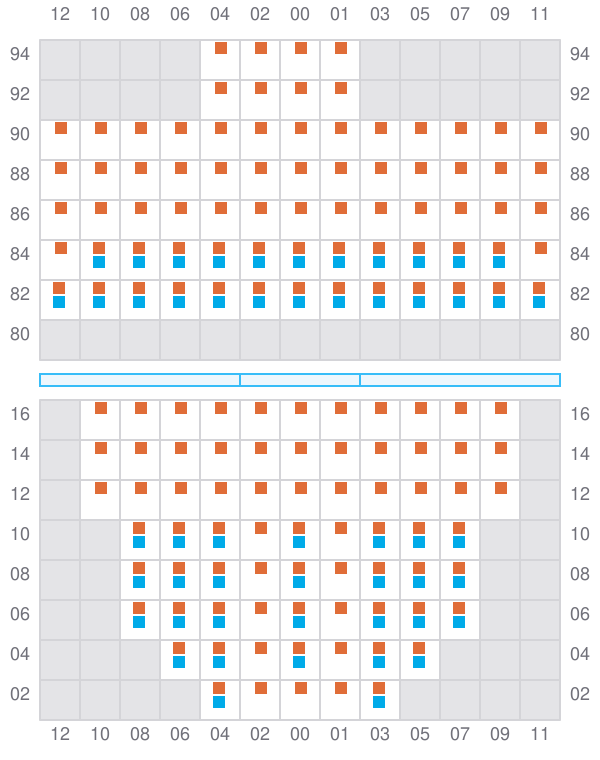

Bay 019 view and slots of MAERSK MONTANA

021 (022)

  • →
Bay 021 view and slots of MAERSK MONTANA

023

  • ←
  • →

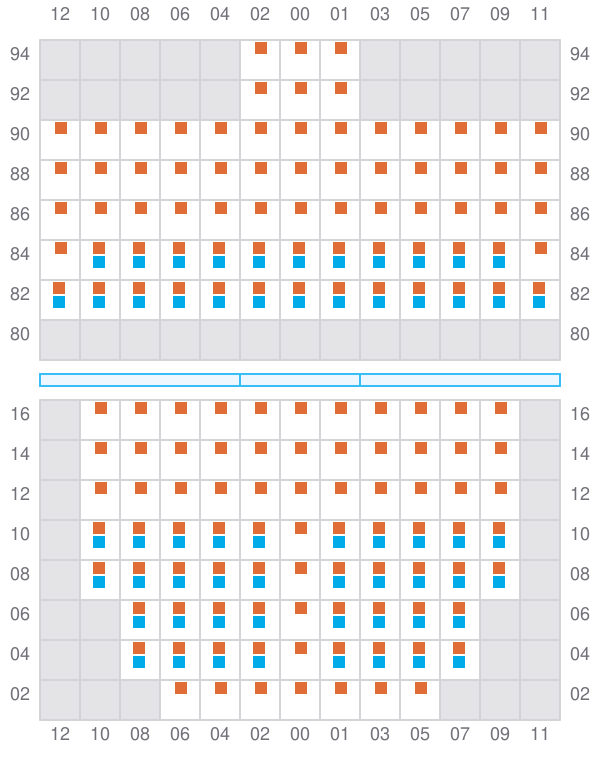

Bay 023 view and slots of MAERSK MONTANA

025 (026)

  • →

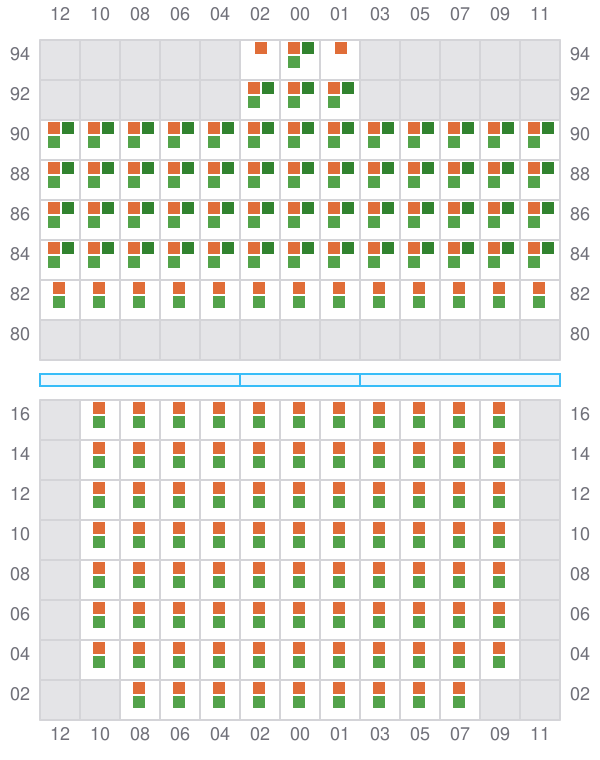

Bay 025 view and slots of MAERSK MONTANA

027

  • ←
  • →
Bay 027 view and slots of MAERSK MONTANA

029 (030)

  • →

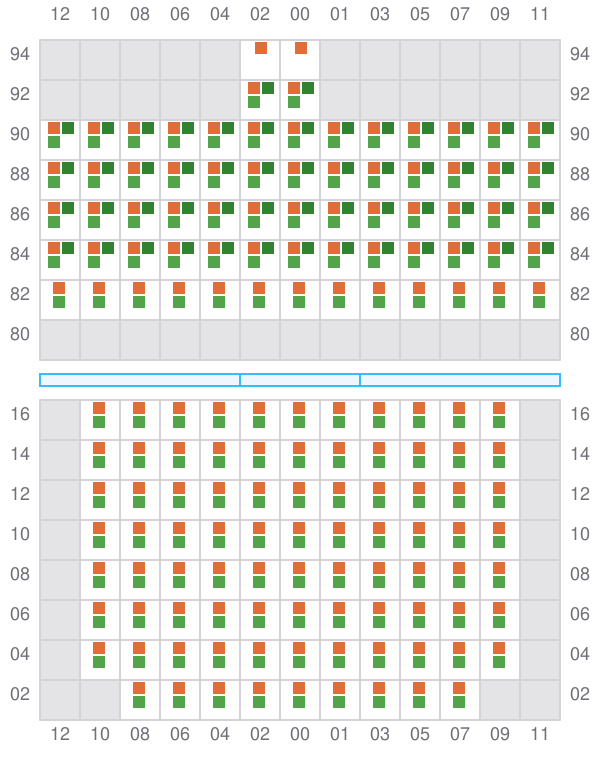

Bay 029 view and slots of MAERSK MONTANA

031

  • ←
  • → / ?
Bay 031 view and slots of MAERSK MONTANA

033 (034)

  • →
Bay 033 view and slots of MAERSK MONTANA

035

  • ←
  • →

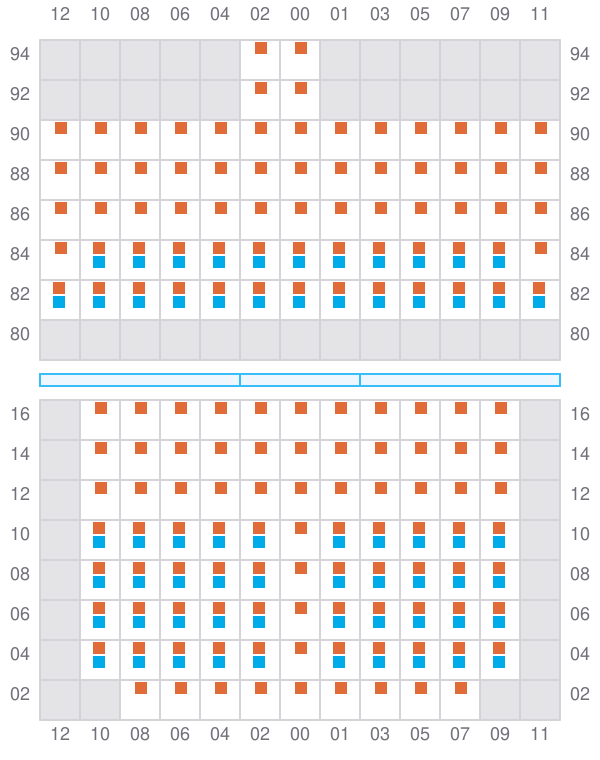

Bay 035 view and slots of MAERSK MONTANA

037 (038)

  • →

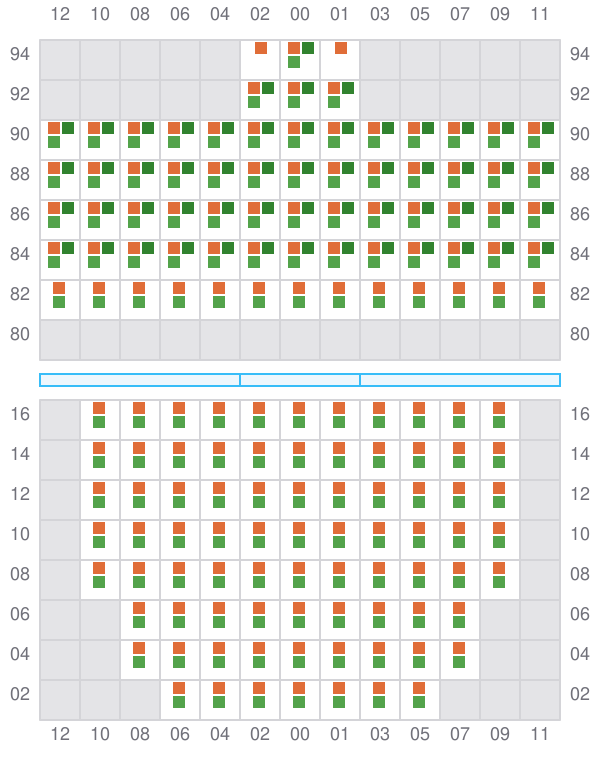

Bay 037 view and slots of MAERSK MONTANA

039

  • ←
  • → / ?

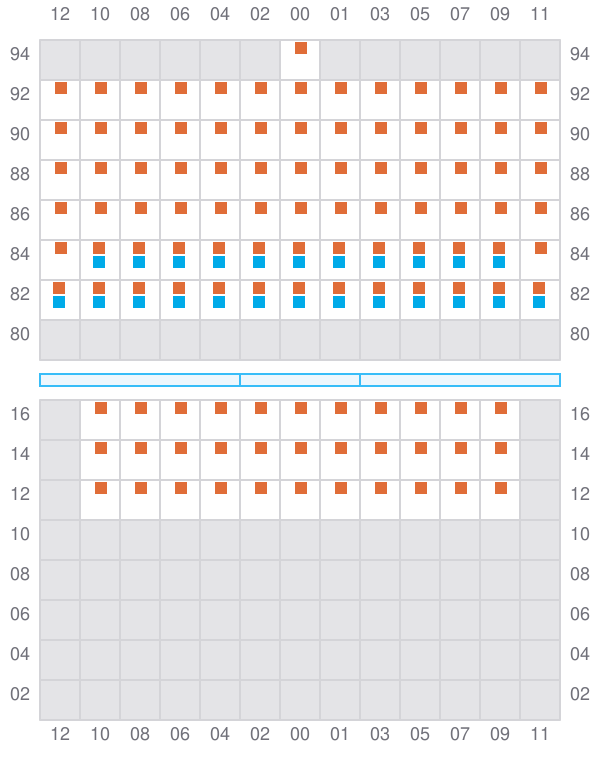

Bay 039 view and slots of MAERSK MONTANA

041 (042)

  • →

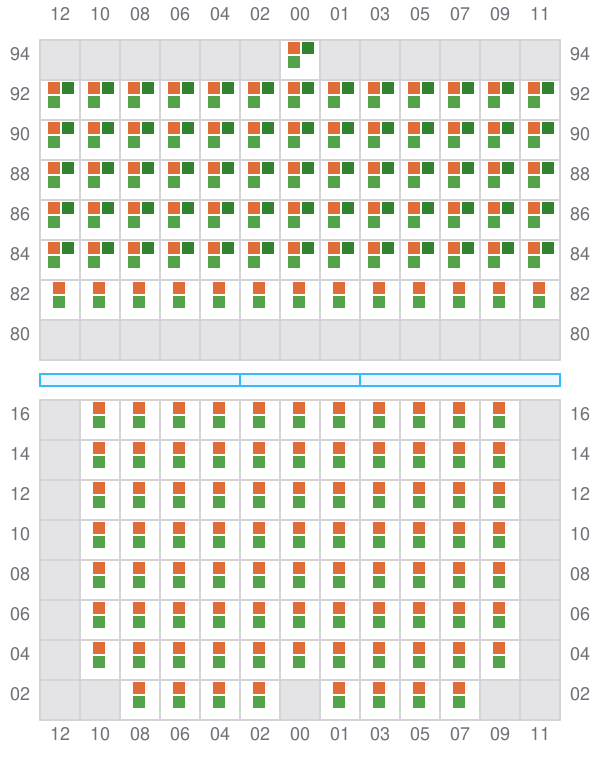

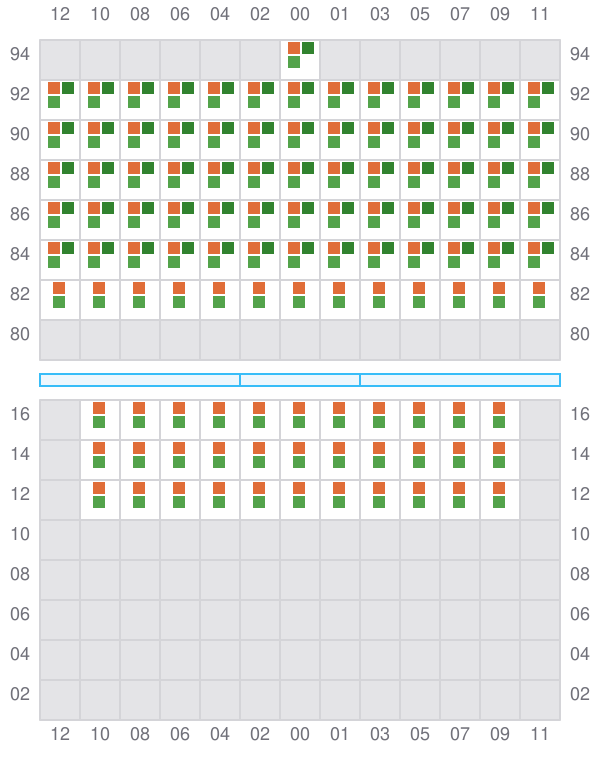

Bay 041 view and slots of MAERSK MONTANA

043

  • ←
  • →

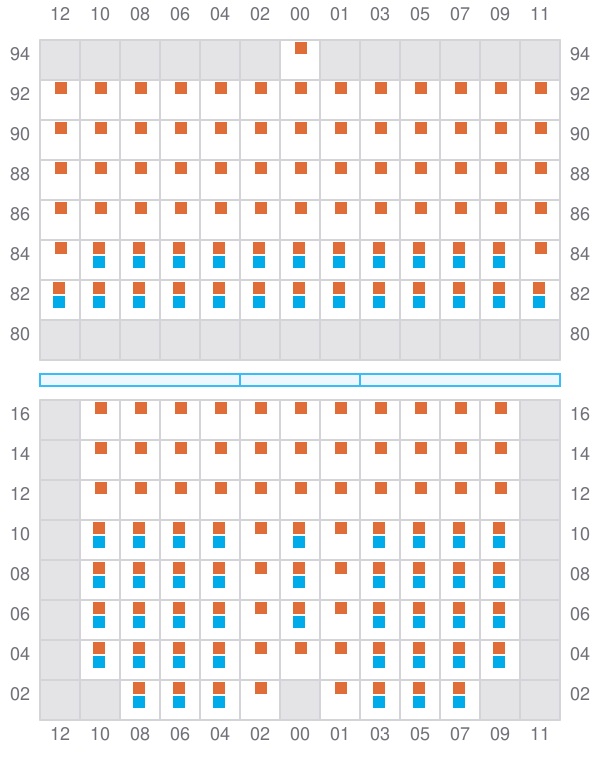

Bay 043 view and slots of MAERSK MONTANA

045 (046)

  • →

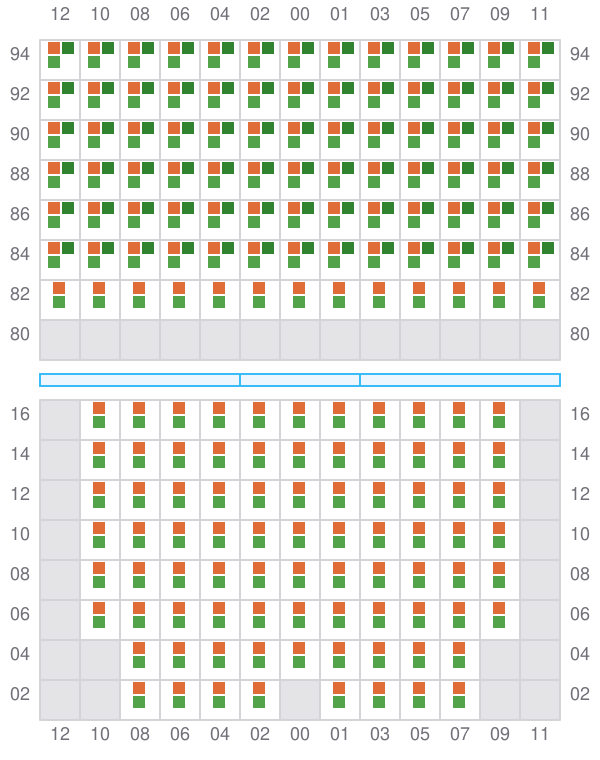

Bay 045 view and slots of MAERSK MONTANA

047

  • ←
  • →

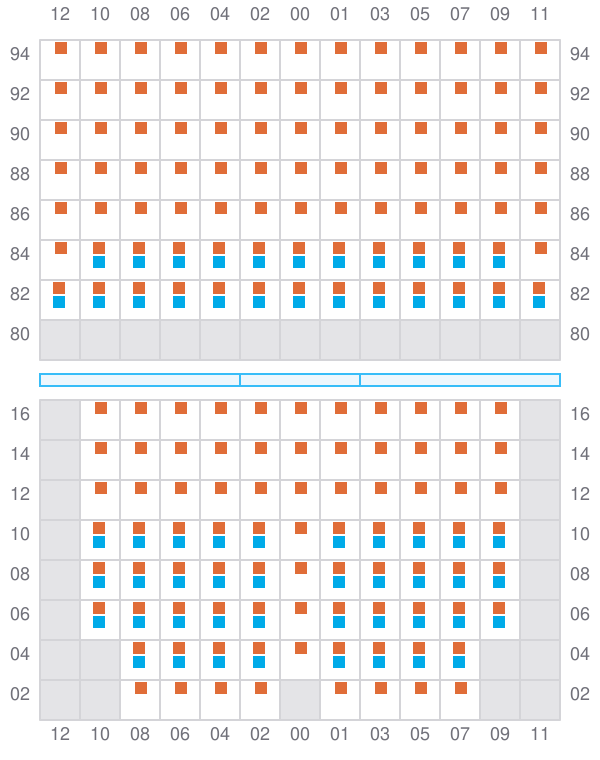

Bay 047 view and slots of MAERSK MONTANA

049 (050)

  • →

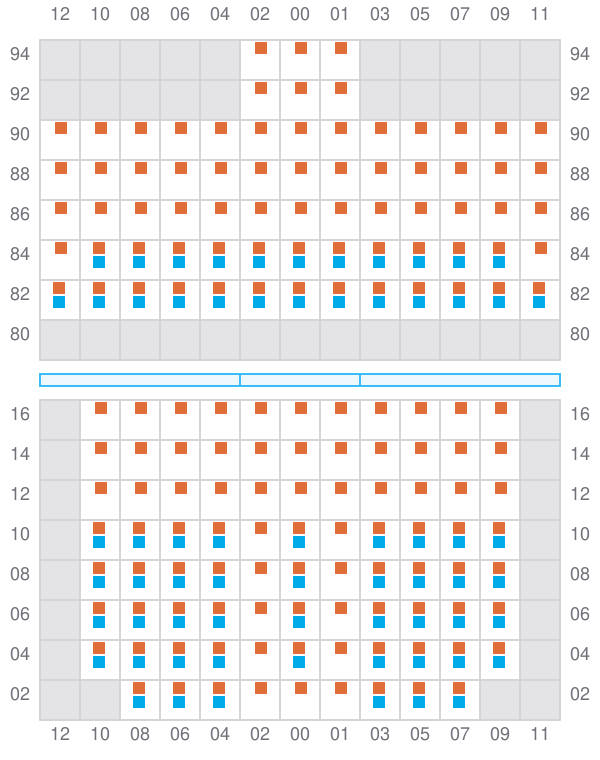

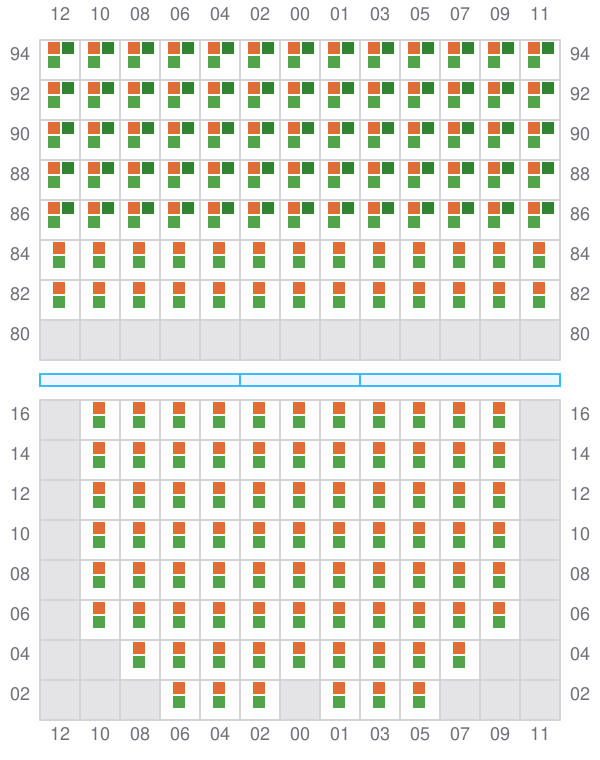

Bay 049 view and slots of MAERSK MONTANA

051

  • ←
  • →
Bay 051 view and slots of MAERSK MONTANA

053 (054)

  • →
  • → / ?

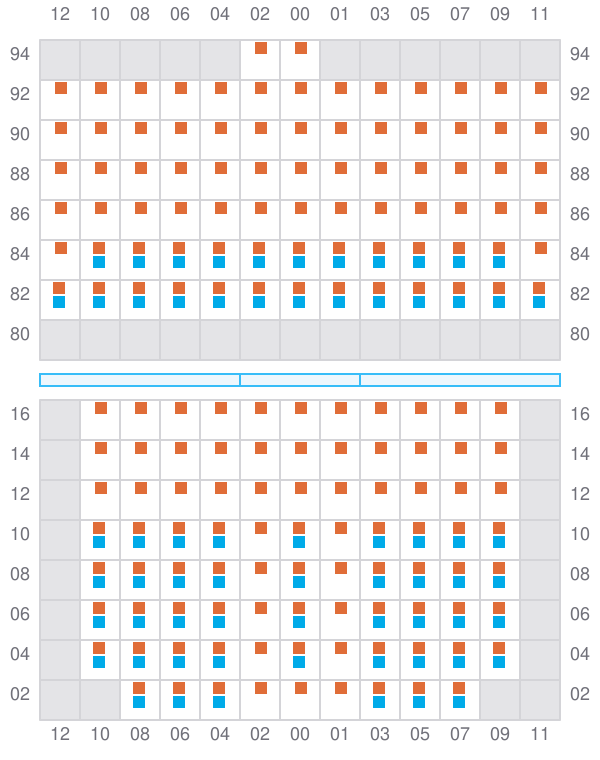

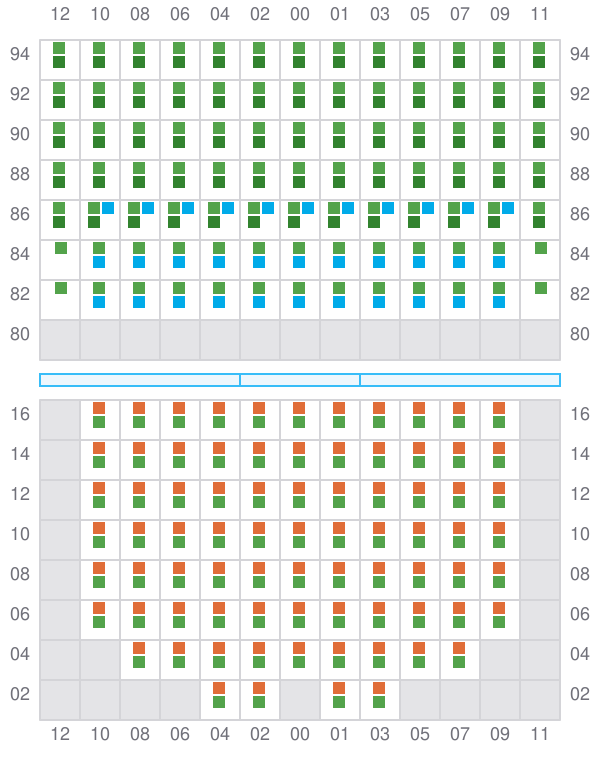

Bay 053 view and slots of MAERSK MONTANA

055

  • ? / ←
  • ? / →

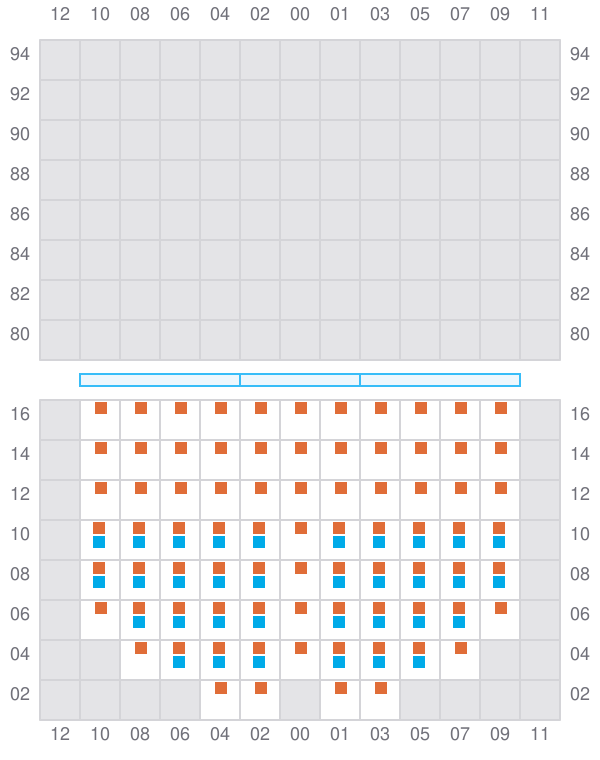

Bay 055 view and slots of MAERSK MONTANA

057 (058)

  • → / ?
  • ← / ?
Bay 057 view and slots of MAERSK MONTANA

059

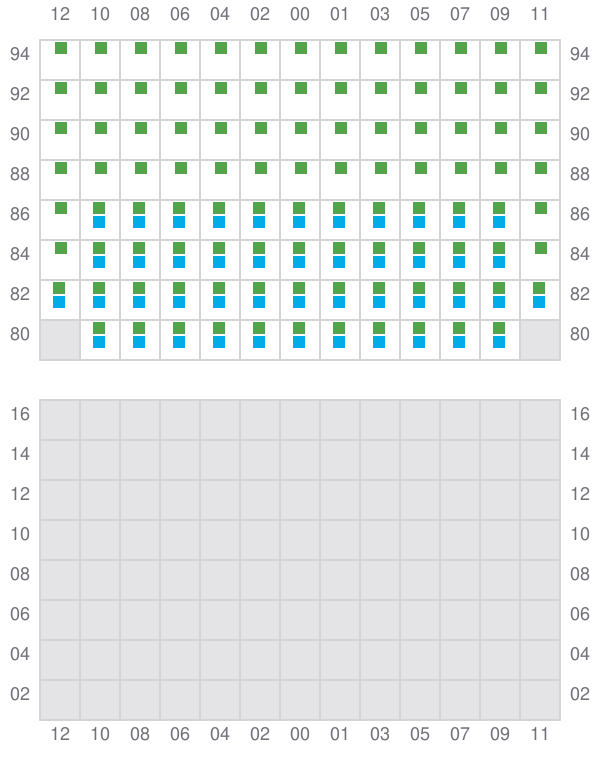

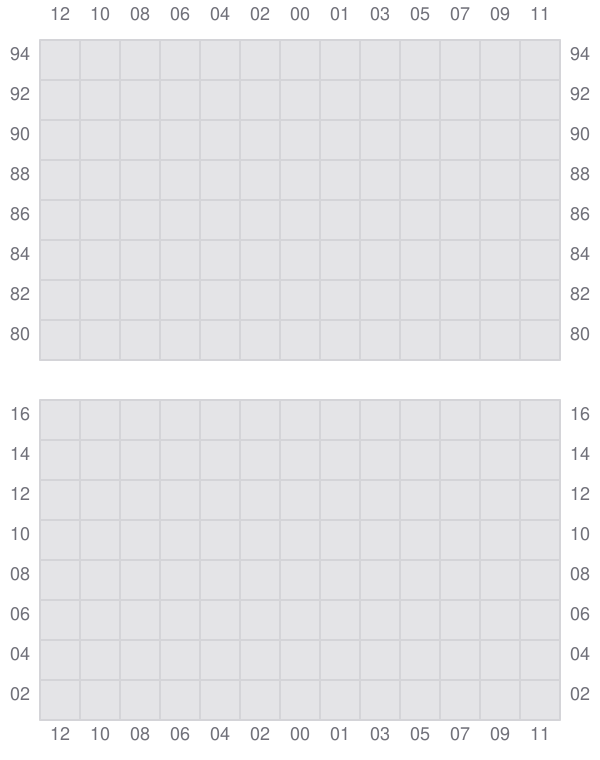

Bay 059 view and slots of MAERSK MONTANA

061 (062)

  • →
  • ← / ?

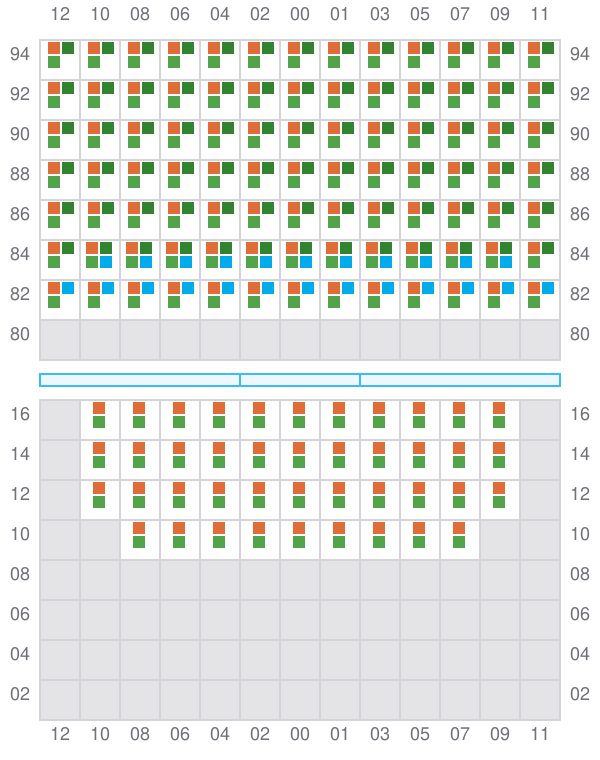

Bay 061 view and slots of MAERSK MONTANA

063

  • ←
  • ? / →

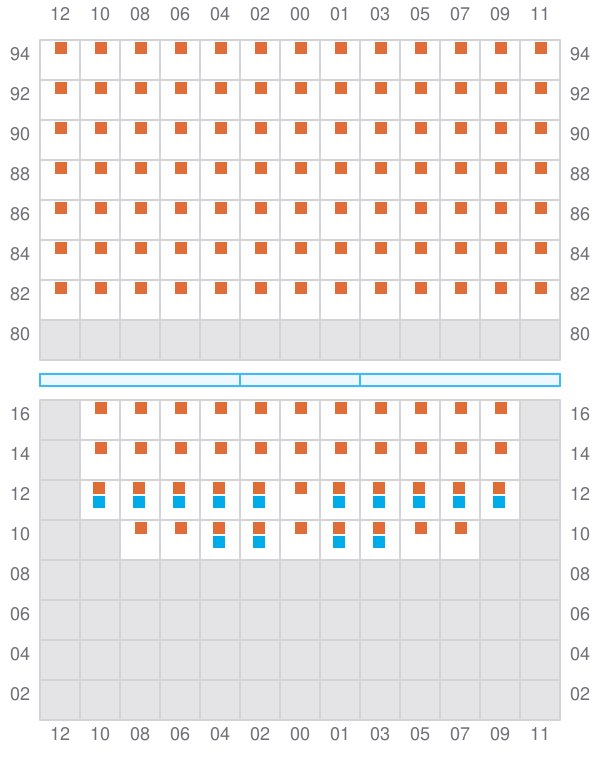

Bay 063 view and slots of MAERSK MONTANA

065 (066)

  • →
  • ← / ?
Bay 065 view and slots of MAERSK MONTANA

067

  • ←

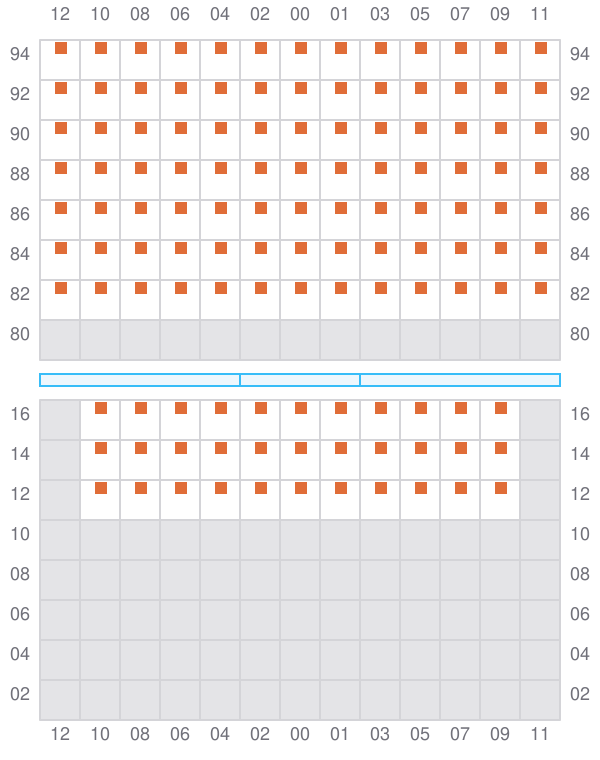

Bay 067 view and slots of MAERSK MONTANA

069 (070)

  • → / ?
  • ← / ?

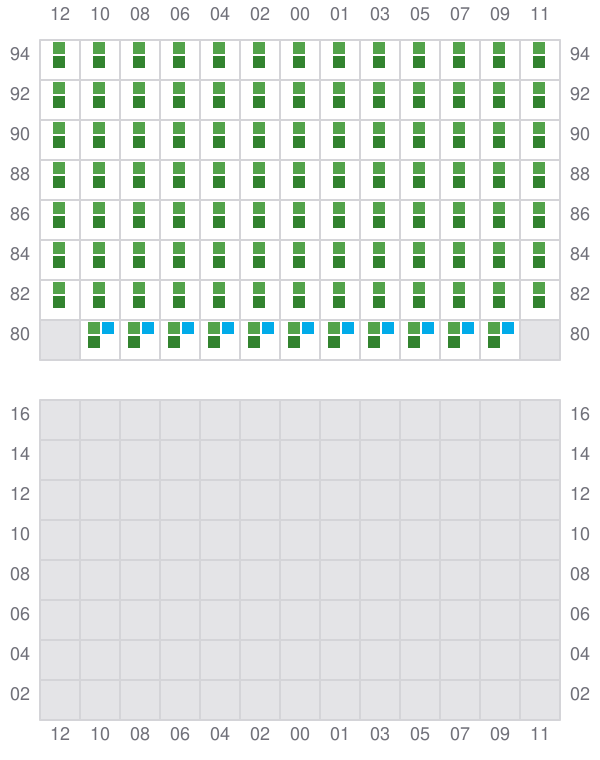

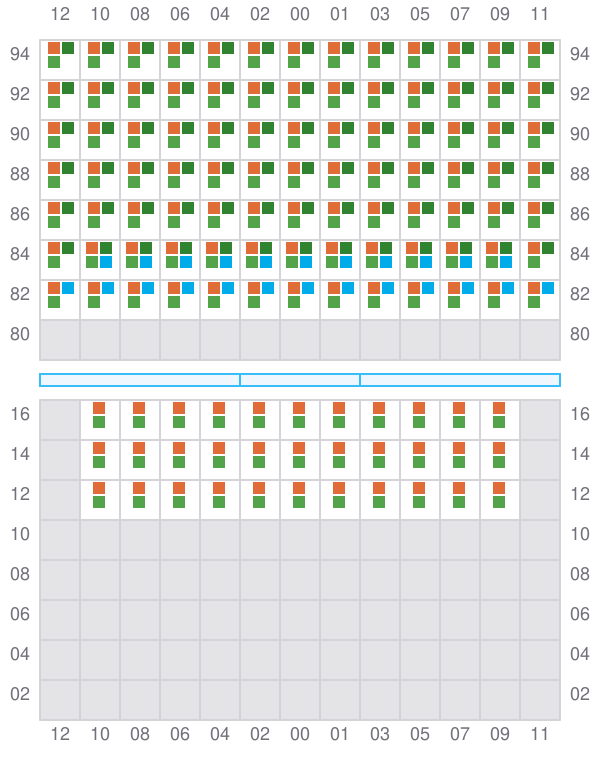

Bay 069 view and slots of MAERSK MONTANA
