MAERSK NAKURU
9356103 | VRKZ8 | 9356103 by ********* Last update: Fri Mar 22 2024

General Info

Ship Name:MAERSK NAKURU
IMO Code:9356103
Call Sign:VRKZ8
Line Operator:9356103
Class Name for Sister Ships:859
Year Built:2008
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-

Size Summary

ISO Bays:045
Max ISO Row:12
Center Line Row:No
Max Above ISO Tier:96
Min Above ISO Tier:82
Max Below ISO Tier:14
Min Below ISO Tier:02
Total TEU:2,645

Centers of Gravity

LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

Side View

Side view of MAERSK NAKURU

Hatch-Covers View

Deck view of MAERSK NAKURU

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot

001 (002)

  • →
Bay 001 view and slots of MAERSK NAKURU

003

  • ←
  • → / ?
Bay 003 view and slots of MAERSK NAKURU

005 (006)

  • →

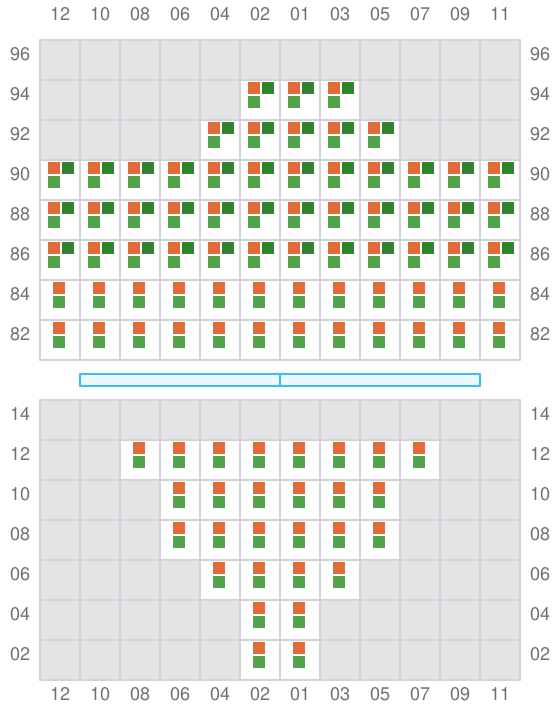

Bay 005 view and slots of MAERSK NAKURU

007

  • ←
  • → / ?
Bay 007 view and slots of MAERSK NAKURU

009 (010)

  • →
Bay 009 view and slots of MAERSK NAKURU

011

  • ←
  • → / ?

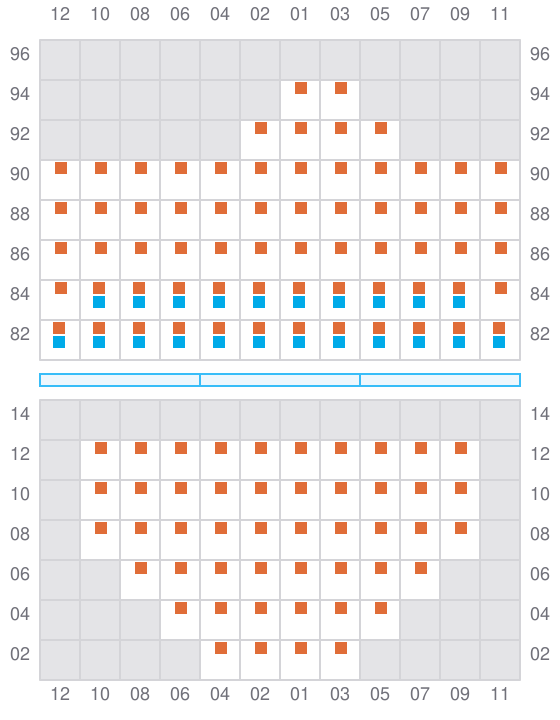

Bay 011 view and slots of MAERSK NAKURU

013 (014)

  • →
Bay 013 view and slots of MAERSK NAKURU

015

  • ←
  • →
Bay 015 view and slots of MAERSK NAKURU

017 (018)

  • →
Bay 017 view and slots of MAERSK NAKURU

019

  • ←
  • →

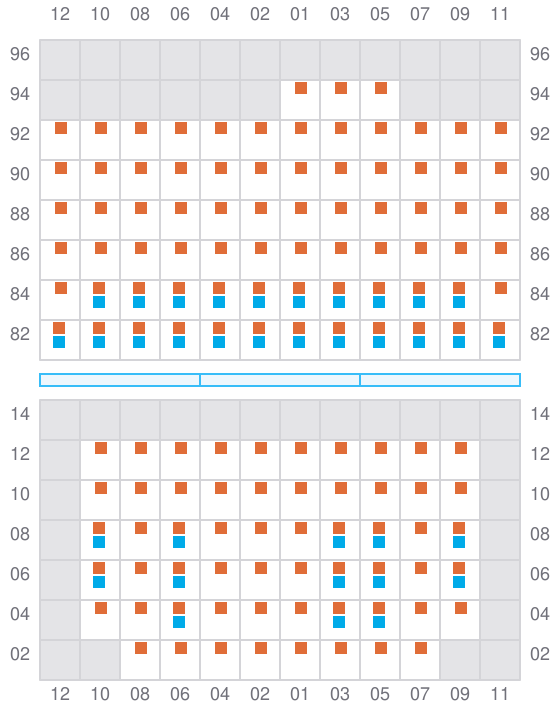

Bay 019 view and slots of MAERSK NAKURU

021 (022)

  • →
  • ←

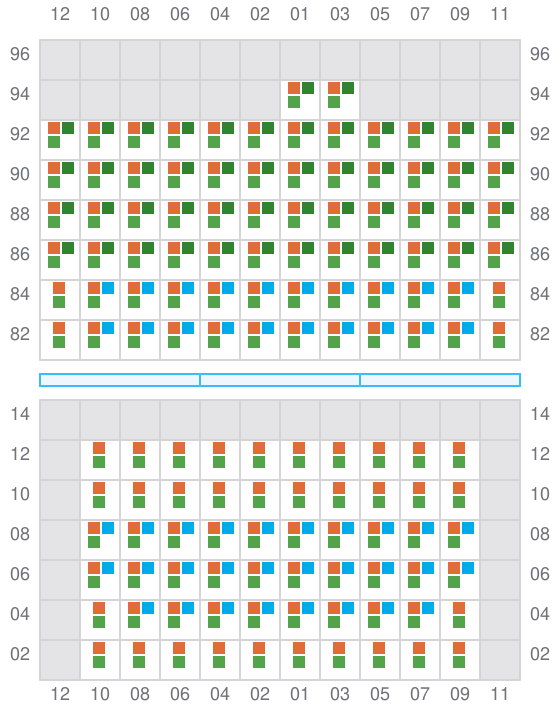

Bay 021 view and slots of MAERSK NAKURU

023

  • ←
  • → / ?

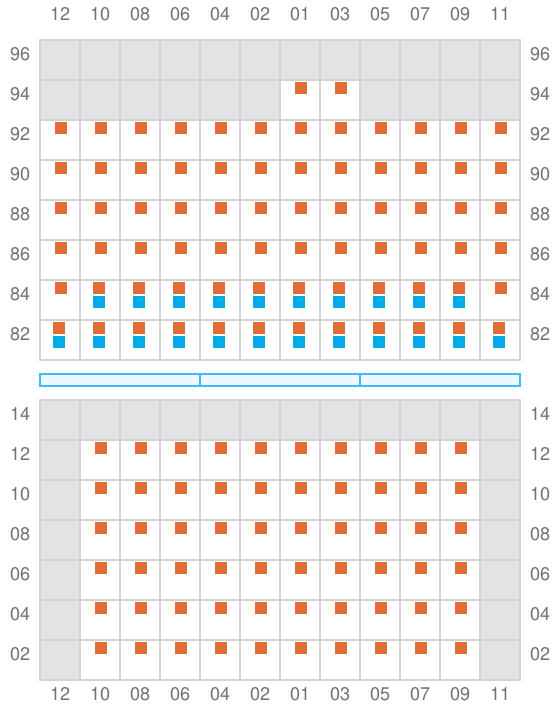

Bay 023 view and slots of MAERSK NAKURU

025 (026)

  • →
  • ← / ?
Bay 025 view and slots of MAERSK NAKURU

027

  • ←
  • →
Bay 027 view and slots of MAERSK NAKURU

029 (030)

  • →
  • ←
Bay 029 view and slots of MAERSK NAKURU

031

  • ←
  • →
Bay 031 view and slots of MAERSK NAKURU

033 (034)

  • →
  • ← / ?
Bay 033 view and slots of MAERSK NAKURU

035

  • ←
  • →
Bay 035 view and slots of MAERSK NAKURU

037 (038)

  • →
  • ←
Bay 037 view and slots of MAERSK NAKURU

039

  • ←
  • → / ?

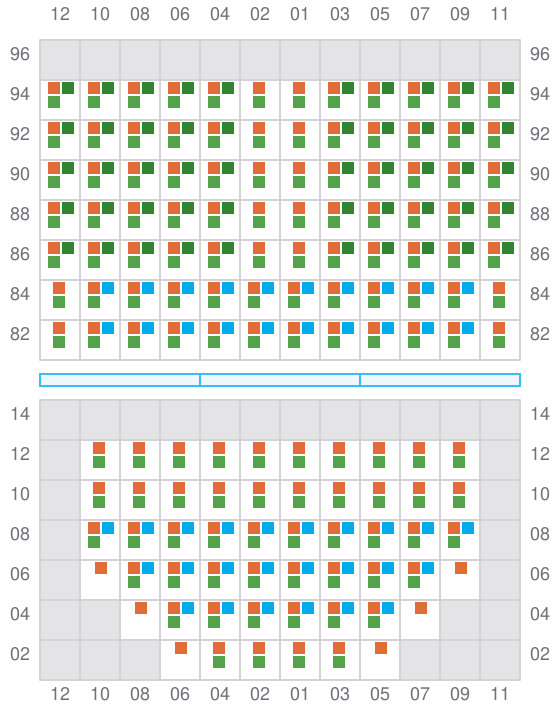

Bay 039 view and slots of MAERSK NAKURU

041

  • → / ?

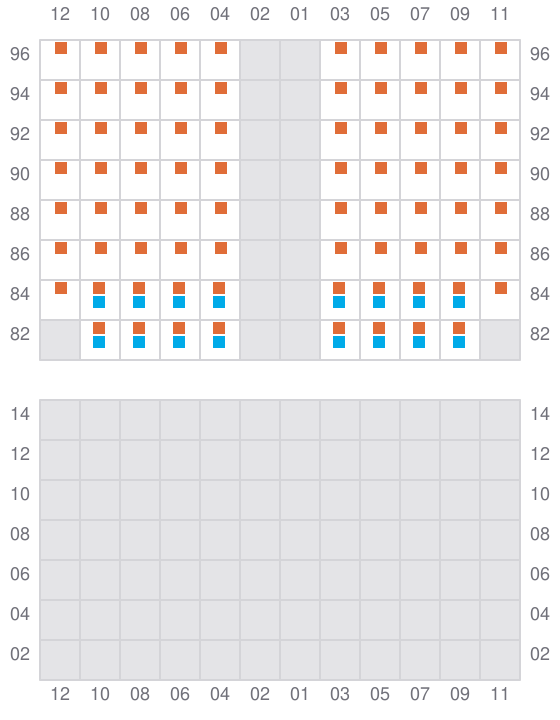

Bay 041 view and slots of MAERSK NAKURU

043 (044)

  • → / ?
Bay 043 view and slots of MAERSK NAKURU

045

  • ← / ?
  • → / ?

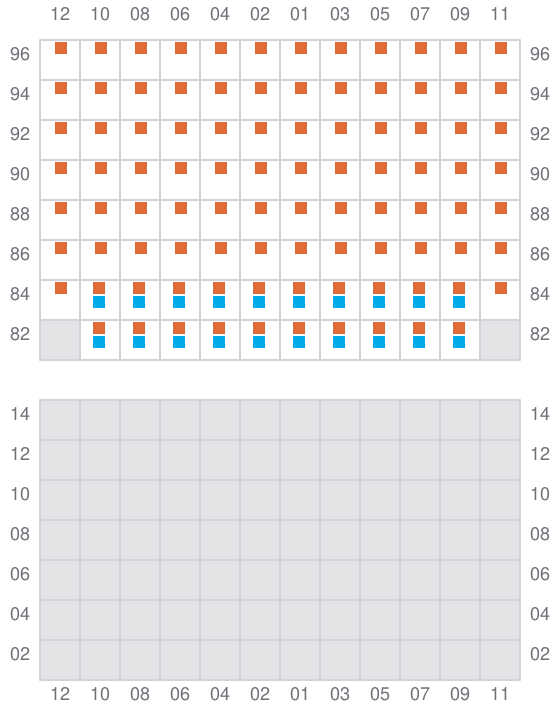

Bay 045 view and slots of MAERSK NAKURU
