MAERSK NARMADA
9356098 | VRKZ6 | 9356098 by ********* Last update: Thu Mar 21 2024

General Info

Ship Name:MAERSK NARMADA
IMO Code:9356098
Call Sign:VRKZ6
Line Operator:9356098
Class Name for Sister Ships:858
Year Built:2008
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-

Size Summary

ISO Bays:045
Max ISO Row:12
Center Line Row:No
Max Above ISO Tier:96
Min Above ISO Tier:82
Max Below ISO Tier:14
Min Below ISO Tier:02
Total TEU:2,645

Centers of Gravity

LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

Side View

Side view of MAERSK NARMADA

Hatch-Covers View

Deck view of MAERSK NARMADA

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot

001 (002)

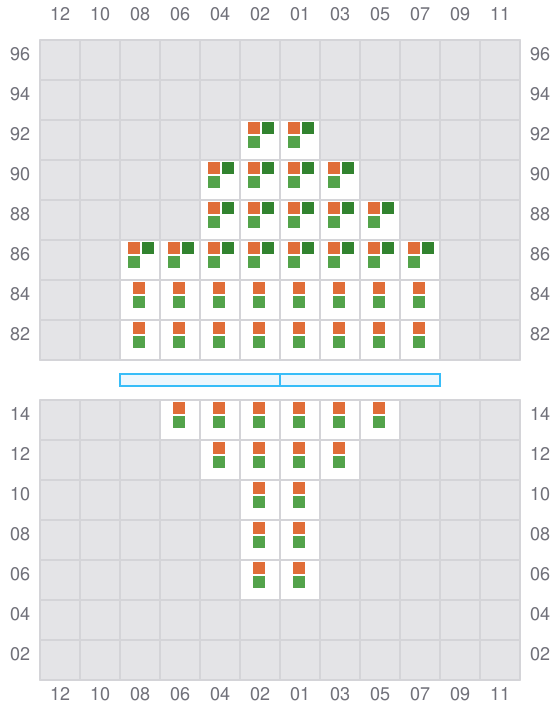

Bay 001 view and slots of MAERSK NARMADA

003

  • / ?

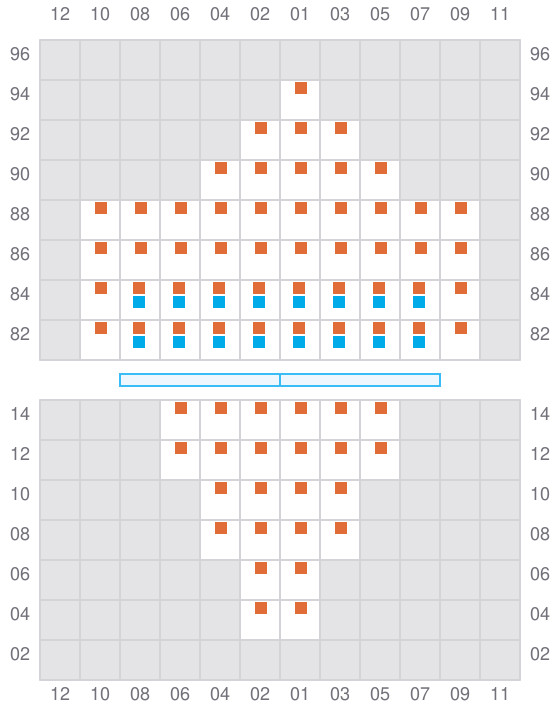

Bay 003 view and slots of MAERSK NARMADA

005 (006)

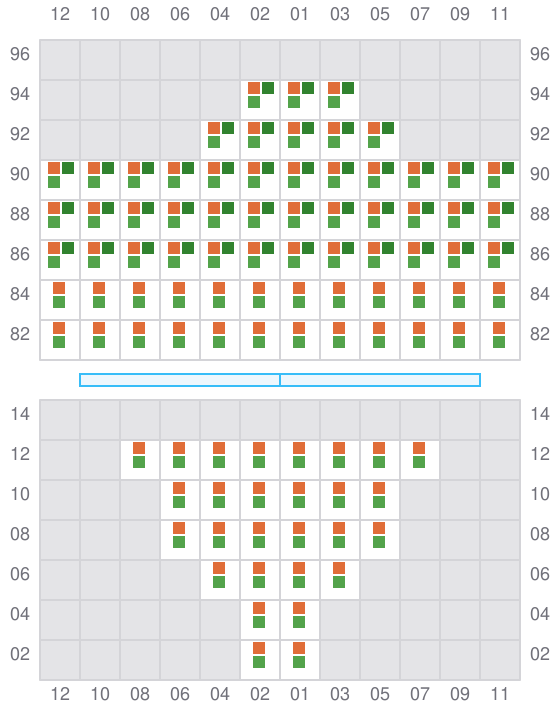

Bay 005 view and slots of MAERSK NARMADA

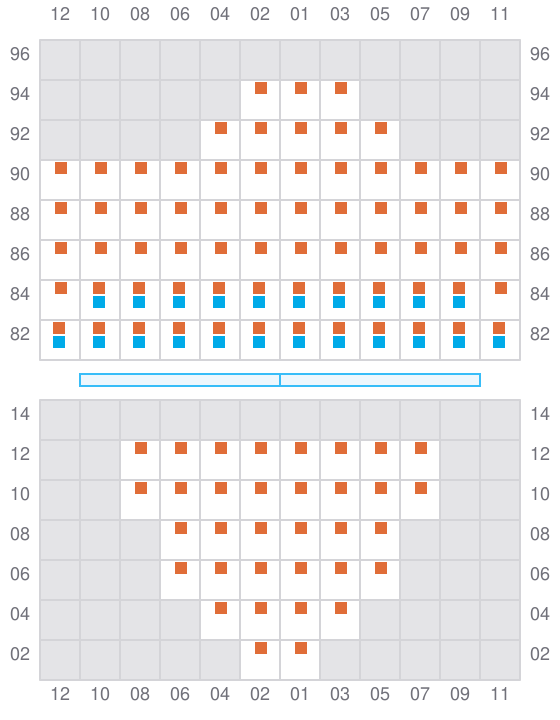

007

  • / ?
Bay 007 view and slots of MAERSK NARMADA

009 (010)

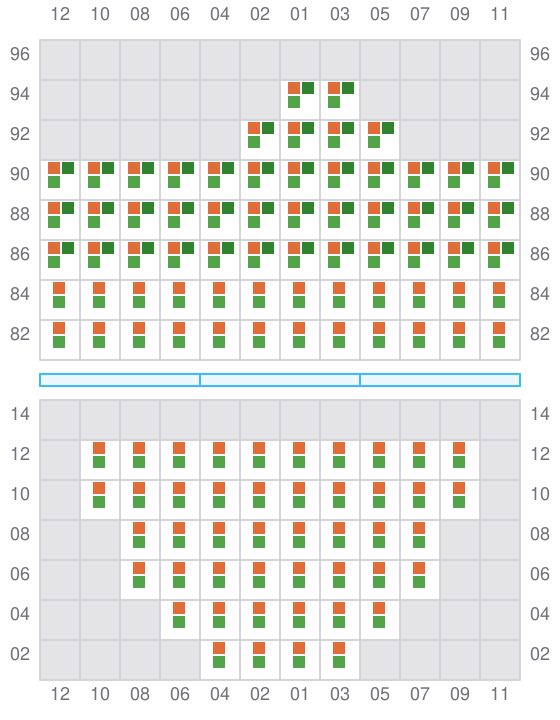

Bay 009 view and slots of MAERSK NARMADA

011

  • / ?

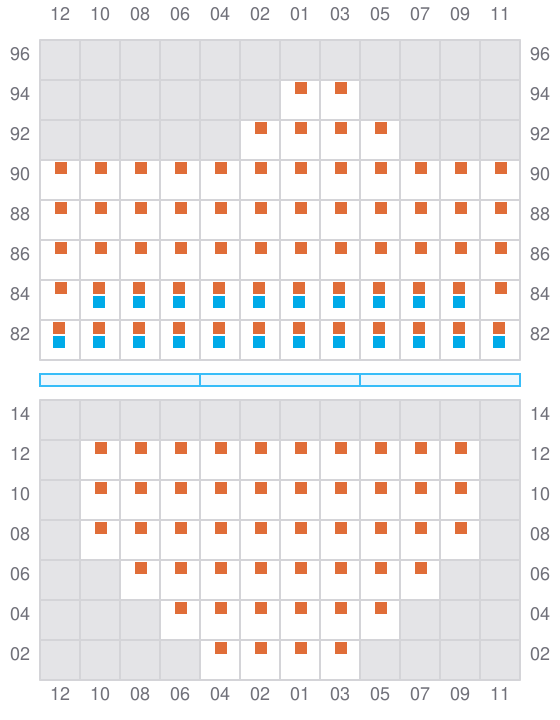

Bay 011 view and slots of MAERSK NARMADA

013 (014)

Bay 013 view and slots of MAERSK NARMADA

015

Bay 015 view and slots of MAERSK NARMADA

017 (018)

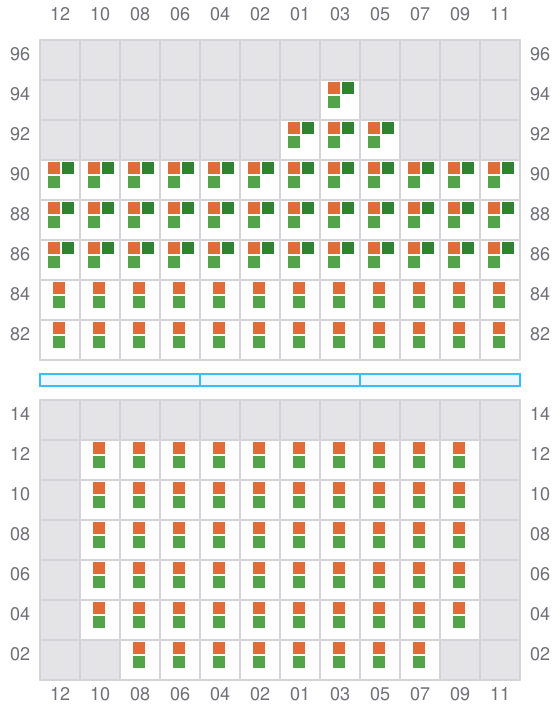

Bay 017 view and slots of MAERSK NARMADA

019

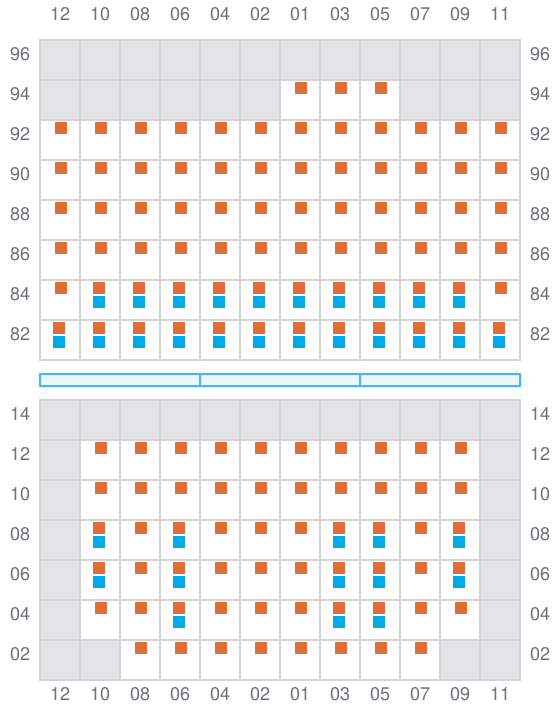

Bay 019 view and slots of MAERSK NARMADA

021 (022)

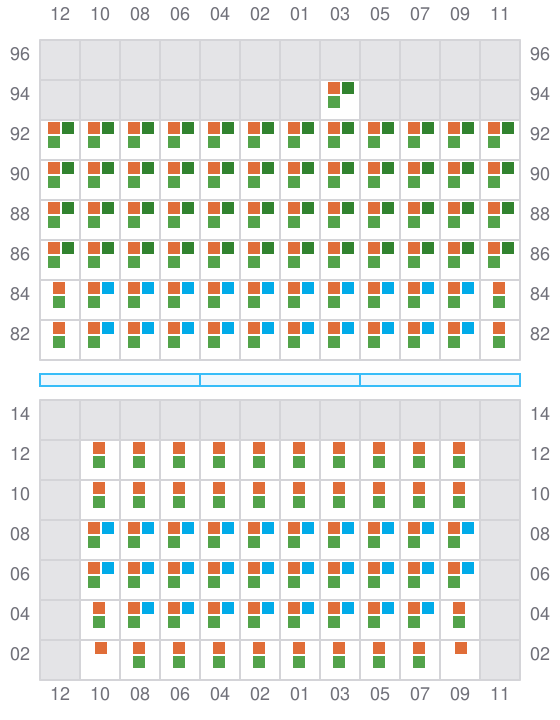

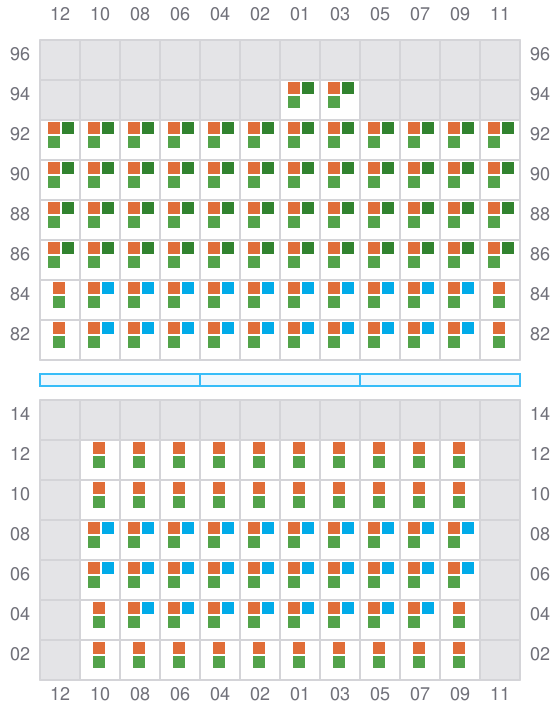

Bay 021 view and slots of MAERSK NARMADA

023

  • / ?

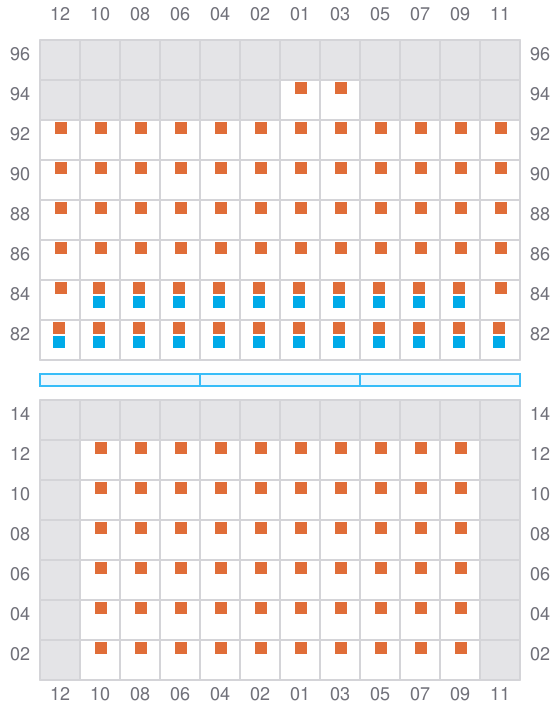

Bay 023 view and slots of MAERSK NARMADA

025 (026)

  • / ?

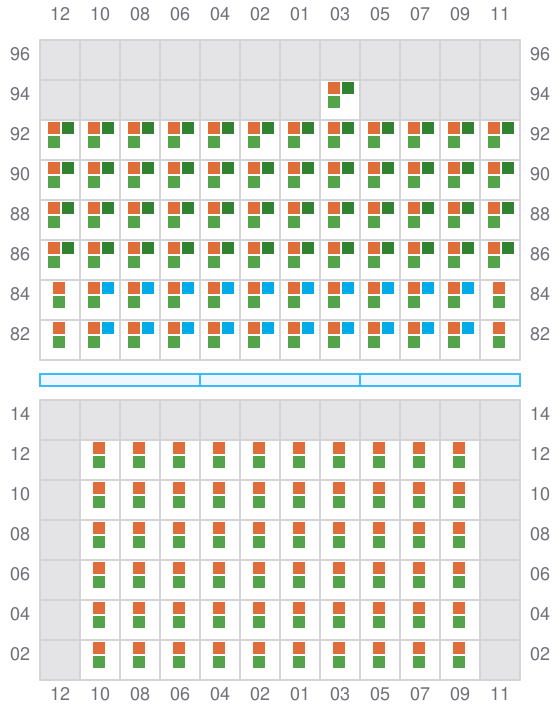

Bay 025 view and slots of MAERSK NARMADA

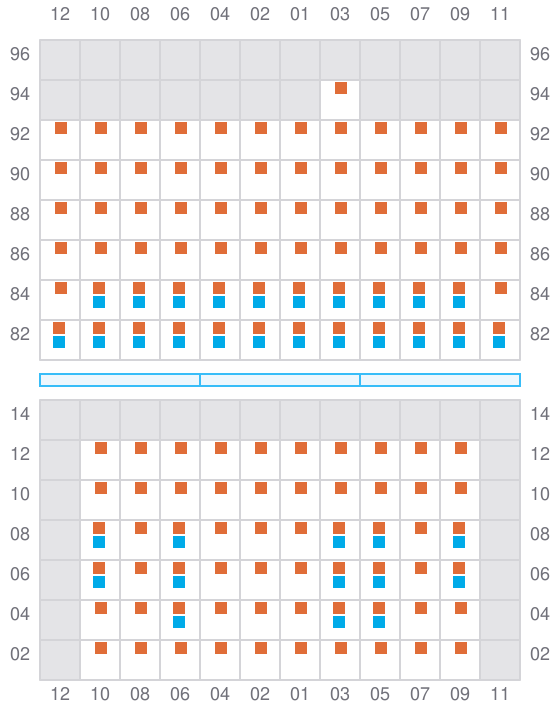

027

Bay 027 view and slots of MAERSK NARMADA

029 (030)

Bay 029 view and slots of MAERSK NARMADA

031

Bay 031 view and slots of MAERSK NARMADA

033 (034)

  • / ?

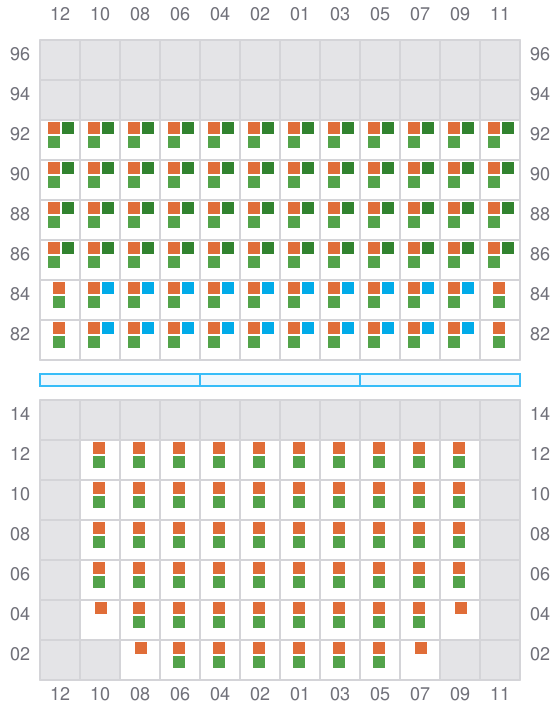

Bay 033 view and slots of MAERSK NARMADA

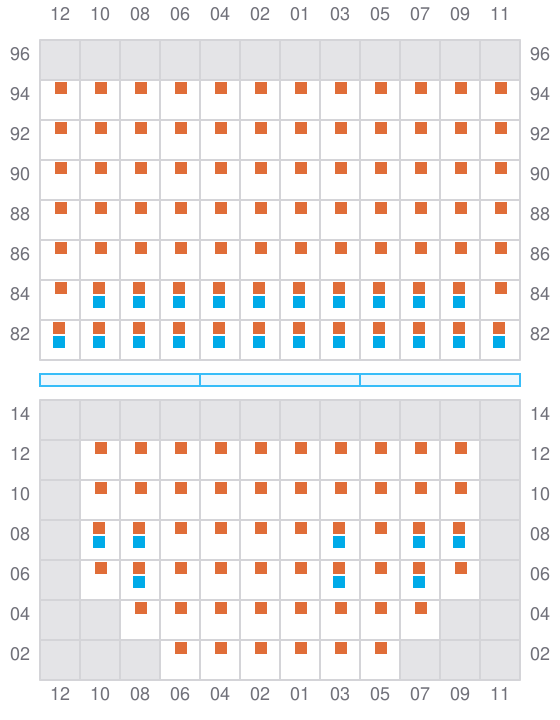

035

Bay 035 view and slots of MAERSK NARMADA

037 (038)

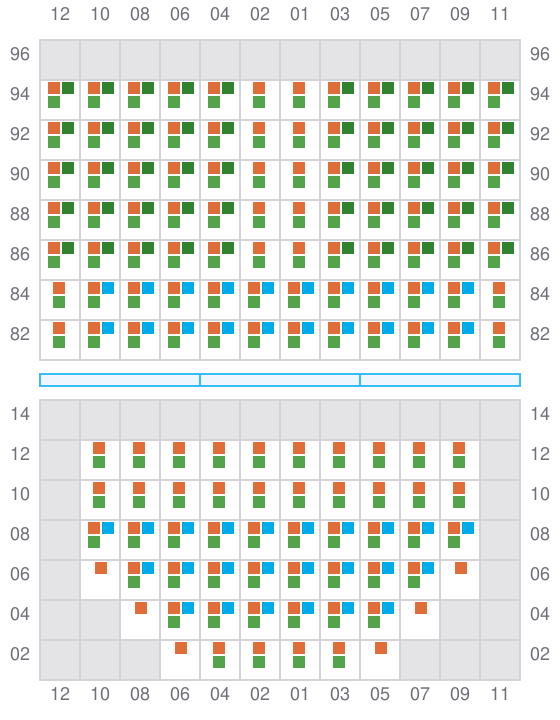

Bay 037 view and slots of MAERSK NARMADA

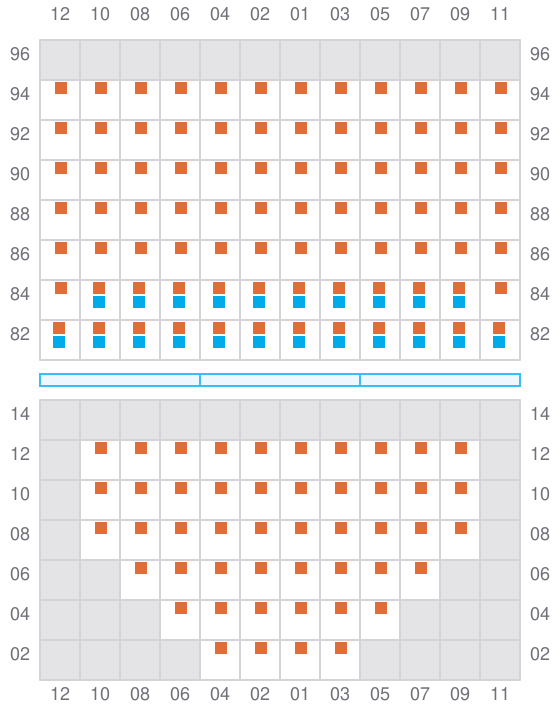

039

  • / ?
Bay 039 view and slots of MAERSK NARMADA

041

  • / ?
Bay 041 view and slots of MAERSK NARMADA

043 (044)

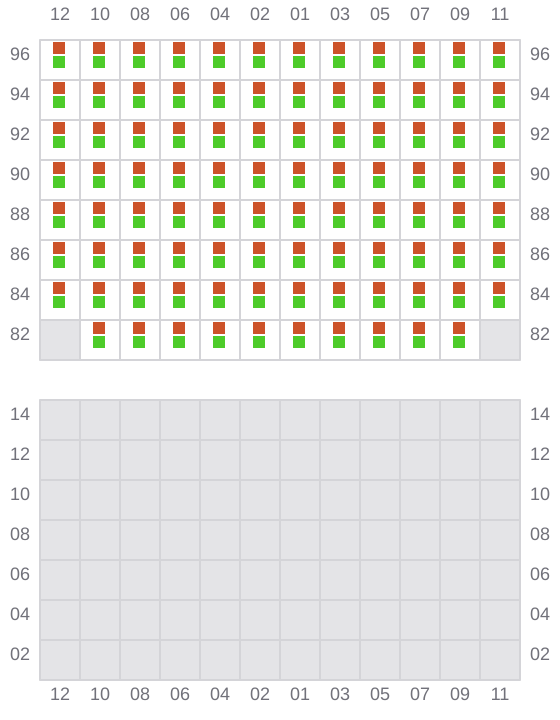

Bay 043 view and slots of MAERSK NARMADA

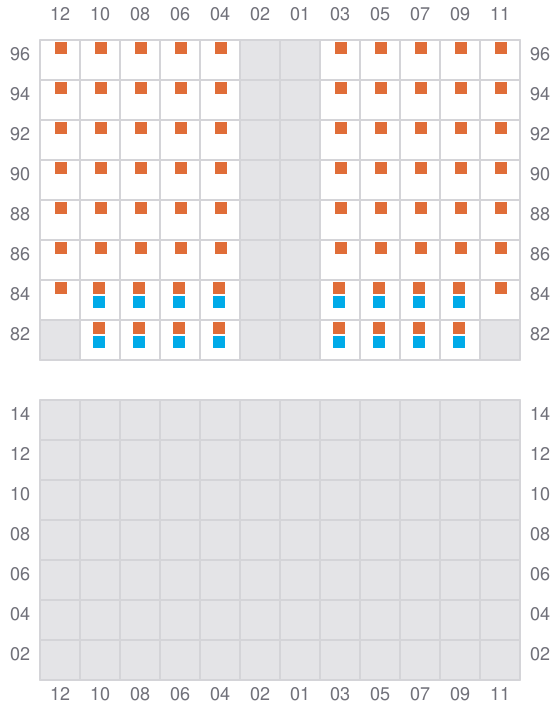

045

  • / ?

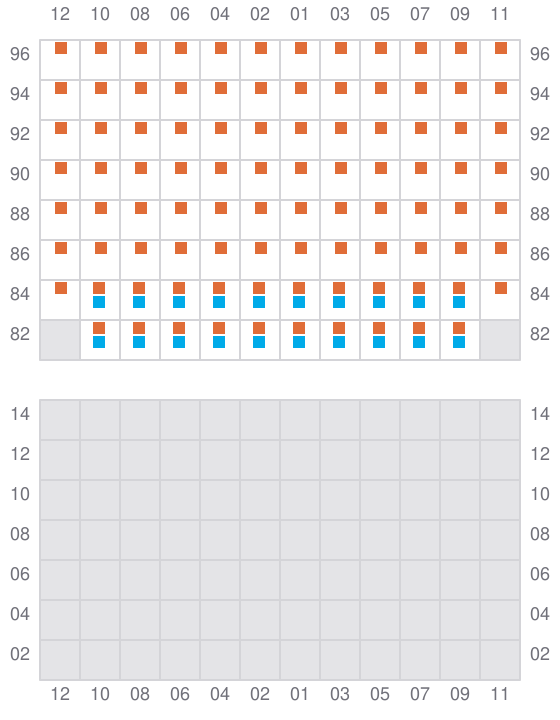

Bay 045 view and slots of MAERSK NARMADA
