MAERSK NESTON
9215907 | 9V3532 | 9215907 by ********* Last update: Thu Mar 14 2024
General Info
Ship Name:MAERSK NESTON
IMO Code:9215907
Call Sign:9V3532
Line Operator:9215907
Class Name for Sister Ships:69D
Year Built:2001
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):199.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-
Size Summary
ISO Bays:047
Max ISO Row:12
Center Line Row:No
Max Above ISO Tier:94
Min Above ISO Tier:82
Max Below ISO Tier:14
Min Below ISO Tier:02
Total TEU:2,556
Centers of Gravity
LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

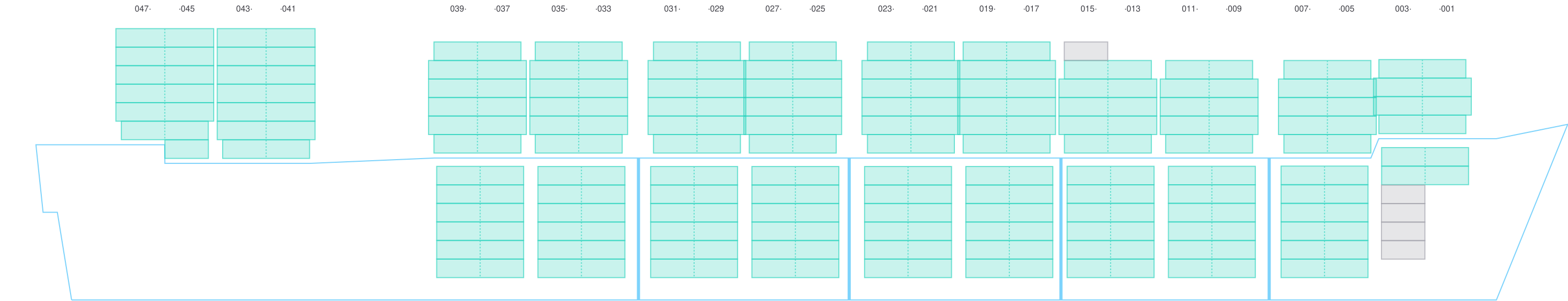

Side View

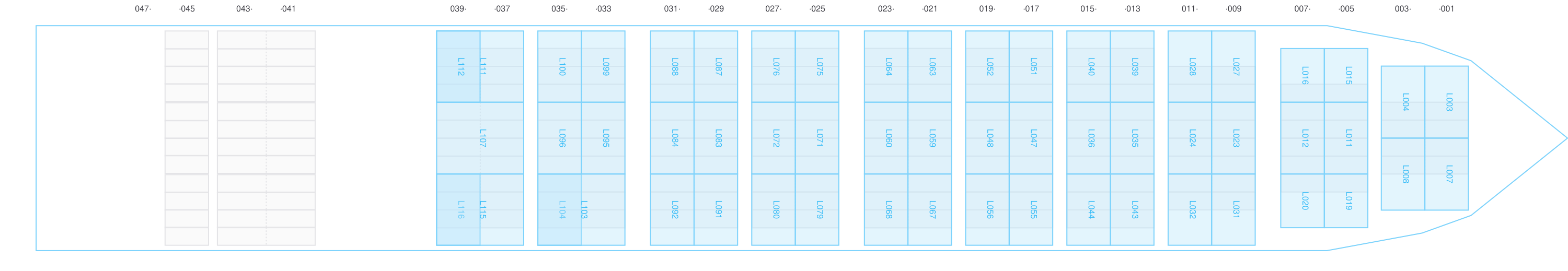

Hatch-Covers View

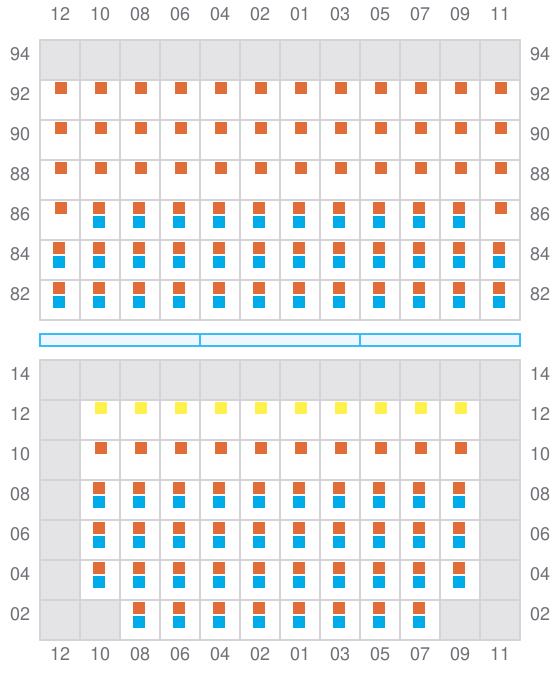

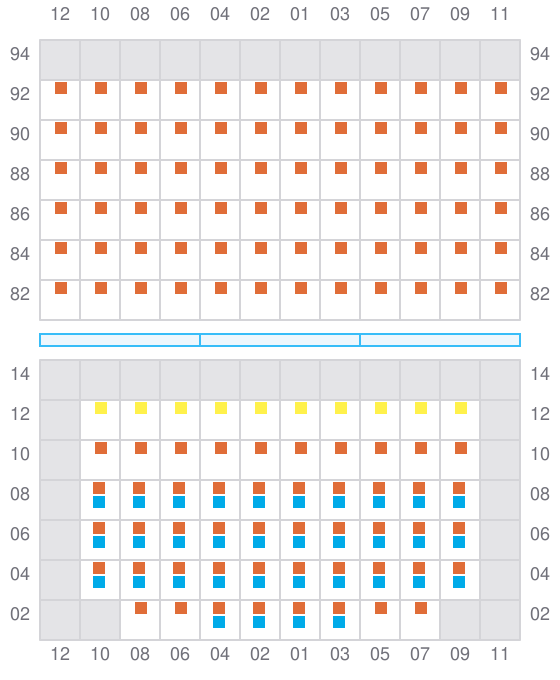

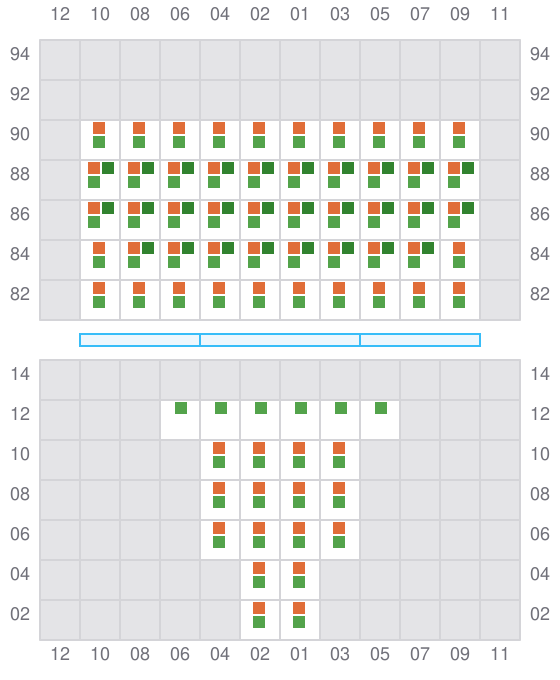

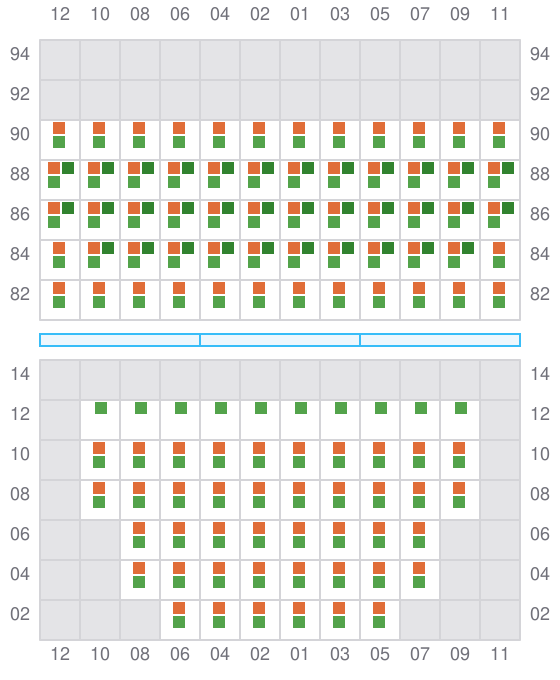

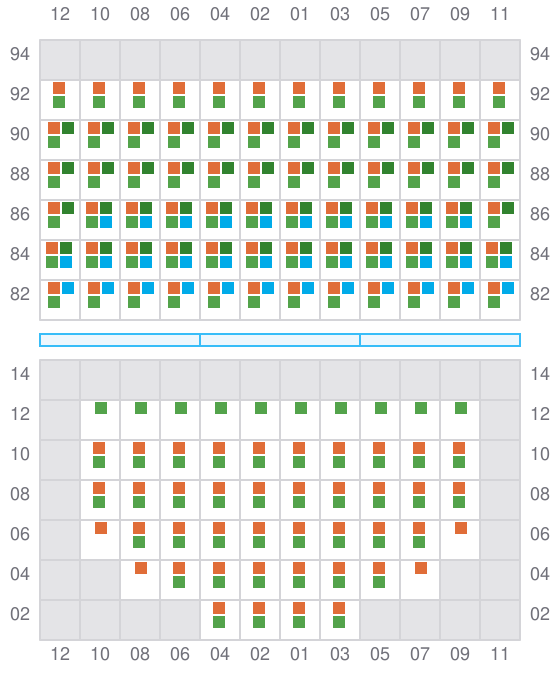

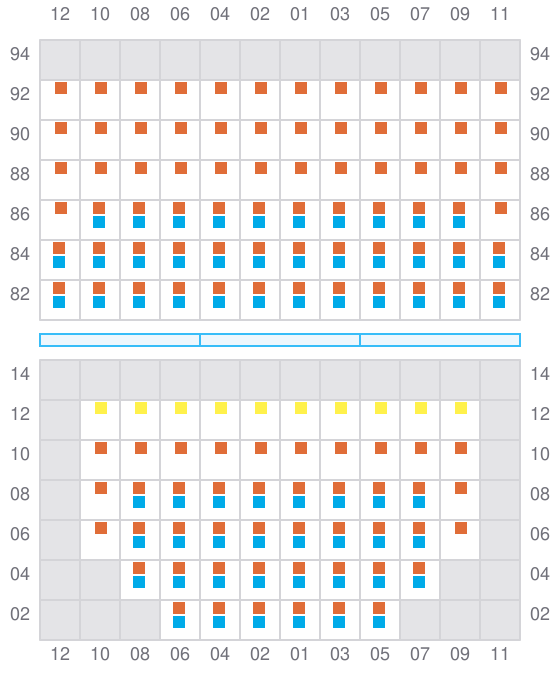

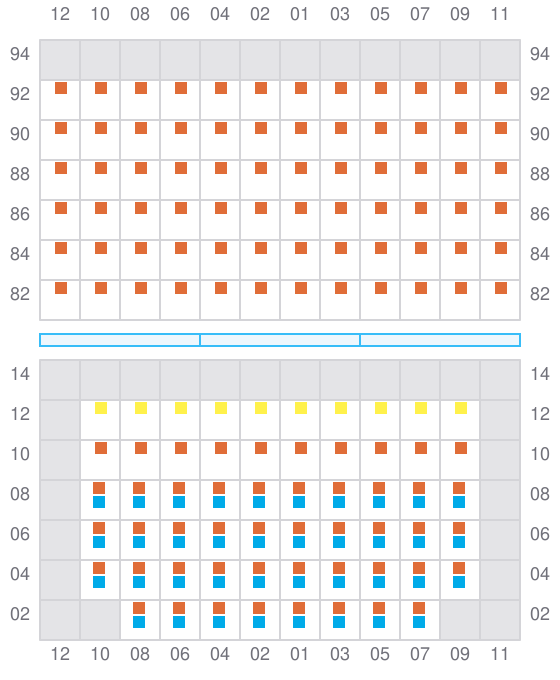

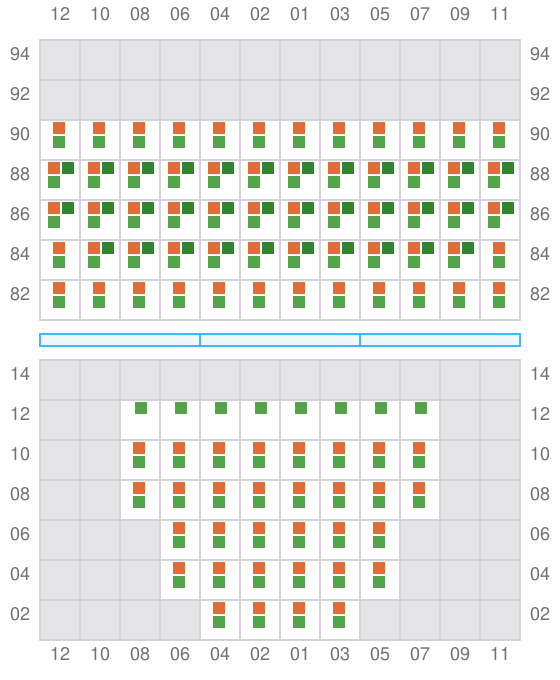

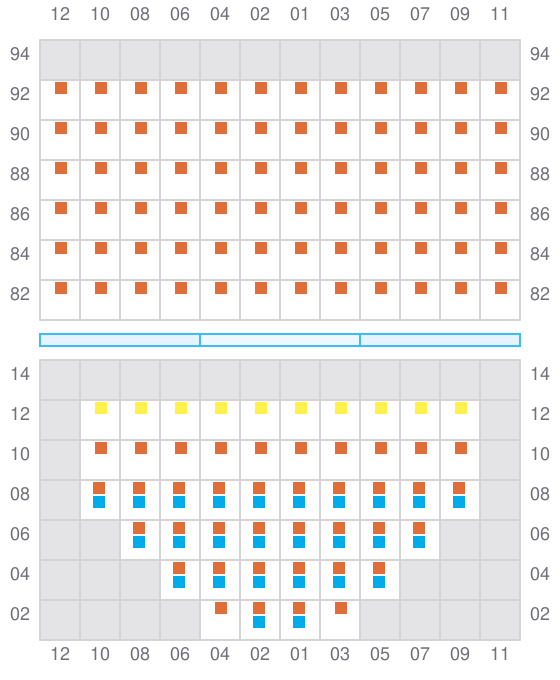

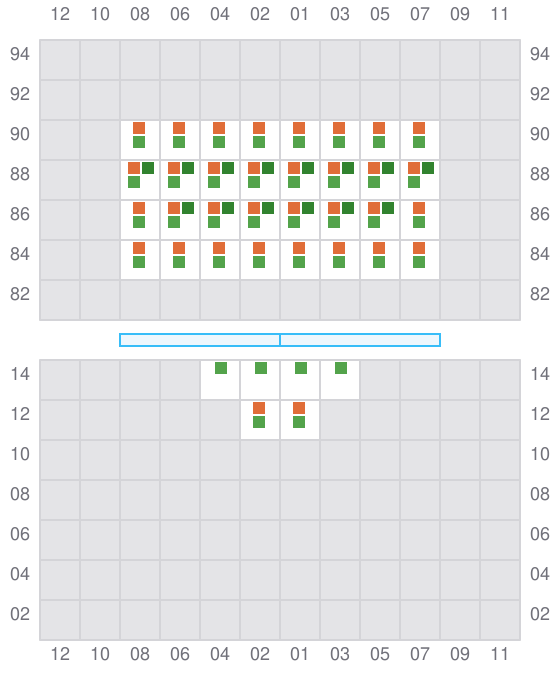

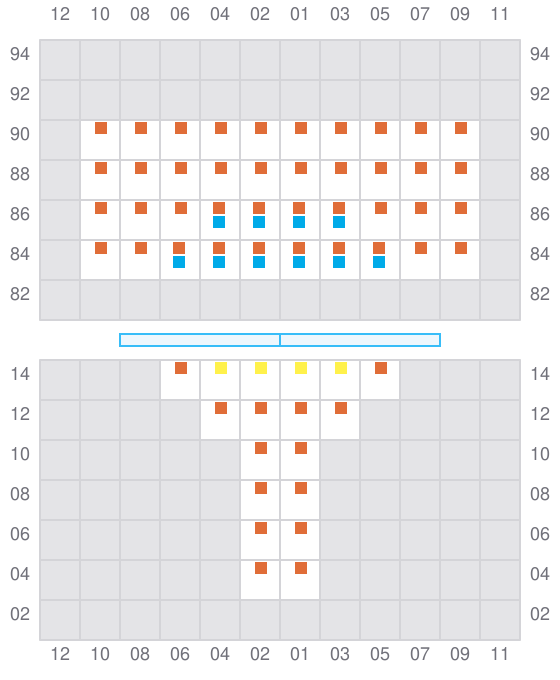

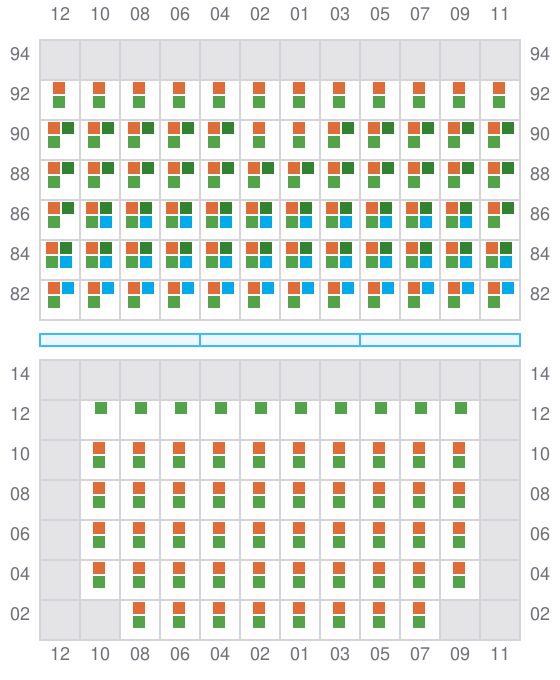

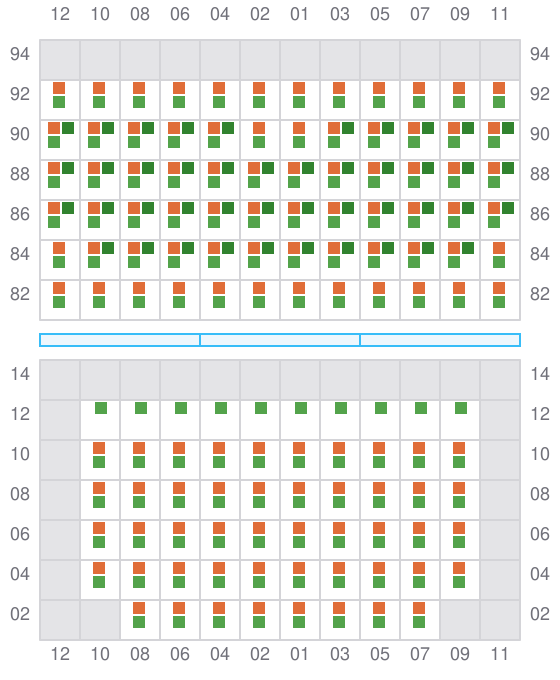

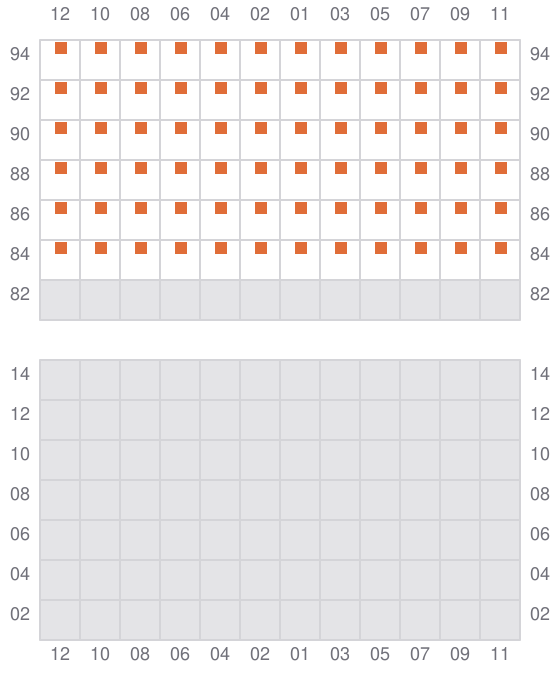

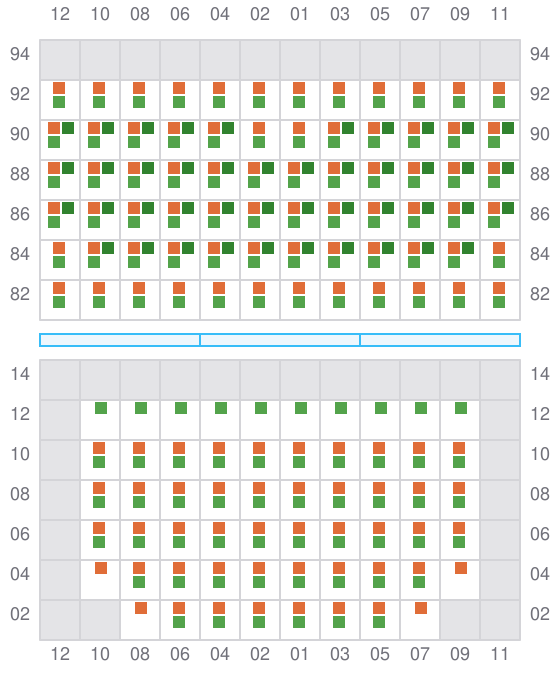

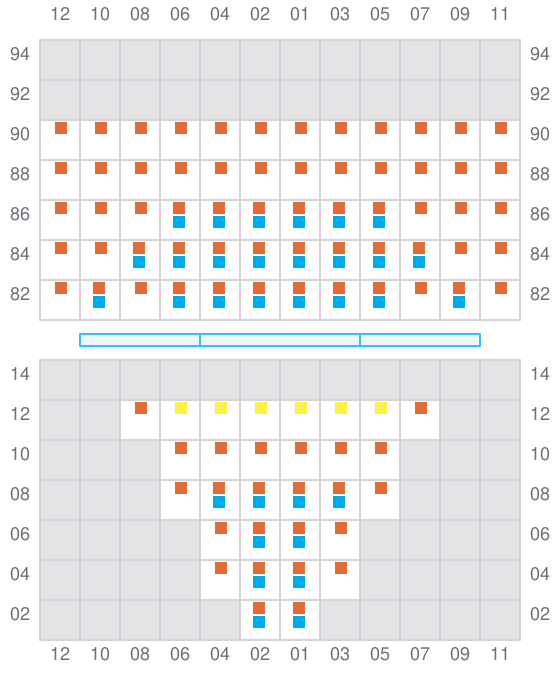

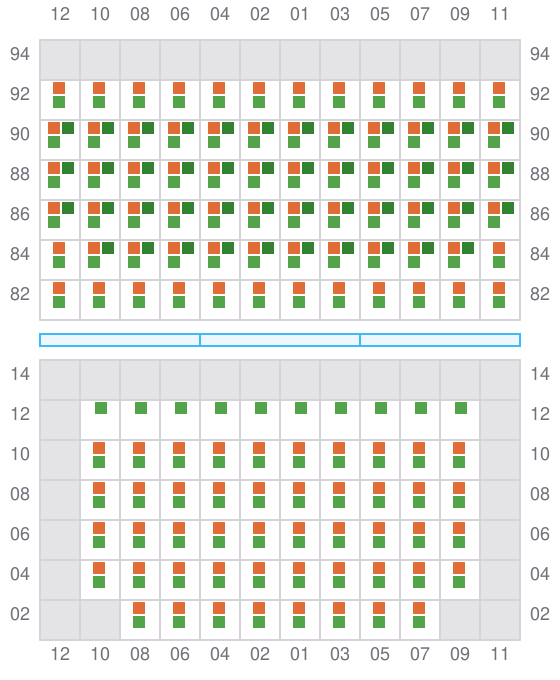

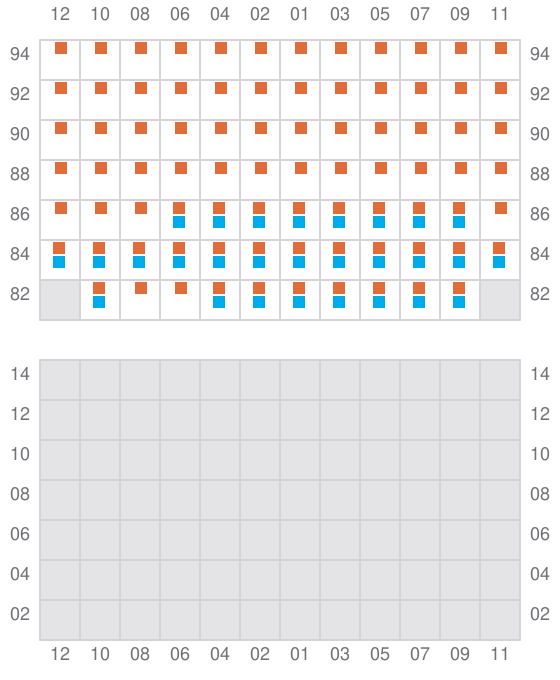

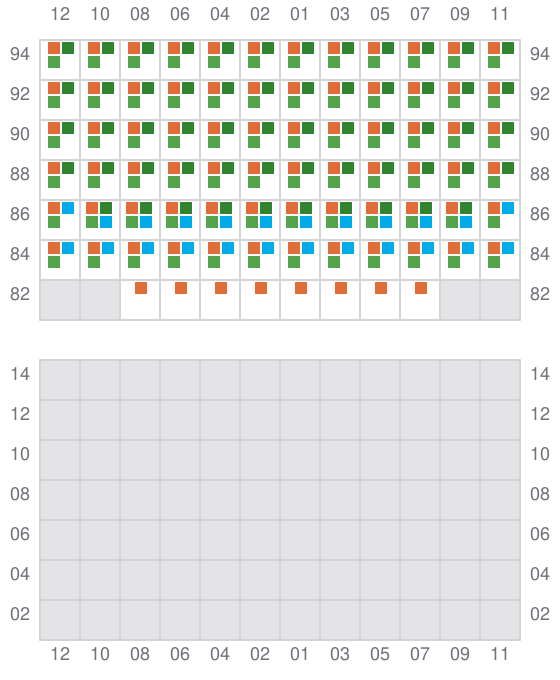

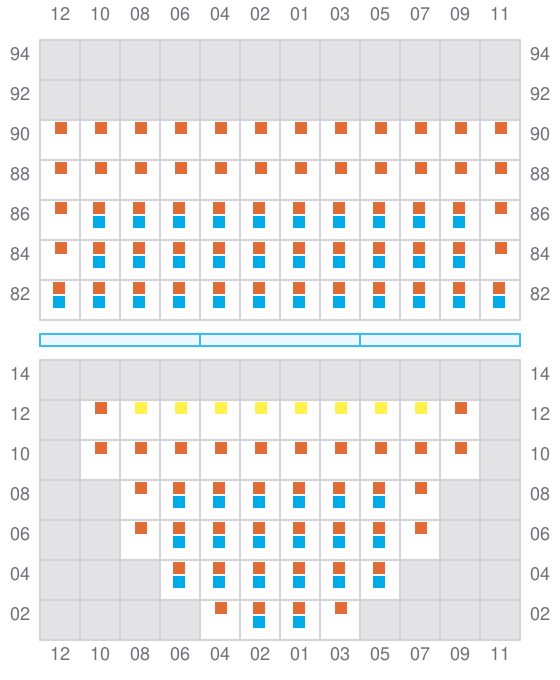

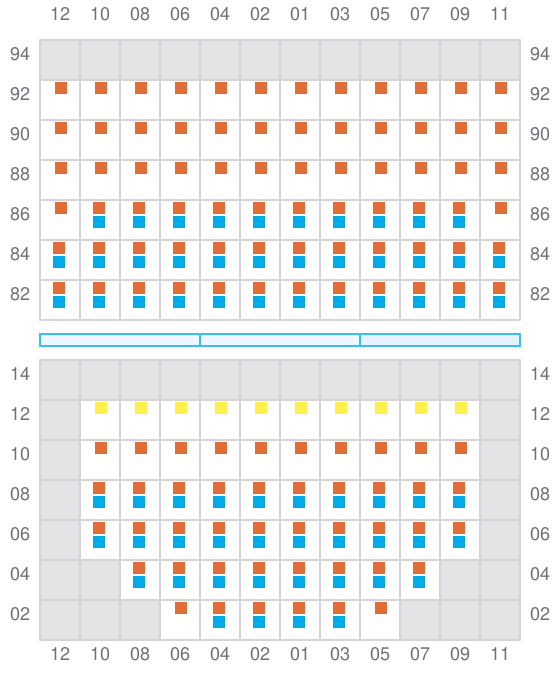

ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot
001 (002)
- →
003
- ←
- → / ?
005 (006)
- →
007
- ←
- →
009 (010)
- →
011
- ←
- →
013 (014)
- →
015
- ←
- →
017 (018)
- →
019
- ←
- →
021 (022)
- →
- ← / ?
023
- ←
- →
025 (026)
- →
027
- ←
- →
029 (030)
- →
- ← / ?
031
- ←
- →
033 (034)
- →
035
- ←
- →
037 (038)
- →
- ← / ?
039
- ←
- →
041 (042)
- → / ?
043
- ← / ?
- → / ?
045 (046)
- → / ?
- ← / ?
047
- ← / ?
