MAERSK NEWCASTLE
9215878 | 9V3533 | 9215878 by ********* Last update: Thu Mar 14 2024

General Info

Ship Name:MAERSK NEWCASTLE
IMO Code:9215878
Call Sign:9V3533
Line Operator:9215878
Class Name for Sister Ships:71D
Year Built:2001
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):199.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-

Size Summary

ISO Bays:047
Max ISO Row:12
Center Line Row:No
Max Above ISO Tier:94
Min Above ISO Tier:82
Max Below ISO Tier:14
Min Below ISO Tier:02
Total TEU:2,556

Centers of Gravity

LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

Side View

Side view of MAERSK NEWCASTLE

Hatch-Covers View

Deck view of MAERSK NEWCASTLE

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot

001 (002)

  • →

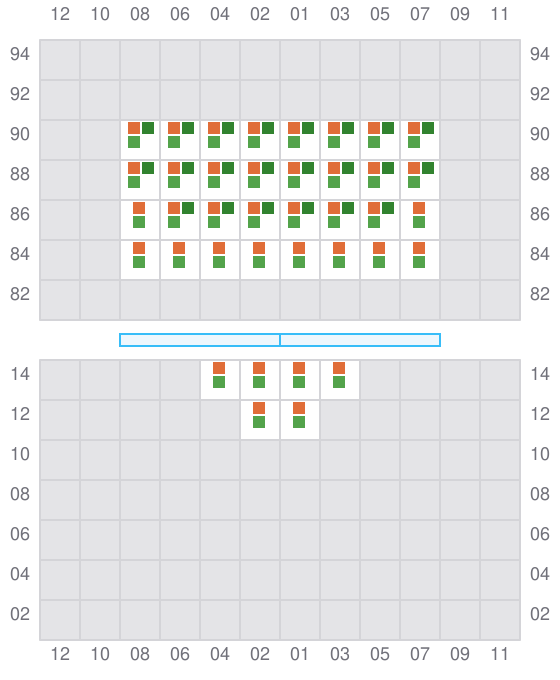

Bay 001 view and slots of MAERSK NEWCASTLE

003

  • ←
  • → / ?

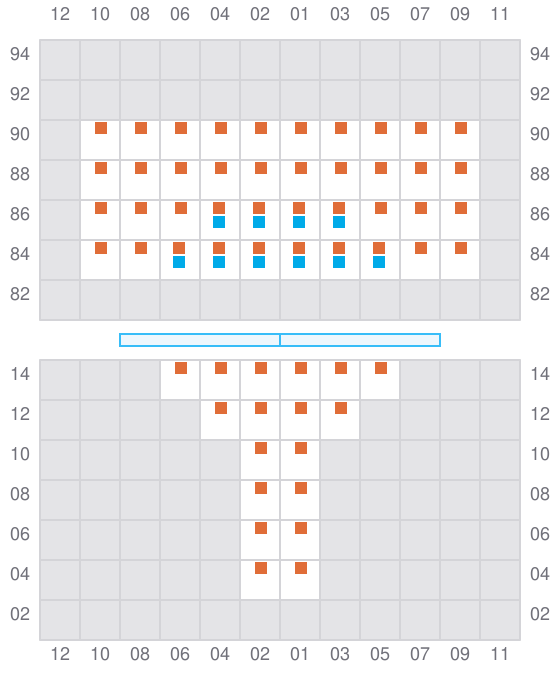

Bay 003 view and slots of MAERSK NEWCASTLE

005 (006)

  • →

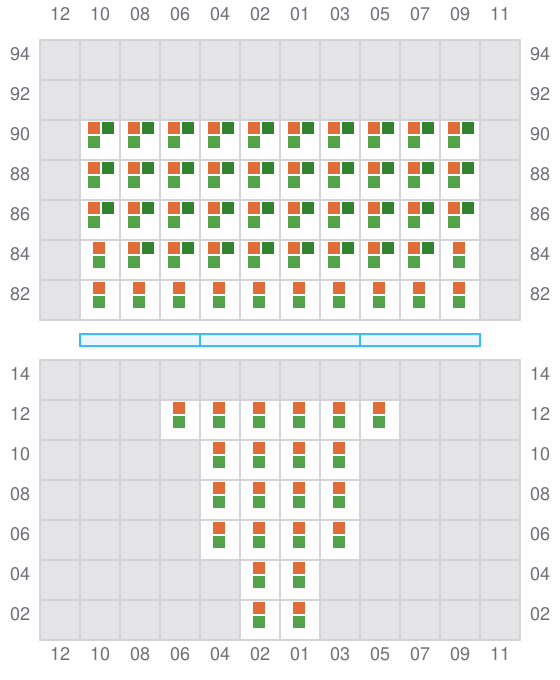

Bay 005 view and slots of MAERSK NEWCASTLE

007

  • ←
  • →

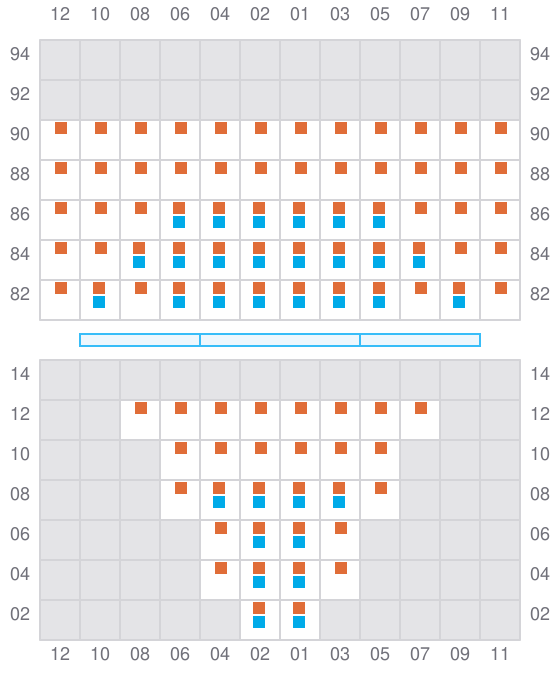

Bay 007 view and slots of MAERSK NEWCASTLE

009 (010)

  • →

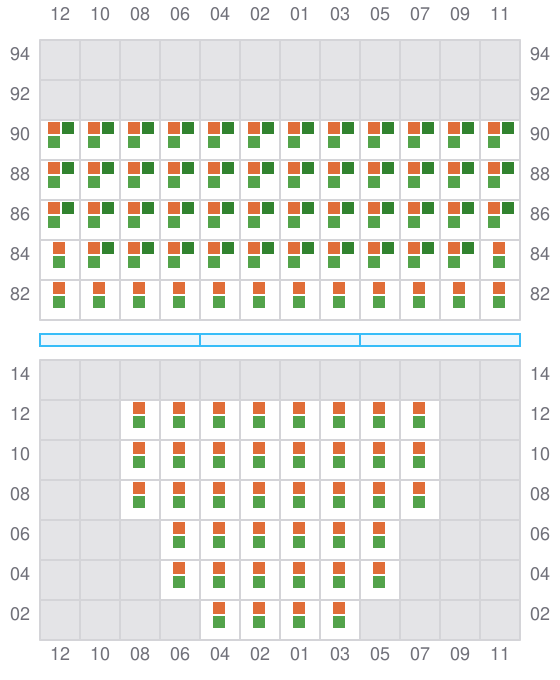

Bay 009 view and slots of MAERSK NEWCASTLE

011

  • ←
  • →

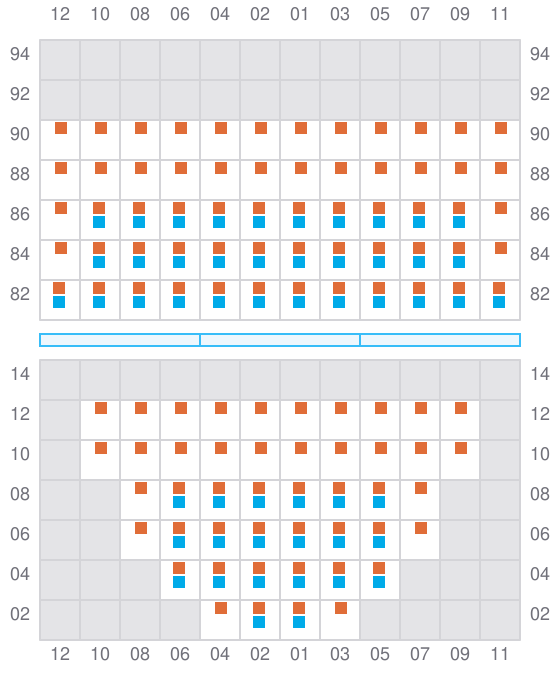

Bay 011 view and slots of MAERSK NEWCASTLE

013 (014)

  • →

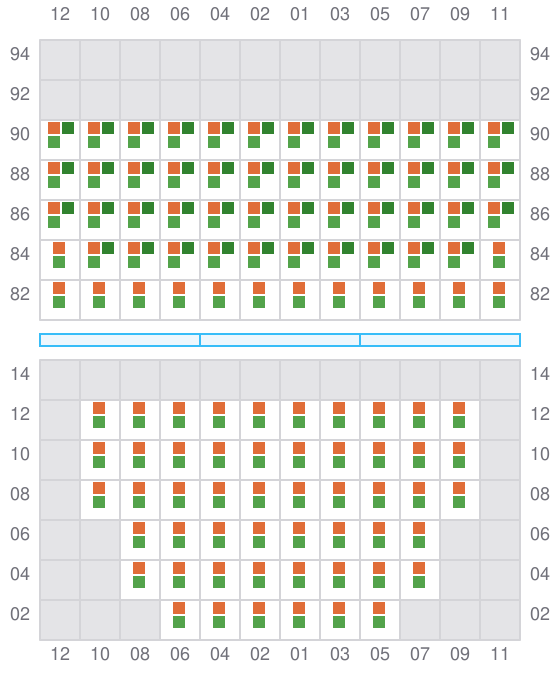

Bay 013 view and slots of MAERSK NEWCASTLE

015

  • ←
  • →

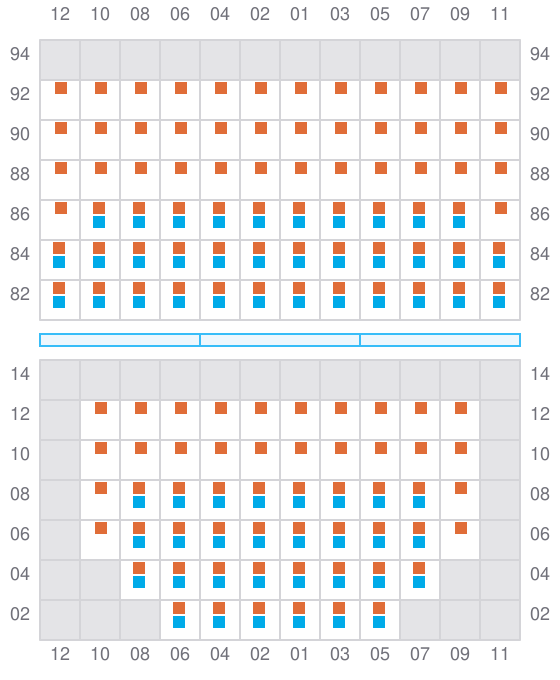

Bay 015 view and slots of MAERSK NEWCASTLE

017 (018)

  • →
Bay 017 view and slots of MAERSK NEWCASTLE

019

  • ←
  • →
Bay 019 view and slots of MAERSK NEWCASTLE

021 (022)

  • →
  • ← / ?

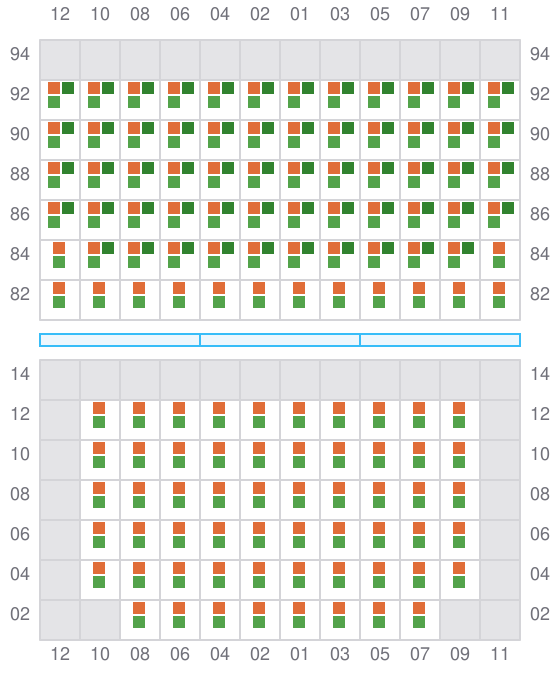

Bay 021 view and slots of MAERSK NEWCASTLE

023

  • ←
  • ? / →

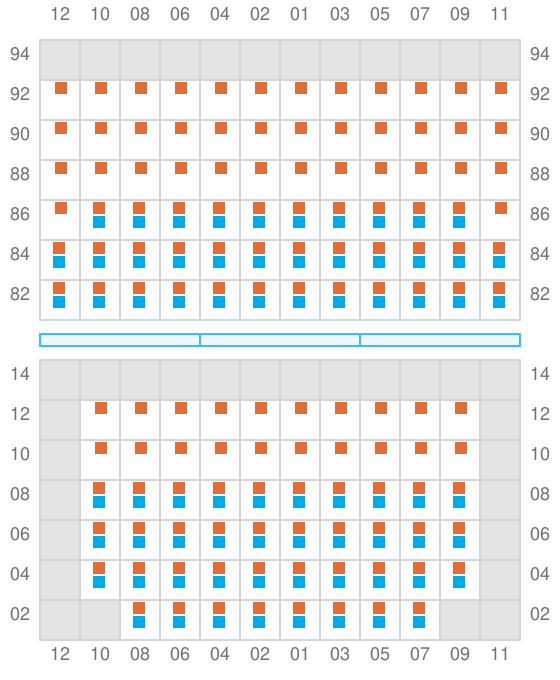

Bay 023 view and slots of MAERSK NEWCASTLE

025 (026)

  • →
Bay 025 view and slots of MAERSK NEWCASTLE

027

  • ←
  • →
Bay 027 view and slots of MAERSK NEWCASTLE

029 (030)

  • →
  • ← / ?
Bay 029 view and slots of MAERSK NEWCASTLE

031

  • ←
  • ? / →

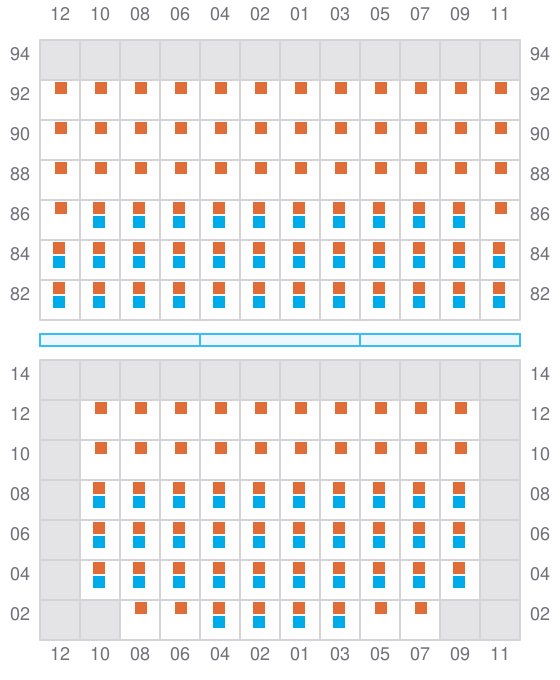

Bay 031 view and slots of MAERSK NEWCASTLE

033 (034)

  • →

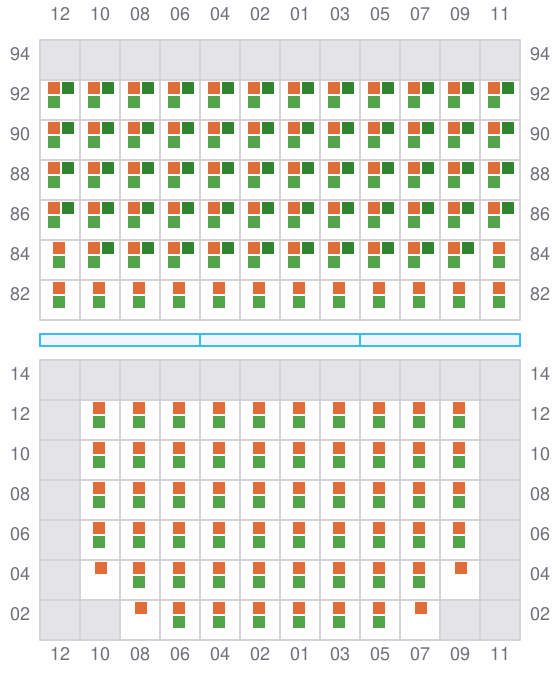

Bay 033 view and slots of MAERSK NEWCASTLE

035

  • ←
  • →

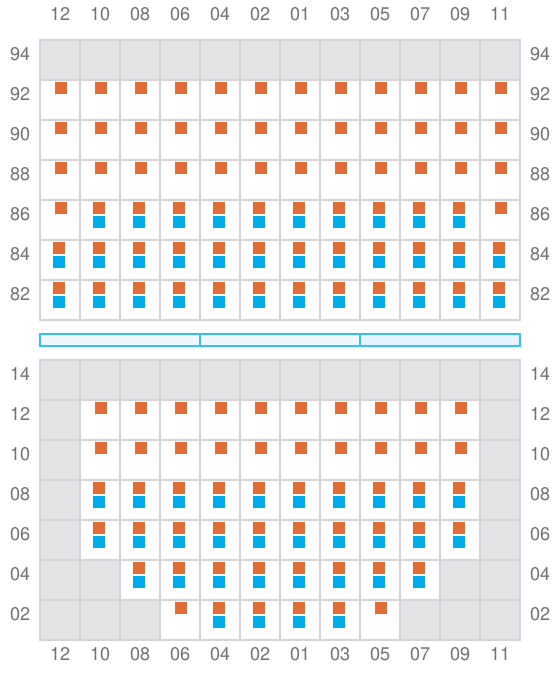

Bay 035 view and slots of MAERSK NEWCASTLE

037 (038)

  • →
  • ← / ?

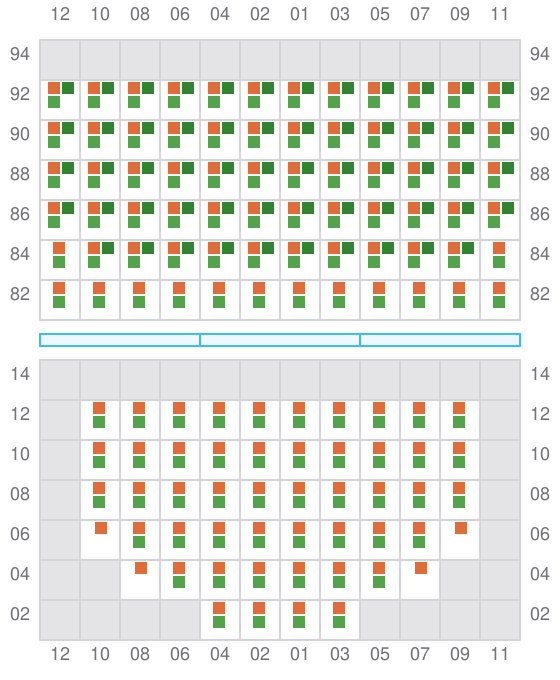

Bay 037 view and slots of MAERSK NEWCASTLE

039

  • ←
  • ? / →

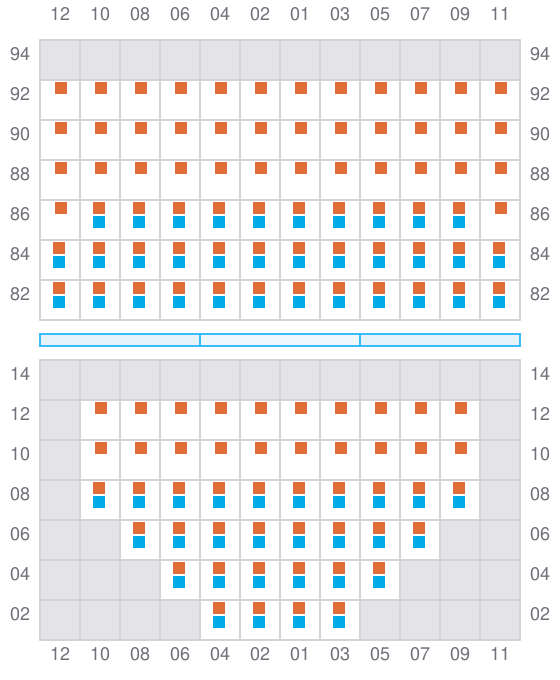

Bay 039 view and slots of MAERSK NEWCASTLE

041 (042)

  • → / ?

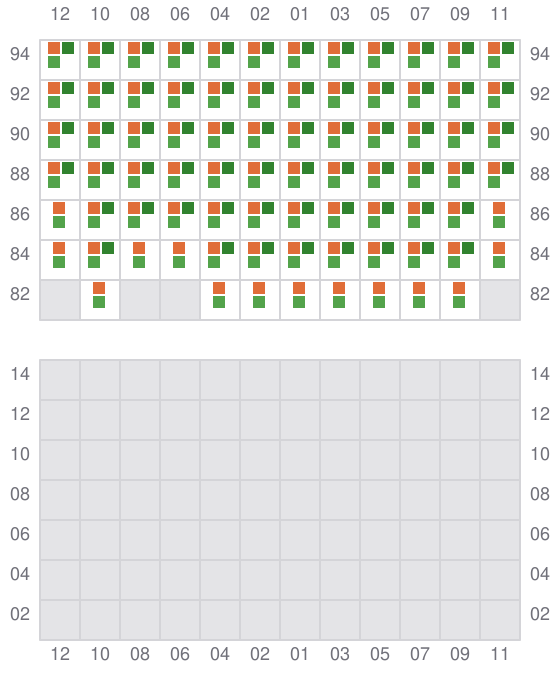

Bay 041 view and slots of MAERSK NEWCASTLE

043

  • ← / ?
  • → / ?

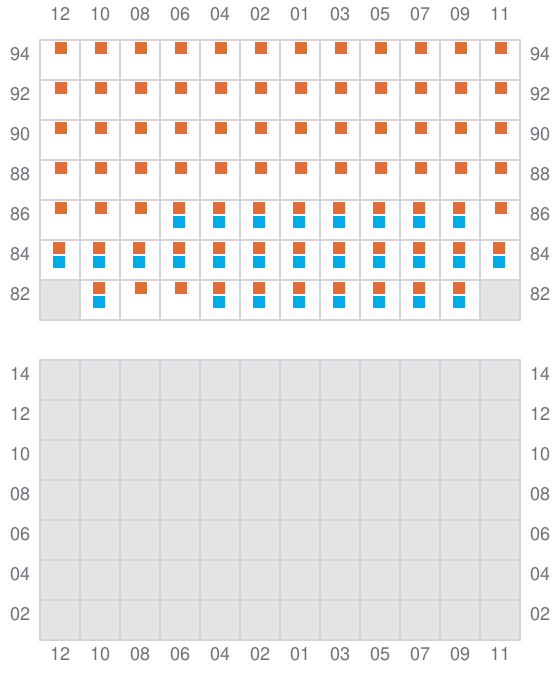

Bay 043 view and slots of MAERSK NEWCASTLE

045 (046)

  • → / ?
  • ← / ?

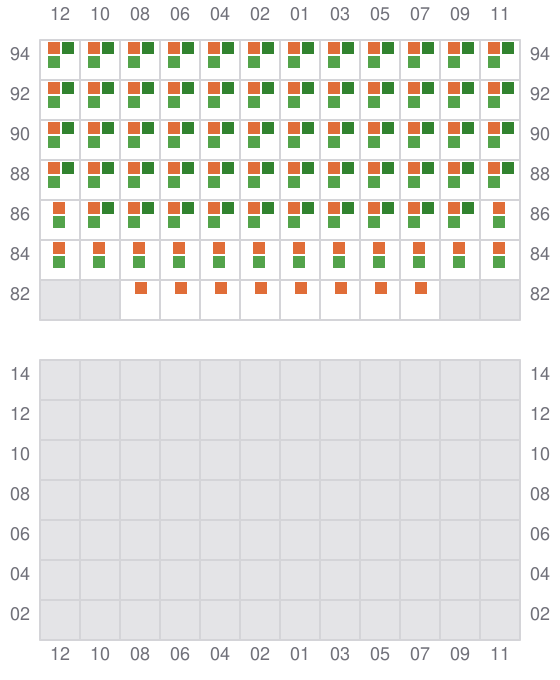

Bay 045 view and slots of MAERSK NEWCASTLE

047

  • ← / ?

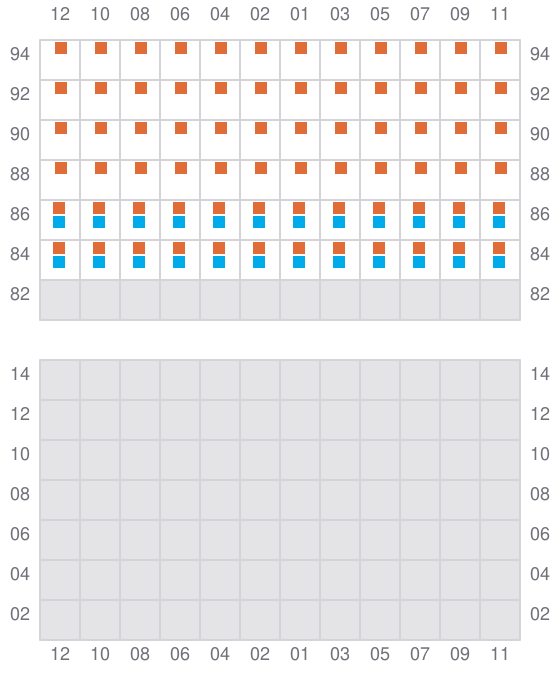

Bay 047 view and slots of MAERSK NEWCASTLE
