The TEDIVO Vessel Designer allows you to create and download your own vessel
definitions.
MAERSK NILE
9385972 | VRDY5 | 9385972 by ********* Last update: Wed Jul 03 2024
General Info
Ship Name:MAERSK NILE
IMO Code:9385972
Call Sign:VRDY5
Line Operator:9385972
Class Name for Sister Ships:CSL
Year Built:2008
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-
Size Summary
ISO Bays:045
Max ISO Row:10
Center Line Row:Yes
Max Above ISO Tier:92
Min Above ISO Tier:82
Max Below ISO Tier:12
Min Below ISO Tier:02
Total TEU:1,745
Centers of Gravity
LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

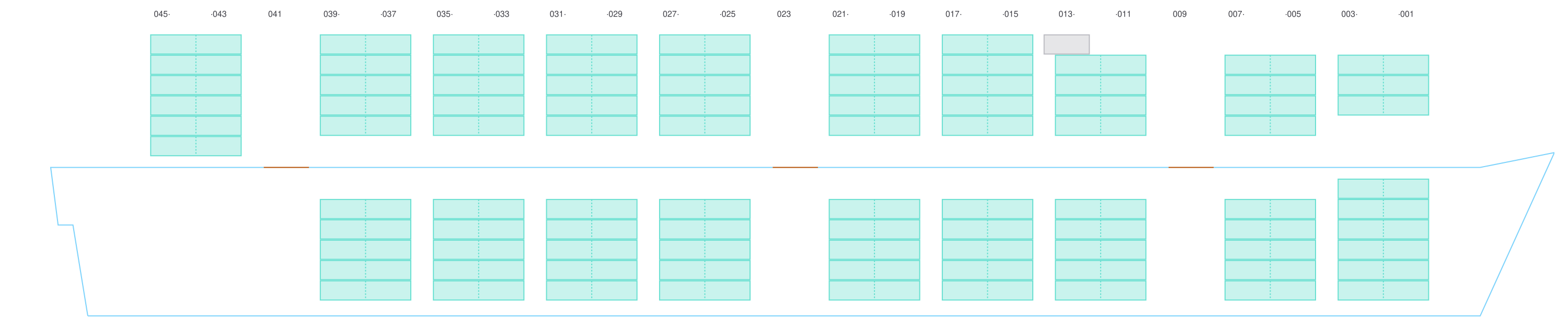

Side View

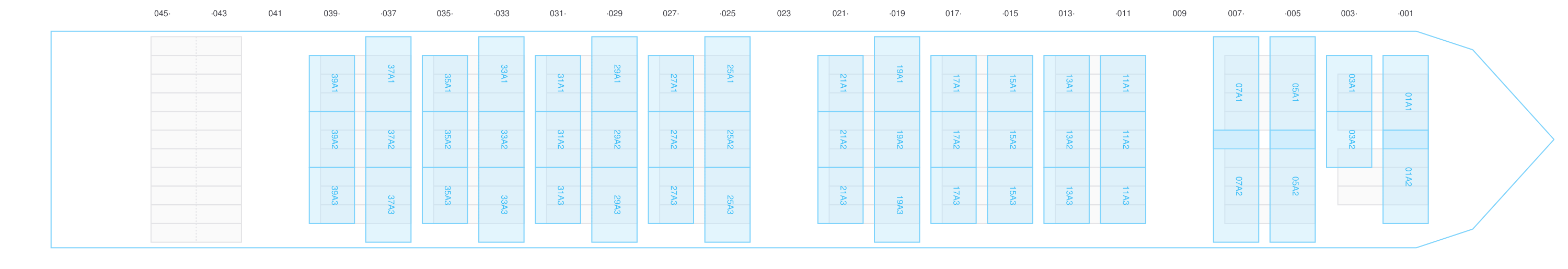

Hatch-Covers View

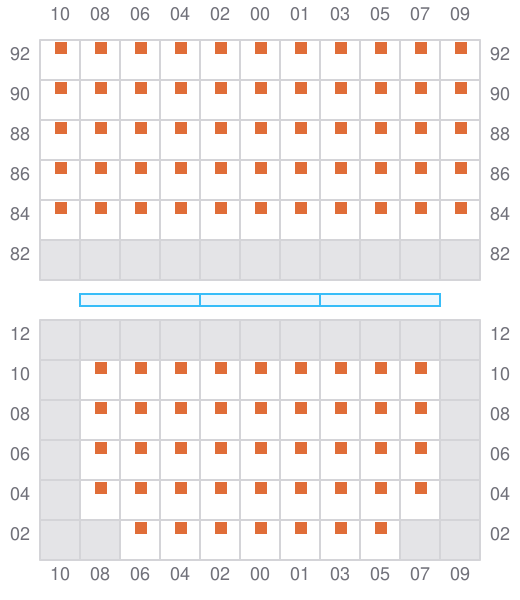

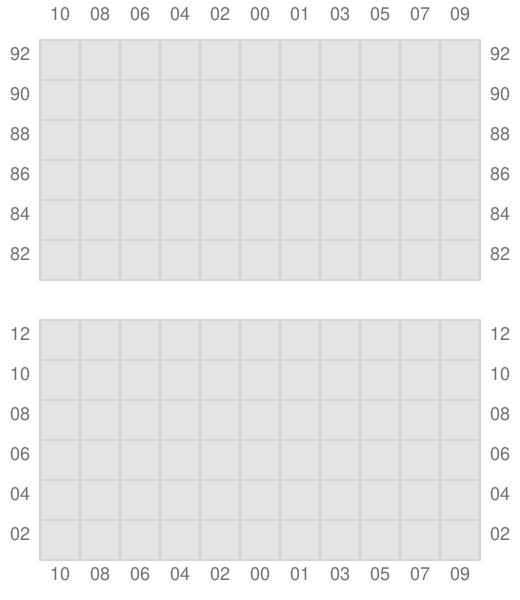

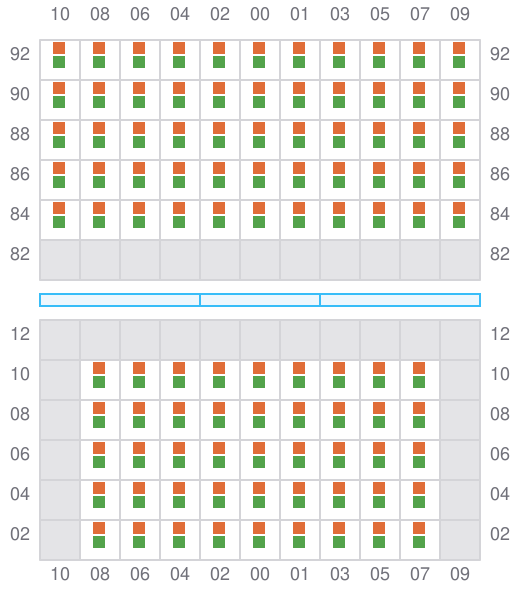

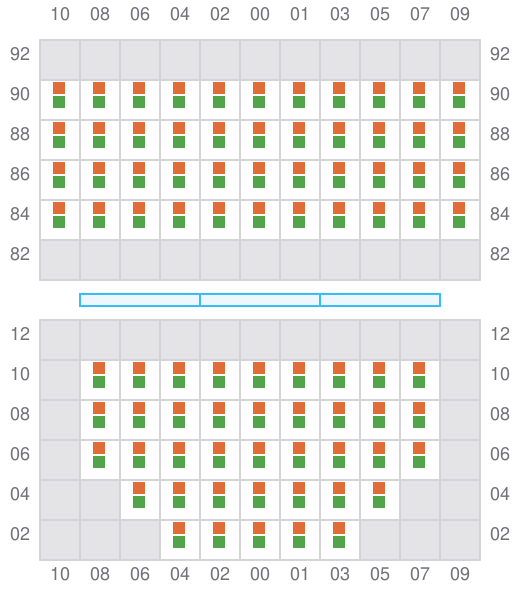

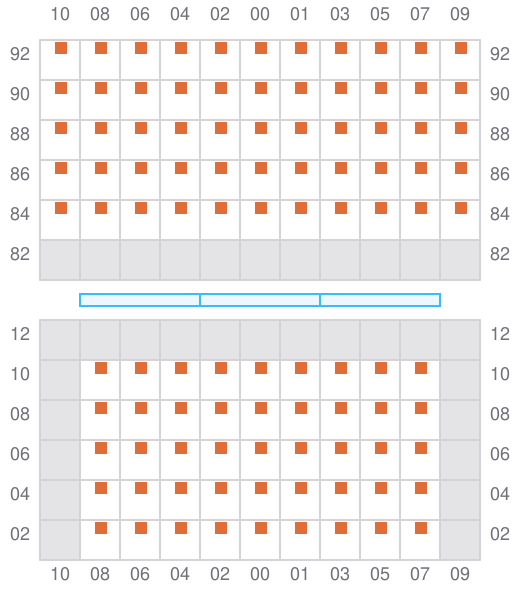

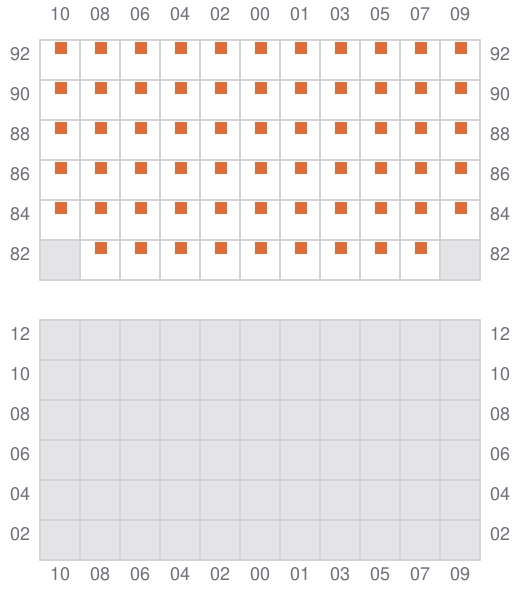

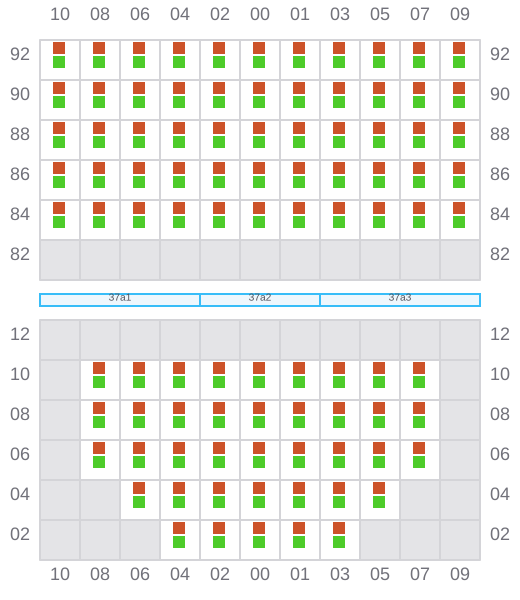

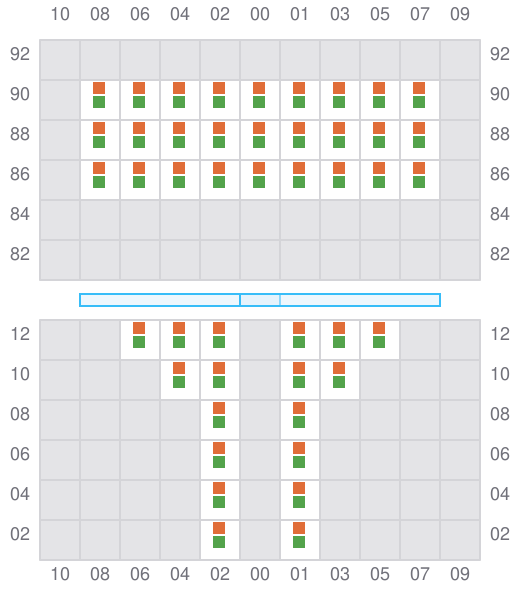

ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot ×
001 (002)
- →

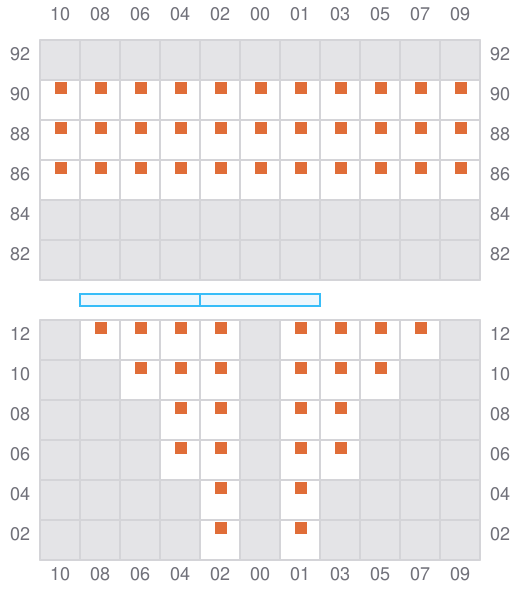

003
- ←

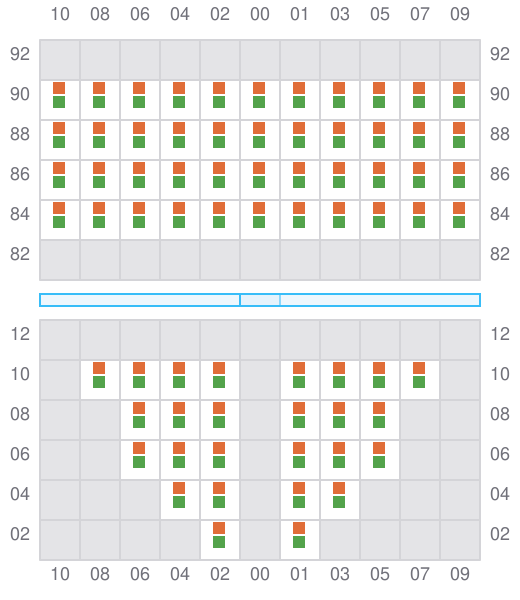

005 (006)
- →

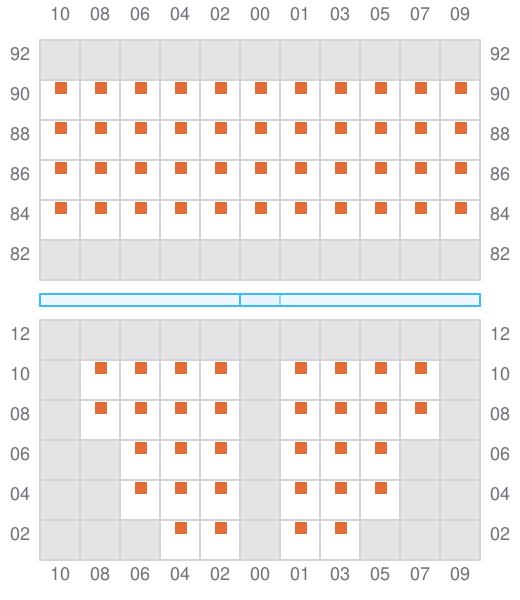

007
- ←

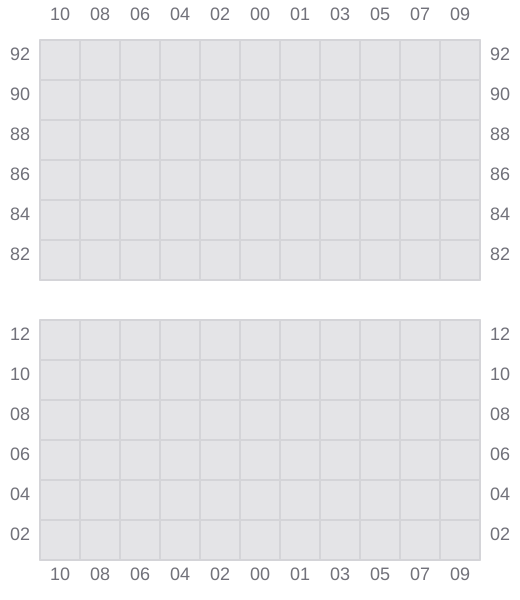

009
011 (012)
- →
013
- ←

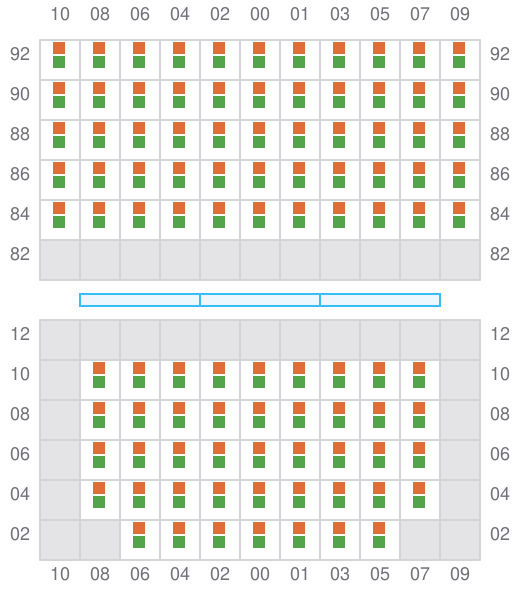

015 (016)
- →
017
- ←
019 (020)
- →
021
- ←
023
025 (026)
- →
027
- ←
029 (030)
- →
031
- ←
033 (034)
- →
035
- ←
037 (038)
- →

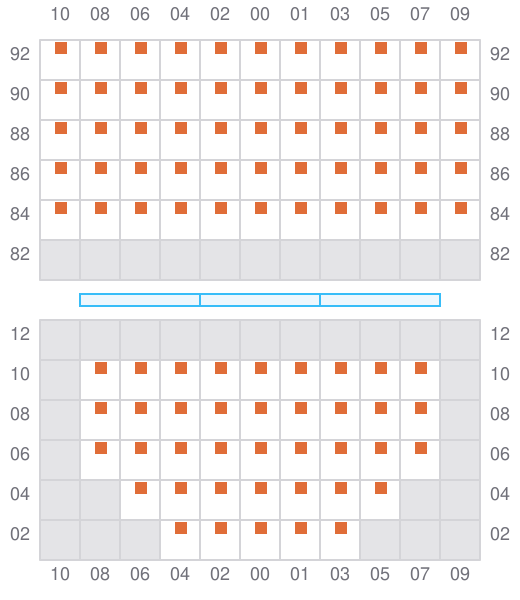

039
- ←
041
043 (044)
- → / ?

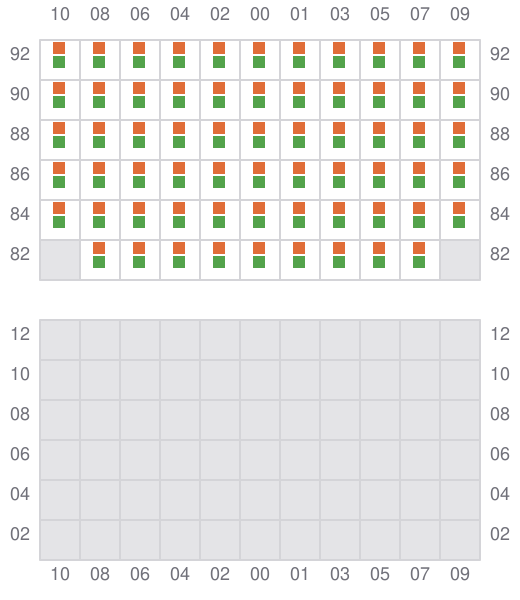

045
- ← / ?
