MAERSK NUBA
9356115 | VRLA5 | 9356115 by ********* Last update: Fri Mar 22 2024
General Info
Ship Name:MAERSK NUBA
IMO Code:9356115
Call Sign:VRLA5
Line Operator:9356115
Class Name for Sister Ships:860
Year Built:2008
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As (old names):-
Size Summary
ISO Bays:045
Max ISO Row:12
Center Line Row:No
Max Above ISO Tier:96
Min Above ISO Tier:82
Max Below ISO Tier:14
Min Below ISO Tier:02
Total TEU:2,645
Centers of Gravity
LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%
Side View
![Side view of MAERSK NUBA](/vessel-images/dd703f99-9094-4f6f-930e-f90c8ea5eb70-sideView.png?v=1711149992437)
Hatch-Covers View
![Deck view of MAERSK NUBA](/vessel-images/dd703f99-9094-4f6f-930e-f90c8ea5eb70-deckView.png?v=1711149992437)
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

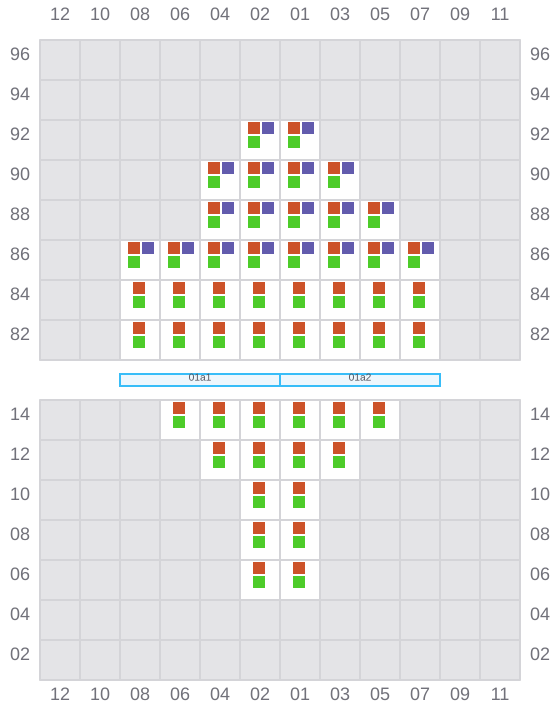

001 (002)
- →
![Bay 001 view and slots of MAERSK NUBA](/vessel-images/dd703f99-9094-4f6f-930e-f90c8ea5eb70-b001.png?v=1711149992437)

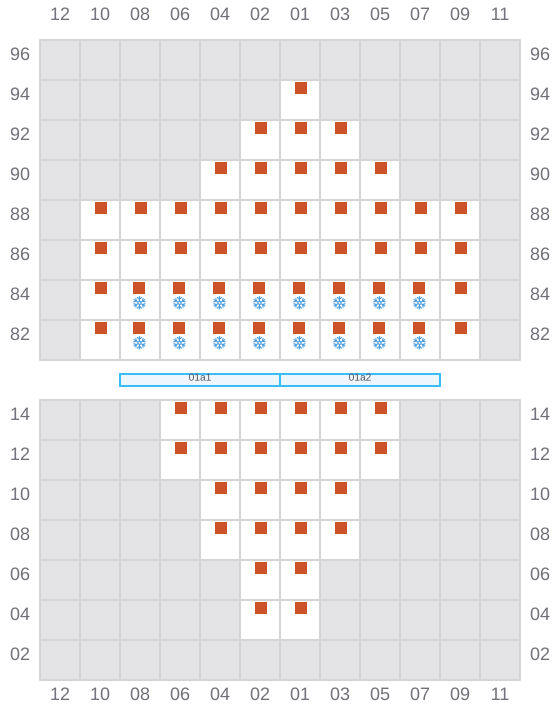

003
- ←
- → / ?
![Bay 003 view and slots of MAERSK NUBA](/vessel-images/dd703f99-9094-4f6f-930e-f90c8ea5eb70-b003.png?v=1711149992437)

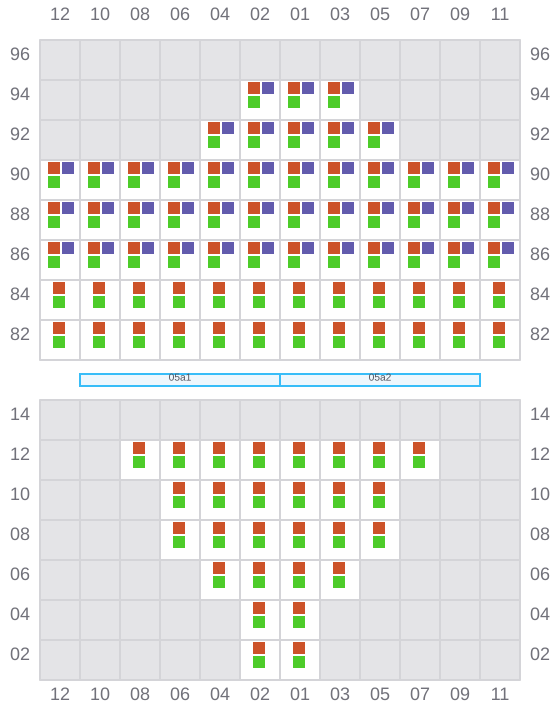

005 (006)
- →
![Bay 005 view and slots of MAERSK NUBA](/vessel-images/dd703f99-9094-4f6f-930e-f90c8ea5eb70-b005.png?v=1711149992437)

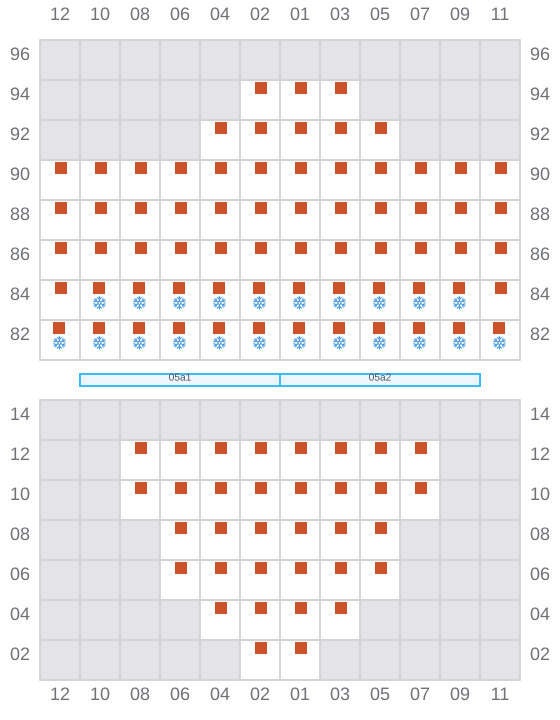

007
- ←
- → / ?
![Bay 007 view and slots of MAERSK NUBA](/vessel-images/dd703f99-9094-4f6f-930e-f90c8ea5eb70-b007.png?v=1711149992437)
009 (010)
- →
![Bay 009 view and slots of MAERSK NUBA](/vessel-images/dd703f99-9094-4f6f-930e-f90c8ea5eb70-b009.png?v=1711149992437)

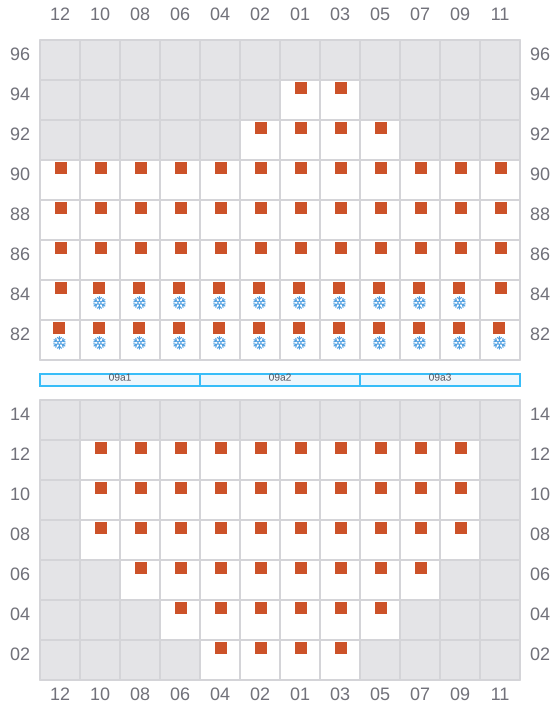

011
- ←
- → / ?
![Bay 011 view and slots of MAERSK NUBA](/vessel-images/dd703f99-9094-4f6f-930e-f90c8ea5eb70-b011.png?v=1711149992437)

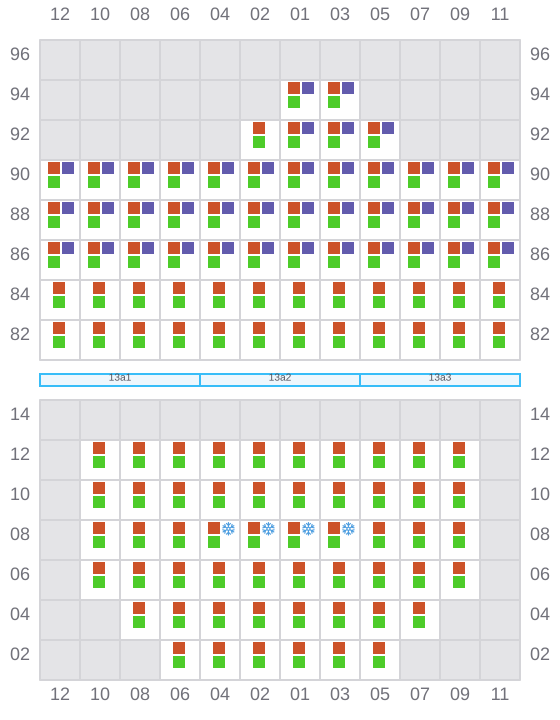

013 (014)
- →
- ? / ←
![Bay 013 view and slots of MAERSK NUBA](/vessel-images/dd703f99-9094-4f6f-930e-f90c8ea5eb70-b013.png?v=1711149992437)

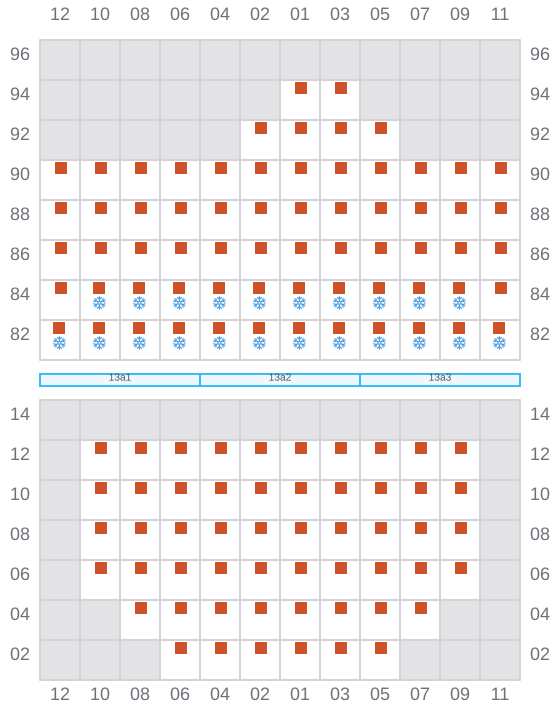

015
- ←
- →
![Bay 015 view and slots of MAERSK NUBA](/vessel-images/dd703f99-9094-4f6f-930e-f90c8ea5eb70-b015.png?v=1711149992437)

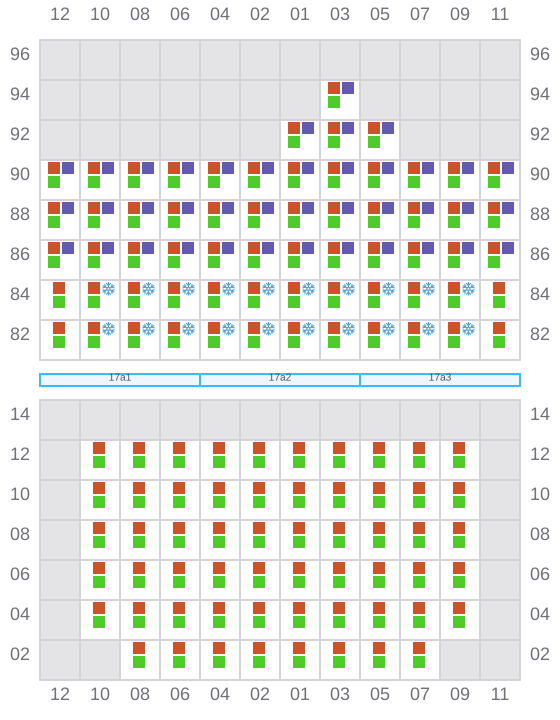

017 (018)
- →
- ← / ?
![Bay 017 view and slots of MAERSK NUBA](/vessel-images/dd703f99-9094-4f6f-930e-f90c8ea5eb70-b017.png?v=1711149992437)
019
- ←
- →
![Bay 019 view and slots of MAERSK NUBA](/vessel-images/dd703f99-9094-4f6f-930e-f90c8ea5eb70-b019.png?v=1711149992437)

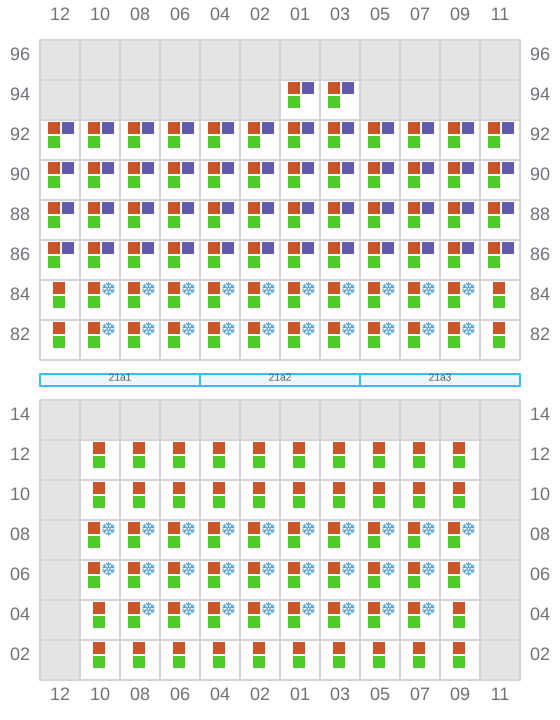

021 (022)
- →
- ←
![Bay 021 view and slots of MAERSK NUBA](/vessel-images/dd703f99-9094-4f6f-930e-f90c8ea5eb70-b021.png?v=1711149992437)
023
- ←
- → / ?
![Bay 023 view and slots of MAERSK NUBA](/vessel-images/dd703f99-9094-4f6f-930e-f90c8ea5eb70-b023.png?v=1711149992437)

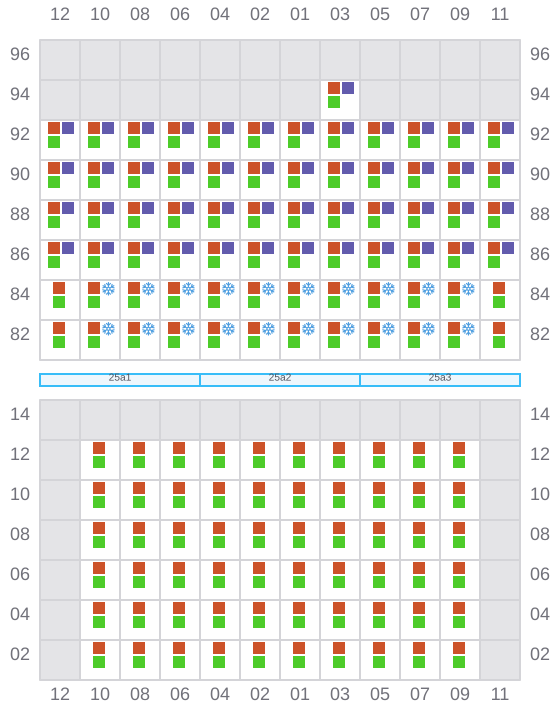

025 (026)
- →
- ← / ?
![Bay 025 view and slots of MAERSK NUBA](/vessel-images/dd703f99-9094-4f6f-930e-f90c8ea5eb70-b025.png?v=1711149992437)

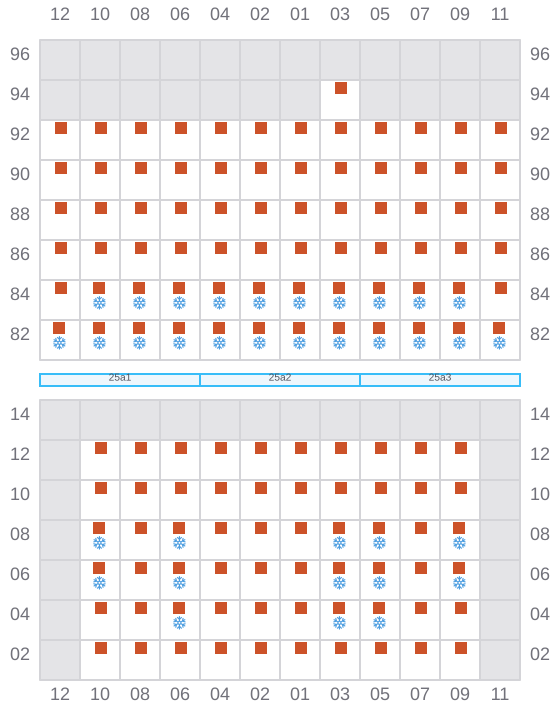

027
- ←
- →
![Bay 027 view and slots of MAERSK NUBA](/vessel-images/dd703f99-9094-4f6f-930e-f90c8ea5eb70-b027.png?v=1711149992437)
029 (030)
- →
- ←
![Bay 029 view and slots of MAERSK NUBA](/vessel-images/dd703f99-9094-4f6f-930e-f90c8ea5eb70-b029.png?v=1711149992437)
031
- ←
- →
![Bay 031 view and slots of MAERSK NUBA](/vessel-images/dd703f99-9094-4f6f-930e-f90c8ea5eb70-b031.png?v=1711149992437)

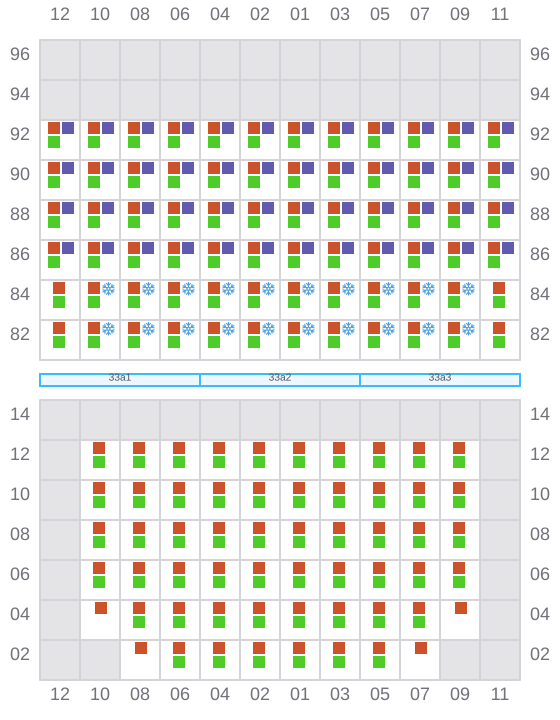

033 (034)
- →
- ← / ?
![Bay 033 view and slots of MAERSK NUBA](/vessel-images/dd703f99-9094-4f6f-930e-f90c8ea5eb70-b033.png?v=1711149992437)

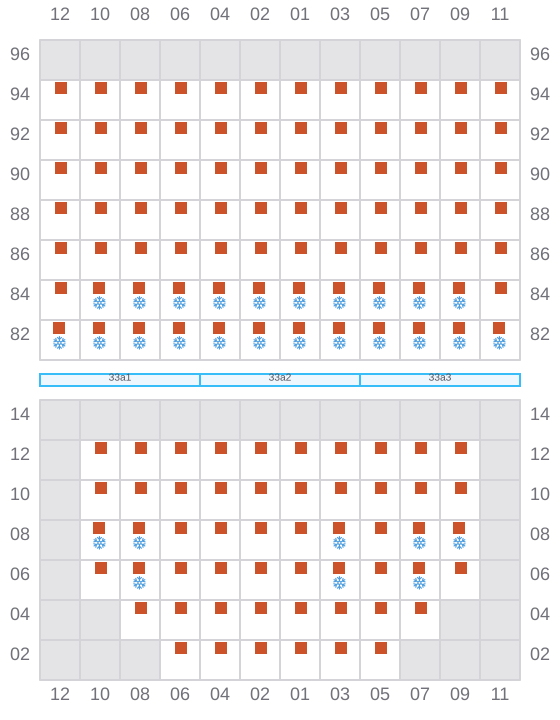

035
- ←
- →
![Bay 035 view and slots of MAERSK NUBA](/vessel-images/dd703f99-9094-4f6f-930e-f90c8ea5eb70-b035.png?v=1711149992437)

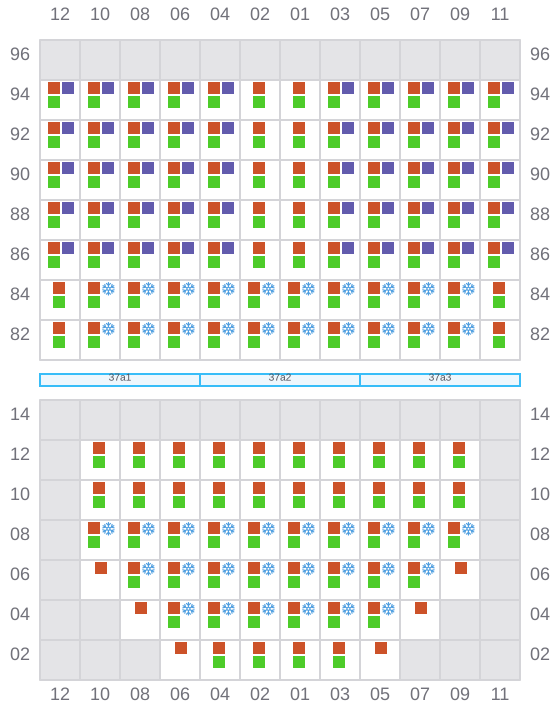

037 (038)
- →
- ←
![Bay 037 view and slots of MAERSK NUBA](/vessel-images/dd703f99-9094-4f6f-930e-f90c8ea5eb70-b037.png?v=1711149992437)

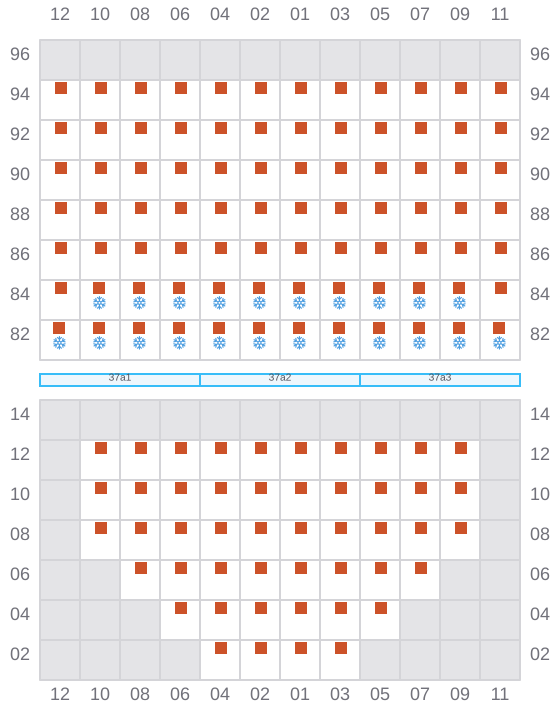

039
- ←
- → / ?
![Bay 039 view and slots of MAERSK NUBA](/vessel-images/dd703f99-9094-4f6f-930e-f90c8ea5eb70-b039.png?v=1711149992437)
041
- → / ?
![Bay 041 view and slots of MAERSK NUBA](/vessel-images/dd703f99-9094-4f6f-930e-f90c8ea5eb70-b041.png?v=1711149992437)

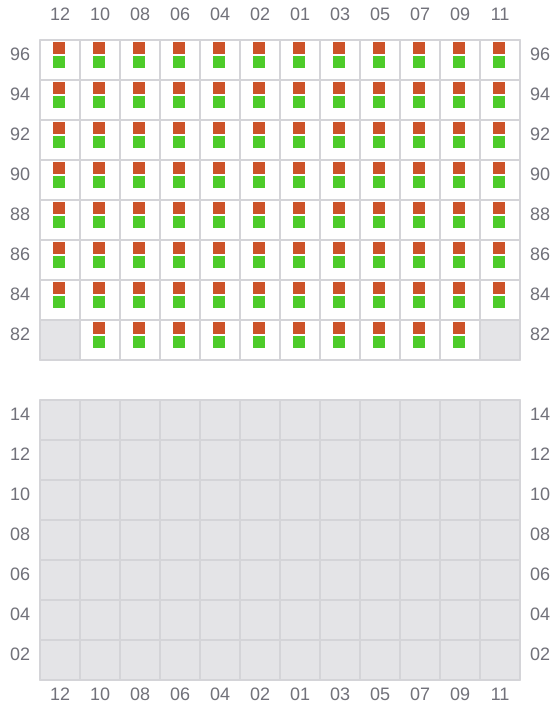

043 (044)
- → / ?
![Bay 043 view and slots of MAERSK NUBA](/vessel-images/dd703f99-9094-4f6f-930e-f90c8ea5eb70-b043.png?v=1711149992437)

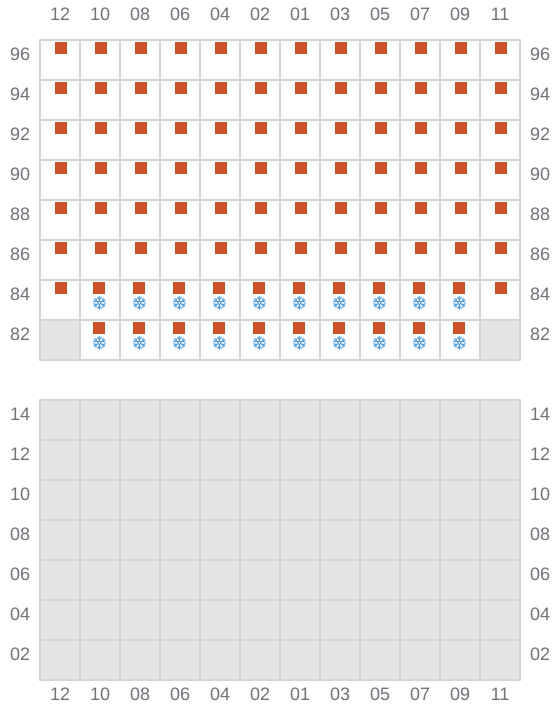

045
- ← / ?
- → / ?
![Bay 045 view and slots of MAERSK NUBA](/vessel-images/dd703f99-9094-4f6f-930e-f90c8ea5eb70-b045.png?v=1711149992437)
