MAERSK NUSANTARA
9761011 | 9V7931 | 9761011 by ********* Last update: Tue Jun 25 2024

General Info

Ship Name:MAERSK NUSANTARA
IMO Code:9761011
Call Sign:9V7931
Line Operator:9761011
Class Name for Sister Ships:MCC
Year Built:2016
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-

Size Summary

ISO Bays:037
Max ISO Row:14
Center Line Row:No
Max Above ISO Tier:94
Min Above ISO Tier:80
Max Below ISO Tier:12
Min Below ISO Tier:02
Total TEU:2,764

Centers of Gravity

LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

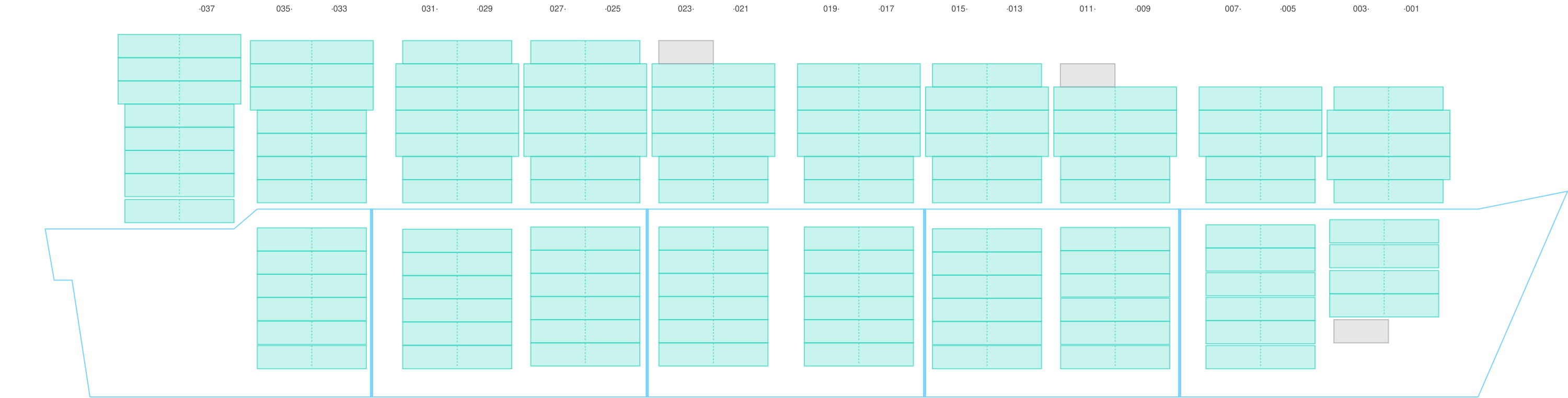

Side View

Side view of MAERSK NUSANTARA

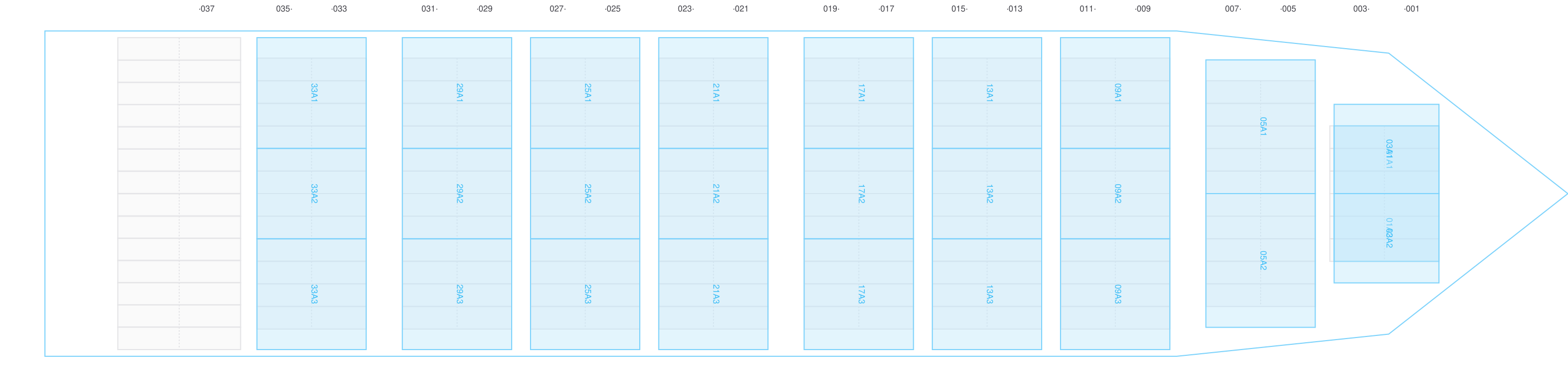

Hatch-Covers View

Deck view of MAERSK NUSANTARA

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot

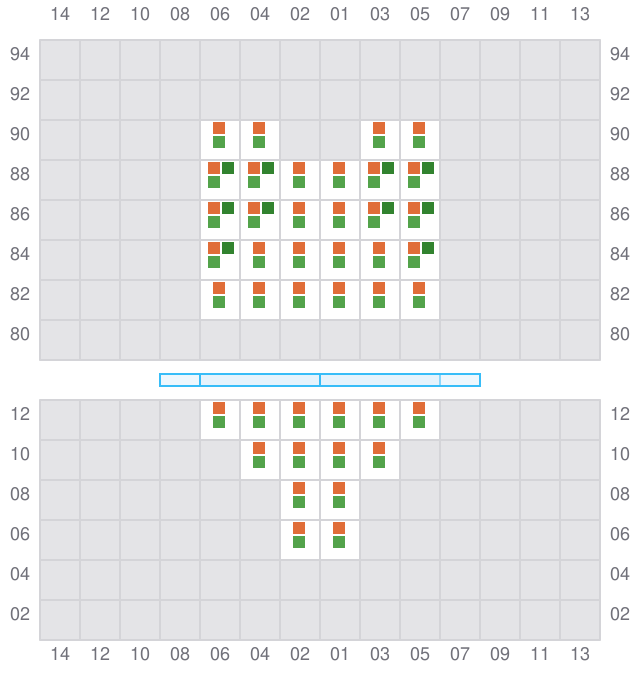

001 (002)

  • →
Bay 001 view and slots of MAERSK NUSANTARA

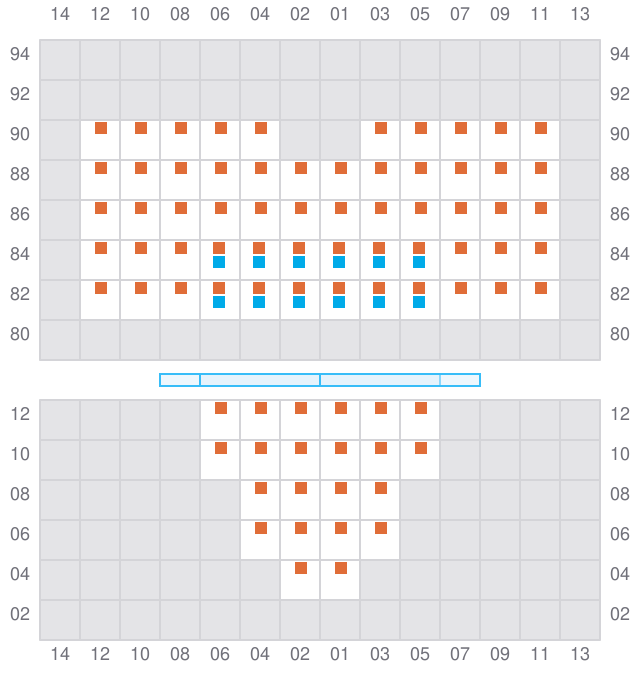

003

  • ←
  • ? / →
Bay 003 view and slots of MAERSK NUSANTARA

005 (006)

  • →

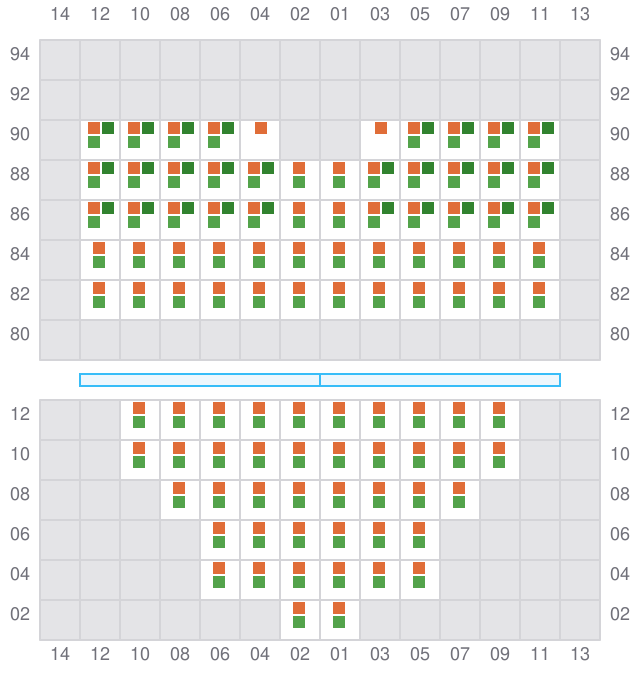

Bay 005 view and slots of MAERSK NUSANTARA

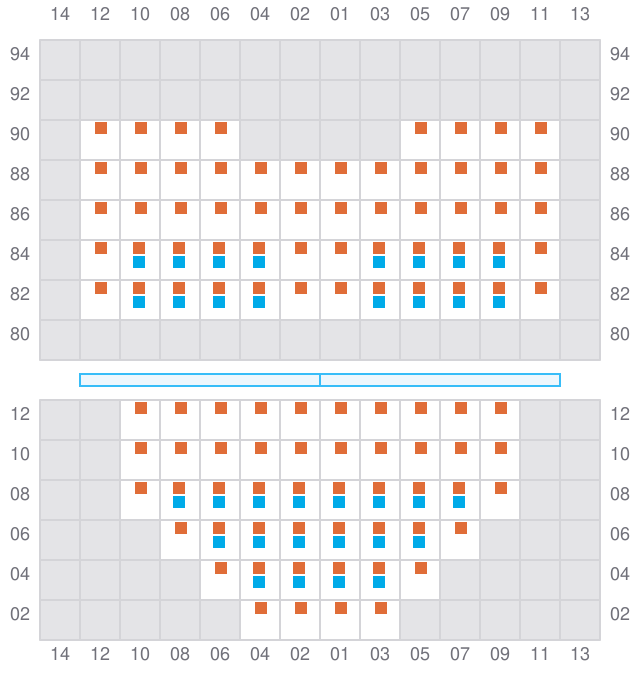

007

  • ←
  • →
Bay 007 view and slots of MAERSK NUSANTARA

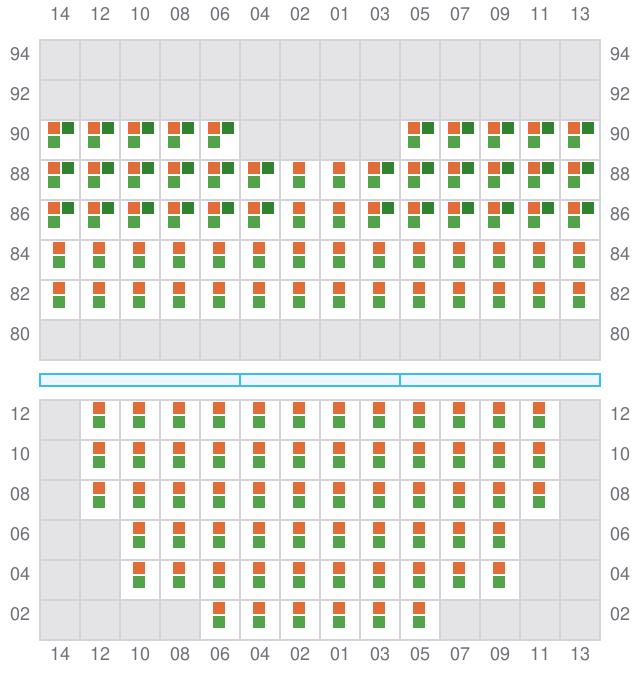

009 (010)

  • →
  • ? / ←
Bay 009 view and slots of MAERSK NUSANTARA

011

  • ←
  • → / ?

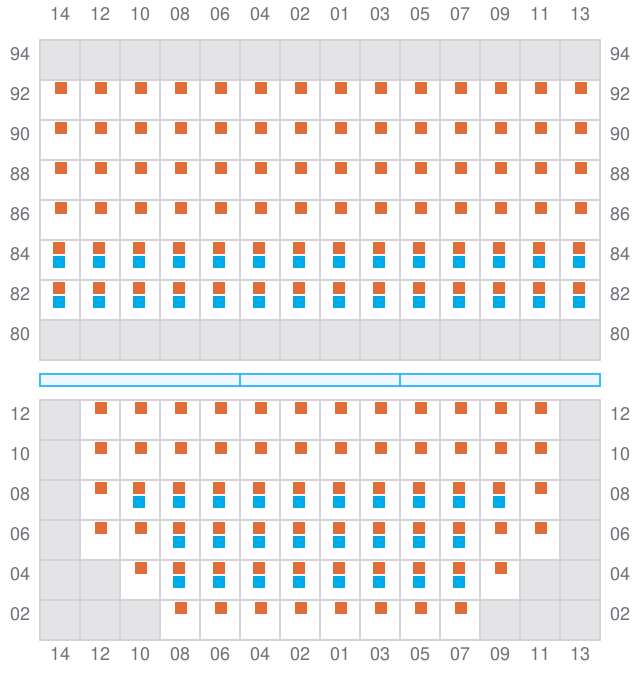

Bay 011 view and slots of MAERSK NUSANTARA

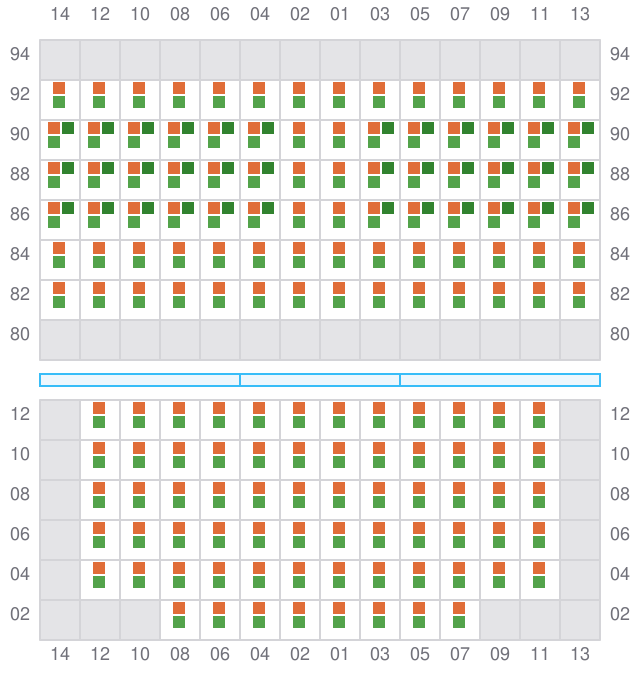

013 (014)

  • →
Bay 013 view and slots of MAERSK NUSANTARA

015

  • ←
  • →

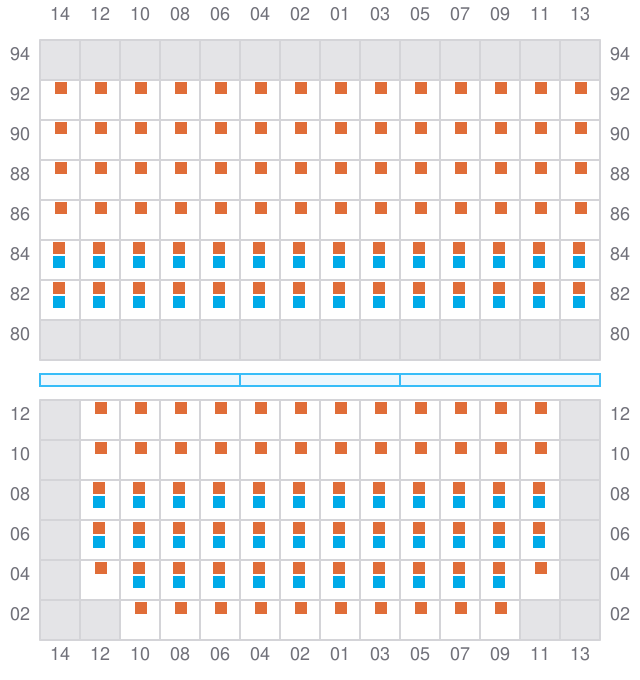

Bay 015 view and slots of MAERSK NUSANTARA

017 (018)

  • →
  • ? / ←

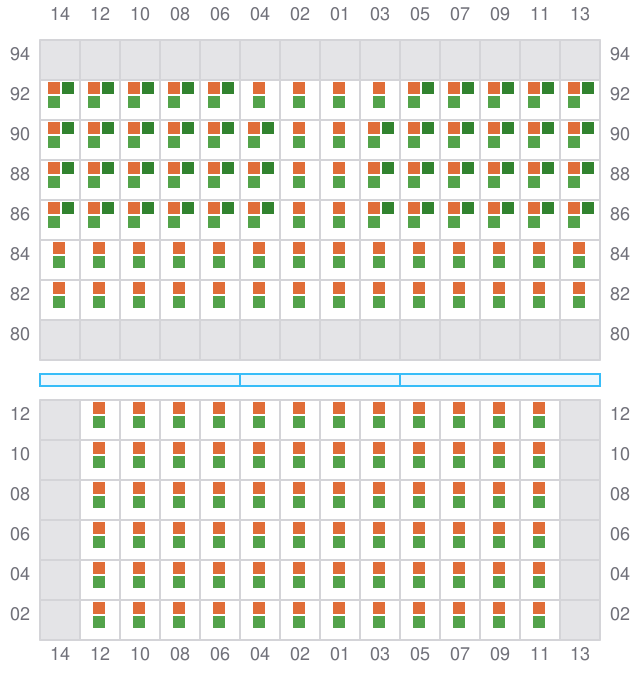

Bay 017 view and slots of MAERSK NUSANTARA

019

  • ←
  • →

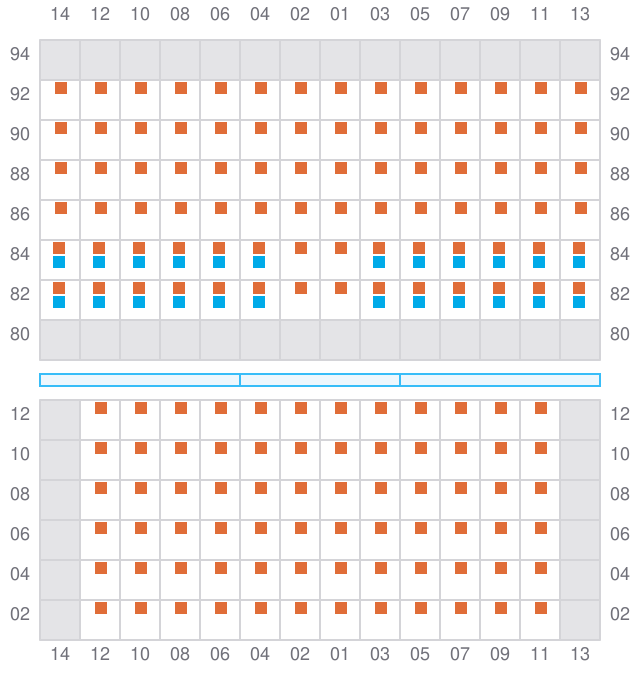

Bay 019 view and slots of MAERSK NUSANTARA

021 (022)

  • →
Bay 021 view and slots of MAERSK NUSANTARA

023

  • ←
  • →
Bay 023 view and slots of MAERSK NUSANTARA

025 (026)

  • →
  • ? / ←

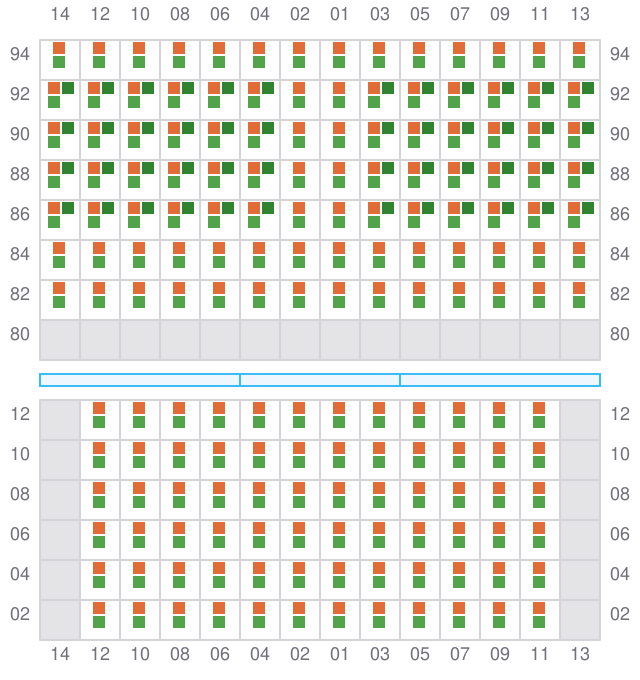

Bay 025 view and slots of MAERSK NUSANTARA

027

  • ←
  • →

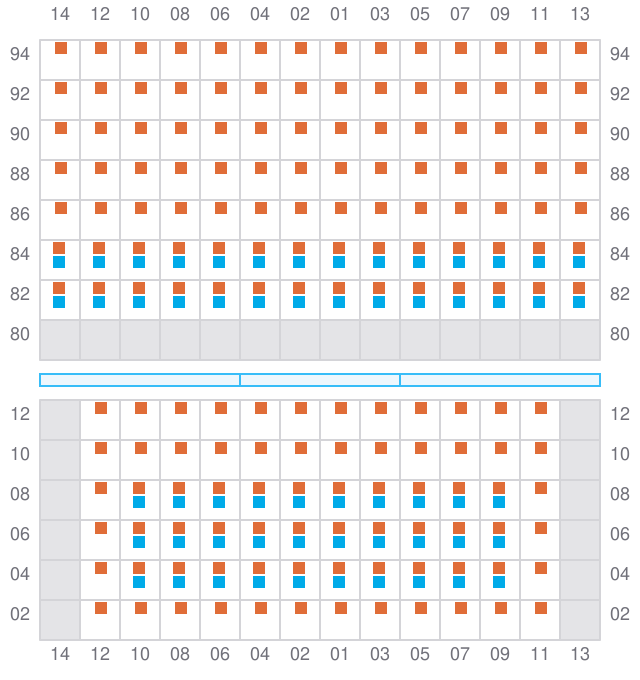

Bay 027 view and slots of MAERSK NUSANTARA

029 (030)

  • →

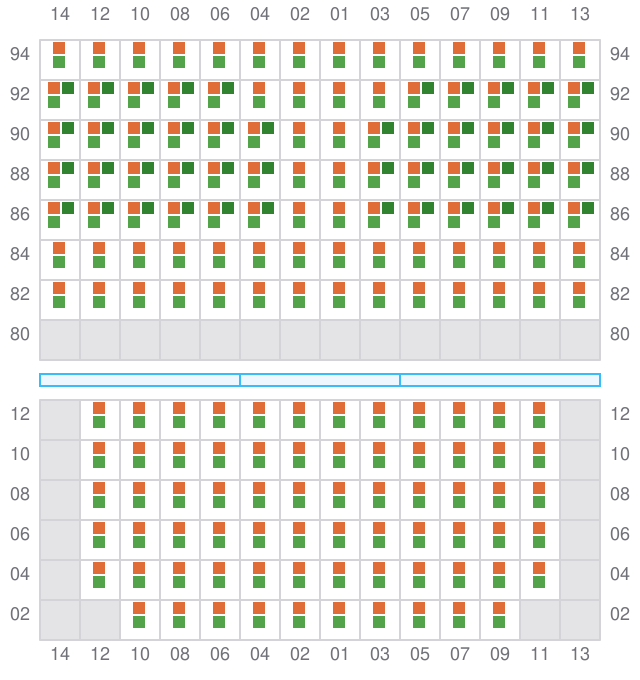

Bay 029 view and slots of MAERSK NUSANTARA

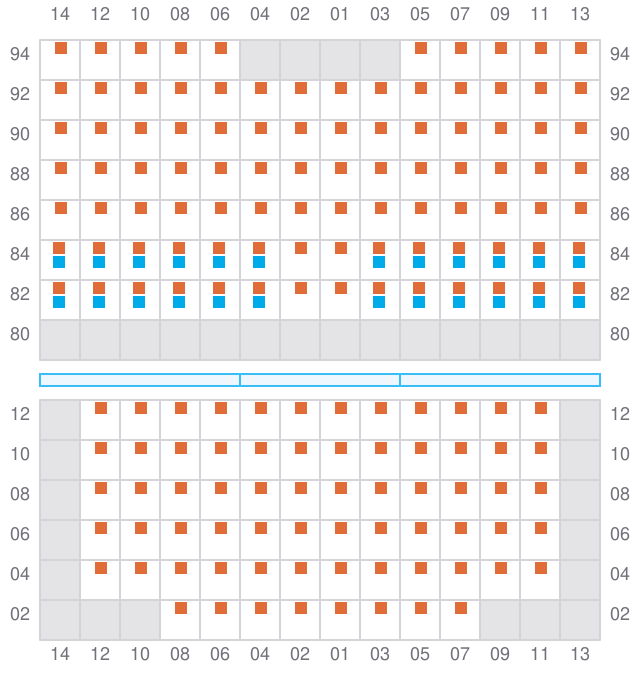

031

  • ←
  • →
Bay 031 view and slots of MAERSK NUSANTARA

033 (034)

  • →
  • ? / ←

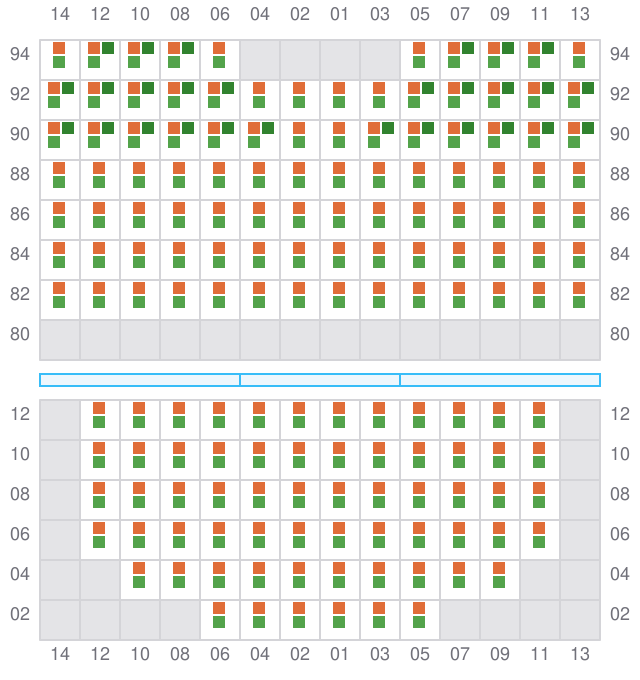

Bay 033 view and slots of MAERSK NUSANTARA

035

  • ←
  • → / ?

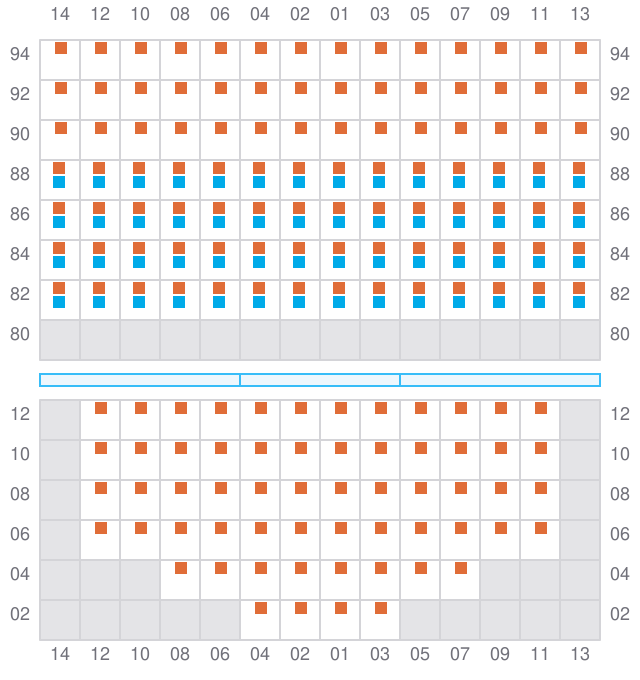

Bay 035 view and slots of MAERSK NUSANTARA

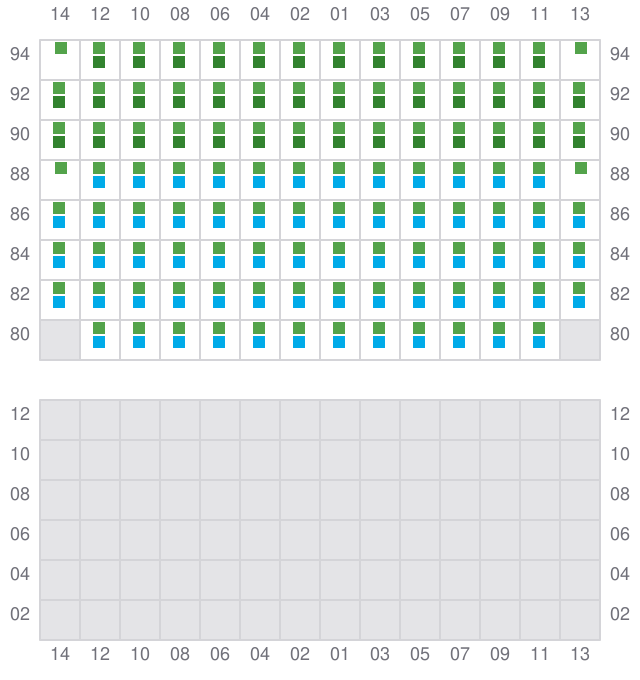

037 (038)

  • → / ?
  • ← / ?
Bay 037 view and slots of MAERSK NUSANTARA
