MAERSK NYASSA
9356086 | VRLA2 | 9356086 by ********* Last update: Fri Mar 22 2024

General Info

Ship Name:MAERSK NYASSA
IMO Code:9356086
Call Sign:VRLA2
Line Operator:9356086
Class Name for Sister Ships:831
Year Built:2008
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-

Size Summary

ISO Bays:045
Max ISO Row:12
Center Line Row:No
Max Above ISO Tier:96
Min Above ISO Tier:82
Max Below ISO Tier:14
Min Below ISO Tier:02
Total TEU:2,645

Centers of Gravity

LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

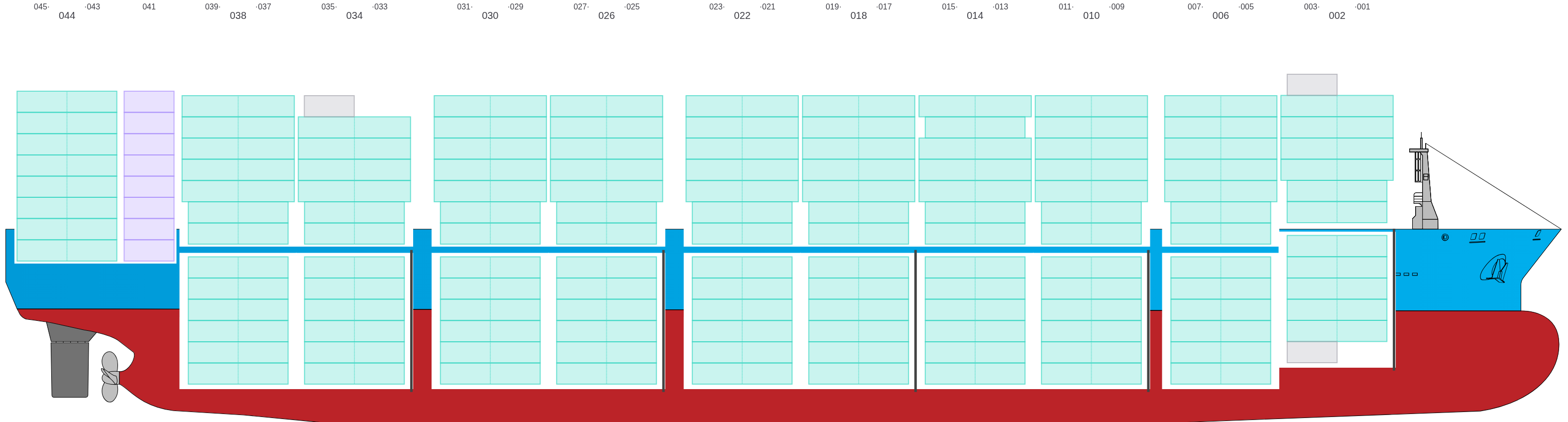

Side View

Side view of MAERSK NYASSA

Hatch-Covers View

Deck view of MAERSK NYASSA

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot

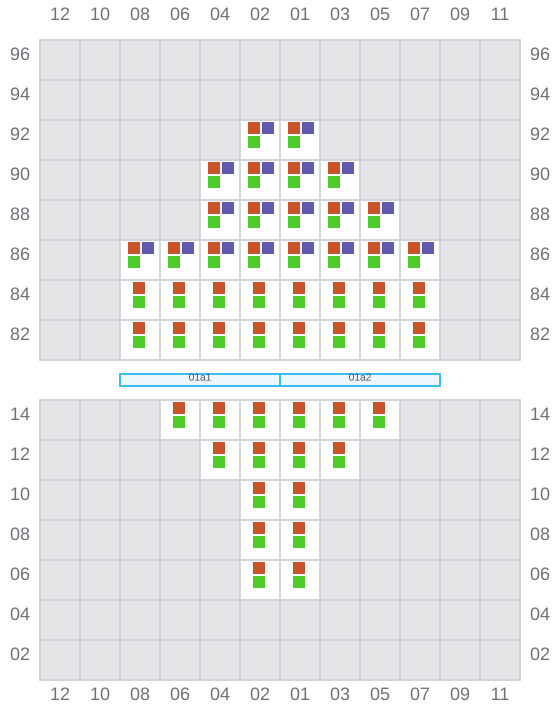

001 (002)

  • →
Bay 001 view and slots of MAERSK NYASSA

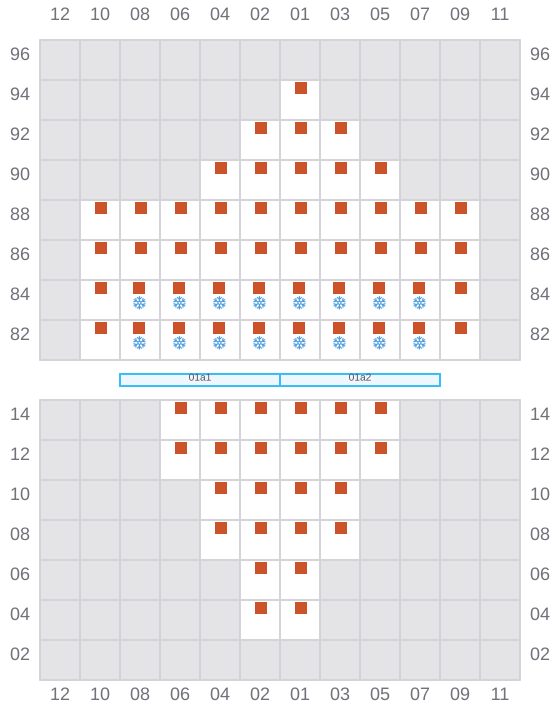

003

  • ←
  • → / ?
Bay 003 view and slots of MAERSK NYASSA

005 (006)

  • →

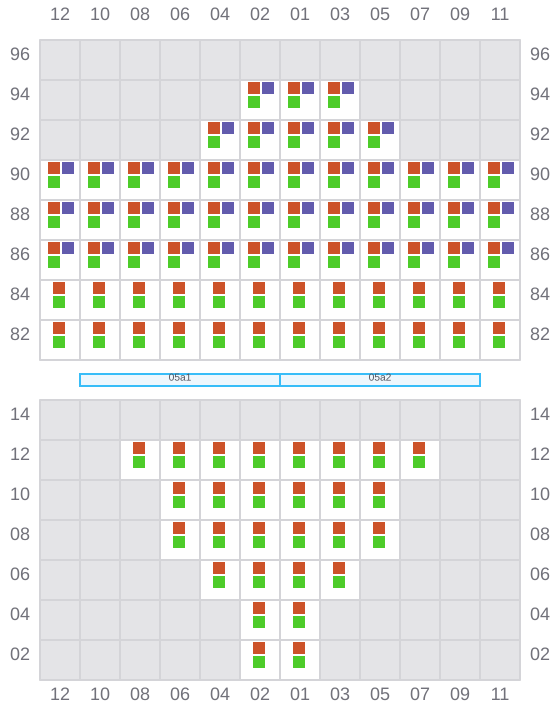

Bay 005 view and slots of MAERSK NYASSA

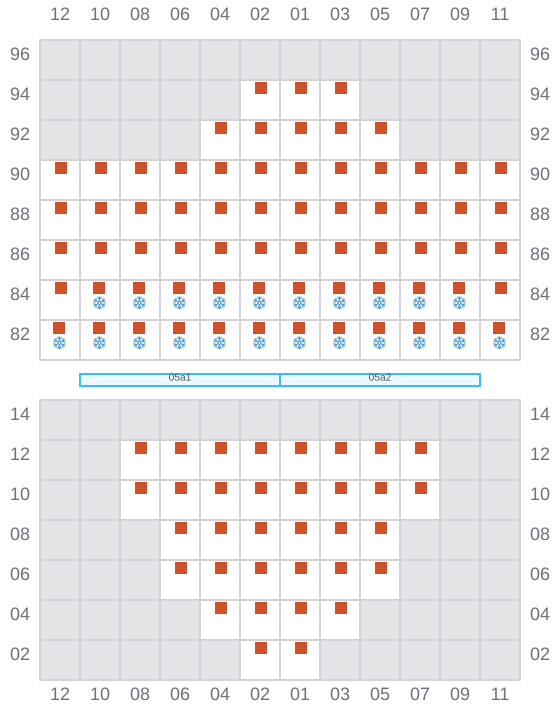

007

  • ←
  • → / ?
Bay 007 view and slots of MAERSK NYASSA

009 (010)

  • →
Bay 009 view and slots of MAERSK NYASSA

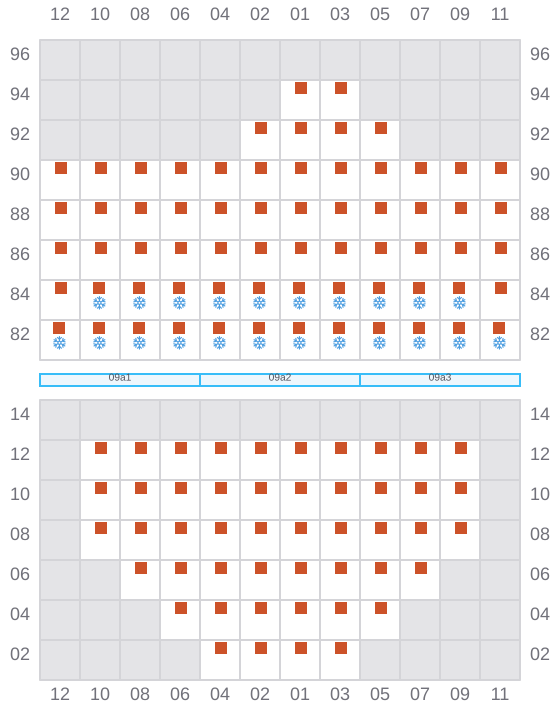

011

  • ←
  • → / ?
Bay 011 view and slots of MAERSK NYASSA

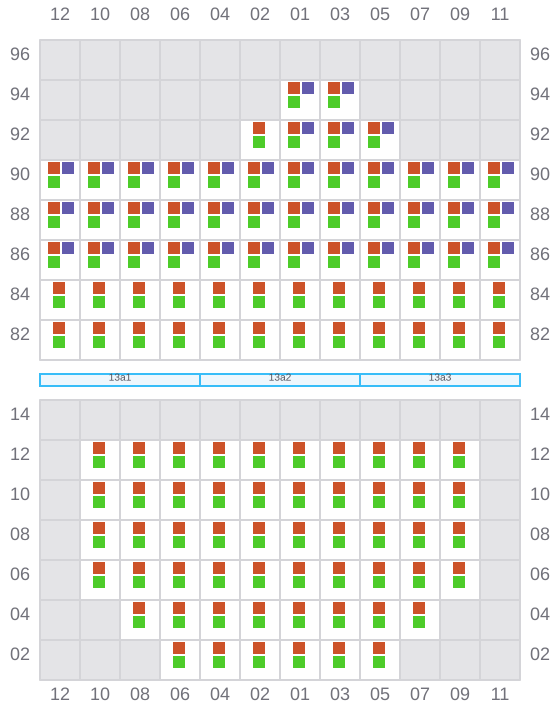

013 (014)

  • →
Bay 013 view and slots of MAERSK NYASSA

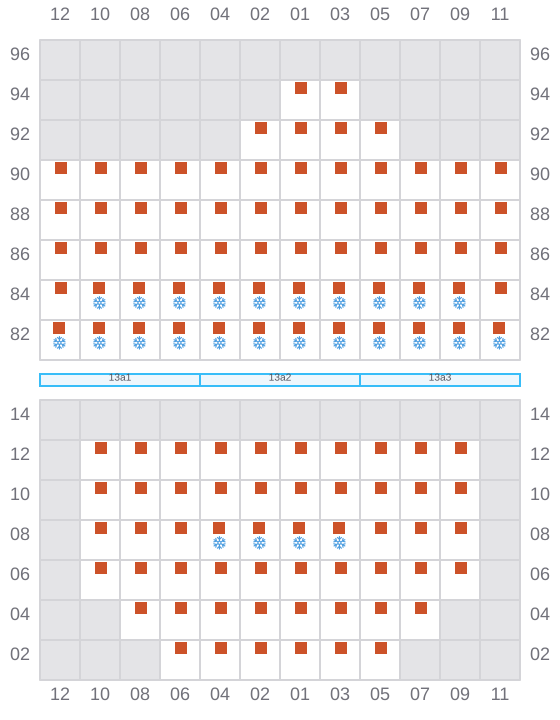

015

  • ←
  • →
Bay 015 view and slots of MAERSK NYASSA

017 (018)

  • →
Bay 017 view and slots of MAERSK NYASSA

019

  • ←
  • →

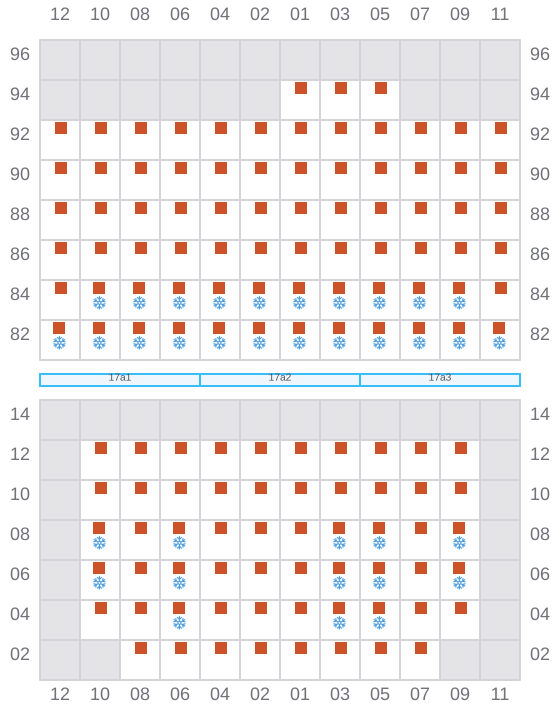

Bay 019 view and slots of MAERSK NYASSA

021 (022)

  • →
  • ←

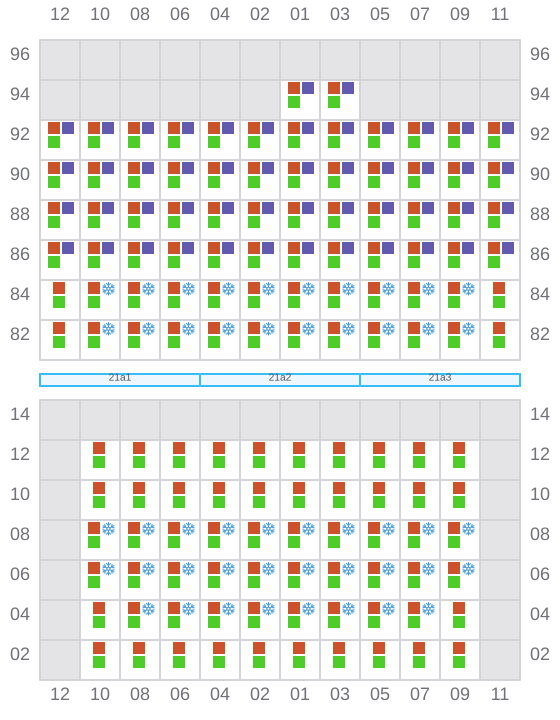

Bay 021 view and slots of MAERSK NYASSA

023

  • ←
  • → / ?

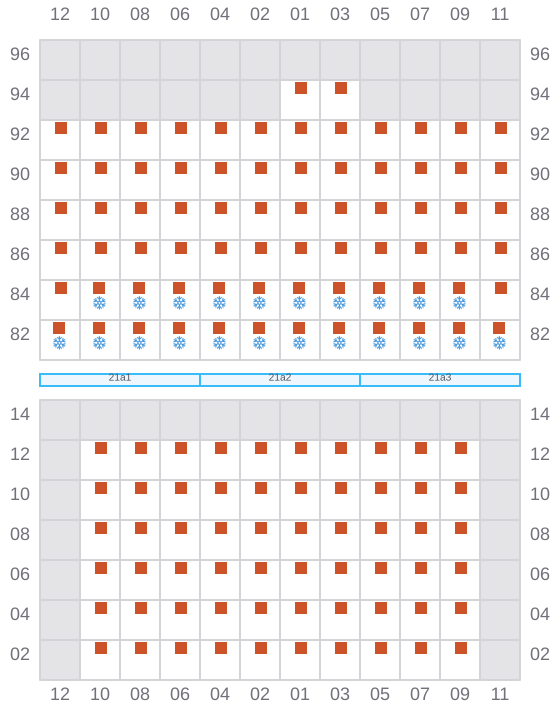

Bay 023 view and slots of MAERSK NYASSA

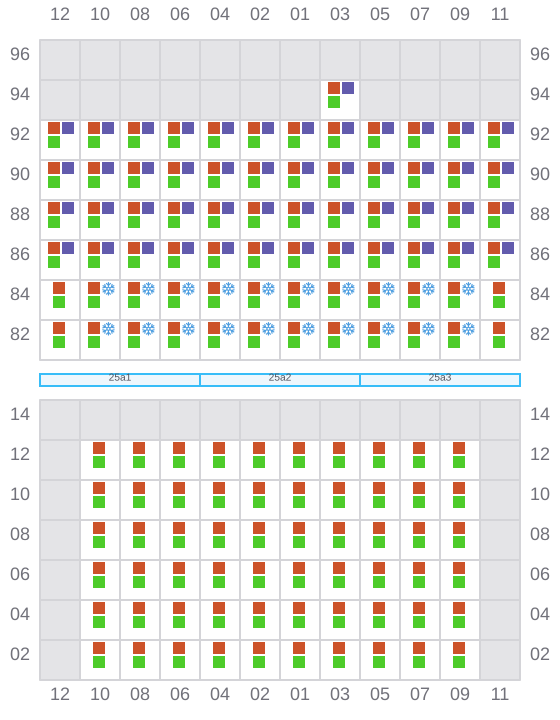

025 (026)

  • →
  • ← / ?
Bay 025 view and slots of MAERSK NYASSA

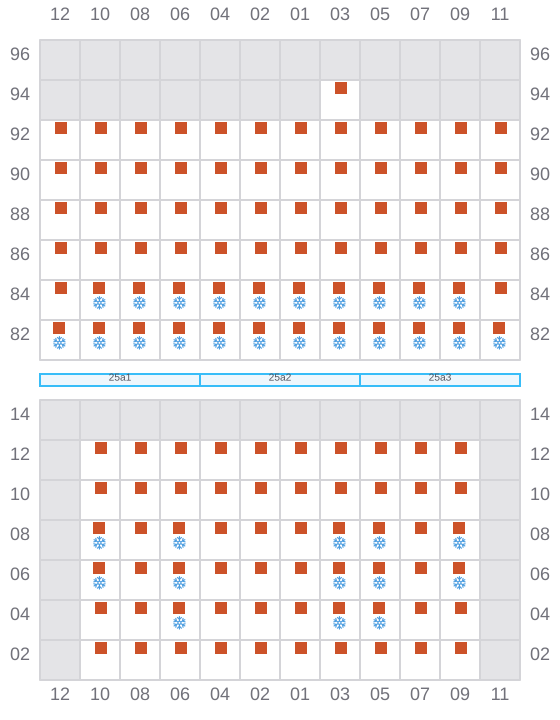

027

  • ←
  • →
Bay 027 view and slots of MAERSK NYASSA

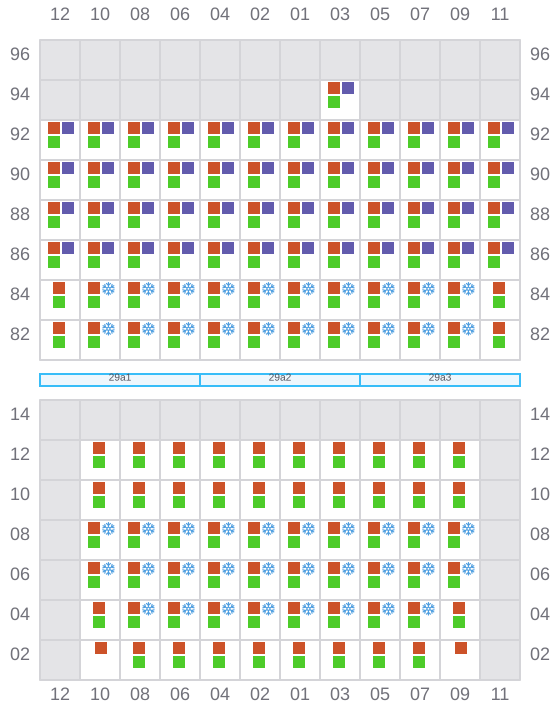

029 (030)

  • →
  • ←
Bay 029 view and slots of MAERSK NYASSA

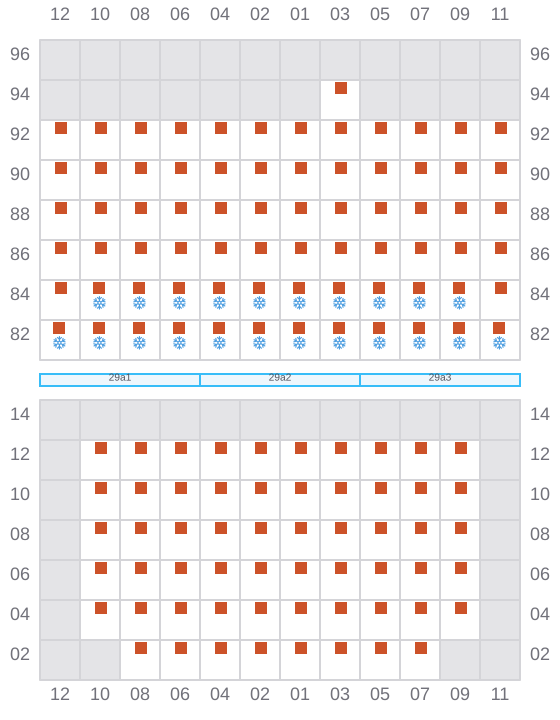

031

  • ←
  • →
Bay 031 view and slots of MAERSK NYASSA

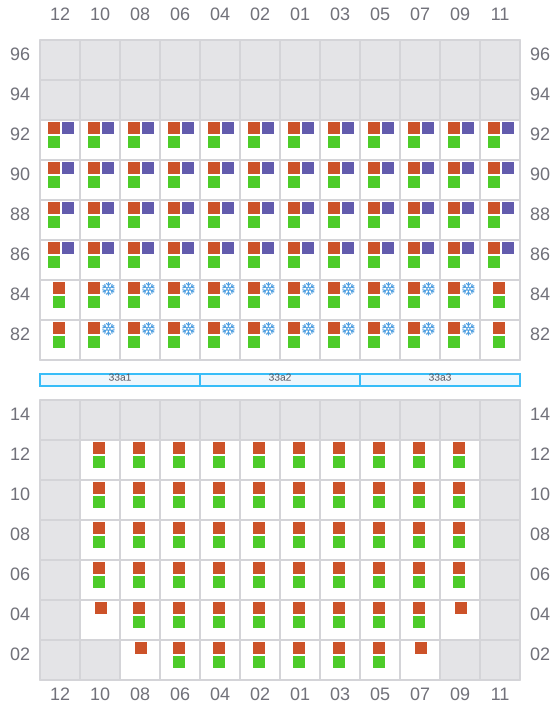

033 (034)

  • →
  • ← / ?
Bay 033 view and slots of MAERSK NYASSA

035

  • ←
  • →

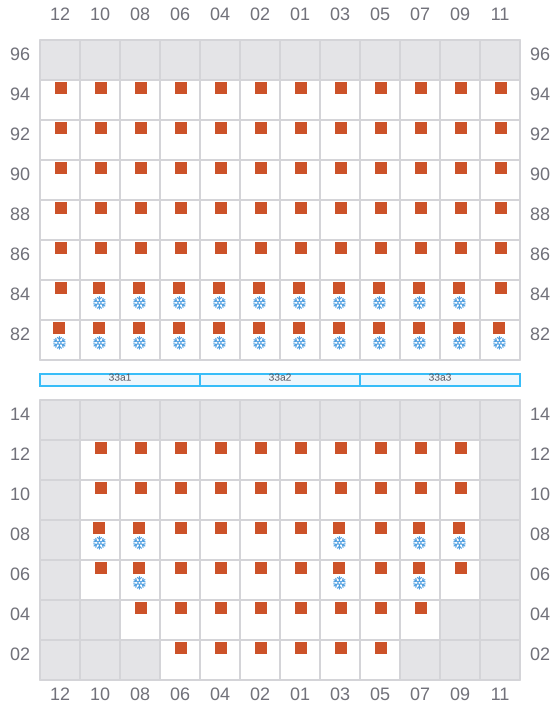

Bay 035 view and slots of MAERSK NYASSA

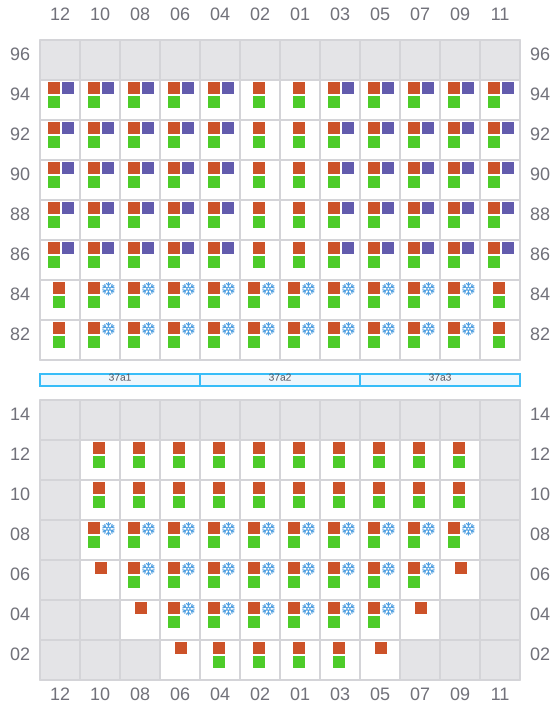

037 (038)

  • →
  • ←
Bay 037 view and slots of MAERSK NYASSA

039

  • ←
  • → / ?

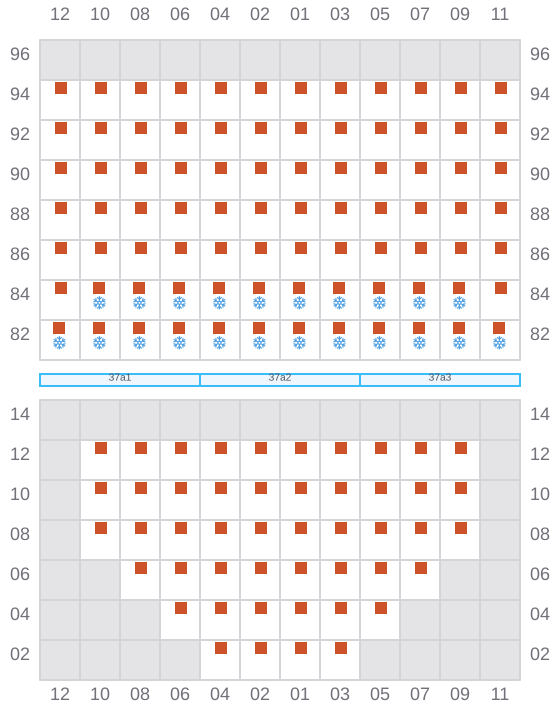

Bay 039 view and slots of MAERSK NYASSA

041

  • → / ?

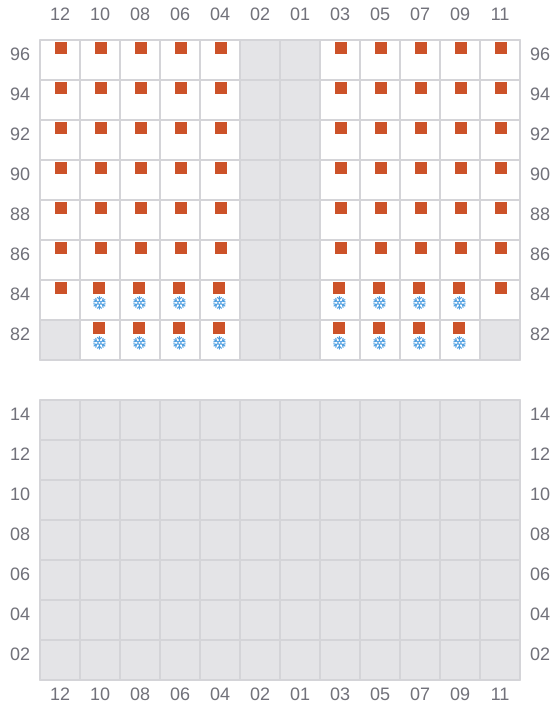

Bay 041 view and slots of MAERSK NYASSA

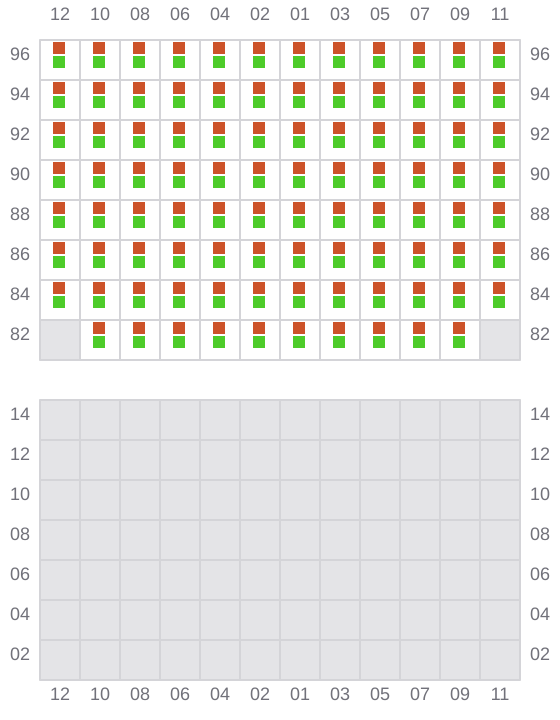

043 (044)

  • → / ?
Bay 043 view and slots of MAERSK NYASSA

045

  • ← / ?
  • → / ?

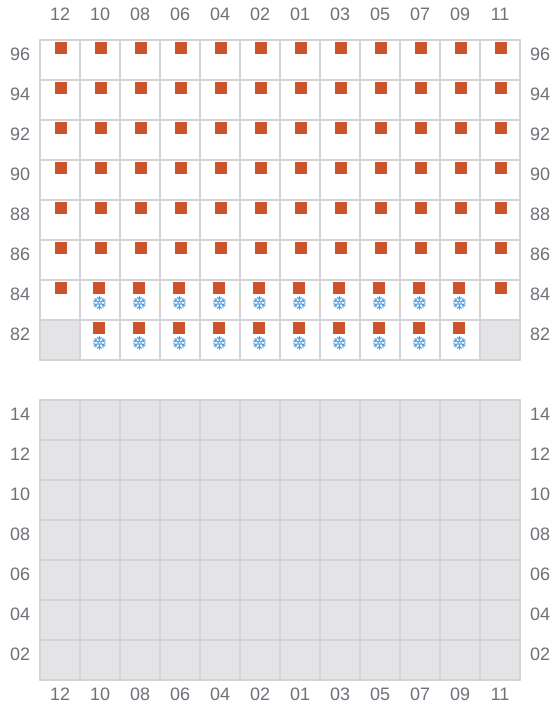

Bay 045 view and slots of MAERSK NYASSA
