MAERSK OHIO
9298698 | KABP | 9298698 by ********* Last update: Sun Mar 17 2024
General Info
Ship Name:MAERSK OHIO
IMO Code:9298698
Call Sign:KABP
Line Operator:9298698
Class Name for Sister Ships:027
Year Built:2006
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):277.00
LOA (Length Overall):292.10
Stern to AFT PP:-
Features Informed:Standard
Also Known As (old names):-
Size Summary
ISO Bays:069
Max ISO Row:12
Center Line Row:Yes
Max Above ISO Tier:94
Min Above ISO Tier:80
Max Below ISO Tier:16
Min Below ISO Tier:02
Total TEU:4,769
Centers of Gravity
LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%
Side View
![Side view of MAERSK OHIO](/vessel-images/8013cb9a-63c0-45bd-b1a3-83374946bc3f-sideView.png?v=1710700211107)

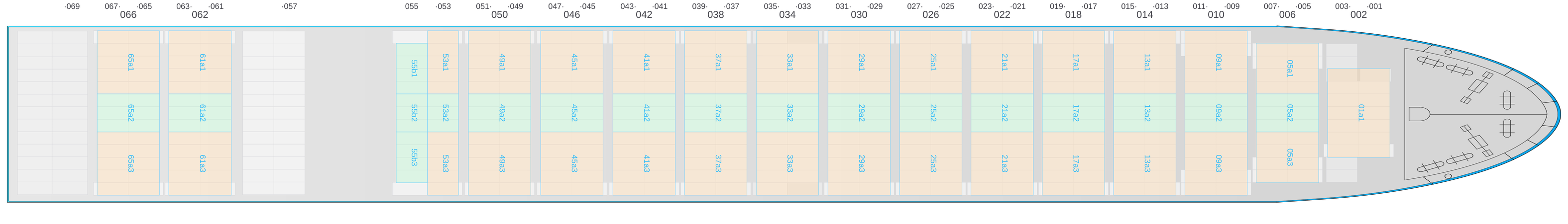

Hatch-Covers View
![Deck view of MAERSK OHIO](/vessel-images/8013cb9a-63c0-45bd-b1a3-83374946bc3f-deckView.png?v=1710700211107)
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

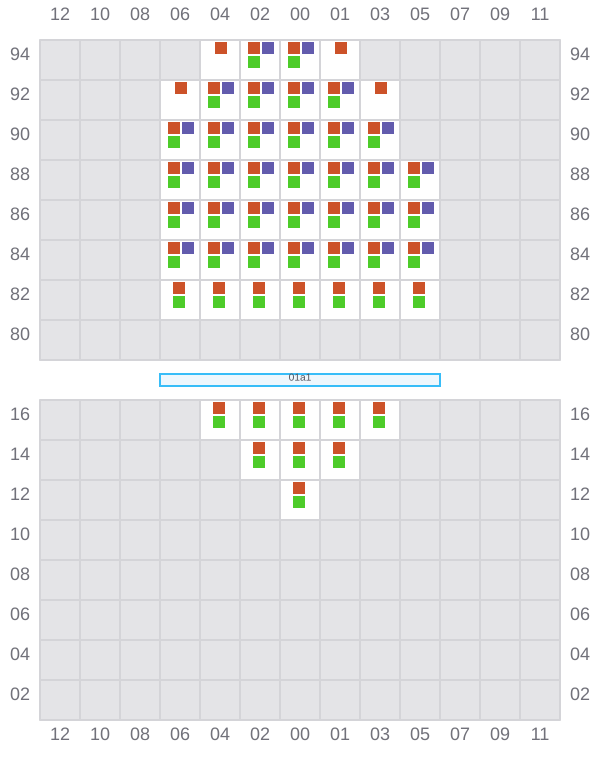

001 (002)
- →
![Bay 001 view and slots of MAERSK OHIO](/vessel-images/8013cb9a-63c0-45bd-b1a3-83374946bc3f-b001.png?v=1710700211107)

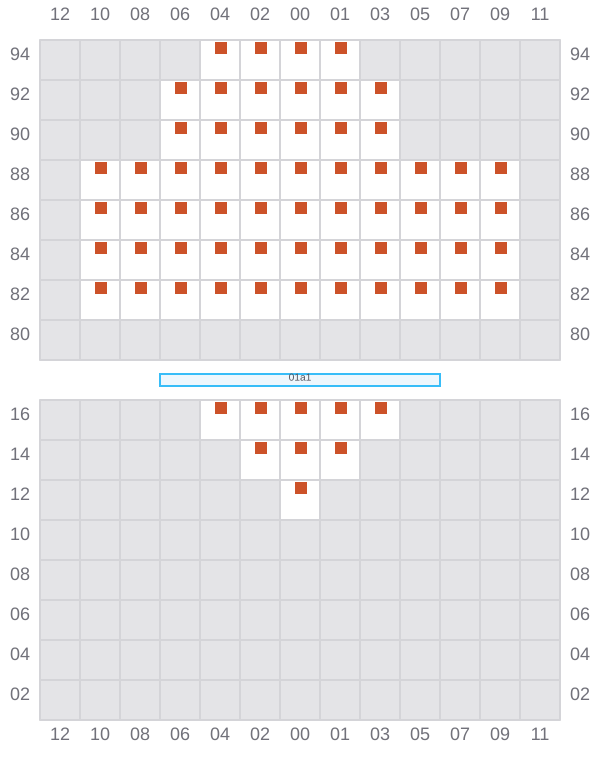

003
- ←
![Bay 003 view and slots of MAERSK OHIO](/vessel-images/8013cb9a-63c0-45bd-b1a3-83374946bc3f-b003.png?v=1710700211107)

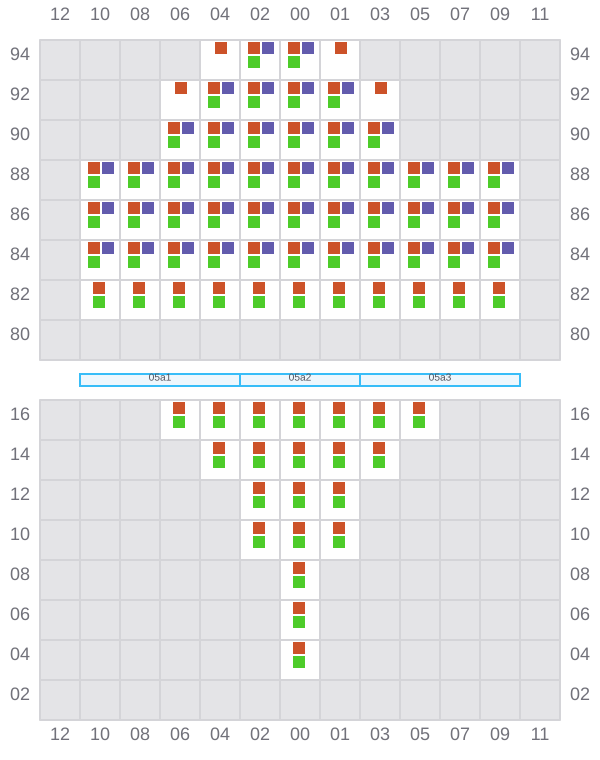

005 (006)
- →
![Bay 005 view and slots of MAERSK OHIO](/vessel-images/8013cb9a-63c0-45bd-b1a3-83374946bc3f-b005.png?v=1710700211107)

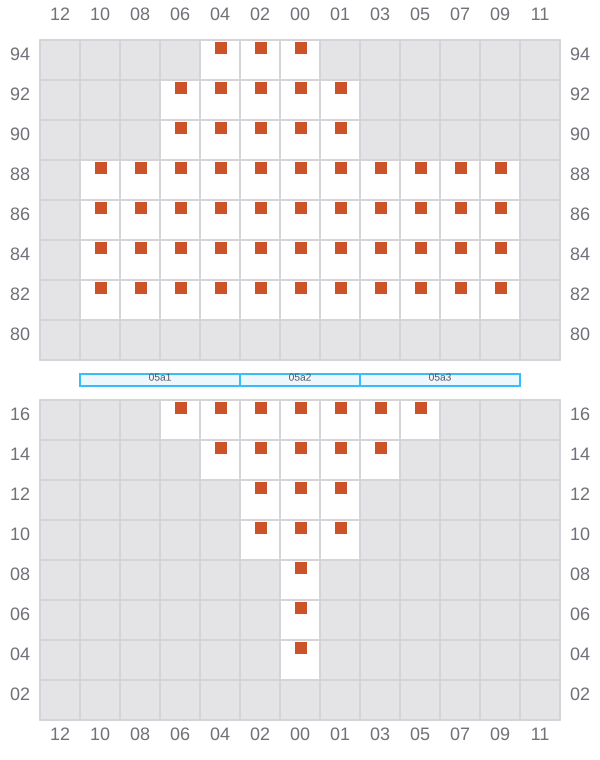

007
- ←
![Bay 007 view and slots of MAERSK OHIO](/vessel-images/8013cb9a-63c0-45bd-b1a3-83374946bc3f-b007.png?v=1710700211107)

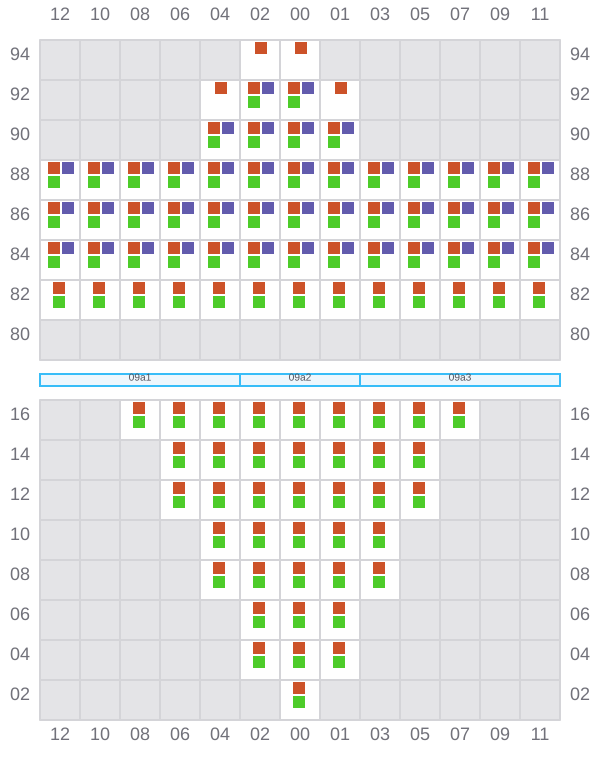

009 (010)
- →
![Bay 009 view and slots of MAERSK OHIO](/vessel-images/8013cb9a-63c0-45bd-b1a3-83374946bc3f-b009.png?v=1710700211107)

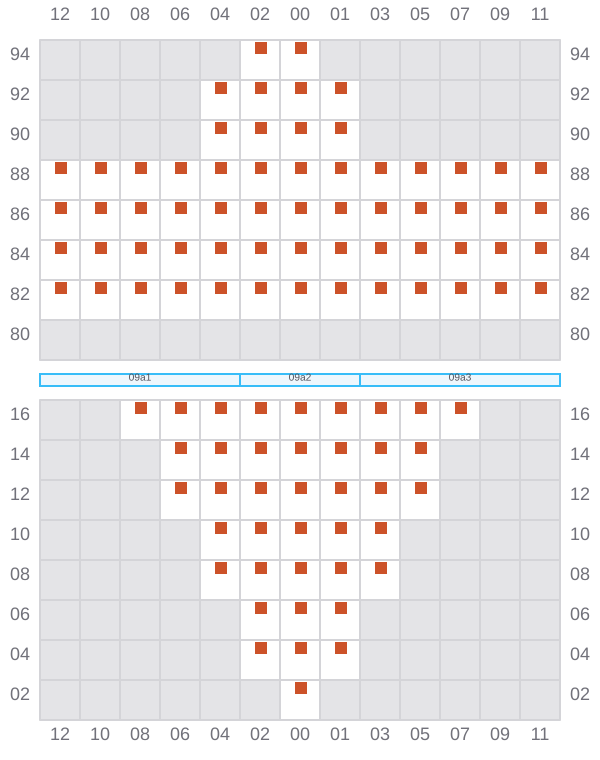

011
- ←
![Bay 011 view and slots of MAERSK OHIO](/vessel-images/8013cb9a-63c0-45bd-b1a3-83374946bc3f-b011.png?v=1710700211107)

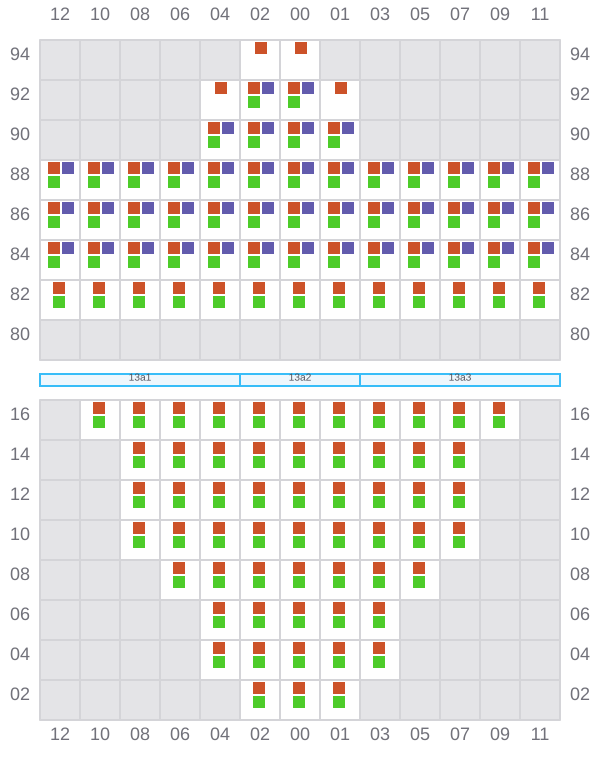

013 (014)
- →
![Bay 013 view and slots of MAERSK OHIO](/vessel-images/8013cb9a-63c0-45bd-b1a3-83374946bc3f-b013.png?v=1710700211107)

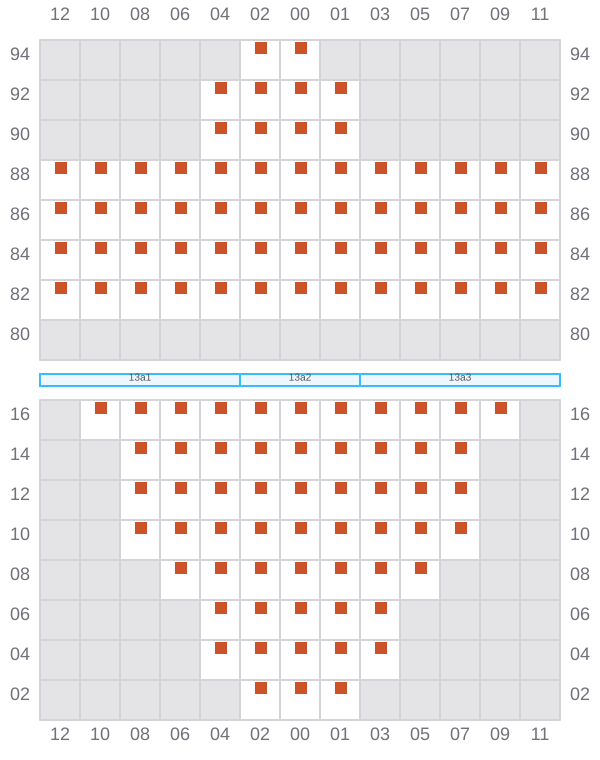

015
- ←
![Bay 015 view and slots of MAERSK OHIO](/vessel-images/8013cb9a-63c0-45bd-b1a3-83374946bc3f-b015.png?v=1710700211107)

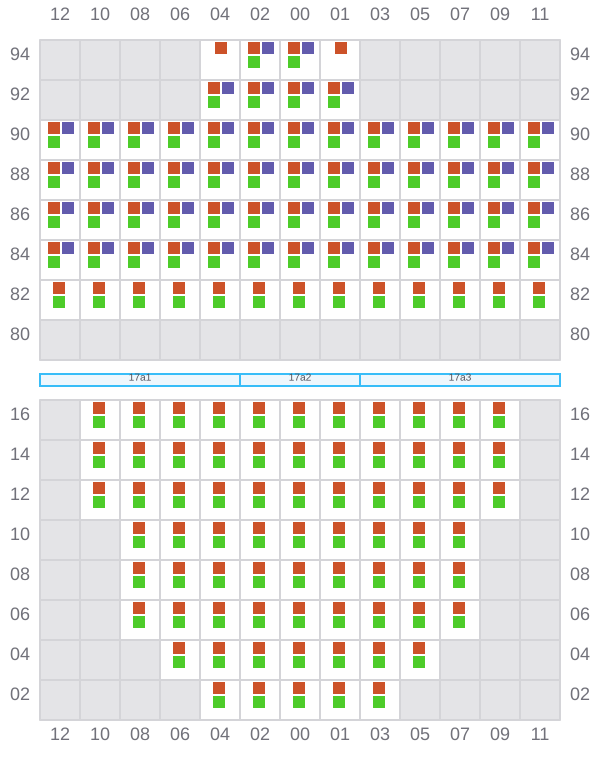

017 (018)
- →
![Bay 017 view and slots of MAERSK OHIO](/vessel-images/8013cb9a-63c0-45bd-b1a3-83374946bc3f-b017.png?v=1710700211107)

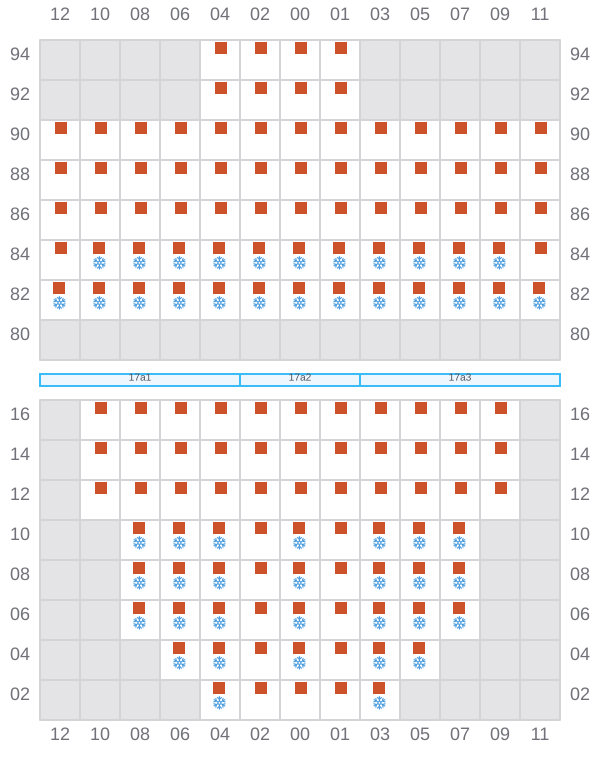

019
- ←
- →
![Bay 019 view and slots of MAERSK OHIO](/vessel-images/8013cb9a-63c0-45bd-b1a3-83374946bc3f-b019.png?v=1710700211107)

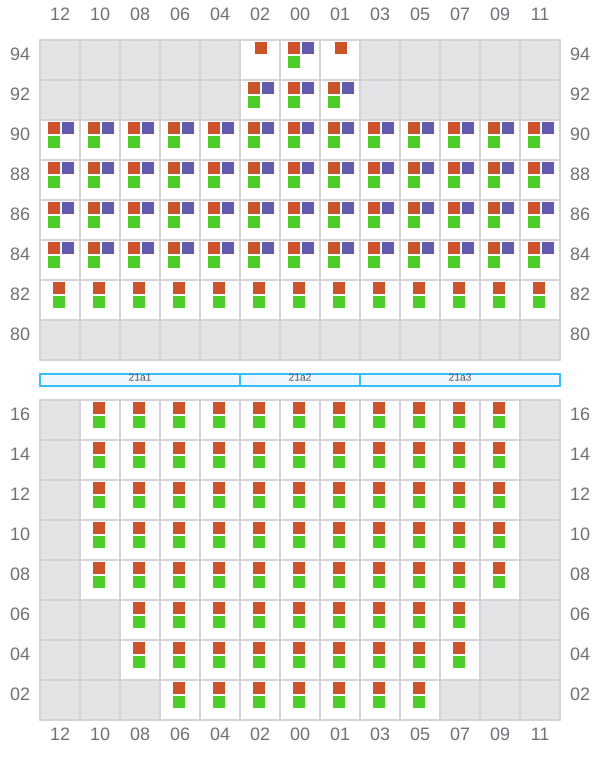

021 (022)
- →
![Bay 021 view and slots of MAERSK OHIO](/vessel-images/8013cb9a-63c0-45bd-b1a3-83374946bc3f-b021.png?v=1710700211107)
023
- ←
- →
![Bay 023 view and slots of MAERSK OHIO](/vessel-images/8013cb9a-63c0-45bd-b1a3-83374946bc3f-b023.png?v=1710700211107)

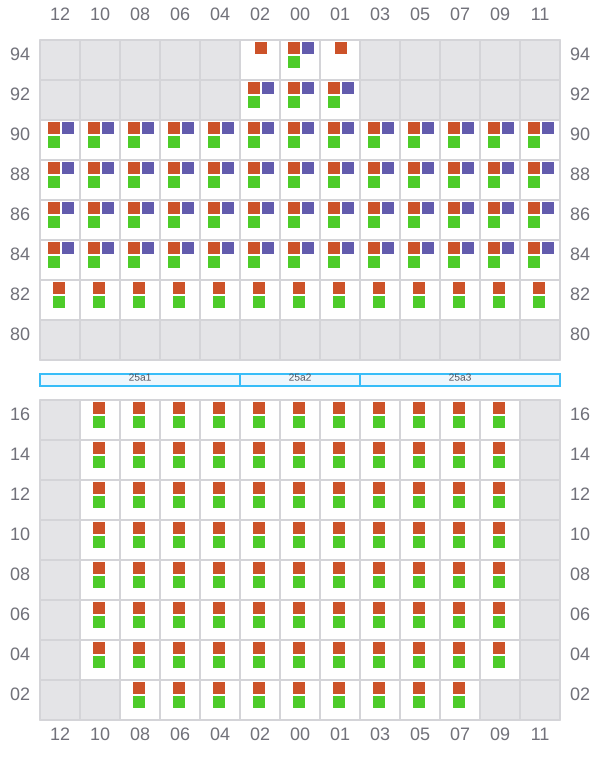

025 (026)
- →
![Bay 025 view and slots of MAERSK OHIO](/vessel-images/8013cb9a-63c0-45bd-b1a3-83374946bc3f-b025.png?v=1710700211107)

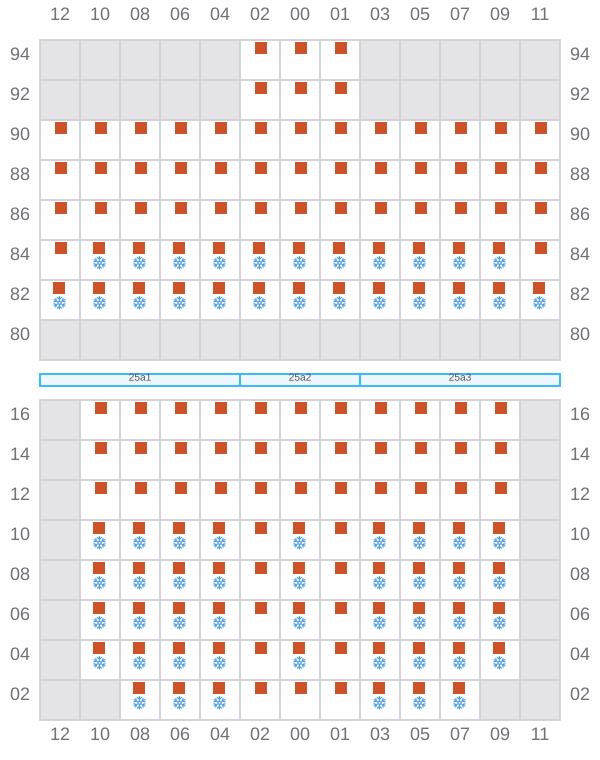

027
- ←
- →
![Bay 027 view and slots of MAERSK OHIO](/vessel-images/8013cb9a-63c0-45bd-b1a3-83374946bc3f-b027.png?v=1710700211107)

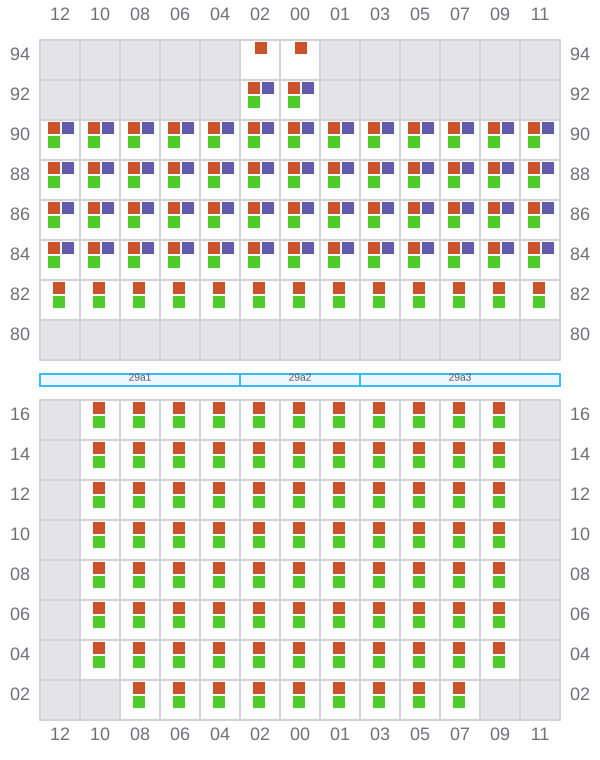

029 (030)
- →
![Bay 029 view and slots of MAERSK OHIO](/vessel-images/8013cb9a-63c0-45bd-b1a3-83374946bc3f-b029.png?v=1710700211107)

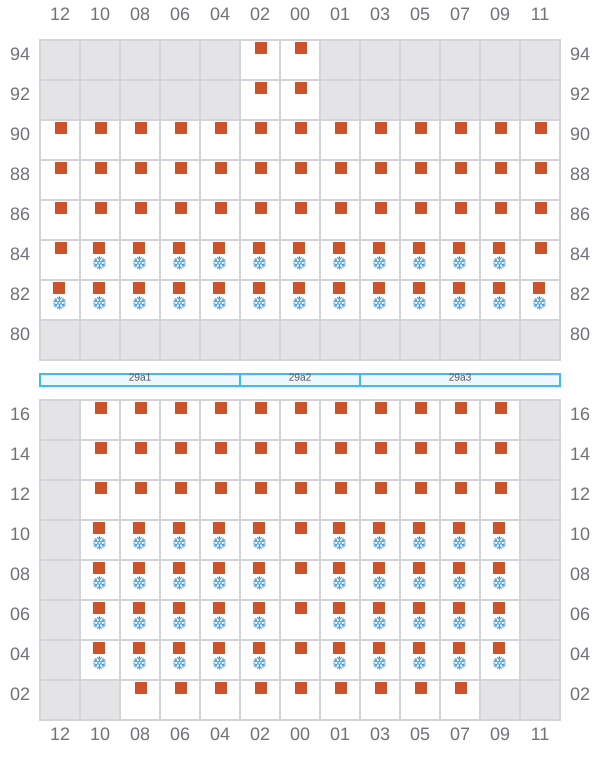

031
- ←
- → / ?
![Bay 031 view and slots of MAERSK OHIO](/vessel-images/8013cb9a-63c0-45bd-b1a3-83374946bc3f-b031.png?v=1710700211107)

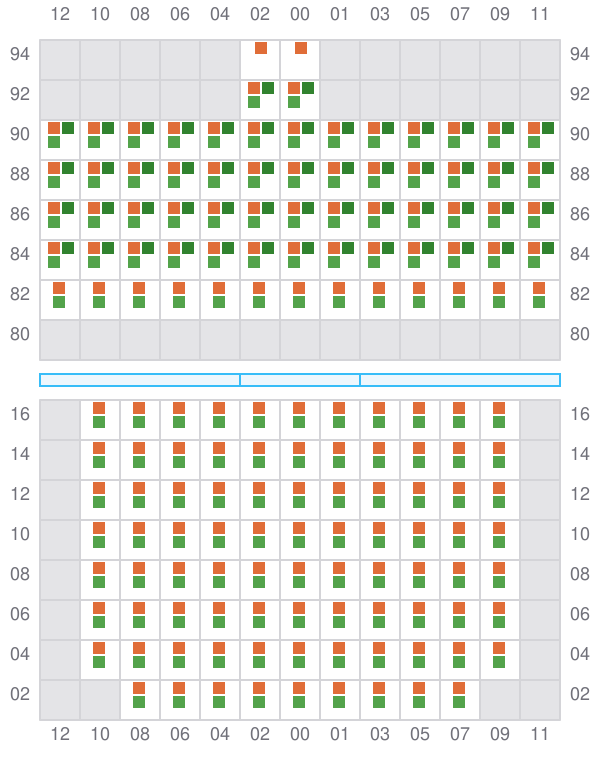

033 (034)
- →
![Bay 033 view and slots of MAERSK OHIO](/vessel-images/8013cb9a-63c0-45bd-b1a3-83374946bc3f-b033.png?v=1710700211107)

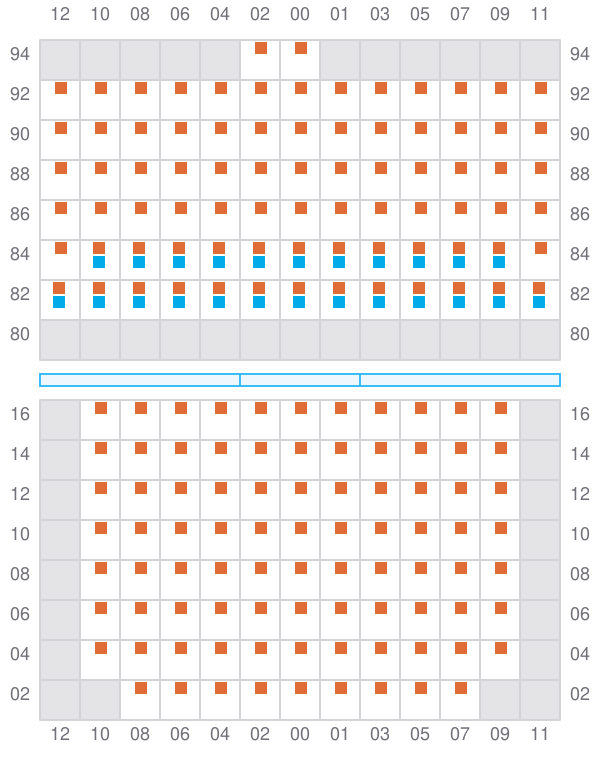

035
- ←
- →
![Bay 035 view and slots of MAERSK OHIO](/vessel-images/8013cb9a-63c0-45bd-b1a3-83374946bc3f-b035.png?v=1710700211107)

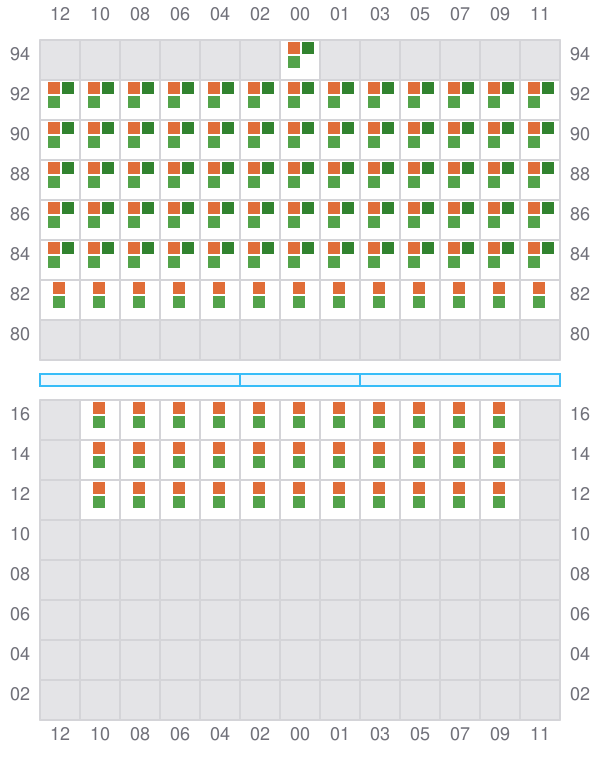

037 (038)
- →
![Bay 037 view and slots of MAERSK OHIO](/vessel-images/8013cb9a-63c0-45bd-b1a3-83374946bc3f-b037.png?v=1710700211107)

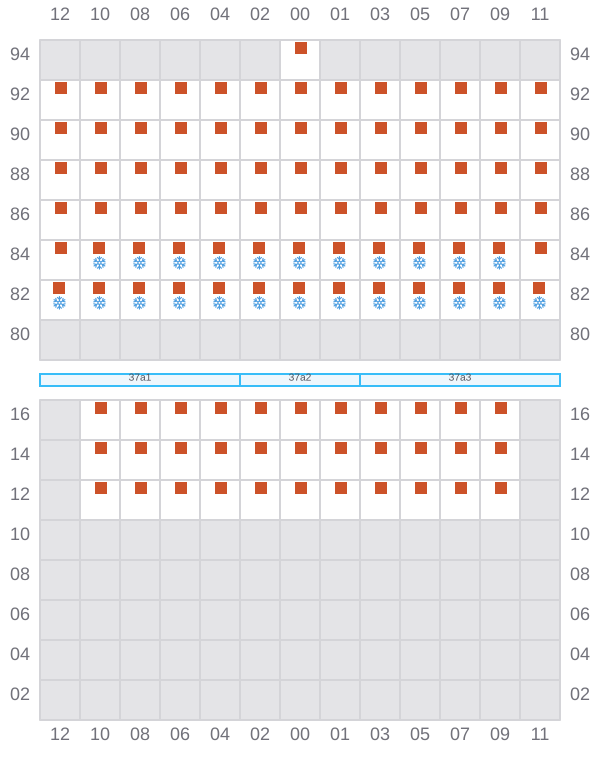

039
- ←
- → / ?
![Bay 039 view and slots of MAERSK OHIO](/vessel-images/8013cb9a-63c0-45bd-b1a3-83374946bc3f-b039.png?v=1710700211107)

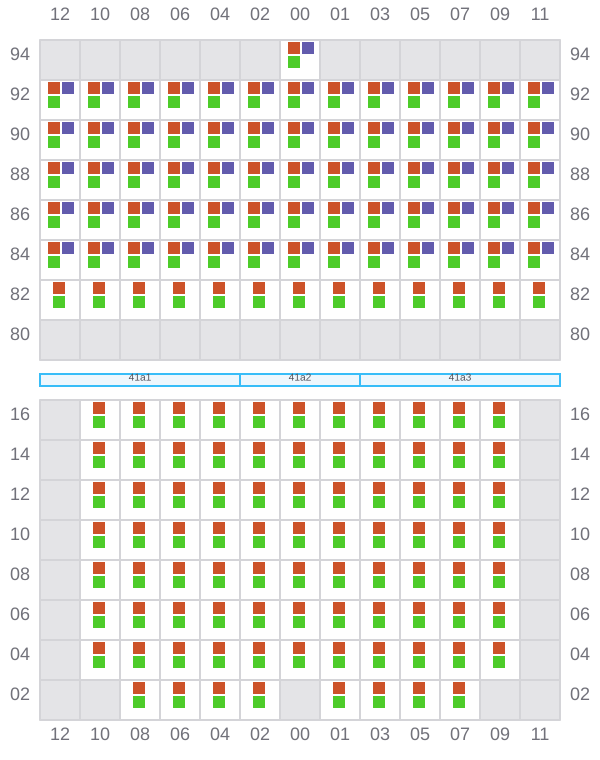

041 (042)
- →
![Bay 041 view and slots of MAERSK OHIO](/vessel-images/8013cb9a-63c0-45bd-b1a3-83374946bc3f-b041.png?v=1710700211107)

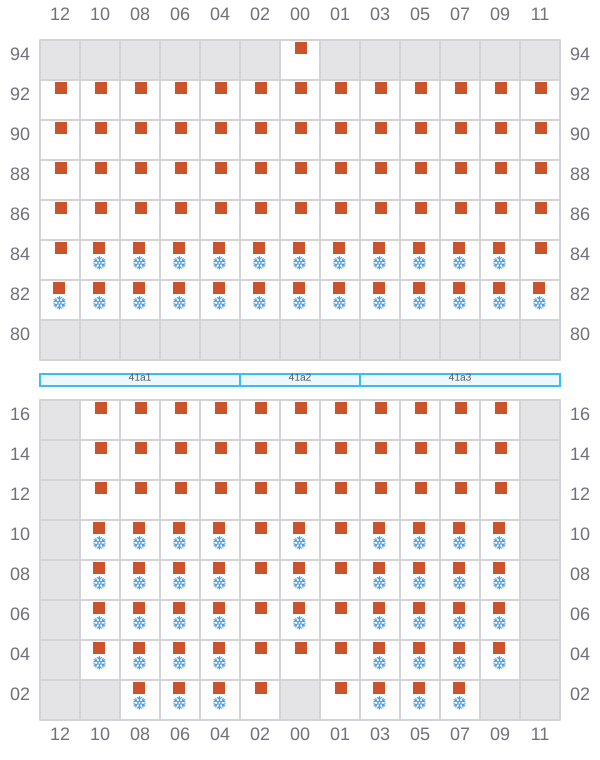

043
- ←
- →
![Bay 043 view and slots of MAERSK OHIO](/vessel-images/8013cb9a-63c0-45bd-b1a3-83374946bc3f-b043.png?v=1710700211107)

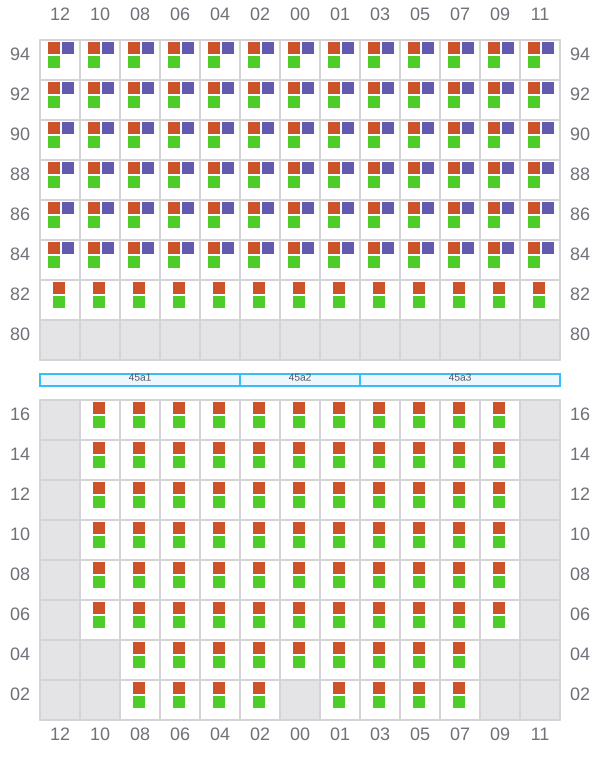

045 (046)
- →
![Bay 045 view and slots of MAERSK OHIO](/vessel-images/8013cb9a-63c0-45bd-b1a3-83374946bc3f-b045.png?v=1710700211107)

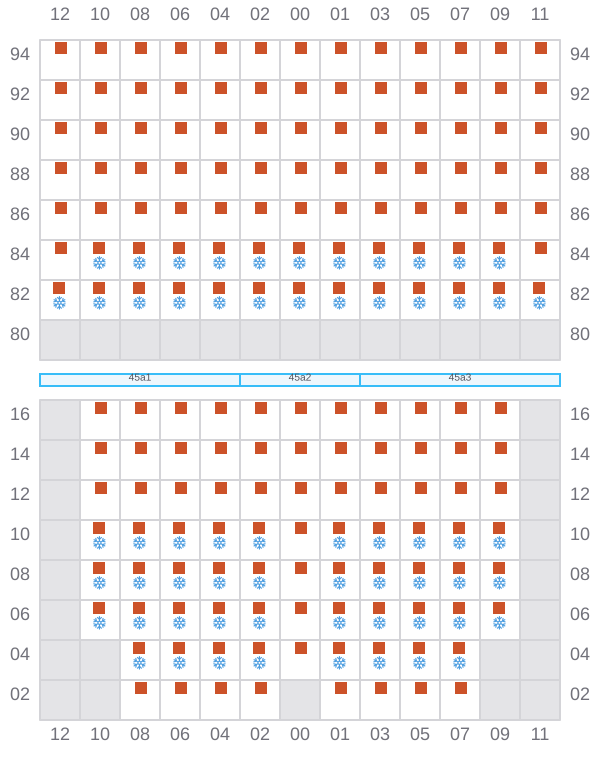

047
- ←
- →
![Bay 047 view and slots of MAERSK OHIO](/vessel-images/8013cb9a-63c0-45bd-b1a3-83374946bc3f-b047.png?v=1710700211107)

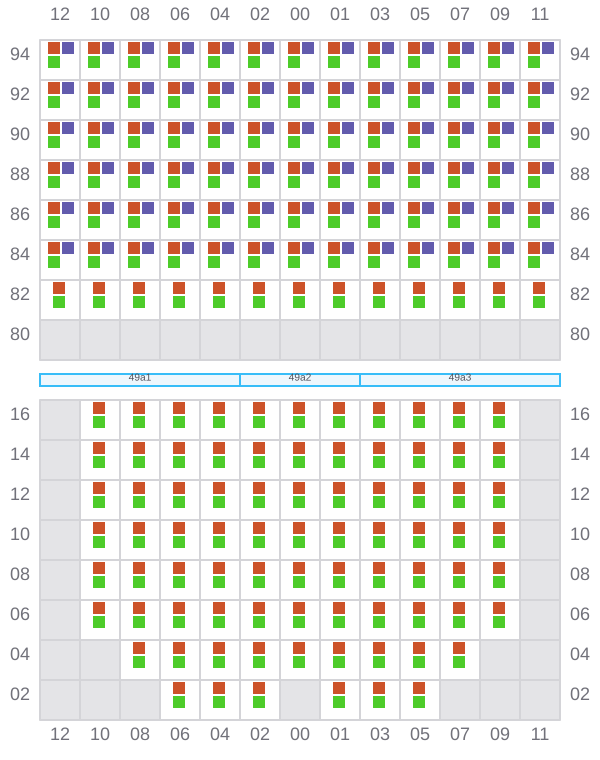

049 (050)
- →
![Bay 049 view and slots of MAERSK OHIO](/vessel-images/8013cb9a-63c0-45bd-b1a3-83374946bc3f-b049.png?v=1710700211107)

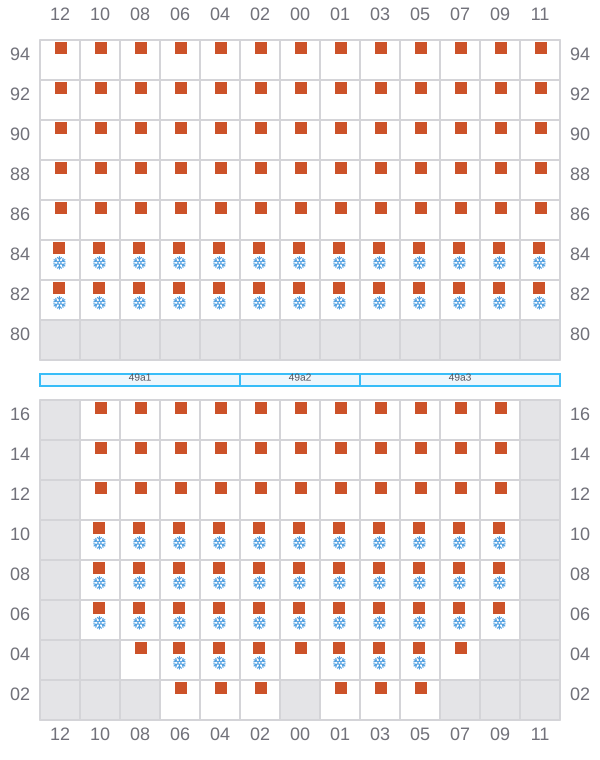

051
- ←
- →
![Bay 051 view and slots of MAERSK OHIO](/vessel-images/8013cb9a-63c0-45bd-b1a3-83374946bc3f-b051.png?v=1710700211107)

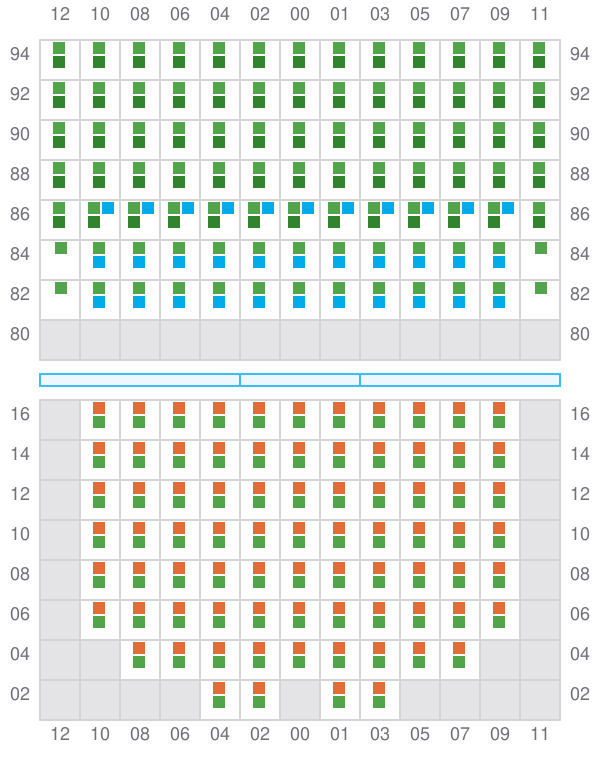

053 (054)
- →
- → / ?
![Bay 053 view and slots of MAERSK OHIO](/vessel-images/8013cb9a-63c0-45bd-b1a3-83374946bc3f-b053.png?v=1710700211107)

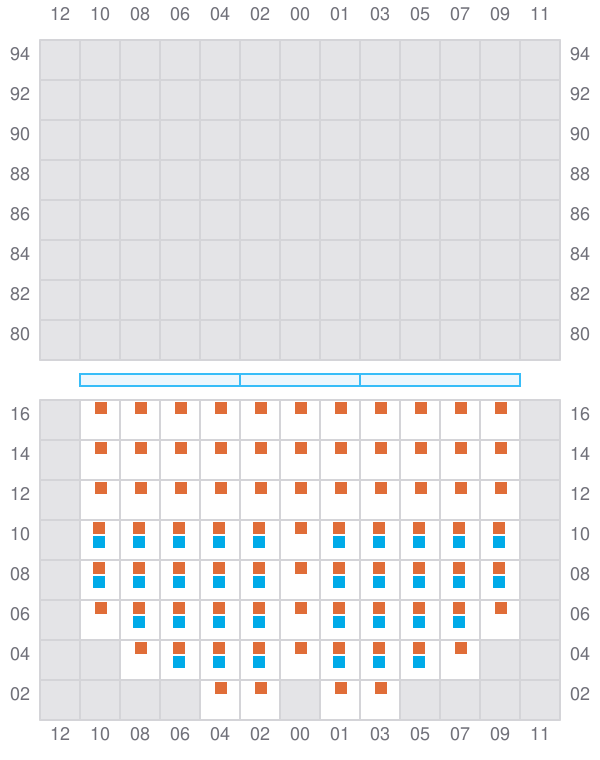

055
- ? / ←
- ? / →
![Bay 055 view and slots of MAERSK OHIO](/vessel-images/8013cb9a-63c0-45bd-b1a3-83374946bc3f-b055.png?v=1710700211107)

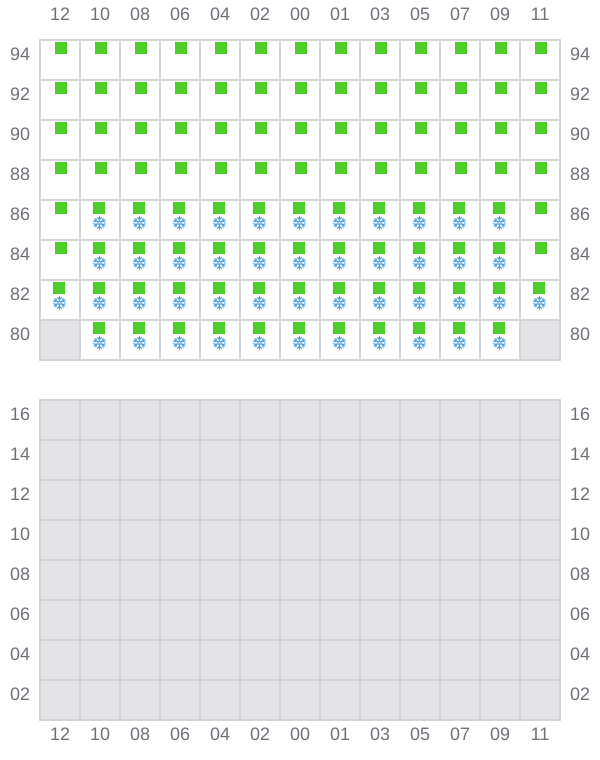

057 (058)
- → / ?
- ← / ?
![Bay 057 view and slots of MAERSK OHIO](/vessel-images/8013cb9a-63c0-45bd-b1a3-83374946bc3f-b057.png?v=1710700211107)
059
![Bay 059 view and slots of MAERSK OHIO](/vessel-images/8013cb9a-63c0-45bd-b1a3-83374946bc3f-b059.png?v=1710700211107)

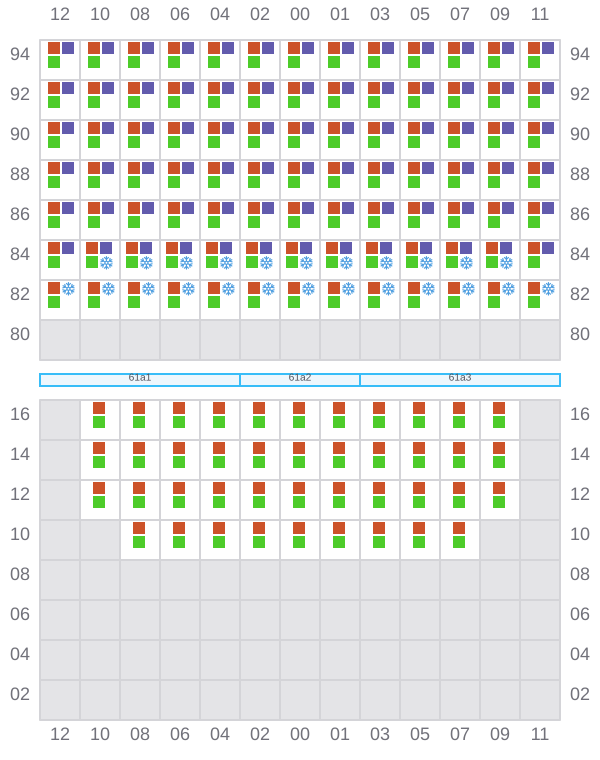

061 (062)
- →
- ← / ?
![Bay 061 view and slots of MAERSK OHIO](/vessel-images/8013cb9a-63c0-45bd-b1a3-83374946bc3f-b061.png?v=1710700211107)

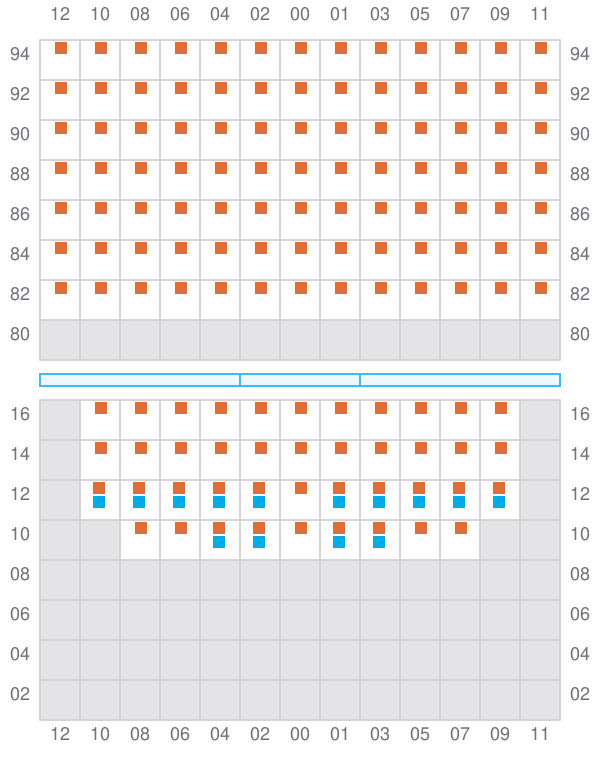

063
- ←
- ? / →
![Bay 063 view and slots of MAERSK OHIO](/vessel-images/8013cb9a-63c0-45bd-b1a3-83374946bc3f-b063.png?v=1710700211107)

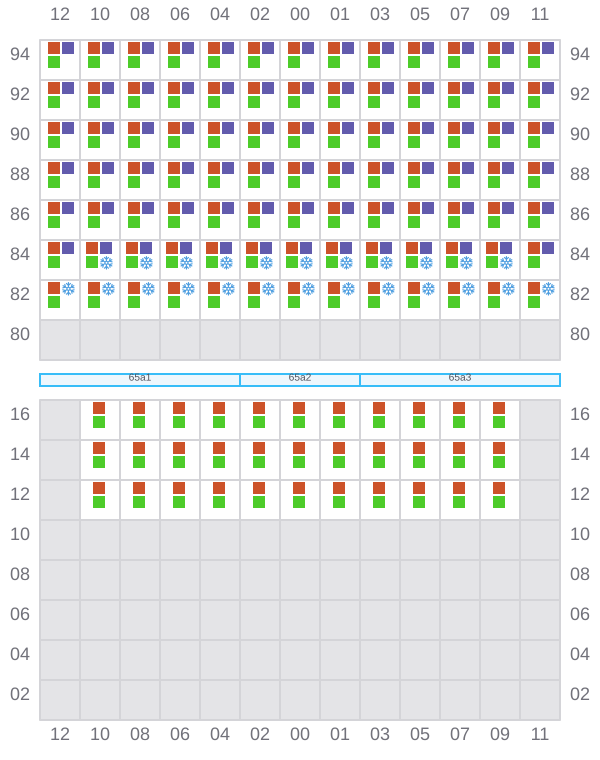

065 (066)
- →
- ← / ?
![Bay 065 view and slots of MAERSK OHIO](/vessel-images/8013cb9a-63c0-45bd-b1a3-83374946bc3f-b065.png?v=1710700211107)

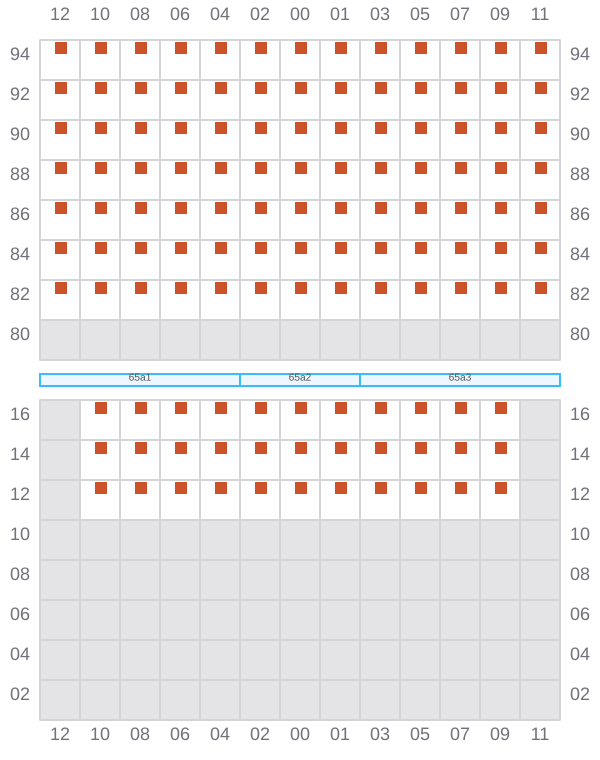

067
- ←
![Bay 067 view and slots of MAERSK OHIO](/vessel-images/8013cb9a-63c0-45bd-b1a3-83374946bc3f-b067.png?v=1710700211107)

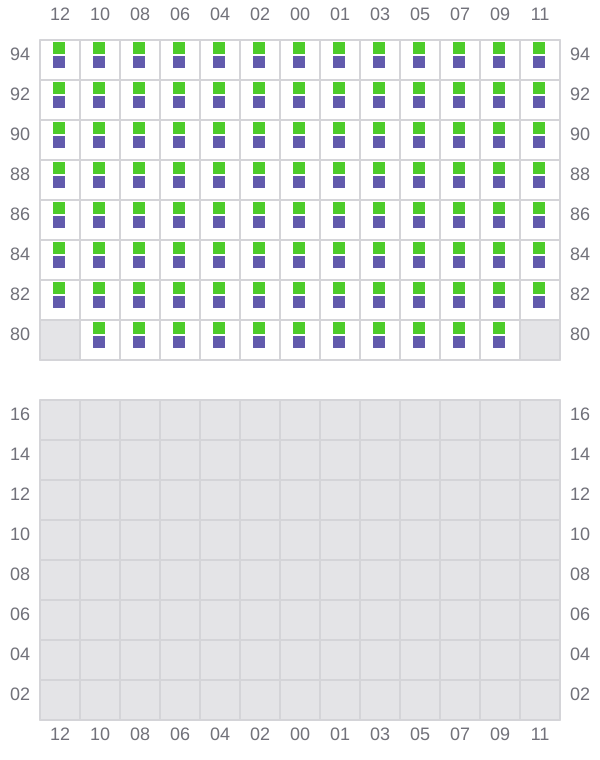

069 (070)
- → / ?
![Bay 069 view and slots of MAERSK OHIO](/vessel-images/8013cb9a-63c0-45bd-b1a3-83374946bc3f-b069.png?v=1710700211107)
