MAERSK PHUKET
9936446 | 5LHS4 | 9936446 by ********* Last update: Tue May 07 2024
General Info
Ship Name:MAERSK PHUKET
IMO Code:9936446
Call Sign:5LHS4
Line Operator:9936446
Class Name for Sister Ships:MAERSKPHUKET
Year Built:2022
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-
Size Summary
ISO Bays:047
Max ISO Row:12
Center Line Row:Yes
Max Above ISO Tier:98
Min Above ISO Tier:82
Max Below ISO Tier:16
Min Below ISO Tier:02
Total TEU:3,160
Centers of Gravity
LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%
Side View
Hatch-Covers View

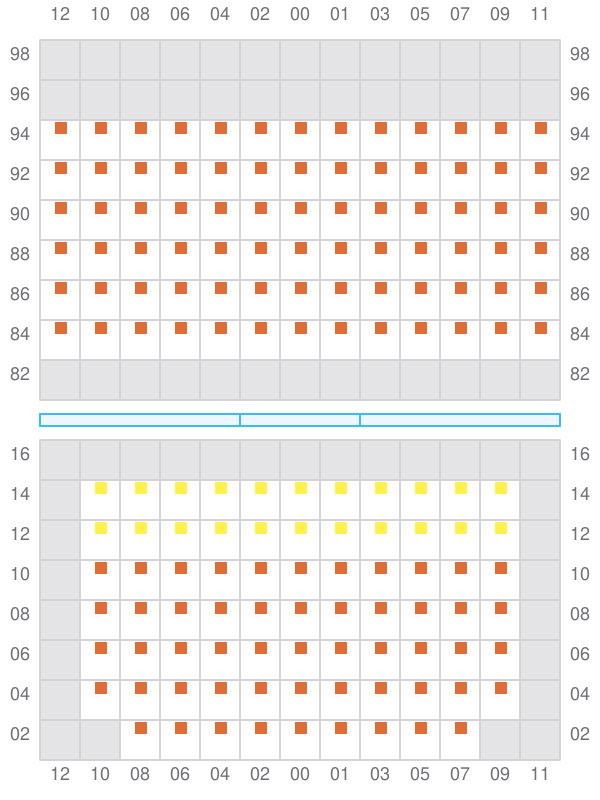

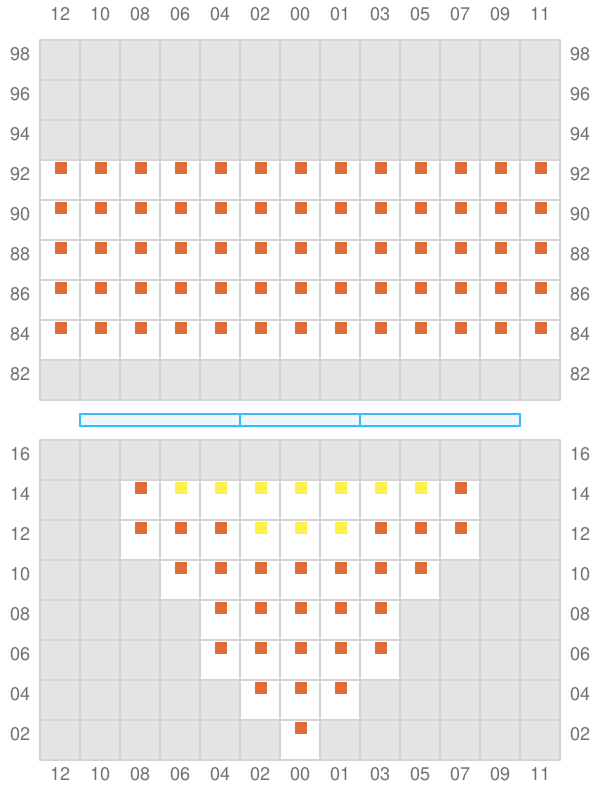

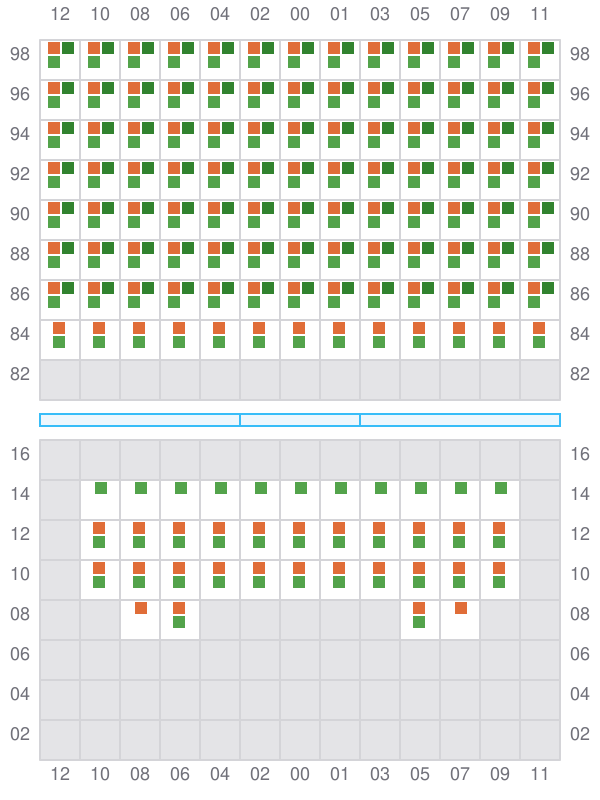

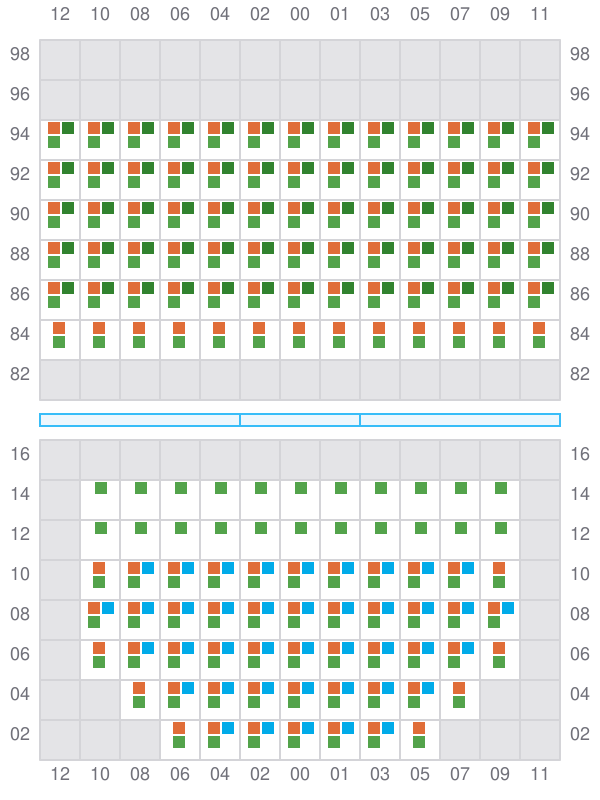

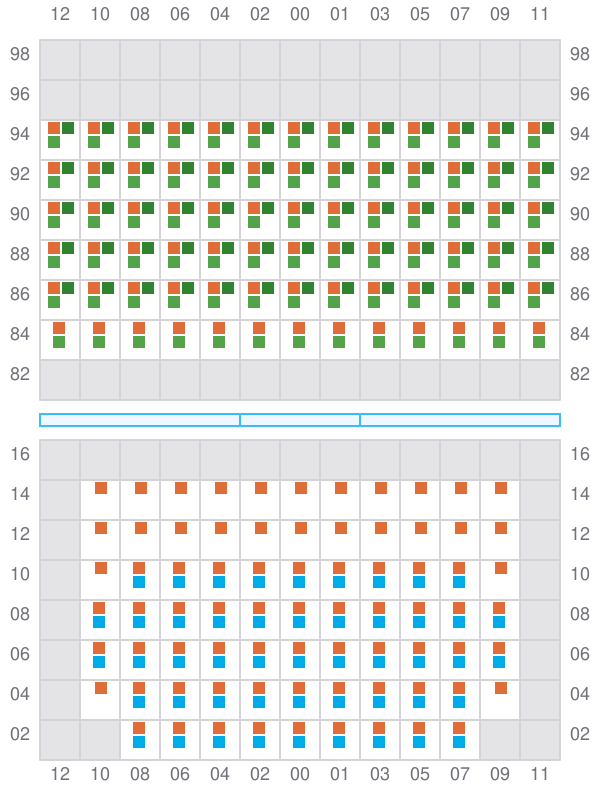

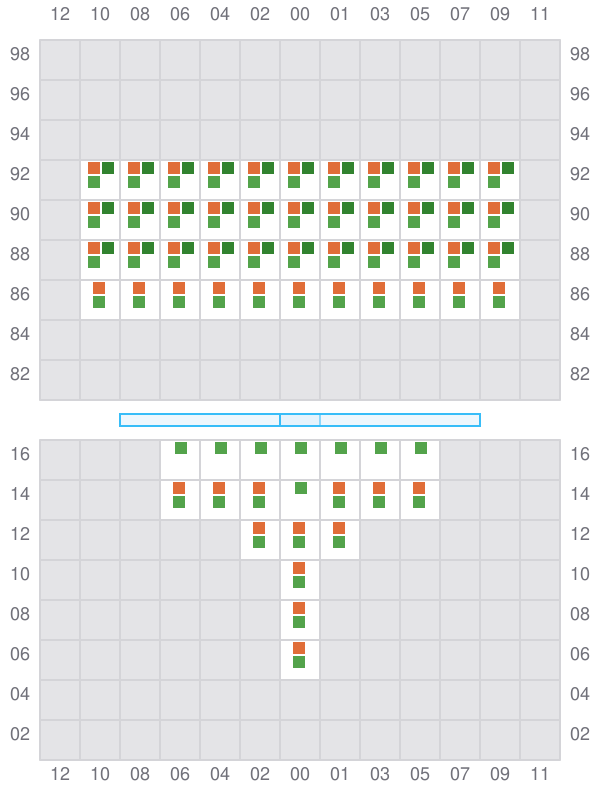

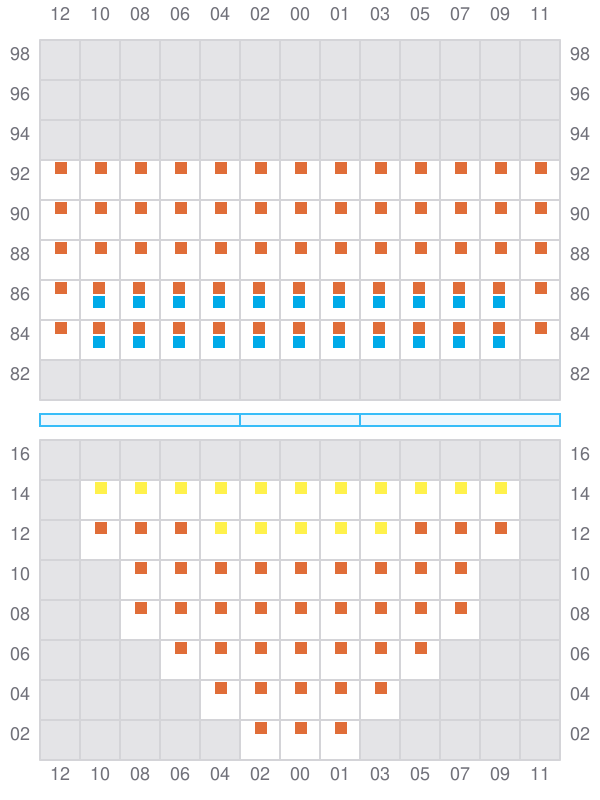

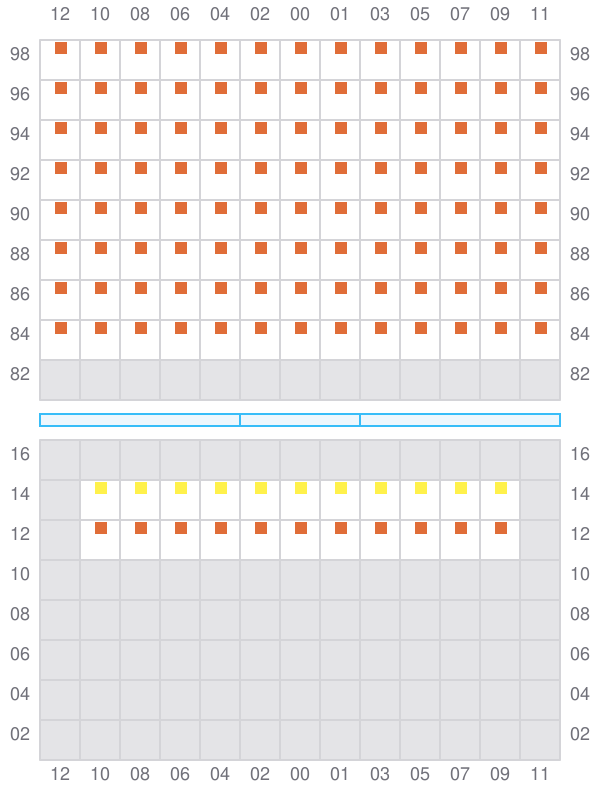

ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot
001 (002)
- →

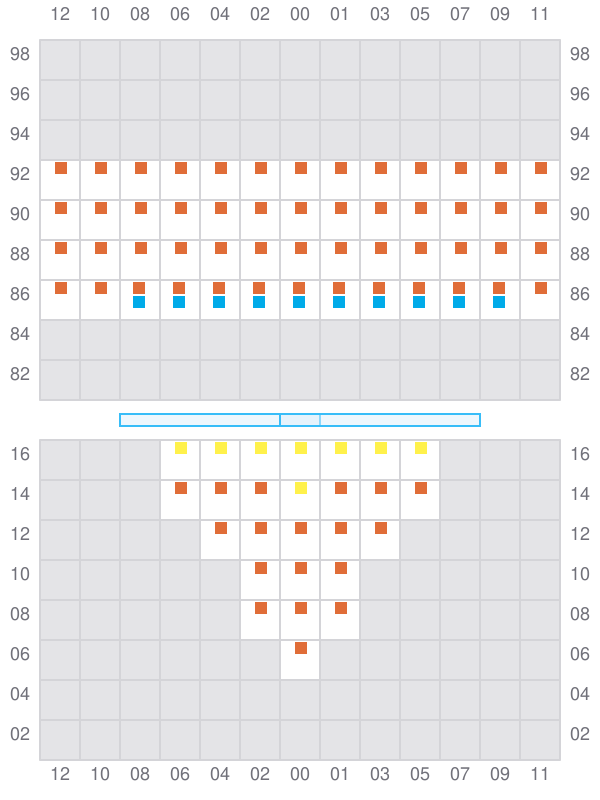

003
- ←
- → / ?

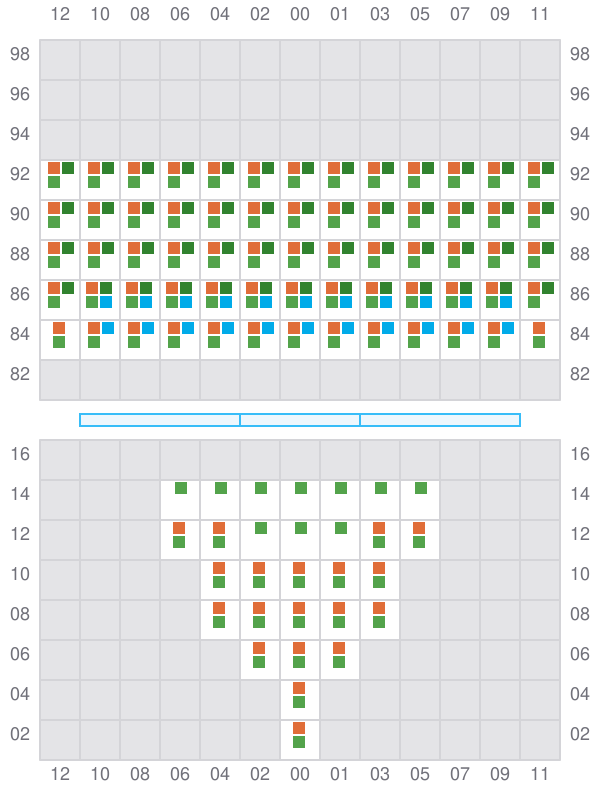

005 (006)
- →
- ← / ?
007
- ←

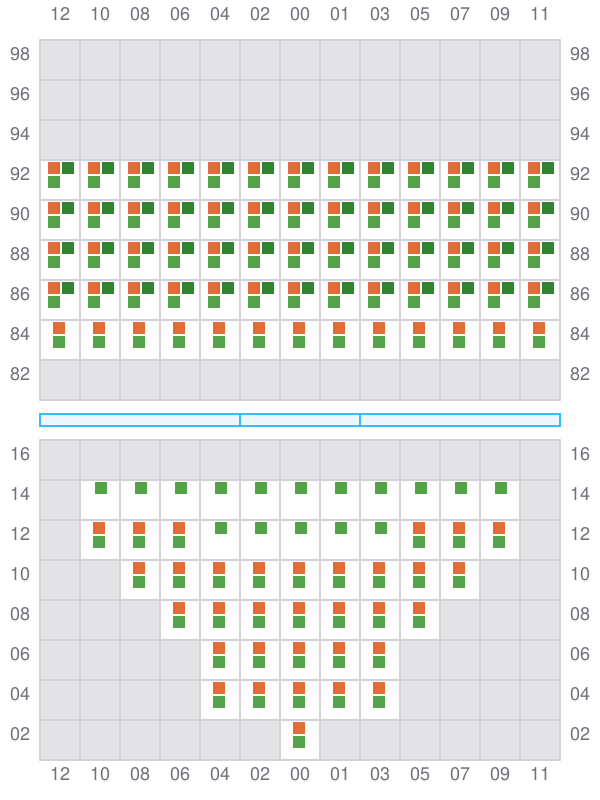

009 (010)
- →
011
- ←
- → / ?

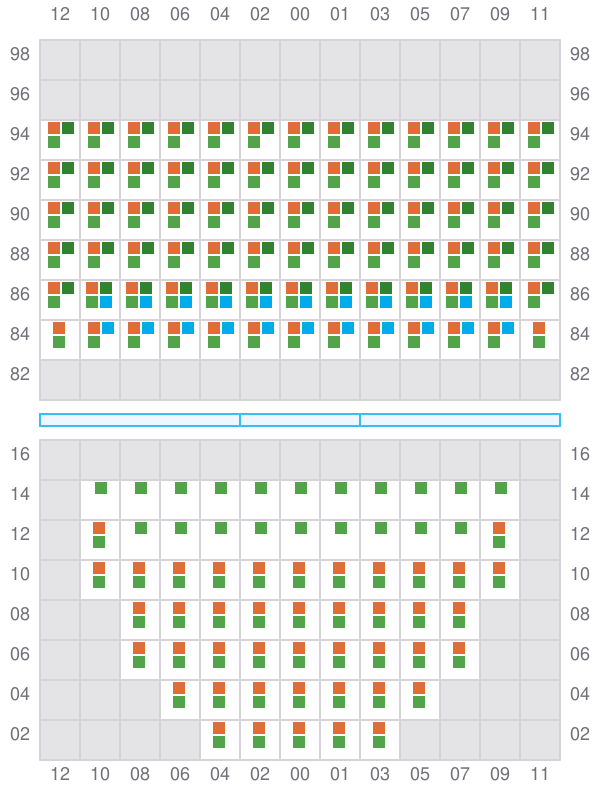

013 (014)
- →
- ← / ?

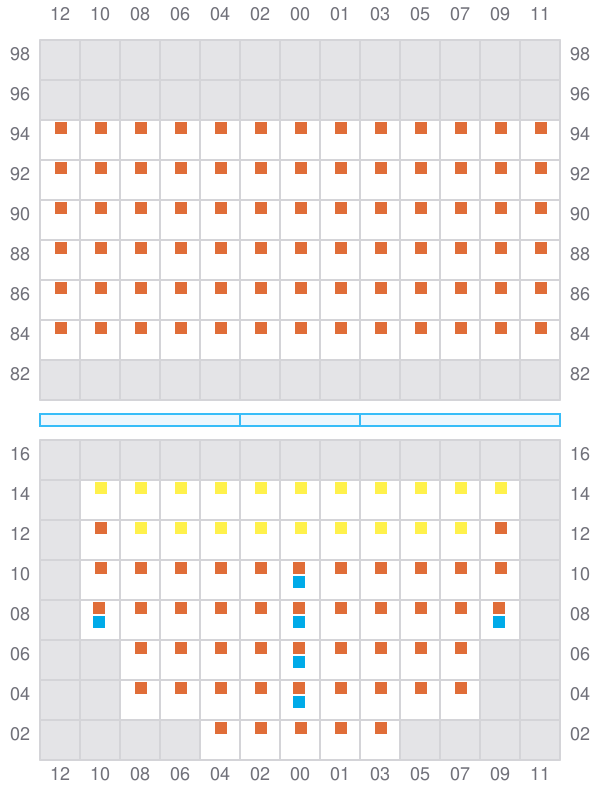

015
- ←
- ? / →
017 (018)
- →
- ? / ←

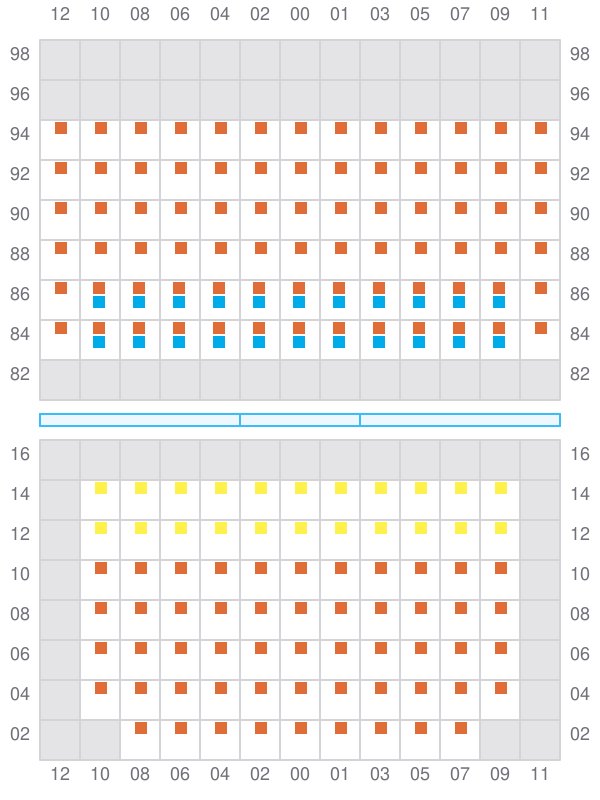

019
- ←
- → / ?

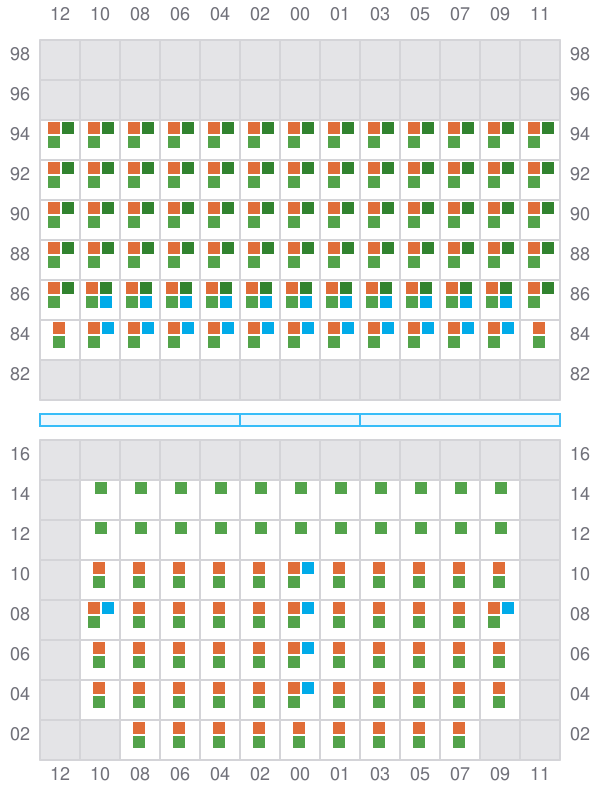

021 (022)
- →
- ←
023
- ←
025 (026)
- →
- ? / ←

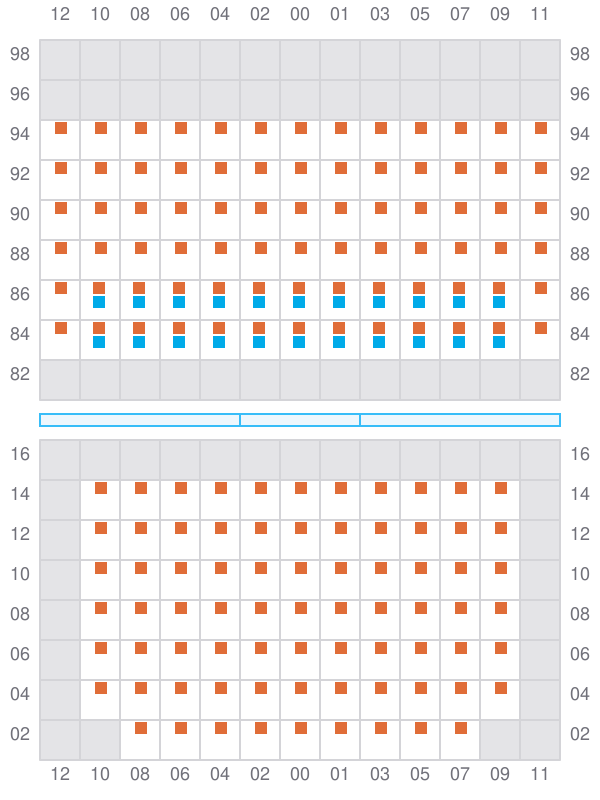

027
- ←
- → / ?

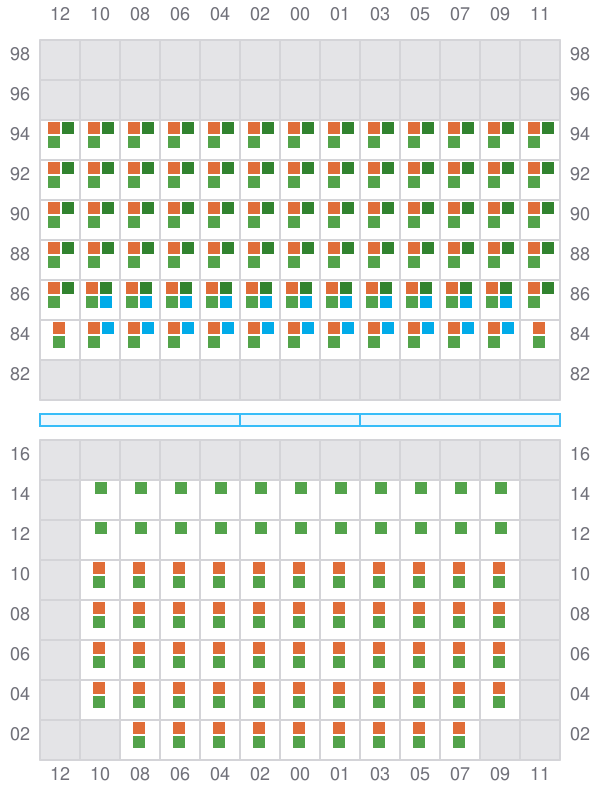

029 (030)
- →
- ← / ?
031
- ←
033 (034)
- →
035
- ←
- → / ?
037 (038)
- →
- ? / ←

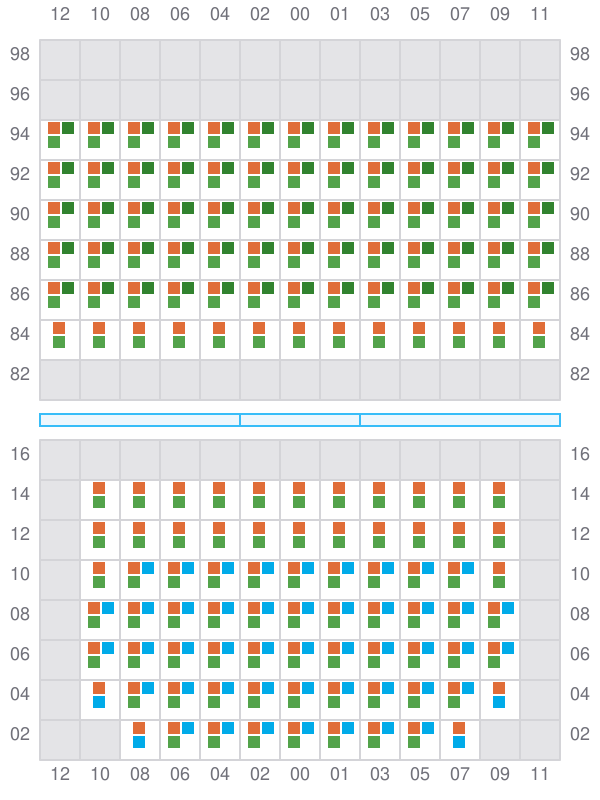

039
- ←
- → / ?

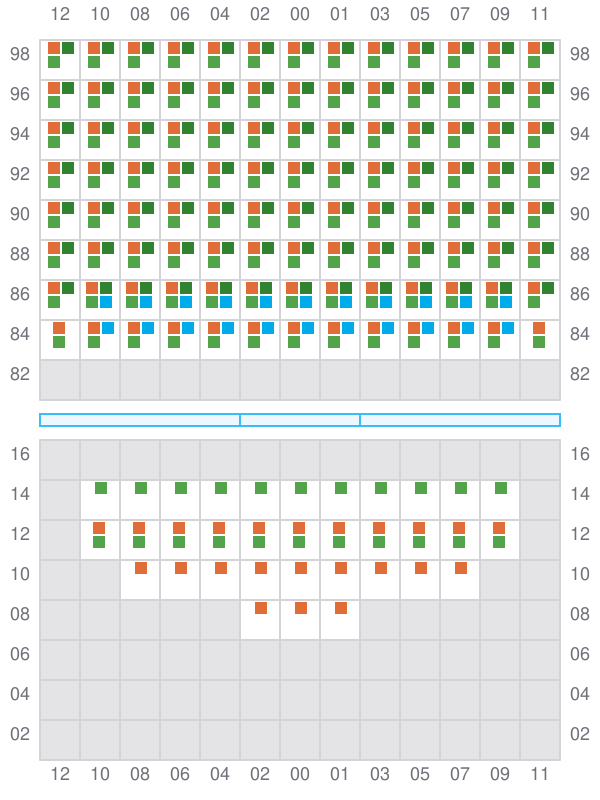

041 (042)
- →
- ← / ?

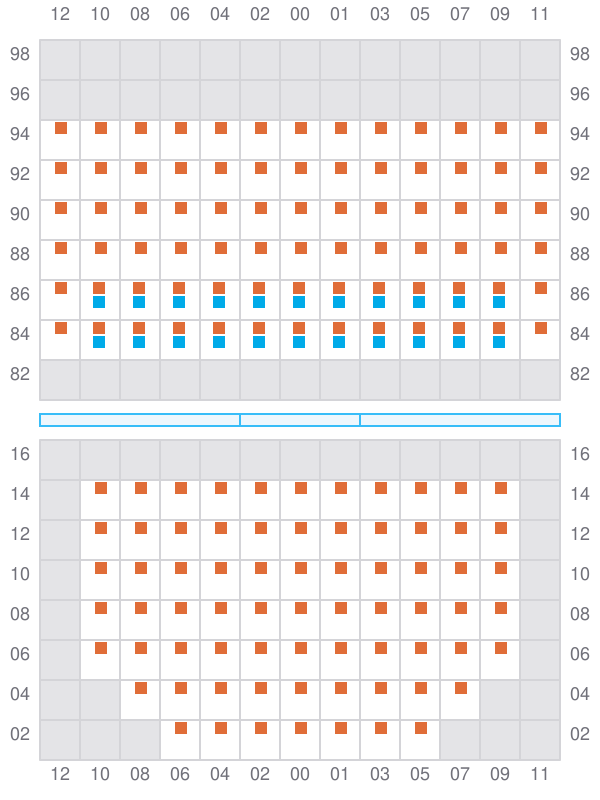

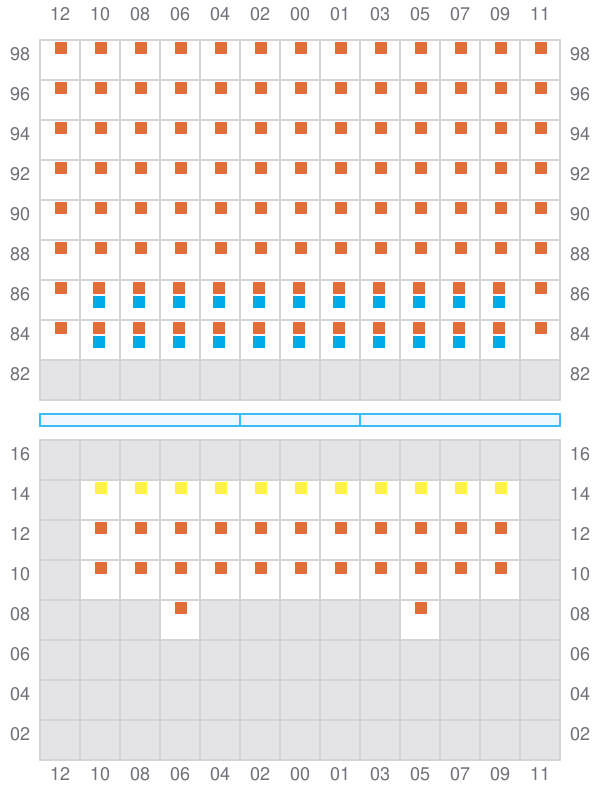

043
- ←

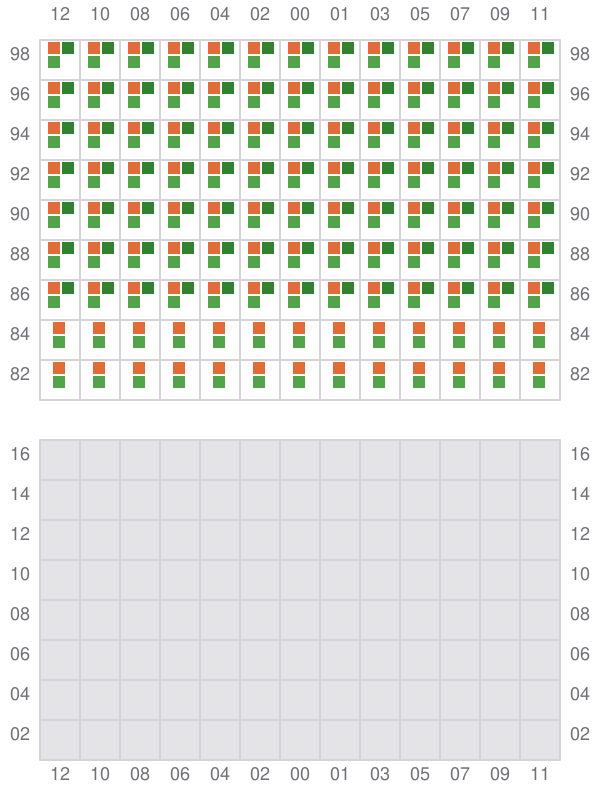

045 (046)
- → / ?
047
- ← / ?
- → / ?
