MAERSK REGENSBURG
9332676 | VREN6 | 933267 by ********* Last update: Fri Mar 22 2024
General Info
Ship Name:MAERSK REGENSBURG
IMO Code:9332676
Call Sign:VREN6
Line Operator:933267
Class Name for Sister Ships:3GW
Year Built:2006
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As (old names):-
Size Summary
ISO Bays:035
Max ISO Row:08
Center Line Row:Yes
Max Above ISO Tier:92
Min Above ISO Tier:80
Max Below ISO Tier:08
Min Below ISO Tier:02
Total TEU:1,118
Centers of Gravity
LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%
Side View

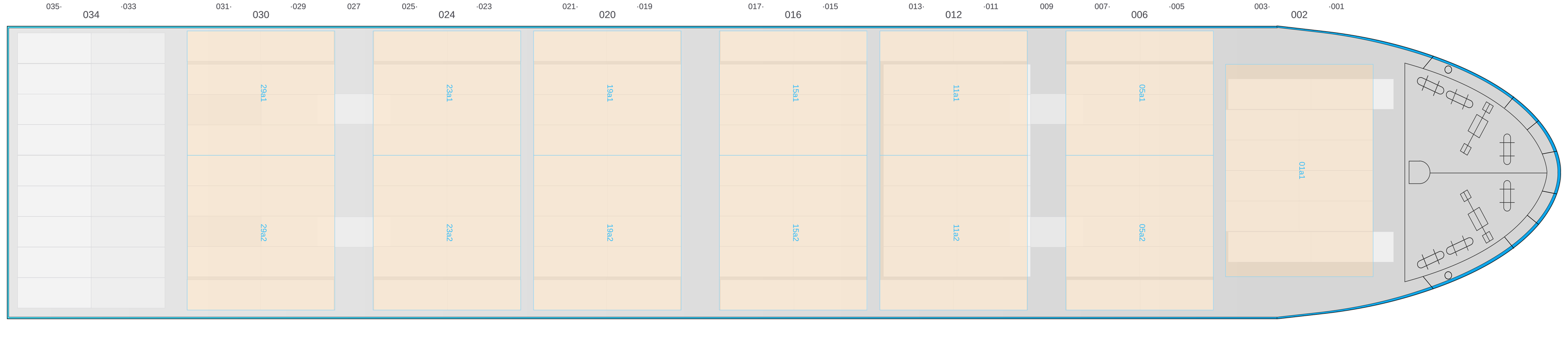

Hatch-Covers View

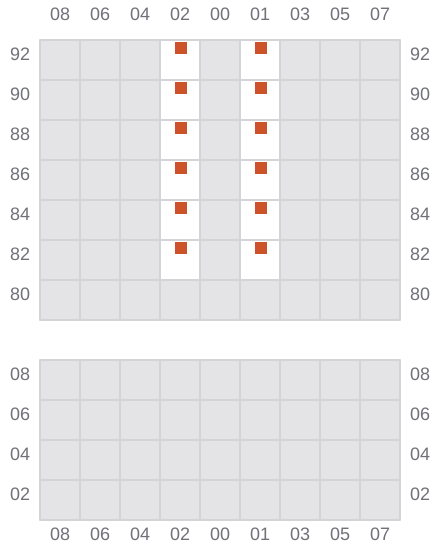

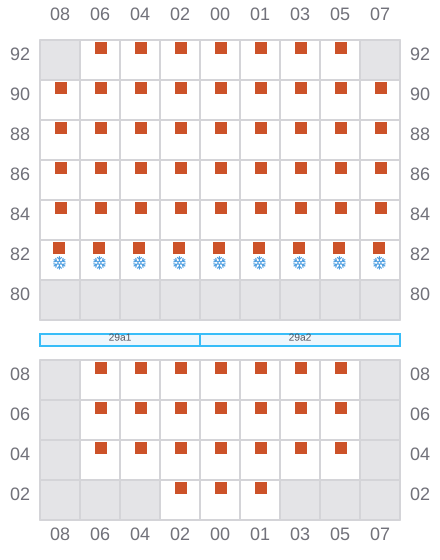

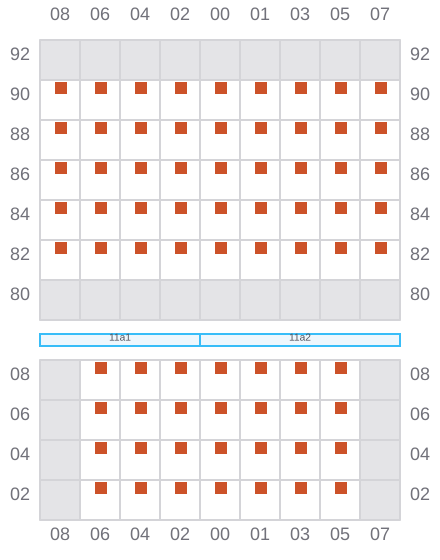

ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

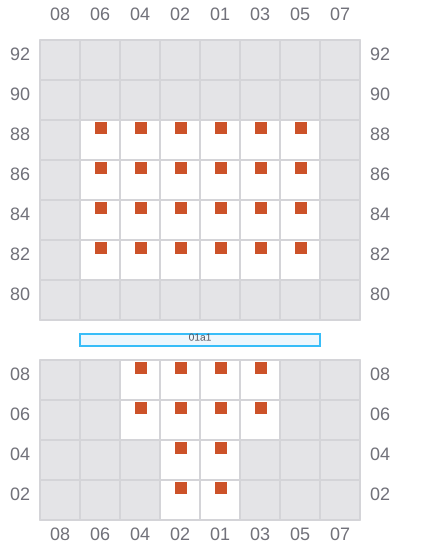

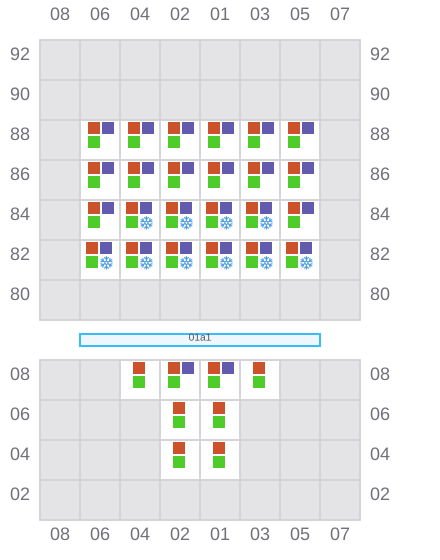

001 (002)
- →
- ← / ?
003
- ←

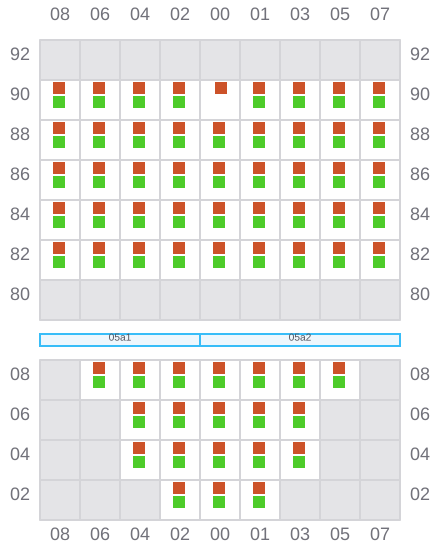

005 (006)
- →

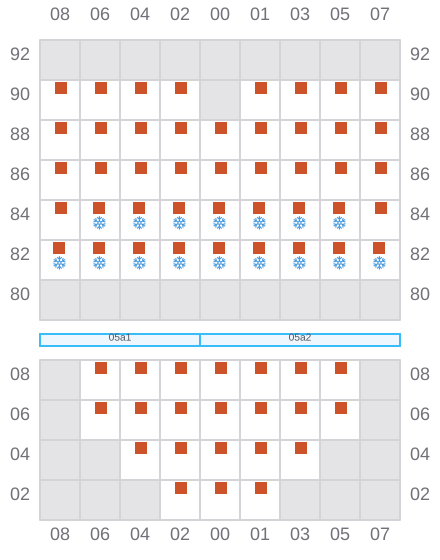

007
- ←
- → / ?

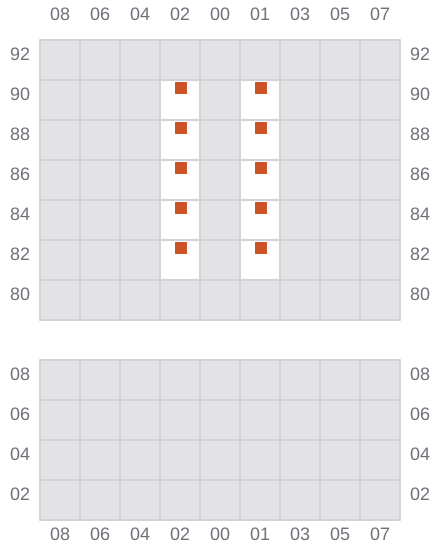

009
011 (012)
- →
- ← / ?
013
- ←

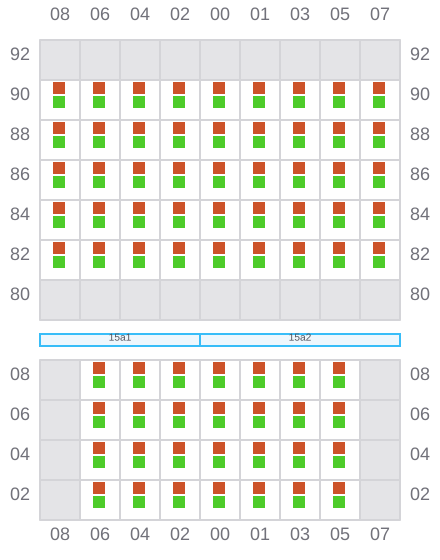

015 (016)
- →

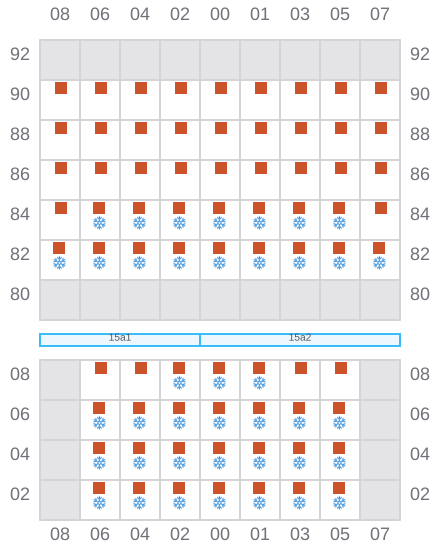

017
- ←
- →

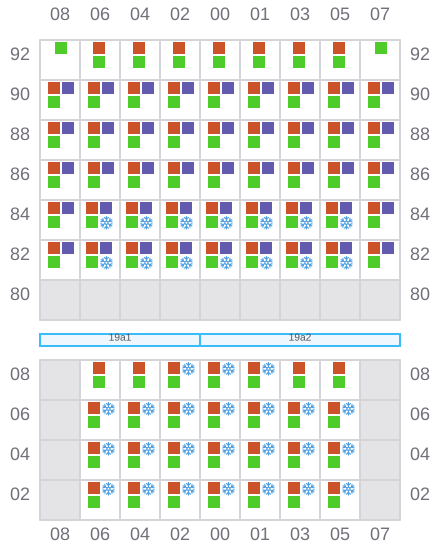

019 (020)
- →
- ←

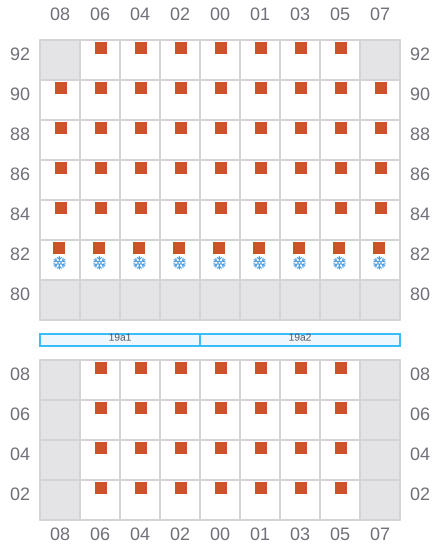

021
- ←
- → / ?

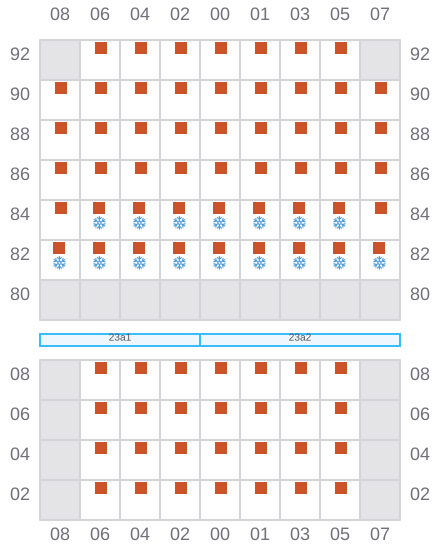

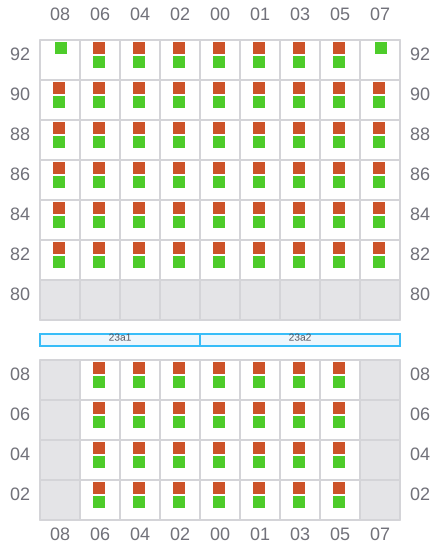

023 (024)
- →
025
- ←
- → / ?
027

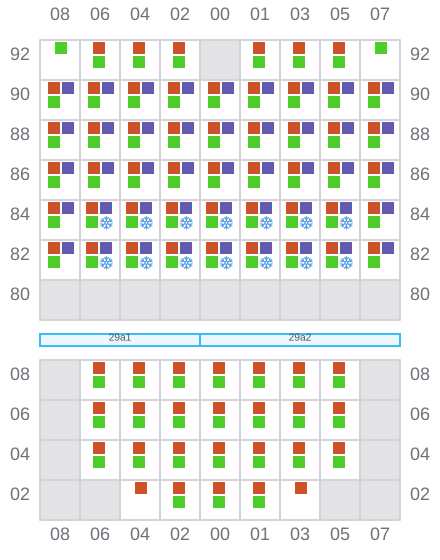

029 (030)
- →
- ← / ?
031
- ←
- → / ?

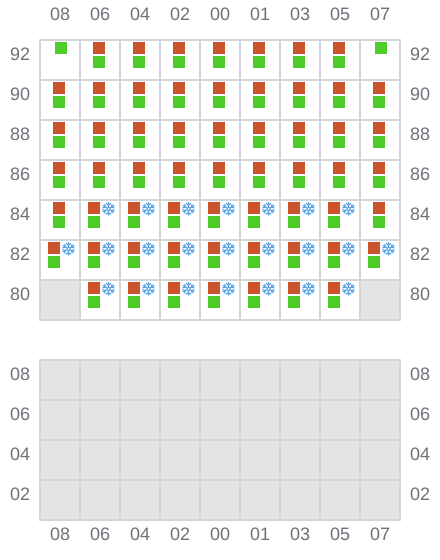

033 (034)
- → / ?
- ← / ?

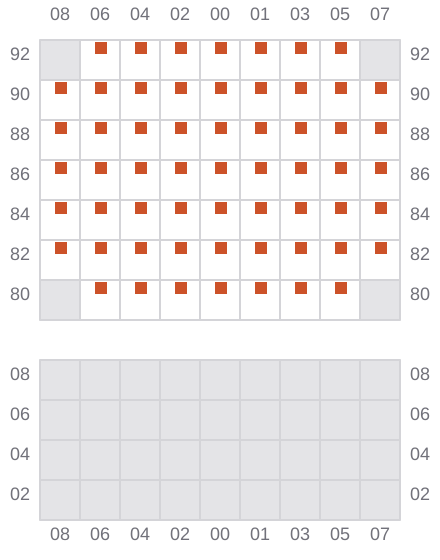

035
- ← / ?
