MAERSK RUBICON
9632480 | 9V6677 | 9632480 by ********* Last update: Mon Jul 08 2024
General Info
Ship Name:MAERSK RUBICON
IMO Code:9632480
Call Sign:9V6677
Line Operator:9632480
Class Name for Sister Ships:MAE
Year Built:2013
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):232.66
LOA (Length Overall):249.97
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-
Size Summary
ISO Bays:053
Max ISO Row:14
Center Line Row:Yes
Max Above ISO Tier:94
Min Above ISO Tier:82
Max Below ISO Tier:16
Min Below ISO Tier:02
Total TEU:4,560
Centers of Gravity
LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

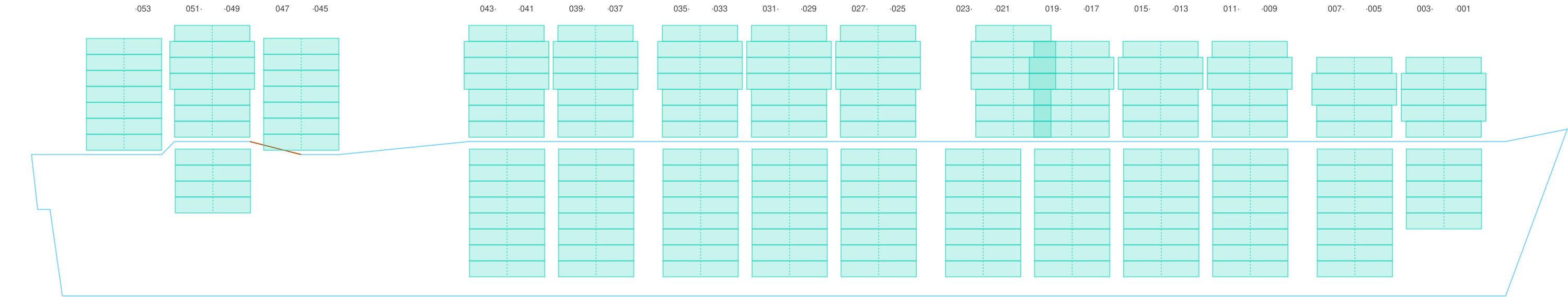

Side View

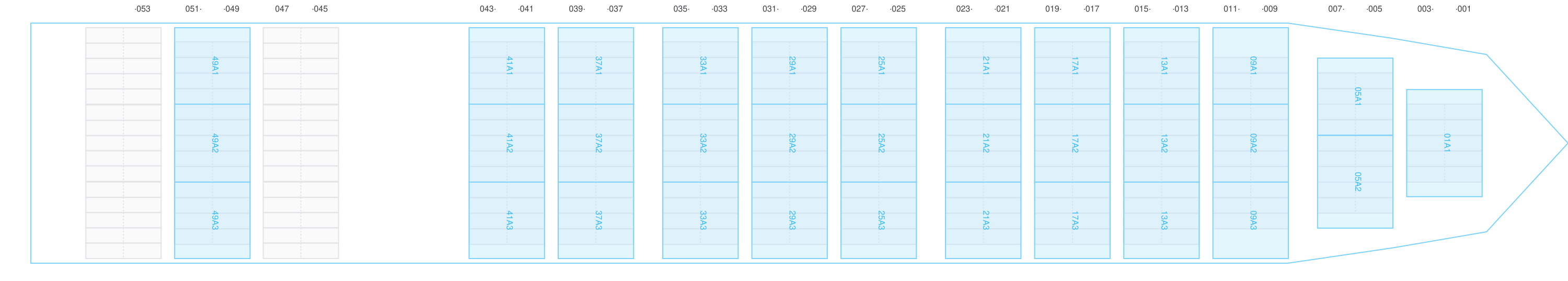

Hatch-Covers View

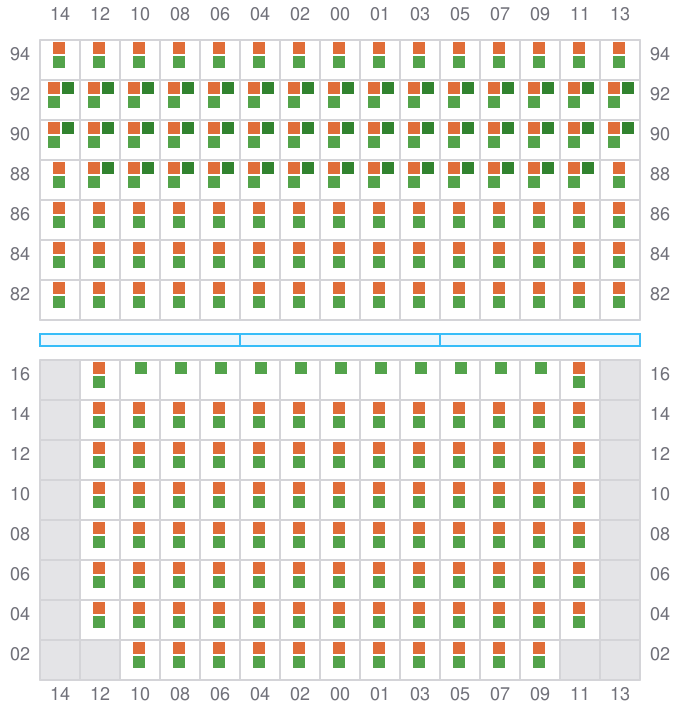

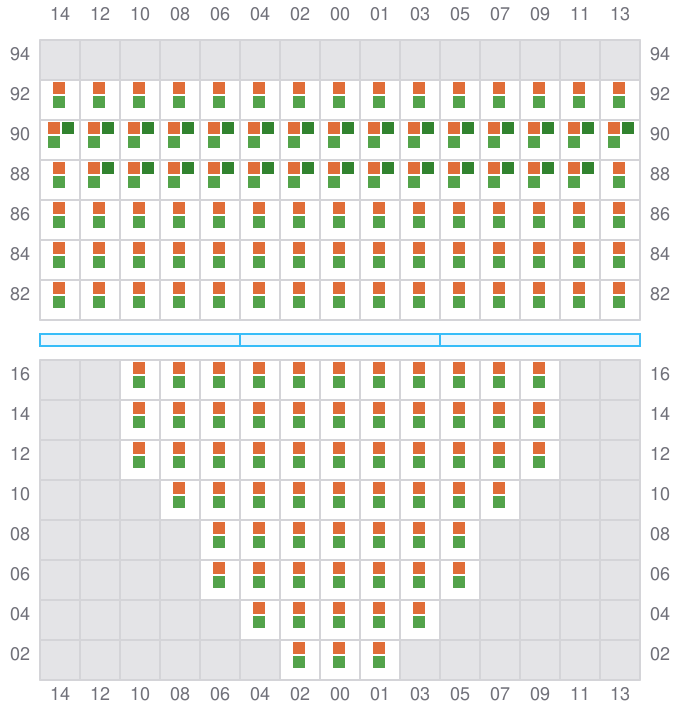

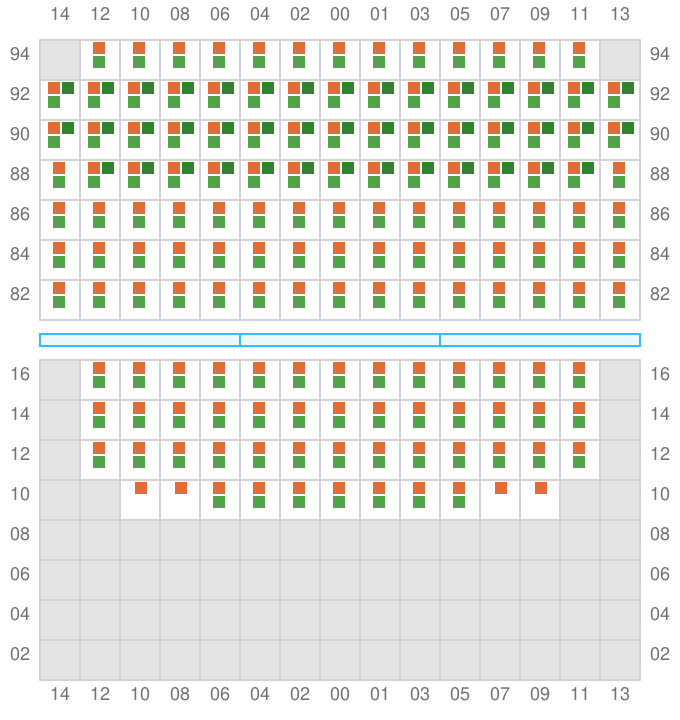

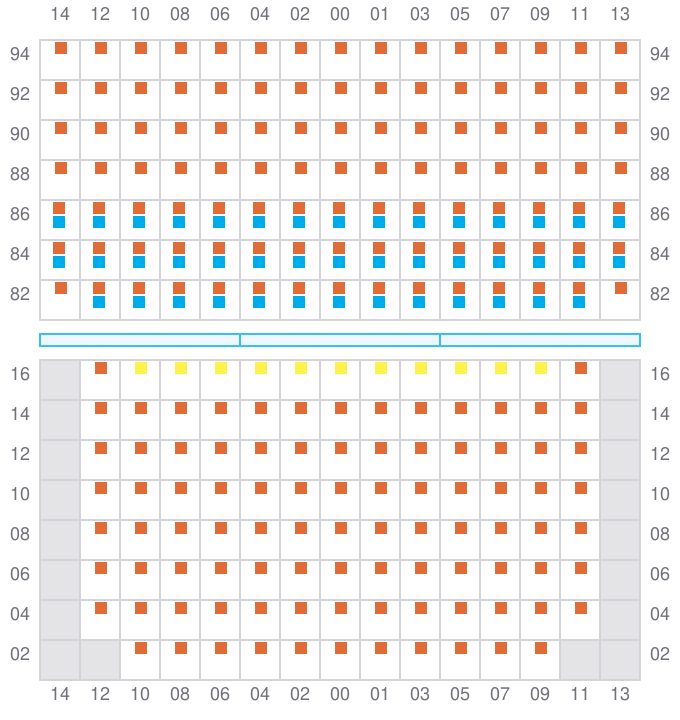

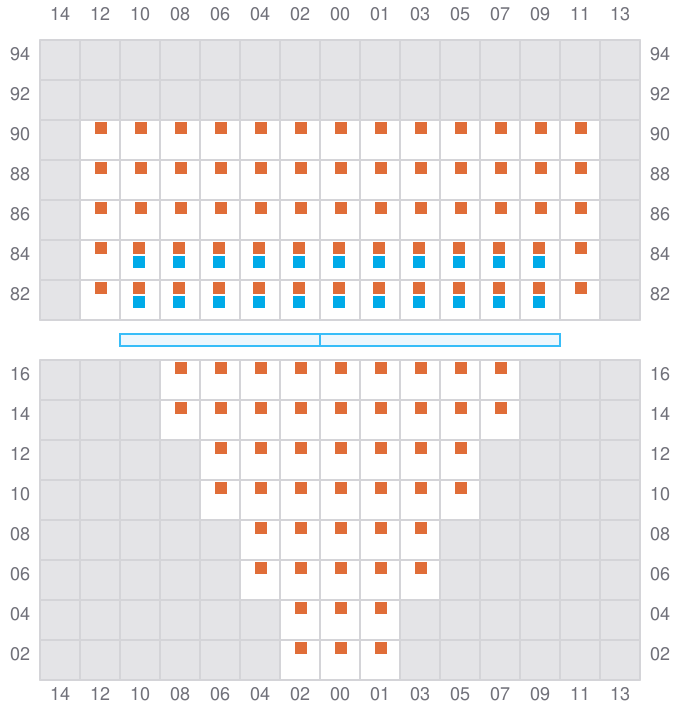

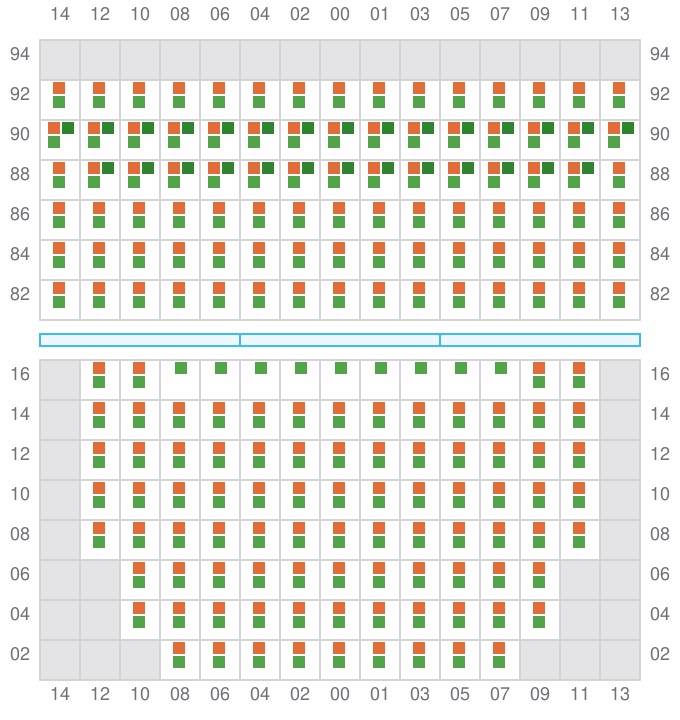

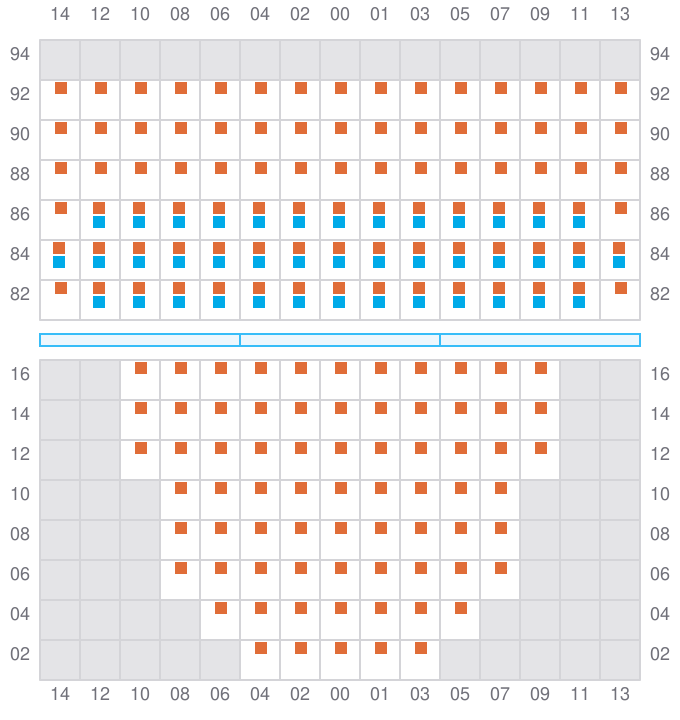

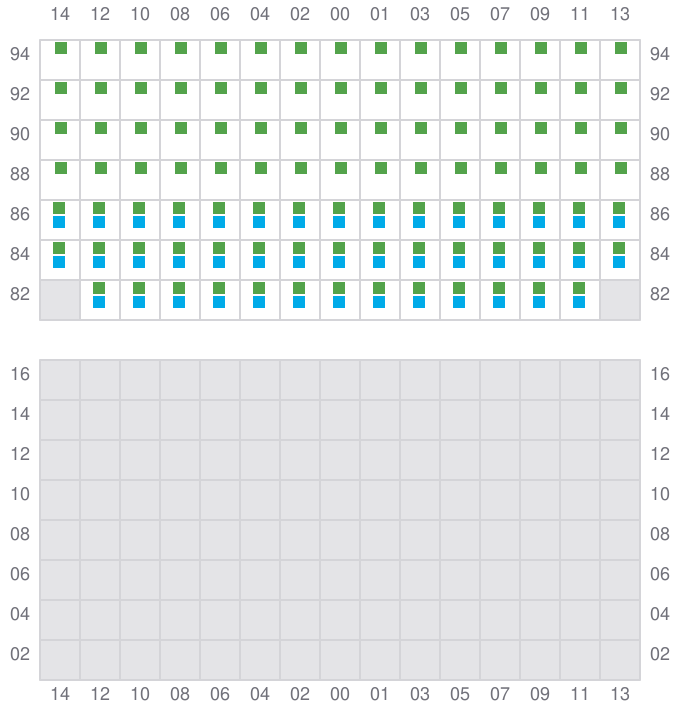

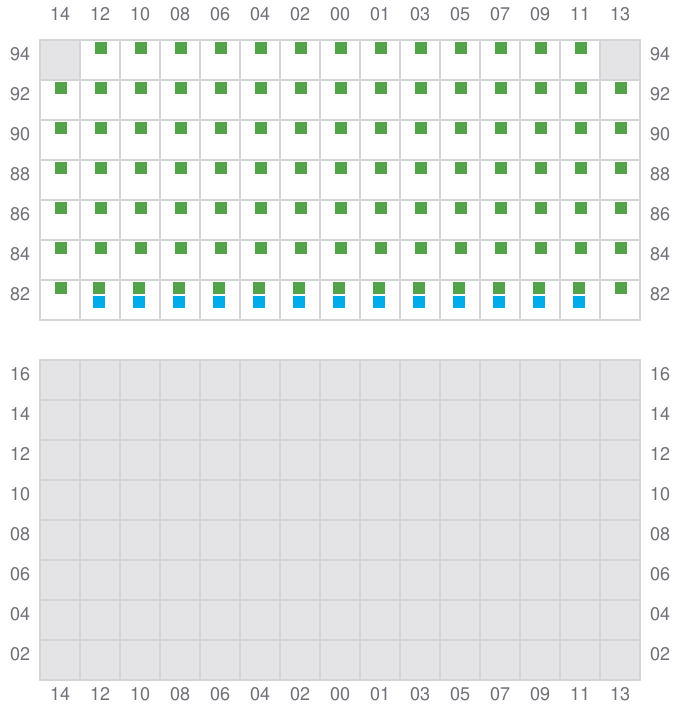

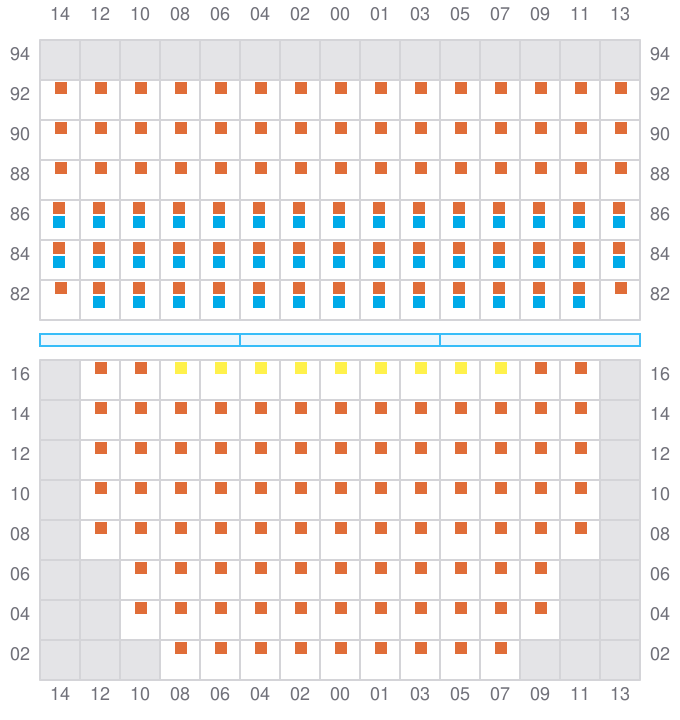

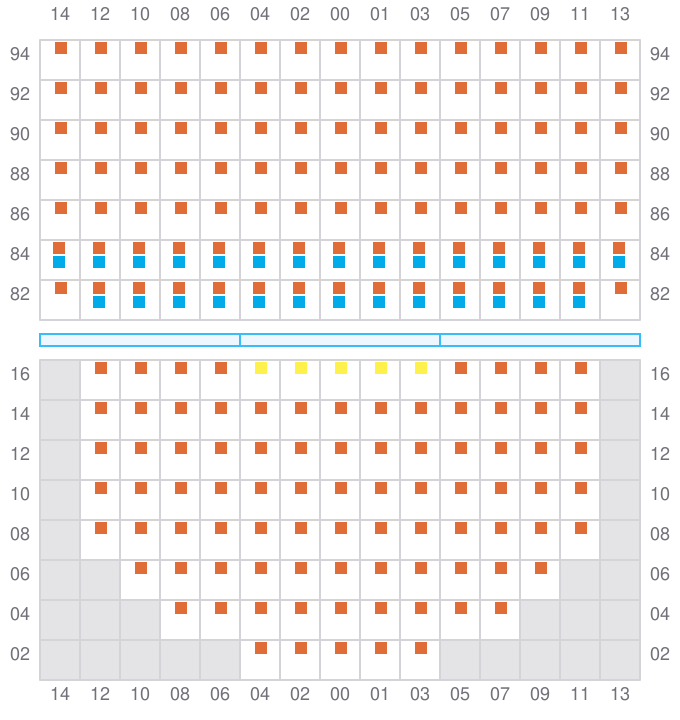

ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

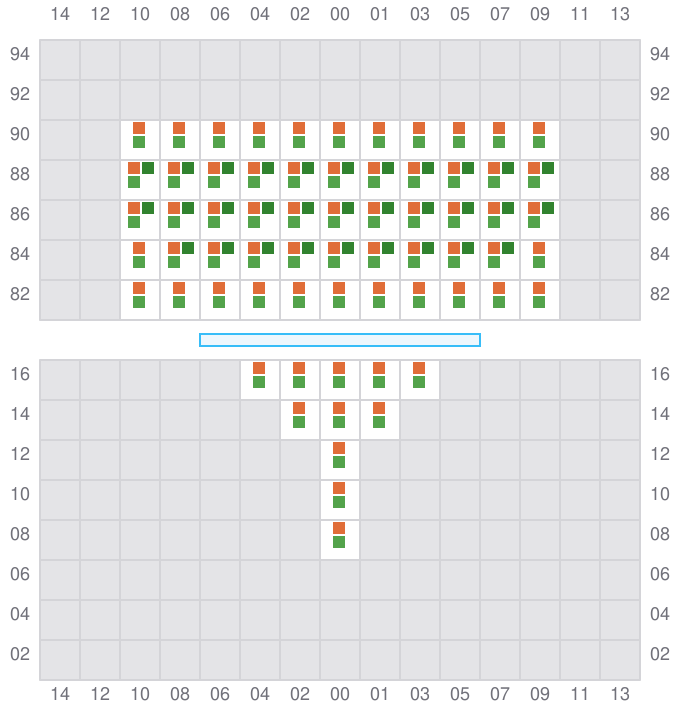

001 (002)
- →

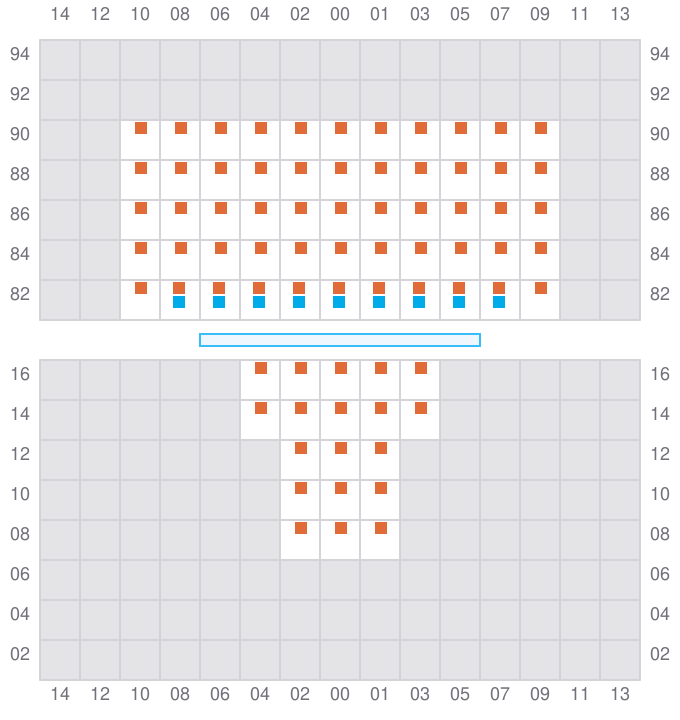

003
- ←
- → / ?

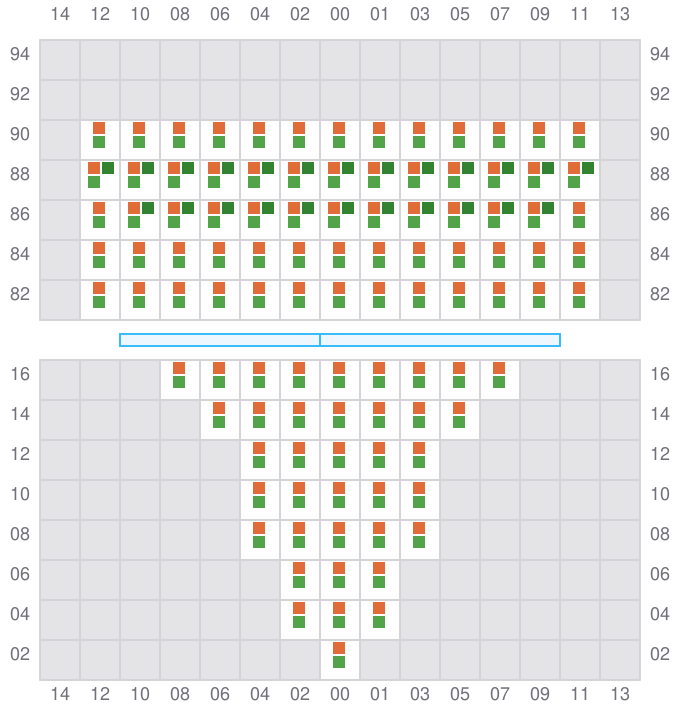

005 (006)
- →
007
- ←
- → / ?
009 (010)
- →
011
- ←
- → / ?
013 (014)
- →
015
- ←
- → / ?
017 (018)
- →
019
- ←
- → / ?
021 (022)
- →
023
- ←
- → / ?

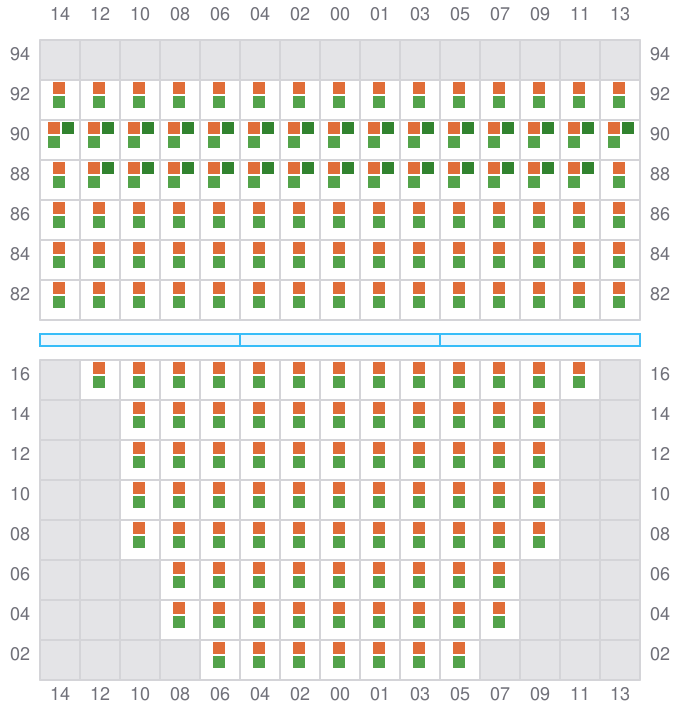

025 (026)
- →
027
- ←
- → / ?
029 (030)
- →
031
- ←
- → / ?

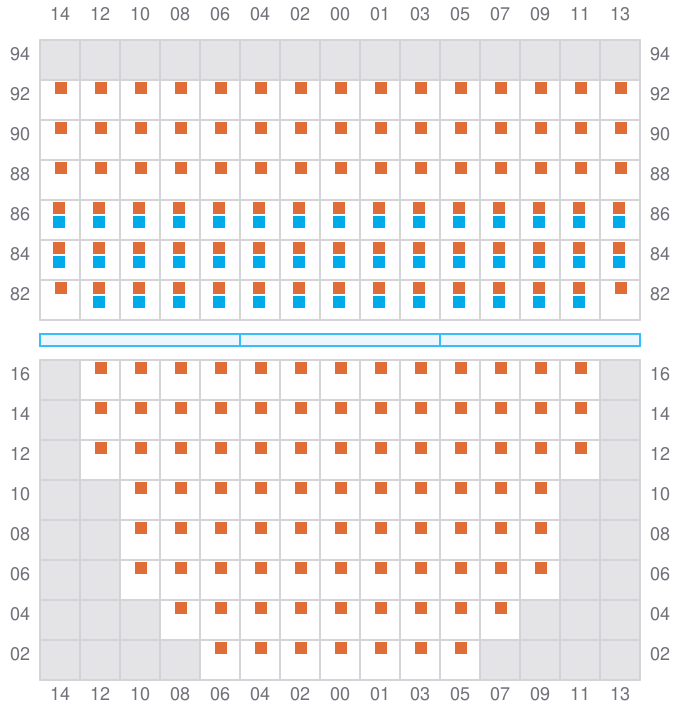

033 (034)
- →
035
- ←
- → / ?
037 (038)
- →
039
- ←
- → / ?

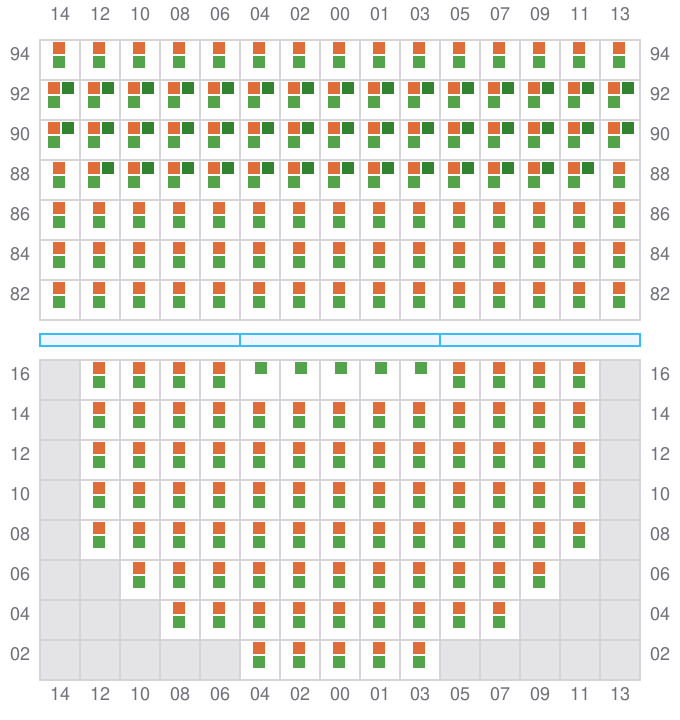

041 (042)
- →
043
- ←
- → / ?
045 (046)
- → / ?
- → / ?
047
049 (050)
- →

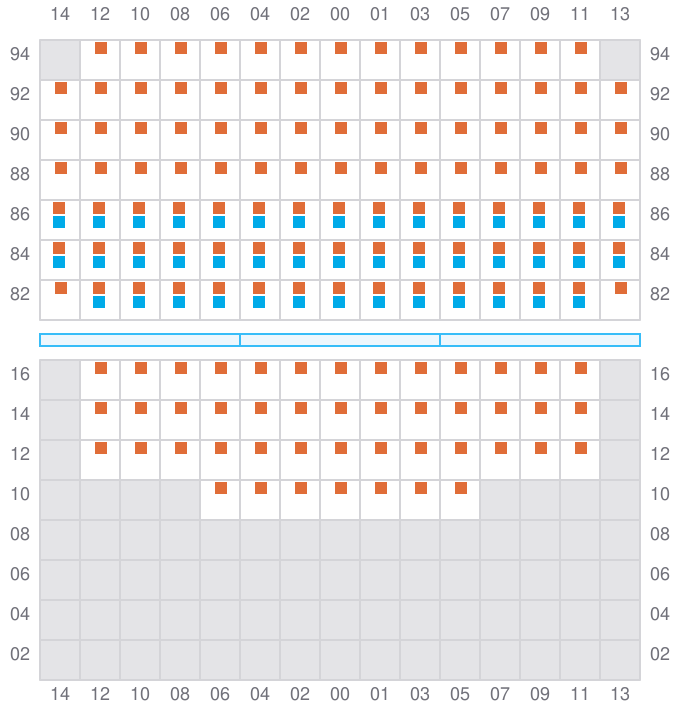

051
- ←
- → / ?
053 (054)
- → / ?
- ← / ?
