MAERSK SAIGON
9303534 | 9V5630 | MSK by ********************* Last update: Fri Apr 11 2025

General Info

Ship Name:MAERSK SAIGON

IMO Code:9303534

Call Sign:9V5630

Line Operator:MSK

Class Name for Sister Ships:SAI

Year Built:2006

Position Format:Bay, Row, Tier

Allowed Containers:20, 40, 45

LPP (LBP):317.20

LOA (Length Overall):332.01

Stern to AFT PP:-

Features Informed:

Also Known As...:-

Size Summary

ISO Bays:079

Max ISO Row:16

Center Line Row:Yes

Max Above ISO Tier:96

Min Above ISO Tier:80

Max Below ISO Tier:18

Min Below ISO Tier:02

Total TEU:8,411

Centers of Gravity

LCG Values:Known

LCG Data:99%

VCG Values:Known

VCG Data:100%

TCG Values:Known

TCG Data:100%

Side View

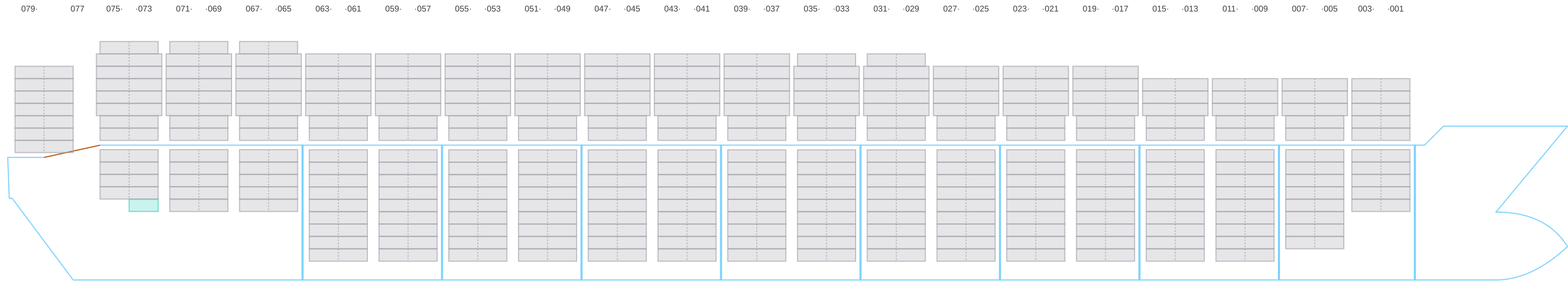

Side view of MAERSK SAIGON

Hatch-Covers View

Deck view of MAERSK SAIGON

ISO Bays

Legend

20'
40'
45'
Reefer
Restricted slot

001

→

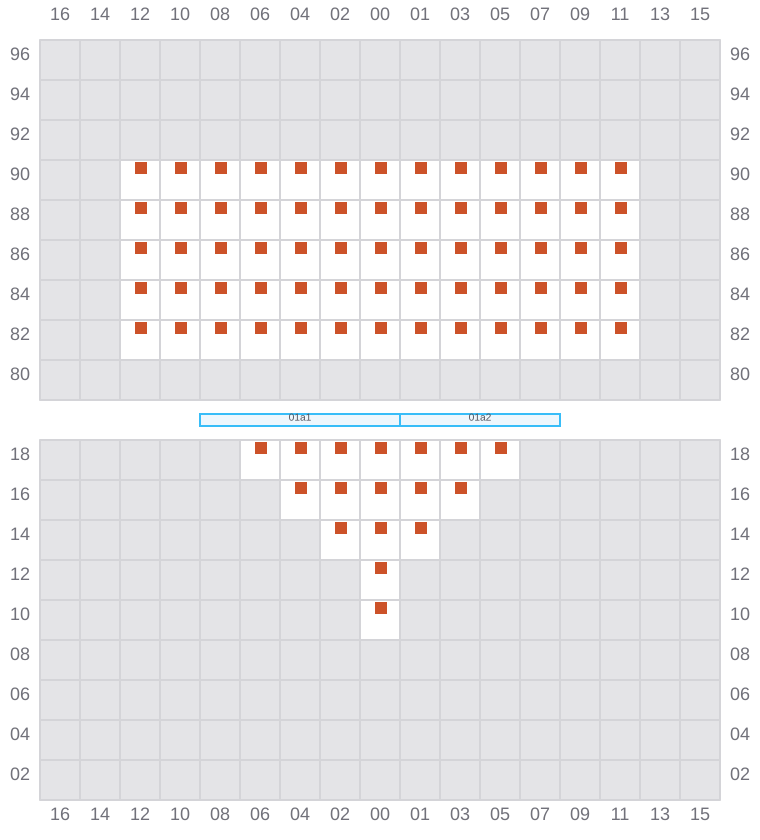

Bay 001 view and slots of MAERSK SAIGON

003 (002)

←

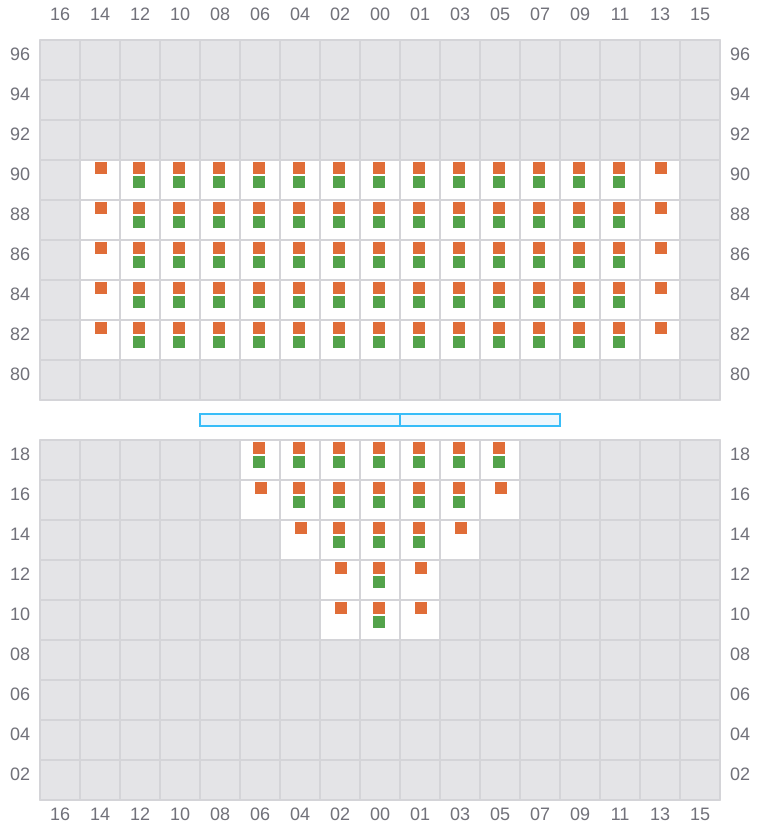

Bay 003 view and slots of MAERSK SAIGON

005

→

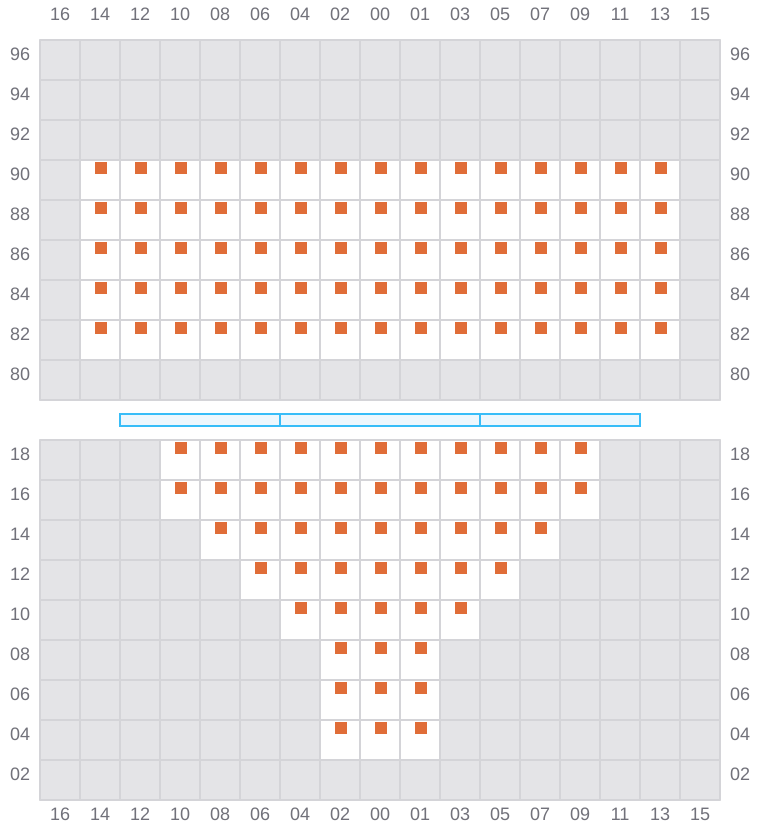

Bay 005 view and slots of MAERSK SAIGON

007 (006)

←

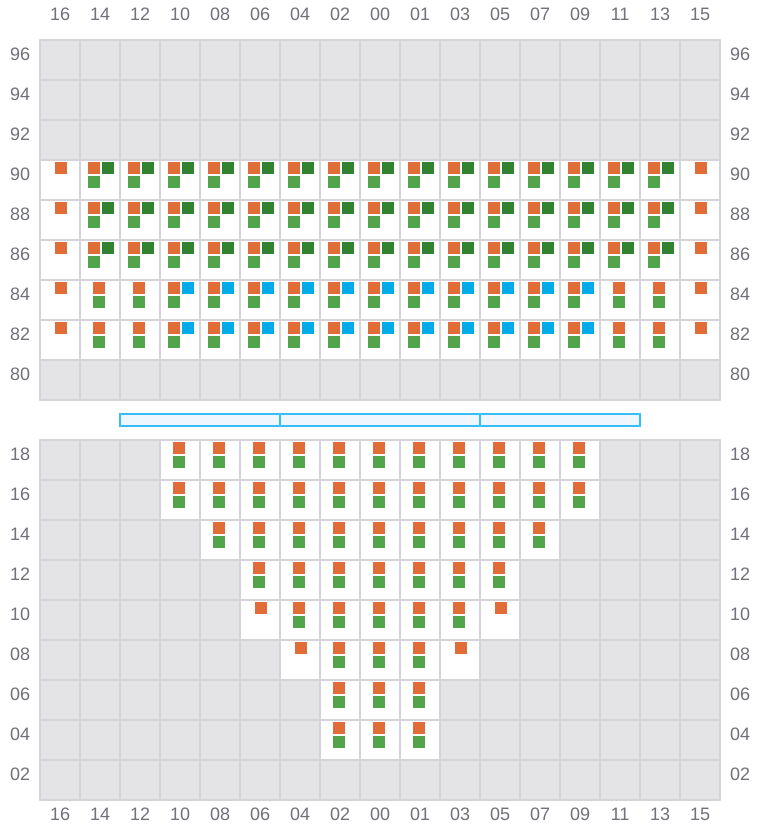

Bay 007 view and slots of MAERSK SAIGON

009

→

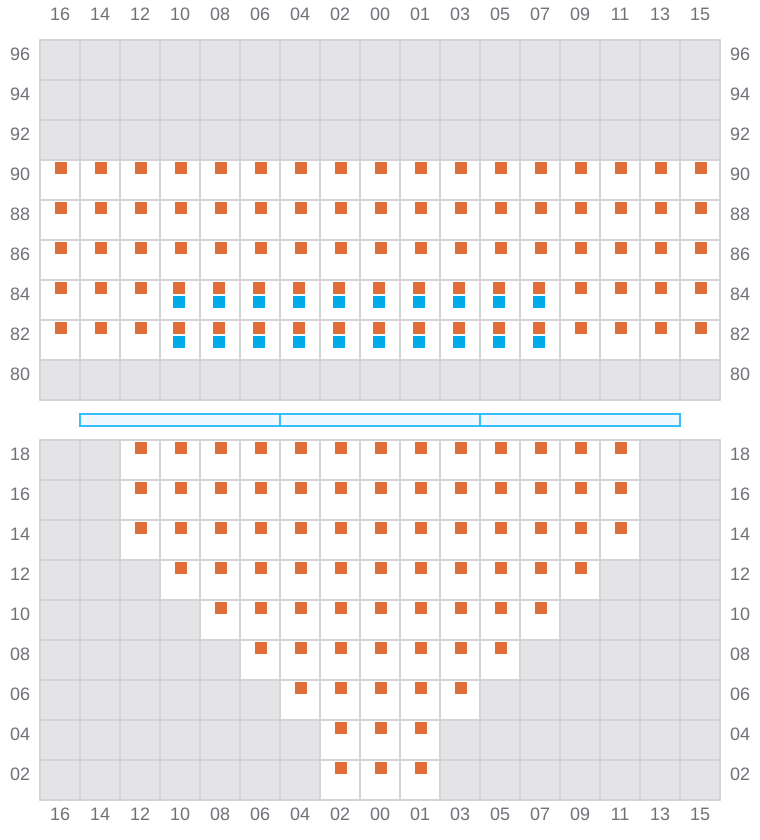

Bay 009 view and slots of MAERSK SAIGON

011 (010)

←
^→ / _?

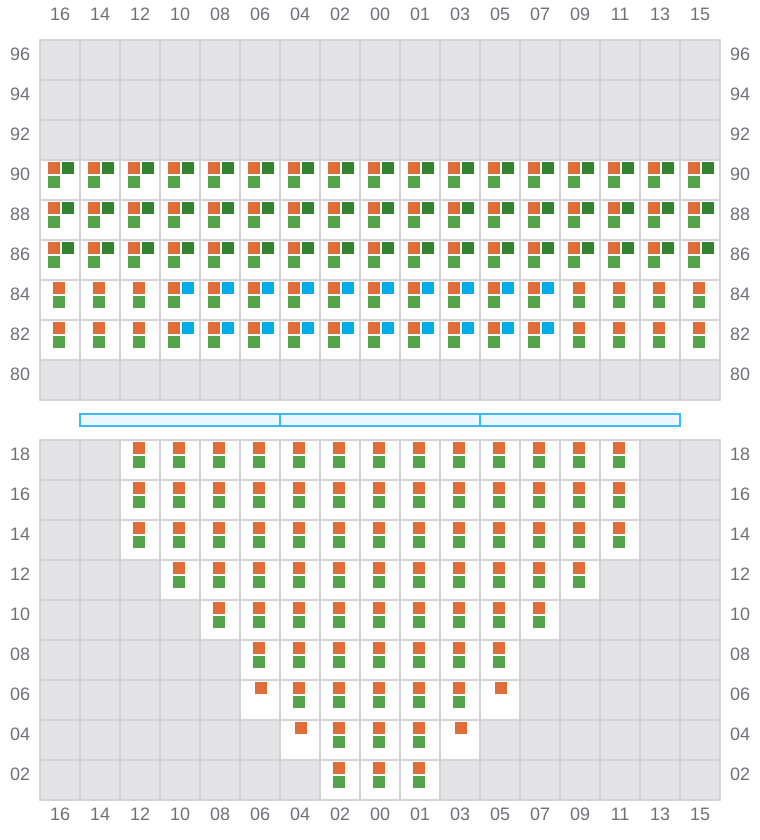

Bay 011 view and slots of MAERSK SAIGON

013

→

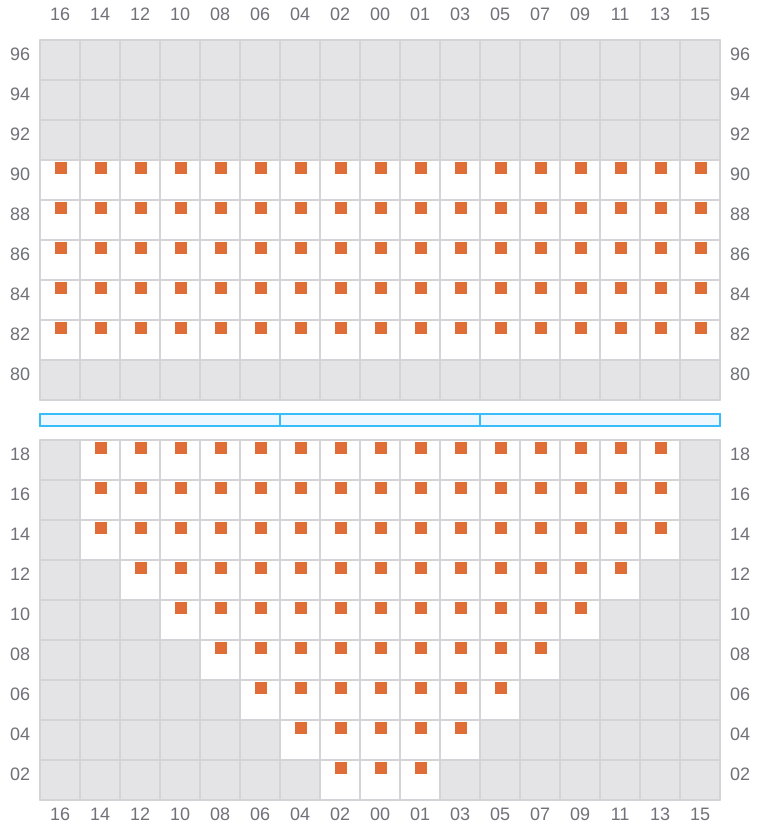

Bay 013 view and slots of MAERSK SAIGON

015 (014)

←
^→ / _?

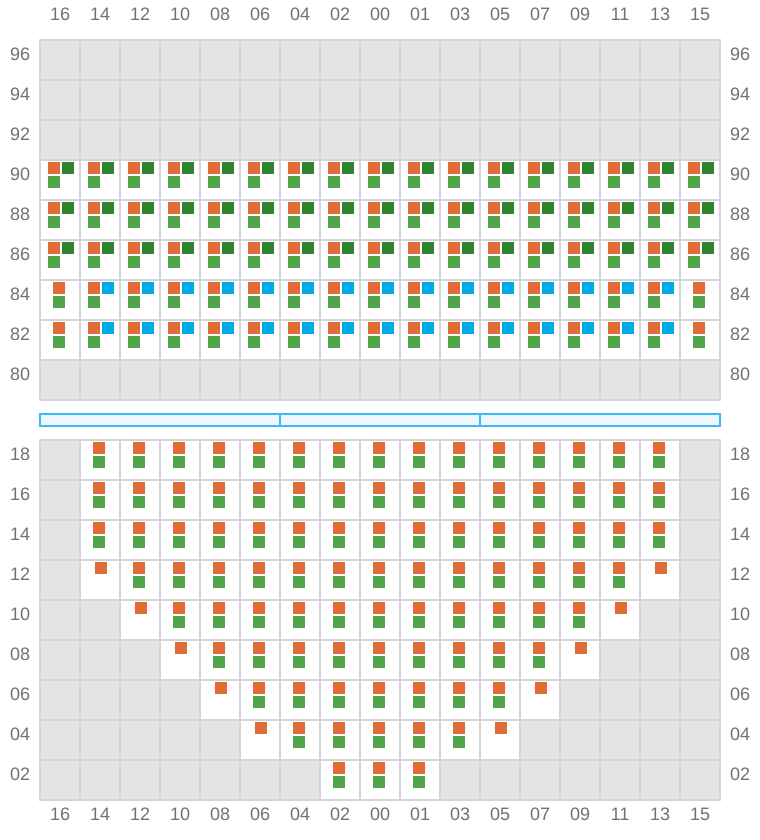

Bay 015 view and slots of MAERSK SAIGON

017

→

Bay 017 view and slots of MAERSK SAIGON

019 (018)

←
^→ / _?

Bay 019 view and slots of MAERSK SAIGON

021

→

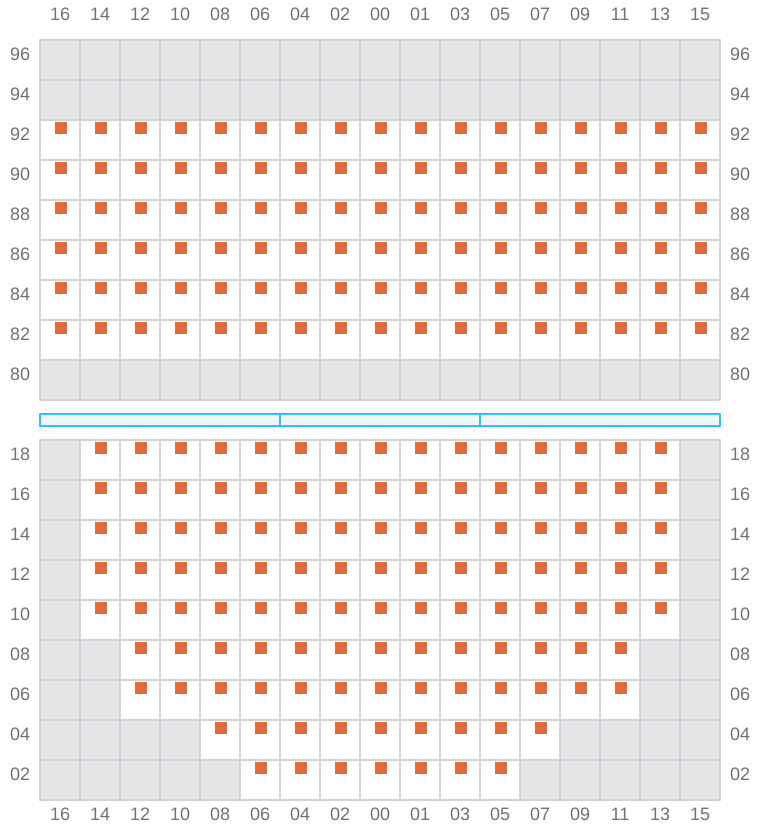

Bay 021 view and slots of MAERSK SAIGON

023 (022)

←
^→ / _?

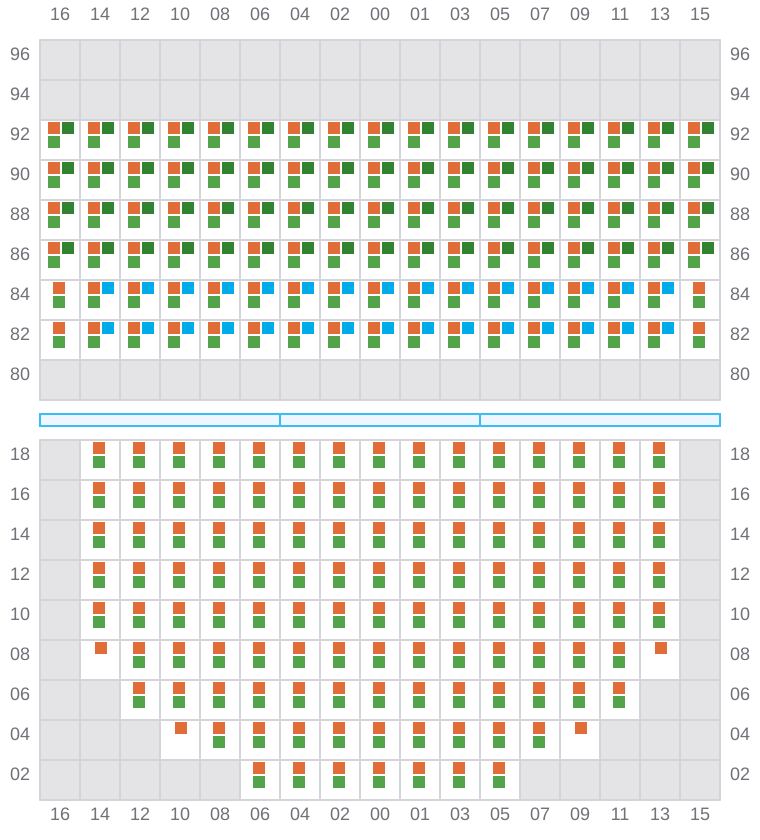

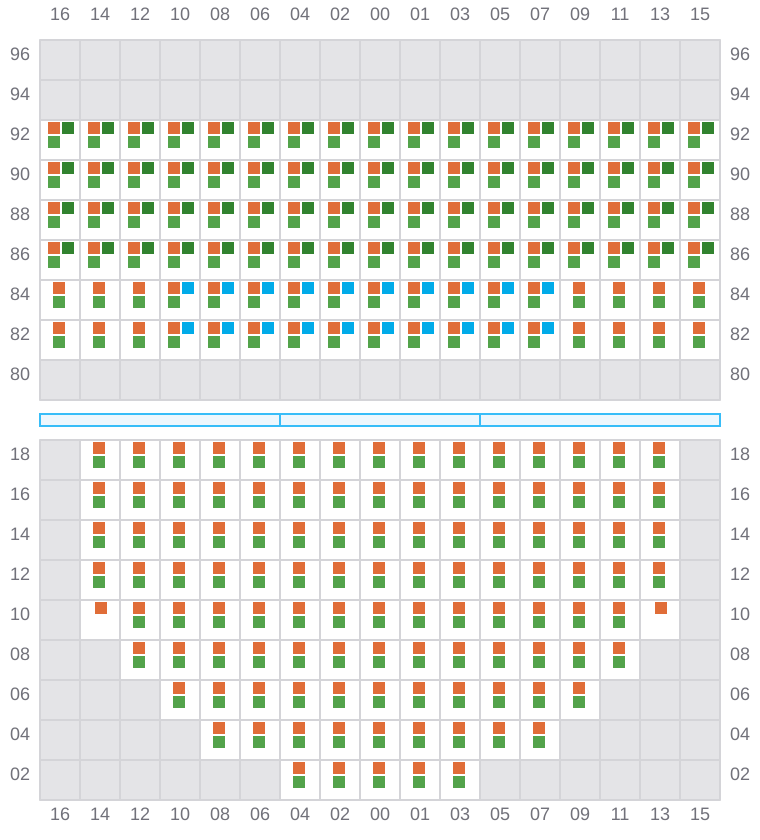

Bay 023 view and slots of MAERSK SAIGON

025

→

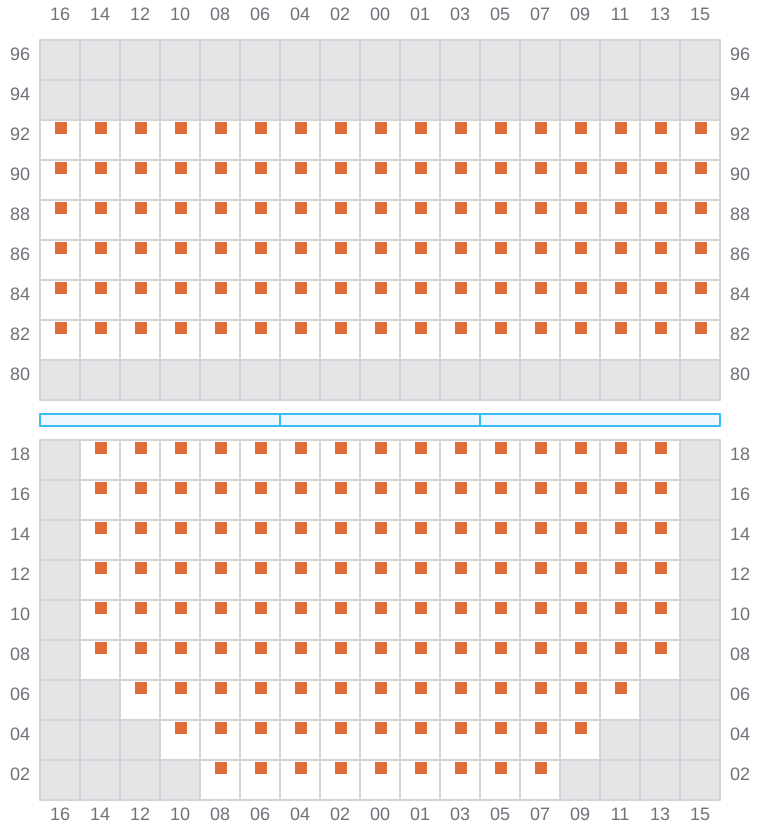

Bay 025 view and slots of MAERSK SAIGON

027 (026)

←
^→ / _?

Bay 027 view and slots of MAERSK SAIGON

029

→

Bay 029 view and slots of MAERSK SAIGON

031 (030)

←
^→ / _?

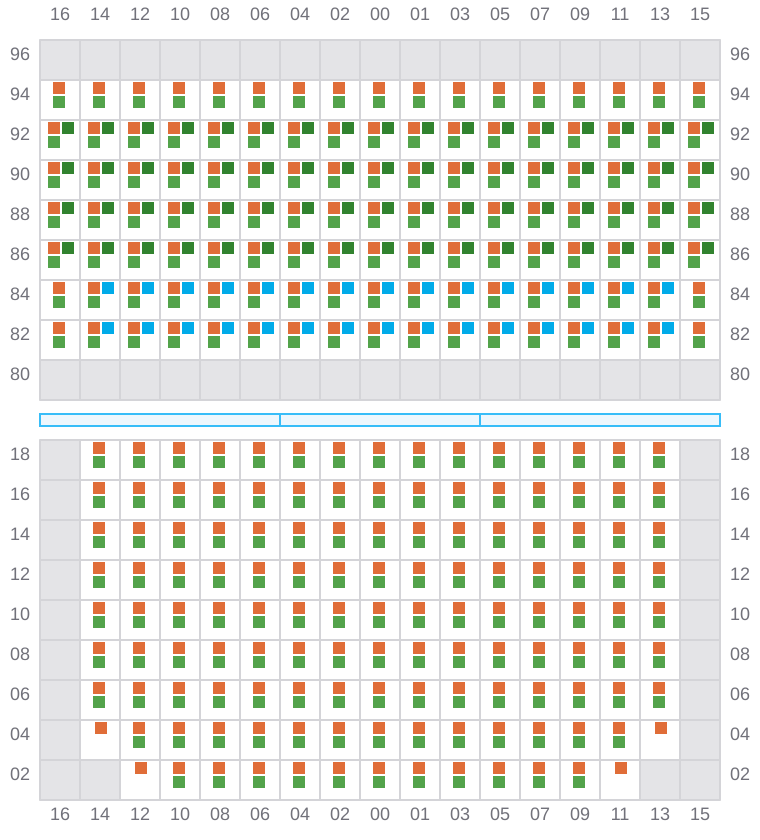

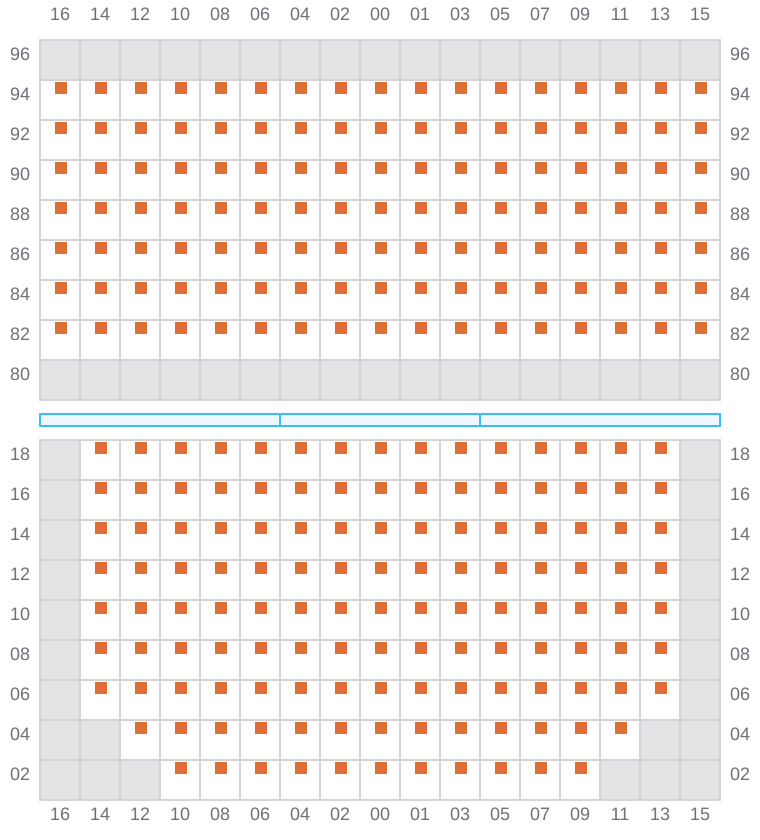

Bay 031 view and slots of MAERSK SAIGON

033

→

Bay 033 view and slots of MAERSK SAIGON

035 (034)

←
^→ / _?

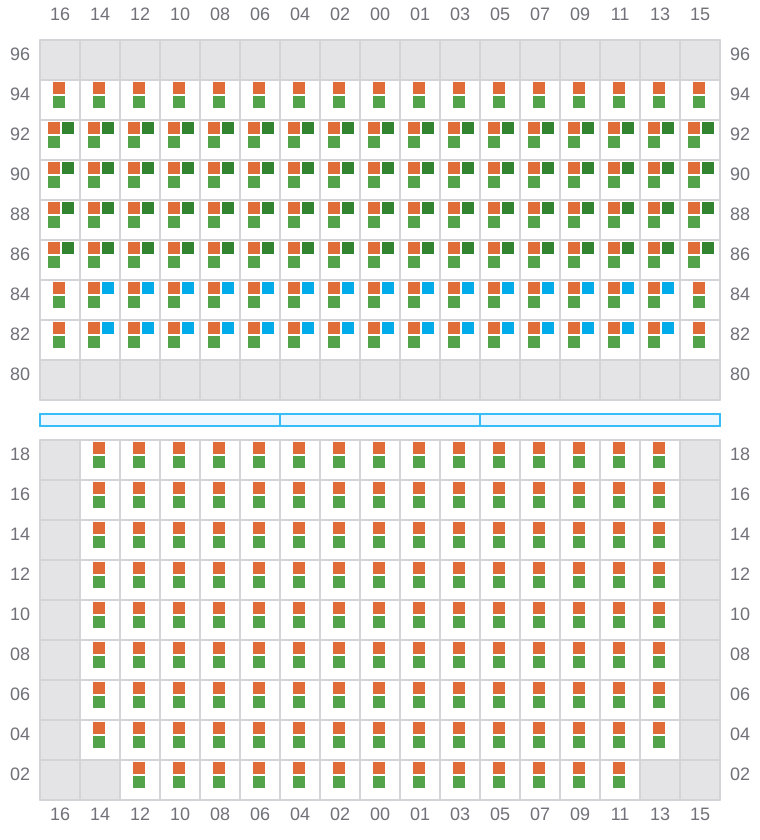

Bay 035 view and slots of MAERSK SAIGON

037

→

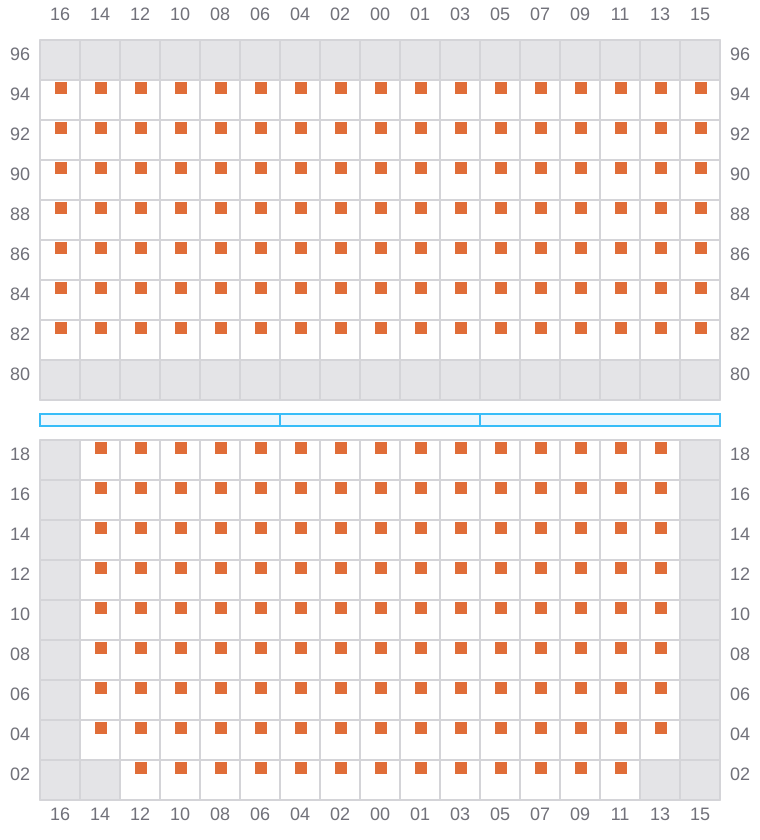

Bay 037 view and slots of MAERSK SAIGON

039 (038)

←
^→ / _?

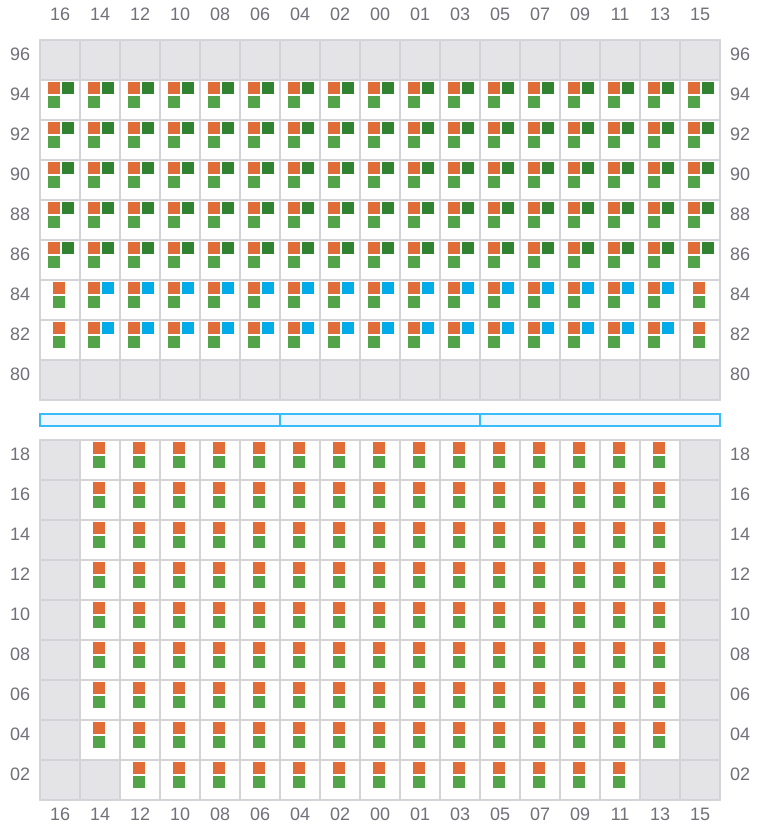

Bay 039 view and slots of MAERSK SAIGON

041

→

Bay 041 view and slots of MAERSK SAIGON

043 (042)

←
^→ / _?

Bay 043 view and slots of MAERSK SAIGON

045

→

Bay 045 view and slots of MAERSK SAIGON

047 (046)

←
^→ / _?

Bay 047 view and slots of MAERSK SAIGON

049

→

Bay 049 view and slots of MAERSK SAIGON

051 (050)

←
→

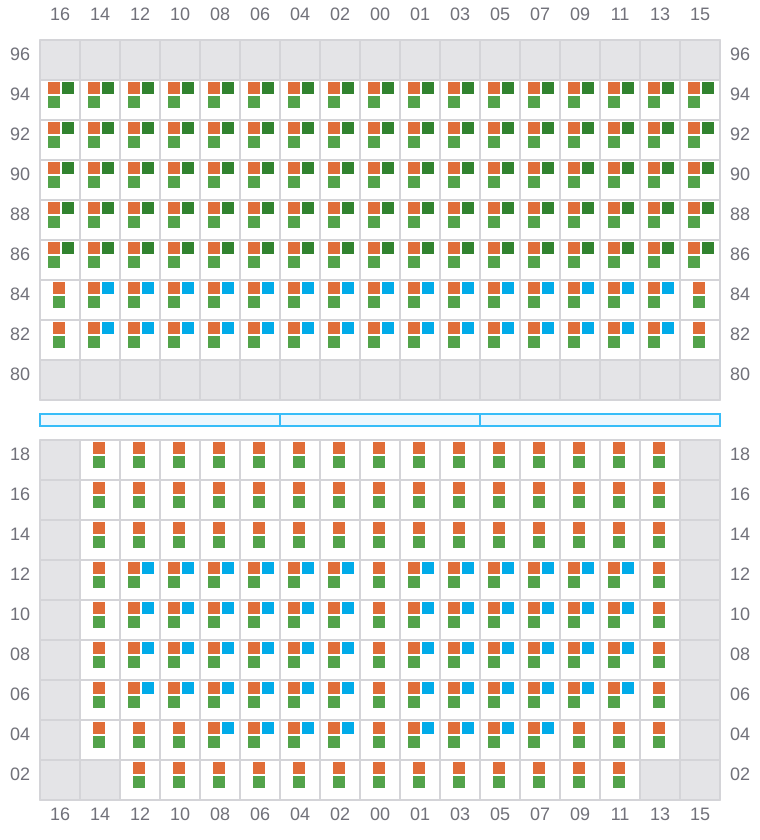

Bay 051 view and slots of MAERSK SAIGON

053

→

Bay 053 view and slots of MAERSK SAIGON

055 (054)

←
→

Bay 055 view and slots of MAERSK SAIGON

057

→

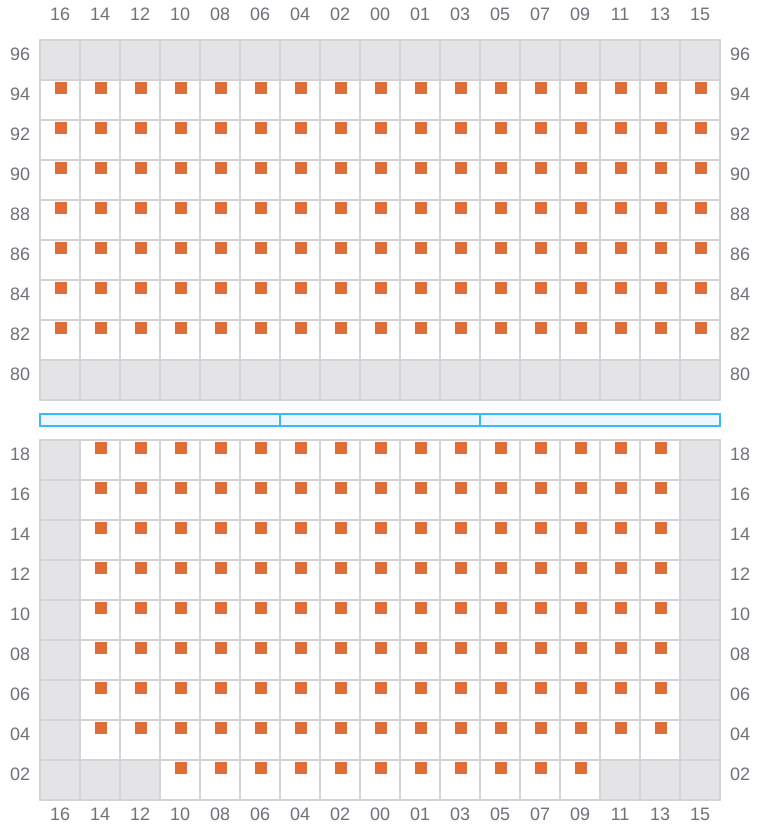

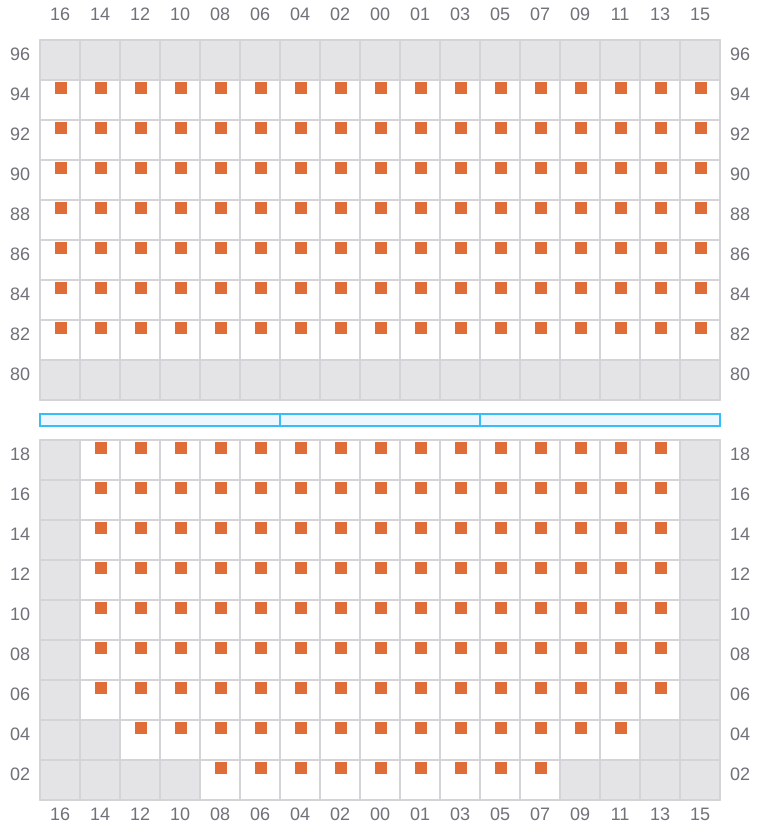

Bay 057 view and slots of MAERSK SAIGON

059 (058)

←
→

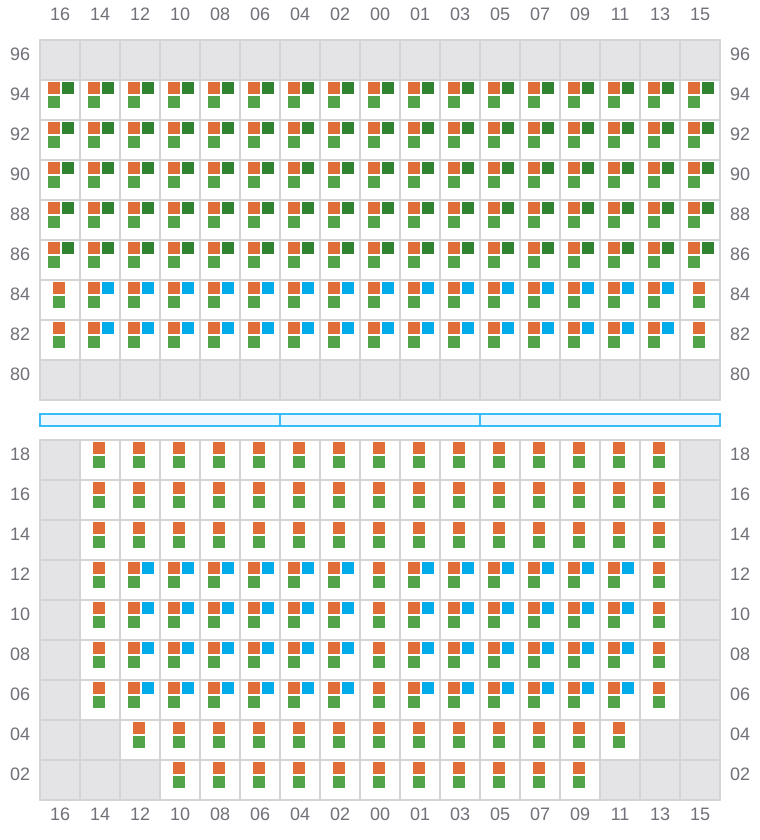

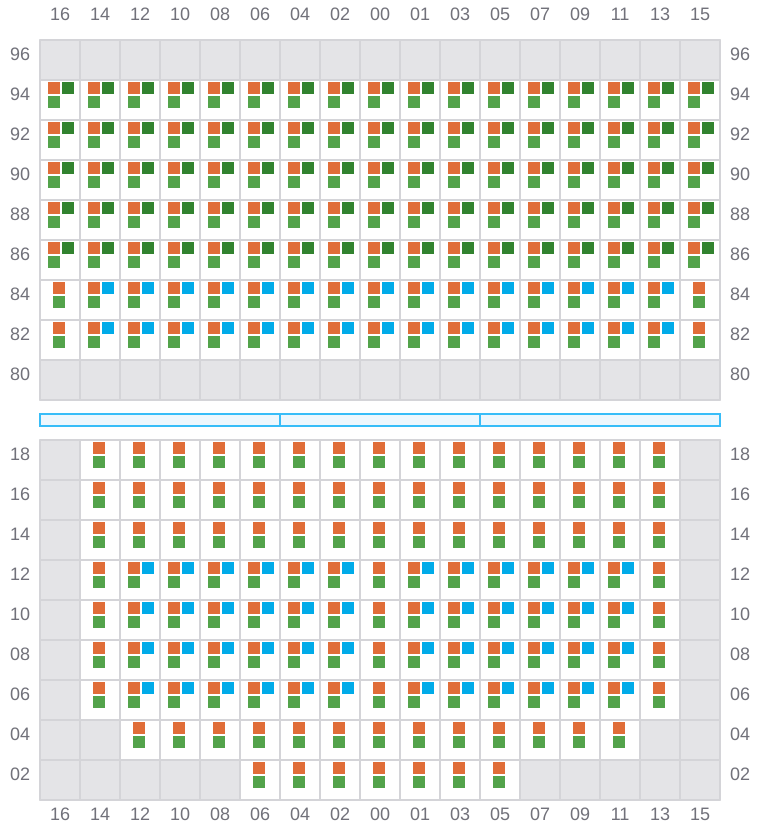

Bay 059 view and slots of MAERSK SAIGON

061

→

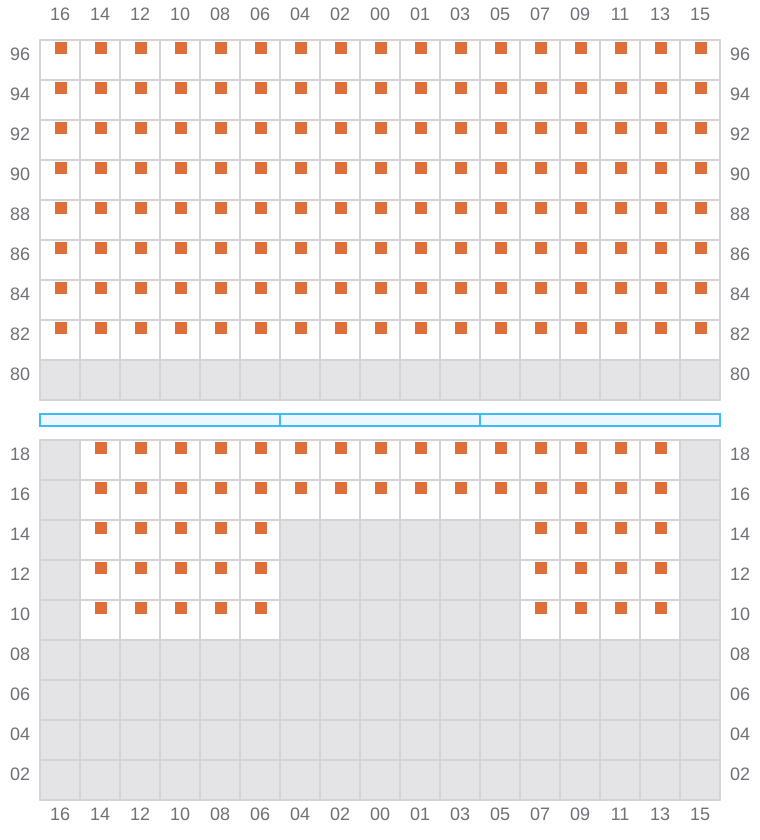

Bay 061 view and slots of MAERSK SAIGON

063 (062)

←
→

Bay 063 view and slots of MAERSK SAIGON

065

→

Bay 065 view and slots of MAERSK SAIGON

067 (066)

←
^→ / _?

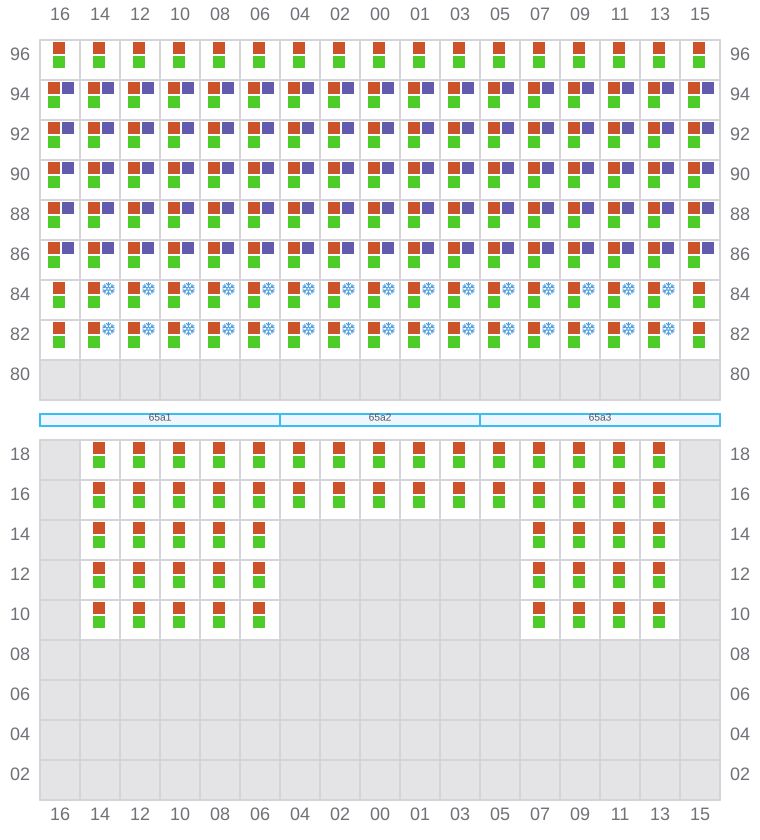

Bay 067 view and slots of MAERSK SAIGON

069

→

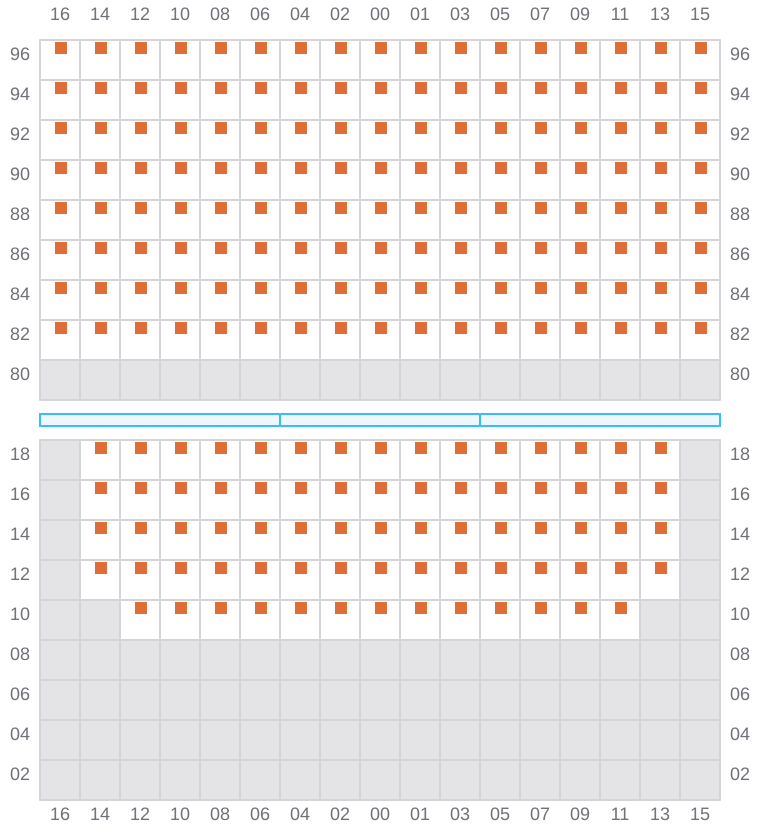

Bay 069 view and slots of MAERSK SAIGON

071 (070)

←
^→ / _?

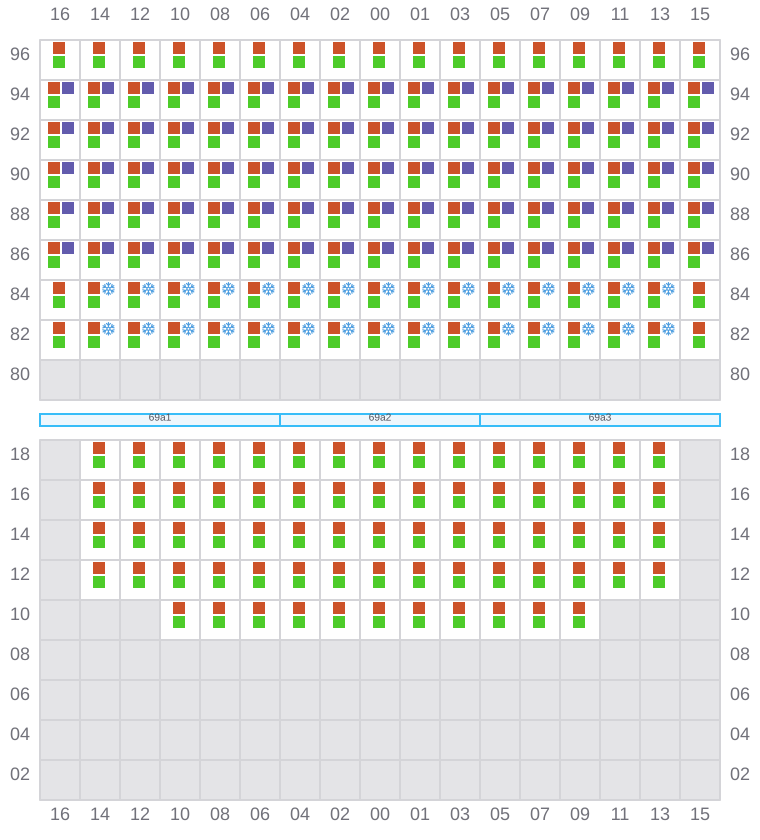

Bay 071 view and slots of MAERSK SAIGON

073

→

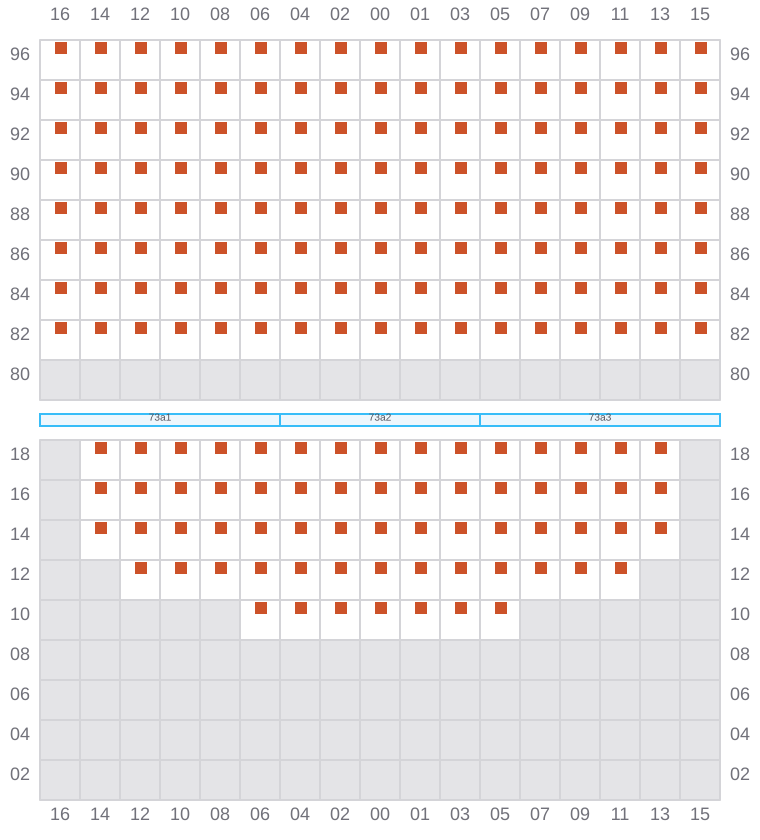

Bay 073 view and slots of MAERSK SAIGON

075 (074)

←
^→ / _?

Bay 075 view and slots of MAERSK SAIGON

077

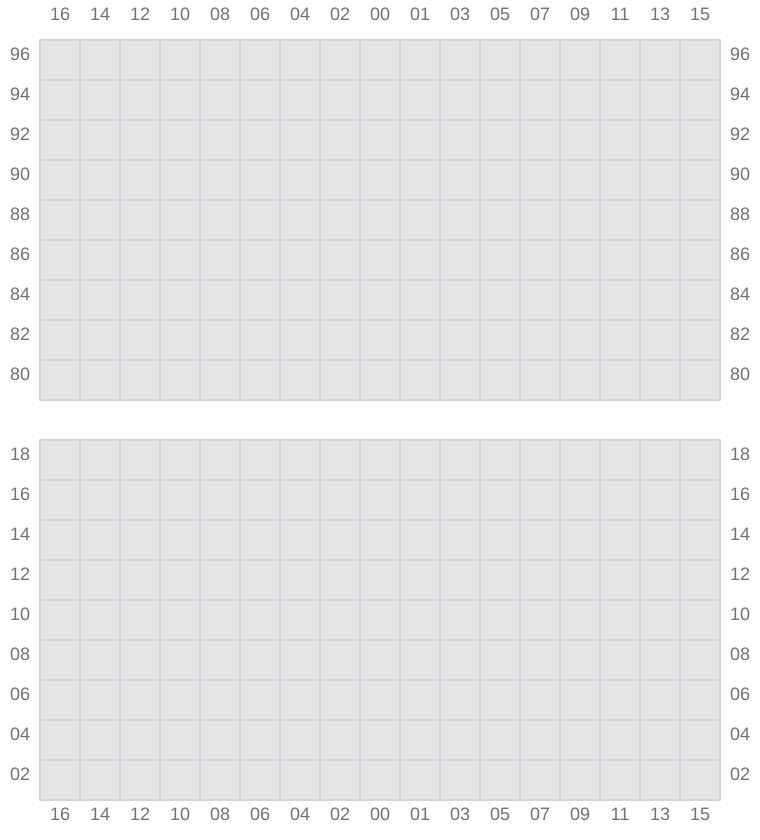

Bay 077 view and slots of MAERSK SAIGON

079 (078)

^← / _?

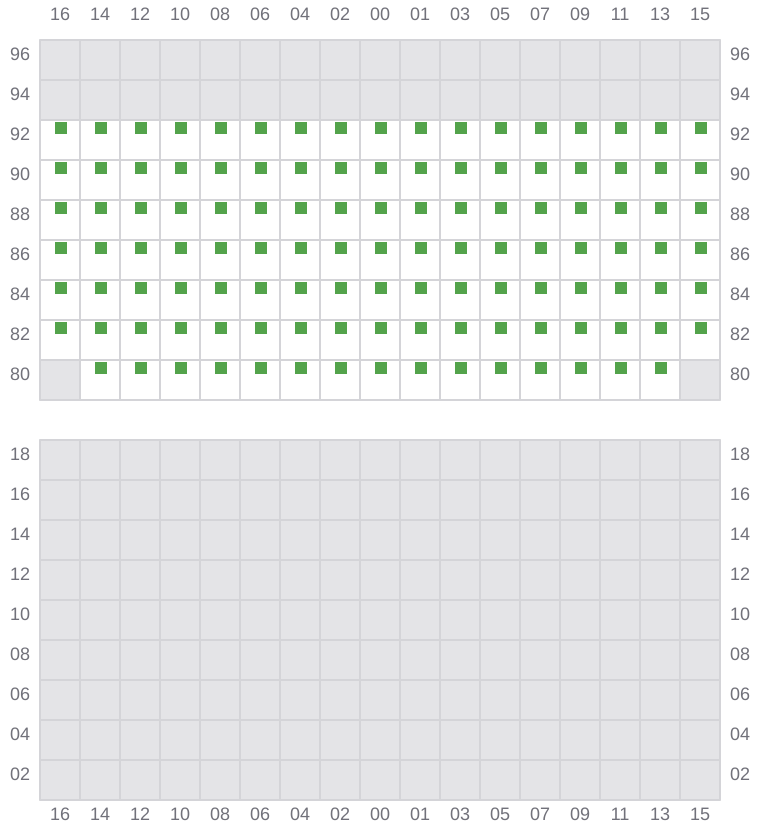

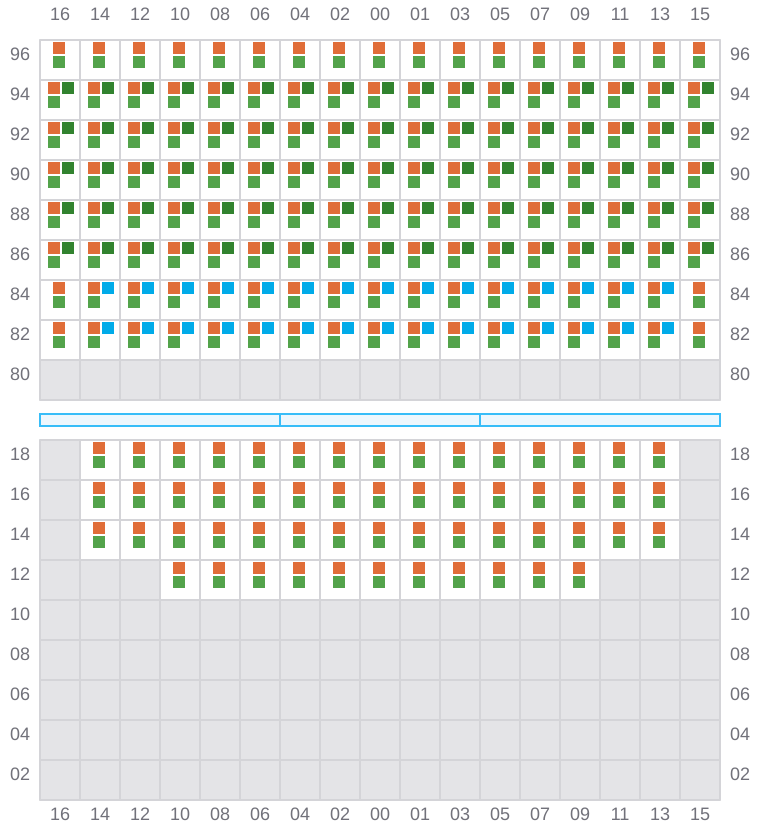

Bay 079 view and slots of MAERSK SAIGON
