MAERSK SAIGON
9303534 | 9V5630 | MSK by ************************** Last update: Mon Jun 26 2023
General Info
Ship Name:MAERSK SAIGON
IMO Code:9303534
Call Sign:9V5630
Line Operator:MSK
Class Name for Sister Ships:SAI
Year Built:2006
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):317.20
LOA (Length Overall):332.01
Stern to AFT PP:-
Features Informed:
Also Known As (old names):-
Size Summary
ISO Bays:077
Max ISO Row:16
Center Line Row:Yes
Max Above ISO Tier:96
Min Above ISO Tier:80
Max Below ISO Tier:18
Min Below ISO Tier:02
Total TEU:8,411
Centers of Gravity
LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

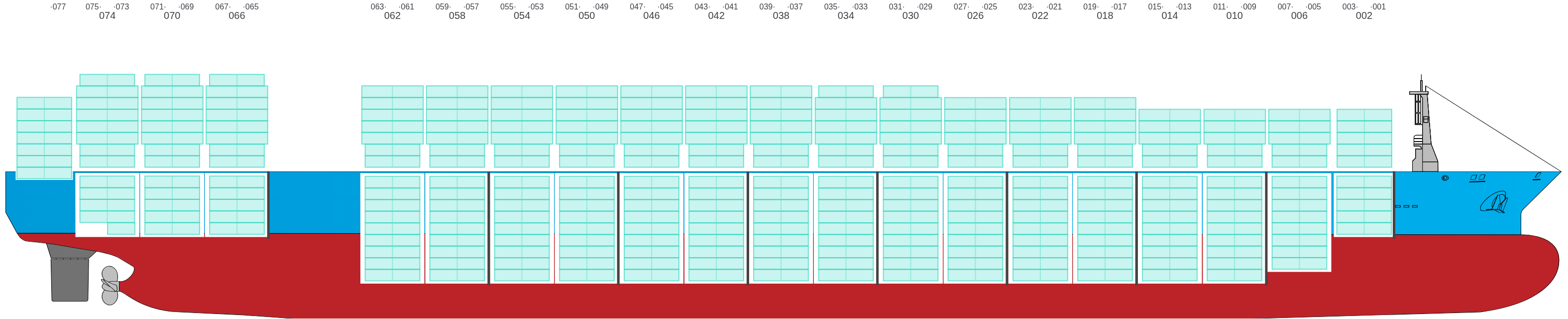

Side View
![Side view of MAERSK SAIGON](/vessel-images/2ac4e45d-80ab-4a0f-838a-d3a3864d0721-sideView.png?v=1687797121022)
Hatch-Covers View
![Deck view of MAERSK SAIGON](/vessel-images/2ac4e45d-80ab-4a0f-838a-d3a3864d0721-deckView.png?v=1687797121022)
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

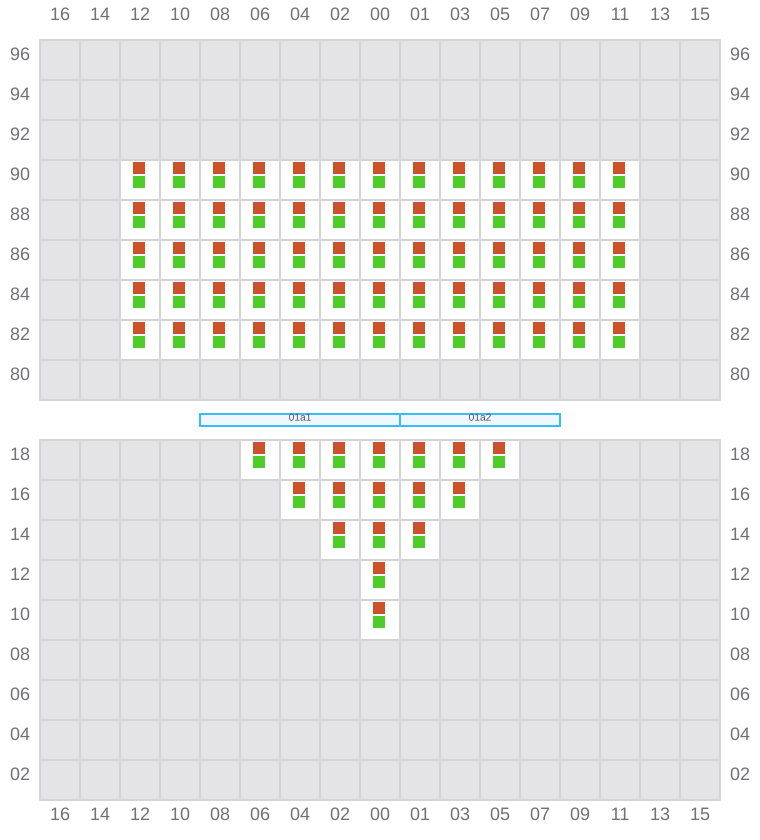

001 (002)
- →
![Bay 001 view and slots of MAERSK SAIGON](/vessel-images/2ac4e45d-80ab-4a0f-838a-d3a3864d0721-b001.png?v=1687797121022)

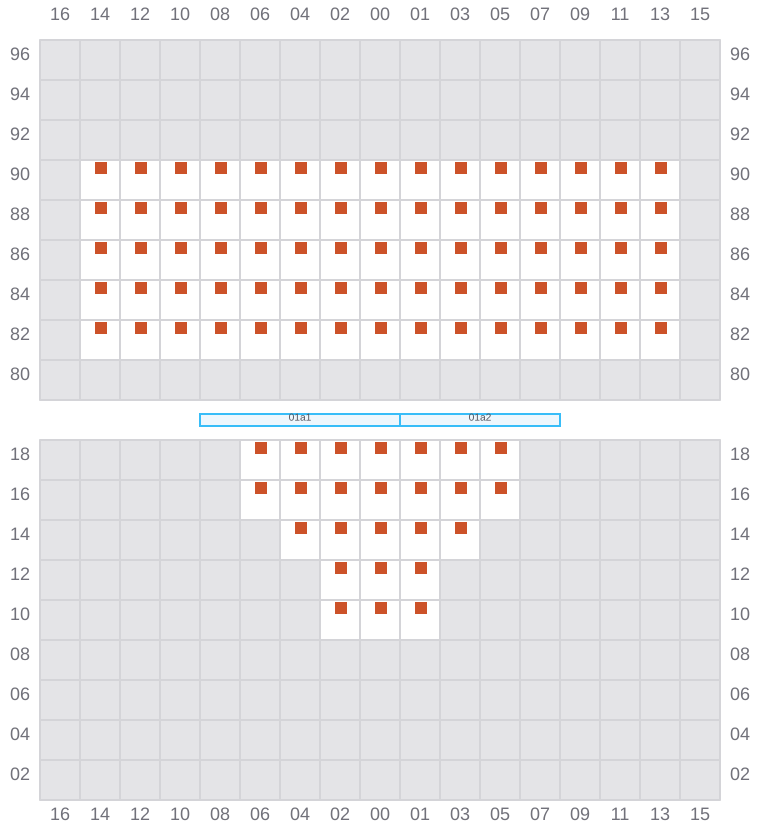

003
- ←
![Bay 003 view and slots of MAERSK SAIGON](/vessel-images/2ac4e45d-80ab-4a0f-838a-d3a3864d0721-b003.png?v=1687797121022)

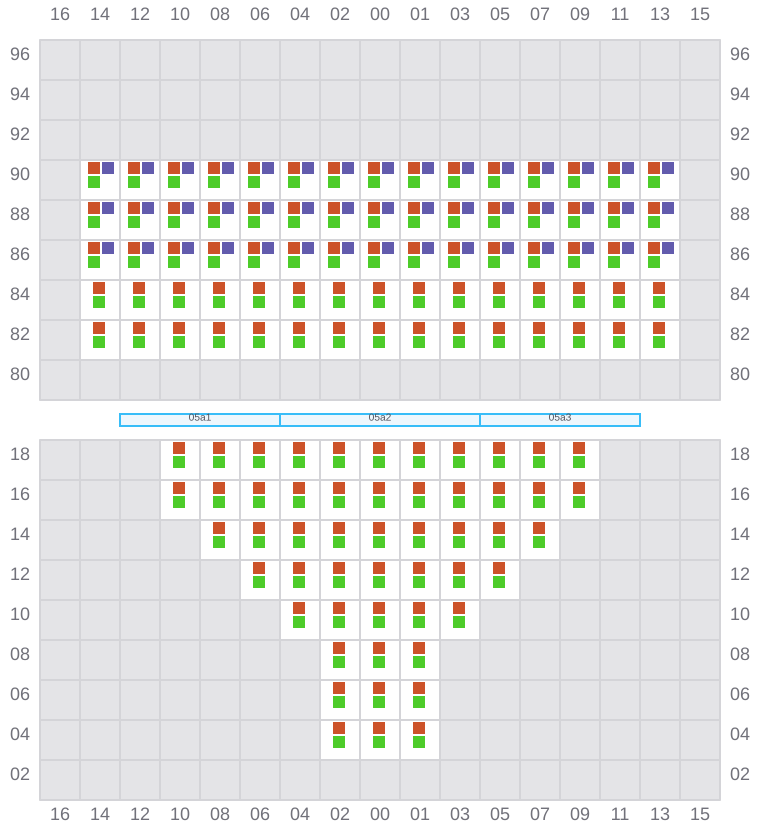

005 (006)
- →
![Bay 005 view and slots of MAERSK SAIGON](/vessel-images/2ac4e45d-80ab-4a0f-838a-d3a3864d0721-b005.png?v=1687797121022)

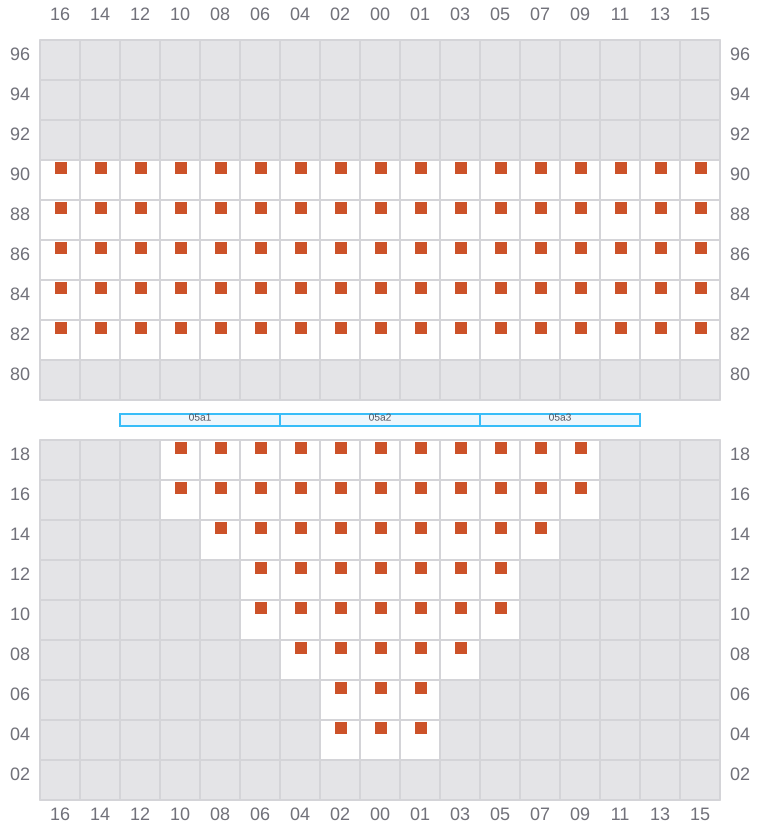

007
- ←
![Bay 007 view and slots of MAERSK SAIGON](/vessel-images/2ac4e45d-80ab-4a0f-838a-d3a3864d0721-b007.png?v=1687797121022)

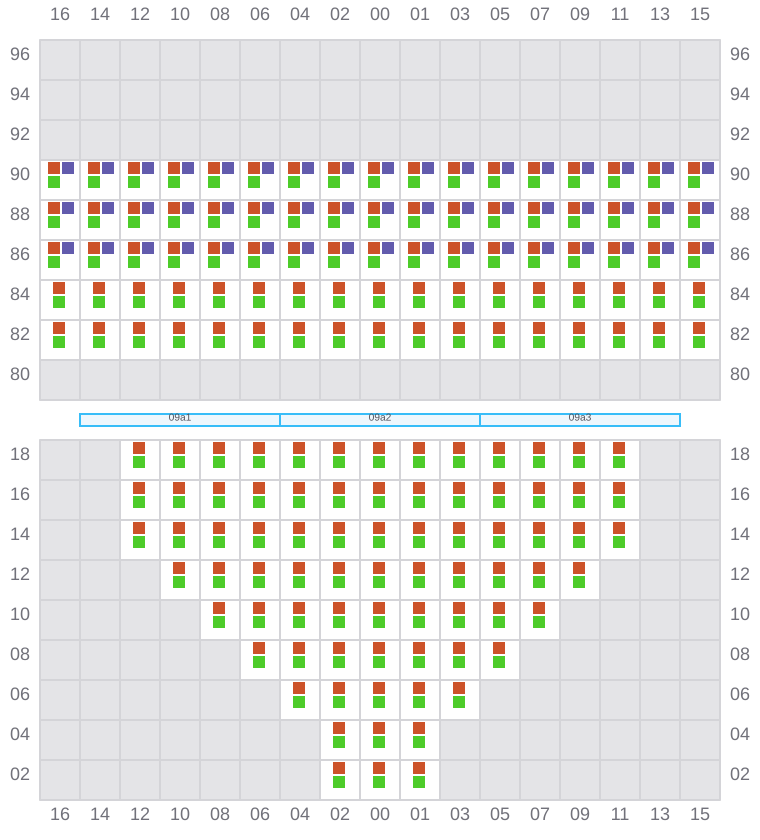

009 (010)
- →
![Bay 009 view and slots of MAERSK SAIGON](/vessel-images/2ac4e45d-80ab-4a0f-838a-d3a3864d0721-b009.png?v=1687797121022)

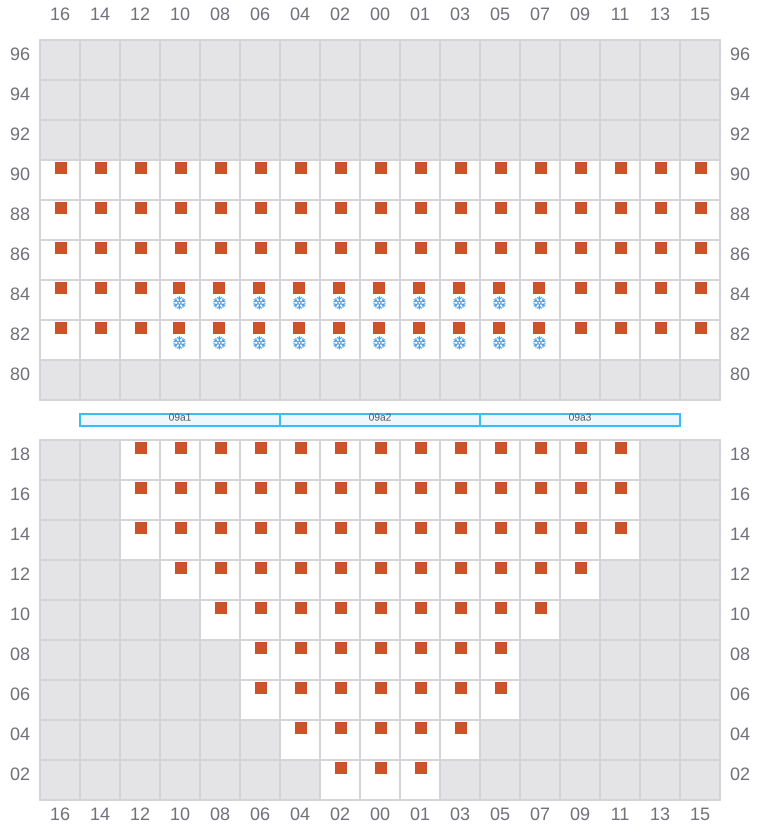

011
- ←
- → / ?
![Bay 011 view and slots of MAERSK SAIGON](/vessel-images/2ac4e45d-80ab-4a0f-838a-d3a3864d0721-b011.png?v=1687797121022)

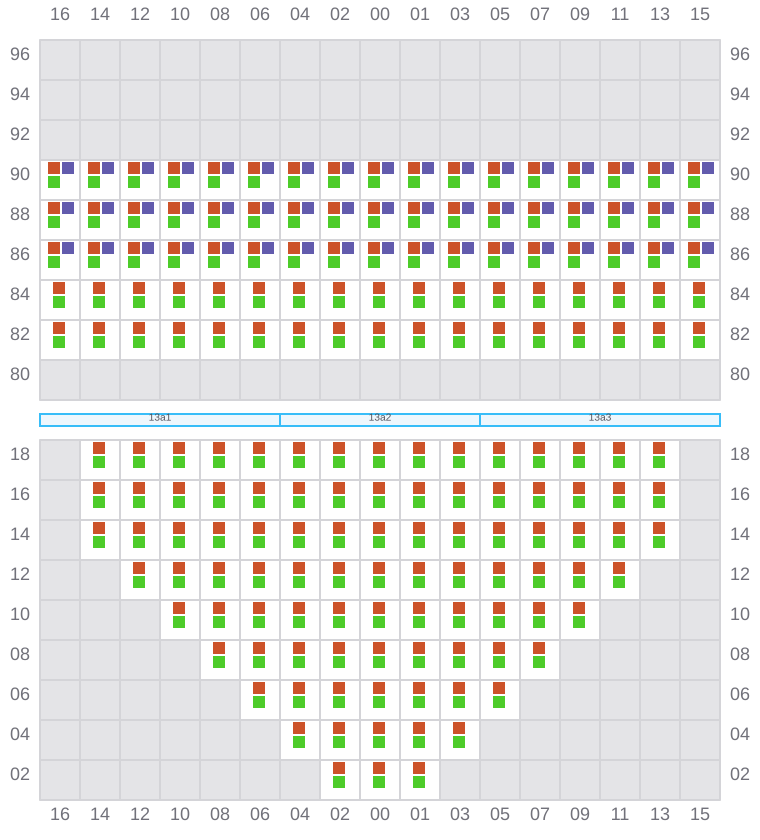

013 (014)
- →
![Bay 013 view and slots of MAERSK SAIGON](/vessel-images/2ac4e45d-80ab-4a0f-838a-d3a3864d0721-b013.png?v=1687797121022)

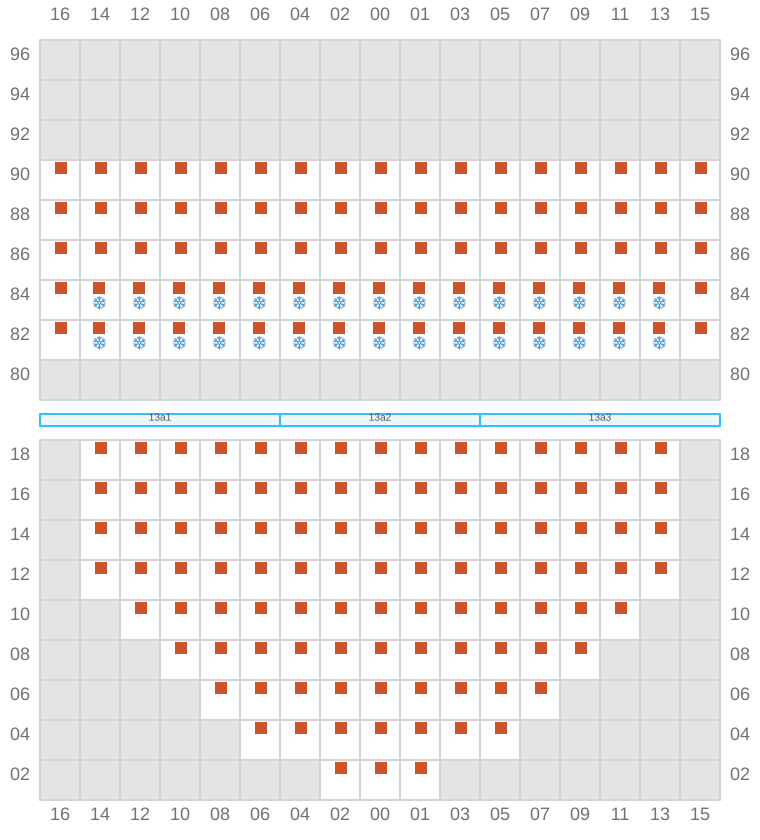

015
- ←
- → / ?
![Bay 015 view and slots of MAERSK SAIGON](/vessel-images/2ac4e45d-80ab-4a0f-838a-d3a3864d0721-b015.png?v=1687797121022)

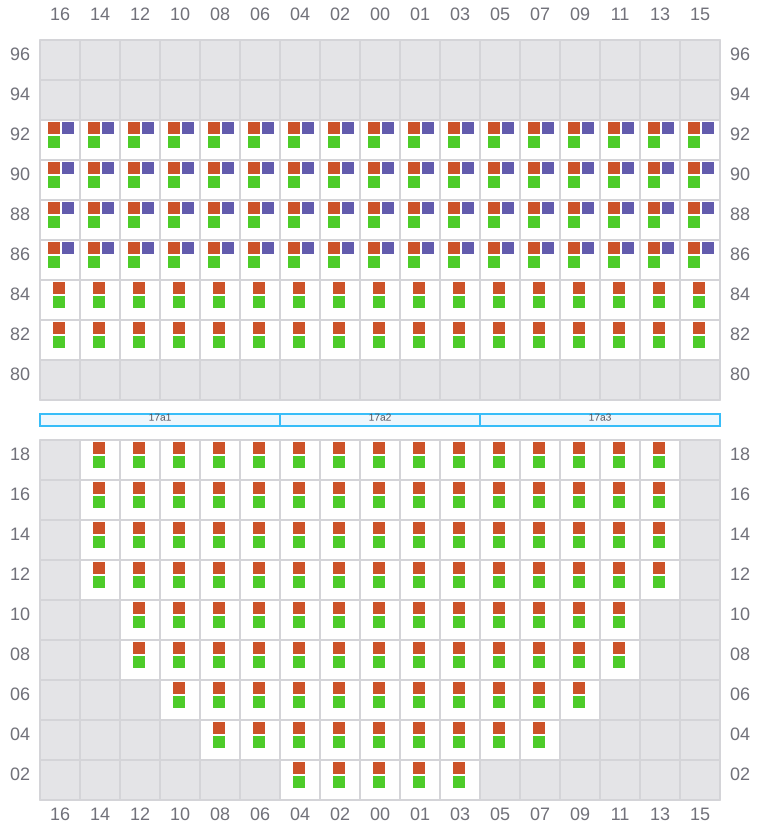

017 (018)
- →
![Bay 017 view and slots of MAERSK SAIGON](/vessel-images/2ac4e45d-80ab-4a0f-838a-d3a3864d0721-b017.png?v=1687797121022)

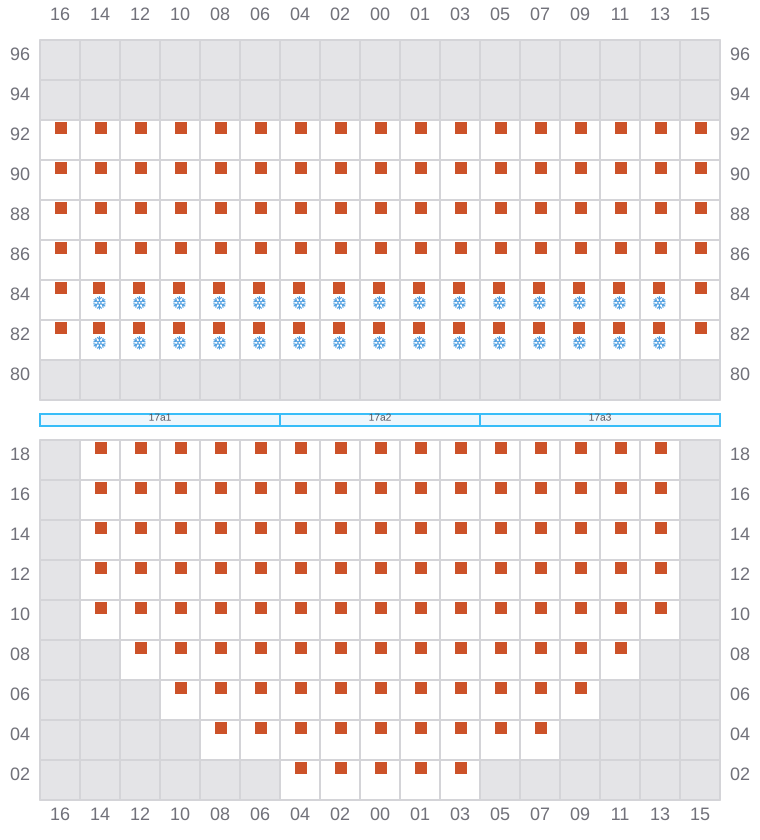

019
- ←
- → / ?
![Bay 019 view and slots of MAERSK SAIGON](/vessel-images/2ac4e45d-80ab-4a0f-838a-d3a3864d0721-b019.png?v=1687797121022)

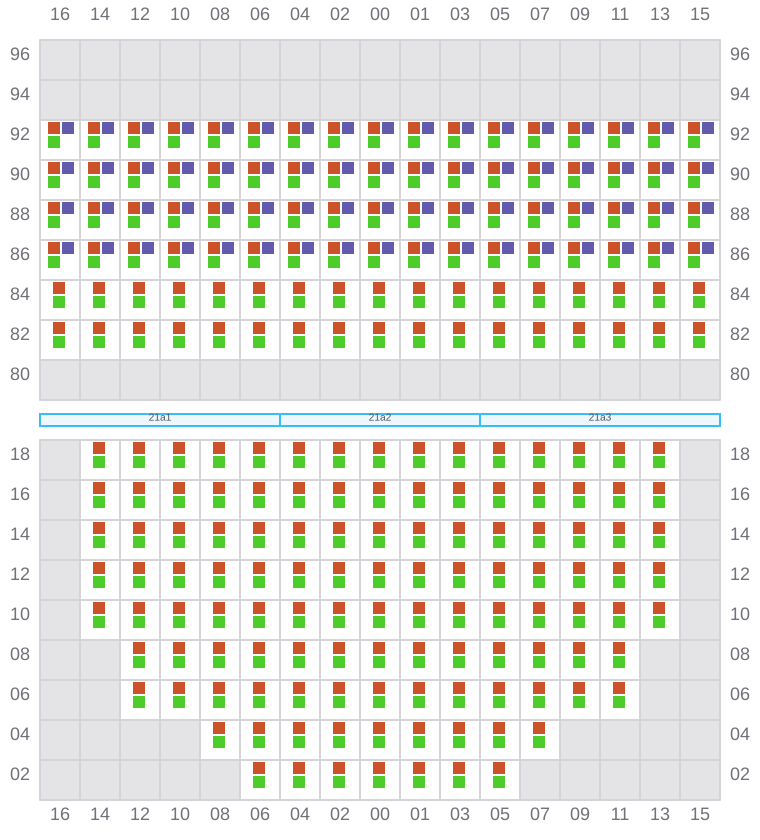

021 (022)
- →
![Bay 021 view and slots of MAERSK SAIGON](/vessel-images/2ac4e45d-80ab-4a0f-838a-d3a3864d0721-b021.png?v=1687797121022)

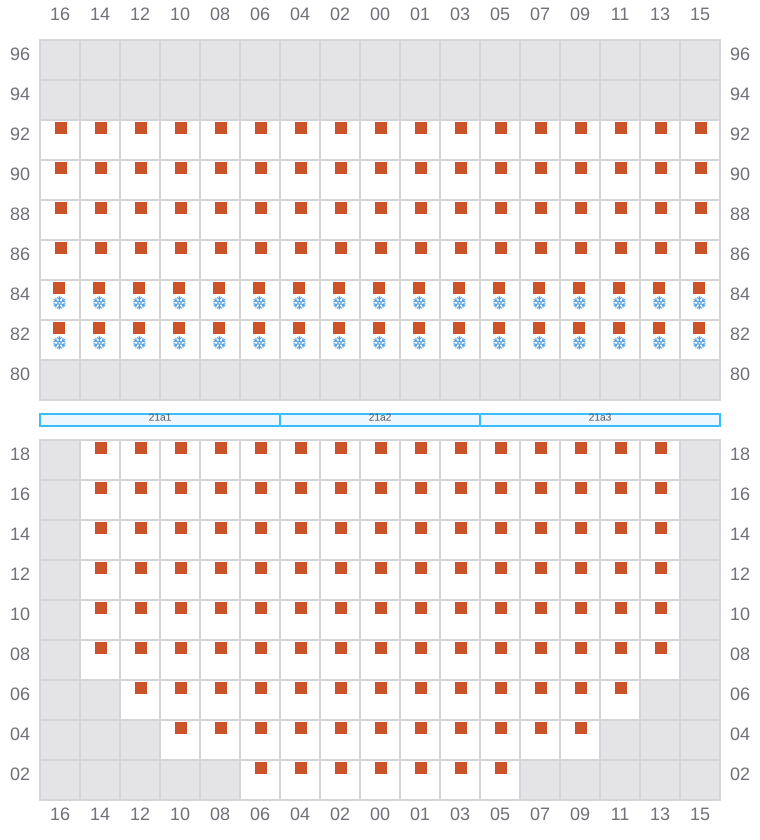

023
- ←
- → / ?
![Bay 023 view and slots of MAERSK SAIGON](/vessel-images/2ac4e45d-80ab-4a0f-838a-d3a3864d0721-b023.png?v=1687797121022)

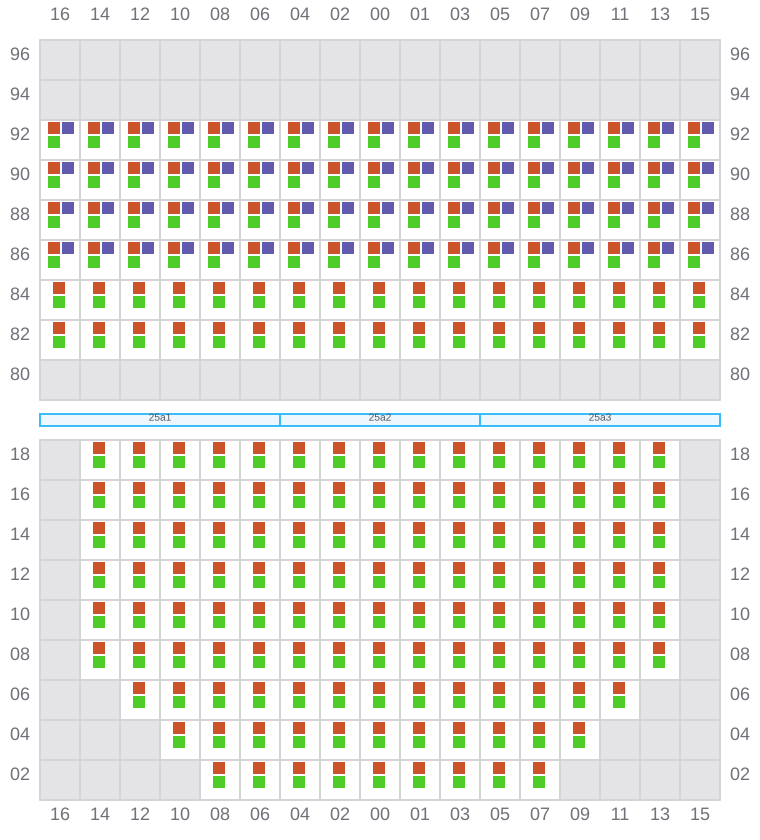

025 (026)
- →
![Bay 025 view and slots of MAERSK SAIGON](/vessel-images/2ac4e45d-80ab-4a0f-838a-d3a3864d0721-b025.png?v=1687797121022)

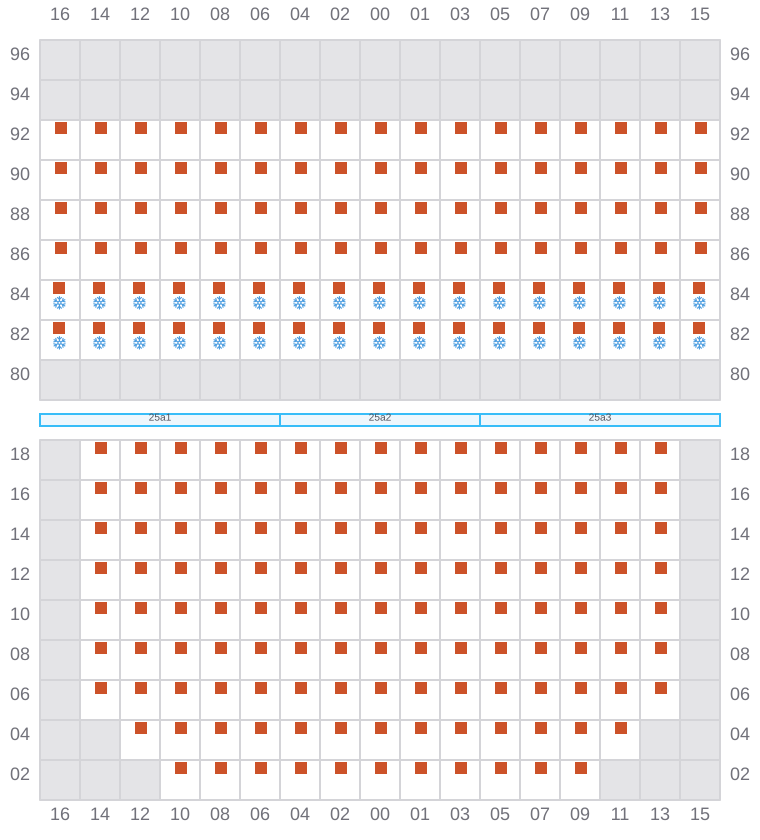

027
- ←
- → / ?
![Bay 027 view and slots of MAERSK SAIGON](/vessel-images/2ac4e45d-80ab-4a0f-838a-d3a3864d0721-b027.png?v=1687797121022)

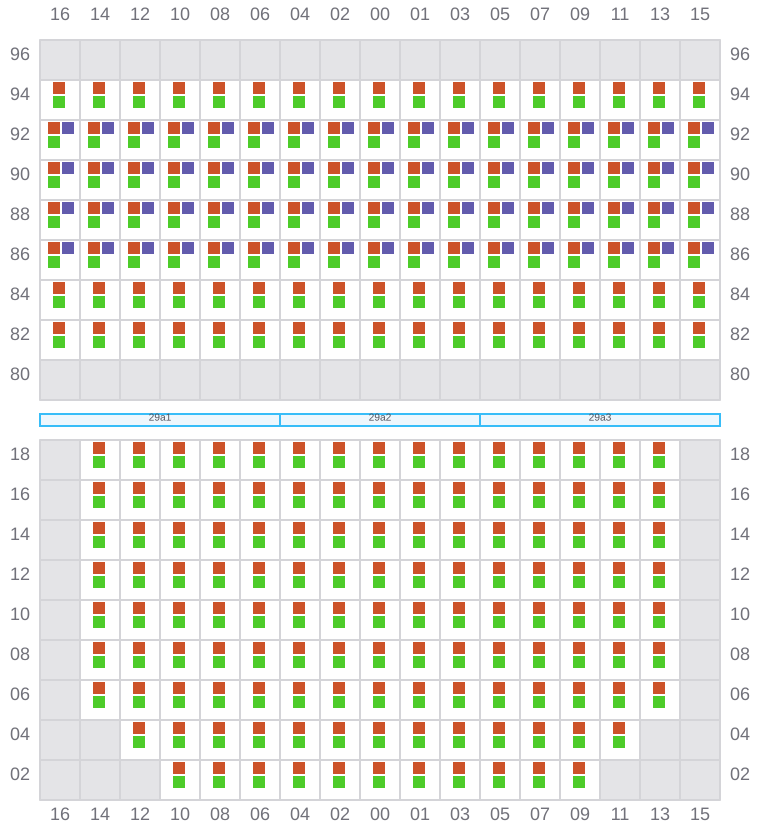

029 (030)
- →
![Bay 029 view and slots of MAERSK SAIGON](/vessel-images/2ac4e45d-80ab-4a0f-838a-d3a3864d0721-b029.png?v=1687797121022)

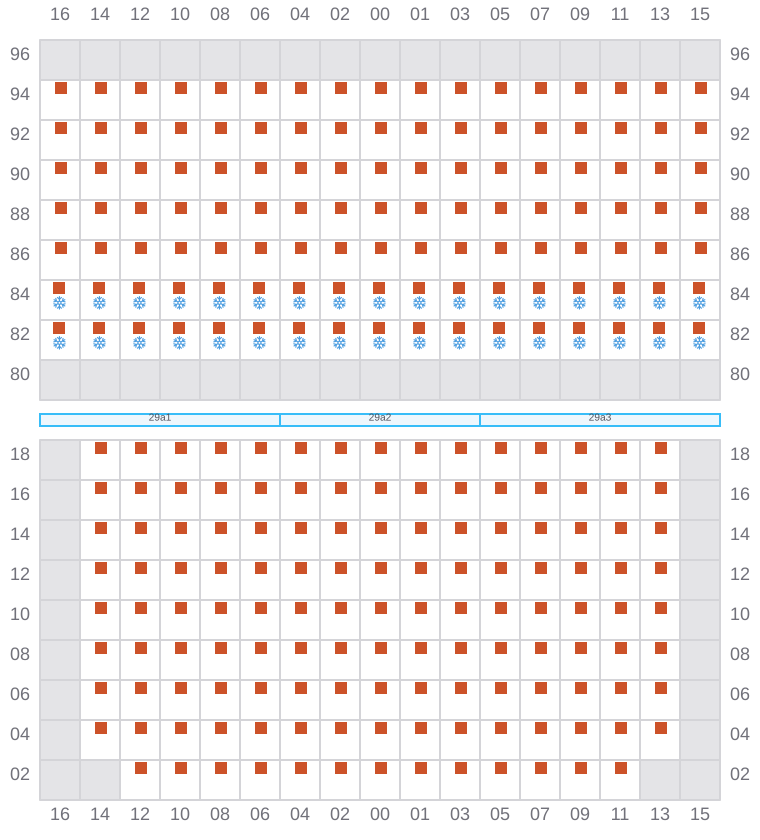

031
- ←
- → / ?
![Bay 031 view and slots of MAERSK SAIGON](/vessel-images/2ac4e45d-80ab-4a0f-838a-d3a3864d0721-b031.png?v=1687797121022)

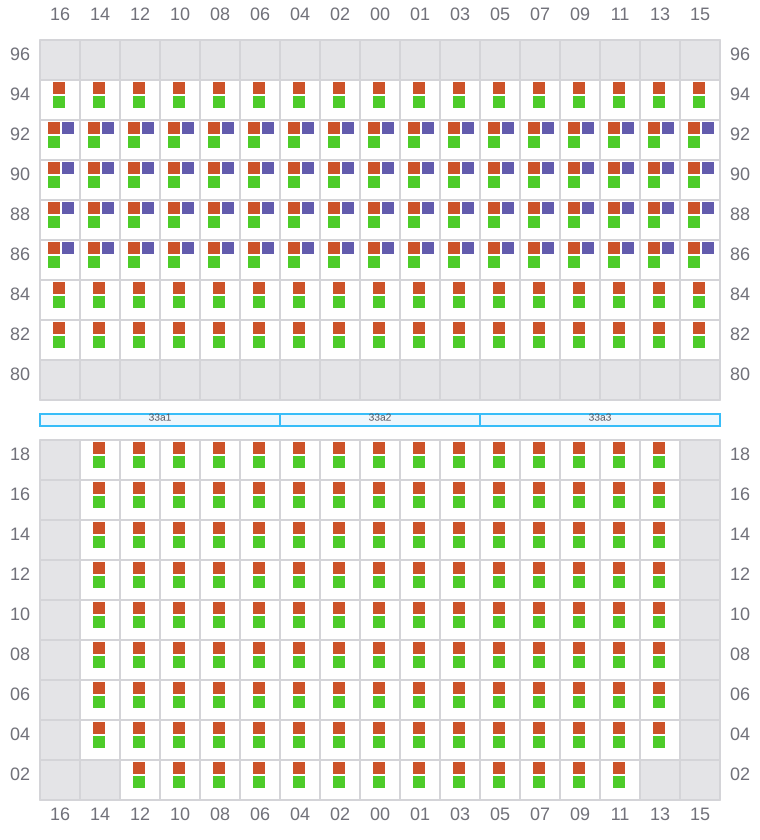

033 (034)
- →
![Bay 033 view and slots of MAERSK SAIGON](/vessel-images/2ac4e45d-80ab-4a0f-838a-d3a3864d0721-b033.png?v=1687797121022)

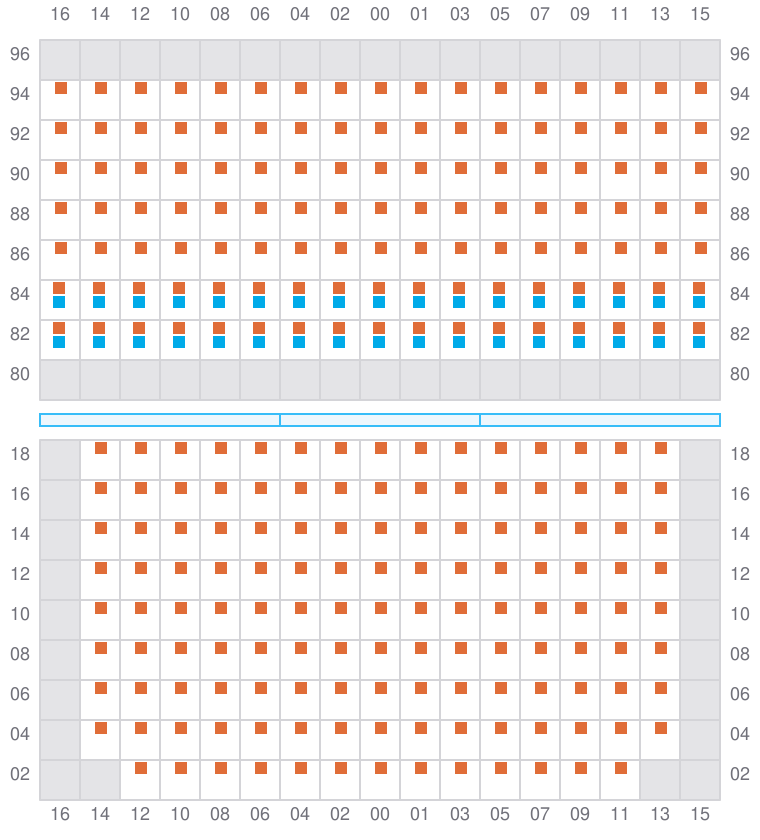

035
- ←
- → / ?
![Bay 035 view and slots of MAERSK SAIGON](/vessel-images/2ac4e45d-80ab-4a0f-838a-d3a3864d0721-b035.png?v=1687797121022)

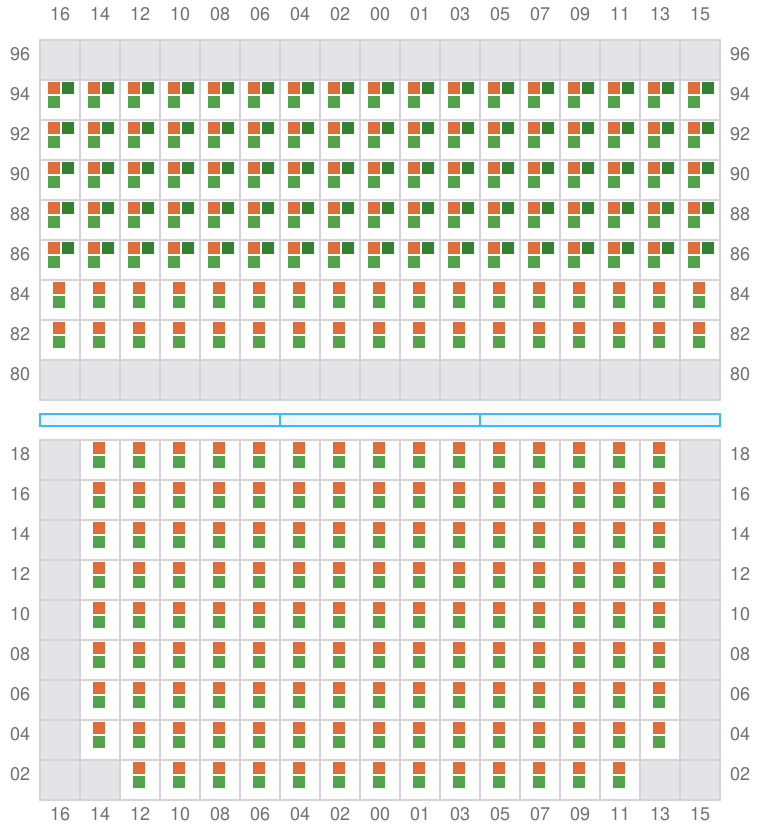

037 (038)
- →
![Bay 037 view and slots of MAERSK SAIGON](/vessel-images/2ac4e45d-80ab-4a0f-838a-d3a3864d0721-b037.png?v=1687797121022)

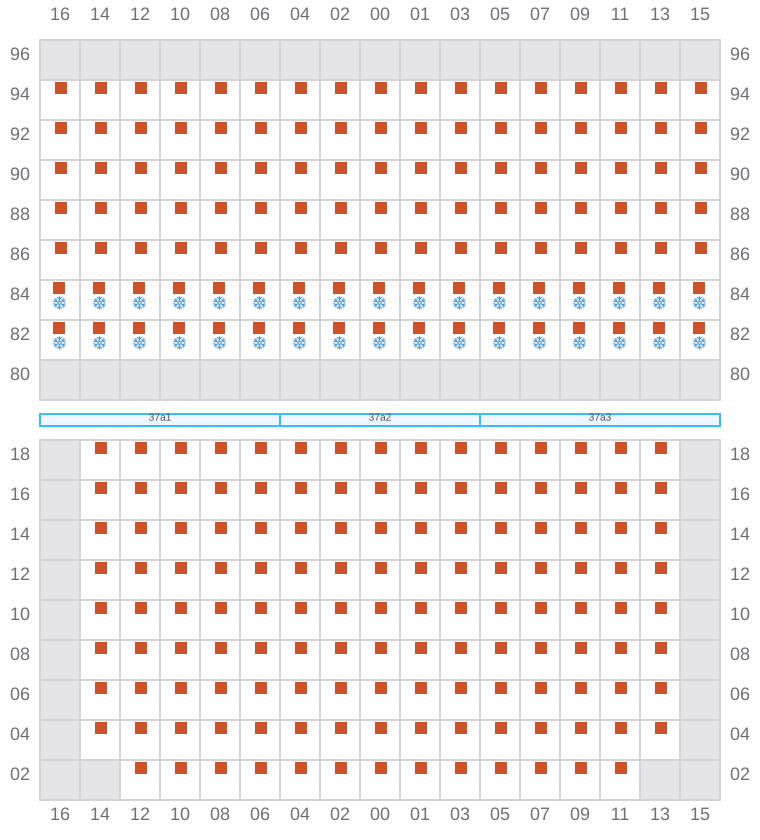

039
- ←
- → / ?
![Bay 039 view and slots of MAERSK SAIGON](/vessel-images/2ac4e45d-80ab-4a0f-838a-d3a3864d0721-b039.png?v=1687797121022)

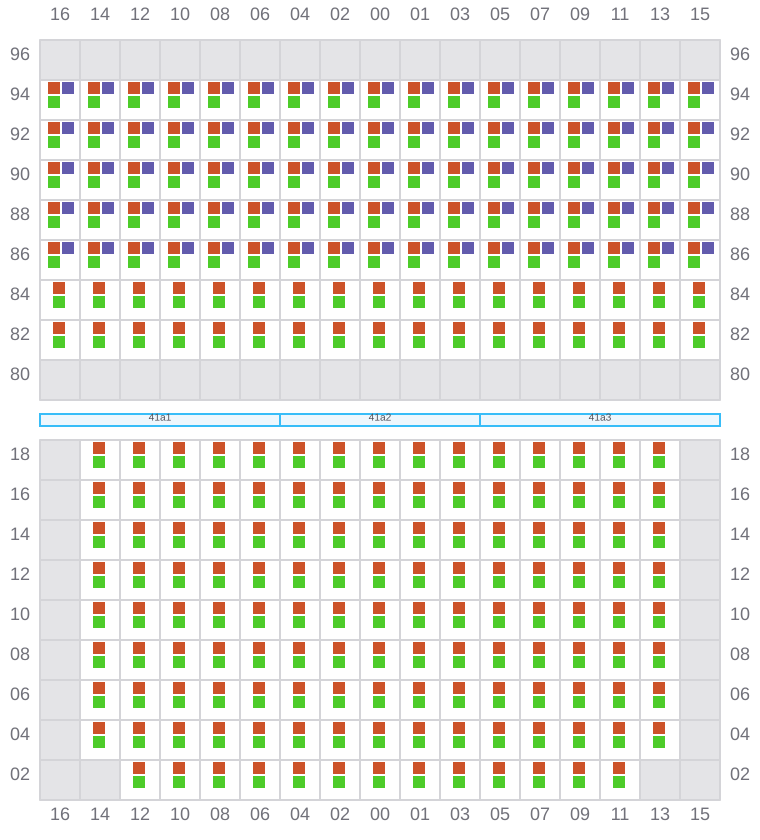

041 (042)
- →
![Bay 041 view and slots of MAERSK SAIGON](/vessel-images/2ac4e45d-80ab-4a0f-838a-d3a3864d0721-b041.png?v=1687797121022)
043
- ←
- → / ?
![Bay 043 view and slots of MAERSK SAIGON](/vessel-images/2ac4e45d-80ab-4a0f-838a-d3a3864d0721-b043.png?v=1687797121022)
045 (046)
- →
![Bay 045 view and slots of MAERSK SAIGON](/vessel-images/2ac4e45d-80ab-4a0f-838a-d3a3864d0721-b045.png?v=1687797121022)

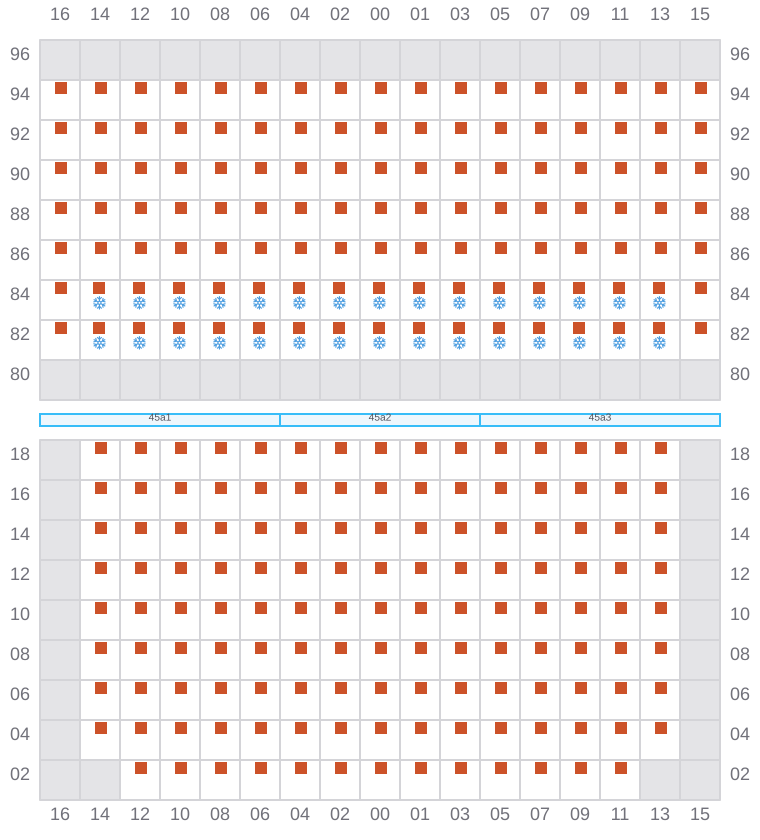

047
- ←
- → / ?
![Bay 047 view and slots of MAERSK SAIGON](/vessel-images/2ac4e45d-80ab-4a0f-838a-d3a3864d0721-b047.png?v=1687797121022)
049 (050)
- →
![Bay 049 view and slots of MAERSK SAIGON](/vessel-images/2ac4e45d-80ab-4a0f-838a-d3a3864d0721-b049.png?v=1687797121022)

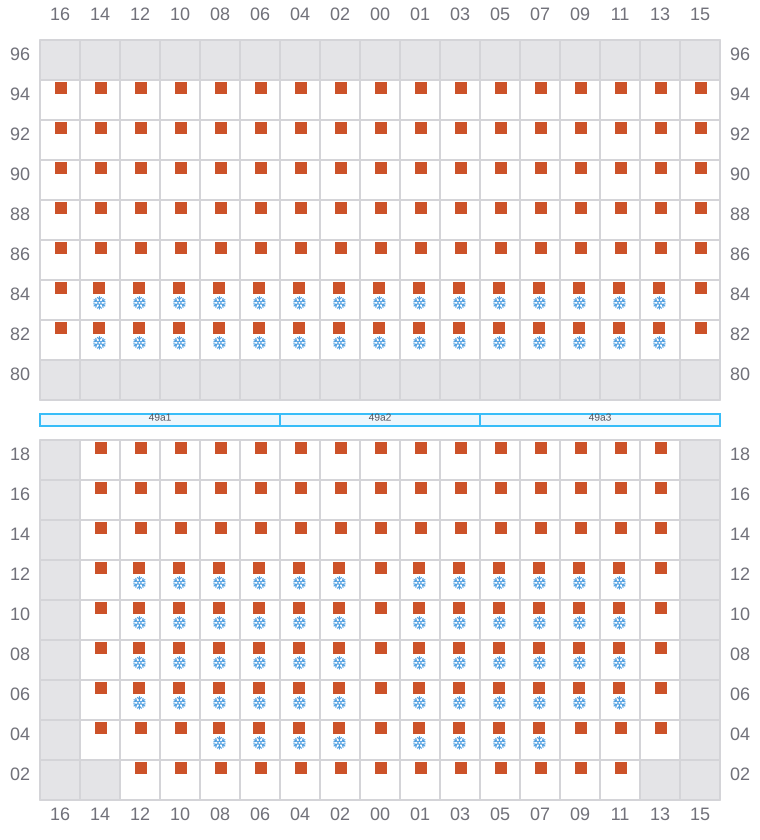

051
- ←
- →
![Bay 051 view and slots of MAERSK SAIGON](/vessel-images/2ac4e45d-80ab-4a0f-838a-d3a3864d0721-b051.png?v=1687797121022)
053 (054)
- →
![Bay 053 view and slots of MAERSK SAIGON](/vessel-images/2ac4e45d-80ab-4a0f-838a-d3a3864d0721-b053.png?v=1687797121022)

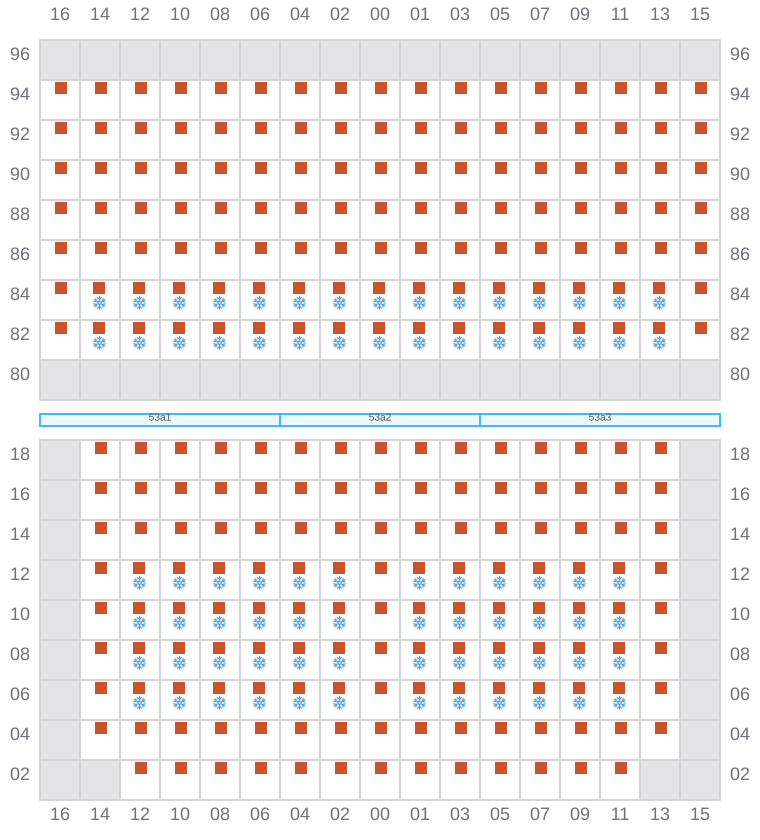

055
- ←
- →
![Bay 055 view and slots of MAERSK SAIGON](/vessel-images/2ac4e45d-80ab-4a0f-838a-d3a3864d0721-b055.png?v=1687797121022)

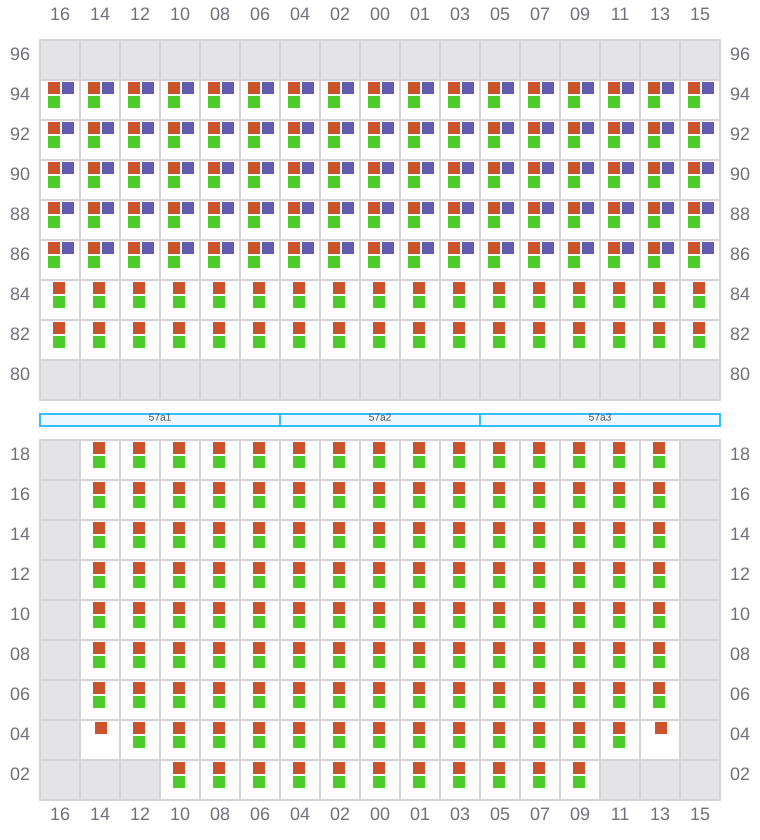

057 (058)
- →
![Bay 057 view and slots of MAERSK SAIGON](/vessel-images/2ac4e45d-80ab-4a0f-838a-d3a3864d0721-b057.png?v=1687797121022)

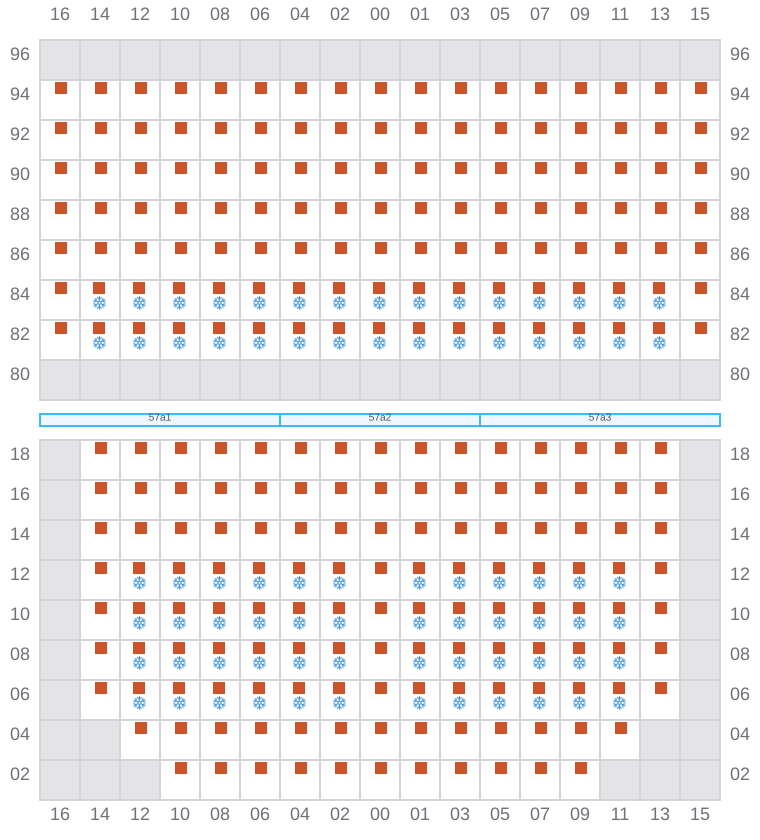

059
- ←
- →
![Bay 059 view and slots of MAERSK SAIGON](/vessel-images/2ac4e45d-80ab-4a0f-838a-d3a3864d0721-b059.png?v=1687797121022)

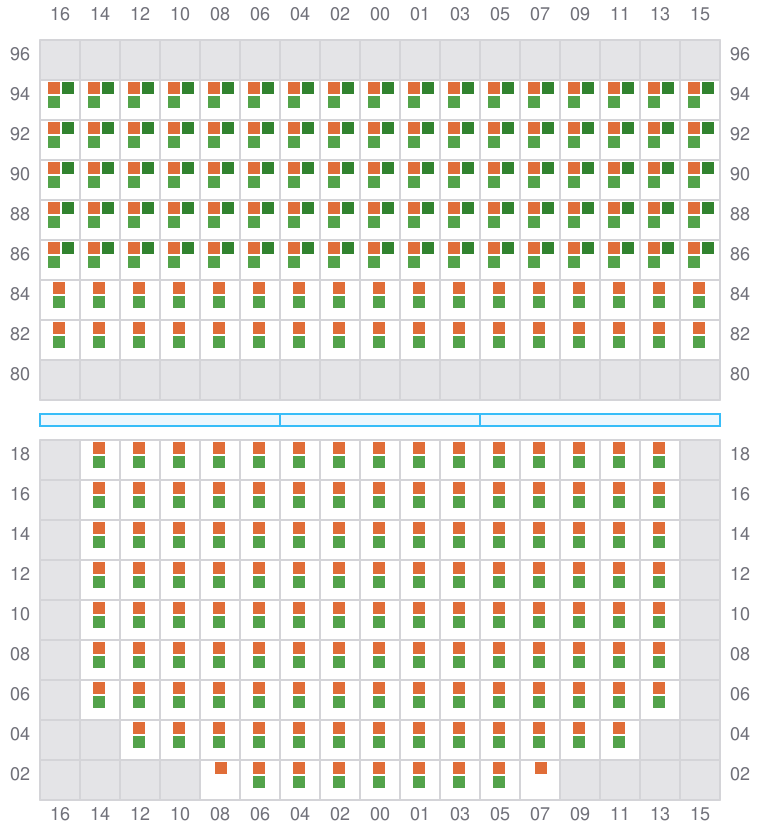

061 (062)
- →
![Bay 061 view and slots of MAERSK SAIGON](/vessel-images/2ac4e45d-80ab-4a0f-838a-d3a3864d0721-b061.png?v=1687797121022)

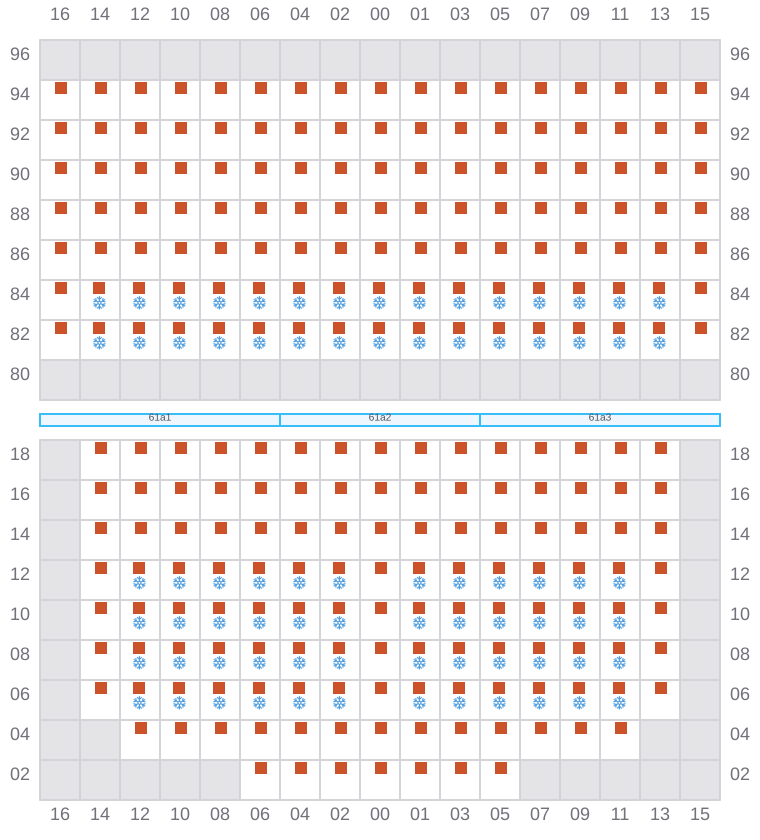

063
- ←
- →
![Bay 063 view and slots of MAERSK SAIGON](/vessel-images/2ac4e45d-80ab-4a0f-838a-d3a3864d0721-b063.png?v=1687797121022)

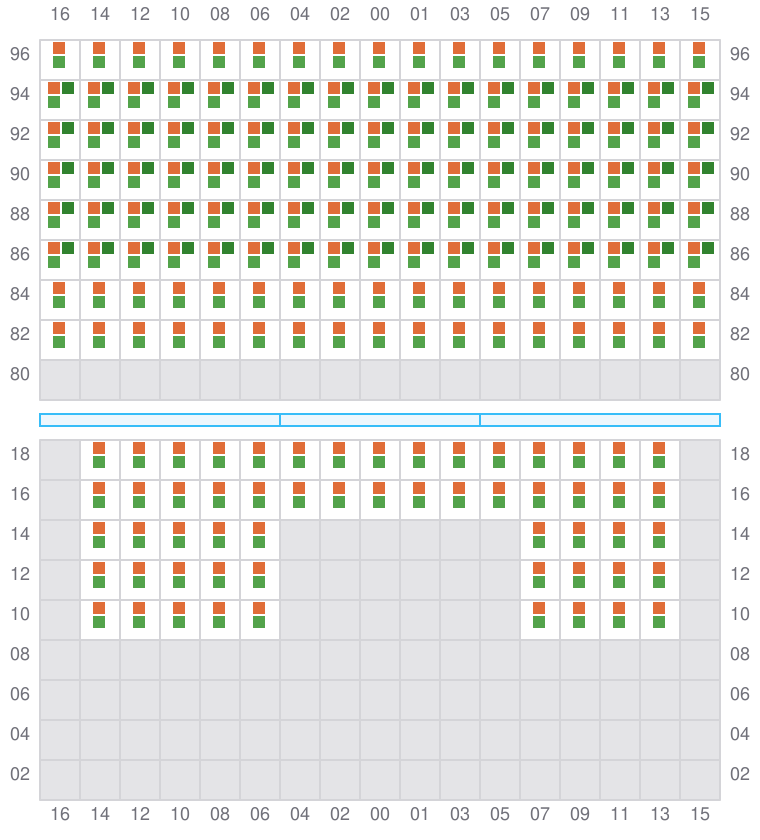

065 (066)
- →
![Bay 065 view and slots of MAERSK SAIGON](/vessel-images/2ac4e45d-80ab-4a0f-838a-d3a3864d0721-b065.png?v=1687797121022)

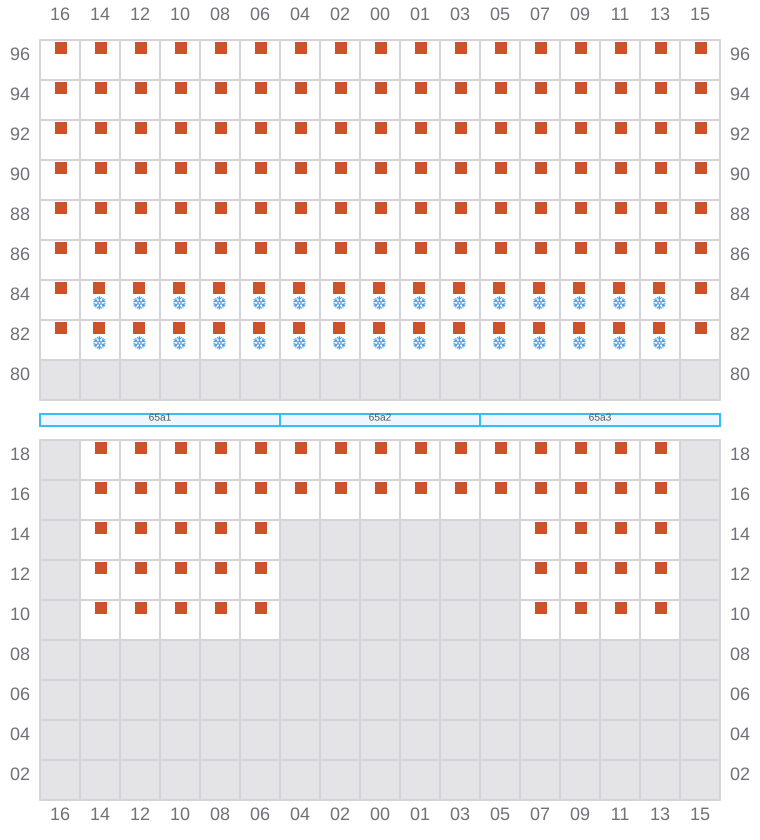

067
- ←
- → / ?
![Bay 067 view and slots of MAERSK SAIGON](/vessel-images/2ac4e45d-80ab-4a0f-838a-d3a3864d0721-b067.png?v=1687797121022)

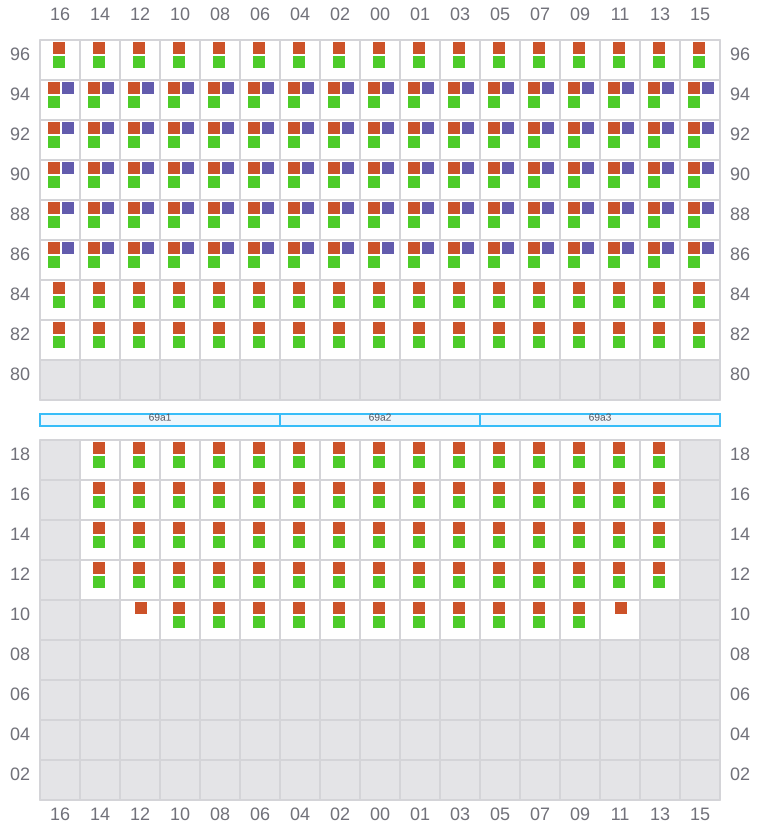

069 (070)
- →
![Bay 069 view and slots of MAERSK SAIGON](/vessel-images/2ac4e45d-80ab-4a0f-838a-d3a3864d0721-b069.png?v=1687797121022)

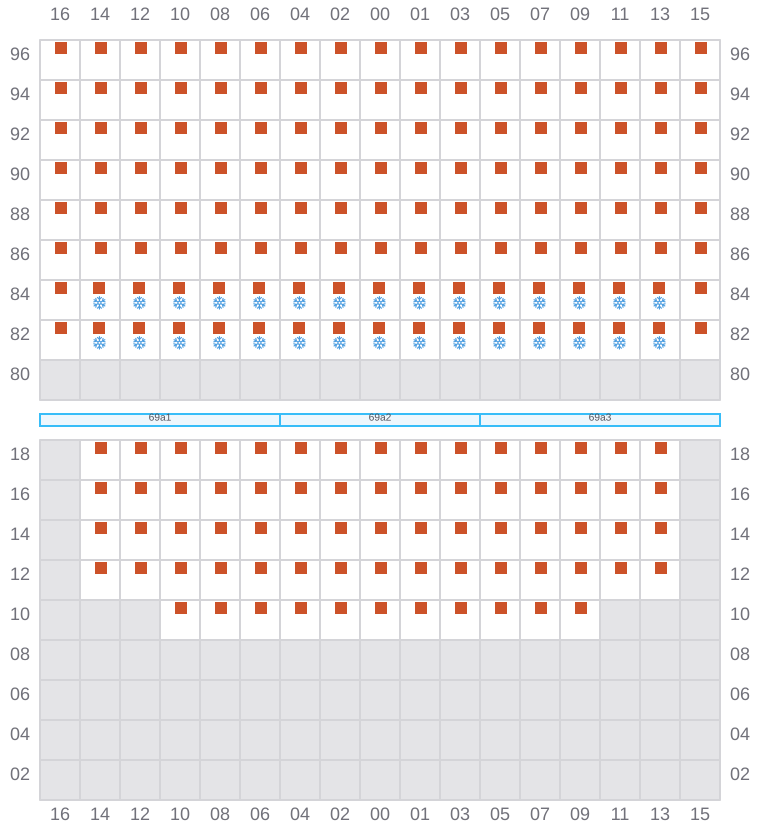

071
- ←
- → / ?
![Bay 071 view and slots of MAERSK SAIGON](/vessel-images/2ac4e45d-80ab-4a0f-838a-d3a3864d0721-b071.png?v=1687797121022)

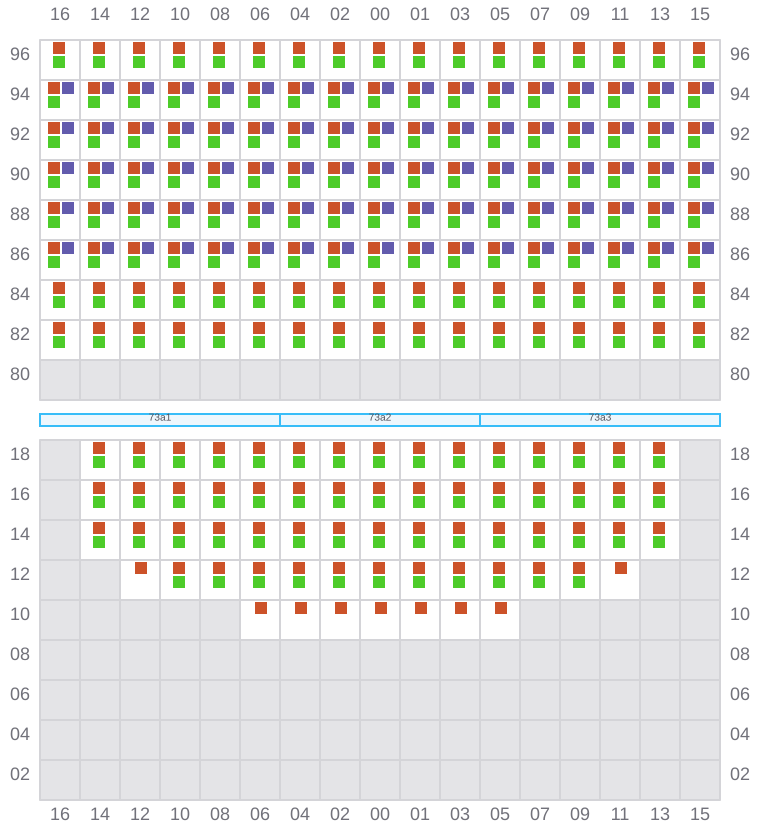

073 (074)
- →
![Bay 073 view and slots of MAERSK SAIGON](/vessel-images/2ac4e45d-80ab-4a0f-838a-d3a3864d0721-b073.png?v=1687797121022)

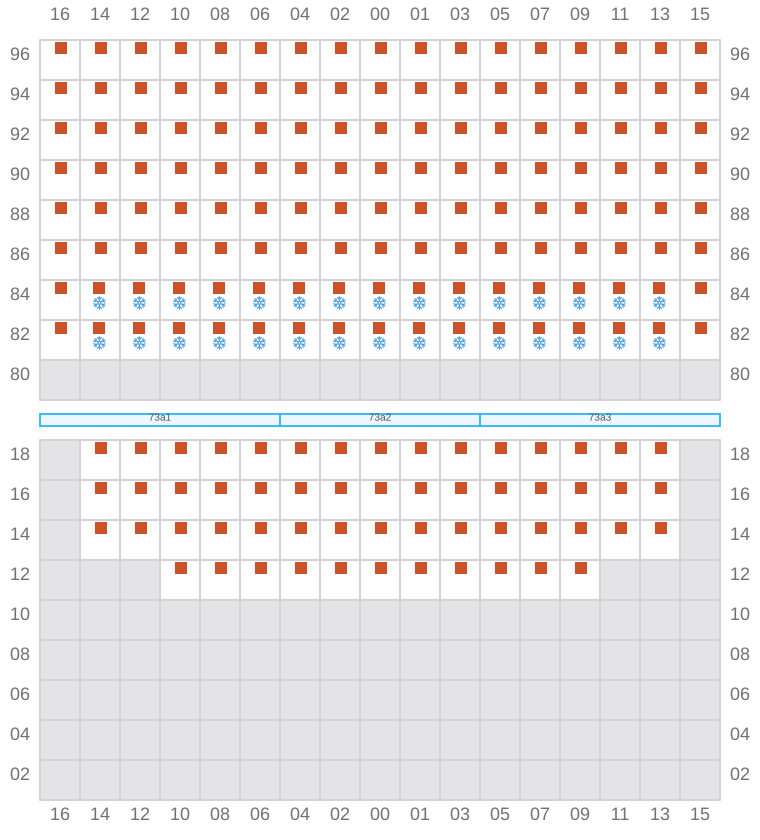

075
- ←
- → / ?
![Bay 075 view and slots of MAERSK SAIGON](/vessel-images/2ac4e45d-80ab-4a0f-838a-d3a3864d0721-b075.png?v=1687797121022)

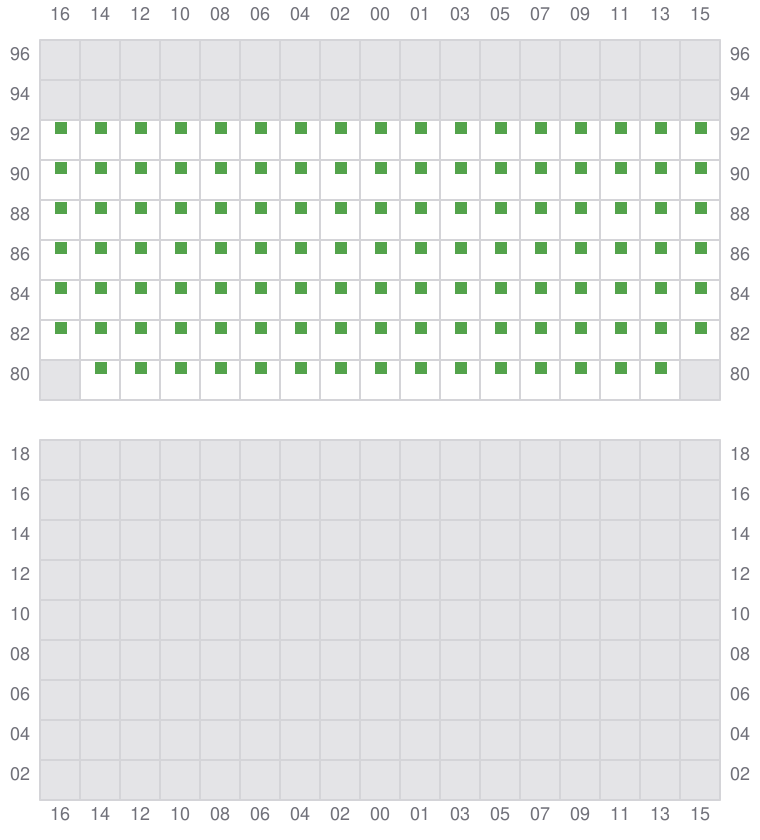

077 (078)
- → / ?
![Bay 077 view and slots of MAERSK SAIGON](/vessel-images/2ac4e45d-80ab-4a0f-838a-d3a3864d0721-b077.png?v=1687797121022)
