MAERSK SALALAH
9352016 | VRVN3 | 9352016 by ********* Last update: Fri Mar 22 2024

General Info

Ship Name:MAERSK SALALAH
IMO Code:9352016
Call Sign:VRVN3
Line Operator:9352016
Class Name for Sister Ships:8XF
Year Built:2008
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):319.00
LOA (Length Overall):334.07
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-

Size Summary

ISO Bays:077
Max ISO Row:16
Center Line Row:Yes
Max Above ISO Tier:96
Min Above ISO Tier:82
Max Below ISO Tier:18
Min Below ISO Tier:02
Total TEU:8,538

Centers of Gravity

LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

Side View

Side view of MAERSK SALALAH

Hatch-Covers View

Deck view of MAERSK SALALAH

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot

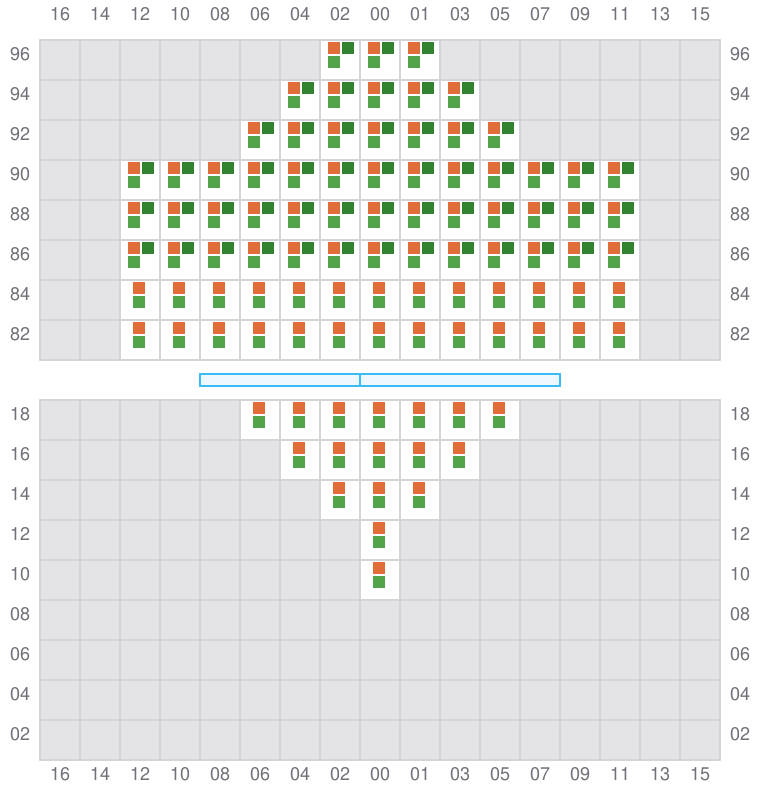

001 (002)

  • →
Bay 001 view and slots of MAERSK SALALAH

003

  • ←

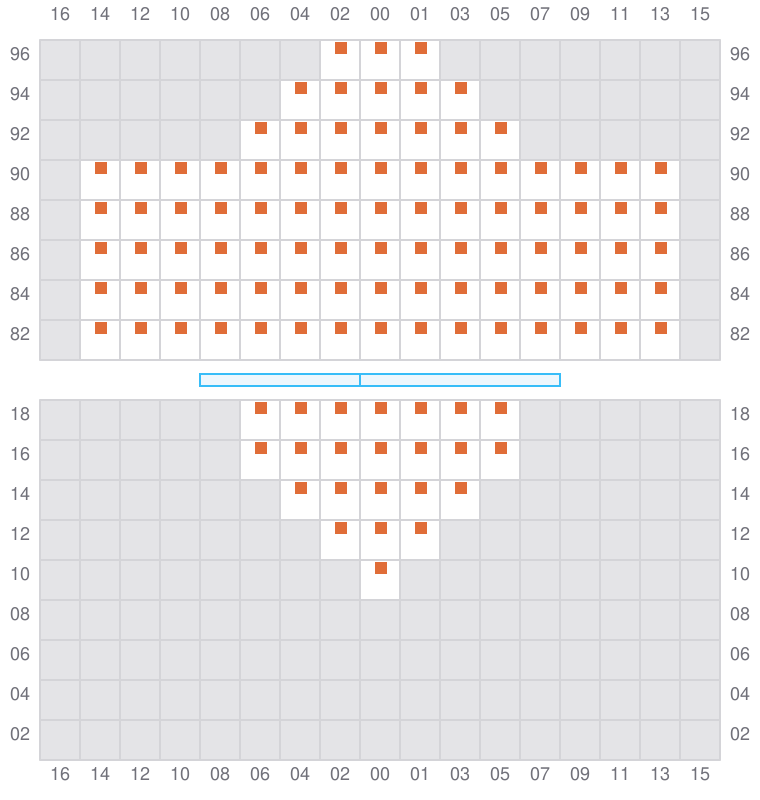

Bay 003 view and slots of MAERSK SALALAH

005 (006)

  • →

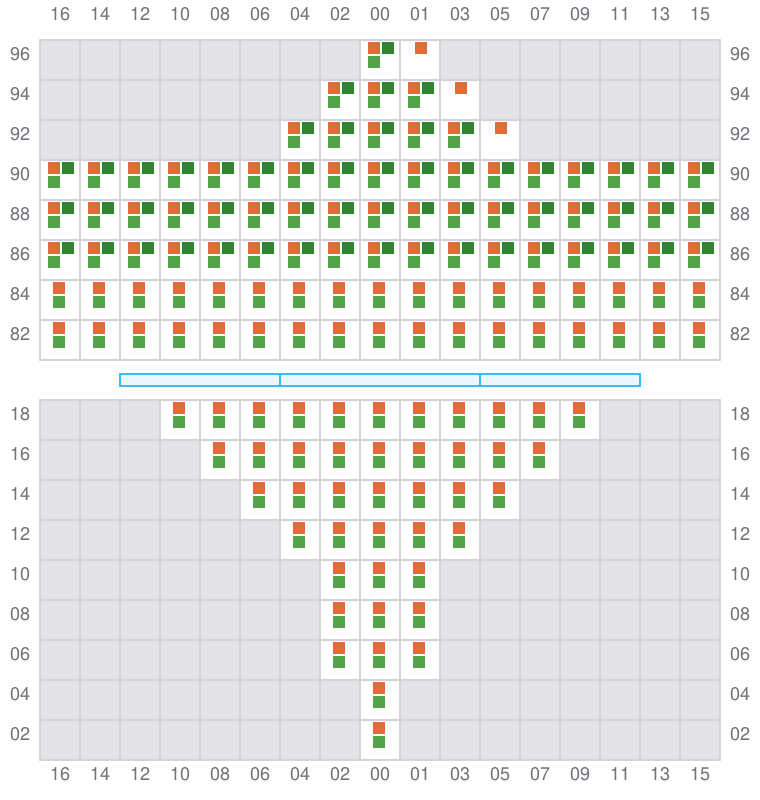

Bay 005 view and slots of MAERSK SALALAH

007

  • ←

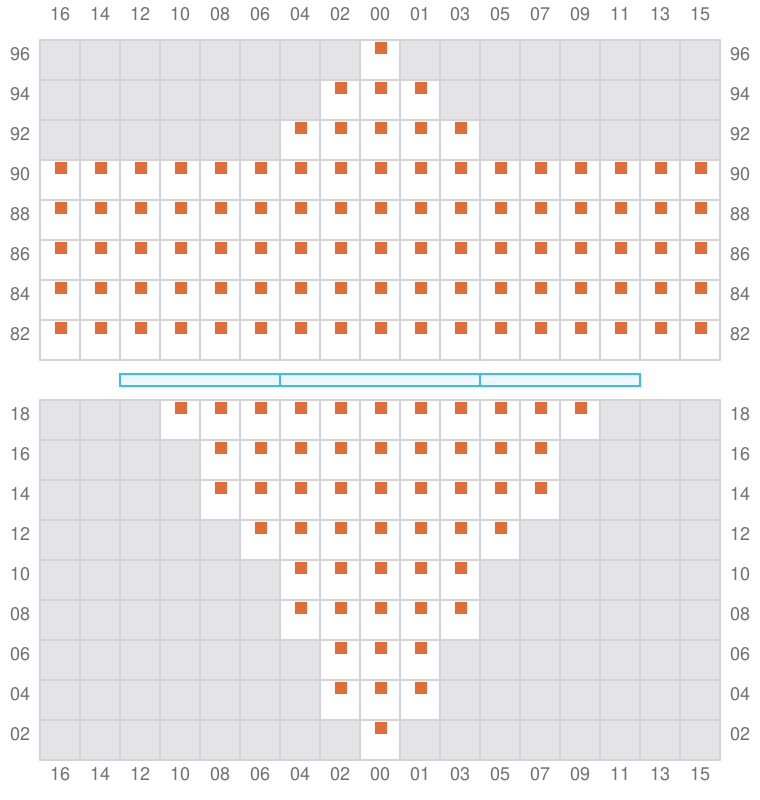

Bay 007 view and slots of MAERSK SALALAH

009 (010)

  • →

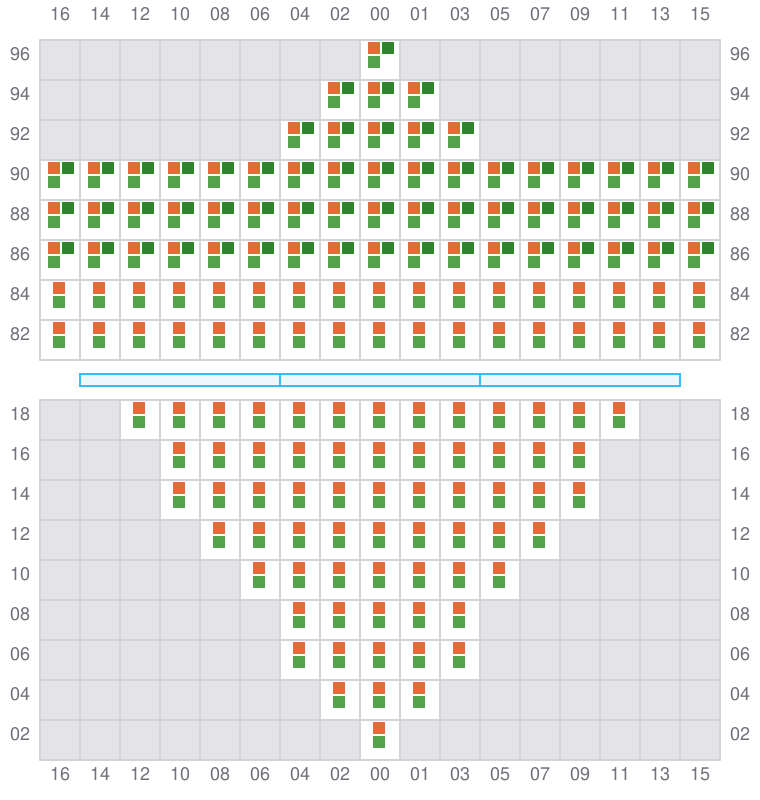

Bay 009 view and slots of MAERSK SALALAH

011

  • ←
  • → / ?

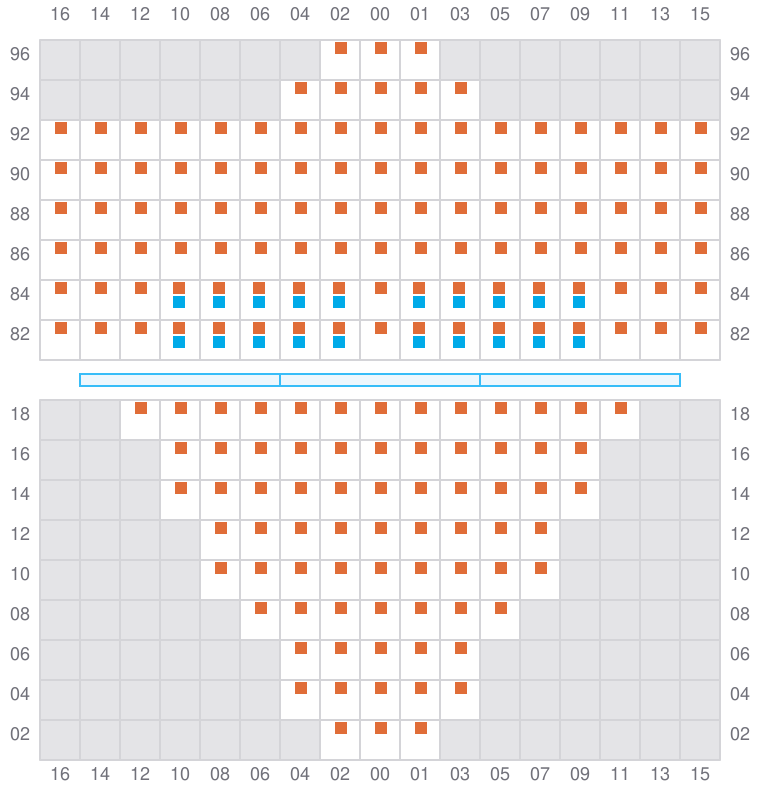

Bay 011 view and slots of MAERSK SALALAH

013 (014)

  • →
Bay 013 view and slots of MAERSK SALALAH

015

  • ←
  • → / ?
Bay 015 view and slots of MAERSK SALALAH

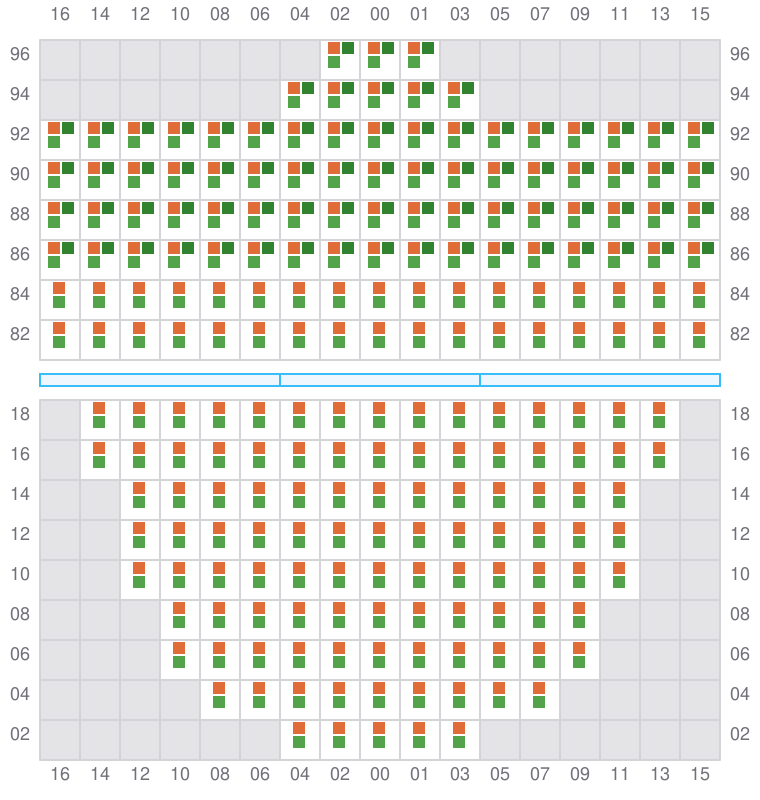

017 (018)

  • →
Bay 017 view and slots of MAERSK SALALAH

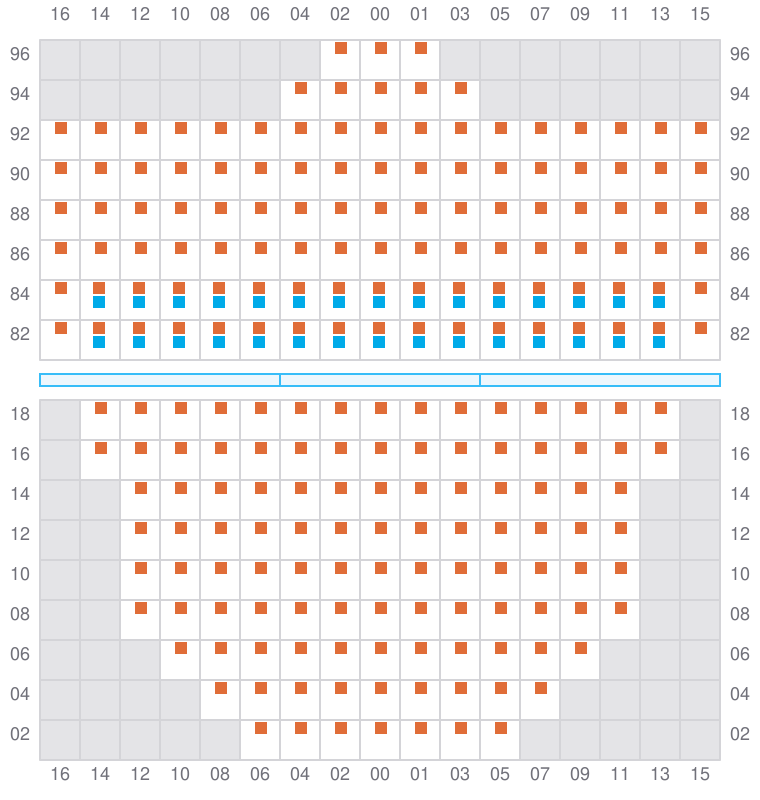

019

  • ←
  • → / ?
Bay 019 view and slots of MAERSK SALALAH

021 (022)

  • →
Bay 021 view and slots of MAERSK SALALAH

023

  • ←
  • → / ?

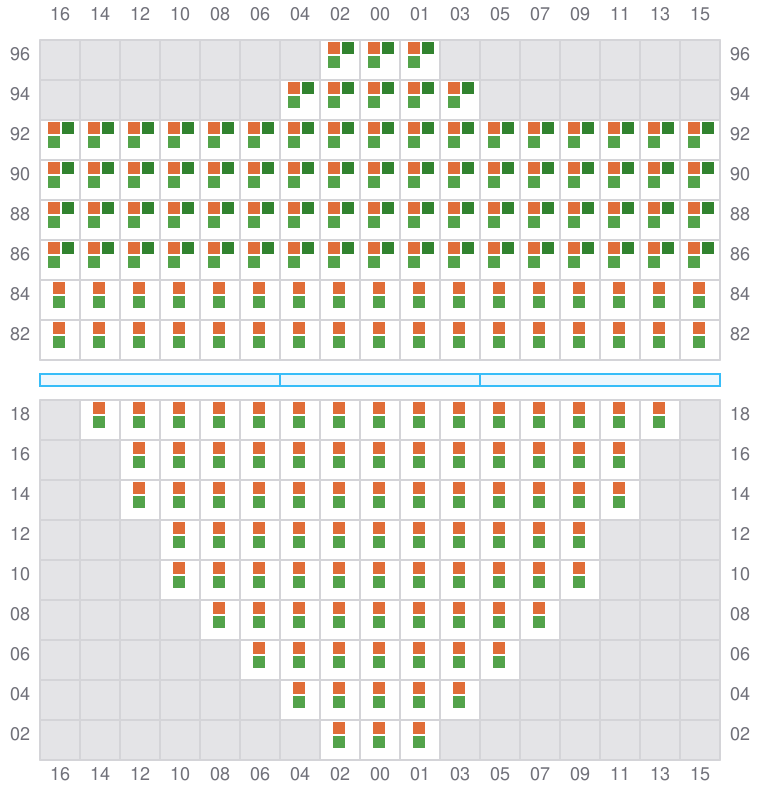

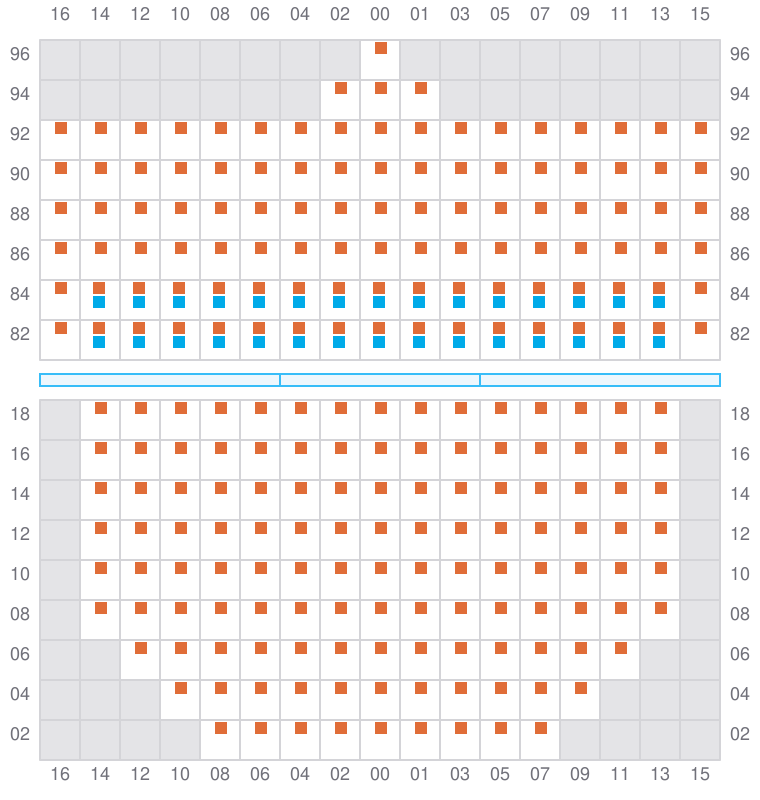

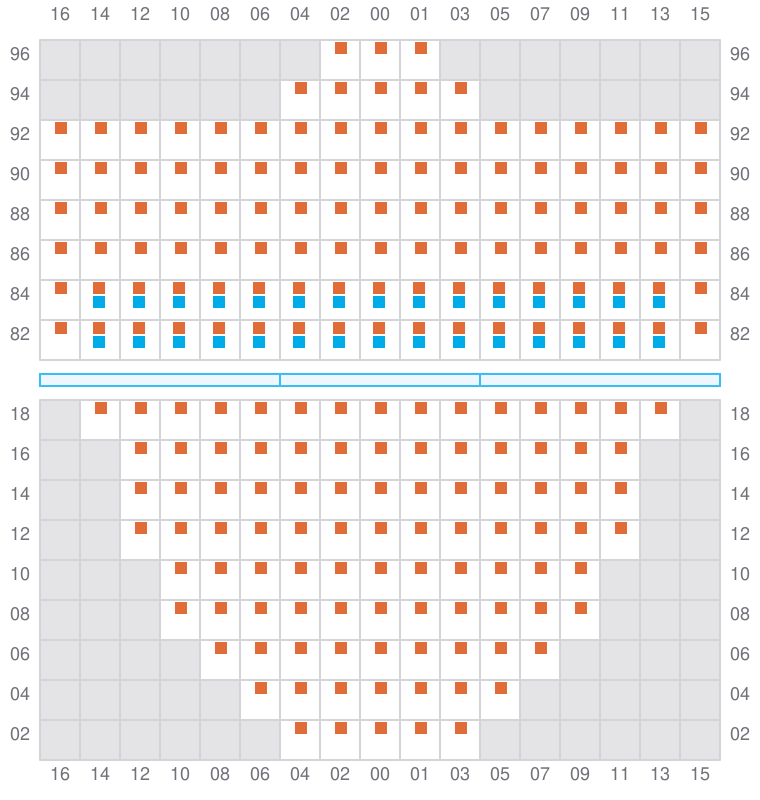

Bay 023 view and slots of MAERSK SALALAH

025 (026)

  • →

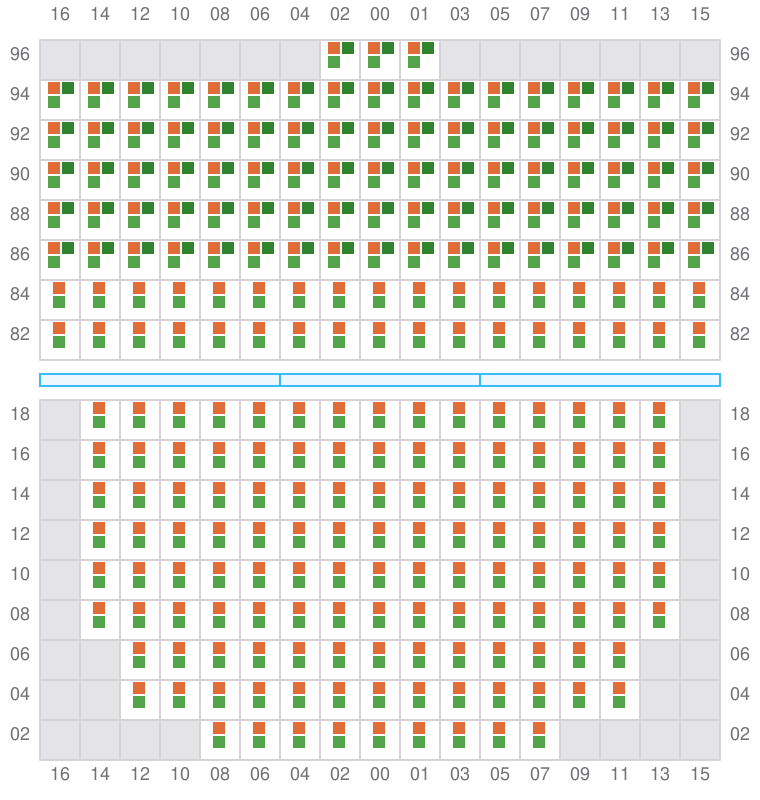

Bay 025 view and slots of MAERSK SALALAH

027

  • ←
  • → / ?
Bay 027 view and slots of MAERSK SALALAH

029 (030)

  • →

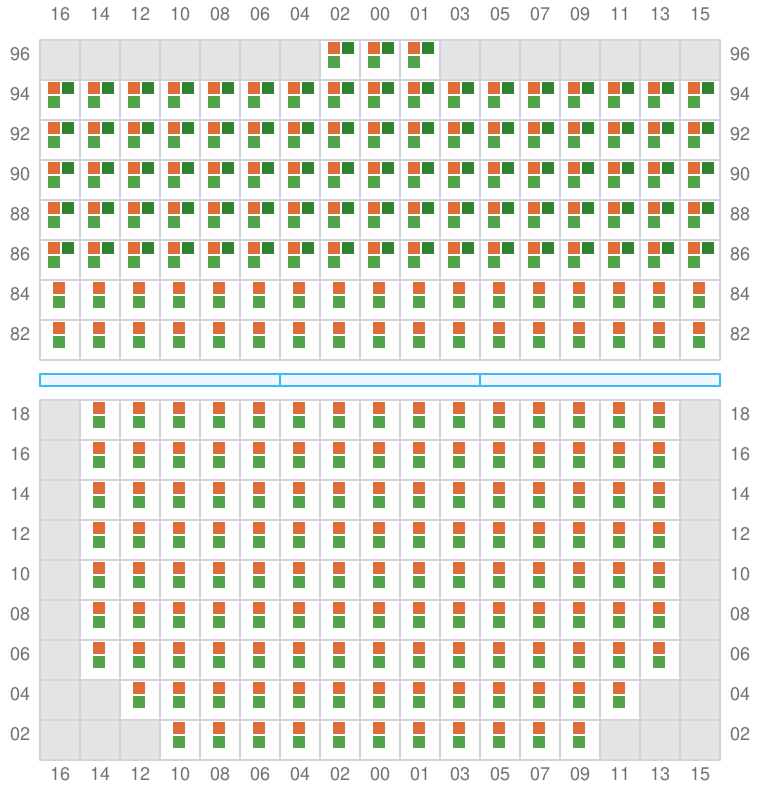

Bay 029 view and slots of MAERSK SALALAH

031

  • ←
  • →

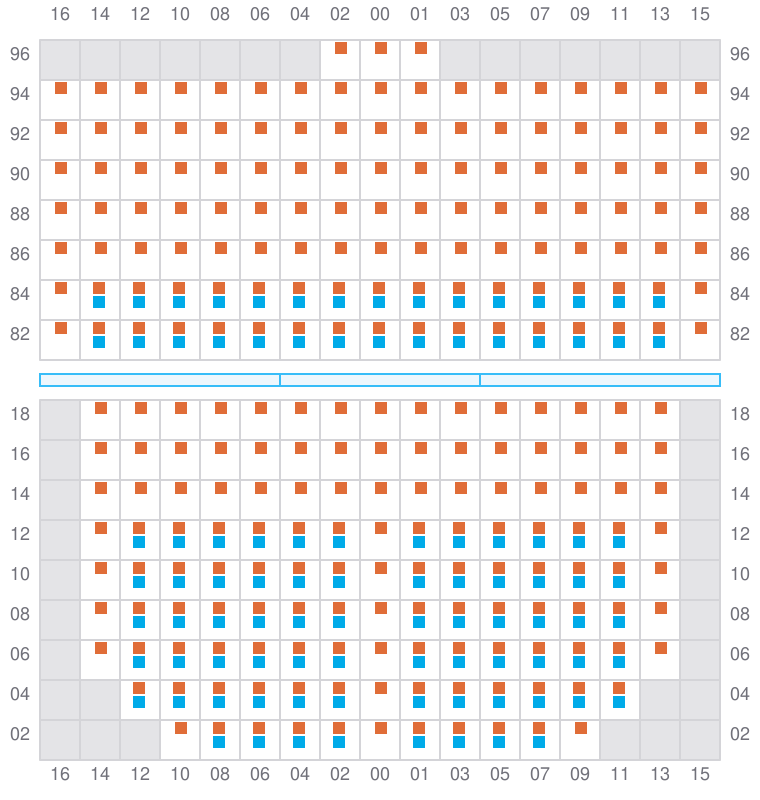

Bay 031 view and slots of MAERSK SALALAH

033 (034)

  • →

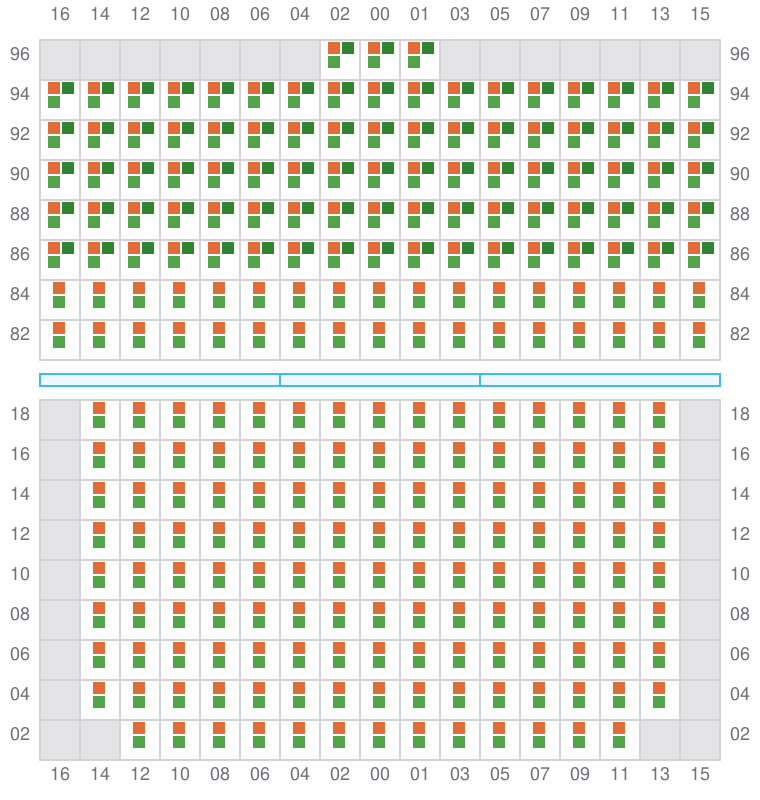

Bay 033 view and slots of MAERSK SALALAH

035

  • ←
  • → / ?

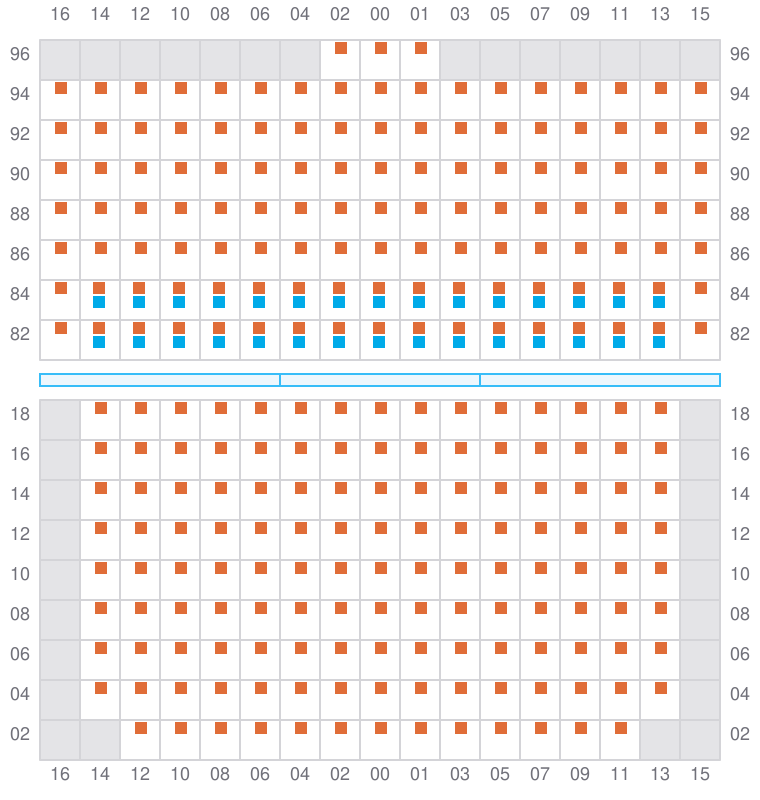

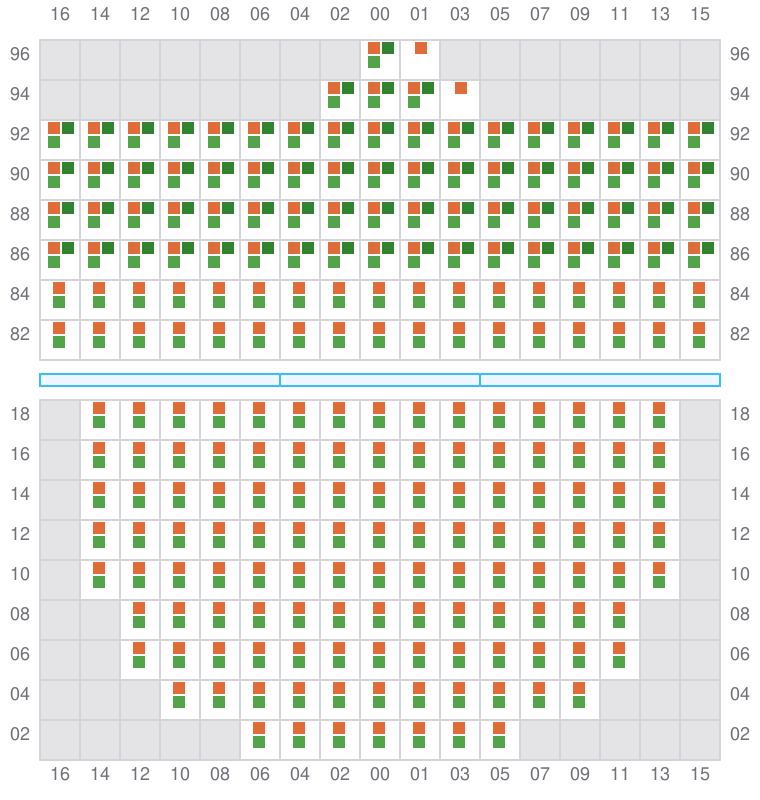

Bay 035 view and slots of MAERSK SALALAH

037 (038)

  • →
Bay 037 view and slots of MAERSK SALALAH

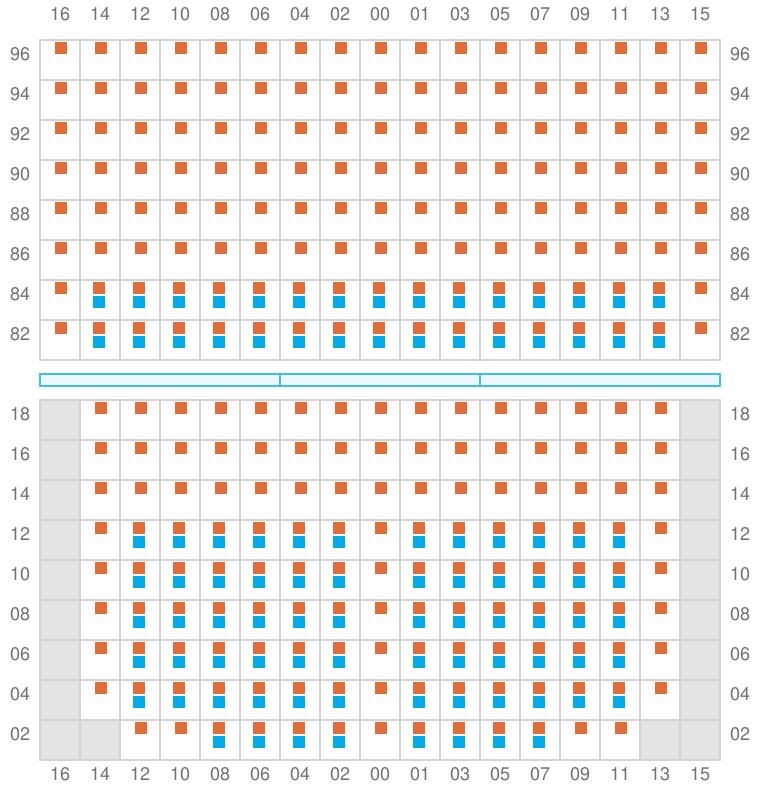

039

  • ←
  • →
Bay 039 view and slots of MAERSK SALALAH

041 (042)

  • →

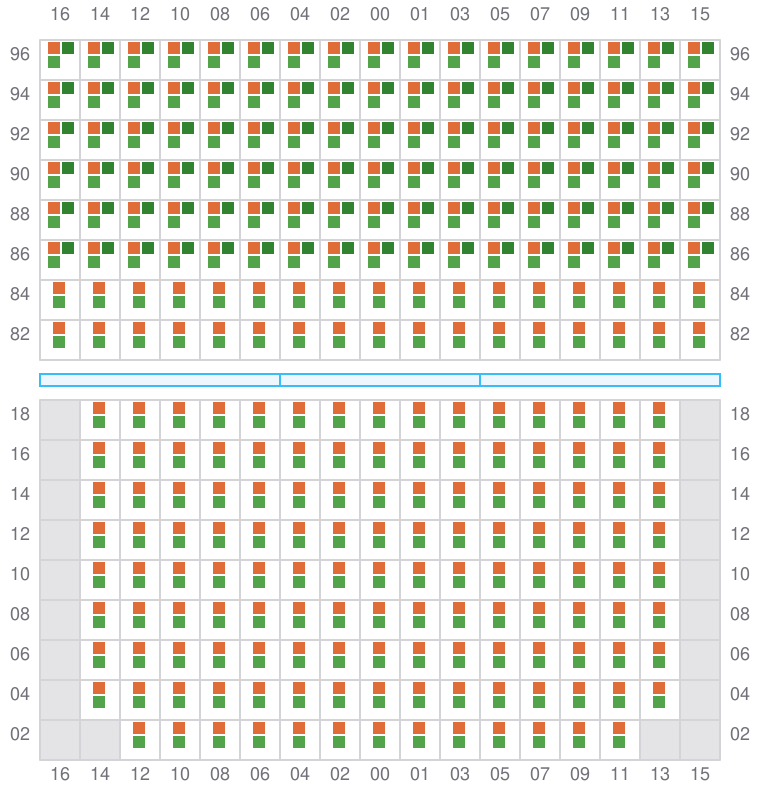

Bay 041 view and slots of MAERSK SALALAH

043

  • ←
  • → / ?

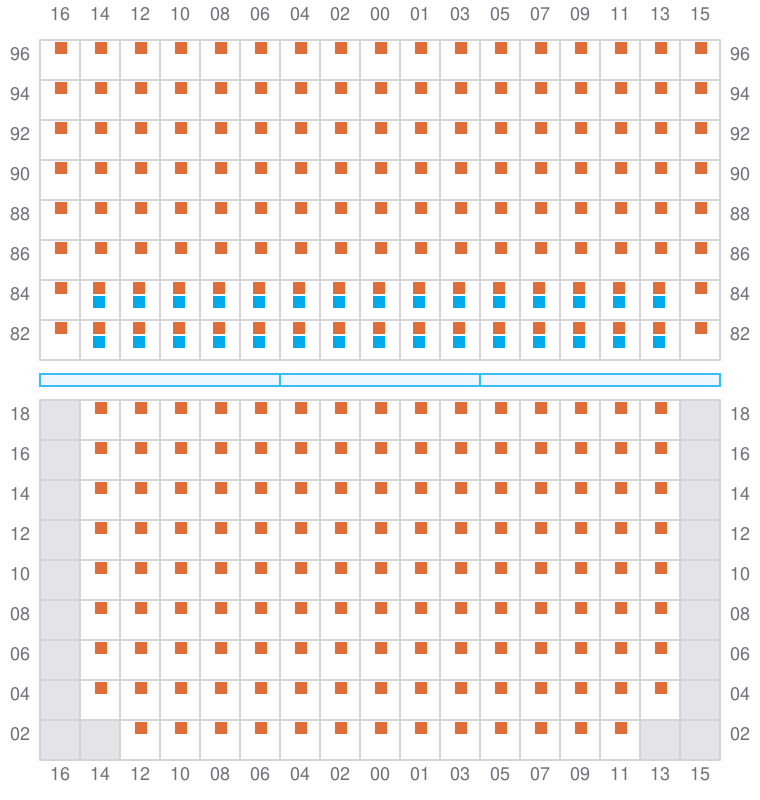

Bay 043 view and slots of MAERSK SALALAH

045 (046)

  • →

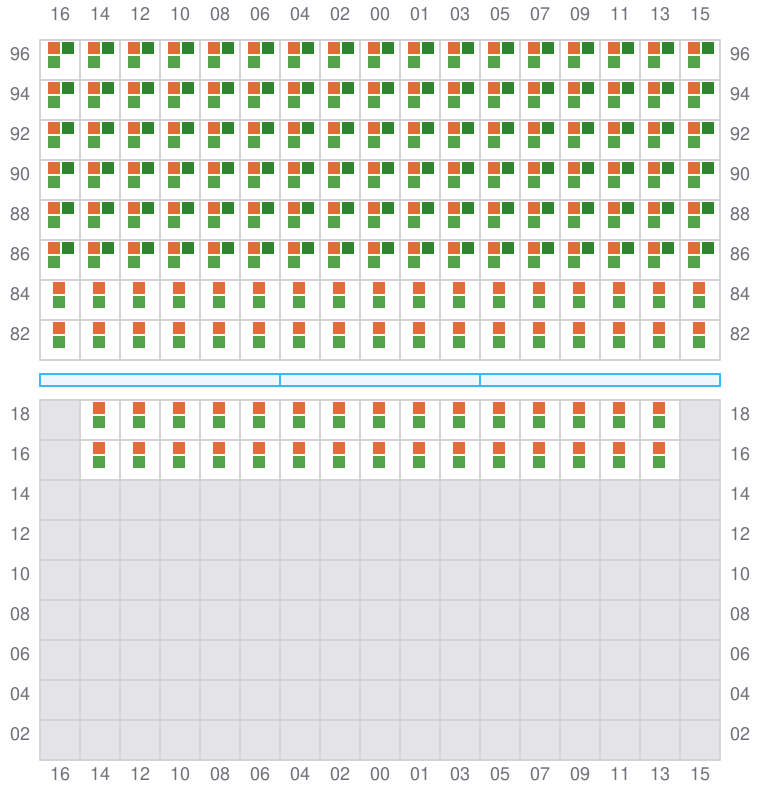

Bay 045 view and slots of MAERSK SALALAH

047

  • ←
  • → / ?
Bay 047 view and slots of MAERSK SALALAH

049 (050)

  • →

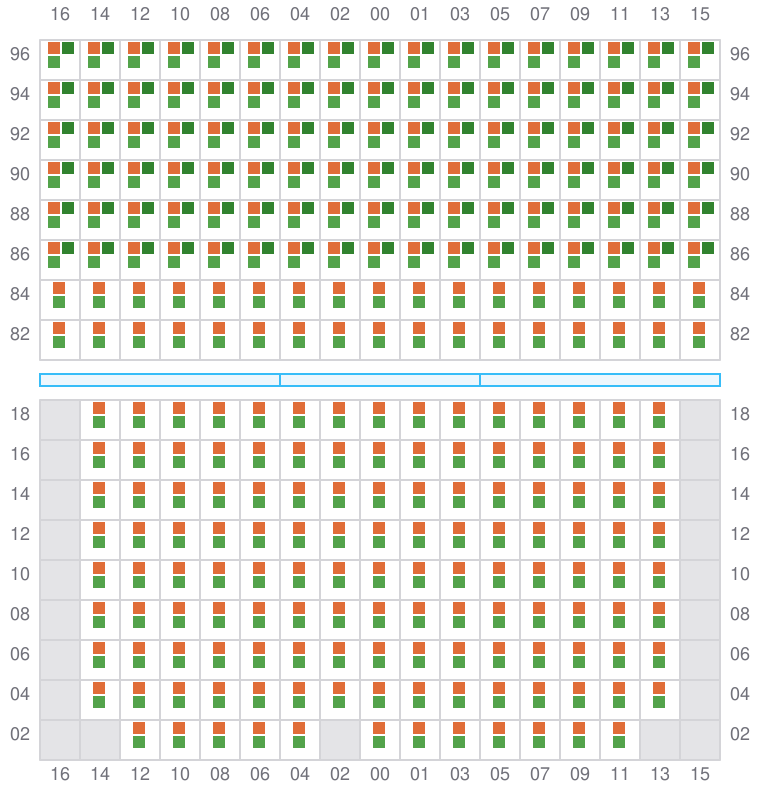

Bay 049 view and slots of MAERSK SALALAH

051

  • ←
  • → / ?

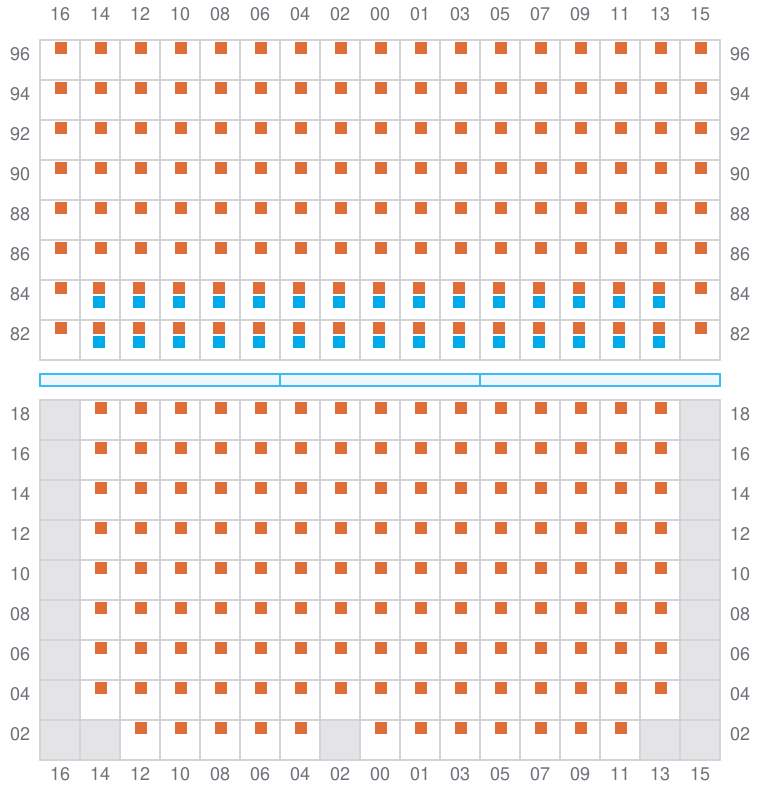

Bay 051 view and slots of MAERSK SALALAH

053 (054)

  • →
Bay 053 view and slots of MAERSK SALALAH

055

  • ←
  • →

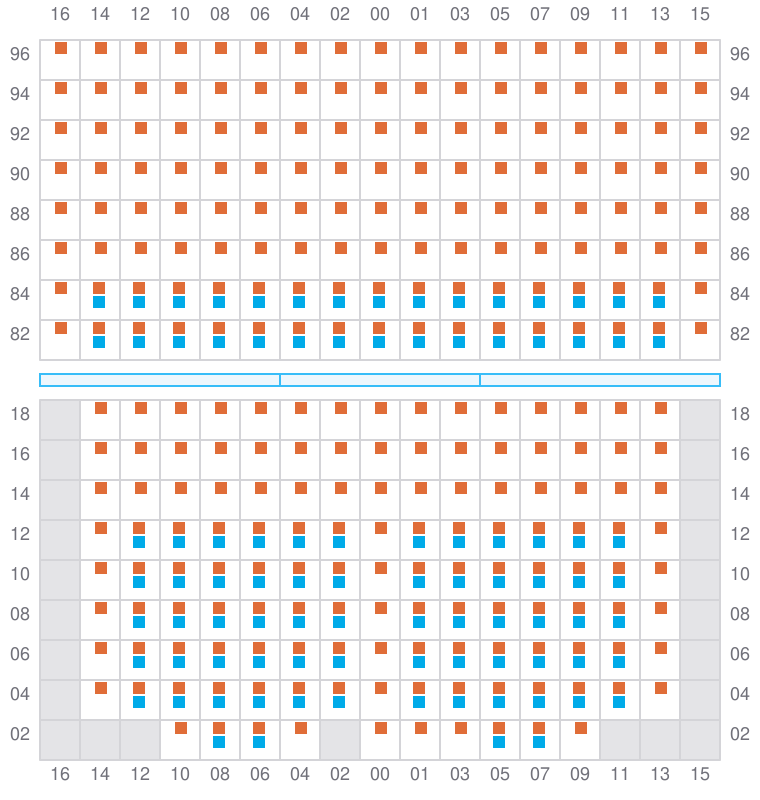

Bay 055 view and slots of MAERSK SALALAH

057 (058)

  • →
Bay 057 view and slots of MAERSK SALALAH

059

  • ←
  • → / ?

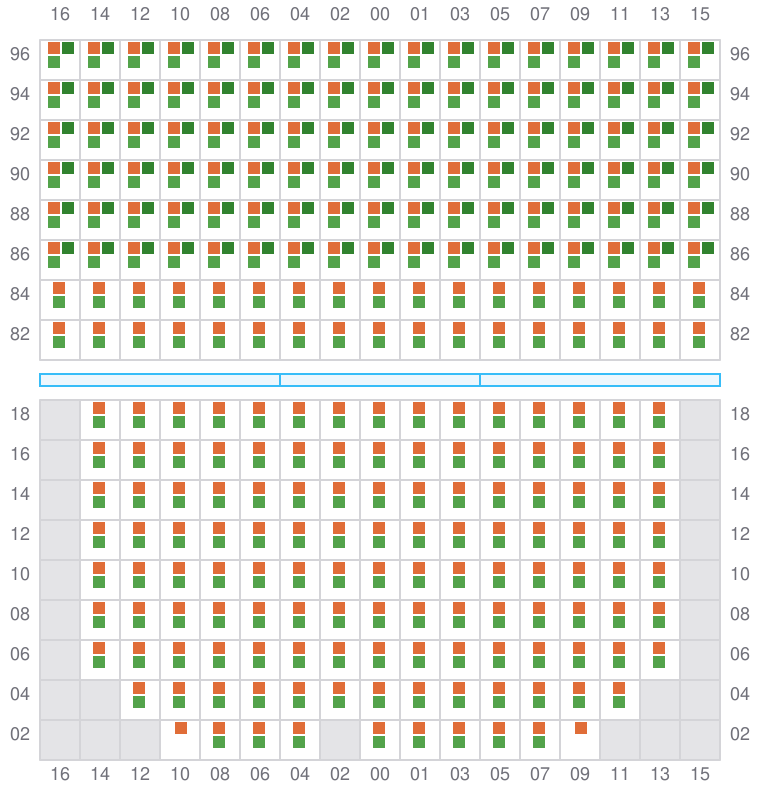

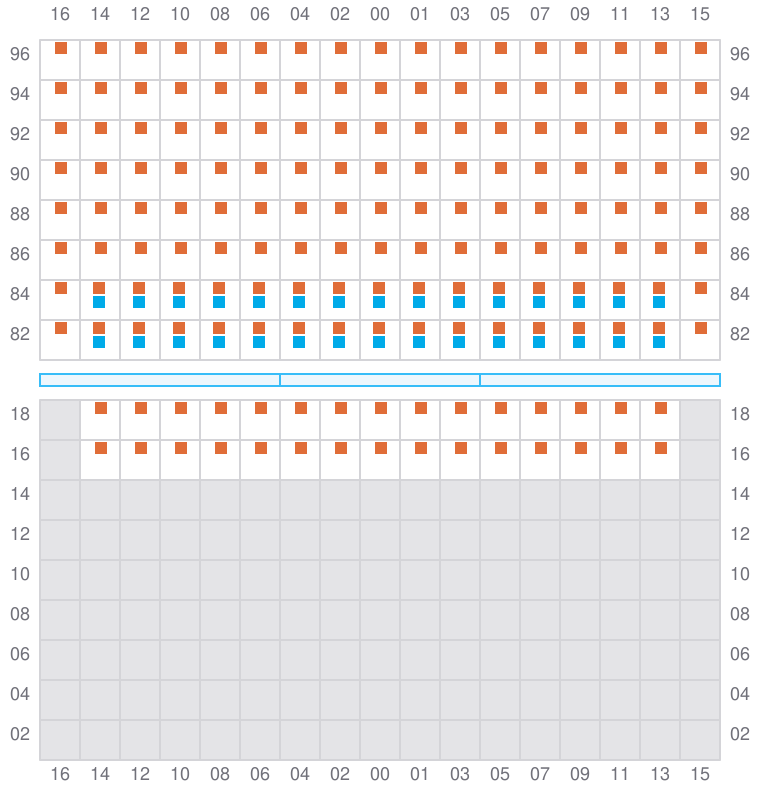

Bay 059 view and slots of MAERSK SALALAH

061 (062)

  • →
Bay 061 view and slots of MAERSK SALALAH

063

  • ←
  • → / ?

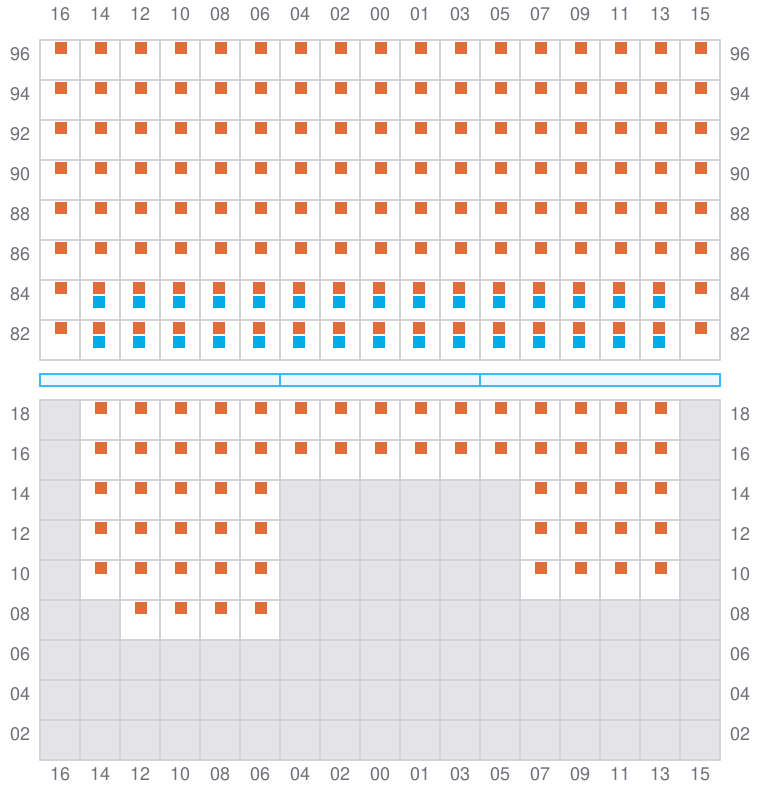

Bay 063 view and slots of MAERSK SALALAH

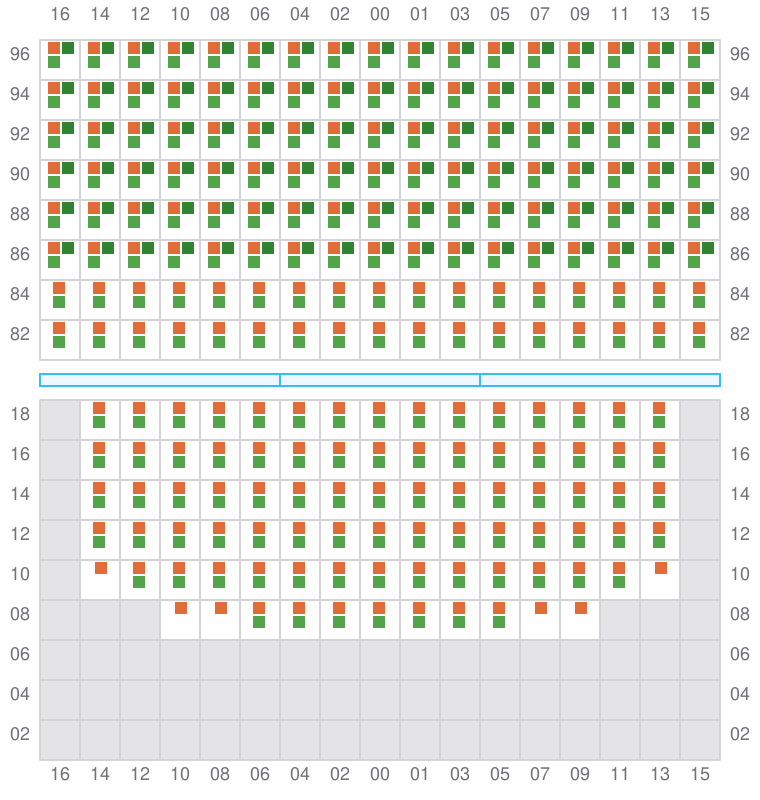

065 (066)

  • →
Bay 065 view and slots of MAERSK SALALAH

067

  • ←
  • → / ?
Bay 067 view and slots of MAERSK SALALAH

069 (070)

  • →

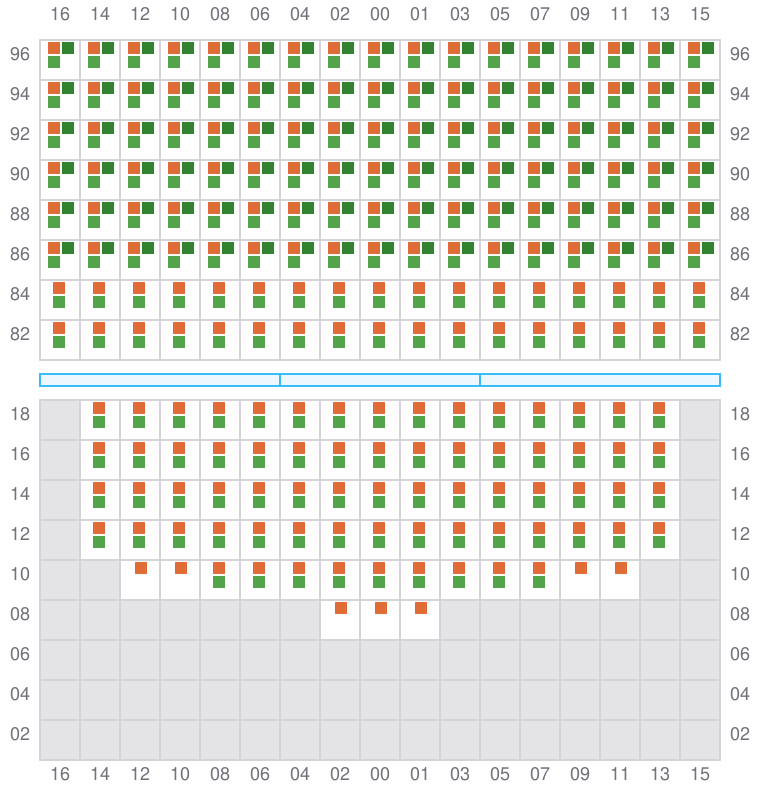

Bay 069 view and slots of MAERSK SALALAH

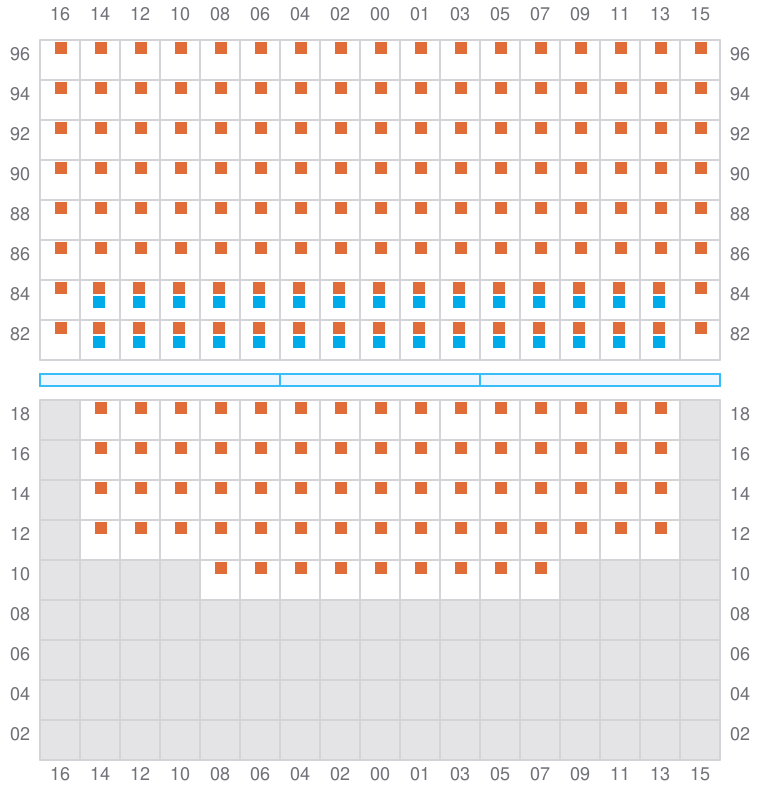

071

  • ←
  • → / ?

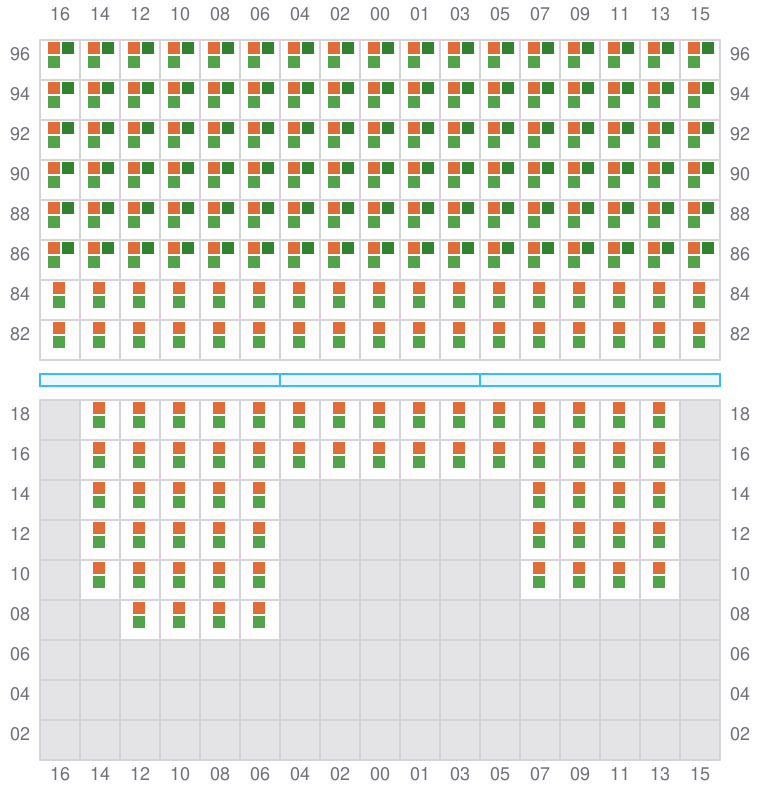

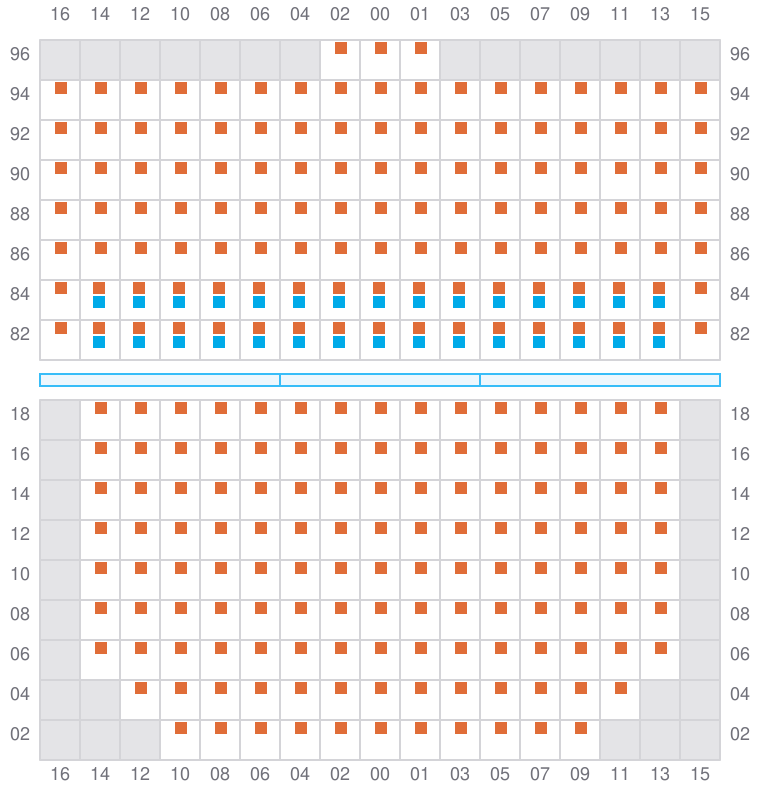

Bay 071 view and slots of MAERSK SALALAH

073 (074)

  • →

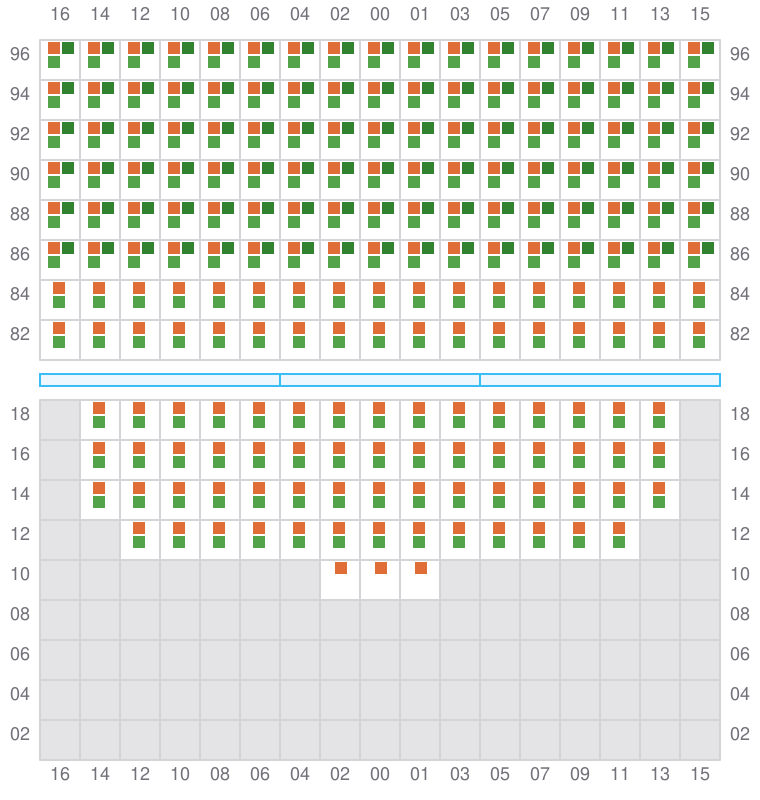

Bay 073 view and slots of MAERSK SALALAH

075

  • ←
  • → / ?

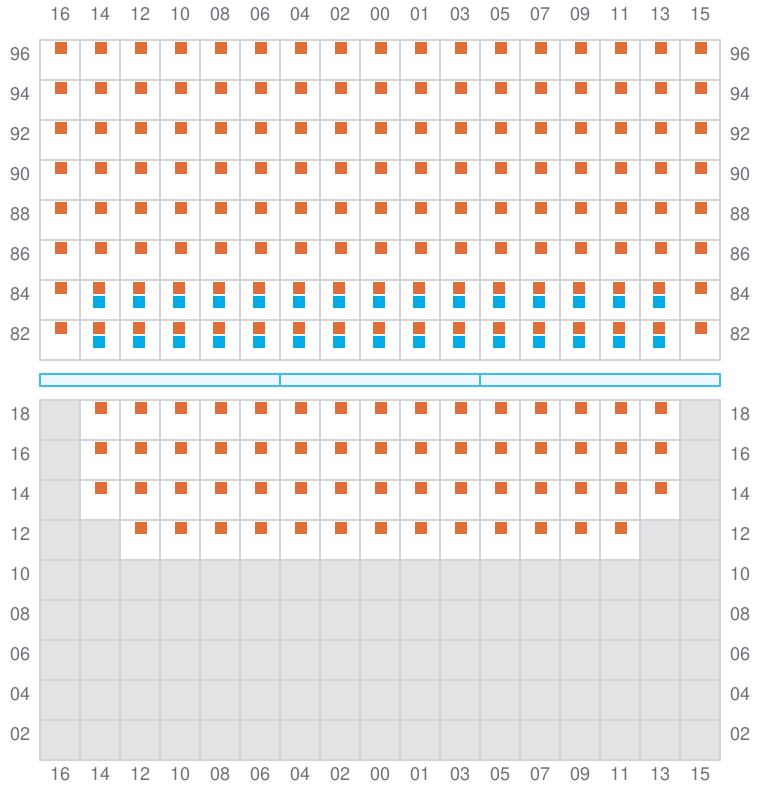

Bay 075 view and slots of MAERSK SALALAH

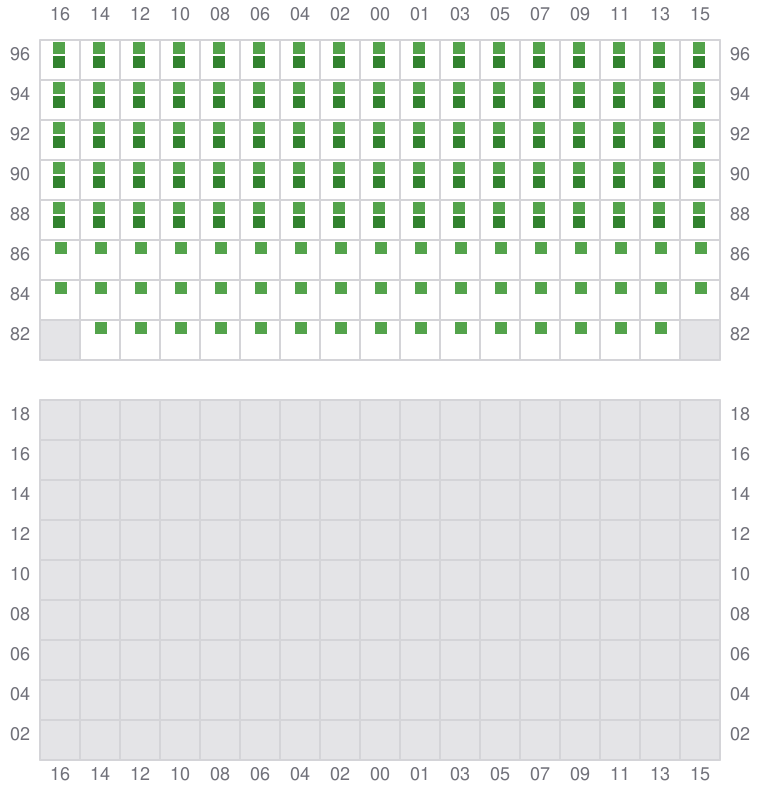

077 (078)

  • → / ?

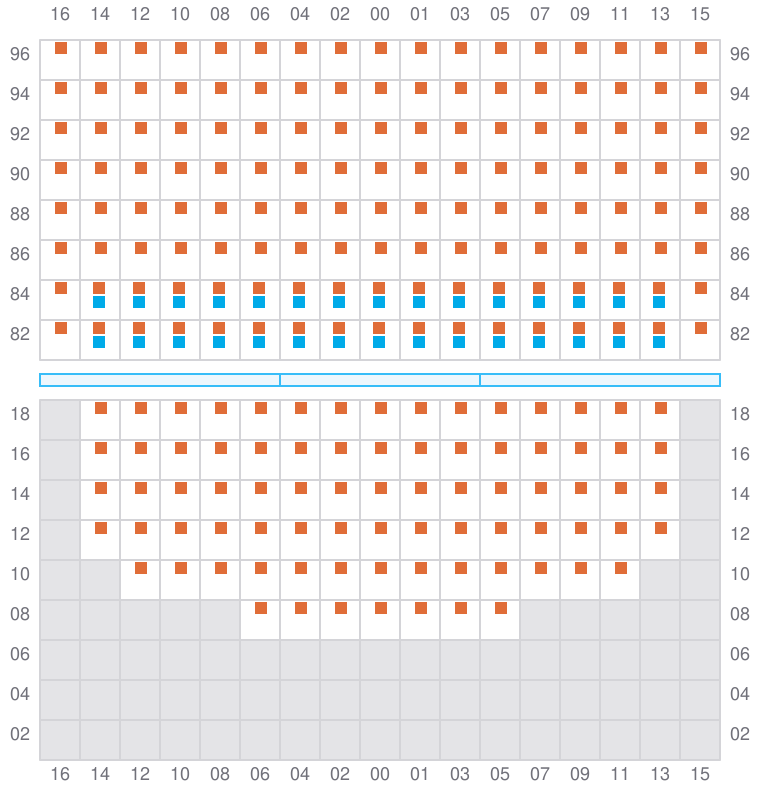

Bay 077 view and slots of MAERSK SALALAH
