MAERSK SANTANA
9289934 | 9V5245 | MSK by ************************** Last update: Sun Jun 25 2023

General Info

Ship Name:MAERSK SANTANA
IMO Code:9289934
Call Sign:9V5245
Line Operator:MSK
Class Name for Sister Ships:MSN
Year Built:2005
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:
Also Known As (old names):-

Size Summary

ISO Bays:077
Max ISO Row:16
Center Line Row:Yes
Max Above ISO Tier:96
Min Above ISO Tier:82
Max Below ISO Tier:18
Min Below ISO Tier:02
Total TEU:8,508

Centers of Gravity

LCG Values:Known
LCG Data:98%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

Side View

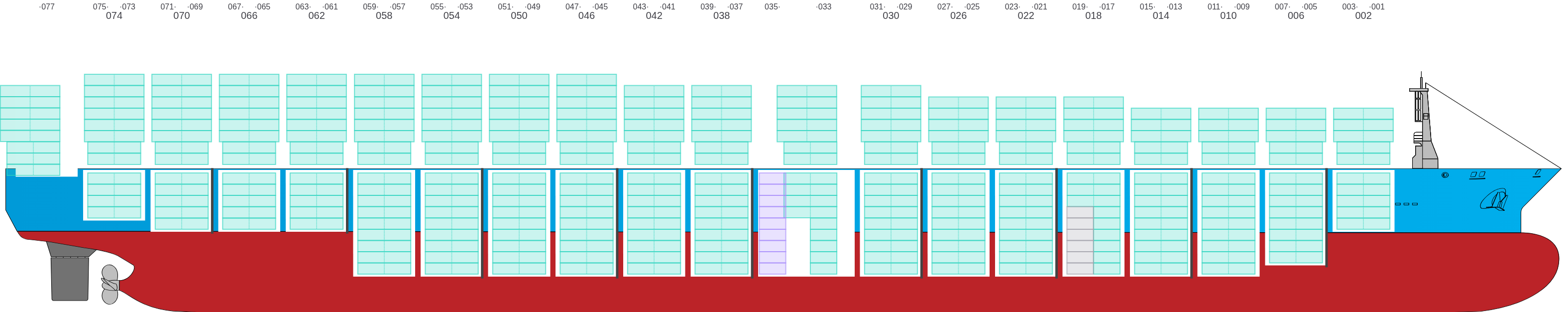

Side view of MAERSK SANTANA

Hatch-Covers View

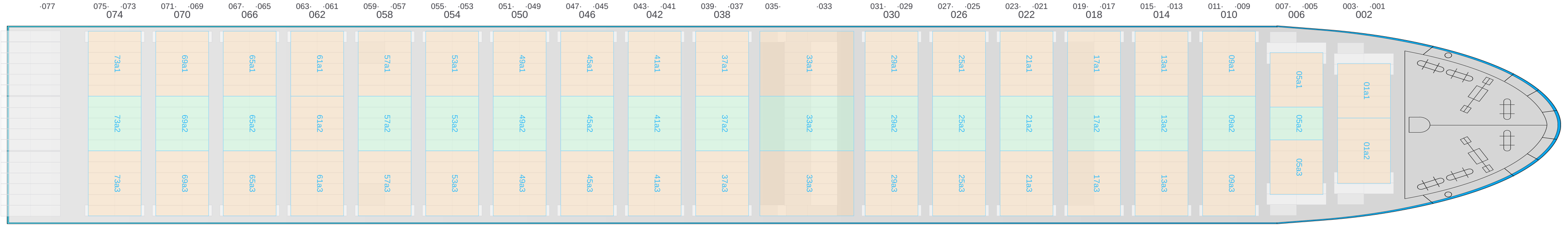

Deck view of MAERSK SANTANA

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot

001 (002)

  • →

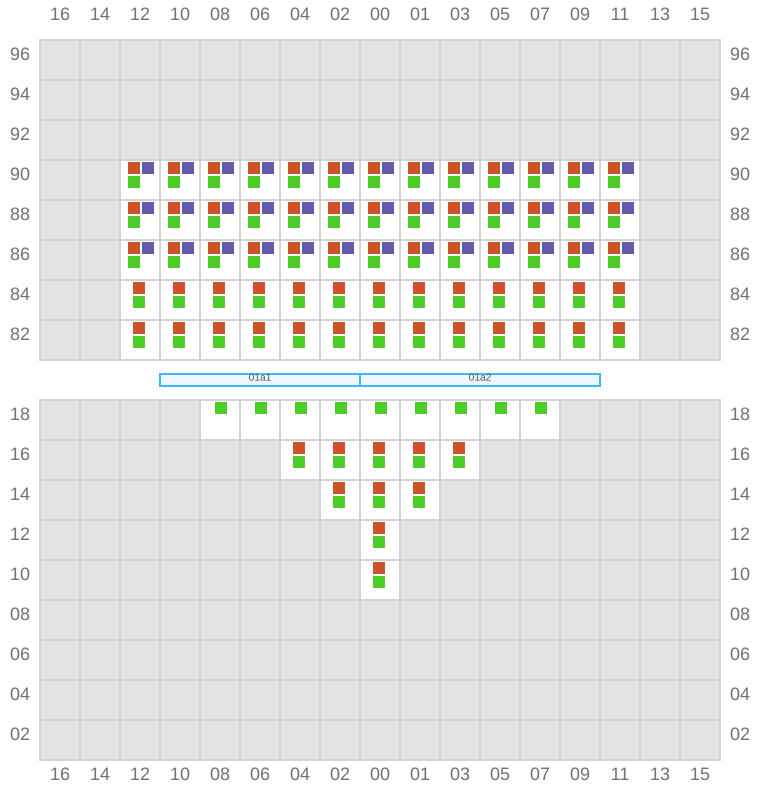

Bay 001 view and slots of MAERSK SANTANA

003

  • ←

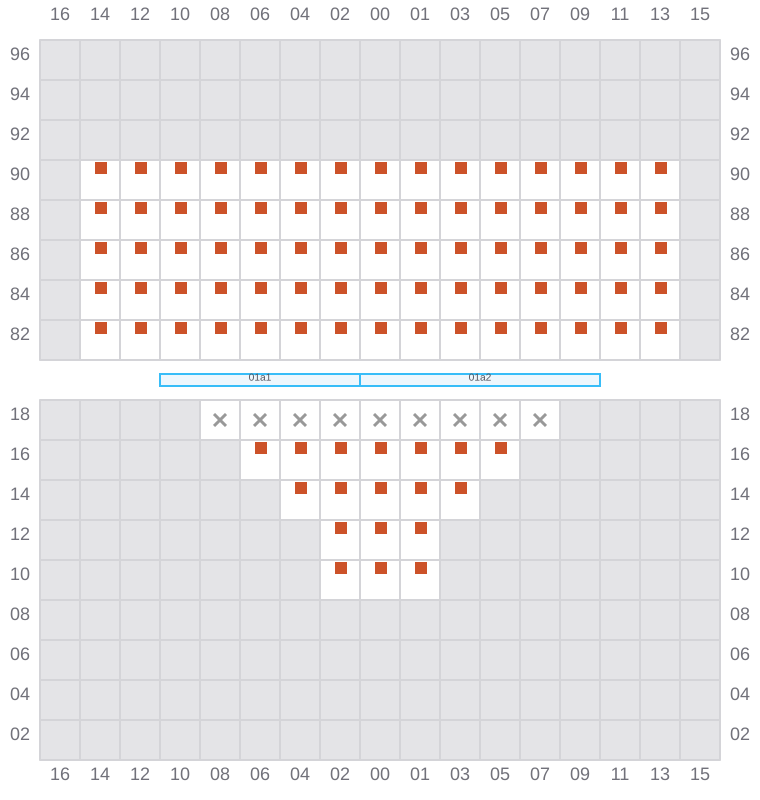

Bay 003 view and slots of MAERSK SANTANA

005 (006)

  • →

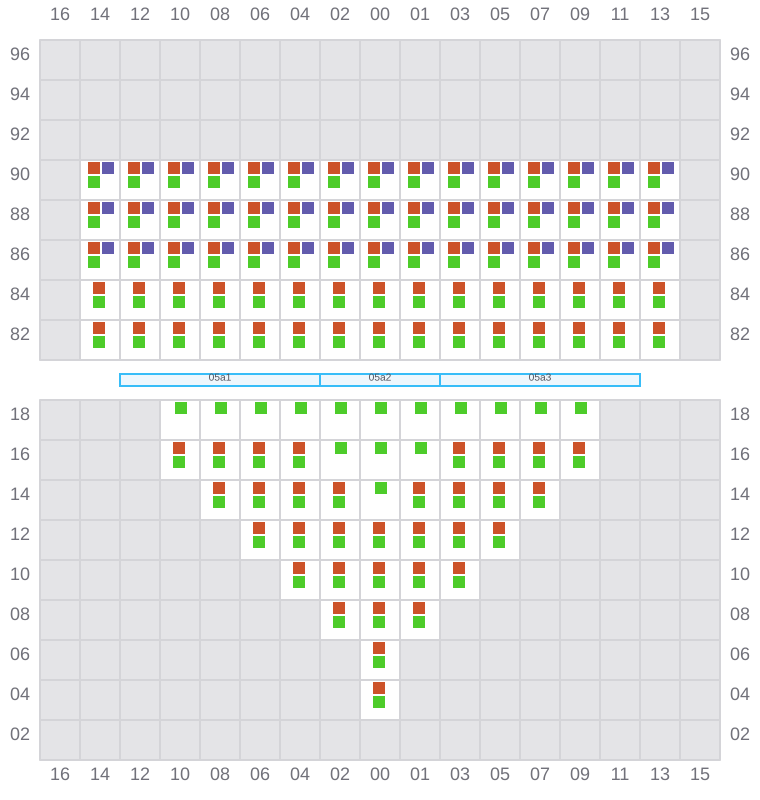

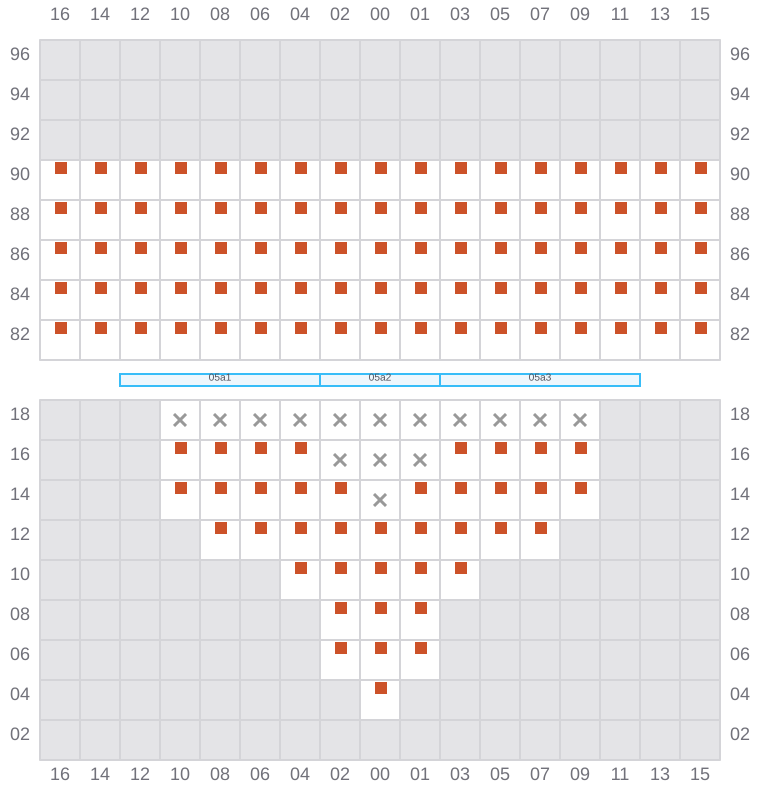

Bay 005 view and slots of MAERSK SANTANA

007

  • ←
Bay 007 view and slots of MAERSK SANTANA

009 (010)

  • →

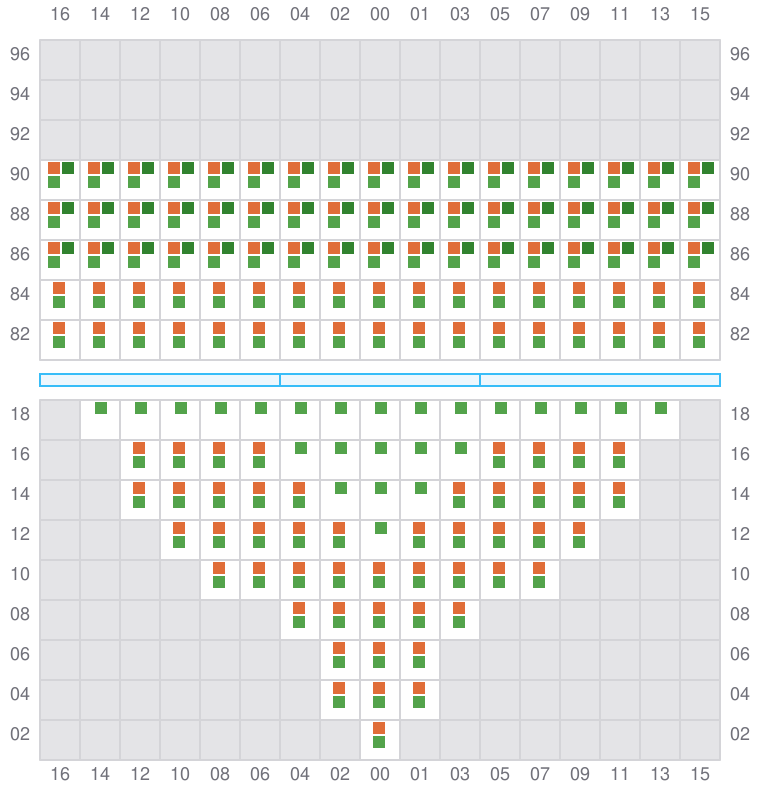

Bay 009 view and slots of MAERSK SANTANA

011

  • ←

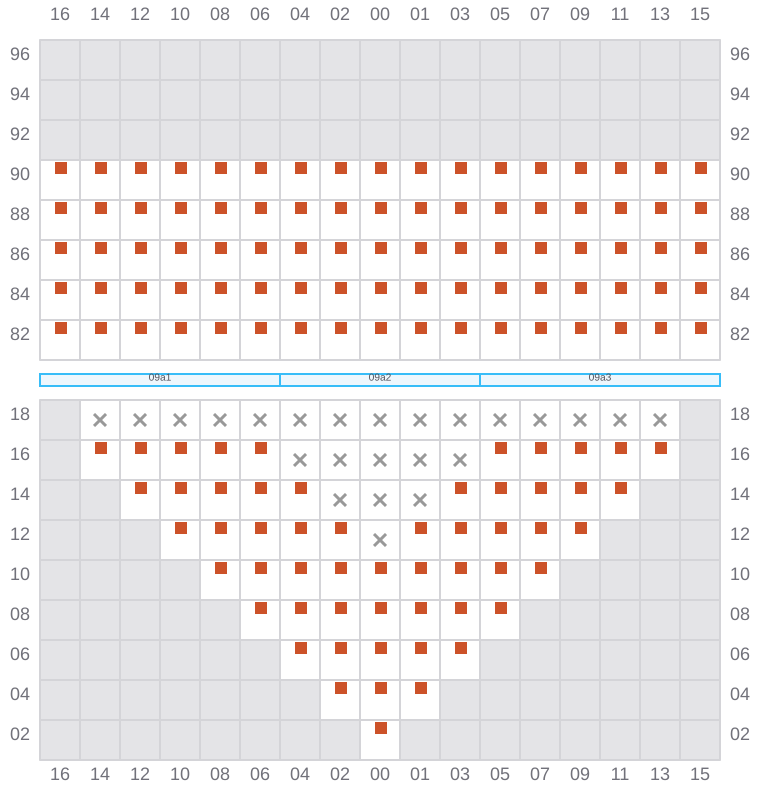

Bay 011 view and slots of MAERSK SANTANA

013 (014)

  • →
  • ← / ?

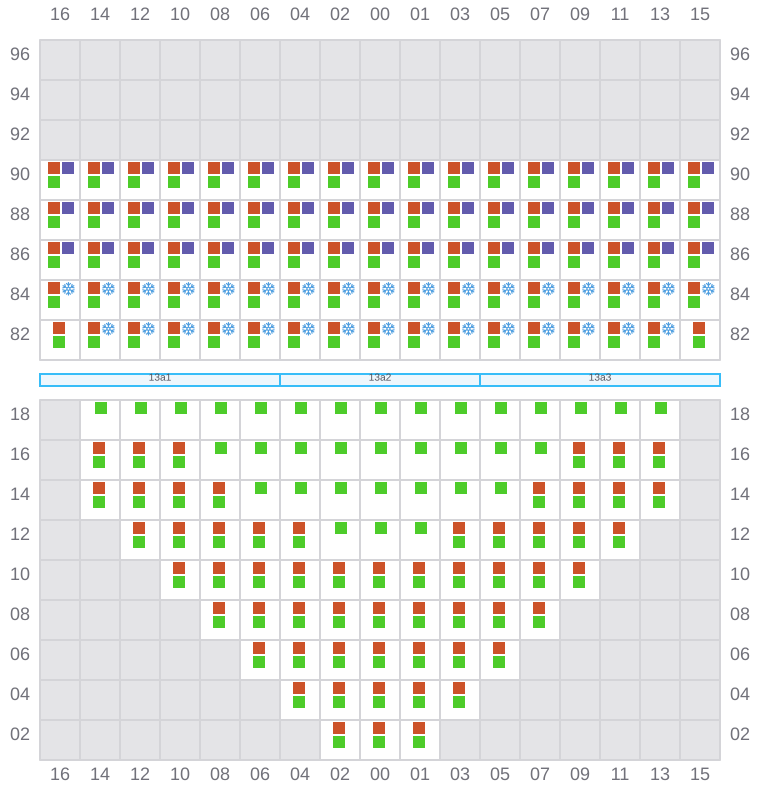

Bay 013 view and slots of MAERSK SANTANA

015

  • ←

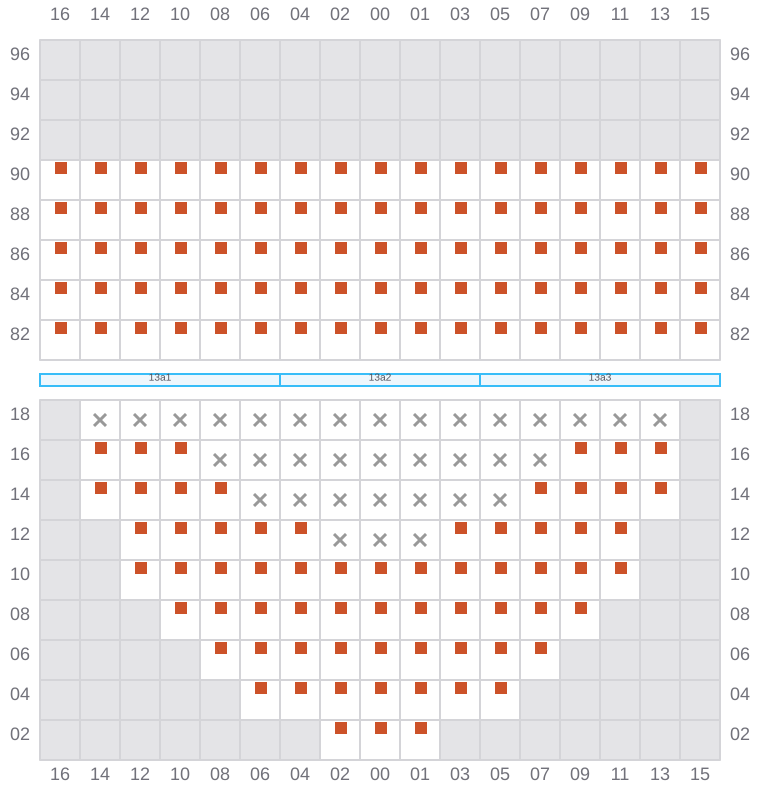

Bay 015 view and slots of MAERSK SANTANA

017 (018)

  • →

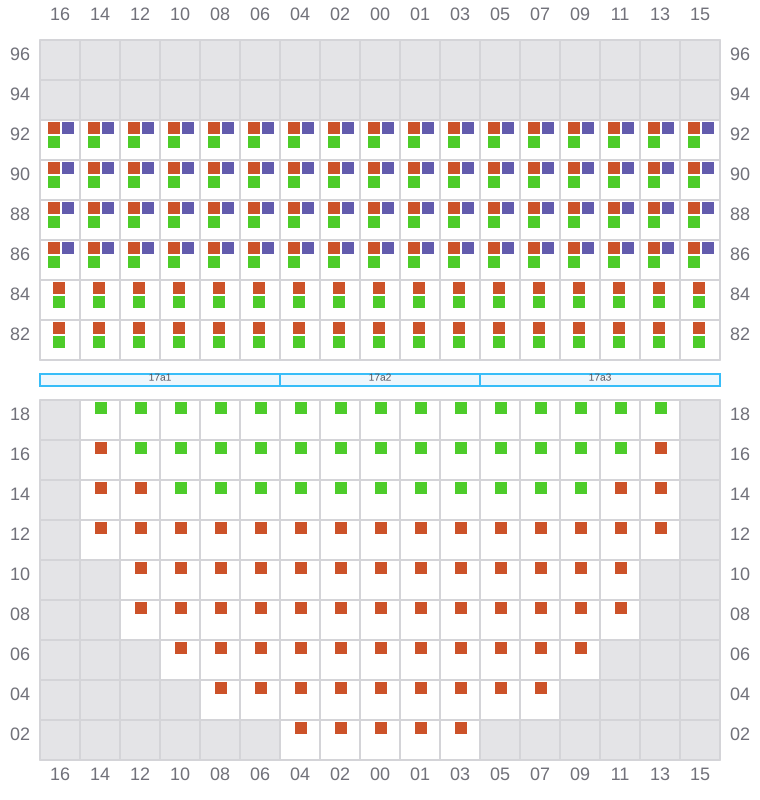

Bay 017 view and slots of MAERSK SANTANA

019

  • ←
  • → / ?

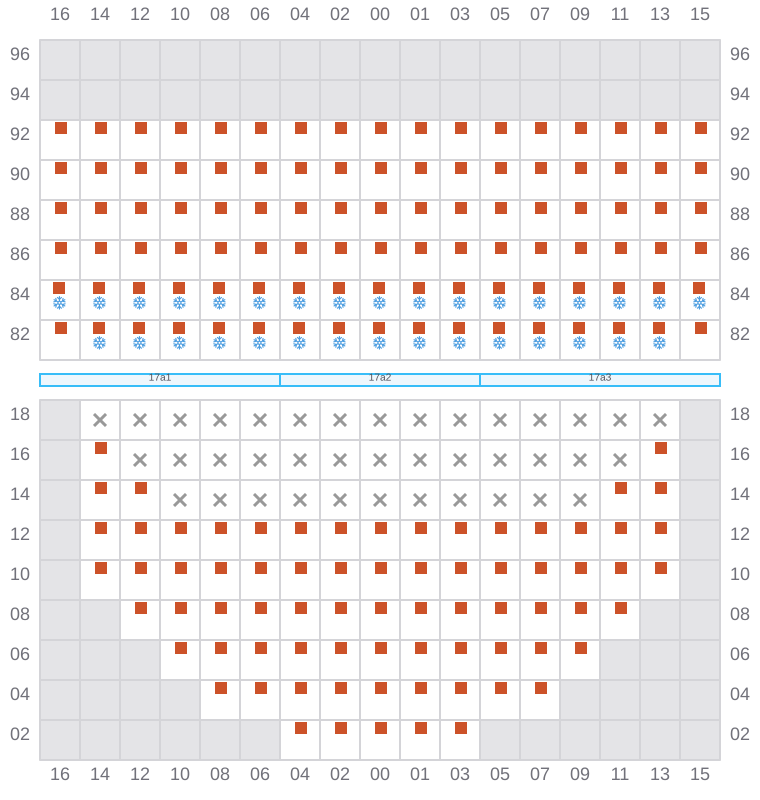

Bay 019 view and slots of MAERSK SANTANA

021 (022)

  • →

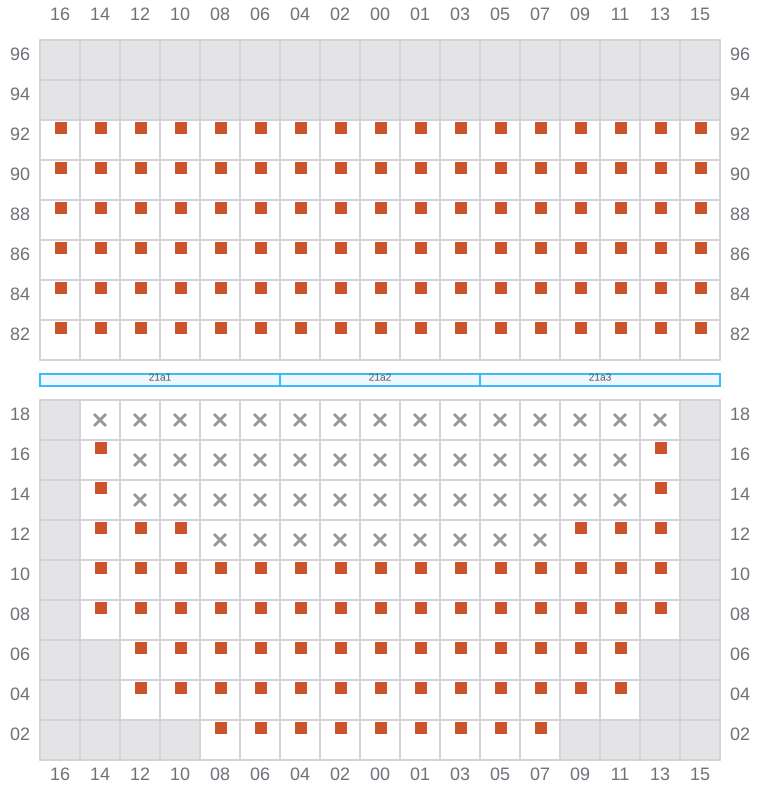

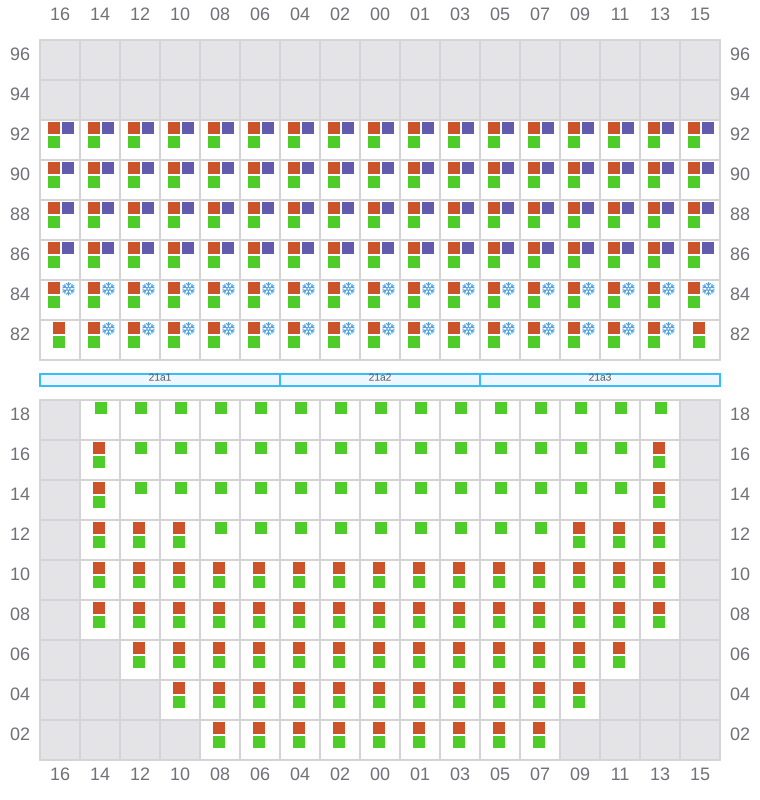

Bay 021 view and slots of MAERSK SANTANA

023

  • ←
Bay 023 view and slots of MAERSK SANTANA

025 (026)

  • →

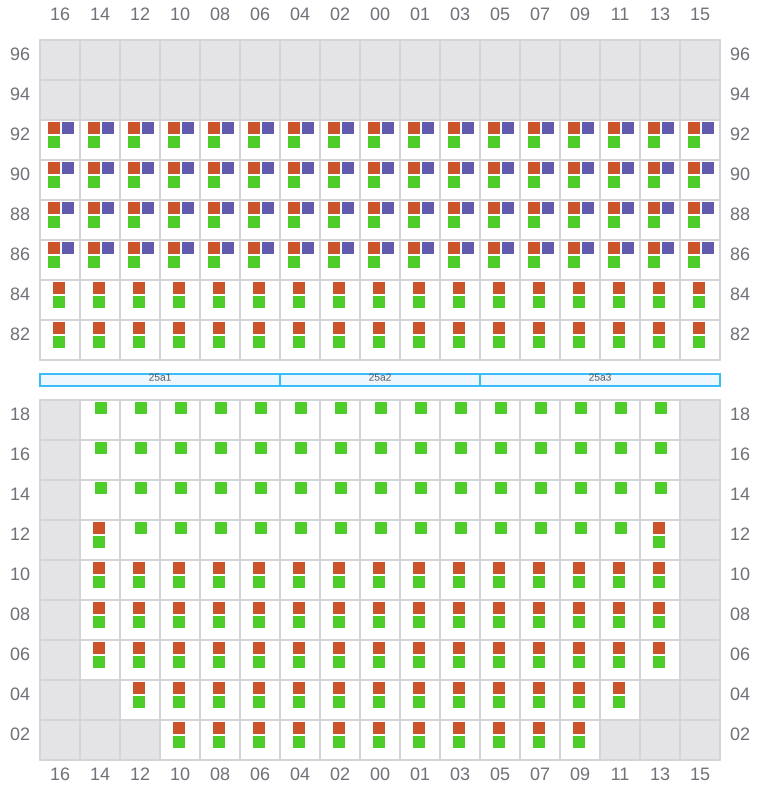

Bay 025 view and slots of MAERSK SANTANA

027

  • ←
  • → / ?

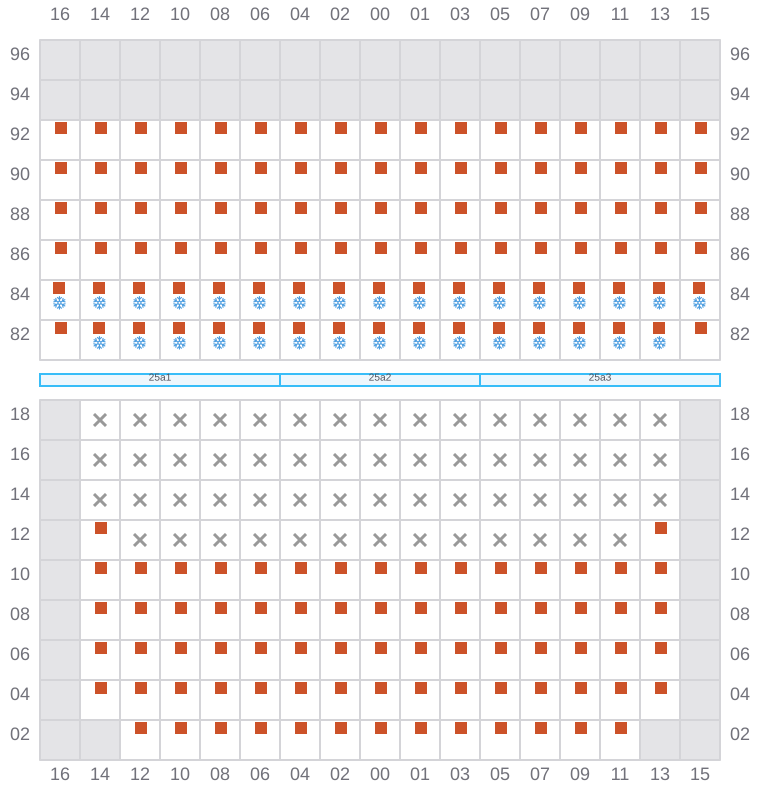

Bay 027 view and slots of MAERSK SANTANA

029 (030)

  • →
  • ← / ?

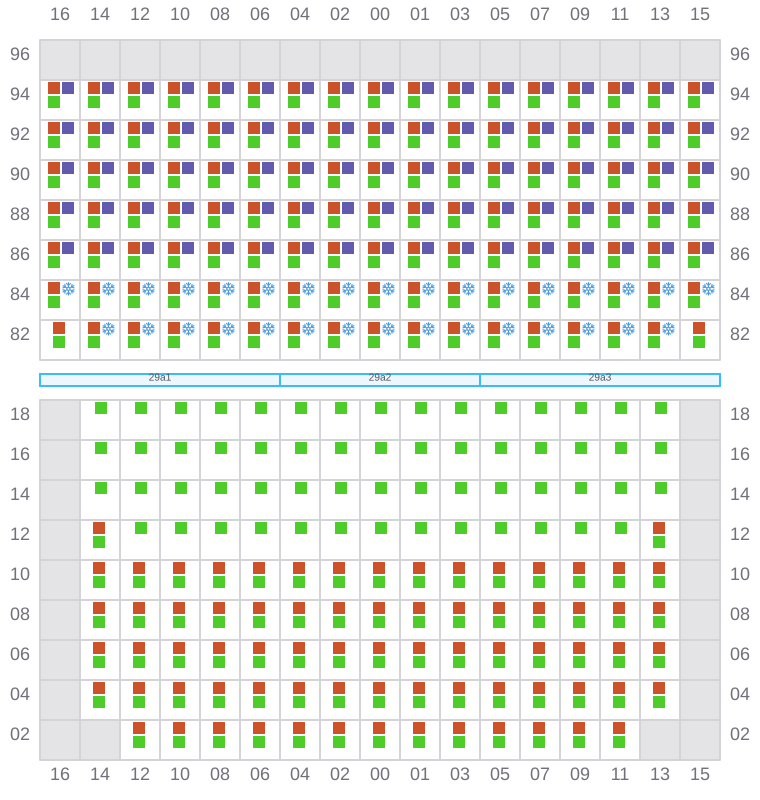

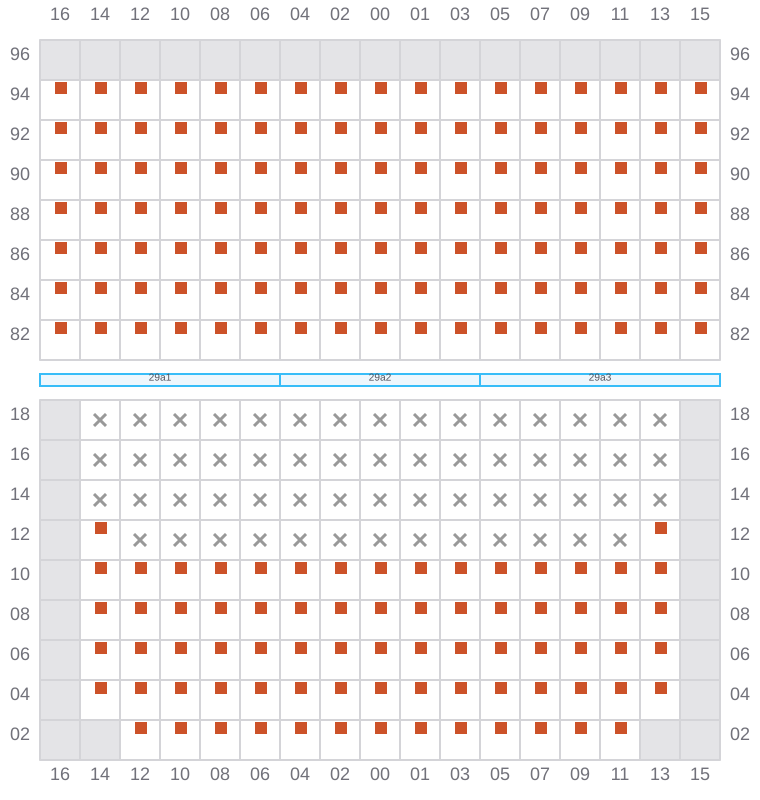

Bay 029 view and slots of MAERSK SANTANA

031

  • ←
Bay 031 view and slots of MAERSK SANTANA

033 (034)

  • →

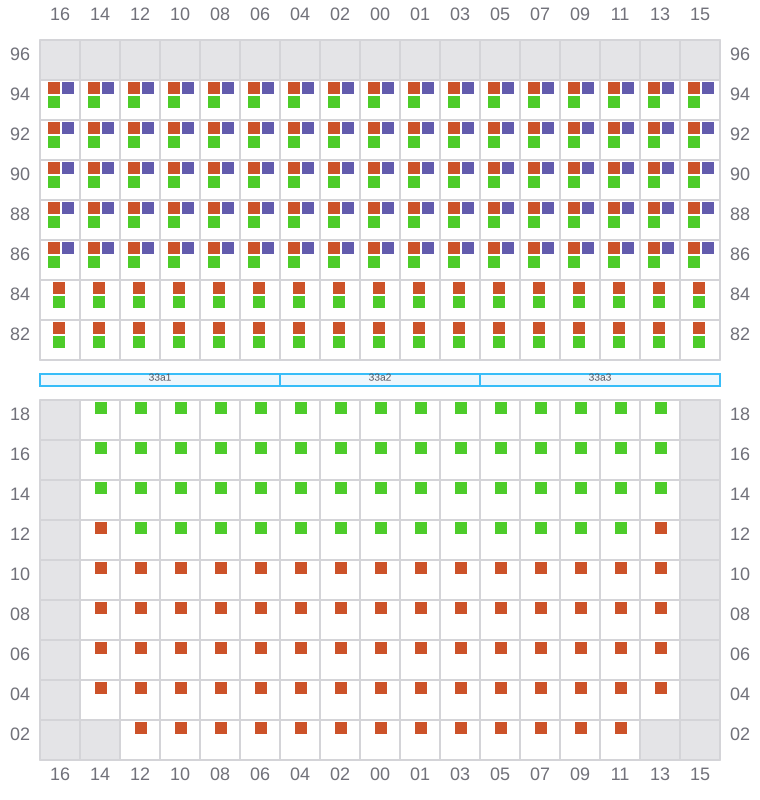

Bay 033 view and slots of MAERSK SANTANA

035

  • ← / ?
  • → / ?

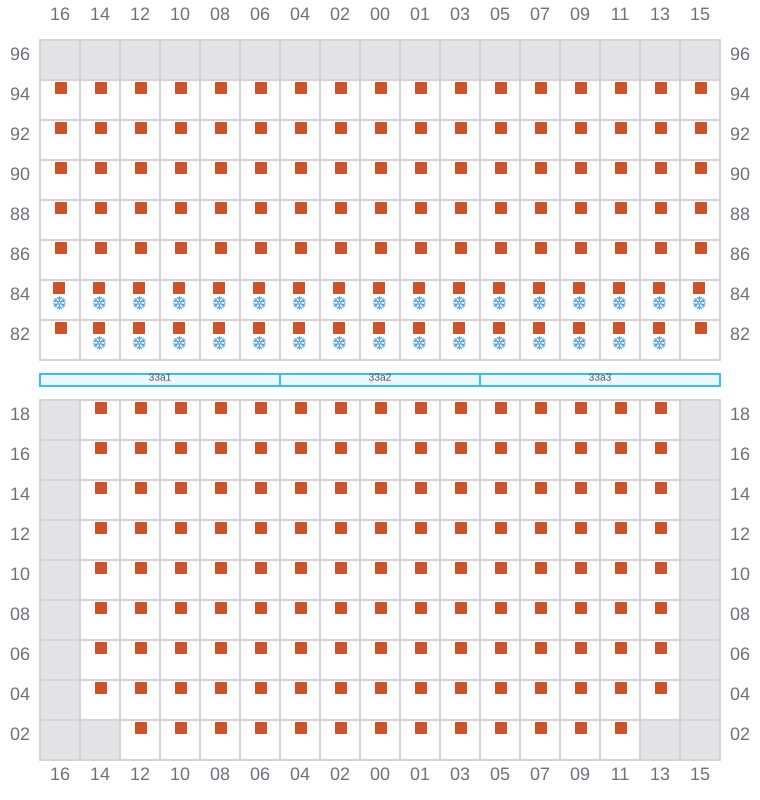

Bay 035 view and slots of MAERSK SANTANA

037 (038)

  • →
  • ← / ?

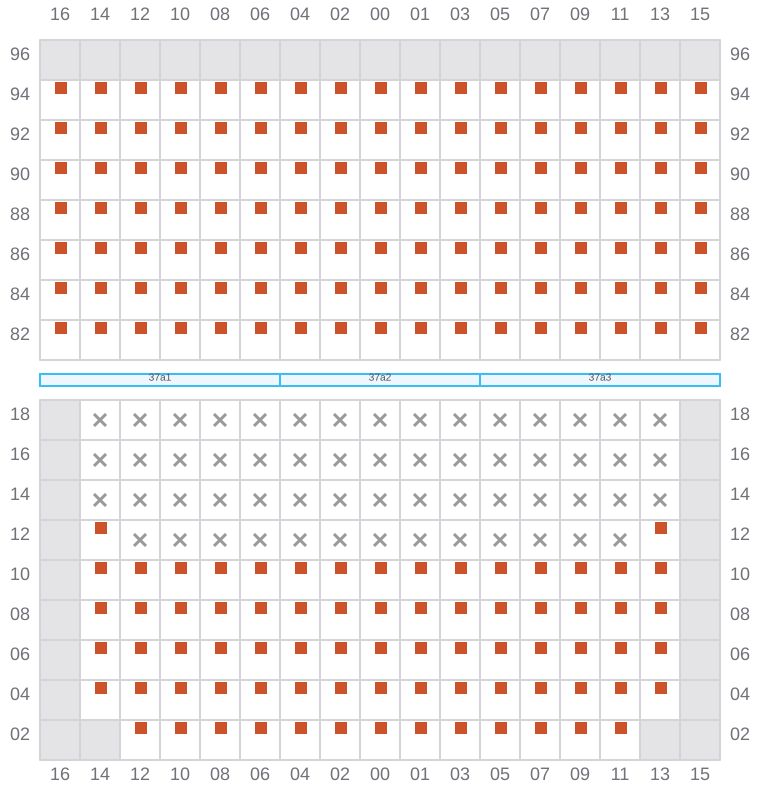

Bay 037 view and slots of MAERSK SANTANA

039

  • ←
Bay 039 view and slots of MAERSK SANTANA

041 (042)

  • →

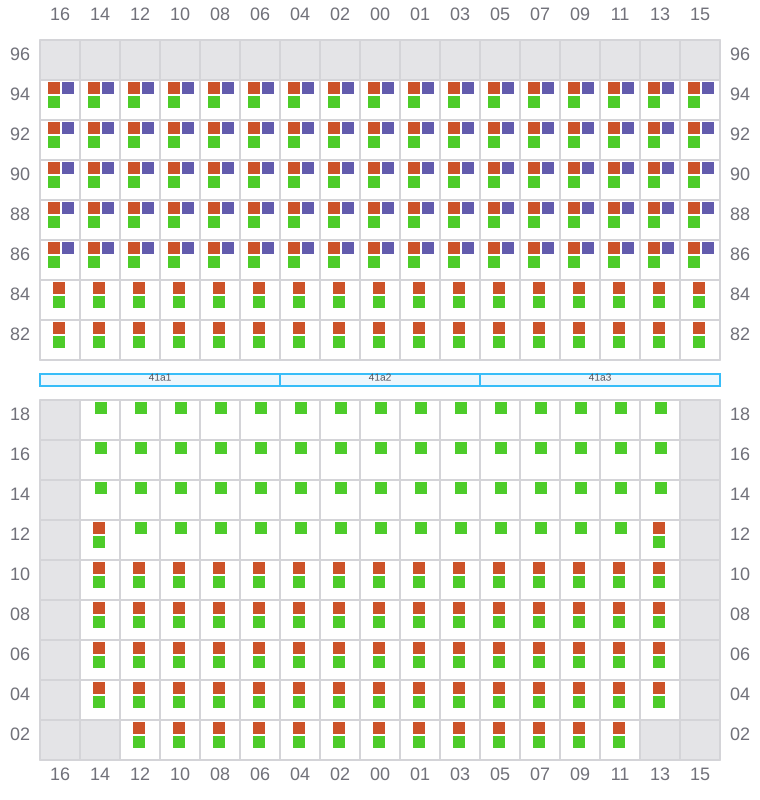

Bay 041 view and slots of MAERSK SANTANA

043

  • ←
  • → / ?

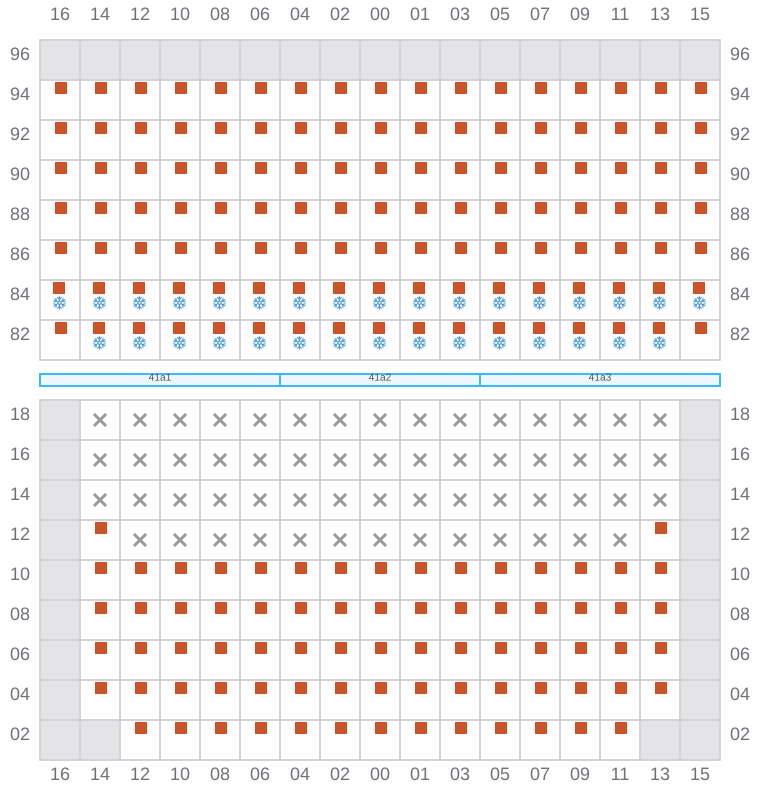

Bay 043 view and slots of MAERSK SANTANA

045 (046)

  • →

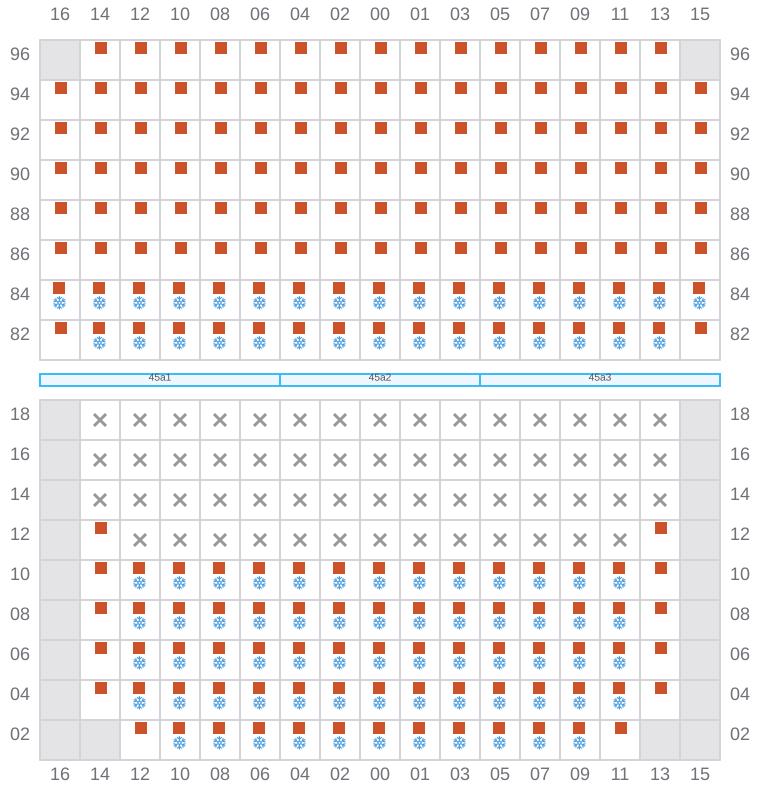

Bay 045 view and slots of MAERSK SANTANA

047

  • ←
  • → / ?
Bay 047 view and slots of MAERSK SANTANA

049 (050)

  • →
  • ← / ?

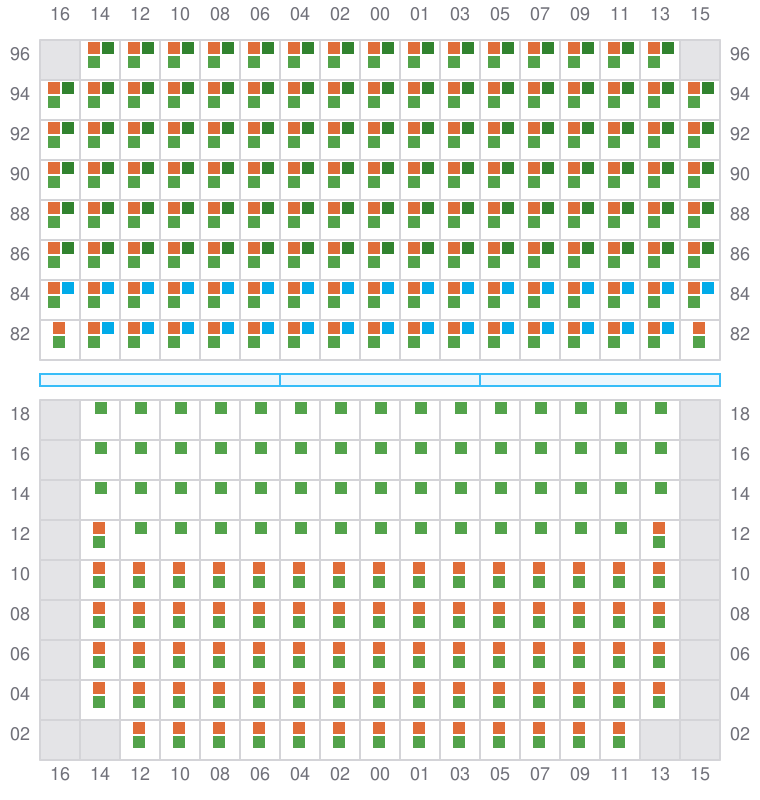

Bay 049 view and slots of MAERSK SANTANA

051

  • ←

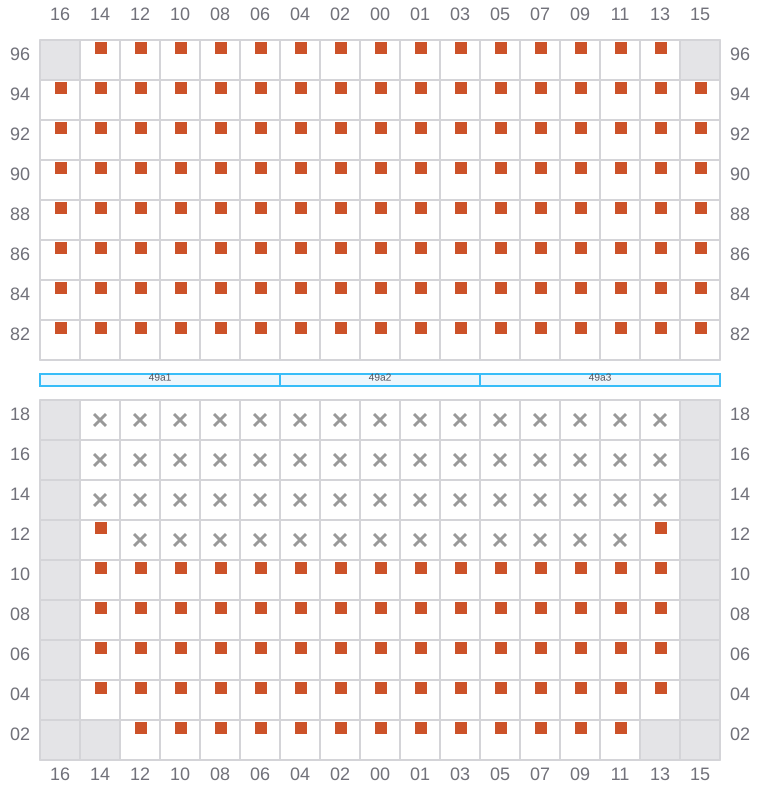

Bay 051 view and slots of MAERSK SANTANA

053 (054)

  • →

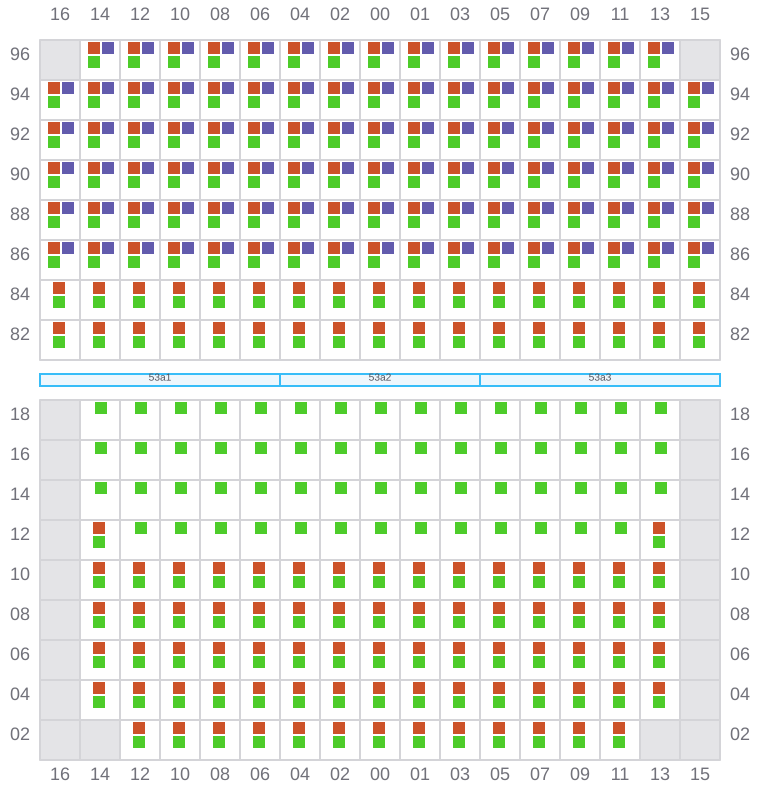

Bay 053 view and slots of MAERSK SANTANA

055

  • ←
  • → / ?
Bay 055 view and slots of MAERSK SANTANA

057 (058)

  • →
  • ← / ?

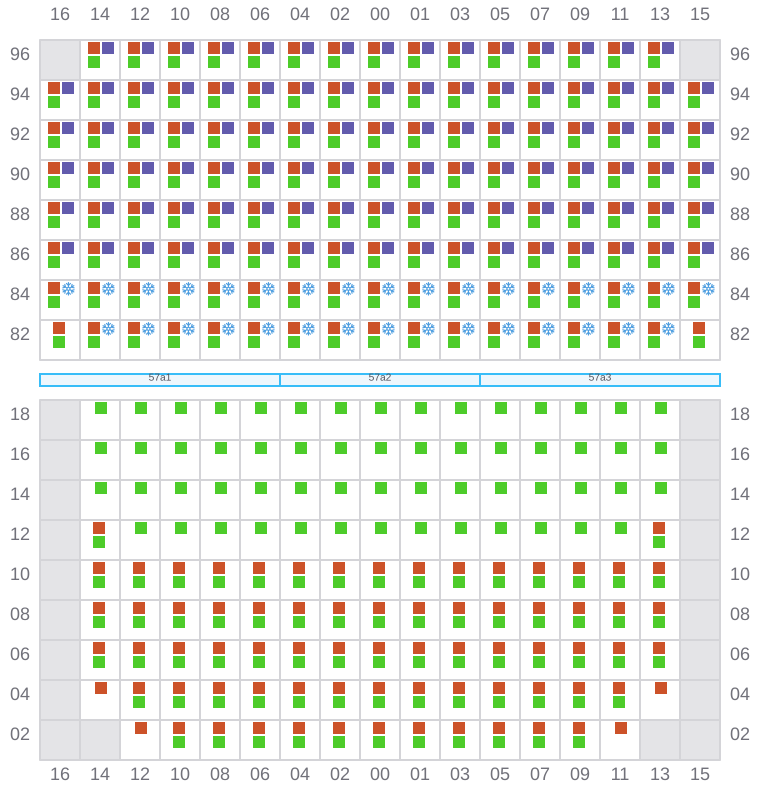

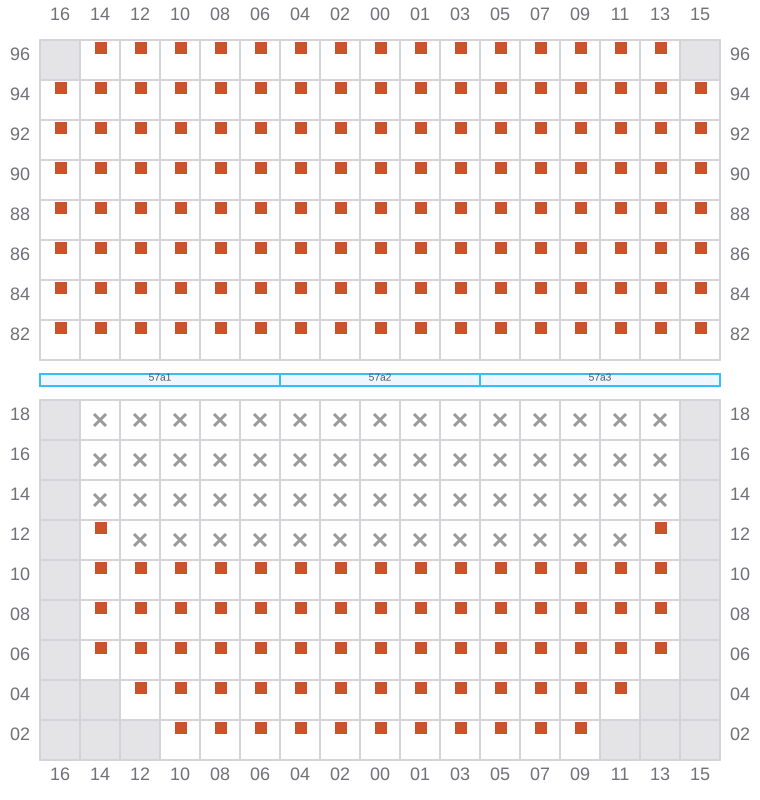

Bay 057 view and slots of MAERSK SANTANA

059

  • ←
Bay 059 view and slots of MAERSK SANTANA

061 (062)

  • →

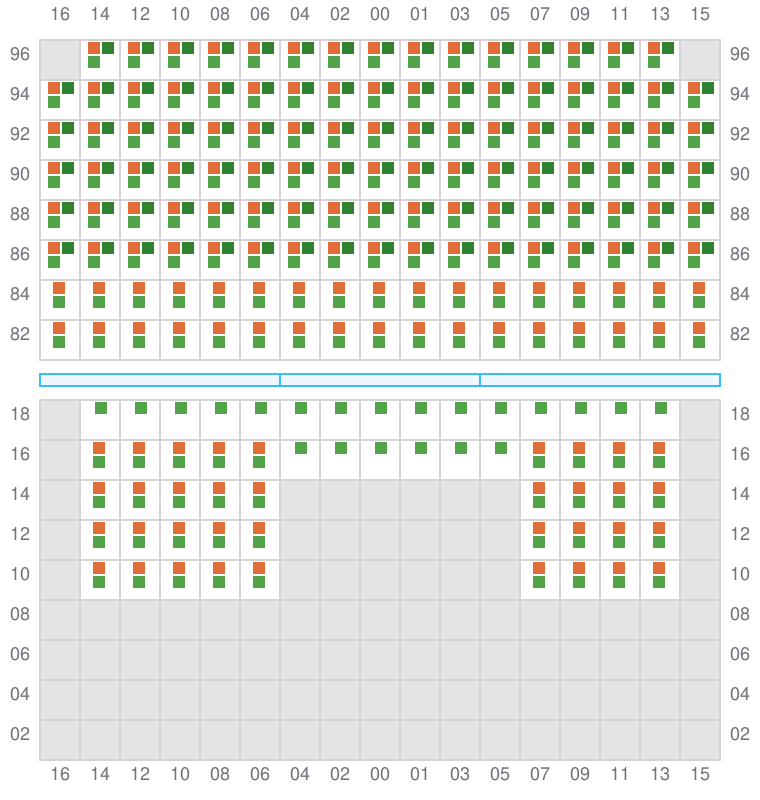

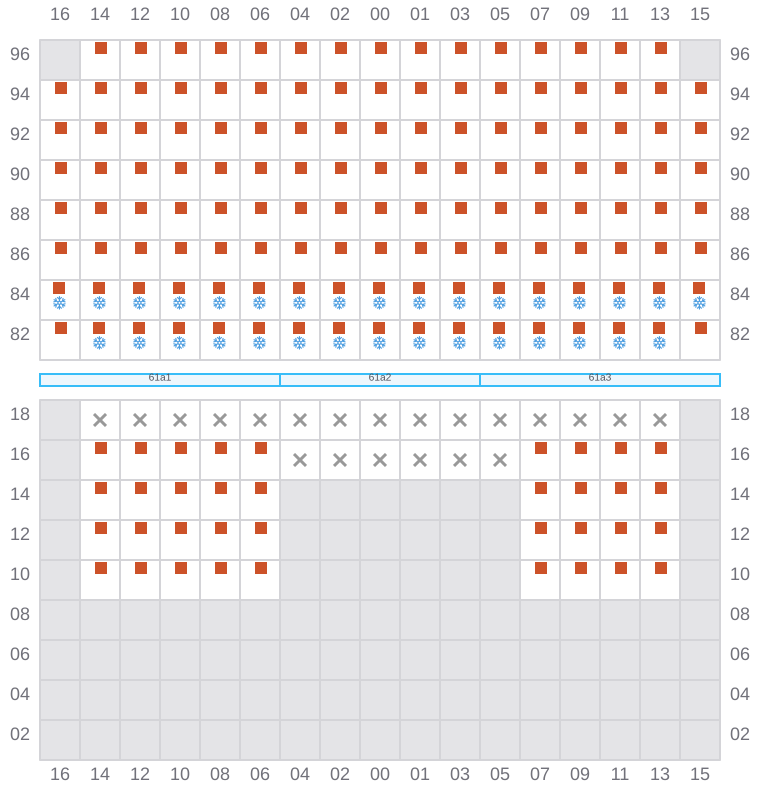

Bay 061 view and slots of MAERSK SANTANA

063

  • ←
Bay 063 view and slots of MAERSK SANTANA

065 (066)

  • →

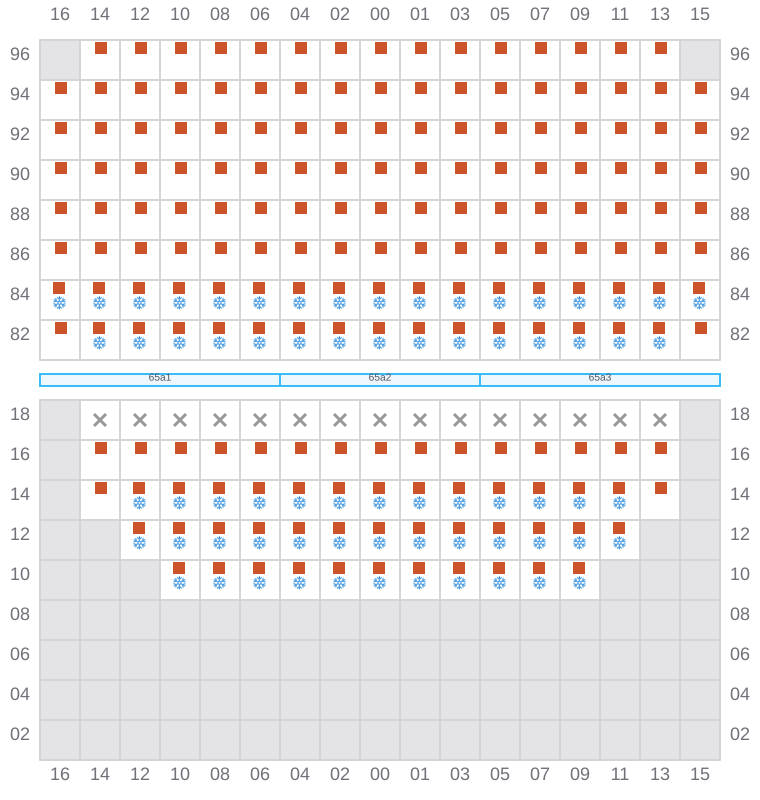

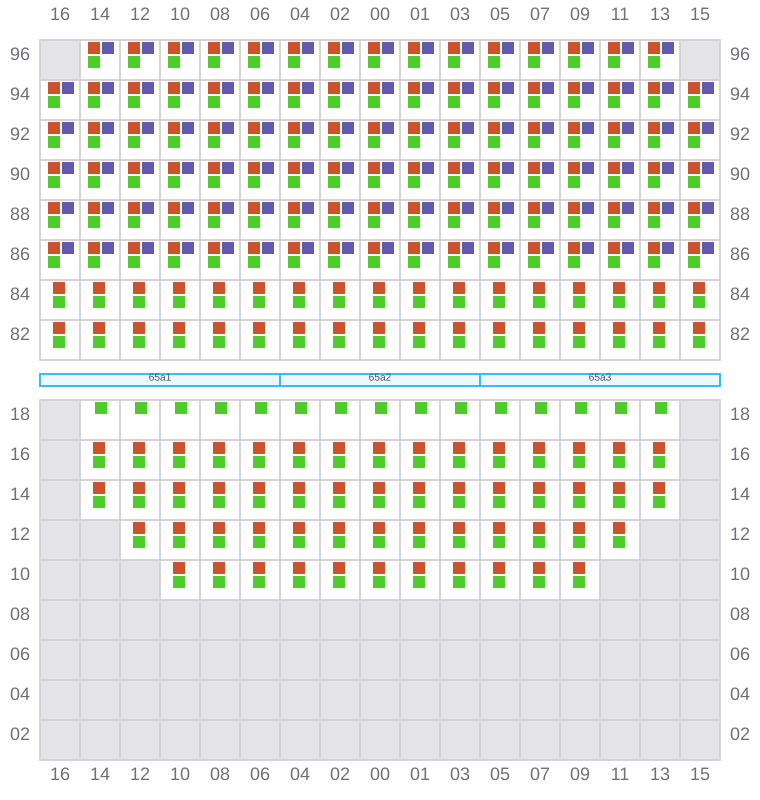

Bay 065 view and slots of MAERSK SANTANA

067

  • ←
  • → / ?
Bay 067 view and slots of MAERSK SANTANA

069 (070)

  • →
  • ← / ?

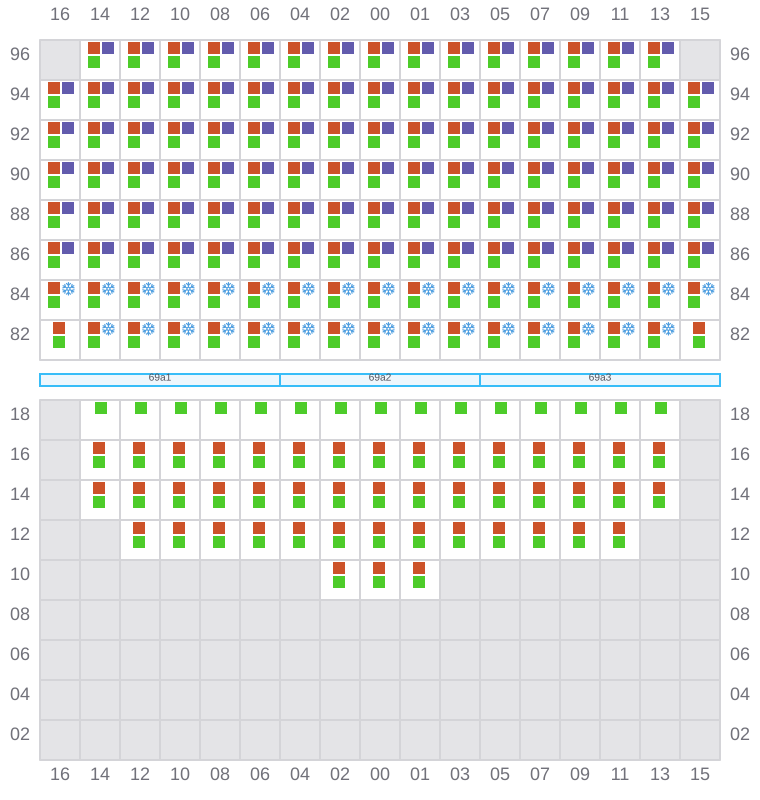

Bay 069 view and slots of MAERSK SANTANA

071

  • ←

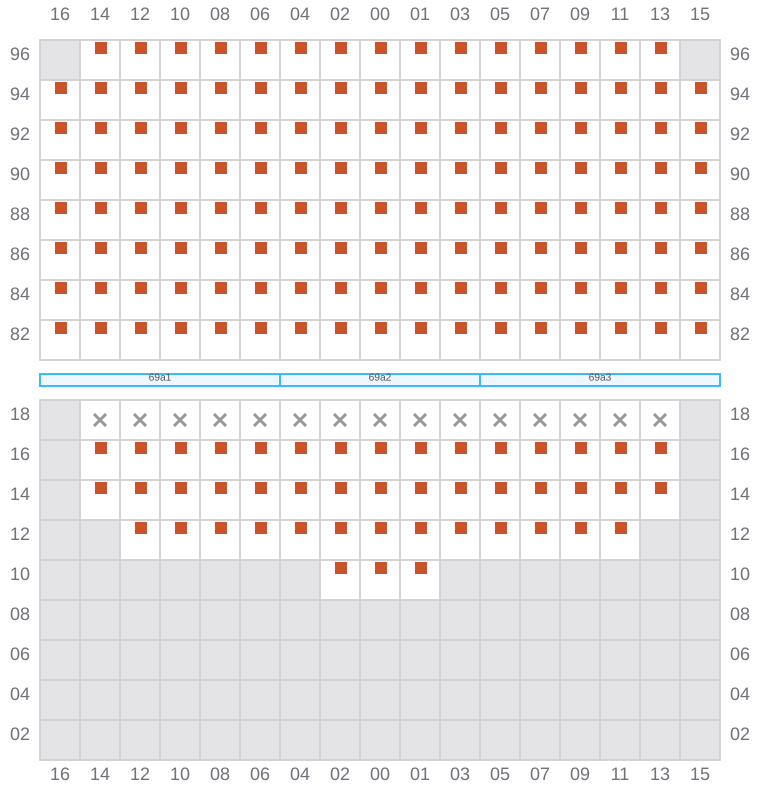

Bay 071 view and slots of MAERSK SANTANA

073 (074)

  • →
  • ← / ?
Bay 073 view and slots of MAERSK SANTANA

075

  • ←

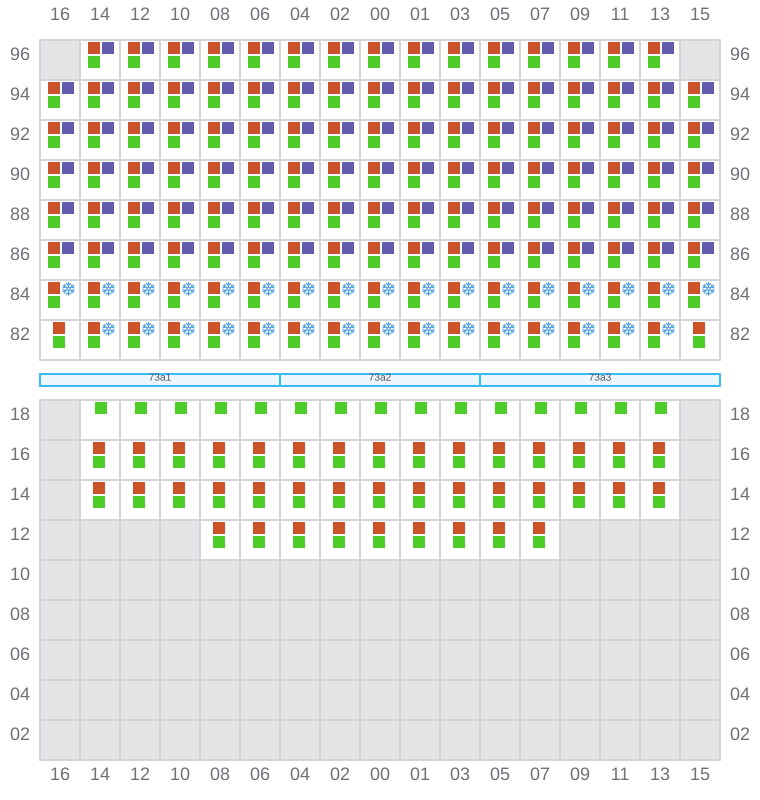

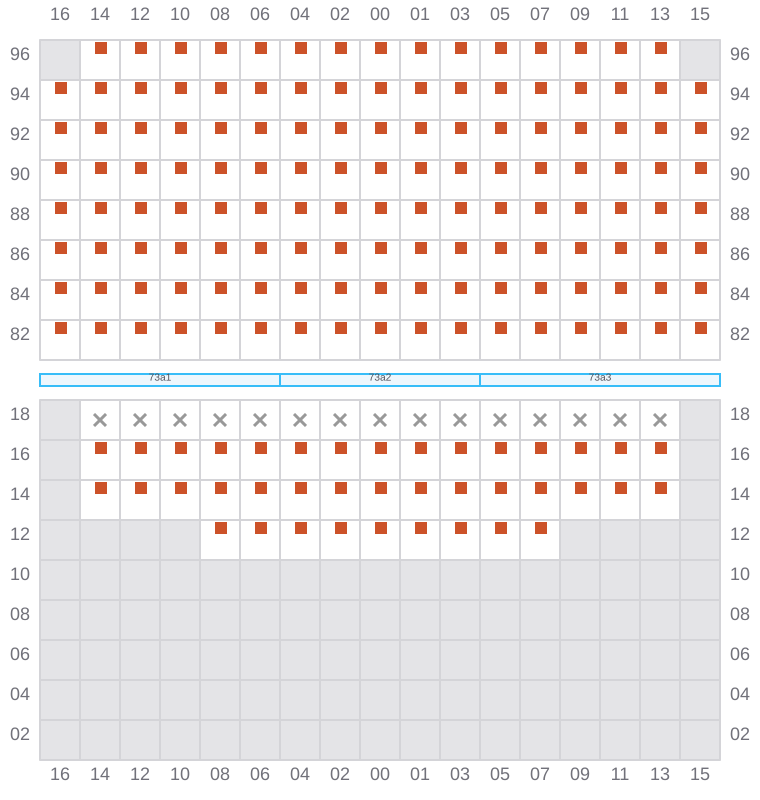

Bay 075 view and slots of MAERSK SANTANA

077 (078)

  • → / ?

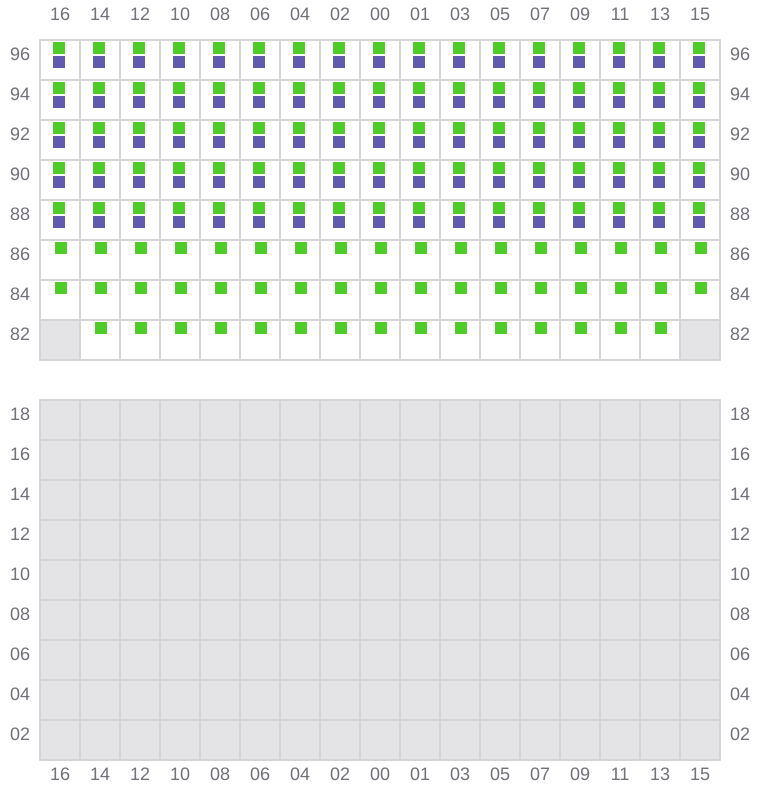

Bay 077 view and slots of MAERSK SANTANA
