MAERSK SARATOGA
9289207 | KSFF | 9289207 by ********* Last update: Sat Mar 16 2024
General Info
Ship Name:MAERSK SARATOGA
IMO Code:9289207
Call Sign:KSFF
Line Operator:9289207
Class Name for Sister Ships:4G9
Year Built:2004
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As (old names):-
Size Summary
ISO Bays:041
Max ISO Row:12
Center Line Row:Yes
Max Above ISO Tier:90
Min Above ISO Tier:80
Max Below ISO Tier:14
Min Below ISO Tier:02
Total TEU:3,105
Centers of Gravity
LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%
Side View
Hatch-Covers View

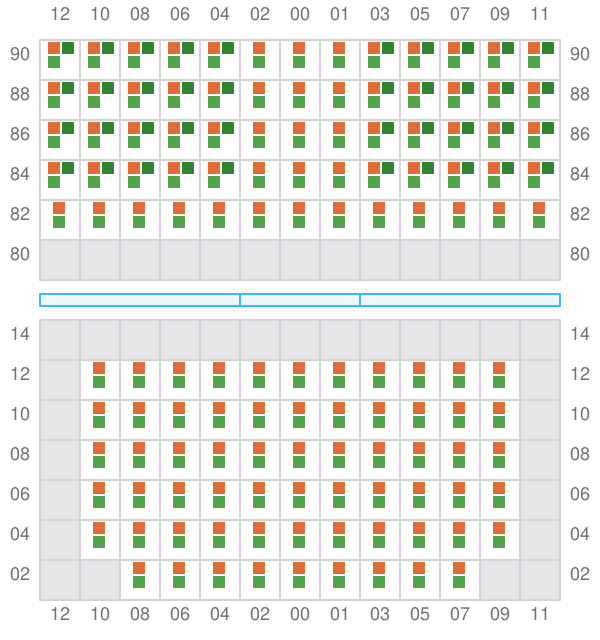

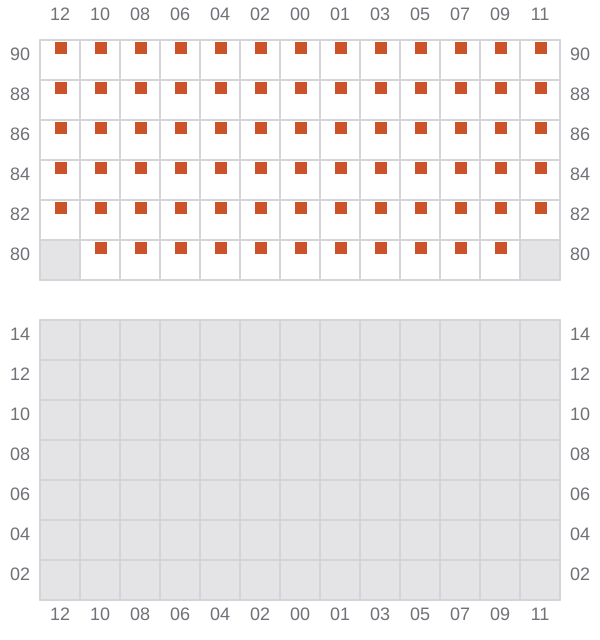

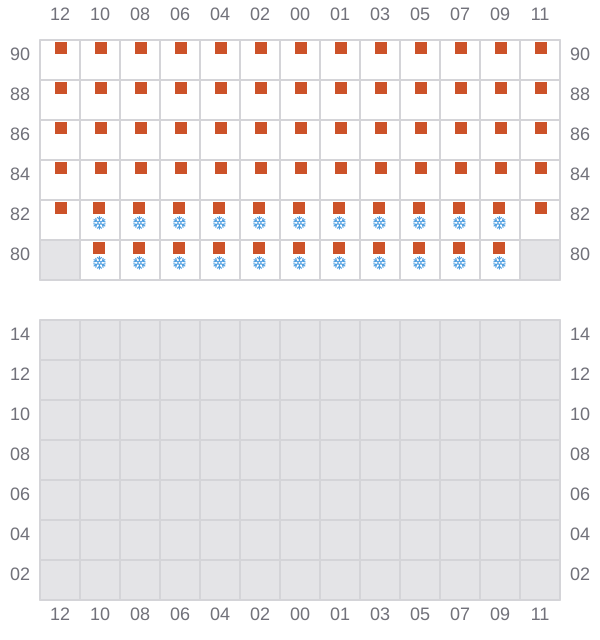

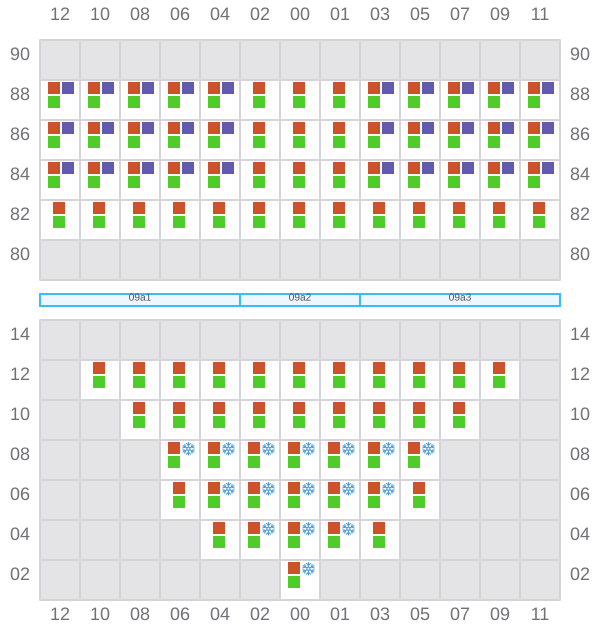

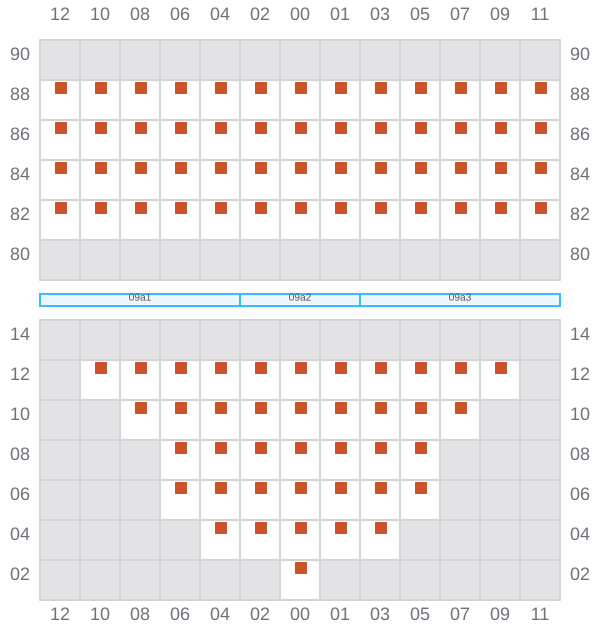

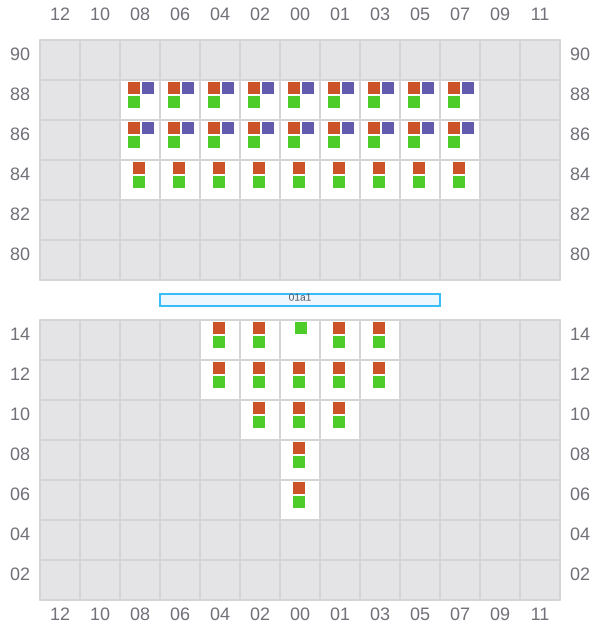

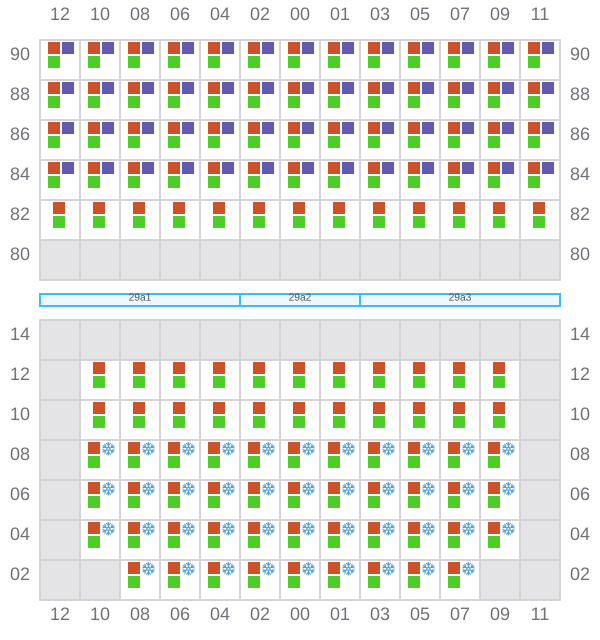

ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

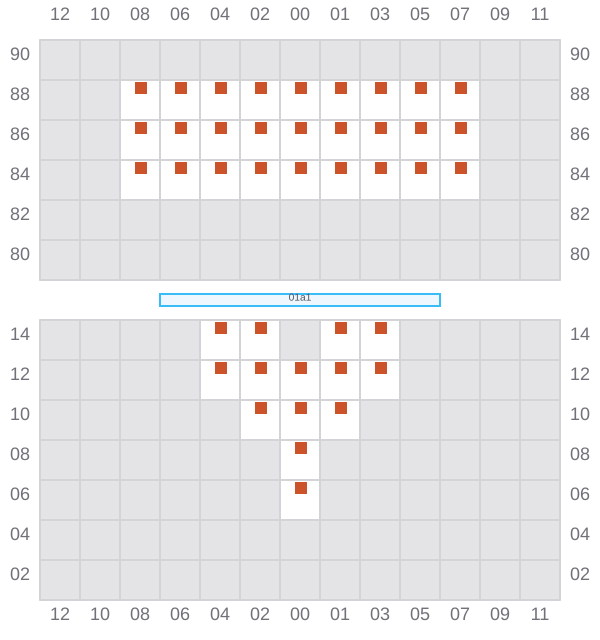

001 (002)
- →
003

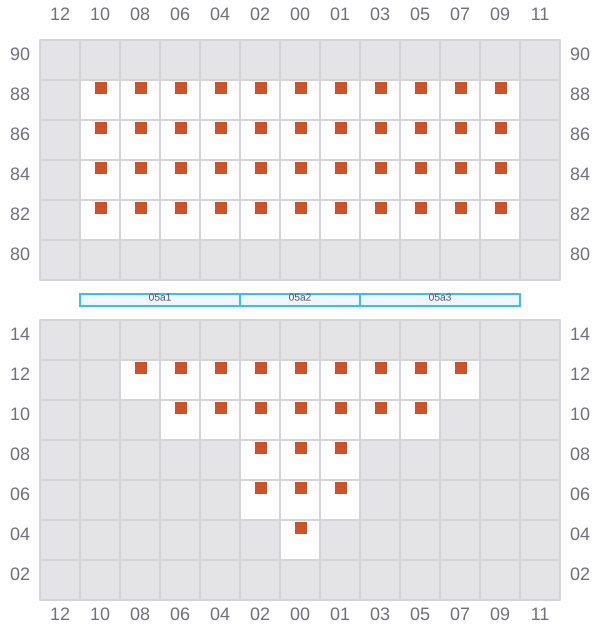

005 (006)
- →
007
009 (010)
- →
- ? / ←
011

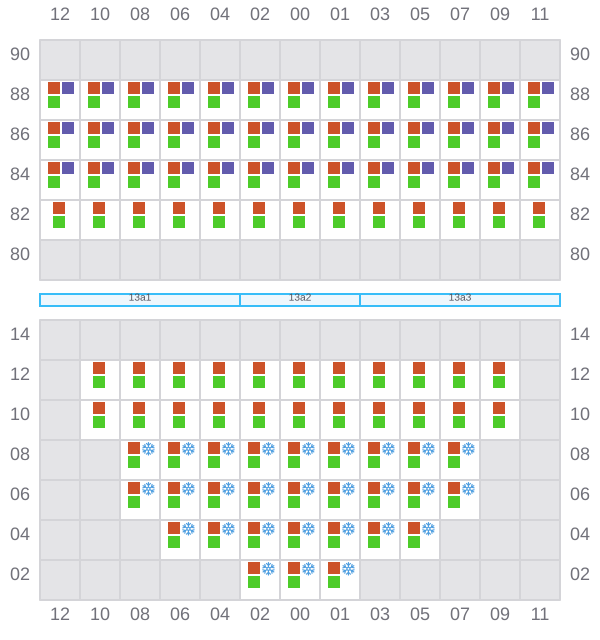

013 (014)
- →
- ? / ←
015

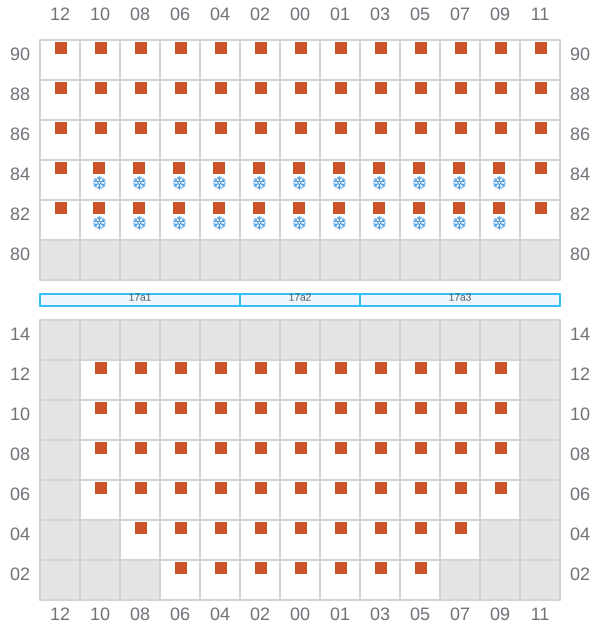

017 (018)
- →
- ? / ←
019
- → / ?
021 (022)
- →
023
- → / ?
025 (026)
- →
- ? / ←
027
- → / ?

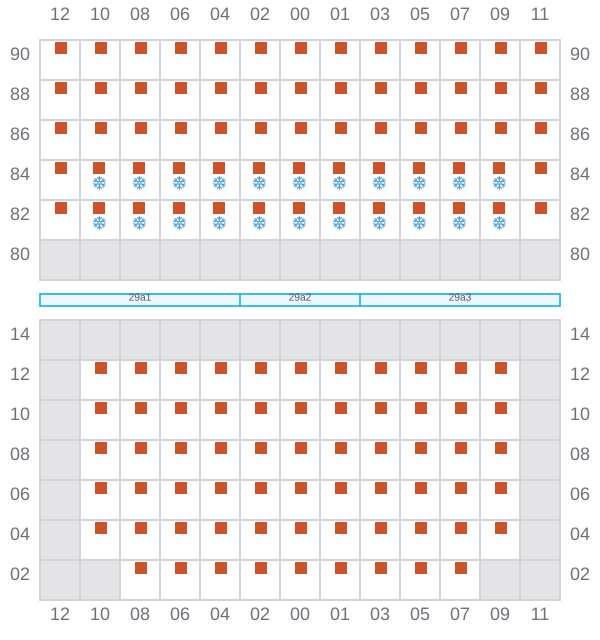

029 (030)
- →
- ? / ←
031
- → / ?
033 (034)
- →
- ? / ←
035
- → / ?
037

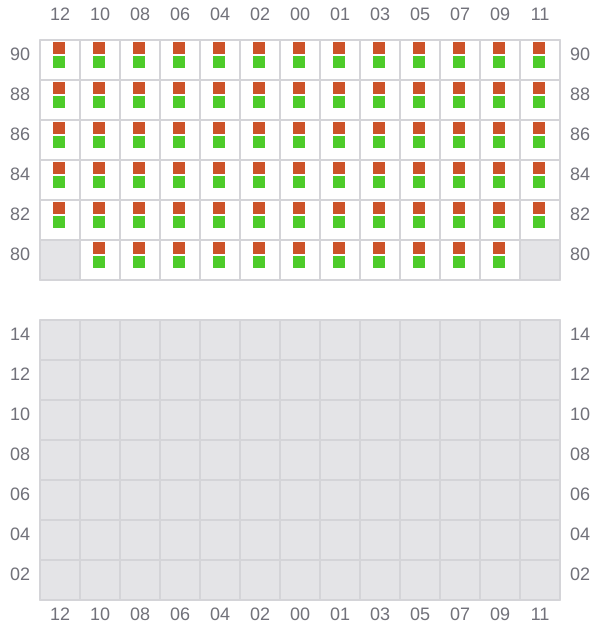

039 (040)
- → / ?
041
- → / ?
