MAERSK SARNIA
9289946 | 9V5244 | MSK by ************************** Last update: Thu Jun 29 2023

General Info

Ship Name:MAERSK SARNIA
IMO Code:9289946
Call Sign:9V5244
Line Operator:MSK
Class Name for Sister Ships:SNA
Year Built:2005
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:
Also Known As...:-

Size Summary

ISO Bays:077
Max ISO Row:16
Center Line Row:Yes
Max Above ISO Tier:96
Min Above ISO Tier:82
Max Below ISO Tier:18
Min Below ISO Tier:02
Total TEU:8,450

Centers of Gravity

LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

Side View

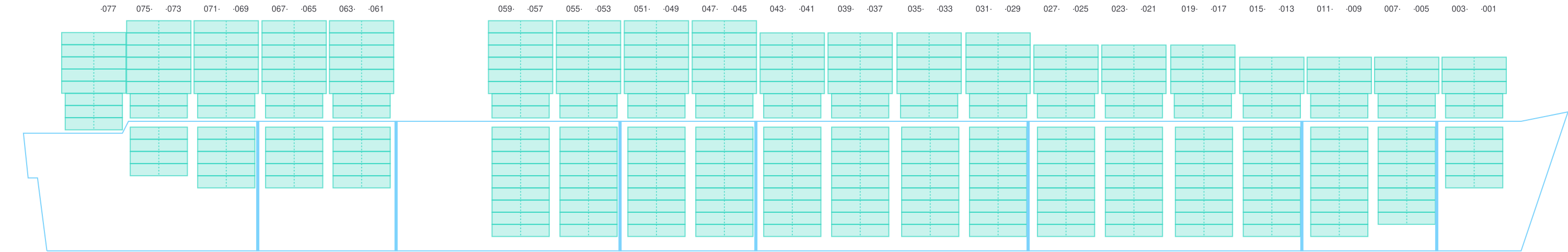

Side view of MAERSK SARNIA

Hatch-Covers View

Deck view of MAERSK SARNIA

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot

001 (002)

  • →

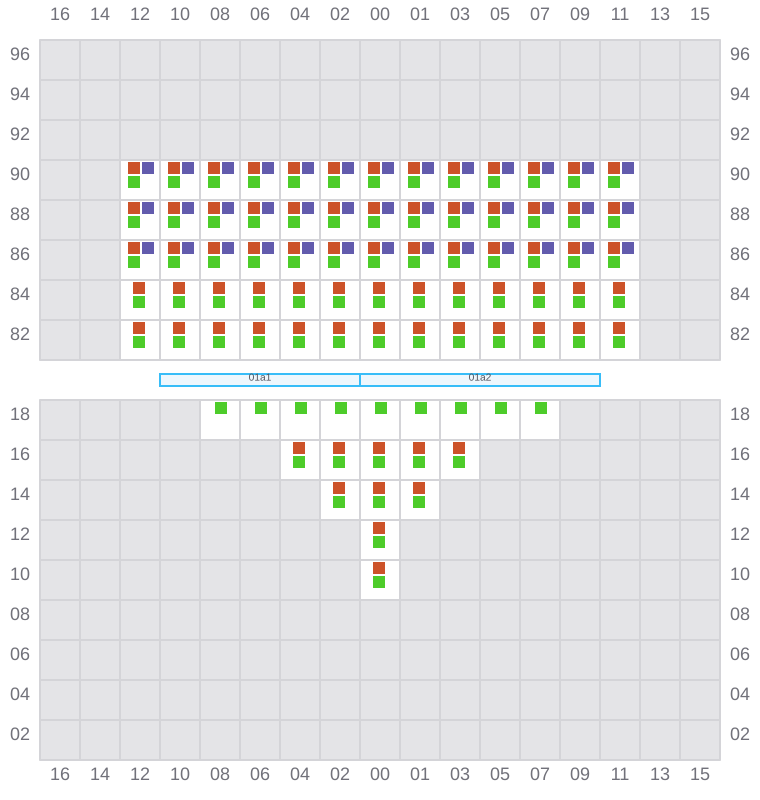

Bay 001 view and slots of MAERSK SARNIA

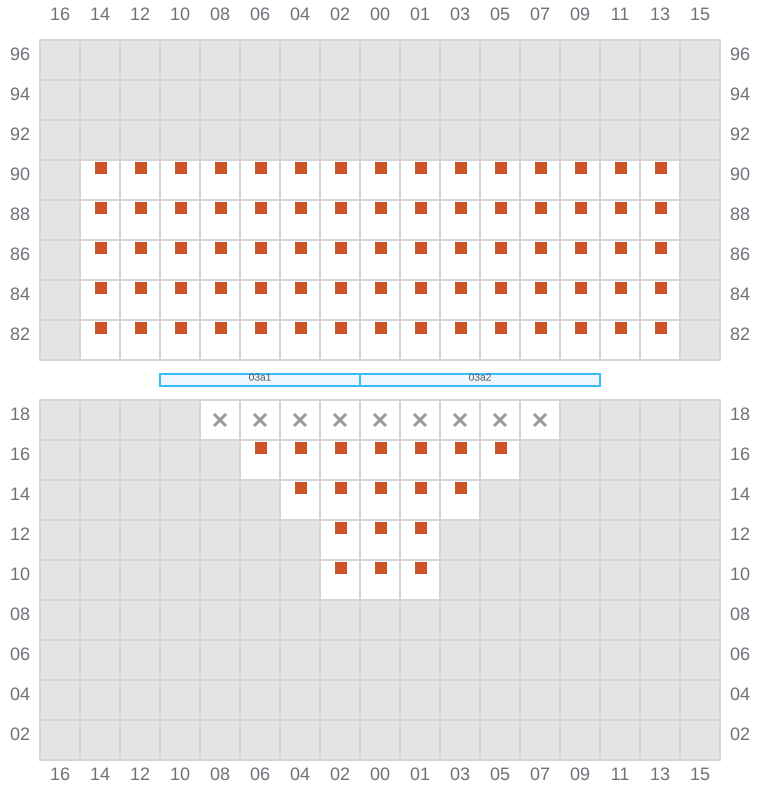

003

  • ←
Bay 003 view and slots of MAERSK SARNIA

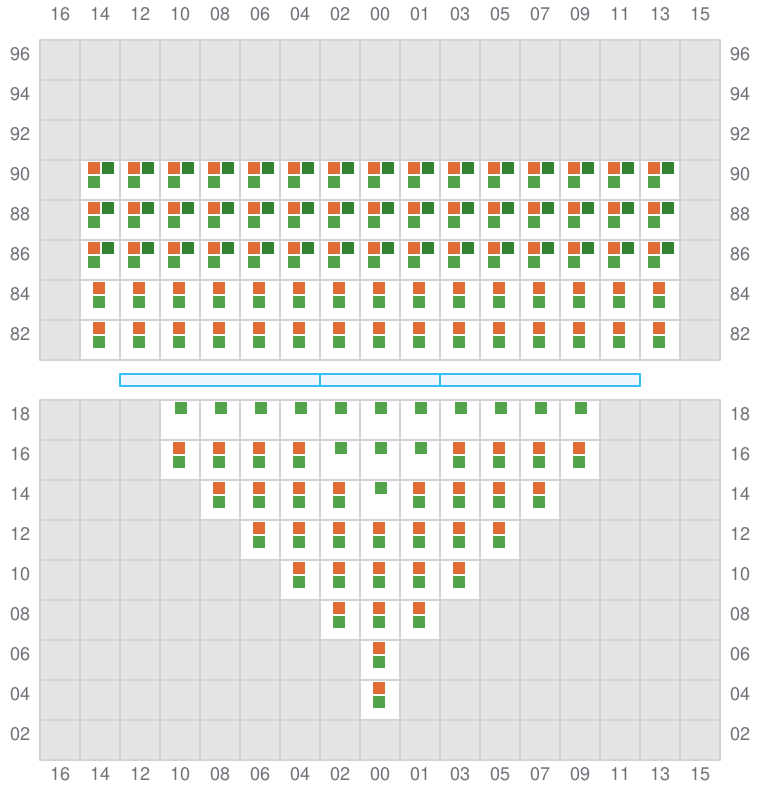

005 (006)

  • →
Bay 005 view and slots of MAERSK SARNIA

007

  • ←

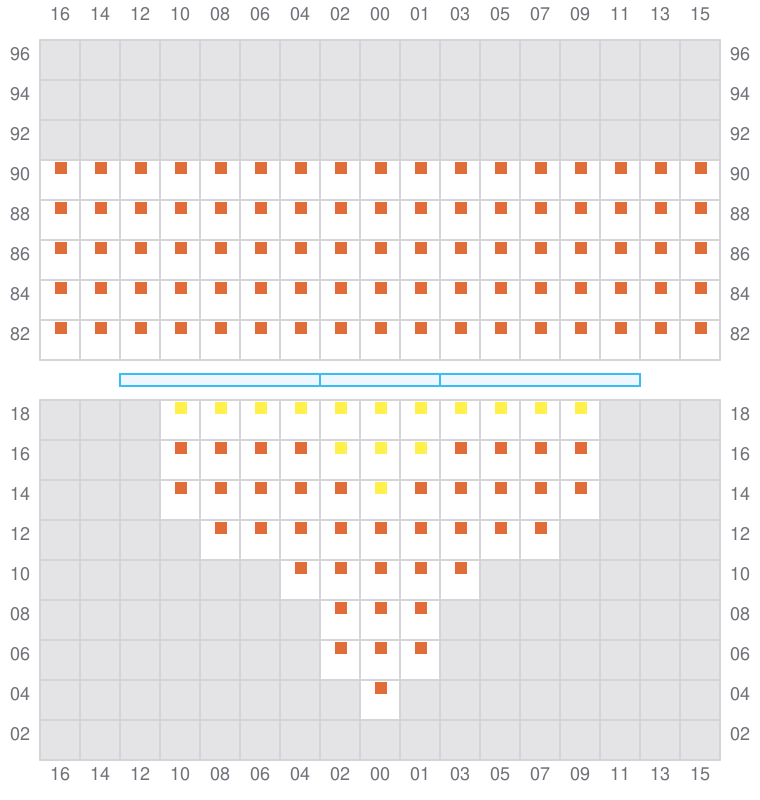

Bay 007 view and slots of MAERSK SARNIA

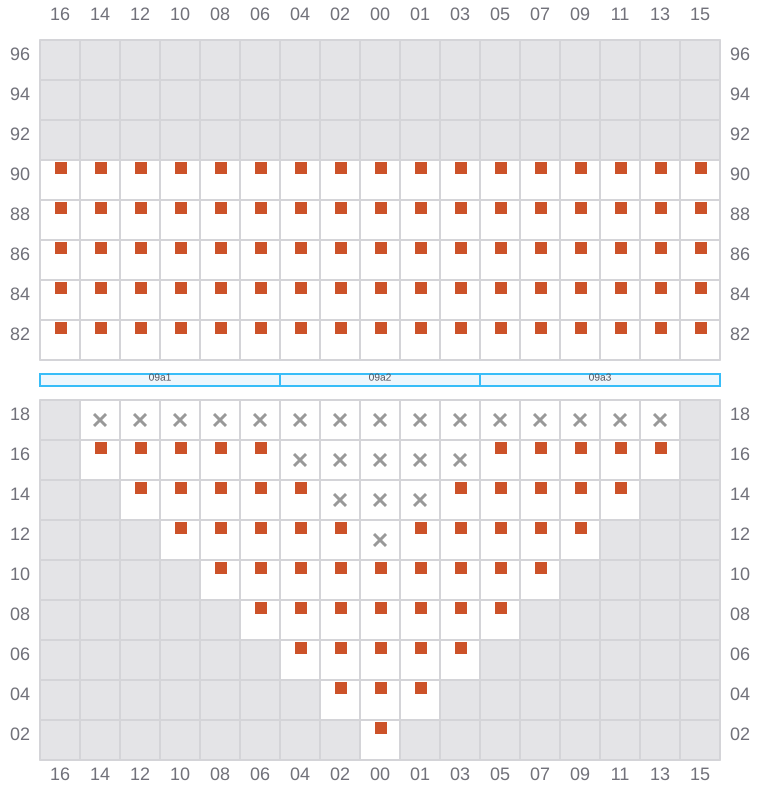

009 (010)

  • →

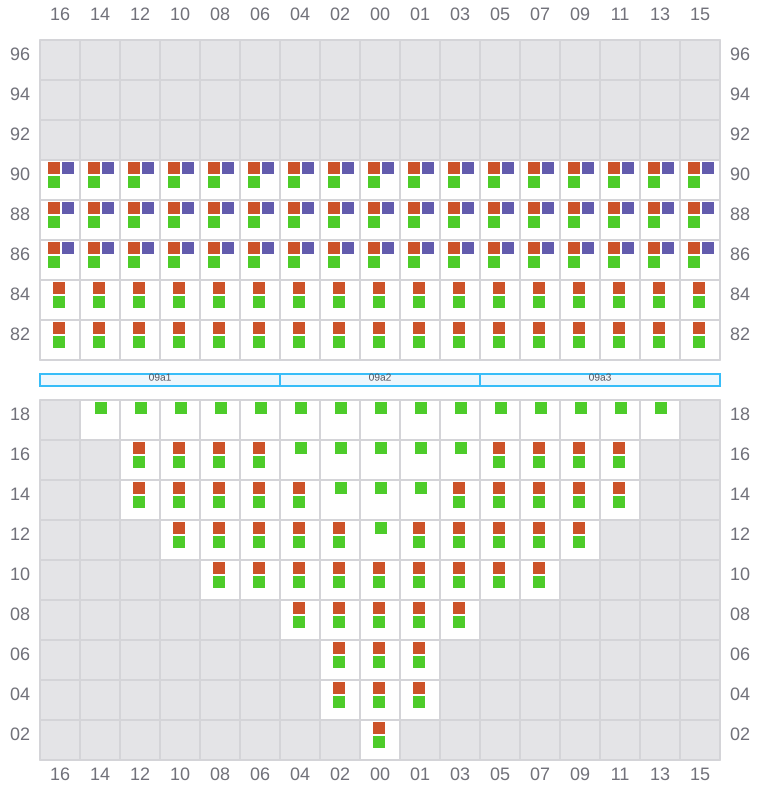

Bay 009 view and slots of MAERSK SARNIA

011

  • ←
Bay 011 view and slots of MAERSK SARNIA

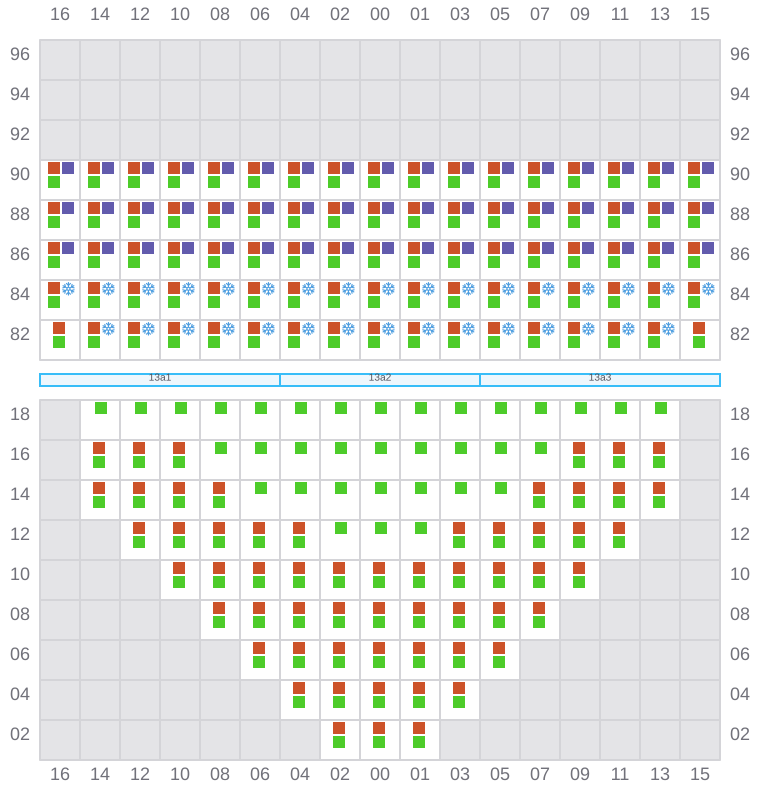

013 (014)

  • →
  • ← / ?
Bay 013 view and slots of MAERSK SARNIA

015

  • ←

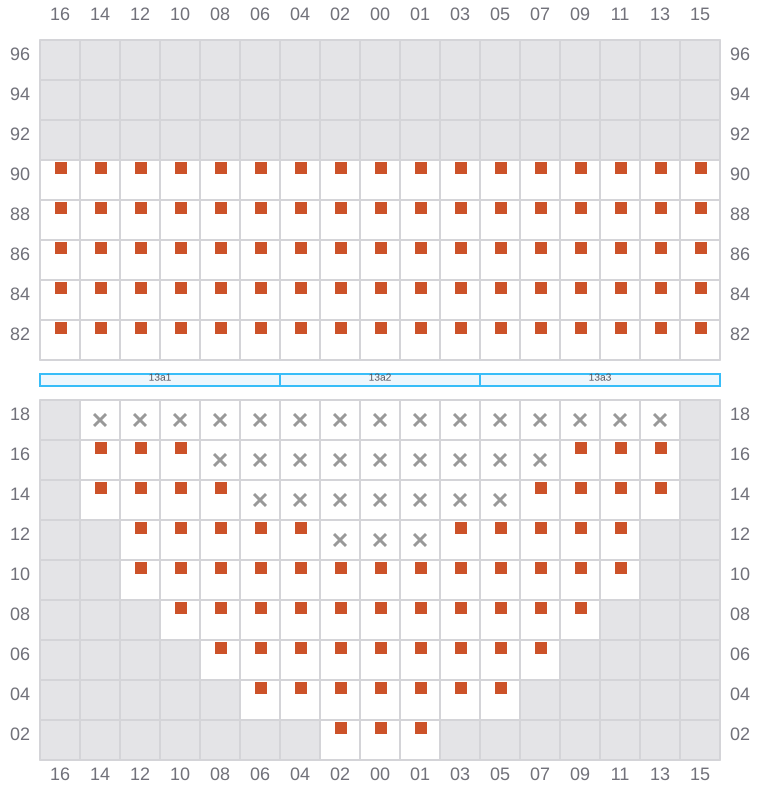

Bay 015 view and slots of MAERSK SARNIA

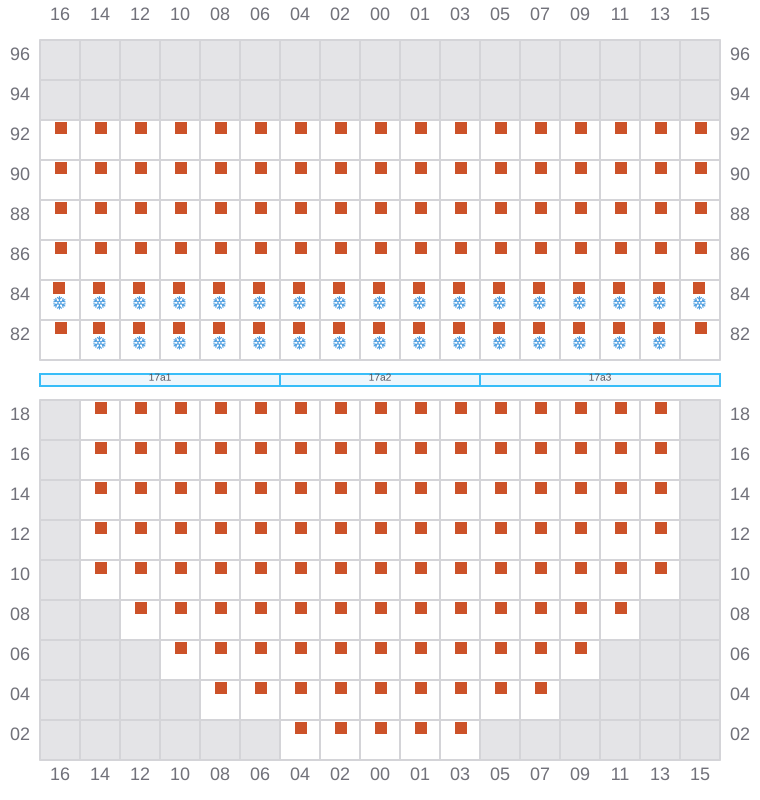

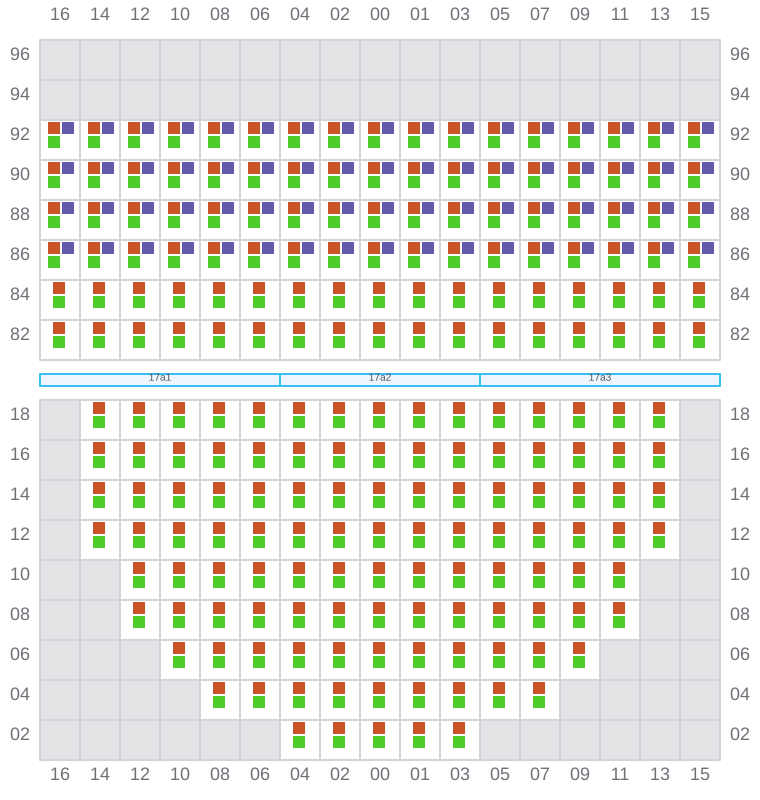

017 (018)

  • →
Bay 017 view and slots of MAERSK SARNIA

019

  • ←
  • → / ?
Bay 019 view and slots of MAERSK SARNIA

021 (022)

  • →

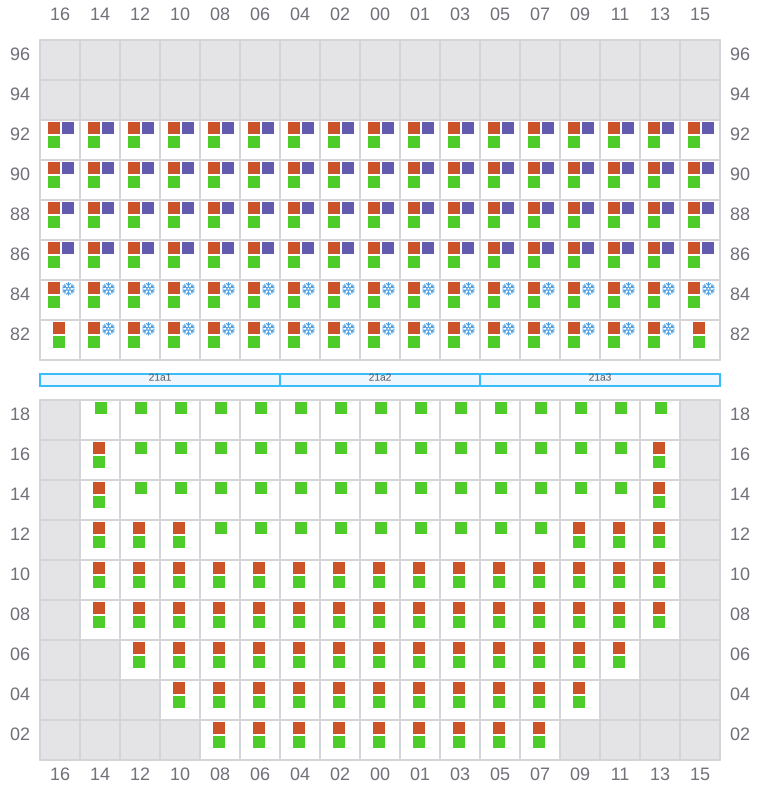

Bay 021 view and slots of MAERSK SARNIA

023

  • ←

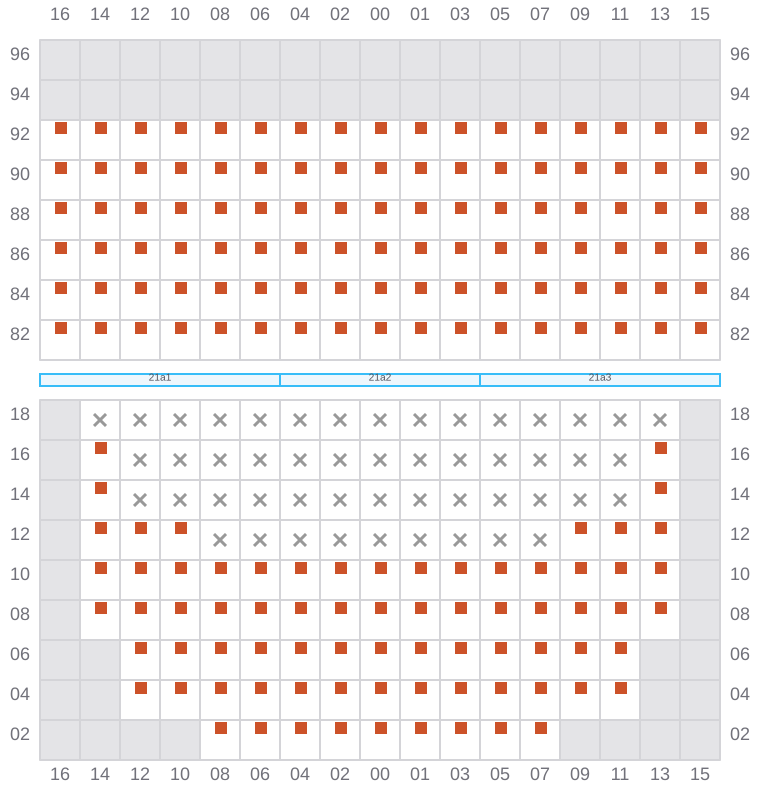

Bay 023 view and slots of MAERSK SARNIA

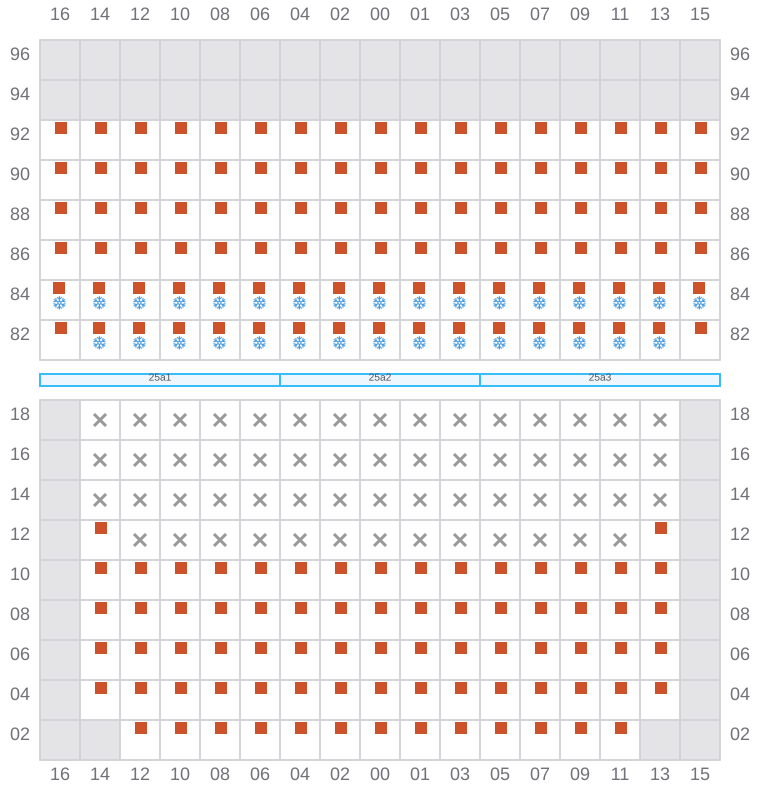

025 (026)

  • →

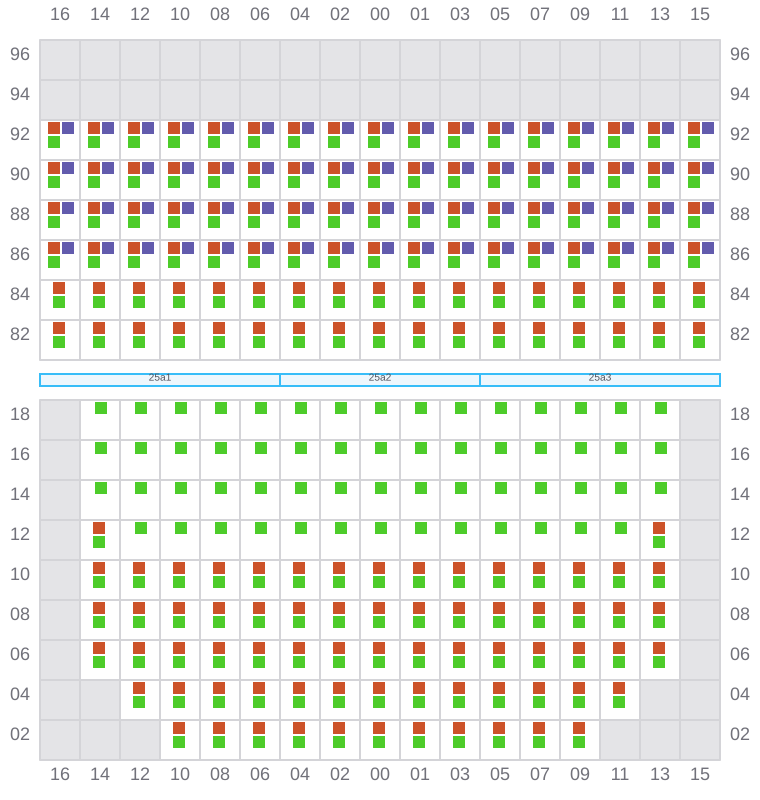

Bay 025 view and slots of MAERSK SARNIA

027

  • ←
  • → / ?
Bay 027 view and slots of MAERSK SARNIA

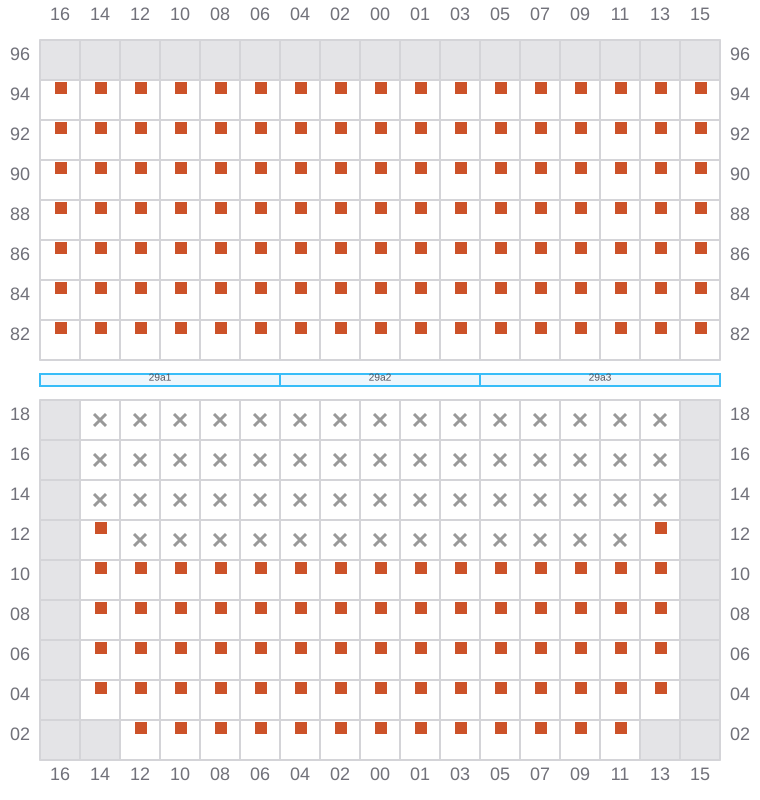

029 (030)

  • →
  • ← / ?

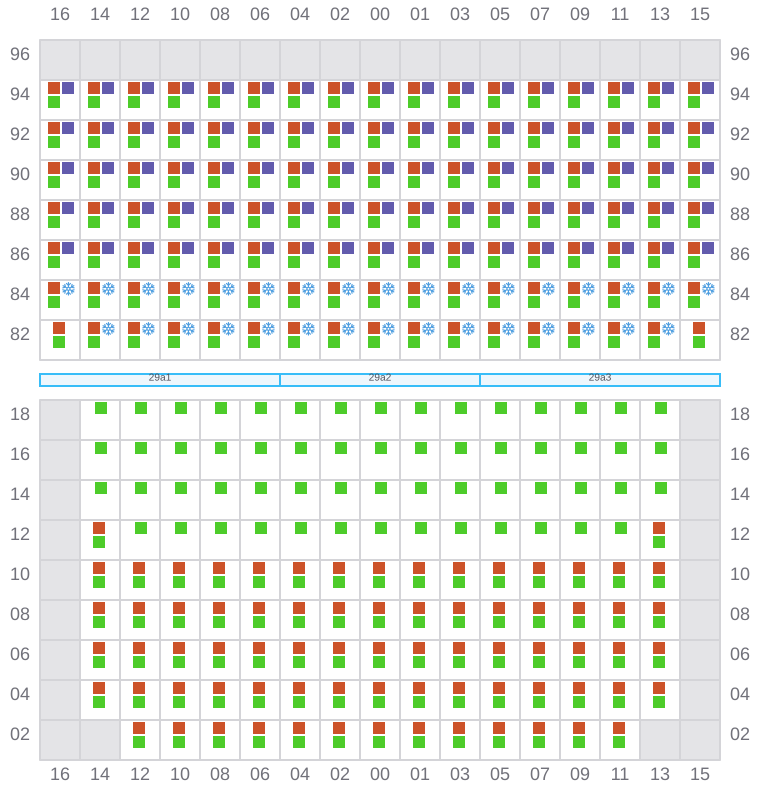

Bay 029 view and slots of MAERSK SARNIA

031

  • ←
Bay 031 view and slots of MAERSK SARNIA

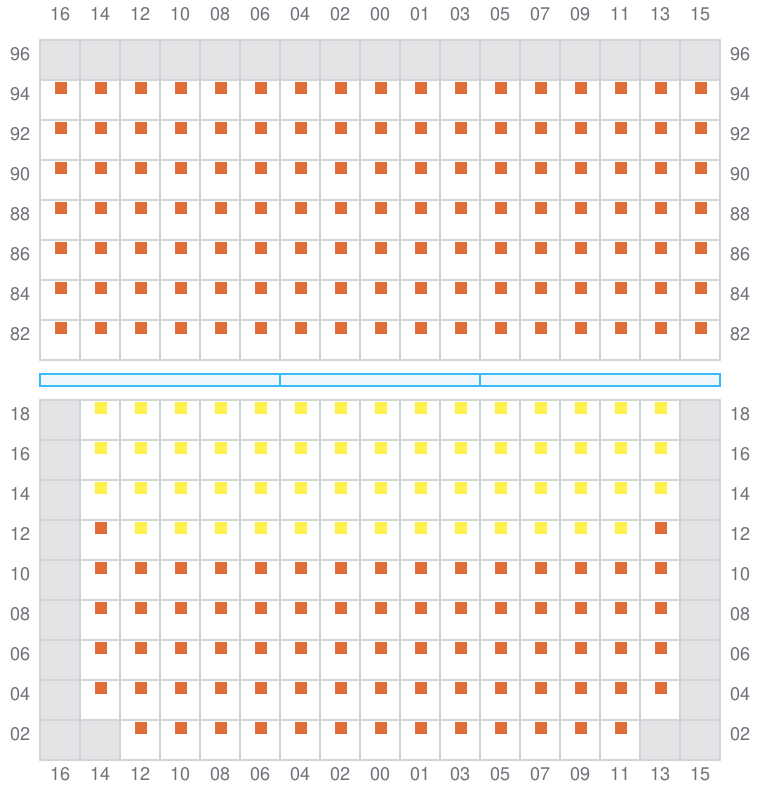

033 (034)

  • →

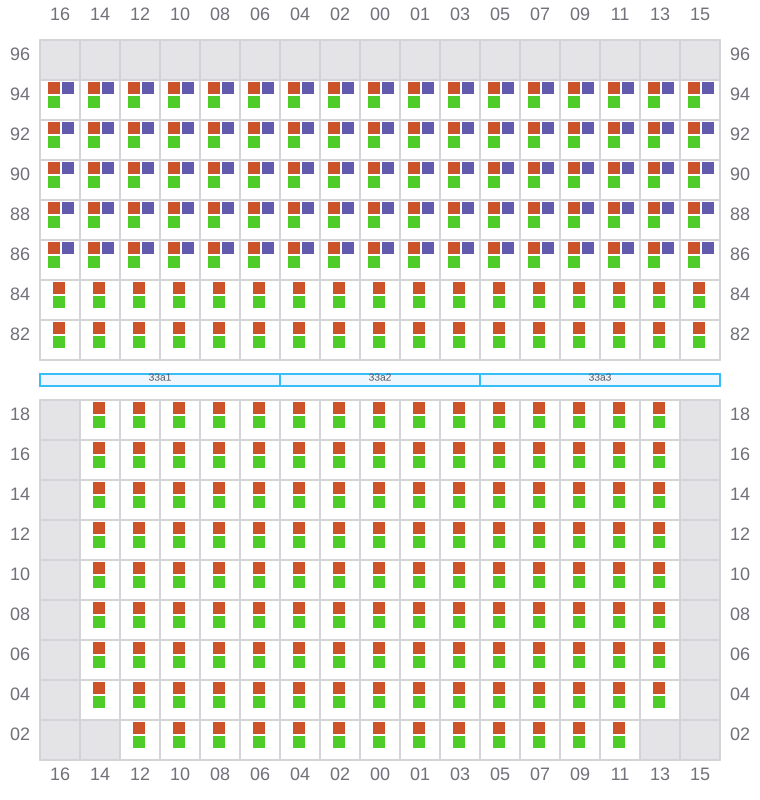

Bay 033 view and slots of MAERSK SARNIA

035

  • ←
  • → / ?
Bay 035 view and slots of MAERSK SARNIA

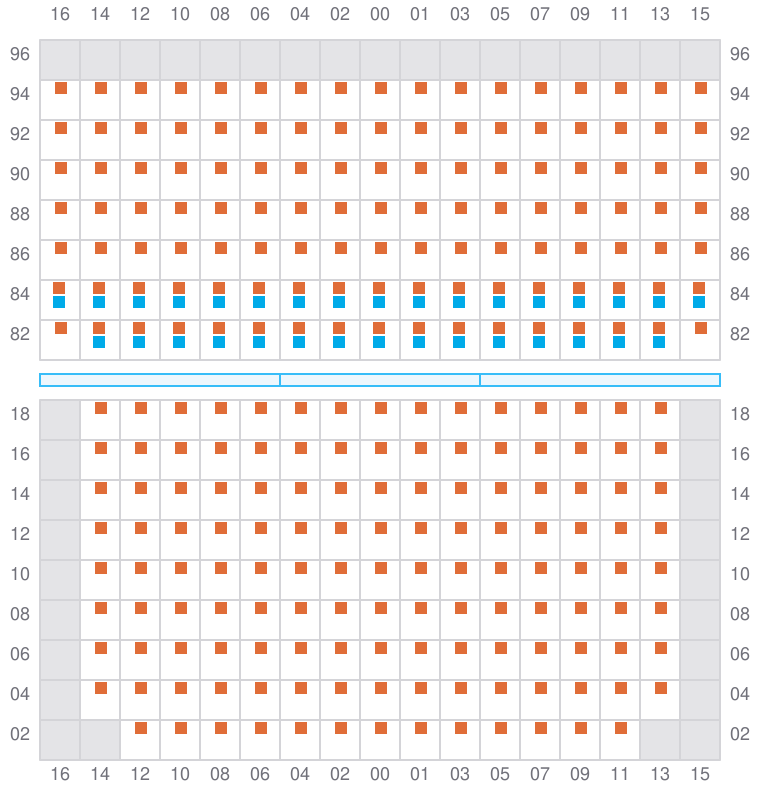

037 (038)

  • →
  • ← / ?
Bay 037 view and slots of MAERSK SARNIA

039

  • ←
Bay 039 view and slots of MAERSK SARNIA

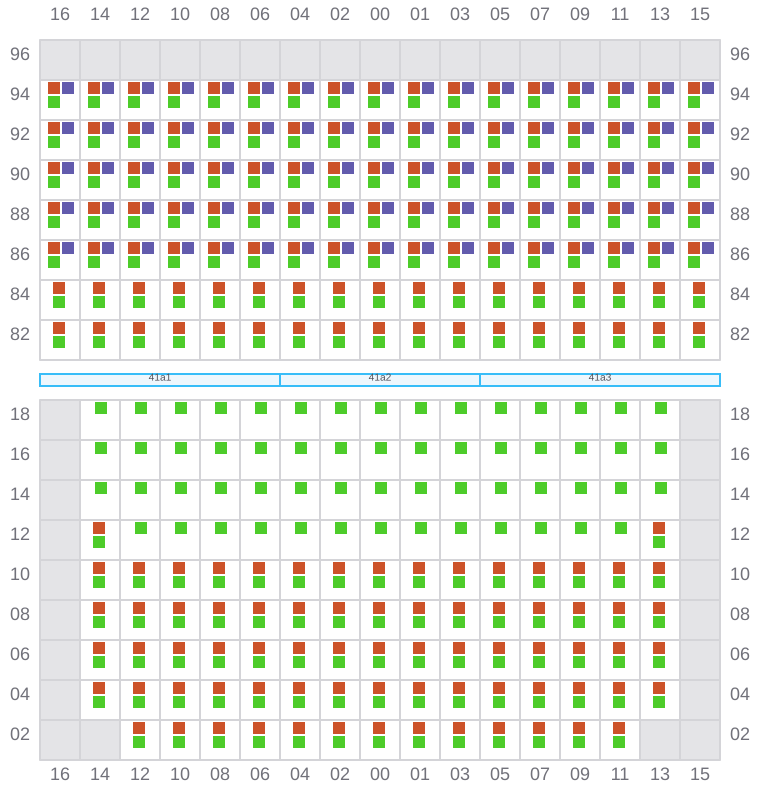

041 (042)

  • →
Bay 041 view and slots of MAERSK SARNIA

043

  • ←
  • → / ?
Bay 043 view and slots of MAERSK SARNIA

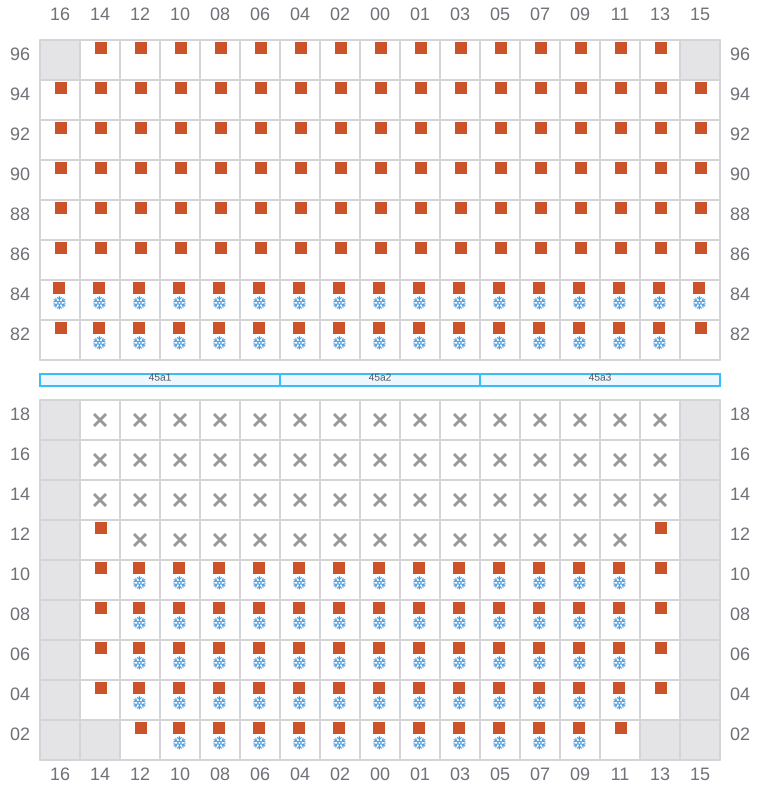

045 (046)

  • →
Bay 045 view and slots of MAERSK SARNIA

047

  • ←
  • → / ?

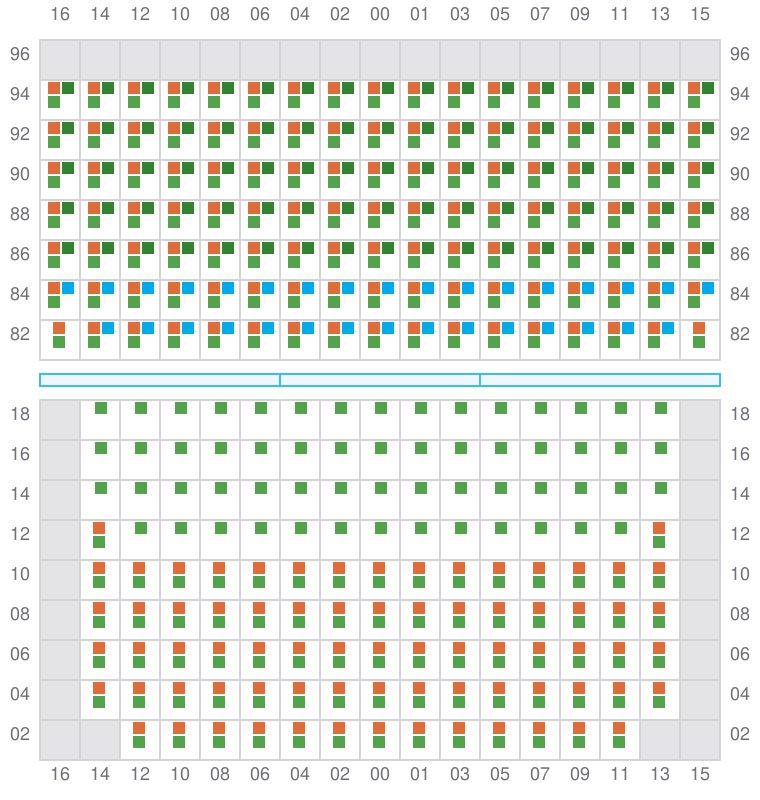

Bay 047 view and slots of MAERSK SARNIA

049 (050)

  • →
  • ← / ?
Bay 049 view and slots of MAERSK SARNIA

051

  • ←

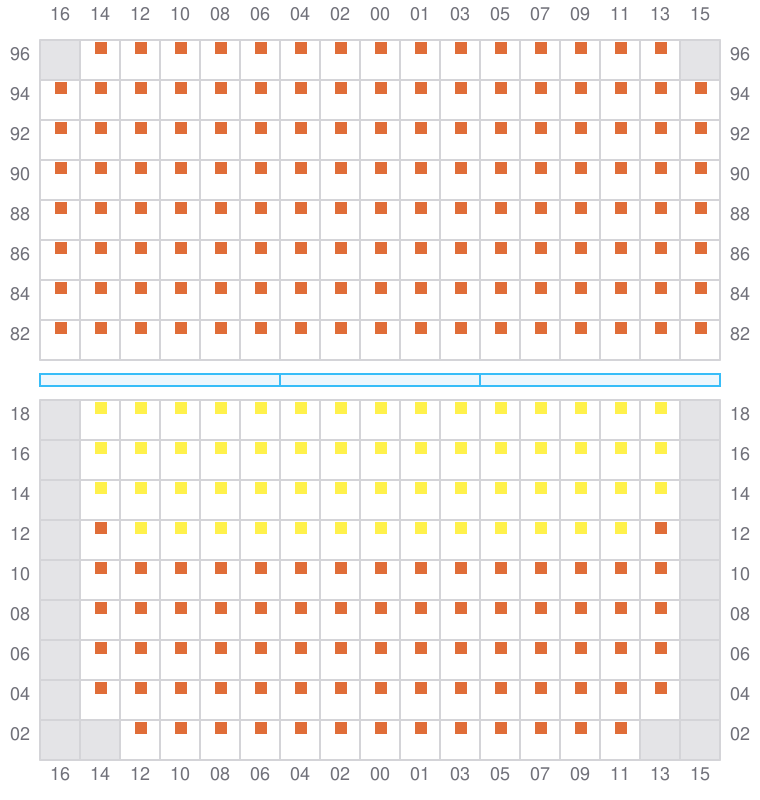

Bay 051 view and slots of MAERSK SARNIA

053 (054)

  • →
Bay 053 view and slots of MAERSK SARNIA

055

  • ←
  • → / ?
Bay 055 view and slots of MAERSK SARNIA

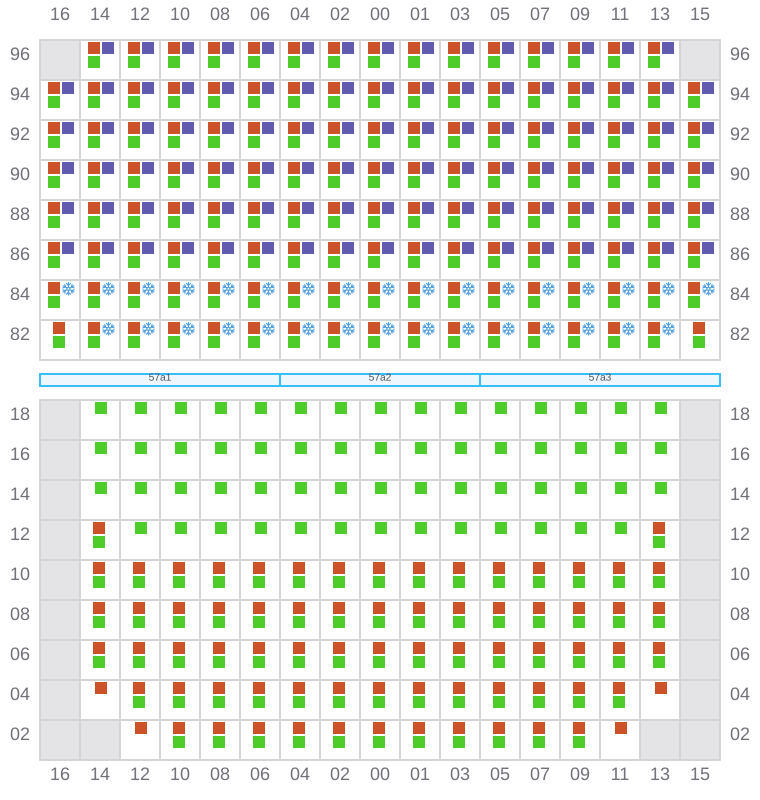

057 (058)

  • →
  • ← / ?
Bay 057 view and slots of MAERSK SARNIA

059

  • ←
Bay 059 view and slots of MAERSK SARNIA

061 (062)

  • →

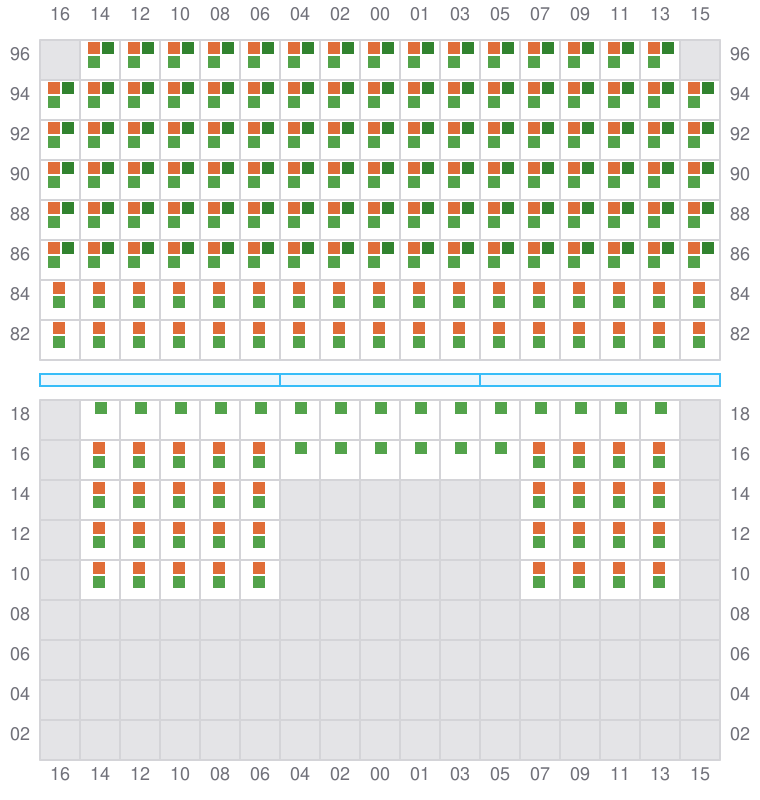

Bay 061 view and slots of MAERSK SARNIA

063

  • ←
Bay 063 view and slots of MAERSK SARNIA

065 (066)

  • →

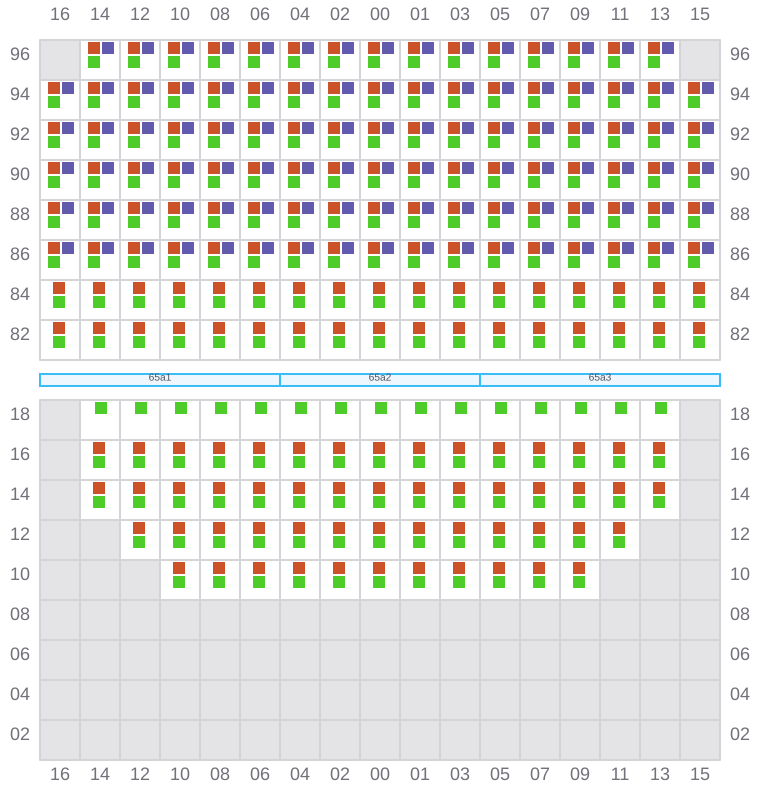

Bay 065 view and slots of MAERSK SARNIA

067

  • ←
  • → / ?
Bay 067 view and slots of MAERSK SARNIA

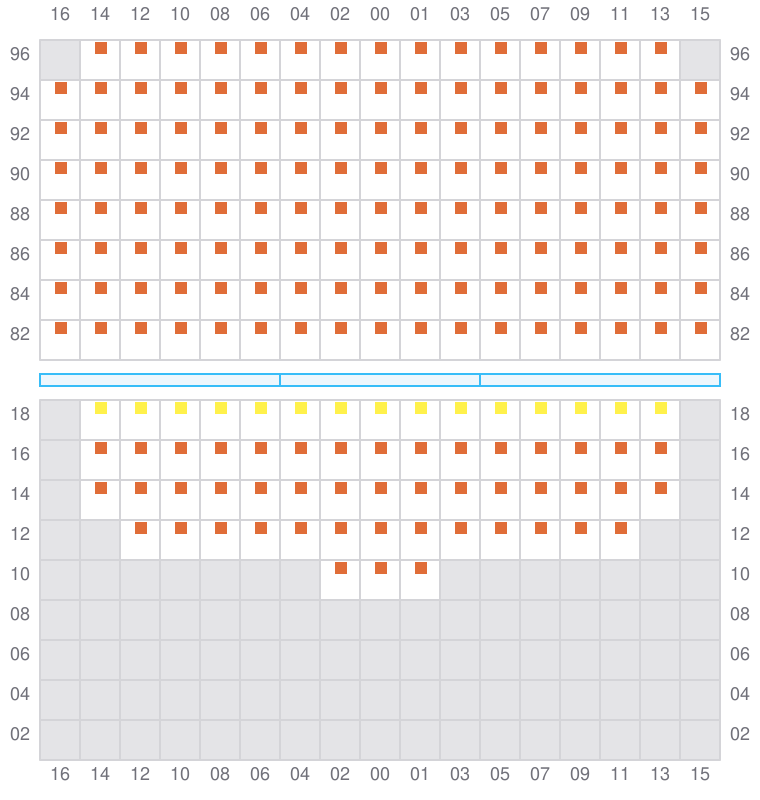

069 (070)

  • →
  • ← / ?
Bay 069 view and slots of MAERSK SARNIA

071

  • ←
Bay 071 view and slots of MAERSK SARNIA

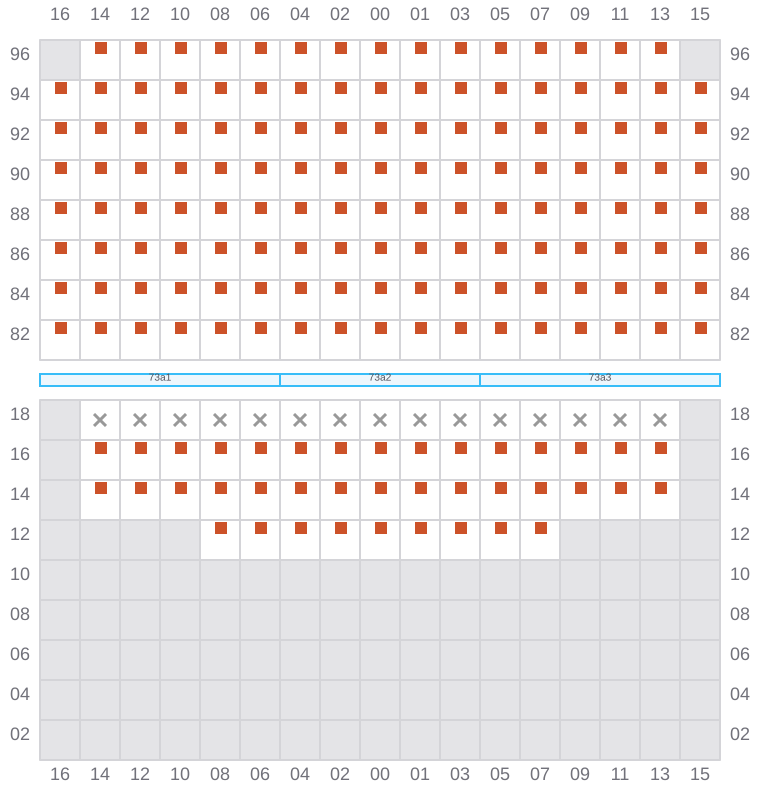

073 (074)

  • →
  • ← / ?

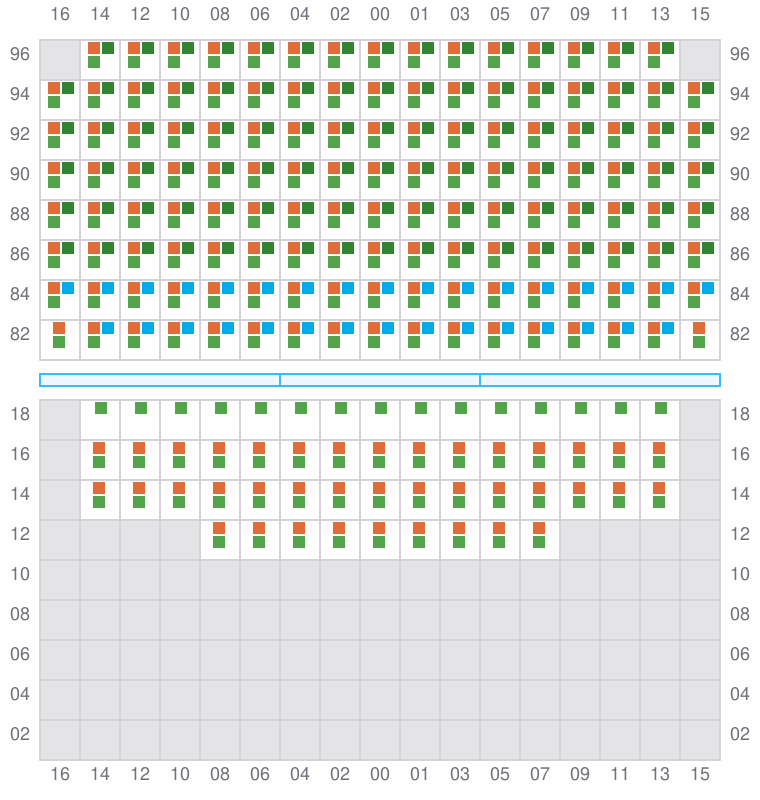

Bay 073 view and slots of MAERSK SARNIA

075

  • ←
Bay 075 view and slots of MAERSK SARNIA

077 (078)

  • → / ?

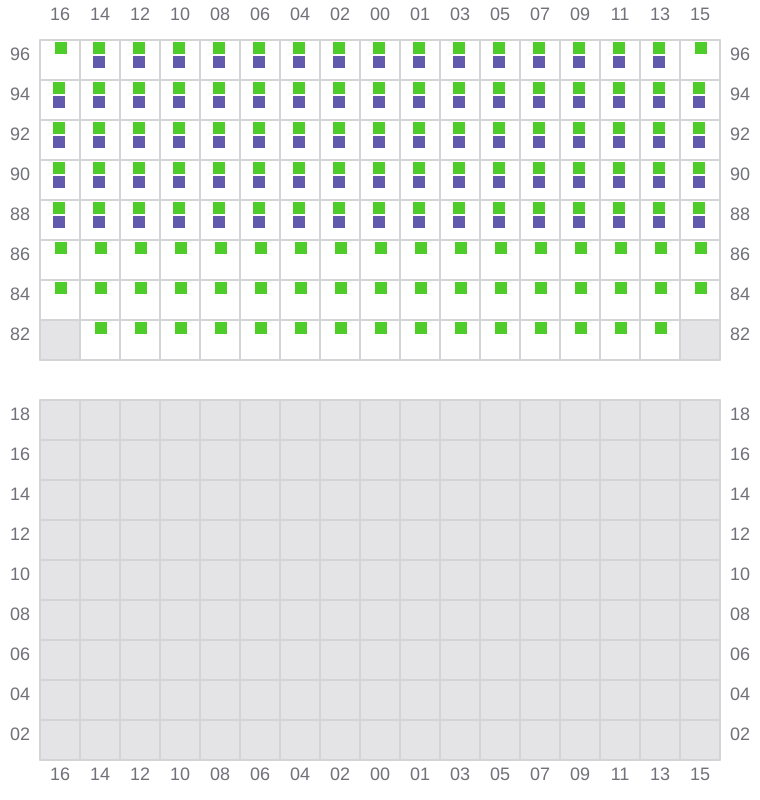

Bay 077 view and slots of MAERSK SARNIA
