MAERSK SAVANNAH
9352028 | VRVN9 | 9352028 by ********* Last update: Fri Mar 22 2024

General Info

Ship Name:MAERSK SAVANNAH
IMO Code:9352028
Call Sign:VRVN9
Line Operator:9352028
Class Name for Sister Ships:8YF
Year Built:2008
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):319.00
LOA (Length Overall):334.10
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-

Size Summary

ISO Bays:077
Max ISO Row:16
Center Line Row:Yes
Max Above ISO Tier:96
Min Above ISO Tier:82
Max Below ISO Tier:18
Min Below ISO Tier:02
Total TEU:8,538

Centers of Gravity

LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

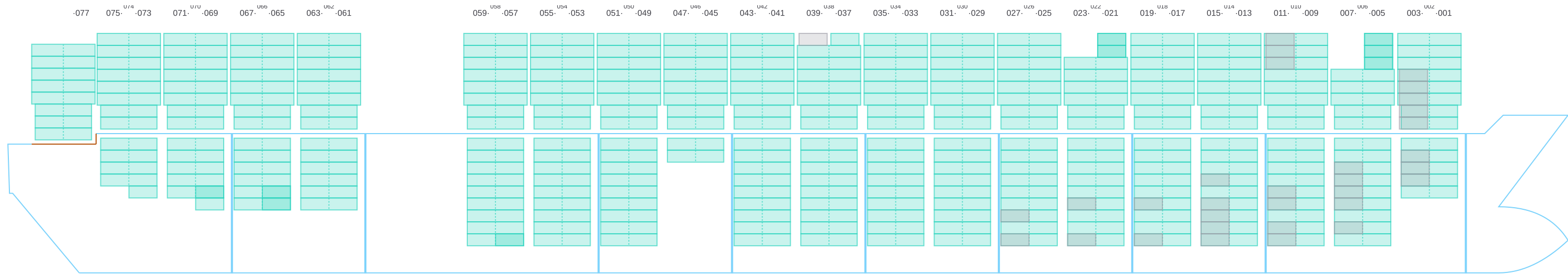

Side View

Side view of MAERSK SAVANNAH

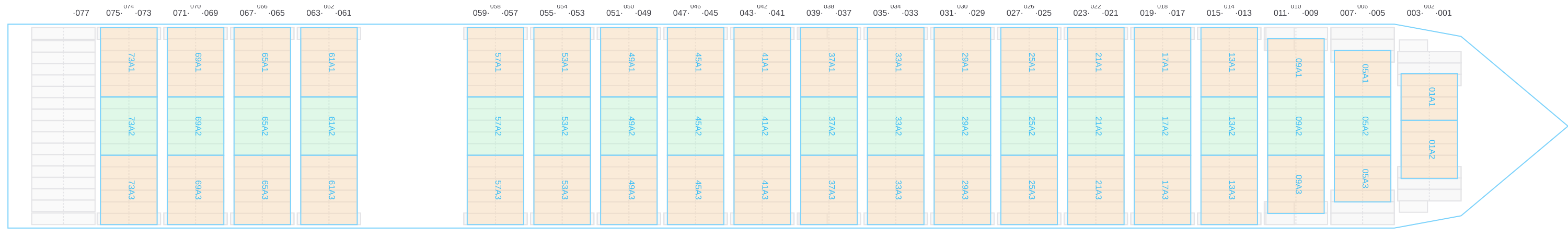

Hatch-Covers View

Deck view of MAERSK SAVANNAH

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot ×

001 (002)

  • →

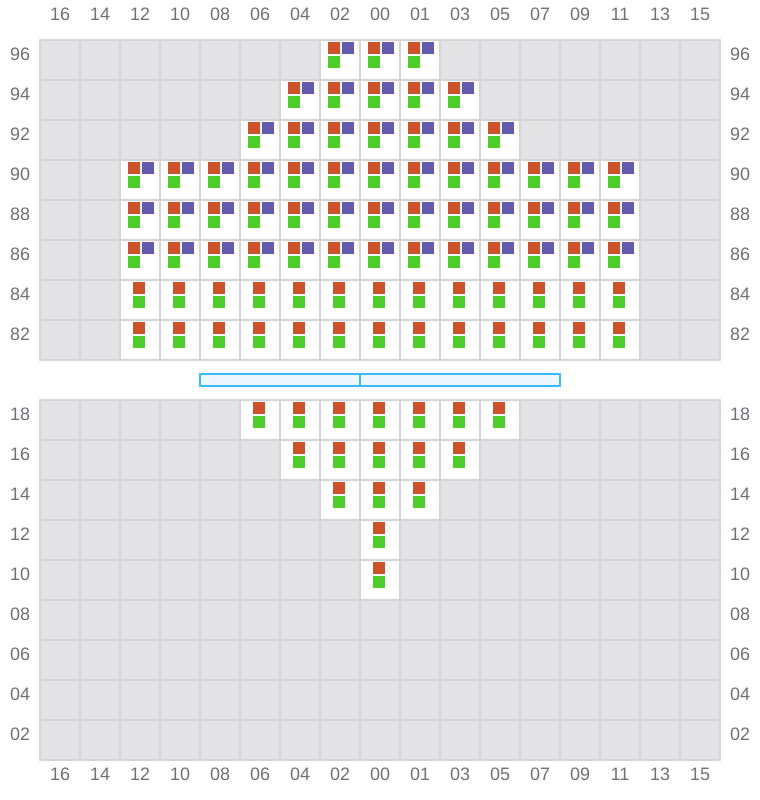

Bay 001 view and slots of MAERSK SAVANNAH

003

  • ←

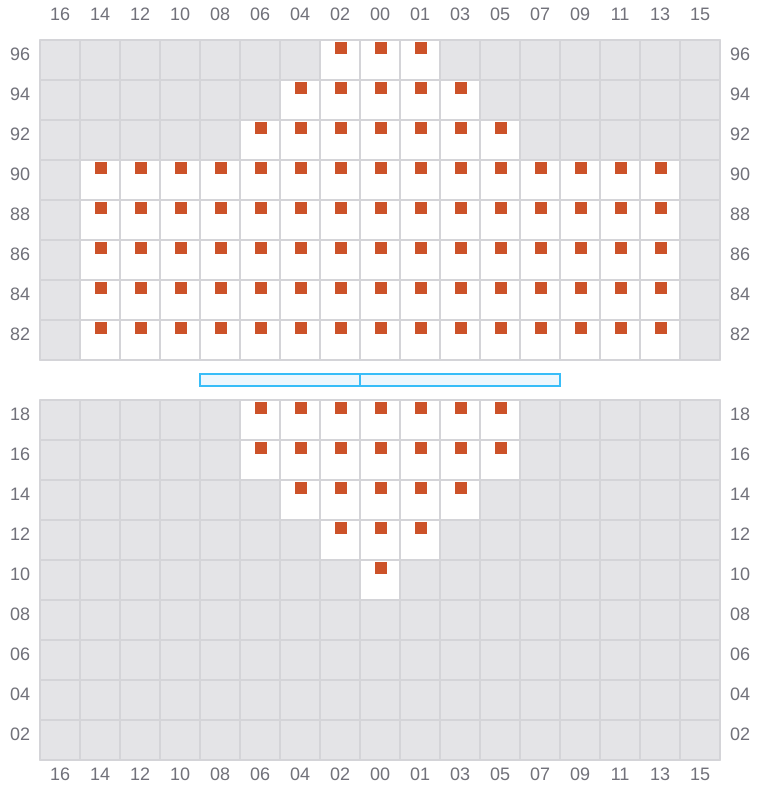

Bay 003 view and slots of MAERSK SAVANNAH

005 (006)

  • →

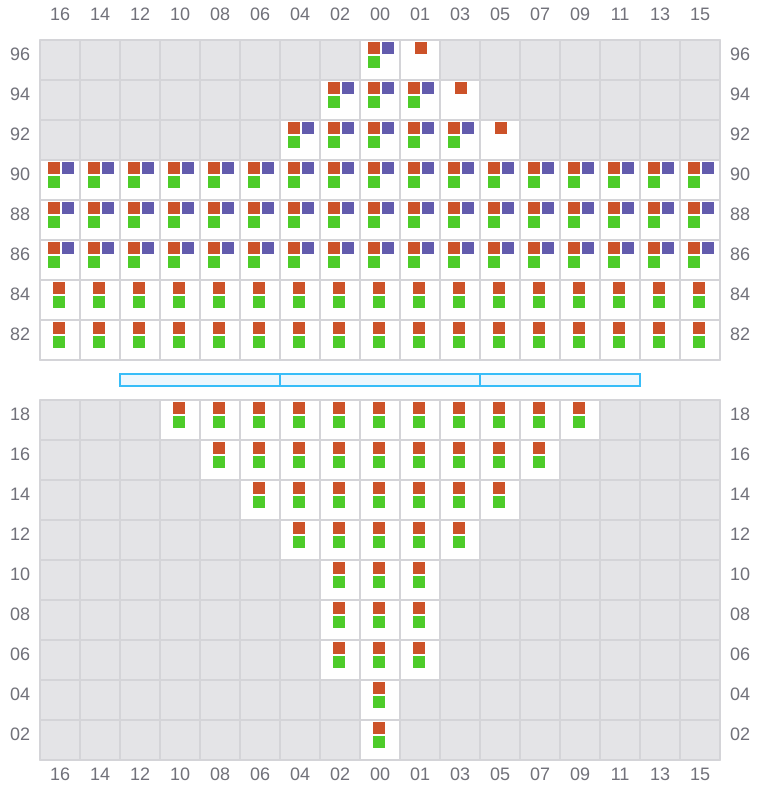

Bay 005 view and slots of MAERSK SAVANNAH

007

  • ←

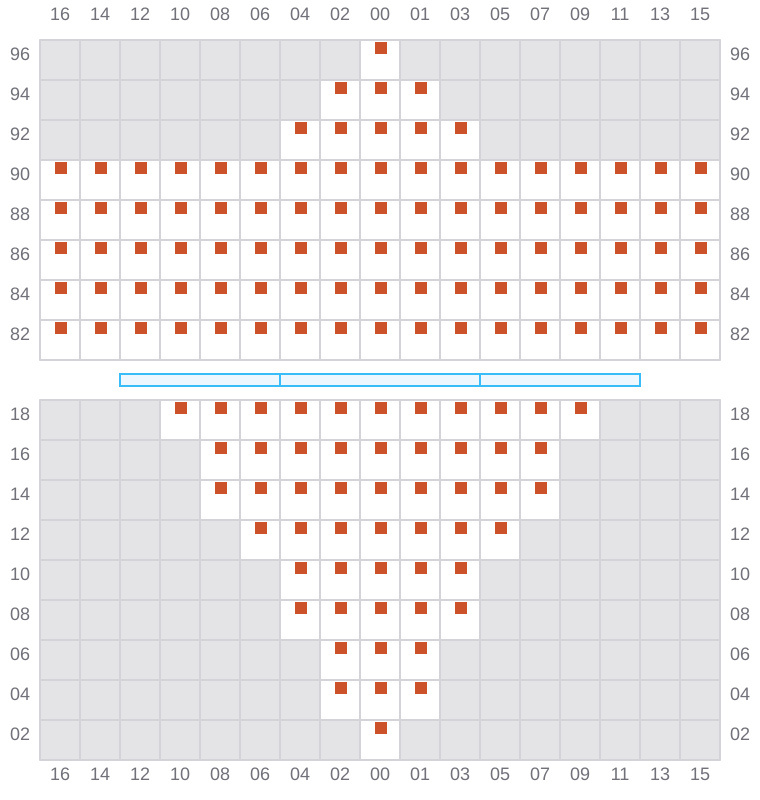

Bay 007 view and slots of MAERSK SAVANNAH

009 (010)

  • →

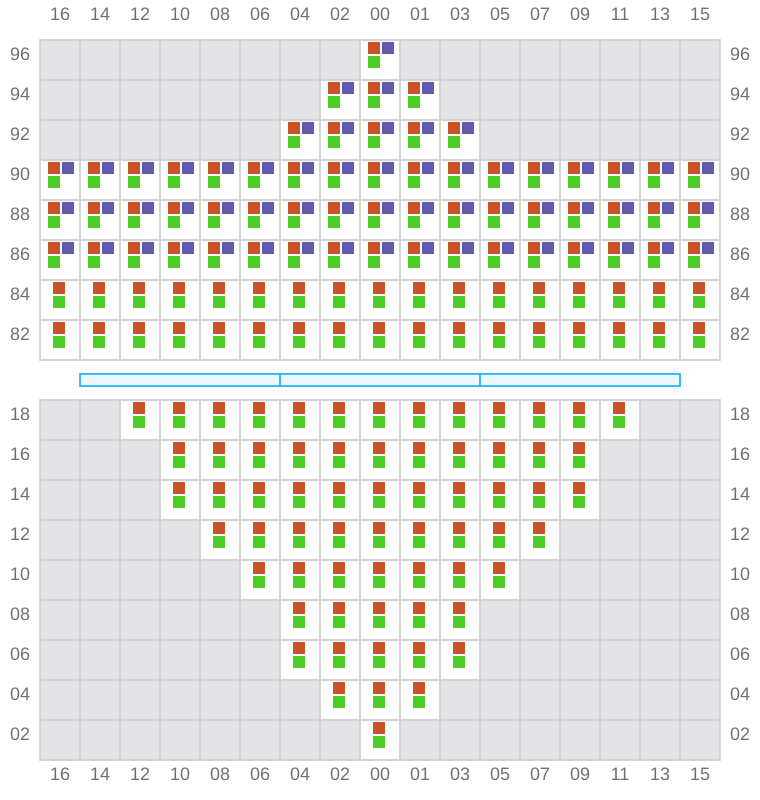

Bay 009 view and slots of MAERSK SAVANNAH

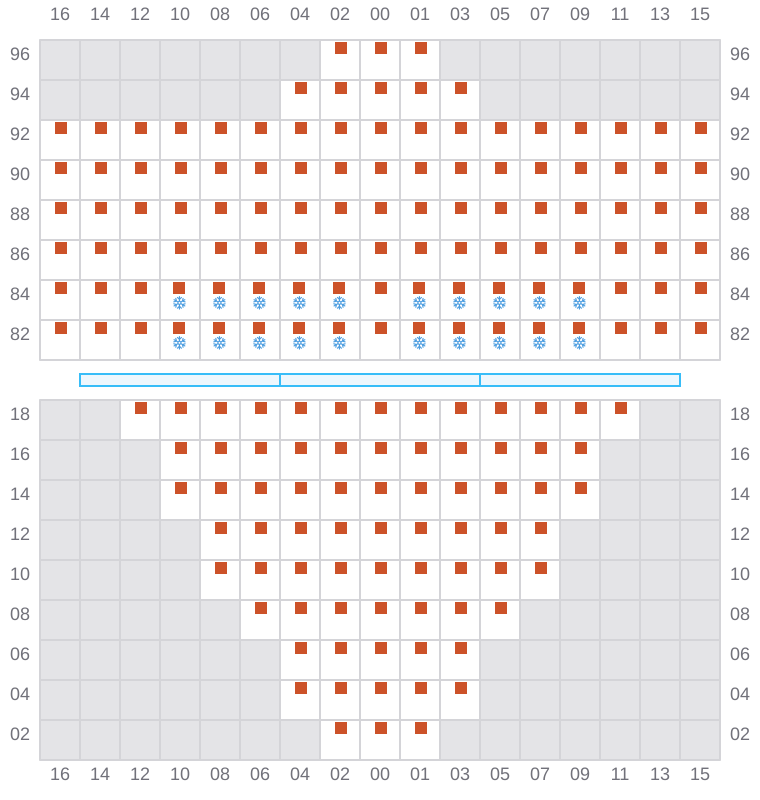

011

  • ←
  • → / ?
Bay 011 view and slots of MAERSK SAVANNAH

013 (014)

  • →

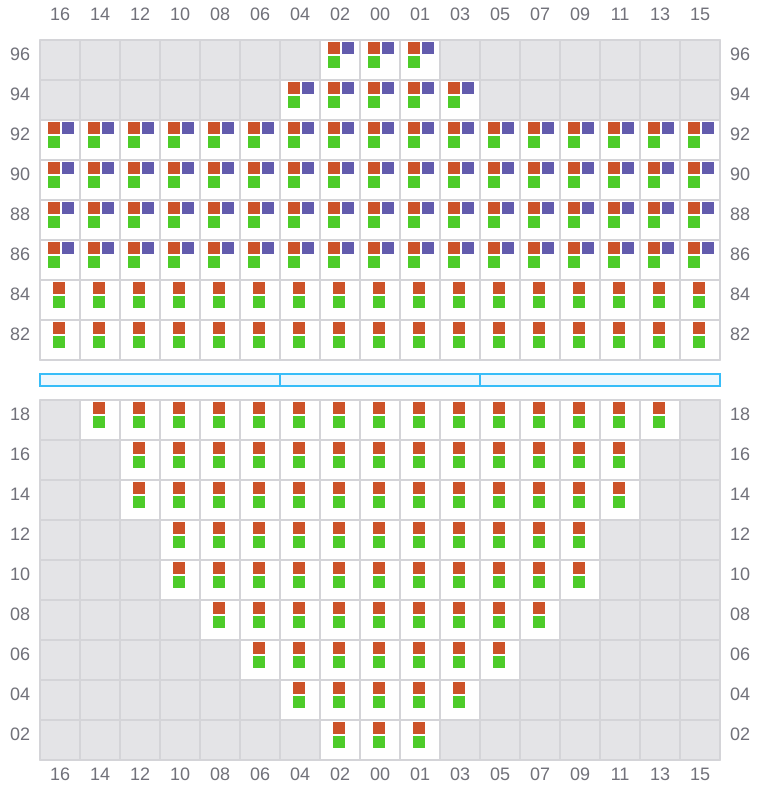

Bay 013 view and slots of MAERSK SAVANNAH

015

  • ←
  • → / ?

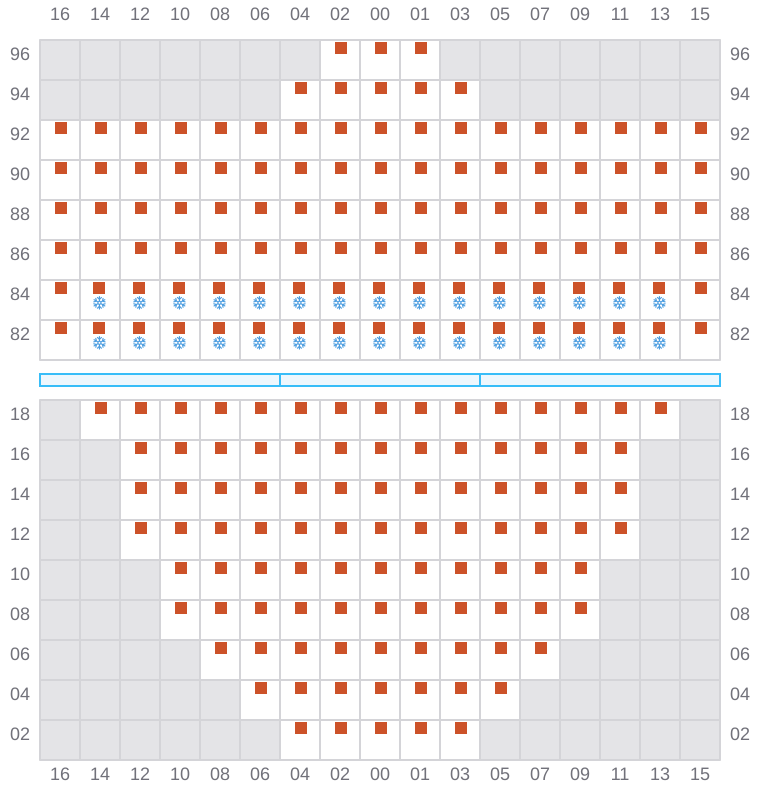

Bay 015 view and slots of MAERSK SAVANNAH

017 (018)

  • →

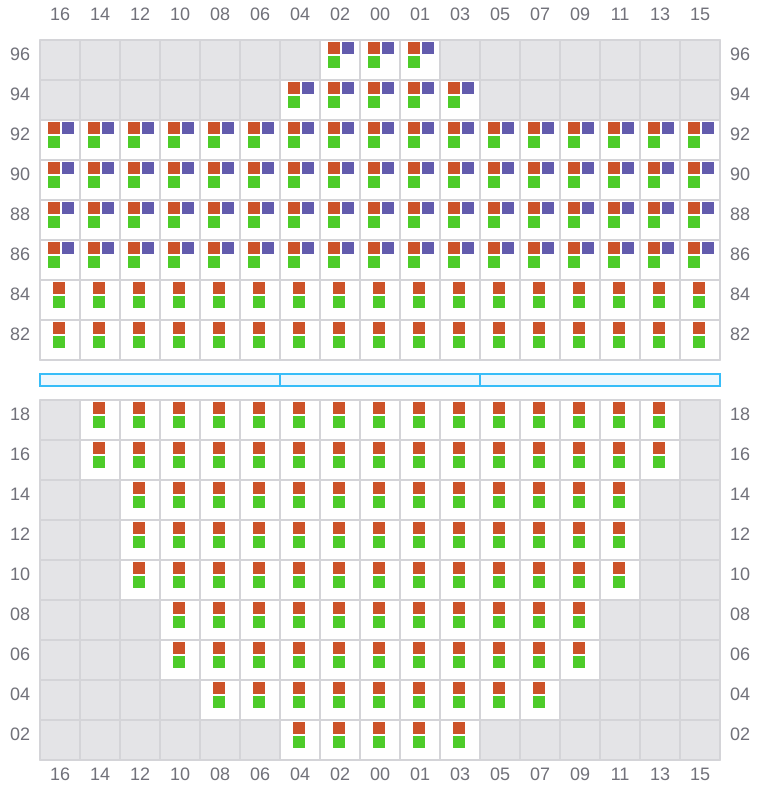

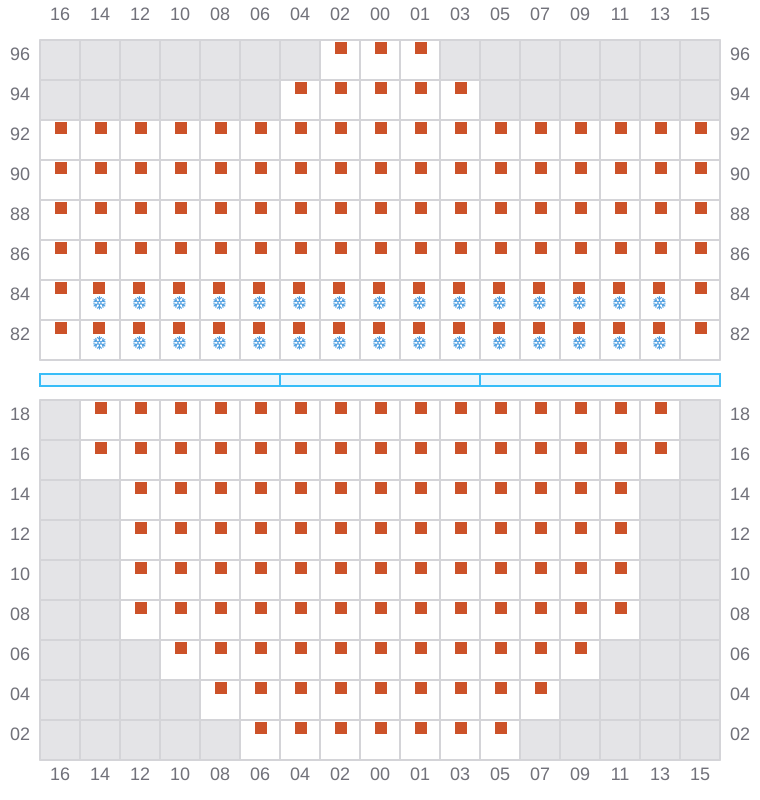

Bay 017 view and slots of MAERSK SAVANNAH

019

  • ←
  • → / ?

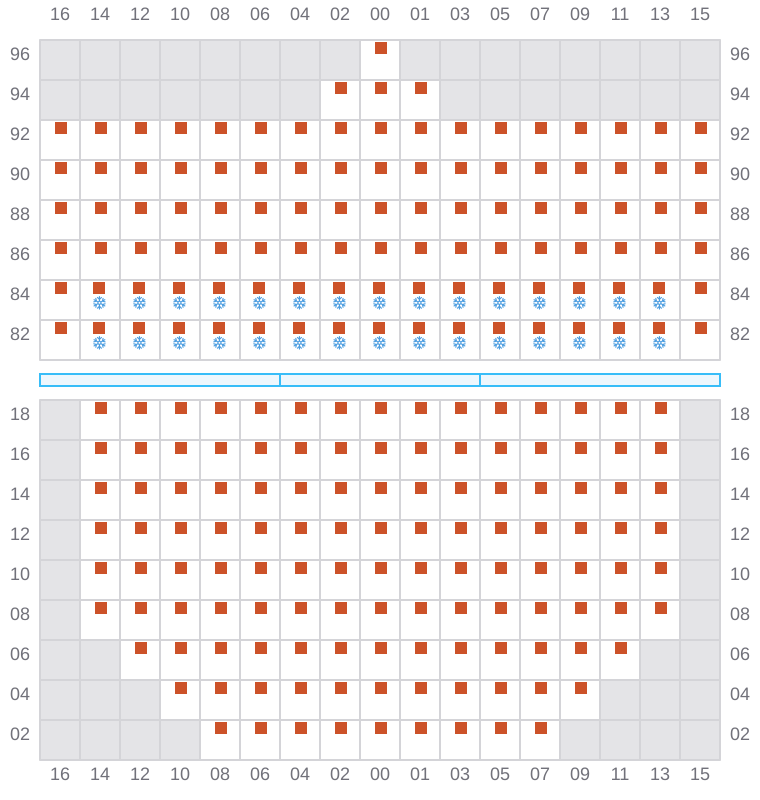

Bay 019 view and slots of MAERSK SAVANNAH

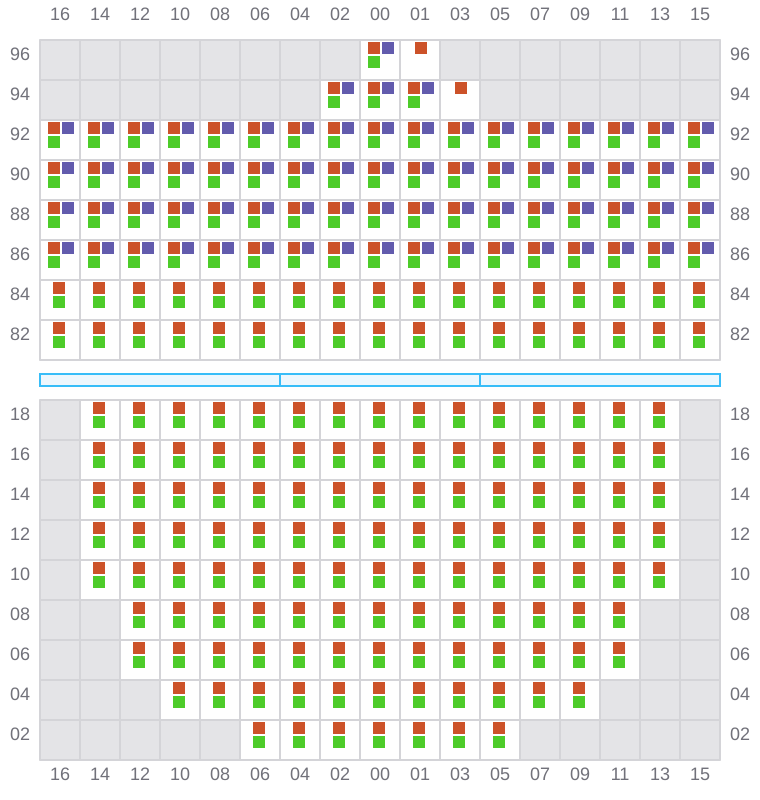

021 (022)

  • →
Bay 021 view and slots of MAERSK SAVANNAH

023

  • ←
  • → / ?

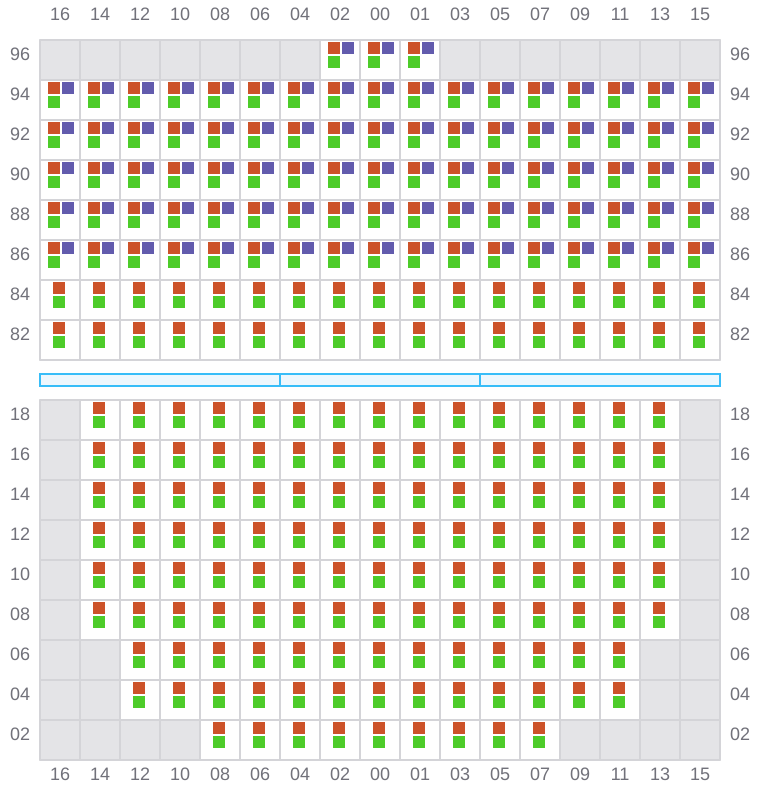

Bay 023 view and slots of MAERSK SAVANNAH

025 (026)

  • →
Bay 025 view and slots of MAERSK SAVANNAH

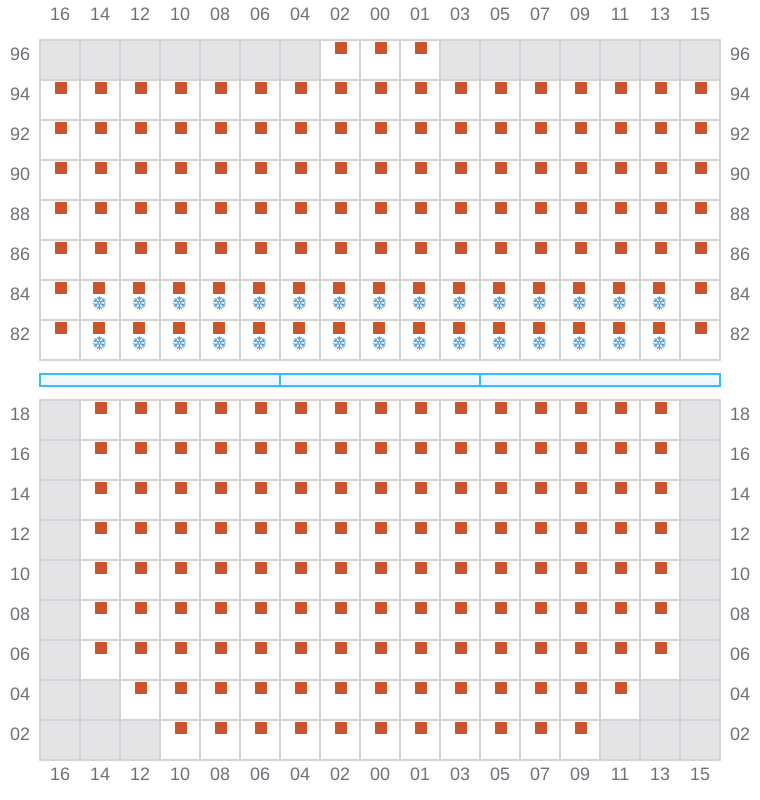

027

  • ←
  • → / ?

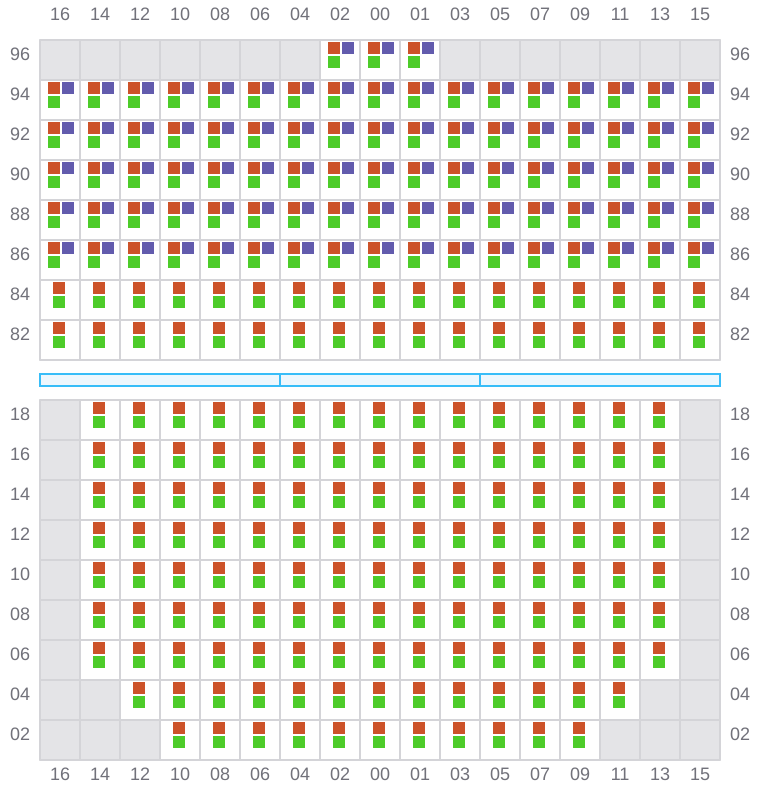

Bay 027 view and slots of MAERSK SAVANNAH

029 (030)

  • →

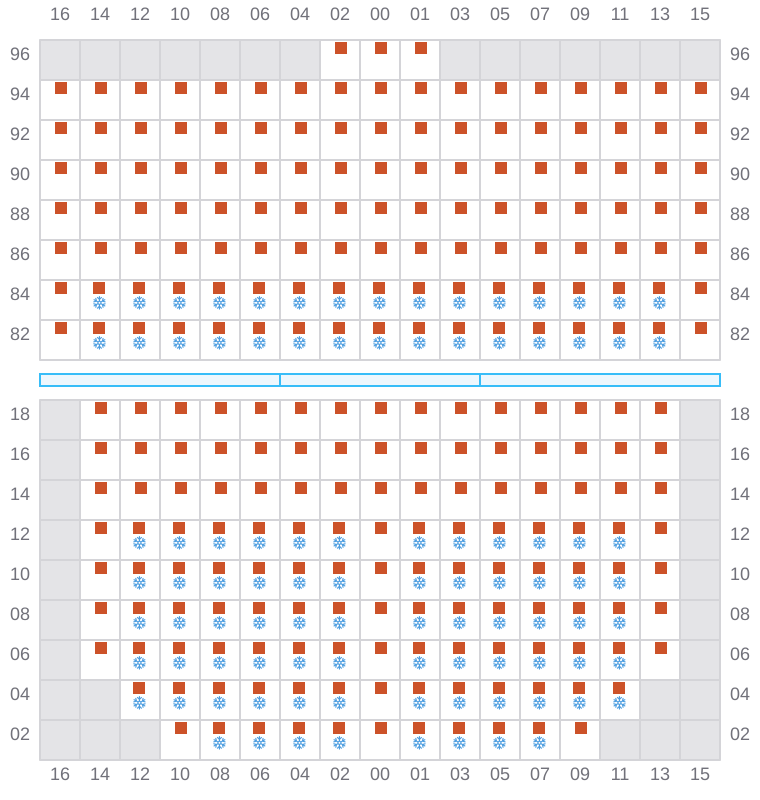

Bay 029 view and slots of MAERSK SAVANNAH

031

  • ←
  • →
Bay 031 view and slots of MAERSK SAVANNAH

033 (034)

  • →

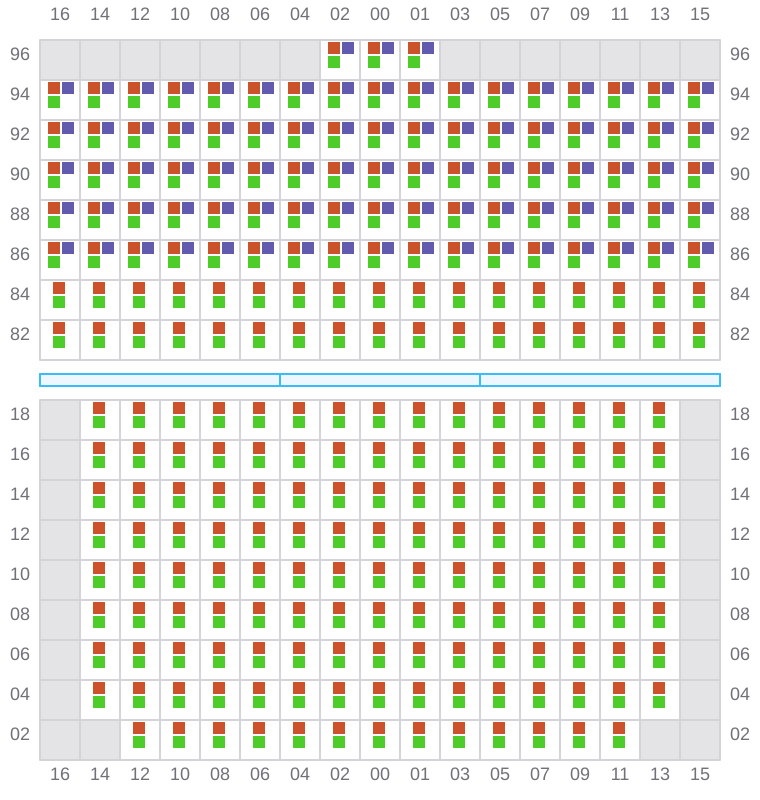

Bay 033 view and slots of MAERSK SAVANNAH

035

  • ←
  • → / ?

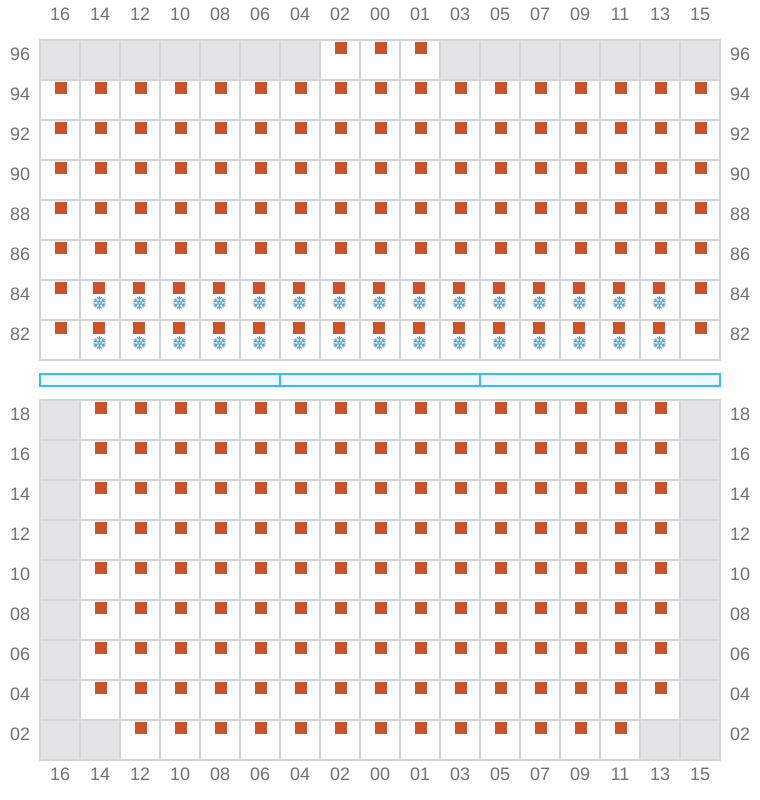

Bay 035 view and slots of MAERSK SAVANNAH

037 (038)

  • →

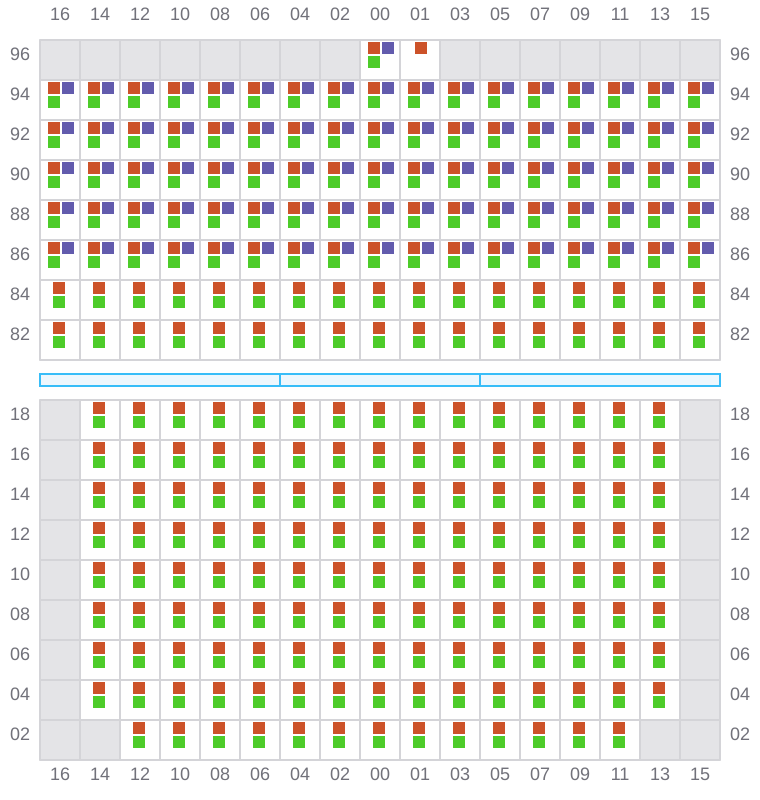

Bay 037 view and slots of MAERSK SAVANNAH

039

  • ←
  • →

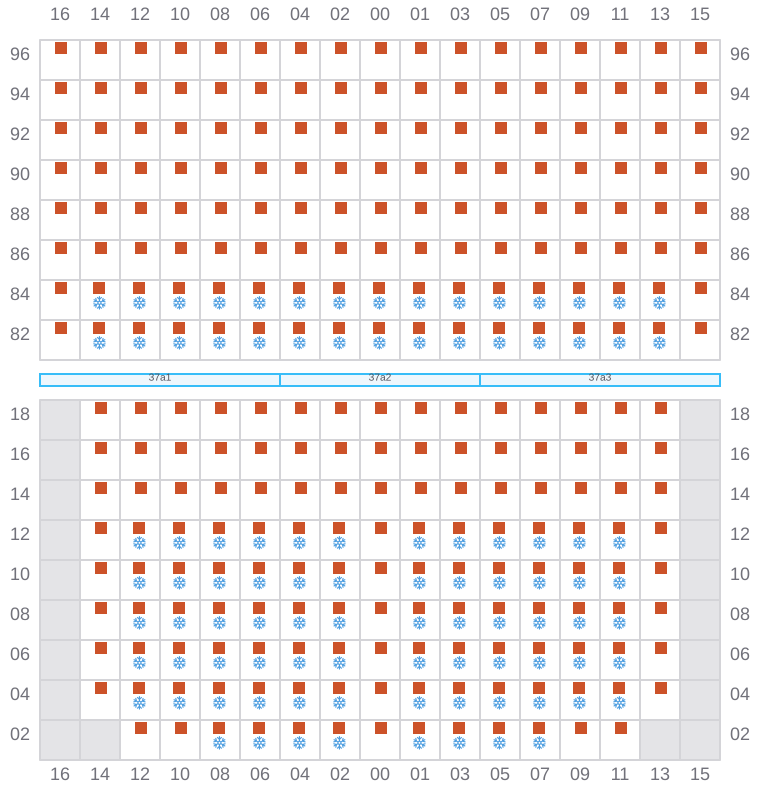

Bay 039 view and slots of MAERSK SAVANNAH

041 (042)

  • →

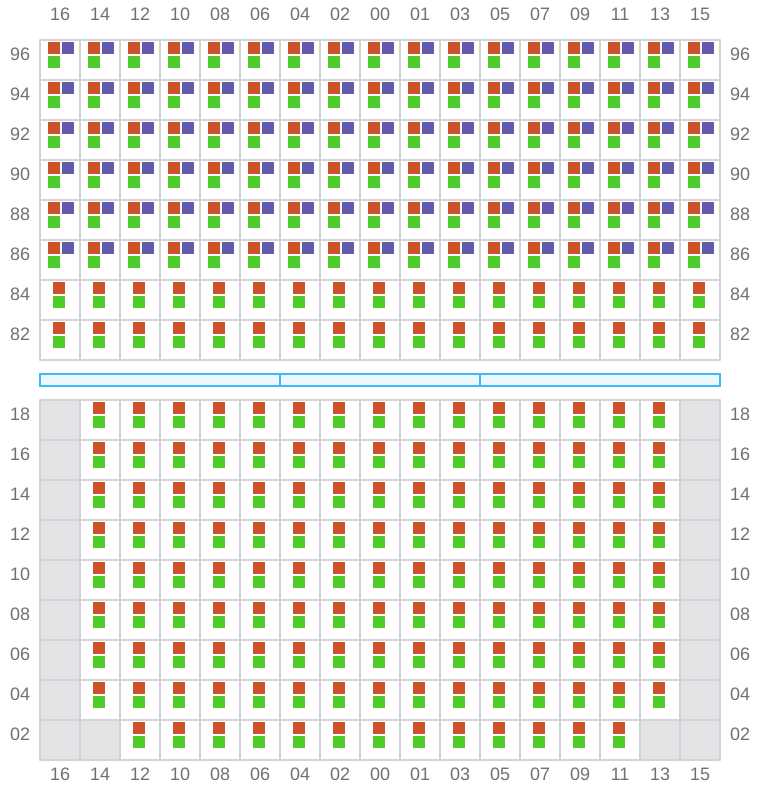

Bay 041 view and slots of MAERSK SAVANNAH

043

  • ←
  • → / ?
Bay 043 view and slots of MAERSK SAVANNAH

045 (046)

  • →

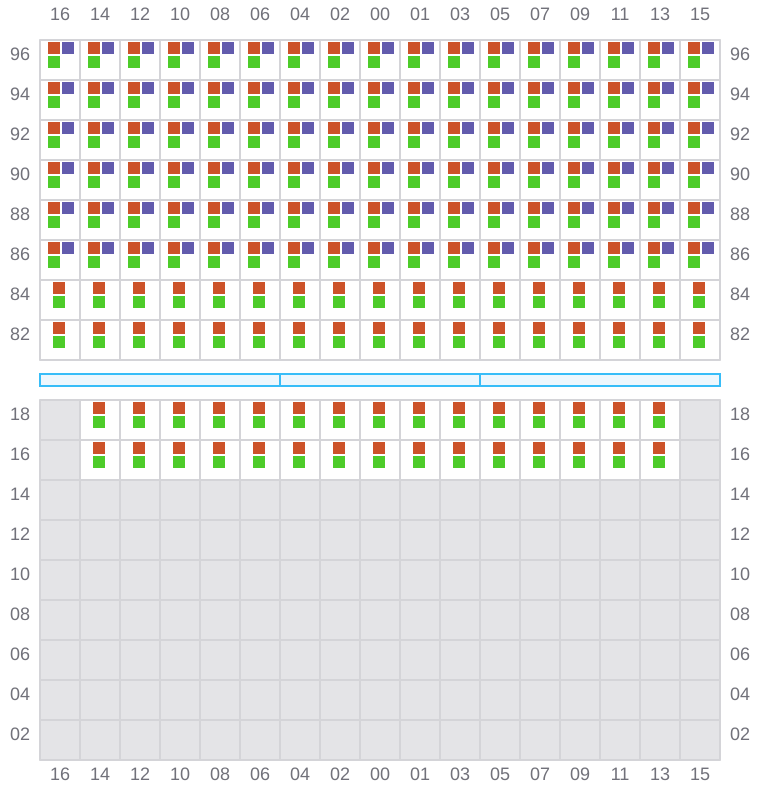

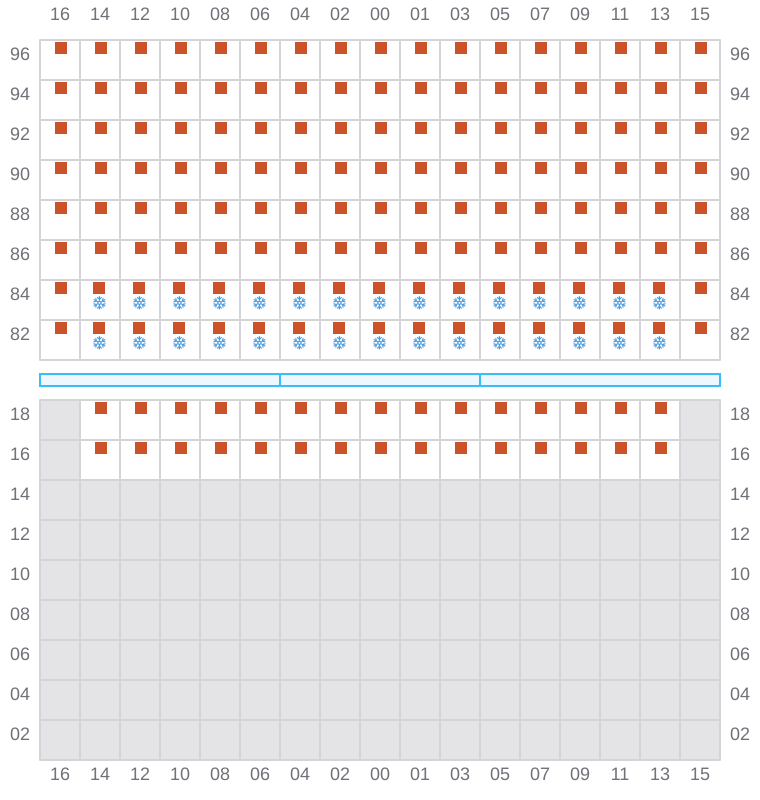

Bay 045 view and slots of MAERSK SAVANNAH

047

  • ←
  • → / ?
Bay 047 view and slots of MAERSK SAVANNAH

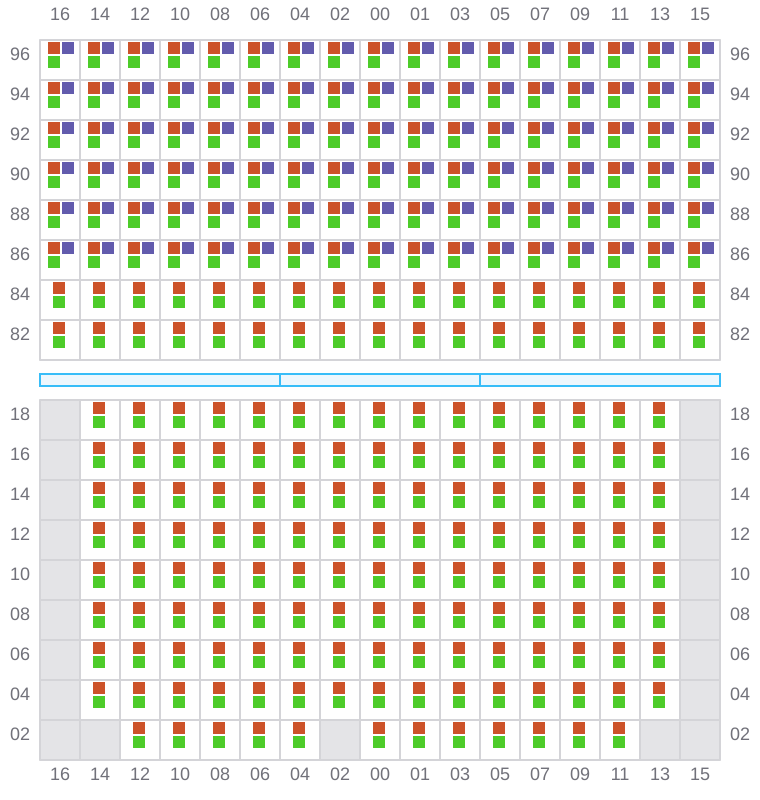

049 (050)

  • →
Bay 049 view and slots of MAERSK SAVANNAH

051

  • ←
  • → / ?

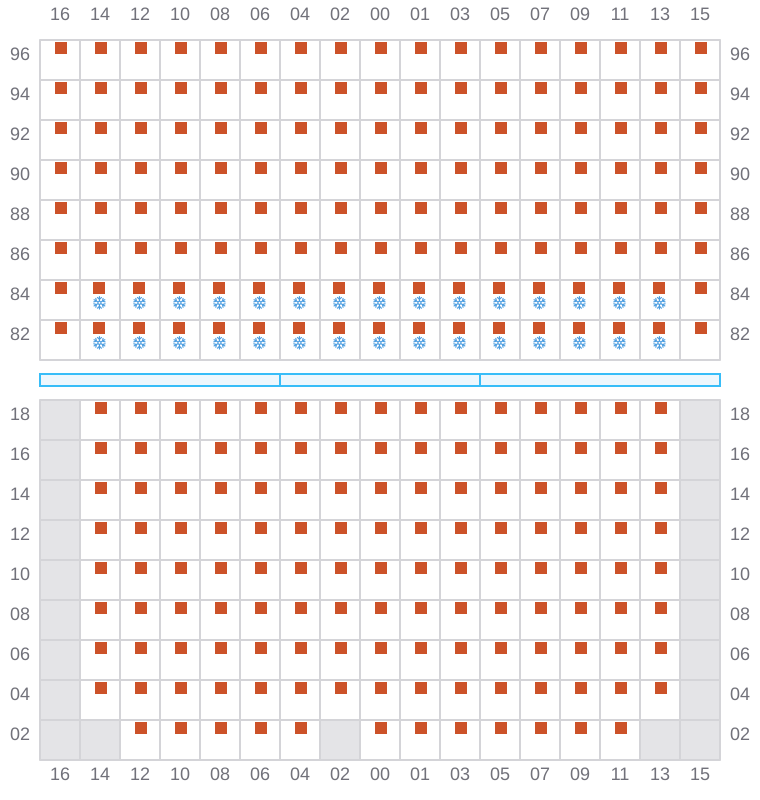

Bay 051 view and slots of MAERSK SAVANNAH

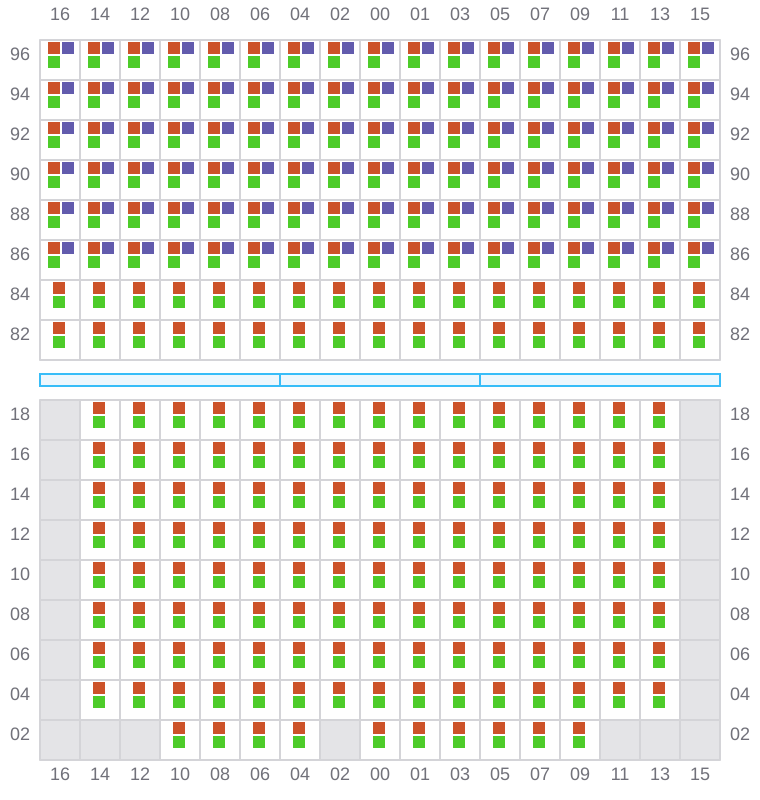

053 (054)

  • →
Bay 053 view and slots of MAERSK SAVANNAH

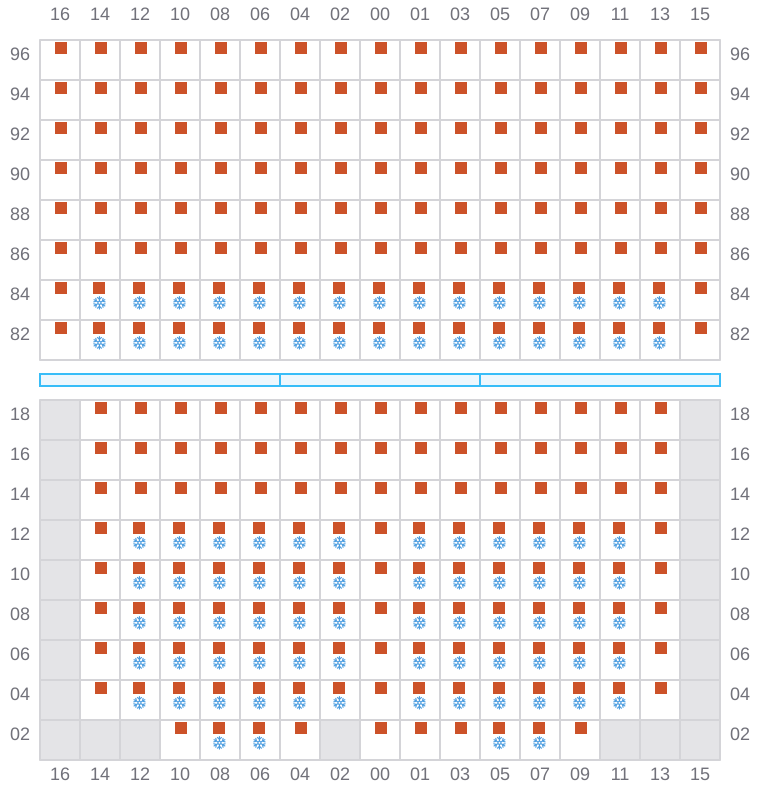

055

  • ←
  • →
Bay 055 view and slots of MAERSK SAVANNAH

057 (058)

  • →

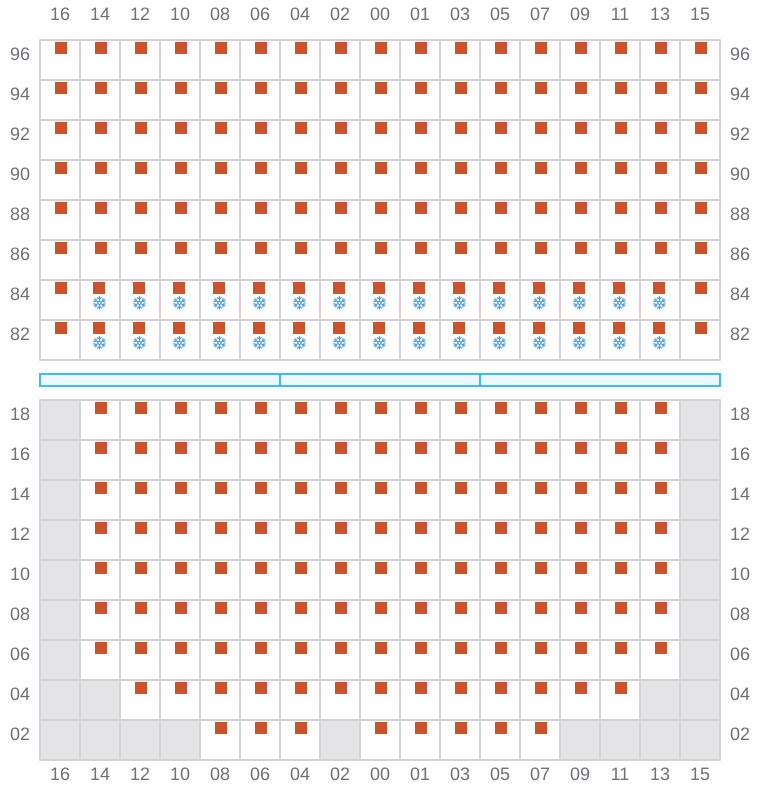

Bay 057 view and slots of MAERSK SAVANNAH

059

  • ←
  • → / ?
Bay 059 view and slots of MAERSK SAVANNAH

061 (062)

  • →

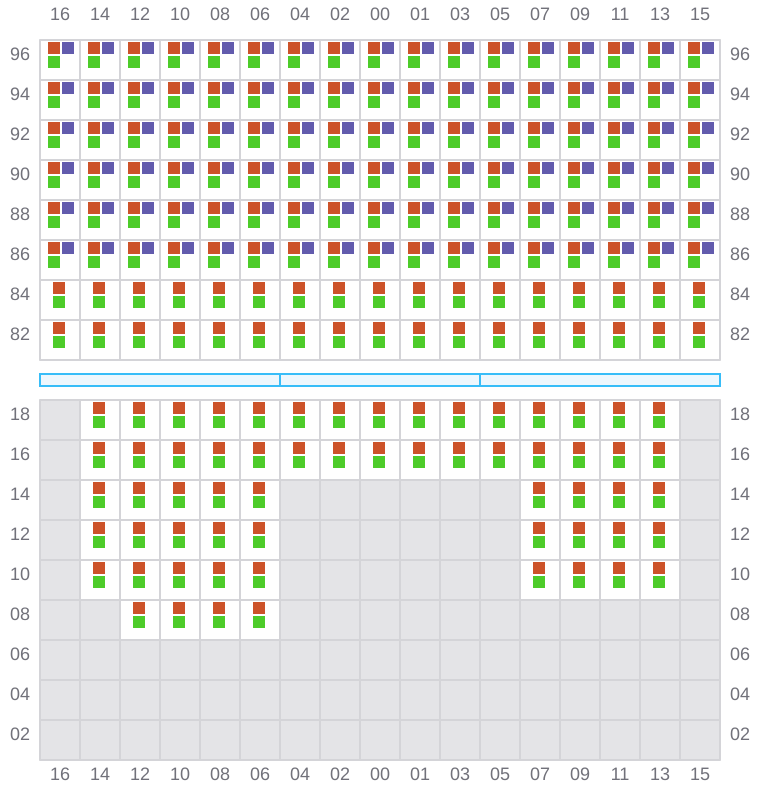

Bay 061 view and slots of MAERSK SAVANNAH

063

  • ←
  • → / ?

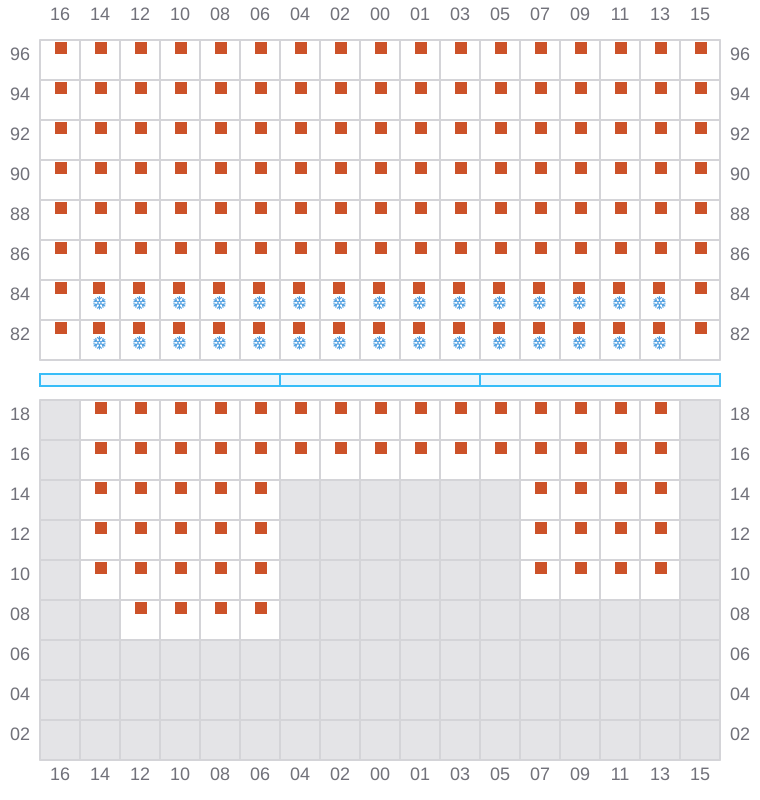

Bay 063 view and slots of MAERSK SAVANNAH

065 (066)

  • →

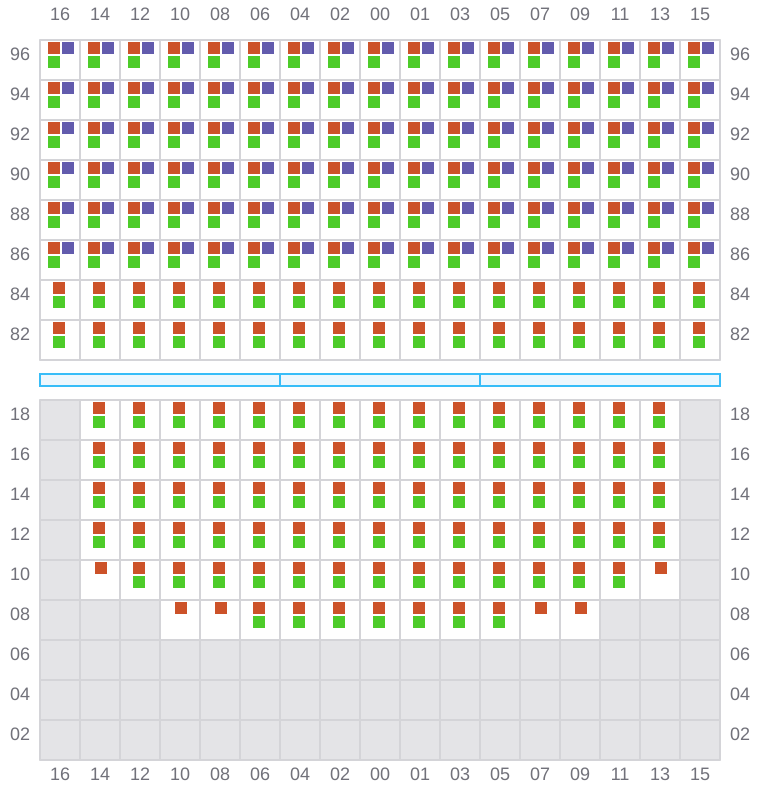

Bay 065 view and slots of MAERSK SAVANNAH

067

  • ←
  • → / ?

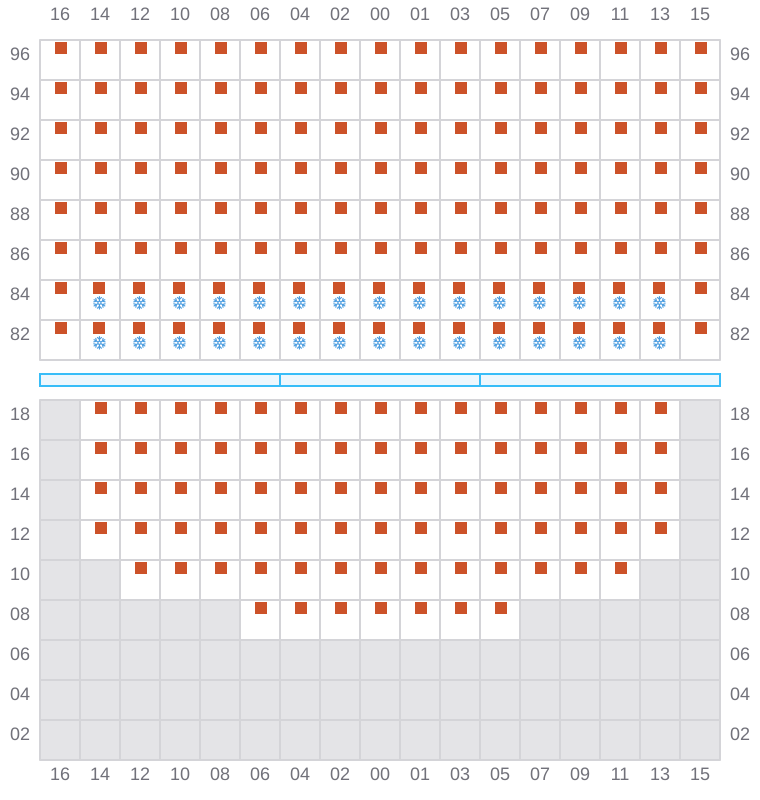

Bay 067 view and slots of MAERSK SAVANNAH

069 (070)

  • →

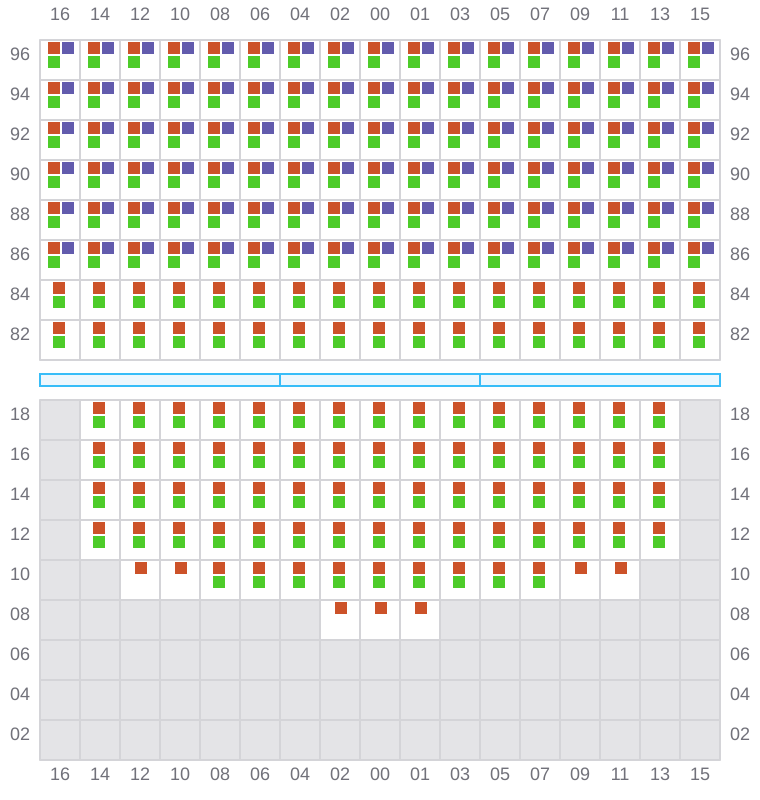

Bay 069 view and slots of MAERSK SAVANNAH

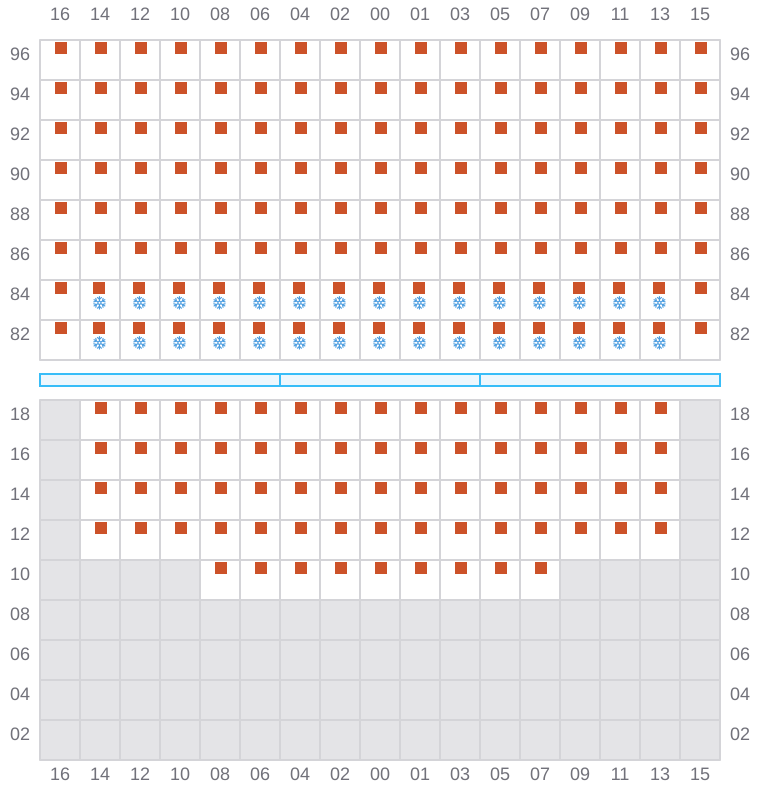

071

  • ←
  • → / ?
Bay 071 view and slots of MAERSK SAVANNAH

073 (074)

  • →

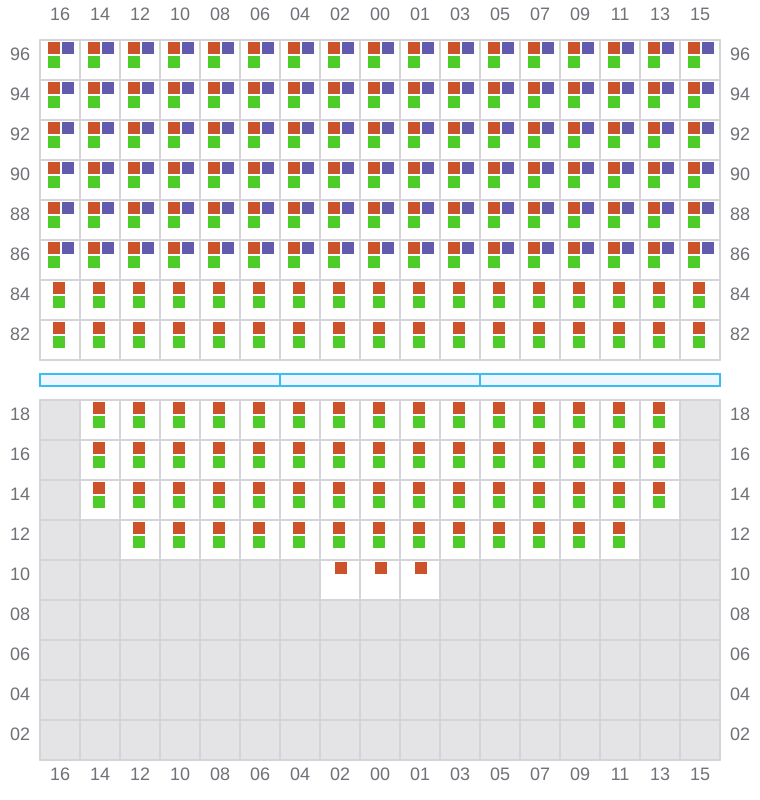

Bay 073 view and slots of MAERSK SAVANNAH

075

  • ←
  • → / ?

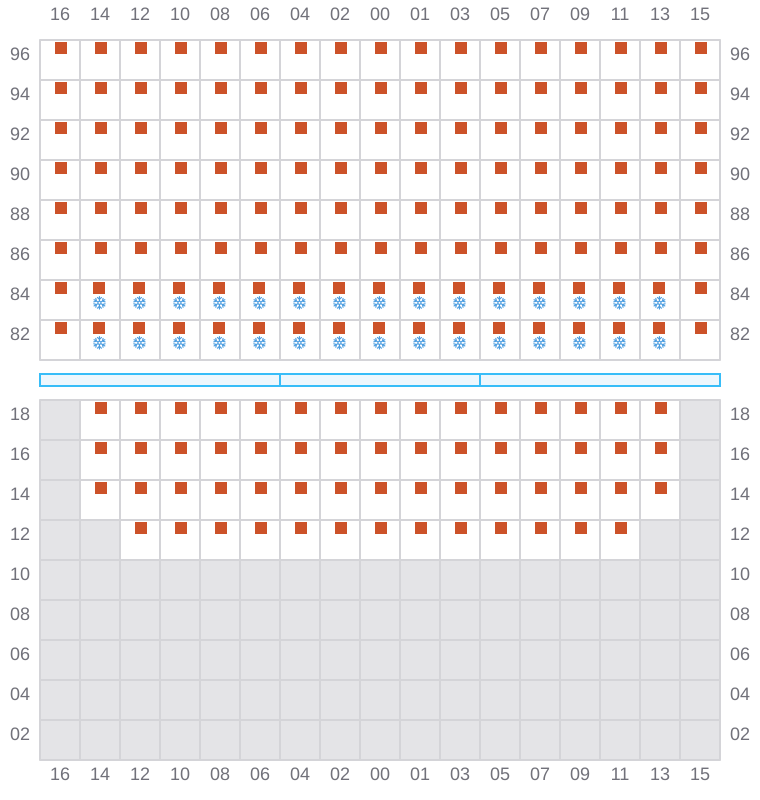

Bay 075 view and slots of MAERSK SAVANNAH

077 (078)

  • → / ?

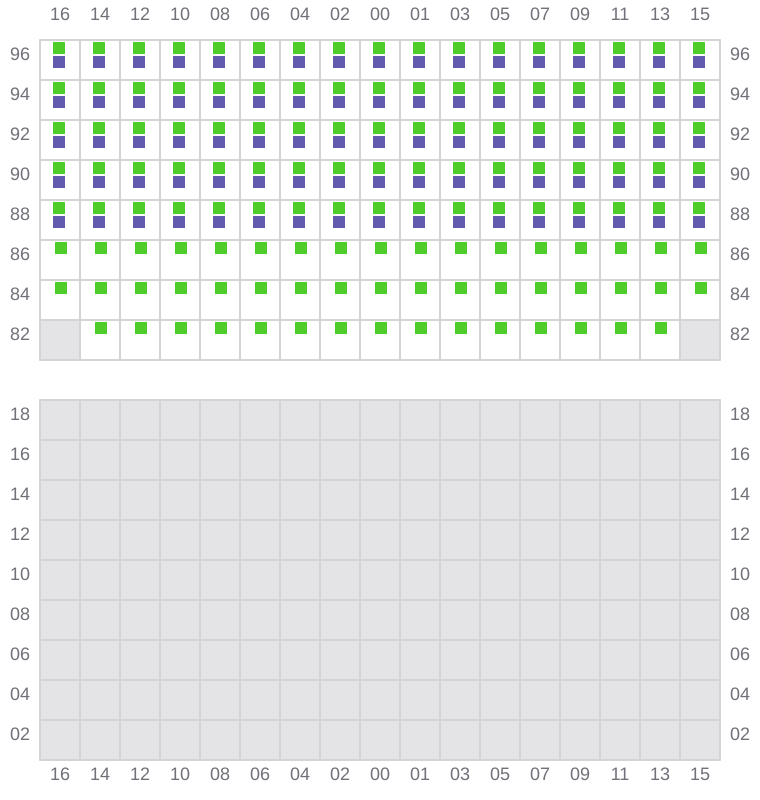

Bay 077 view and slots of MAERSK SAVANNAH
