MAERSK SEBAROK
9315238 | S6CH4 | 9315238 by ********* Last update: Thu Mar 21 2024

General Info

Ship Name:MAERSK SEBAROK
IMO Code:9315238
Call Sign:S6CH4
Line Operator:9315238
Class Name for Sister Ships:213
Year Built:2007
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):307.00
LOA (Length Overall):307.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-

Size Summary

ISO Bays:073
Max ISO Row:16
Center Line Row:No
Max Above ISO Tier:96
Min Above ISO Tier:82
Max Below ISO Tier:18
Min Below ISO Tier:02
Total TEU:7,013

Centers of Gravity

LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

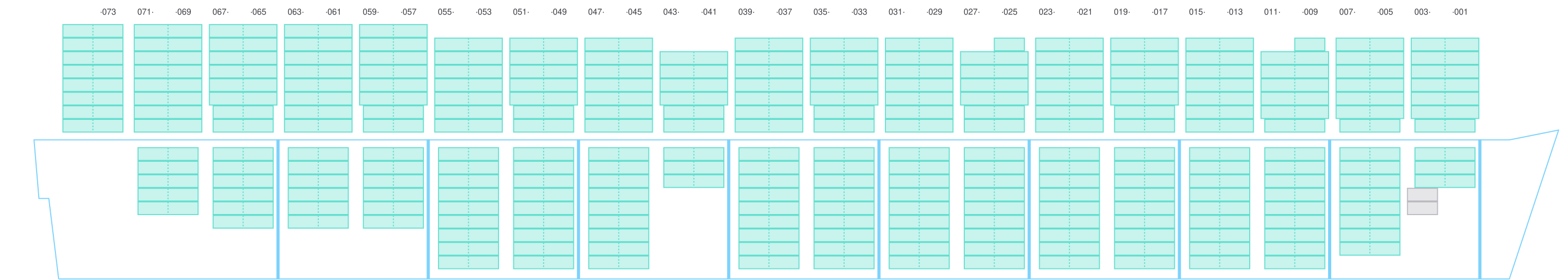

Side View

Side view of MAERSK SEBAROK

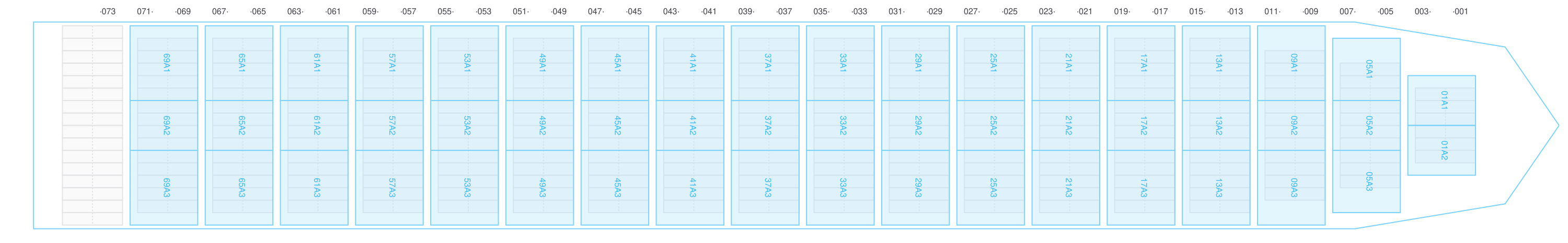

Hatch-Covers View

Deck view of MAERSK SEBAROK

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot

001 (002)

  • →

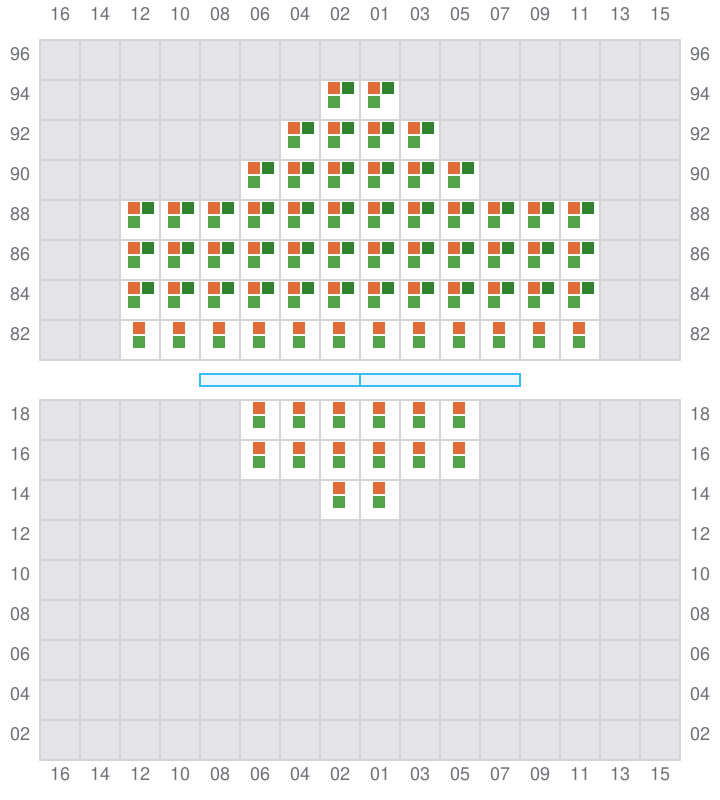

Bay 001 view and slots of MAERSK SEBAROK

003

  • ←

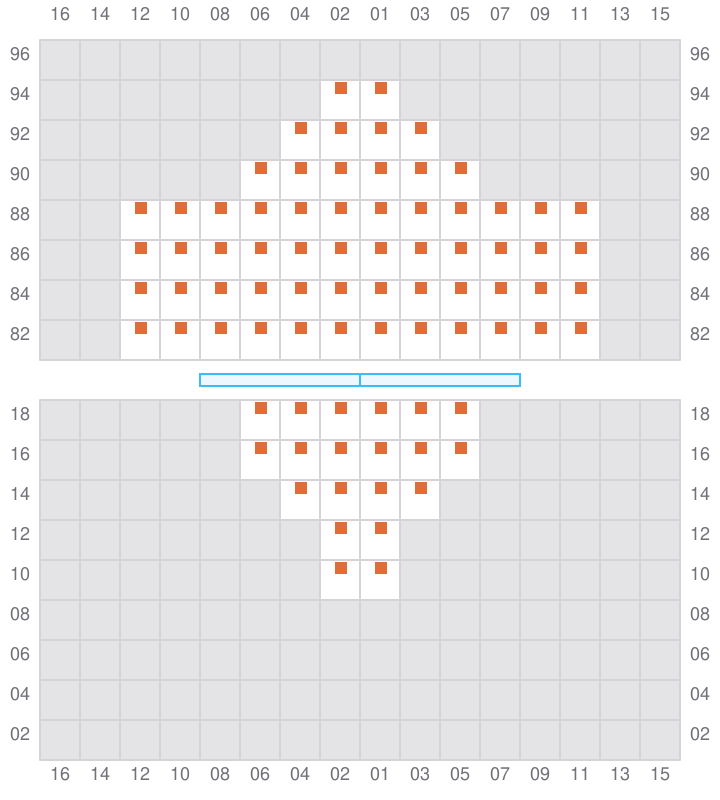

Bay 003 view and slots of MAERSK SEBAROK

005 (006)

  • →

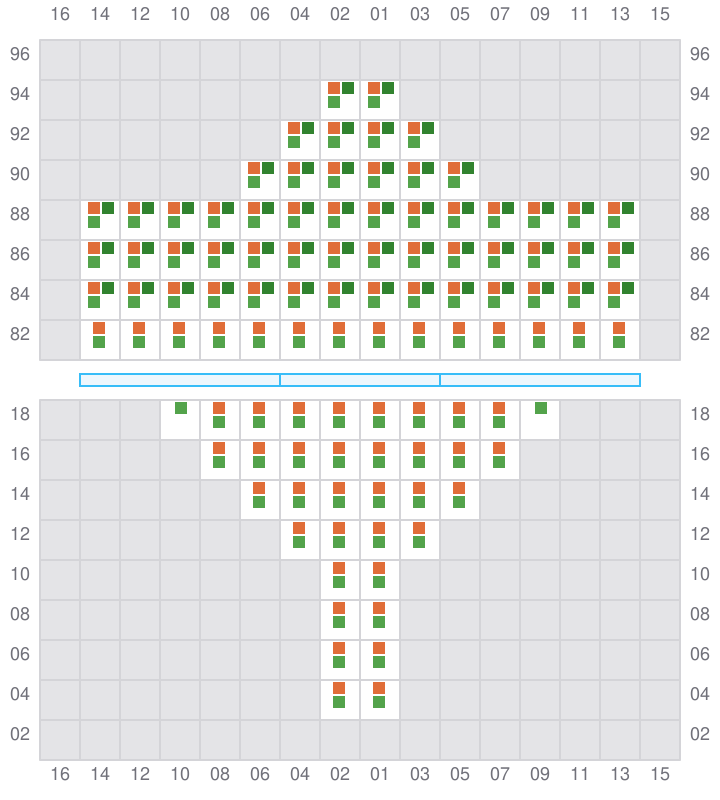

Bay 005 view and slots of MAERSK SEBAROK

007

  • ←

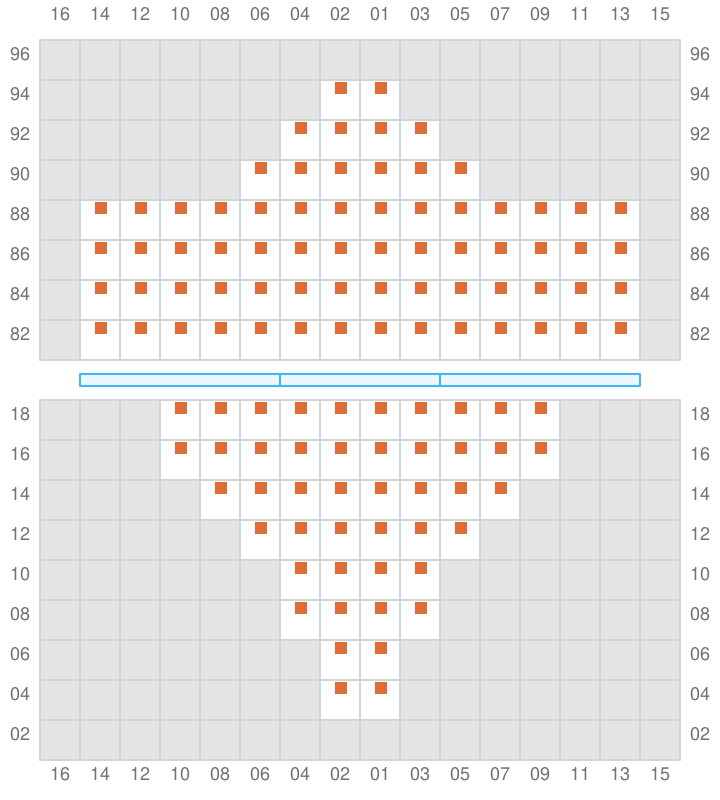

Bay 007 view and slots of MAERSK SEBAROK

009 (010)

  • →

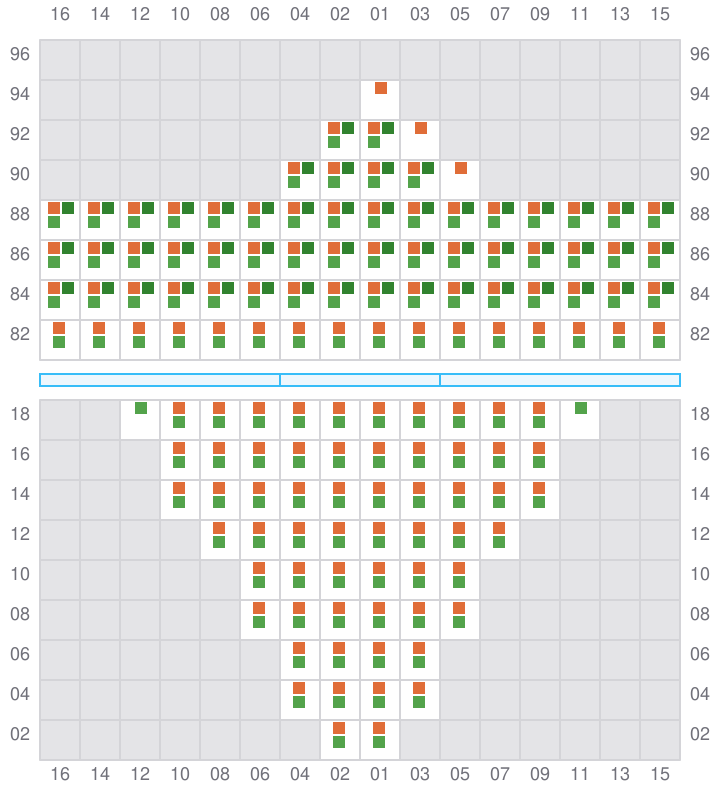

Bay 009 view and slots of MAERSK SEBAROK

011

  • ←
Bay 011 view and slots of MAERSK SEBAROK

013 (014)

  • →

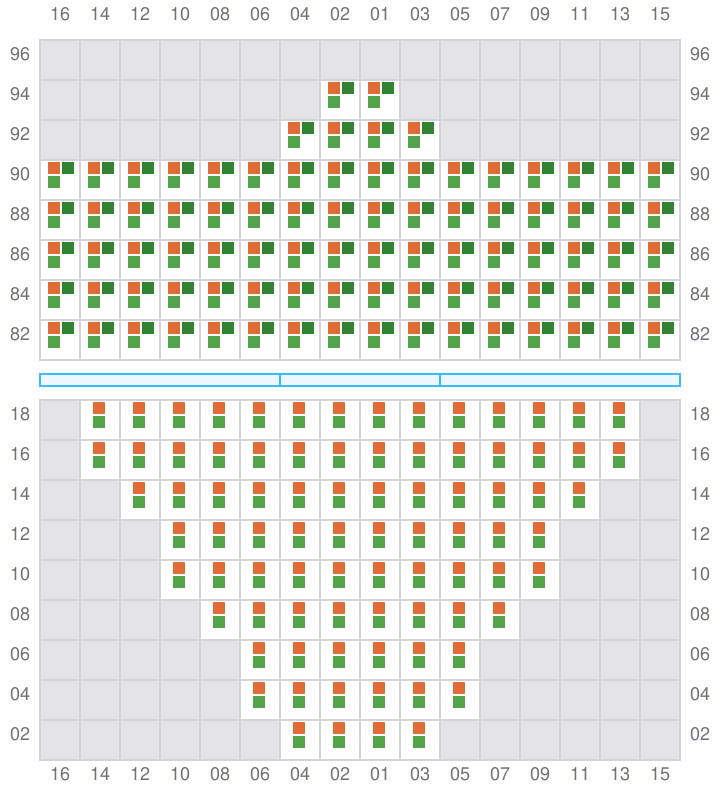

Bay 013 view and slots of MAERSK SEBAROK

015

  • ←

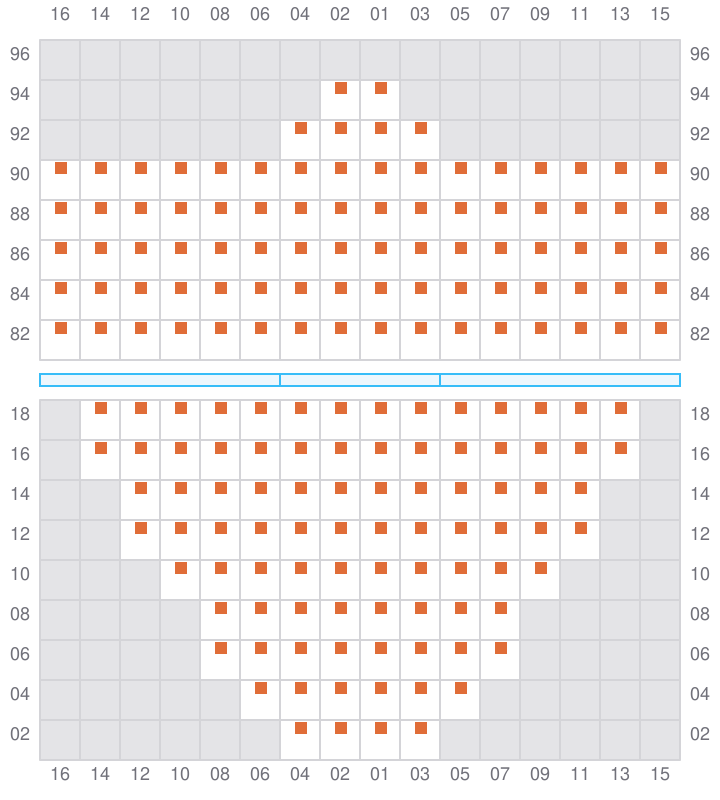

Bay 015 view and slots of MAERSK SEBAROK

017 (018)

  • →

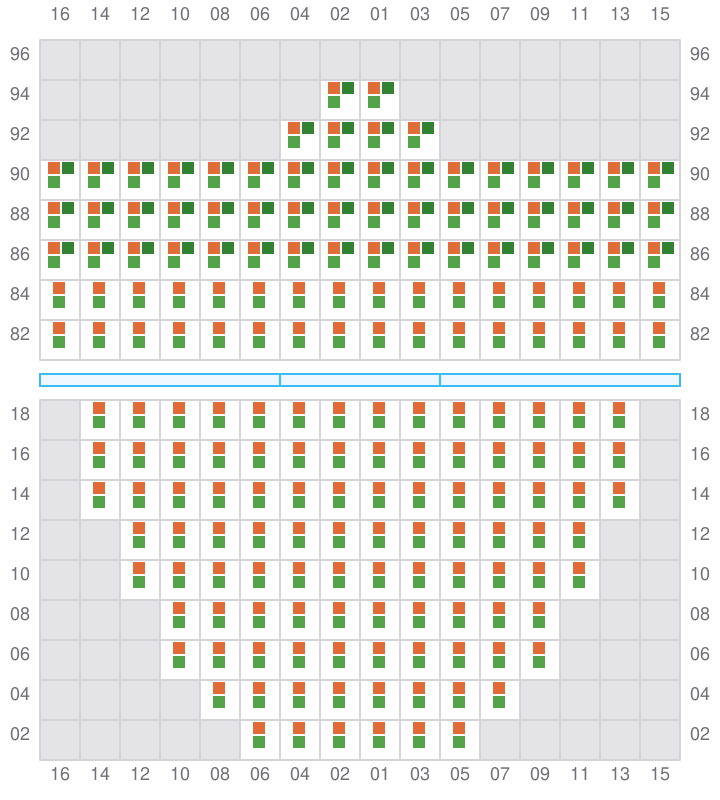

Bay 017 view and slots of MAERSK SEBAROK

019

  • ←
Bay 019 view and slots of MAERSK SEBAROK

021 (022)

  • →

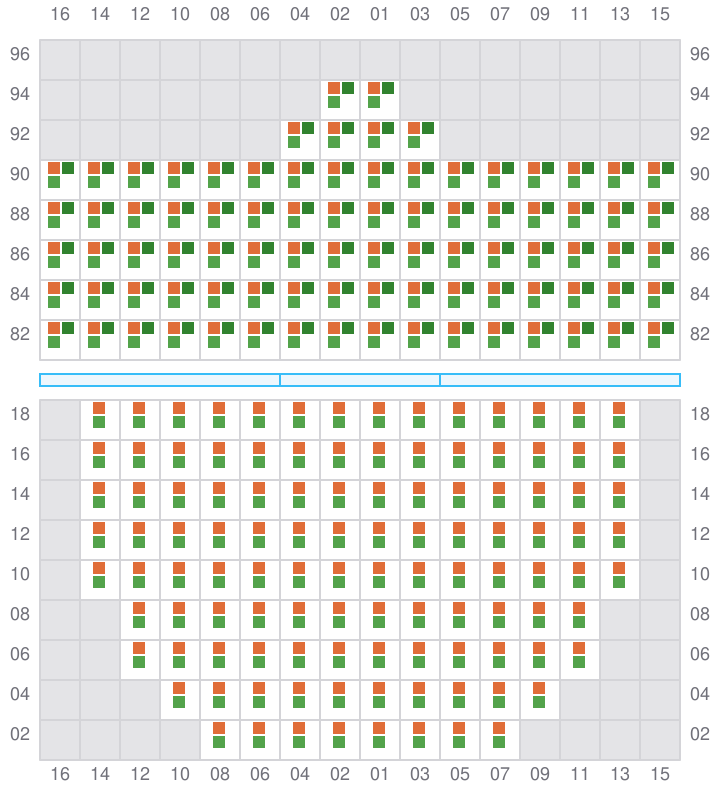

Bay 021 view and slots of MAERSK SEBAROK

023

  • ←
Bay 023 view and slots of MAERSK SEBAROK

025 (026)

  • →

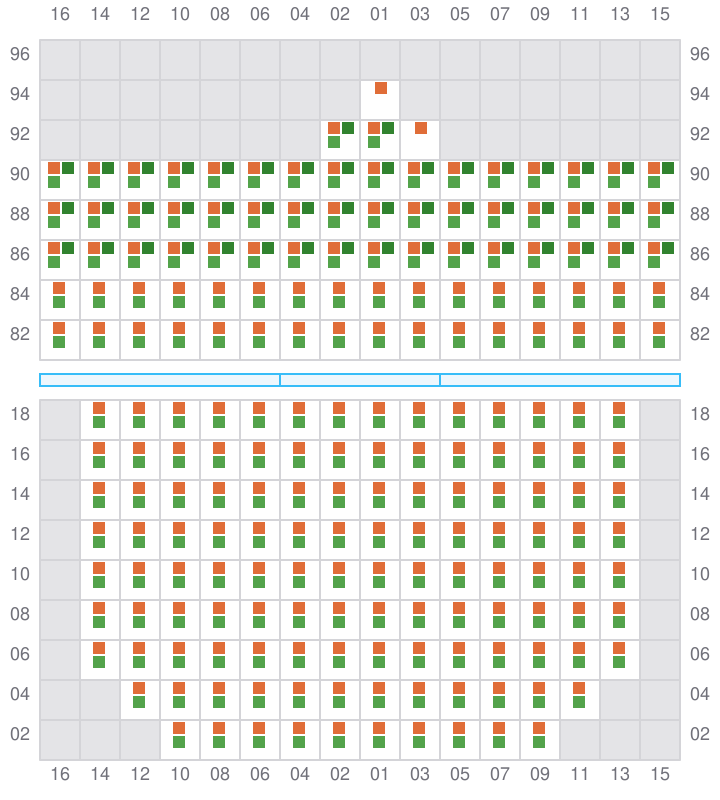

Bay 025 view and slots of MAERSK SEBAROK

027

  • ←

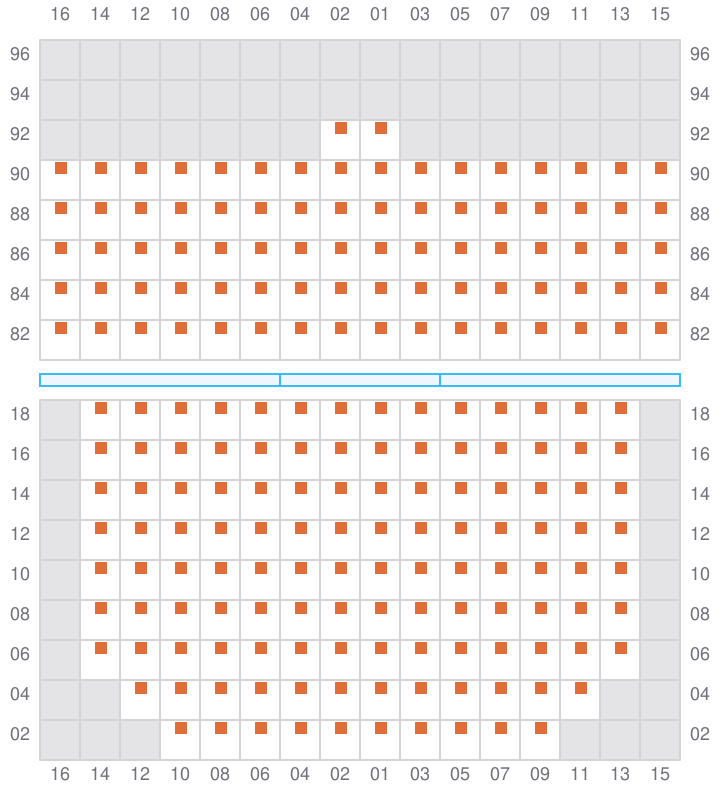

Bay 027 view and slots of MAERSK SEBAROK

029 (030)

  • →
  • ? / ←

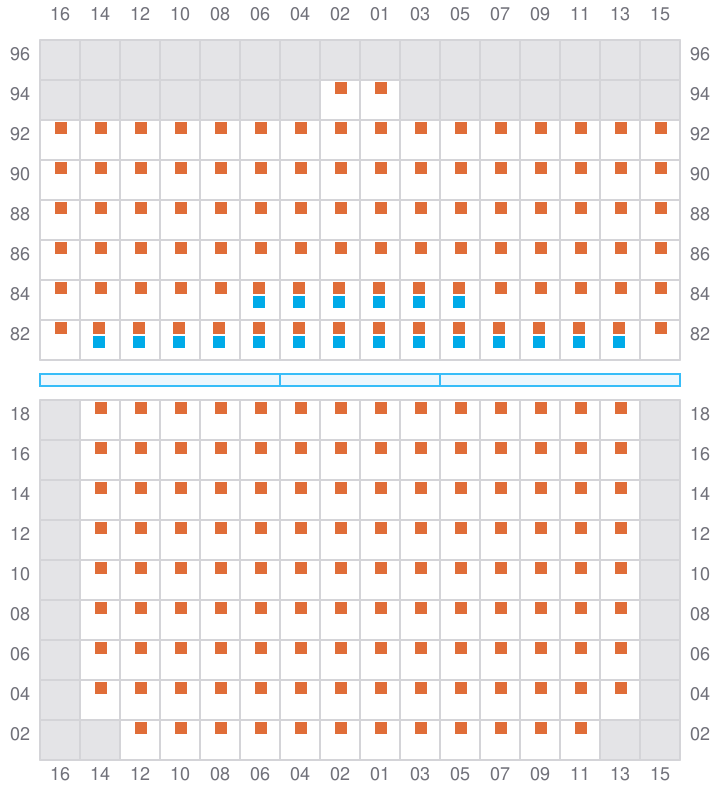

Bay 029 view and slots of MAERSK SEBAROK

031

  • ←
  • → / ?

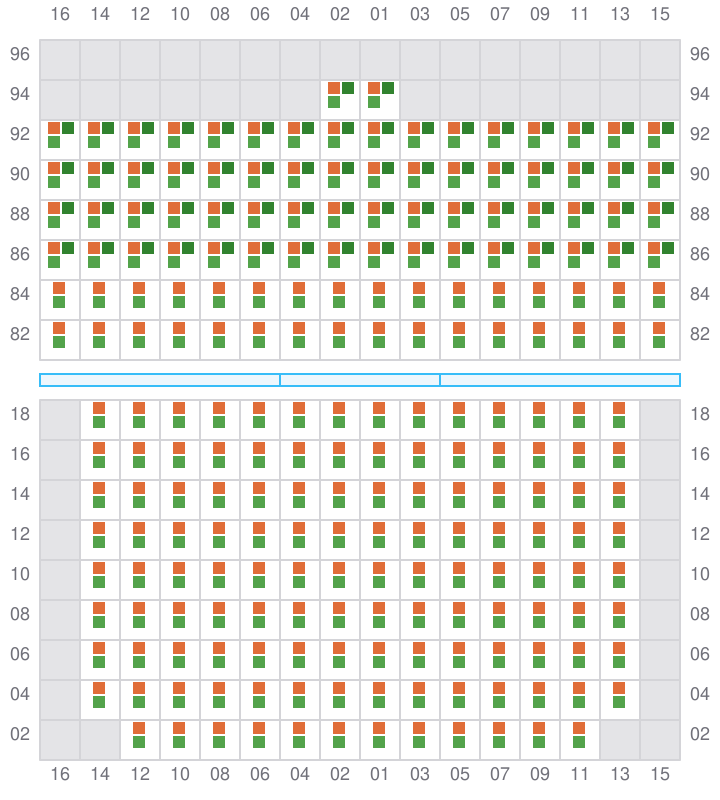

Bay 031 view and slots of MAERSK SEBAROK

033 (034)

  • →
Bay 033 view and slots of MAERSK SEBAROK

035

  • ←
  • → / ?

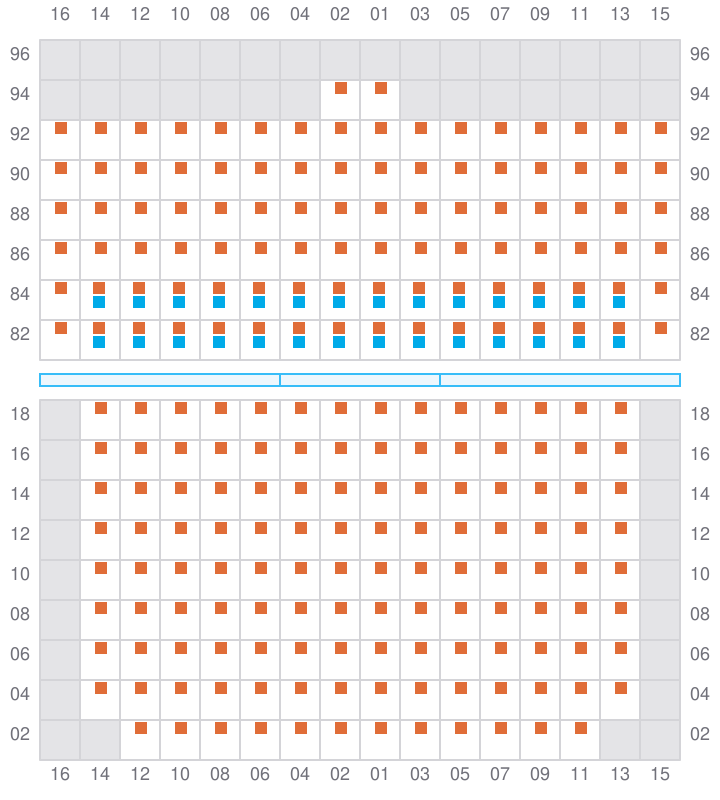

Bay 035 view and slots of MAERSK SEBAROK

037 (038)

  • →
  • ? / ←
Bay 037 view and slots of MAERSK SEBAROK

039

  • ←
  • → / ?
Bay 039 view and slots of MAERSK SEBAROK

041 (042)

  • →

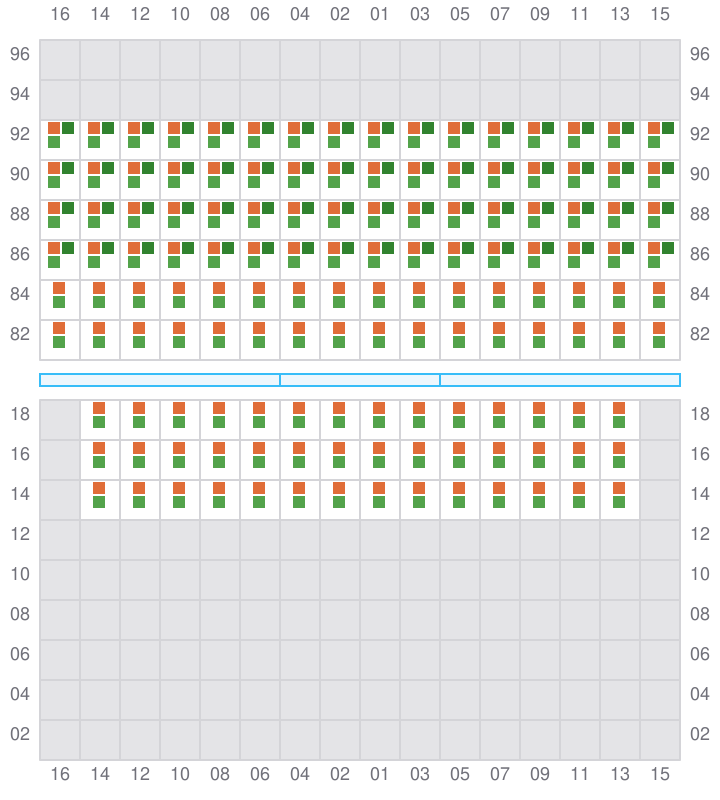

Bay 041 view and slots of MAERSK SEBAROK

043

  • ←
  • → / ?

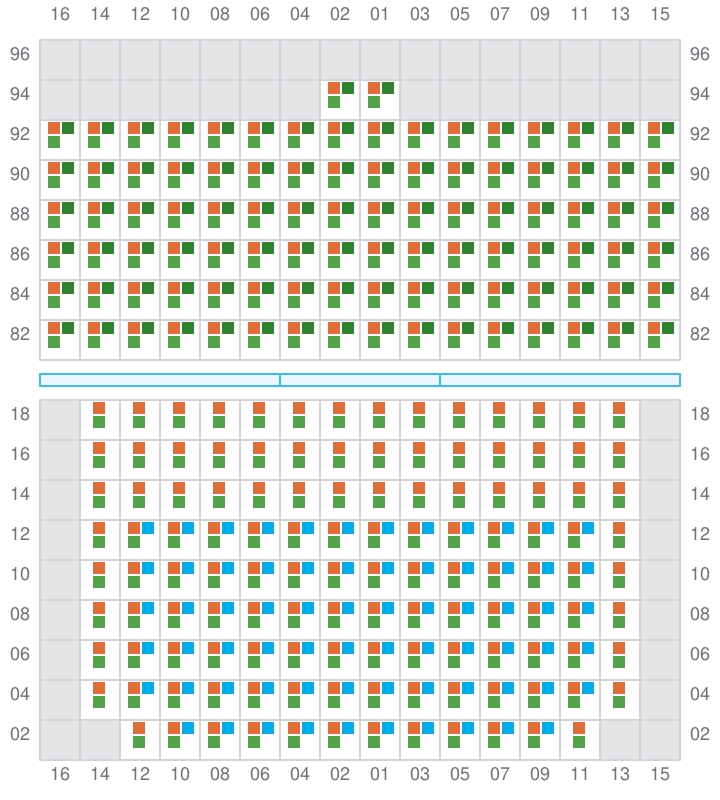

Bay 043 view and slots of MAERSK SEBAROK

045 (046)

  • →

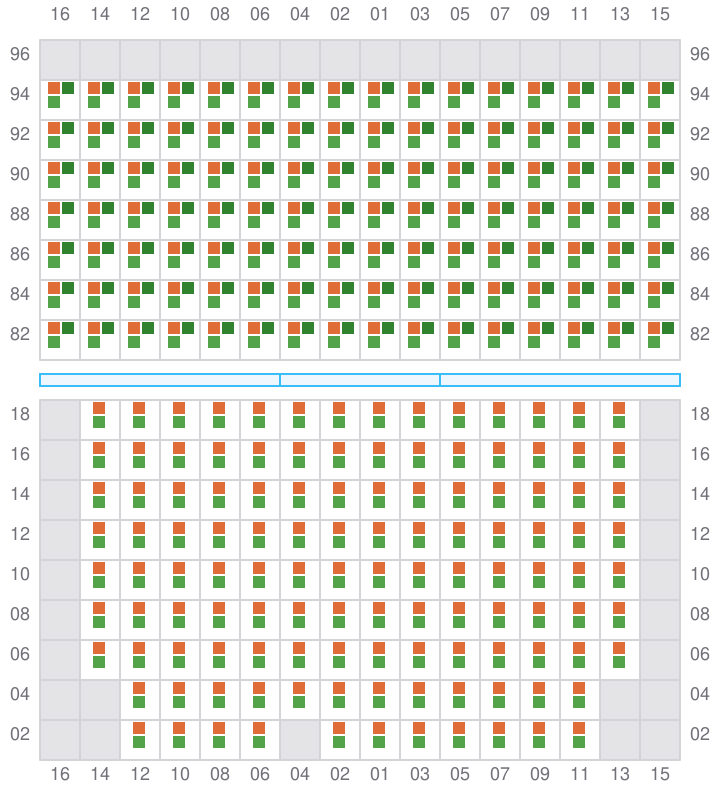

Bay 045 view and slots of MAERSK SEBAROK

047

  • ←
  • → / ?

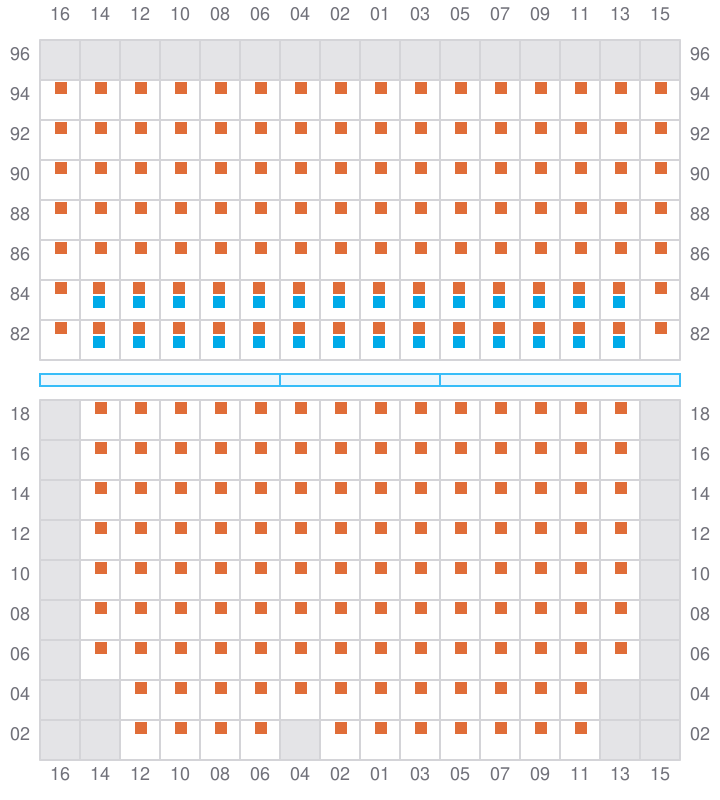

Bay 047 view and slots of MAERSK SEBAROK

049 (050)

  • →

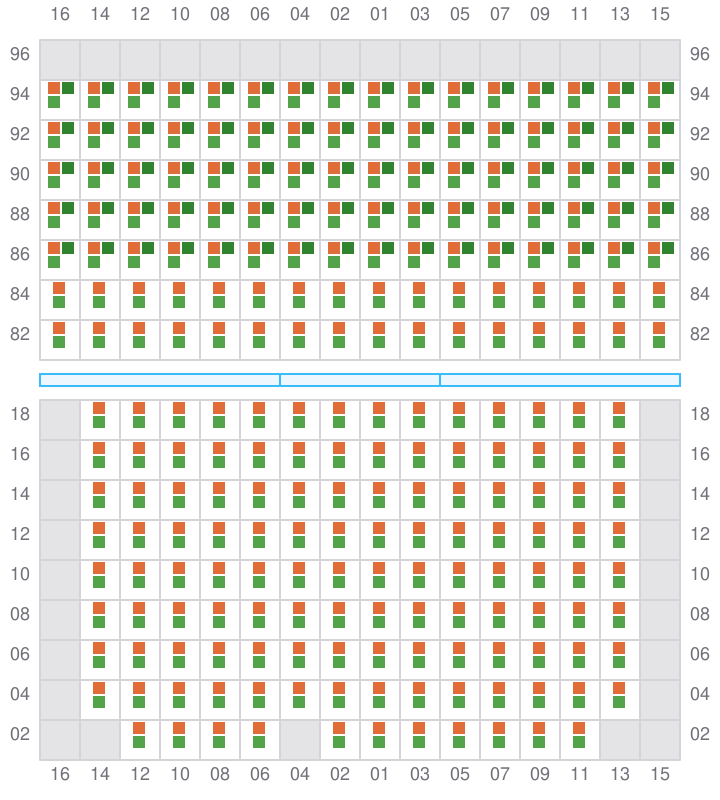

Bay 049 view and slots of MAERSK SEBAROK

051

  • ←
  • → / ?
Bay 051 view and slots of MAERSK SEBAROK

053 (054)

  • →
  • ? / ←

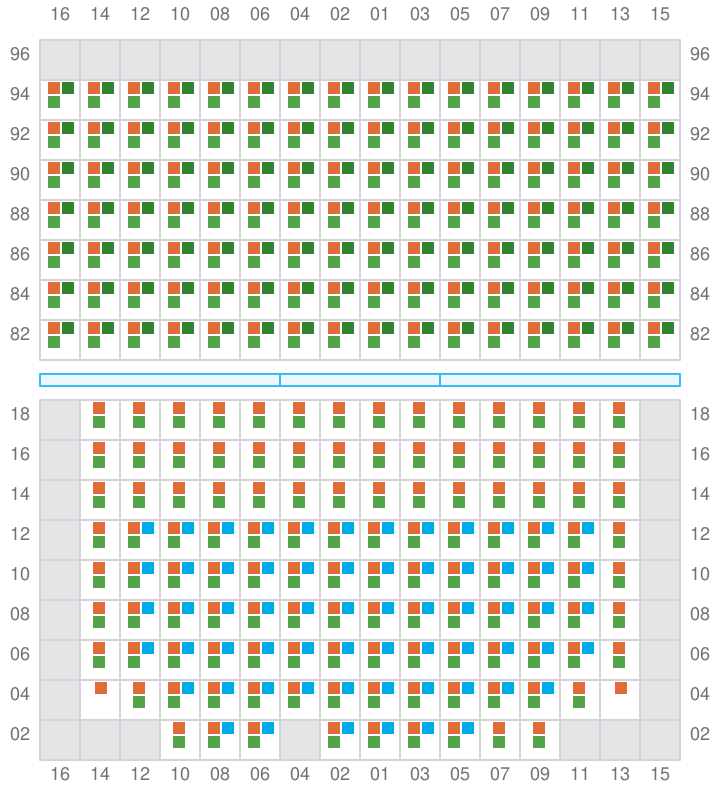

Bay 053 view and slots of MAERSK SEBAROK

055

  • ←
  • → / ?
Bay 055 view and slots of MAERSK SEBAROK

057 (058)

  • →

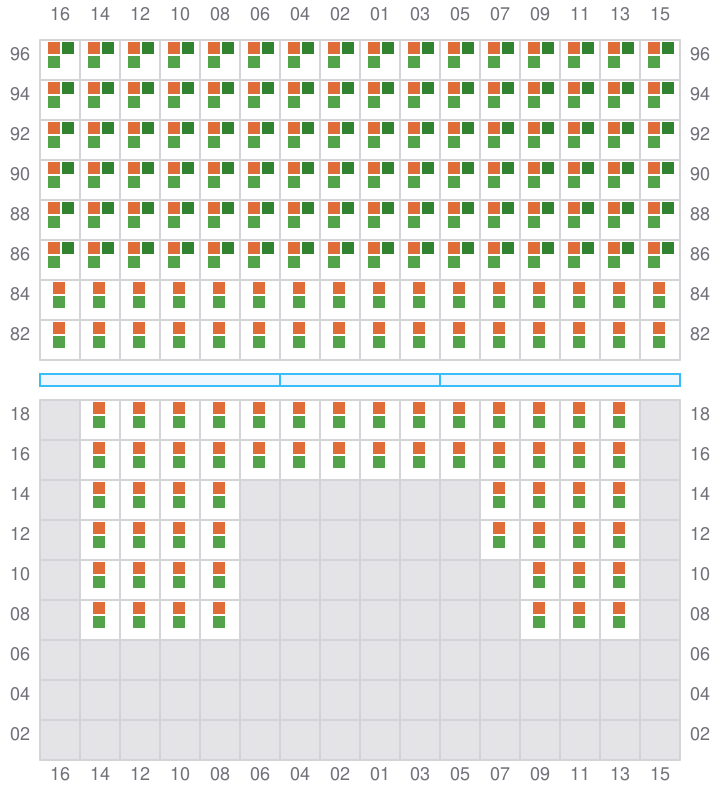

Bay 057 view and slots of MAERSK SEBAROK

059

  • ←
  • → / ?

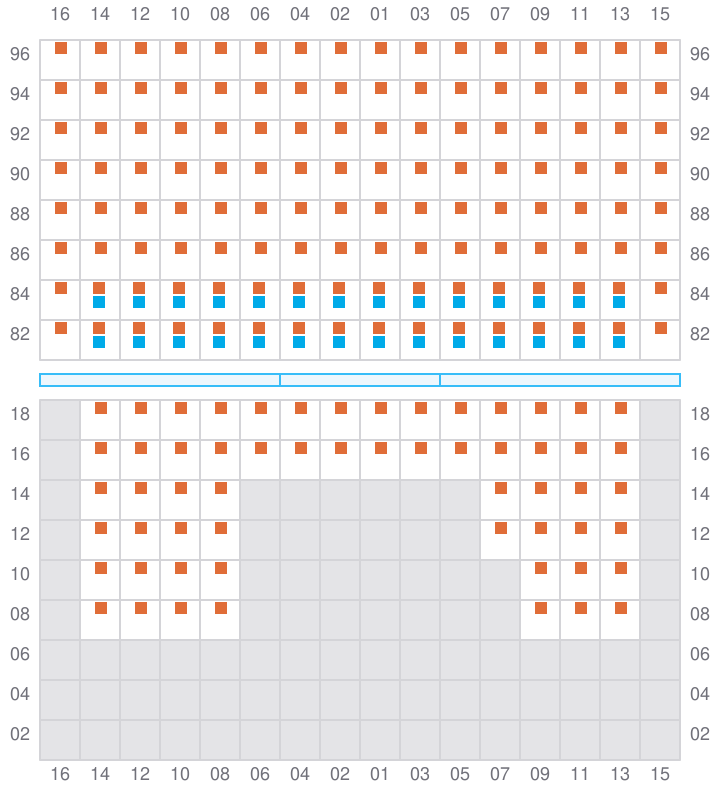

Bay 059 view and slots of MAERSK SEBAROK

061 (062)

  • →

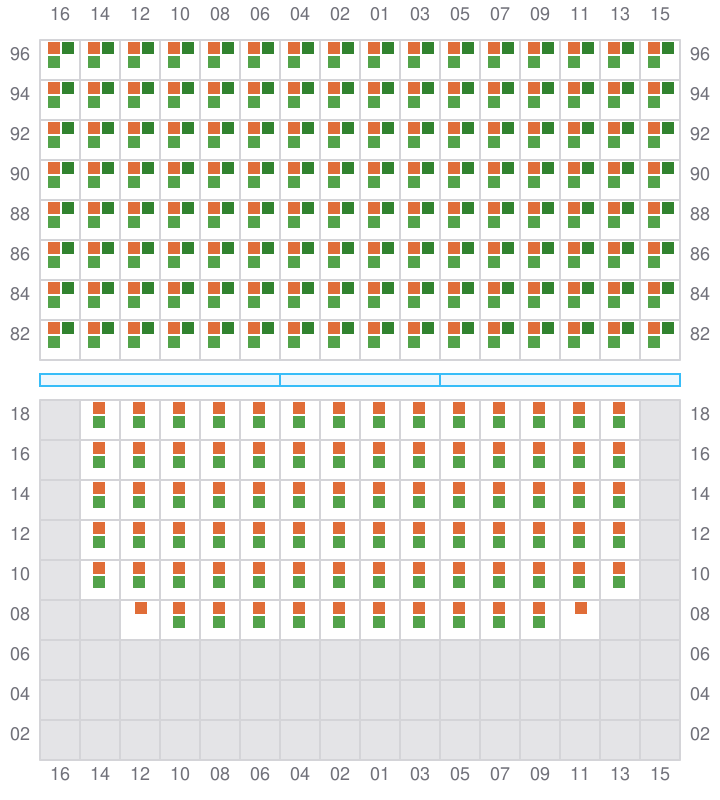

Bay 061 view and slots of MAERSK SEBAROK

063

  • ←
  • → / ?

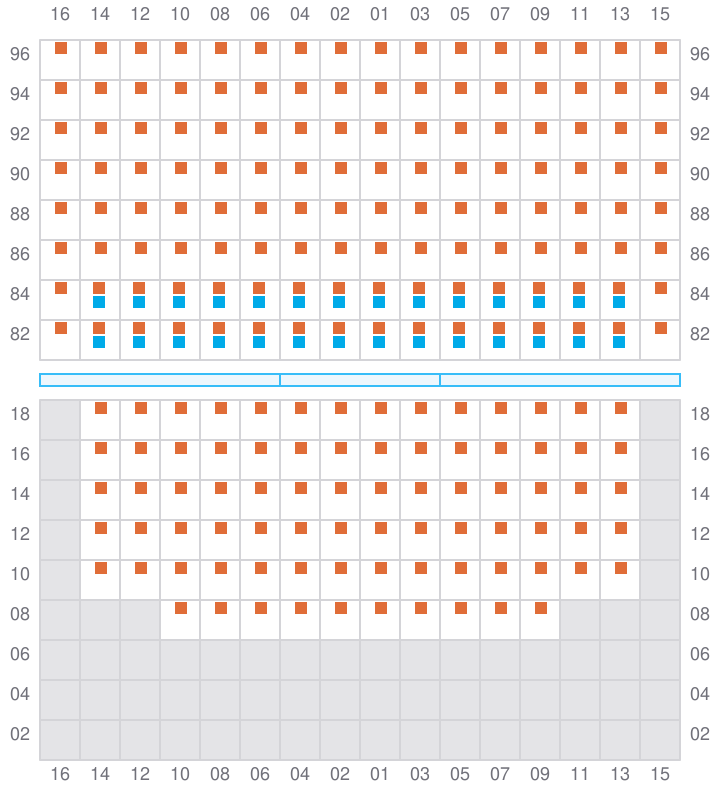

Bay 063 view and slots of MAERSK SEBAROK

065 (066)

  • →

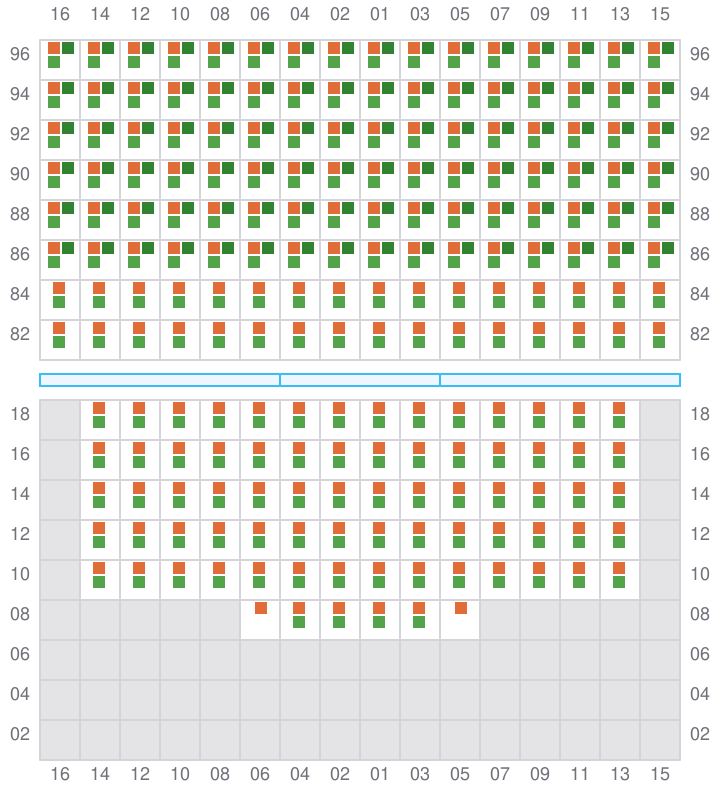

Bay 065 view and slots of MAERSK SEBAROK

067

  • ←
  • → / ?
Bay 067 view and slots of MAERSK SEBAROK

069 (070)

  • →
Bay 069 view and slots of MAERSK SEBAROK

071

  • ←
  • → / ?

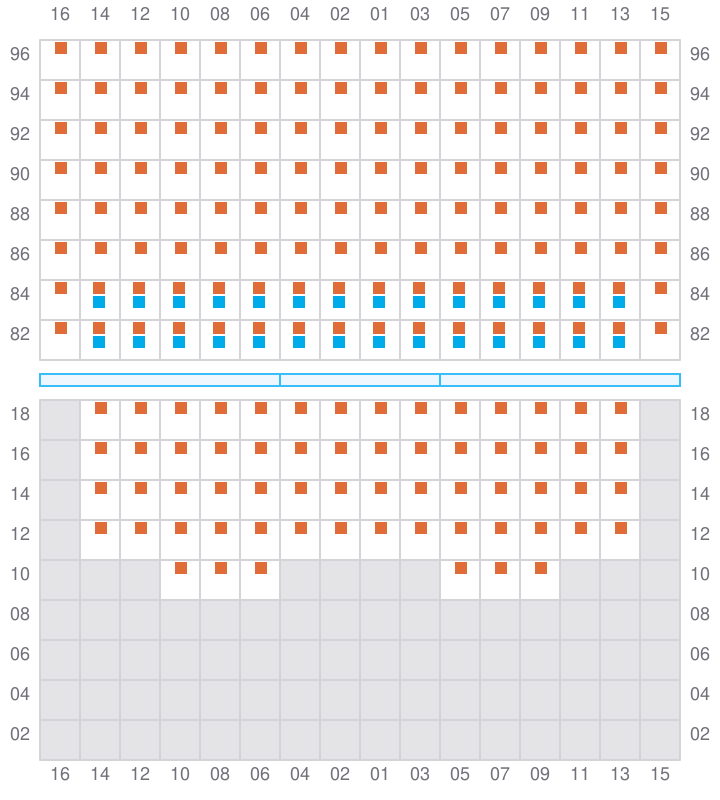

Bay 071 view and slots of MAERSK SEBAROK

073 (074)

  • → / ?
Bay 073 view and slots of MAERSK SEBAROK
