MAERSK SELETAR
9315197 | WTAA | MSK by ************************** Last update: Thu Jun 29 2023

General Info

Ship Name:MAERSK SELETAR
IMO Code:9315197
Call Sign:WTAA
Line Operator:MSK
Class Name for Sister Ships:SLT
Year Built:2007
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):306.58
LOA (Length Overall):318.41
Stern to AFT PP:-
Features Informed:
Also Known As (old names):-

Size Summary

ISO Bays:073
Max ISO Row:16
Center Line Row:No
Max Above ISO Tier:96
Min Above ISO Tier:82
Max Below ISO Tier:18
Min Below ISO Tier:02
Total TEU:7,013

Centers of Gravity

LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

Side View

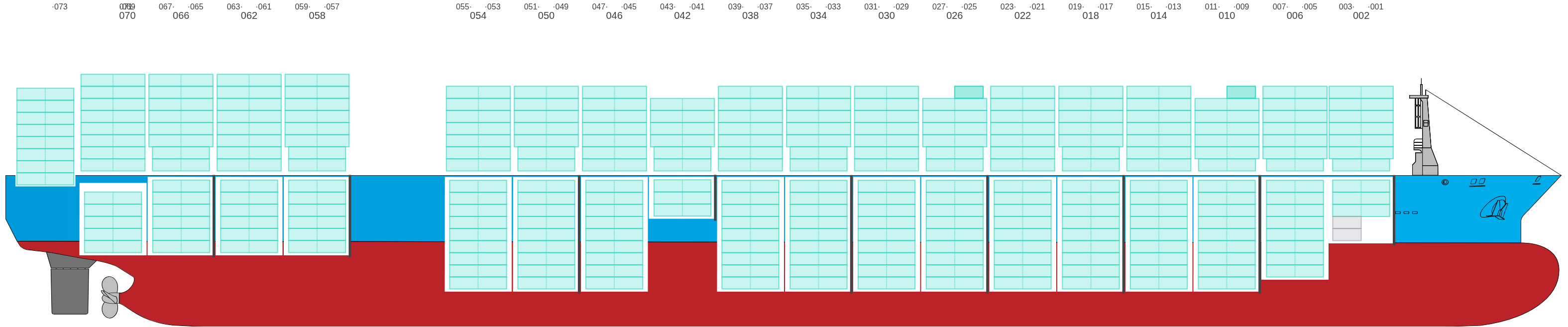

Side view of MAERSK SELETAR

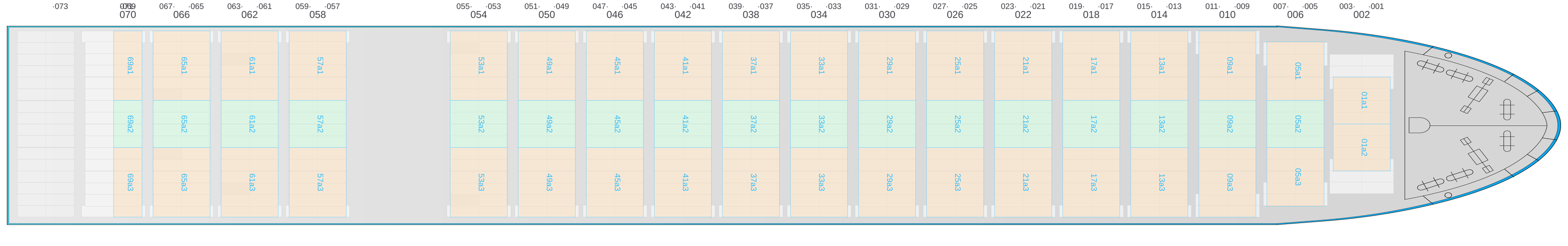

Hatch-Covers View

Deck view of MAERSK SELETAR

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot

001 (002)

  • →

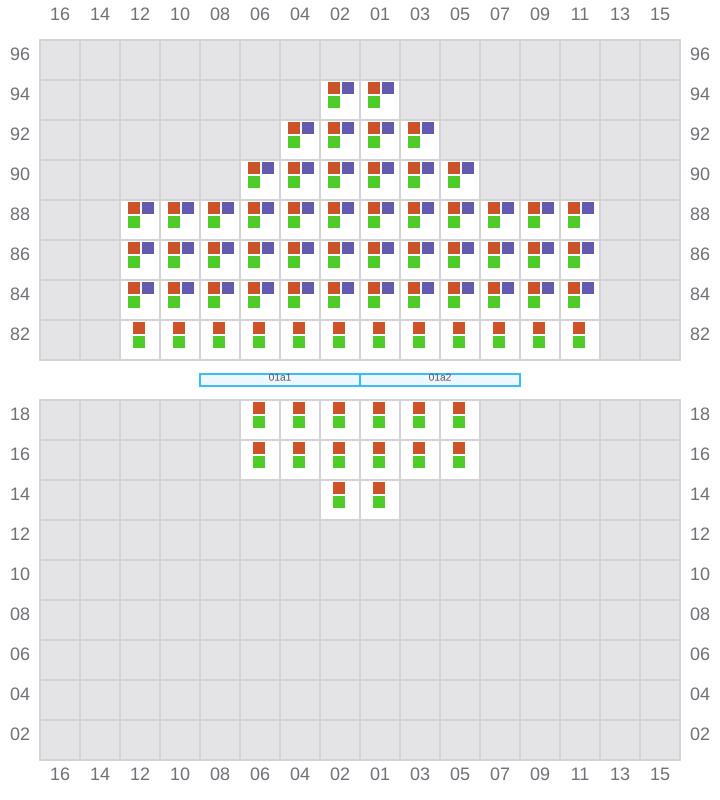

Bay 001 view and slots of MAERSK SELETAR

003

  • ←

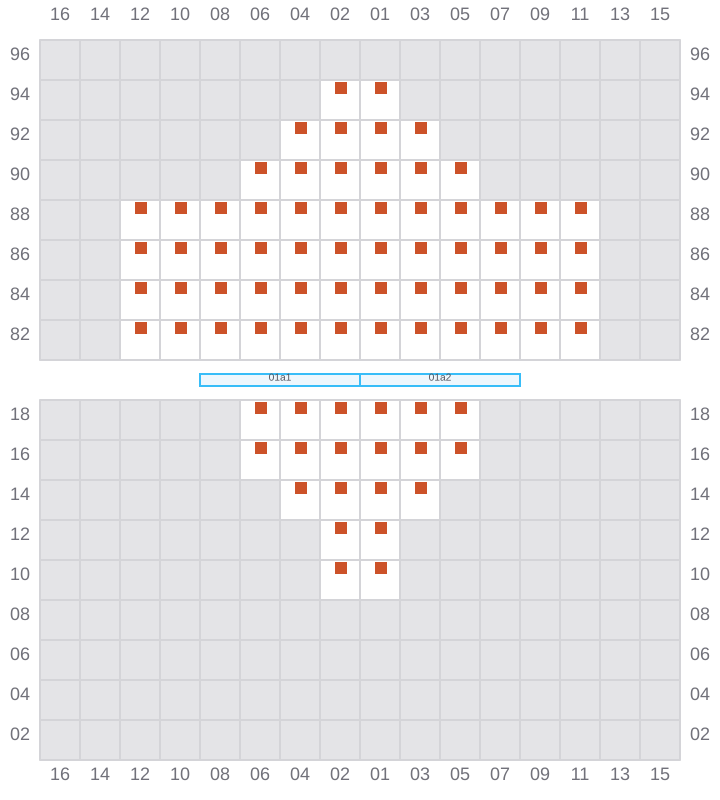

Bay 003 view and slots of MAERSK SELETAR

005 (006)

  • →

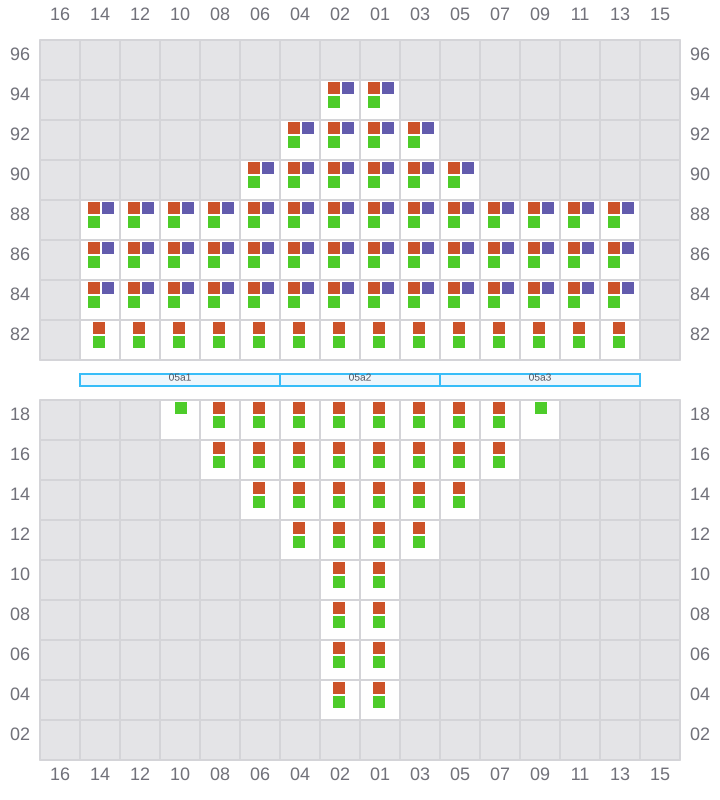

Bay 005 view and slots of MAERSK SELETAR

007

  • ←

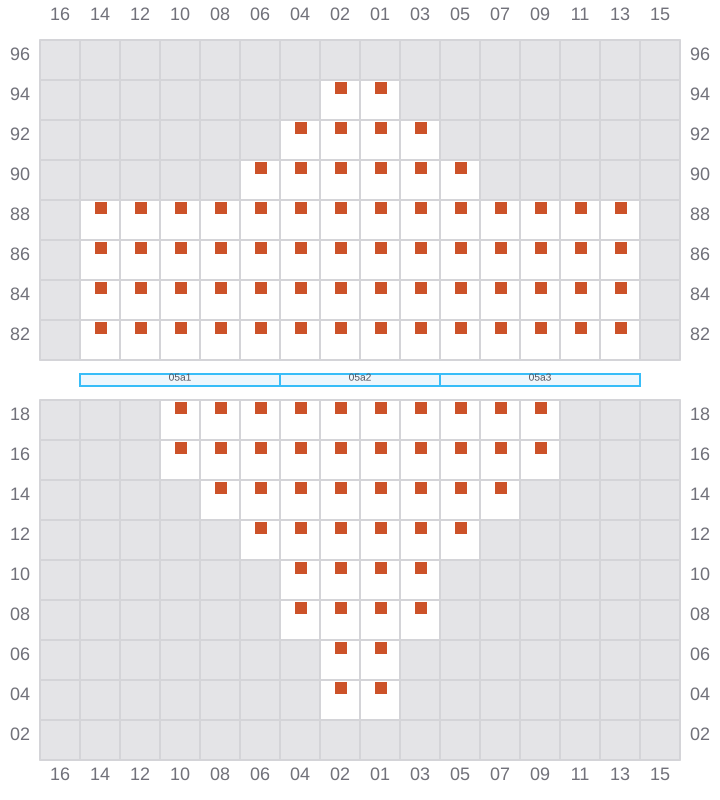

Bay 007 view and slots of MAERSK SELETAR

009 (010)

  • →

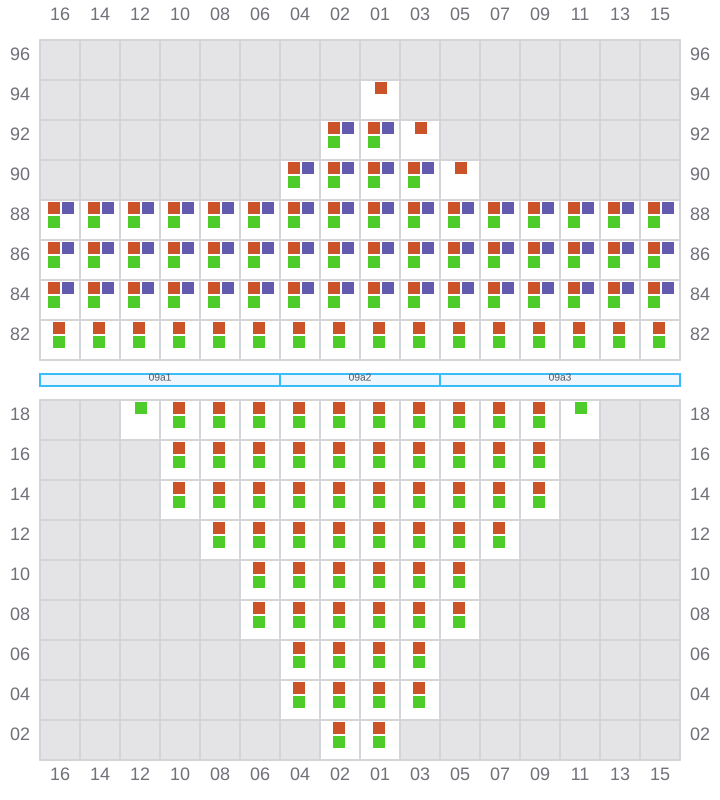

Bay 009 view and slots of MAERSK SELETAR

011

  • ←

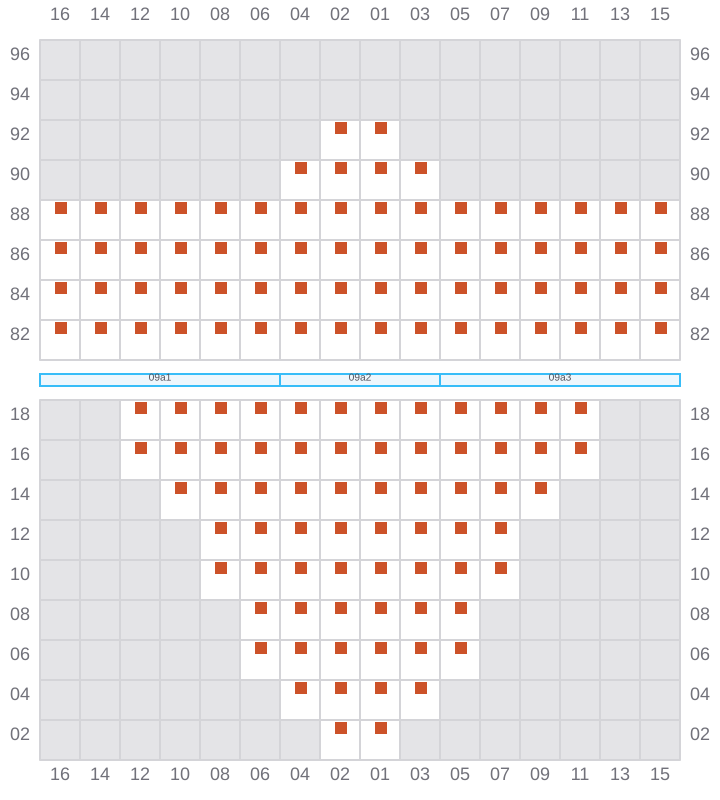

Bay 011 view and slots of MAERSK SELETAR

013 (014)

  • →

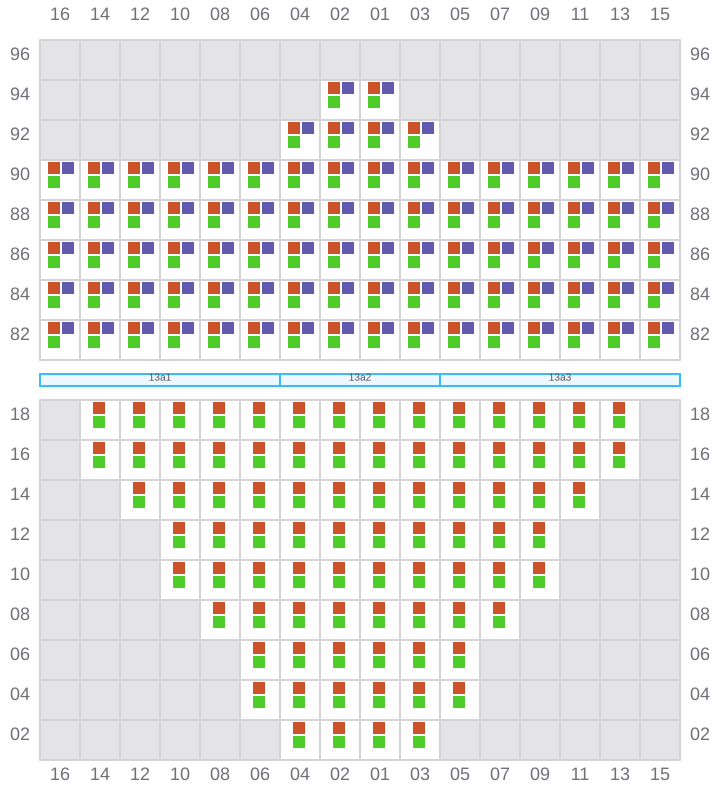

Bay 013 view and slots of MAERSK SELETAR

015

  • ←

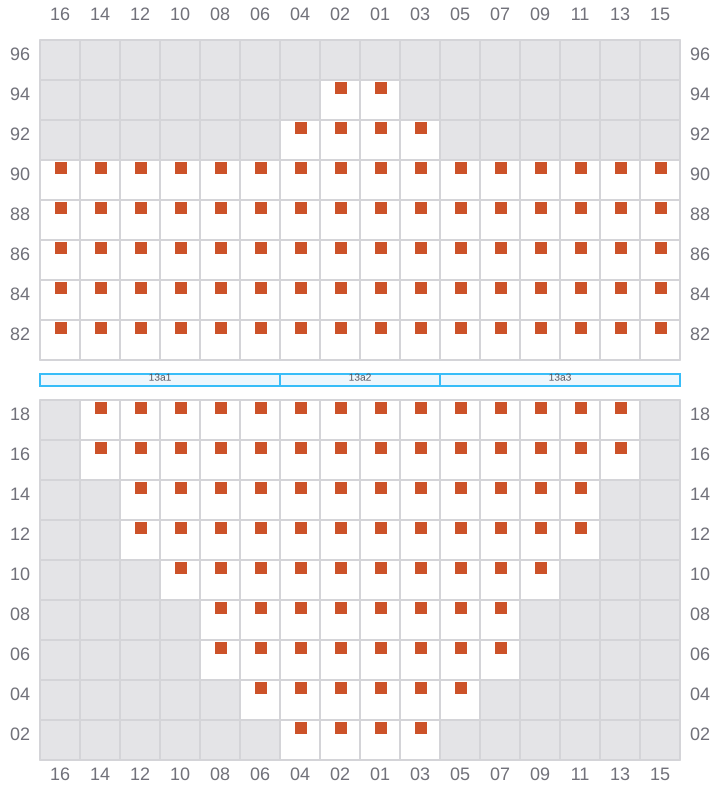

Bay 015 view and slots of MAERSK SELETAR

017 (018)

  • →

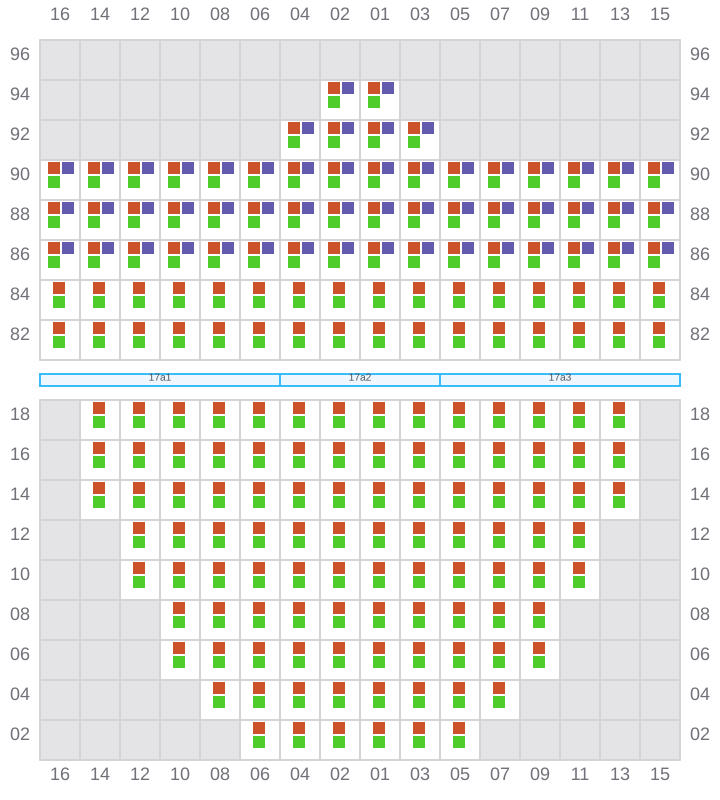

Bay 017 view and slots of MAERSK SELETAR

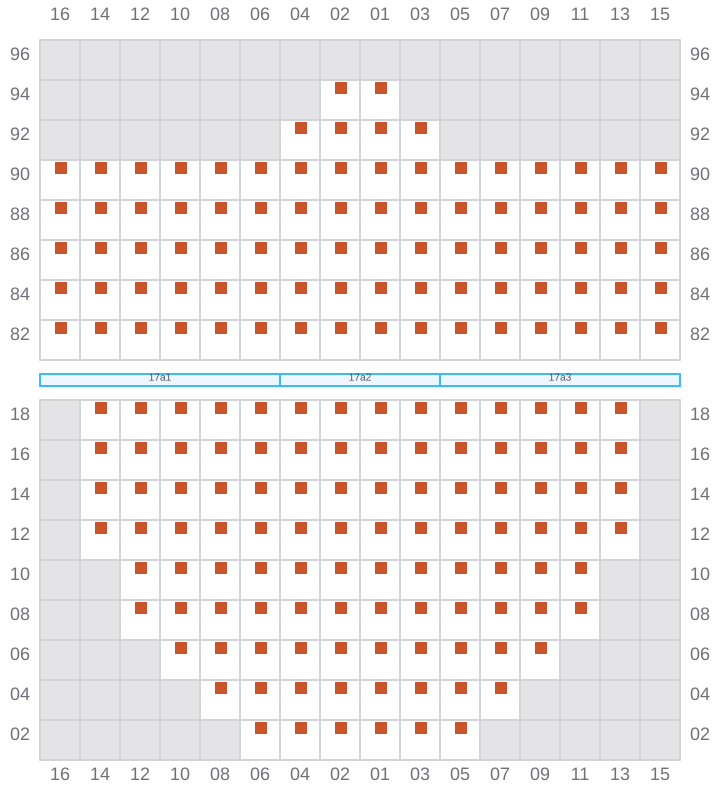

019

  • ←
Bay 019 view and slots of MAERSK SELETAR

021 (022)

  • →

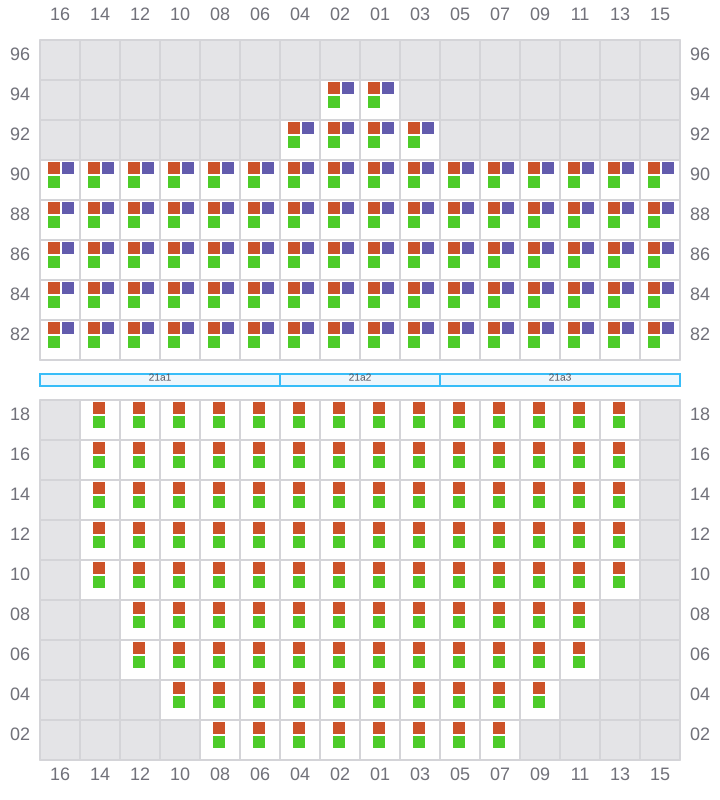

Bay 021 view and slots of MAERSK SELETAR

023

  • ←

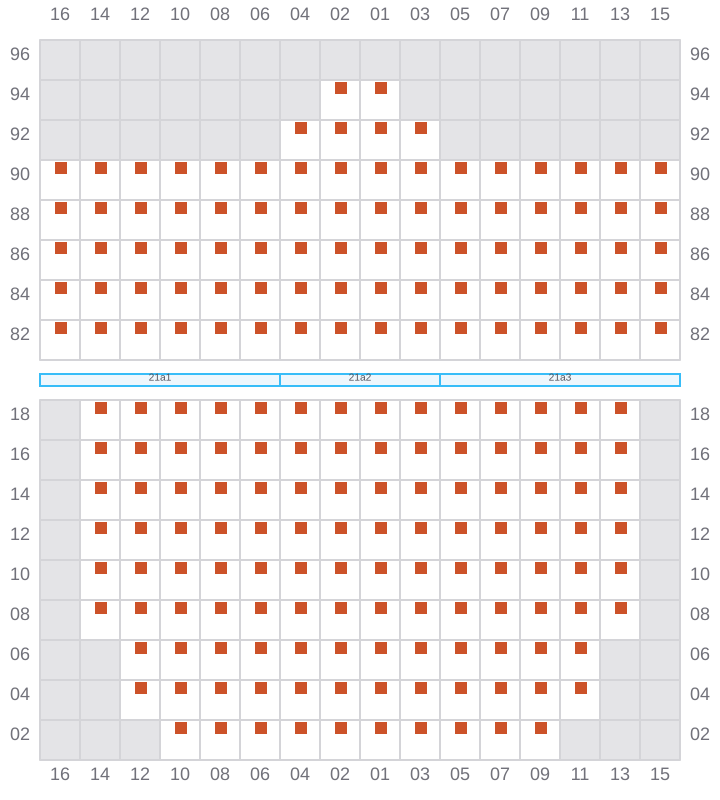

Bay 023 view and slots of MAERSK SELETAR

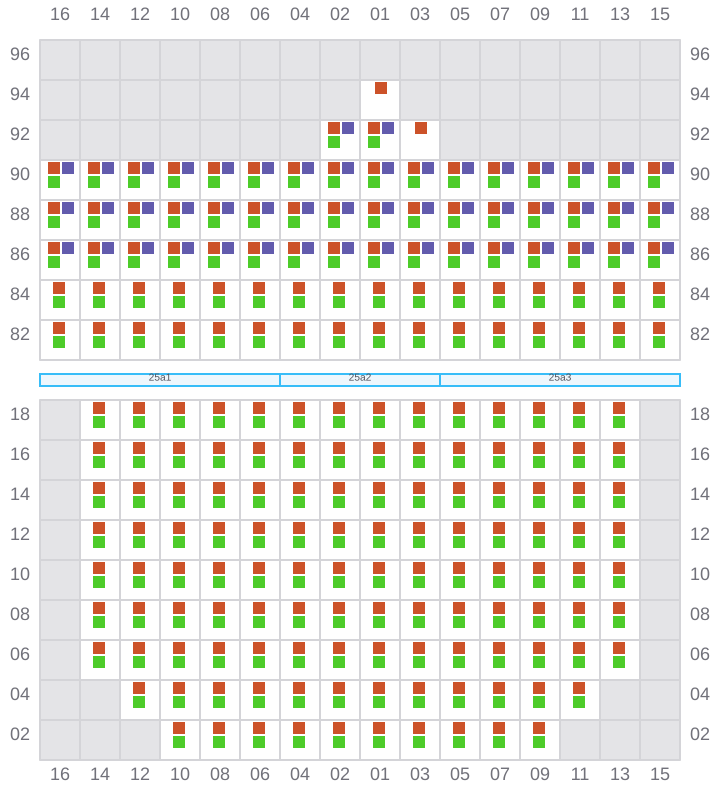

025 (026)

  • →
Bay 025 view and slots of MAERSK SELETAR

027

  • ←
  • → / ?

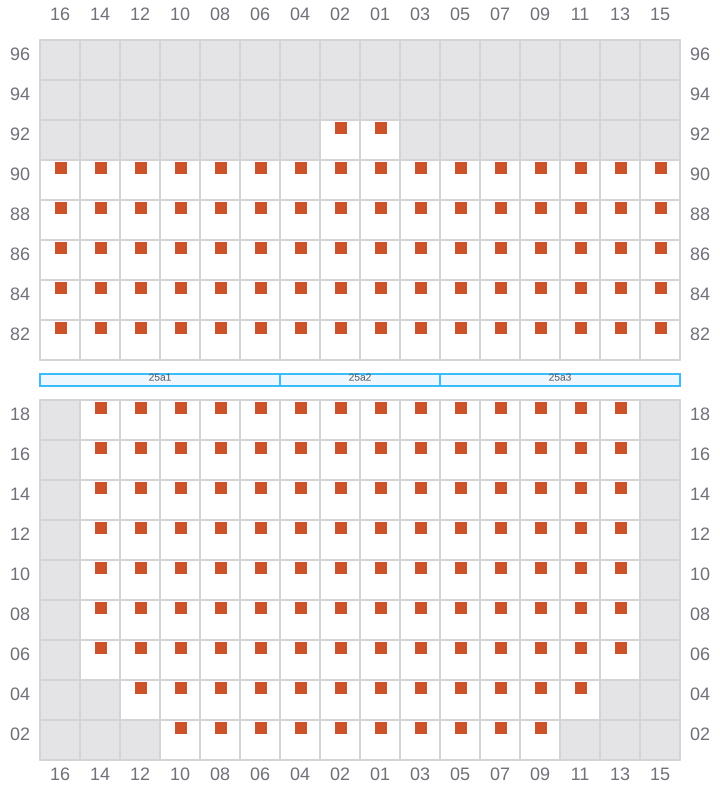

Bay 027 view and slots of MAERSK SELETAR

029 (030)

  • →
  • ? / ←

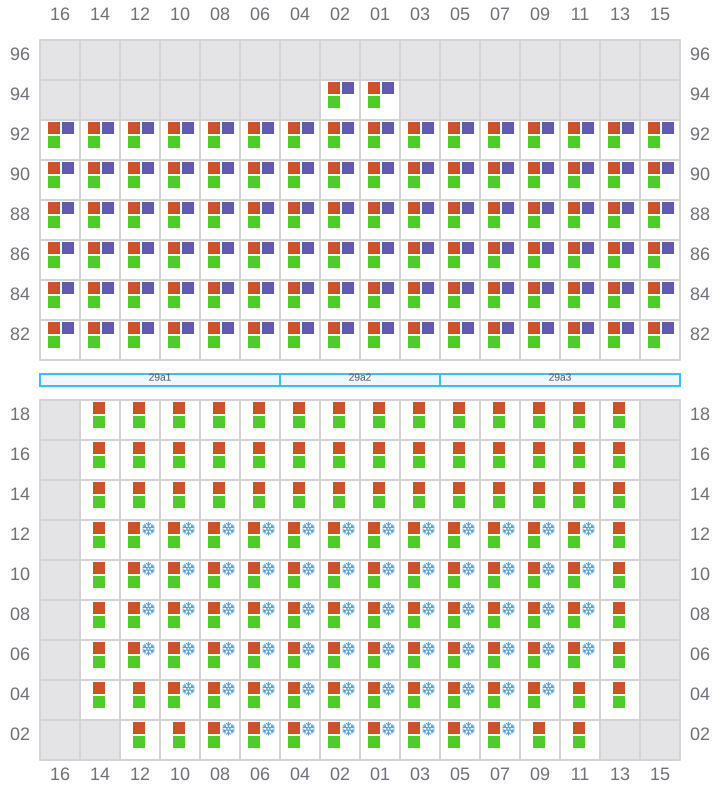

Bay 029 view and slots of MAERSK SELETAR

031

  • ←
  • → / ?

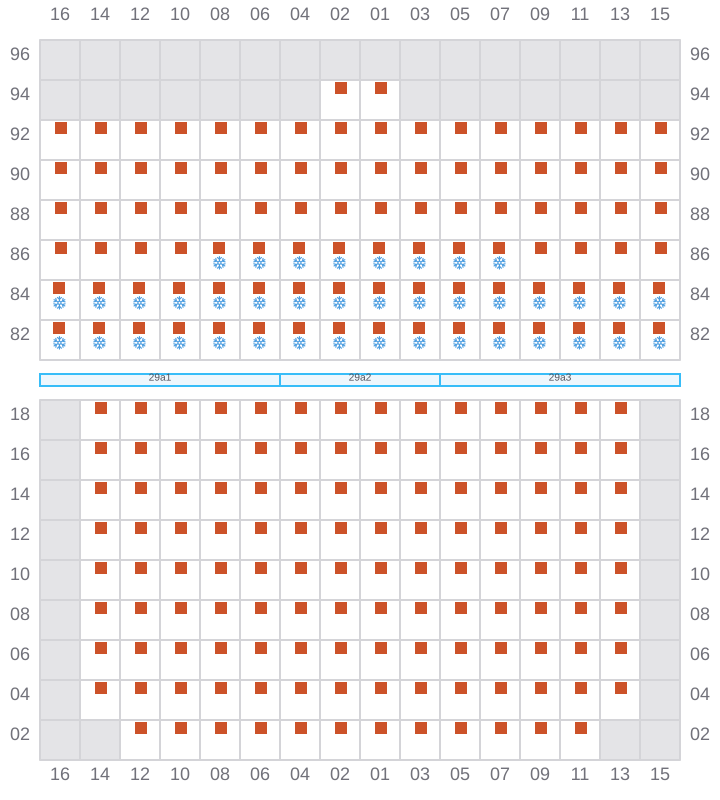

Bay 031 view and slots of MAERSK SELETAR

033 (034)

  • →
Bay 033 view and slots of MAERSK SELETAR

035

  • ←
  • → / ?

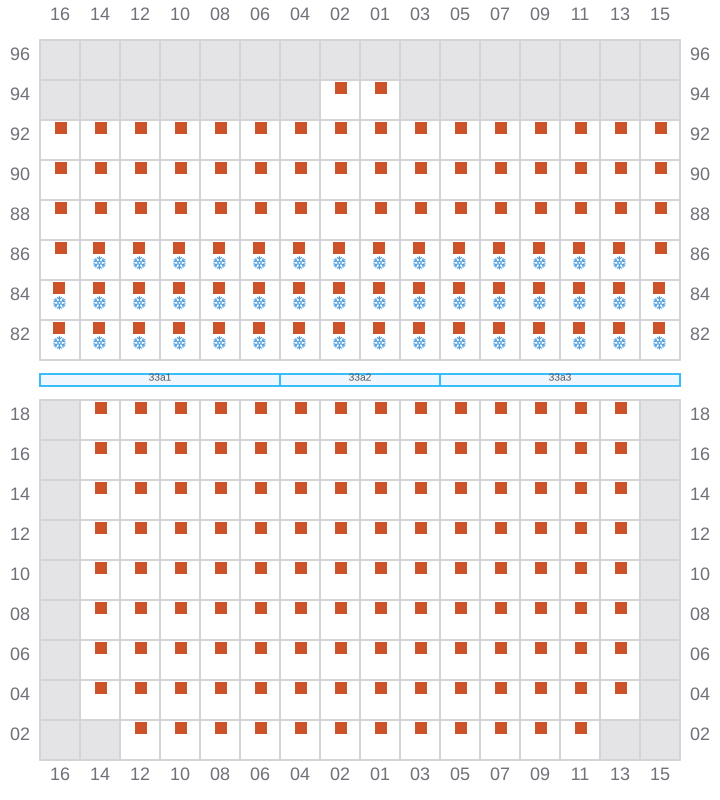

Bay 035 view and slots of MAERSK SELETAR

037 (038)

  • →
  • ? / ←

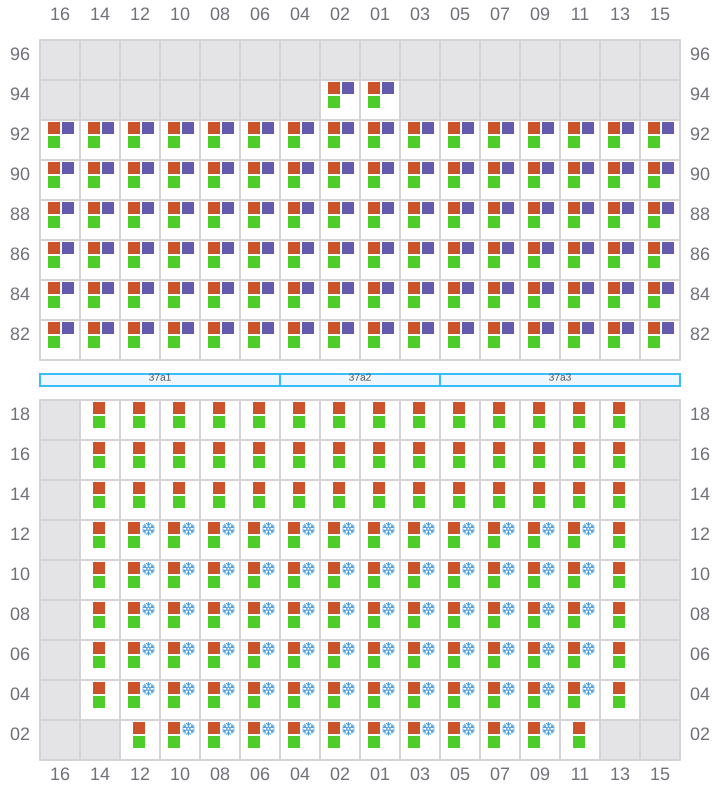

Bay 037 view and slots of MAERSK SELETAR

039

  • ←
  • → / ?

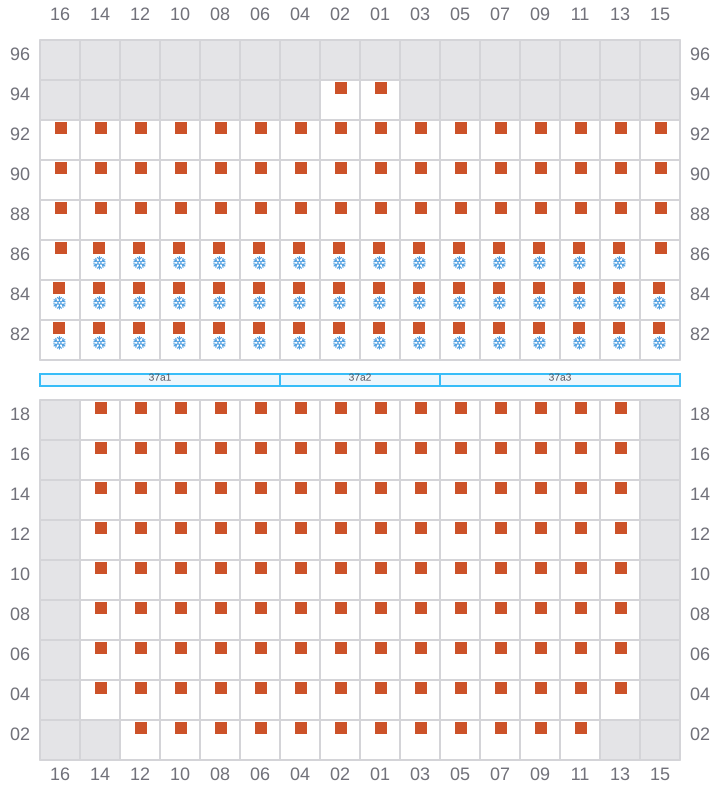

Bay 039 view and slots of MAERSK SELETAR

041 (042)

  • →

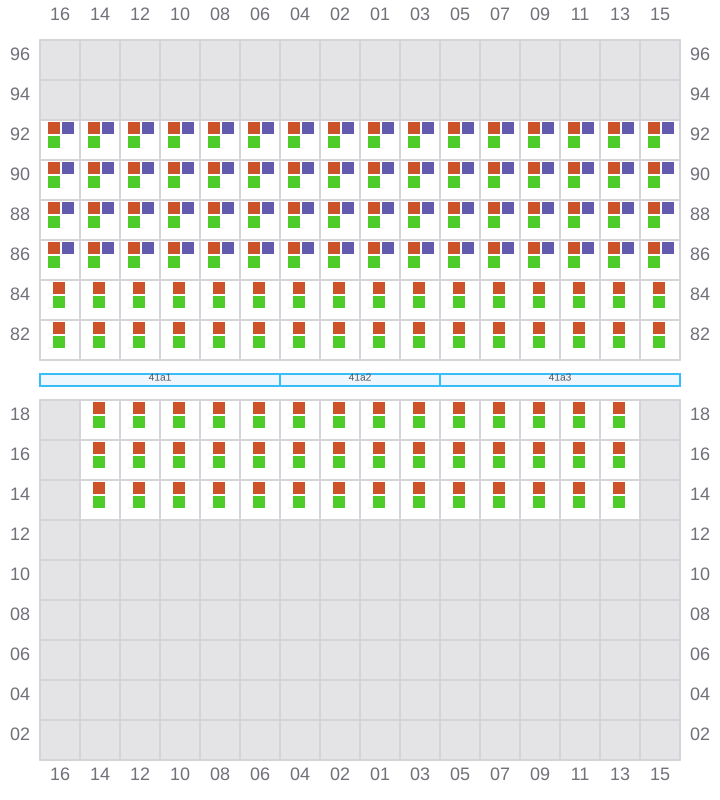

Bay 041 view and slots of MAERSK SELETAR

043

  • ←
  • → / ?

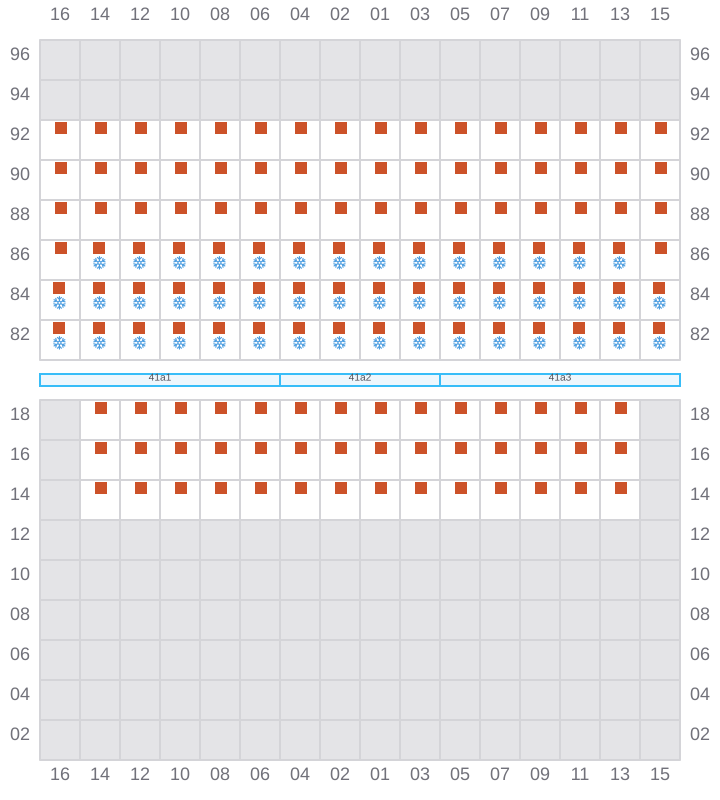

Bay 043 view and slots of MAERSK SELETAR

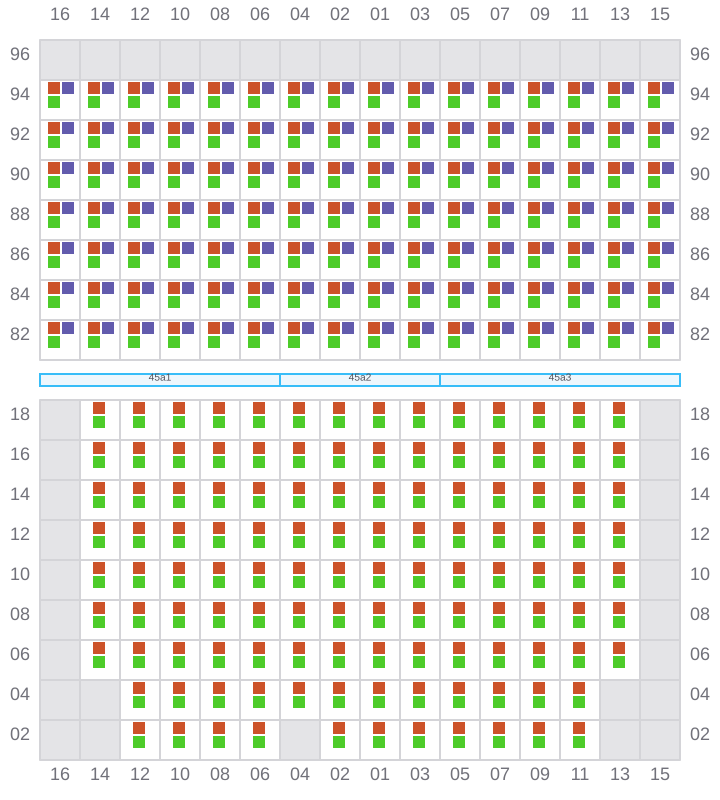

045 (046)

  • →

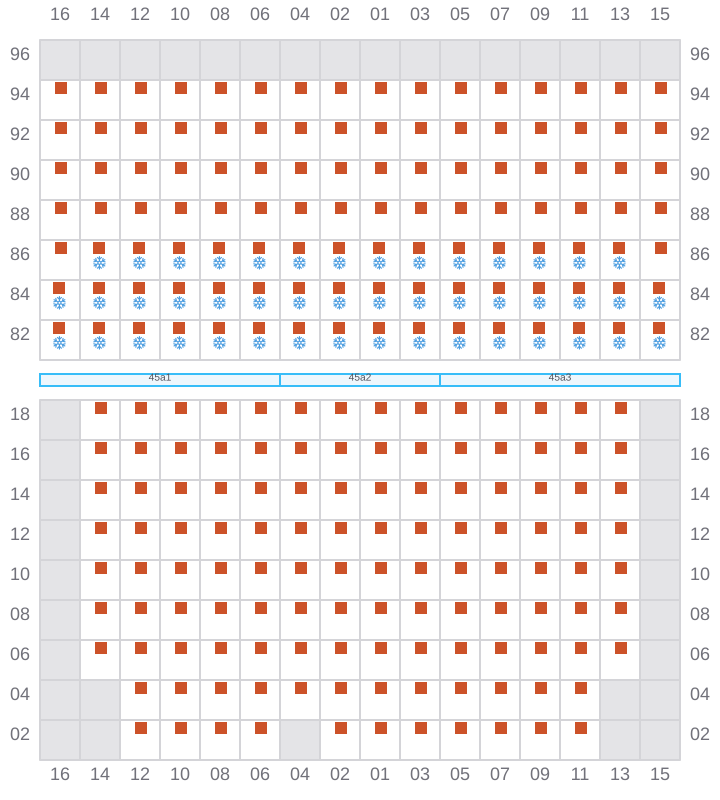

Bay 045 view and slots of MAERSK SELETAR

047

  • ←
  • → / ?
Bay 047 view and slots of MAERSK SELETAR

049 (050)

  • →

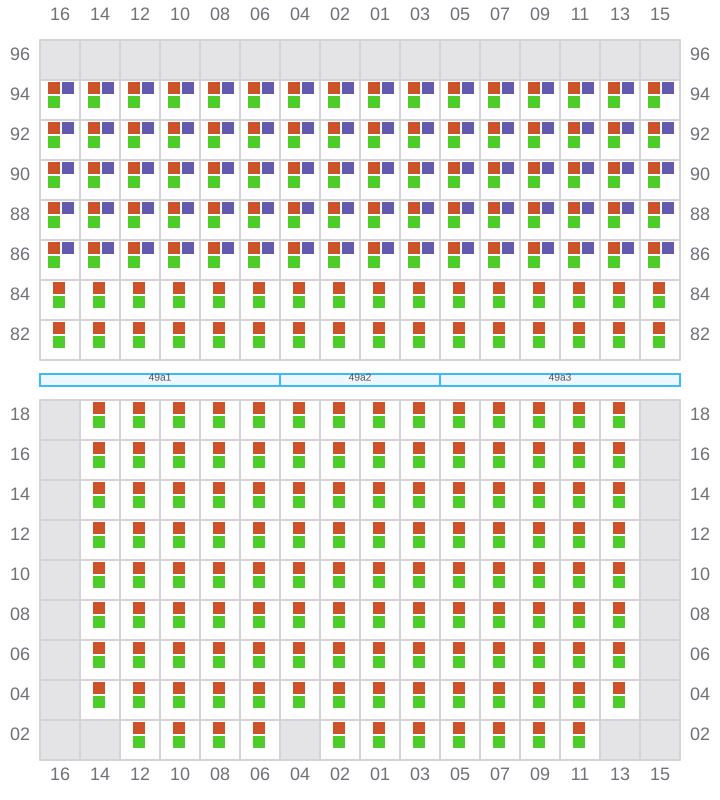

Bay 049 view and slots of MAERSK SELETAR

051

  • ←
  • → / ?
Bay 051 view and slots of MAERSK SELETAR

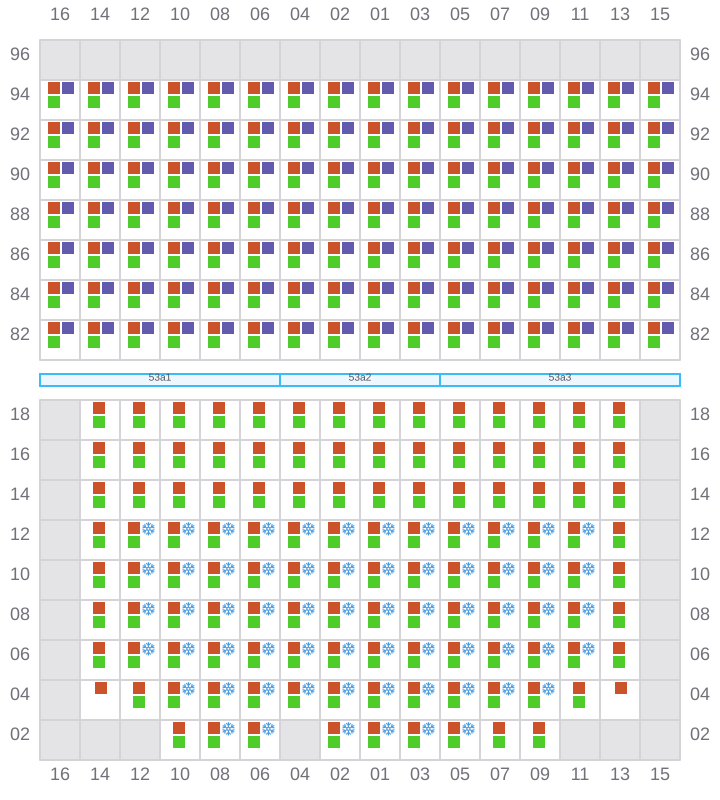

053 (054)

  • →
  • ? / ←
Bay 053 view and slots of MAERSK SELETAR

055

  • ←
  • → / ?

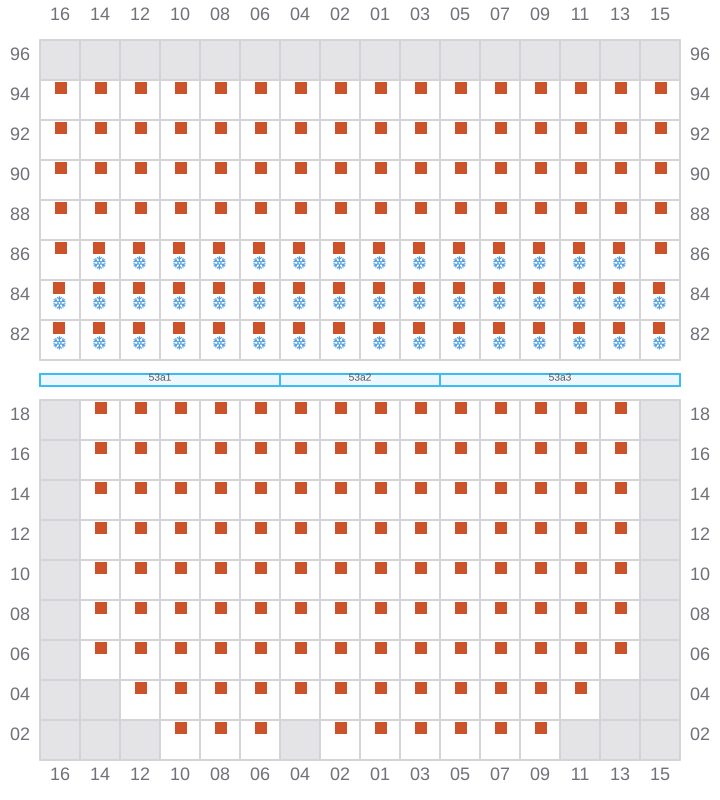

Bay 055 view and slots of MAERSK SELETAR

057 (058)

  • →

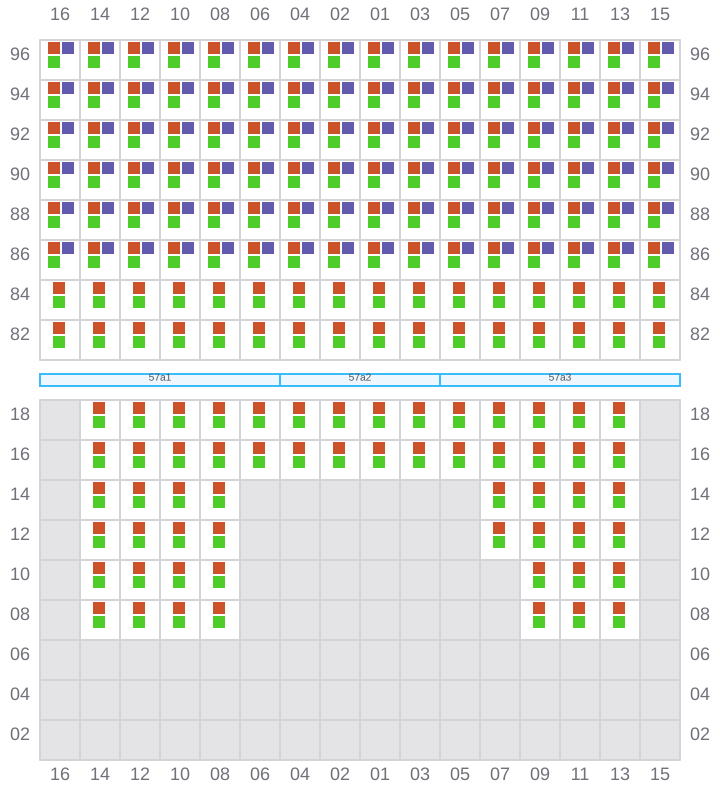

Bay 057 view and slots of MAERSK SELETAR

059

  • ←
  • → / ?

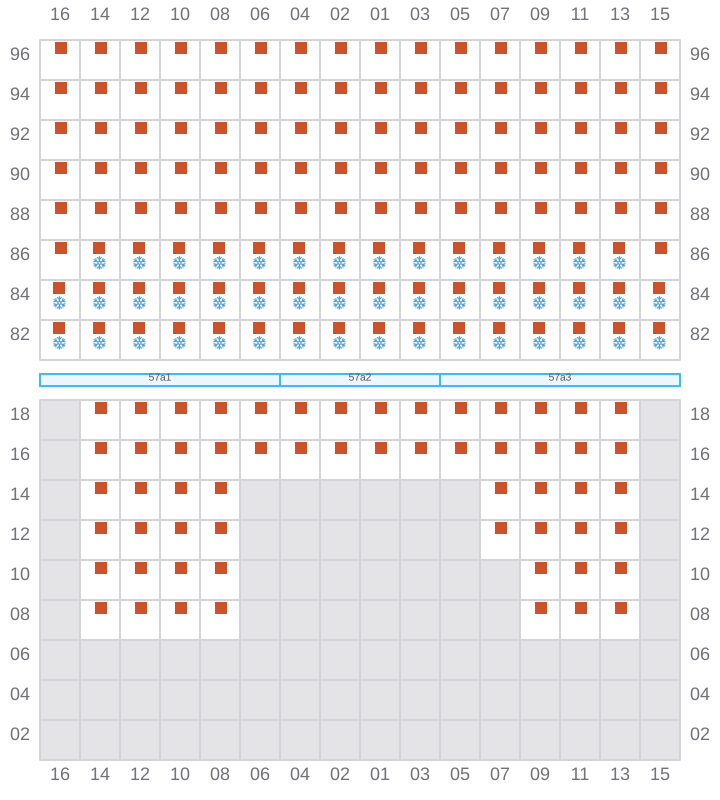

Bay 059 view and slots of MAERSK SELETAR

061 (062)

  • →
Bay 061 view and slots of MAERSK SELETAR

063

  • ←
  • → / ?

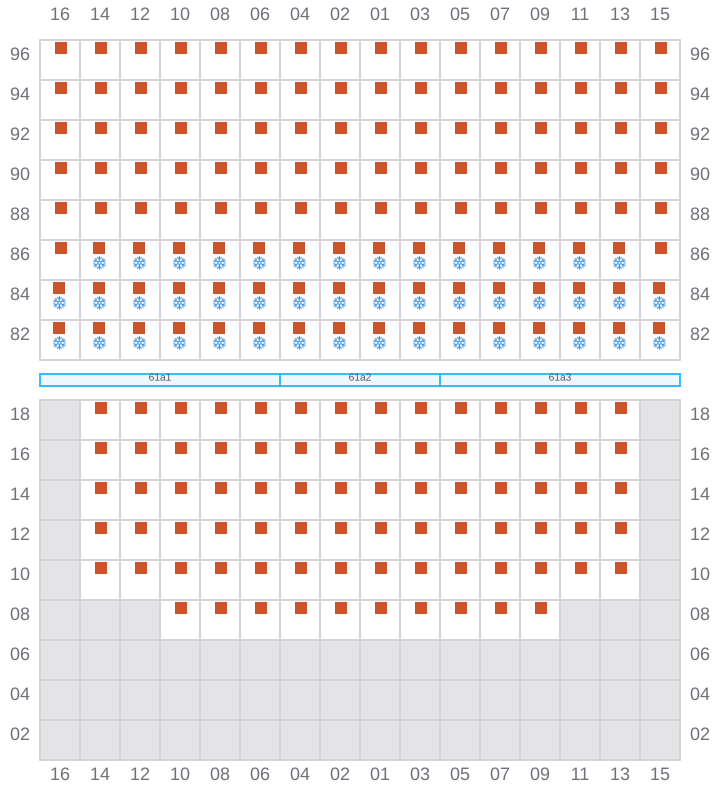

Bay 063 view and slots of MAERSK SELETAR

065 (066)

  • →

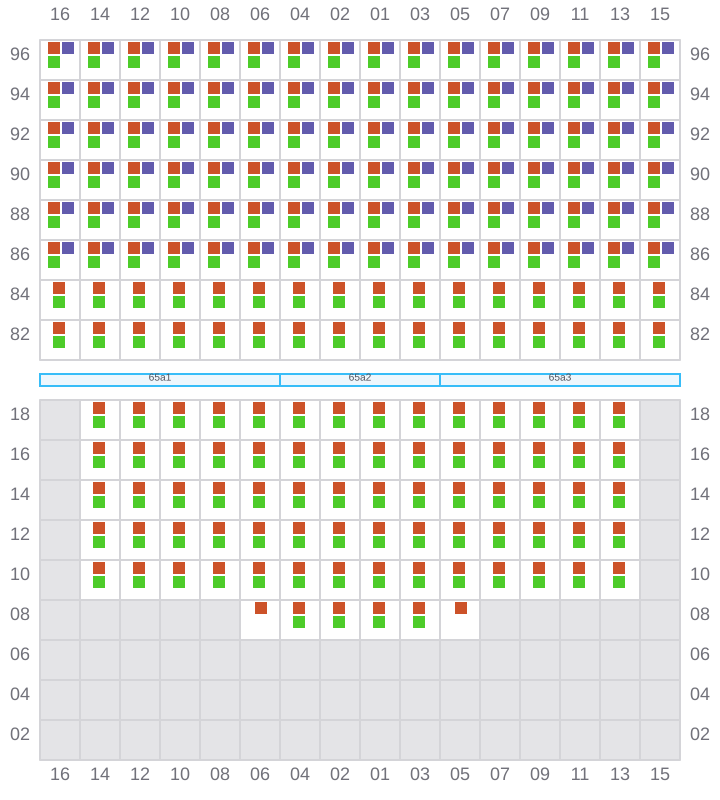

Bay 065 view and slots of MAERSK SELETAR

067

  • ←
  • → / ?

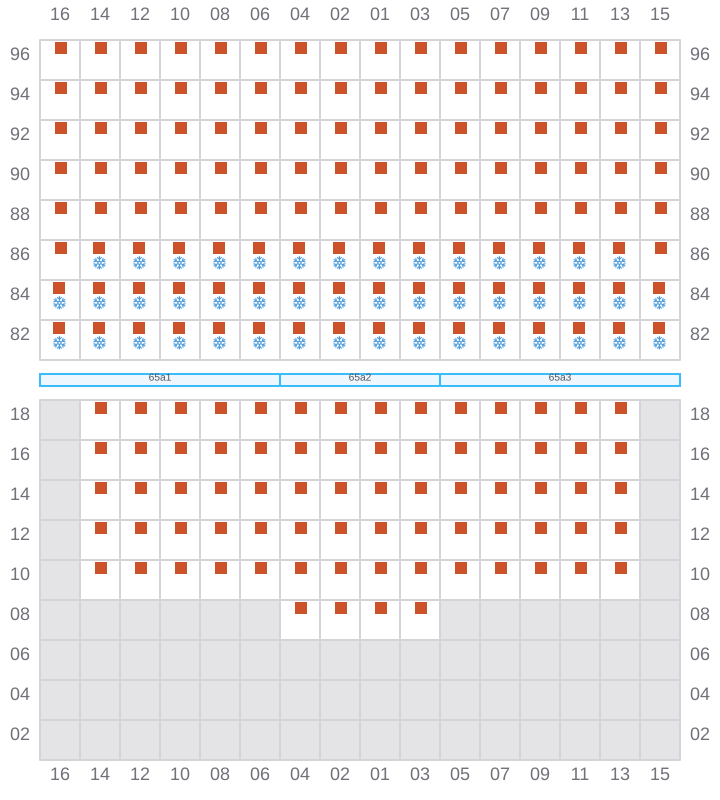

Bay 067 view and slots of MAERSK SELETAR

069 (070)

  • →

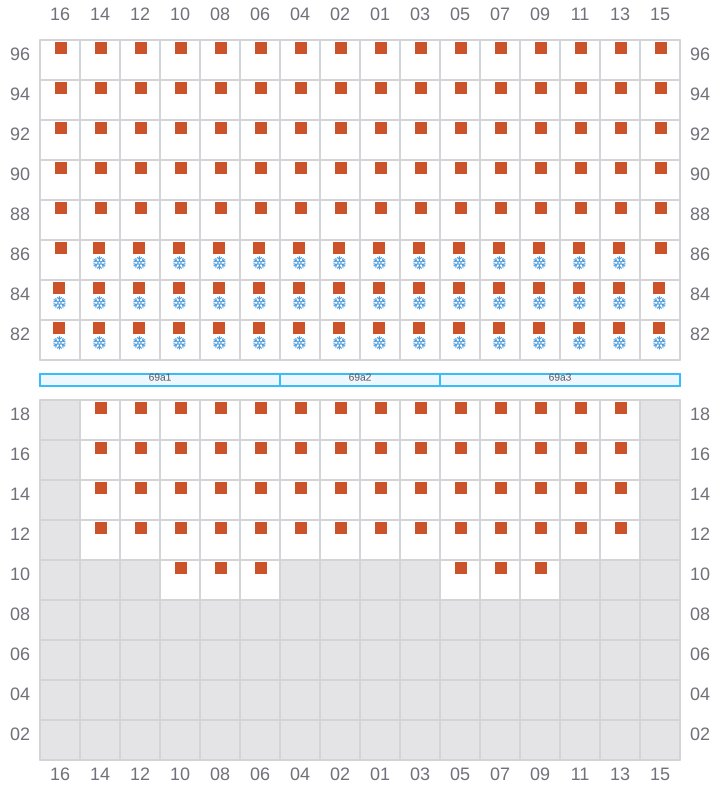

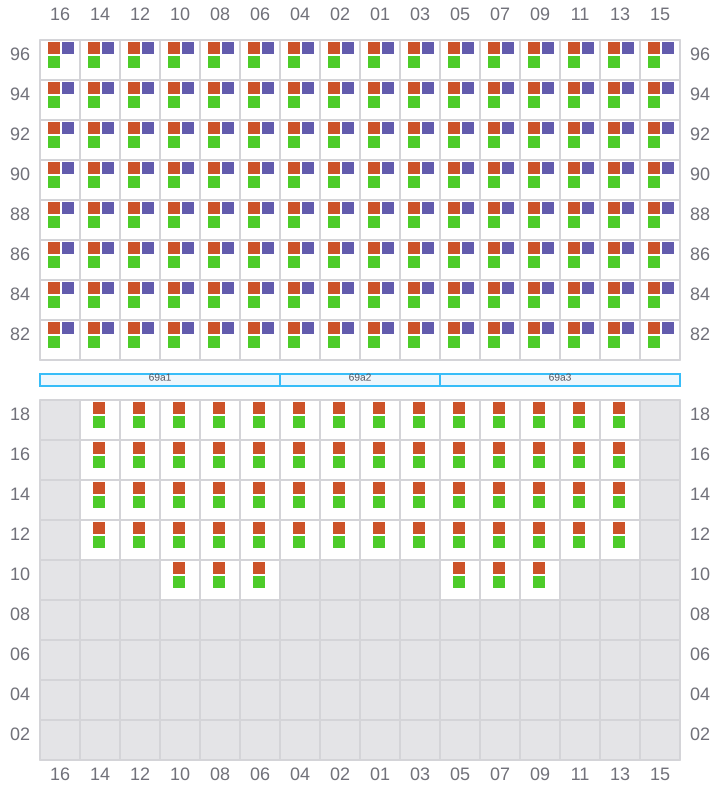

Bay 069 view and slots of MAERSK SELETAR

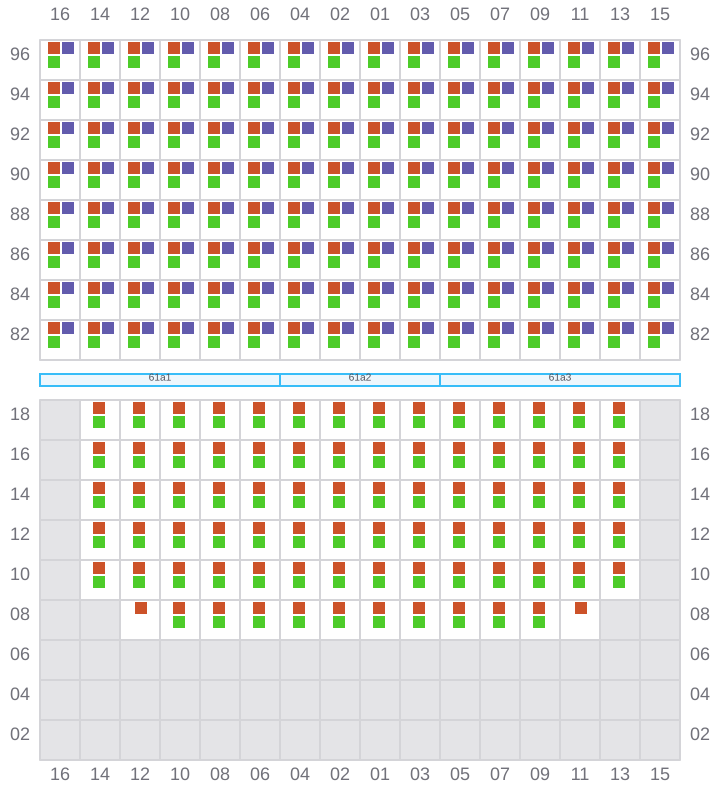

071

  • ←
  • → / ?
Bay 071 view and slots of MAERSK SELETAR

073 (074)

  • → / ?

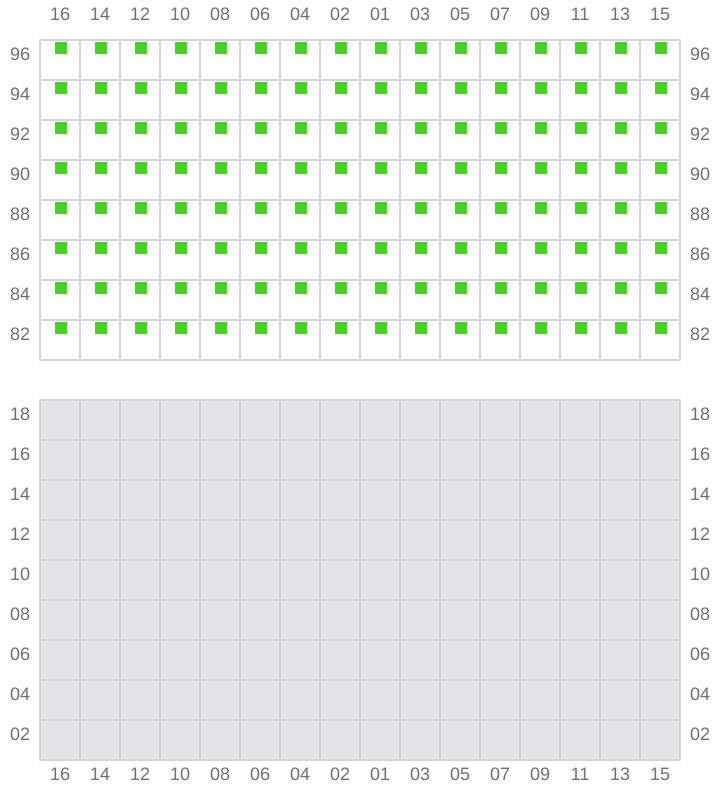

Bay 073 view and slots of MAERSK SELETAR
