MAERSK SENANG
9315240 | S6CH5 | 9315240 by ********* Last update: Thu Mar 21 2024

General Info

Ship Name:MAERSK SENANG

IMO Code:9315240

Call Sign:S6CH5

Line Operator:9315240

Class Name for Sister Ships:214

Year Built:2007

Position Format:Bay, Row, Tier

Allowed Containers:20, 40, 45

LPP (LBP):306.58

LOA (Length Overall):318.41

Stern to AFT PP:-

Features Informed:Standard

Also Known As...:-

Size Summary

ISO Bays:073

Max ISO Row:16

Center Line Row:No

Max Above ISO Tier:96

Min Above ISO Tier:82

Max Below ISO Tier:18

Min Below ISO Tier:02

Total TEU:7,013

Centers of Gravity

LCG Values:Known

LCG Data:100%

VCG Values:Known

VCG Data:100%

TCG Values:Known

TCG Data:100%

Side View

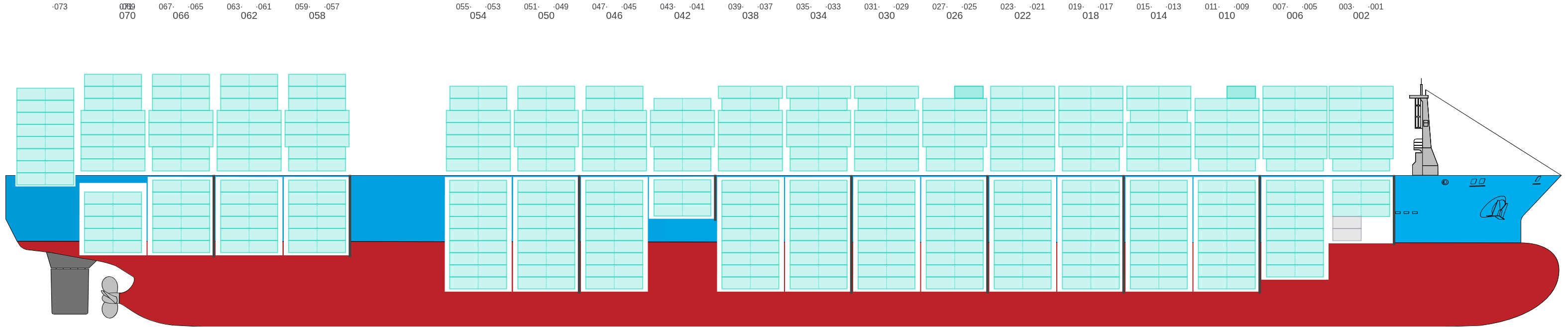

Side view of MAERSK SENANG

Hatch-Covers View

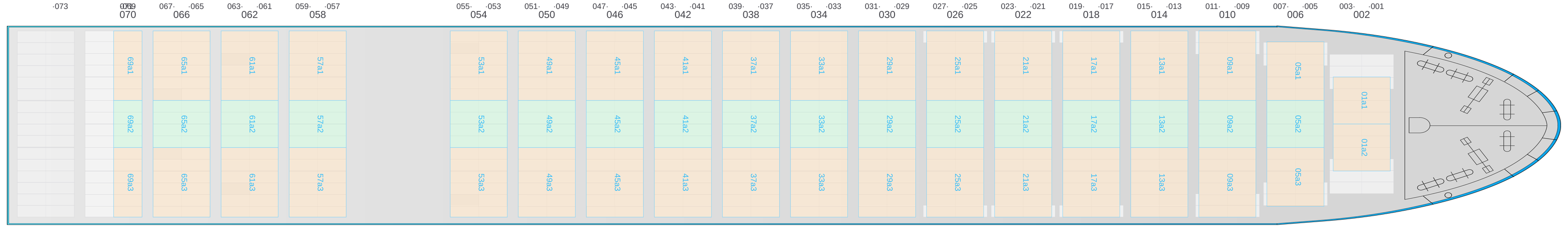

Deck view of MAERSK SENANG

ISO Bays

Legend

20'
40'
45'
Reefer
Restricted slot

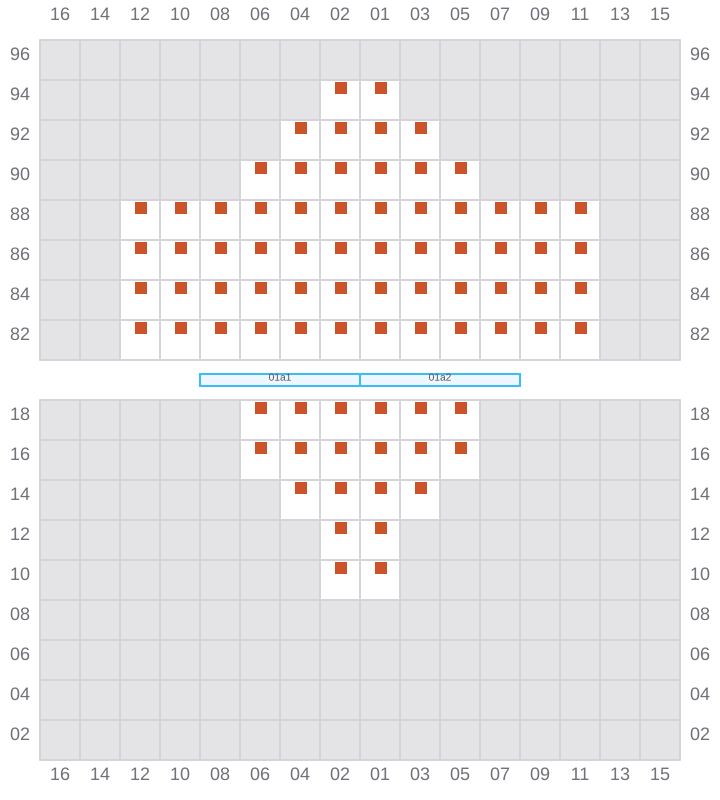

001 (002)

→

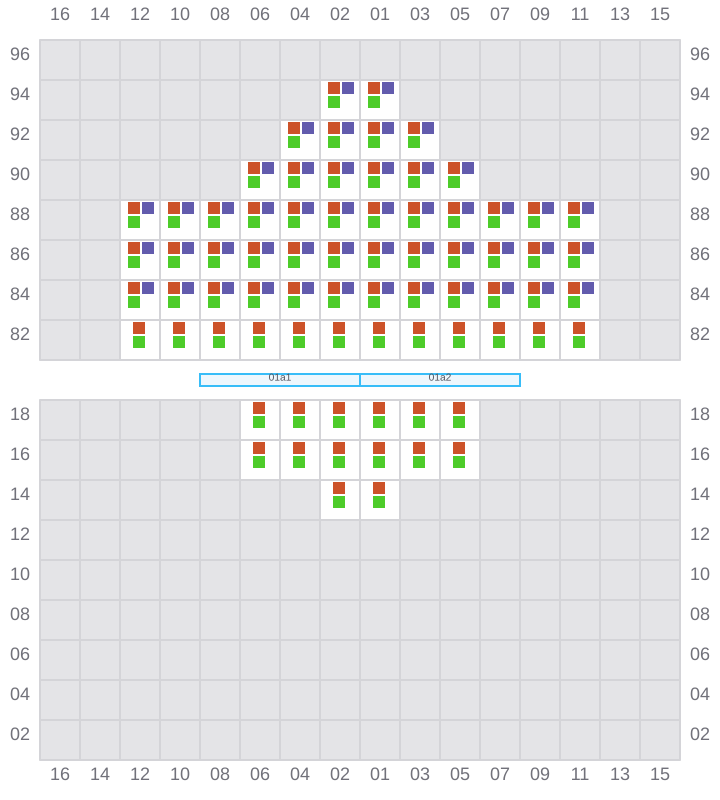

Bay 001 view and slots of MAERSK SENANG

003

←

Bay 003 view and slots of MAERSK SENANG

005 (006)

→

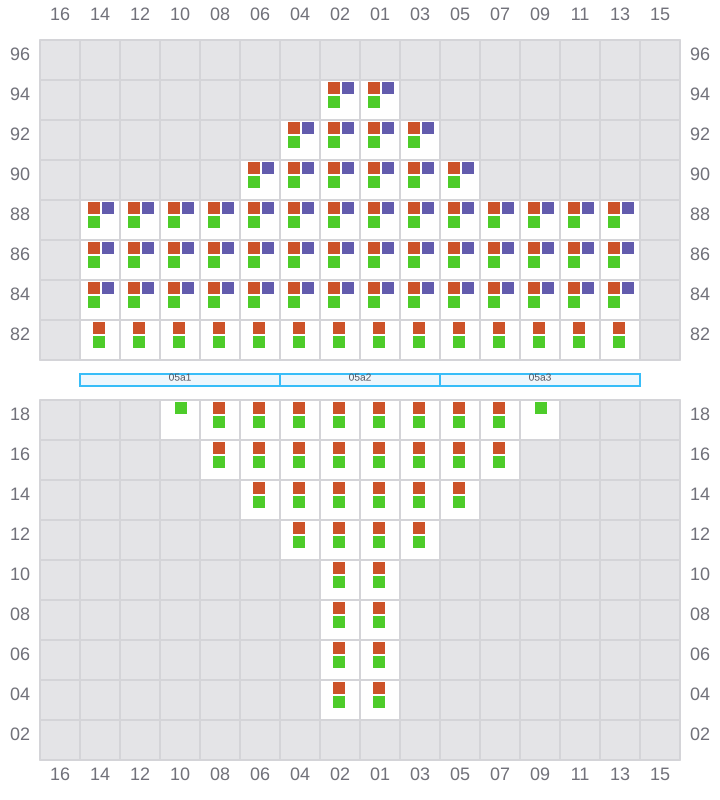

Bay 005 view and slots of MAERSK SENANG

007

←

Bay 007 view and slots of MAERSK SENANG

009 (010)

→

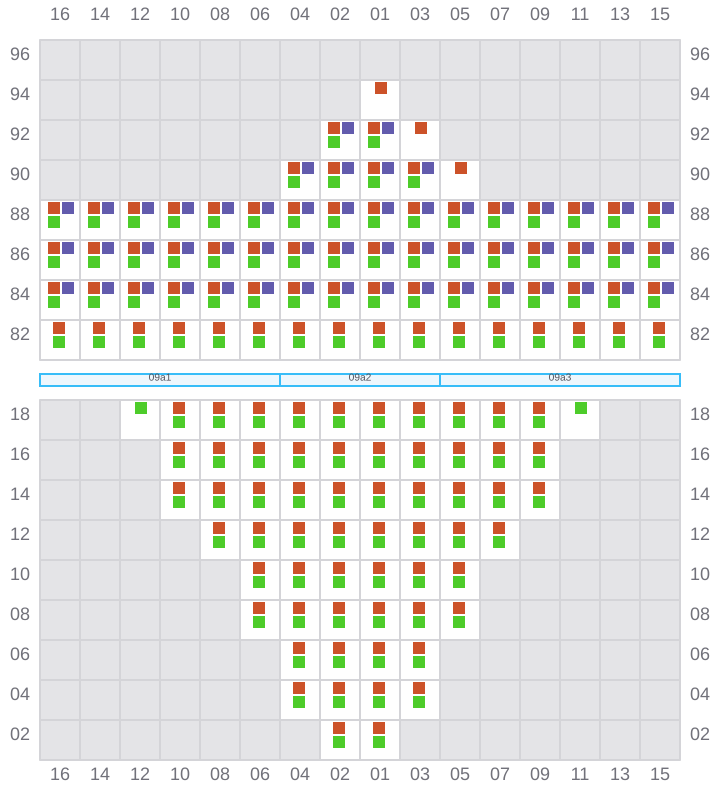

Bay 009 view and slots of MAERSK SENANG

011

←

Bay 011 view and slots of MAERSK SENANG

013 (014)

→

Bay 013 view and slots of MAERSK SENANG

015

←

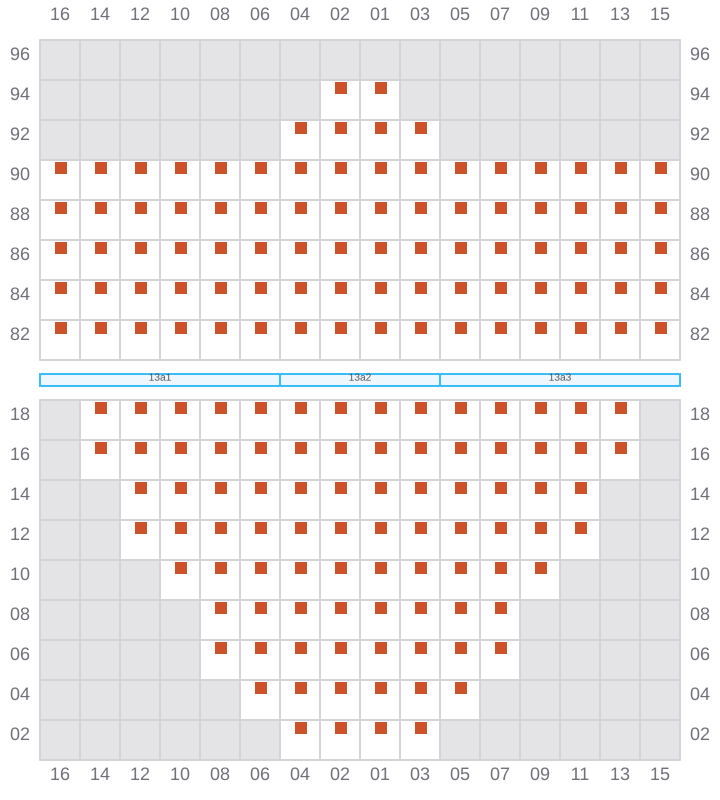

Bay 015 view and slots of MAERSK SENANG

017 (018)

→

Bay 017 view and slots of MAERSK SENANG

019

←

Bay 019 view and slots of MAERSK SENANG

021 (022)

→

Bay 021 view and slots of MAERSK SENANG

023

←

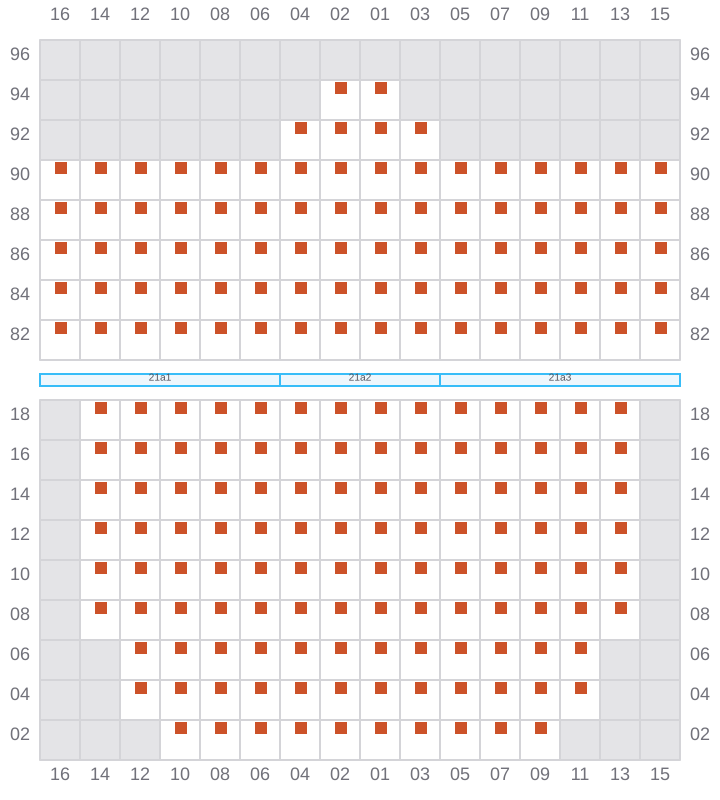

Bay 023 view and slots of MAERSK SENANG

025 (026)

→

Bay 025 view and slots of MAERSK SENANG

027

←

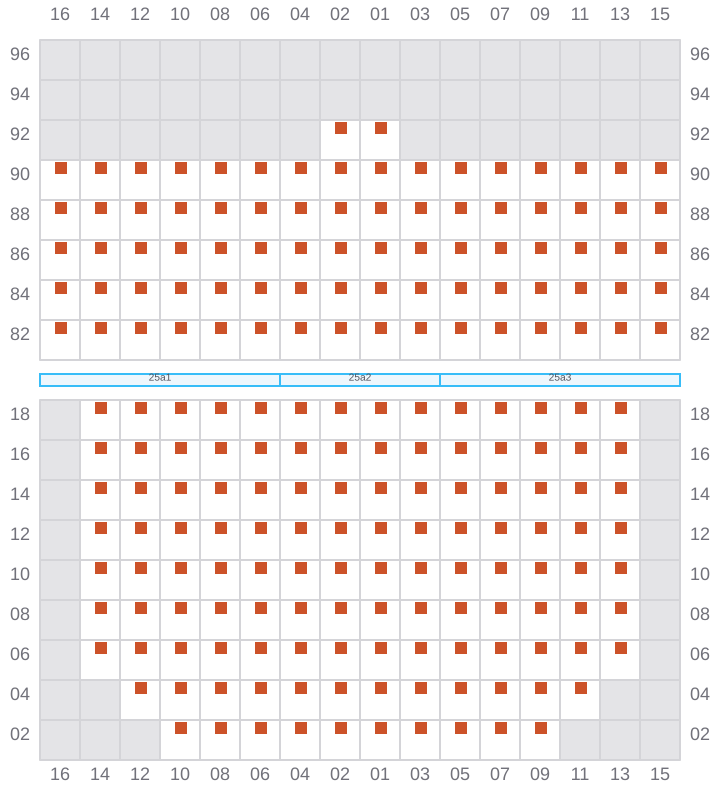

Bay 027 view and slots of MAERSK SENANG

029 (030)

→
^? / _←

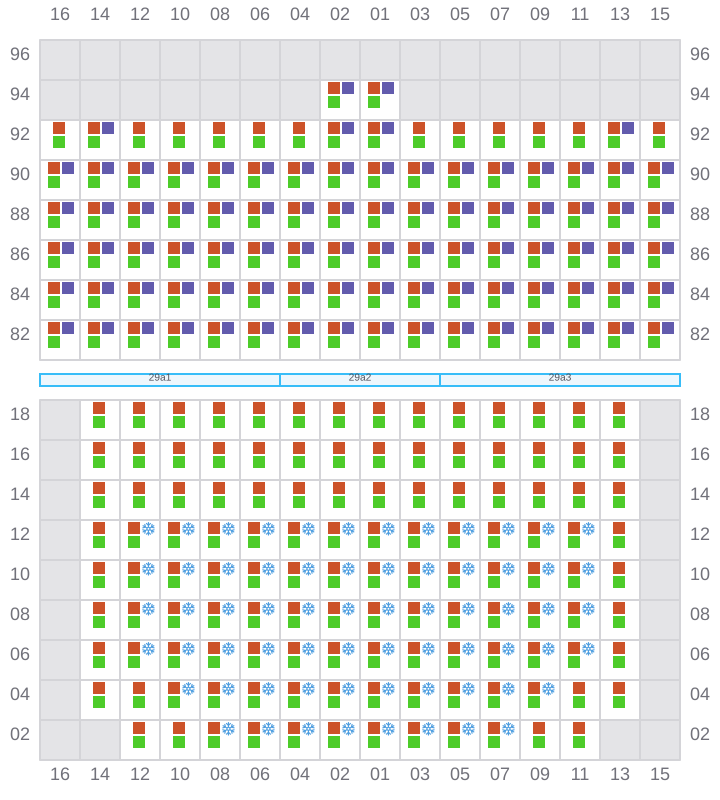

Bay 029 view and slots of MAERSK SENANG

031

←
^→ / _?

Bay 031 view and slots of MAERSK SENANG

033 (034)

→

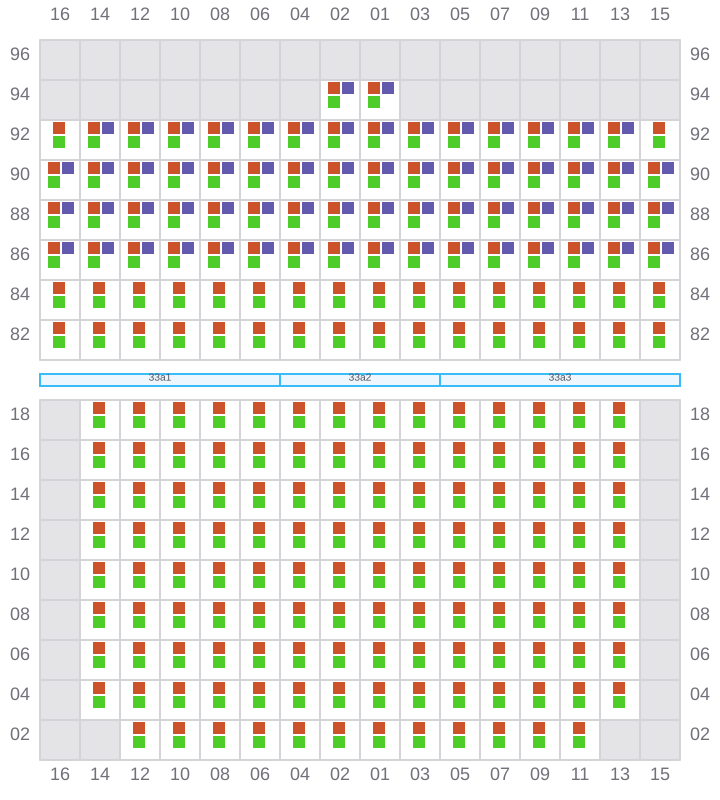

Bay 033 view and slots of MAERSK SENANG

035

←
^→ / _?

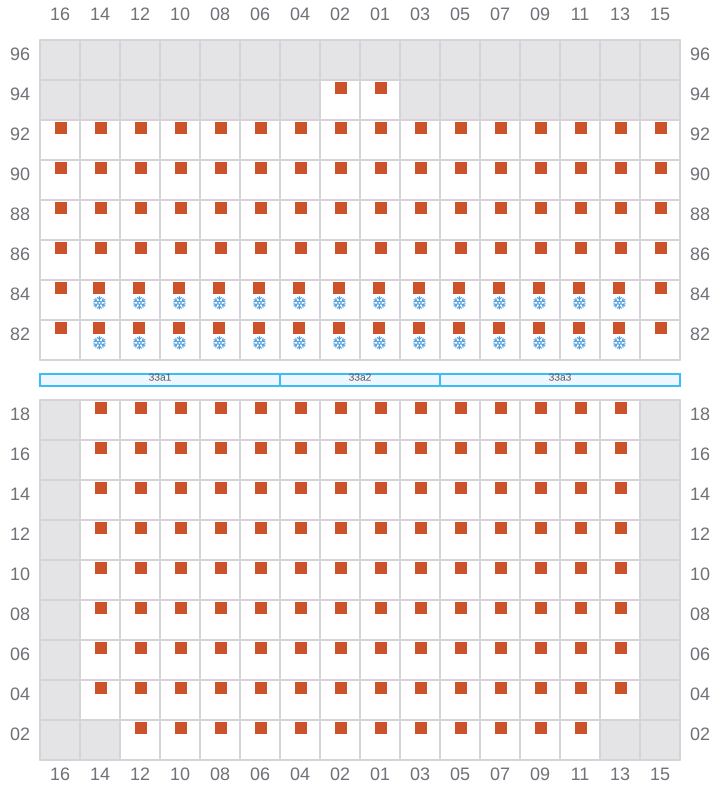

Bay 035 view and slots of MAERSK SENANG

037 (038)

→
^? / _←

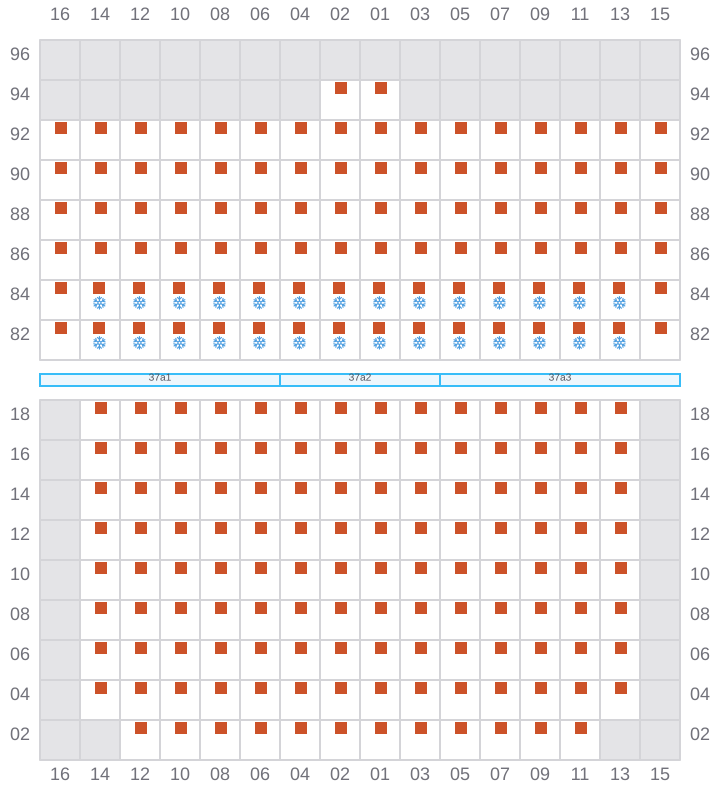

Bay 037 view and slots of MAERSK SENANG

039

←
^→ / _?

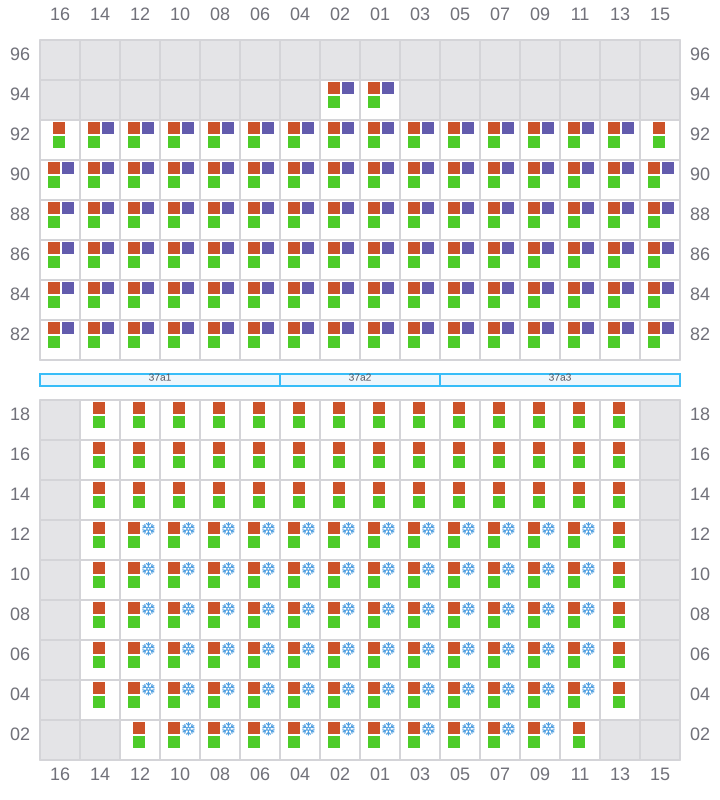

Bay 039 view and slots of MAERSK SENANG

041 (042)

→

Bay 041 view and slots of MAERSK SENANG

043

←
^→ / _?

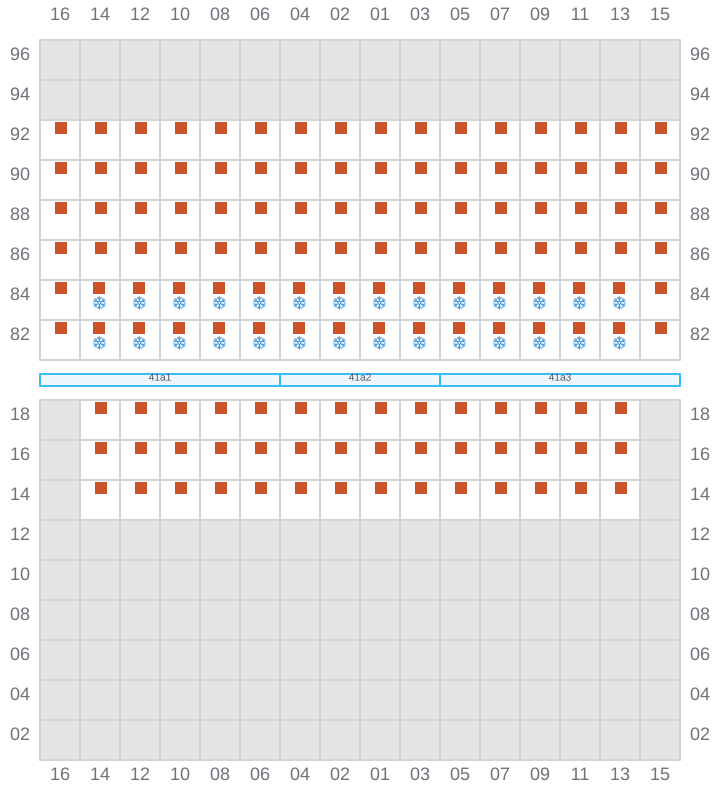

Bay 043 view and slots of MAERSK SENANG

045 (046)

→

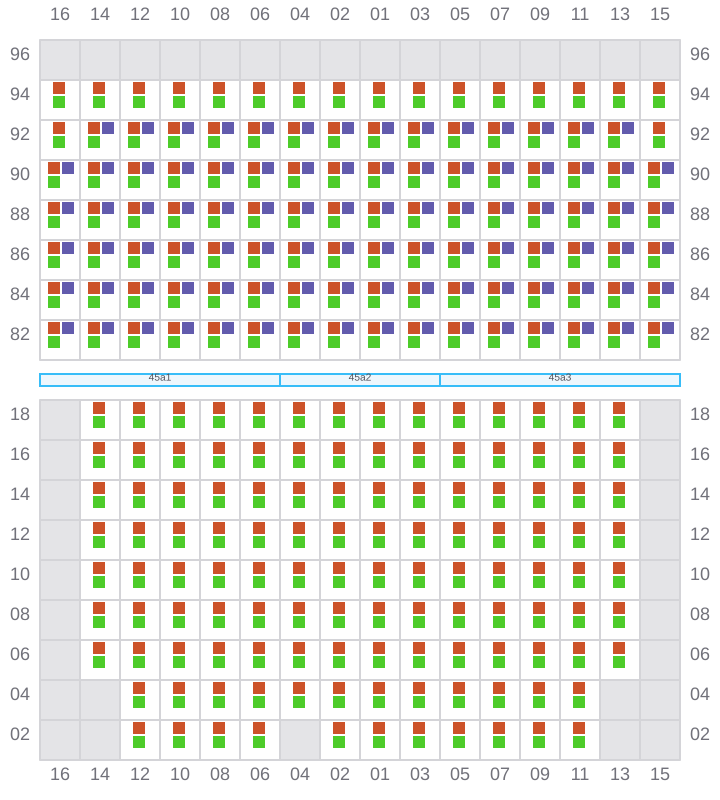

Bay 045 view and slots of MAERSK SENANG

047

←
^→ / _?

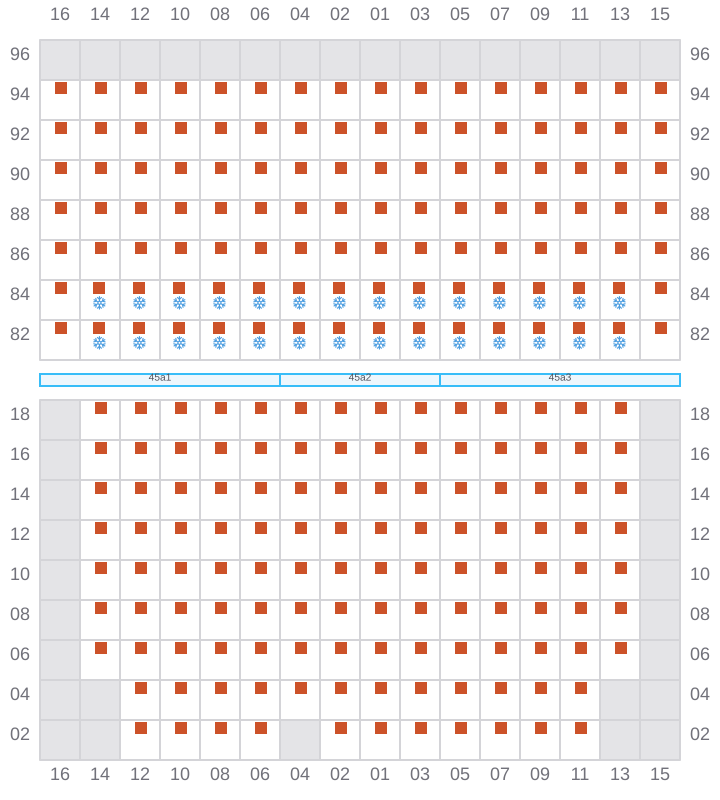

Bay 047 view and slots of MAERSK SENANG

049 (050)

→

Bay 049 view and slots of MAERSK SENANG

051

←
^→ / _?

Bay 051 view and slots of MAERSK SENANG

053 (054)

→
^? / _←

Bay 053 view and slots of MAERSK SENANG

055

←
^→ / _?

Bay 055 view and slots of MAERSK SENANG

057 (058)

→

Bay 057 view and slots of MAERSK SENANG

059

←
^→ / _?

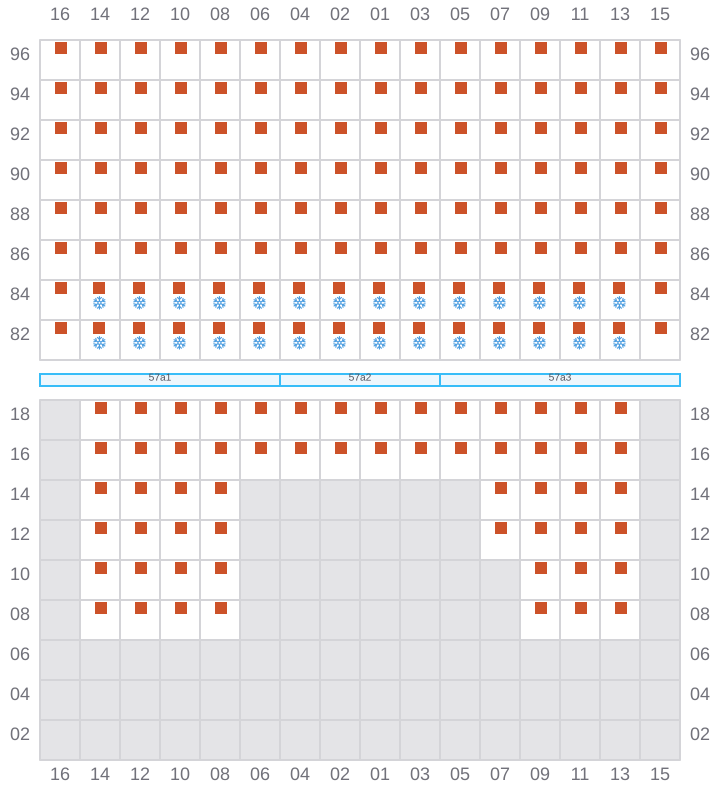

Bay 059 view and slots of MAERSK SENANG

061 (062)

→

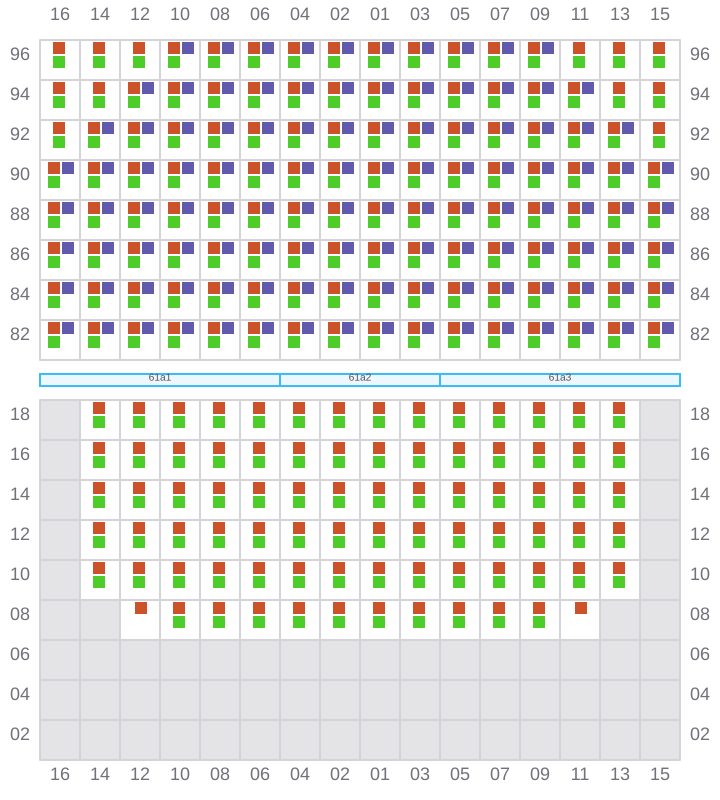

Bay 061 view and slots of MAERSK SENANG

063

←
^→ / _?

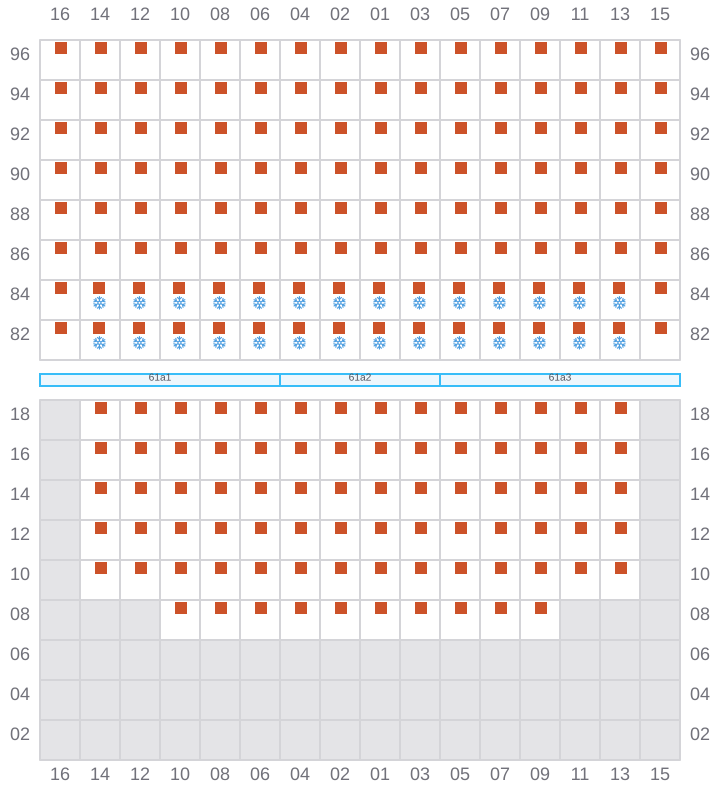

Bay 063 view and slots of MAERSK SENANG

065 (066)

→

Bay 065 view and slots of MAERSK SENANG

067

←
^→ / _?

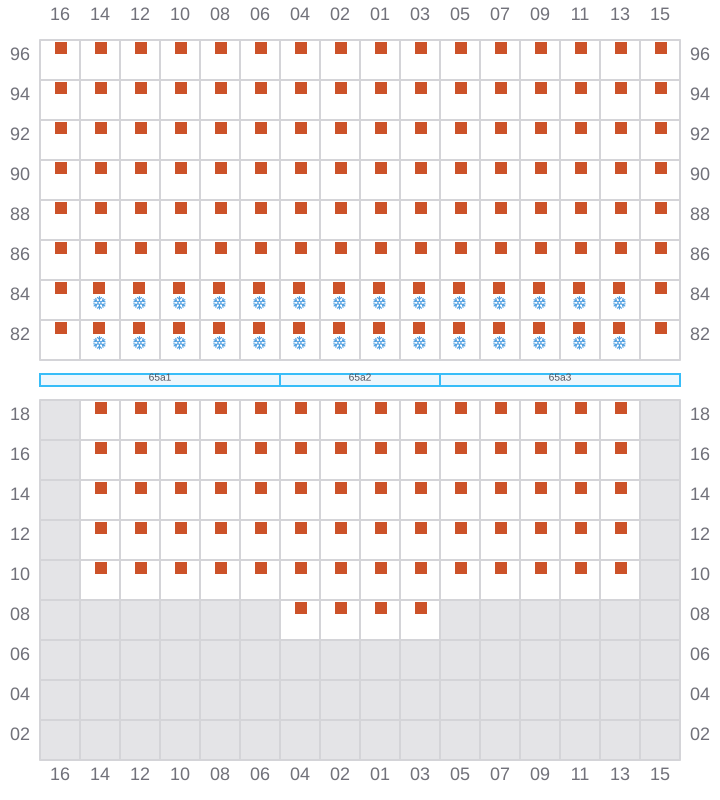

Bay 067 view and slots of MAERSK SENANG

069 (070)

→

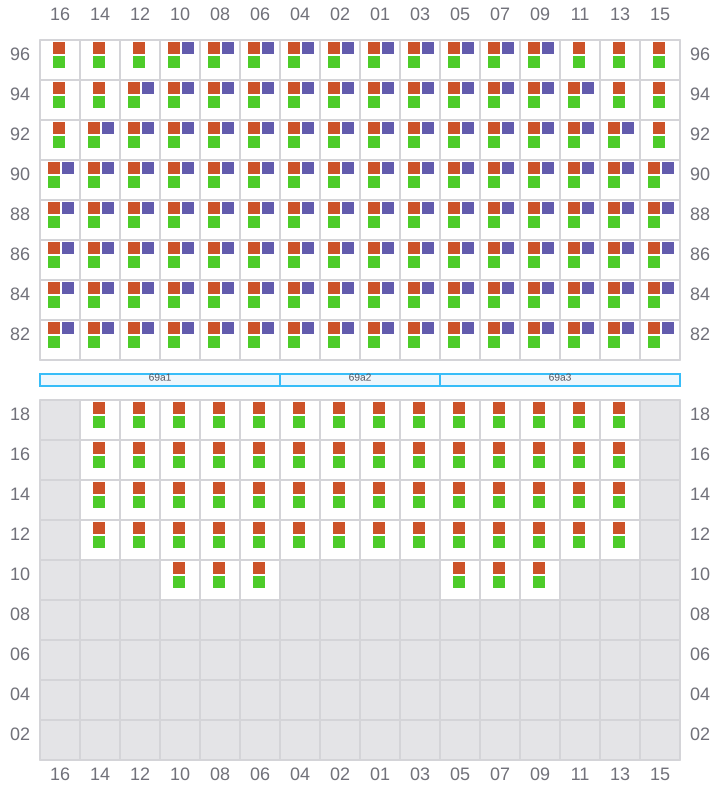

Bay 069 view and slots of MAERSK SENANG

071

←
^→ / _?

Bay 071 view and slots of MAERSK SENANG

073 (074)

^→ / _?

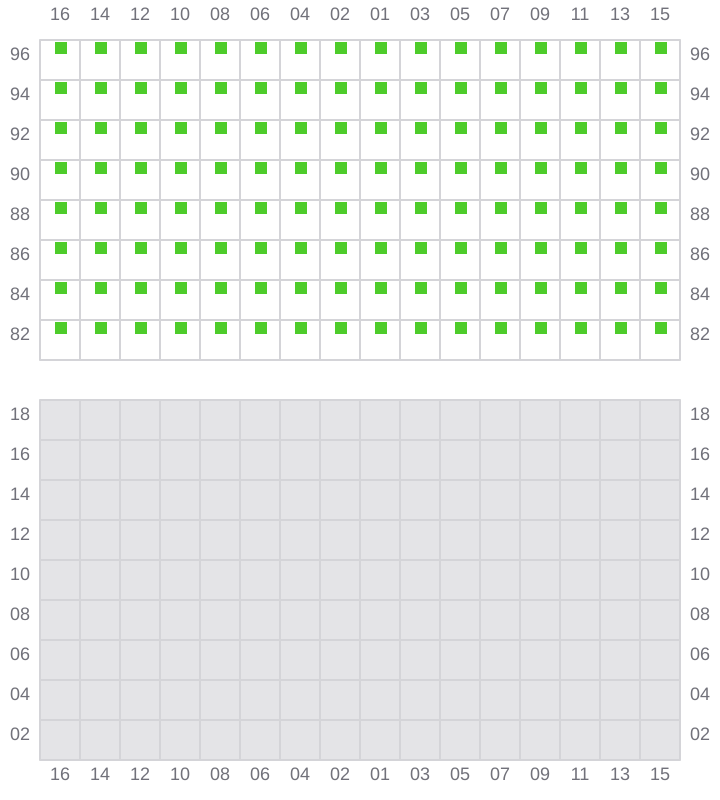

Bay 073 view and slots of MAERSK SENANG
