MAERSK SENTOSA
9315202 | WSEP | 9315202 by ********* Last update: Thu Mar 21 2024
General Info
Ship Name:MAERSK SENTOSA
IMO Code:9315202
Call Sign:WSEP
Line Operator:9315202
Class Name for Sister Ships:101
Year Built:2007
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):318.00
LOA (Length Overall):318.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As (old names):-
Size Summary
ISO Bays:073
Max ISO Row:16
Center Line Row:No
Max Above ISO Tier:96
Min Above ISO Tier:82
Max Below ISO Tier:18
Min Below ISO Tier:02
Total TEU:7,013
Centers of Gravity
LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

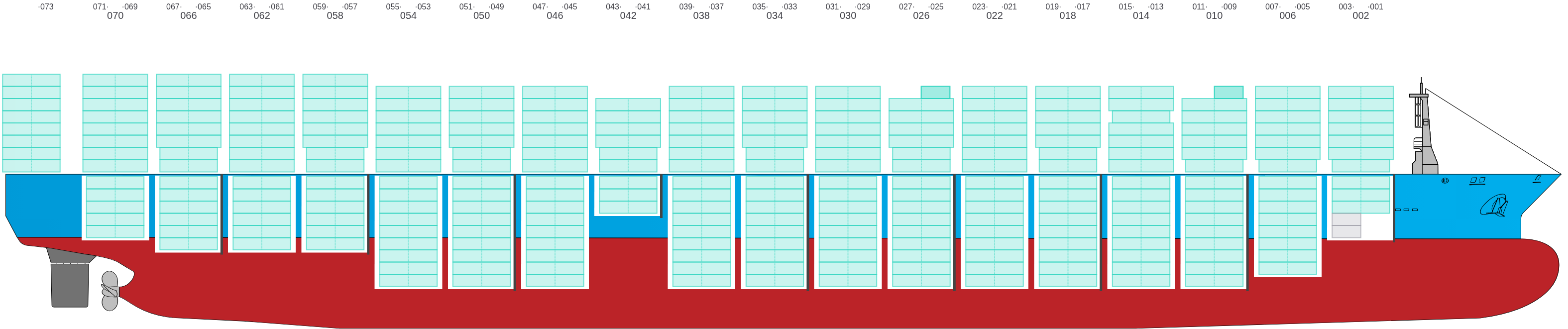

Side View
![Side view of MAERSK SENTOSA](/vessel-images/ca5aaa90-d04f-4a3f-a996-50d8f734f59a-sideView.png?v=1711043956584)
Hatch-Covers View
![Deck view of MAERSK SENTOSA](/vessel-images/ca5aaa90-d04f-4a3f-a996-50d8f734f59a-deckView.png?v=1711043956584)
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

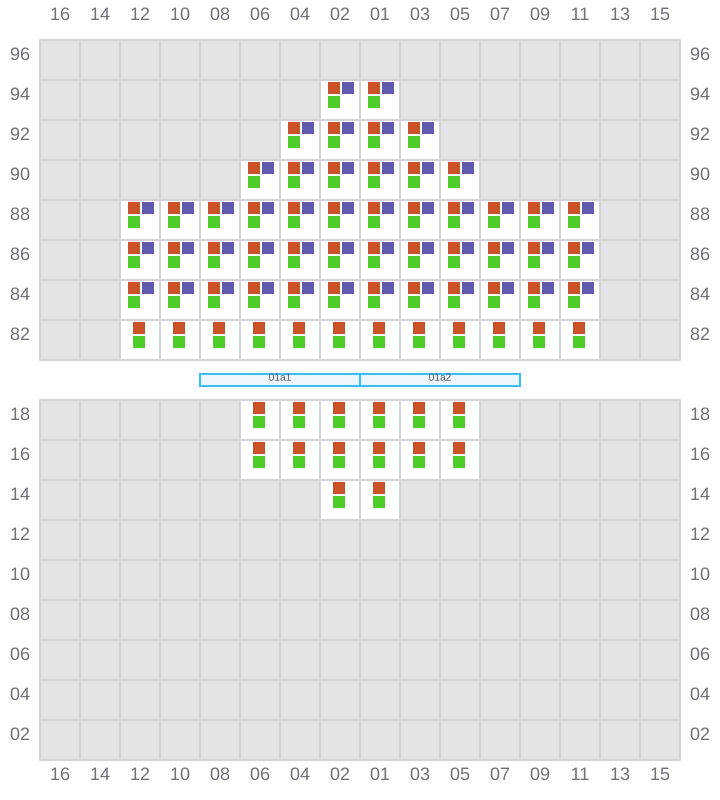

001 (002)
- →
![Bay 001 view and slots of MAERSK SENTOSA](/vessel-images/ca5aaa90-d04f-4a3f-a996-50d8f734f59a-b001.png?v=1711043956584)

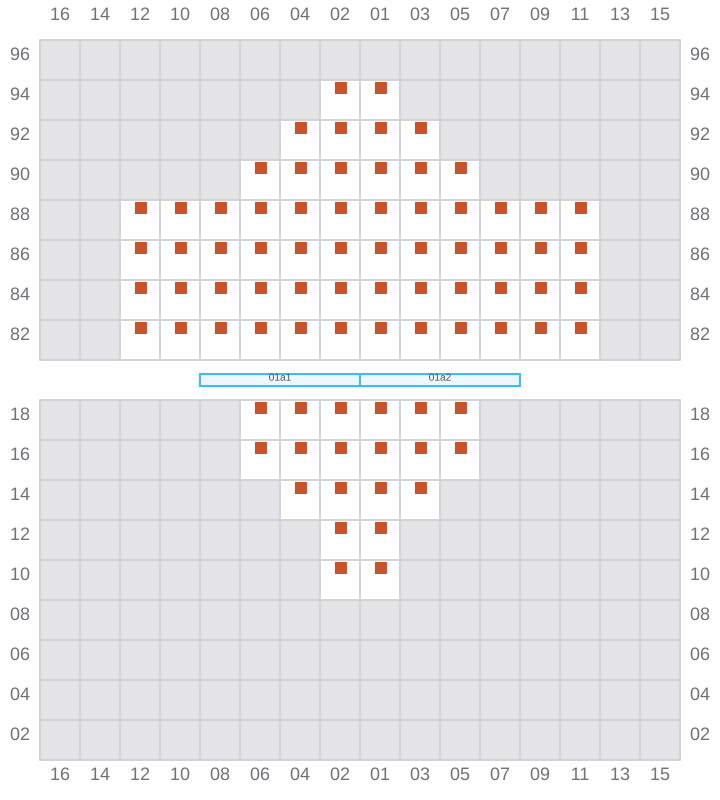

003
- ←
![Bay 003 view and slots of MAERSK SENTOSA](/vessel-images/ca5aaa90-d04f-4a3f-a996-50d8f734f59a-b003.png?v=1711043956584)

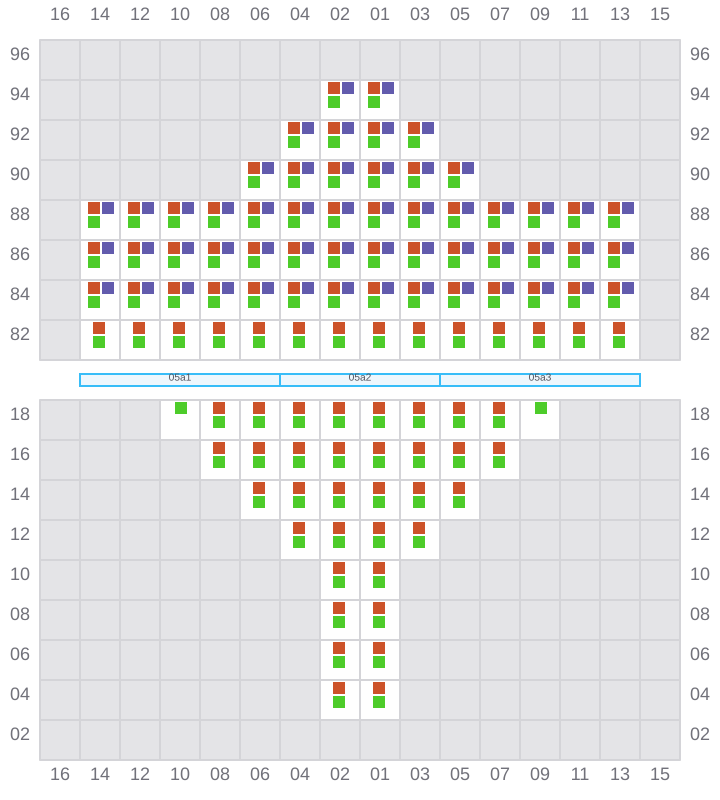

005 (006)
- →
![Bay 005 view and slots of MAERSK SENTOSA](/vessel-images/ca5aaa90-d04f-4a3f-a996-50d8f734f59a-b005.png?v=1711043956584)

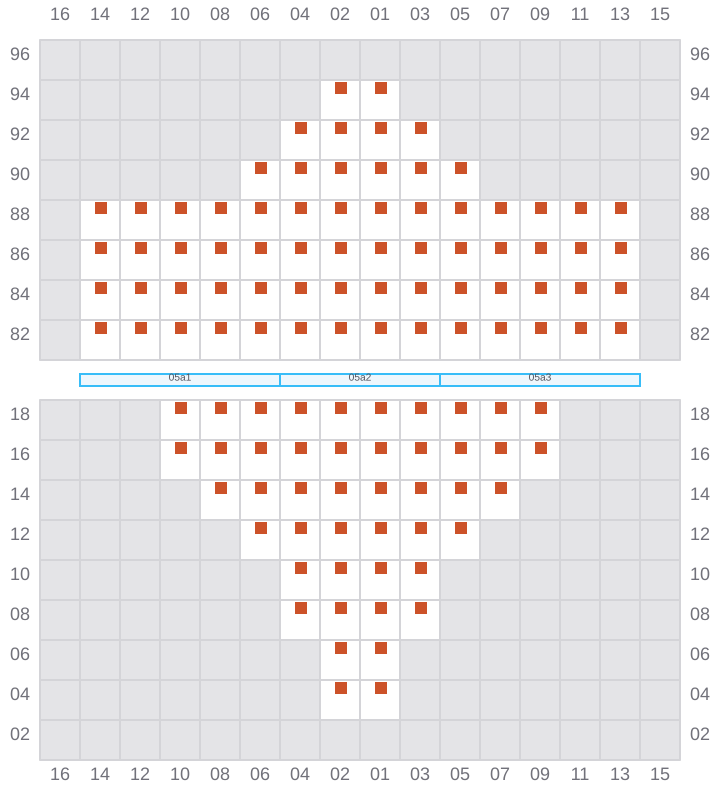

007
- ←
![Bay 007 view and slots of MAERSK SENTOSA](/vessel-images/ca5aaa90-d04f-4a3f-a996-50d8f734f59a-b007.png?v=1711043956584)

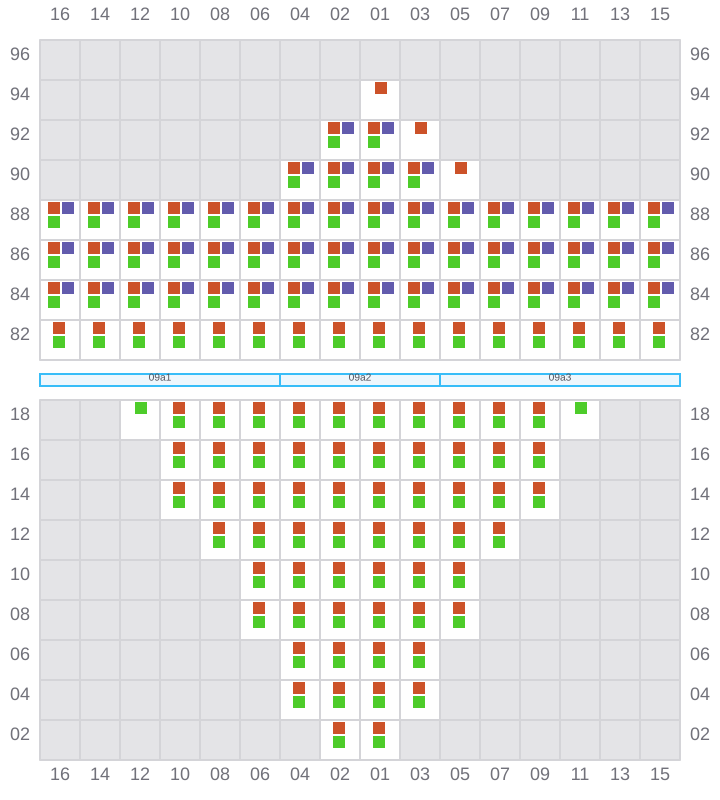

009 (010)
- →
![Bay 009 view and slots of MAERSK SENTOSA](/vessel-images/ca5aaa90-d04f-4a3f-a996-50d8f734f59a-b009.png?v=1711043956584)

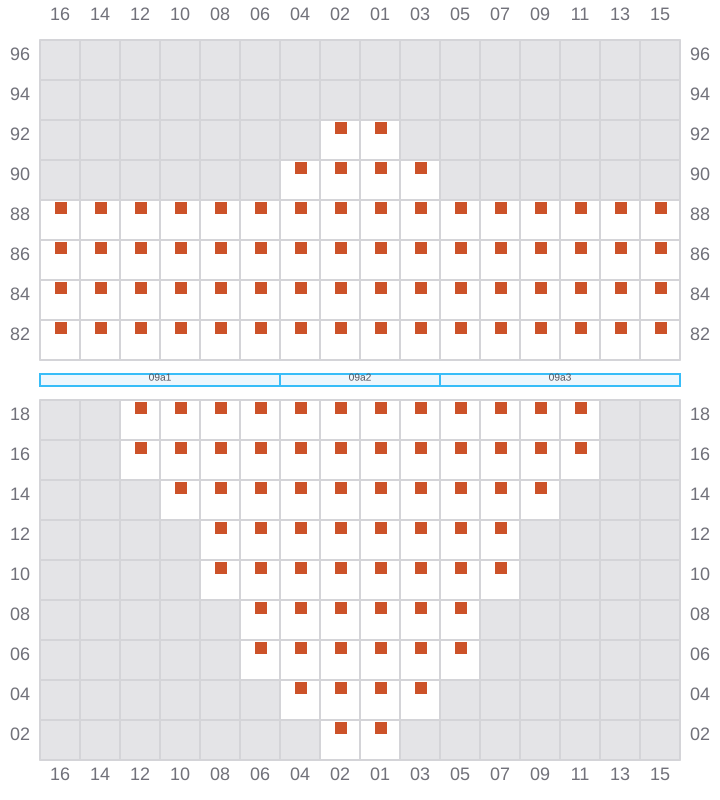

011
- ←
![Bay 011 view and slots of MAERSK SENTOSA](/vessel-images/ca5aaa90-d04f-4a3f-a996-50d8f734f59a-b011.png?v=1711043956584)
013 (014)
- →
![Bay 013 view and slots of MAERSK SENTOSA](/vessel-images/ca5aaa90-d04f-4a3f-a996-50d8f734f59a-b013.png?v=1711043956584)

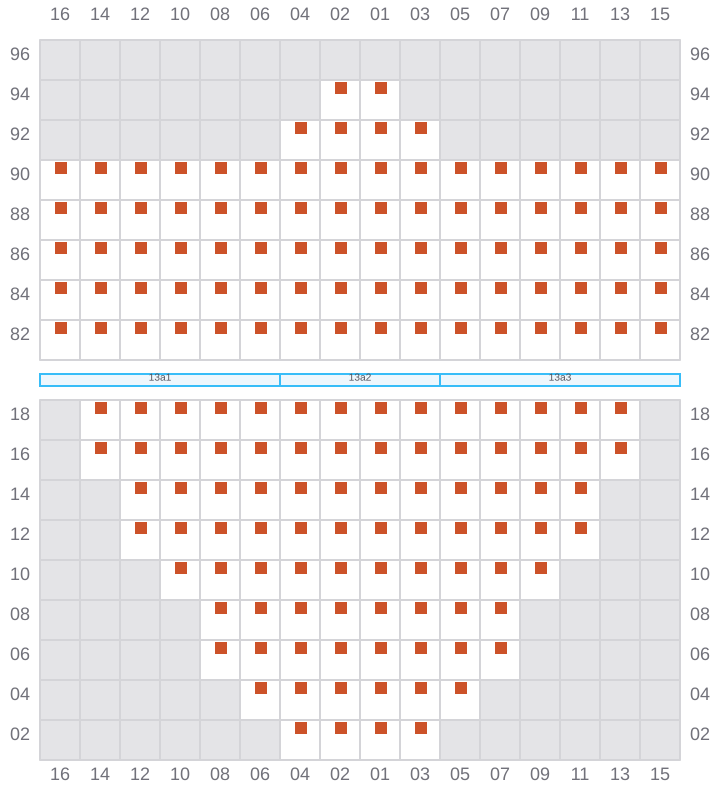

015
- ←
![Bay 015 view and slots of MAERSK SENTOSA](/vessel-images/ca5aaa90-d04f-4a3f-a996-50d8f734f59a-b015.png?v=1711043956584)

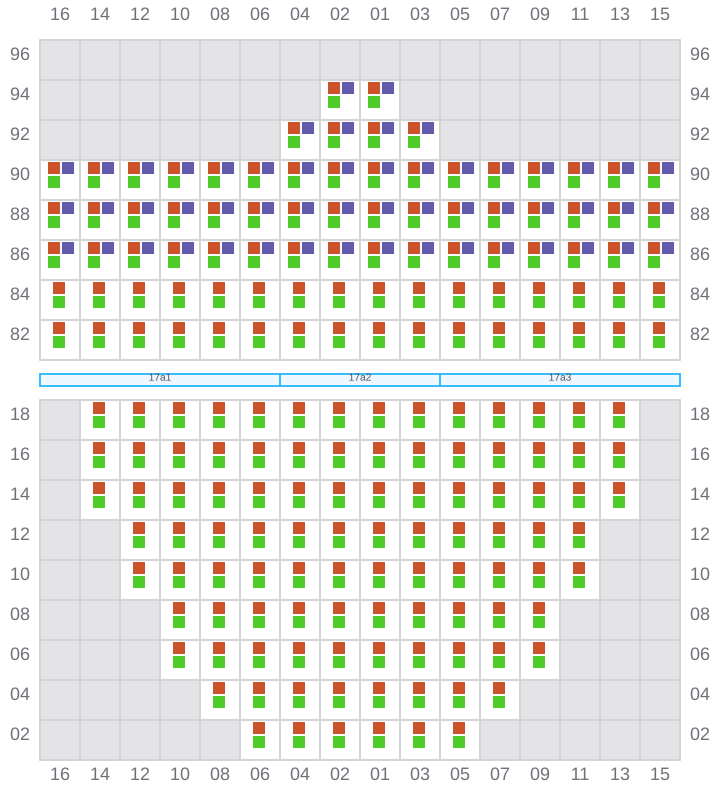

017 (018)
- →
![Bay 017 view and slots of MAERSK SENTOSA](/vessel-images/ca5aaa90-d04f-4a3f-a996-50d8f734f59a-b017.png?v=1711043956584)

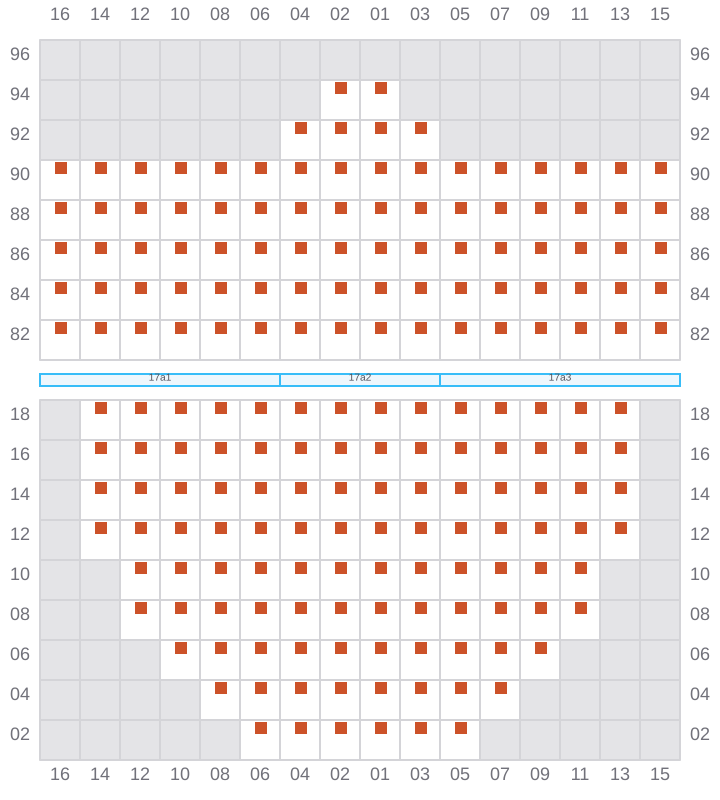

019
- ←
![Bay 019 view and slots of MAERSK SENTOSA](/vessel-images/ca5aaa90-d04f-4a3f-a996-50d8f734f59a-b019.png?v=1711043956584)

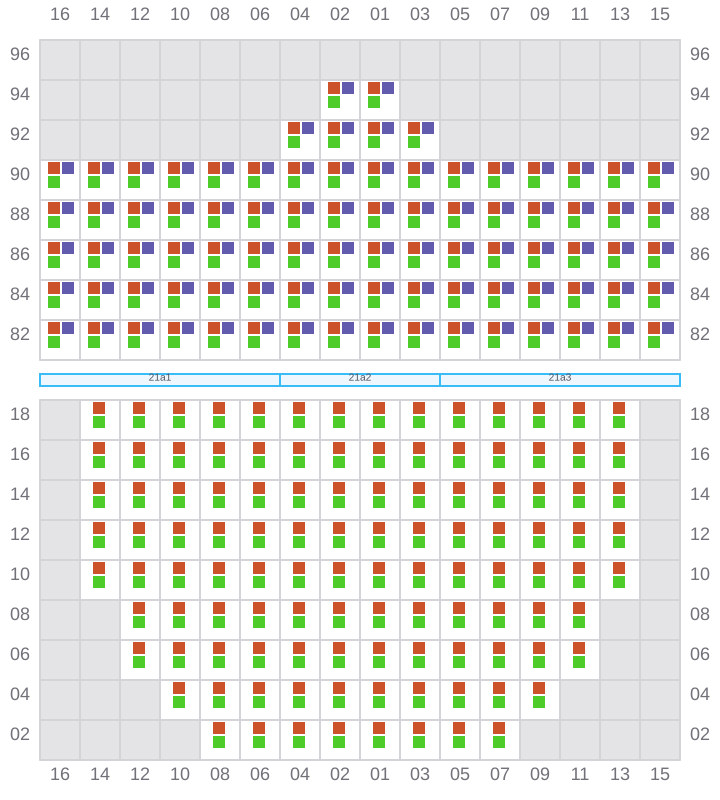

021 (022)
- →
![Bay 021 view and slots of MAERSK SENTOSA](/vessel-images/ca5aaa90-d04f-4a3f-a996-50d8f734f59a-b021.png?v=1711043956584)

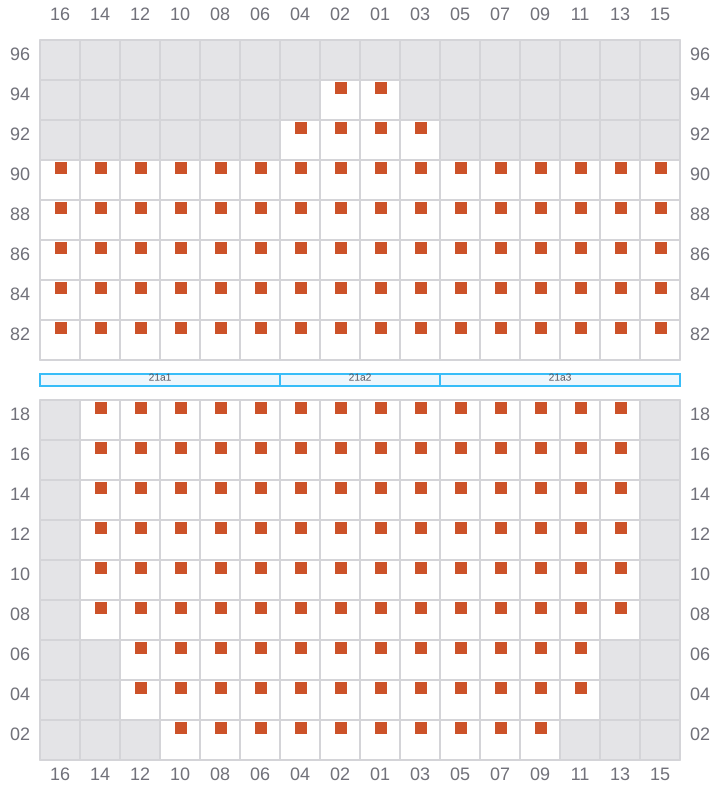

023
- ←
![Bay 023 view and slots of MAERSK SENTOSA](/vessel-images/ca5aaa90-d04f-4a3f-a996-50d8f734f59a-b023.png?v=1711043956584)

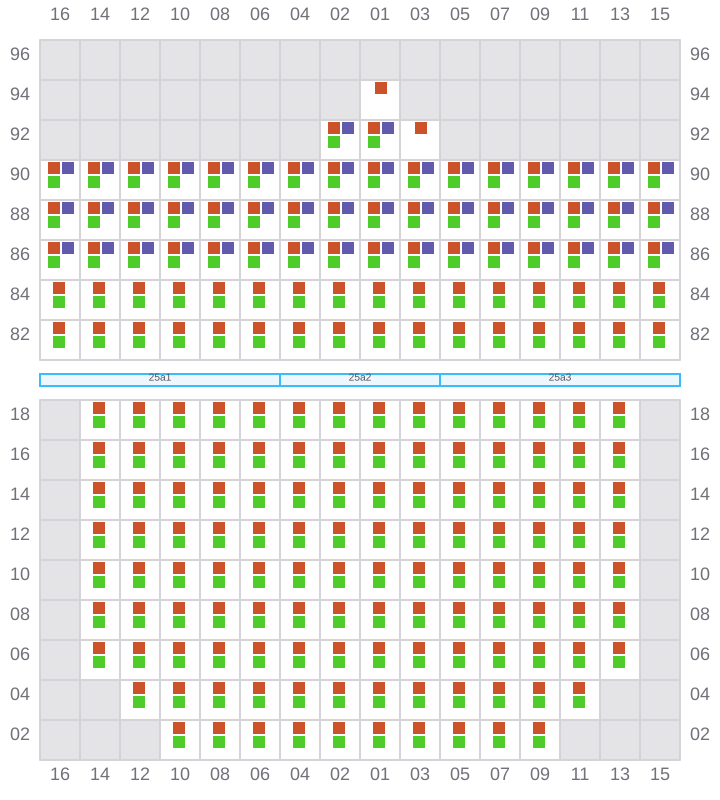

025 (026)
- →
![Bay 025 view and slots of MAERSK SENTOSA](/vessel-images/ca5aaa90-d04f-4a3f-a996-50d8f734f59a-b025.png?v=1711043956584)

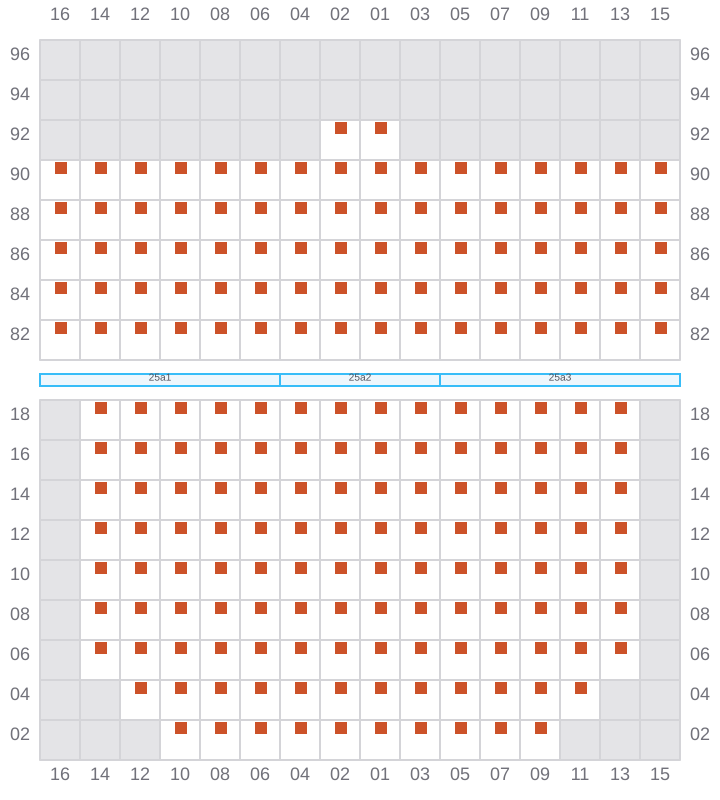

027
- ←
![Bay 027 view and slots of MAERSK SENTOSA](/vessel-images/ca5aaa90-d04f-4a3f-a996-50d8f734f59a-b027.png?v=1711043956584)
029 (030)
- →
- ? / ←
![Bay 029 view and slots of MAERSK SENTOSA](/vessel-images/ca5aaa90-d04f-4a3f-a996-50d8f734f59a-b029.png?v=1711043956584)

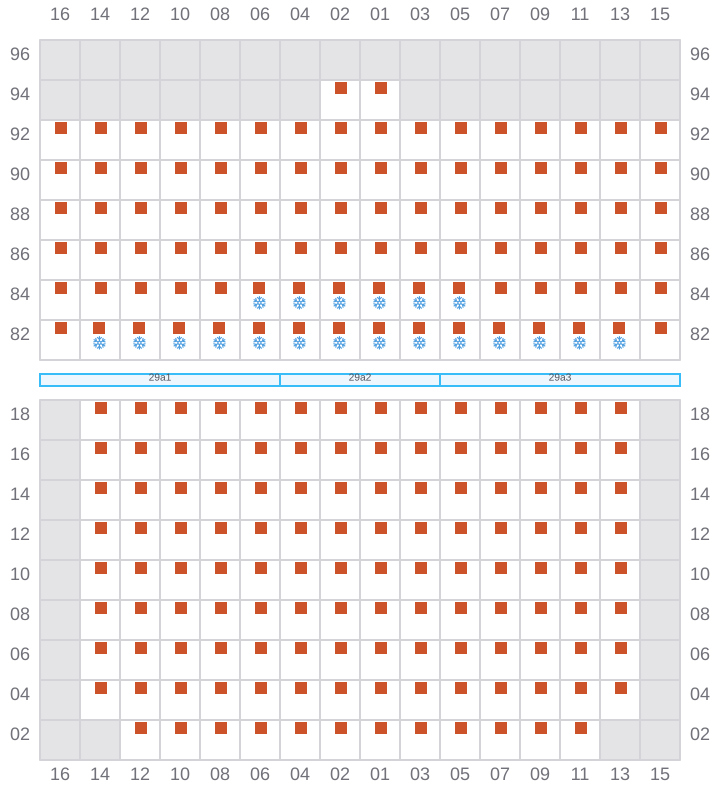

031
- ←
- → / ?
![Bay 031 view and slots of MAERSK SENTOSA](/vessel-images/ca5aaa90-d04f-4a3f-a996-50d8f734f59a-b031.png?v=1711043956584)

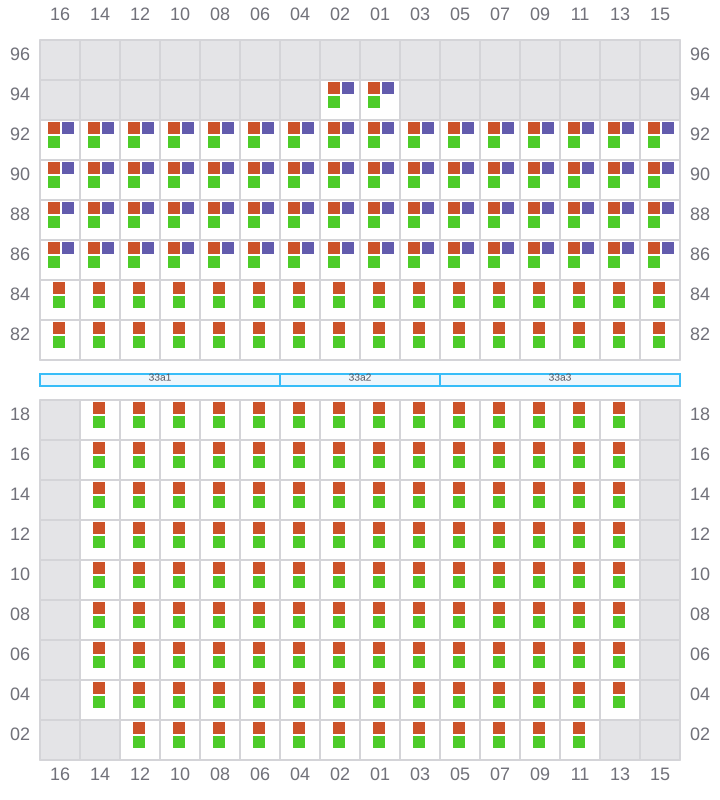

033 (034)
- →
![Bay 033 view and slots of MAERSK SENTOSA](/vessel-images/ca5aaa90-d04f-4a3f-a996-50d8f734f59a-b033.png?v=1711043956584)

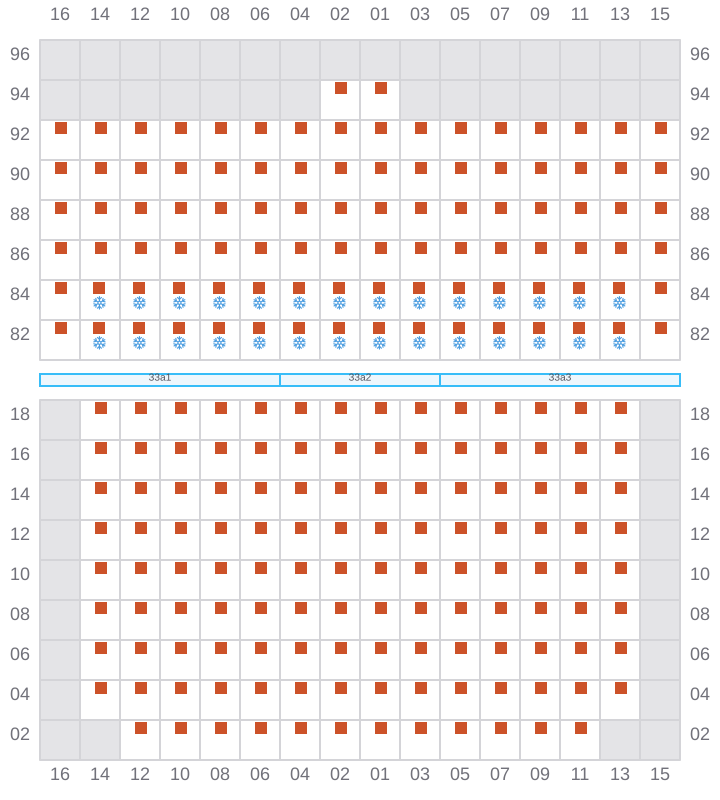

035
- ←
- → / ?
![Bay 035 view and slots of MAERSK SENTOSA](/vessel-images/ca5aaa90-d04f-4a3f-a996-50d8f734f59a-b035.png?v=1711043956584)

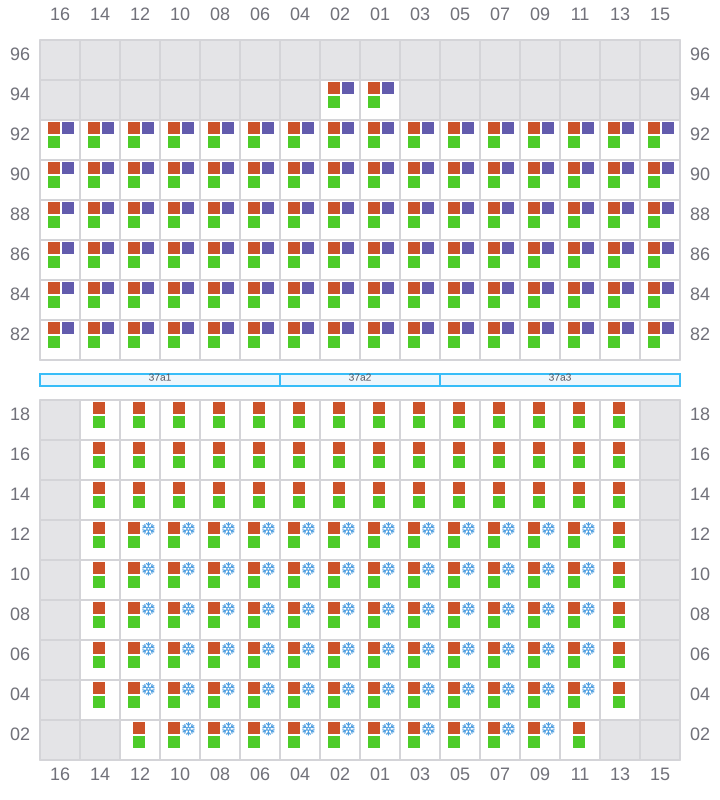

037 (038)
- →
- ? / ←
![Bay 037 view and slots of MAERSK SENTOSA](/vessel-images/ca5aaa90-d04f-4a3f-a996-50d8f734f59a-b037.png?v=1711043956584)

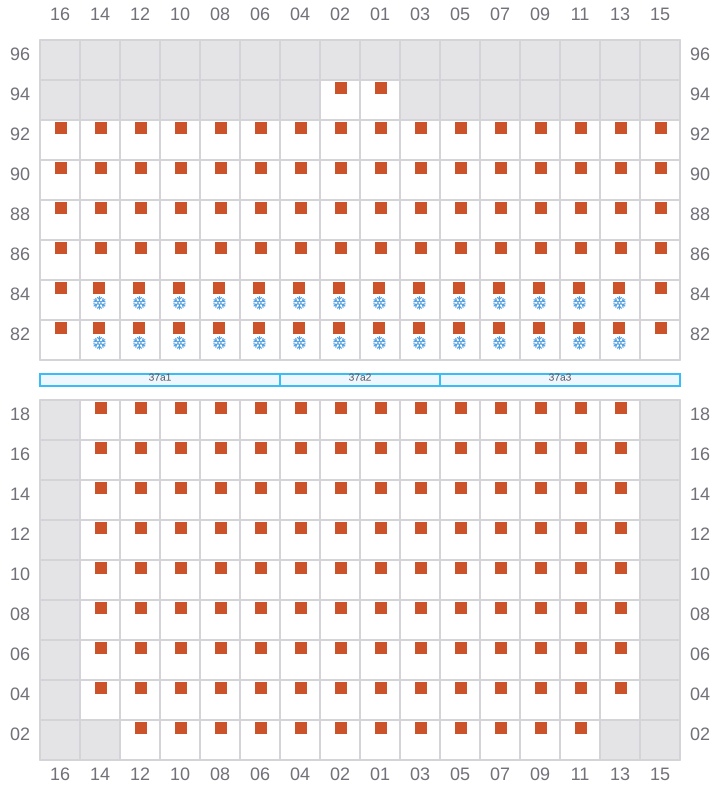

039
- ←
- → / ?
![Bay 039 view and slots of MAERSK SENTOSA](/vessel-images/ca5aaa90-d04f-4a3f-a996-50d8f734f59a-b039.png?v=1711043956584)

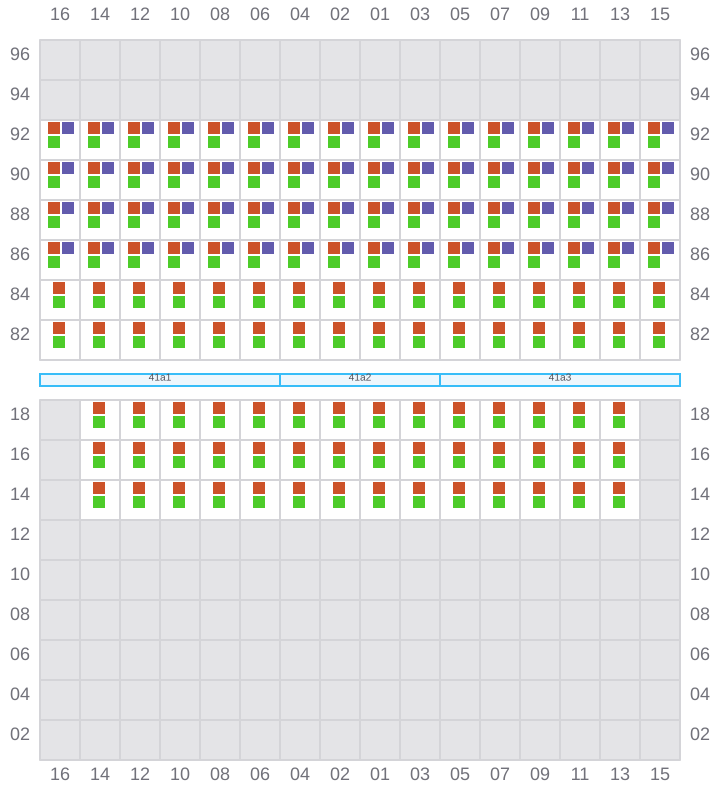

041 (042)
- →
![Bay 041 view and slots of MAERSK SENTOSA](/vessel-images/ca5aaa90-d04f-4a3f-a996-50d8f734f59a-b041.png?v=1711043956584)

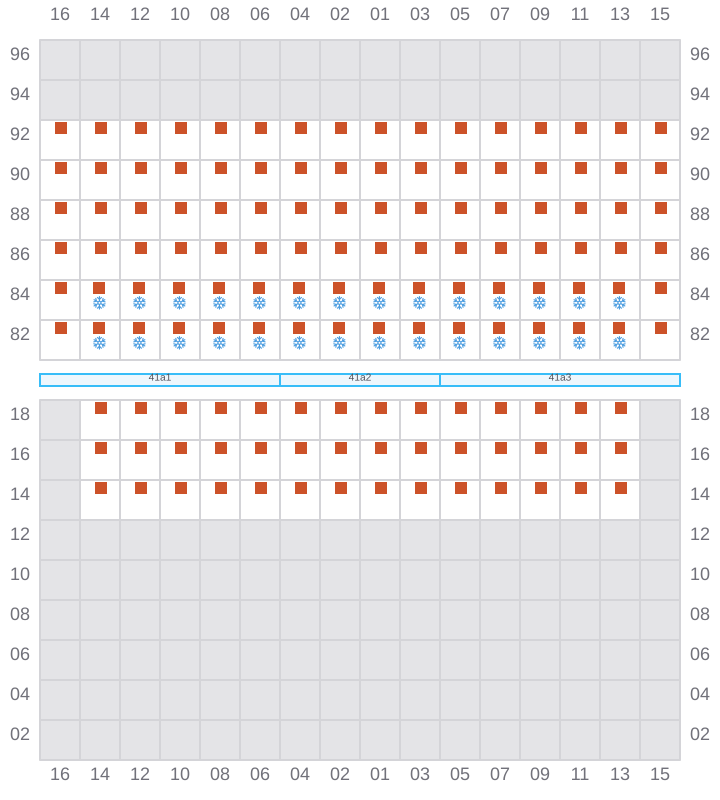

043
- ←
- → / ?
![Bay 043 view and slots of MAERSK SENTOSA](/vessel-images/ca5aaa90-d04f-4a3f-a996-50d8f734f59a-b043.png?v=1711043956584)

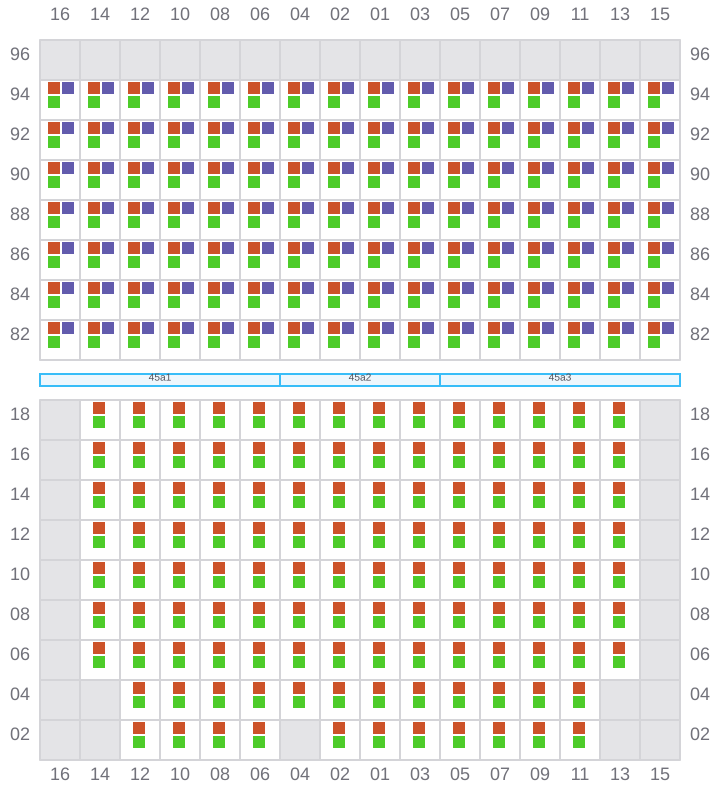

045 (046)
- →
![Bay 045 view and slots of MAERSK SENTOSA](/vessel-images/ca5aaa90-d04f-4a3f-a996-50d8f734f59a-b045.png?v=1711043956584)
047
- ←
- → / ?
![Bay 047 view and slots of MAERSK SENTOSA](/vessel-images/ca5aaa90-d04f-4a3f-a996-50d8f734f59a-b047.png?v=1711043956584)

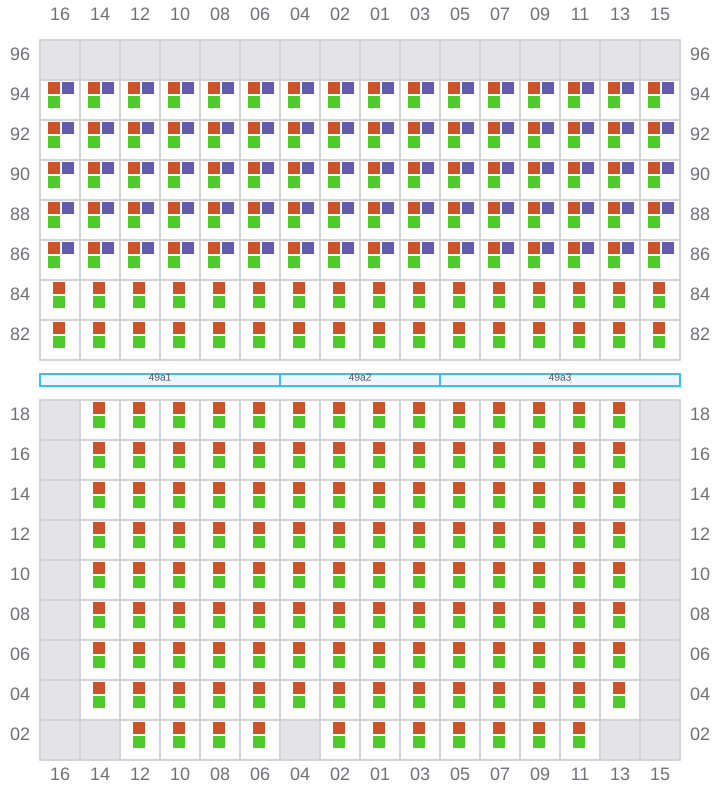

049 (050)
- →
![Bay 049 view and slots of MAERSK SENTOSA](/vessel-images/ca5aaa90-d04f-4a3f-a996-50d8f734f59a-b049.png?v=1711043956584)
051
- ←
- → / ?
![Bay 051 view and slots of MAERSK SENTOSA](/vessel-images/ca5aaa90-d04f-4a3f-a996-50d8f734f59a-b051.png?v=1711043956584)

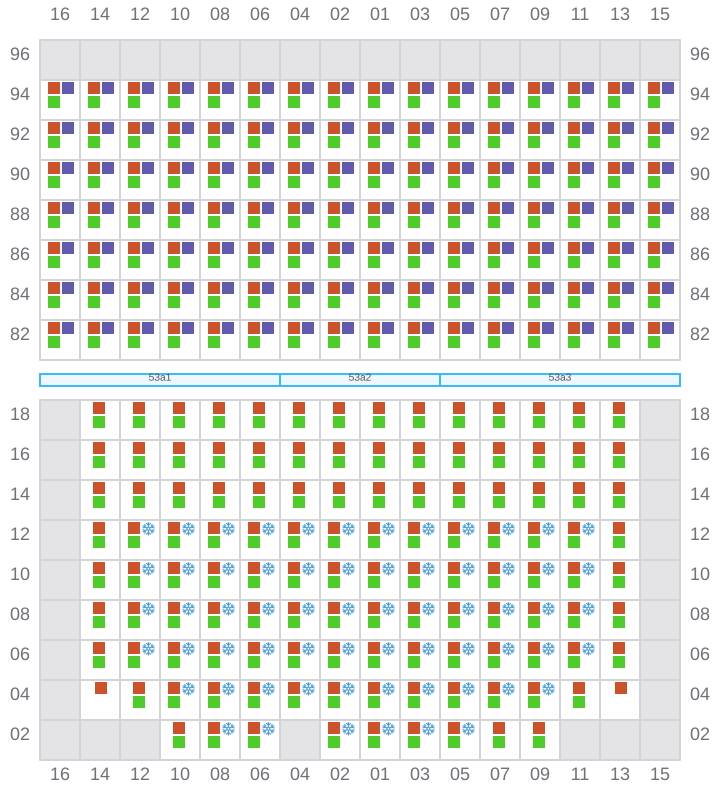

053 (054)
- →
- ? / ←
![Bay 053 view and slots of MAERSK SENTOSA](/vessel-images/ca5aaa90-d04f-4a3f-a996-50d8f734f59a-b053.png?v=1711043956584)

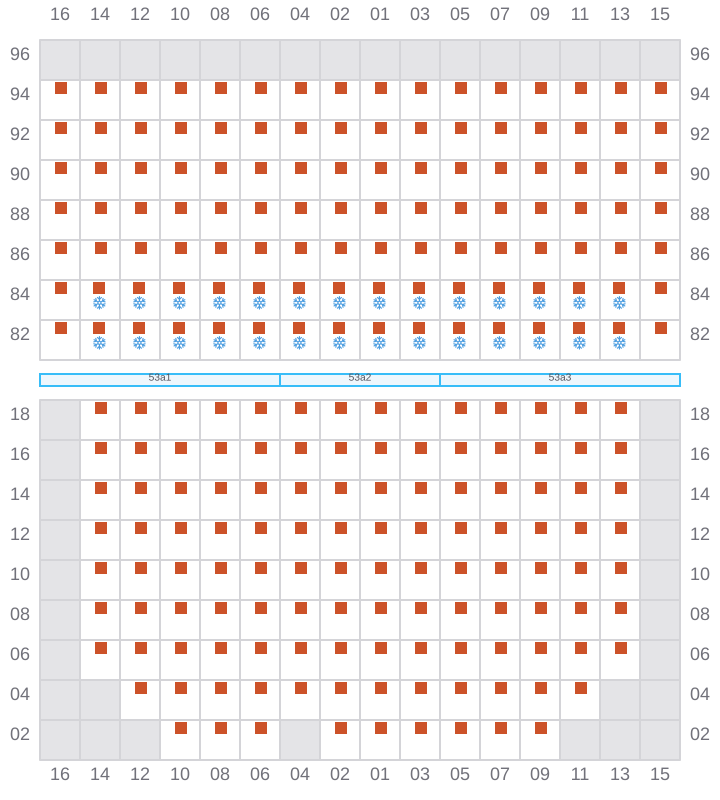

055
- ←
- → / ?
![Bay 055 view and slots of MAERSK SENTOSA](/vessel-images/ca5aaa90-d04f-4a3f-a996-50d8f734f59a-b055.png?v=1711043956584)

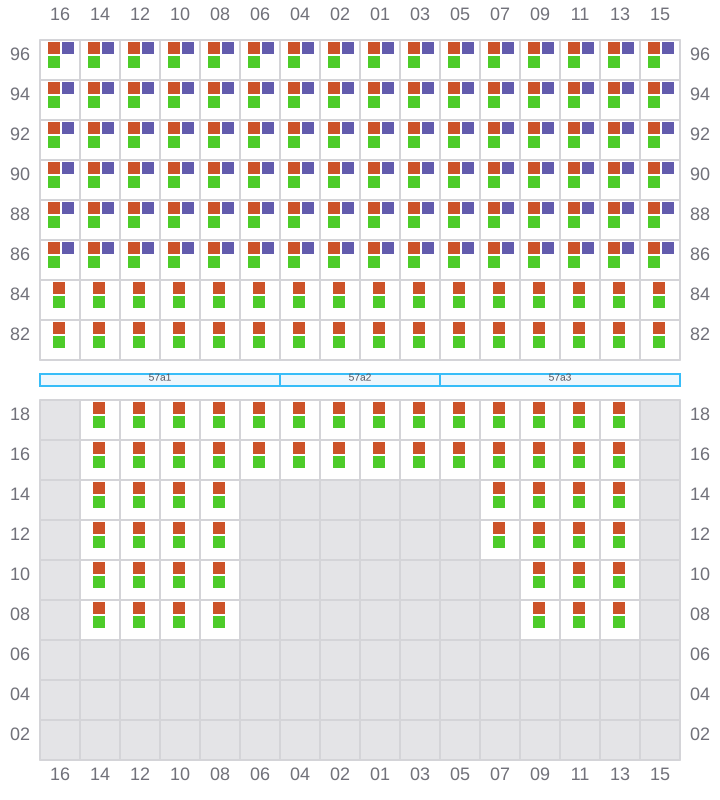

057 (058)
- →
![Bay 057 view and slots of MAERSK SENTOSA](/vessel-images/ca5aaa90-d04f-4a3f-a996-50d8f734f59a-b057.png?v=1711043956584)
059
- ←
- → / ?
![Bay 059 view and slots of MAERSK SENTOSA](/vessel-images/ca5aaa90-d04f-4a3f-a996-50d8f734f59a-b059.png?v=1711043956584)

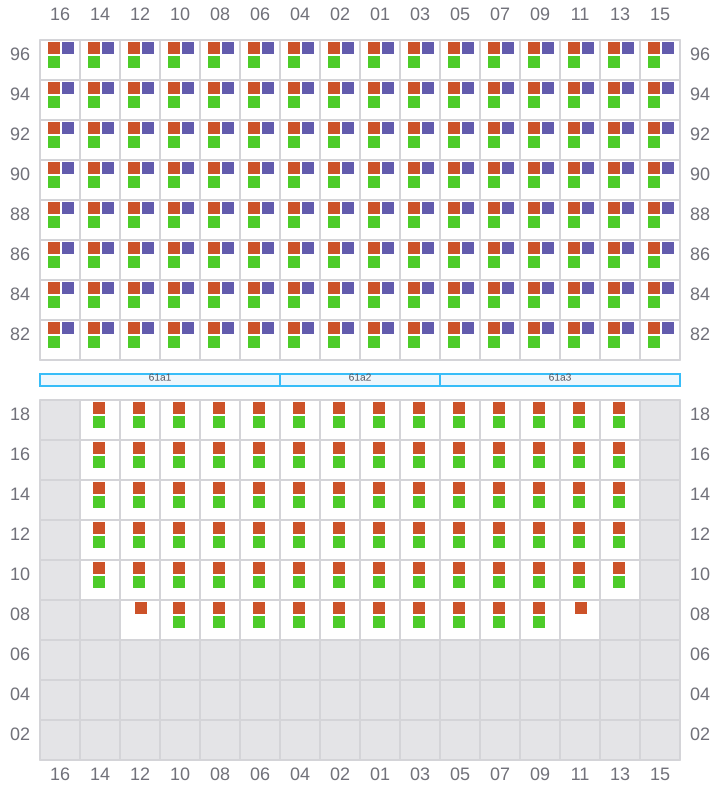

061 (062)
- →
![Bay 061 view and slots of MAERSK SENTOSA](/vessel-images/ca5aaa90-d04f-4a3f-a996-50d8f734f59a-b061.png?v=1711043956584)

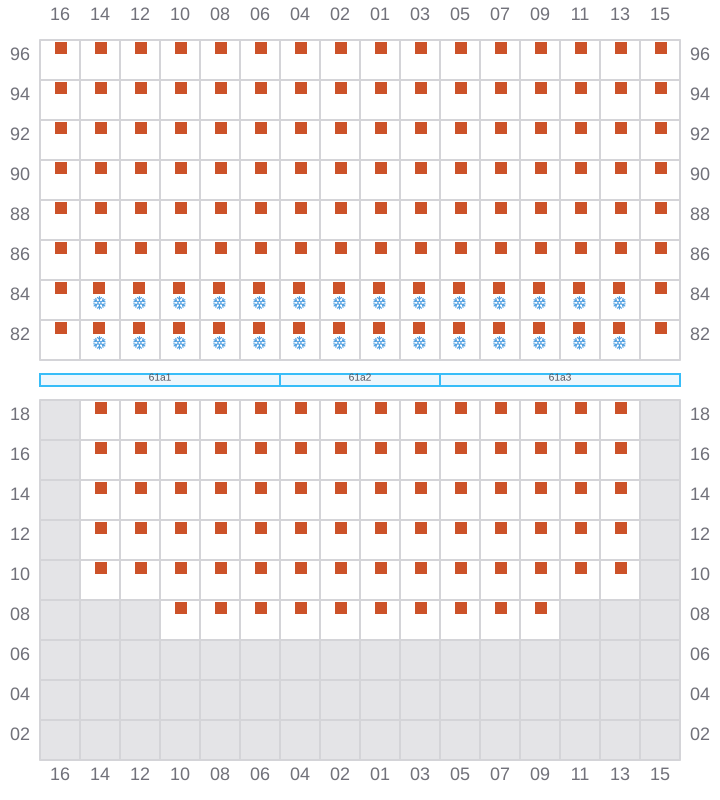

063
- ←
- → / ?
![Bay 063 view and slots of MAERSK SENTOSA](/vessel-images/ca5aaa90-d04f-4a3f-a996-50d8f734f59a-b063.png?v=1711043956584)

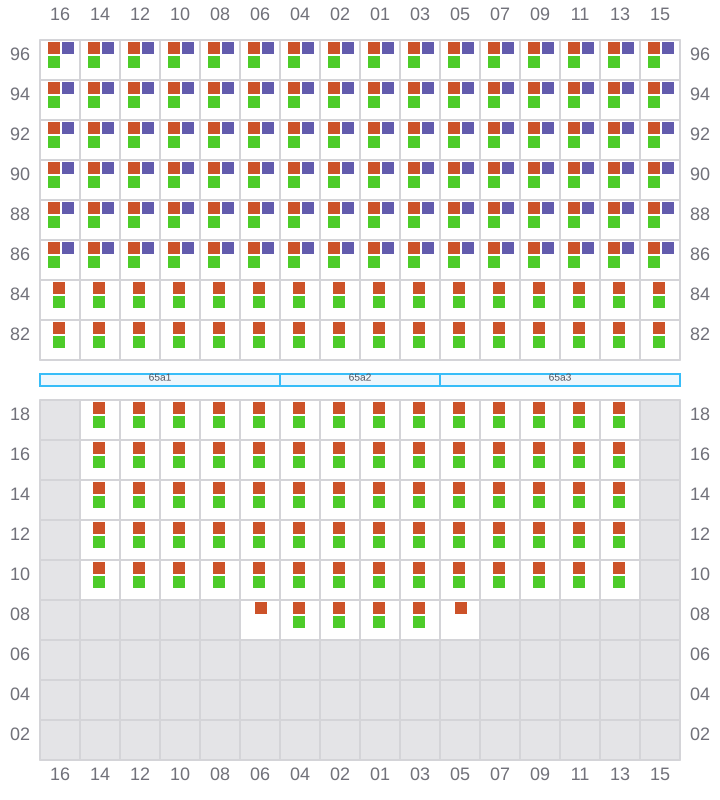

065 (066)
- →
![Bay 065 view and slots of MAERSK SENTOSA](/vessel-images/ca5aaa90-d04f-4a3f-a996-50d8f734f59a-b065.png?v=1711043956584)

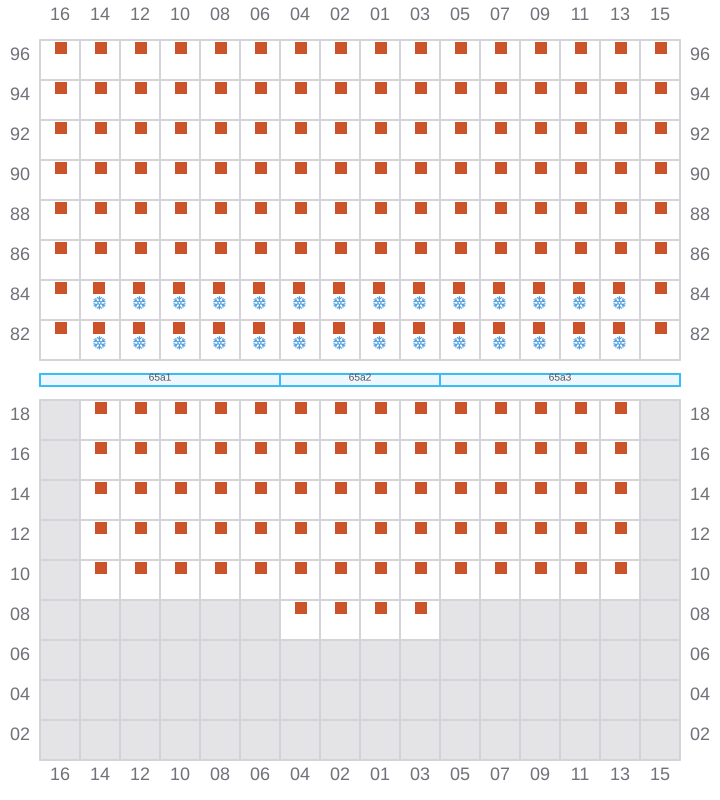

067
- ←
- → / ?
![Bay 067 view and slots of MAERSK SENTOSA](/vessel-images/ca5aaa90-d04f-4a3f-a996-50d8f734f59a-b067.png?v=1711043956584)

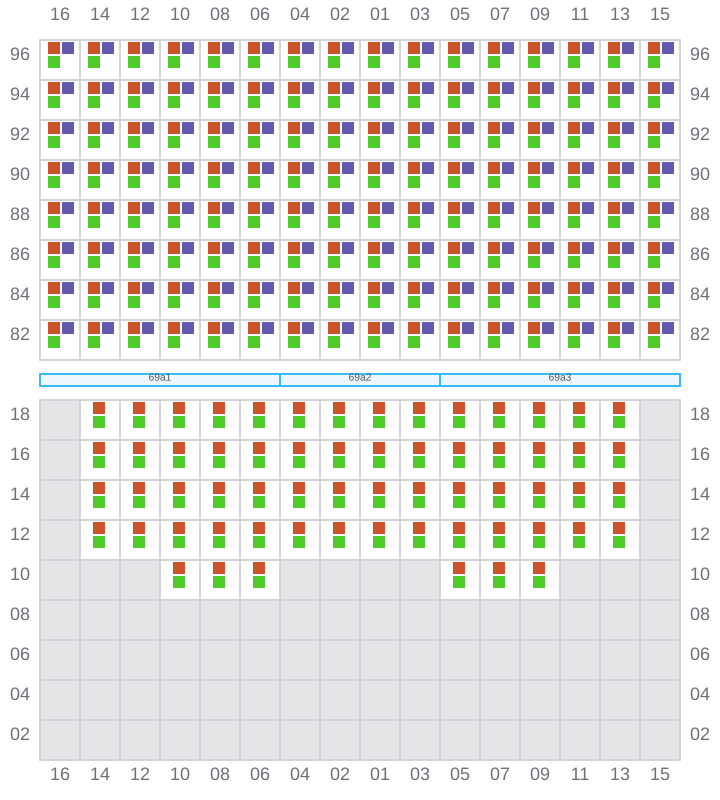

069 (070)
- →
![Bay 069 view and slots of MAERSK SENTOSA](/vessel-images/ca5aaa90-d04f-4a3f-a996-50d8f734f59a-b069.png?v=1711043956584)

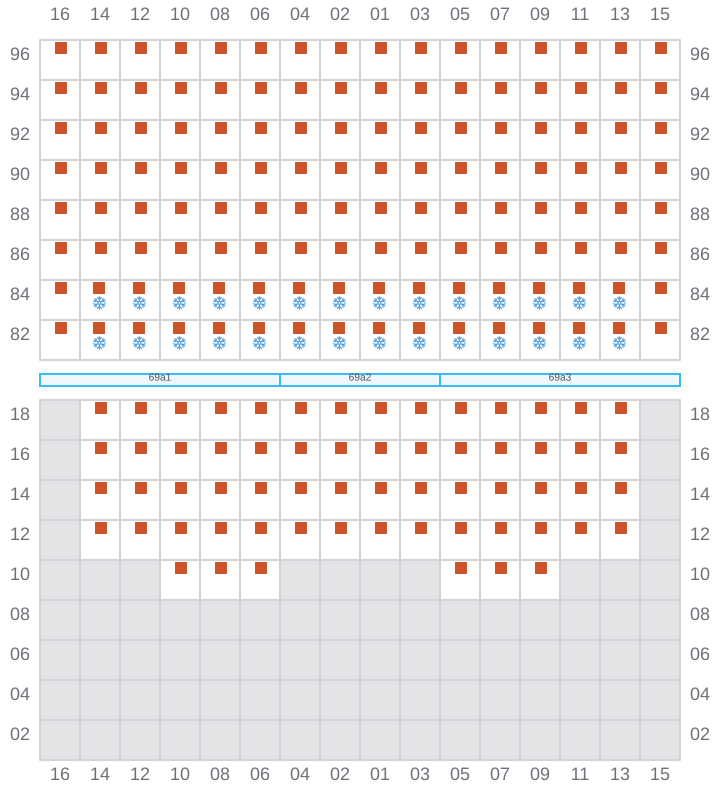

071
- ←
- → / ?
![Bay 071 view and slots of MAERSK SENTOSA](/vessel-images/ca5aaa90-d04f-4a3f-a996-50d8f734f59a-b071.png?v=1711043956584)

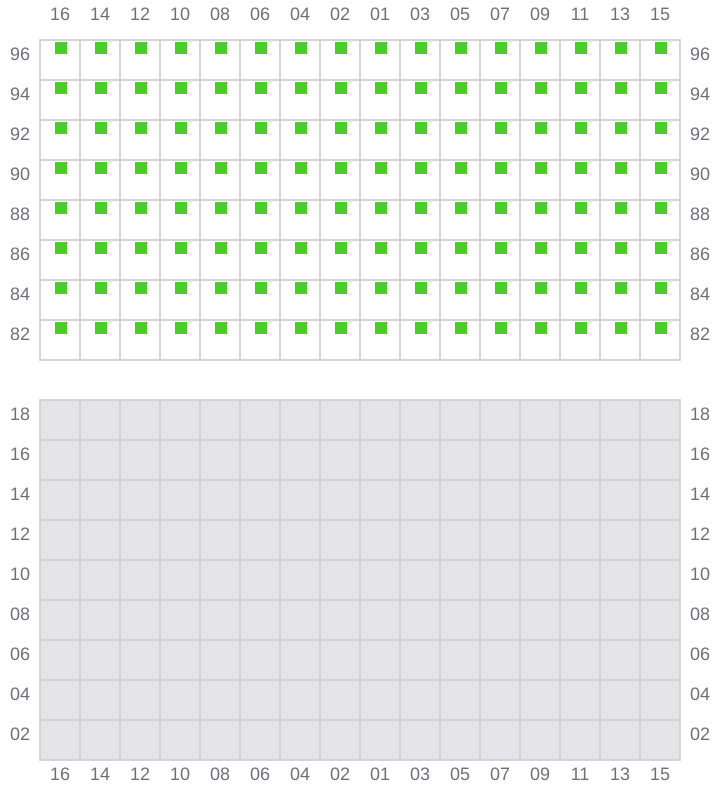

073 (074)
- → / ?
![Bay 073 view and slots of MAERSK SENTOSA](/vessel-images/ca5aaa90-d04f-4a3f-a996-50d8f734f59a-b073.png?v=1711043956584)
