MAERSK SEOUL
9306550 | 9V5632 | MSK by ************************** Last update: Wed Jun 28 2023

General Info

Ship Name:MAERSK SEOUL
IMO Code:9306550
Call Sign:9V5632
Line Operator:MSK
Class Name for Sister Ships:SOL
Year Built:2006
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):318.00
LOA (Length Overall):332.01
Stern to AFT PP:-
Features Informed:
Also Known As (old names):-

Size Summary

ISO Bays:077
Max ISO Row:16
Center Line Row:Yes
Max Above ISO Tier:96
Min Above ISO Tier:80
Max Below ISO Tier:18
Min Below ISO Tier:02
Total TEU:8,411

Centers of Gravity

LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

Side View

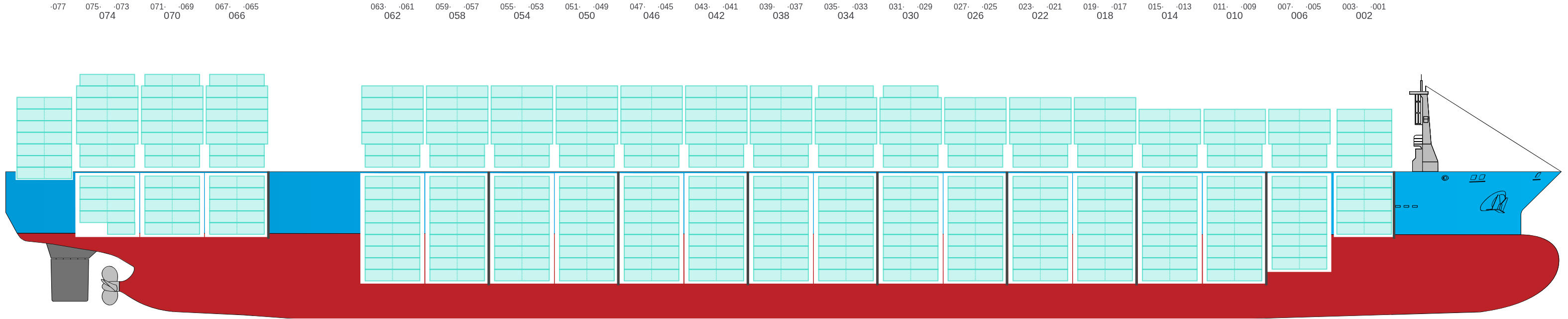

Side view of MAERSK SEOUL

Hatch-Covers View

Deck view of MAERSK SEOUL

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot

001 (002)

  • →

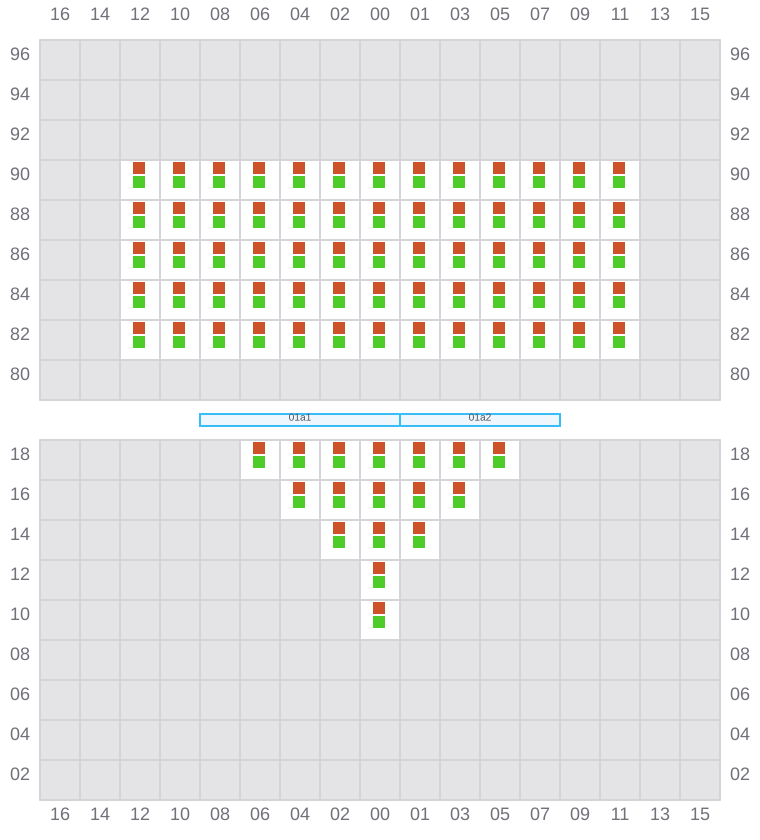

Bay 001 view and slots of MAERSK SEOUL

003

  • ←
Bay 003 view and slots of MAERSK SEOUL

005 (006)

  • →

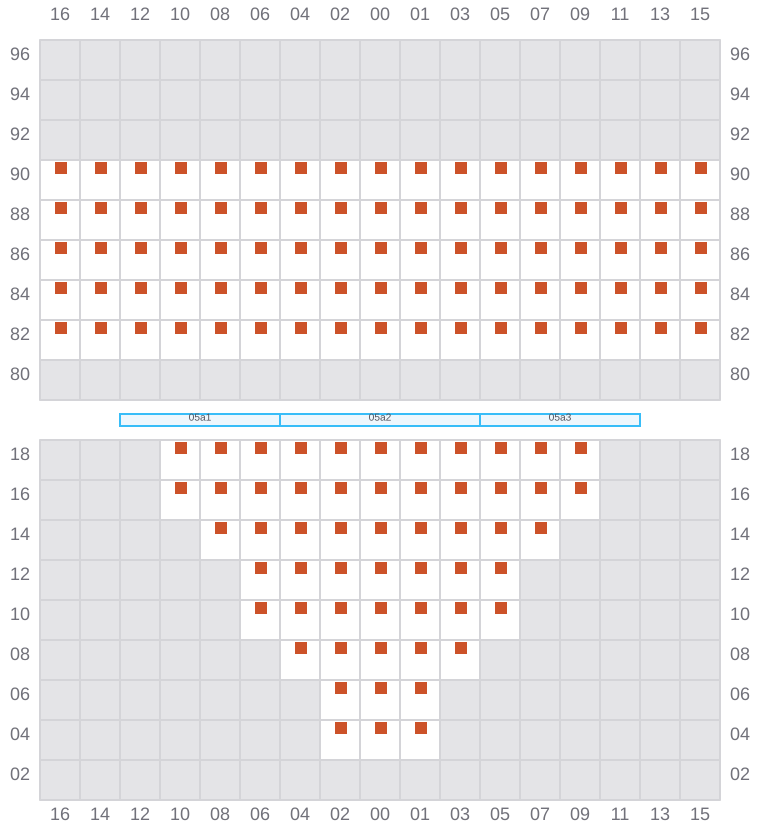

Bay 005 view and slots of MAERSK SEOUL

007

  • ←
Bay 007 view and slots of MAERSK SEOUL

009 (010)

  • →
Bay 009 view and slots of MAERSK SEOUL

011

  • ←
  • → / ?
Bay 011 view and slots of MAERSK SEOUL

013 (014)

  • →

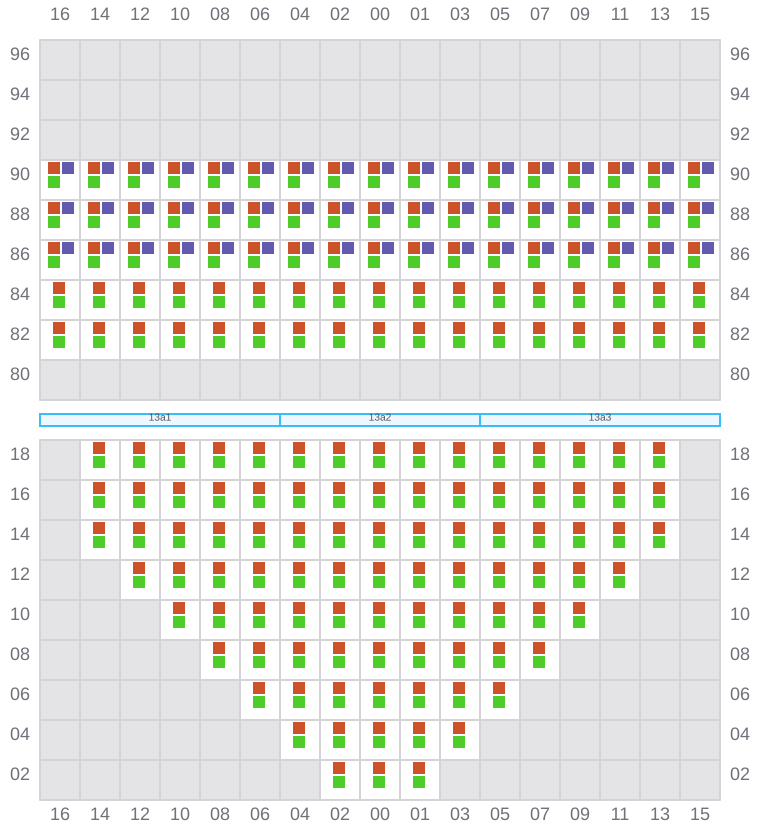

Bay 013 view and slots of MAERSK SEOUL

015

  • ←
  • → / ?
Bay 015 view and slots of MAERSK SEOUL

017 (018)

  • →
Bay 017 view and slots of MAERSK SEOUL

019

  • ←
  • → / ?
Bay 019 view and slots of MAERSK SEOUL

021 (022)

  • →

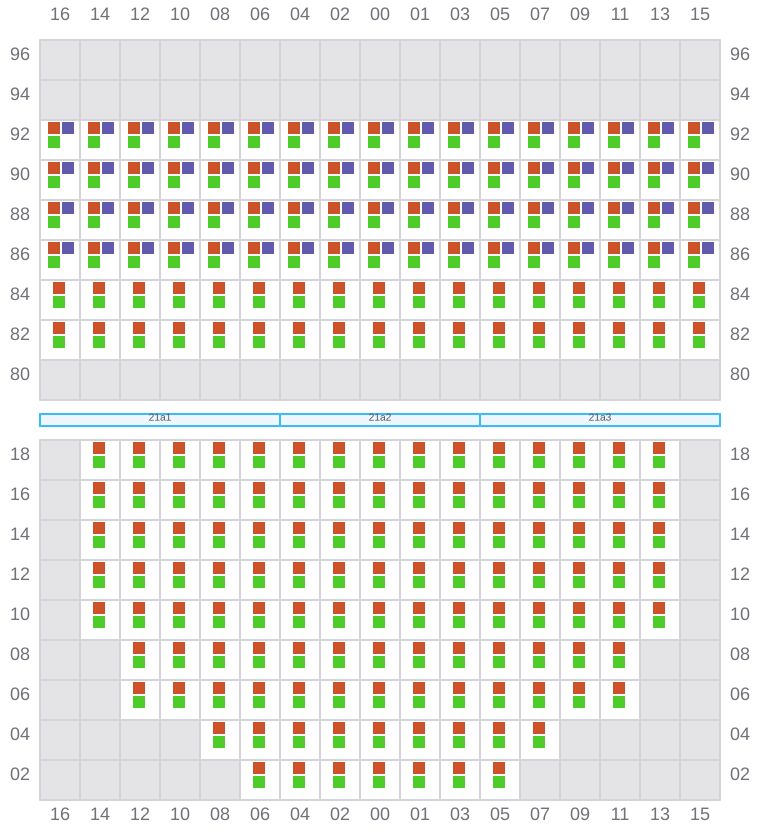

Bay 021 view and slots of MAERSK SEOUL

023

  • ←
  • → / ?
Bay 023 view and slots of MAERSK SEOUL

025 (026)

  • →

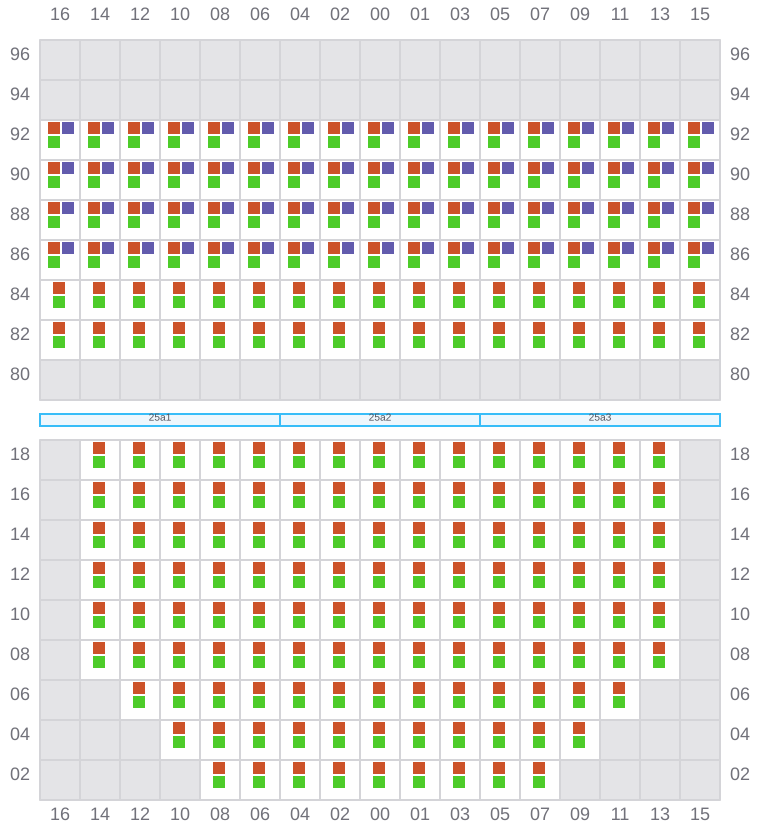

Bay 025 view and slots of MAERSK SEOUL

027

  • ←
  • → / ?
Bay 027 view and slots of MAERSK SEOUL

029 (030)

  • →
Bay 029 view and slots of MAERSK SEOUL

031

  • ←
  • → / ?
Bay 031 view and slots of MAERSK SEOUL

033 (034)

  • →
Bay 033 view and slots of MAERSK SEOUL

035

  • ←
  • → / ?
Bay 035 view and slots of MAERSK SEOUL

037 (038)

  • →
Bay 037 view and slots of MAERSK SEOUL

039

  • ←
  • → / ?
Bay 039 view and slots of MAERSK SEOUL

041 (042)

  • →
Bay 041 view and slots of MAERSK SEOUL

043

  • ←
  • → / ?

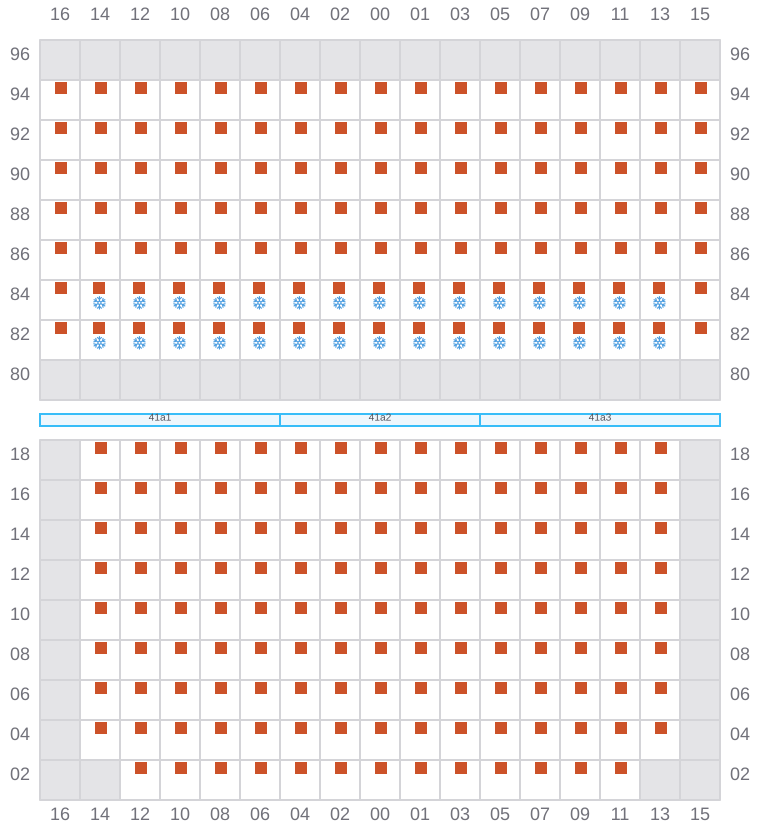

Bay 043 view and slots of MAERSK SEOUL

045 (046)

  • →
Bay 045 view and slots of MAERSK SEOUL

047

  • ←
  • → / ?
Bay 047 view and slots of MAERSK SEOUL

049 (050)

  • →
Bay 049 view and slots of MAERSK SEOUL

051

  • ←
  • →
Bay 051 view and slots of MAERSK SEOUL

053 (054)

  • →

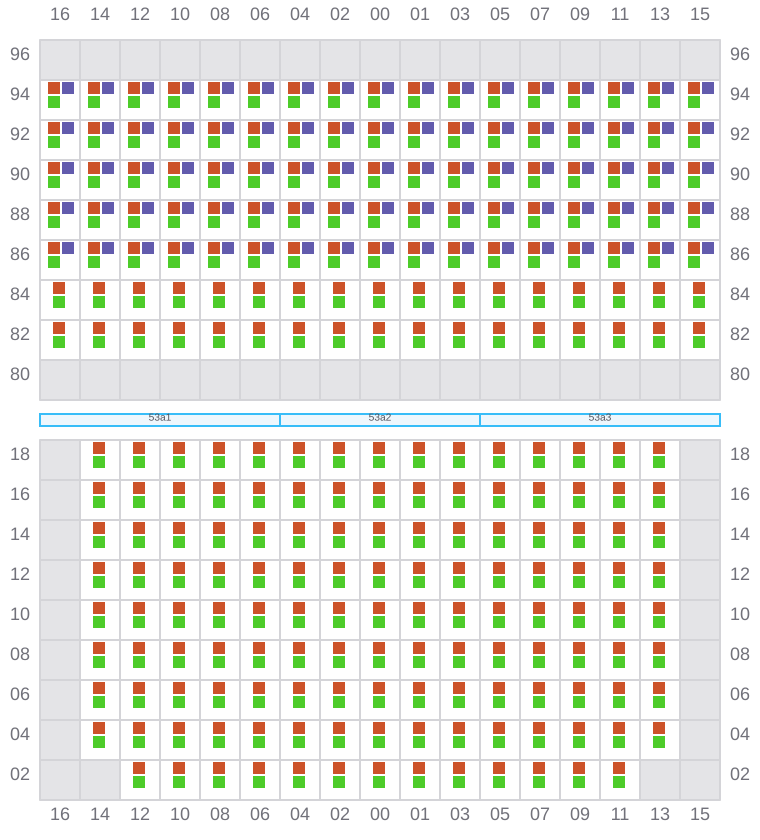

Bay 053 view and slots of MAERSK SEOUL

055

  • ←
  • →
Bay 055 view and slots of MAERSK SEOUL

057 (058)

  • →
Bay 057 view and slots of MAERSK SEOUL

059

  • ←
  • →
Bay 059 view and slots of MAERSK SEOUL

061 (062)

  • →
Bay 061 view and slots of MAERSK SEOUL

063

  • ←
  • →
Bay 063 view and slots of MAERSK SEOUL

065 (066)

  • →
Bay 065 view and slots of MAERSK SEOUL

067

  • ←
  • → / ?
Bay 067 view and slots of MAERSK SEOUL

069 (070)

  • →
Bay 069 view and slots of MAERSK SEOUL

071

  • ←
  • → / ?
Bay 071 view and slots of MAERSK SEOUL

073 (074)

  • →
Bay 073 view and slots of MAERSK SEOUL

075

  • ←
  • → / ?
Bay 075 view and slots of MAERSK SEOUL

077 (078)

  • → / ?
Bay 077 view and slots of MAERSK SEOUL
