MAERSK SERANGOON
9315214 | S6CH2 | 9315214 by ********* Last update: Thu Mar 21 2024

General Info

Ship Name:MAERSK SERANGOON
IMO Code:9315214
Call Sign:S6CH2
Line Operator:9315214
Class Name for Sister Ships:102
Year Built:2007
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):306.58
LOA (Length Overall):318.41
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-

Size Summary

ISO Bays:073
Max ISO Row:16
Center Line Row:No
Max Above ISO Tier:96
Min Above ISO Tier:82
Max Below ISO Tier:18
Min Below ISO Tier:02
Total TEU:7,022

Centers of Gravity

LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

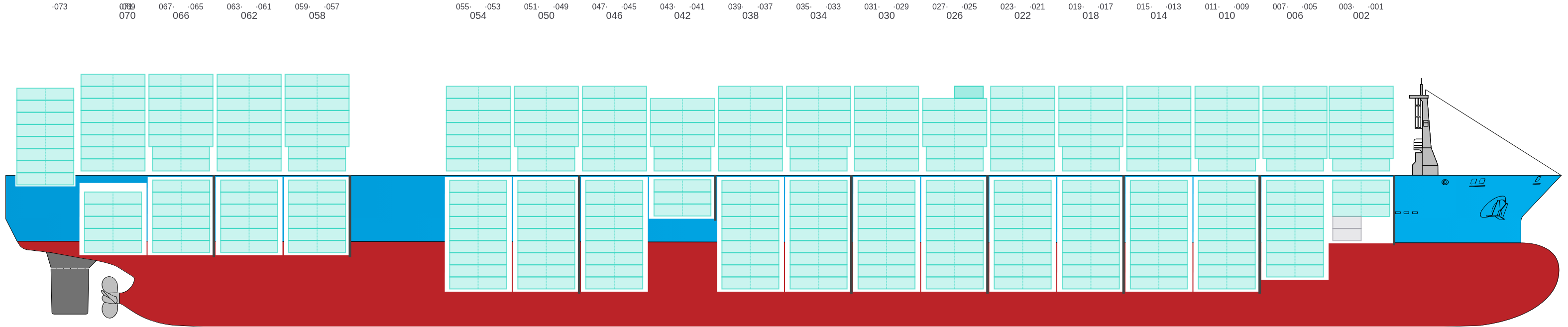

Side View

Side view of MAERSK SERANGOON

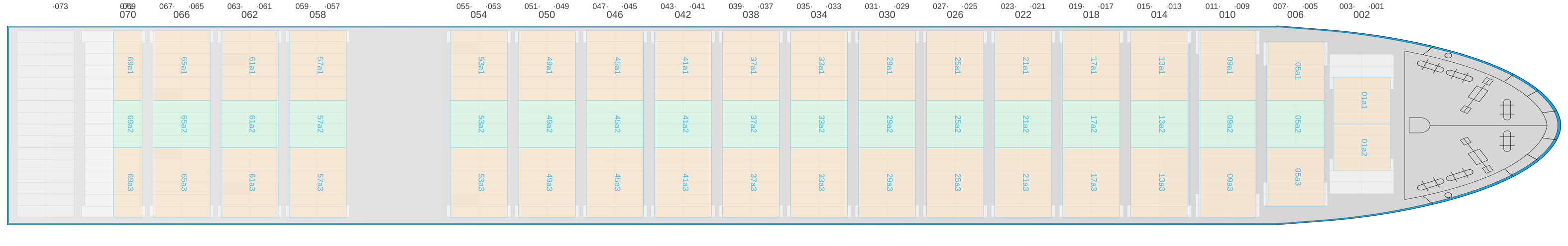

Hatch-Covers View

Deck view of MAERSK SERANGOON

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot

001 (002)

  • →

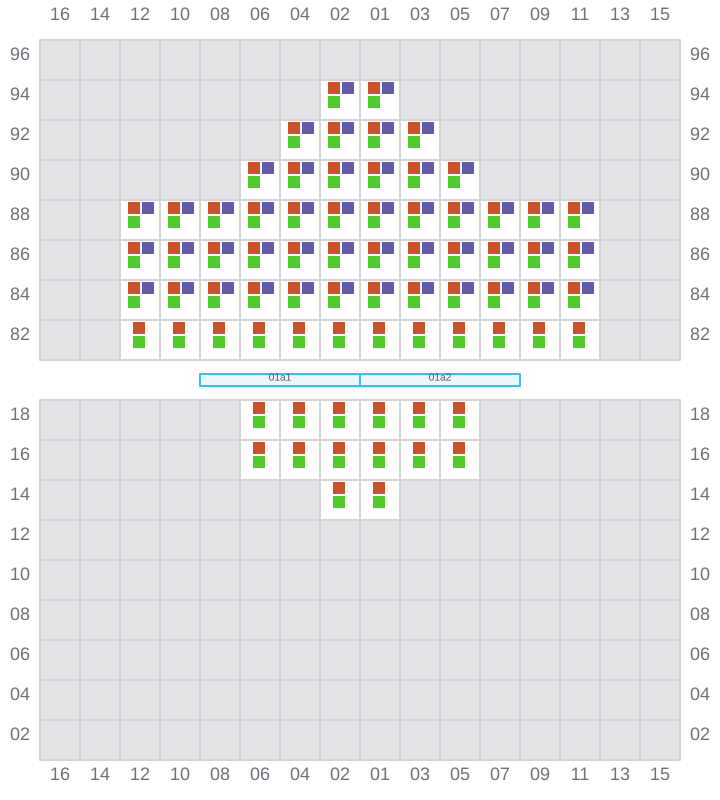

Bay 001 view and slots of MAERSK SERANGOON

003

  • ←

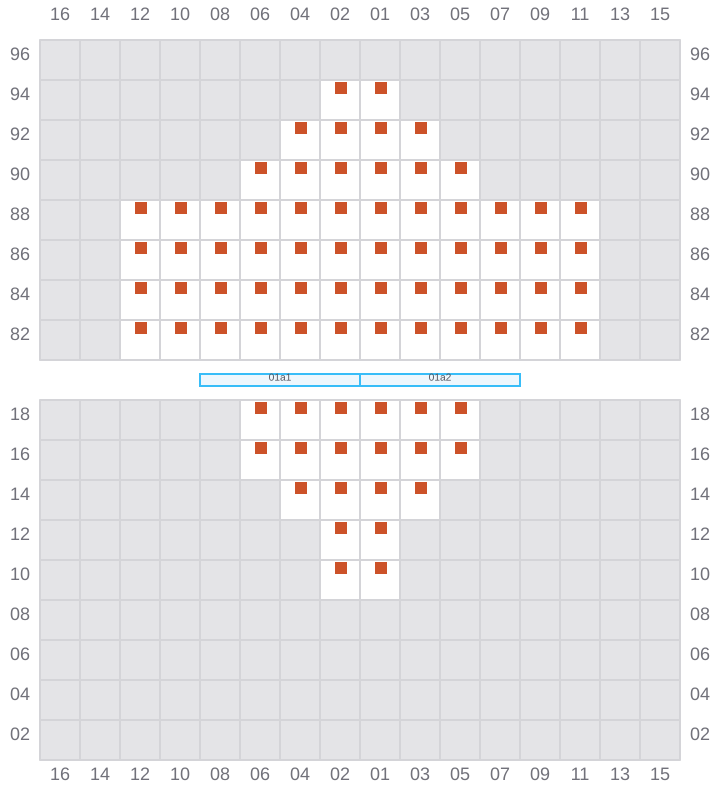

Bay 003 view and slots of MAERSK SERANGOON

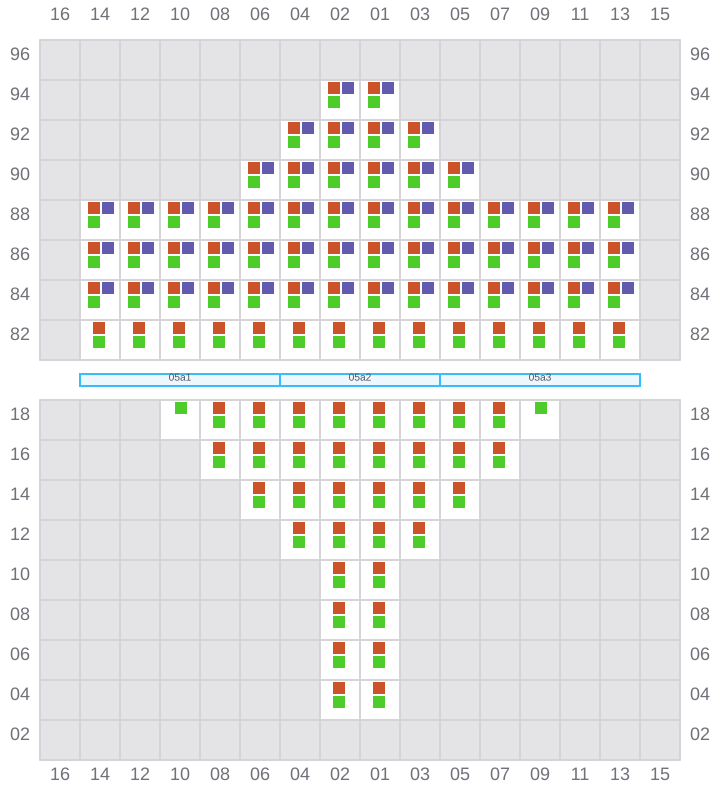

005 (006)

  • →
Bay 005 view and slots of MAERSK SERANGOON

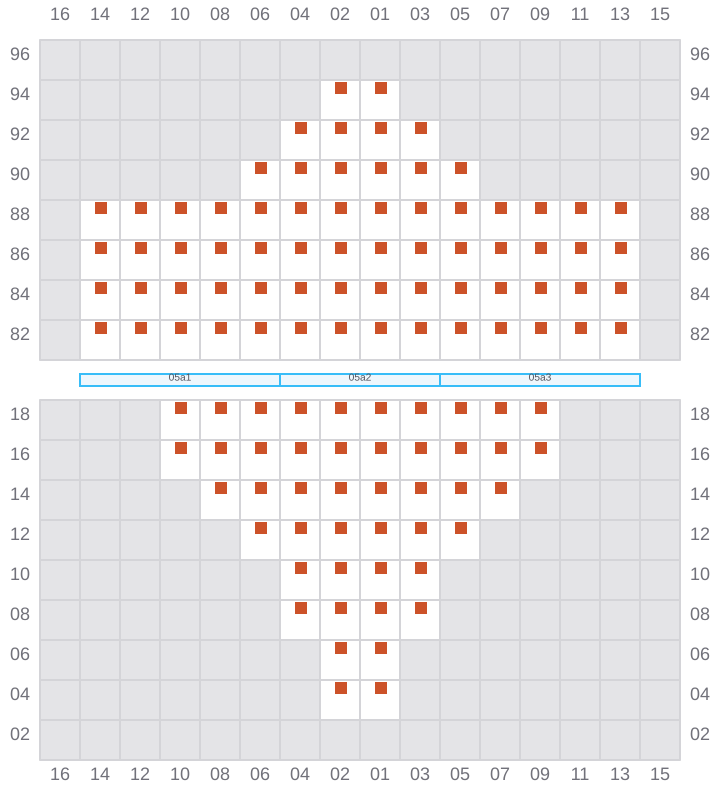

007

  • ←
Bay 007 view and slots of MAERSK SERANGOON

009 (010)

  • →

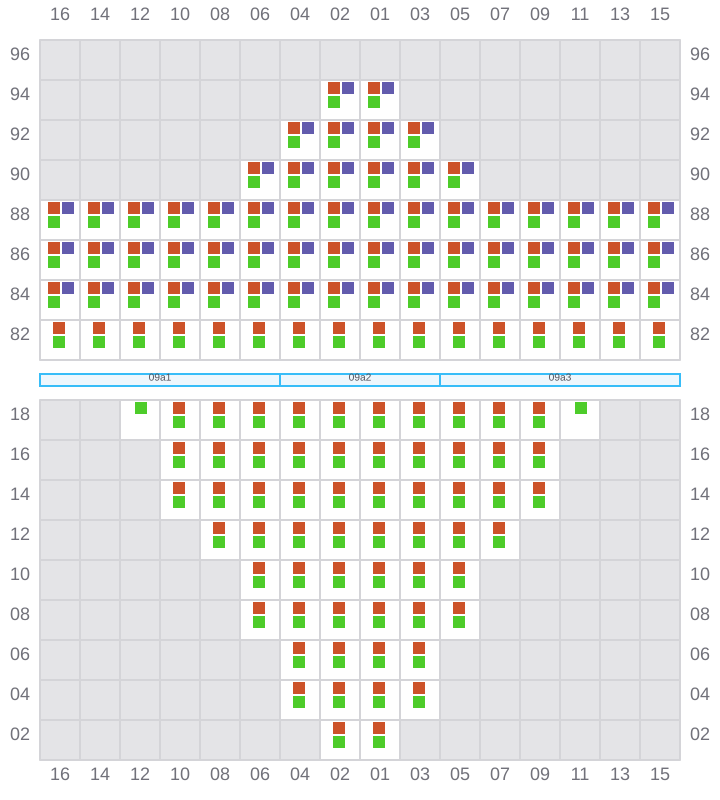

Bay 009 view and slots of MAERSK SERANGOON

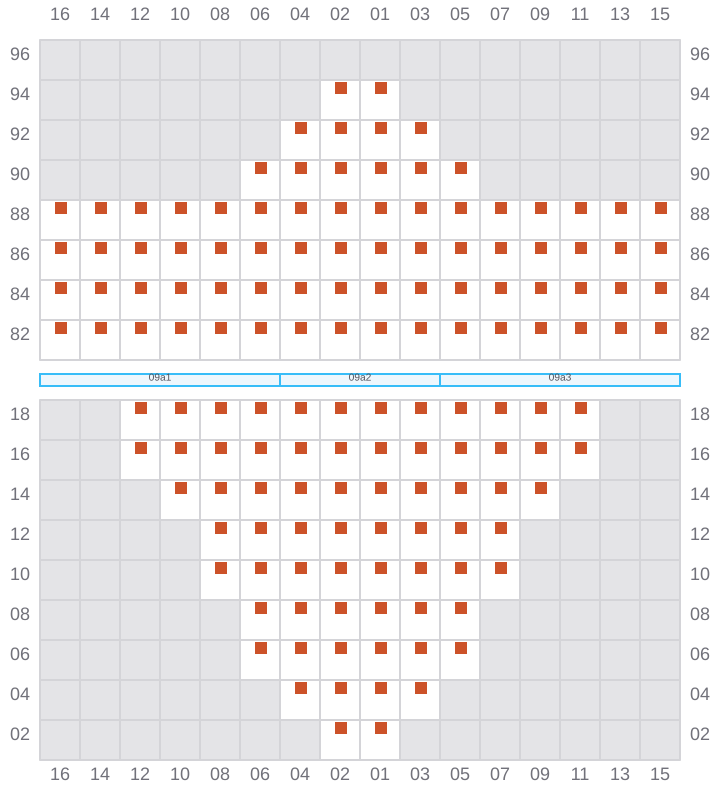

011

  • ←
Bay 011 view and slots of MAERSK SERANGOON

013 (014)

  • →

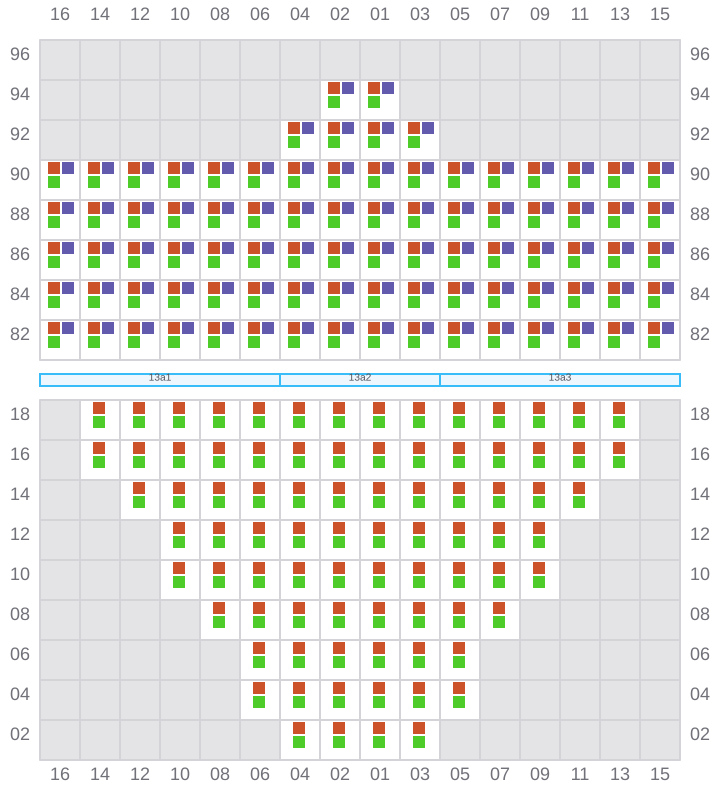

Bay 013 view and slots of MAERSK SERANGOON

015

  • ←

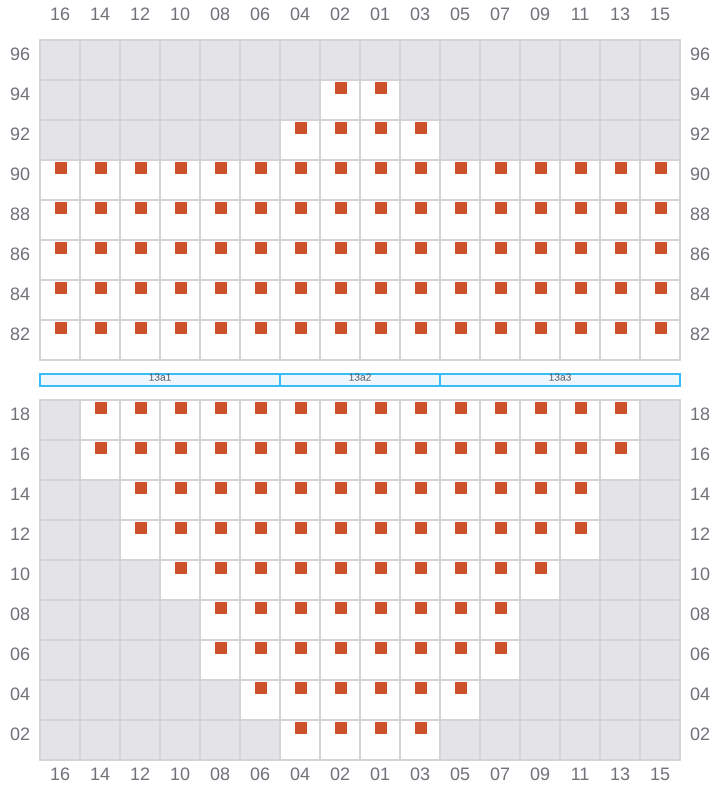

Bay 015 view and slots of MAERSK SERANGOON

017 (018)

  • →

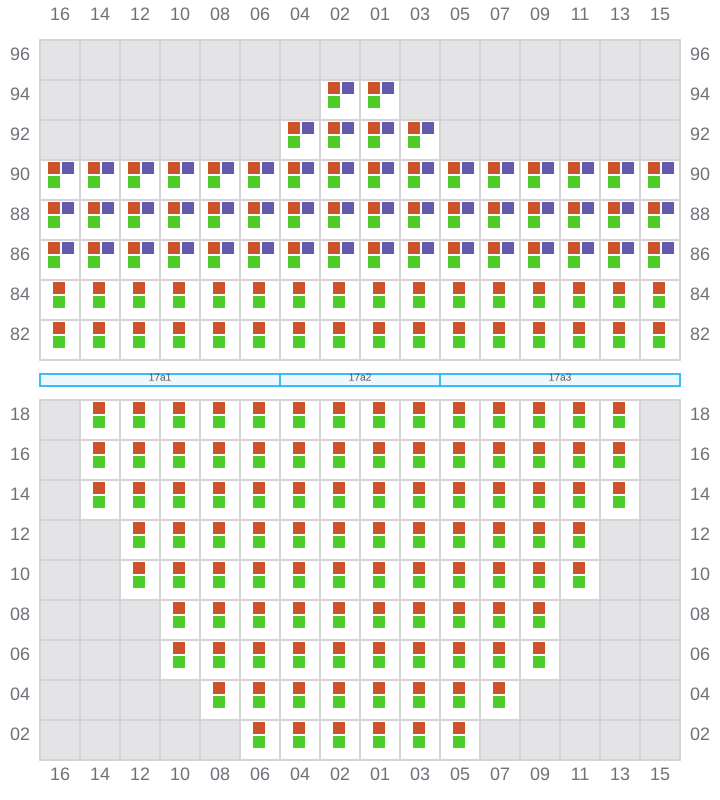

Bay 017 view and slots of MAERSK SERANGOON

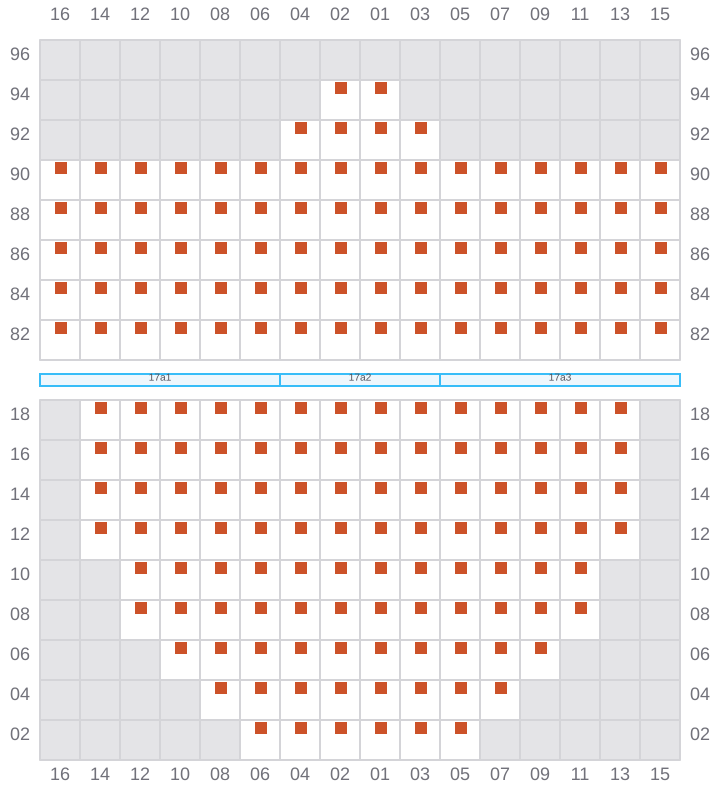

019

  • ←
Bay 019 view and slots of MAERSK SERANGOON

021 (022)

  • →

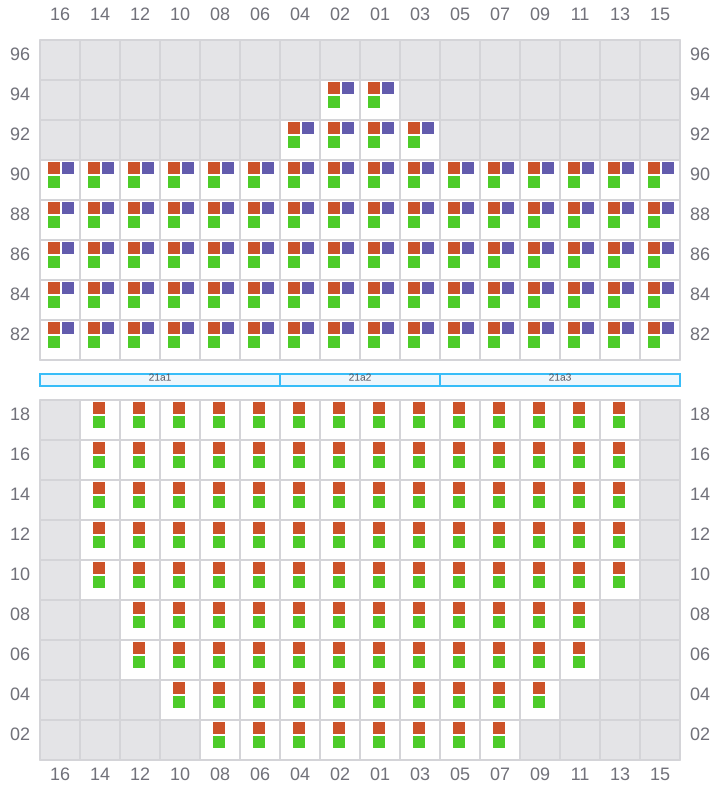

Bay 021 view and slots of MAERSK SERANGOON

023

  • ←
Bay 023 view and slots of MAERSK SERANGOON

025 (026)

  • →

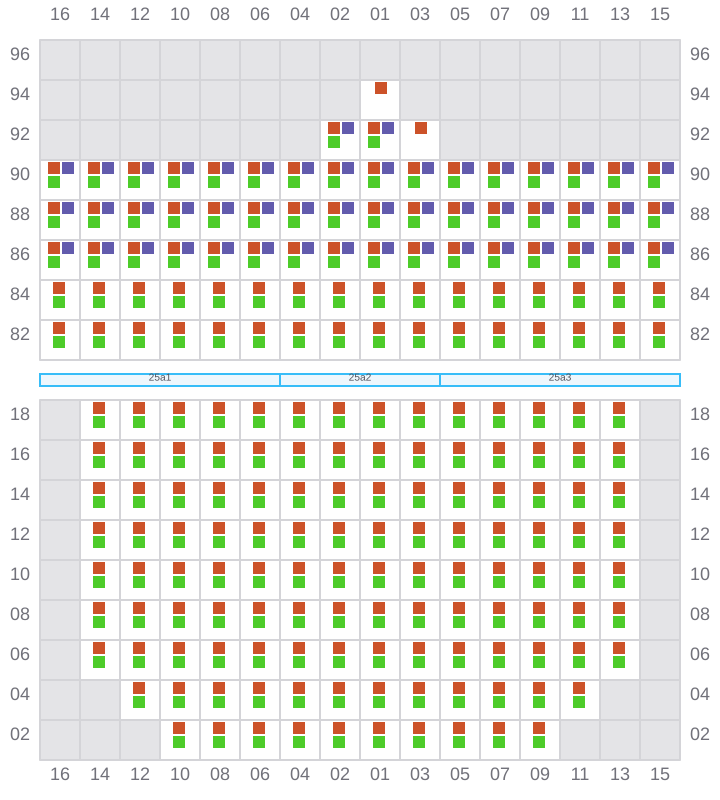

Bay 025 view and slots of MAERSK SERANGOON

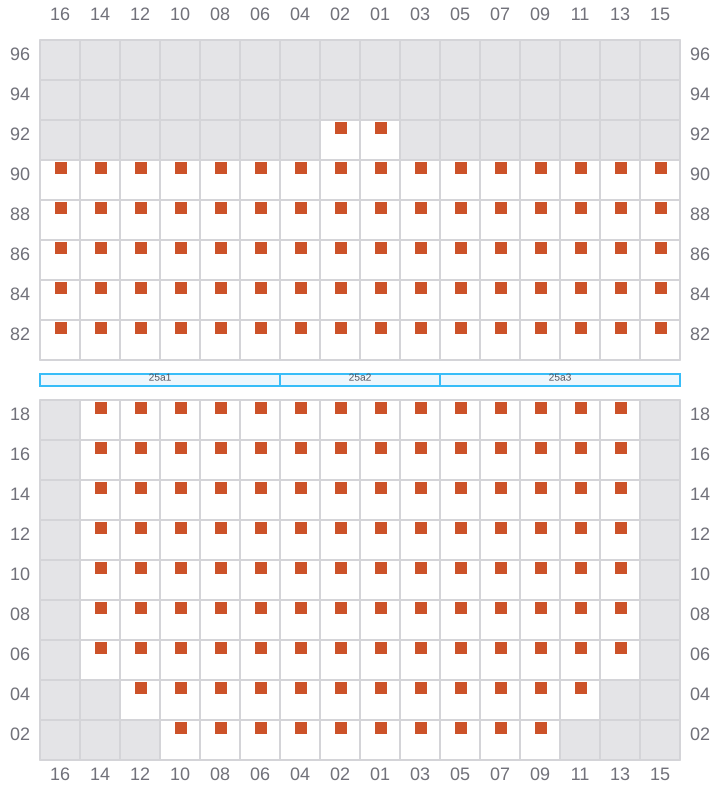

027

  • ←
Bay 027 view and slots of MAERSK SERANGOON

029 (030)

  • →
  • ? / ←

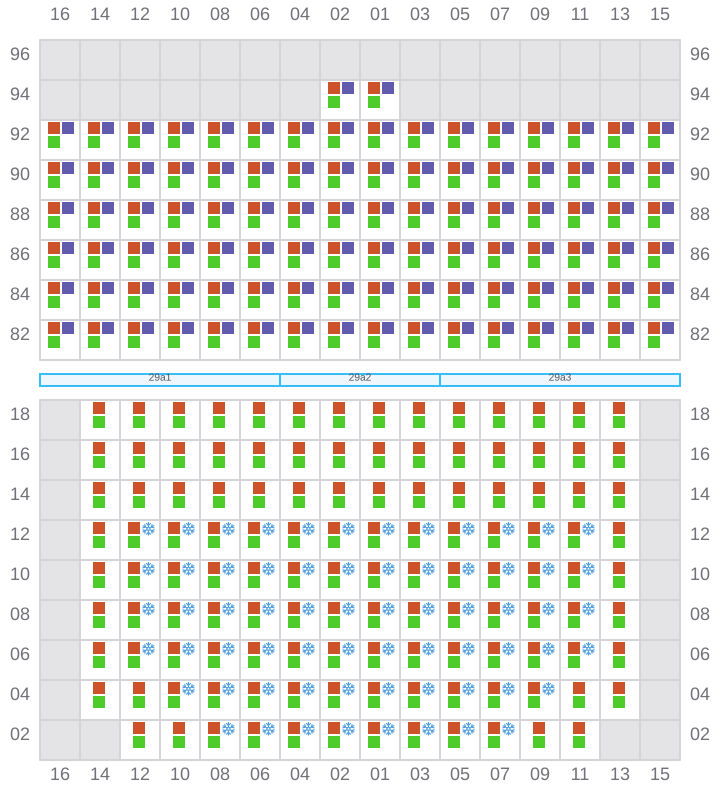

Bay 029 view and slots of MAERSK SERANGOON

031

  • ←
  • → / ?

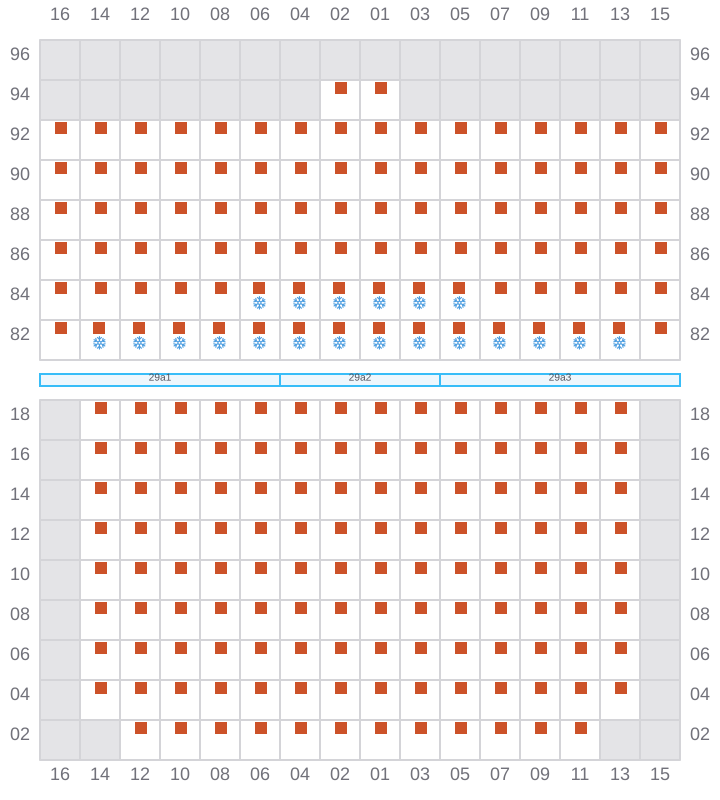

Bay 031 view and slots of MAERSK SERANGOON

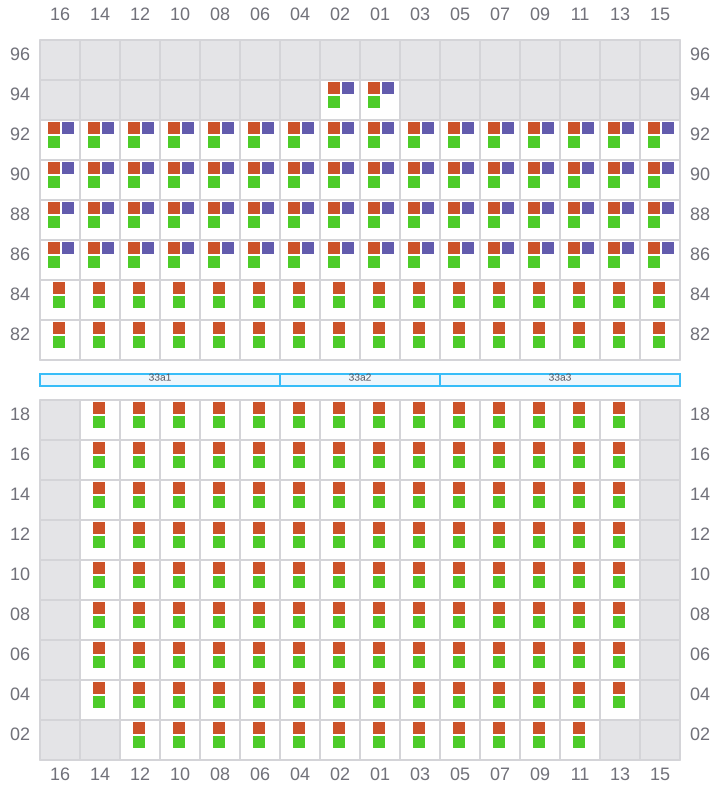

033 (034)

  • →
Bay 033 view and slots of MAERSK SERANGOON

035

  • ←
  • → / ?

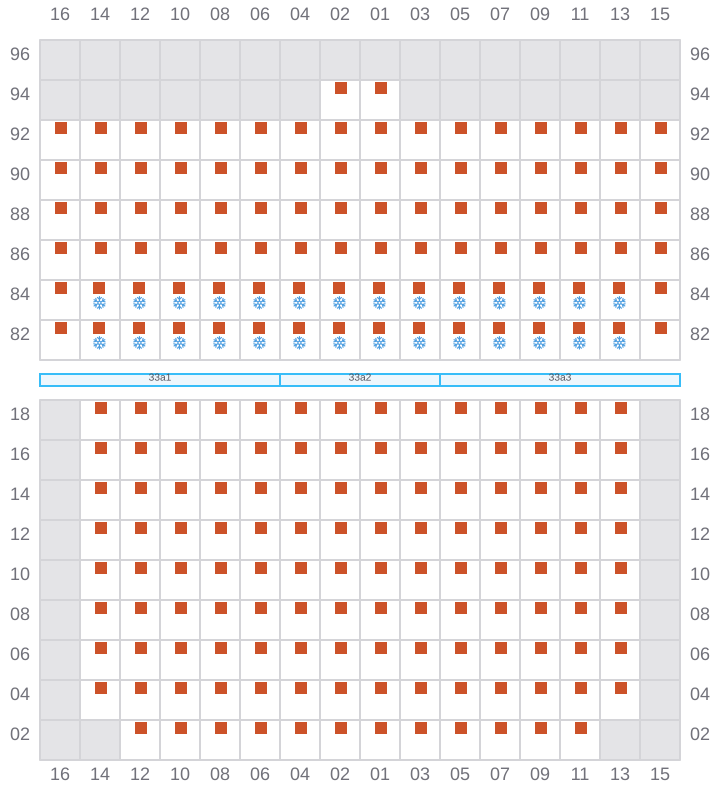

Bay 035 view and slots of MAERSK SERANGOON

037 (038)

  • →
  • ? / ←
Bay 037 view and slots of MAERSK SERANGOON

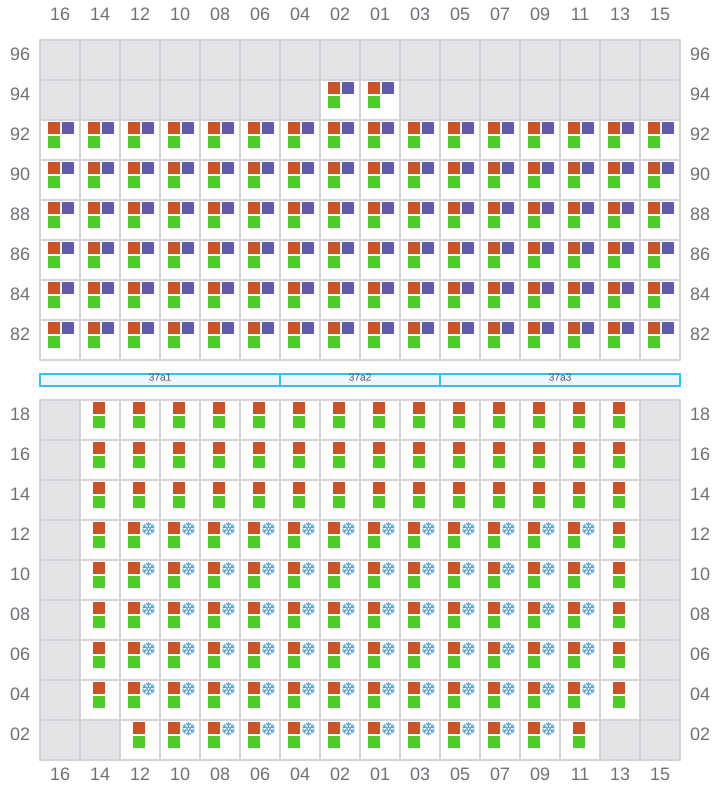

039

  • ←
  • → / ?

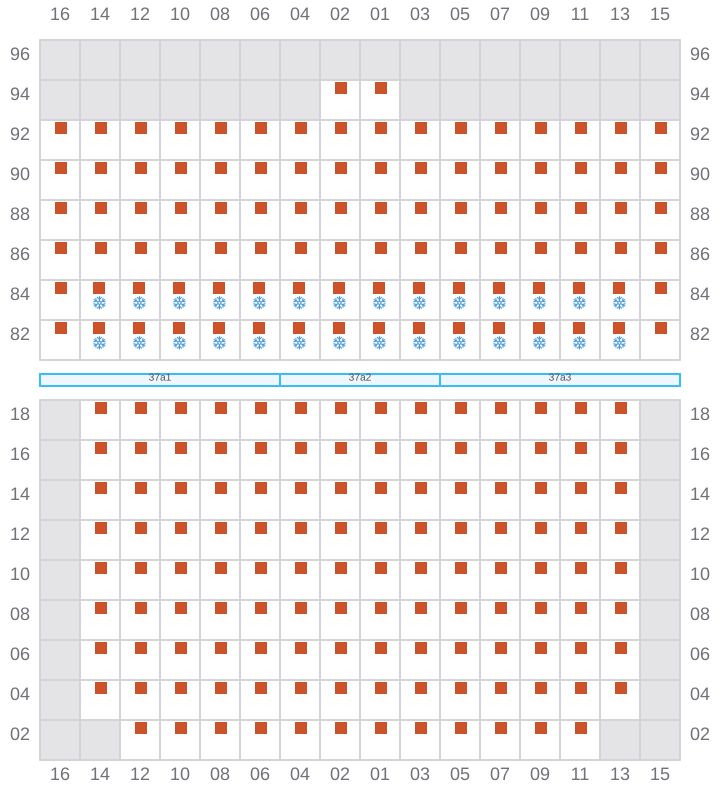

Bay 039 view and slots of MAERSK SERANGOON

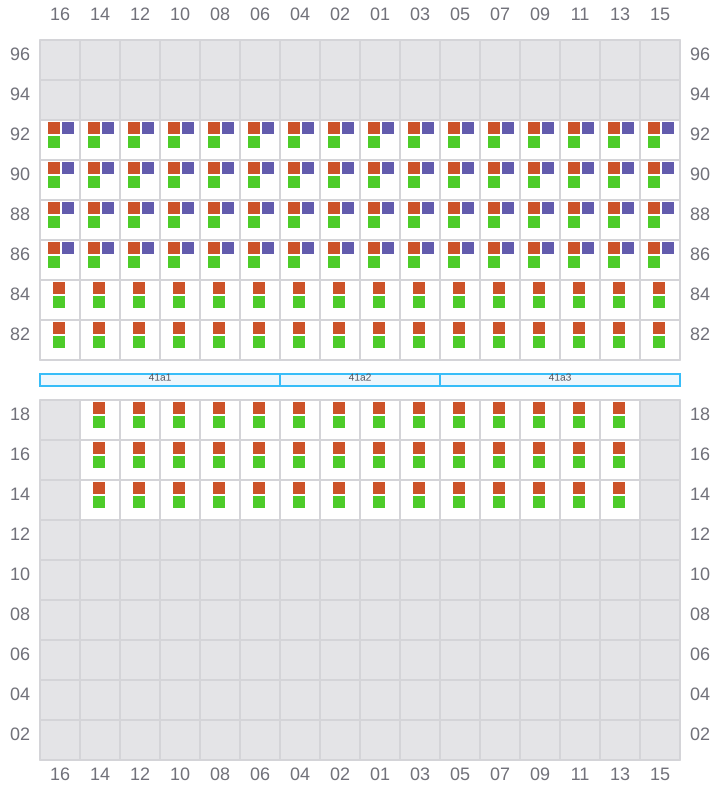

041 (042)

  • →
Bay 041 view and slots of MAERSK SERANGOON

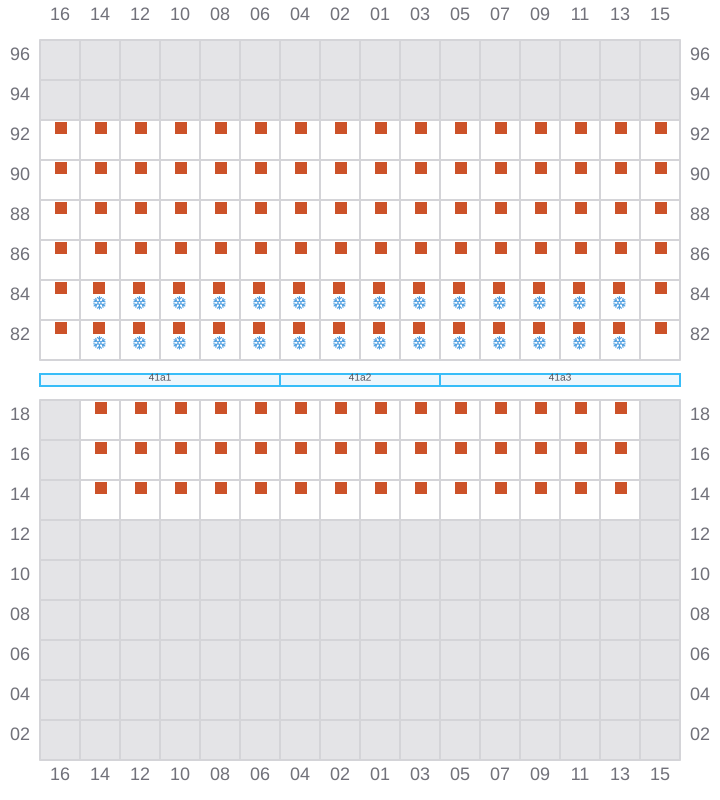

043

  • ←
  • → / ?
Bay 043 view and slots of MAERSK SERANGOON

045 (046)

  • →

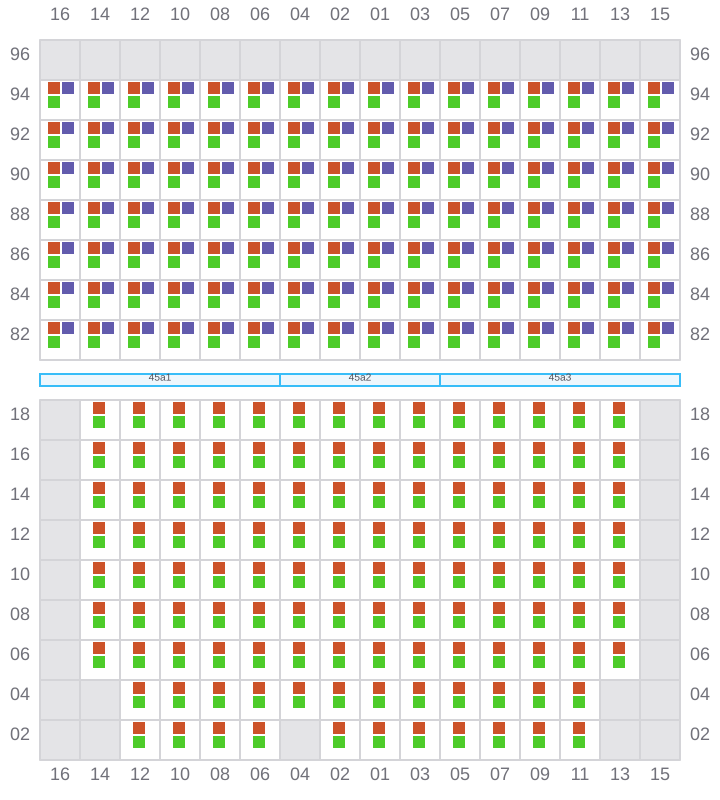

Bay 045 view and slots of MAERSK SERANGOON

047

  • ←
  • → / ?
Bay 047 view and slots of MAERSK SERANGOON

049 (050)

  • →

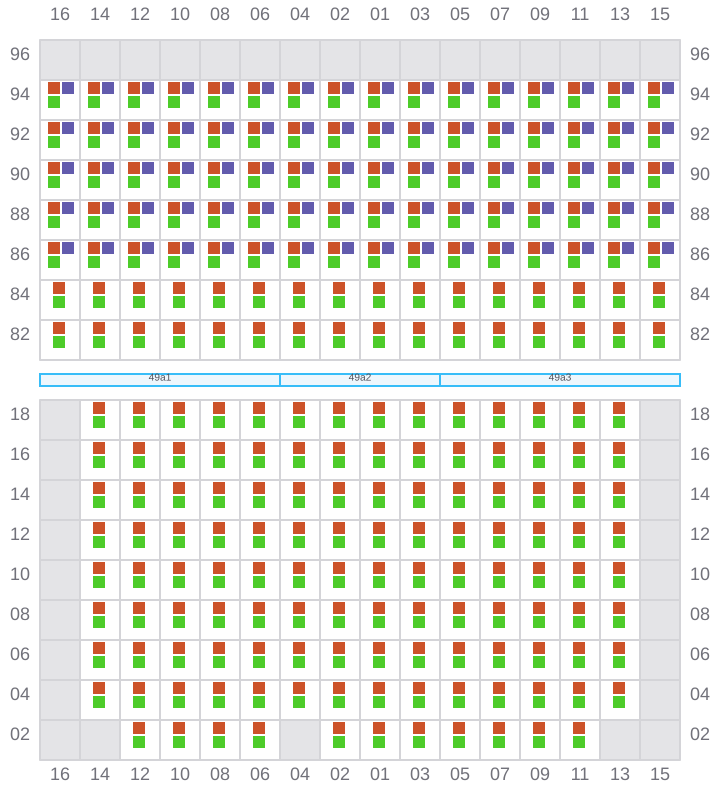

Bay 049 view and slots of MAERSK SERANGOON

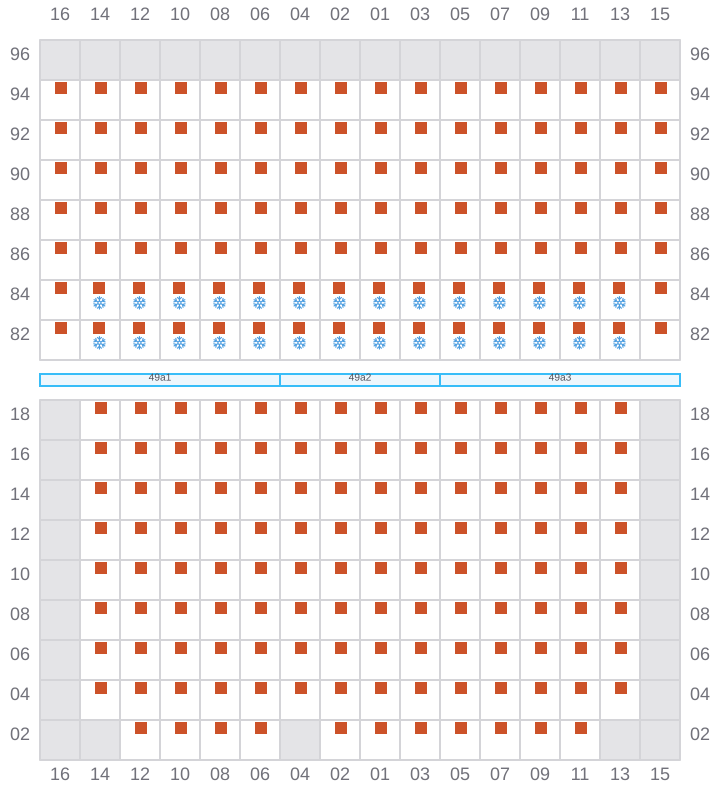

051

  • ←
  • → / ?
Bay 051 view and slots of MAERSK SERANGOON

053 (054)

  • →
  • ? / ←

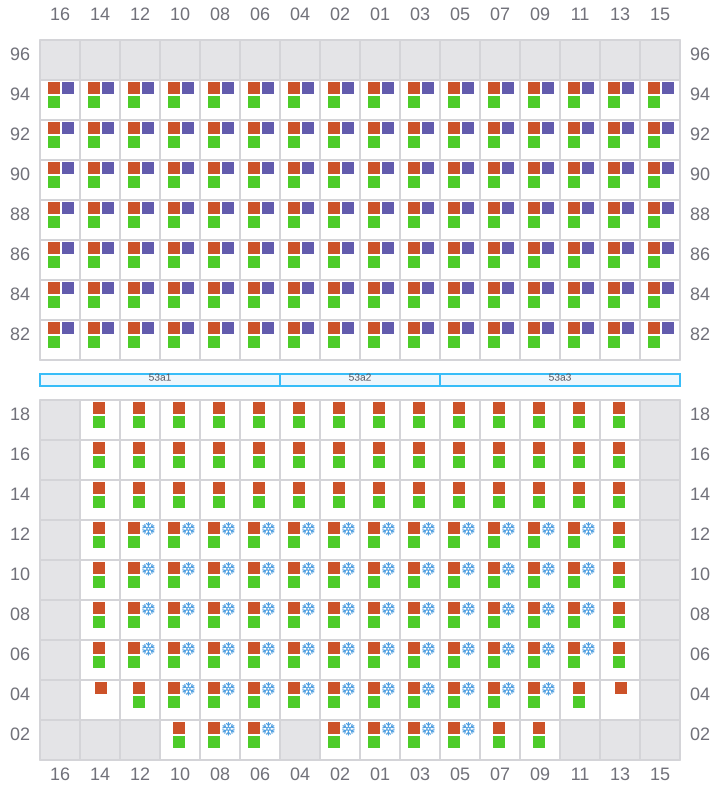

Bay 053 view and slots of MAERSK SERANGOON

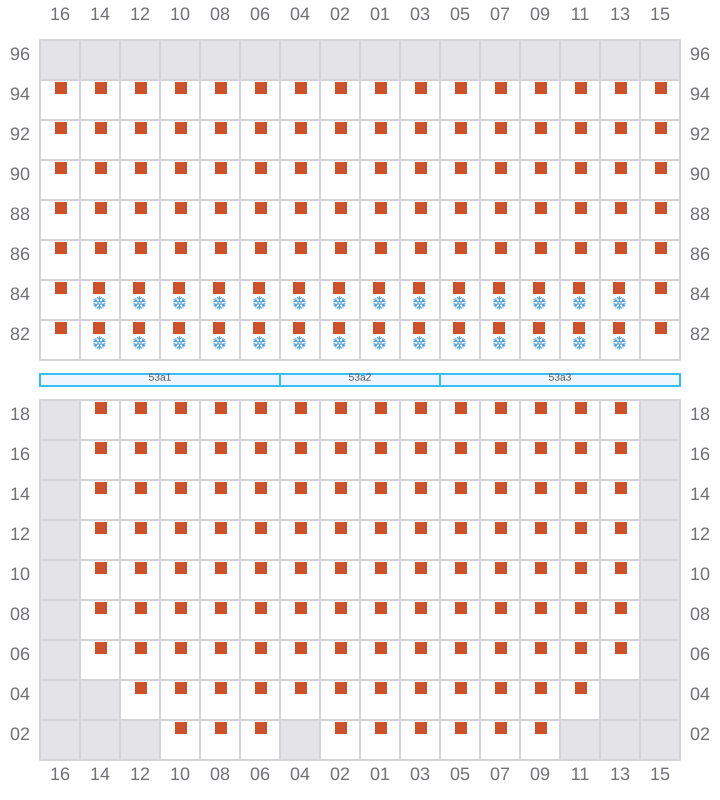

055

  • ←
  • → / ?
Bay 055 view and slots of MAERSK SERANGOON

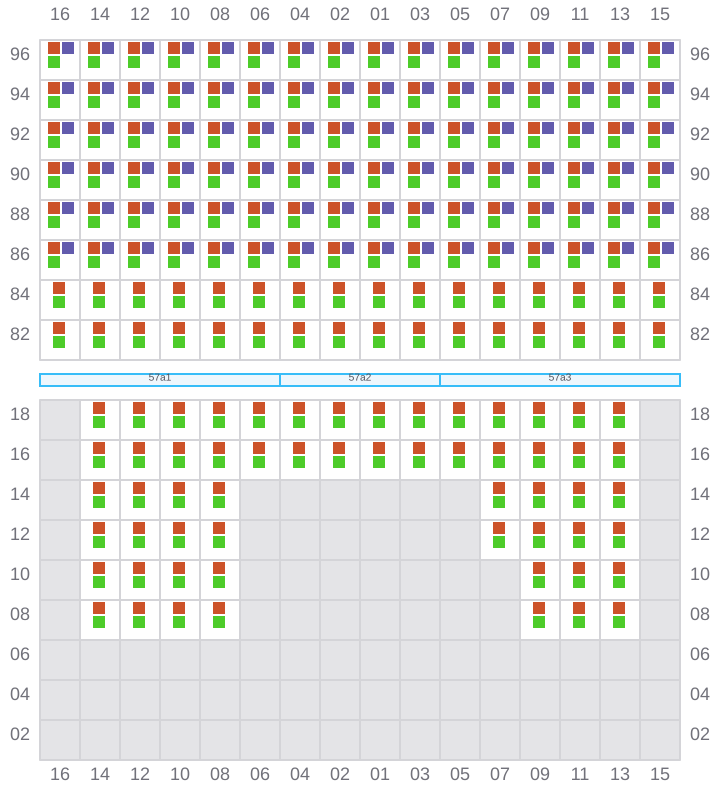

057 (058)

  • →
Bay 057 view and slots of MAERSK SERANGOON

059

  • ←
  • → / ?

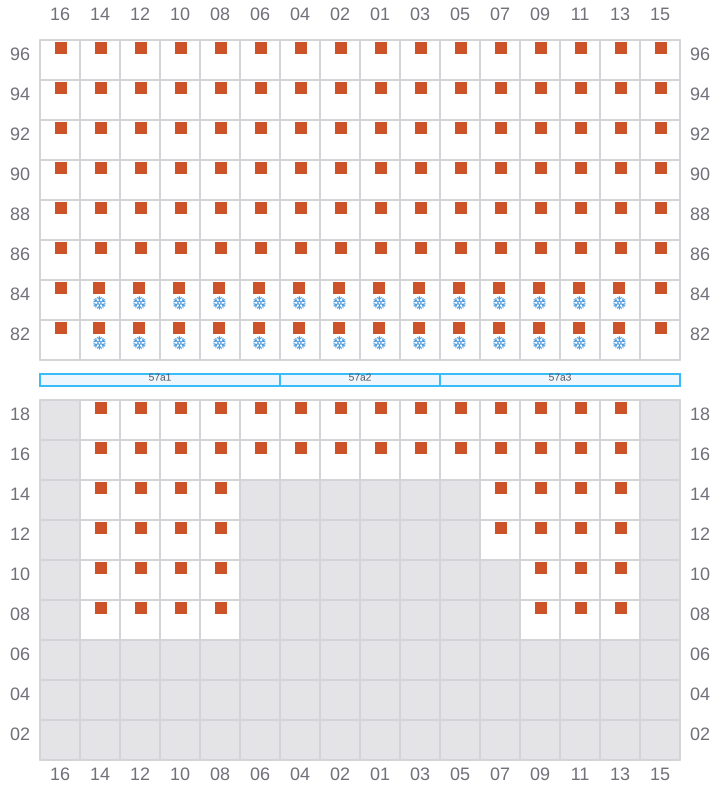

Bay 059 view and slots of MAERSK SERANGOON

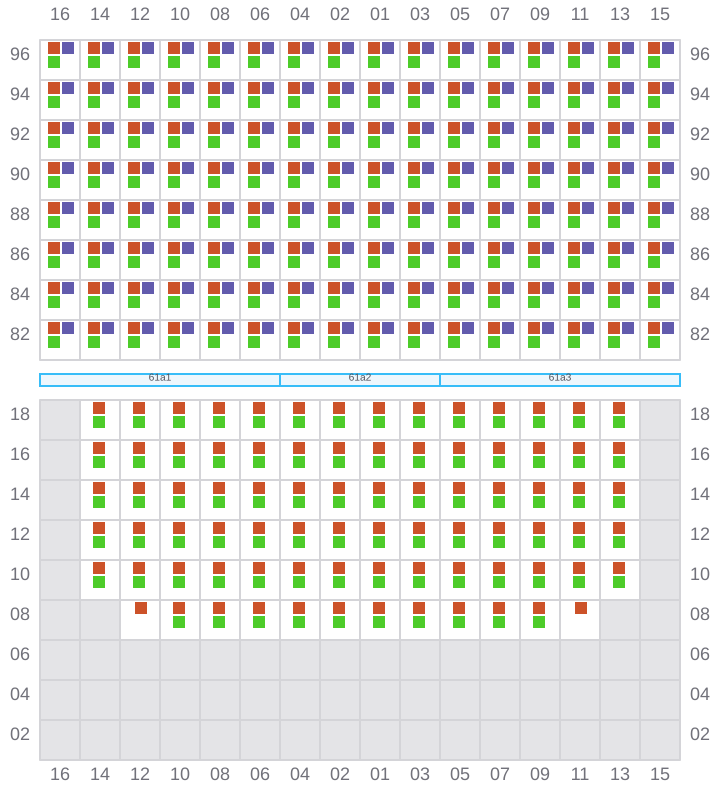

061 (062)

  • →
Bay 061 view and slots of MAERSK SERANGOON

063

  • ←
  • → / ?
Bay 063 view and slots of MAERSK SERANGOON

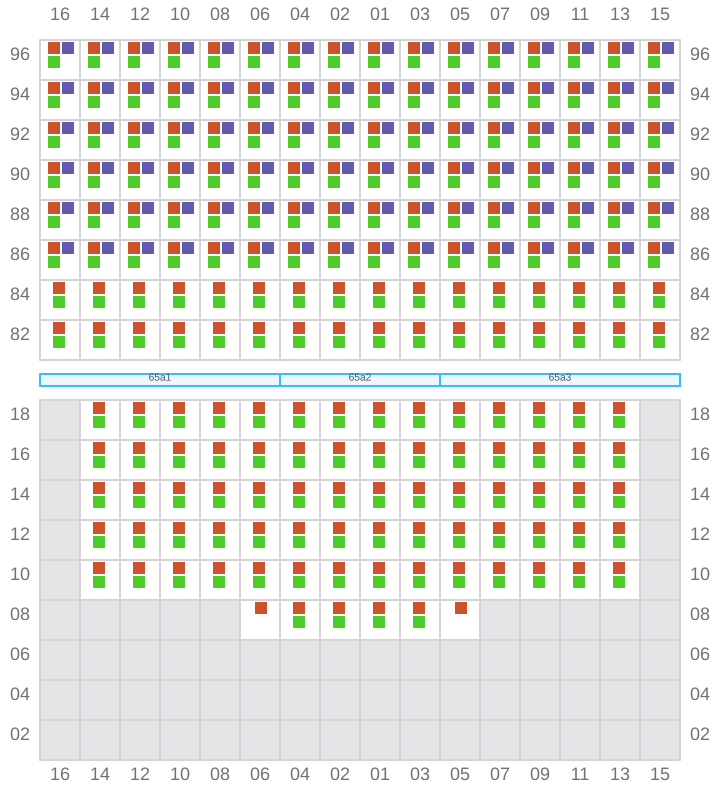

065 (066)

  • →
Bay 065 view and slots of MAERSK SERANGOON

067

  • ←
  • → / ?

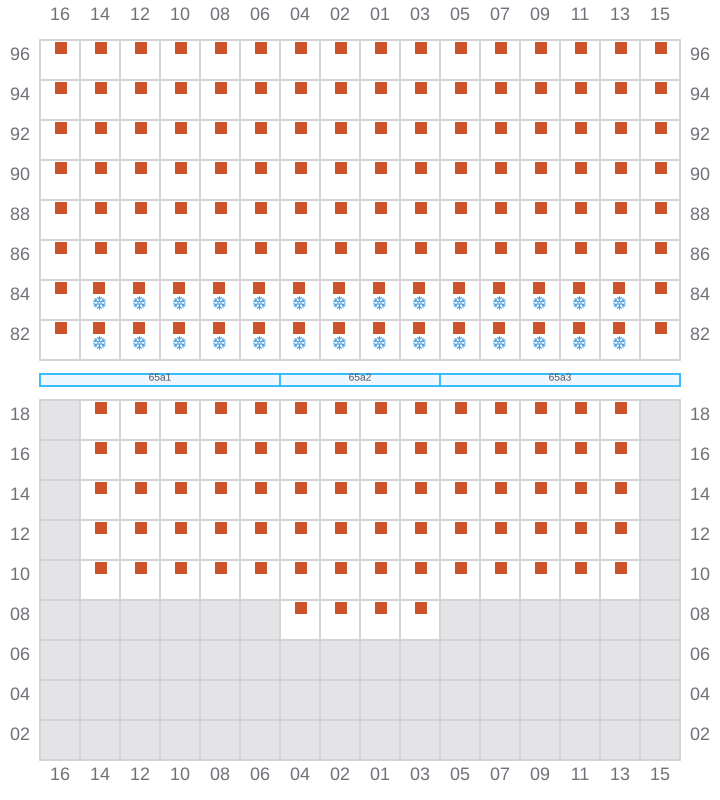

Bay 067 view and slots of MAERSK SERANGOON

069 (070)

  • →

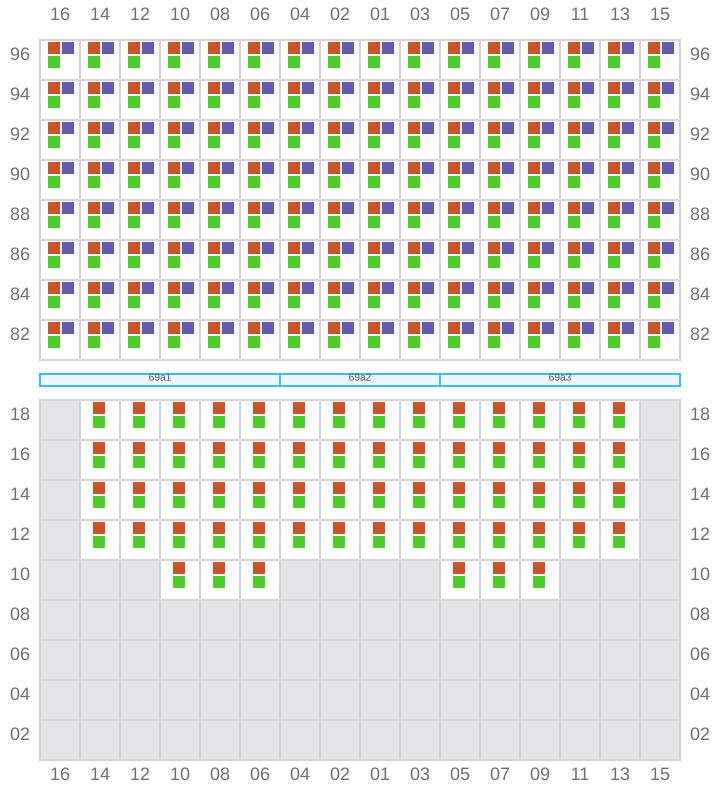

Bay 069 view and slots of MAERSK SERANGOON

071

  • ←
  • → / ?

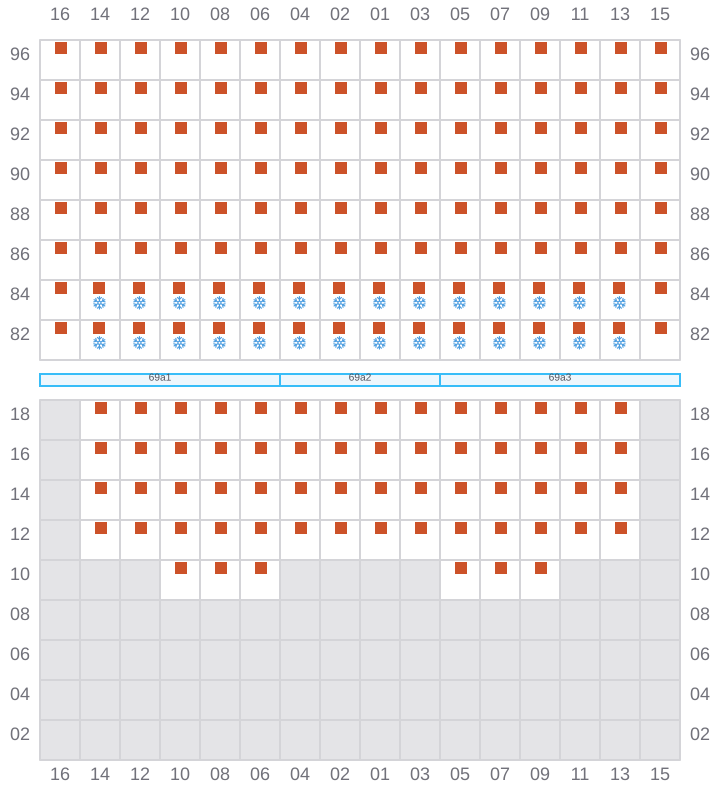

Bay 071 view and slots of MAERSK SERANGOON

073 (074)

  • → / ?

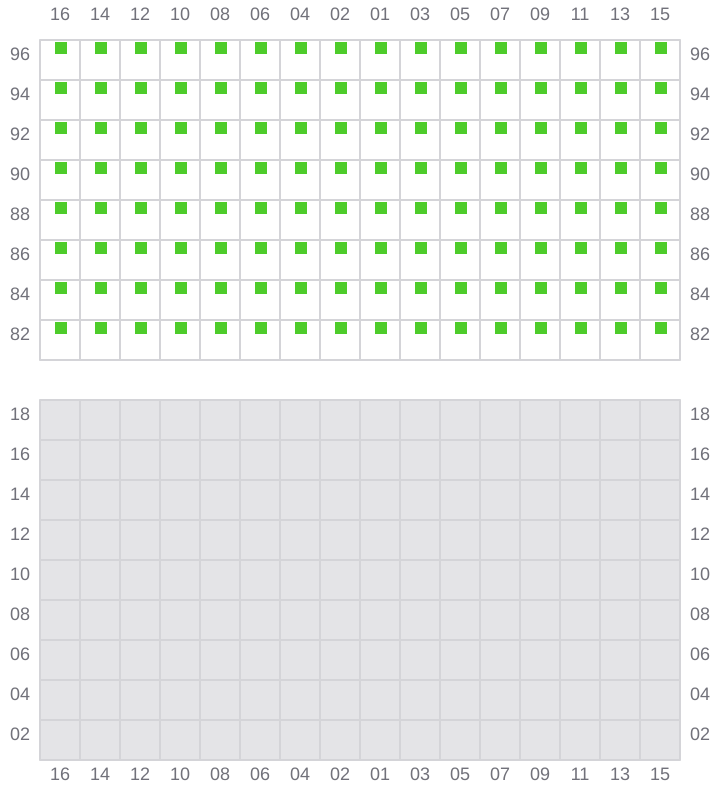

Bay 073 view and slots of MAERSK SERANGOON
