MAERSK SERANGOON
9315214 | S6CH2 | MSK by ************************** Last update: Thu Jun 29 2023
General Info
Ship Name:MAERSK SERANGOON
IMO Code:9315214
Call Sign:S6CH2
Line Operator:MSK
Class Name for Sister Ships:SOO
Year Built:2007
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:
Also Known As (old names):-
Size Summary
ISO Bays:075
Max ISO Row:16
Center Line Row:No
Max Above ISO Tier:96
Min Above ISO Tier:82
Max Below ISO Tier:18
Min Below ISO Tier:02
Total TEU:7,034
Centers of Gravity
LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

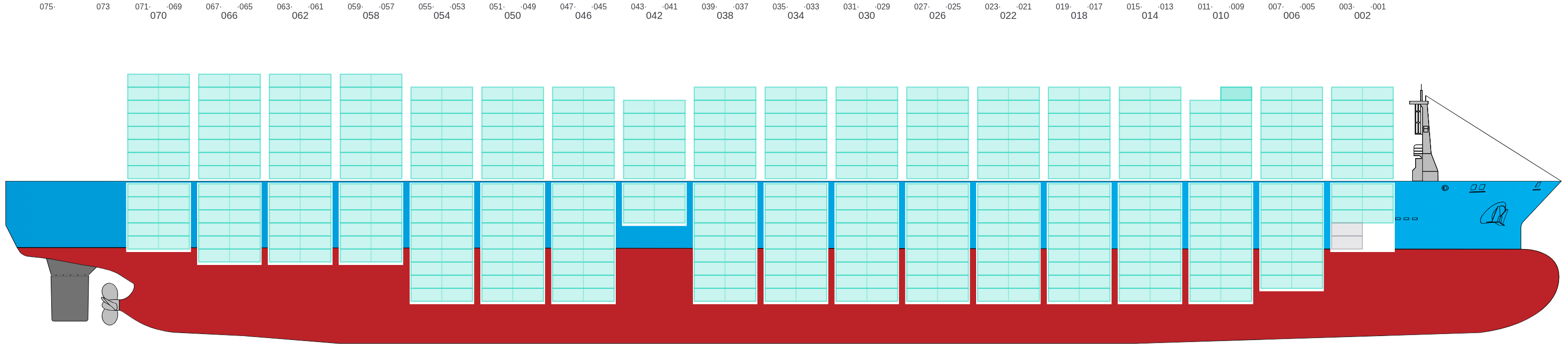

Side View
![Side view of MAERSK SERANGOON](/vessel-images/3d86eba2-042f-42d4-9806-5dc253c51c54-sideView.png?v=1688058537595)
Hatch-Covers View
![Deck view of MAERSK SERANGOON](/vessel-images/3d86eba2-042f-42d4-9806-5dc253c51c54-deckView.png?v=1688058537595)
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

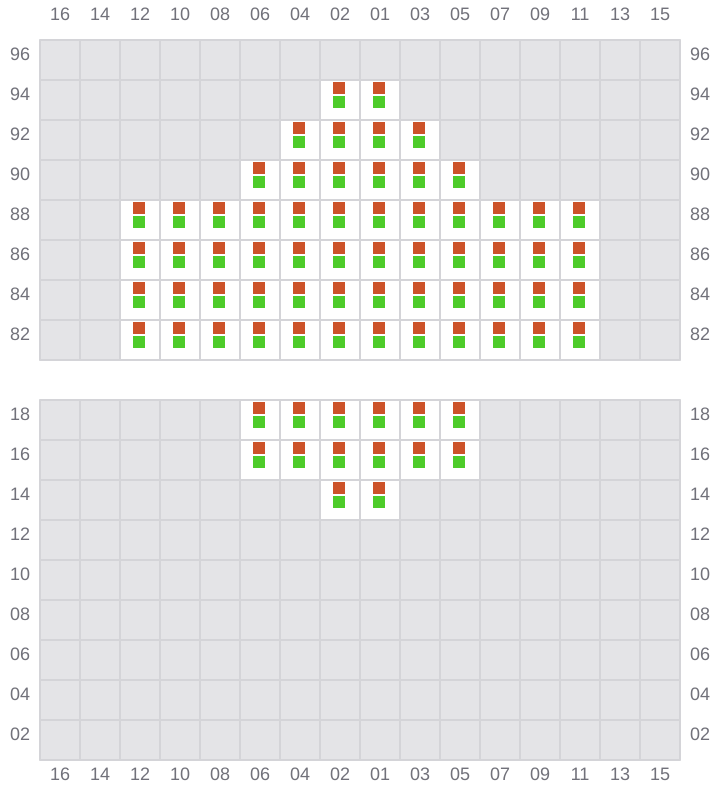

001 (002)
- →
![Bay 001 view and slots of MAERSK SERANGOON](/vessel-images/3d86eba2-042f-42d4-9806-5dc253c51c54-b001.png?v=1688058537595)

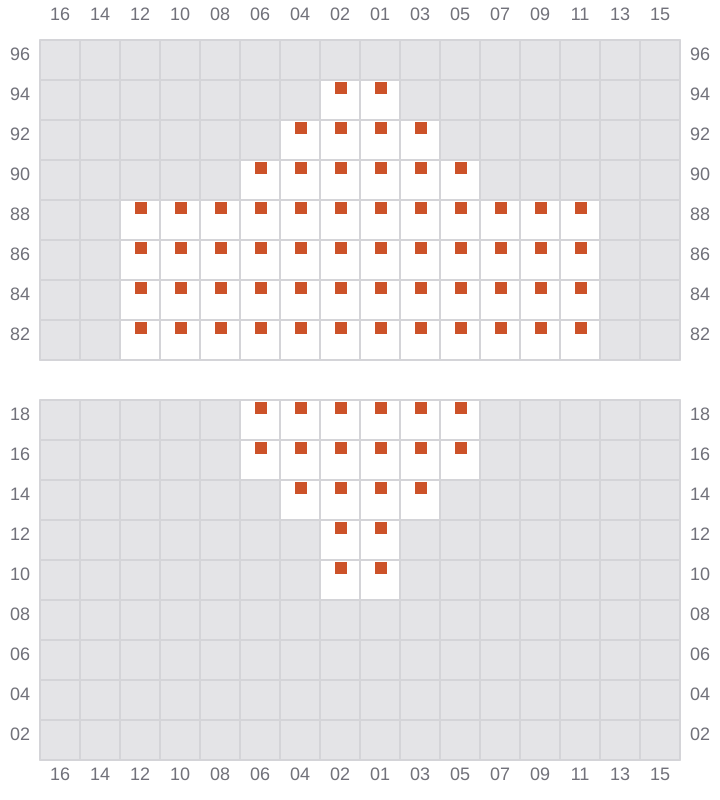

003
- ←
![Bay 003 view and slots of MAERSK SERANGOON](/vessel-images/3d86eba2-042f-42d4-9806-5dc253c51c54-b003.png?v=1688058537595)

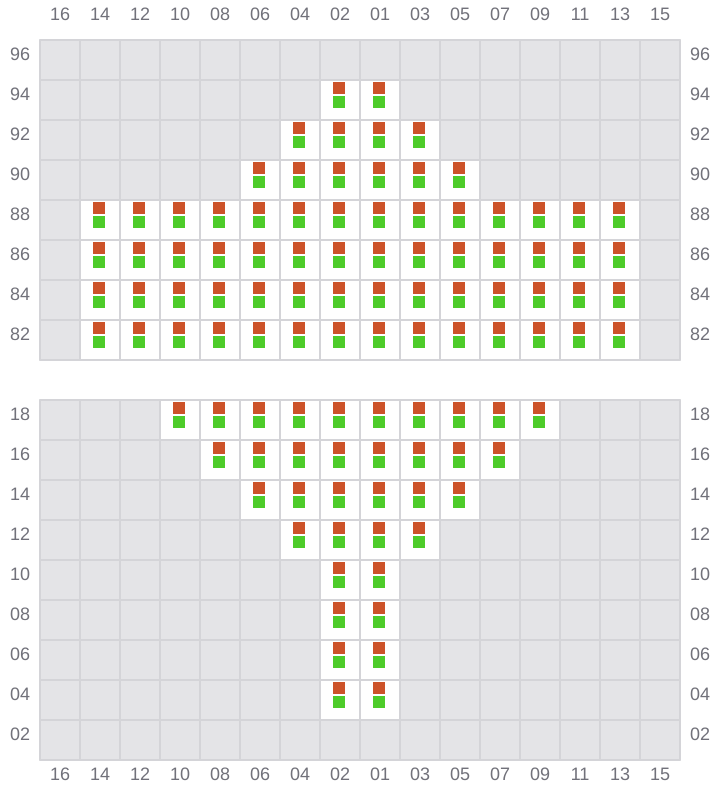

005 (006)
- →
![Bay 005 view and slots of MAERSK SERANGOON](/vessel-images/3d86eba2-042f-42d4-9806-5dc253c51c54-b005.png?v=1688058537595)
007
- ←
![Bay 007 view and slots of MAERSK SERANGOON](/vessel-images/3d86eba2-042f-42d4-9806-5dc253c51c54-b007.png?v=1688058537595)

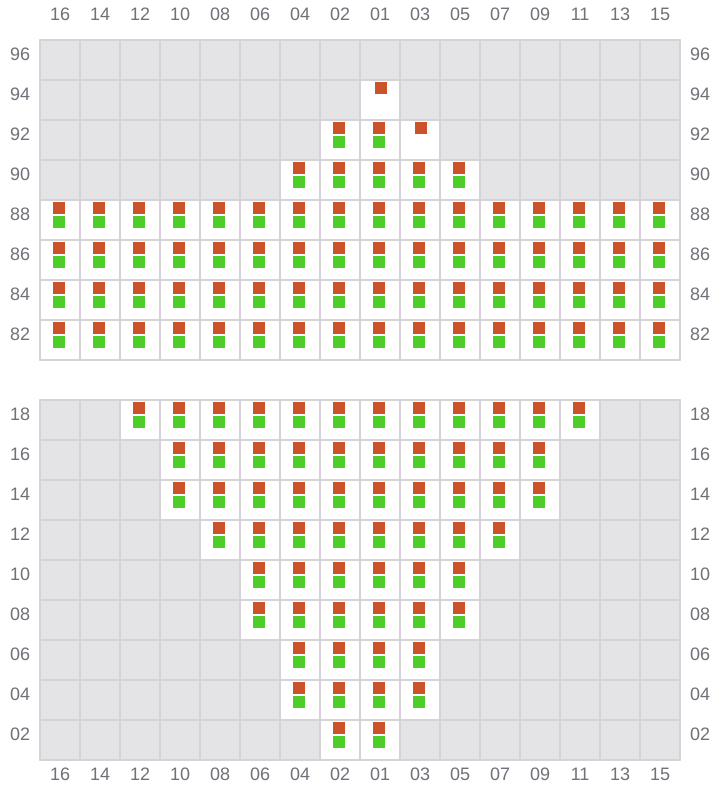

009 (010)
- →
![Bay 009 view and slots of MAERSK SERANGOON](/vessel-images/3d86eba2-042f-42d4-9806-5dc253c51c54-b009.png?v=1688058537595)

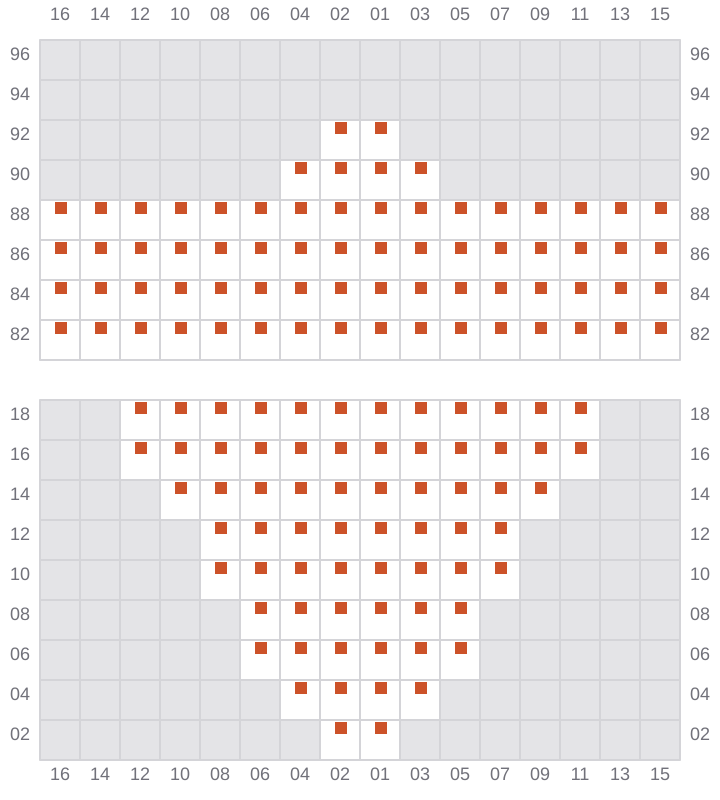

011
- ←
![Bay 011 view and slots of MAERSK SERANGOON](/vessel-images/3d86eba2-042f-42d4-9806-5dc253c51c54-b011.png?v=1688058537595)

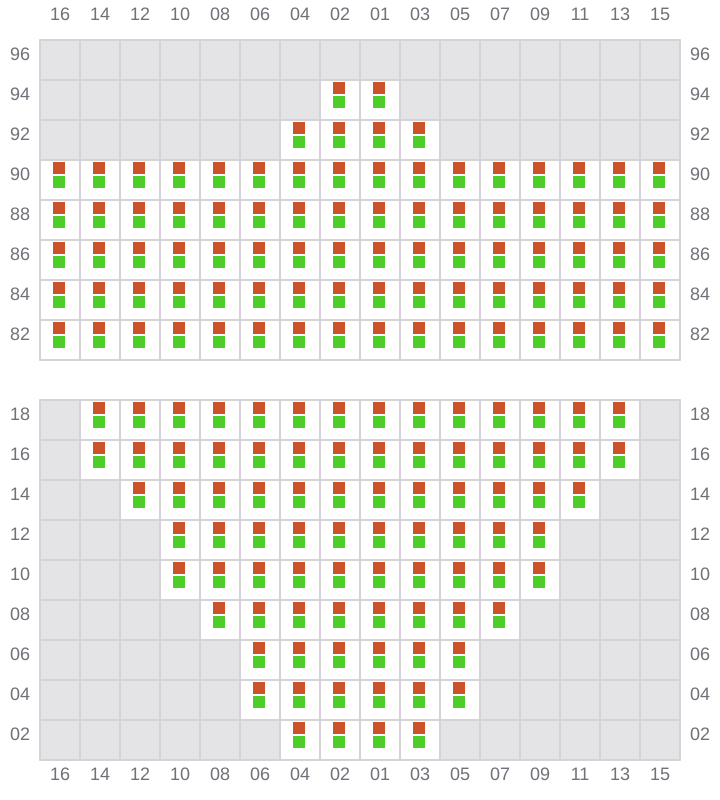

013 (014)
- →
![Bay 013 view and slots of MAERSK SERANGOON](/vessel-images/3d86eba2-042f-42d4-9806-5dc253c51c54-b013.png?v=1688058537595)

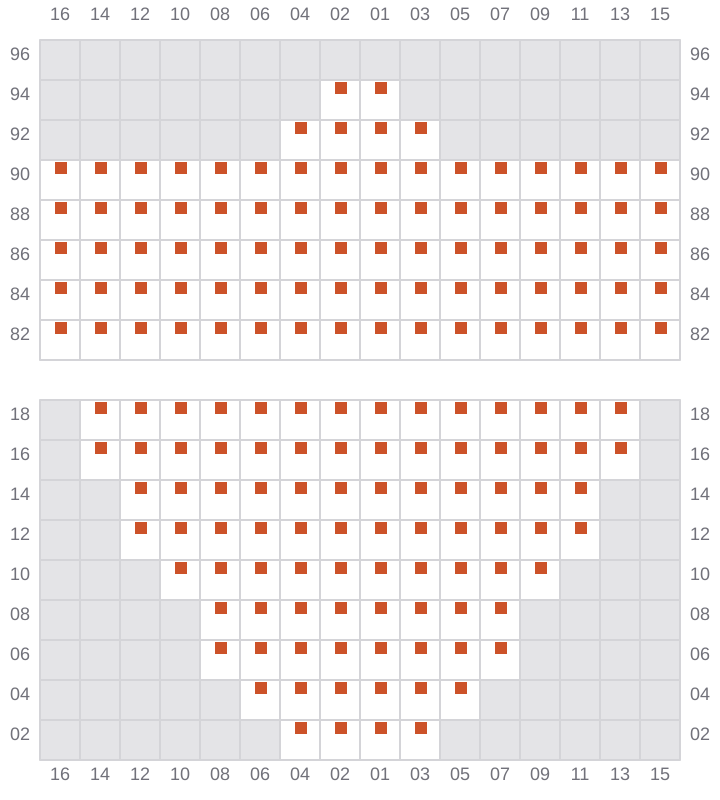

015
- ←
![Bay 015 view and slots of MAERSK SERANGOON](/vessel-images/3d86eba2-042f-42d4-9806-5dc253c51c54-b015.png?v=1688058537595)

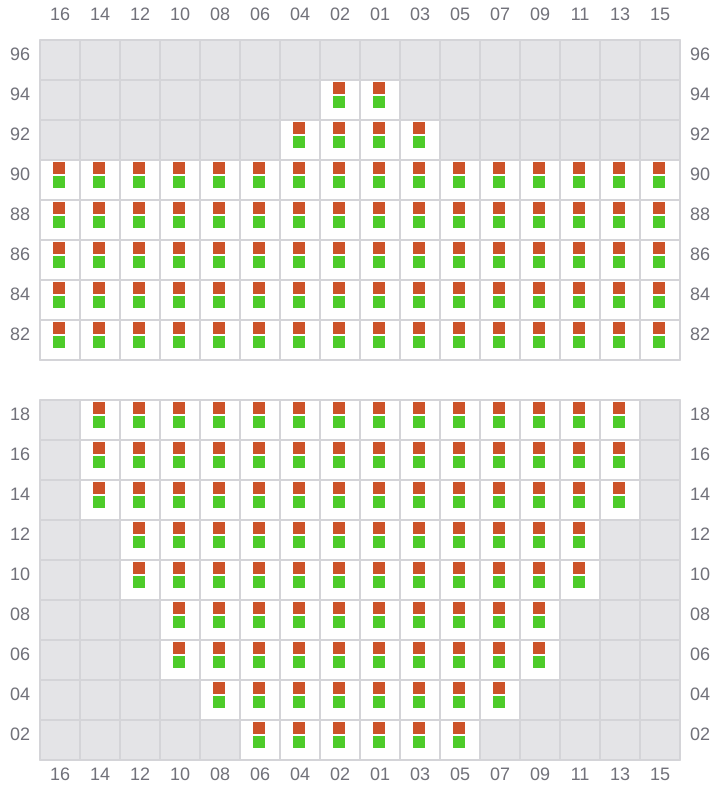

017 (018)
- →
![Bay 017 view and slots of MAERSK SERANGOON](/vessel-images/3d86eba2-042f-42d4-9806-5dc253c51c54-b017.png?v=1688058537595)

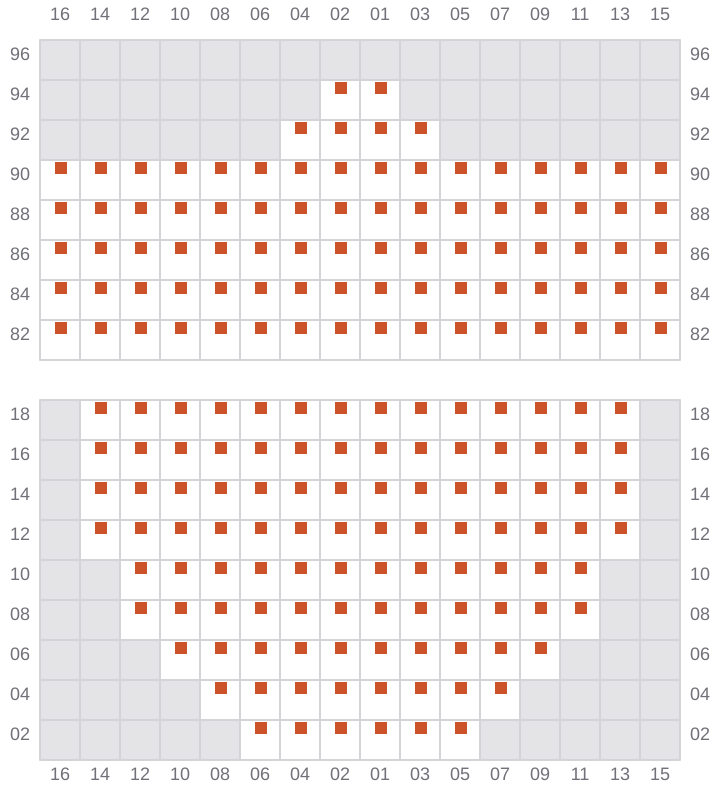

019
- ←
![Bay 019 view and slots of MAERSK SERANGOON](/vessel-images/3d86eba2-042f-42d4-9806-5dc253c51c54-b019.png?v=1688058537595)

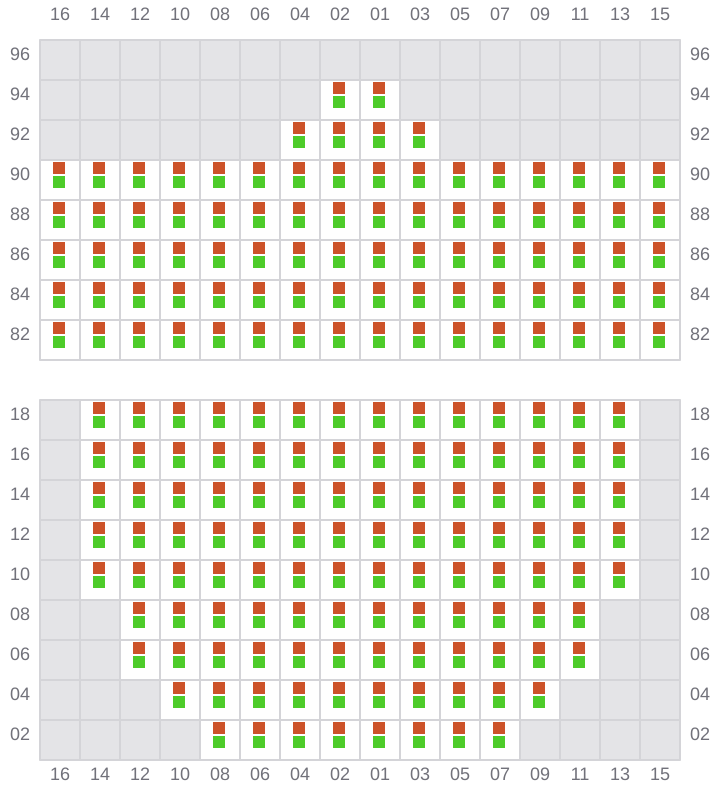

021 (022)
- →
![Bay 021 view and slots of MAERSK SERANGOON](/vessel-images/3d86eba2-042f-42d4-9806-5dc253c51c54-b021.png?v=1688058537595)

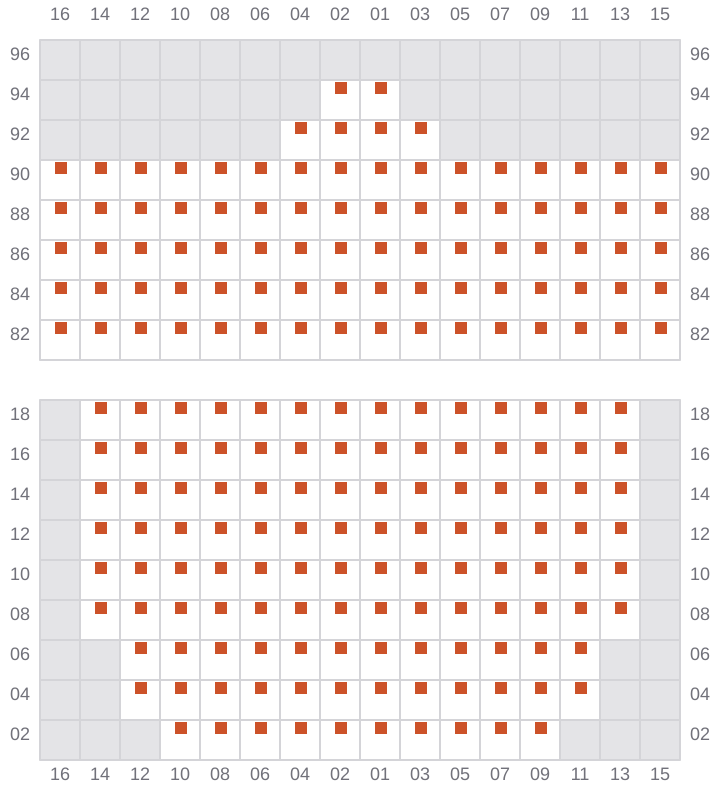

023
- ←
![Bay 023 view and slots of MAERSK SERANGOON](/vessel-images/3d86eba2-042f-42d4-9806-5dc253c51c54-b023.png?v=1688058537595)

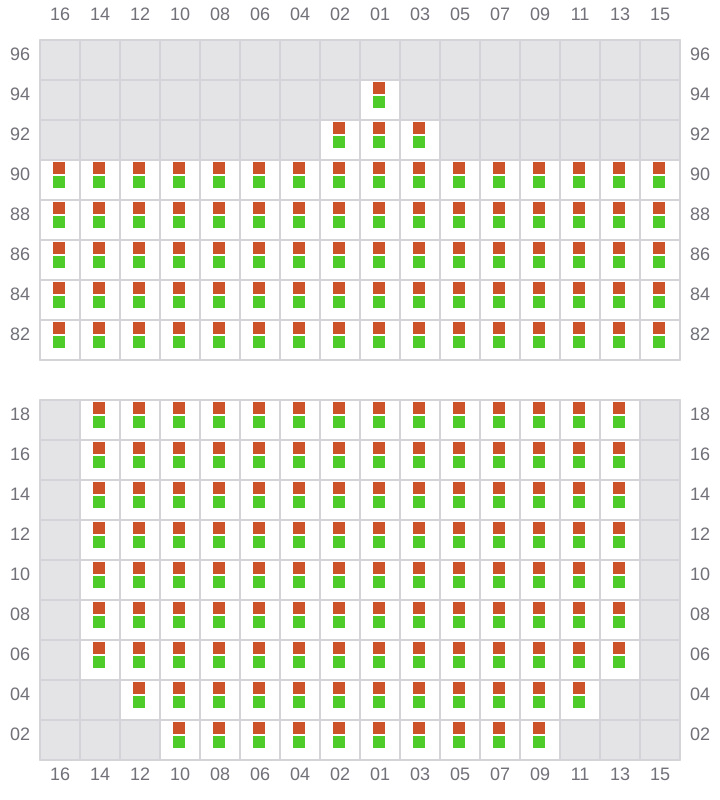

025 (026)
- →
![Bay 025 view and slots of MAERSK SERANGOON](/vessel-images/3d86eba2-042f-42d4-9806-5dc253c51c54-b025.png?v=1688058537595)

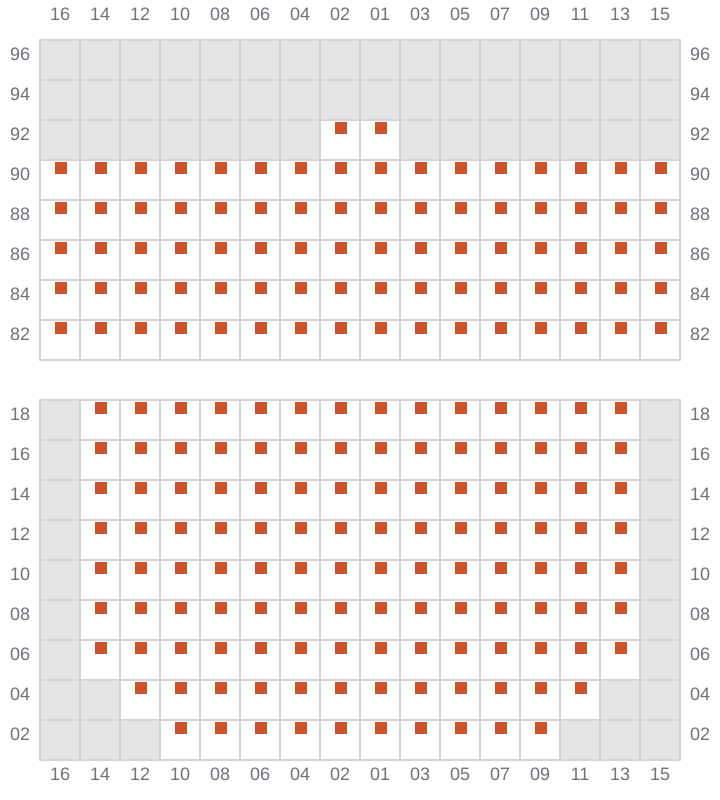

027
- ←
![Bay 027 view and slots of MAERSK SERANGOON](/vessel-images/3d86eba2-042f-42d4-9806-5dc253c51c54-b027.png?v=1688058537595)
029 (030)
- →
![Bay 029 view and slots of MAERSK SERANGOON](/vessel-images/3d86eba2-042f-42d4-9806-5dc253c51c54-b029.png?v=1688058537595)

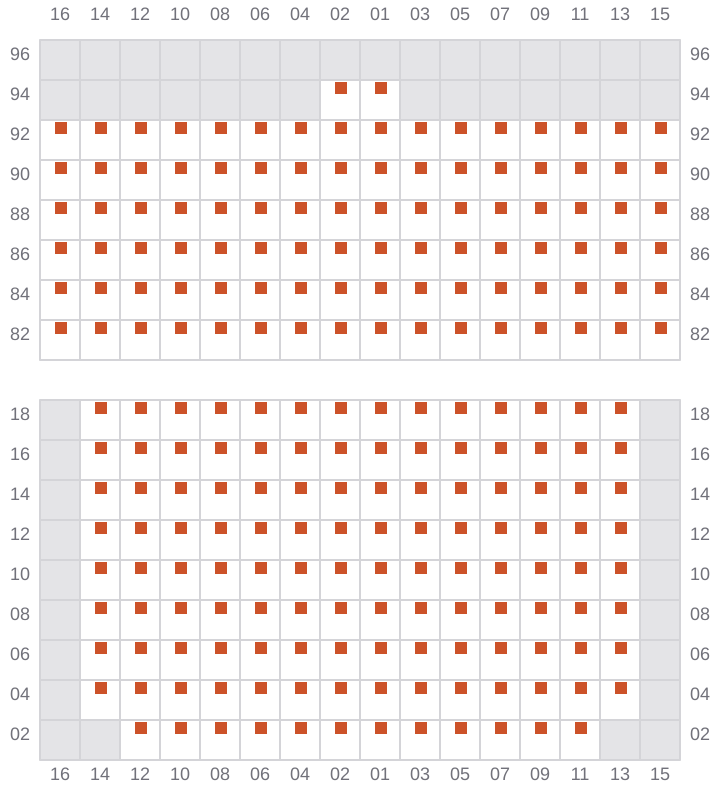

031
- ←
![Bay 031 view and slots of MAERSK SERANGOON](/vessel-images/3d86eba2-042f-42d4-9806-5dc253c51c54-b031.png?v=1688058537595)

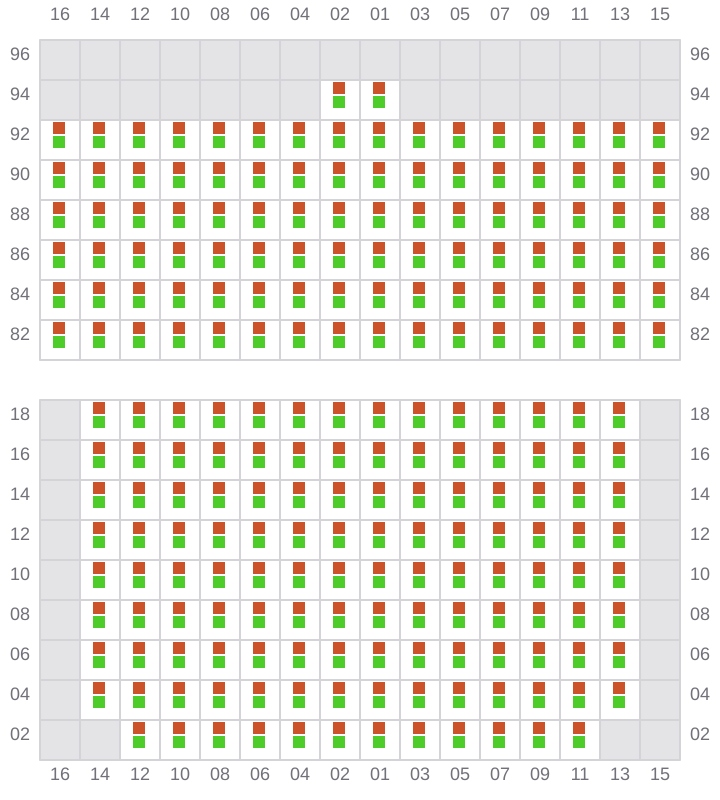

033 (034)
- →
![Bay 033 view and slots of MAERSK SERANGOON](/vessel-images/3d86eba2-042f-42d4-9806-5dc253c51c54-b033.png?v=1688058537595)
035
- ←
![Bay 035 view and slots of MAERSK SERANGOON](/vessel-images/3d86eba2-042f-42d4-9806-5dc253c51c54-b035.png?v=1688058537595)
037 (038)
- →
![Bay 037 view and slots of MAERSK SERANGOON](/vessel-images/3d86eba2-042f-42d4-9806-5dc253c51c54-b037.png?v=1688058537595)
039
- ←
![Bay 039 view and slots of MAERSK SERANGOON](/vessel-images/3d86eba2-042f-42d4-9806-5dc253c51c54-b039.png?v=1688058537595)

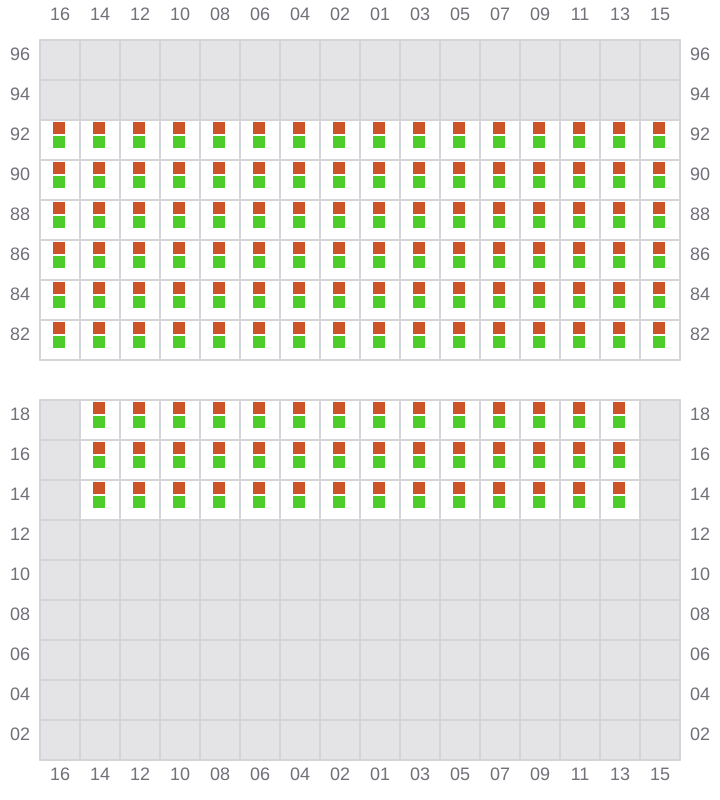

041 (042)
- →
![Bay 041 view and slots of MAERSK SERANGOON](/vessel-images/3d86eba2-042f-42d4-9806-5dc253c51c54-b041.png?v=1688058537595)

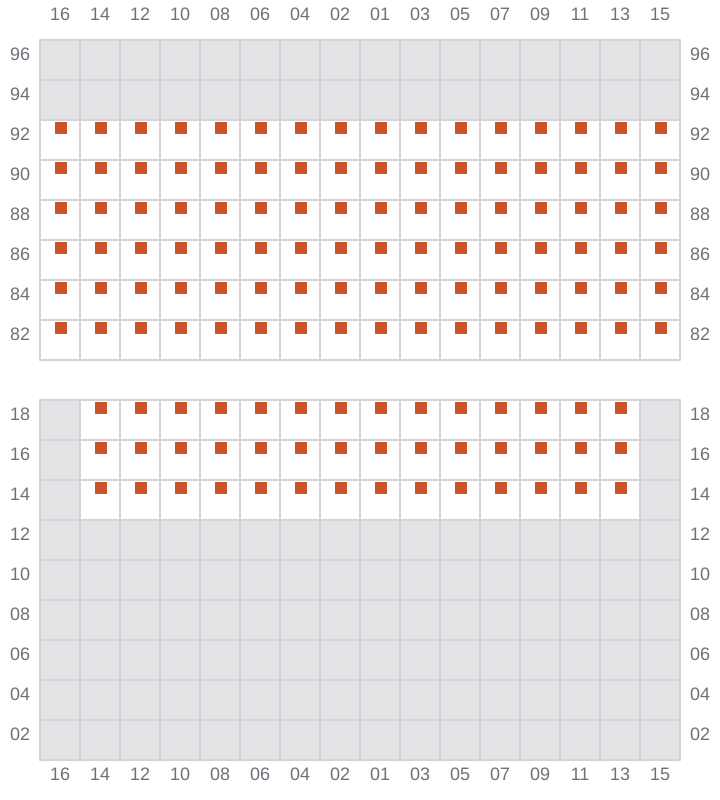

043
- ←
![Bay 043 view and slots of MAERSK SERANGOON](/vessel-images/3d86eba2-042f-42d4-9806-5dc253c51c54-b043.png?v=1688058537595)

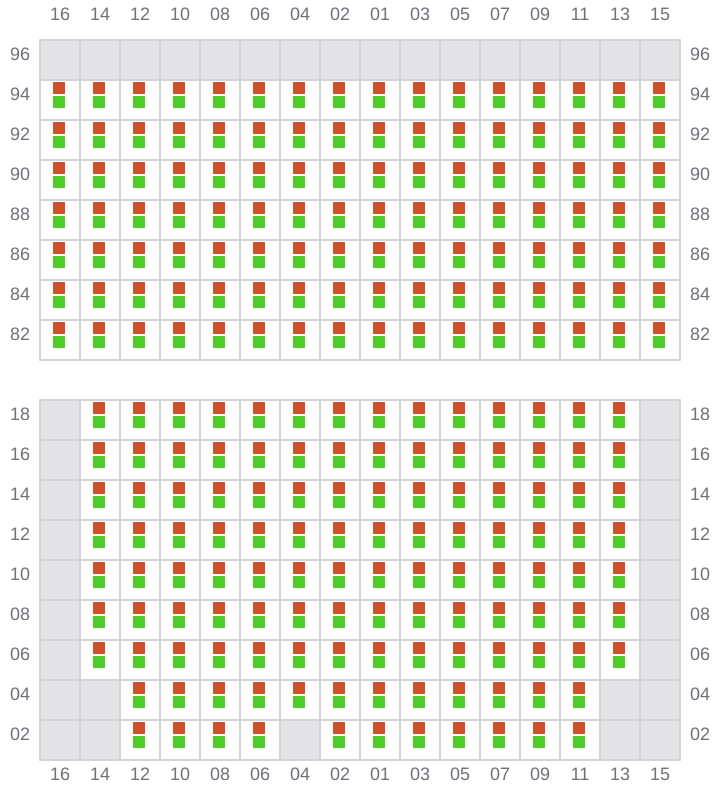

045 (046)
- →
![Bay 045 view and slots of MAERSK SERANGOON](/vessel-images/3d86eba2-042f-42d4-9806-5dc253c51c54-b045.png?v=1688058537595)

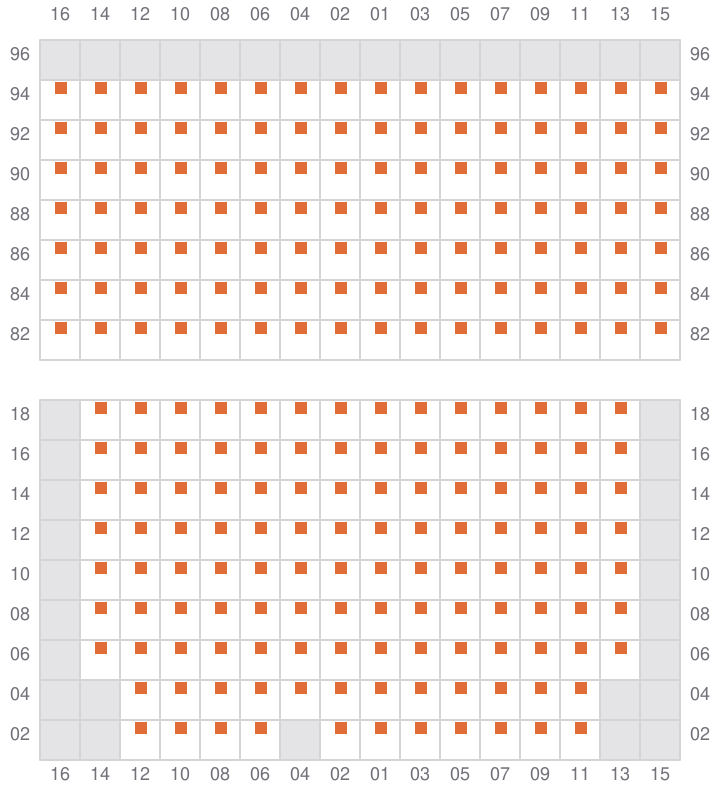

047
- ←
![Bay 047 view and slots of MAERSK SERANGOON](/vessel-images/3d86eba2-042f-42d4-9806-5dc253c51c54-b047.png?v=1688058537595)
049 (050)
- →
![Bay 049 view and slots of MAERSK SERANGOON](/vessel-images/3d86eba2-042f-42d4-9806-5dc253c51c54-b049.png?v=1688058537595)

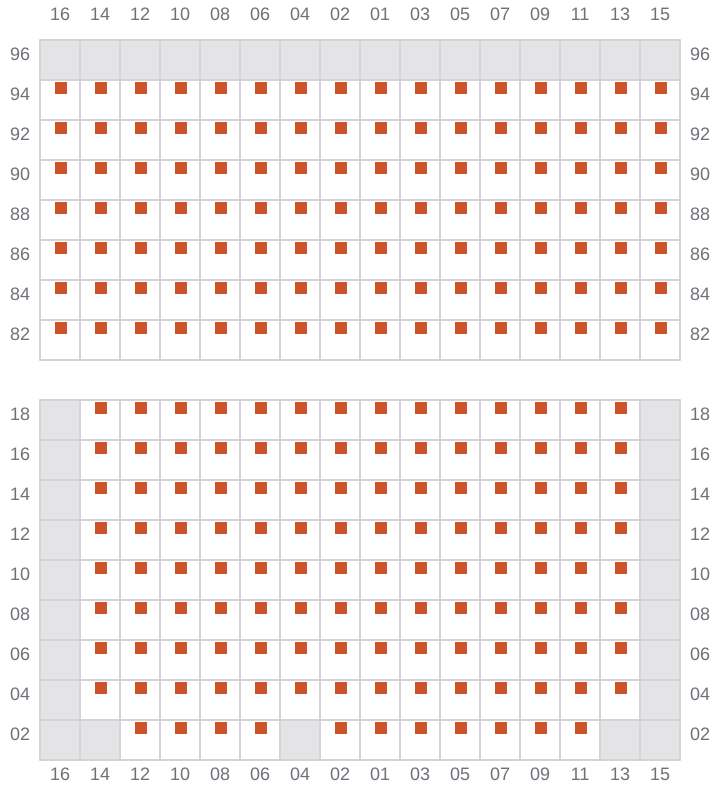

051
- ←
![Bay 051 view and slots of MAERSK SERANGOON](/vessel-images/3d86eba2-042f-42d4-9806-5dc253c51c54-b051.png?v=1688058537595)

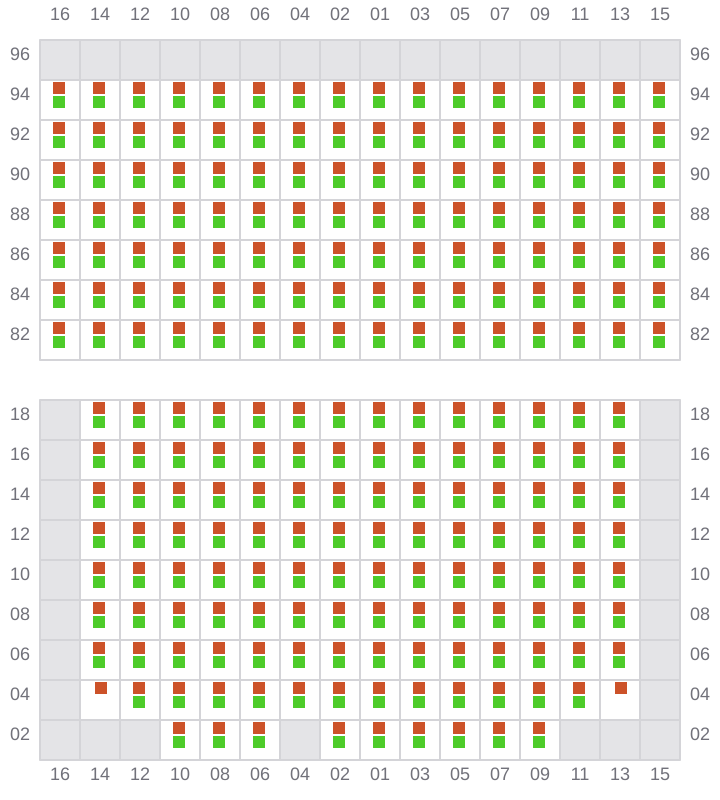

053 (054)
- →
![Bay 053 view and slots of MAERSK SERANGOON](/vessel-images/3d86eba2-042f-42d4-9806-5dc253c51c54-b053.png?v=1688058537595)
055
- ←
![Bay 055 view and slots of MAERSK SERANGOON](/vessel-images/3d86eba2-042f-42d4-9806-5dc253c51c54-b055.png?v=1688058537595)
057 (058)
- →
![Bay 057 view and slots of MAERSK SERANGOON](/vessel-images/3d86eba2-042f-42d4-9806-5dc253c51c54-b057.png?v=1688058537595)

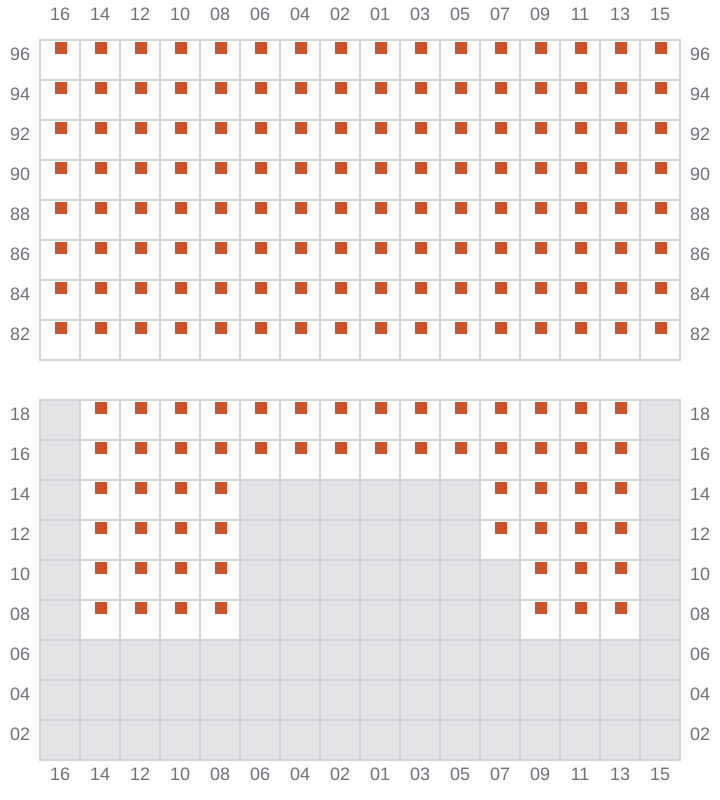

059
- ←
![Bay 059 view and slots of MAERSK SERANGOON](/vessel-images/3d86eba2-042f-42d4-9806-5dc253c51c54-b059.png?v=1688058537595)

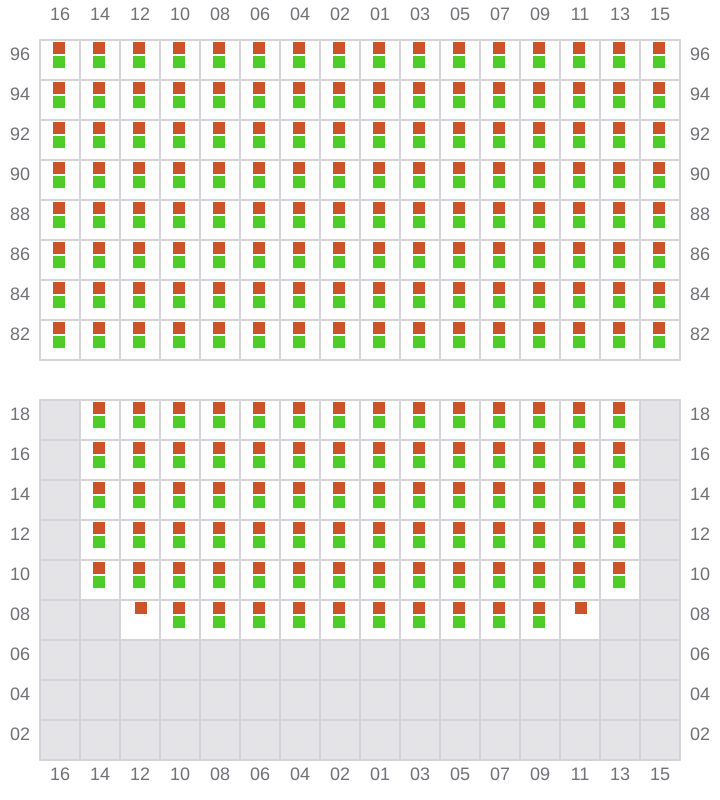

061 (062)
- →
![Bay 061 view and slots of MAERSK SERANGOON](/vessel-images/3d86eba2-042f-42d4-9806-5dc253c51c54-b061.png?v=1688058537595)

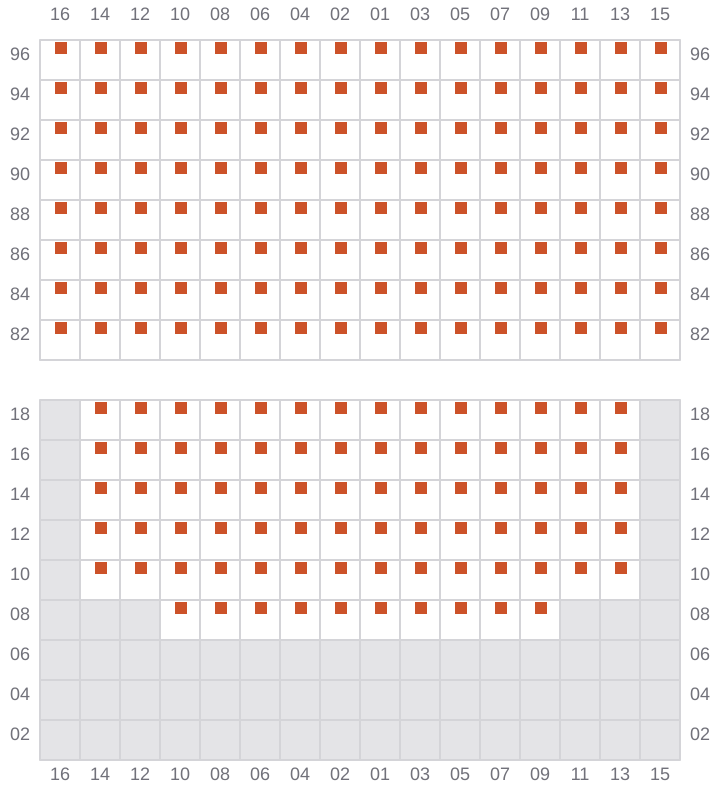

063
- ←
![Bay 063 view and slots of MAERSK SERANGOON](/vessel-images/3d86eba2-042f-42d4-9806-5dc253c51c54-b063.png?v=1688058537595)

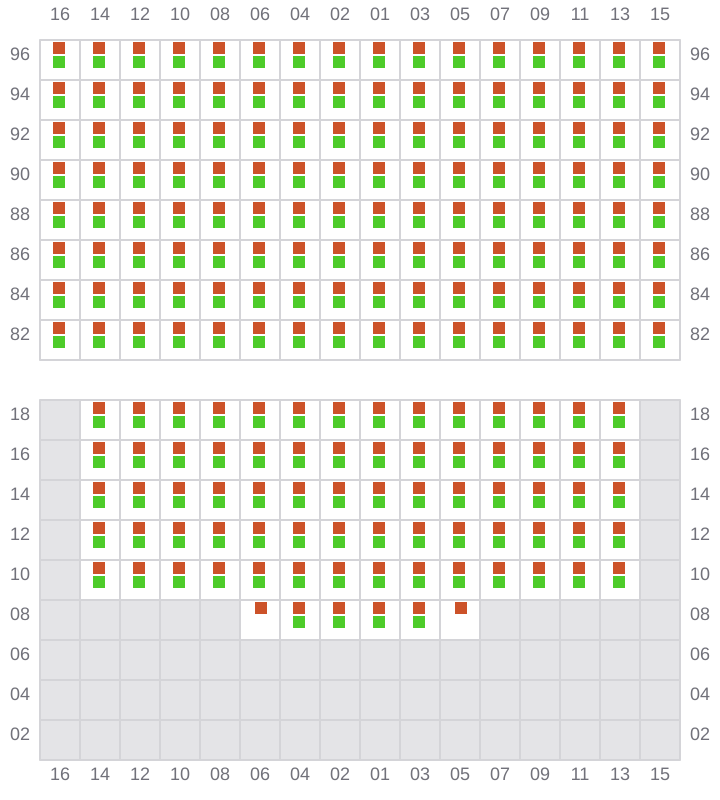

065 (066)
- →
![Bay 065 view and slots of MAERSK SERANGOON](/vessel-images/3d86eba2-042f-42d4-9806-5dc253c51c54-b065.png?v=1688058537595)

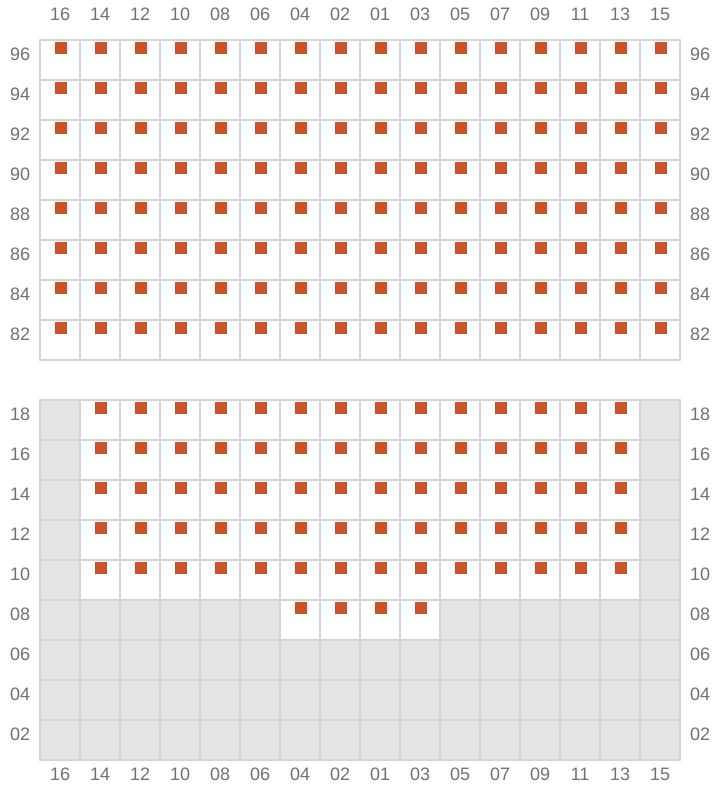

067
- ←
![Bay 067 view and slots of MAERSK SERANGOON](/vessel-images/3d86eba2-042f-42d4-9806-5dc253c51c54-b067.png?v=1688058537595)

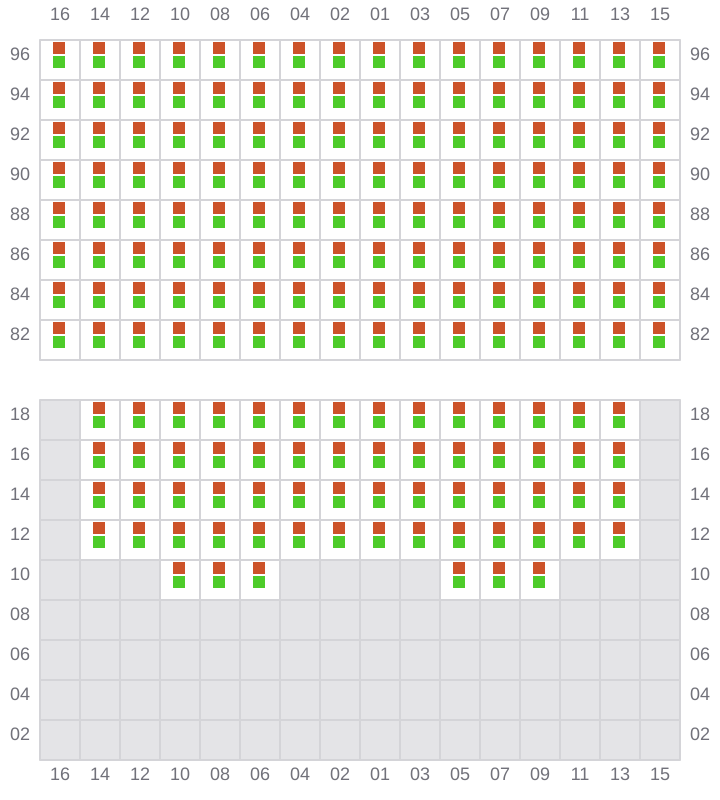

069 (070)
- →
![Bay 069 view and slots of MAERSK SERANGOON](/vessel-images/3d86eba2-042f-42d4-9806-5dc253c51c54-b069.png?v=1688058537595)

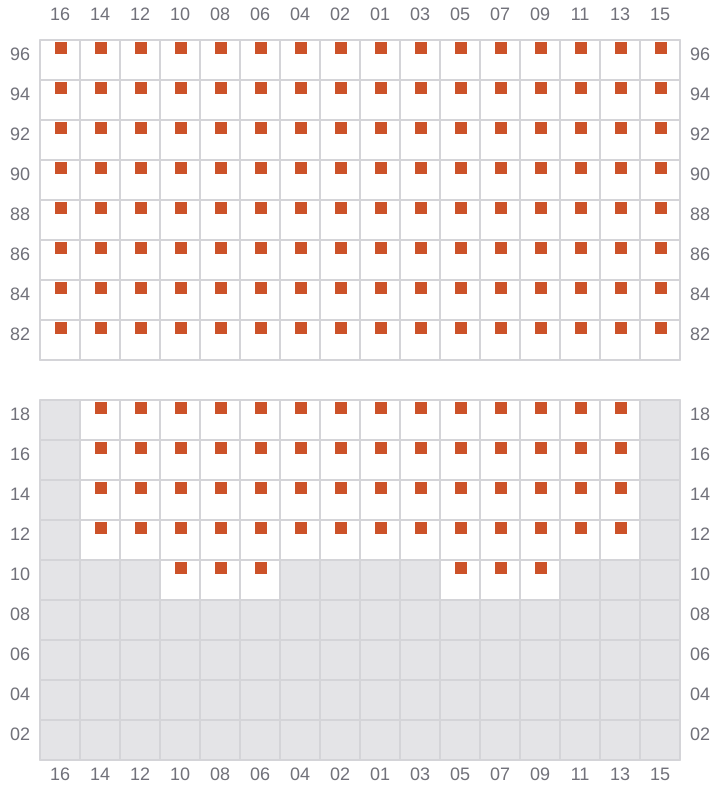

071
- ←
![Bay 071 view and slots of MAERSK SERANGOON](/vessel-images/3d86eba2-042f-42d4-9806-5dc253c51c54-b071.png?v=1688058537595)

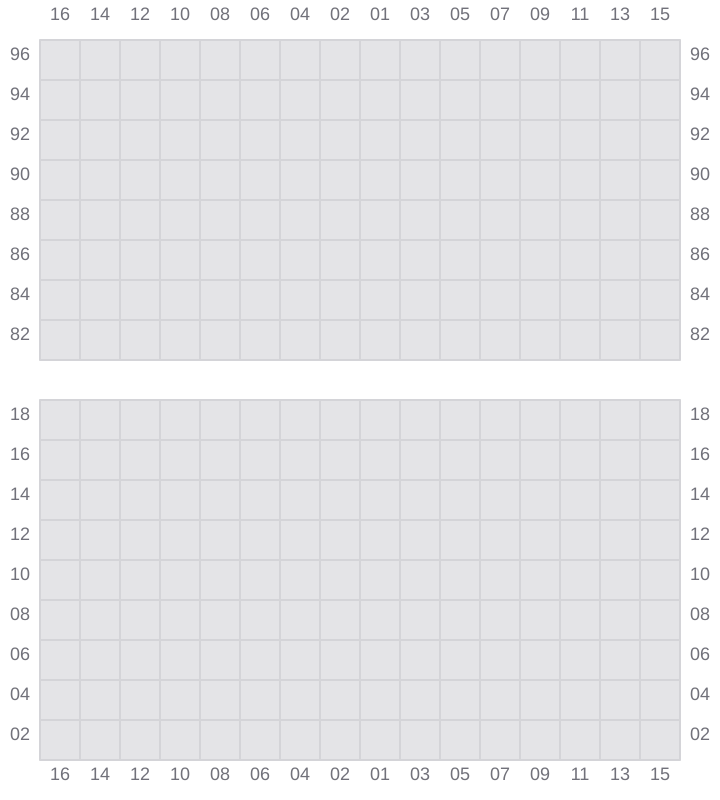

073
![Bay 073 view and slots of MAERSK SERANGOON](/vessel-images/3d86eba2-042f-42d4-9806-5dc253c51c54-b073.png?v=1688058537595)

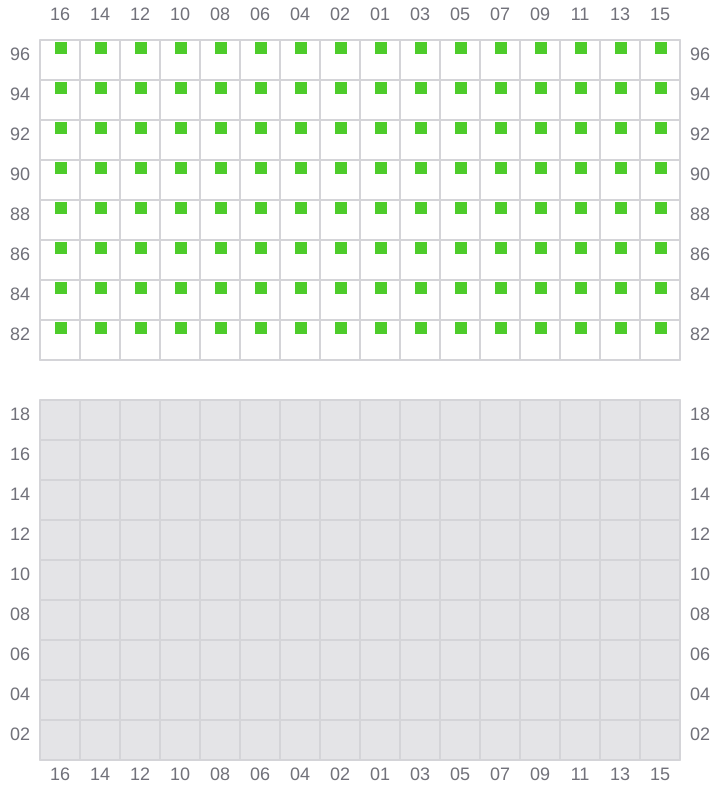

075 (074)
- ← / ?
![Bay 075 view and slots of MAERSK SERANGOON](/vessel-images/3d86eba2-042f-42d4-9806-5dc253c51c54-b075.png?v=1688058537595)
