MAERSK SHIVLING
9728253 | D5JH8 | MAE by ******************** Last update: Mon Feb 17 2025
General Info
Ship Name:MAERSK SHIVLING
IMO Code:9728253
Call Sign:D5JH8
Line Operator:MAE
Class Name for Sister Ships:MKSL
Year Built:2016
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):286.80
LOA (Length Overall):299.99
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-
Size Summary
ISO Bays:071
Max ISO Row:18
Center Line Row:Yes
Max Above ISO Tier:98
Min Above ISO Tier:82
Max Below ISO Tier:18
Min Below ISO Tier:02
Total TEU:9,256
Centers of Gravity
LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%
Side View
Hatch-Covers View

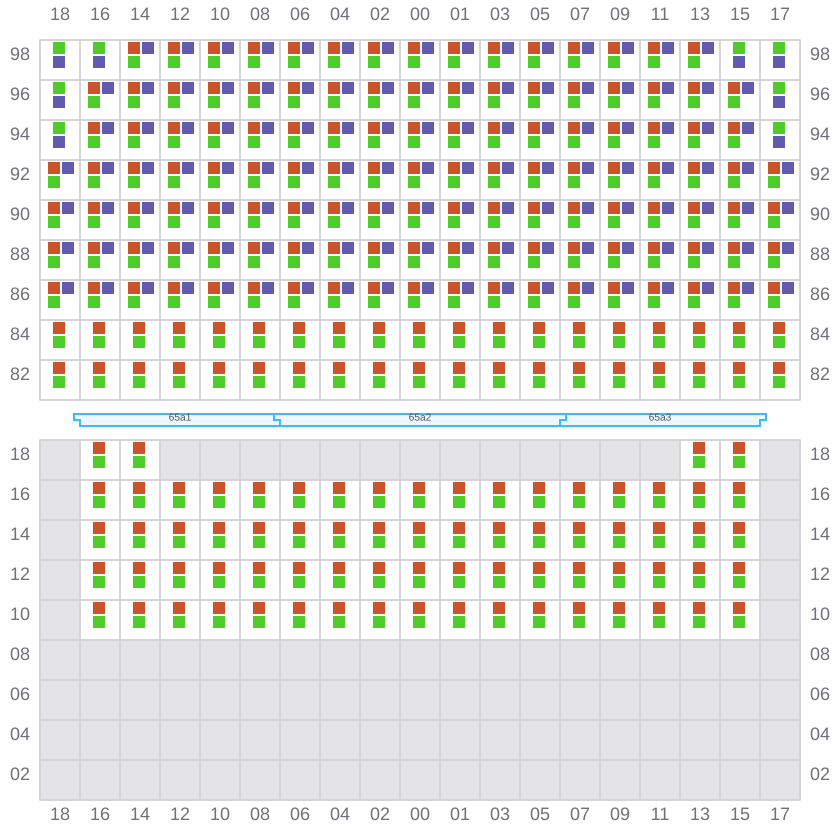

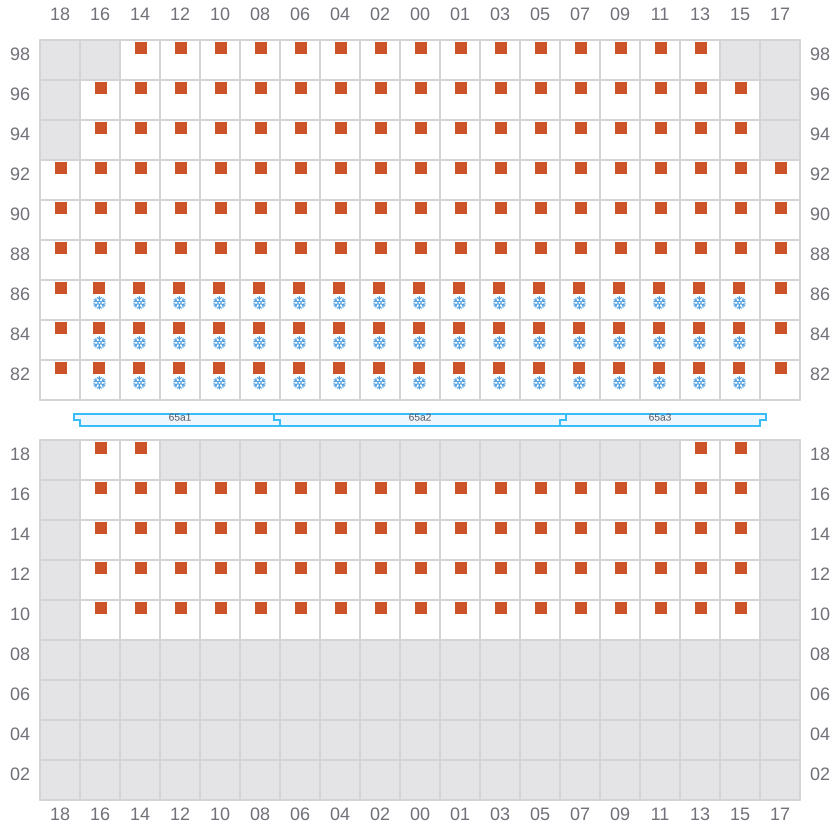

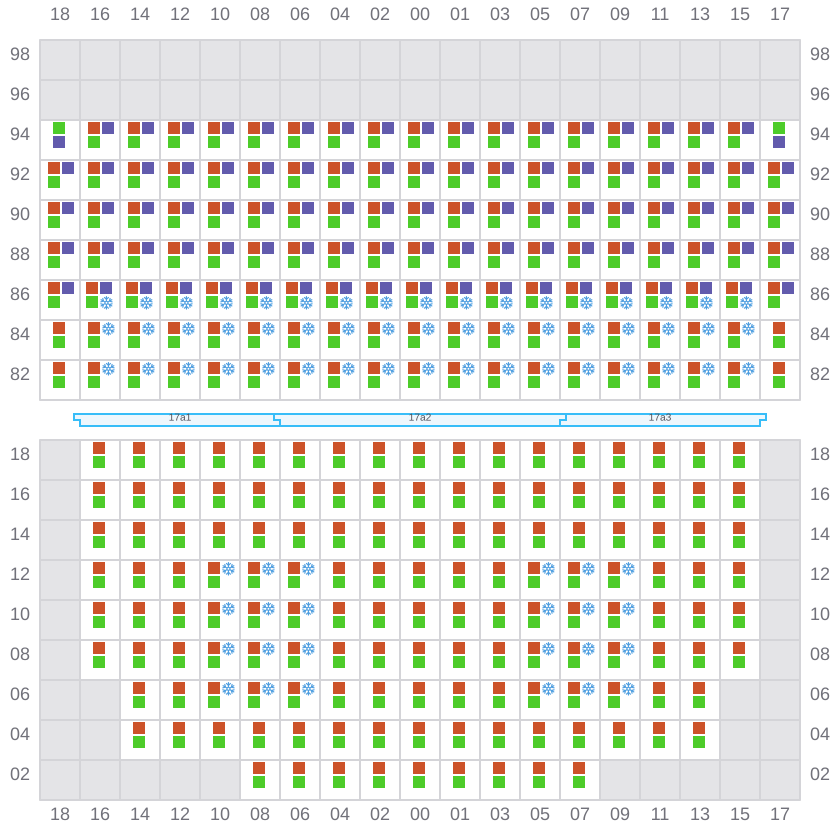

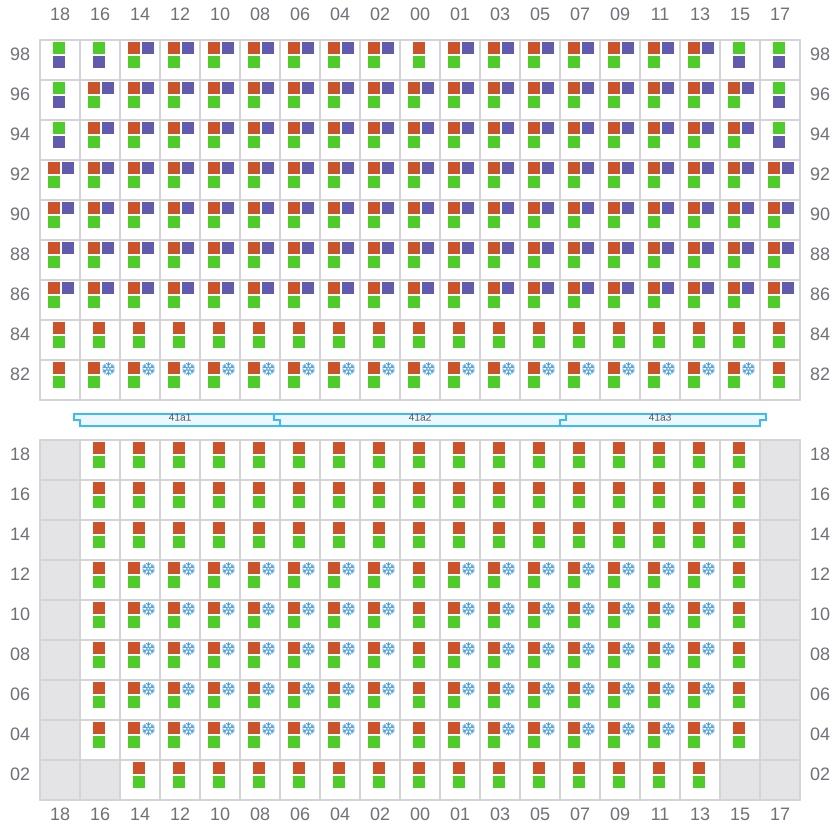

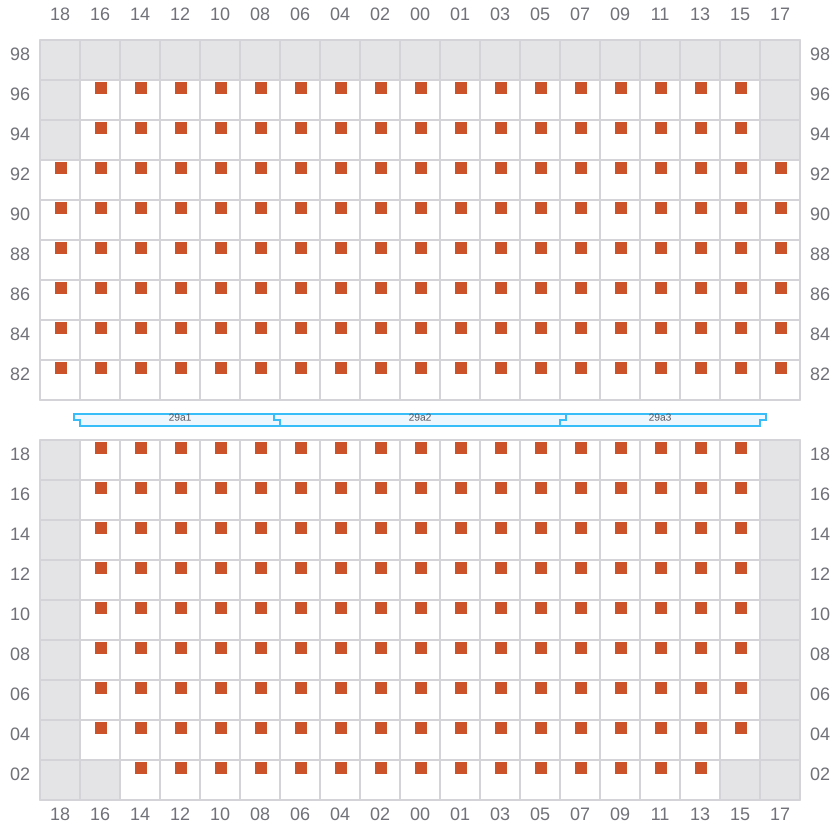

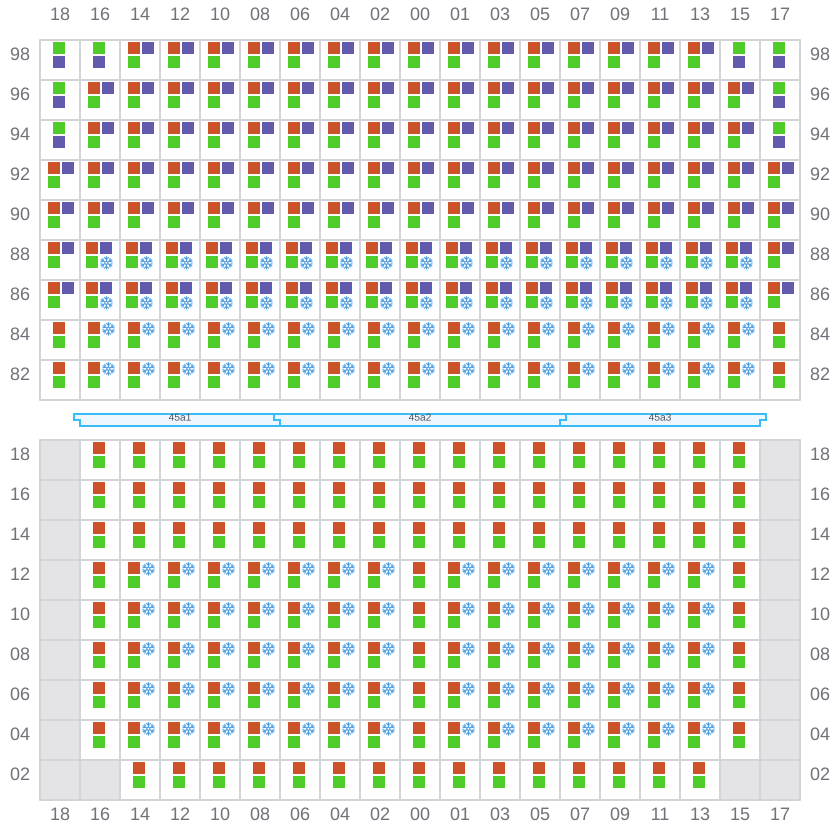

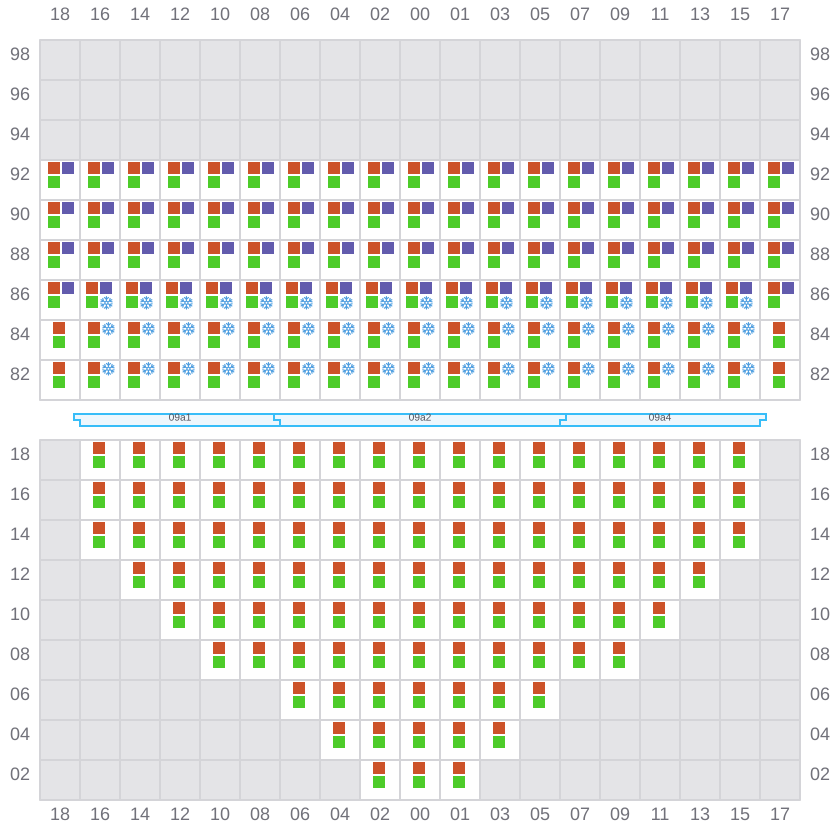

ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot
001
- →
- ✓
003 (002)
- ←
- ✓
005
- →
- ✓
007 (006)
- ←
- ✓
009
- →
- ✓
011 (010)
- ←
- ✓
013
- →
- ✓
015 (014)
- ←
- ✓
017
- →
- ✓
019 (018)
- ←
- ✓
021
- →
- ✓
023 (022)
- ←
- ✓
025
- →
- ✓
027 (026)
- ←
- ✓
029
- →
- ✓
031 (030)
- ←
- ✓
033
- →
- ✓
035 (034)
- ←
- ✓
037
- →
- ✓
039 (038)
- ←
- ✓
041
- →
- ✓
043 (042)
- ←
- ✓
045
- →
- ✓
047 (046)
- ←
- ✓
049
- →
- ✓
051 (050)
- ←
- ✓
053
- →
- ✓
055 (054)
- ←
- ✓
057
- →
- ✓
059 (058)
- ←
- ✓
061
- →
- ✓
063 (062)
- ←
- ✓
065
- →
- ✓
067 (066)
- ←
- ✓
069
- →
- ✓
071 (070)
- ←
- ✓
