MAERSK STADELHORN
9726671 | 9V5223 | MSK by ************************** Last update: Thu Jun 29 2023

General Info

Ship Name:MAERSK STADELHORN
IMO Code:9726671
Call Sign:9V5223
Line Operator:MSK
Class Name for Sister Ships:STH
Year Built:2015
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):287.00
LOA (Length Overall):299.92
Stern to AFT PP:-
Features Informed:
Also Known As (old names):-

Size Summary

ISO Bays:067
Max ISO Row:18
Center Line Row:Yes
Max Above ISO Tier:92
Min Above ISO Tier:72
Max Below ISO Tier:18
Min Below ISO Tier:02
Total TEU:9,960

Centers of Gravity

LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

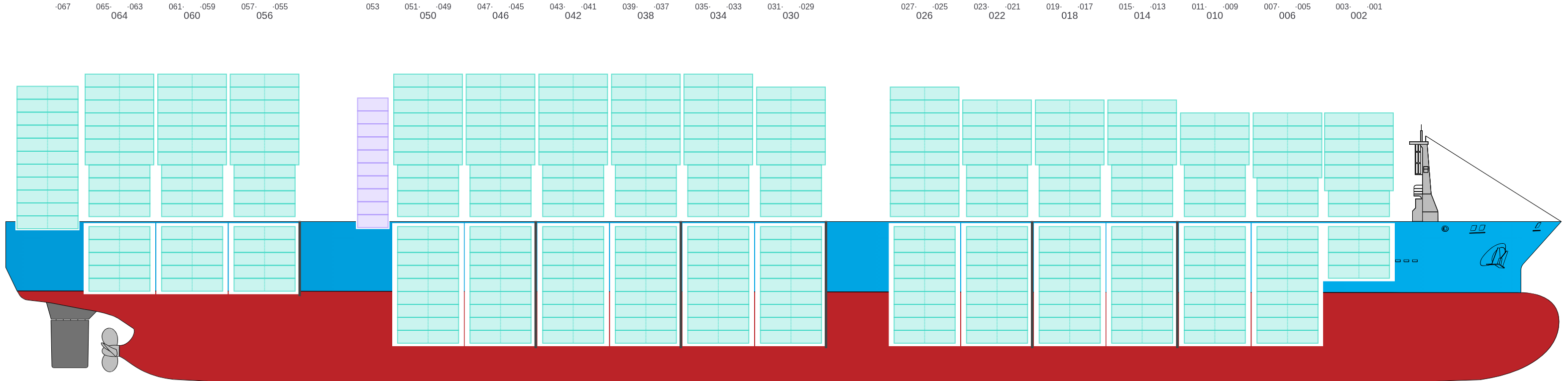

Side View

Side view of MAERSK STADELHORN

Hatch-Covers View

Deck view of MAERSK STADELHORN

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot

001 (002)

  • →

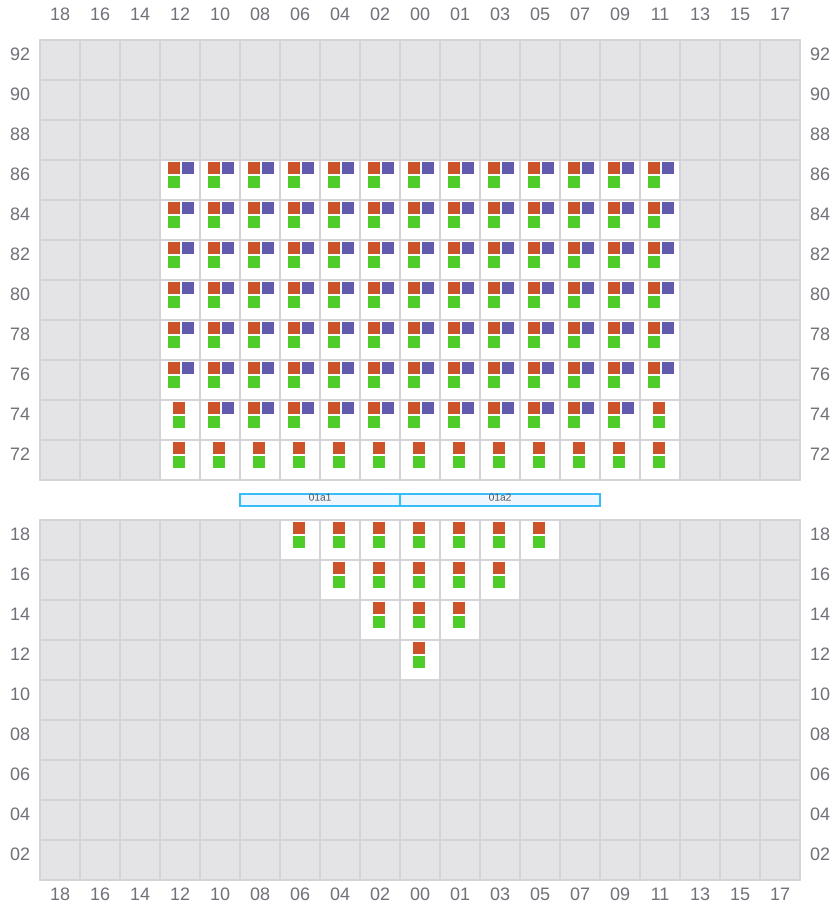

Bay 001 view and slots of MAERSK STADELHORN

003

  • ←
  • → / ?

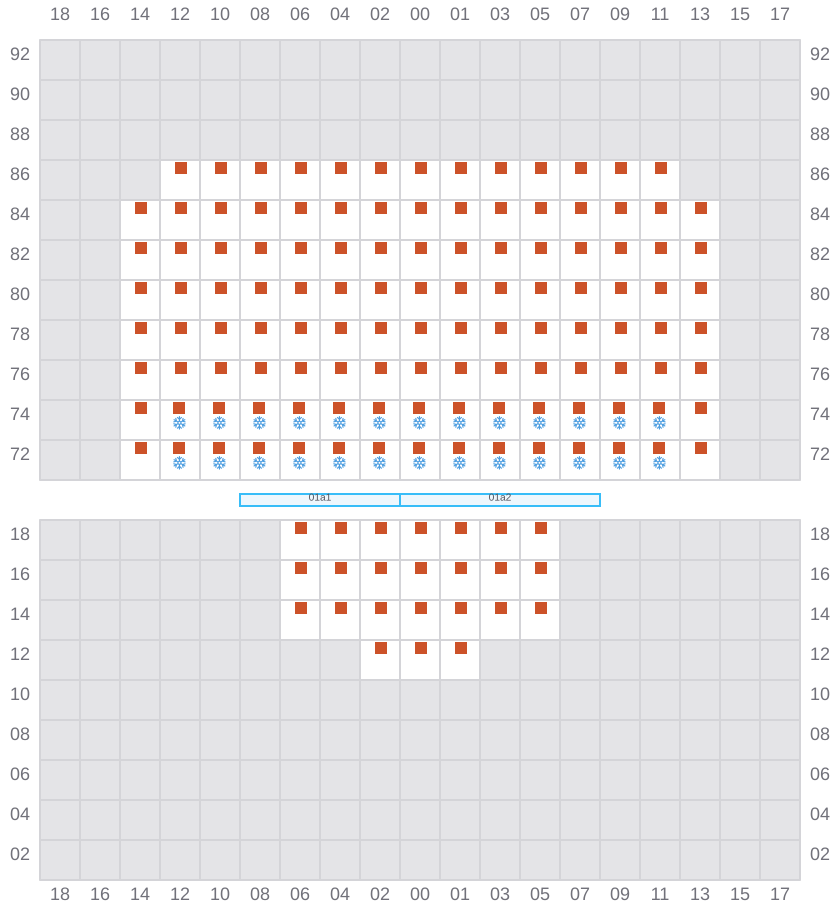

Bay 003 view and slots of MAERSK STADELHORN

005 (006)

  • →
  • → / ?

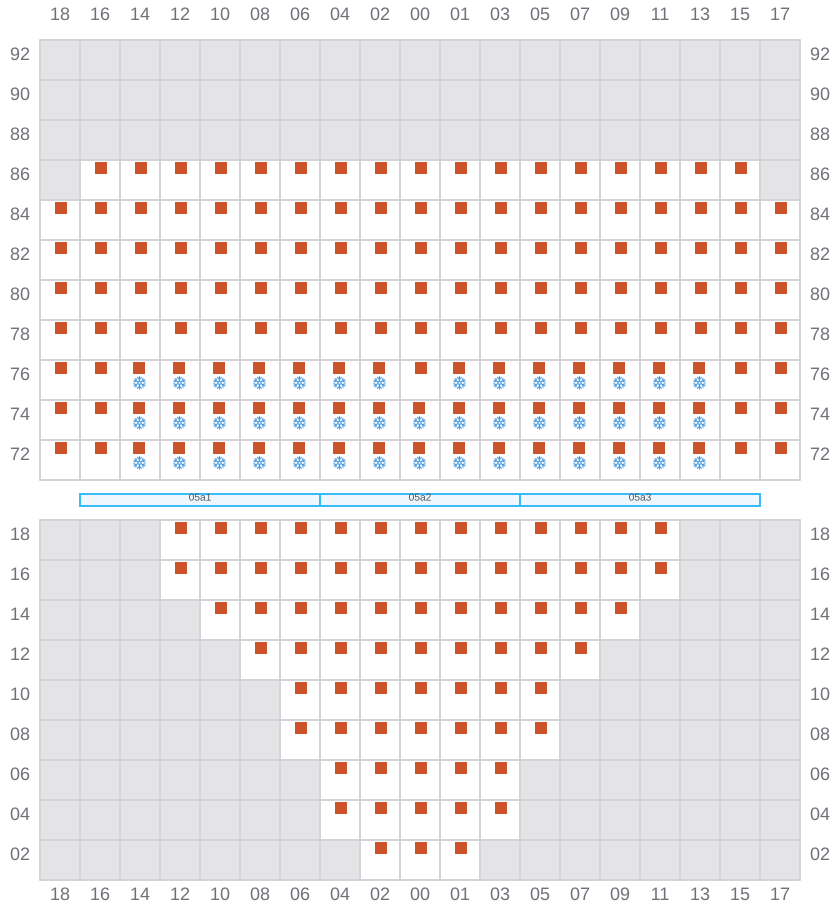

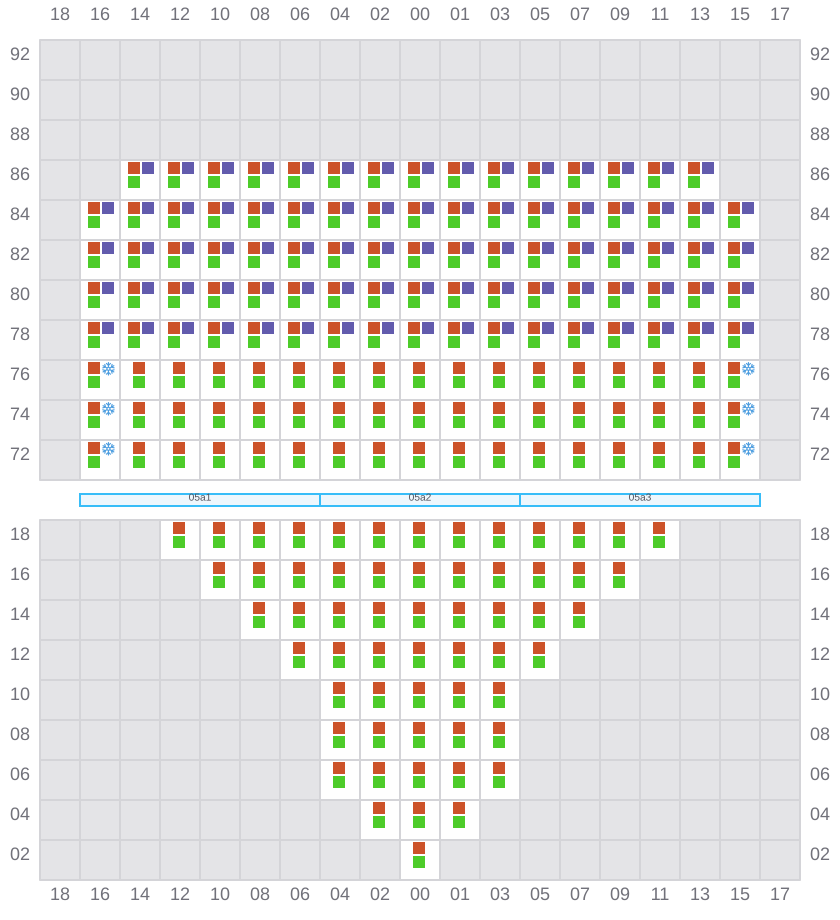

Bay 005 view and slots of MAERSK STADELHORN

007

  • ←
  • → / ?
Bay 007 view and slots of MAERSK STADELHORN

009 (010)

  • →
  • → / ?

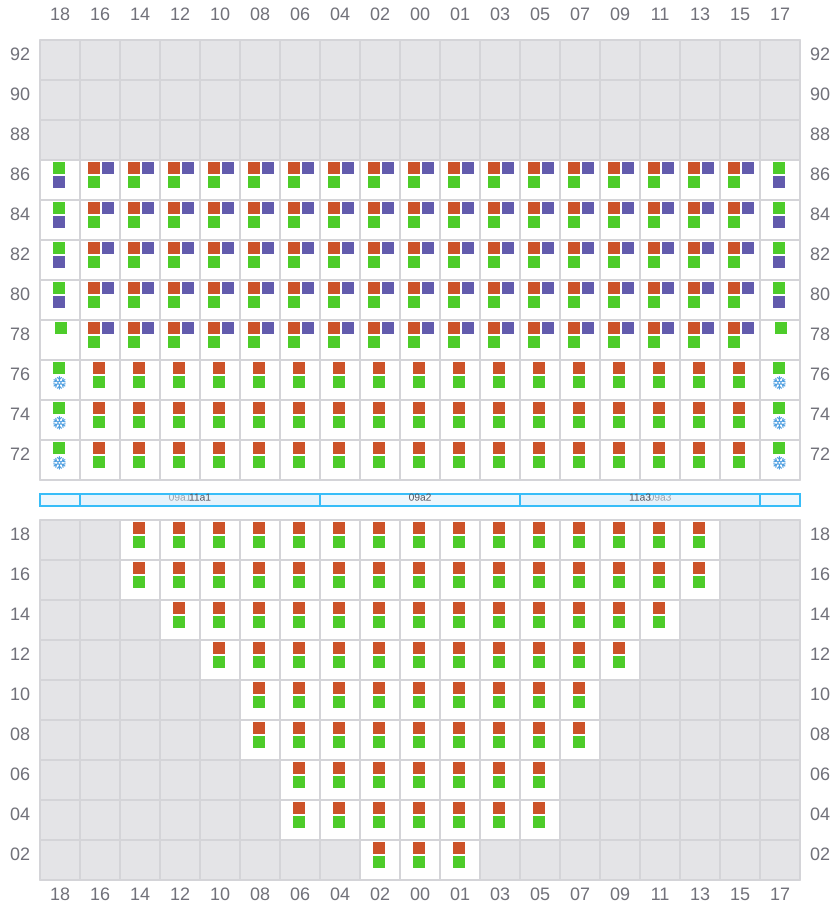

Bay 009 view and slots of MAERSK STADELHORN

011

  • ←
  • → / ?

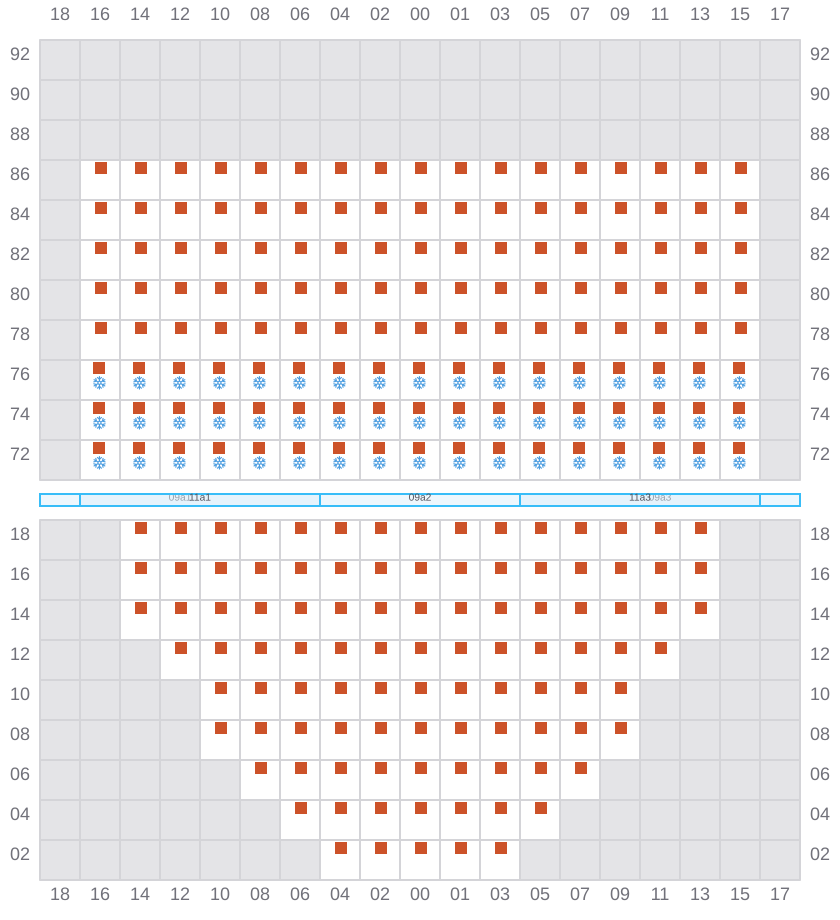

Bay 011 view and slots of MAERSK STADELHORN

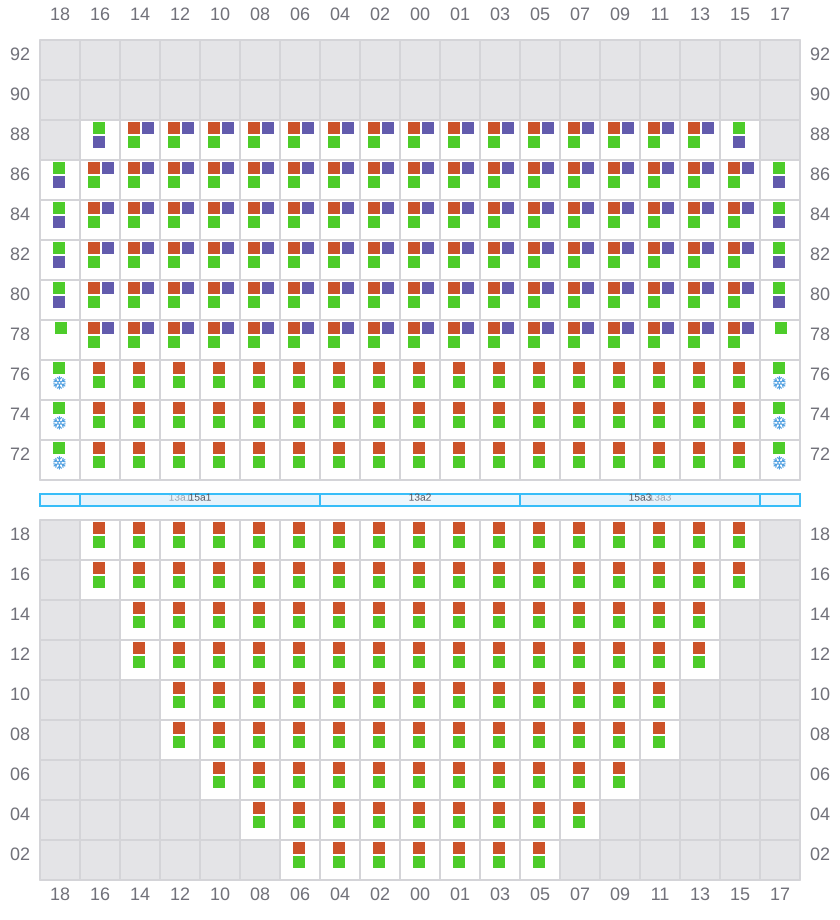

013 (014)

  • →
  • → / ?
Bay 013 view and slots of MAERSK STADELHORN

015

  • ←
  • → / ?

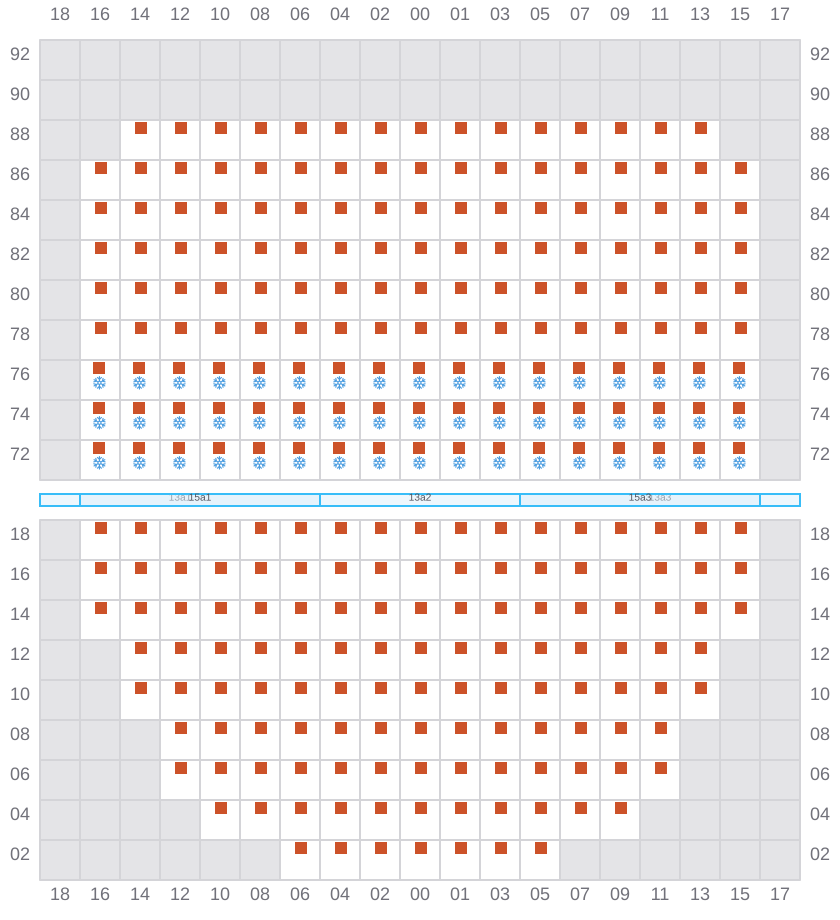

Bay 015 view and slots of MAERSK STADELHORN

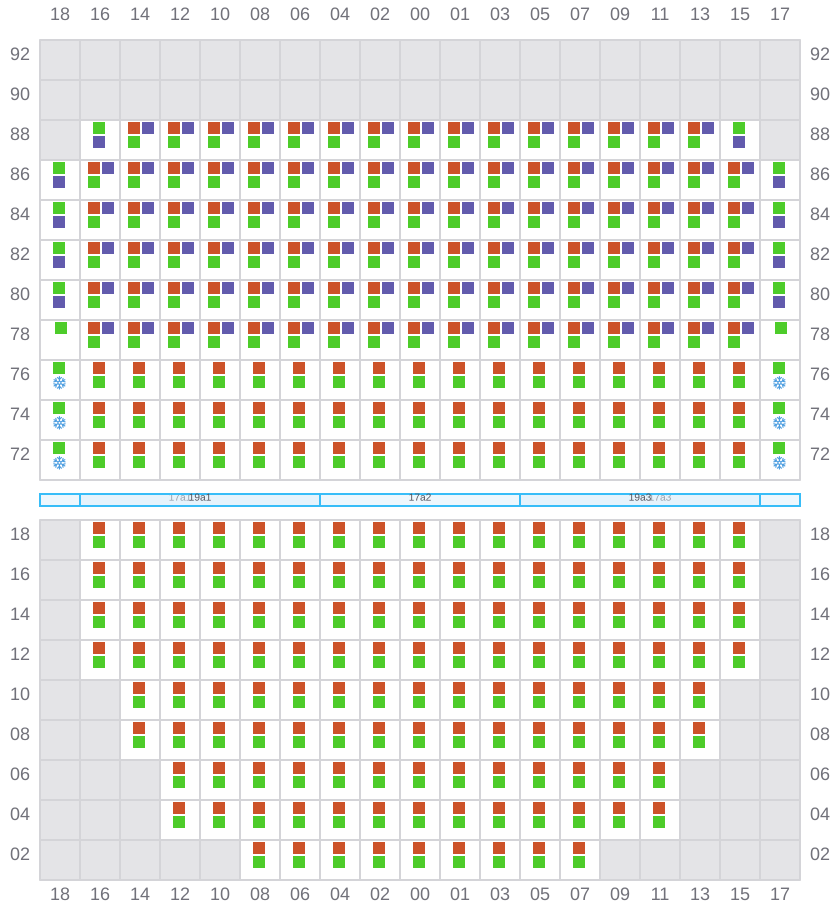

017 (018)

  • →
  • → / ?
Bay 017 view and slots of MAERSK STADELHORN

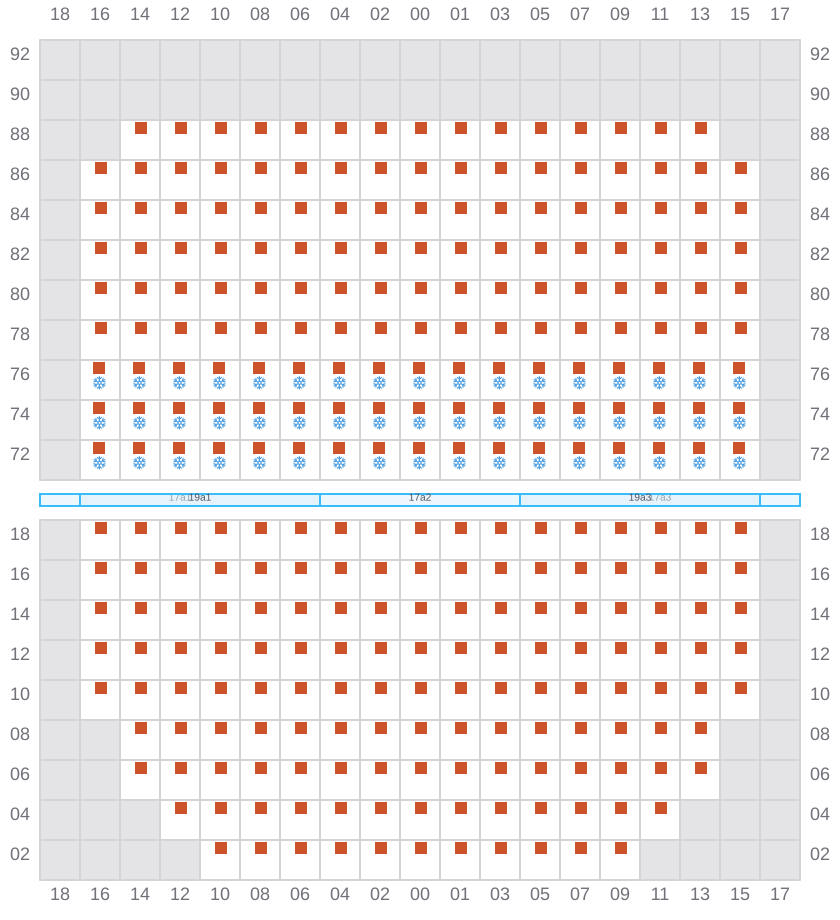

019

  • ←
  • → / ?
Bay 019 view and slots of MAERSK STADELHORN

021 (022)

  • →
  • → / ?

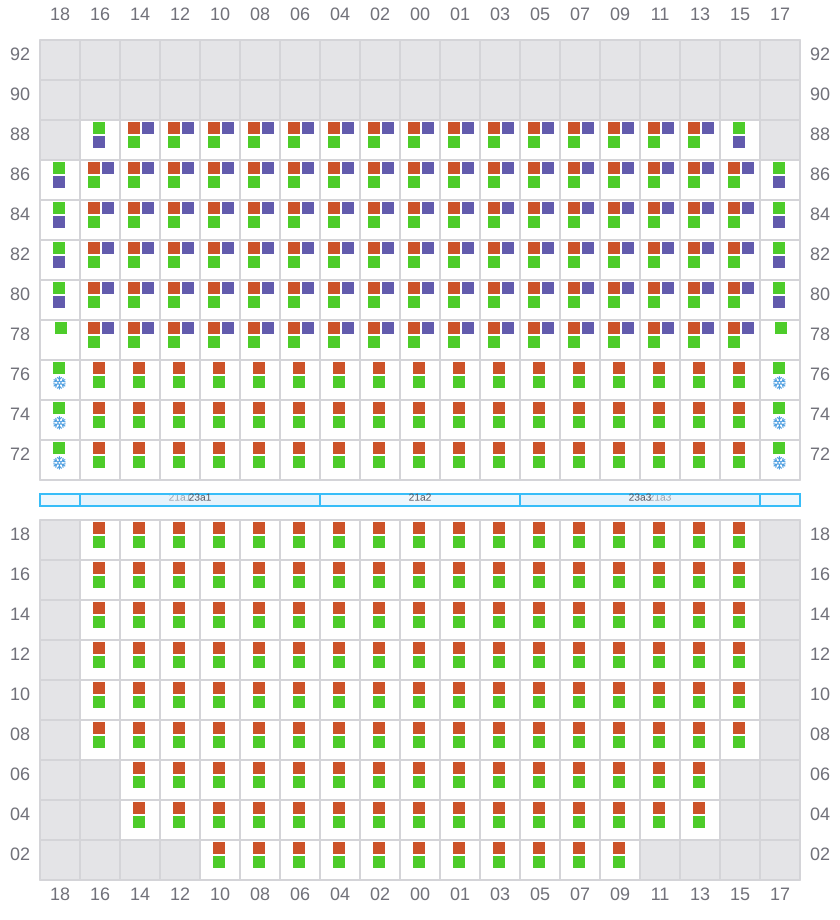

Bay 021 view and slots of MAERSK STADELHORN

023

  • ←
  • → / ?

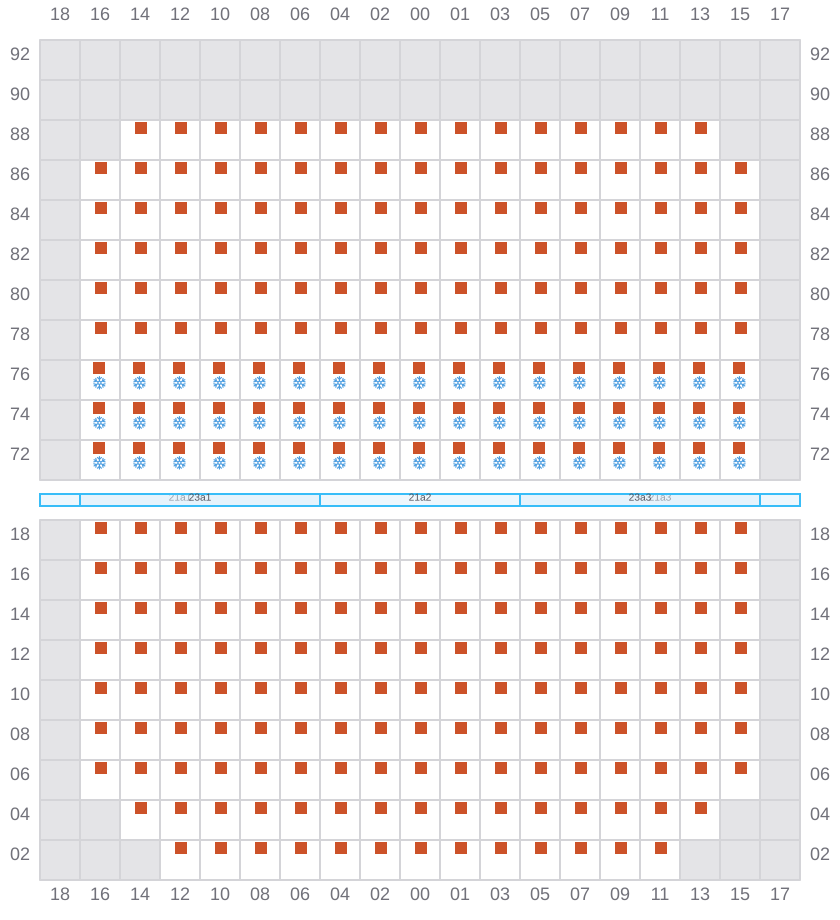

Bay 023 view and slots of MAERSK STADELHORN

025 (026)

  • →
  • → / ?

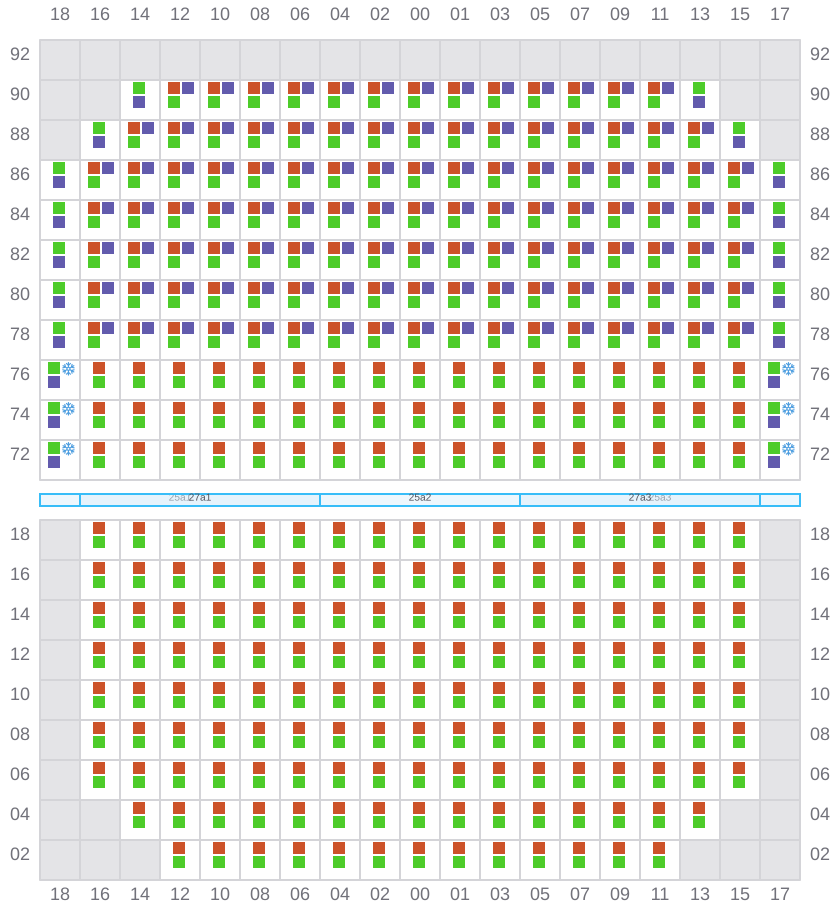

Bay 025 view and slots of MAERSK STADELHORN

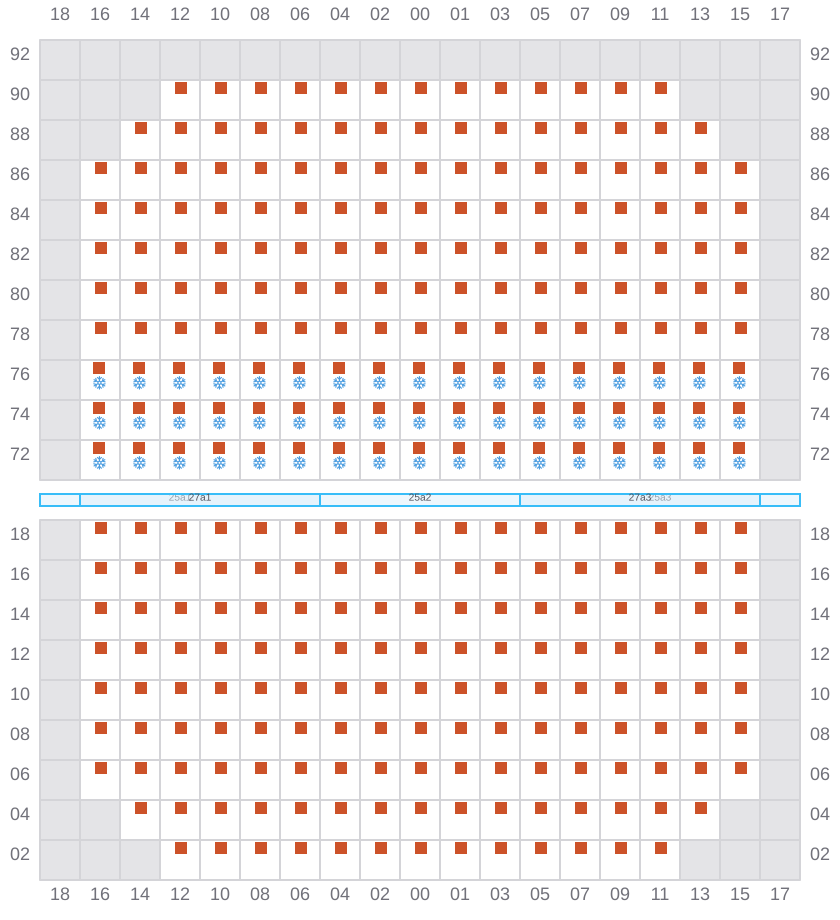

027

  • ←
  • → / ?
Bay 027 view and slots of MAERSK STADELHORN

029 (030)

  • →
  • → / ?

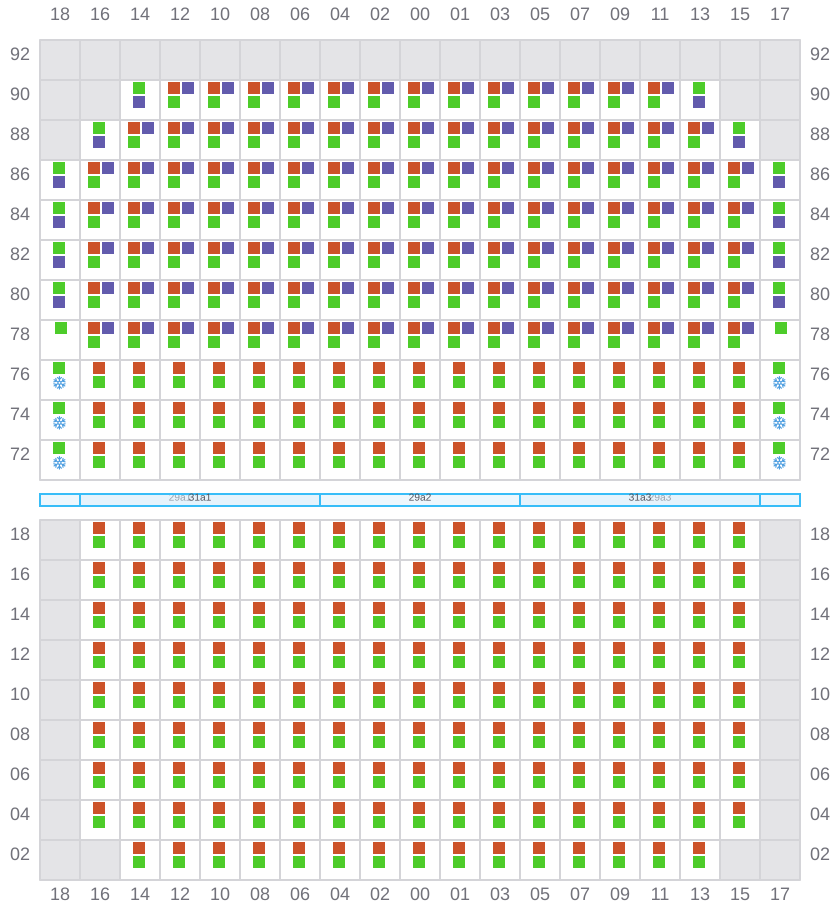

Bay 029 view and slots of MAERSK STADELHORN

031

  • ←
  • →

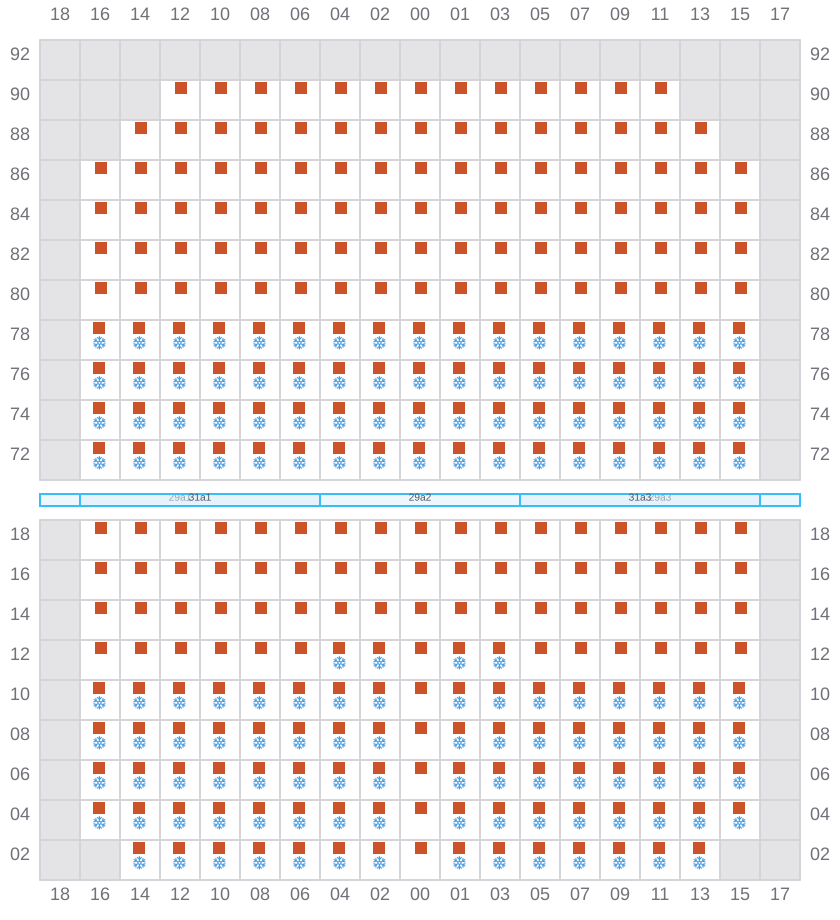

Bay 031 view and slots of MAERSK STADELHORN

033 (034)

  • →
  • → / ?

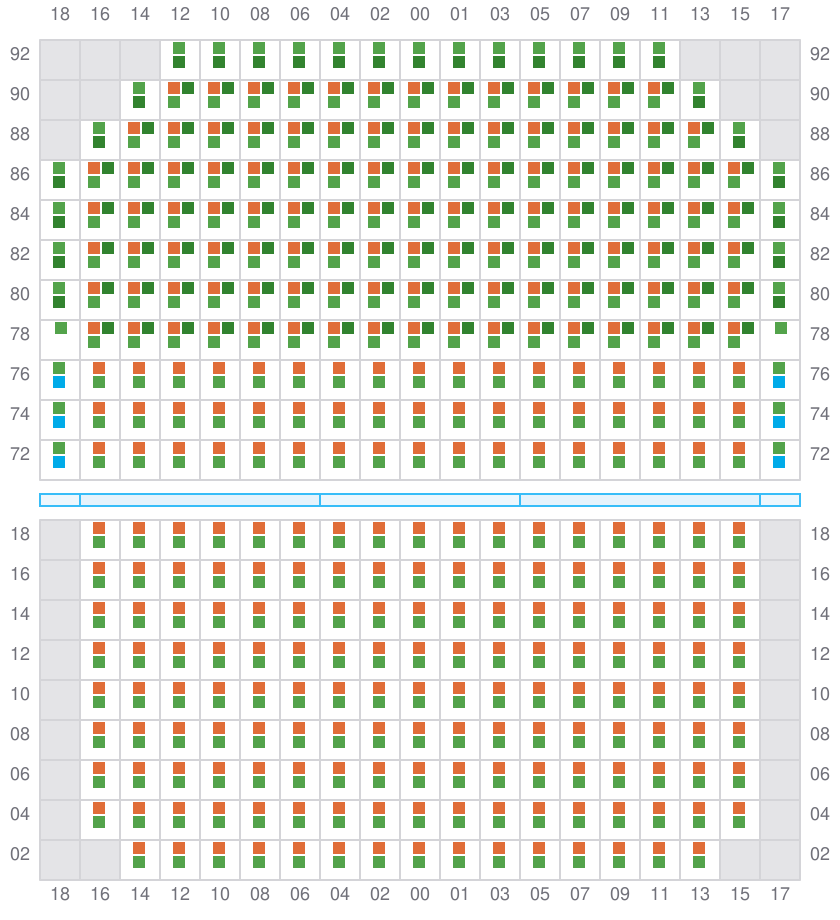

Bay 033 view and slots of MAERSK STADELHORN

035

  • ←
  • →

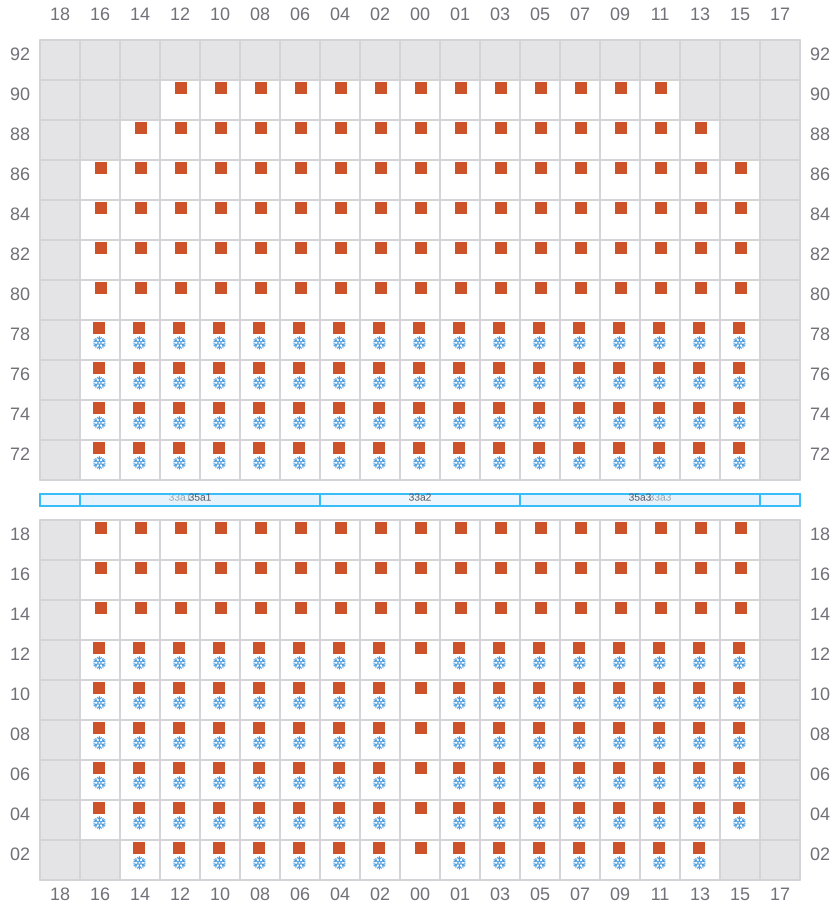

Bay 035 view and slots of MAERSK STADELHORN

037 (038)

  • →
  • → / ?
Bay 037 view and slots of MAERSK STADELHORN

039

  • ←
  • →

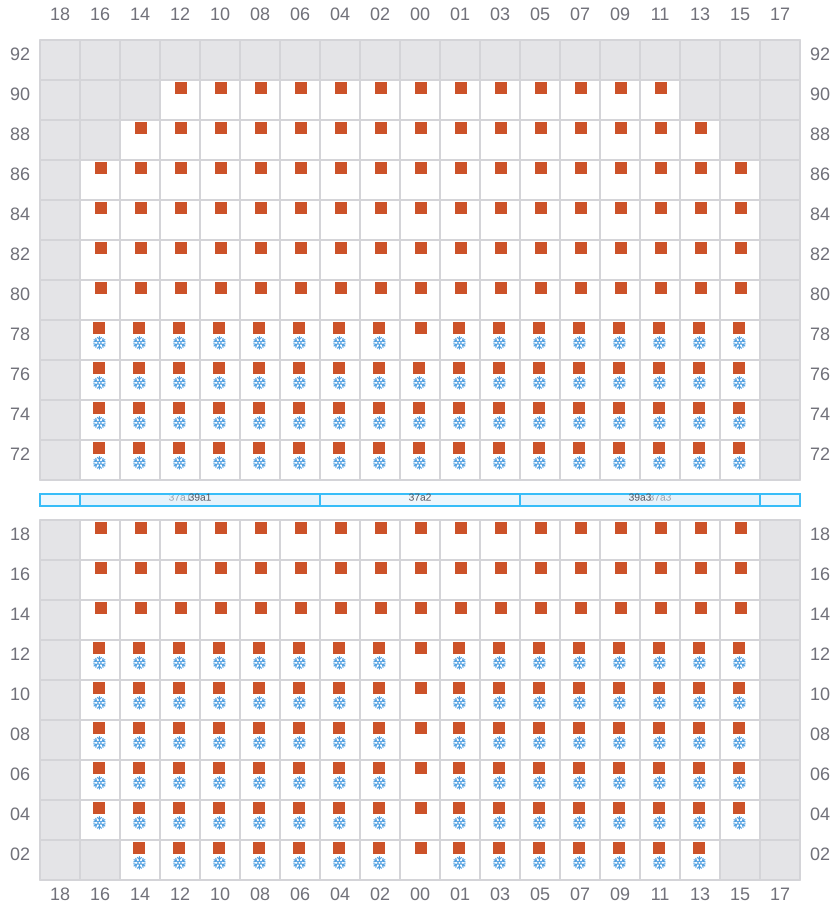

Bay 039 view and slots of MAERSK STADELHORN

041 (042)

  • →
  • → / ?

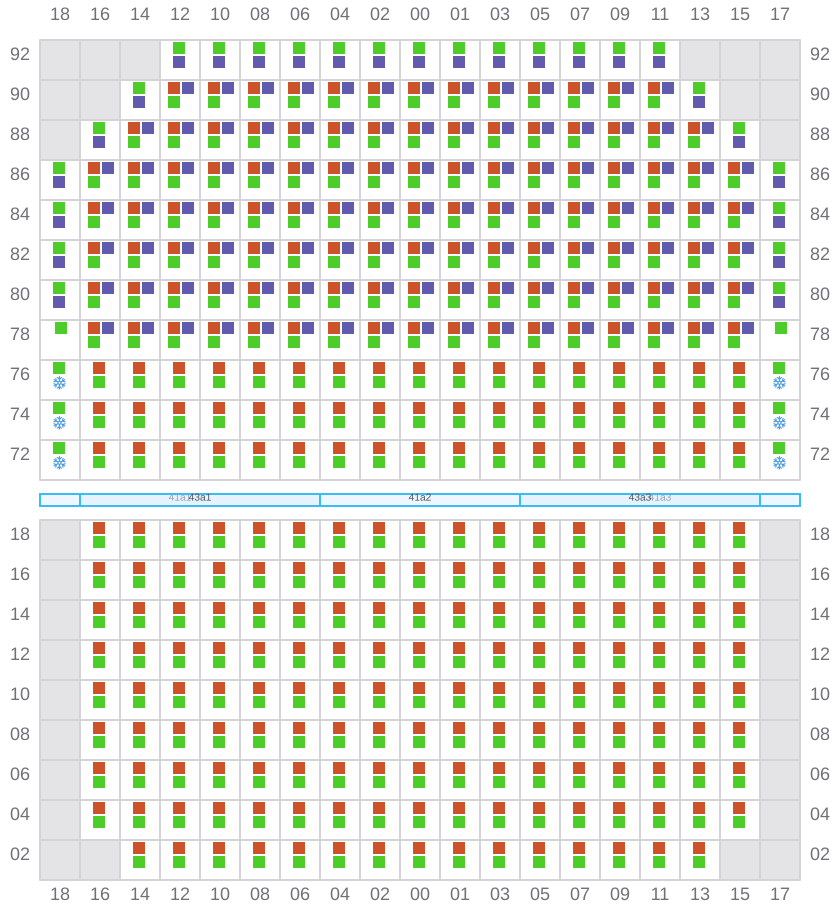

Bay 041 view and slots of MAERSK STADELHORN

043

  • ←
  • →

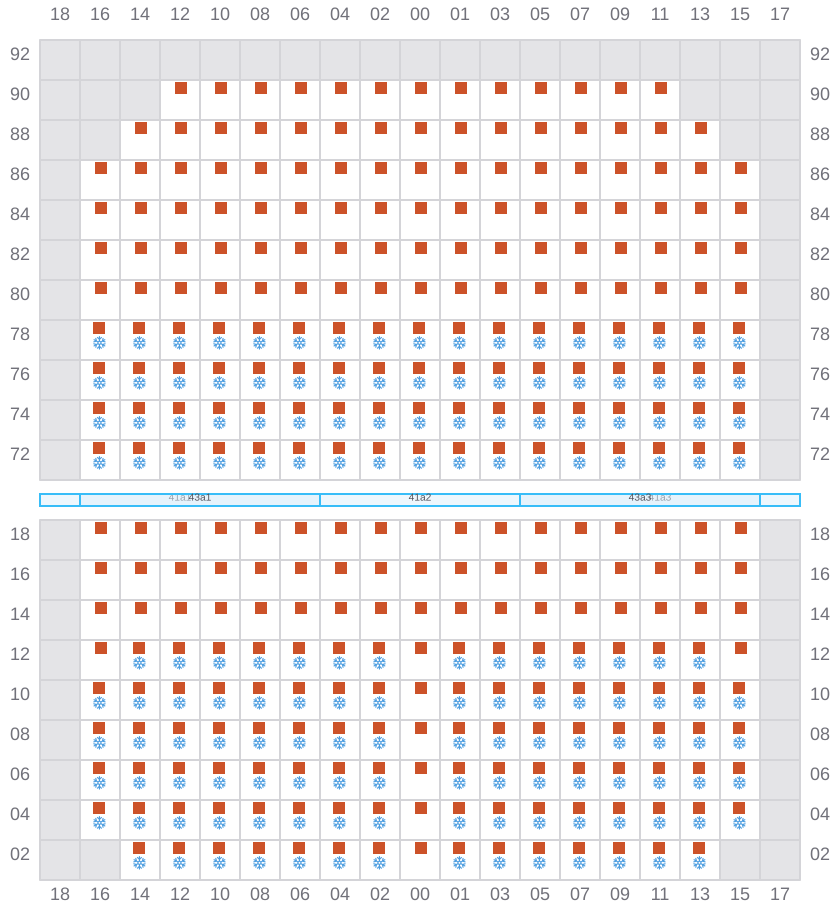

Bay 043 view and slots of MAERSK STADELHORN

045 (046)

  • →
  • → / ?
Bay 045 view and slots of MAERSK STADELHORN

047

  • ←
  • →

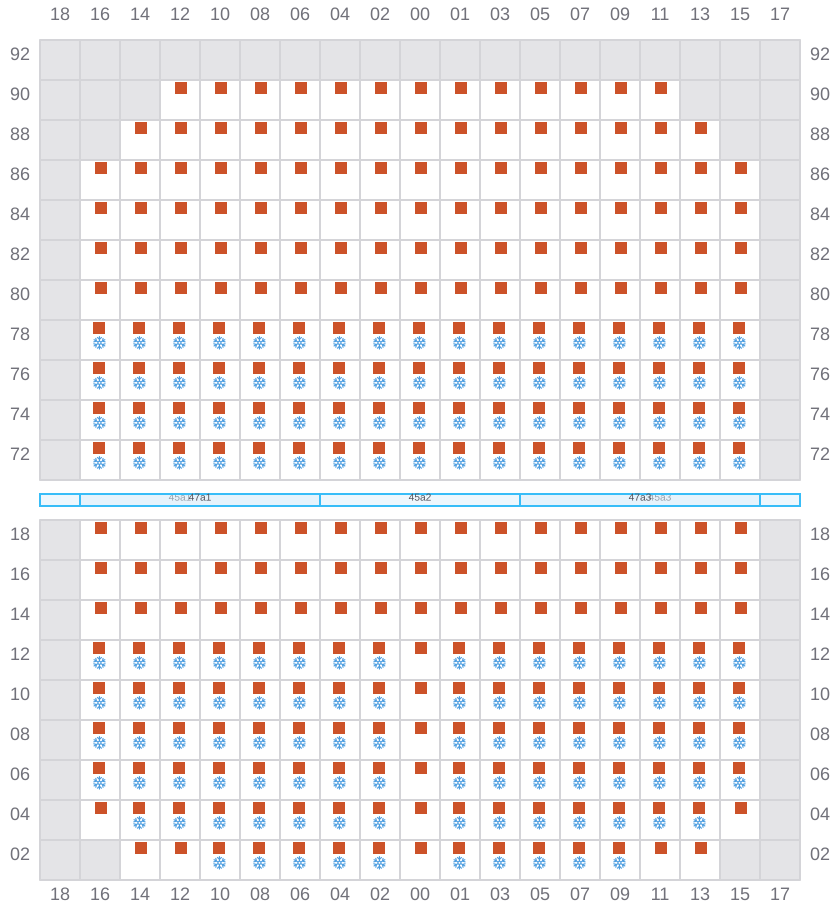

Bay 047 view and slots of MAERSK STADELHORN

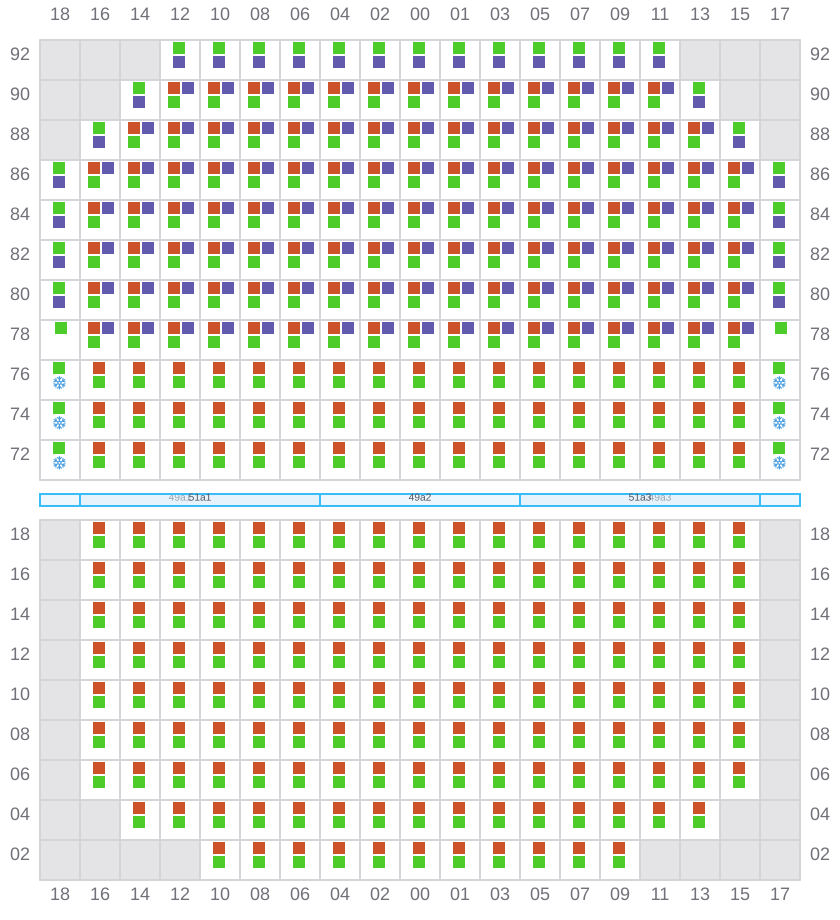

049 (050)

  • →
  • → / ?
Bay 049 view and slots of MAERSK STADELHORN

051

  • ←
  • → / ?

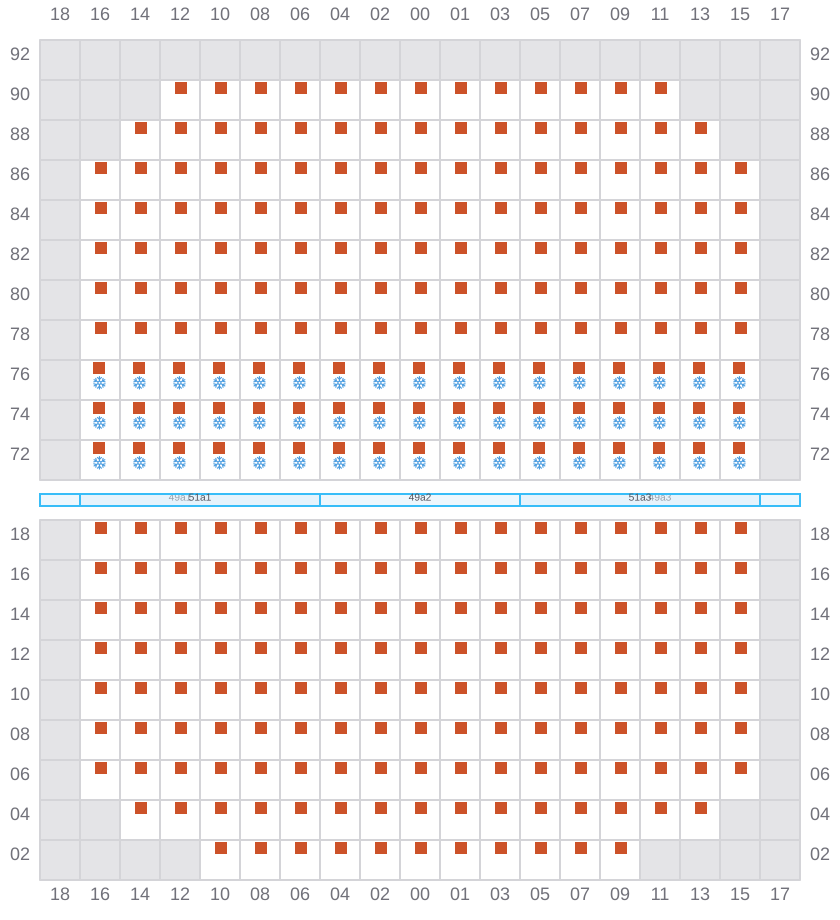

Bay 051 view and slots of MAERSK STADELHORN

053

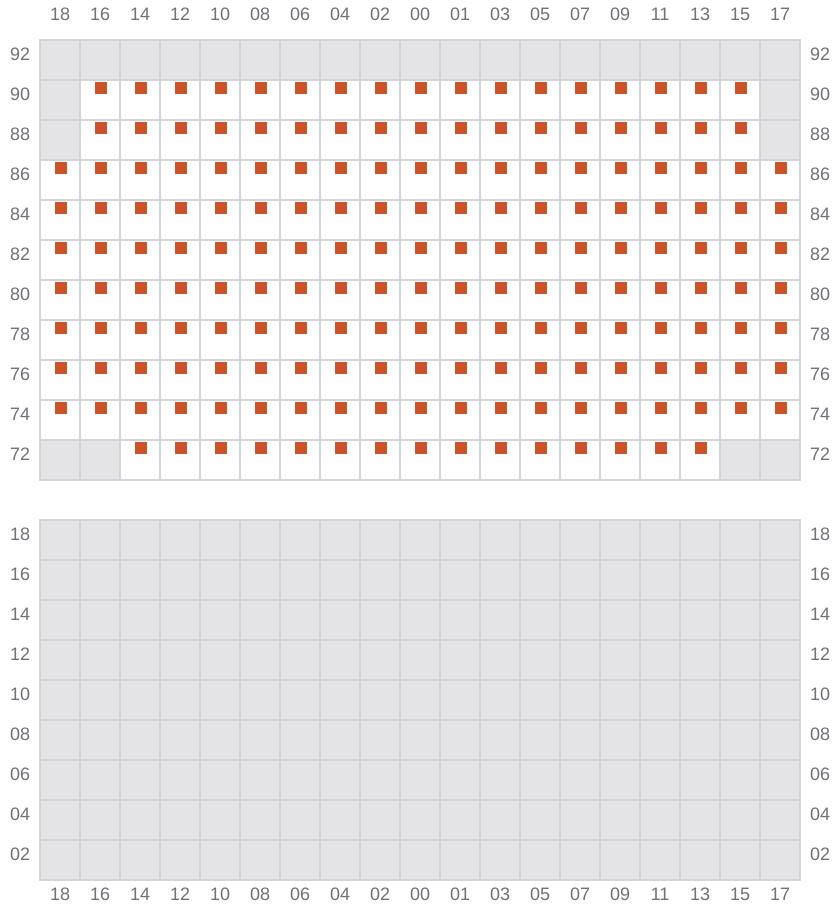

Bay 053 view and slots of MAERSK STADELHORN

055 (056)

  • →
  • ← / ?

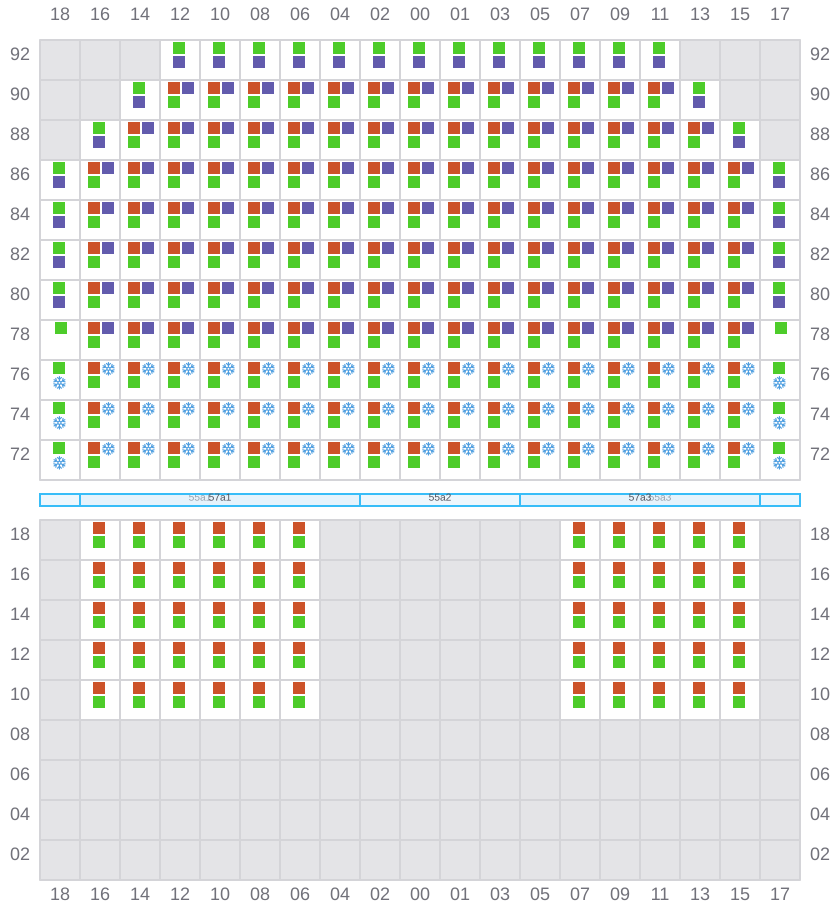

Bay 055 view and slots of MAERSK STADELHORN

057

  • ←

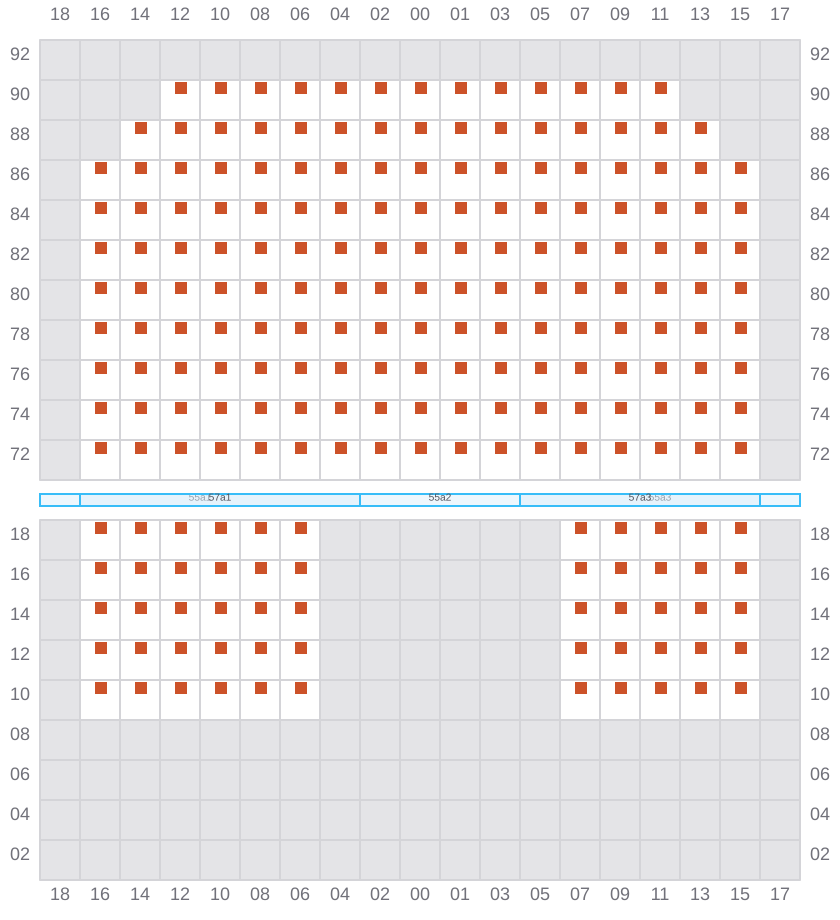

Bay 057 view and slots of MAERSK STADELHORN

059 (060)

  • →
  • ← / ?

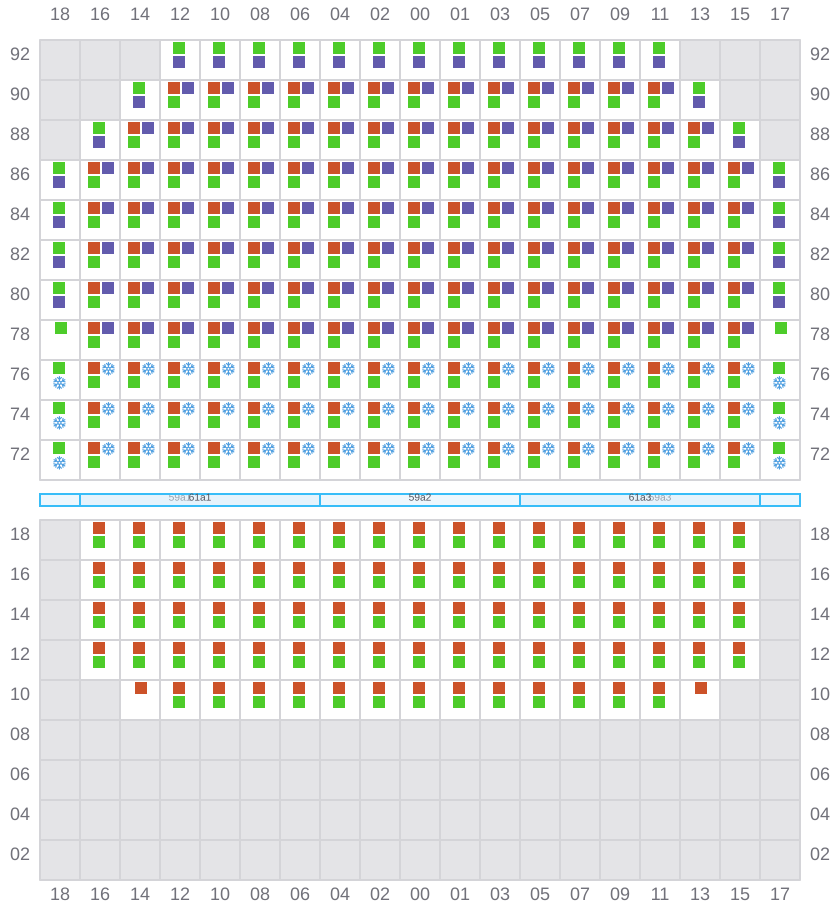

Bay 059 view and slots of MAERSK STADELHORN

061

  • ←
Bay 061 view and slots of MAERSK STADELHORN

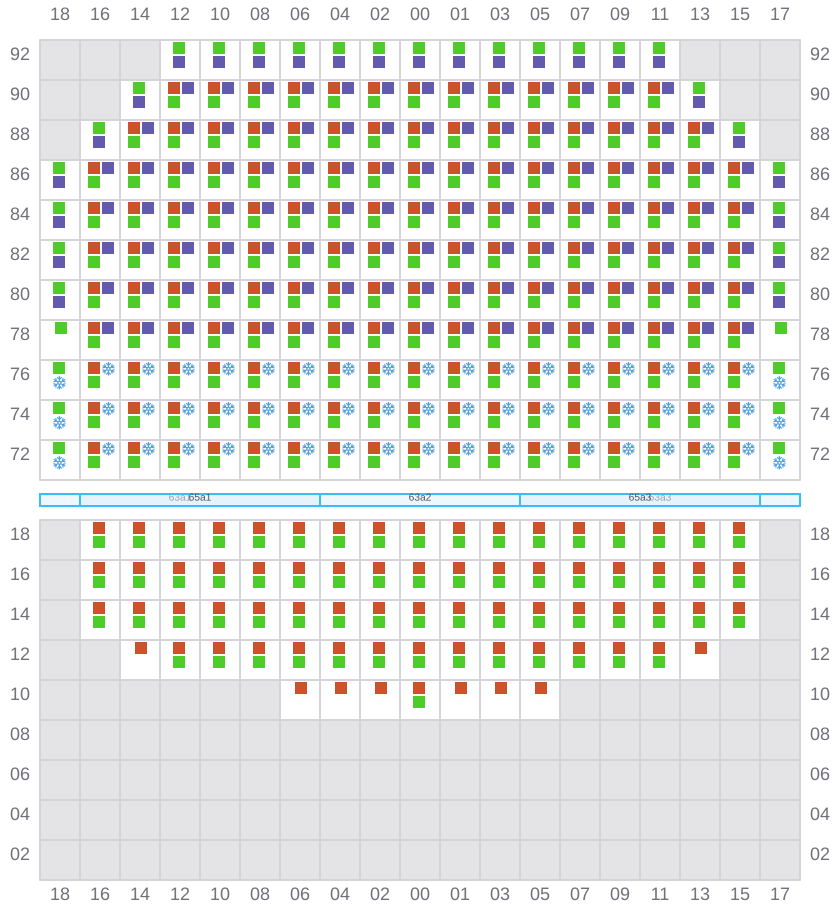

063 (064)

  • →
  • ← / ?
Bay 063 view and slots of MAERSK STADELHORN

065

  • ←

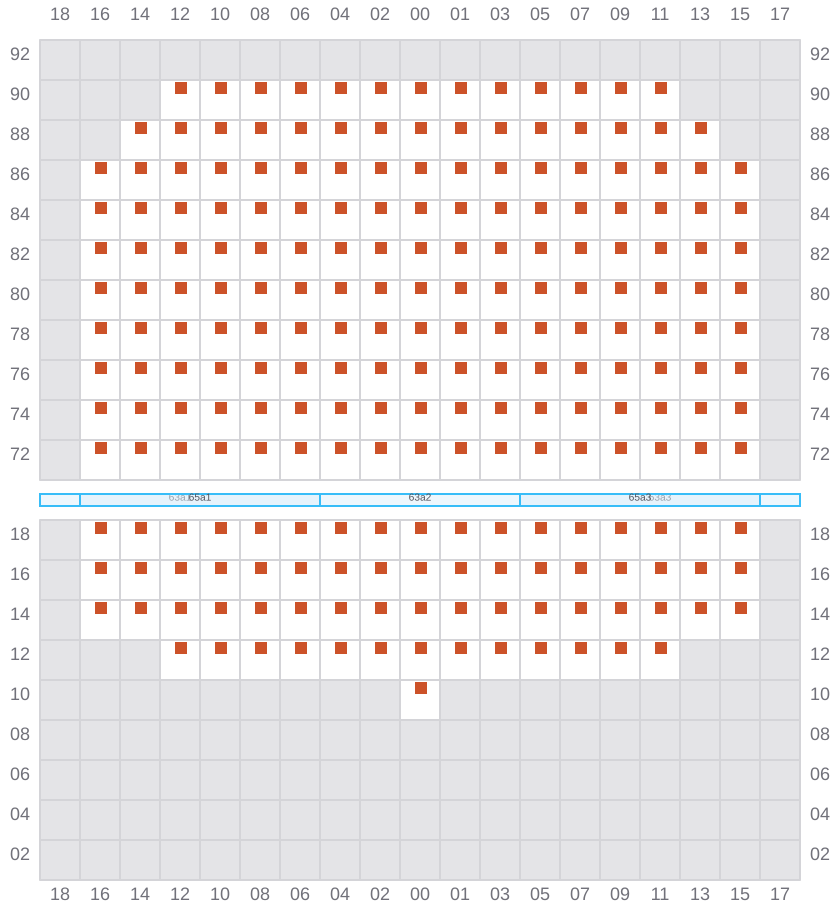

Bay 065 view and slots of MAERSK STADELHORN

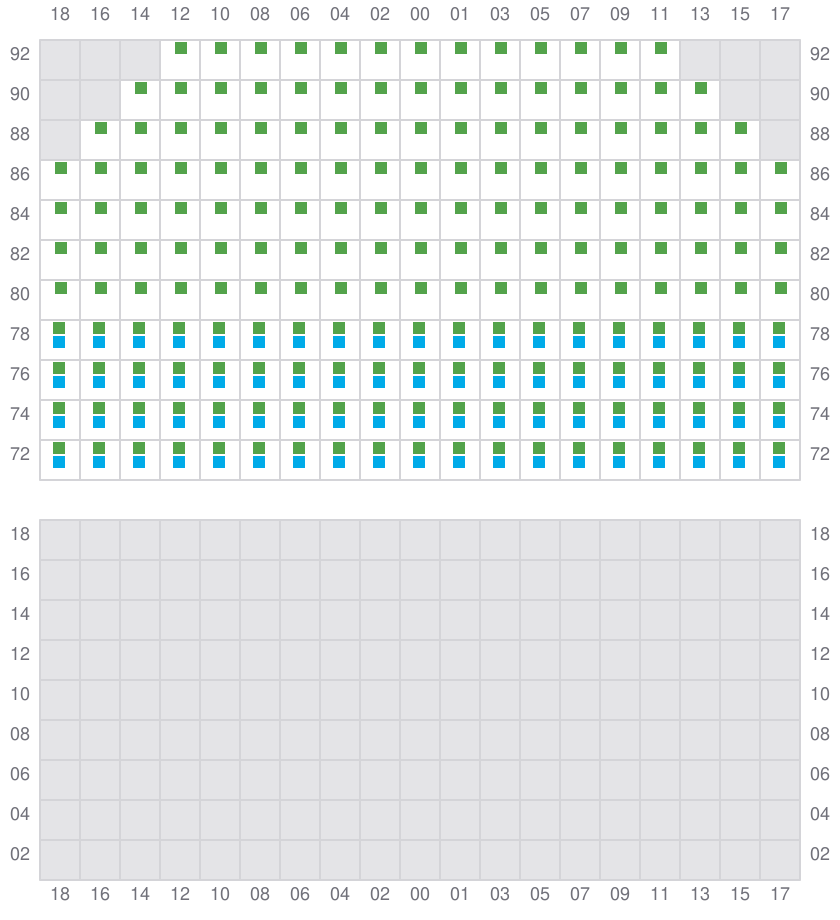

067 (068)

  • → / ?
  • ← / ?
Bay 067 view and slots of MAERSK STADELHORN
