MAERSK STEPNICA
9352004 | VRVM4 | 9352004 by ********* Last update: Mon May 06 2024

General Info

Ship Name:MAERSK STEPNICA
IMO Code:9352004
Call Sign:VRVM4
Line Operator:9352004
Class Name for Sister Ships:MAERSKSTEPNICA
Year Built:2008
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):318.99
LOA (Length Overall):334.07
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-

Size Summary

ISO Bays:077
Max ISO Row:16
Center Line Row:Yes
Max Above ISO Tier:96
Min Above ISO Tier:78
Max Below ISO Tier:18
Min Below ISO Tier:02
Total TEU:9,768

Centers of Gravity

LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

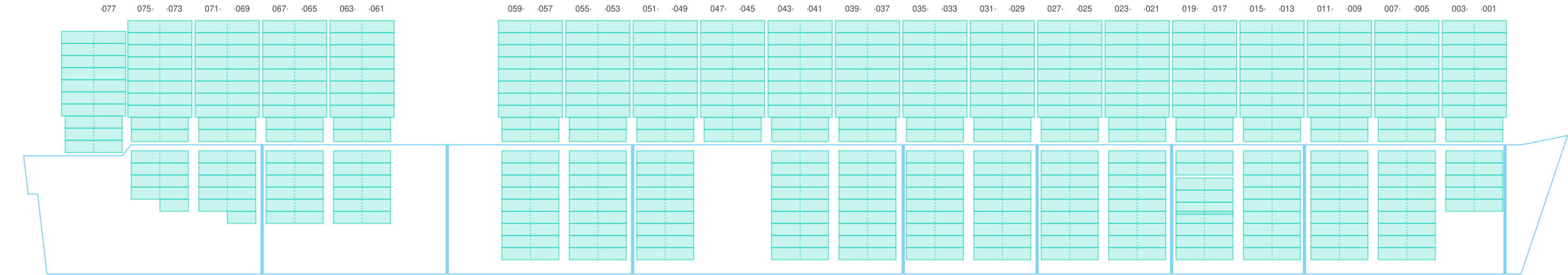

Side View

Side view of MAERSK STEPNICA

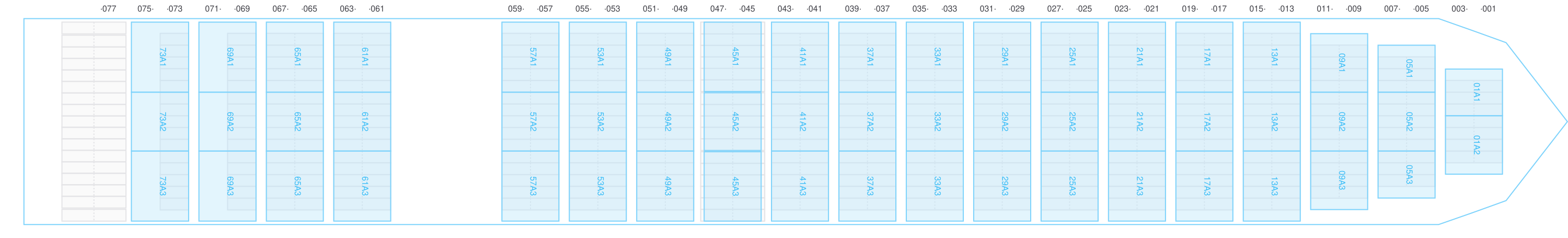

Hatch-Covers View

Deck view of MAERSK STEPNICA

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot

001 (002)

  • →

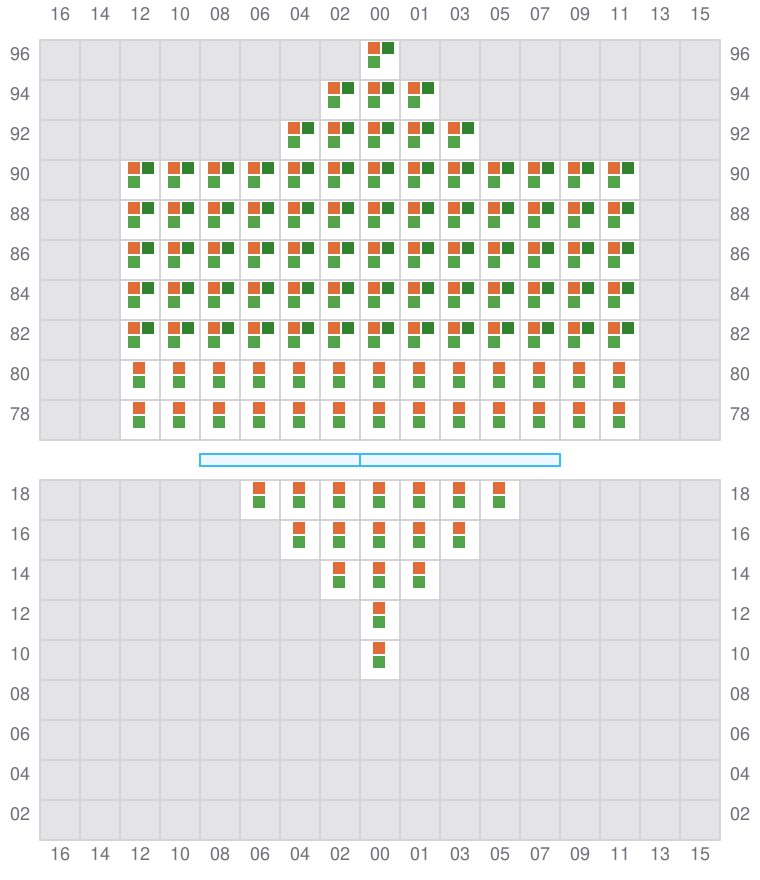

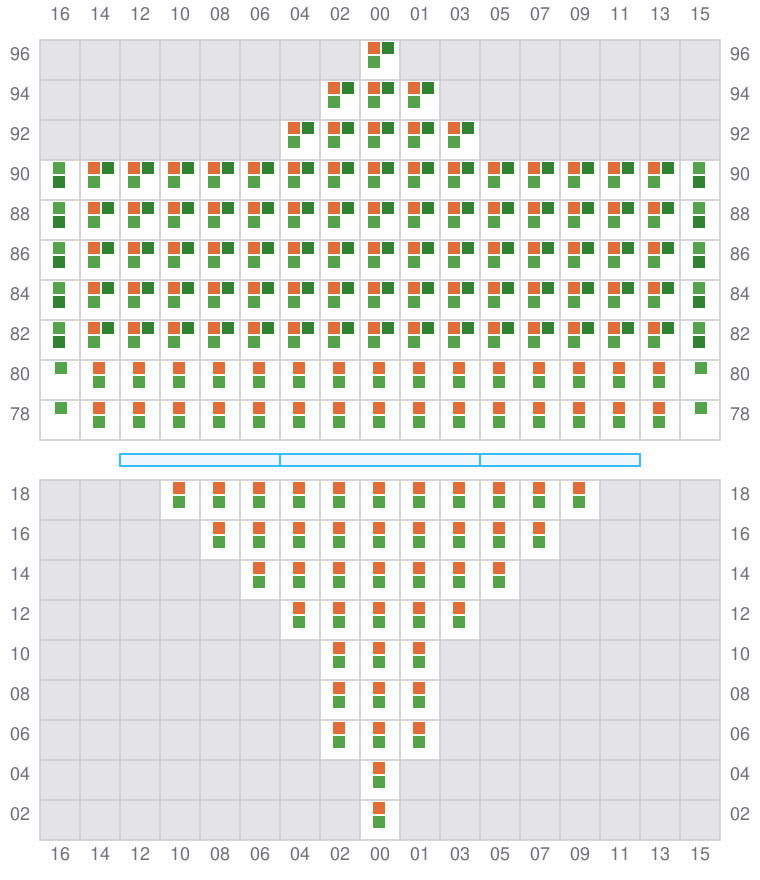

Bay 001 view and slots of MAERSK STEPNICA

003

  • ←
Bay 003 view and slots of MAERSK STEPNICA

005 (006)

  • →
Bay 005 view and slots of MAERSK STEPNICA

007

  • ←

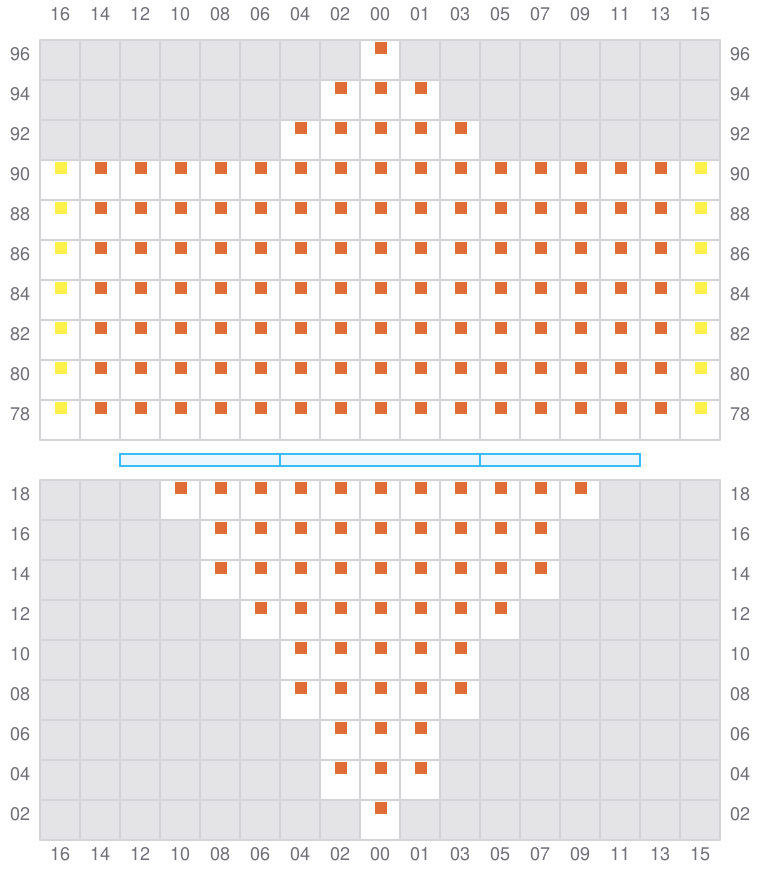

Bay 007 view and slots of MAERSK STEPNICA

009 (010)

  • →

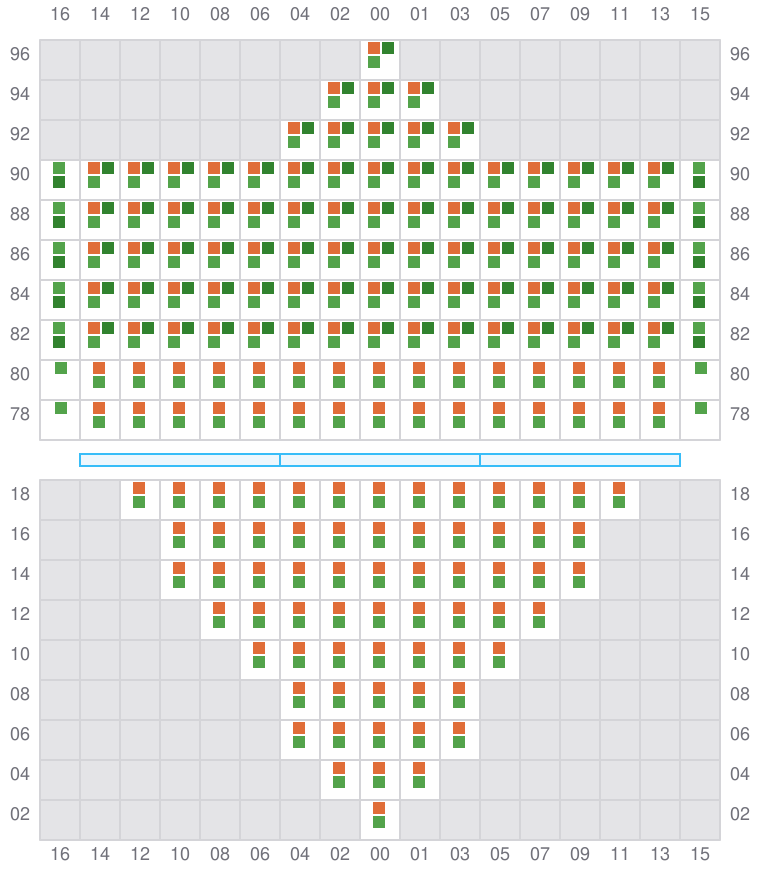

Bay 009 view and slots of MAERSK STEPNICA

011

  • ←
  • → / ?
Bay 011 view and slots of MAERSK STEPNICA

013 (014)

  • →
Bay 013 view and slots of MAERSK STEPNICA

015

  • ←
  • → / ?

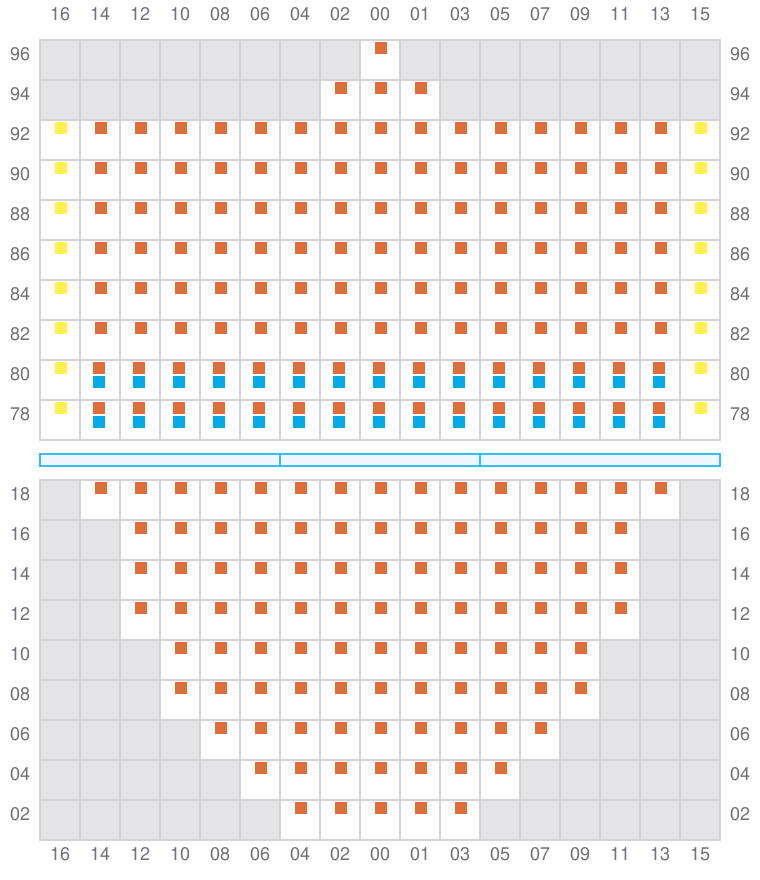

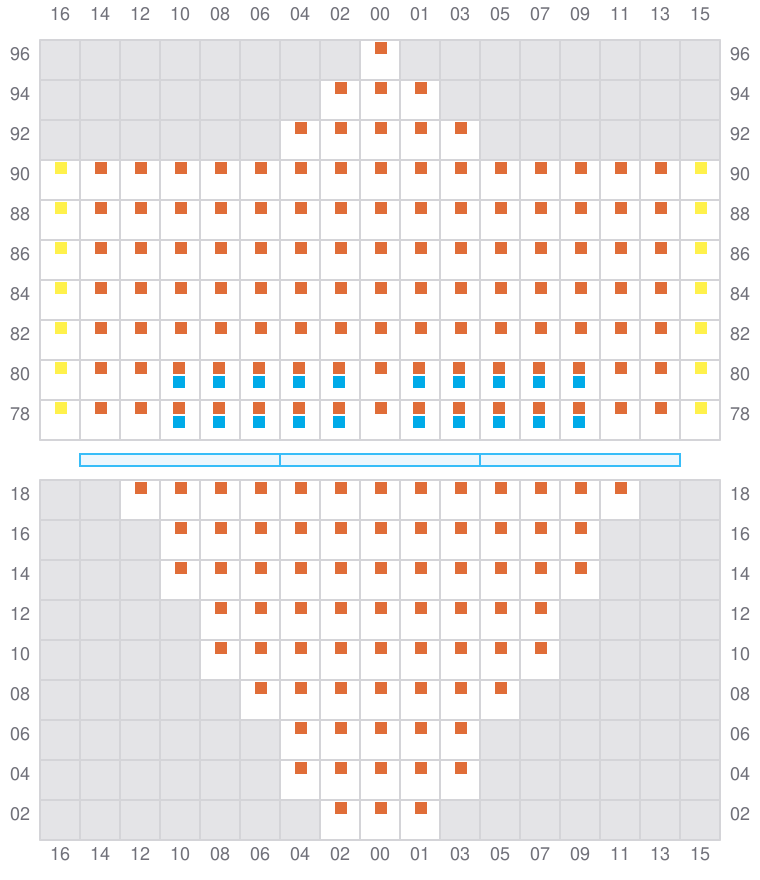

Bay 015 view and slots of MAERSK STEPNICA

017 (018)

  • →

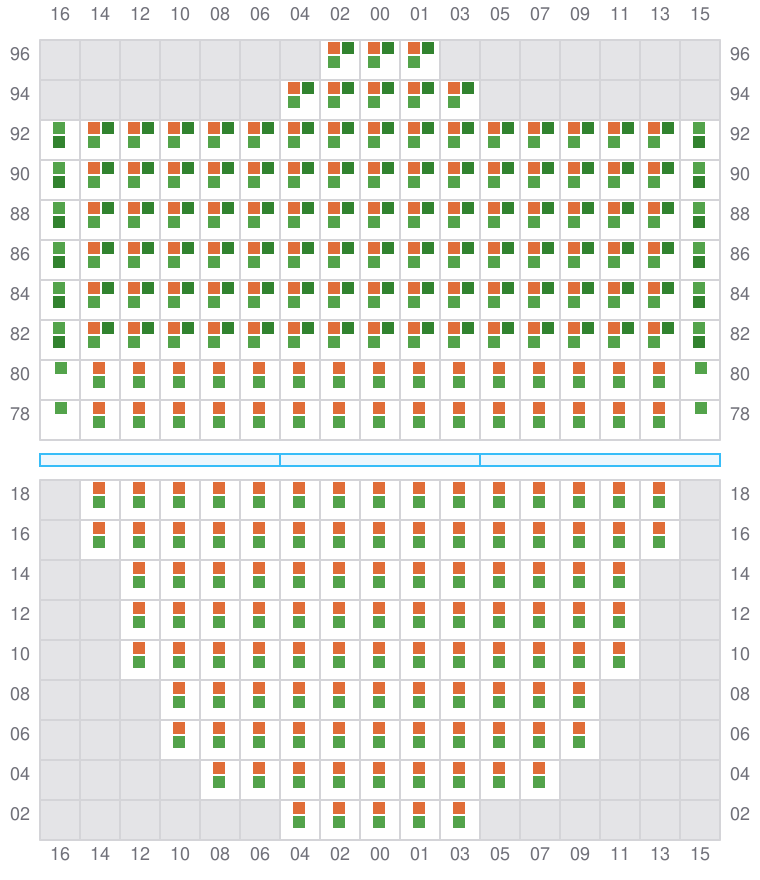

Bay 017 view and slots of MAERSK STEPNICA

019

  • ←
  • → / ?

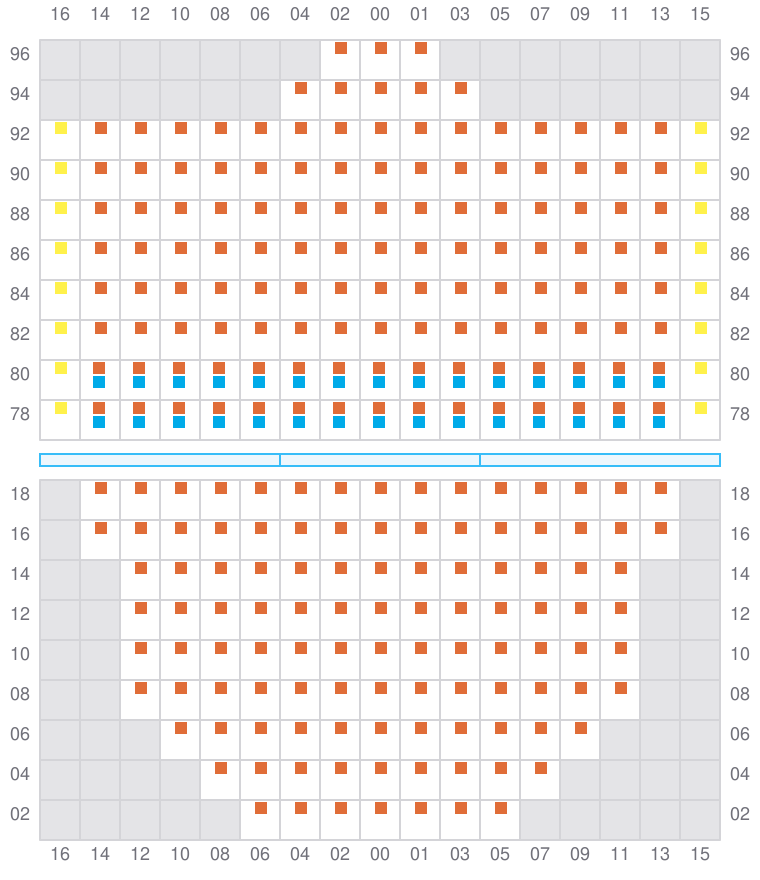

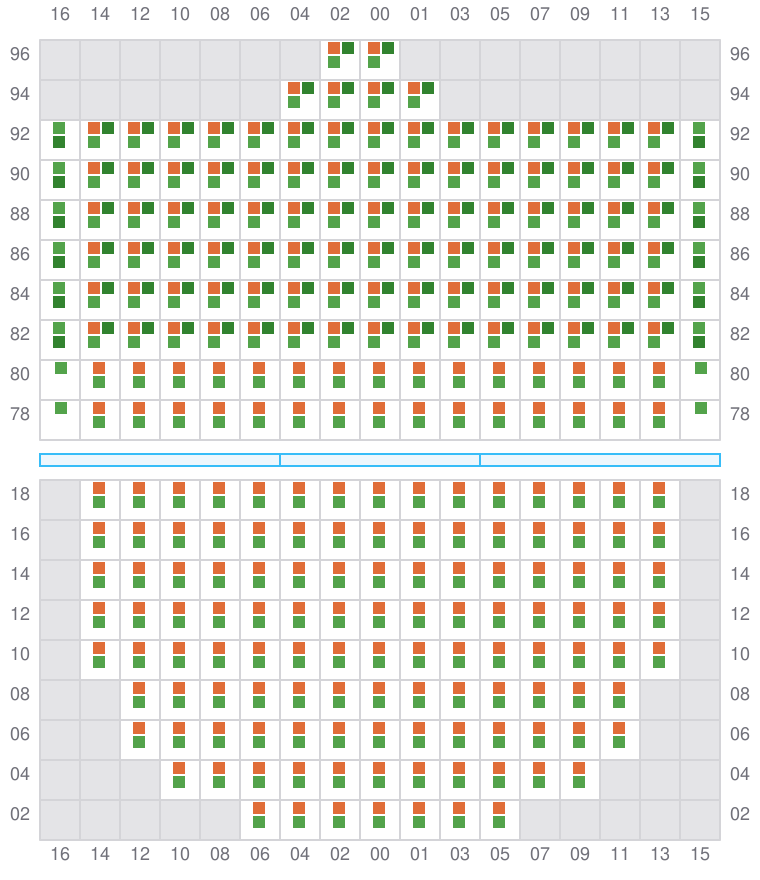

Bay 019 view and slots of MAERSK STEPNICA

021 (022)

  • →
Bay 021 view and slots of MAERSK STEPNICA

023

  • ←
  • → / ?
Bay 023 view and slots of MAERSK STEPNICA

025 (026)

  • →
Bay 025 view and slots of MAERSK STEPNICA

027

  • ←
  • → / ?

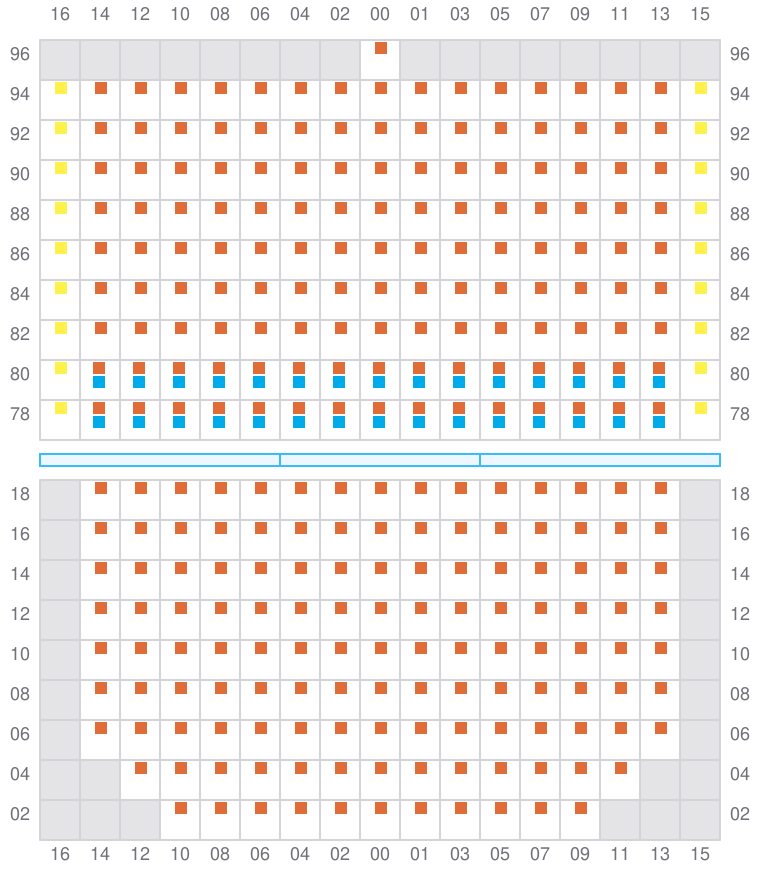

Bay 027 view and slots of MAERSK STEPNICA

029 (030)

  • →

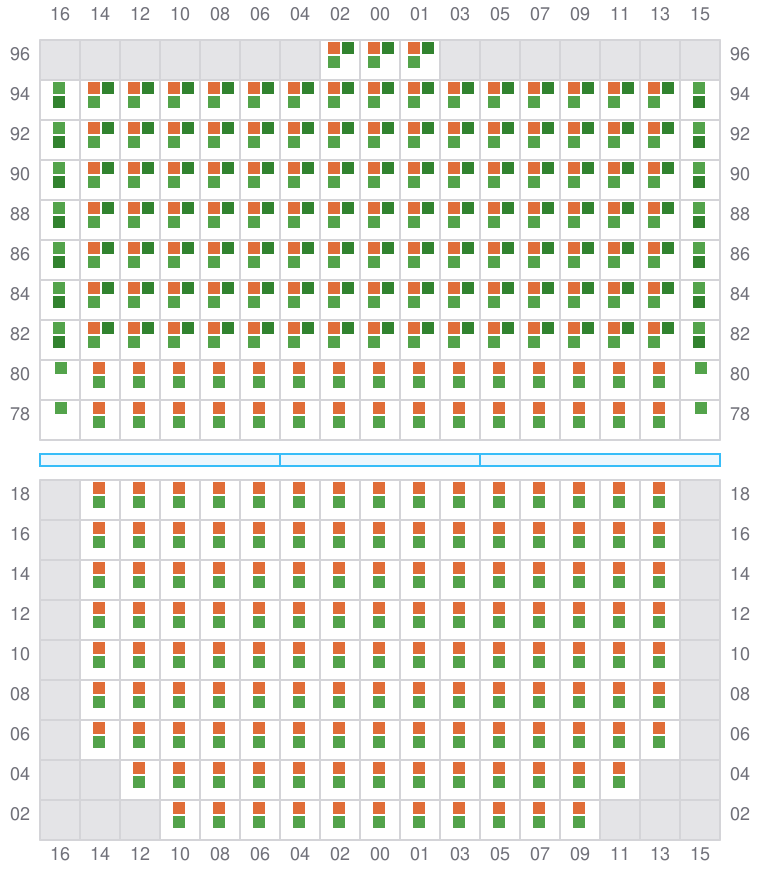

Bay 029 view and slots of MAERSK STEPNICA

031

  • ←
  • →

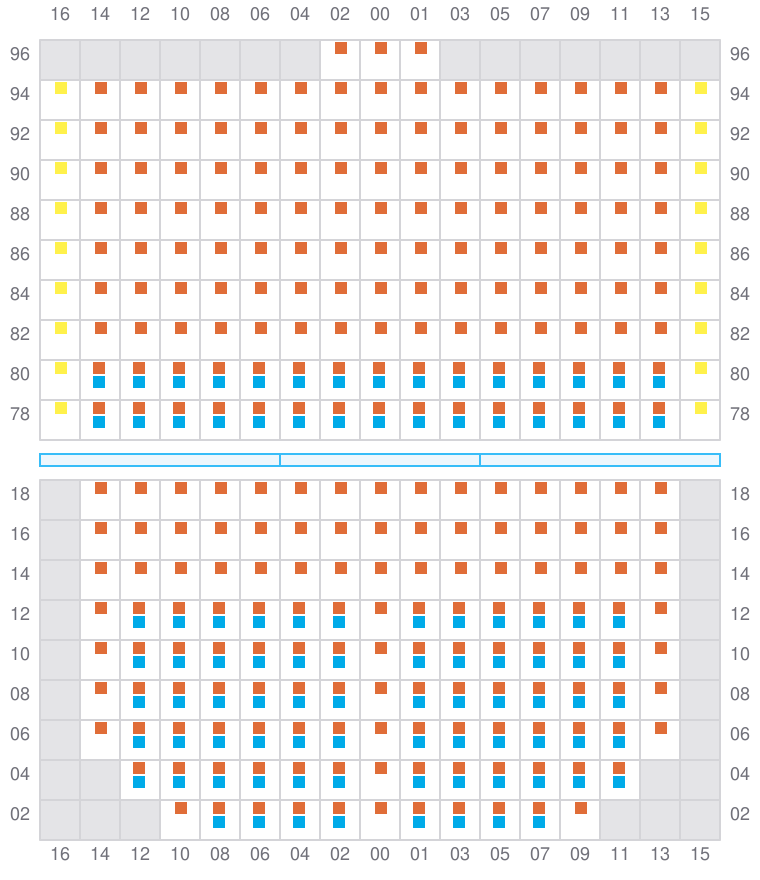

Bay 031 view and slots of MAERSK STEPNICA

033 (034)

  • →

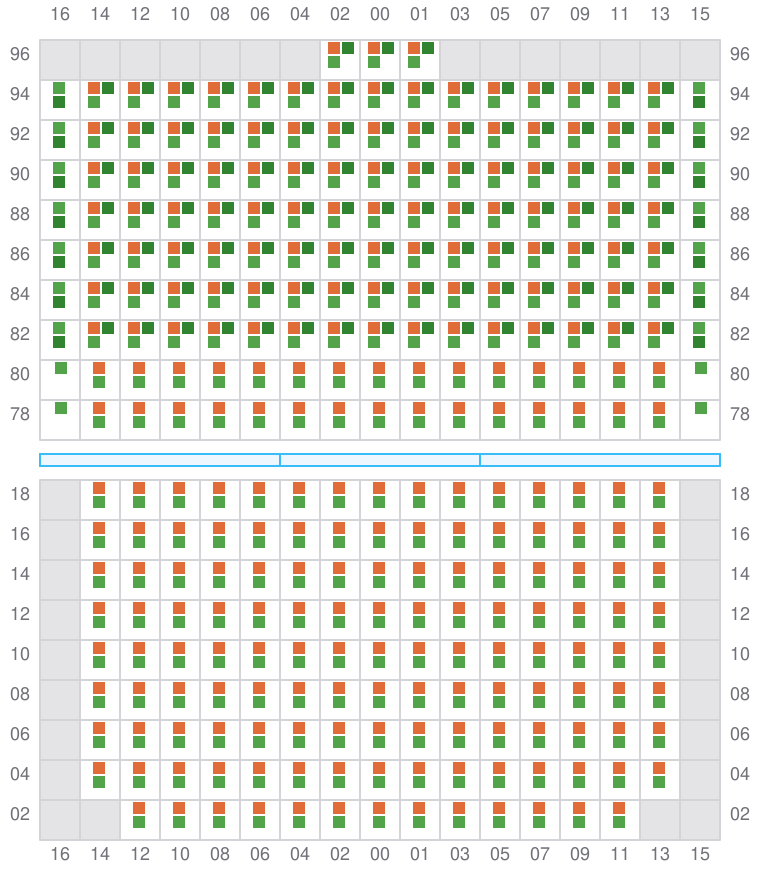

Bay 033 view and slots of MAERSK STEPNICA

035

  • ←
  • → / ?
Bay 035 view and slots of MAERSK STEPNICA

037 (038)

  • →

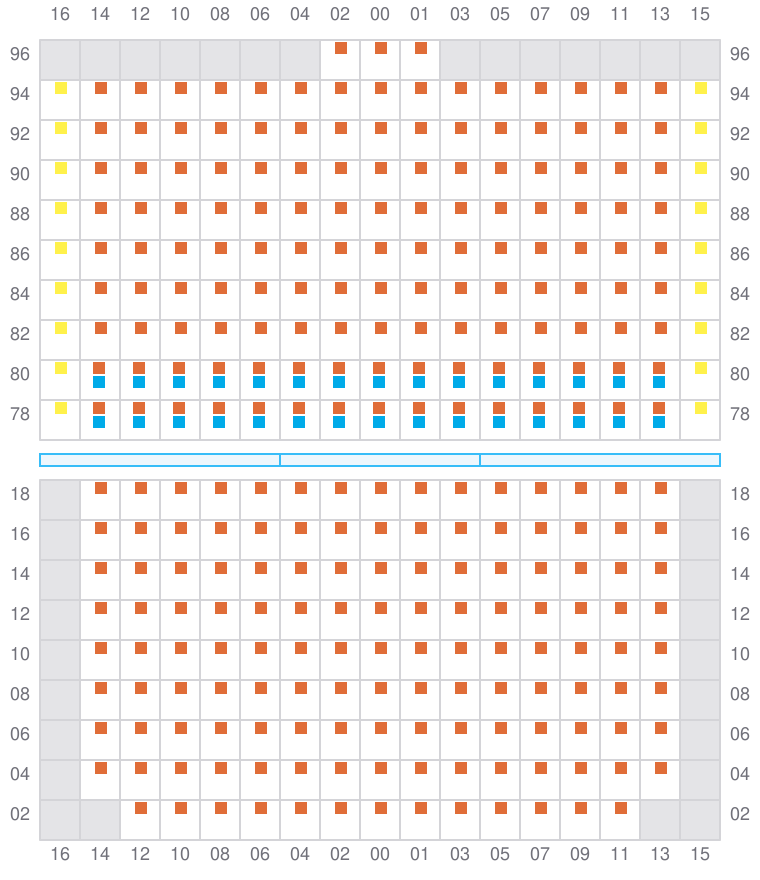

Bay 037 view and slots of MAERSK STEPNICA

039

  • ←
  • →

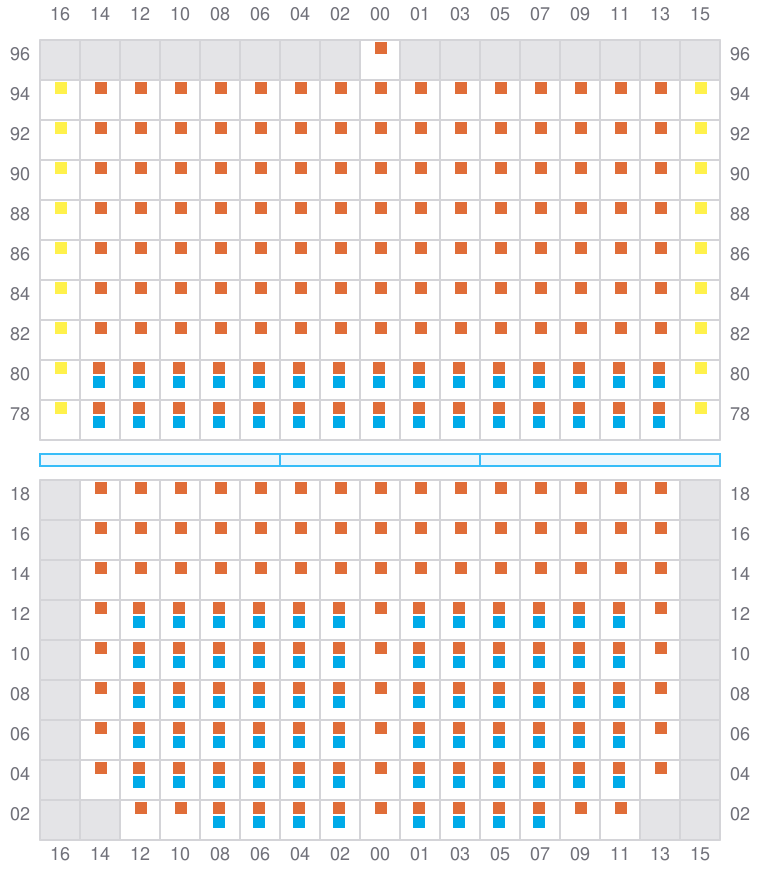

Bay 039 view and slots of MAERSK STEPNICA

041 (042)

  • →
  • → / ?

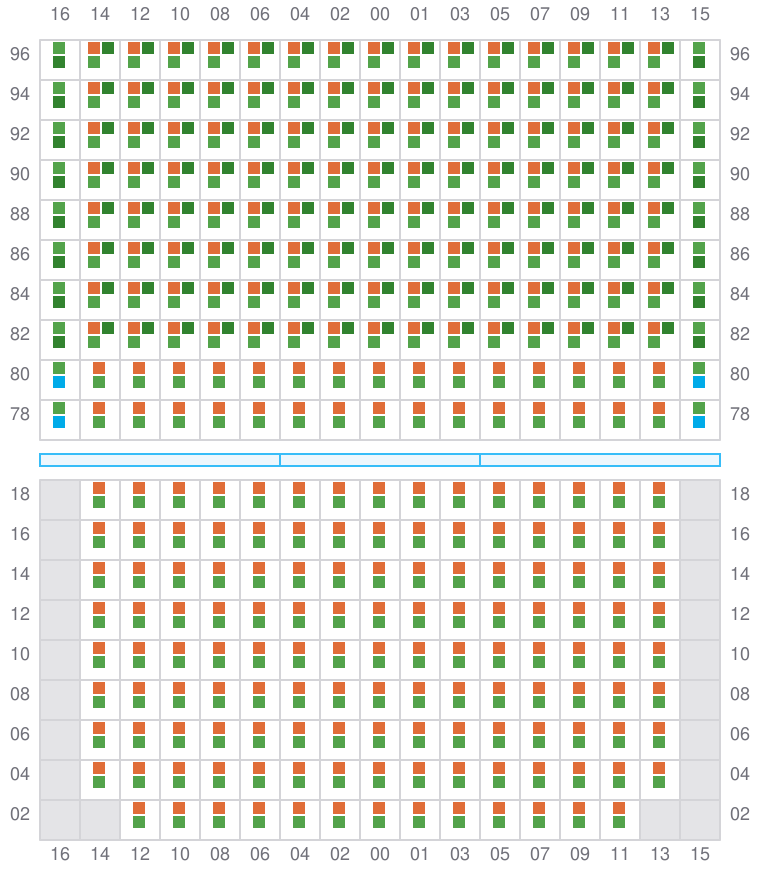

Bay 041 view and slots of MAERSK STEPNICA

043

  • ←
  • → / ?

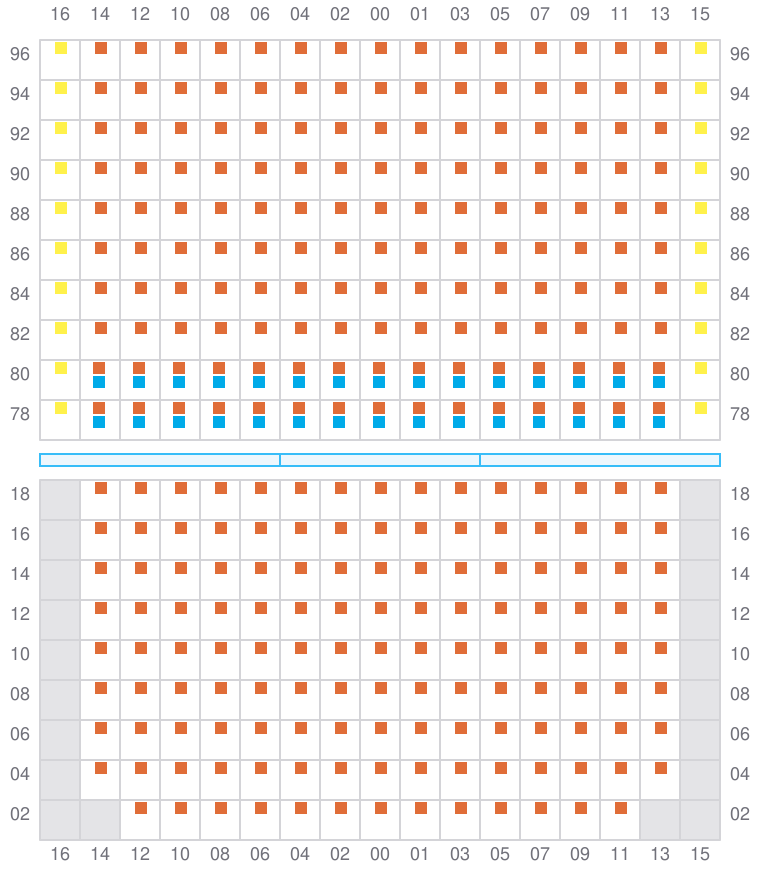

Bay 043 view and slots of MAERSK STEPNICA

045 (046)

  • → / ?
  • → / ?

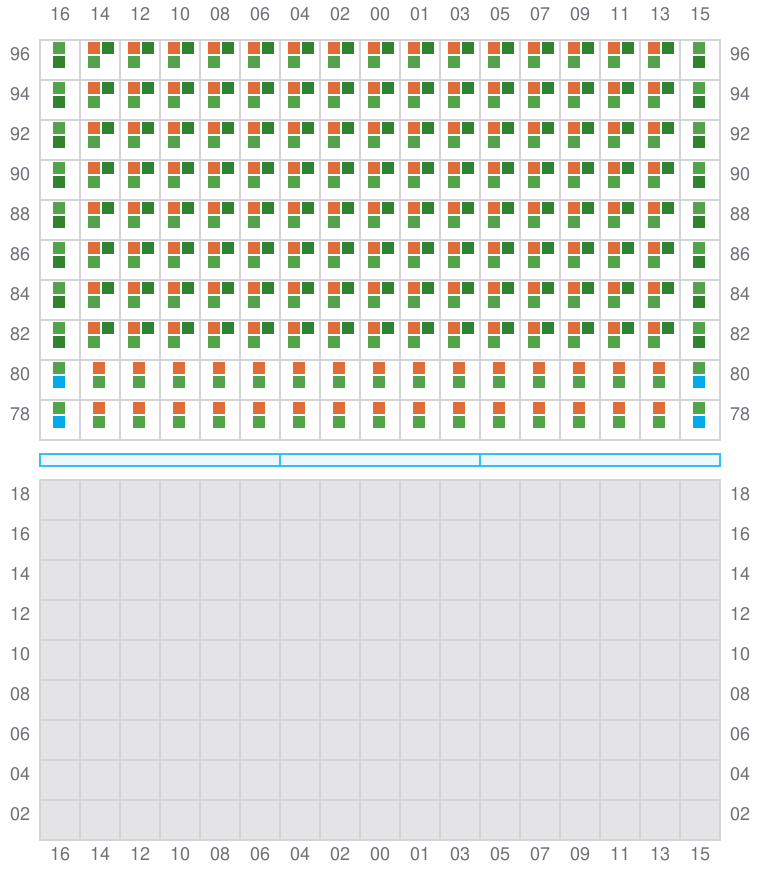

Bay 045 view and slots of MAERSK STEPNICA

047

  • ← / ?
  • → / ?

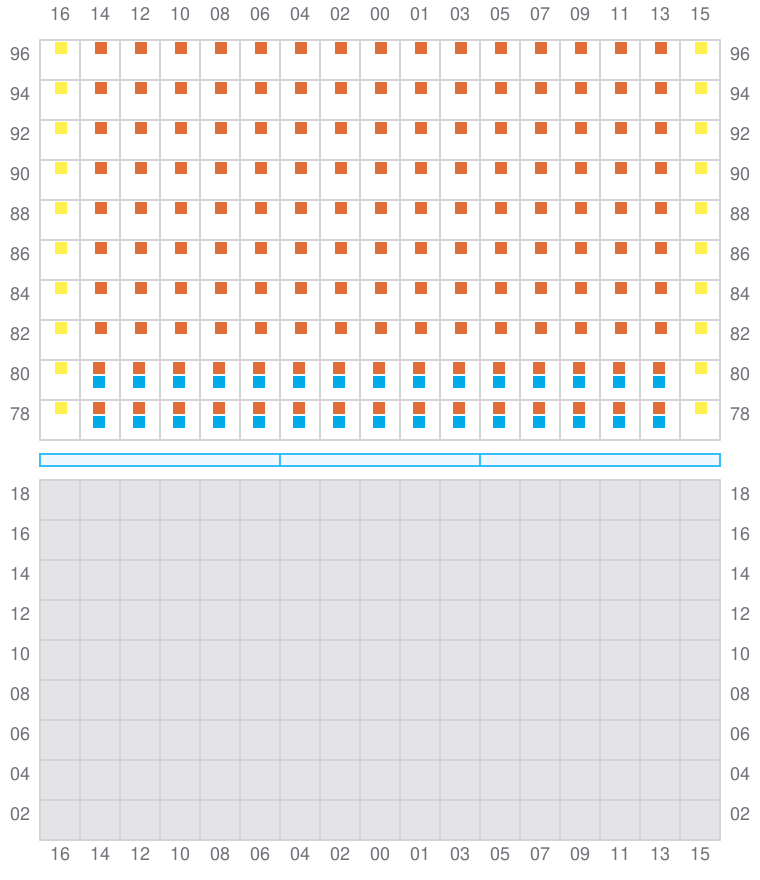

Bay 047 view and slots of MAERSK STEPNICA

049 (050)

  • →
  • → / ?

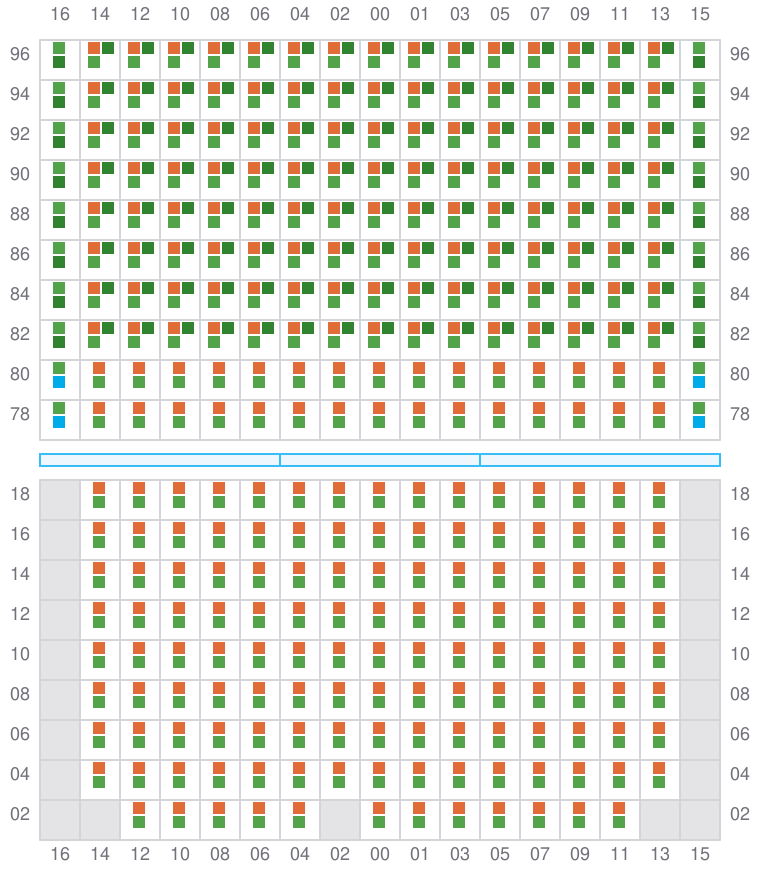

Bay 049 view and slots of MAERSK STEPNICA

051

  • ←
  • → / ?

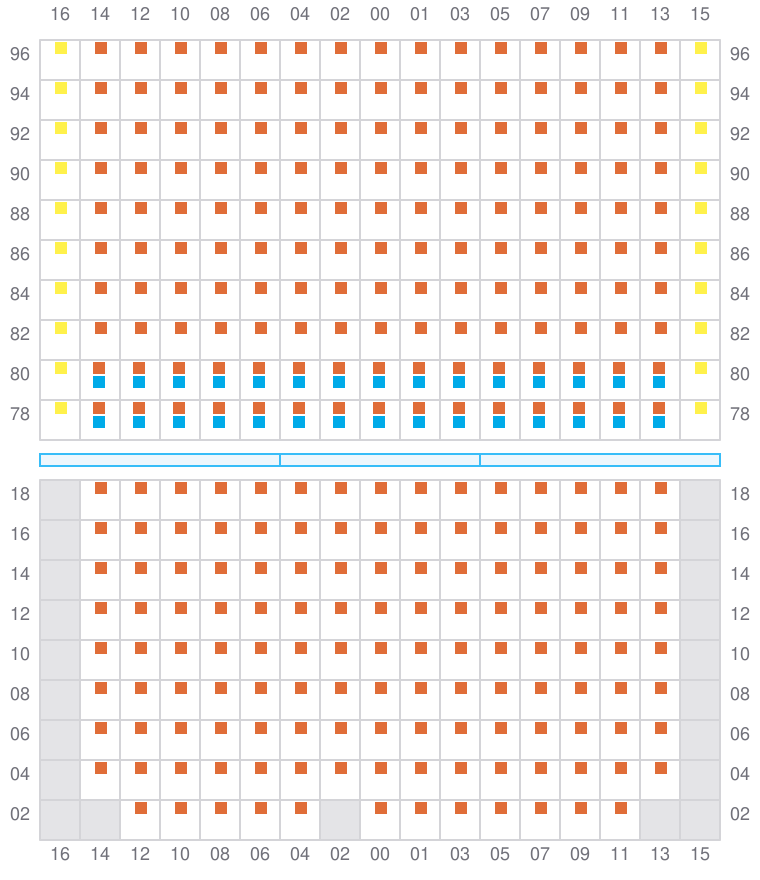

Bay 051 view and slots of MAERSK STEPNICA

053 (054)

  • →
  • → / ?

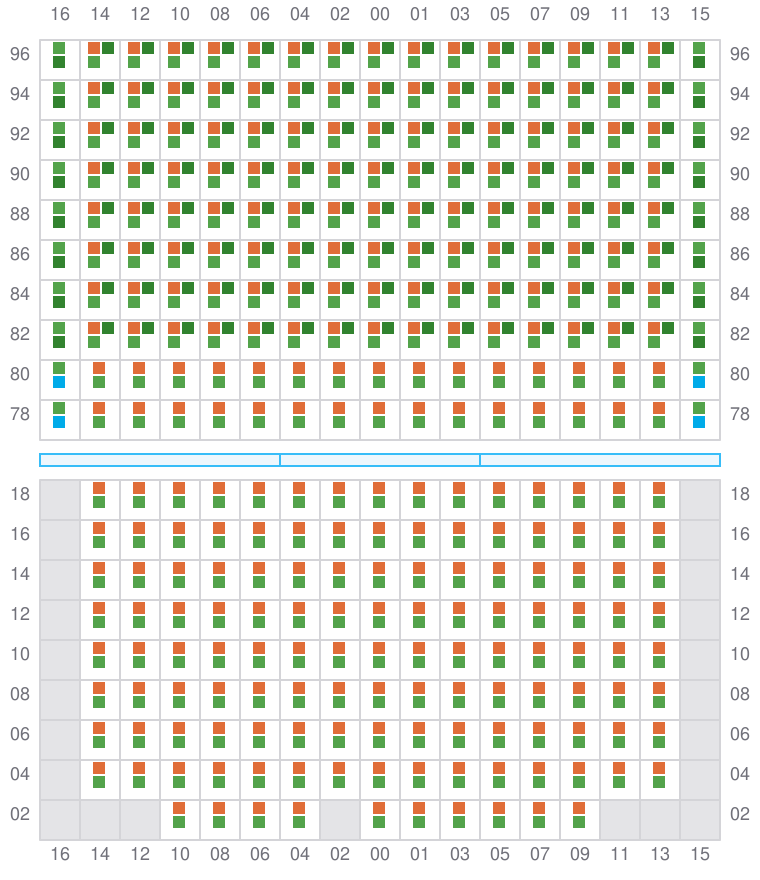

Bay 053 view and slots of MAERSK STEPNICA

055

  • ←
  • →

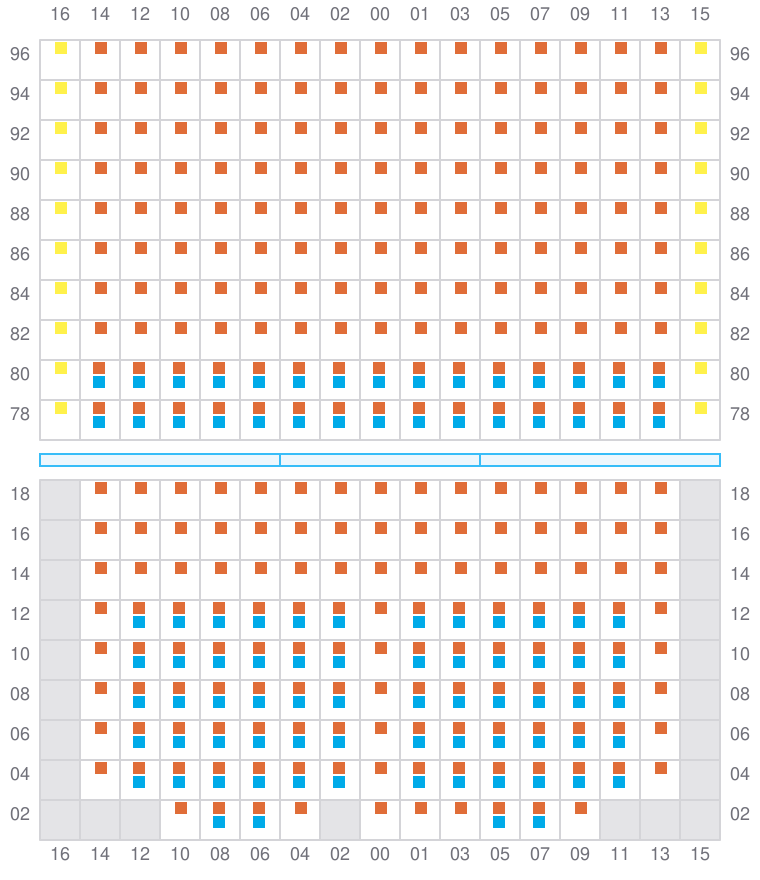

Bay 055 view and slots of MAERSK STEPNICA

057 (058)

  • →
  • → / ?

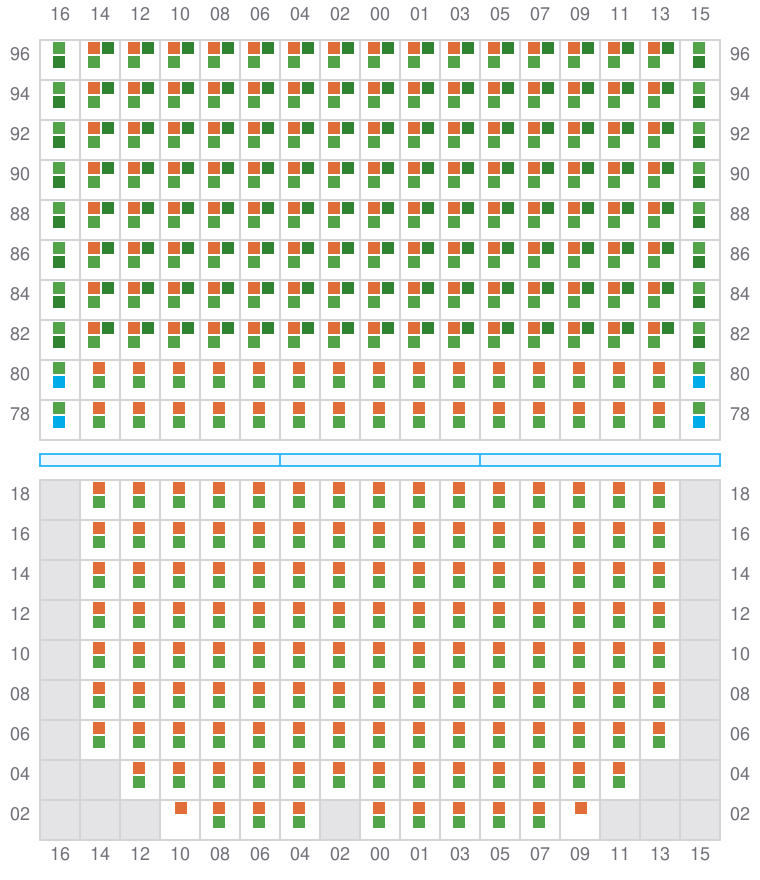

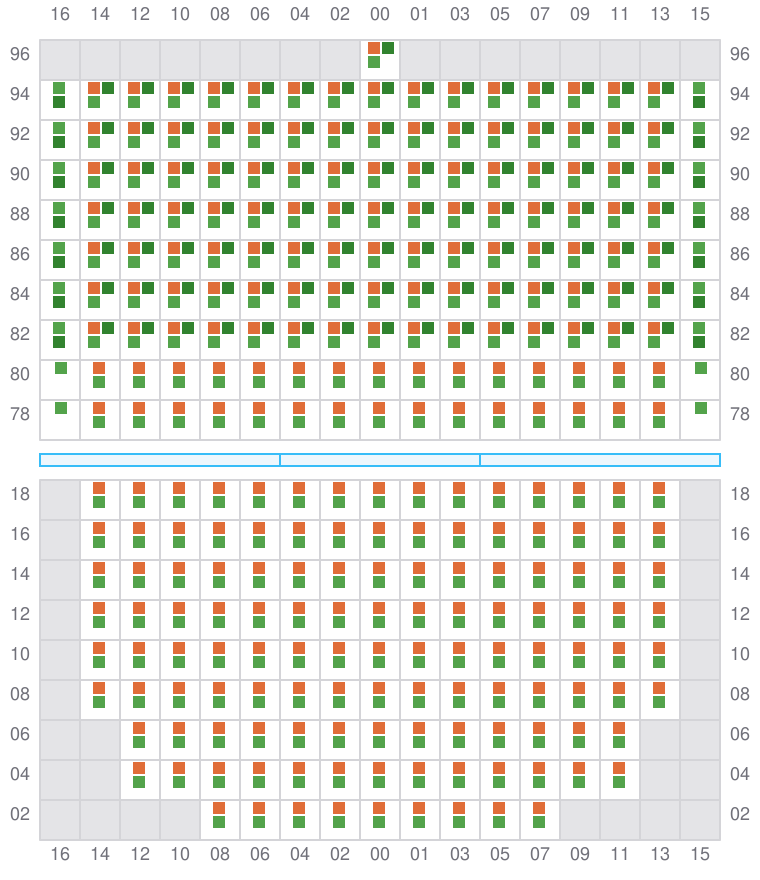

Bay 057 view and slots of MAERSK STEPNICA

059

  • ←
  • → / ?

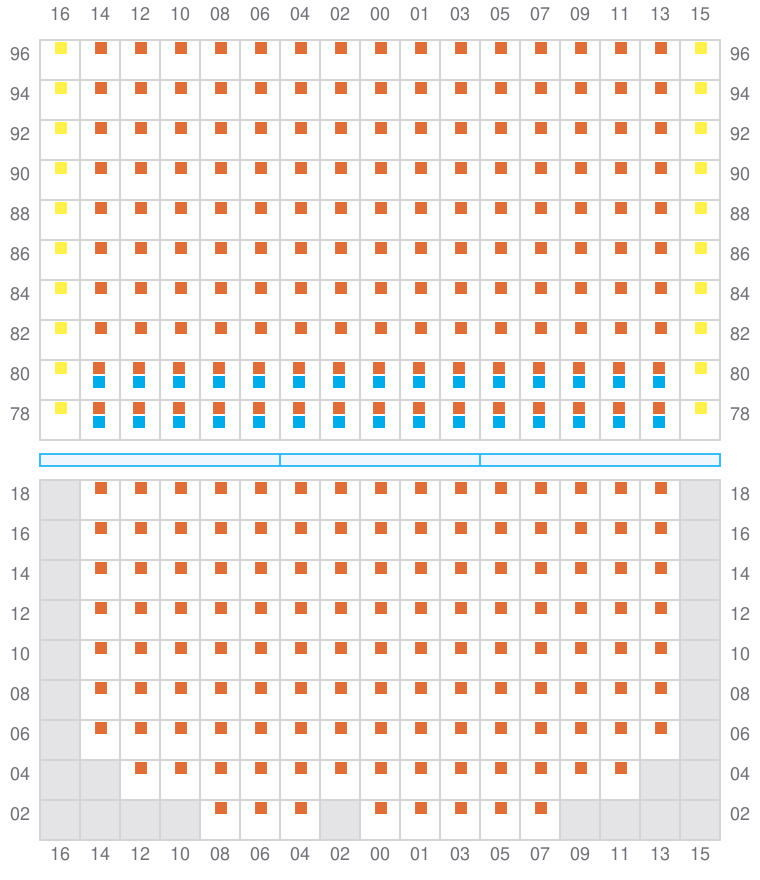

Bay 059 view and slots of MAERSK STEPNICA

061 (062)

  • →

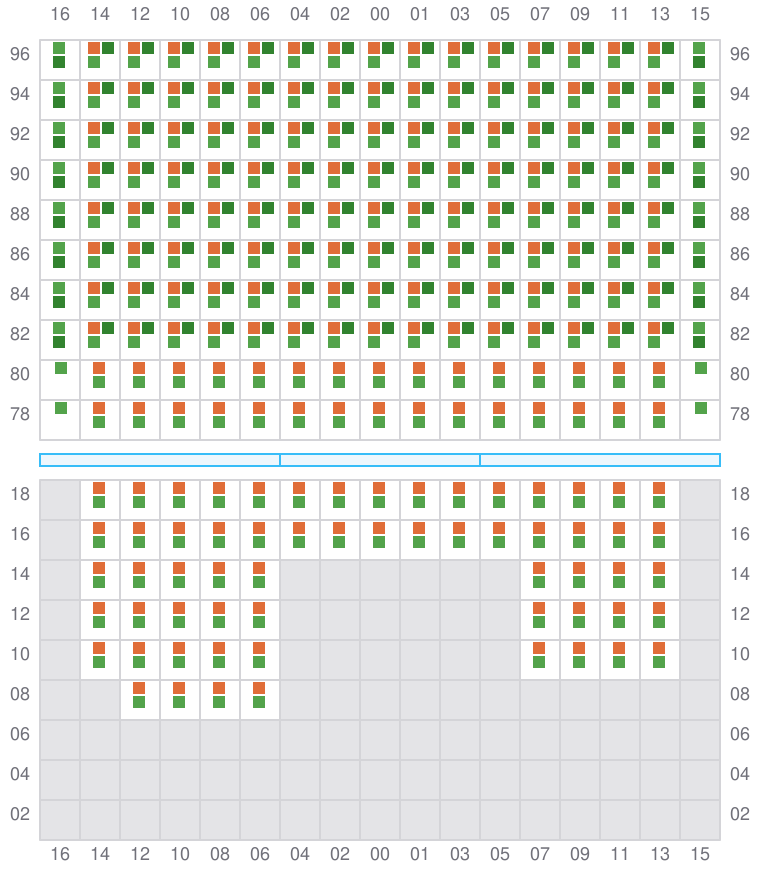

Bay 061 view and slots of MAERSK STEPNICA

063

  • ←
  • → / ?

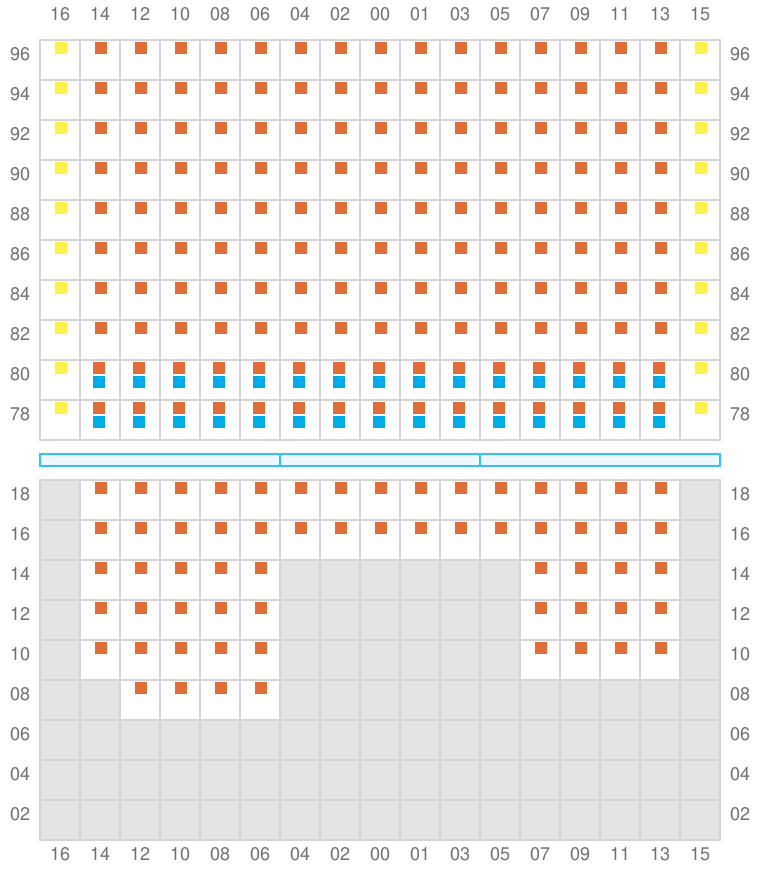

Bay 063 view and slots of MAERSK STEPNICA

065 (066)

  • →
Bay 065 view and slots of MAERSK STEPNICA

067

  • ←
  • → / ?
Bay 067 view and slots of MAERSK STEPNICA

069 (070)

  • →

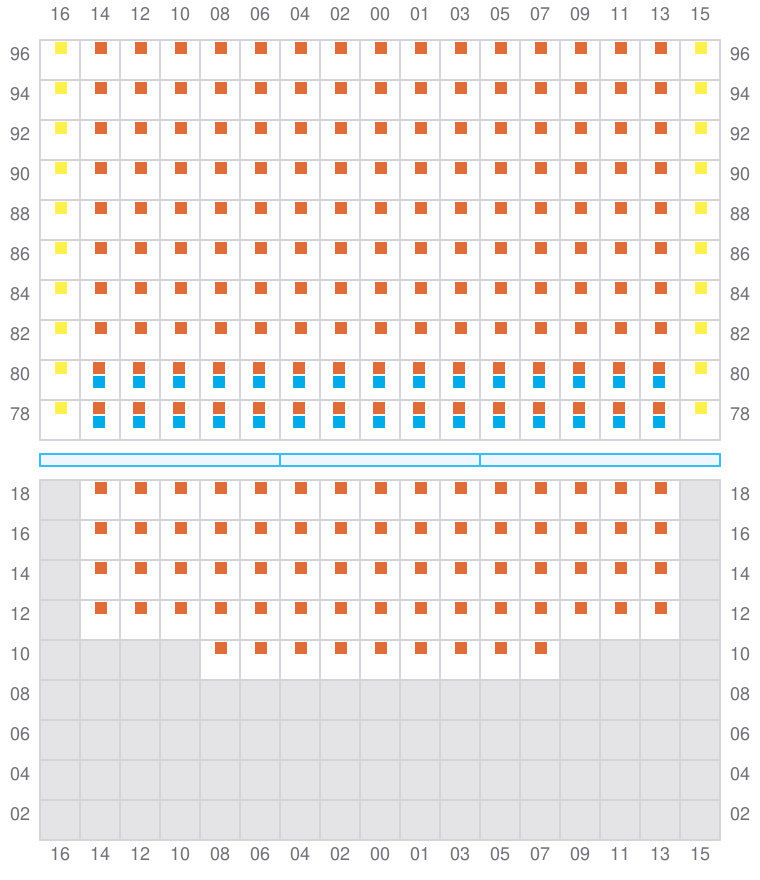

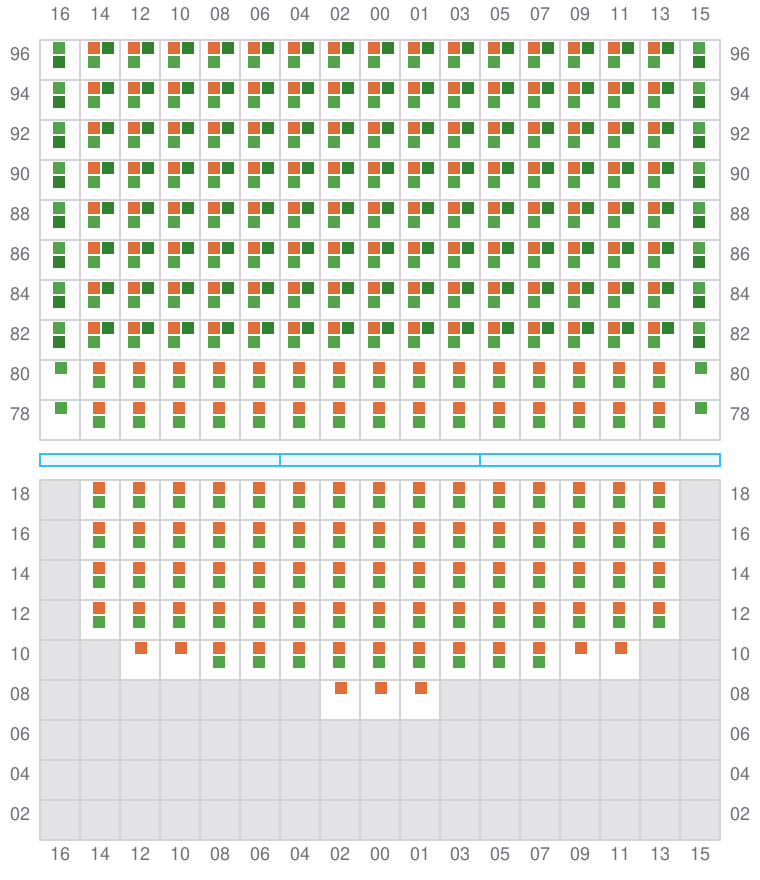

Bay 069 view and slots of MAERSK STEPNICA

071

  • ←
  • → / ?
Bay 071 view and slots of MAERSK STEPNICA

073 (074)

  • →

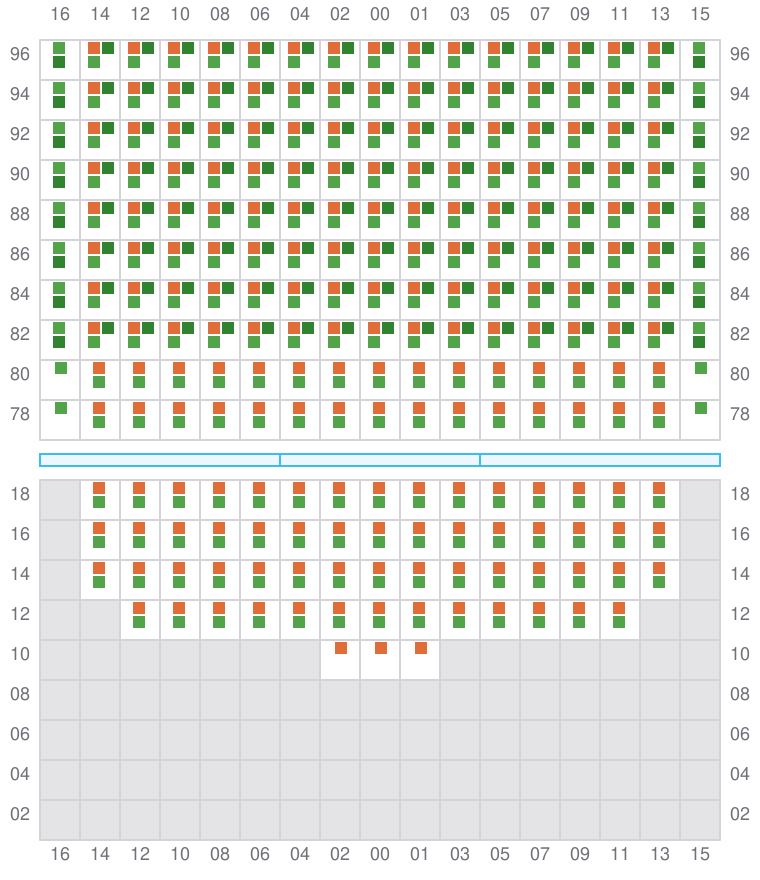

Bay 073 view and slots of MAERSK STEPNICA

075

  • ←
  • → / ?

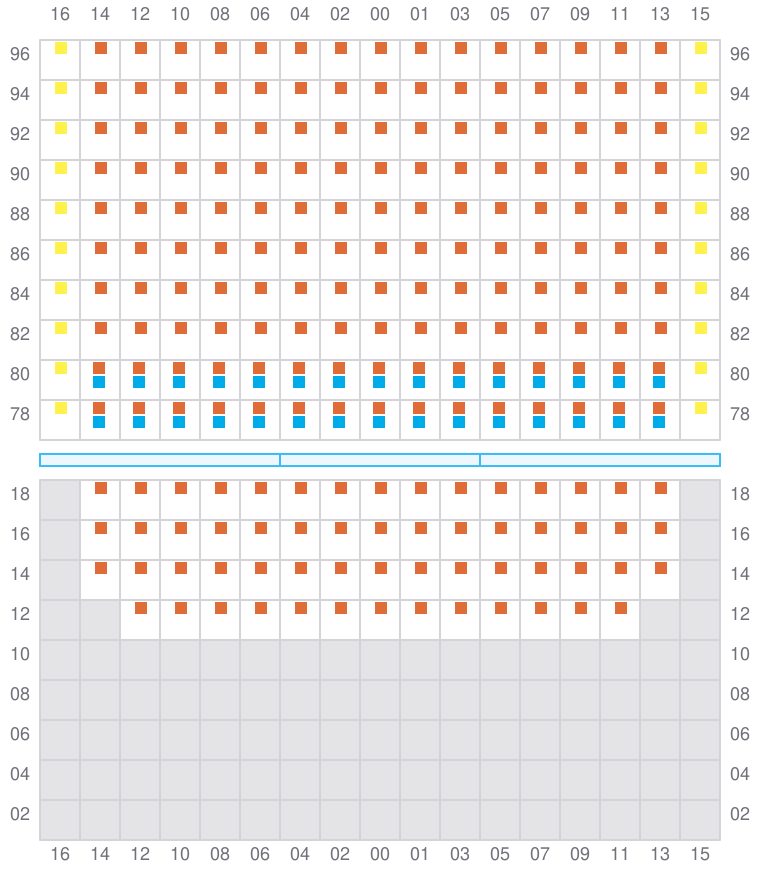

Bay 075 view and slots of MAERSK STEPNICA

077 (078)

  • → / ?

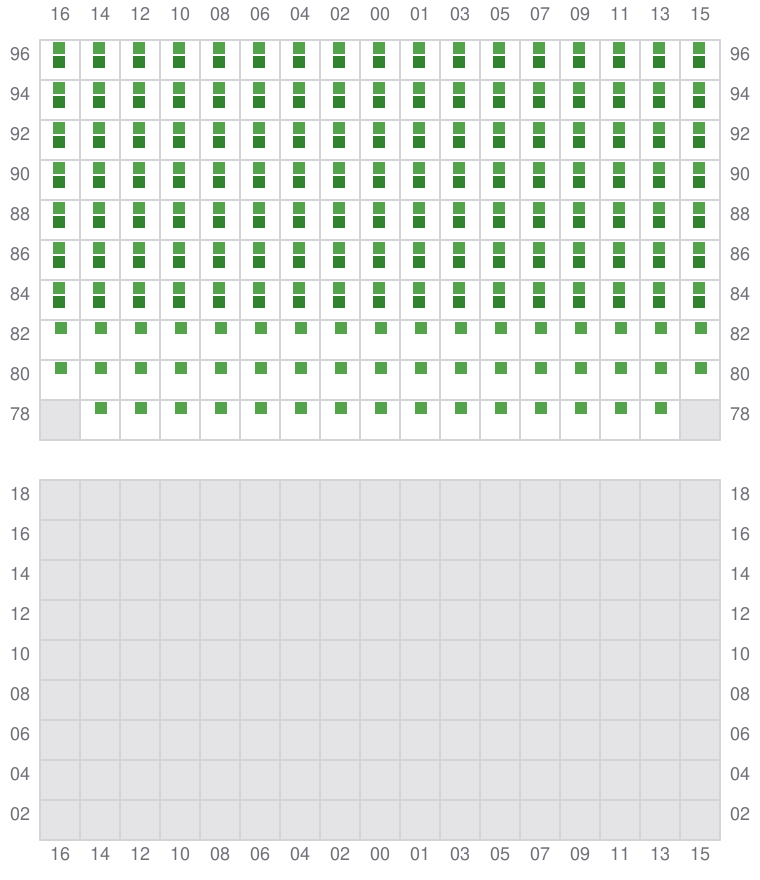

Bay 077 view and slots of MAERSK STEPNICA
