MAERSK STEPNICA
9352004 | VRVM4 | 9352004 by ********* Last update: Fri Mar 22 2024
General Info
Ship Name:MAERSK STEPNICA
IMO Code:9352004
Call Sign:VRVM4
Line Operator:9352004
Class Name for Sister Ships:8WF
Year Built:2008
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):334.00
LOA (Length Overall):334.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As (old names):-
Size Summary
ISO Bays:077
Max ISO Row:16
Center Line Row:Yes
Max Above ISO Tier:96
Min Above ISO Tier:82
Max Below ISO Tier:18
Min Below ISO Tier:02
Total TEU:8,538
Centers of Gravity
LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%
Side View
![Side view of MAERSK STEPNICA](/vessel-images/8aca236c-927d-4dea-aad9-69befcbf776b-sideView.png?v=1711144497230)
Hatch-Covers View
![Deck view of MAERSK STEPNICA](/vessel-images/8aca236c-927d-4dea-aad9-69befcbf776b-deckView.png?v=1711144497230)
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

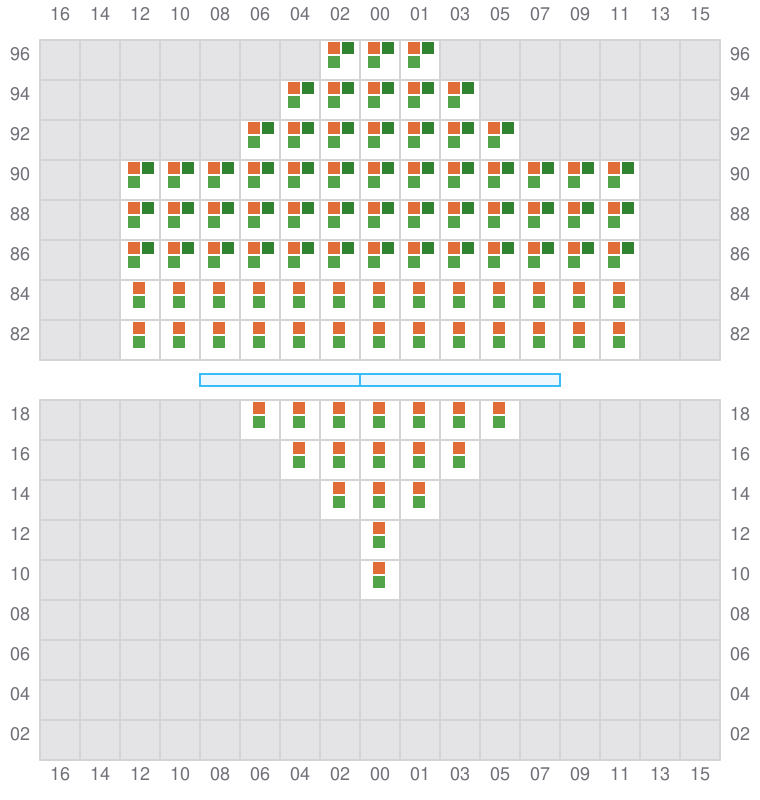

001 (002)
- →
![Bay 001 view and slots of MAERSK STEPNICA](/vessel-images/8aca236c-927d-4dea-aad9-69befcbf776b-b001.png?v=1711144497230)

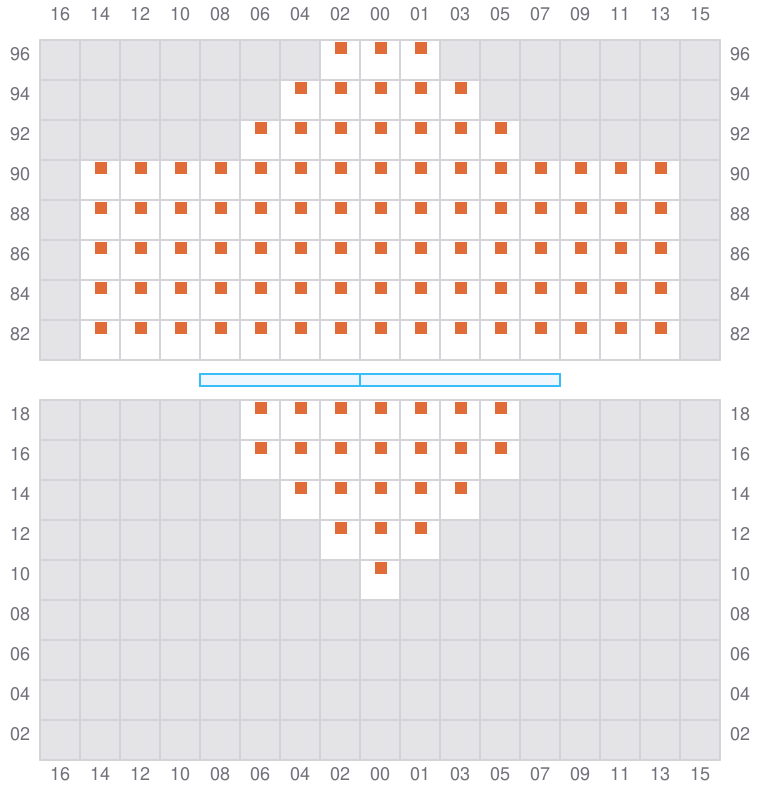

003
- ←
![Bay 003 view and slots of MAERSK STEPNICA](/vessel-images/8aca236c-927d-4dea-aad9-69befcbf776b-b003.png?v=1711144497230)

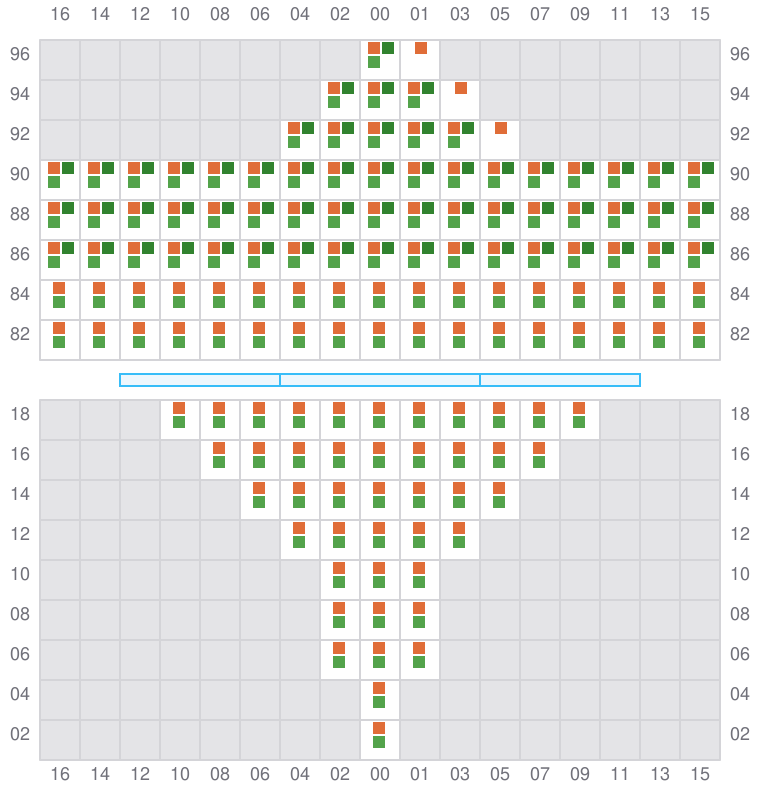

005 (006)
- →
![Bay 005 view and slots of MAERSK STEPNICA](/vessel-images/8aca236c-927d-4dea-aad9-69befcbf776b-b005.png?v=1711144497230)

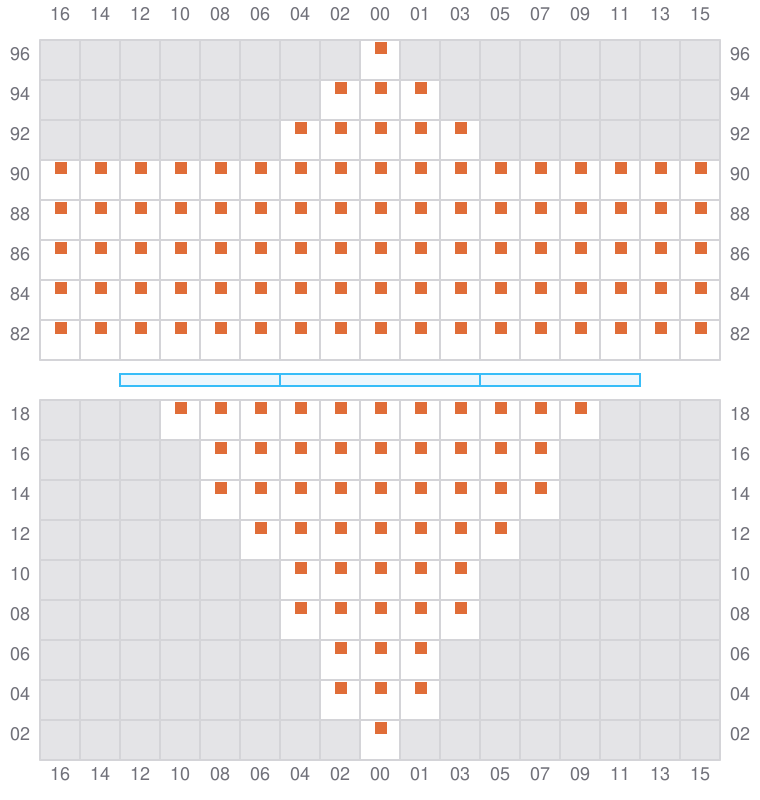

007
- ←
![Bay 007 view and slots of MAERSK STEPNICA](/vessel-images/8aca236c-927d-4dea-aad9-69befcbf776b-b007.png?v=1711144497230)

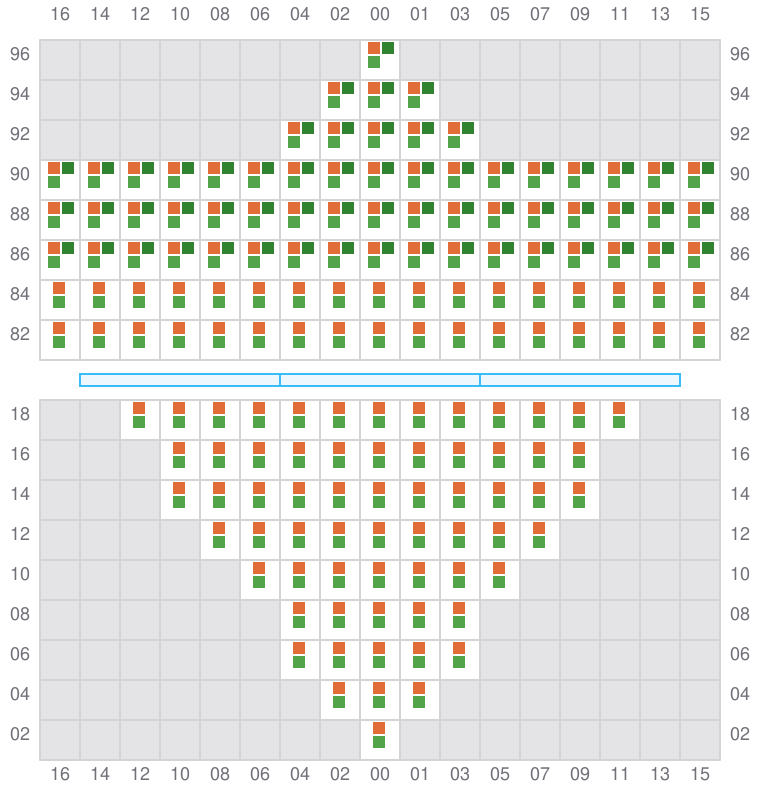

009 (010)
- →
![Bay 009 view and slots of MAERSK STEPNICA](/vessel-images/8aca236c-927d-4dea-aad9-69befcbf776b-b009.png?v=1711144497230)

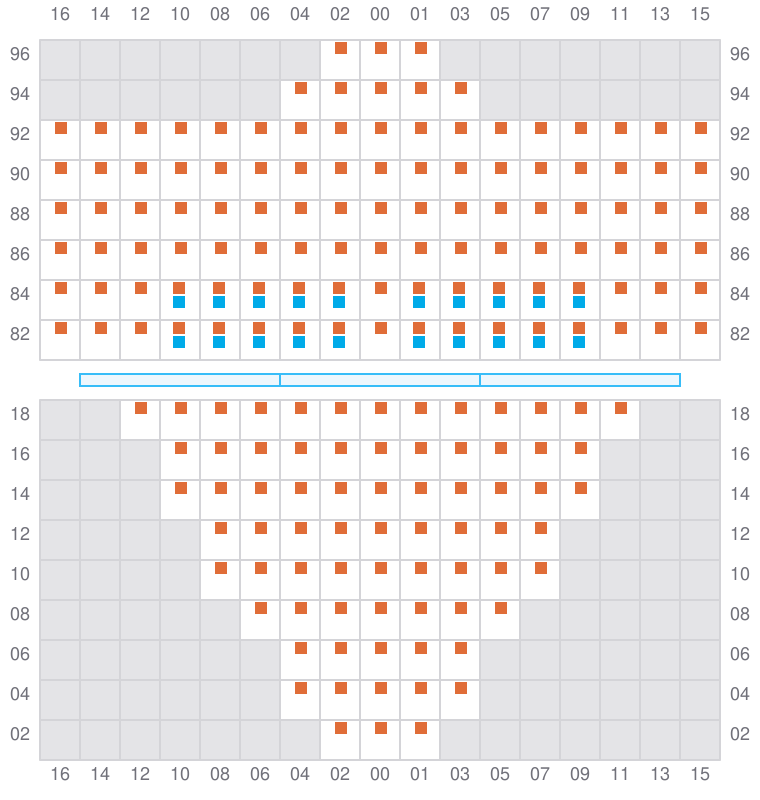

011
- ←
- → / ?
![Bay 011 view and slots of MAERSK STEPNICA](/vessel-images/8aca236c-927d-4dea-aad9-69befcbf776b-b011.png?v=1711144497230)

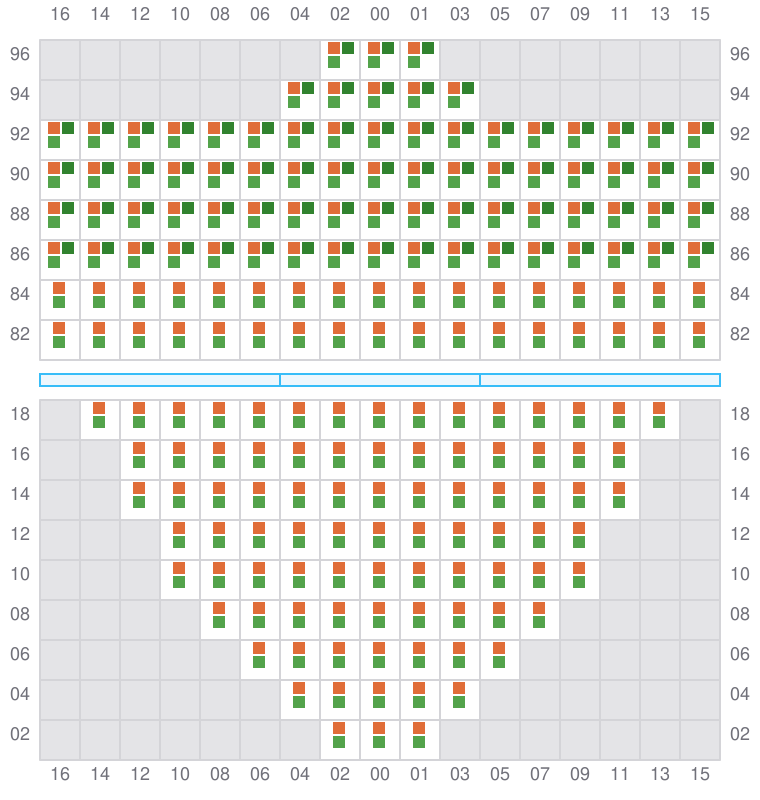

013 (014)
- →
![Bay 013 view and slots of MAERSK STEPNICA](/vessel-images/8aca236c-927d-4dea-aad9-69befcbf776b-b013.png?v=1711144497230)

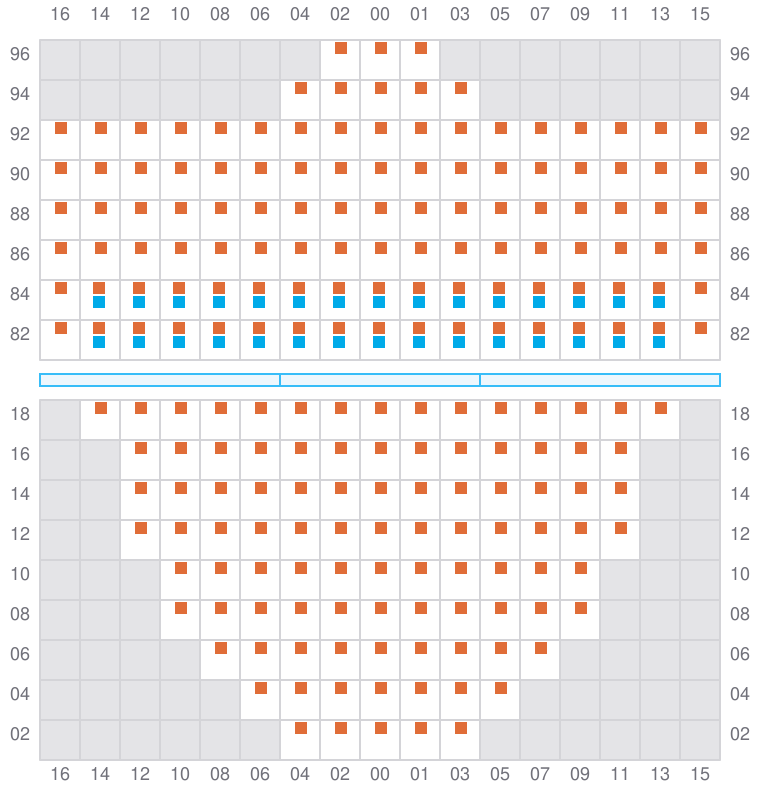

015
- ←
- → / ?
![Bay 015 view and slots of MAERSK STEPNICA](/vessel-images/8aca236c-927d-4dea-aad9-69befcbf776b-b015.png?v=1711144497230)

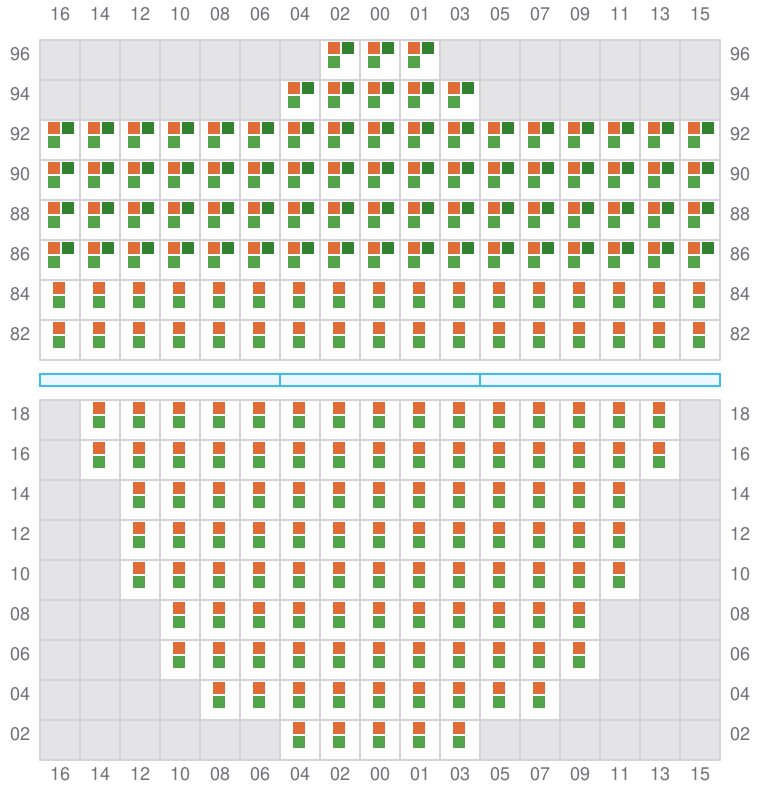

017 (018)
- →
![Bay 017 view and slots of MAERSK STEPNICA](/vessel-images/8aca236c-927d-4dea-aad9-69befcbf776b-b017.png?v=1711144497230)

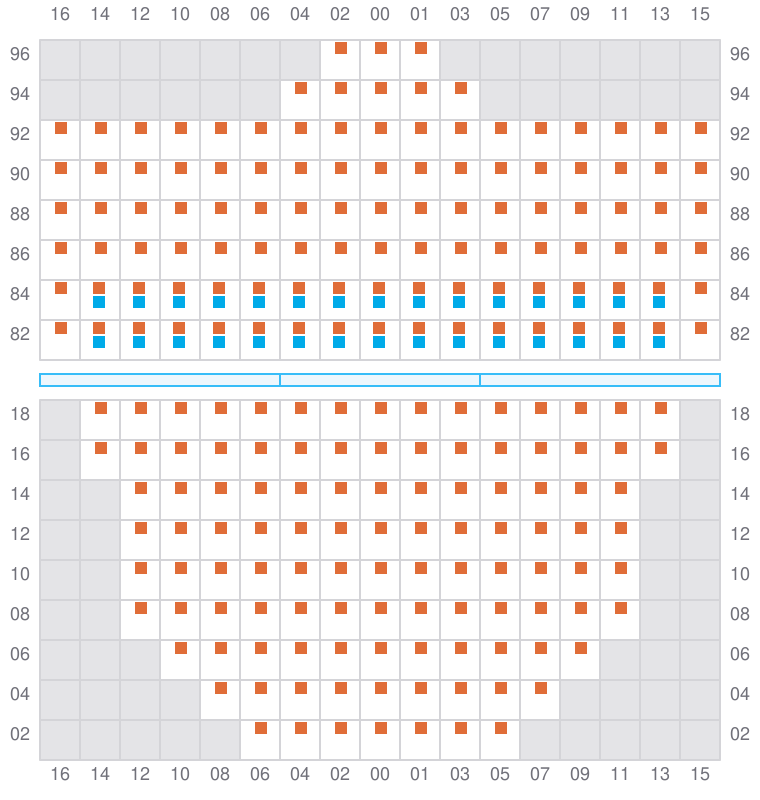

019
- ←
- → / ?
![Bay 019 view and slots of MAERSK STEPNICA](/vessel-images/8aca236c-927d-4dea-aad9-69befcbf776b-b019.png?v=1711144497230)

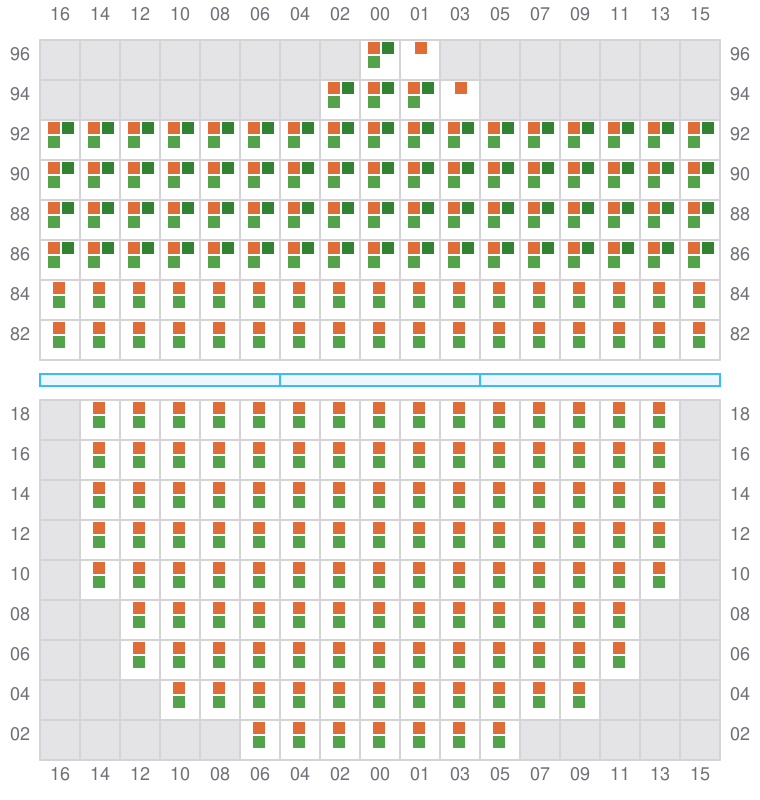

021 (022)
- →
![Bay 021 view and slots of MAERSK STEPNICA](/vessel-images/8aca236c-927d-4dea-aad9-69befcbf776b-b021.png?v=1711144497230)

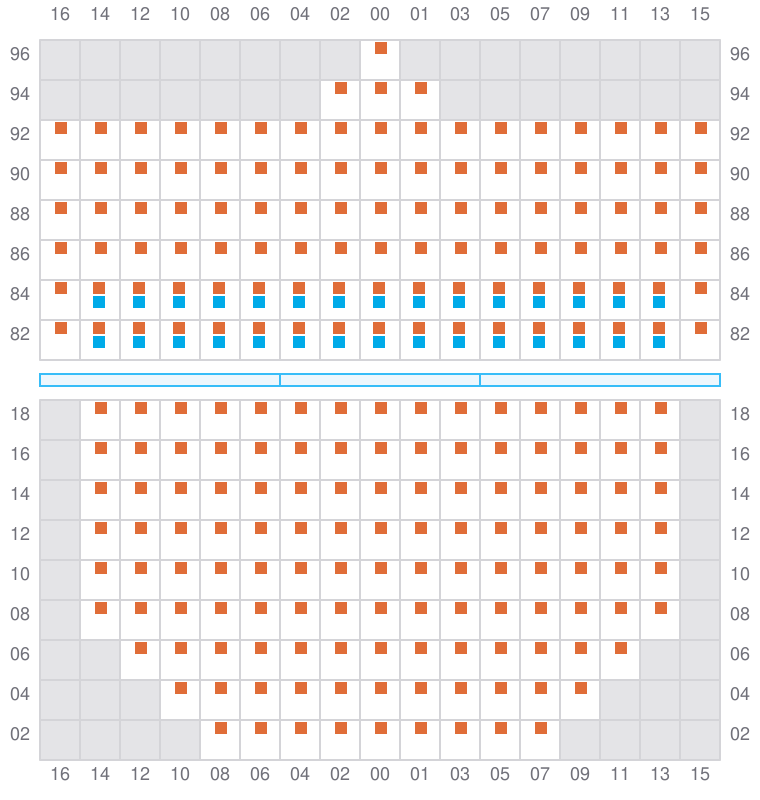

023
- ←
- → / ?
![Bay 023 view and slots of MAERSK STEPNICA](/vessel-images/8aca236c-927d-4dea-aad9-69befcbf776b-b023.png?v=1711144497230)

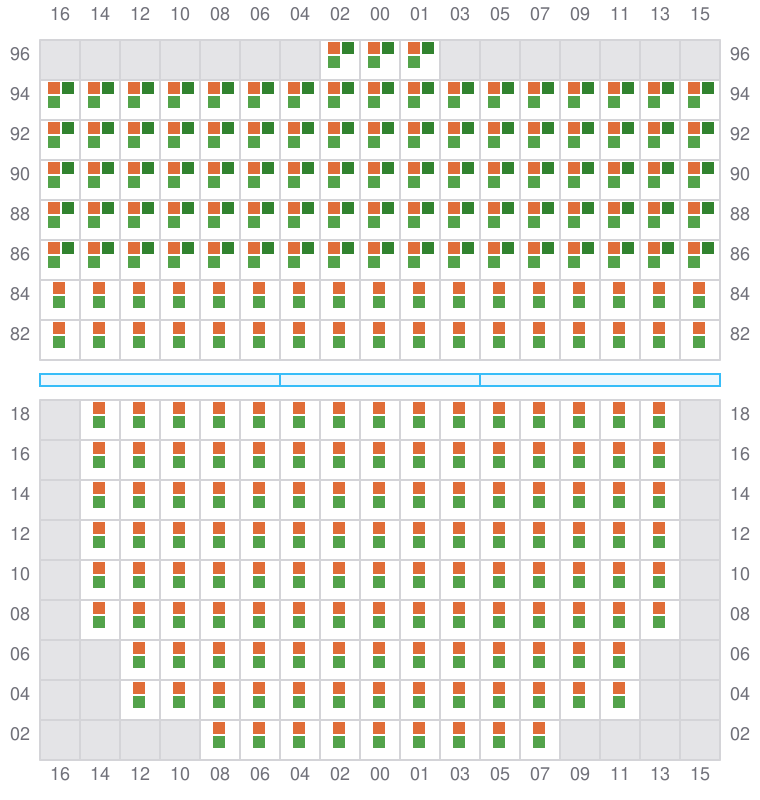

025 (026)
- →
![Bay 025 view and slots of MAERSK STEPNICA](/vessel-images/8aca236c-927d-4dea-aad9-69befcbf776b-b025.png?v=1711144497230)

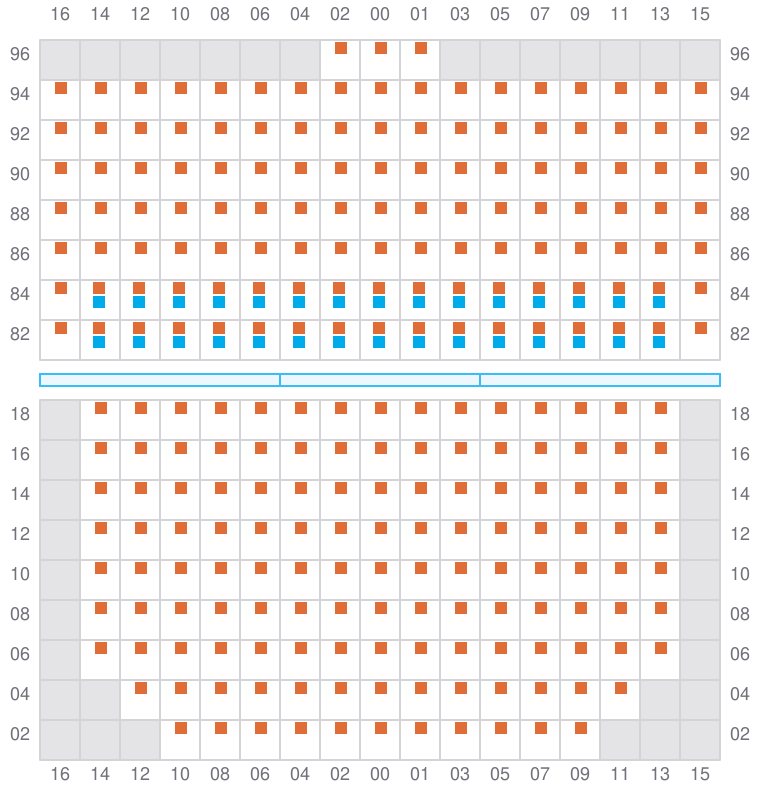

027
- ←
- → / ?
![Bay 027 view and slots of MAERSK STEPNICA](/vessel-images/8aca236c-927d-4dea-aad9-69befcbf776b-b027.png?v=1711144497230)

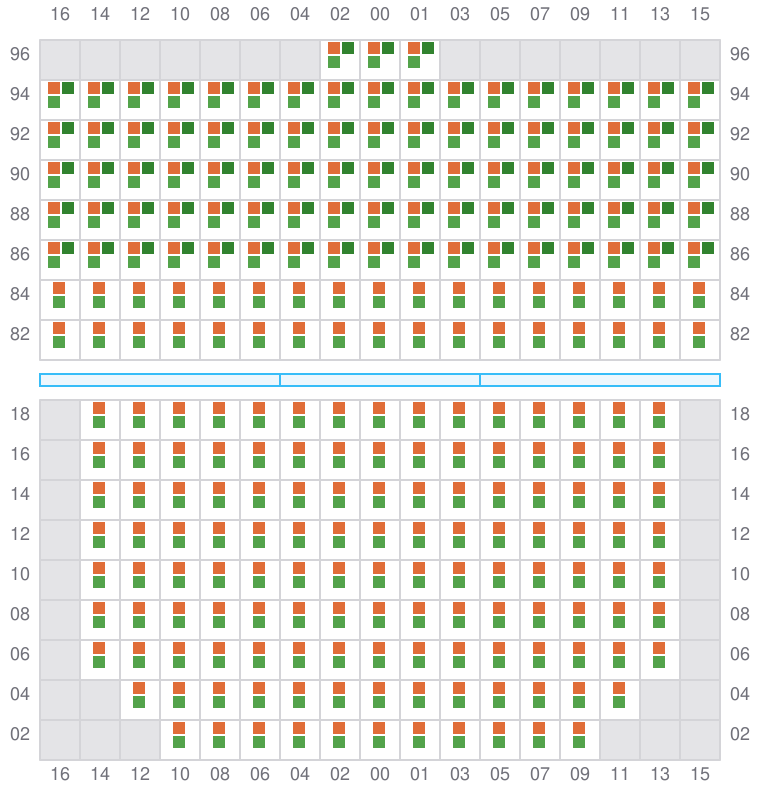

029 (030)
- →
![Bay 029 view and slots of MAERSK STEPNICA](/vessel-images/8aca236c-927d-4dea-aad9-69befcbf776b-b029.png?v=1711144497230)

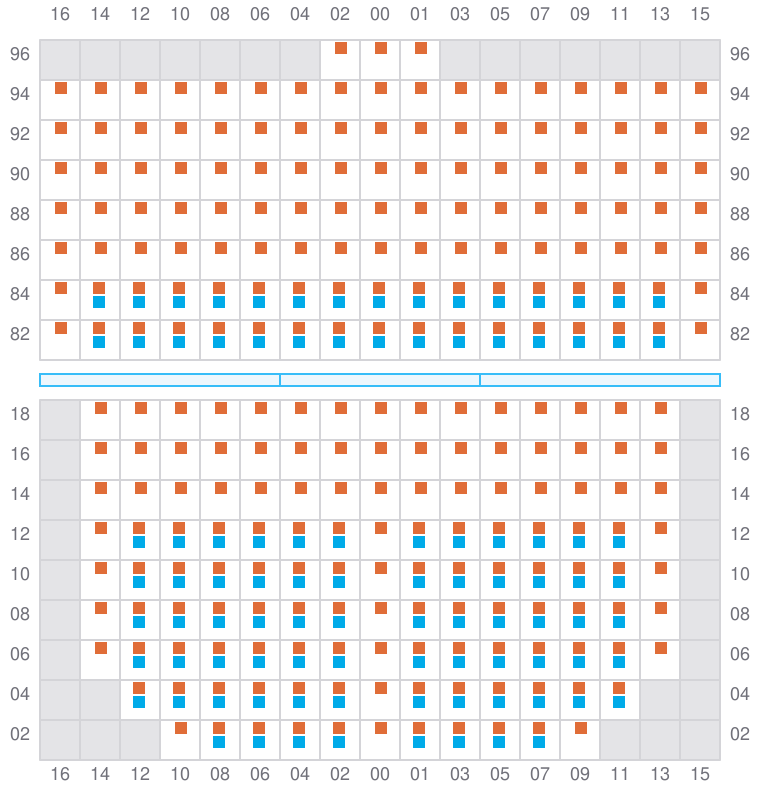

031
- ←
- →
![Bay 031 view and slots of MAERSK STEPNICA](/vessel-images/8aca236c-927d-4dea-aad9-69befcbf776b-b031.png?v=1711144497230)

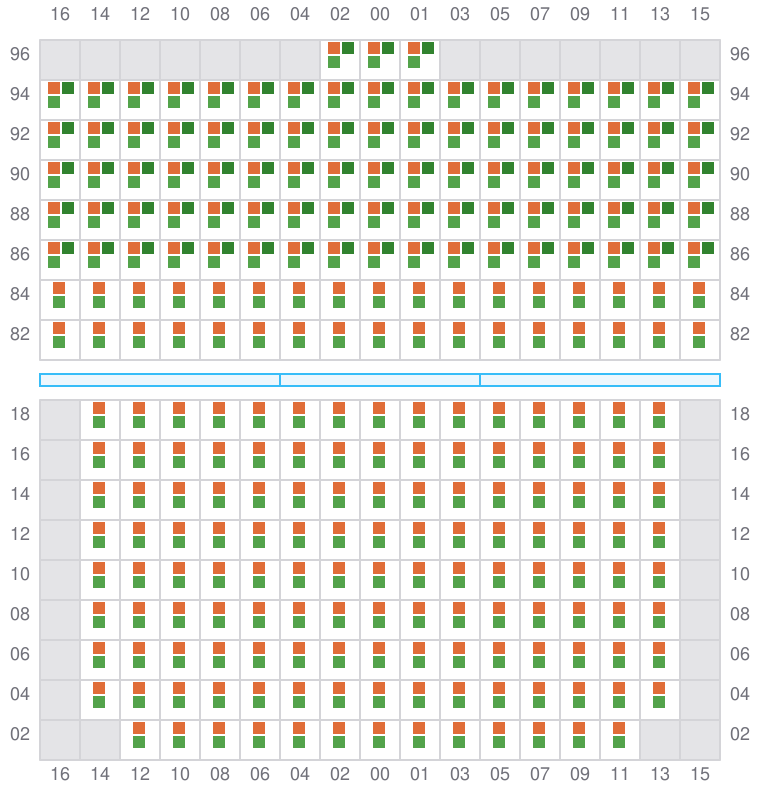

033 (034)
- →
![Bay 033 view and slots of MAERSK STEPNICA](/vessel-images/8aca236c-927d-4dea-aad9-69befcbf776b-b033.png?v=1711144497230)

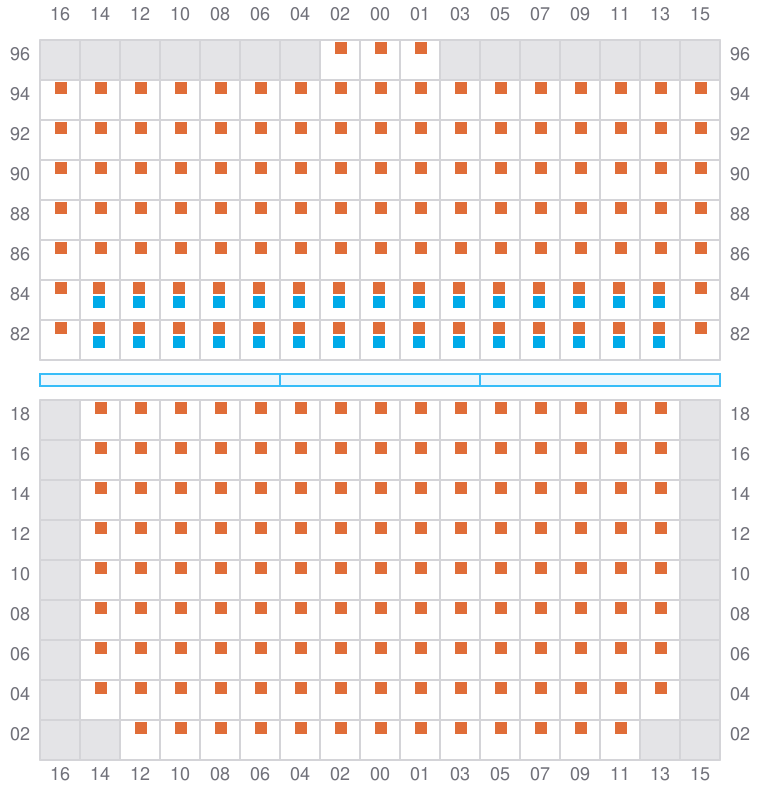

035
- ←
- → / ?
![Bay 035 view and slots of MAERSK STEPNICA](/vessel-images/8aca236c-927d-4dea-aad9-69befcbf776b-b035.png?v=1711144497230)

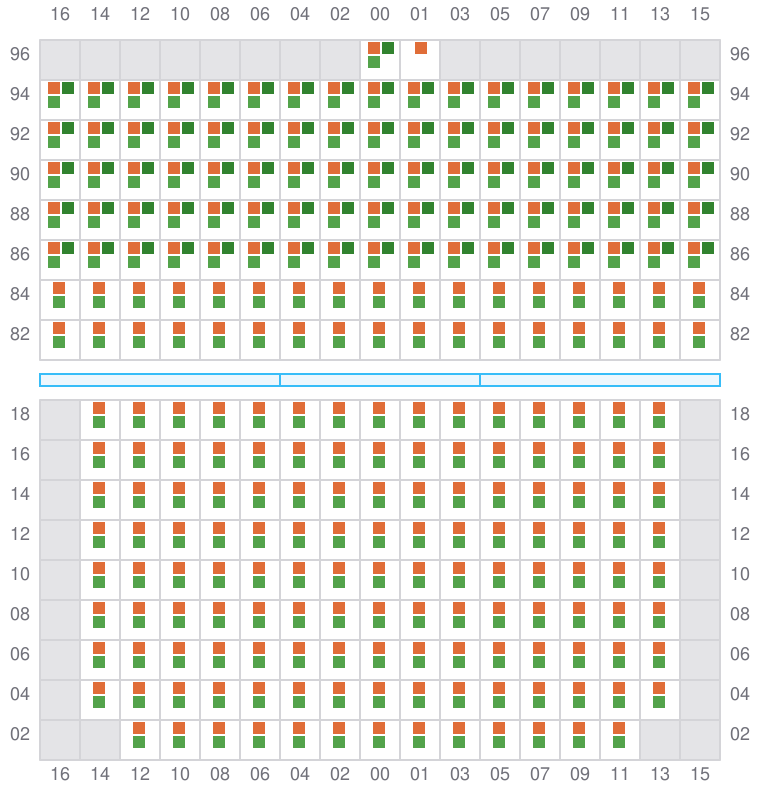

037 (038)
- →
![Bay 037 view and slots of MAERSK STEPNICA](/vessel-images/8aca236c-927d-4dea-aad9-69befcbf776b-b037.png?v=1711144497230)

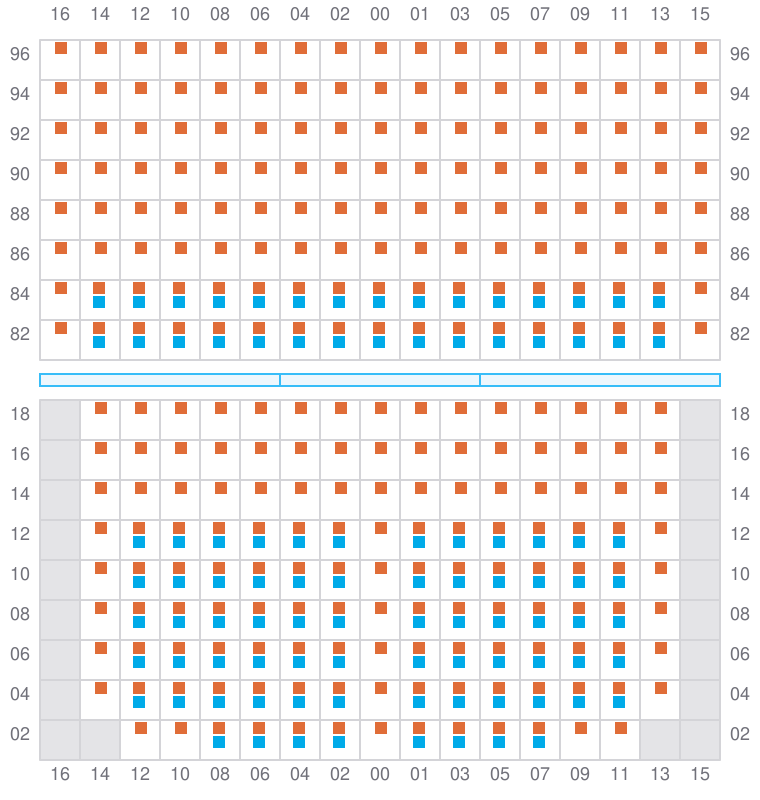

039
- ←
- →
![Bay 039 view and slots of MAERSK STEPNICA](/vessel-images/8aca236c-927d-4dea-aad9-69befcbf776b-b039.png?v=1711144497230)

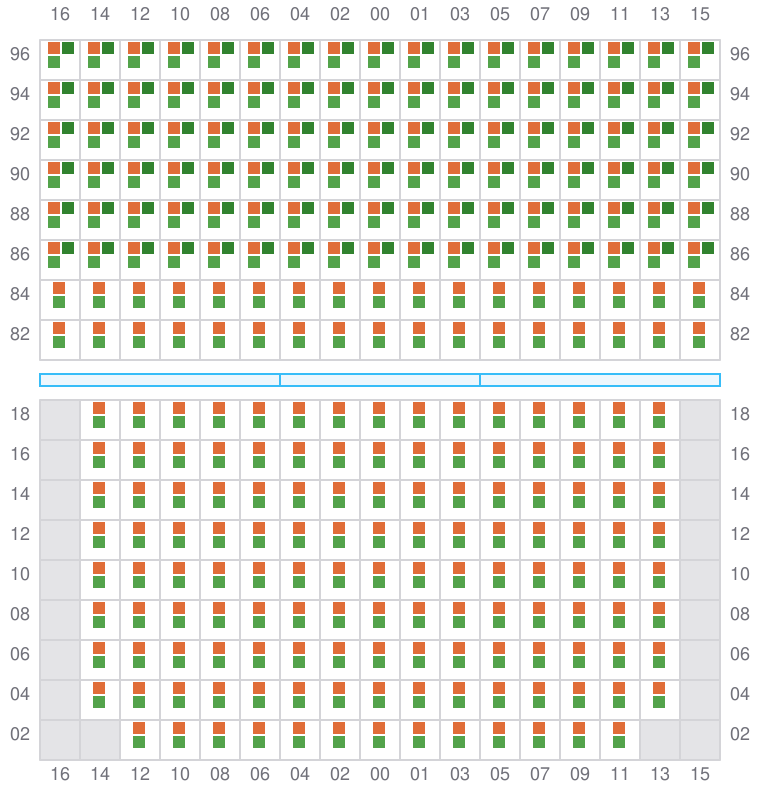

041 (042)
- →
![Bay 041 view and slots of MAERSK STEPNICA](/vessel-images/8aca236c-927d-4dea-aad9-69befcbf776b-b041.png?v=1711144497230)

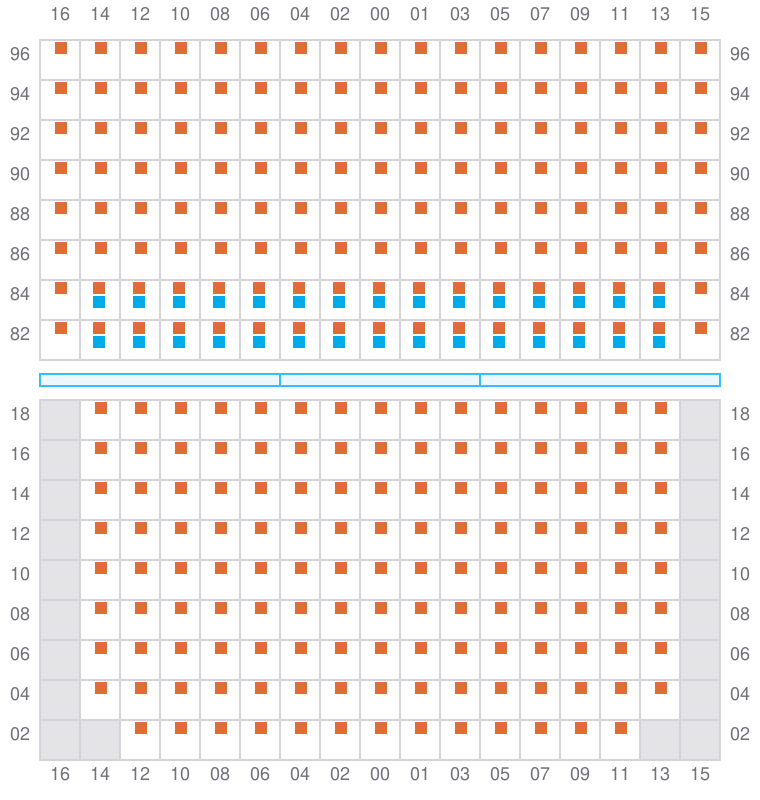

043
- ←
- → / ?
![Bay 043 view and slots of MAERSK STEPNICA](/vessel-images/8aca236c-927d-4dea-aad9-69befcbf776b-b043.png?v=1711144497230)

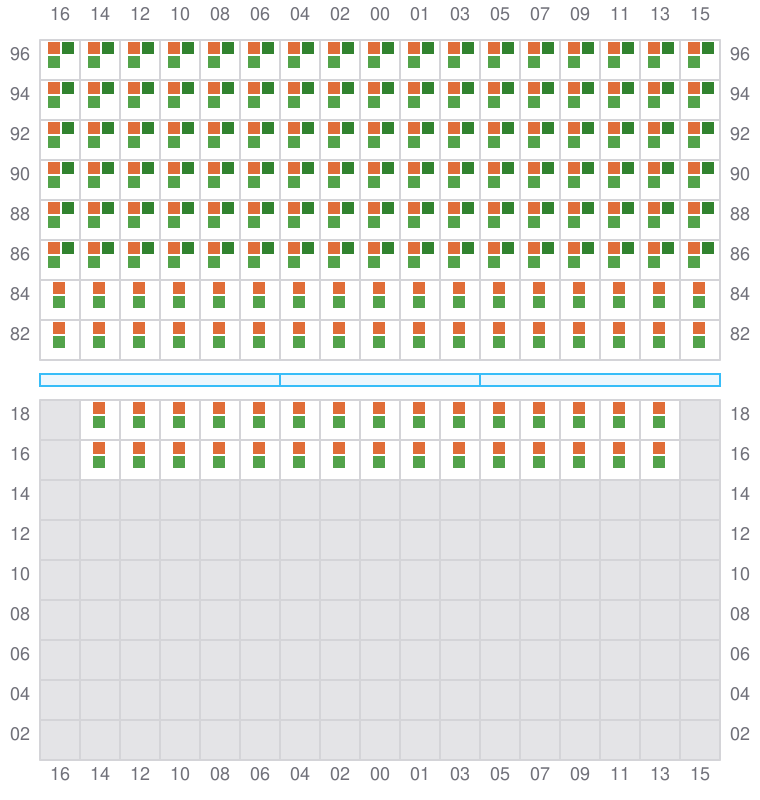

045 (046)
- →
![Bay 045 view and slots of MAERSK STEPNICA](/vessel-images/8aca236c-927d-4dea-aad9-69befcbf776b-b045.png?v=1711144497230)

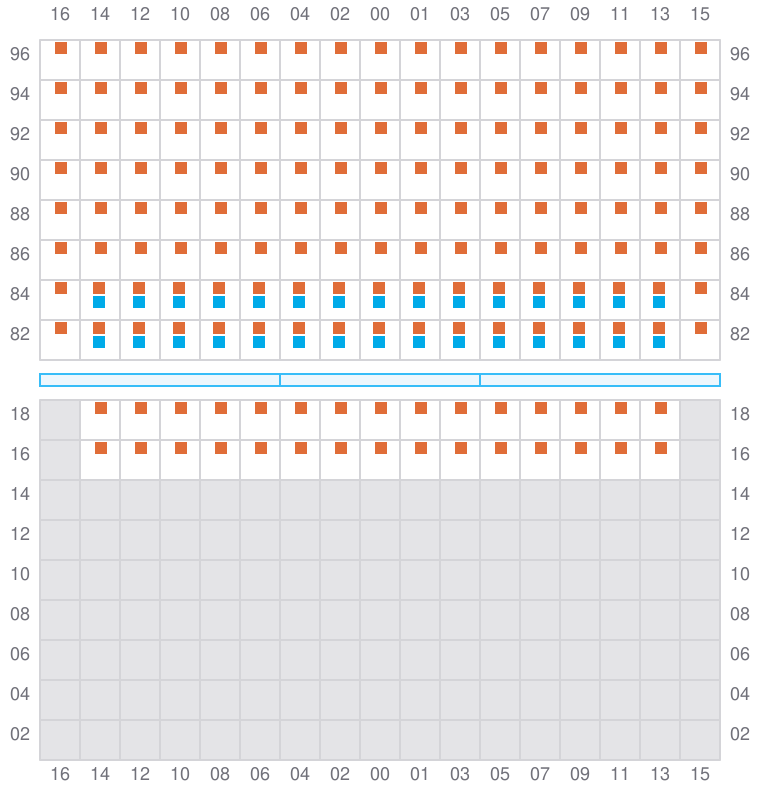

047
- ←
- → / ?
![Bay 047 view and slots of MAERSK STEPNICA](/vessel-images/8aca236c-927d-4dea-aad9-69befcbf776b-b047.png?v=1711144497230)

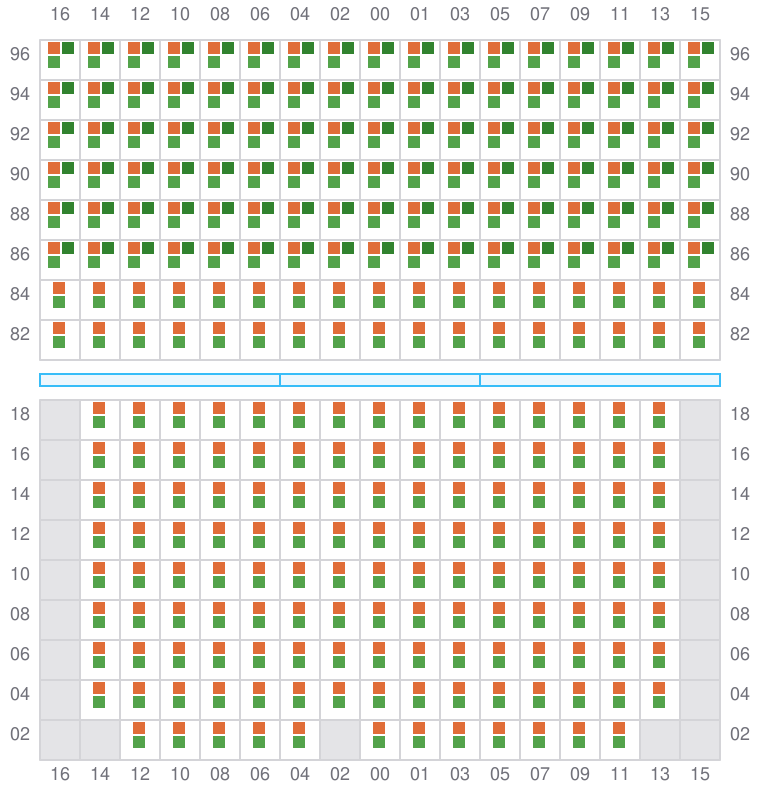

049 (050)
- →
![Bay 049 view and slots of MAERSK STEPNICA](/vessel-images/8aca236c-927d-4dea-aad9-69befcbf776b-b049.png?v=1711144497230)
051
- ←
- → / ?
![Bay 051 view and slots of MAERSK STEPNICA](/vessel-images/8aca236c-927d-4dea-aad9-69befcbf776b-b051.png?v=1711144497230)
053 (054)
- →
![Bay 053 view and slots of MAERSK STEPNICA](/vessel-images/8aca236c-927d-4dea-aad9-69befcbf776b-b053.png?v=1711144497230)

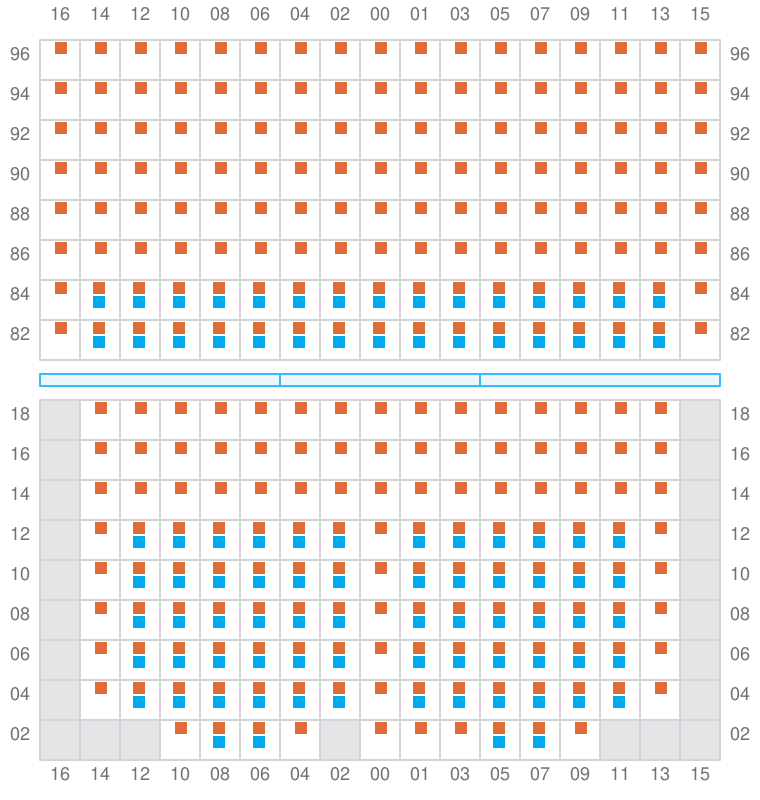

055
- ←
- →
![Bay 055 view and slots of MAERSK STEPNICA](/vessel-images/8aca236c-927d-4dea-aad9-69befcbf776b-b055.png?v=1711144497230)

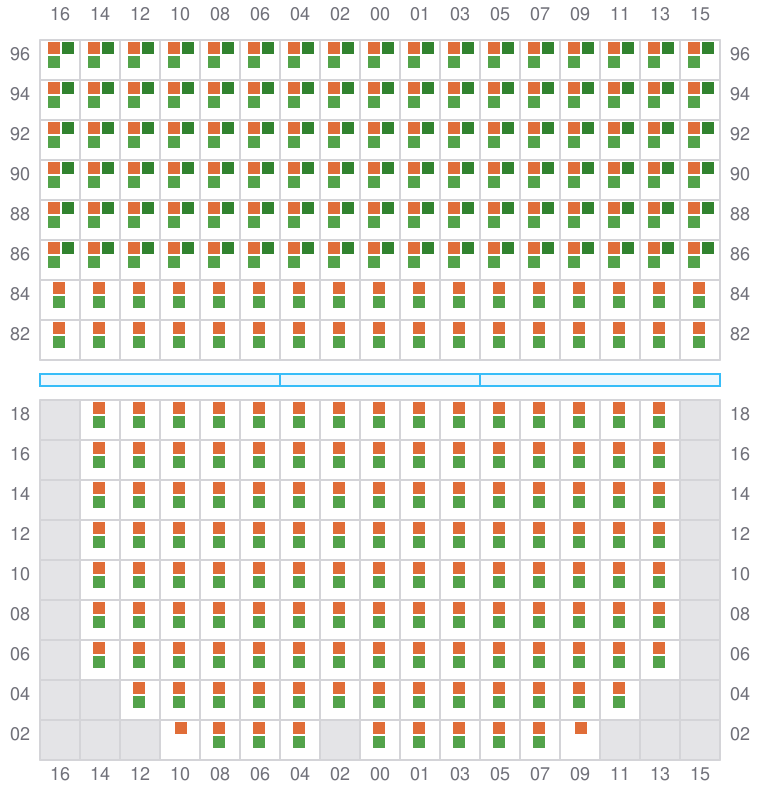

057 (058)
- →
![Bay 057 view and slots of MAERSK STEPNICA](/vessel-images/8aca236c-927d-4dea-aad9-69befcbf776b-b057.png?v=1711144497230)

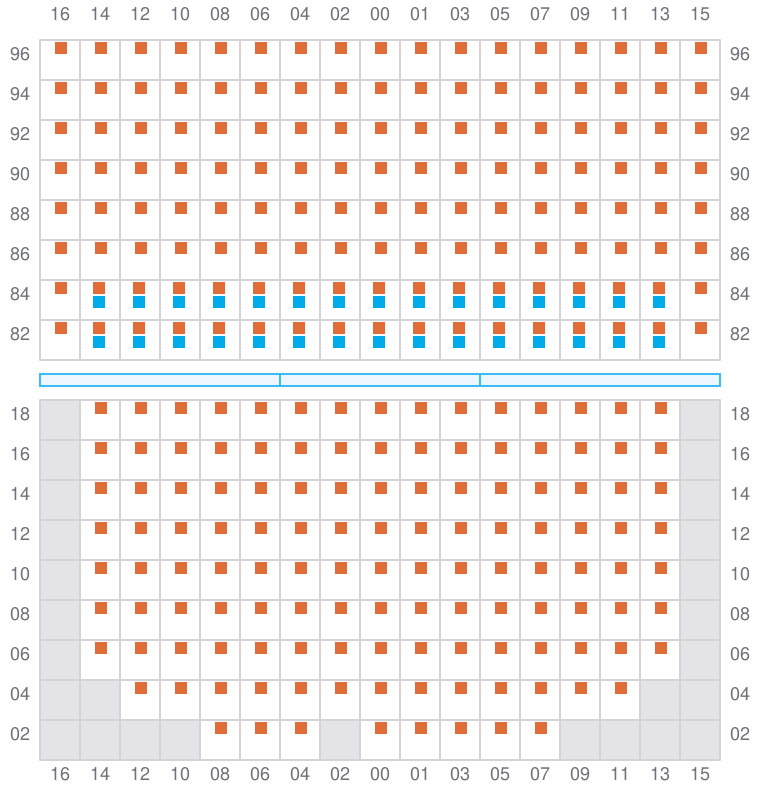

059
- ←
- → / ?
![Bay 059 view and slots of MAERSK STEPNICA](/vessel-images/8aca236c-927d-4dea-aad9-69befcbf776b-b059.png?v=1711144497230)

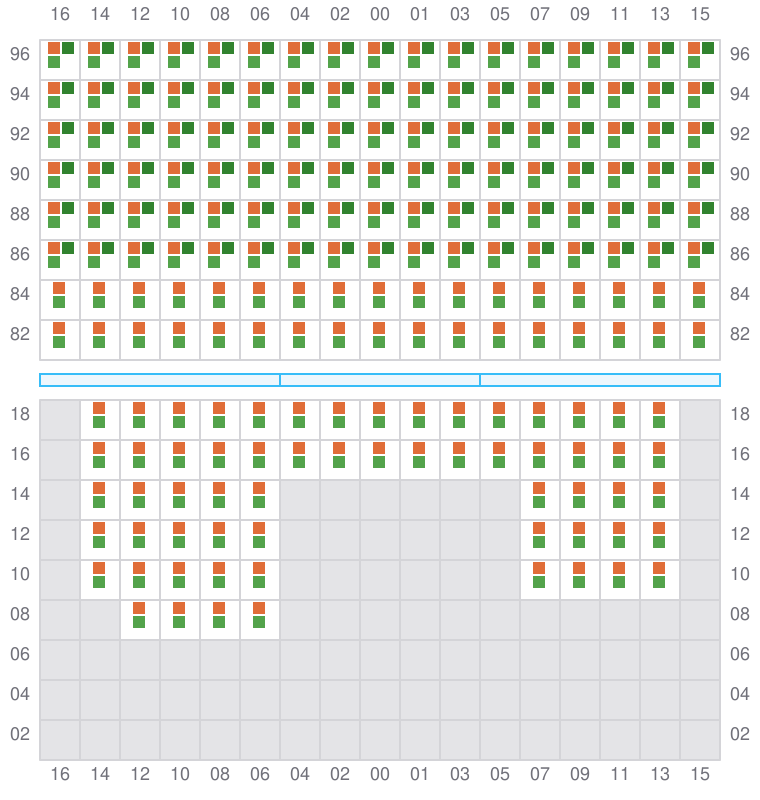

061 (062)
- →
![Bay 061 view and slots of MAERSK STEPNICA](/vessel-images/8aca236c-927d-4dea-aad9-69befcbf776b-b061.png?v=1711144497230)

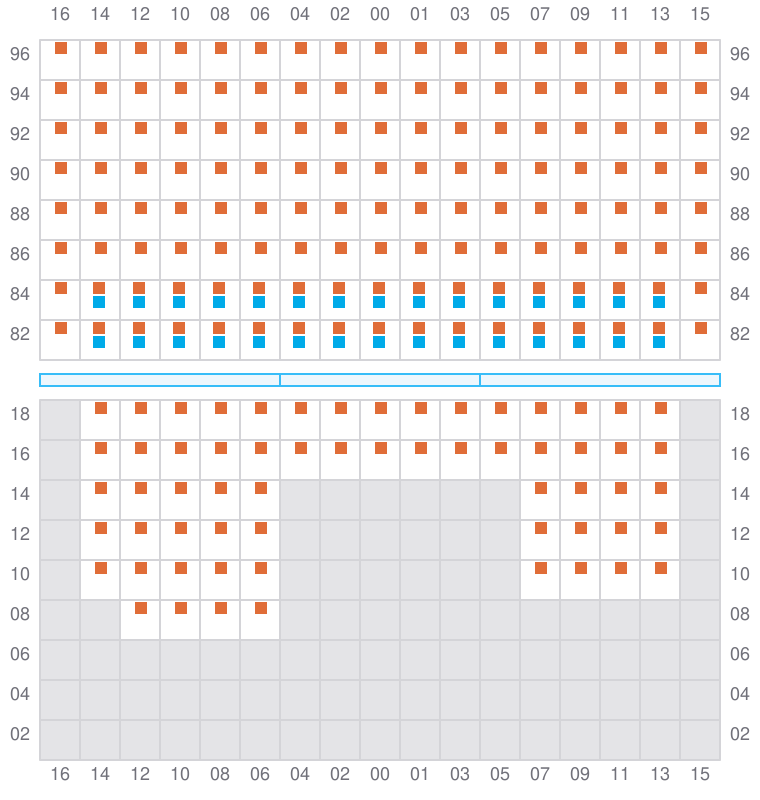

063
- ←
- → / ?
![Bay 063 view and slots of MAERSK STEPNICA](/vessel-images/8aca236c-927d-4dea-aad9-69befcbf776b-b063.png?v=1711144497230)

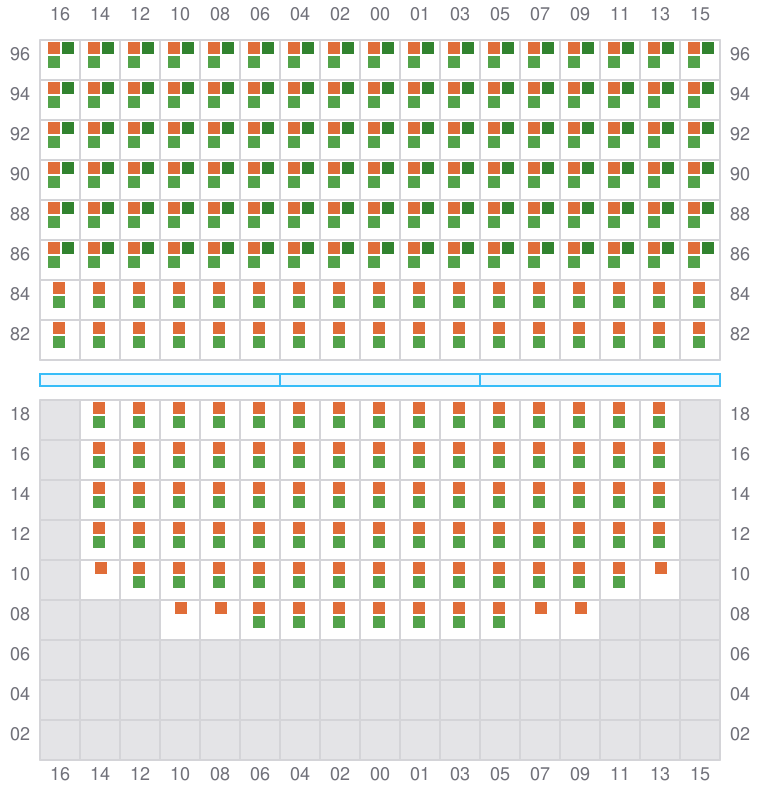

065 (066)
- →
![Bay 065 view and slots of MAERSK STEPNICA](/vessel-images/8aca236c-927d-4dea-aad9-69befcbf776b-b065.png?v=1711144497230)

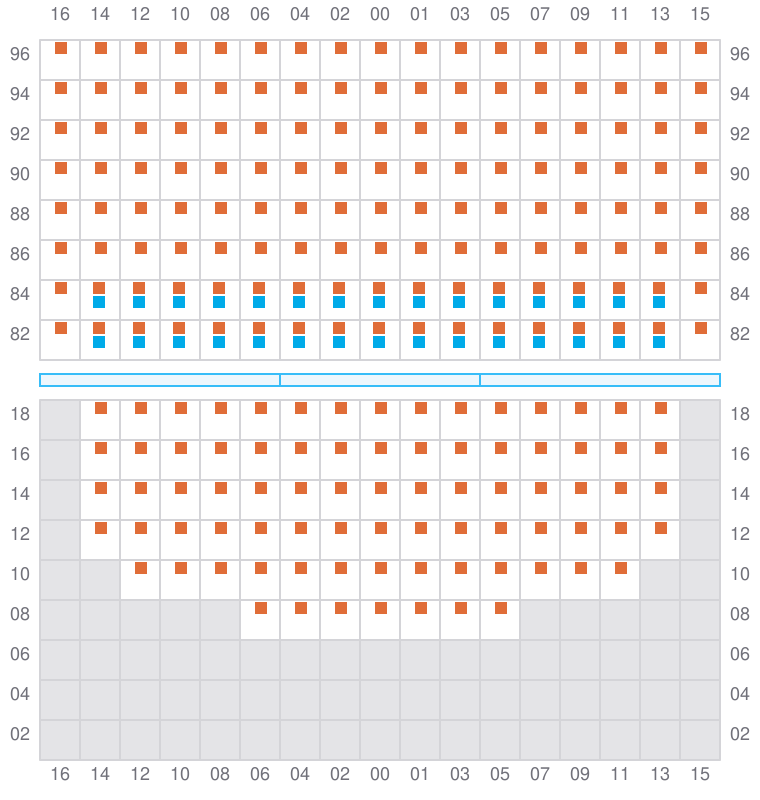

067
- ←
- → / ?
![Bay 067 view and slots of MAERSK STEPNICA](/vessel-images/8aca236c-927d-4dea-aad9-69befcbf776b-b067.png?v=1711144497230)

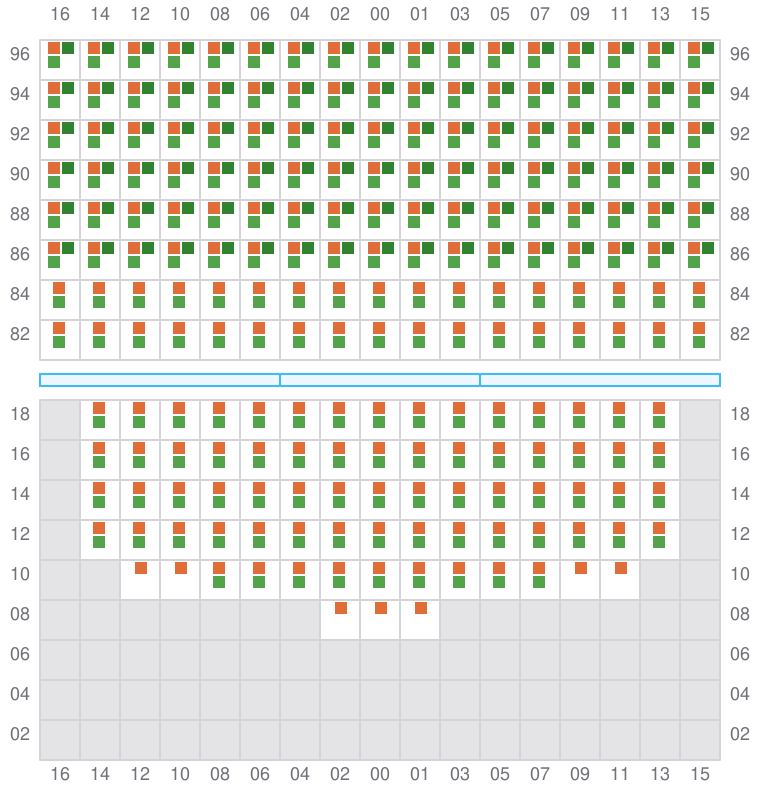

069 (070)
- →
![Bay 069 view and slots of MAERSK STEPNICA](/vessel-images/8aca236c-927d-4dea-aad9-69befcbf776b-b069.png?v=1711144497230)

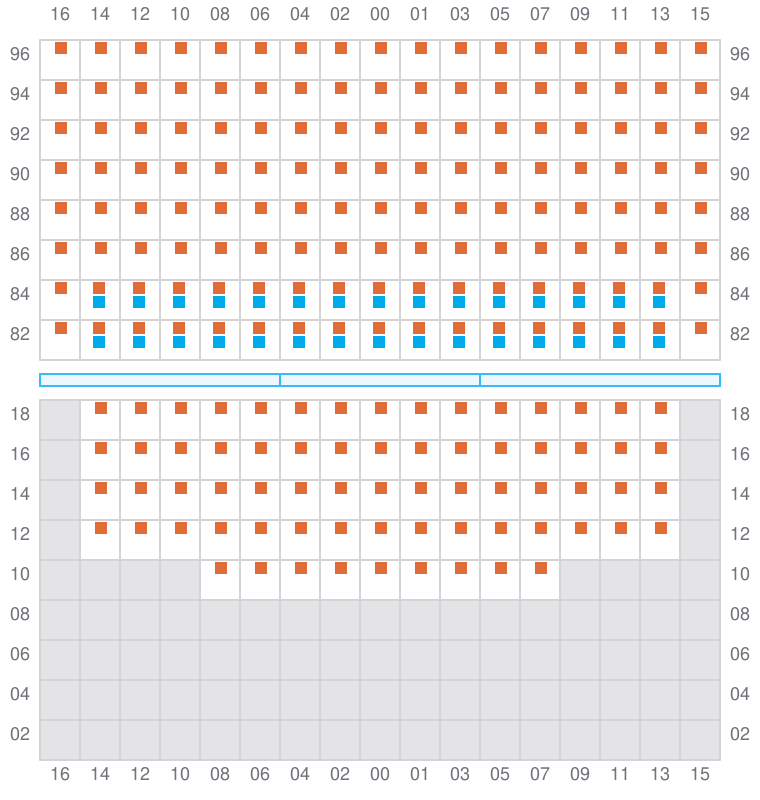

071
- ←
- → / ?
![Bay 071 view and slots of MAERSK STEPNICA](/vessel-images/8aca236c-927d-4dea-aad9-69befcbf776b-b071.png?v=1711144497230)

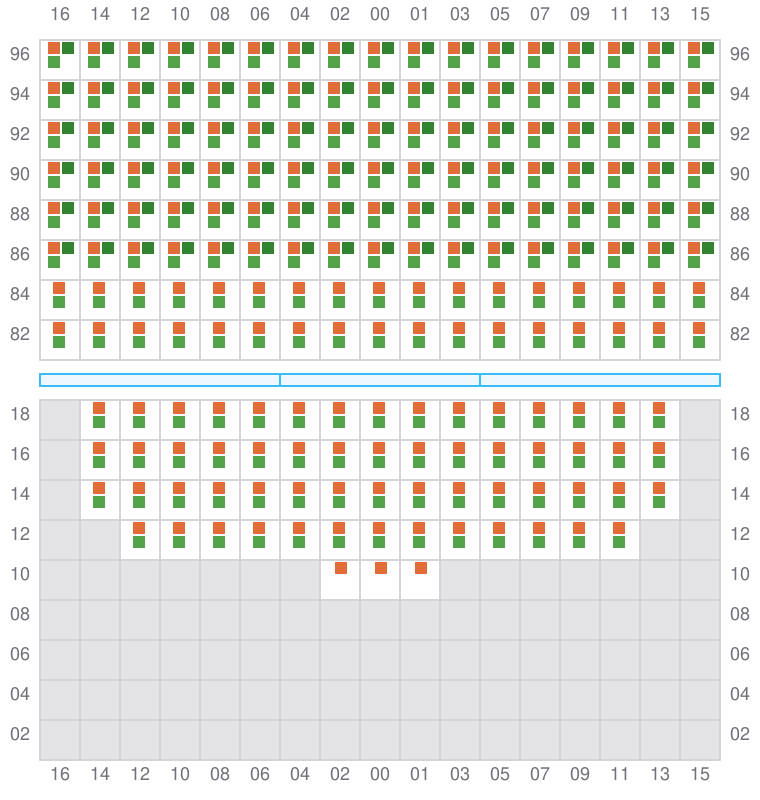

073 (074)
- →
![Bay 073 view and slots of MAERSK STEPNICA](/vessel-images/8aca236c-927d-4dea-aad9-69befcbf776b-b073.png?v=1711144497230)

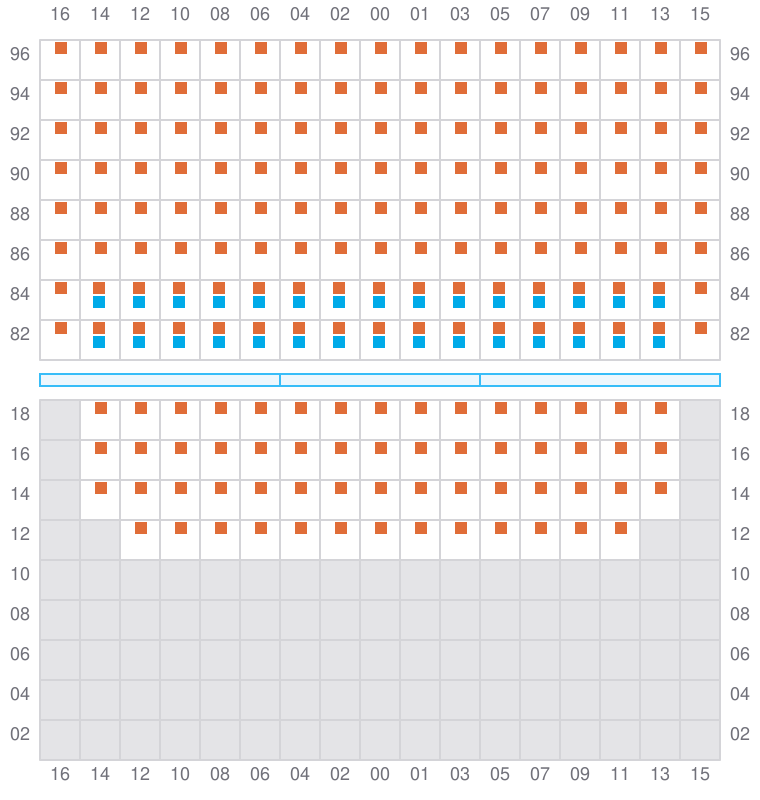

075
- ←
- → / ?
![Bay 075 view and slots of MAERSK STEPNICA](/vessel-images/8aca236c-927d-4dea-aad9-69befcbf776b-b075.png?v=1711144497230)

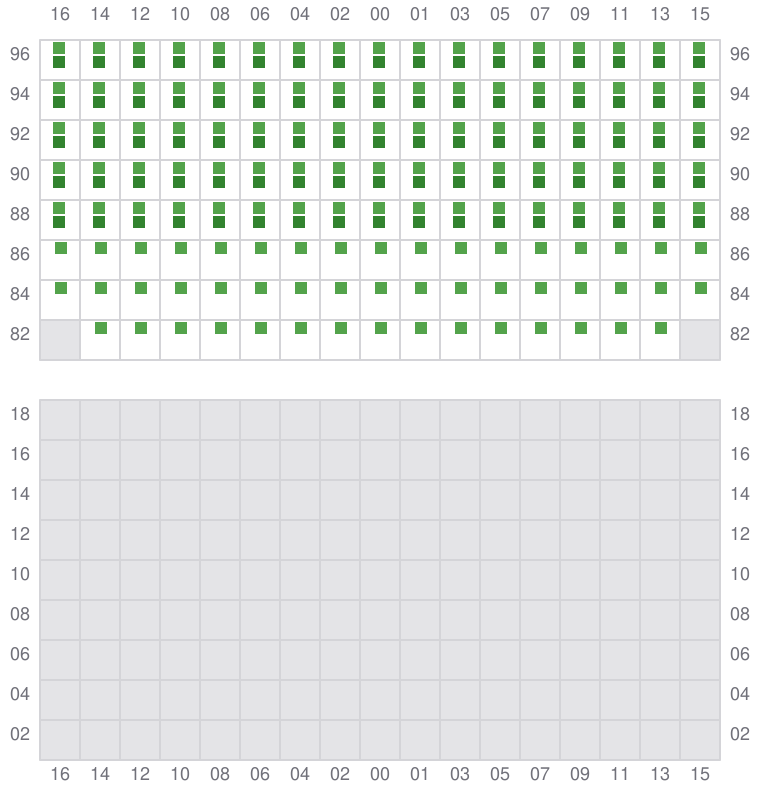

077 (078)
- → / ?
![Bay 077 view and slots of MAERSK STEPNICA](/vessel-images/8aca236c-927d-4dea-aad9-69befcbf776b-b077.png?v=1711144497230)
