MAERSK STRALSUND
9303522 | 9V5634 | MSK by ************************** Last update: Thu Jun 29 2023

General Info

Ship Name:MAERSK STRALSUND
IMO Code:9303522
Call Sign:9V5634
Line Operator:MSK
Class Name for Sister Ships:STR
Year Built:2005
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):318.26
LOA (Length Overall):332.01
Stern to AFT PP:-
Features Informed:
Also Known As (old names):-

Size Summary

ISO Bays:077
Max ISO Row:16
Center Line Row:Yes
Max Above ISO Tier:96
Min Above ISO Tier:80
Max Below ISO Tier:18
Min Below ISO Tier:02
Total TEU:8,411

Centers of Gravity

LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

Side View

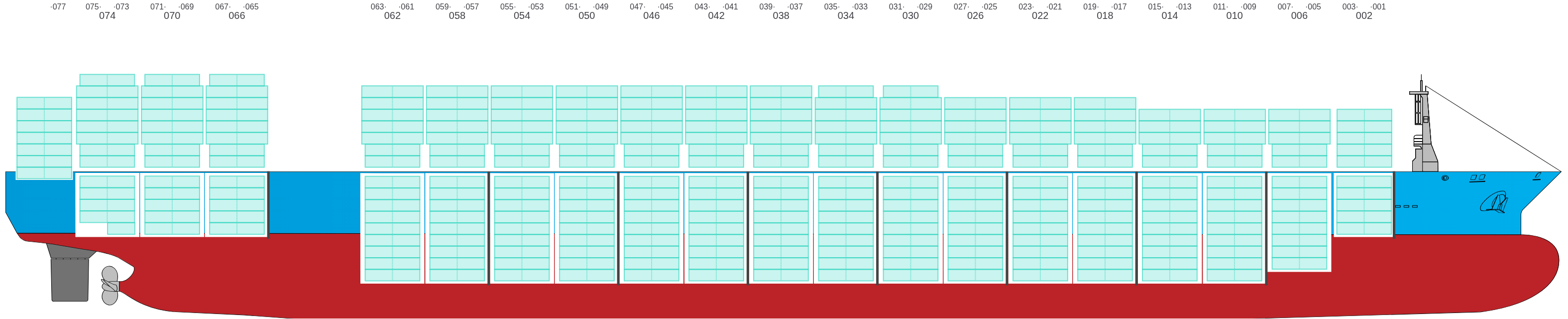

Side view of MAERSK STRALSUND

Hatch-Covers View

Deck view of MAERSK STRALSUND

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot

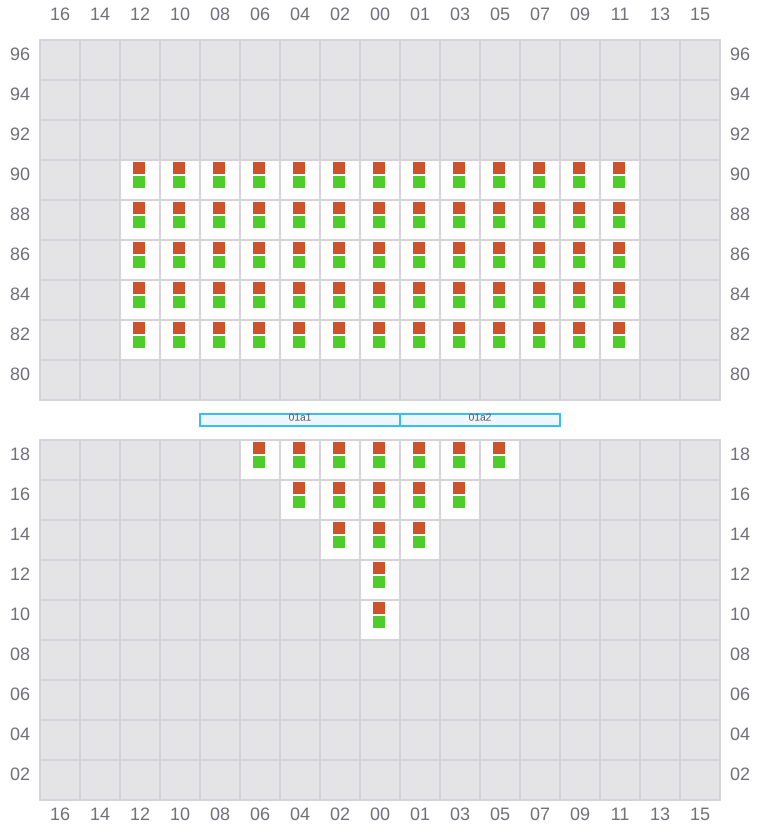

001 (002)

  • →
Bay 001 view and slots of MAERSK STRALSUND

003

  • ←

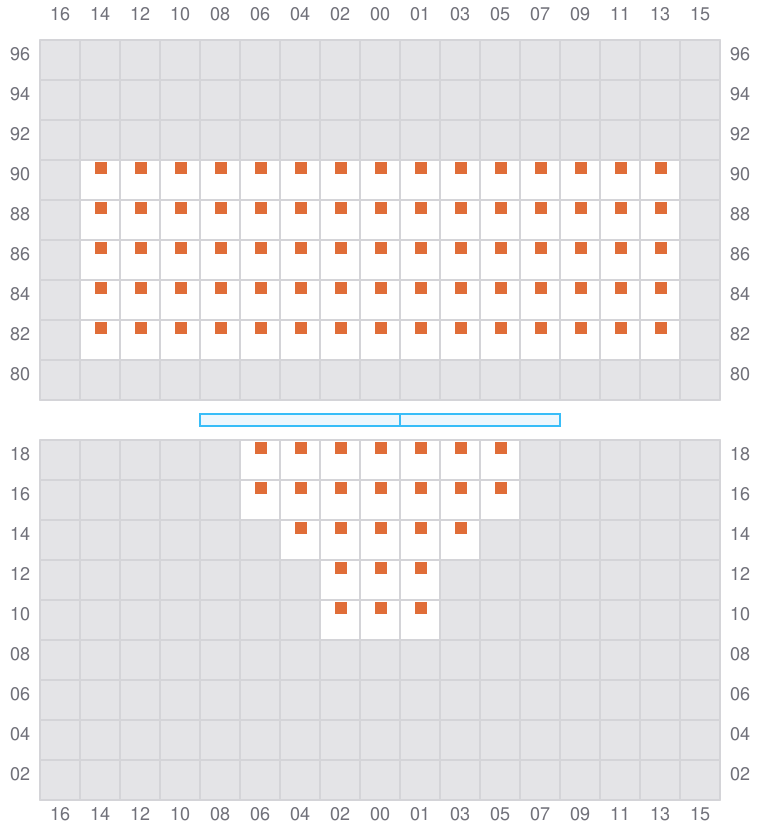

Bay 003 view and slots of MAERSK STRALSUND

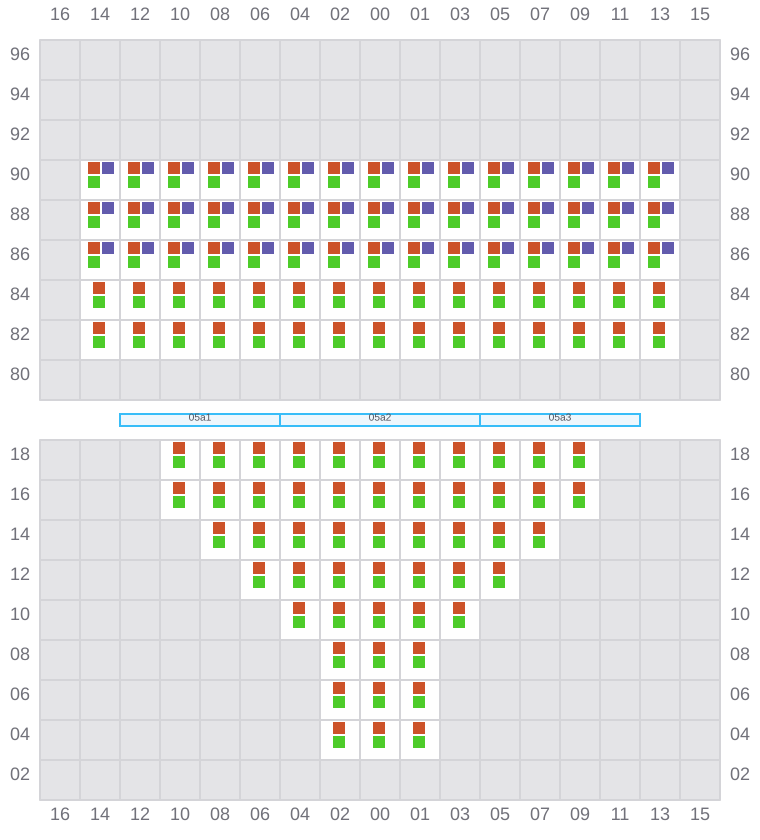

005 (006)

  • →
Bay 005 view and slots of MAERSK STRALSUND

007

  • ←

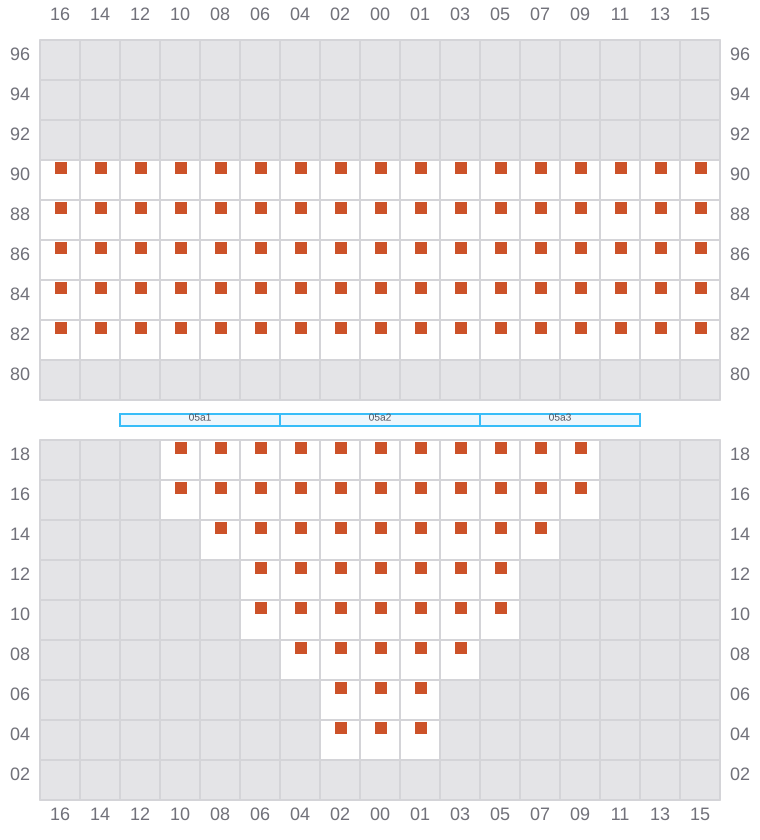

Bay 007 view and slots of MAERSK STRALSUND

009 (010)

  • →
Bay 009 view and slots of MAERSK STRALSUND

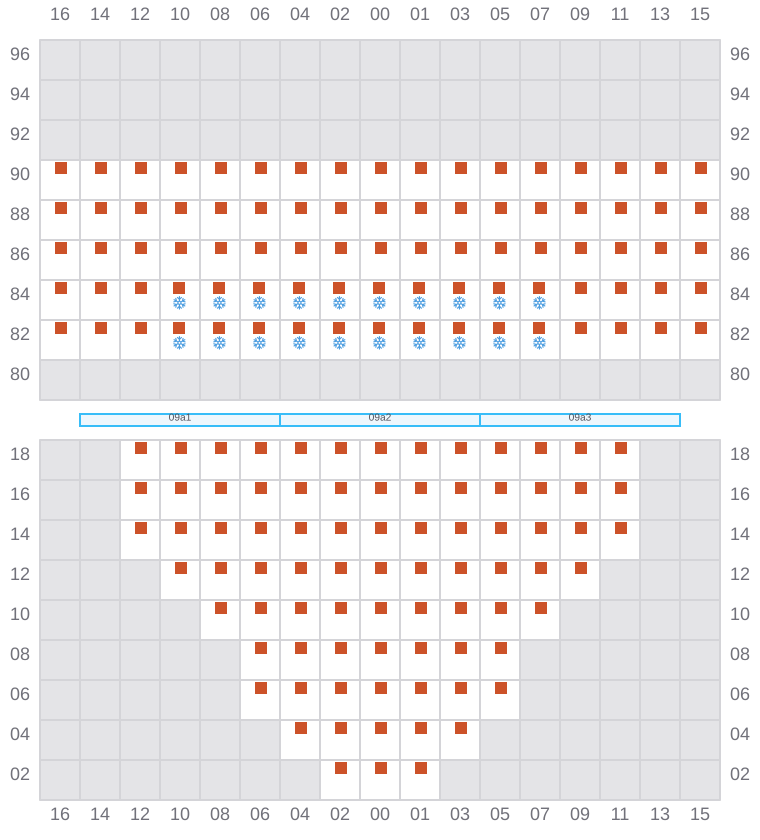

011

  • ←
  • → / ?
Bay 011 view and slots of MAERSK STRALSUND

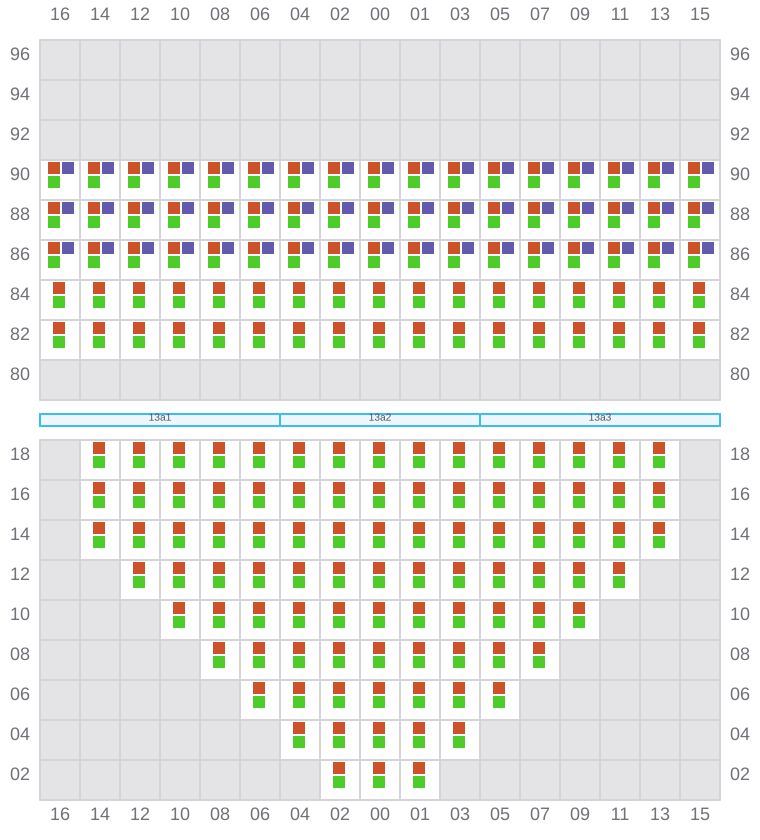

013 (014)

  • →
Bay 013 view and slots of MAERSK STRALSUND

015

  • ←
  • → / ?

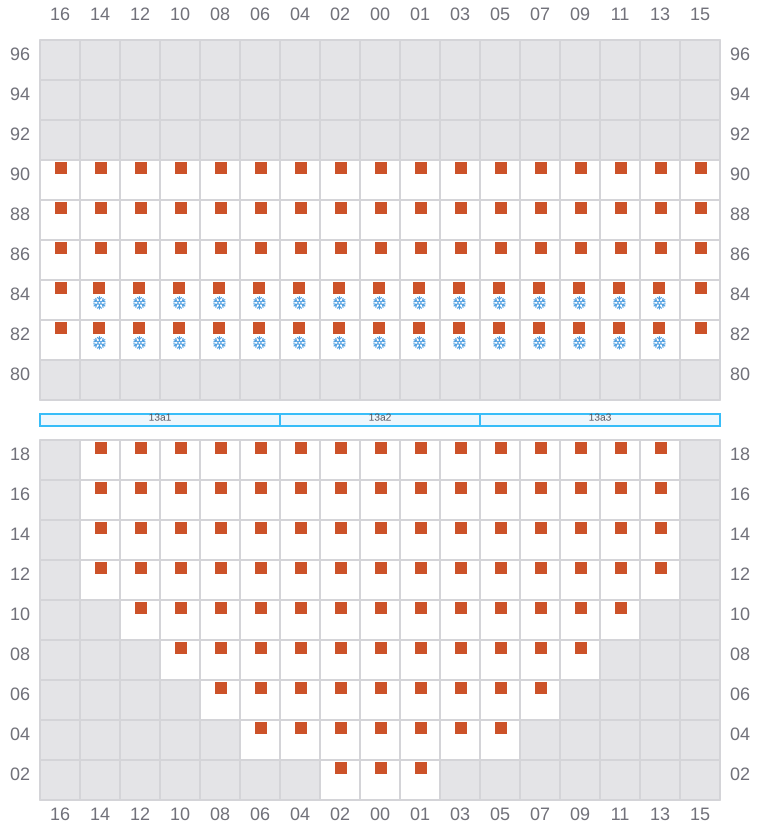

Bay 015 view and slots of MAERSK STRALSUND

017 (018)

  • →

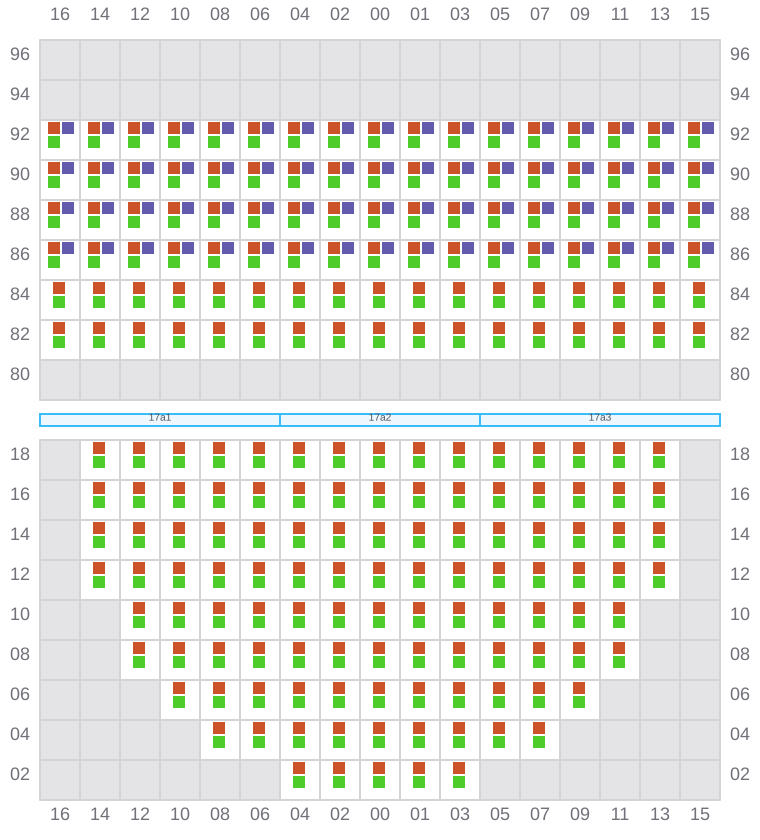

Bay 017 view and slots of MAERSK STRALSUND

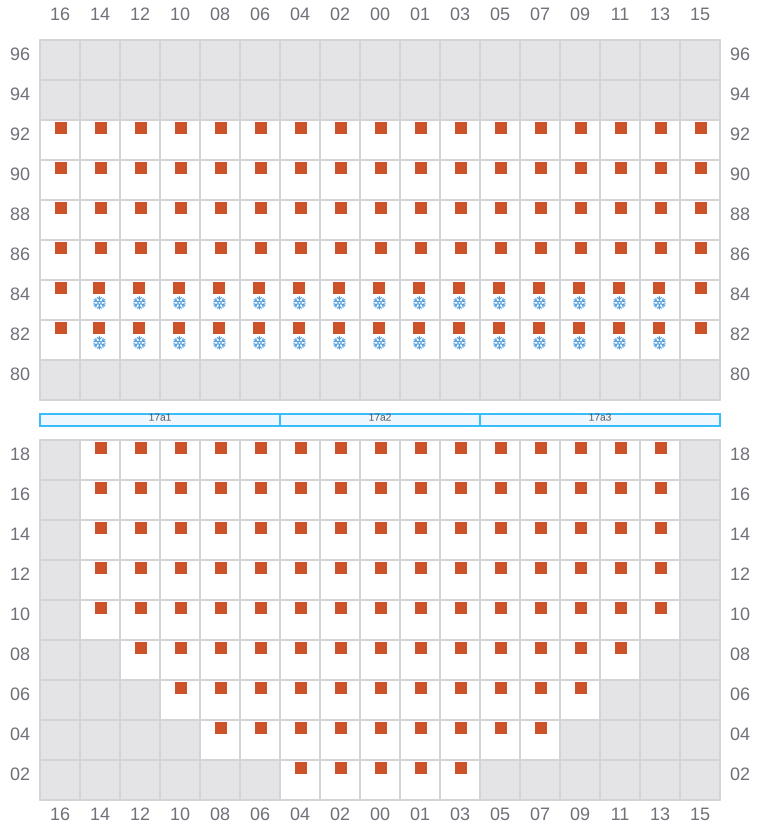

019

  • ←
  • → / ?
Bay 019 view and slots of MAERSK STRALSUND

021 (022)

  • →
Bay 021 view and slots of MAERSK STRALSUND

023

  • ←
  • → / ?

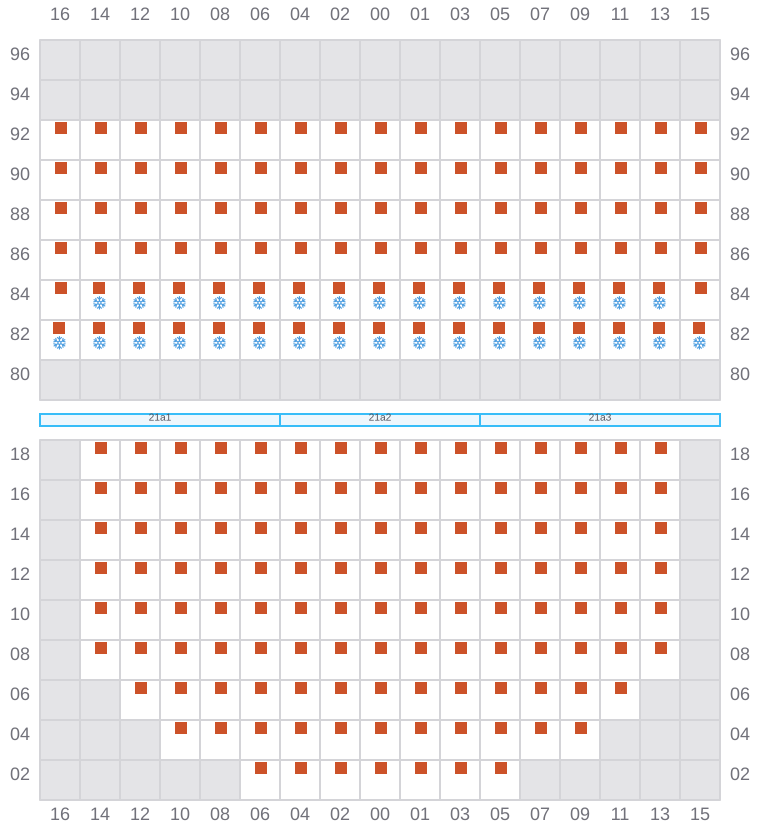

Bay 023 view and slots of MAERSK STRALSUND

025 (026)

  • →

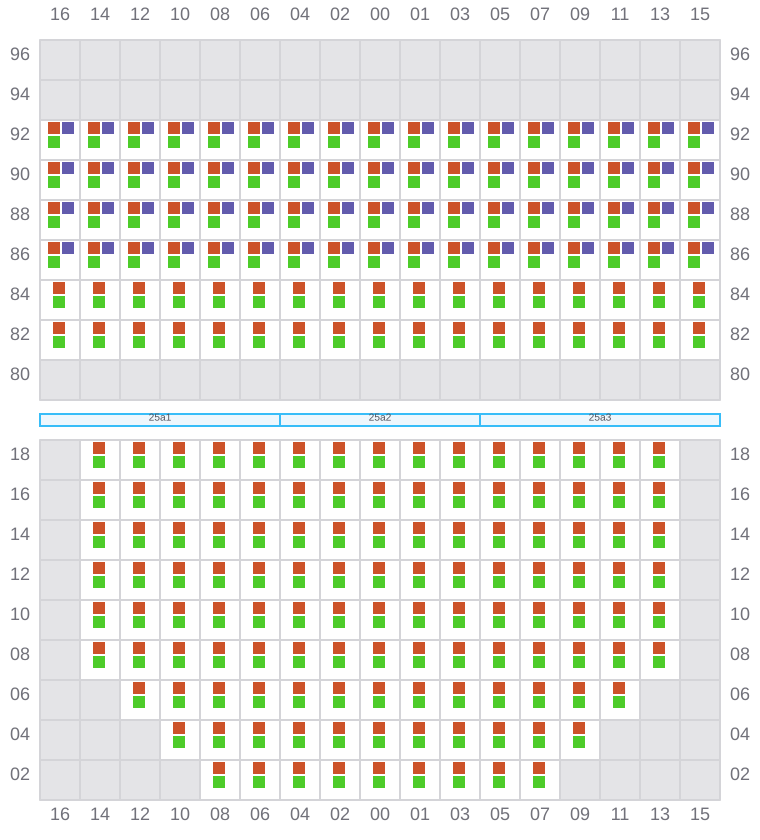

Bay 025 view and slots of MAERSK STRALSUND

027

  • ←
  • → / ?

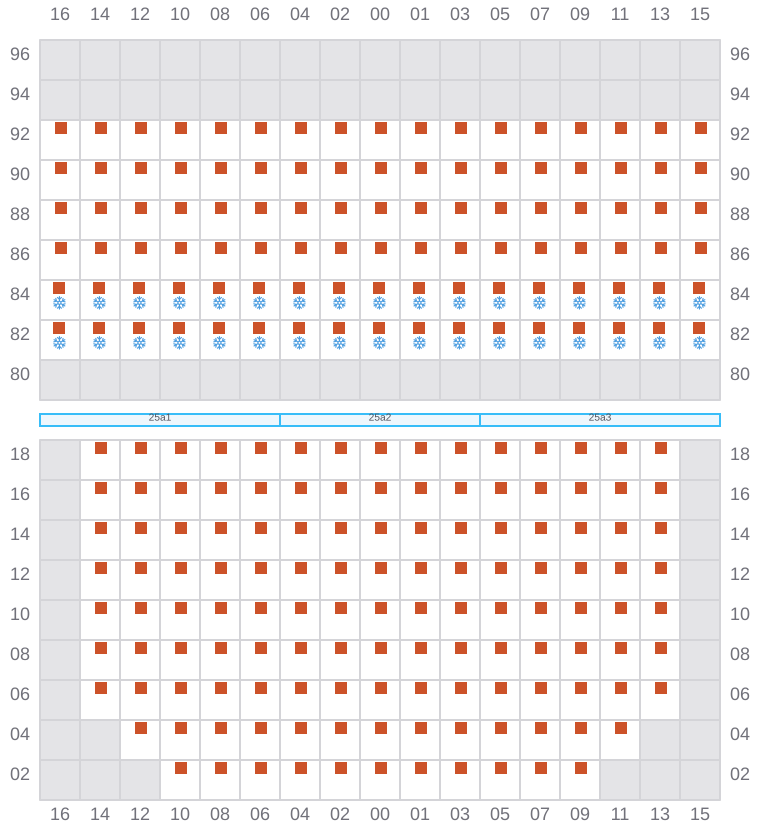

Bay 027 view and slots of MAERSK STRALSUND

029 (030)

  • →

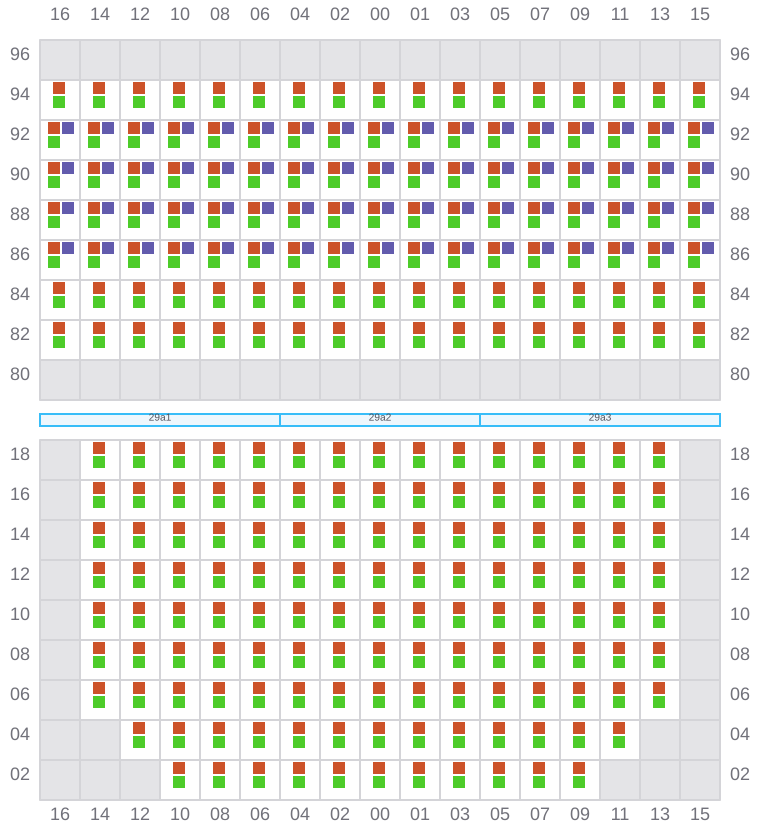

Bay 029 view and slots of MAERSK STRALSUND

031

  • ←
  • → / ?

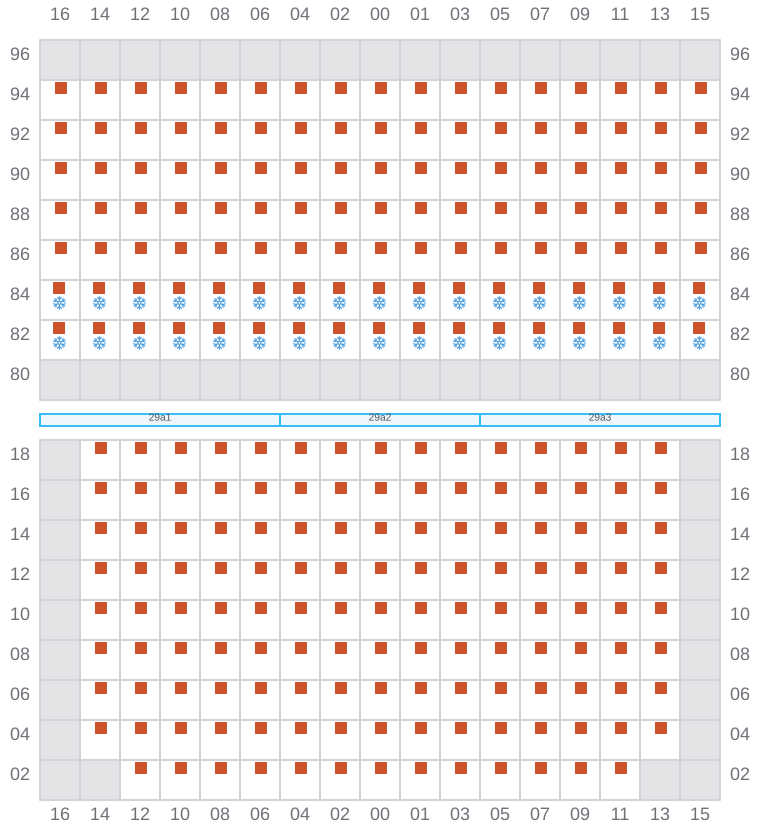

Bay 031 view and slots of MAERSK STRALSUND

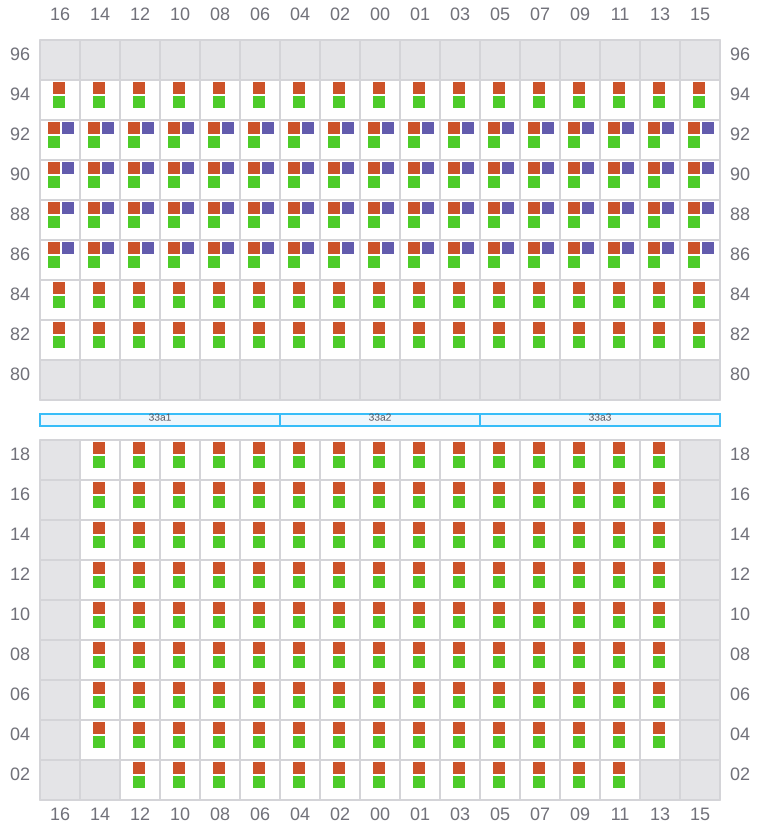

033 (034)

  • →
Bay 033 view and slots of MAERSK STRALSUND

035

  • ←
  • → / ?
Bay 035 view and slots of MAERSK STRALSUND

037 (038)

  • →
Bay 037 view and slots of MAERSK STRALSUND

039

  • ←
  • → / ?

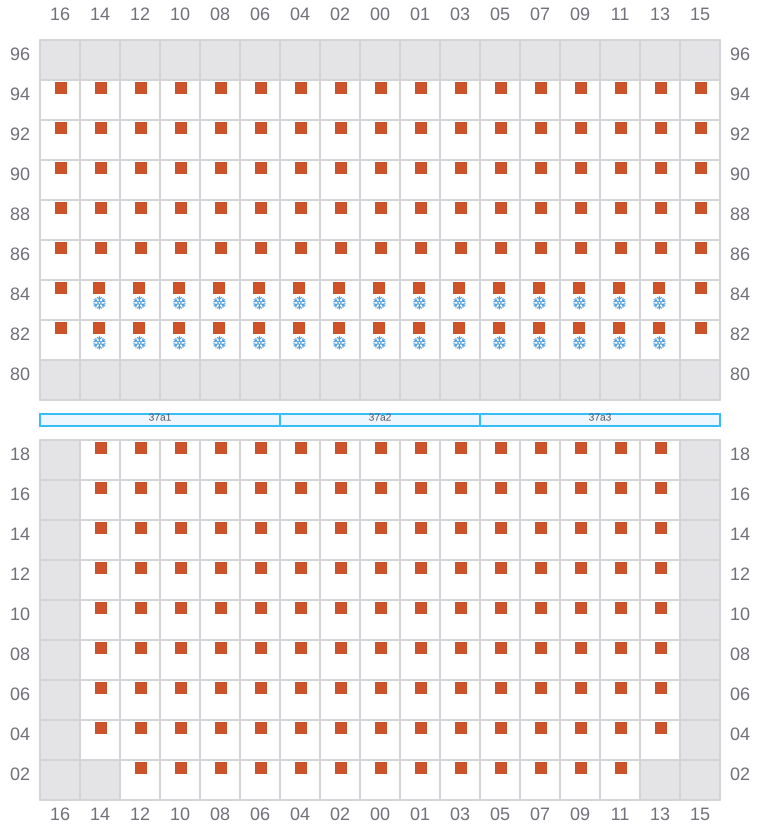

Bay 039 view and slots of MAERSK STRALSUND

041 (042)

  • →
Bay 041 view and slots of MAERSK STRALSUND

043

  • ←
  • → / ?
Bay 043 view and slots of MAERSK STRALSUND

045 (046)

  • →
Bay 045 view and slots of MAERSK STRALSUND

047

  • ←
  • → / ?
Bay 047 view and slots of MAERSK STRALSUND

049 (050)

  • →
Bay 049 view and slots of MAERSK STRALSUND

051

  • ←
  • →
Bay 051 view and slots of MAERSK STRALSUND

053 (054)

  • →

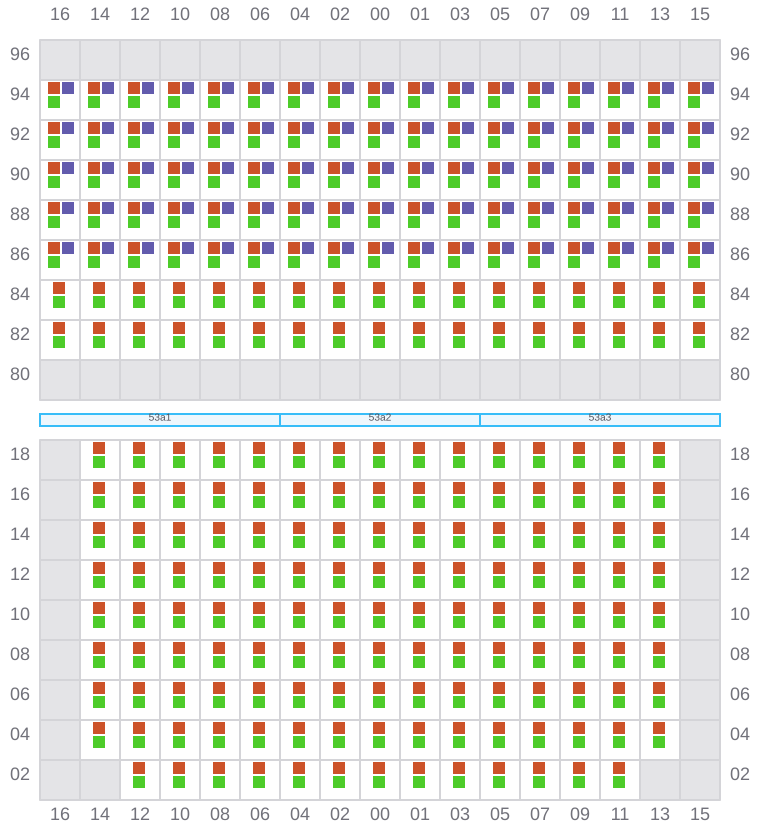

Bay 053 view and slots of MAERSK STRALSUND

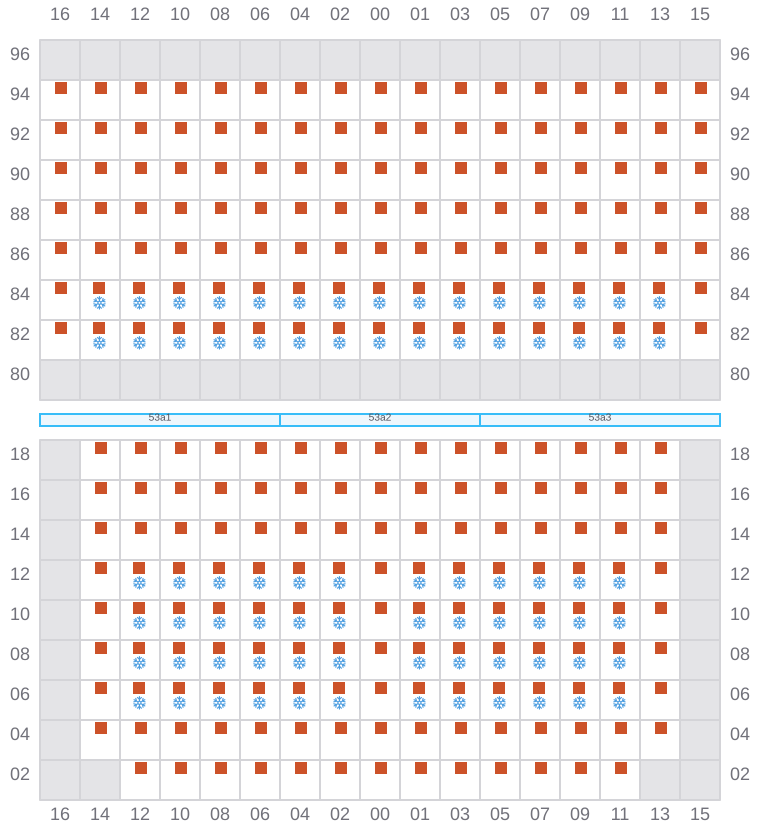

055

  • ←
  • →
Bay 055 view and slots of MAERSK STRALSUND

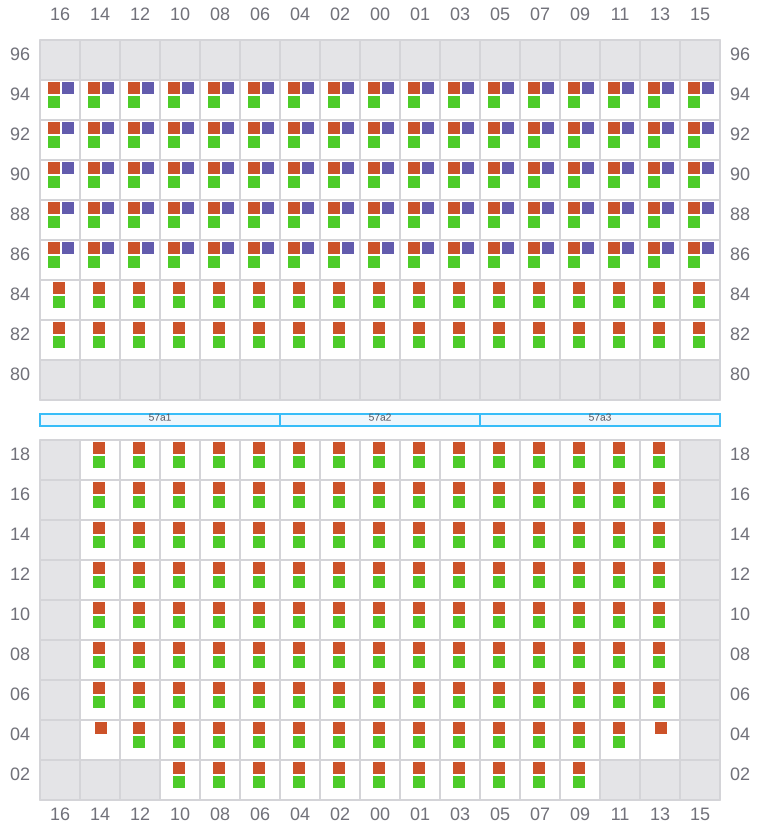

057 (058)

  • →
Bay 057 view and slots of MAERSK STRALSUND

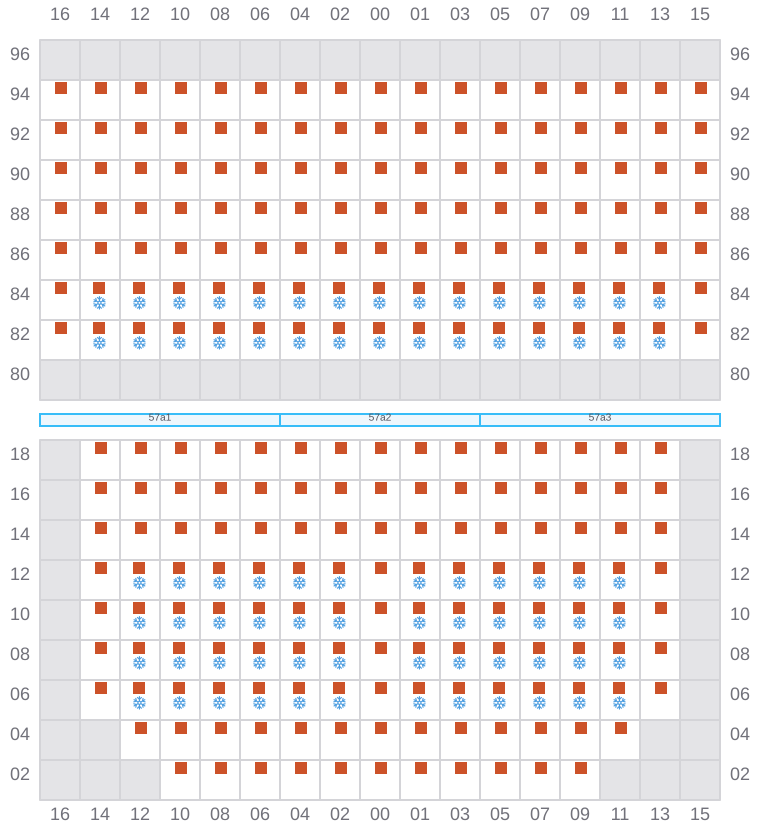

059

  • ←
  • →
Bay 059 view and slots of MAERSK STRALSUND

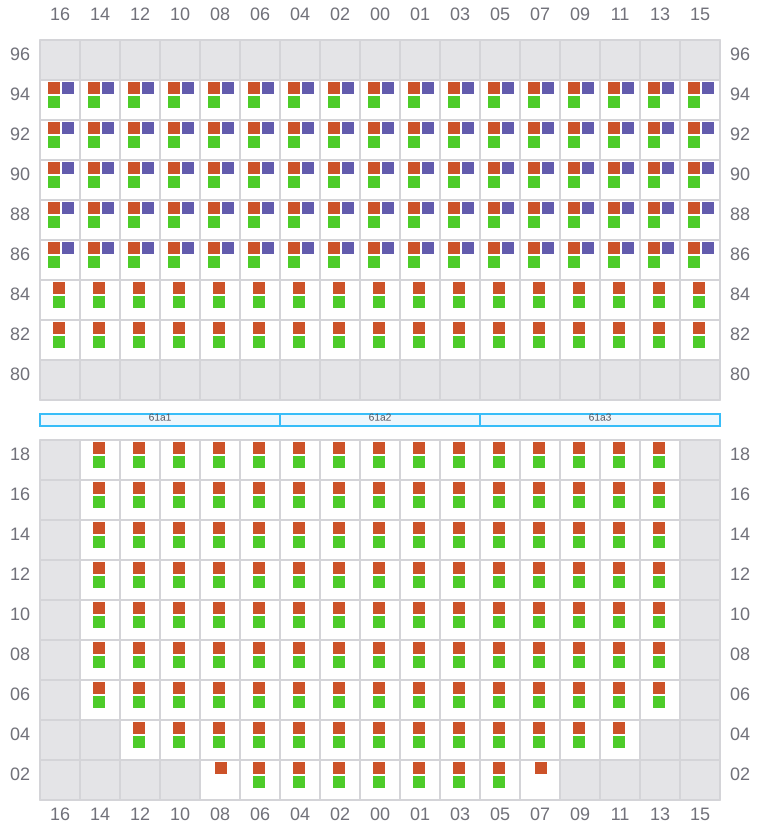

061 (062)

  • →
Bay 061 view and slots of MAERSK STRALSUND

063

  • ←
  • →

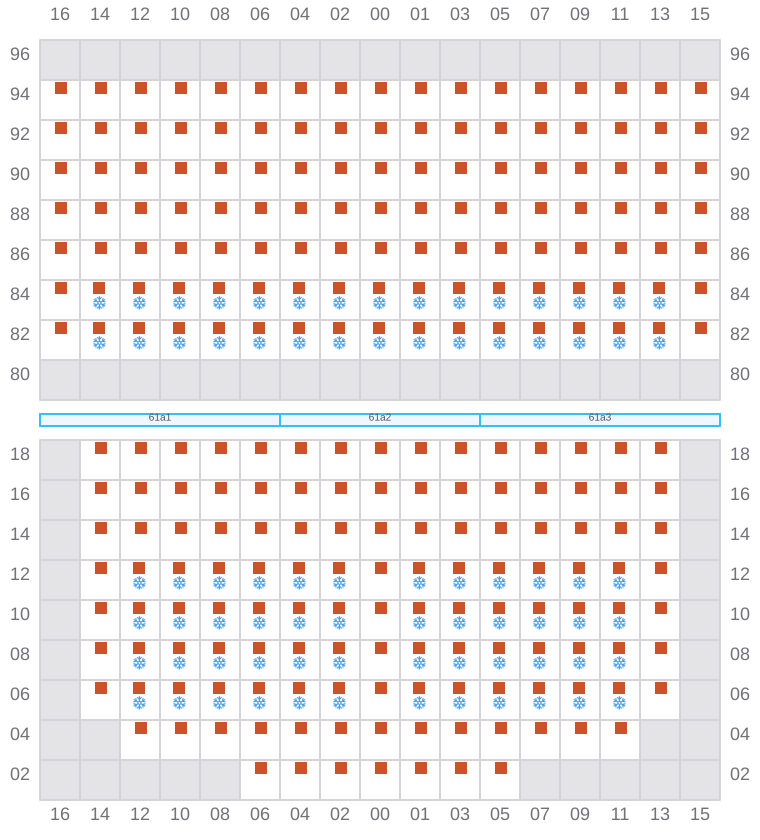

Bay 063 view and slots of MAERSK STRALSUND

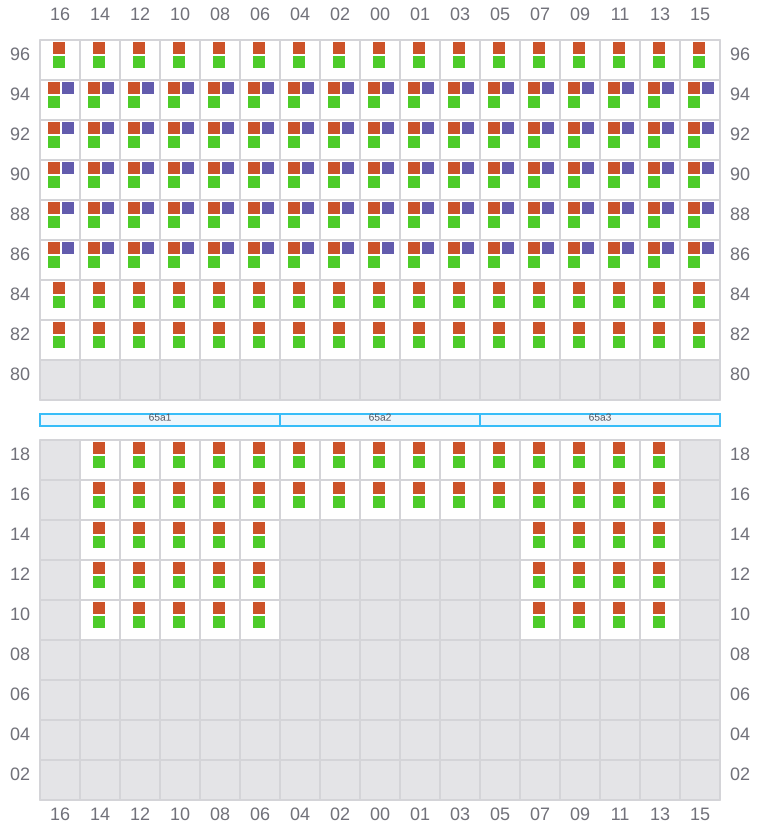

065 (066)

  • →
Bay 065 view and slots of MAERSK STRALSUND

067

  • ←
  • → / ?

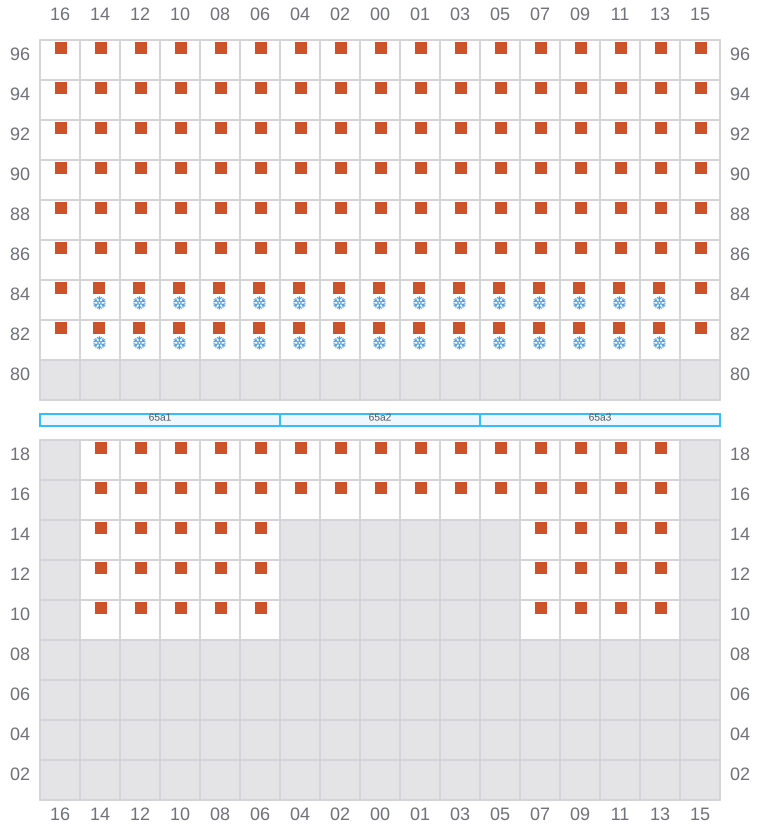

Bay 067 view and slots of MAERSK STRALSUND

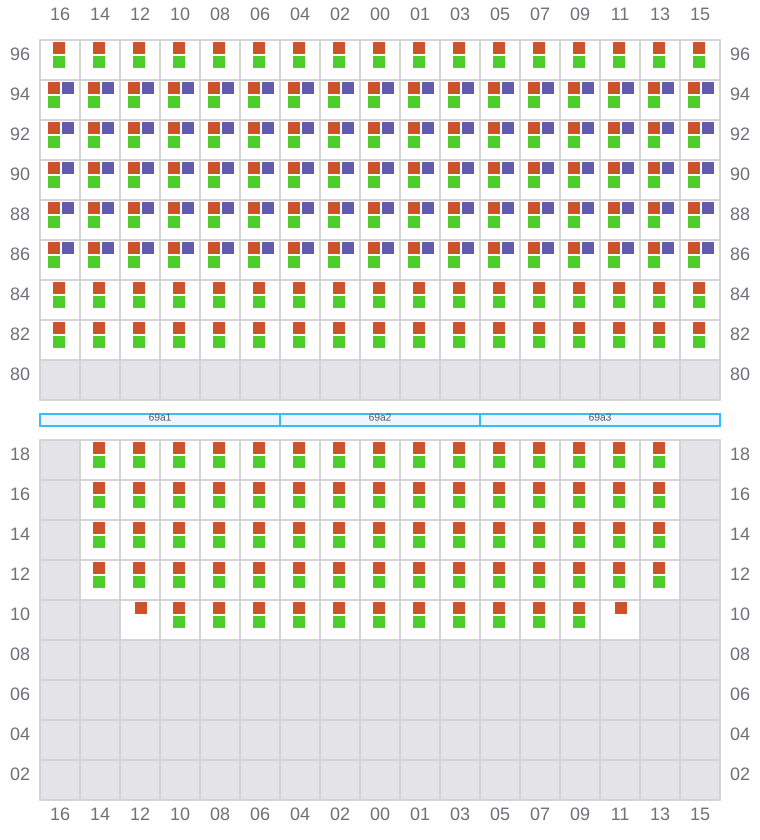

069 (070)

  • →
Bay 069 view and slots of MAERSK STRALSUND

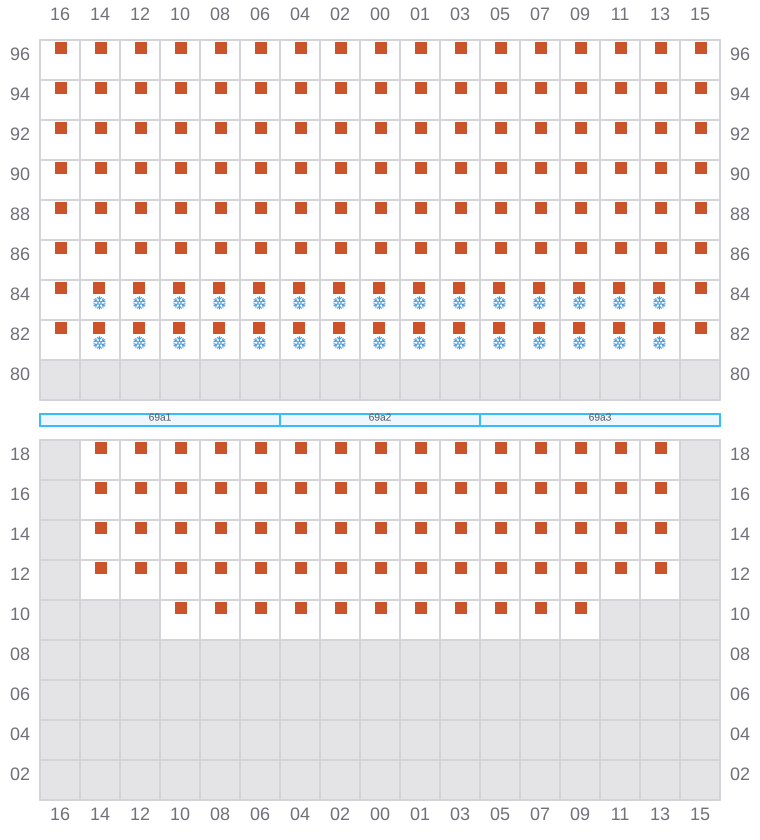

071

  • ←
  • → / ?
Bay 071 view and slots of MAERSK STRALSUND

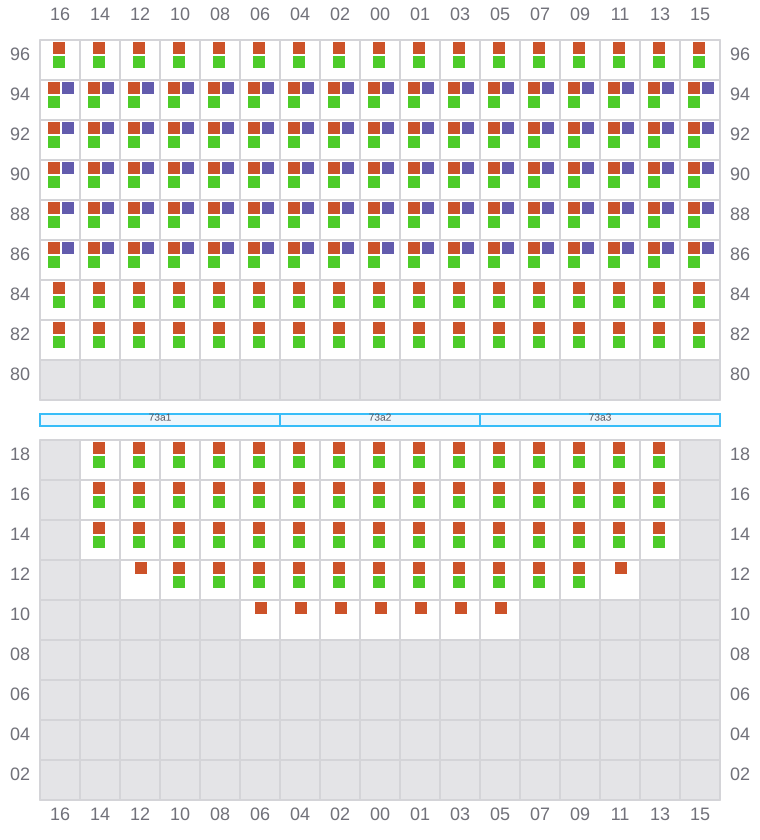

073 (074)

  • →
Bay 073 view and slots of MAERSK STRALSUND

075

  • ←
  • → / ?

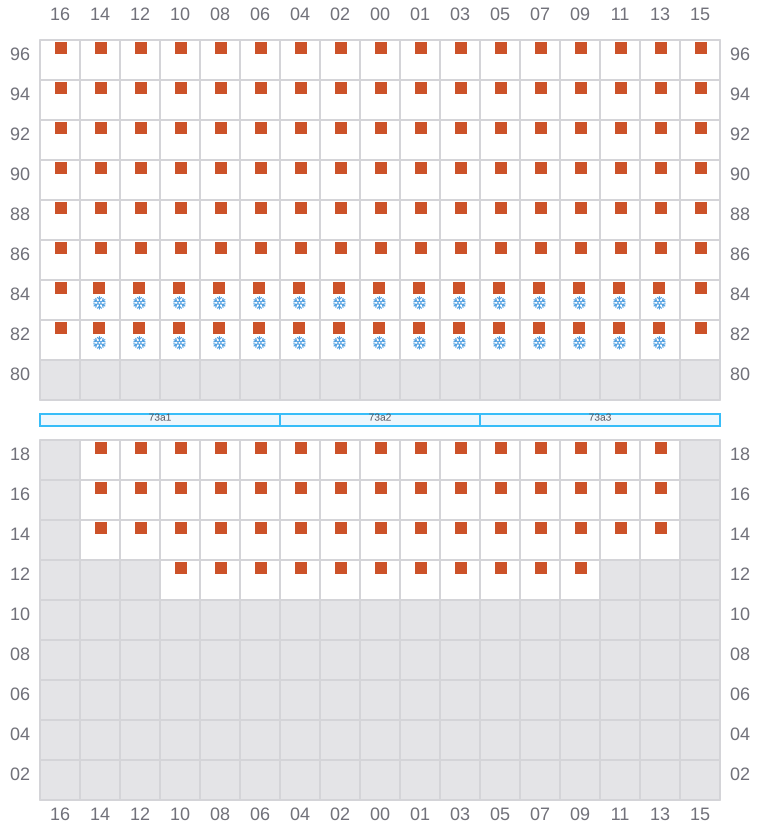

Bay 075 view and slots of MAERSK STRALSUND

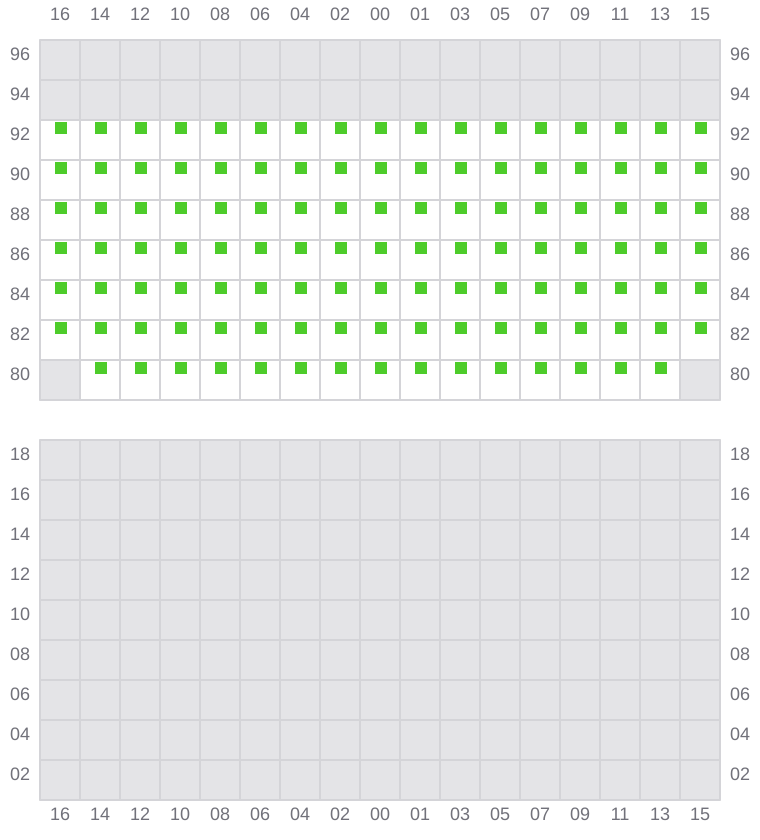

077 (078)

  • → / ?
Bay 077 view and slots of MAERSK STRALSUND
