MAERSK SYDNEY
9289958 | 9V5241 | 9289958 by ********* Last update: Sat Mar 16 2024

General Info

Ship Name:MAERSK SYDNEY
IMO Code:9289958
Call Sign:9V5241
Line Operator:9289958
Class Name for Sister Ships:8RF
Year Built:2005
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As (old names):-

Size Summary

ISO Bays:077
Max ISO Row:16
Center Line Row:Yes
Max Above ISO Tier:96
Min Above ISO Tier:82
Max Below ISO Tier:18
Min Below ISO Tier:02
Total TEU:8,450

Centers of Gravity

LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

Side View

Side view of MAERSK SYDNEY

Hatch-Covers View

Deck view of MAERSK SYDNEY

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot

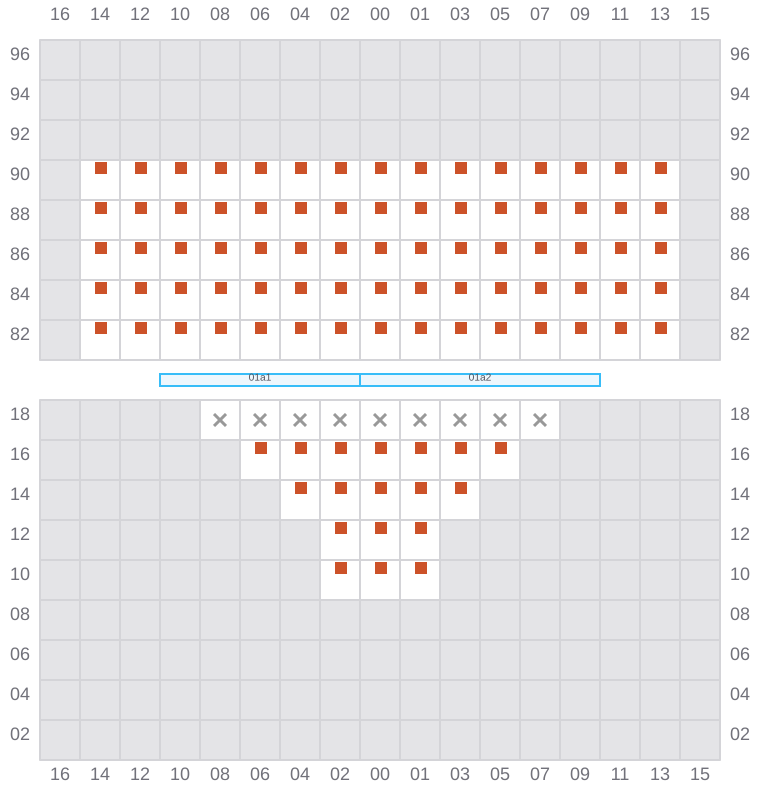

001 (002)

  • →

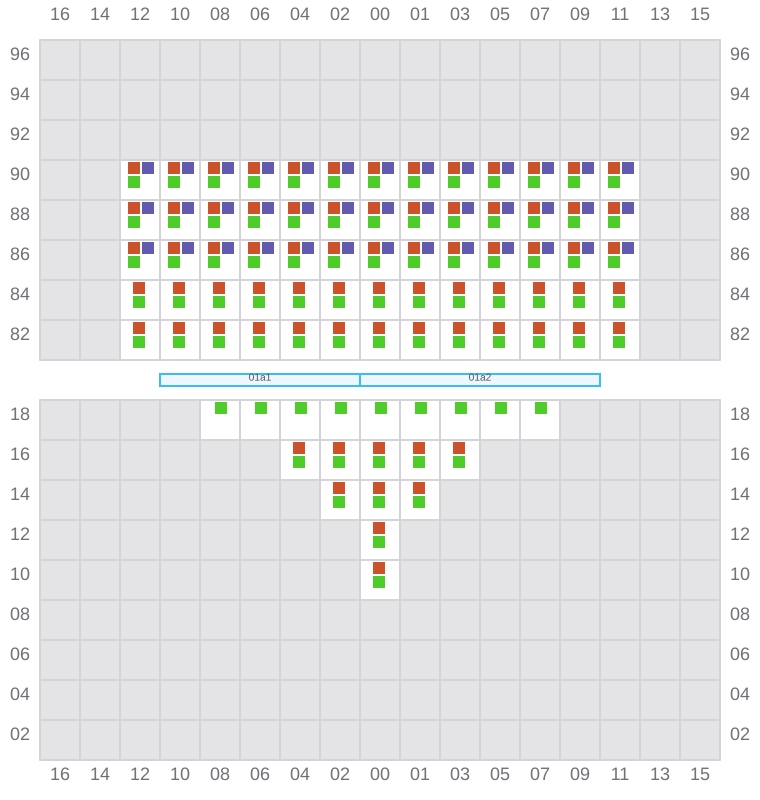

Bay 001 view and slots of MAERSK SYDNEY

003

  • ←
Bay 003 view and slots of MAERSK SYDNEY

005 (006)

  • →

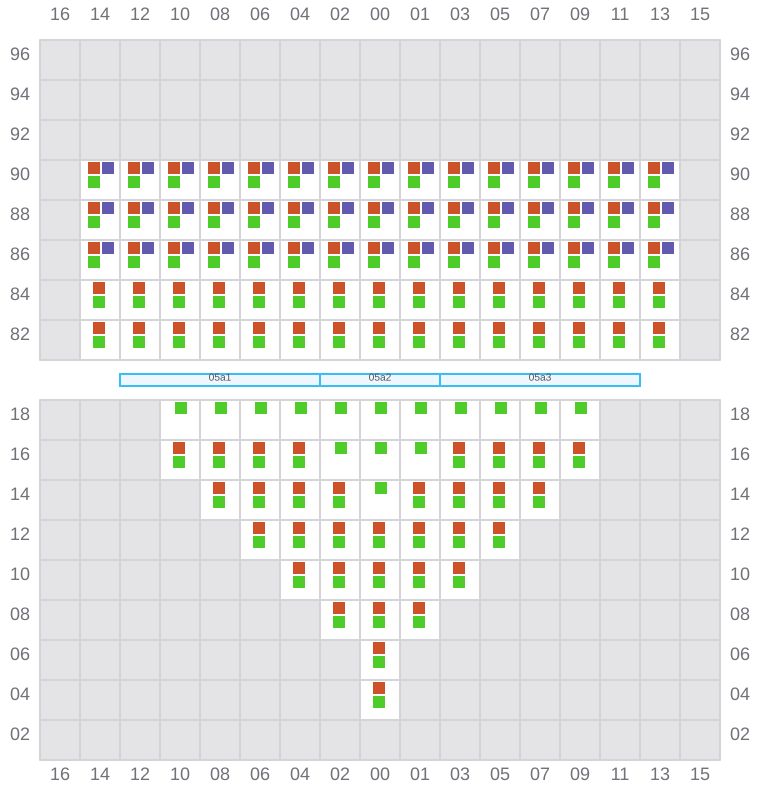

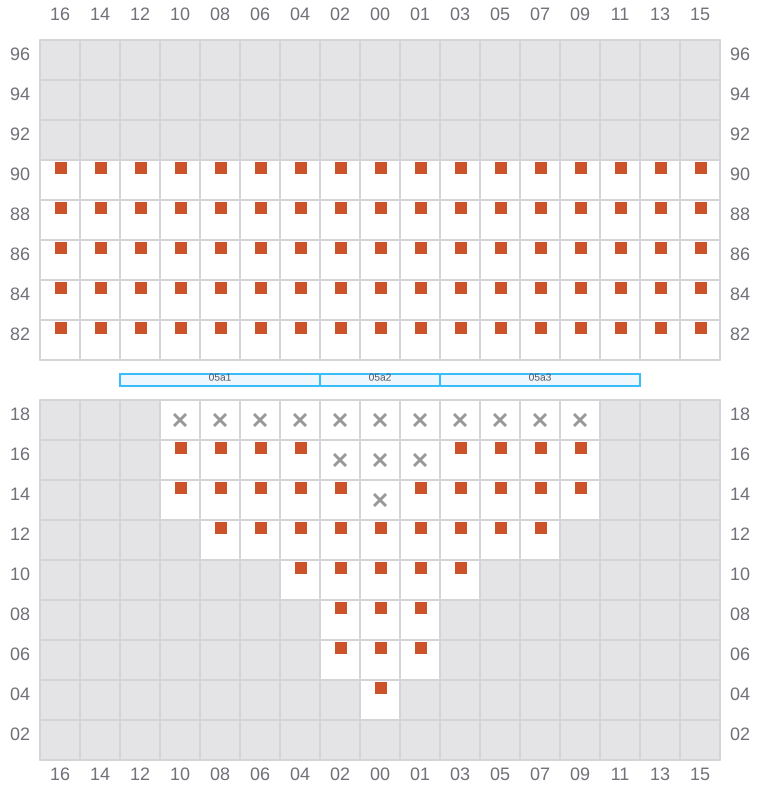

Bay 005 view and slots of MAERSK SYDNEY

007

  • ←
Bay 007 view and slots of MAERSK SYDNEY

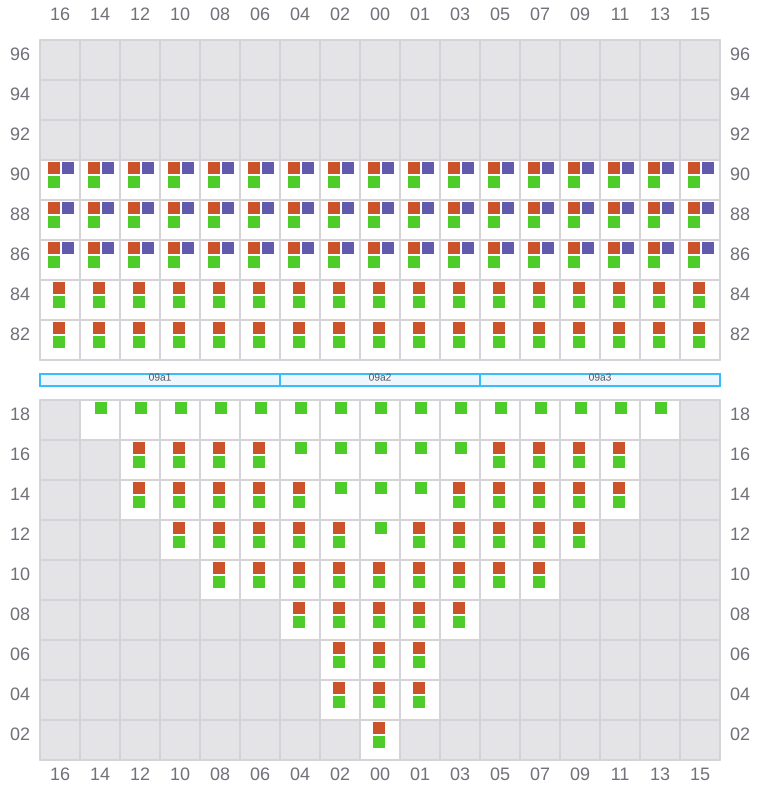

009 (010)

  • →

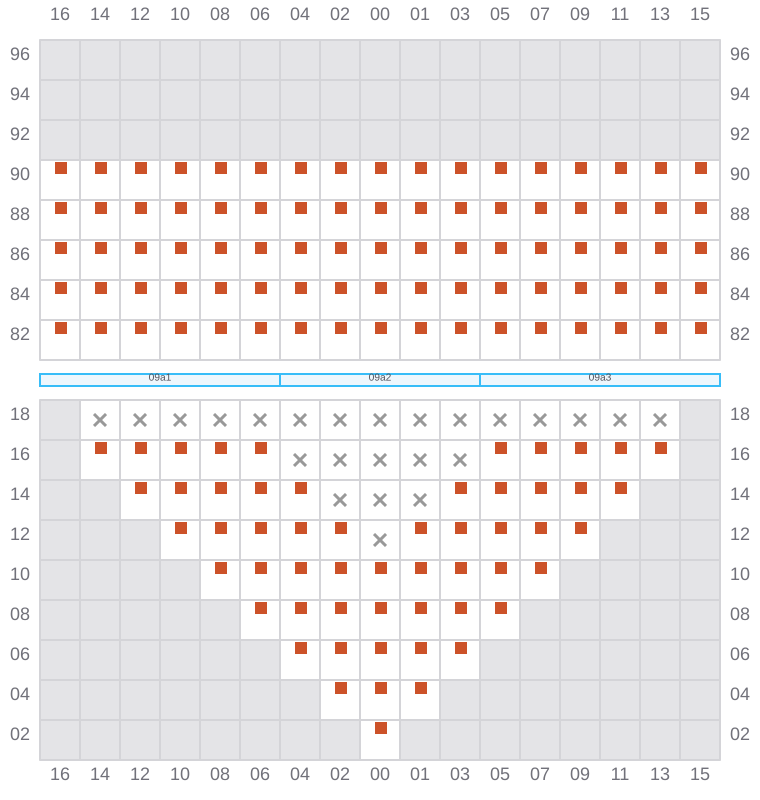

Bay 009 view and slots of MAERSK SYDNEY

011

  • ←
Bay 011 view and slots of MAERSK SYDNEY

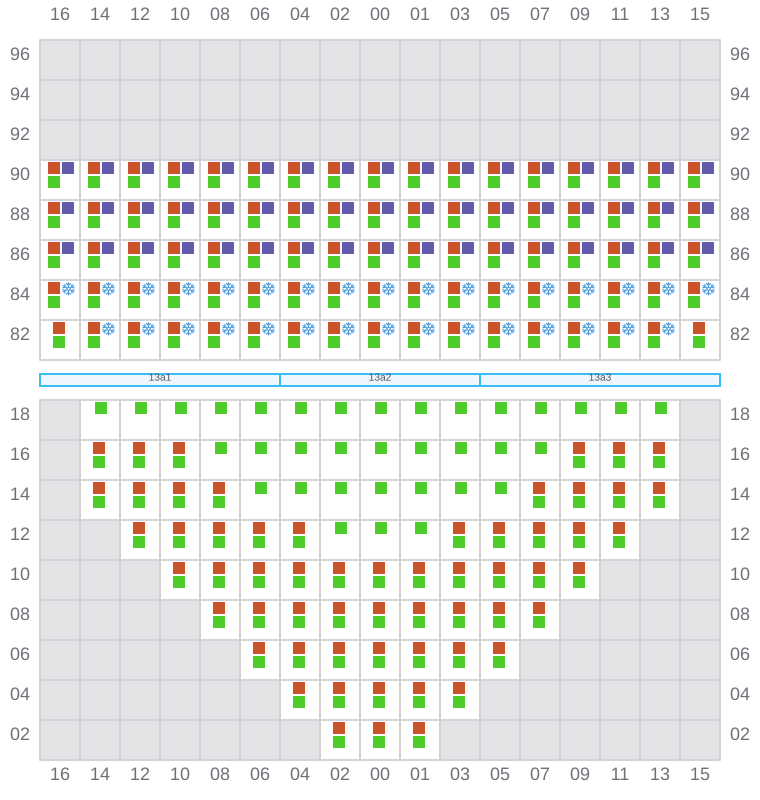

013 (014)

  • →
  • ← / ?
Bay 013 view and slots of MAERSK SYDNEY

015

  • ←
Bay 015 view and slots of MAERSK SYDNEY

017 (018)

  • → / ?

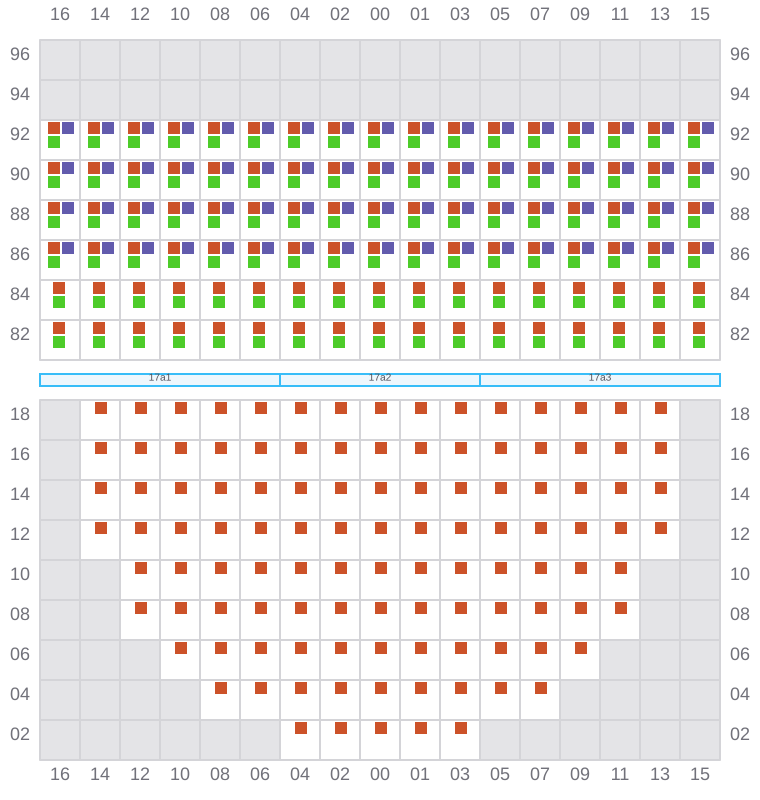

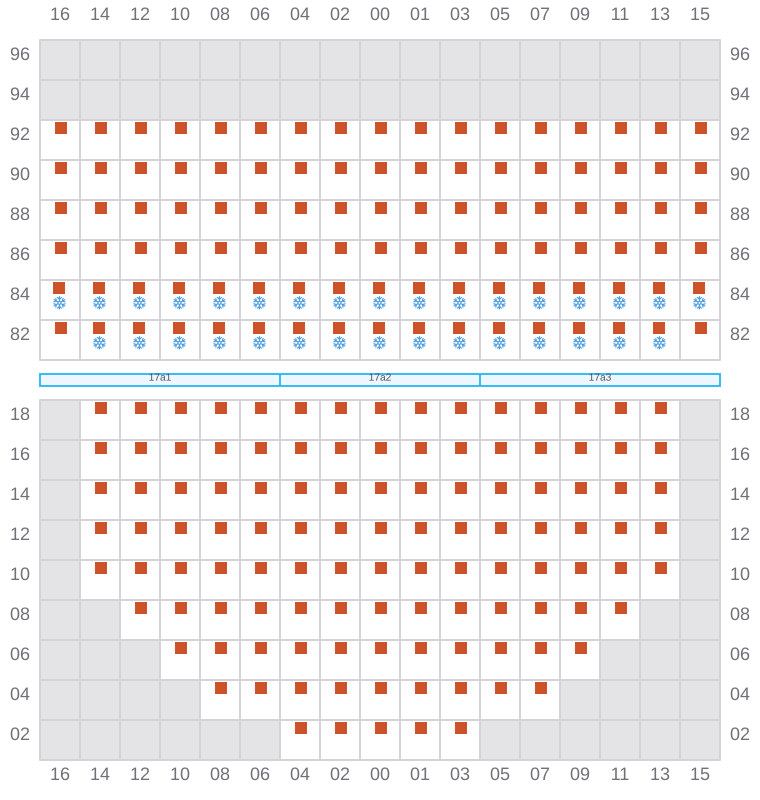

Bay 017 view and slots of MAERSK SYDNEY

019

  • ← / ?
  • → / ?
Bay 019 view and slots of MAERSK SYDNEY

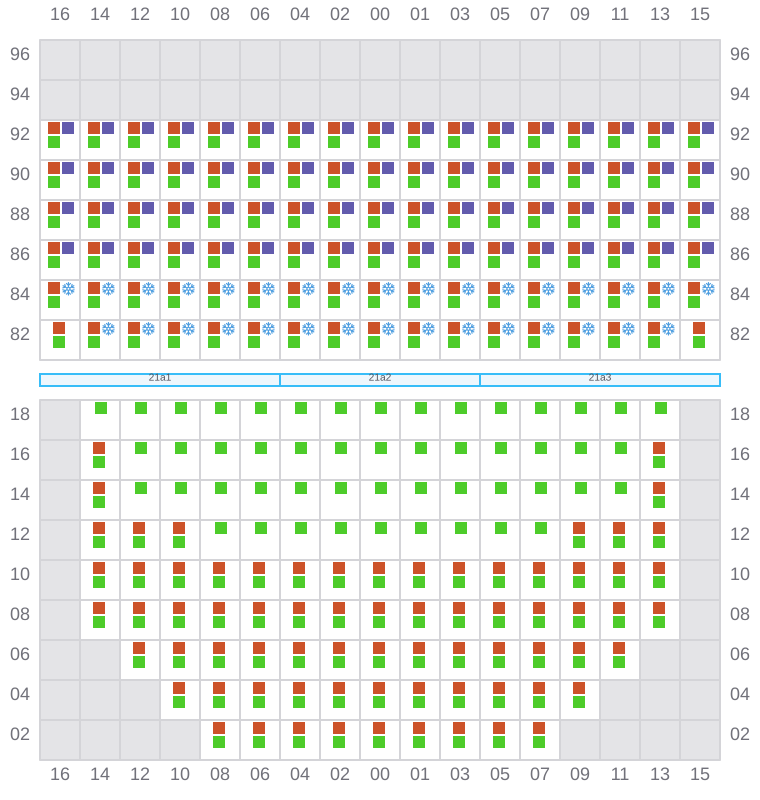

021 (022)

  • →

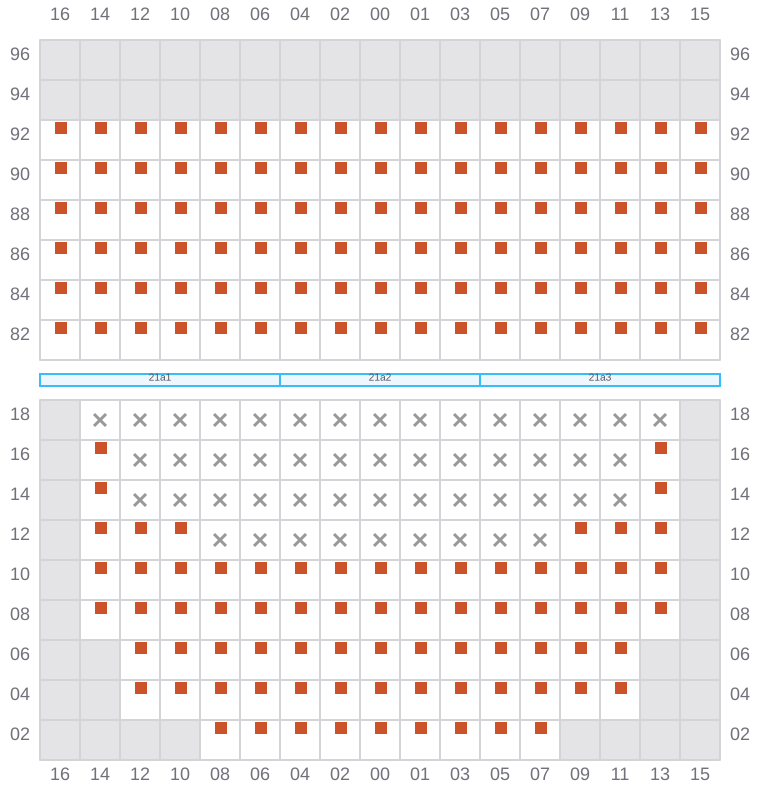

Bay 021 view and slots of MAERSK SYDNEY

023

  • ←
Bay 023 view and slots of MAERSK SYDNEY

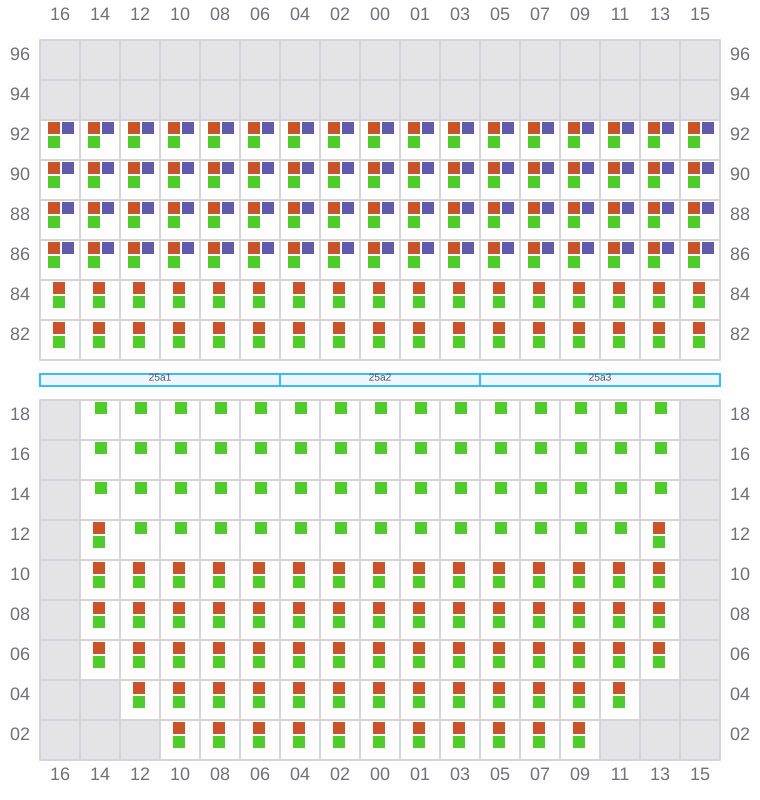

025 (026)

  • →

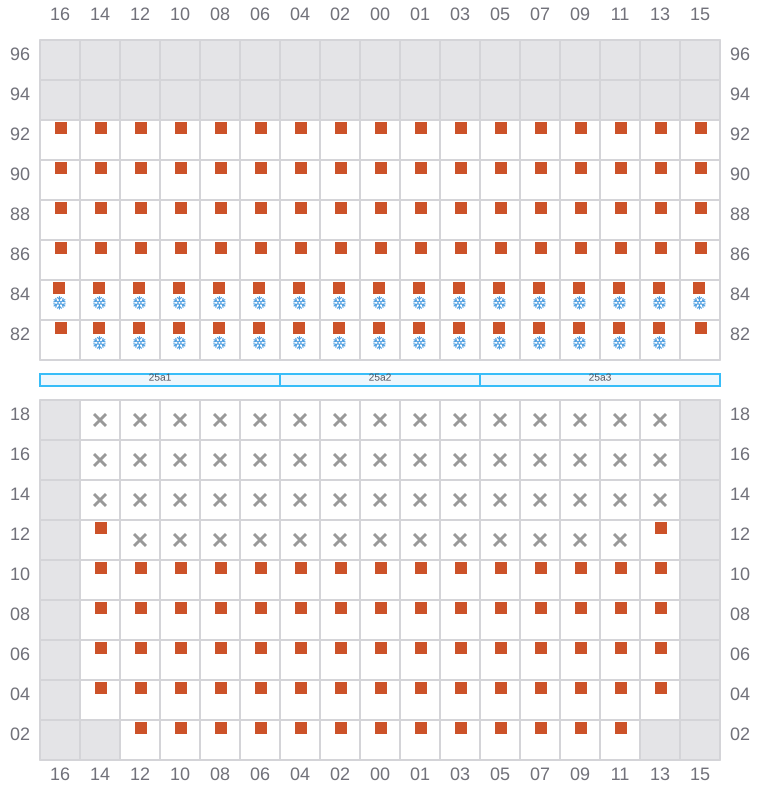

Bay 025 view and slots of MAERSK SYDNEY

027

  • ←
  • → / ?
Bay 027 view and slots of MAERSK SYDNEY

029 (030)

  • →
  • ← / ?

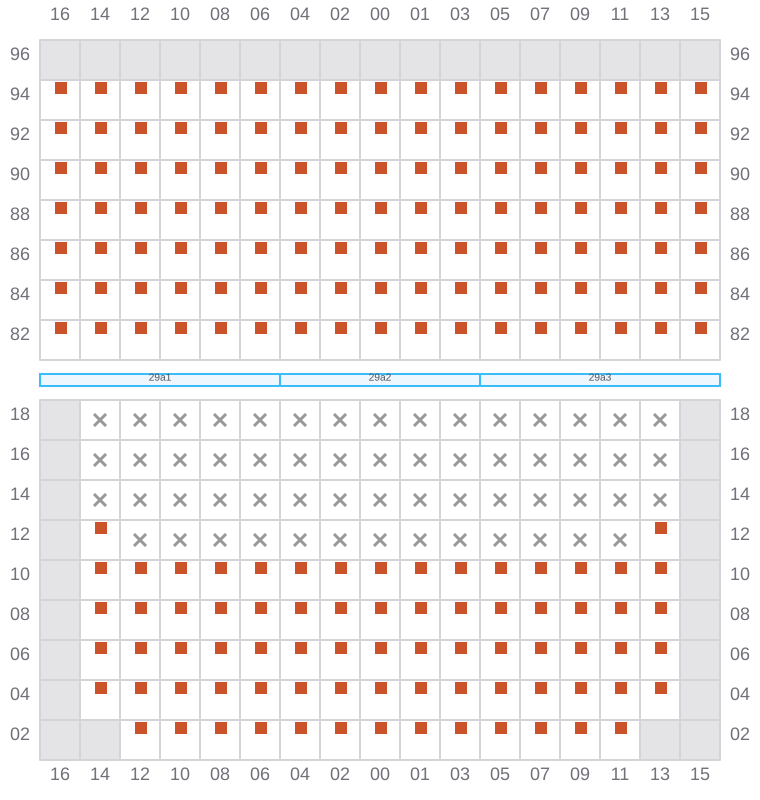

Bay 029 view and slots of MAERSK SYDNEY

031

  • ←
Bay 031 view and slots of MAERSK SYDNEY

033 (034)

  • → / ?

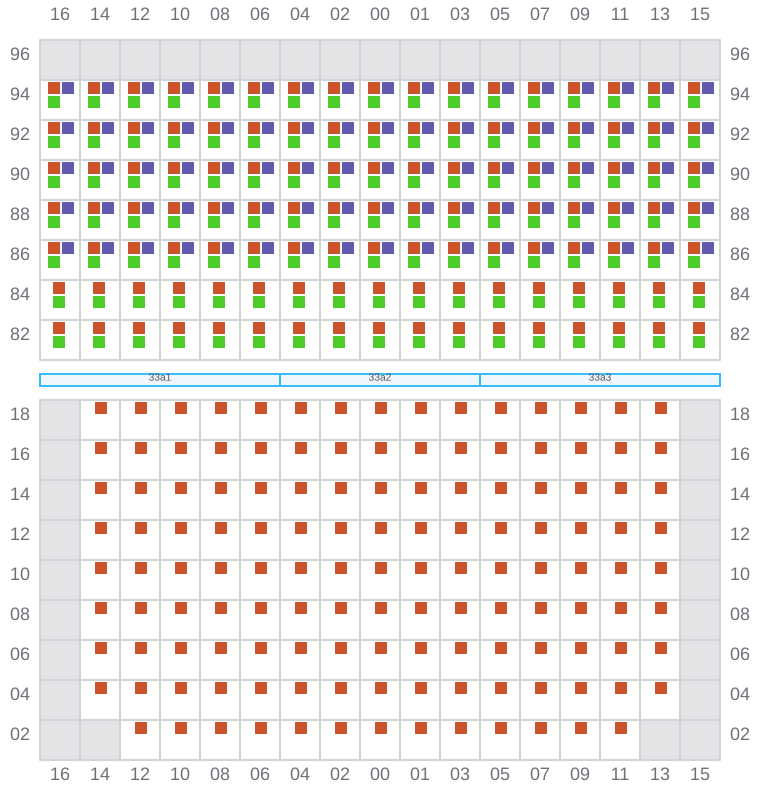

Bay 033 view and slots of MAERSK SYDNEY

035

  • ← / ?
  • → / ?

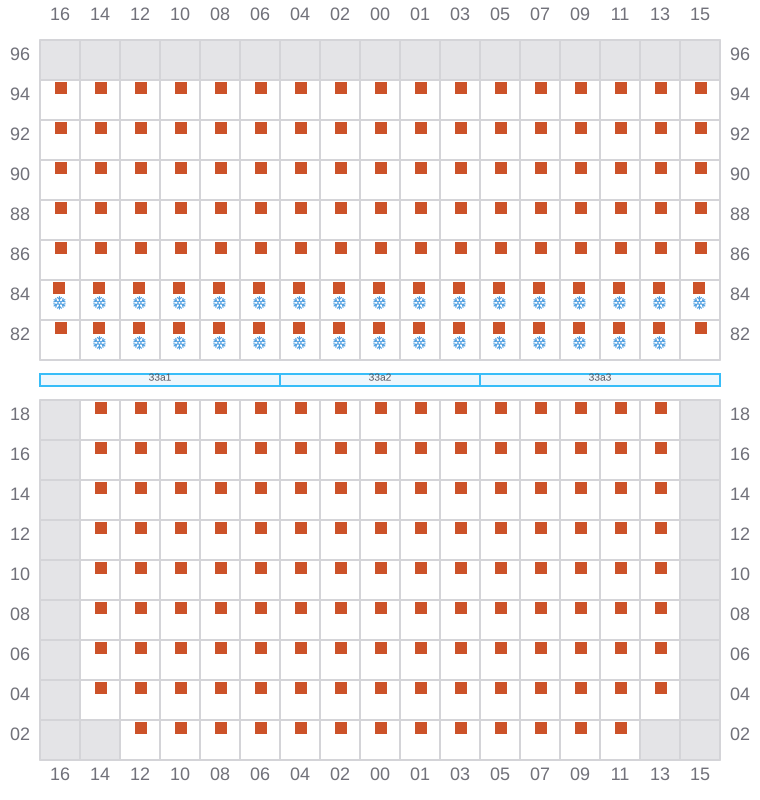

Bay 035 view and slots of MAERSK SYDNEY

037 (038)

  • →
  • ← / ?

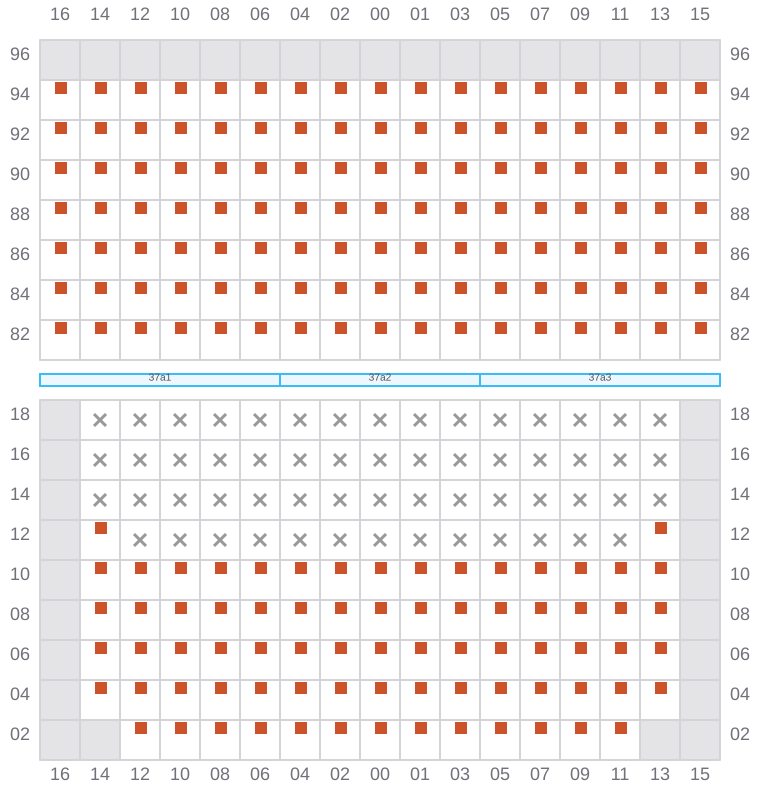

Bay 037 view and slots of MAERSK SYDNEY

039

  • ←
Bay 039 view and slots of MAERSK SYDNEY

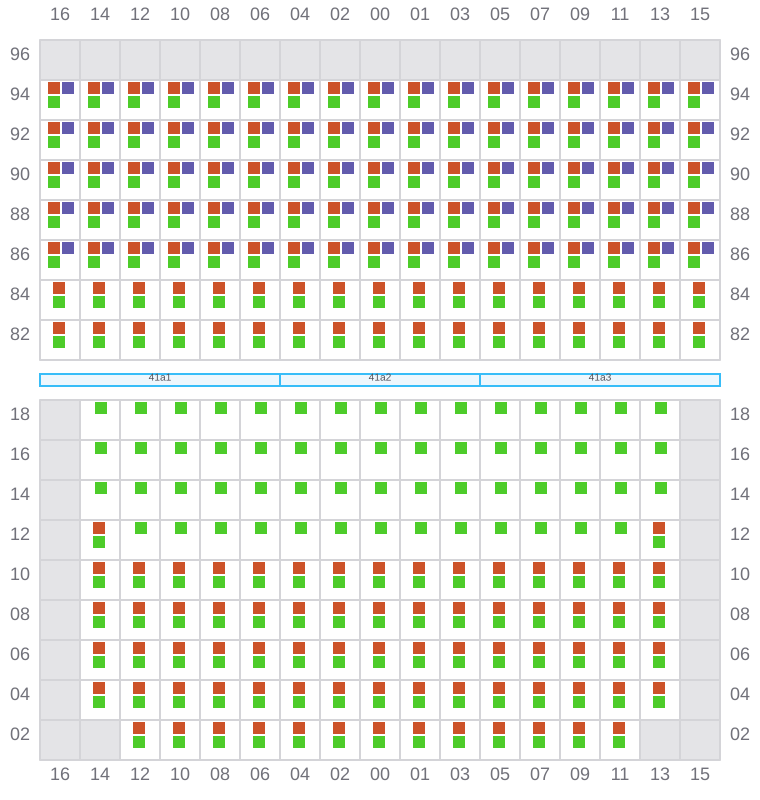

041 (042)

  • →
Bay 041 view and slots of MAERSK SYDNEY

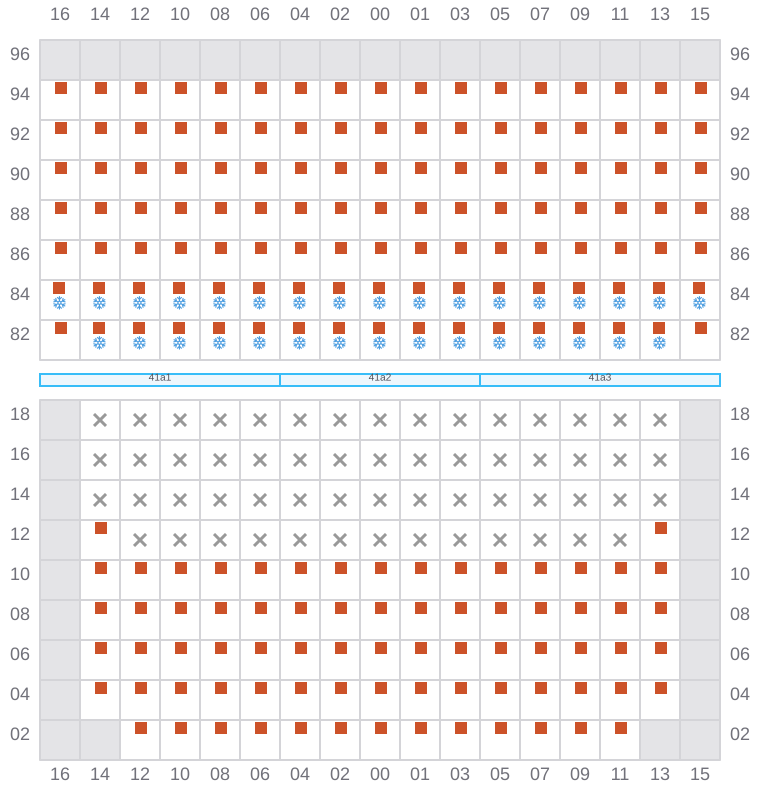

043

  • ←
  • → / ?
Bay 043 view and slots of MAERSK SYDNEY

045 (046)

  • →
Bay 045 view and slots of MAERSK SYDNEY

047

  • ←
  • → / ?
Bay 047 view and slots of MAERSK SYDNEY

049 (050)

  • →
  • ← / ?

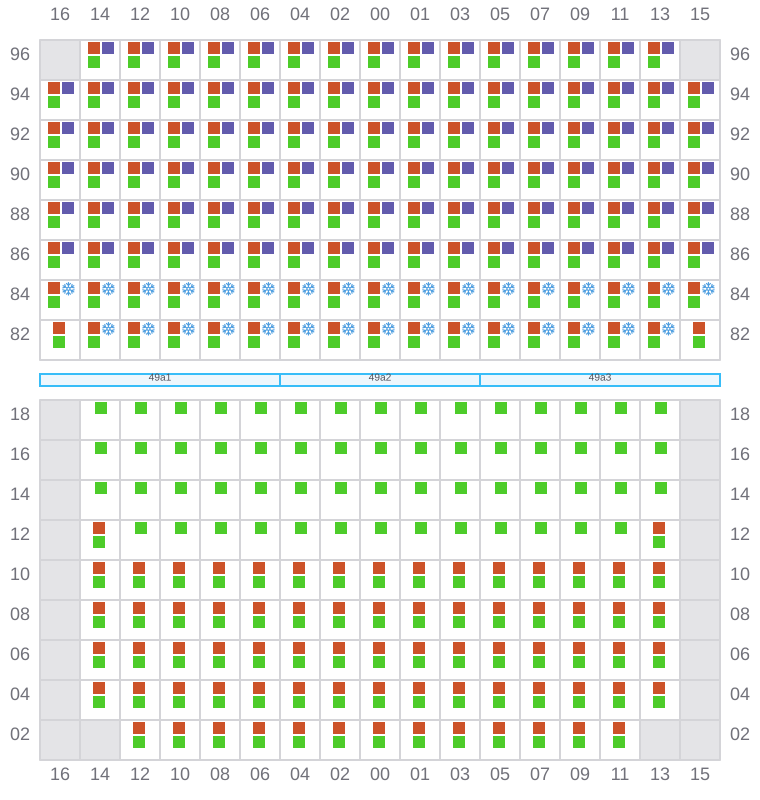

Bay 049 view and slots of MAERSK SYDNEY

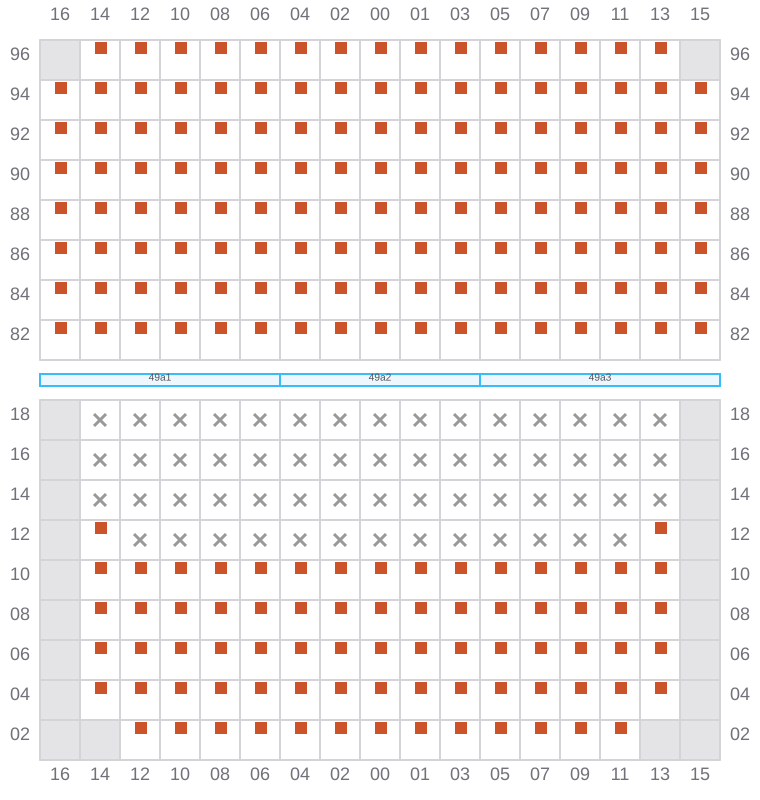

051

  • ←
Bay 051 view and slots of MAERSK SYDNEY

053 (054)

  • →

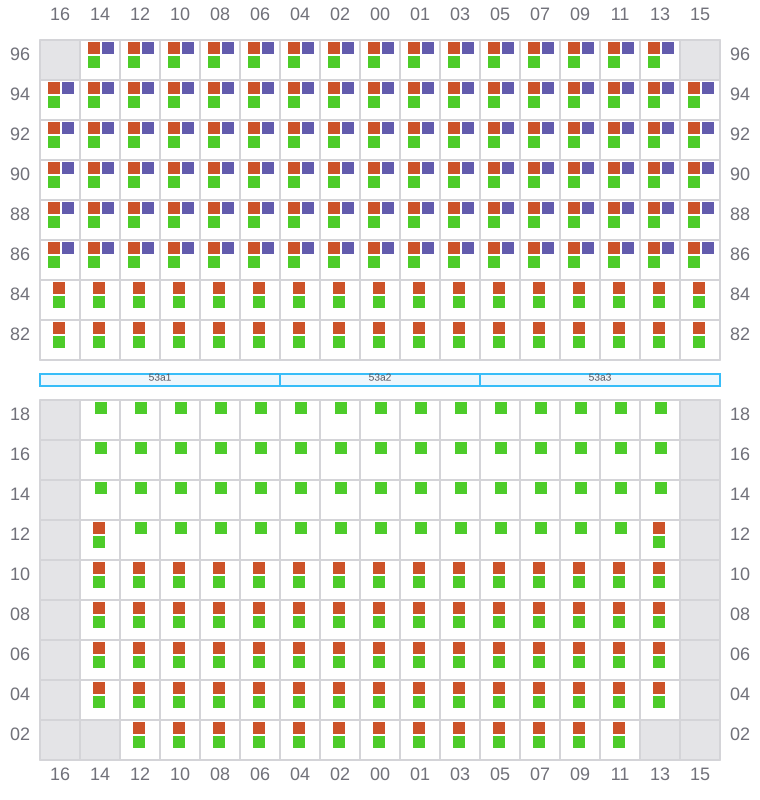

Bay 053 view and slots of MAERSK SYDNEY

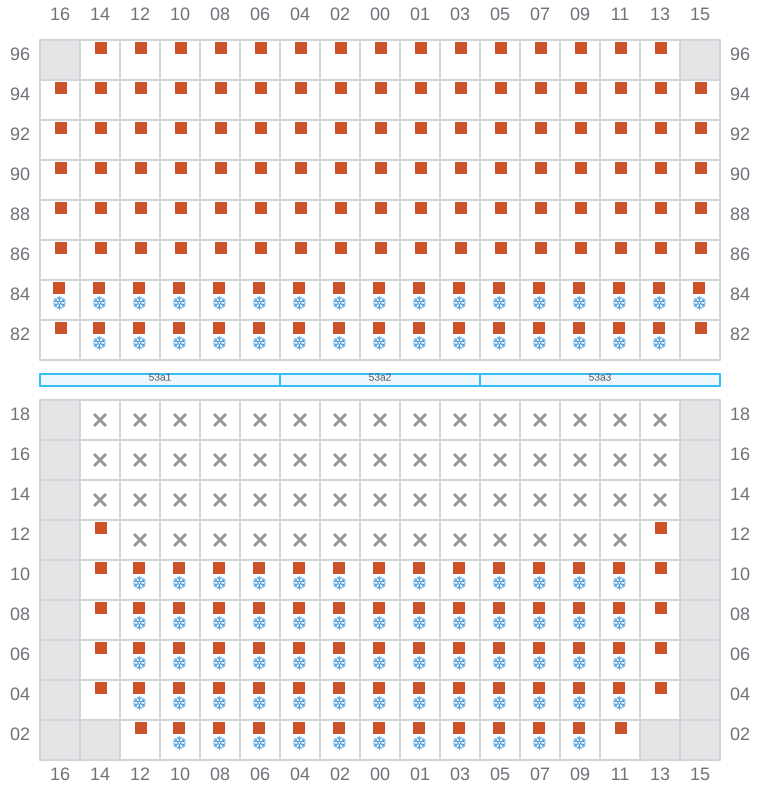

055

  • ←
  • → / ?
Bay 055 view and slots of MAERSK SYDNEY

057 (058)

  • →
  • ← / ?

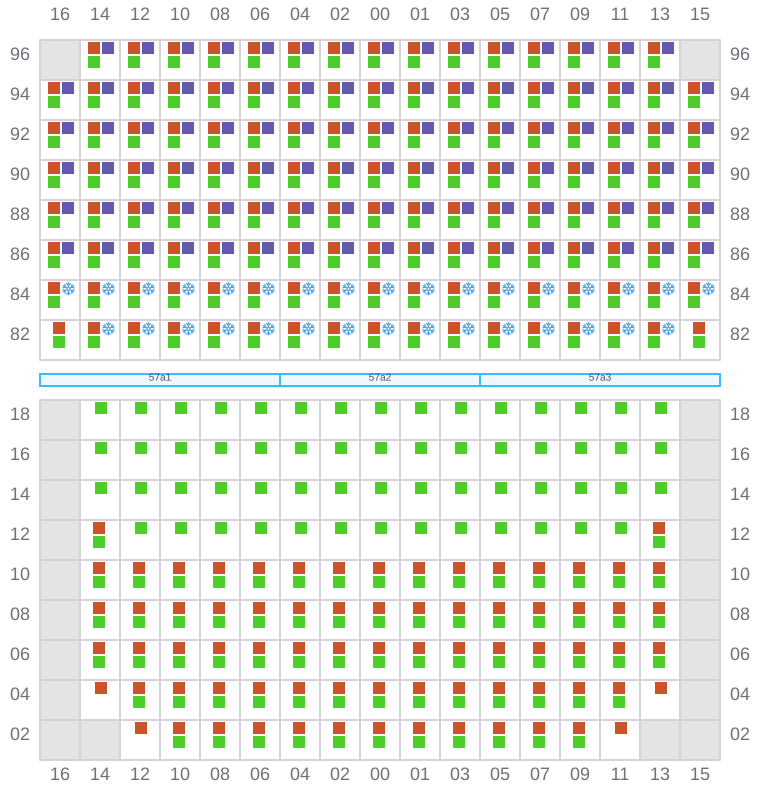

Bay 057 view and slots of MAERSK SYDNEY

059

  • ←

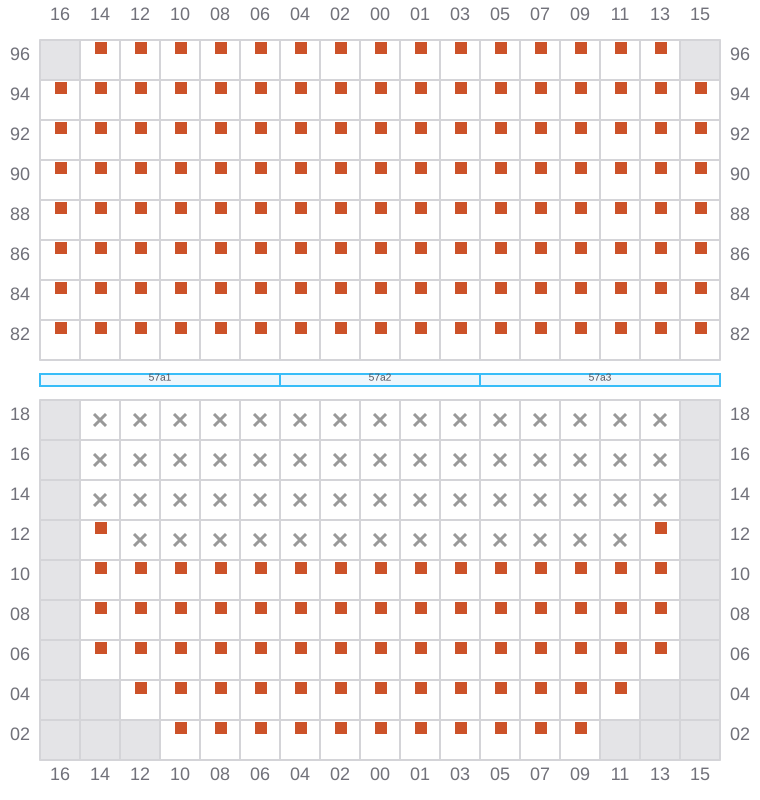

Bay 059 view and slots of MAERSK SYDNEY

061 (062)

  • →

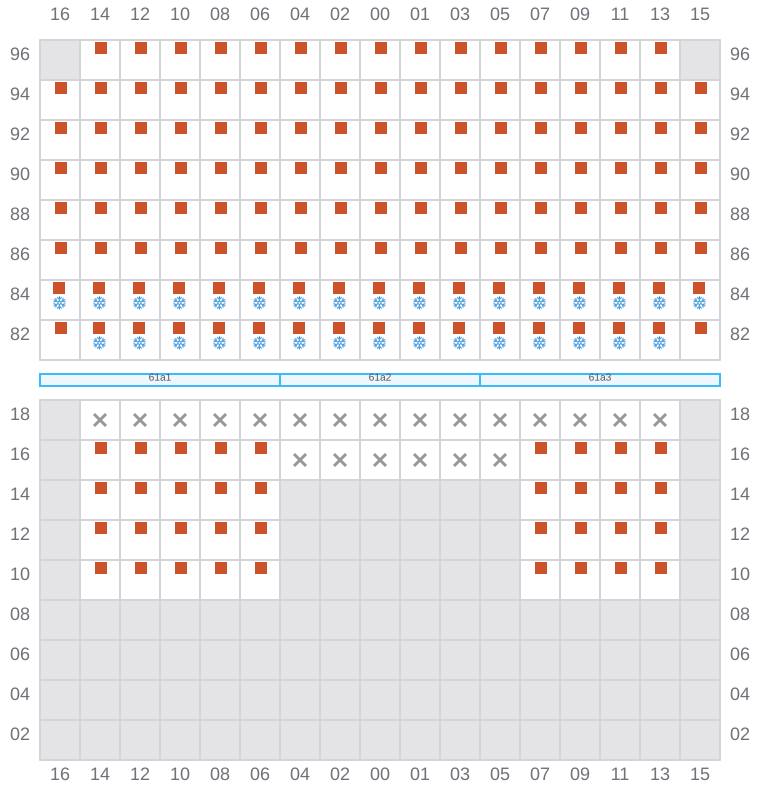

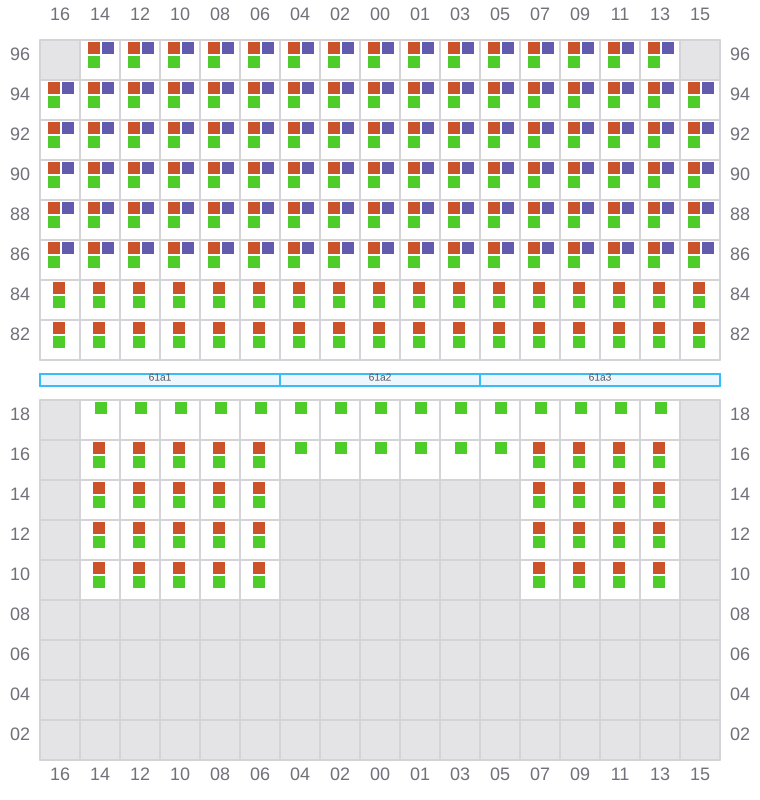

Bay 061 view and slots of MAERSK SYDNEY

063

  • ←
Bay 063 view and slots of MAERSK SYDNEY

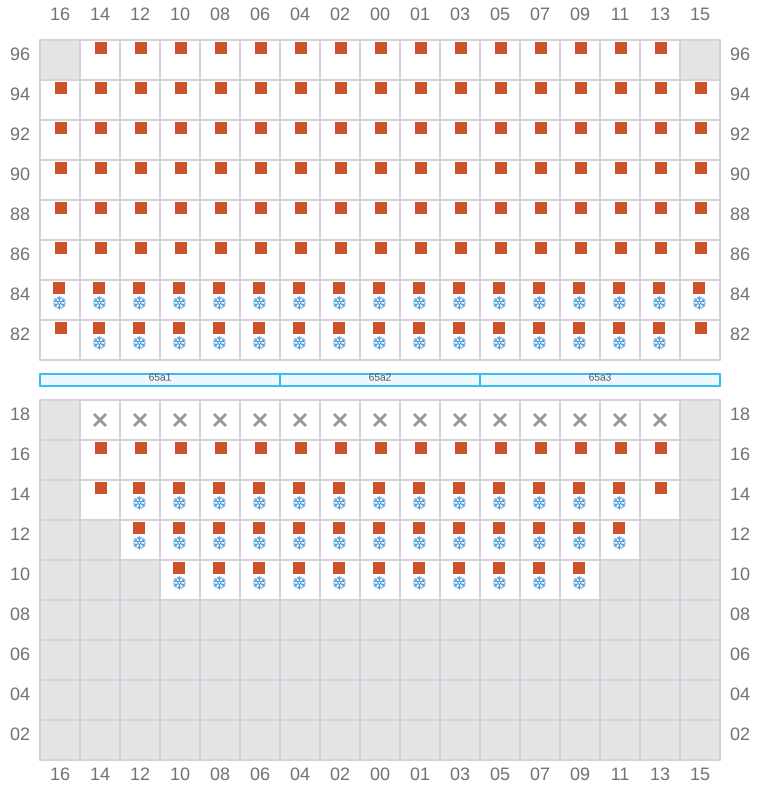

065 (066)

  • →

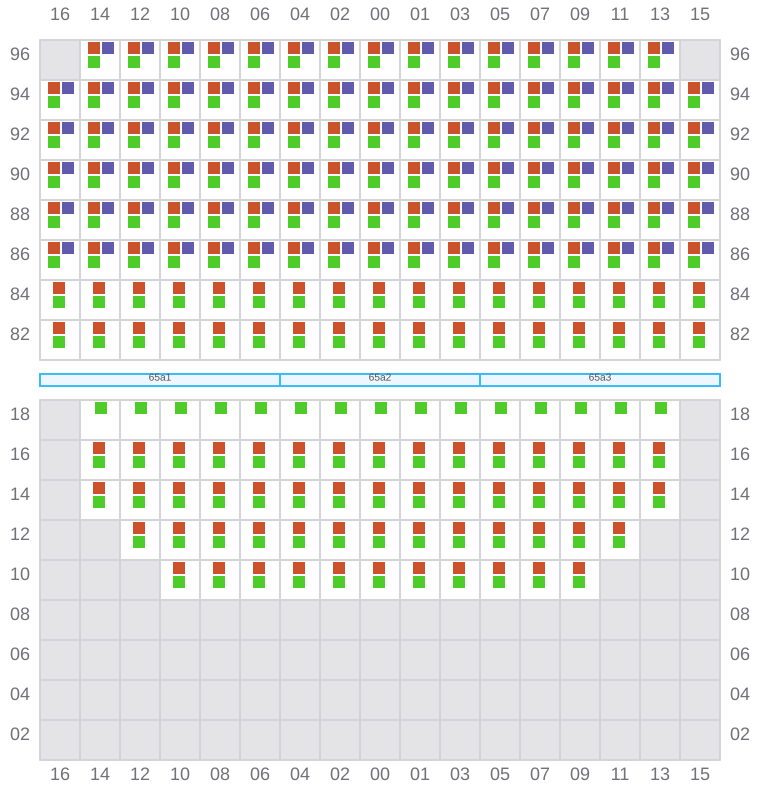

Bay 065 view and slots of MAERSK SYDNEY

067

  • ←
  • → / ?
Bay 067 view and slots of MAERSK SYDNEY

069 (070)

  • →
  • ← / ?

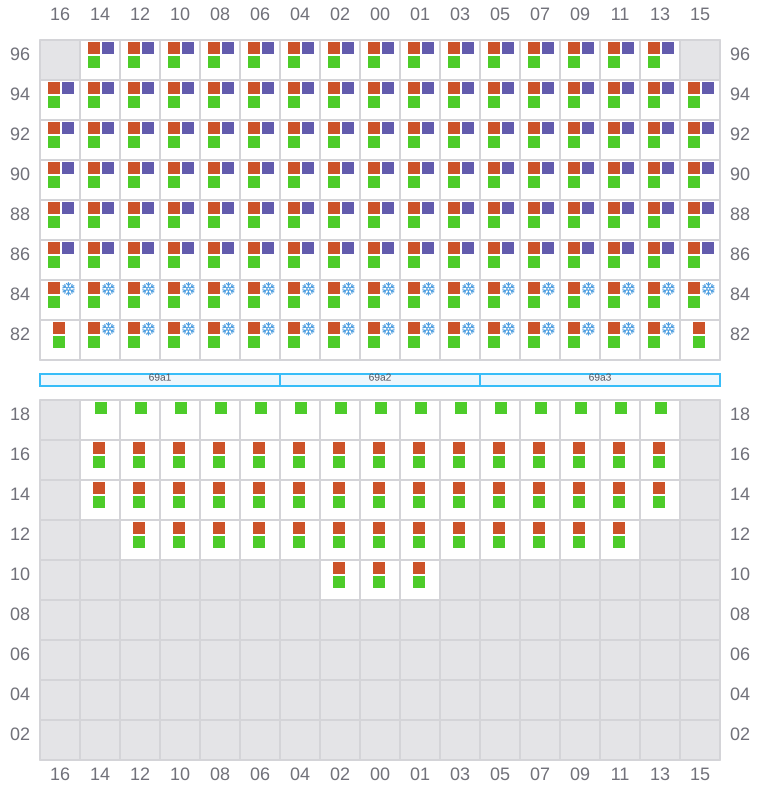

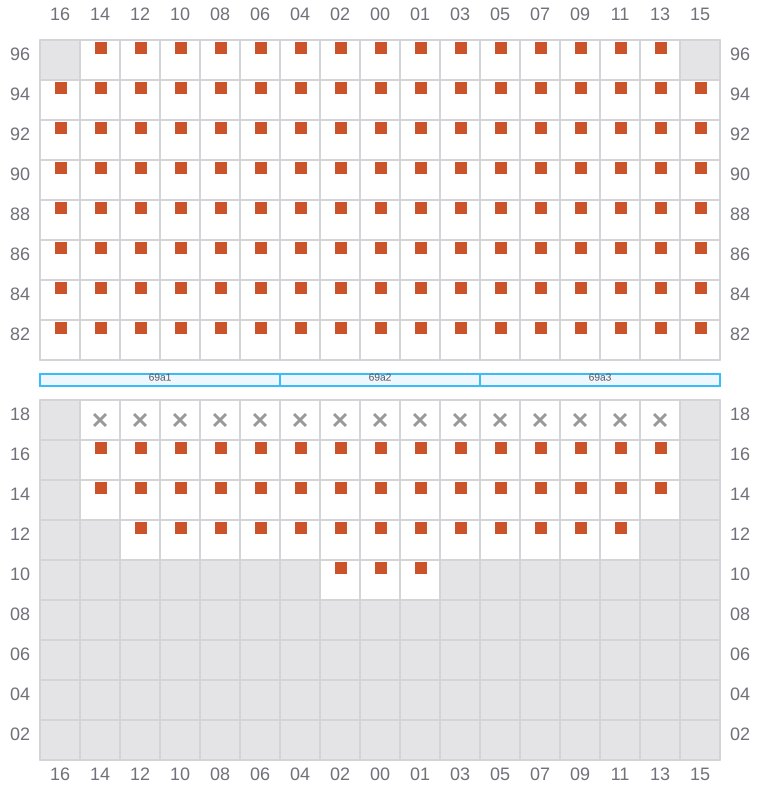

Bay 069 view and slots of MAERSK SYDNEY

071

  • ←
Bay 071 view and slots of MAERSK SYDNEY

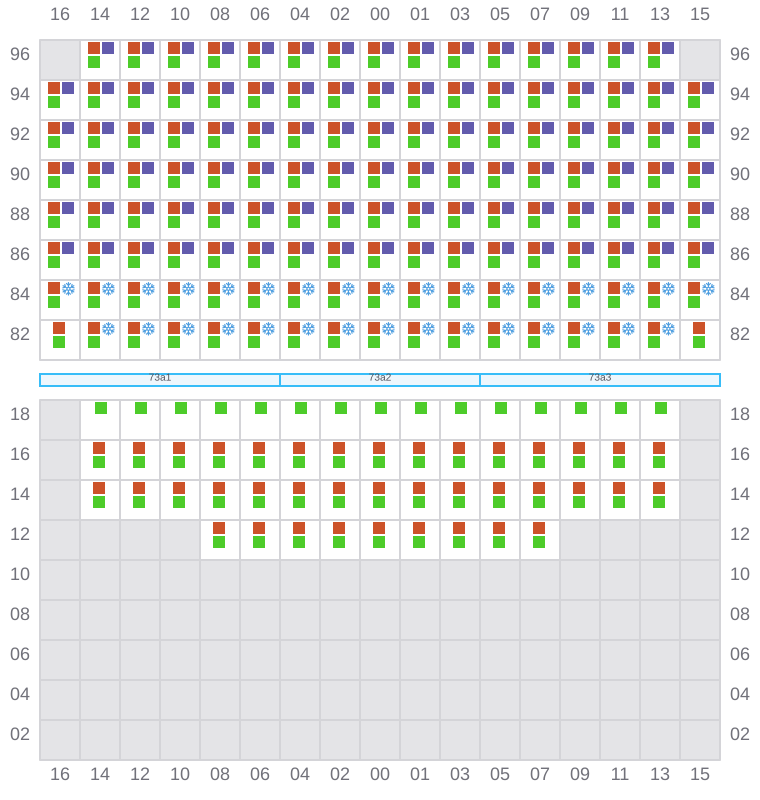

073 (074)

  • →
  • ← / ?

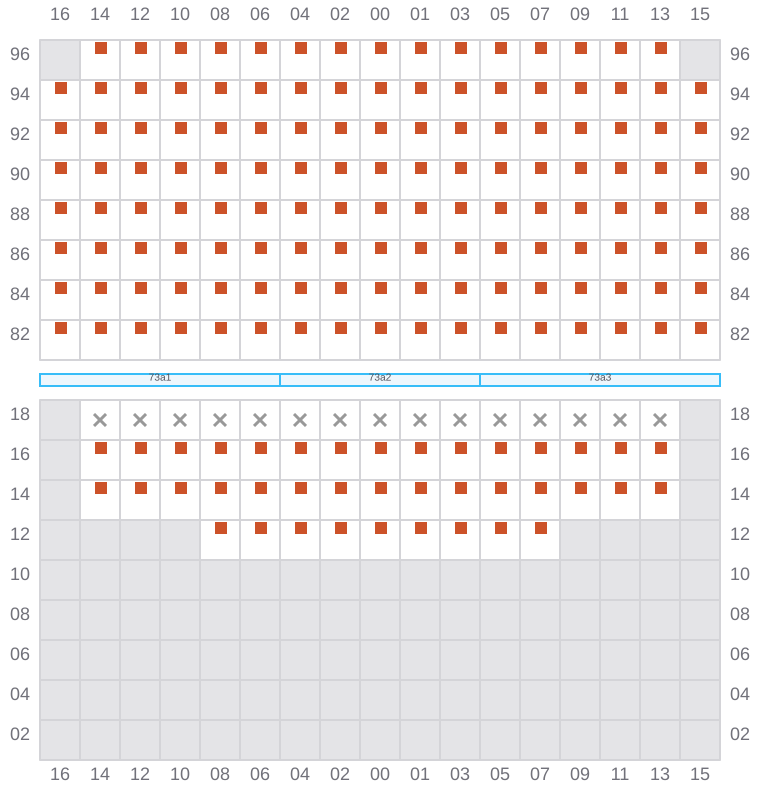

Bay 073 view and slots of MAERSK SYDNEY

075

  • ←
Bay 075 view and slots of MAERSK SYDNEY

077 (078)

  • → / ?

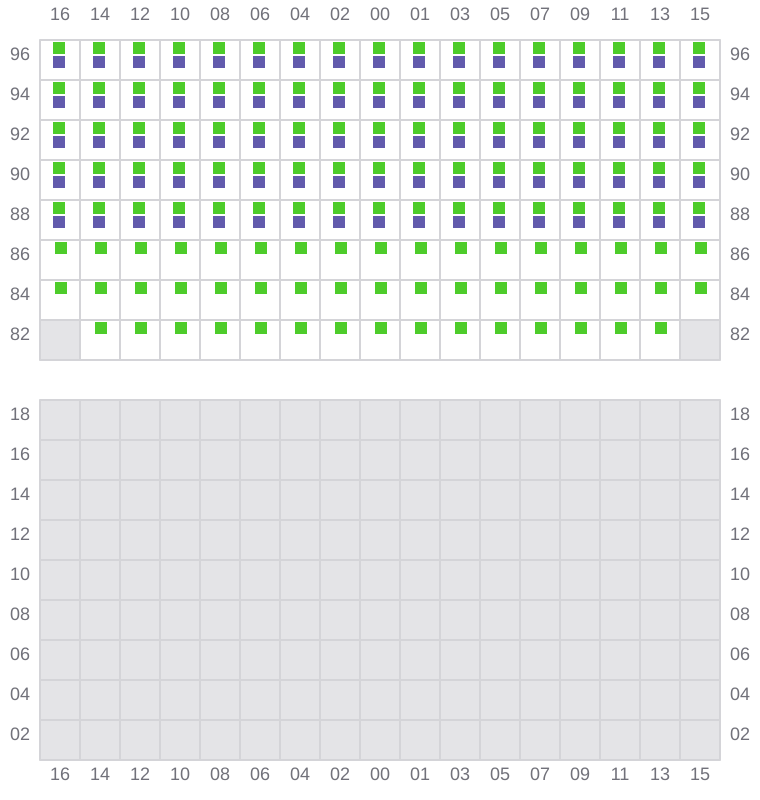

Bay 077 view and slots of MAERSK SYDNEY
