MAERSK TAIKUNG
9334662 | VROX2 | 9334662 by ********* Last update: Fri Mar 22 2024

General Info

Ship Name:MAERSK TAIKUNG

IMO Code:9334662

Call Sign:VROX2

Line Operator:9334662

Class Name for Sister Ships:531

Year Built:2007

Position Format:Bay, Row, Tier

Allowed Containers:20, 40, 45

LPP (LBP):0.00

LOA (Length Overall):0.00

Stern to AFT PP:-

Features Informed:Standard

Also Known As...:-

Size Summary

ISO Bays:077

Max ISO Row:16

Center Line Row:Yes

Max Above ISO Tier:96

Min Above ISO Tier:80

Max Below ISO Tier:18

Min Below ISO Tier:02

Total TEU:8,573

Centers of Gravity

LCG Values:Known

LCG Data:100%

VCG Values:Known

VCG Data:100%

TCG Values:Known

TCG Data:100%

Side View

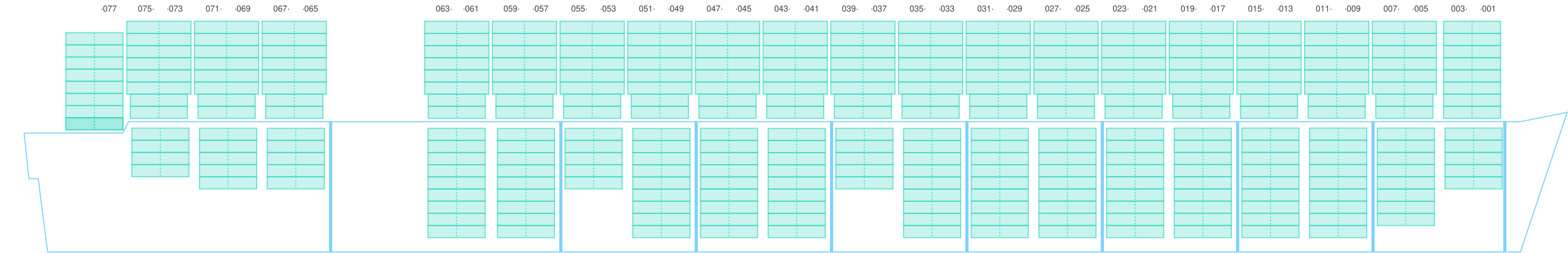

Side view of MAERSK TAIKUNG

Hatch-Covers View

Deck view of MAERSK TAIKUNG

ISO Bays

Legend

20'
40'
45'
Reefer
Restricted slot

001 (002)

→

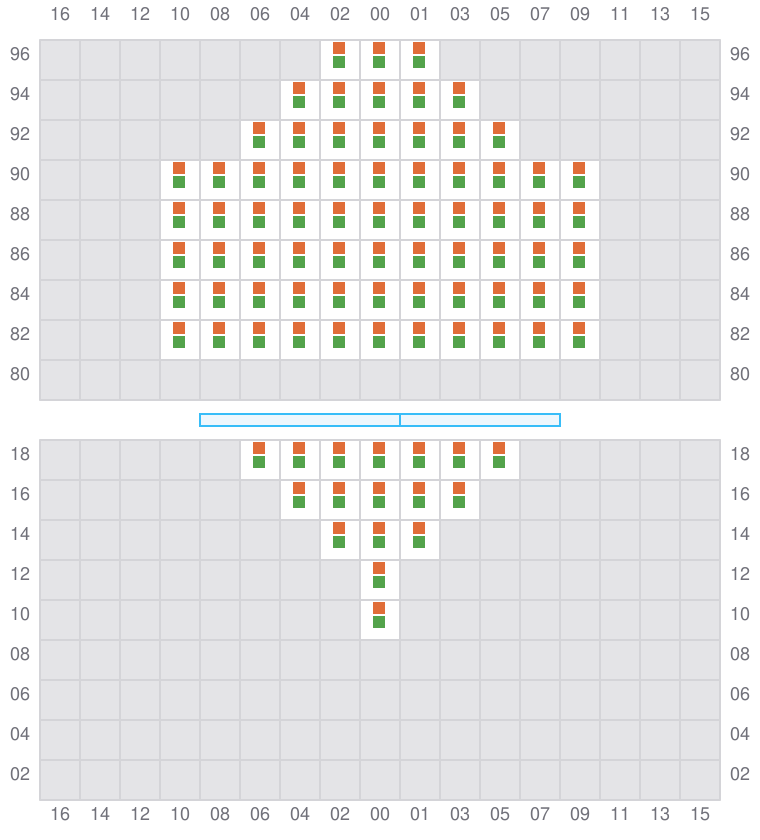

Bay 001 view and slots of MAERSK TAIKUNG

003

←

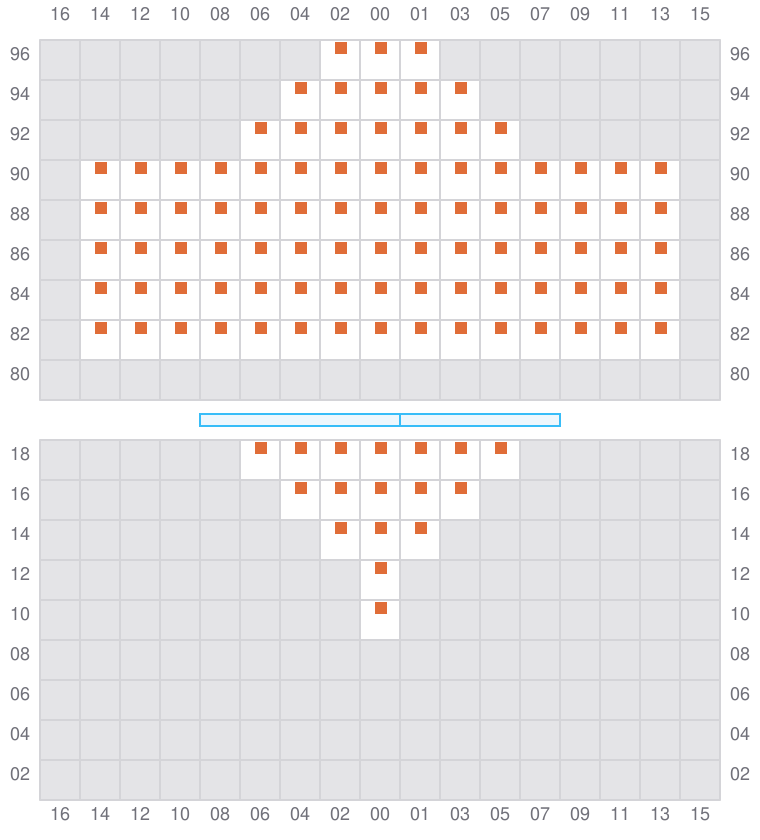

Bay 003 view and slots of MAERSK TAIKUNG

005 (006)

→

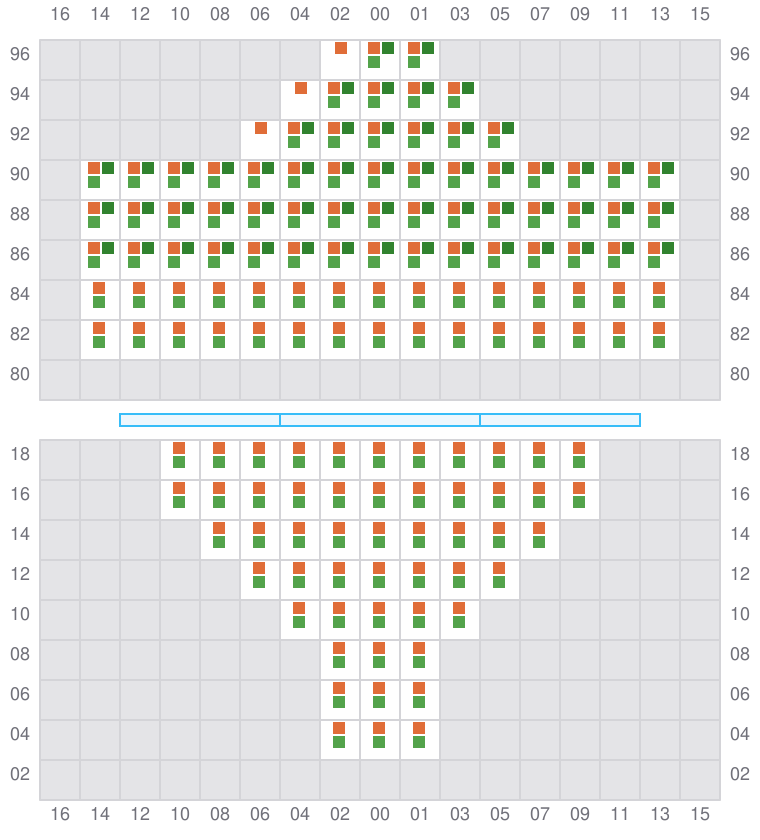

Bay 005 view and slots of MAERSK TAIKUNG

007

←

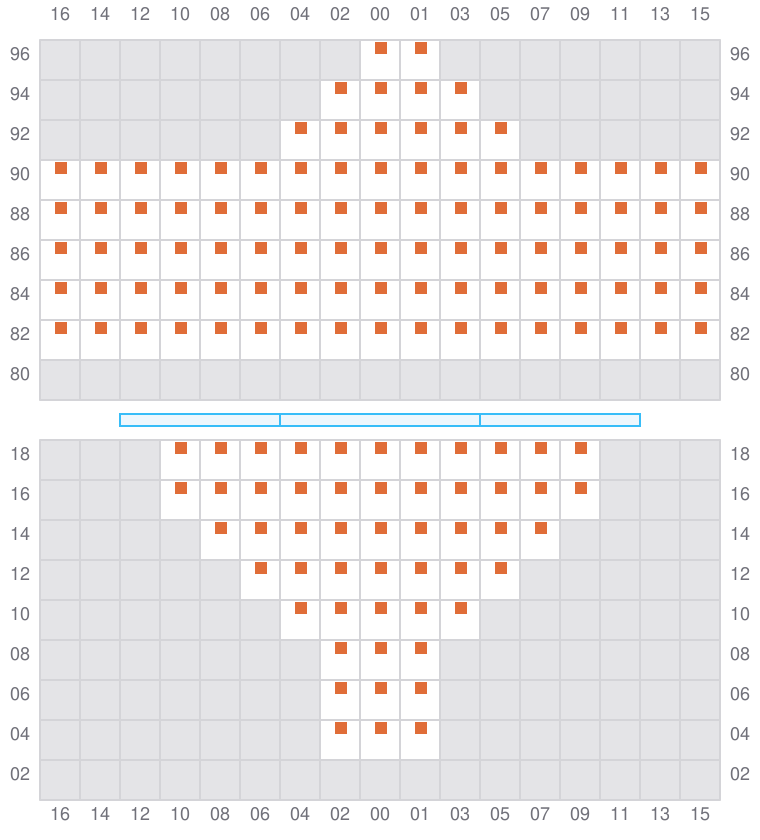

Bay 007 view and slots of MAERSK TAIKUNG

009 (010)

→

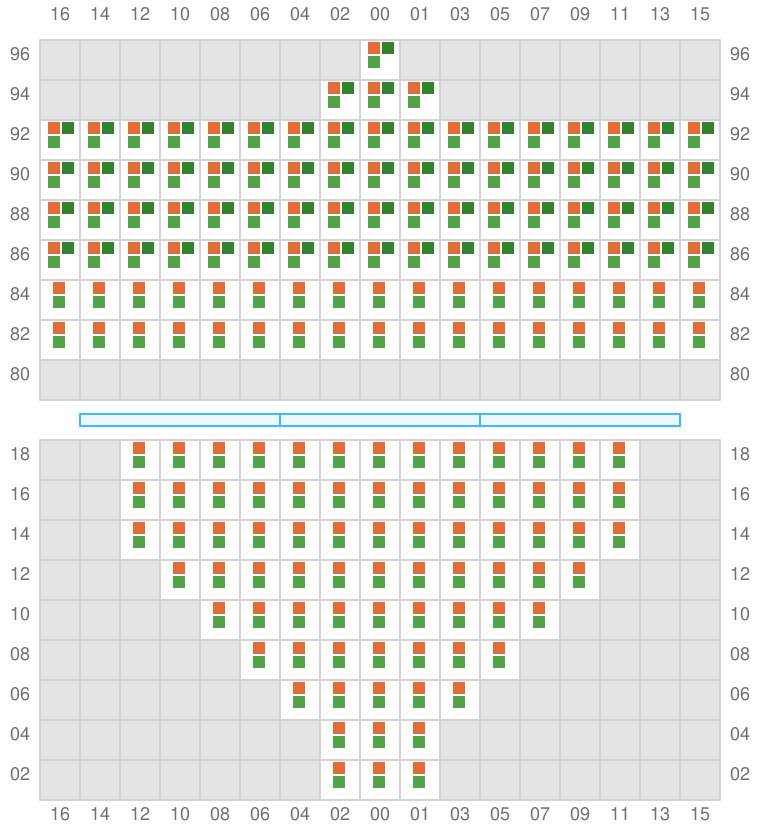

Bay 009 view and slots of MAERSK TAIKUNG

011

←

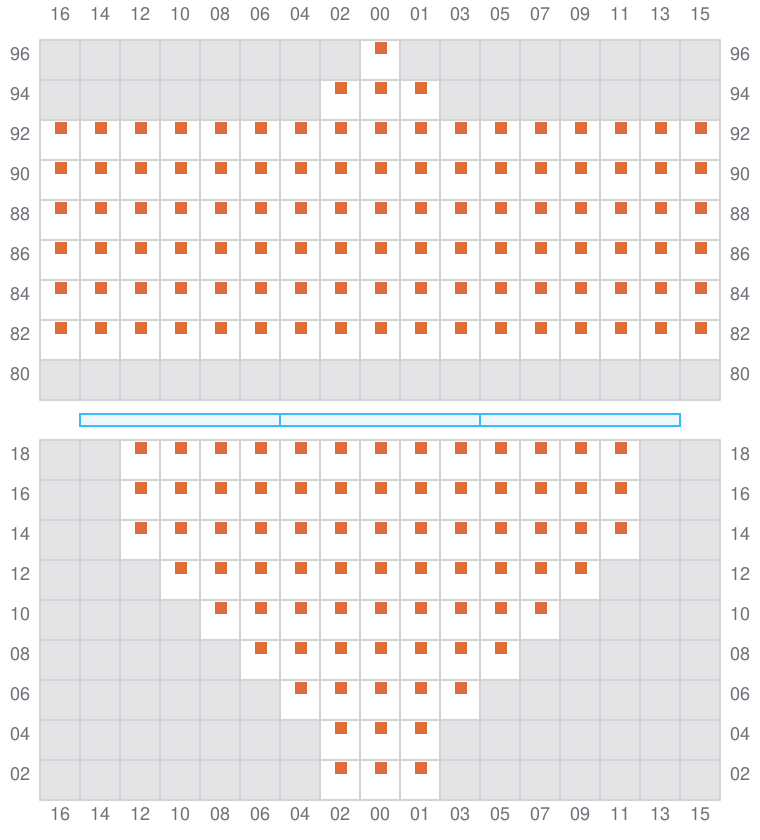

Bay 011 view and slots of MAERSK TAIKUNG

013 (014)

→

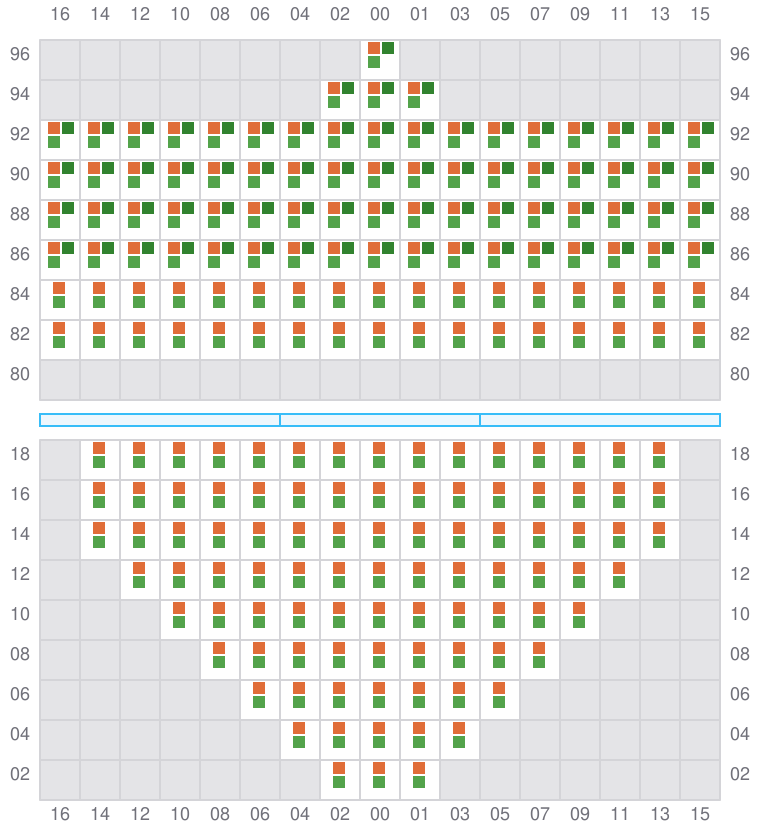

Bay 013 view and slots of MAERSK TAIKUNG

015

←

Bay 015 view and slots of MAERSK TAIKUNG

017 (018)

→

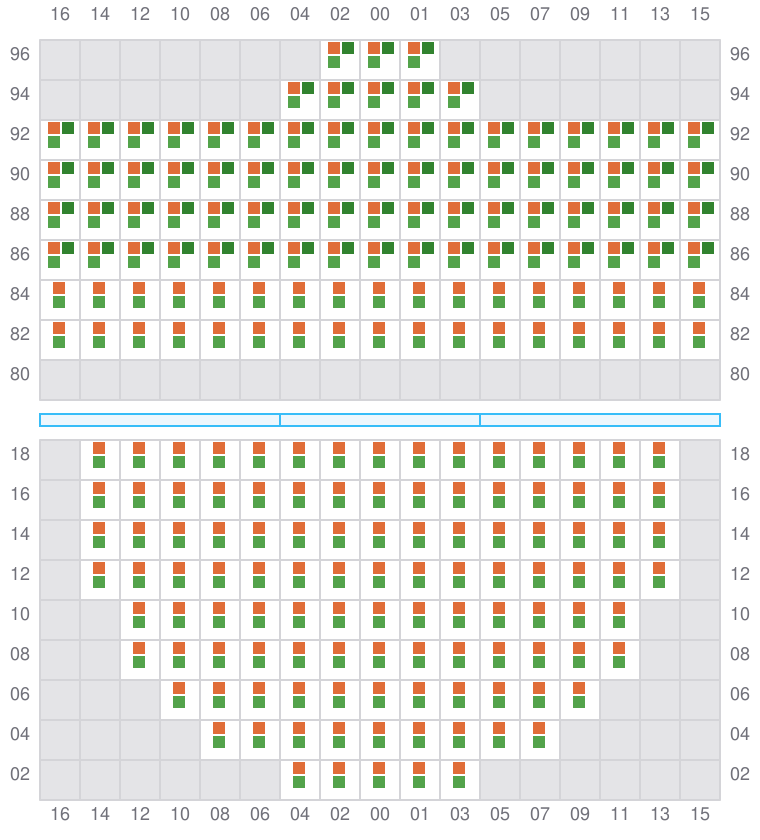

Bay 017 view and slots of MAERSK TAIKUNG

019

←
^→ / _?

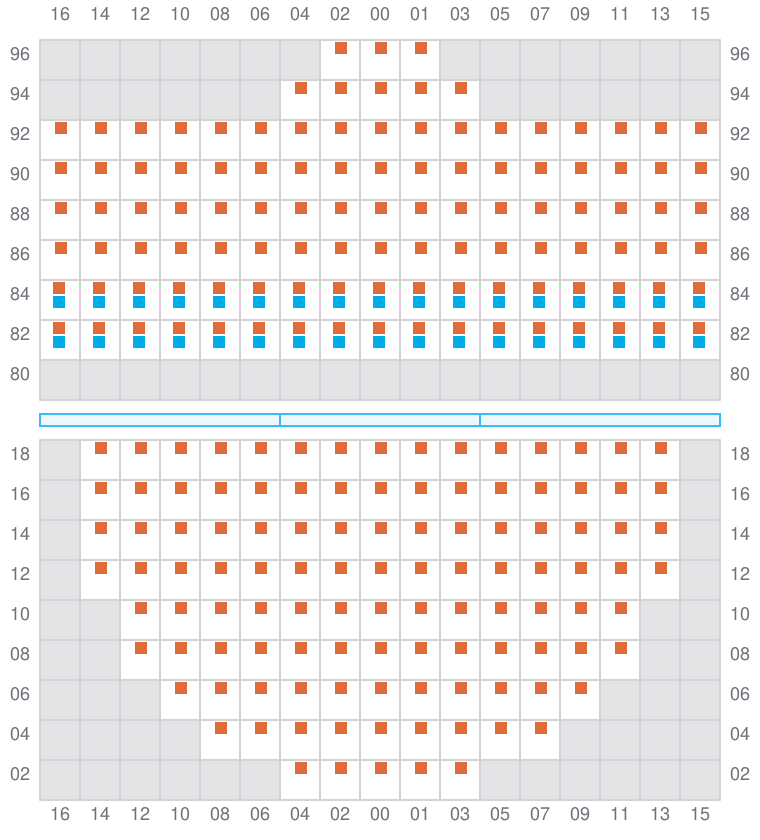

Bay 019 view and slots of MAERSK TAIKUNG

021 (022)

→
^? / _←

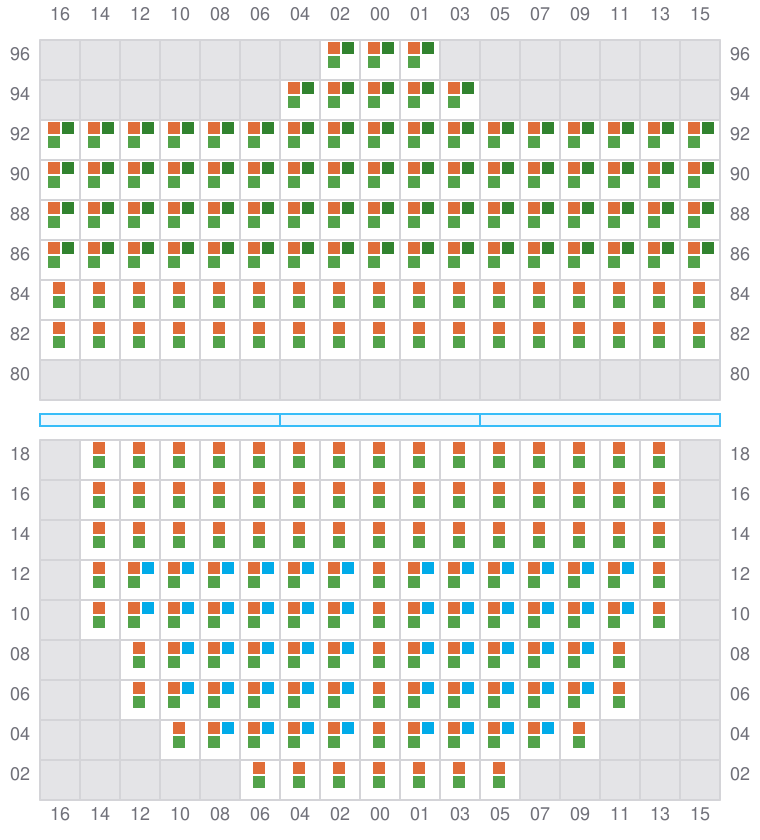

Bay 021 view and slots of MAERSK TAIKUNG

023

←
^→ / _?

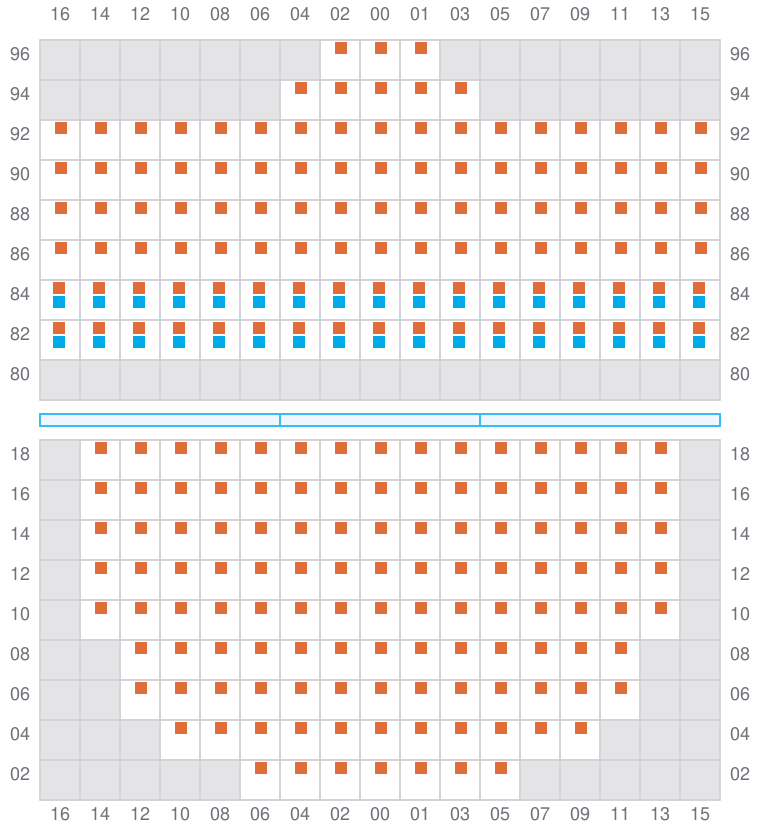

Bay 023 view and slots of MAERSK TAIKUNG

025 (026)

→

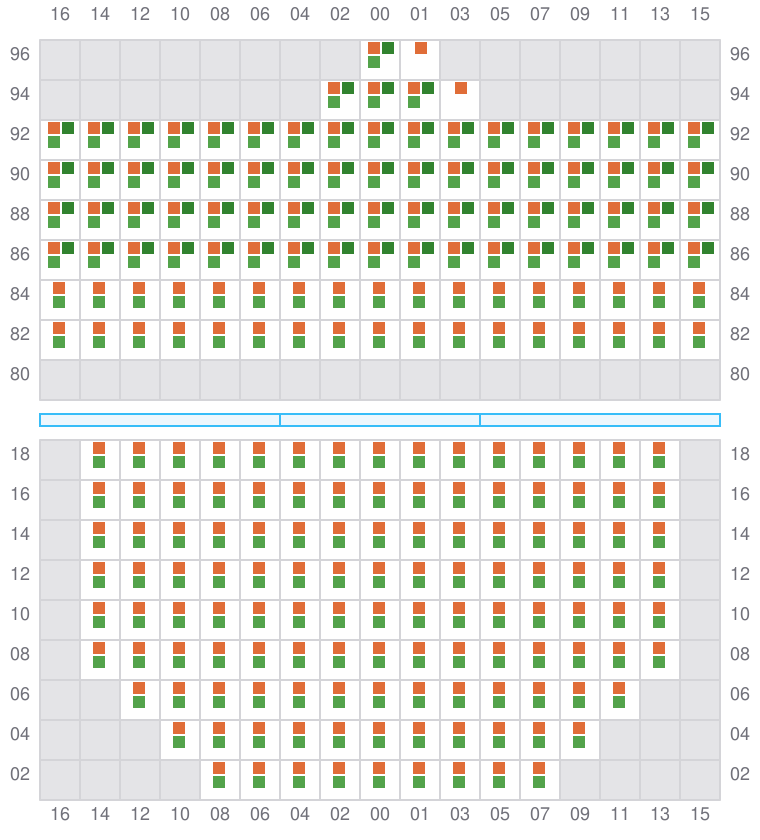

Bay 025 view and slots of MAERSK TAIKUNG

027

←
^→ / _?

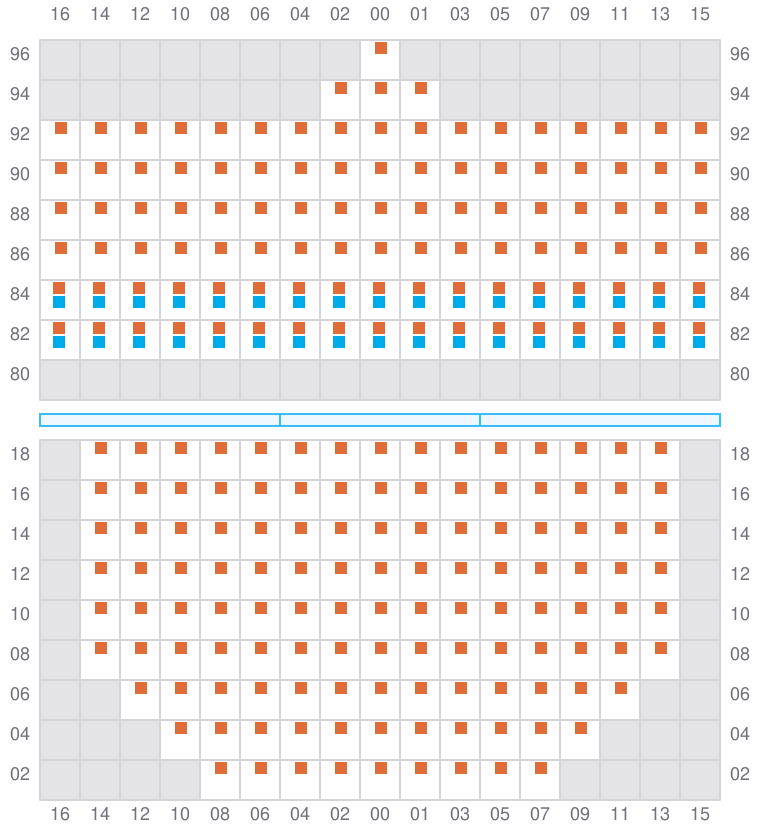

Bay 027 view and slots of MAERSK TAIKUNG

029 (030)

→
^? / _←

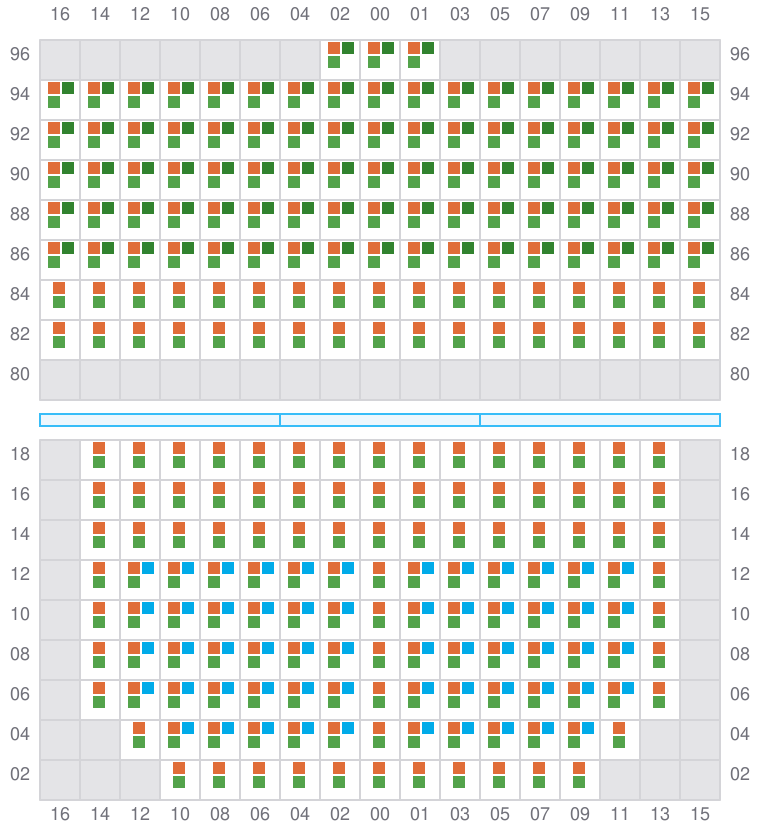

Bay 029 view and slots of MAERSK TAIKUNG

031

←
^→ / _?

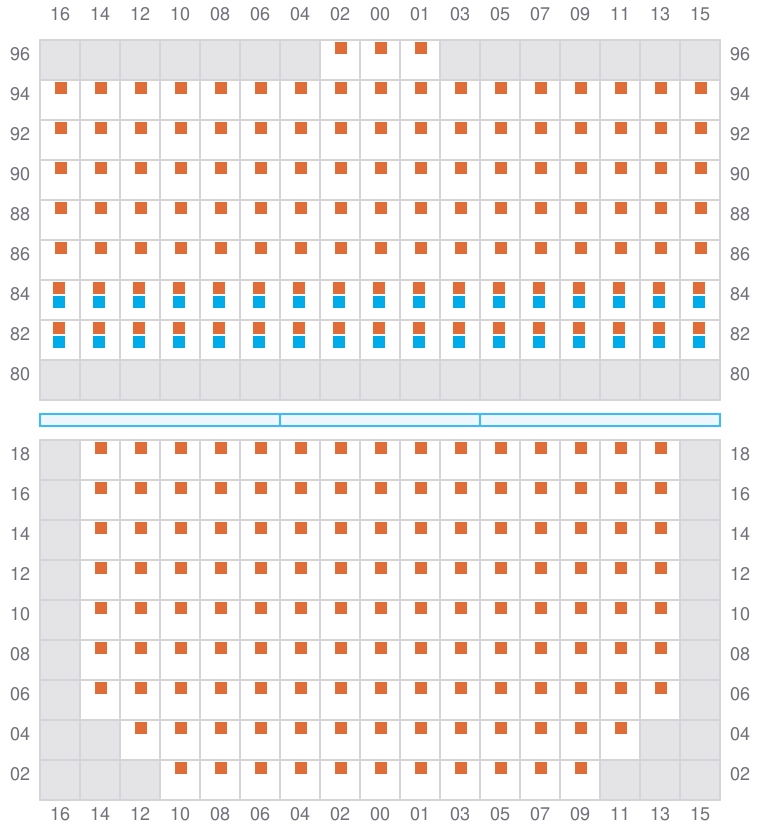

Bay 031 view and slots of MAERSK TAIKUNG

033 (034)

→

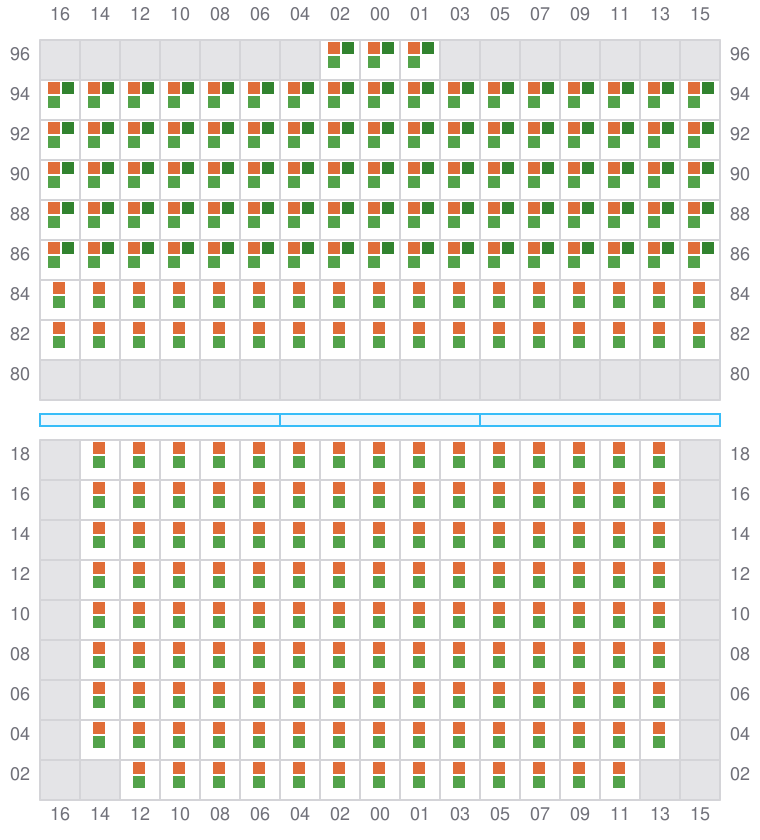

Bay 033 view and slots of MAERSK TAIKUNG

035

←
^→ / _?

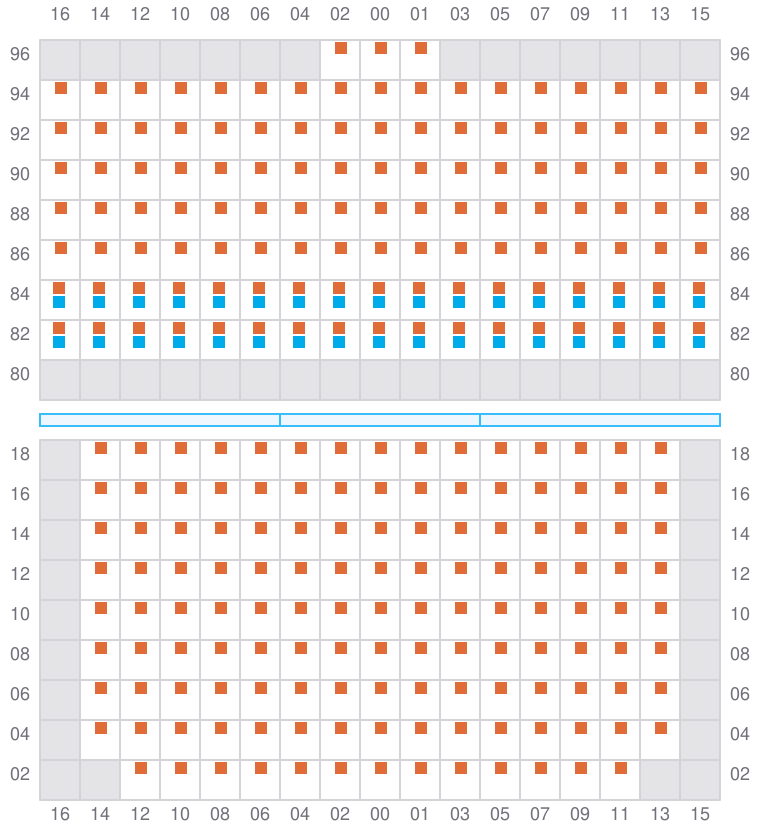

Bay 035 view and slots of MAERSK TAIKUNG

037 (038)

→

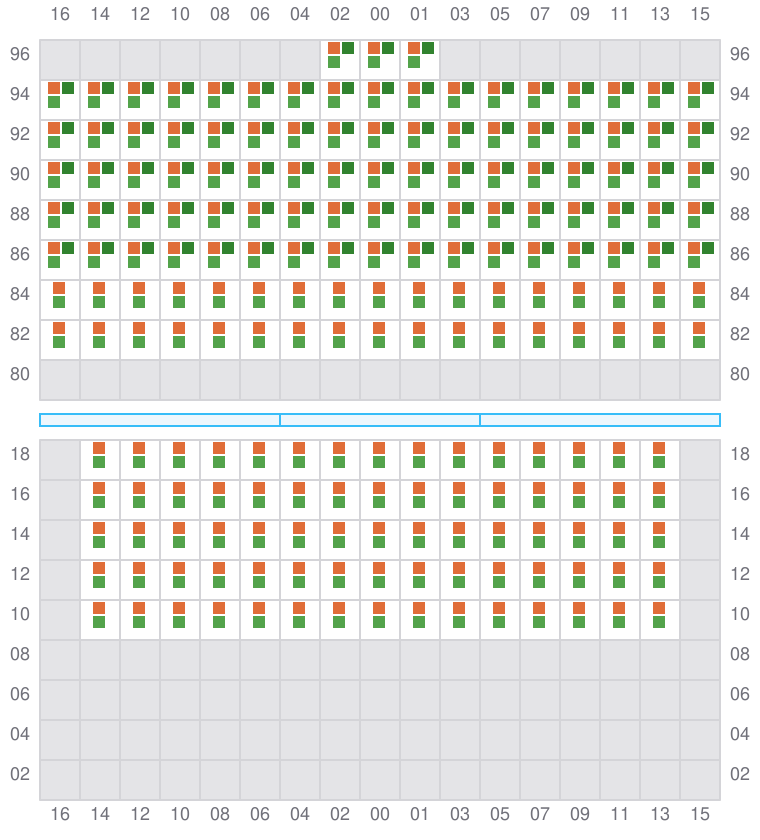

Bay 037 view and slots of MAERSK TAIKUNG

039

←
^→ / _?

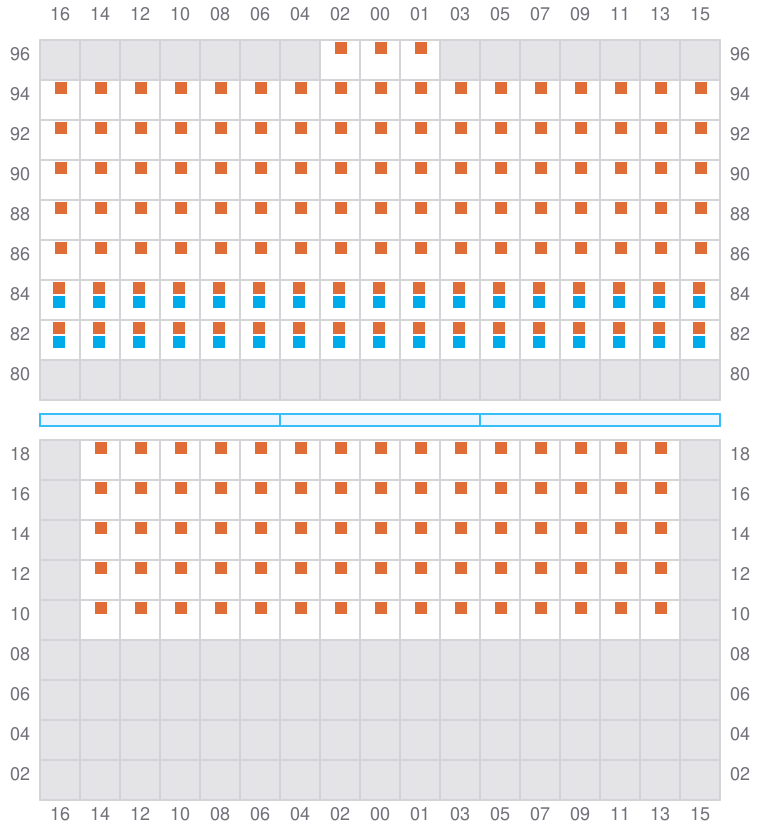

Bay 039 view and slots of MAERSK TAIKUNG

041 (042)

→

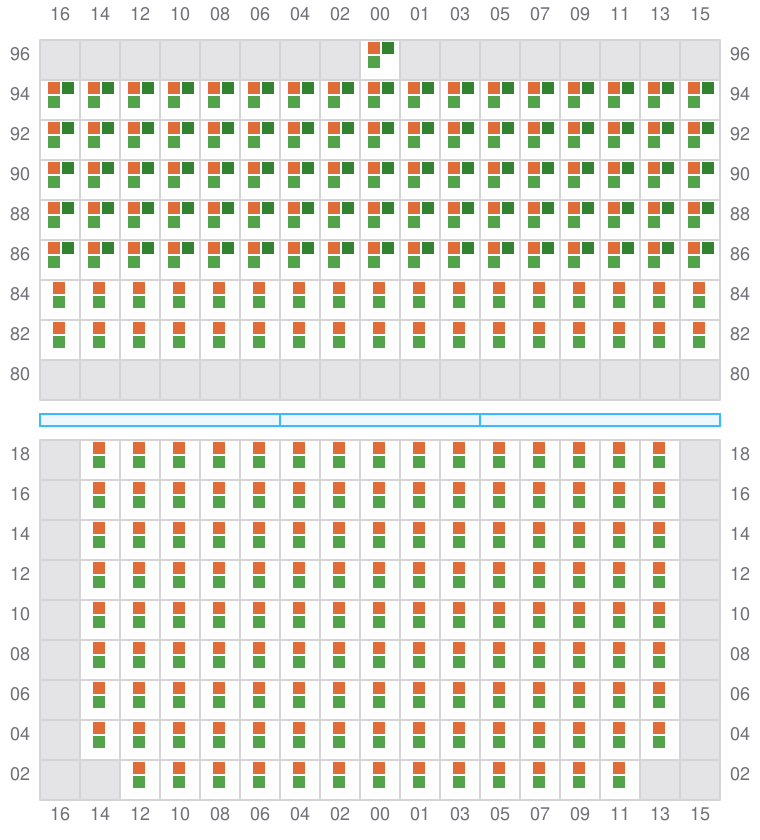

Bay 041 view and slots of MAERSK TAIKUNG

043

←
^→ / _?

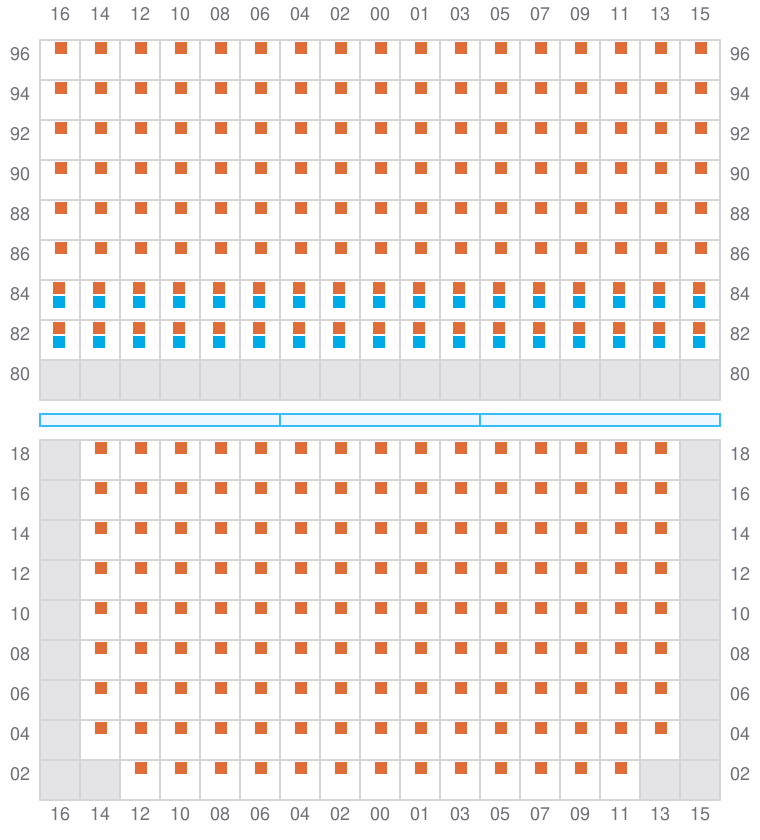

Bay 043 view and slots of MAERSK TAIKUNG

045 (046)

→
^? / _←

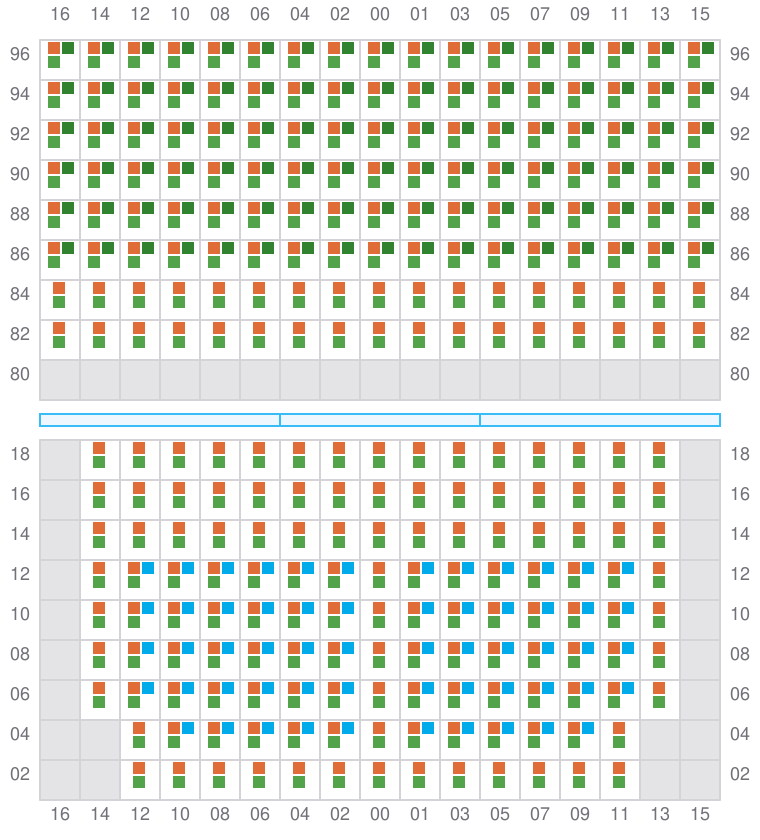

Bay 045 view and slots of MAERSK TAIKUNG

047

←
^→ / _?

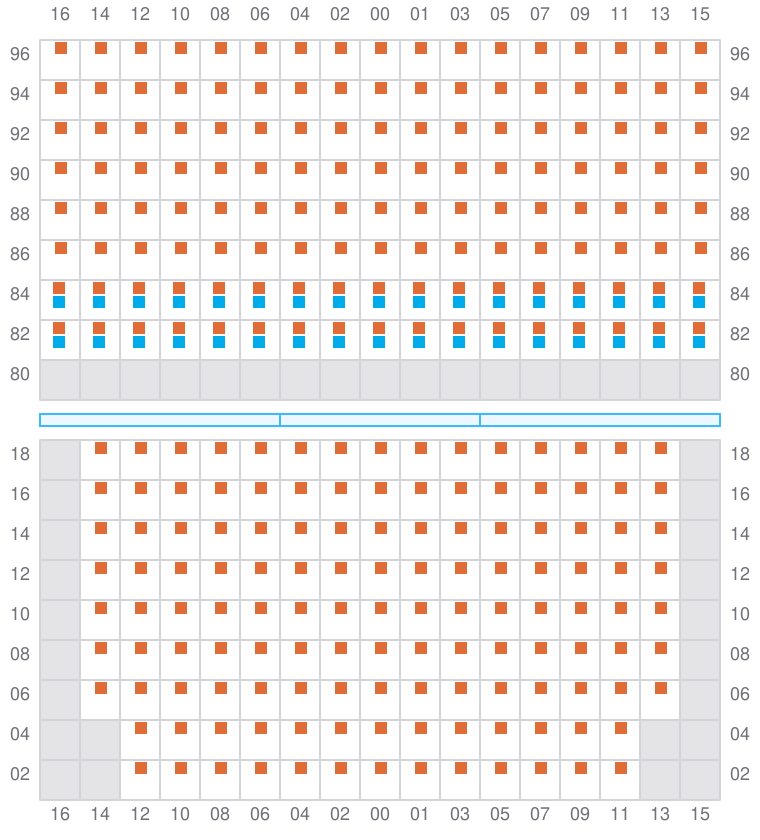

Bay 047 view and slots of MAERSK TAIKUNG

049 (050)

→

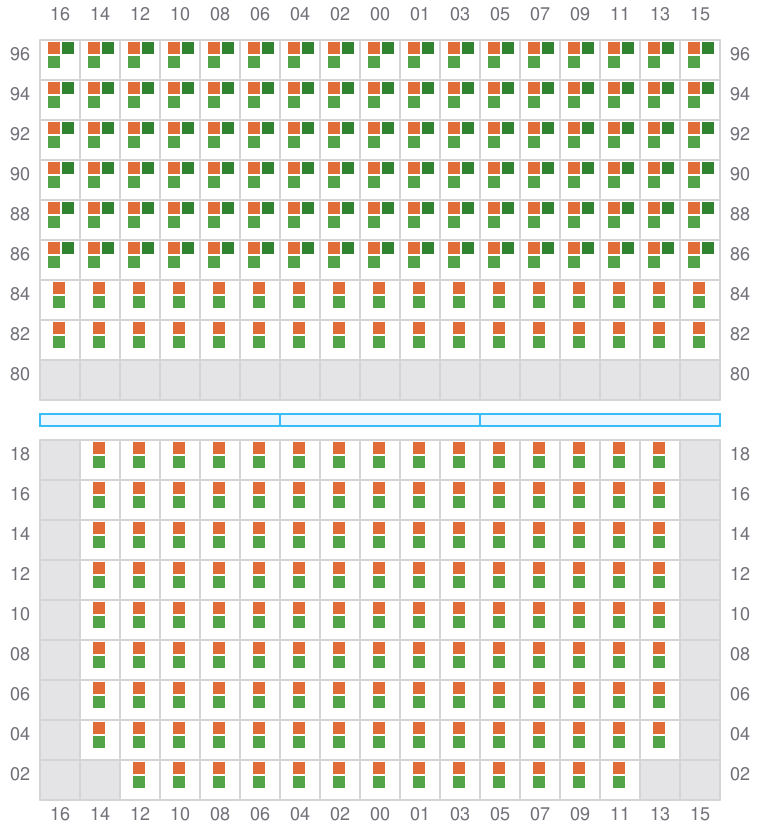

Bay 049 view and slots of MAERSK TAIKUNG

051

←
^→ / _?

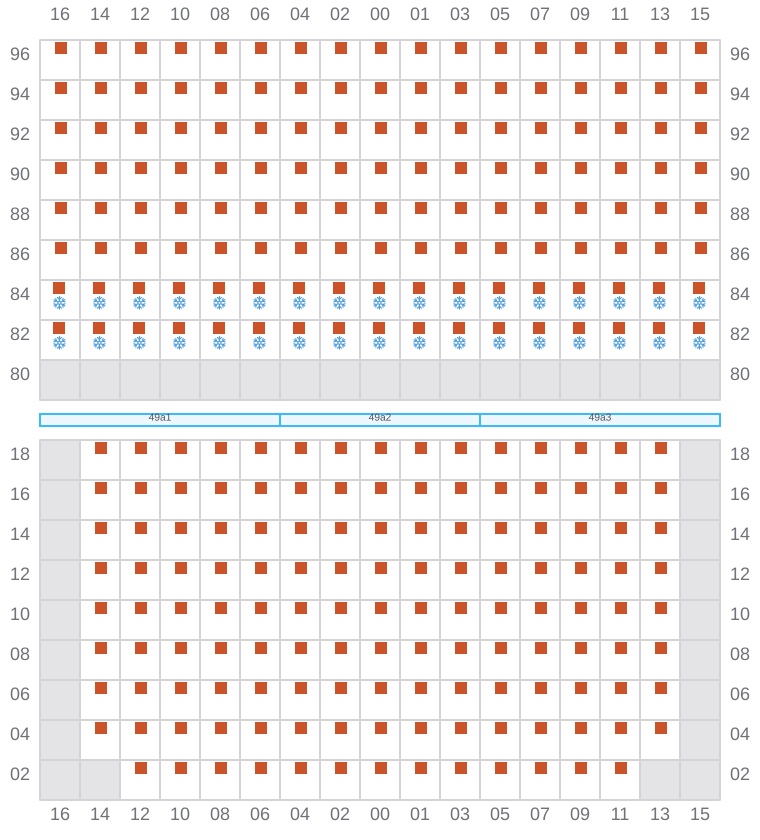

Bay 051 view and slots of MAERSK TAIKUNG

053 (054)

→

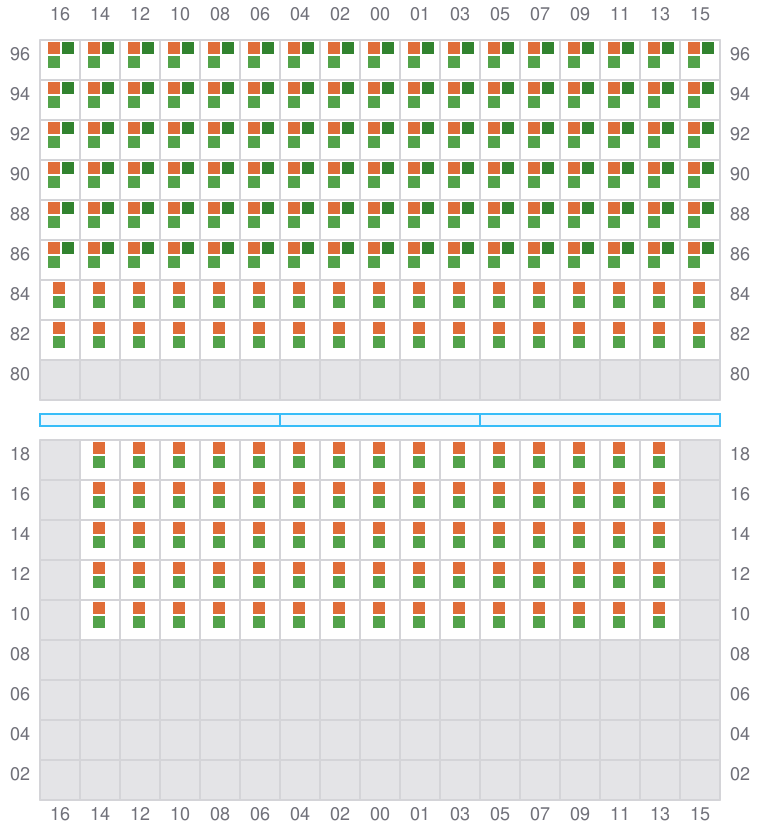

Bay 053 view and slots of MAERSK TAIKUNG

055

←
^→ / _?

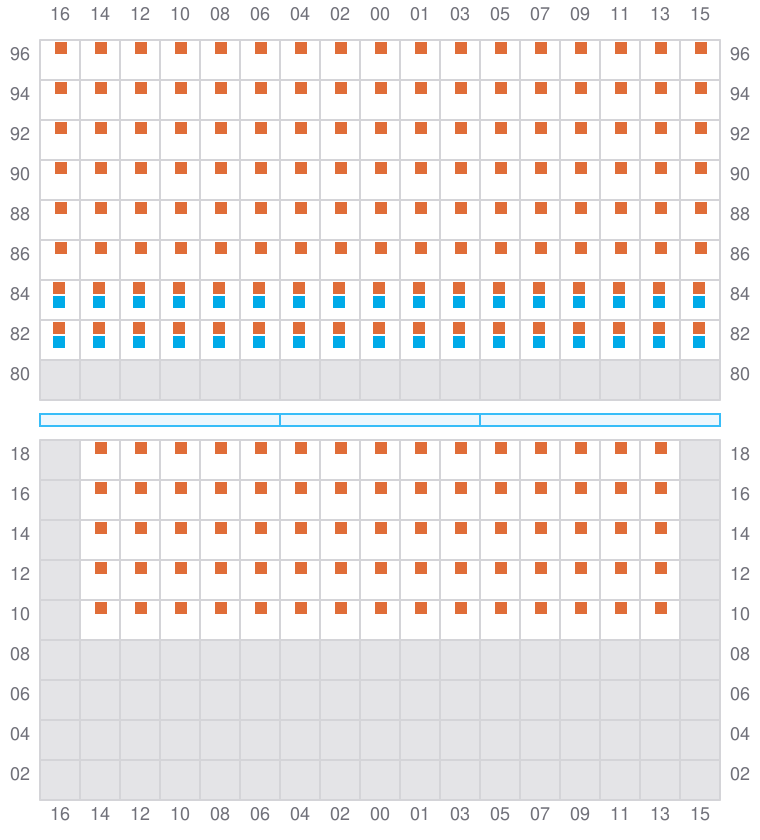

Bay 055 view and slots of MAERSK TAIKUNG

057 (058)

→

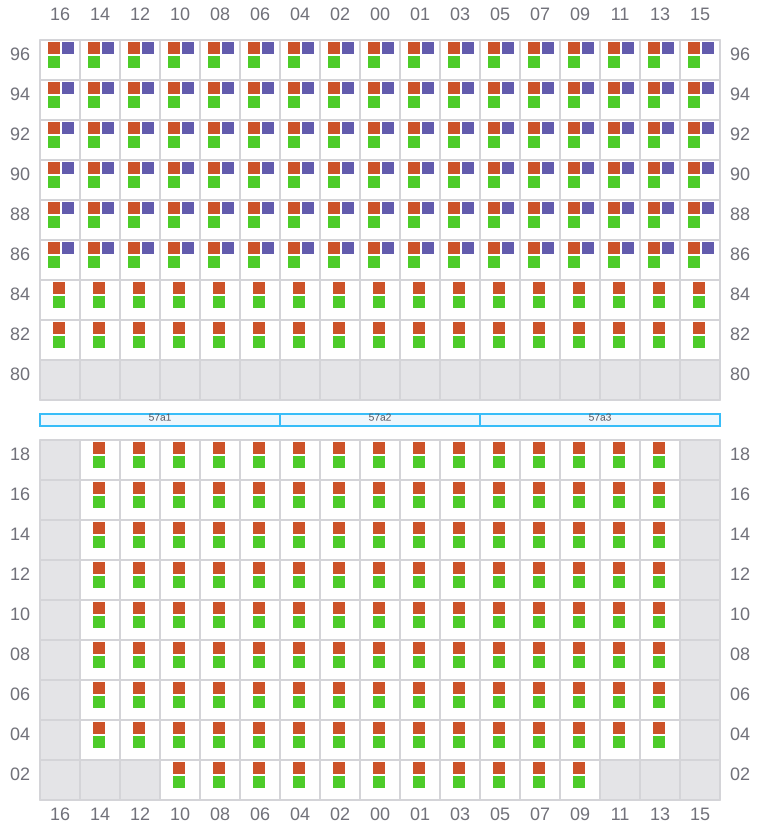

Bay 057 view and slots of MAERSK TAIKUNG

059

←
^→ / _?

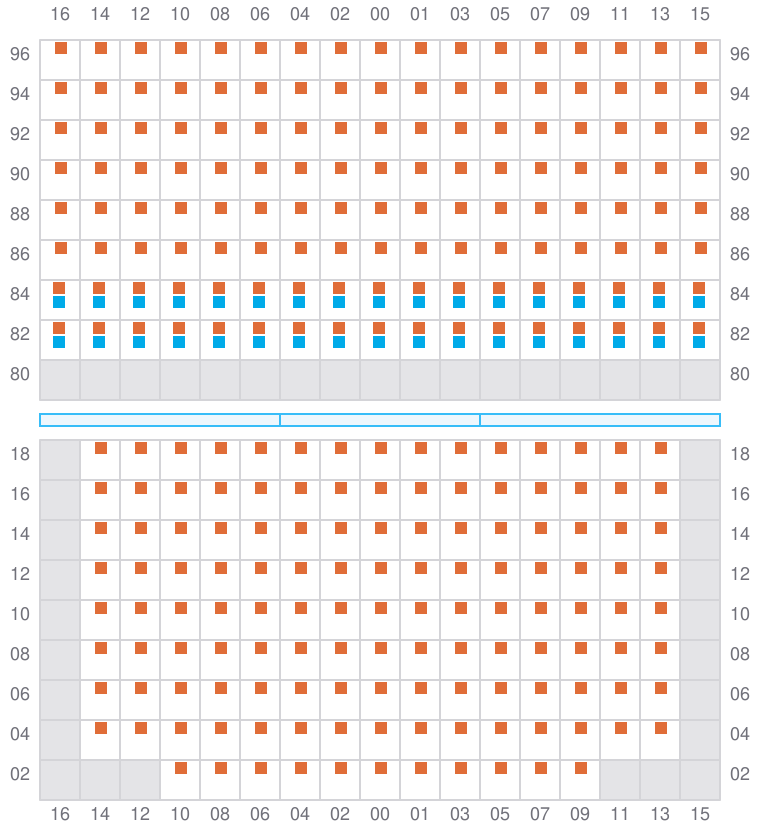

Bay 059 view and slots of MAERSK TAIKUNG

061 (062)

→
^? / _←

Bay 061 view and slots of MAERSK TAIKUNG

063

←

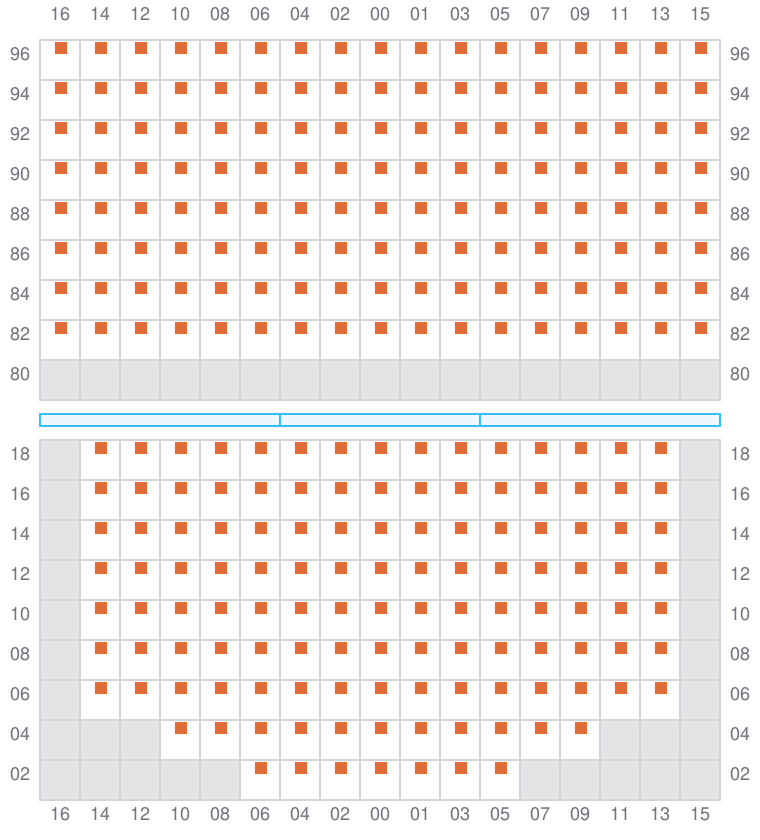

Bay 063 view and slots of MAERSK TAIKUNG

065 (066)

→

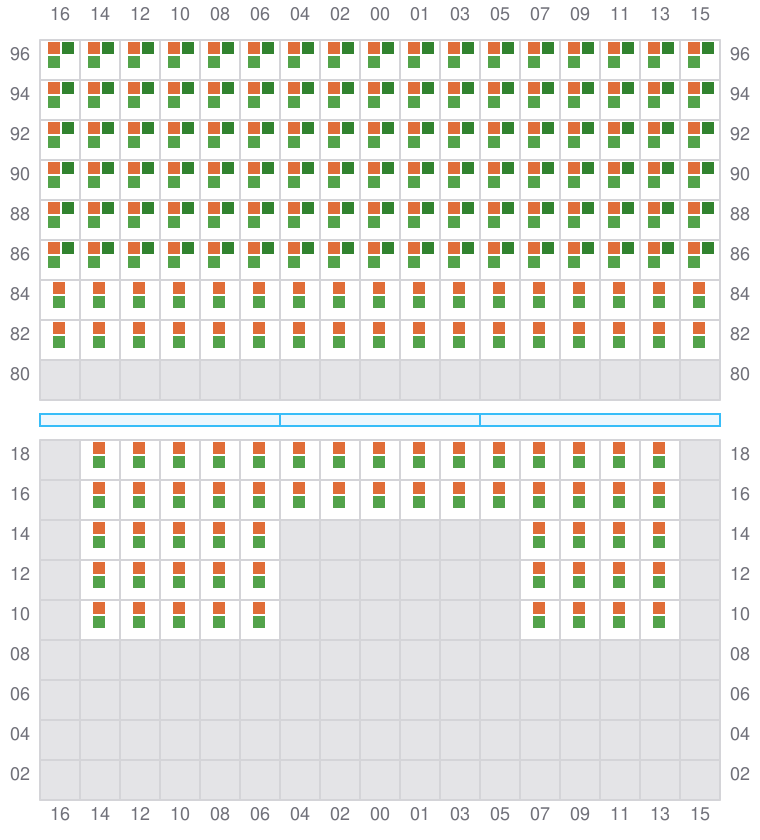

Bay 065 view and slots of MAERSK TAIKUNG

067

←
^→ / _?

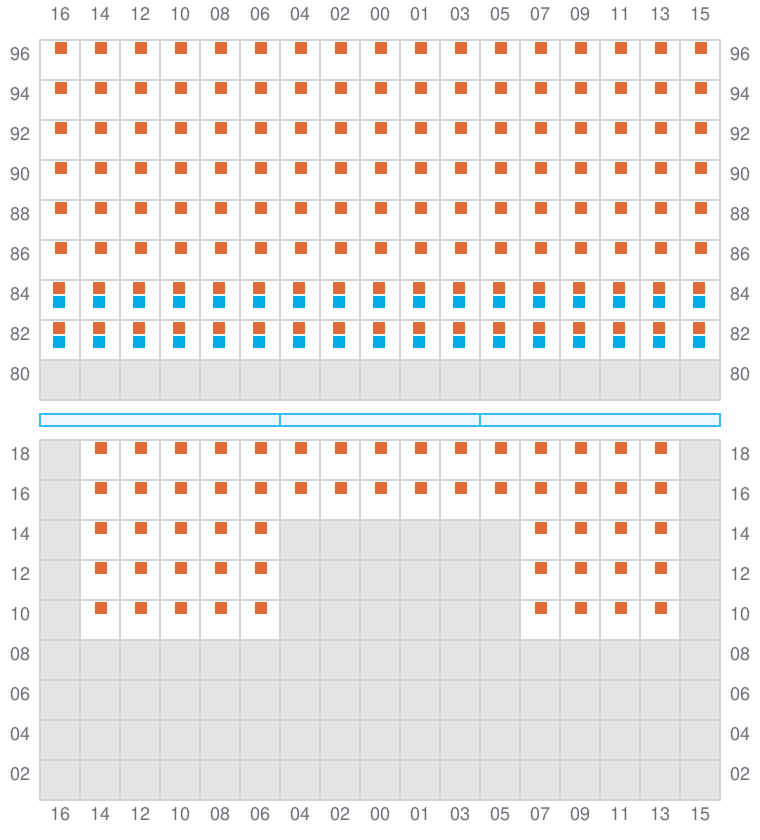

Bay 067 view and slots of MAERSK TAIKUNG

069 (070)

→

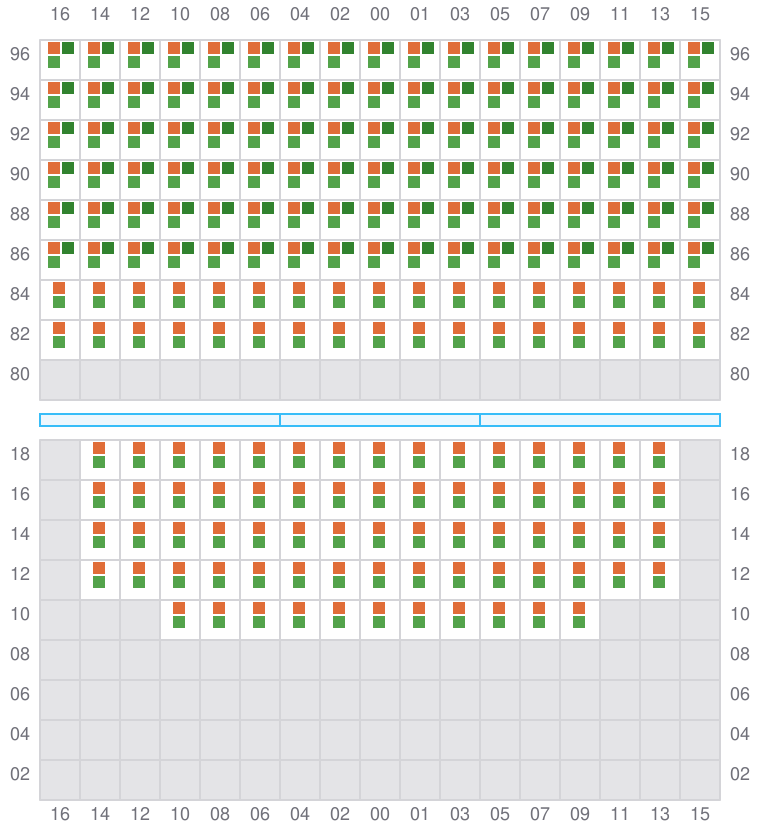

Bay 069 view and slots of MAERSK TAIKUNG

071

←
^→ / _?

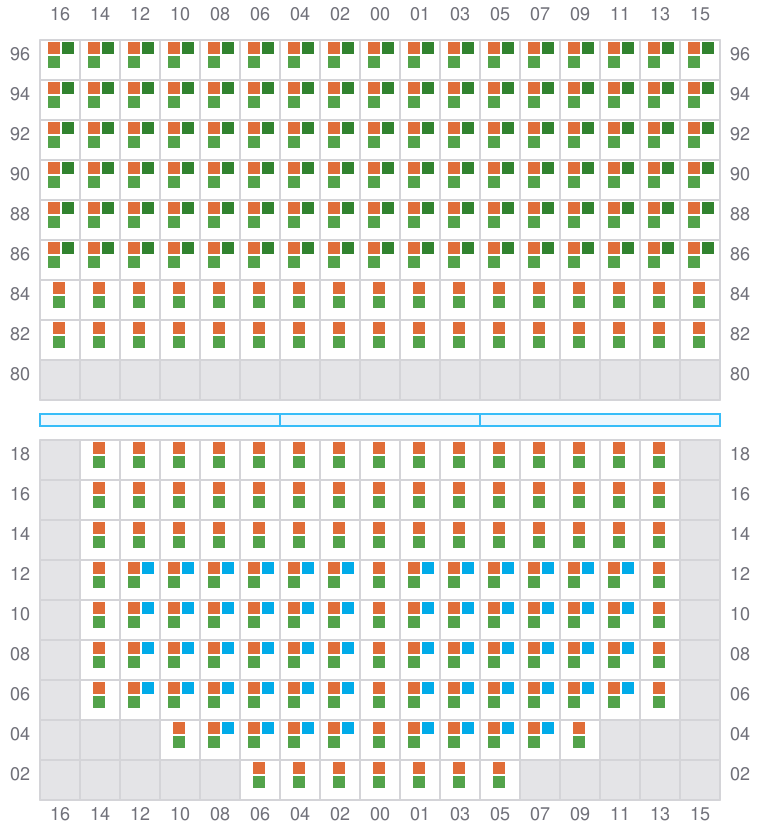

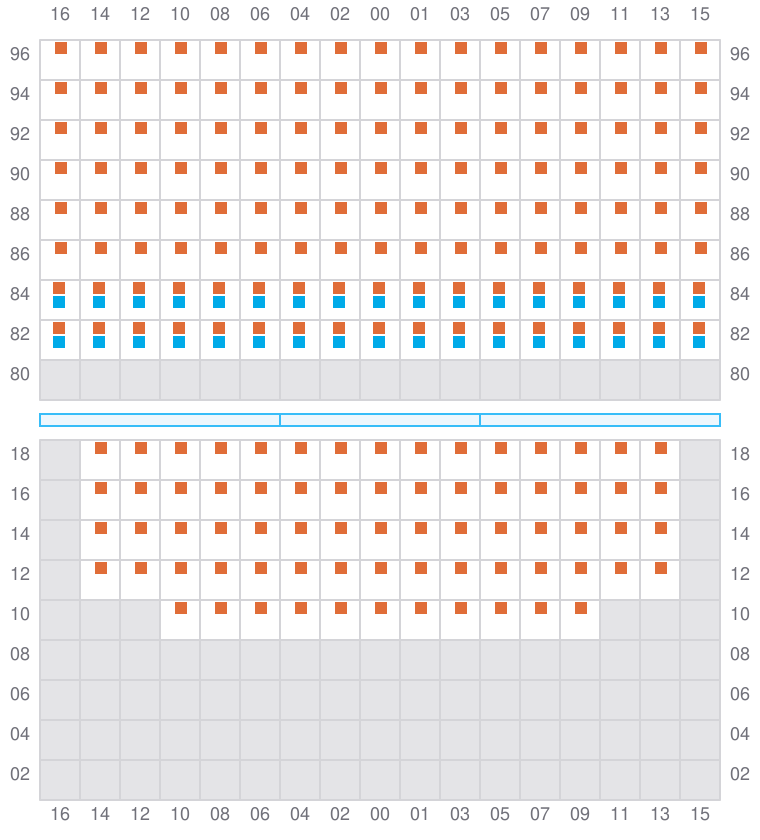

Bay 071 view and slots of MAERSK TAIKUNG

073 (074)

→

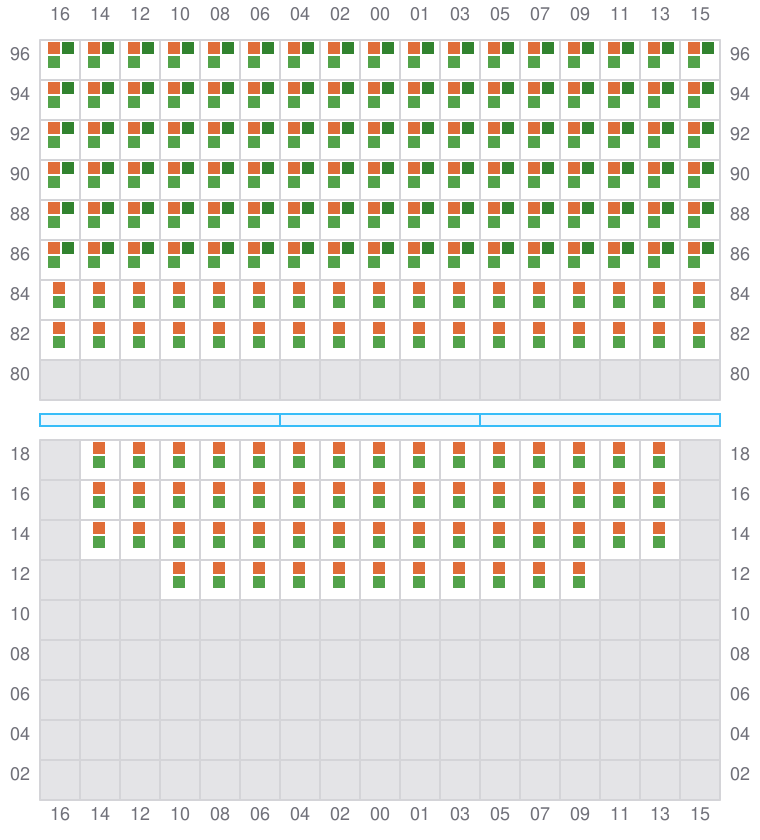

Bay 073 view and slots of MAERSK TAIKUNG

075

←
^→ / _?

Bay 075 view and slots of MAERSK TAIKUNG

077 (078)

^→ / _?

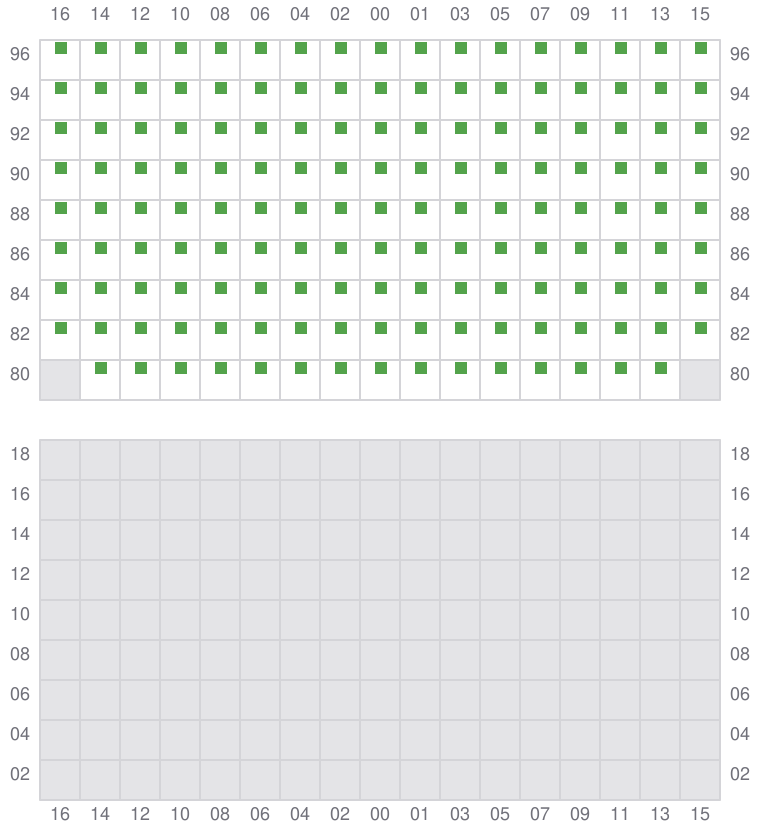

Bay 077 view and slots of MAERSK TAIKUNG
