MAERSK TAURUS
9334674 | 9VFV4 | 9334674 by ********* Last update: Fri Mar 22 2024

General Info

Ship Name:MAERSK TAURUS

IMO Code:9334674

Call Sign:9VFV4

Line Operator:9334674

Class Name for Sister Ships:533

Year Built:2008

Position Format:Bay, Row, Tier

Allowed Containers:20, 40, 45

LPP (LBP):0.00

LOA (Length Overall):0.00

Stern to AFT PP:-

Features Informed:Standard

Also Known As (old names):-

Size Summary

ISO Bays:077

Max ISO Row:16

Center Line Row:Yes

Max Above ISO Tier:96

Min Above ISO Tier:80

Max Below ISO Tier:18

Min Below ISO Tier:02

Total TEU:8,585

Centers of Gravity

LCG Values:Known

LCG Data:100%

VCG Values:Known

VCG Data:100%

TCG Values:Known

TCG Data:100%

Side View

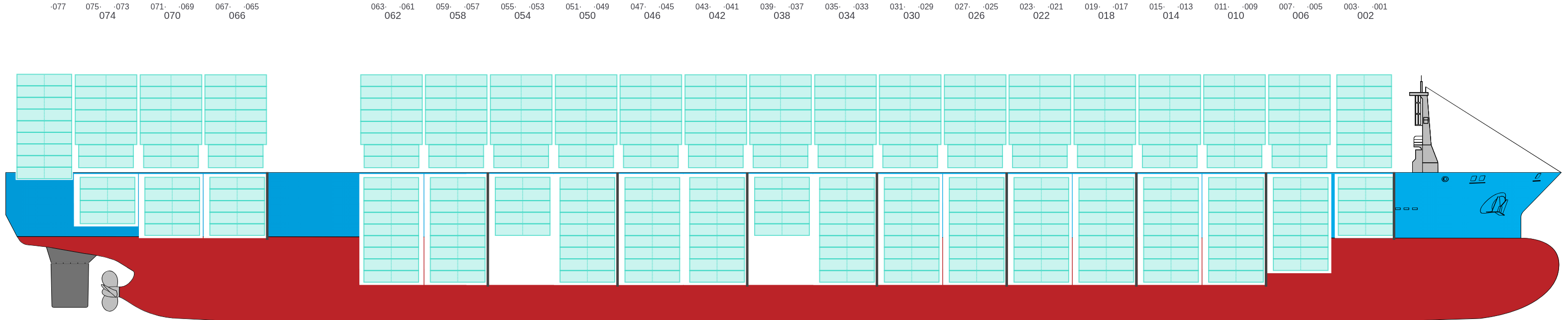

Side view of MAERSK TAURUS

Hatch-Covers View

Deck view of MAERSK TAURUS

ISO Bays

Legend

20'
40'
45'
Reefer
Restricted slot

001 (002)

→

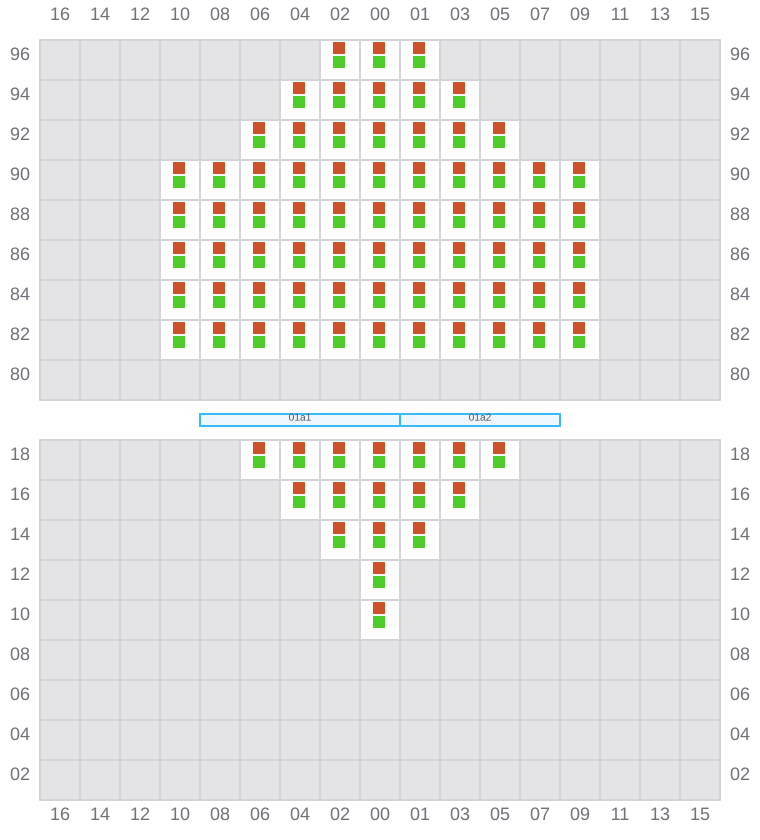

Bay 001 view and slots of MAERSK TAURUS

003

←

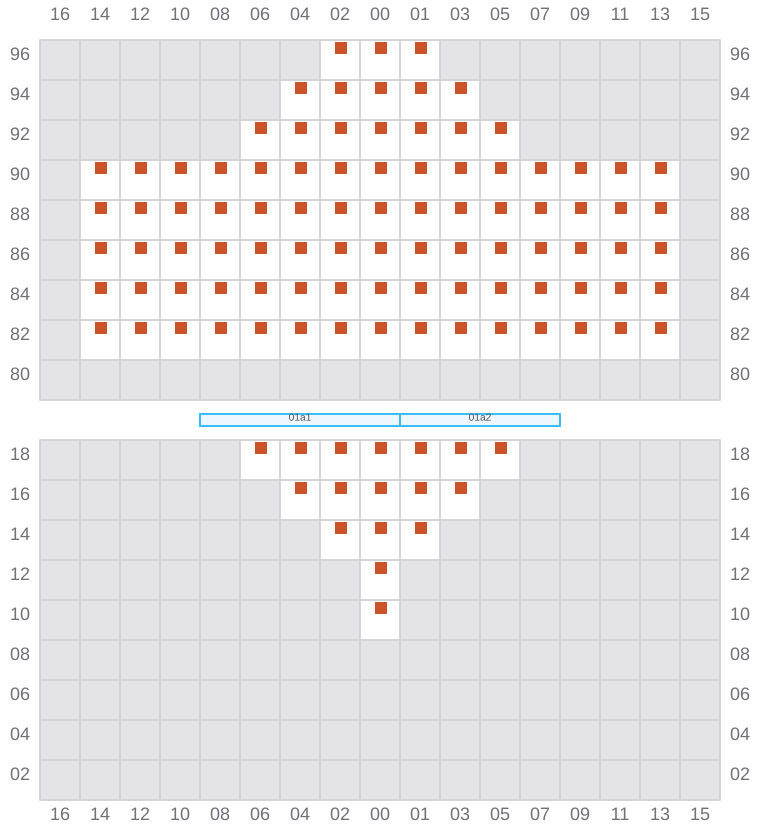

Bay 003 view and slots of MAERSK TAURUS

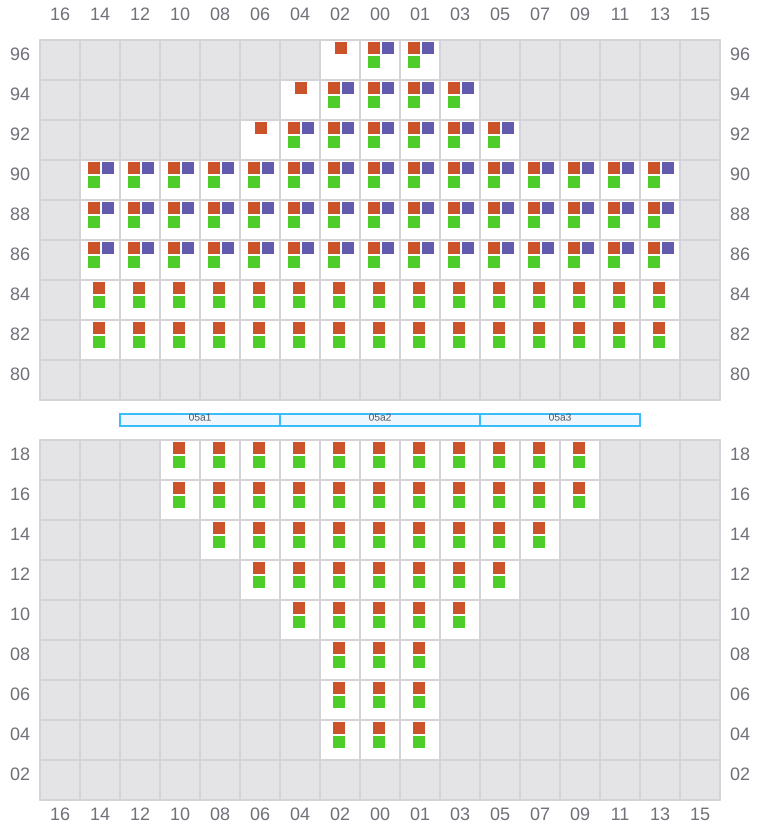

005 (006)

→

Bay 005 view and slots of MAERSK TAURUS

007

←

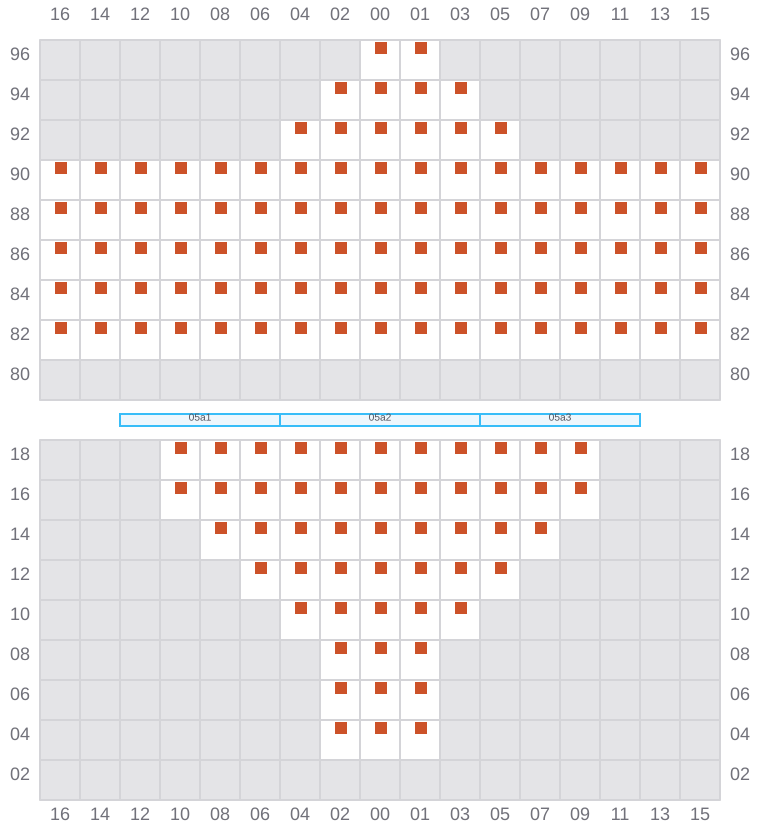

Bay 007 view and slots of MAERSK TAURUS

009 (010)

→

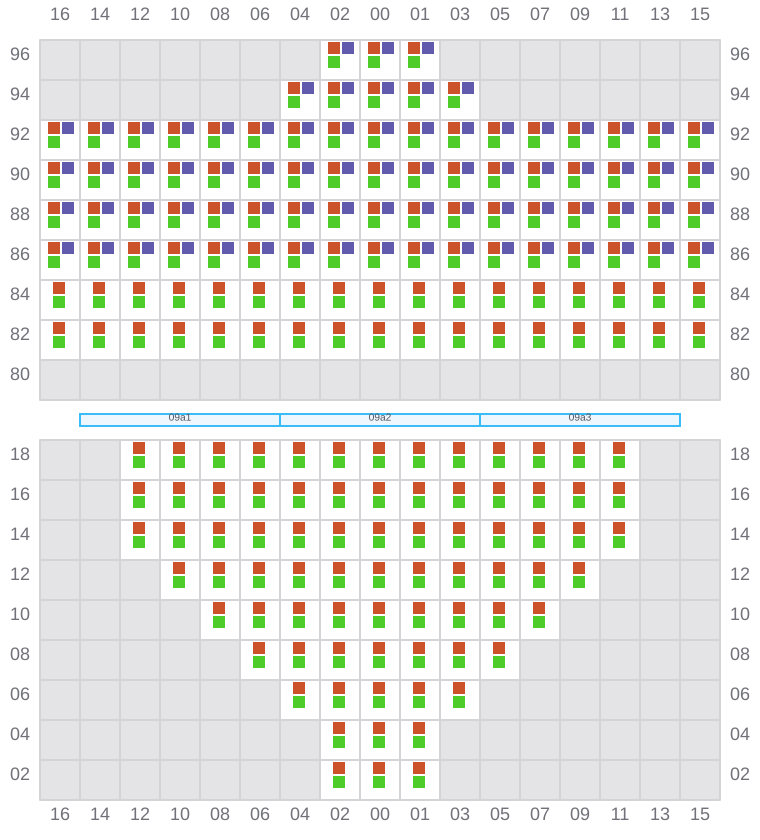

Bay 009 view and slots of MAERSK TAURUS

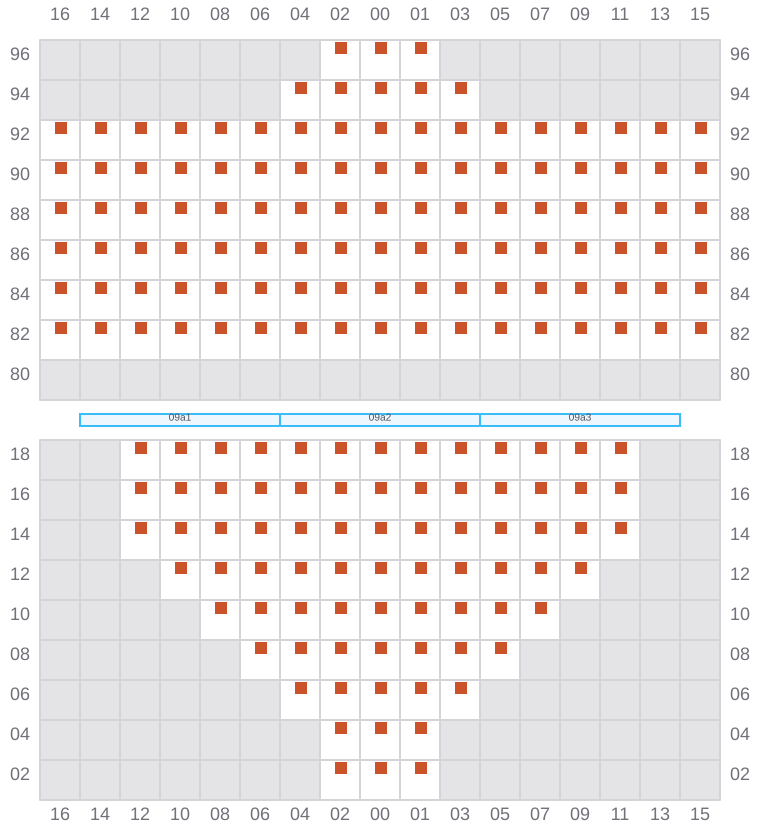

011

←

Bay 011 view and slots of MAERSK TAURUS

013 (014)

→

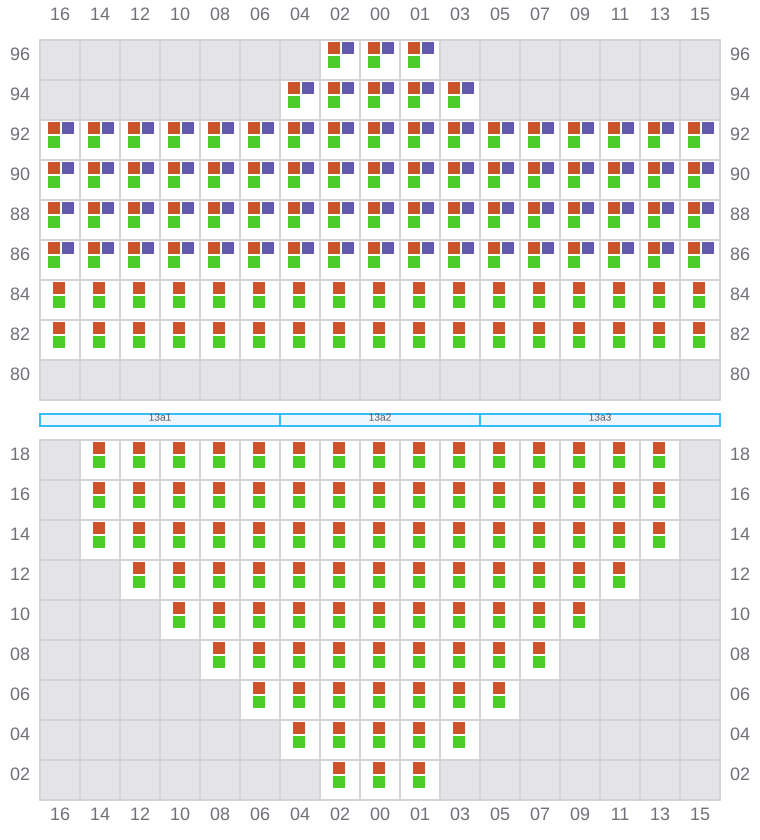

Bay 013 view and slots of MAERSK TAURUS

015

←

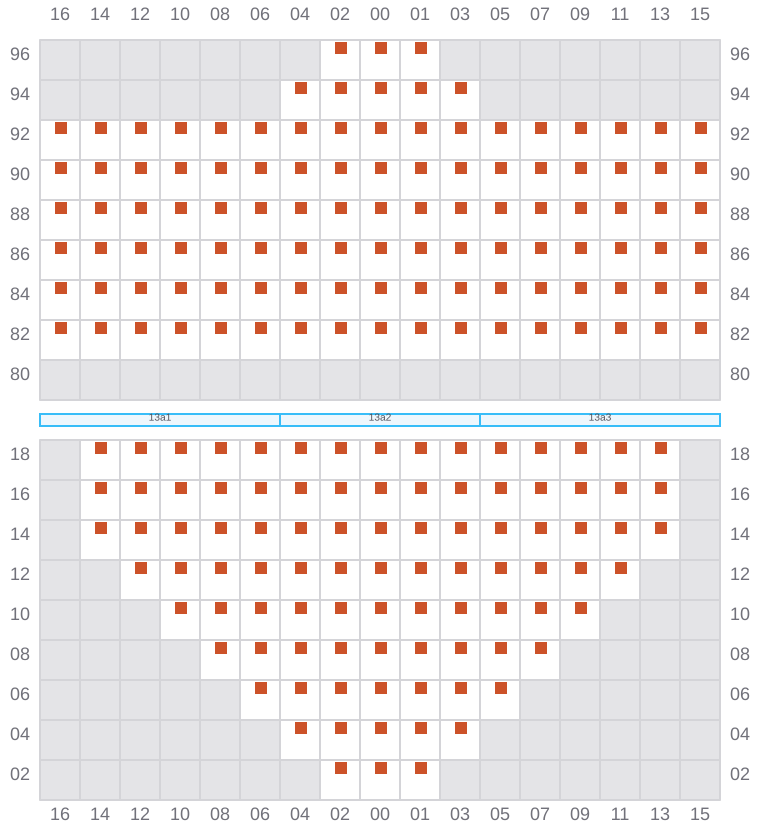

Bay 015 view and slots of MAERSK TAURUS

017 (018)

→

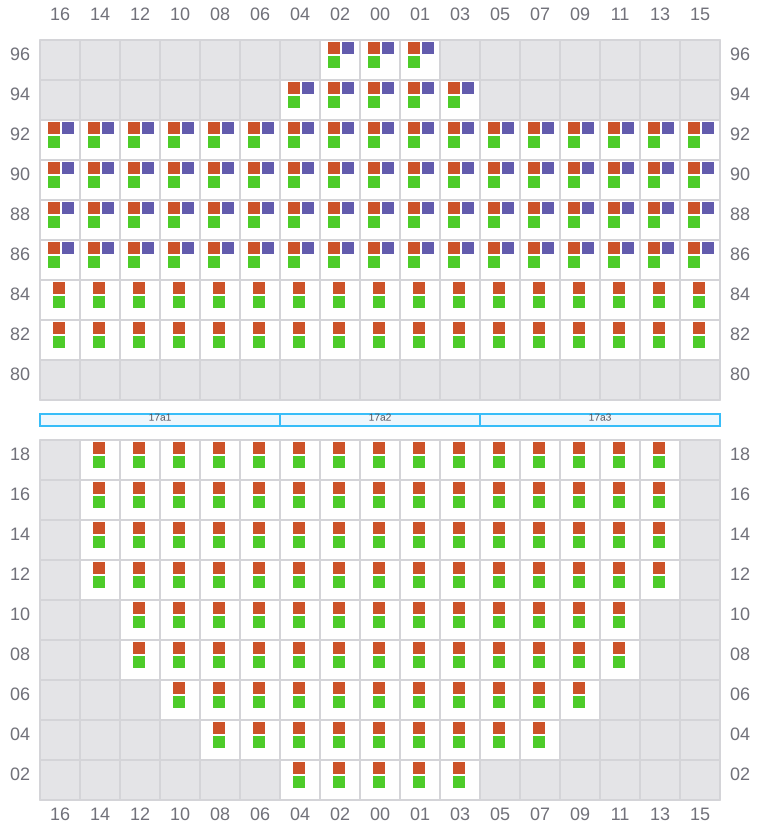

Bay 017 view and slots of MAERSK TAURUS

019

←
^→ / _?

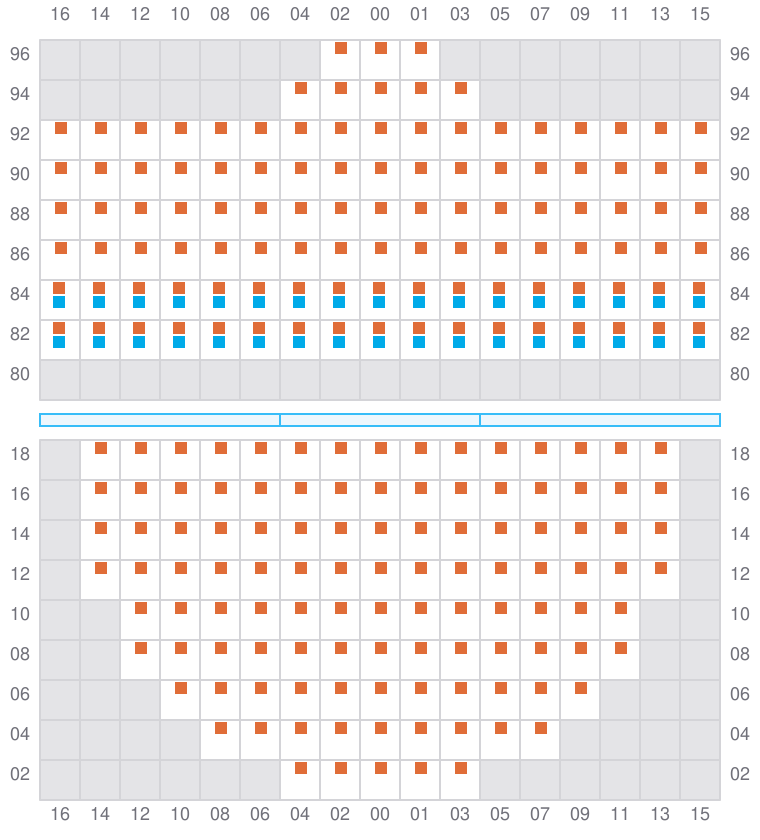

Bay 019 view and slots of MAERSK TAURUS

021 (022)

→
^? / _←

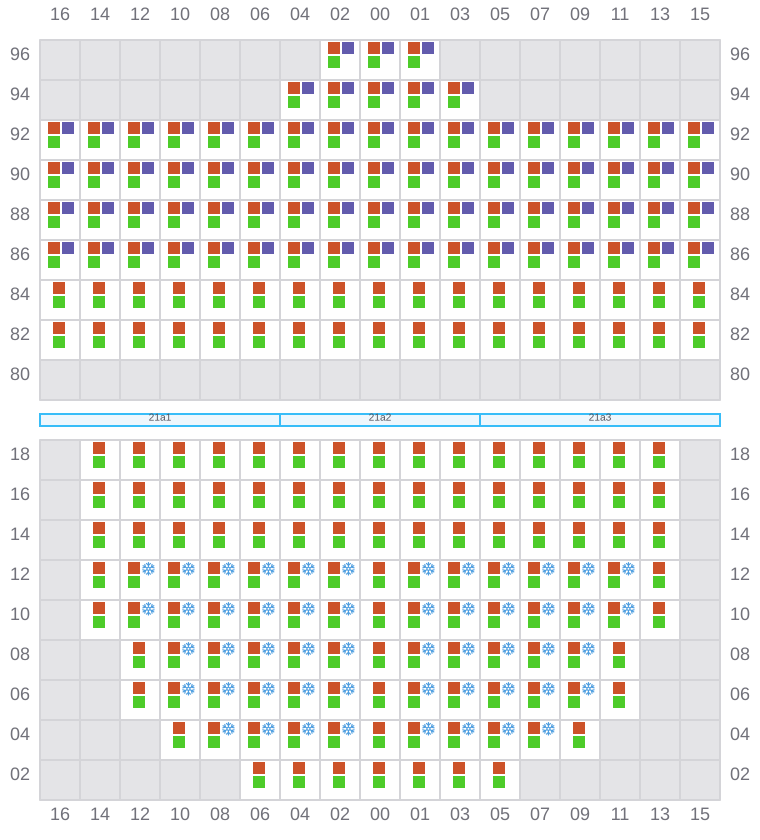

Bay 021 view and slots of MAERSK TAURUS

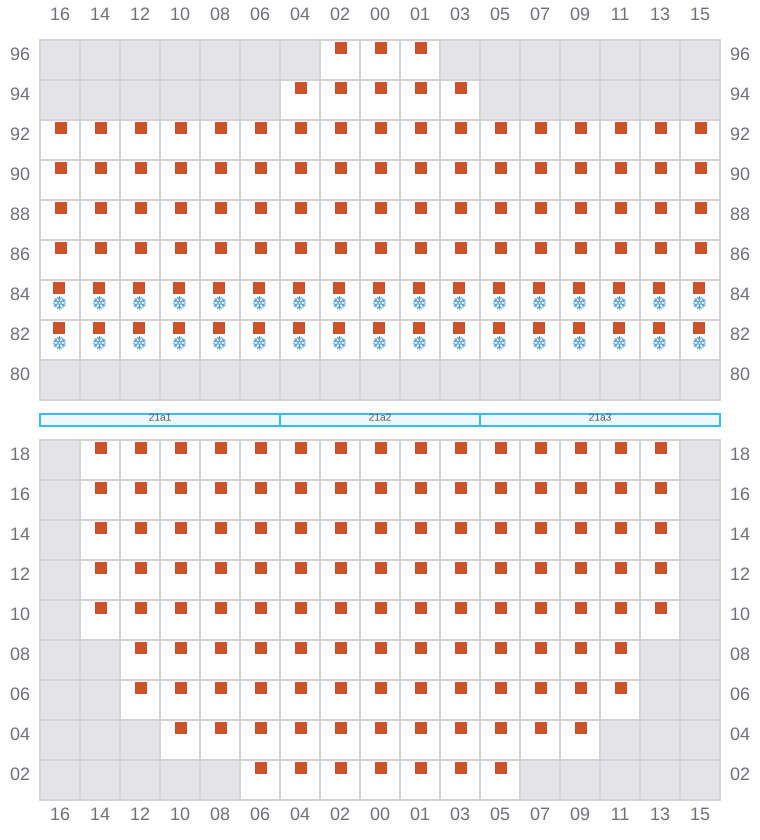

023

←
^→ / _?

Bay 023 view and slots of MAERSK TAURUS

025 (026)

→

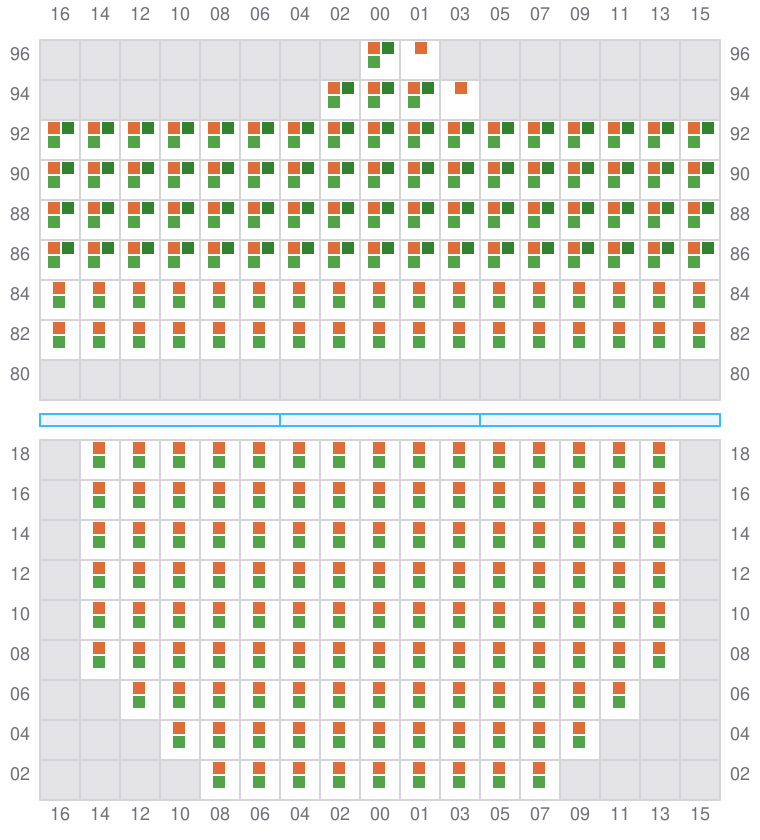

Bay 025 view and slots of MAERSK TAURUS

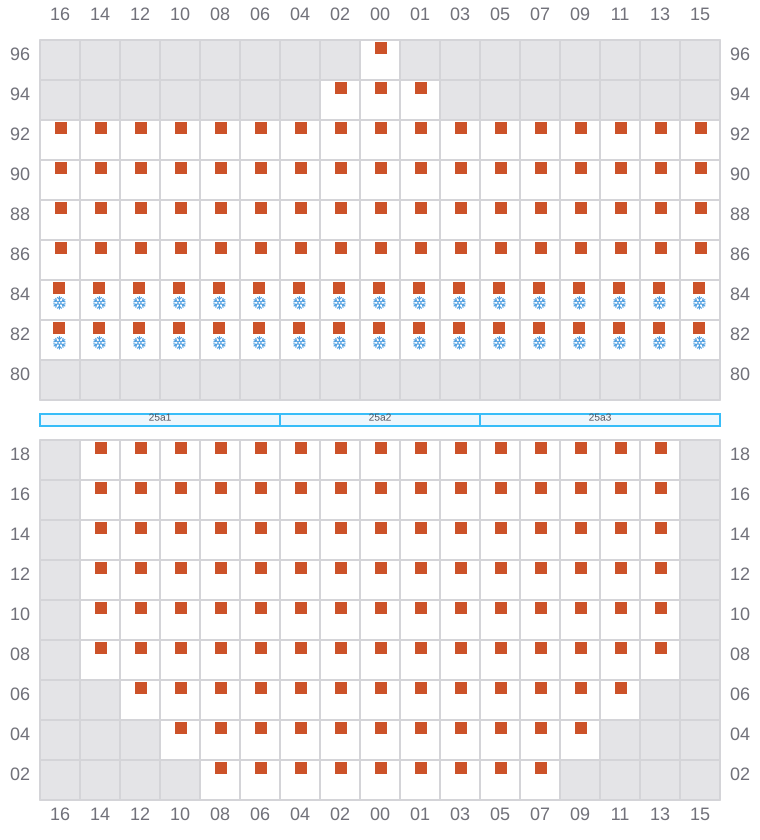

027

←
^→ / _?

Bay 027 view and slots of MAERSK TAURUS

029 (030)

→
^? / _←

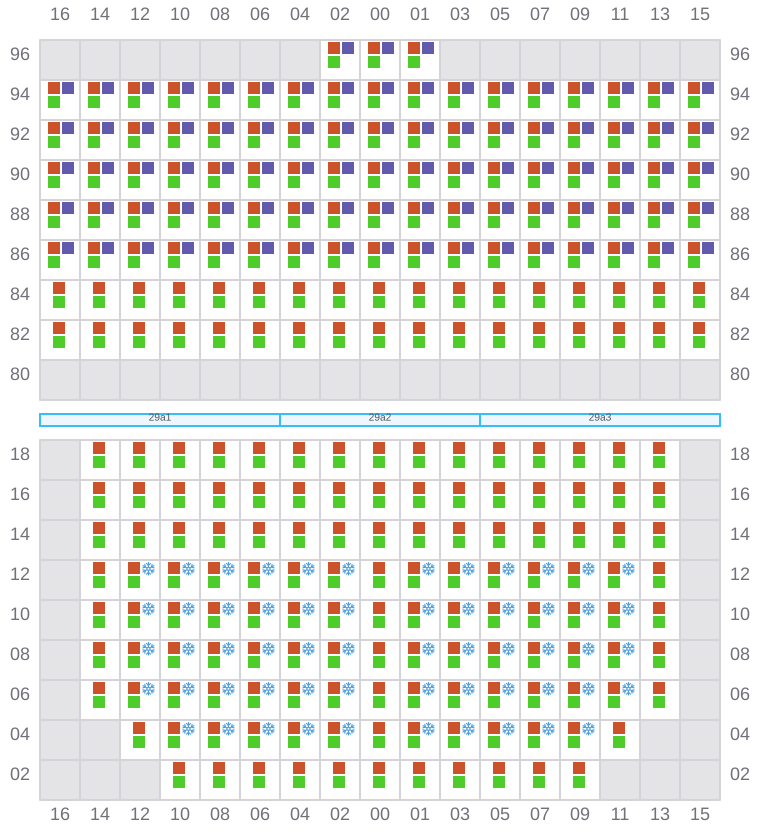

Bay 029 view and slots of MAERSK TAURUS

031

←
^→ / _?

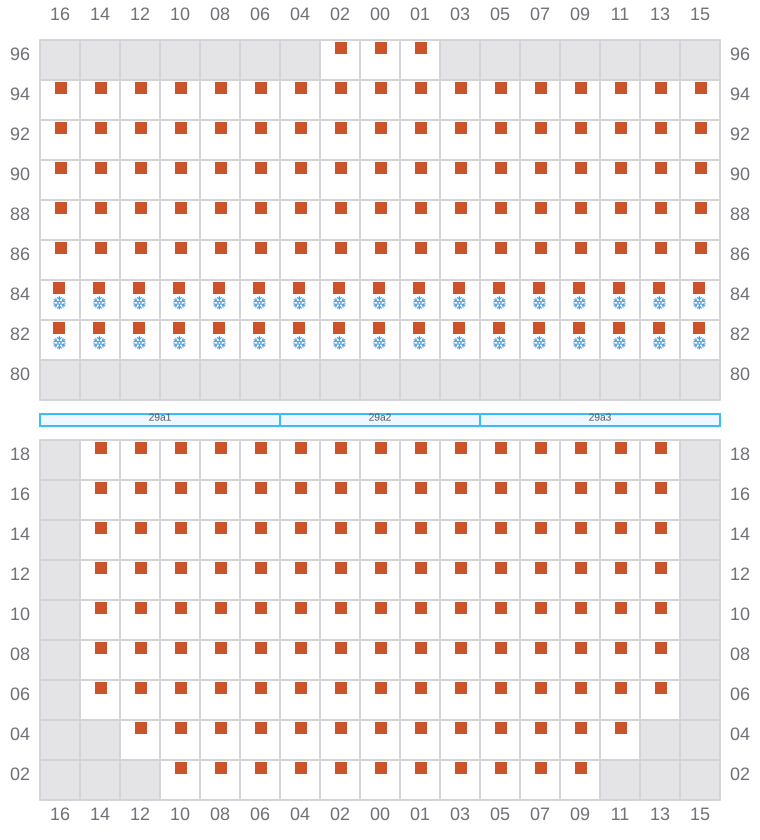

Bay 031 view and slots of MAERSK TAURUS

033 (034)

→

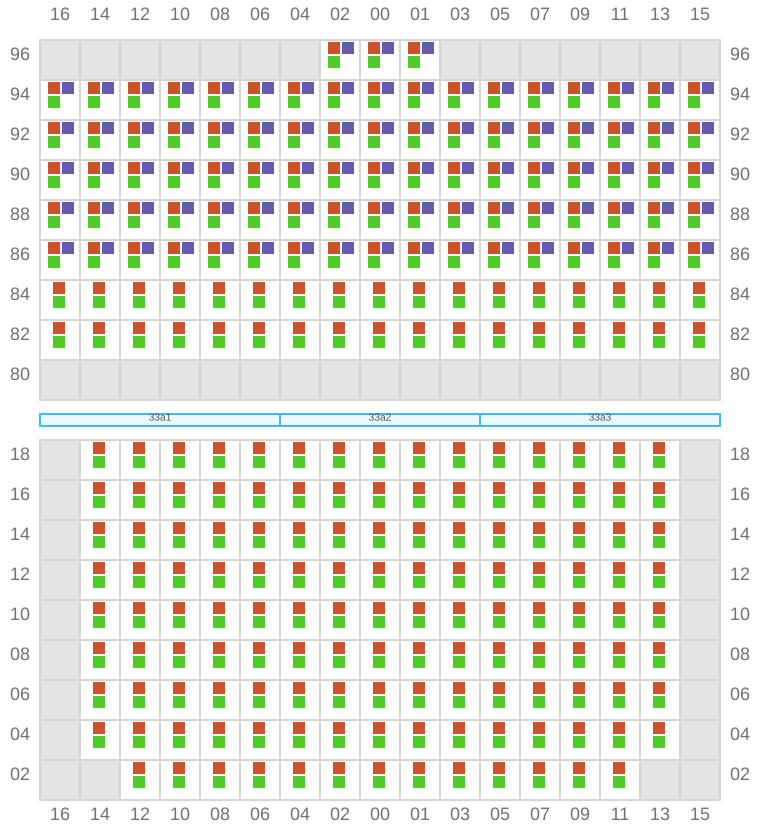

Bay 033 view and slots of MAERSK TAURUS

035

←
^→ / _?

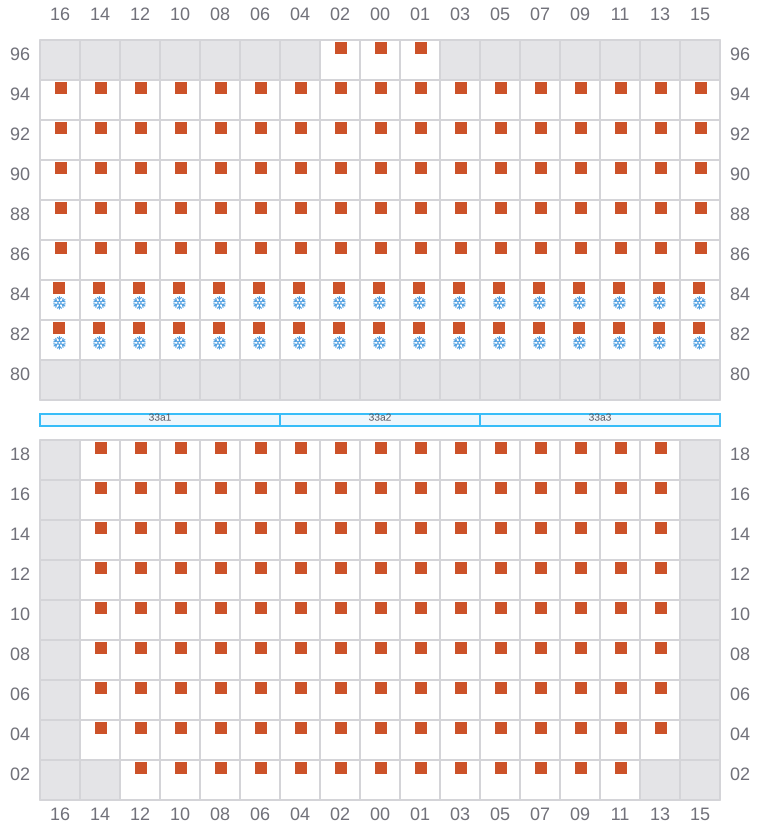

Bay 035 view and slots of MAERSK TAURUS

037 (038)

→

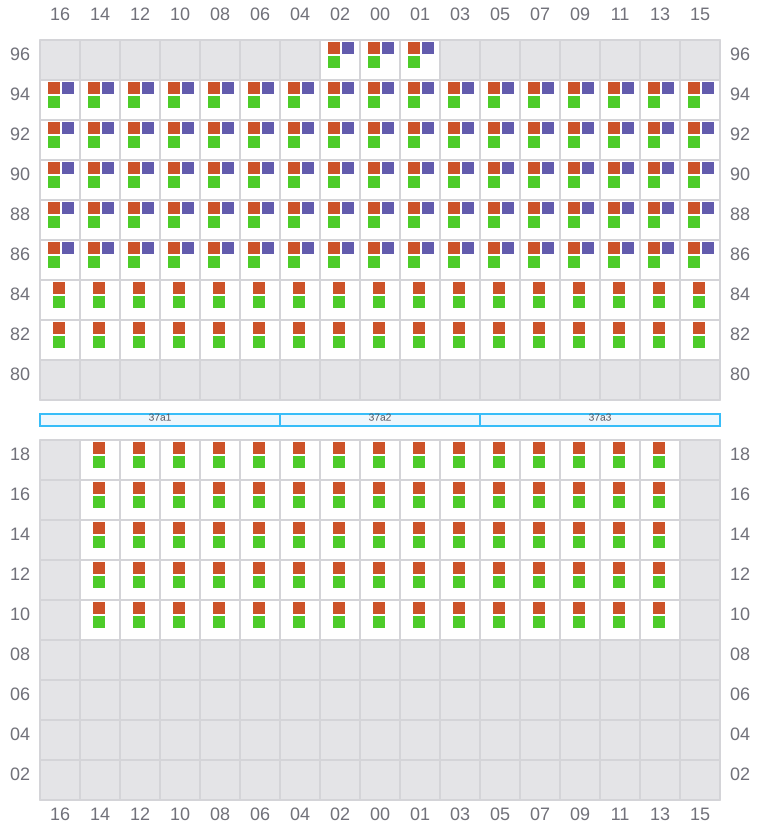

Bay 037 view and slots of MAERSK TAURUS

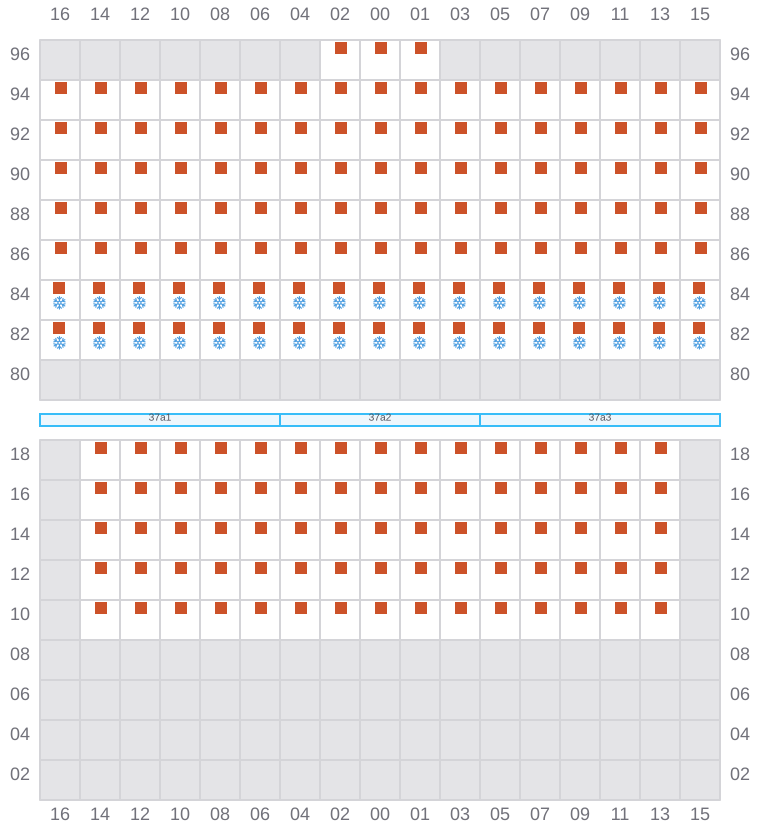

039

←
^→ / _?

Bay 039 view and slots of MAERSK TAURUS

041 (042)

→

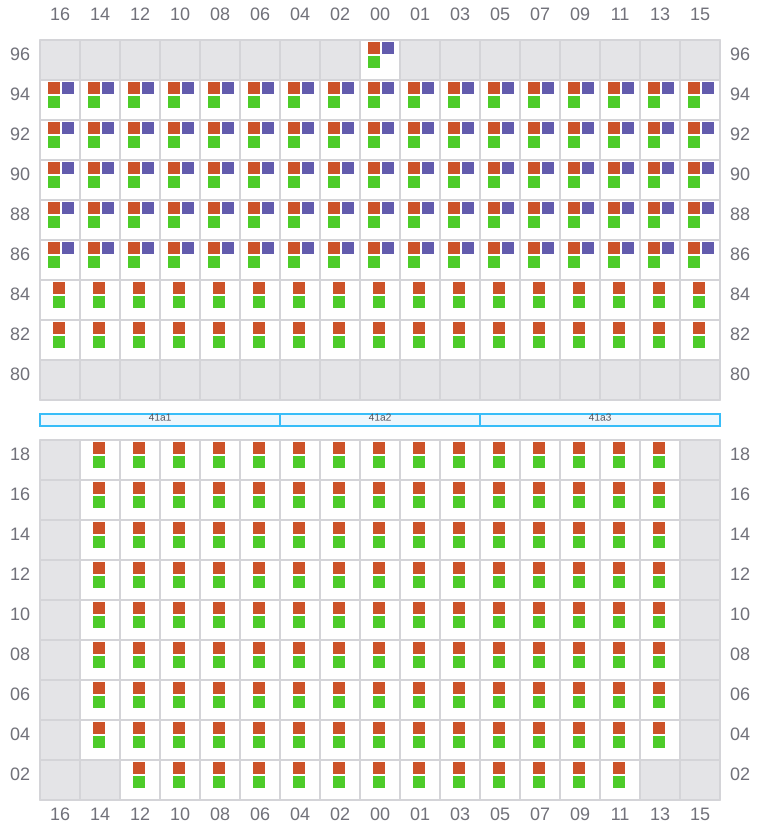

Bay 041 view and slots of MAERSK TAURUS

043

←
^→ / _?

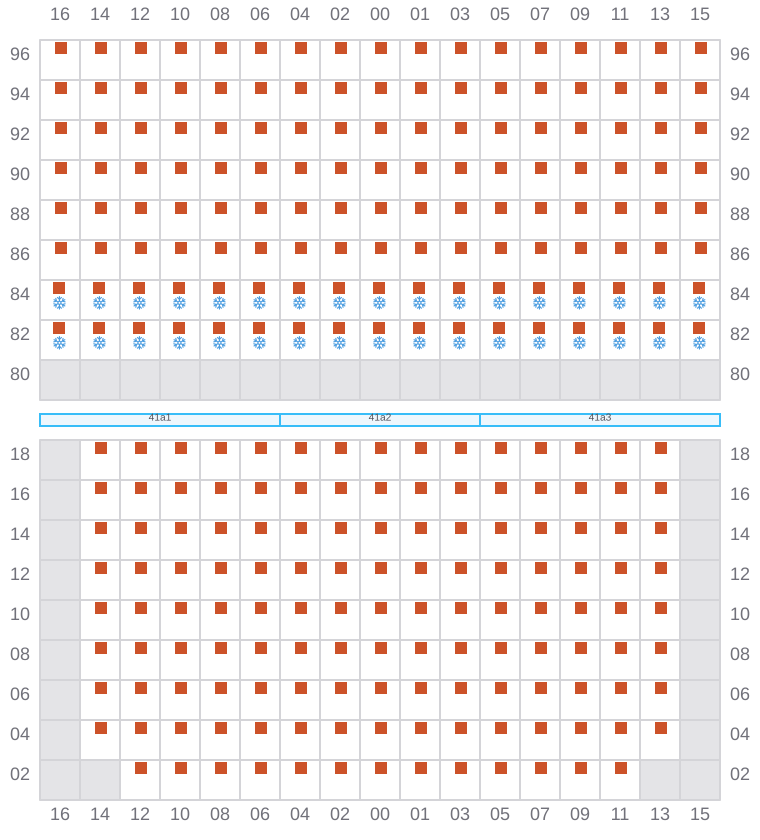

Bay 043 view and slots of MAERSK TAURUS

045 (046)

→
^? / _←

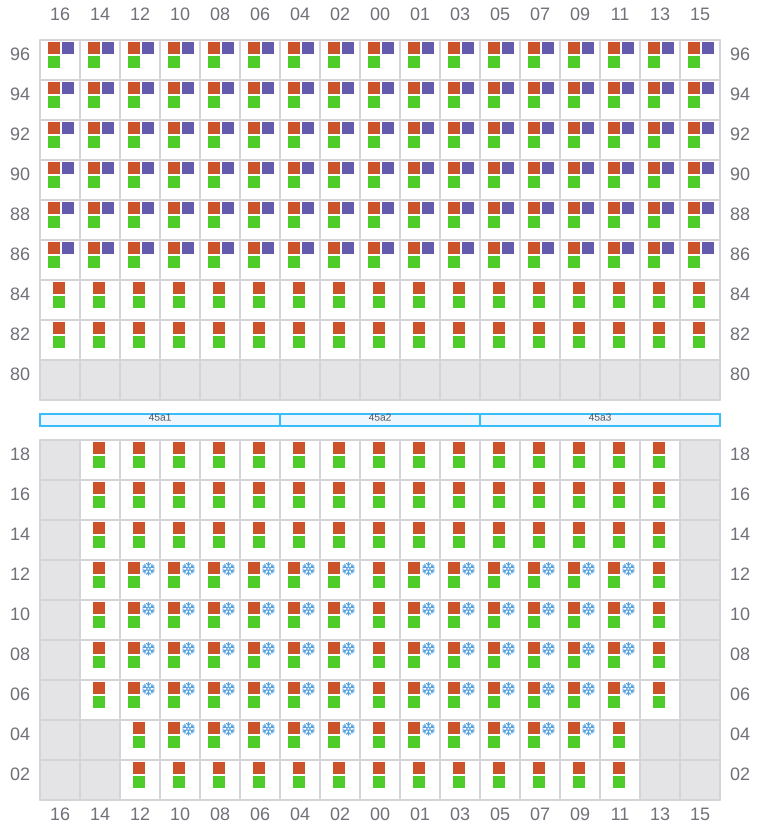

Bay 045 view and slots of MAERSK TAURUS

047

←
^→ / _?

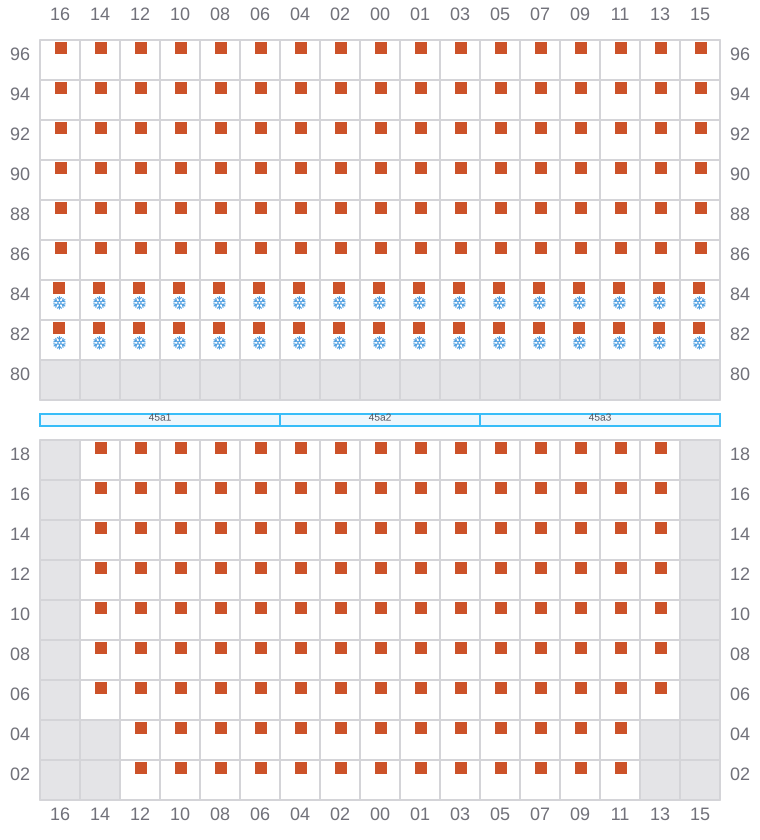

Bay 047 view and slots of MAERSK TAURUS

049 (050)

→

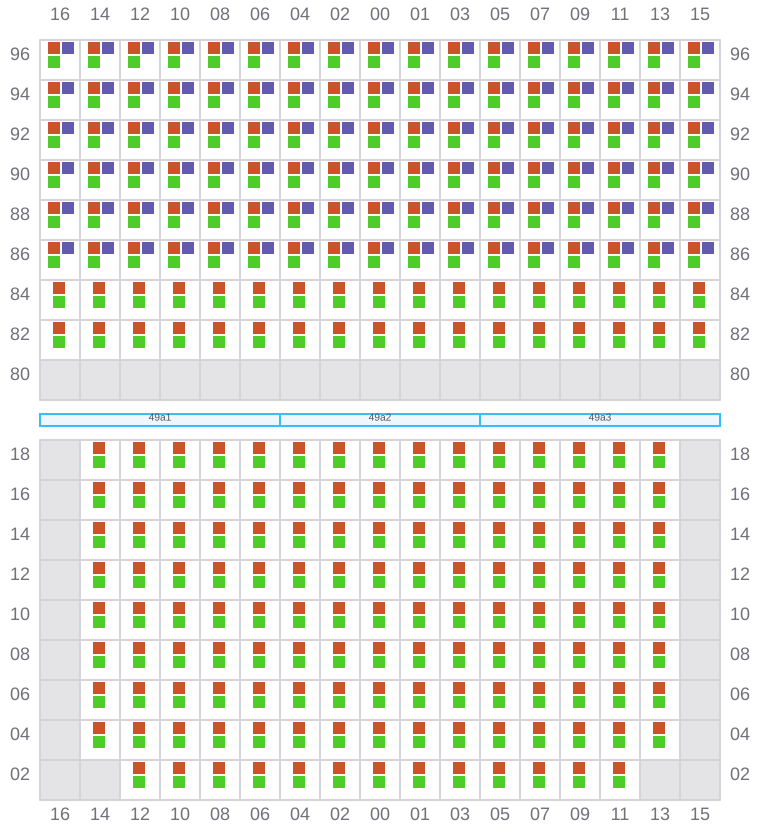

Bay 049 view and slots of MAERSK TAURUS

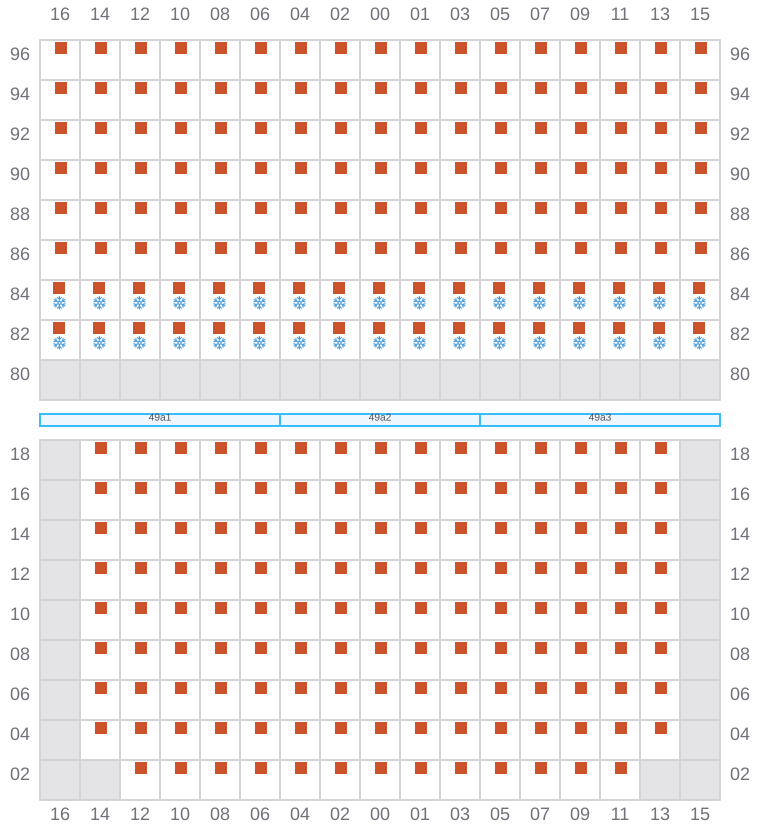

051

←
^→ / _?

Bay 051 view and slots of MAERSK TAURUS

053 (054)

→

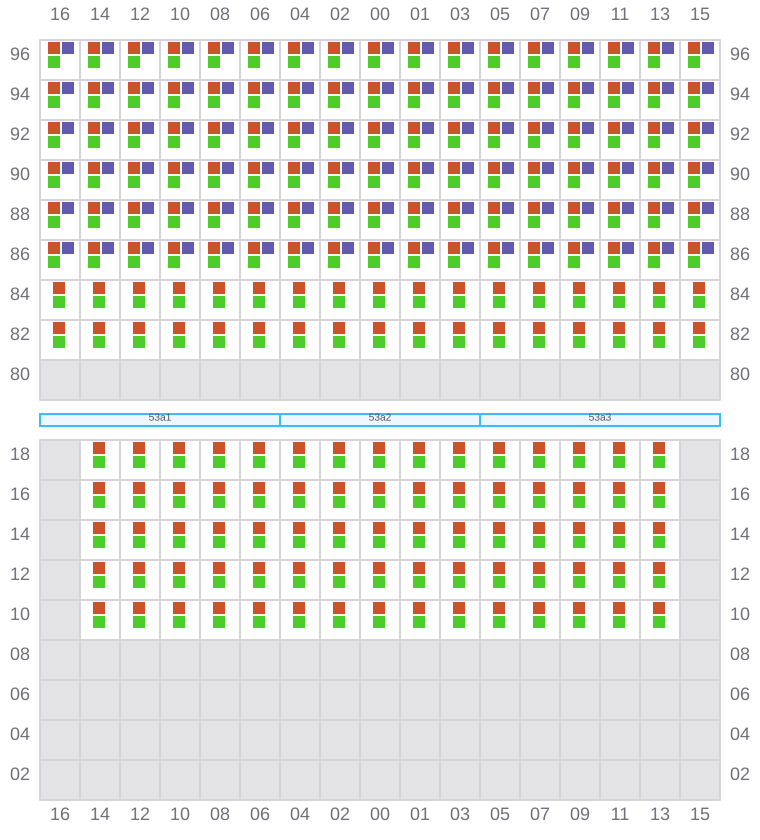

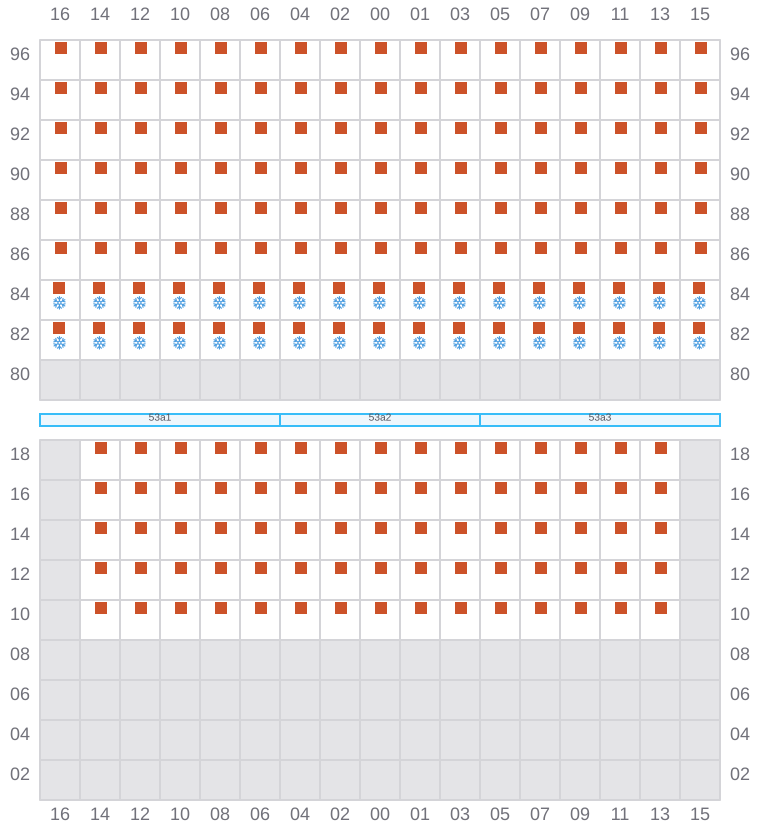

Bay 053 view and slots of MAERSK TAURUS

055

←
^→ / _?

Bay 055 view and slots of MAERSK TAURUS

057 (058)

→

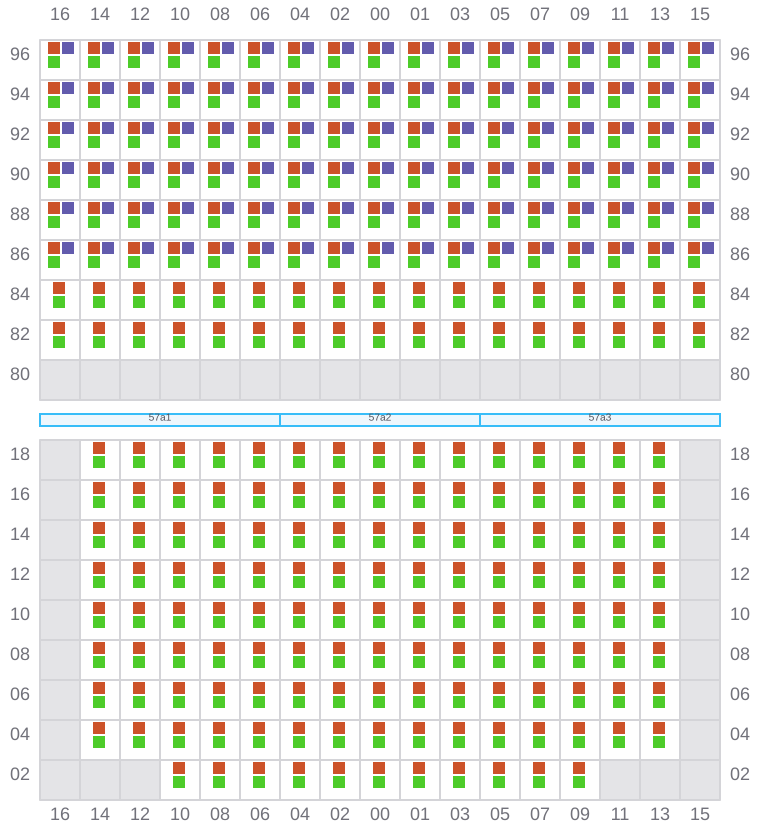

Bay 057 view and slots of MAERSK TAURUS

059

←
^→ / _?

Bay 059 view and slots of MAERSK TAURUS

061 (062)

→
^? / _←

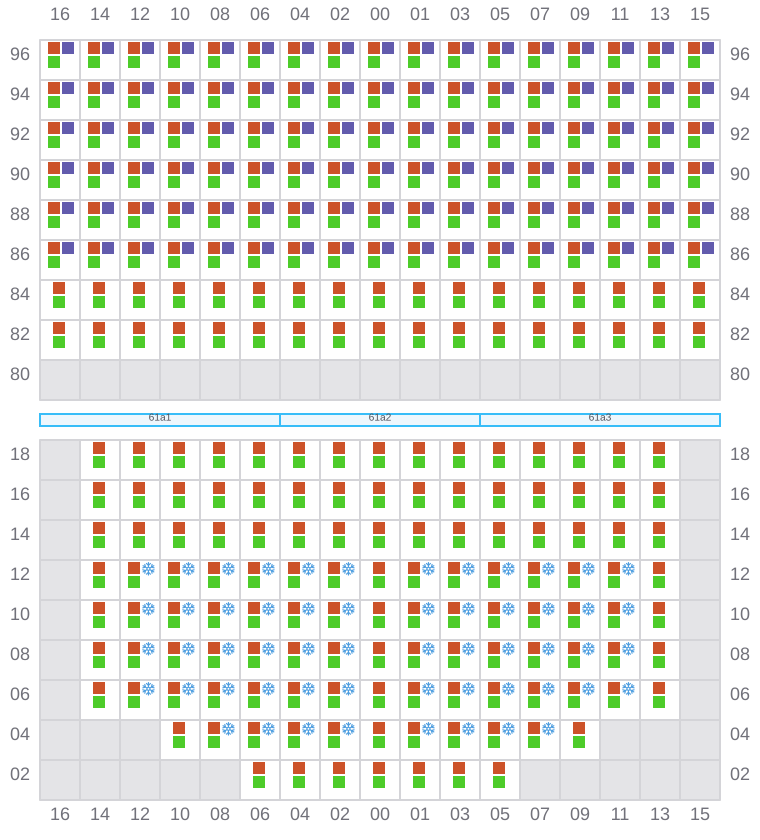

Bay 061 view and slots of MAERSK TAURUS

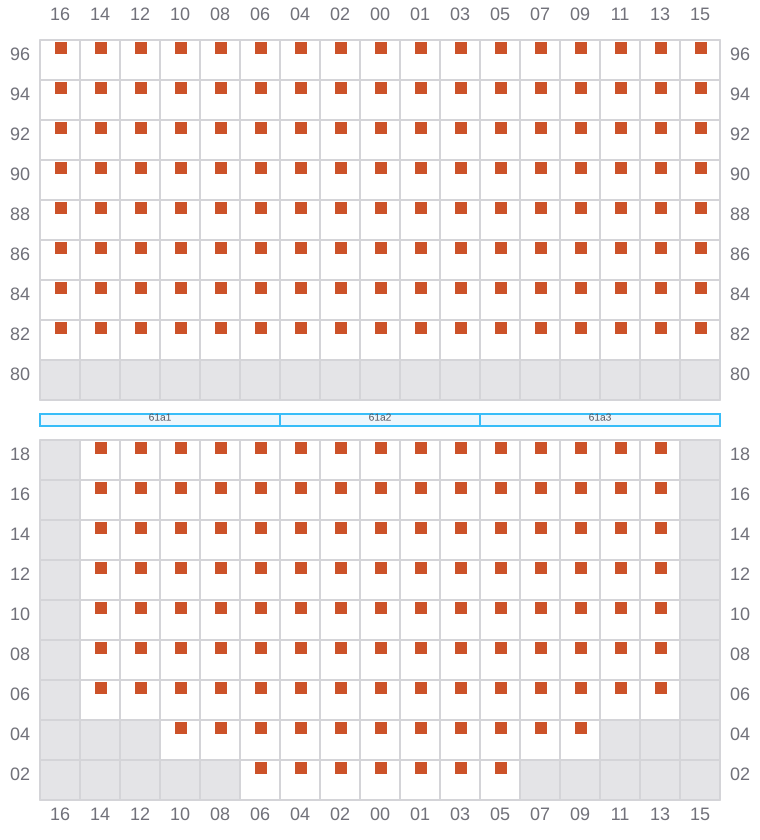

063

←

Bay 063 view and slots of MAERSK TAURUS

065 (066)

→

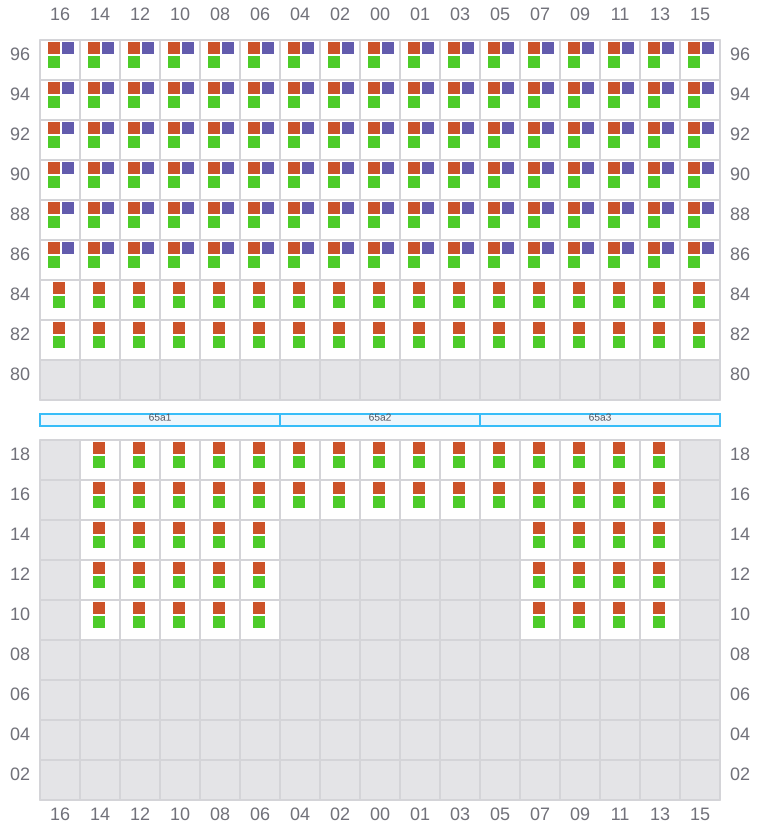

Bay 065 view and slots of MAERSK TAURUS

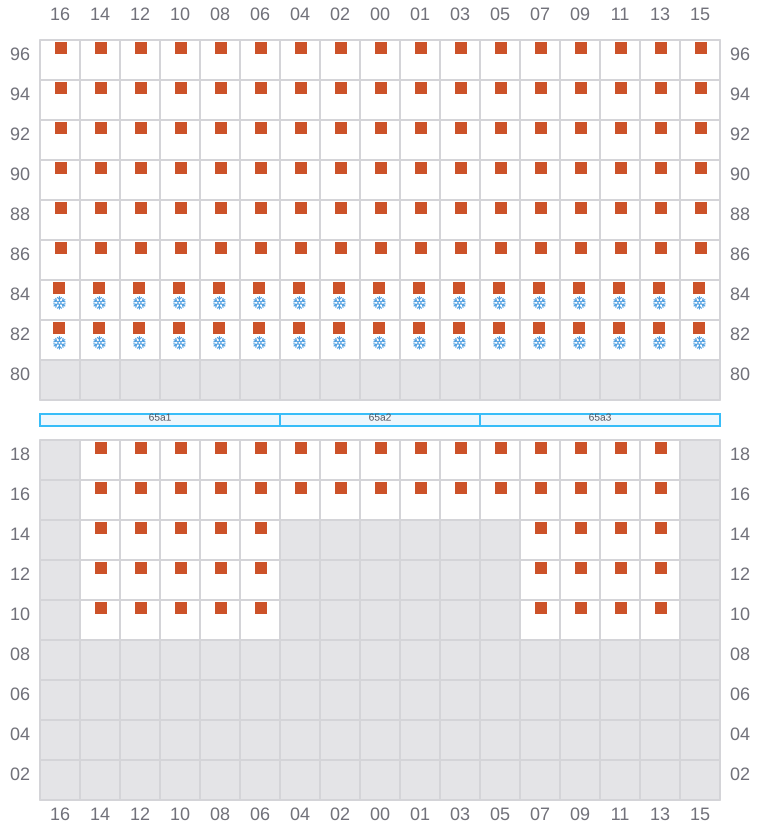

067

←
^→ / _?

Bay 067 view and slots of MAERSK TAURUS

069 (070)

→

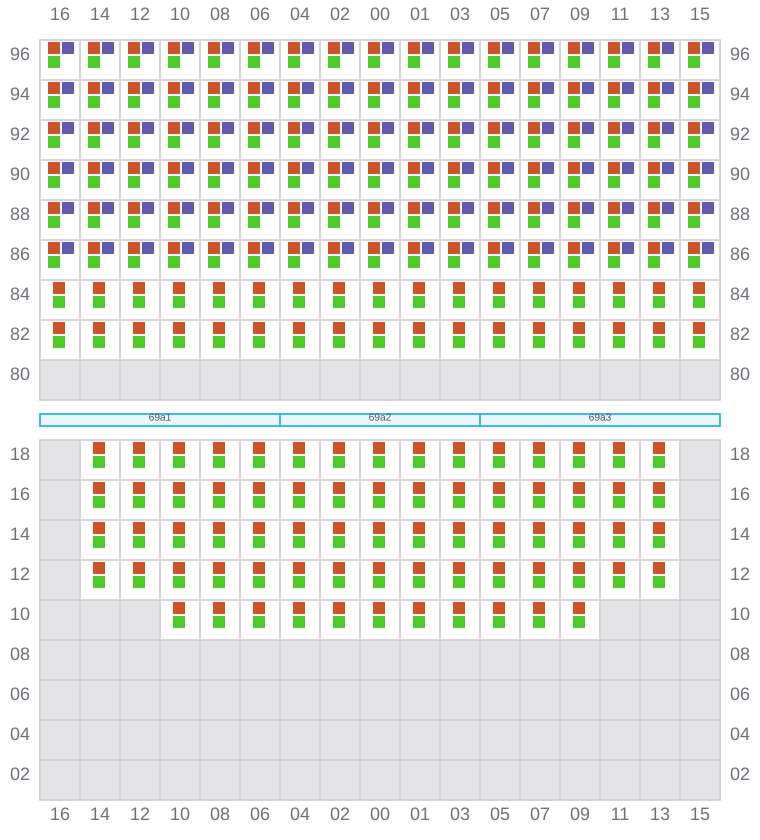

Bay 069 view and slots of MAERSK TAURUS

071

←
^→ / _?

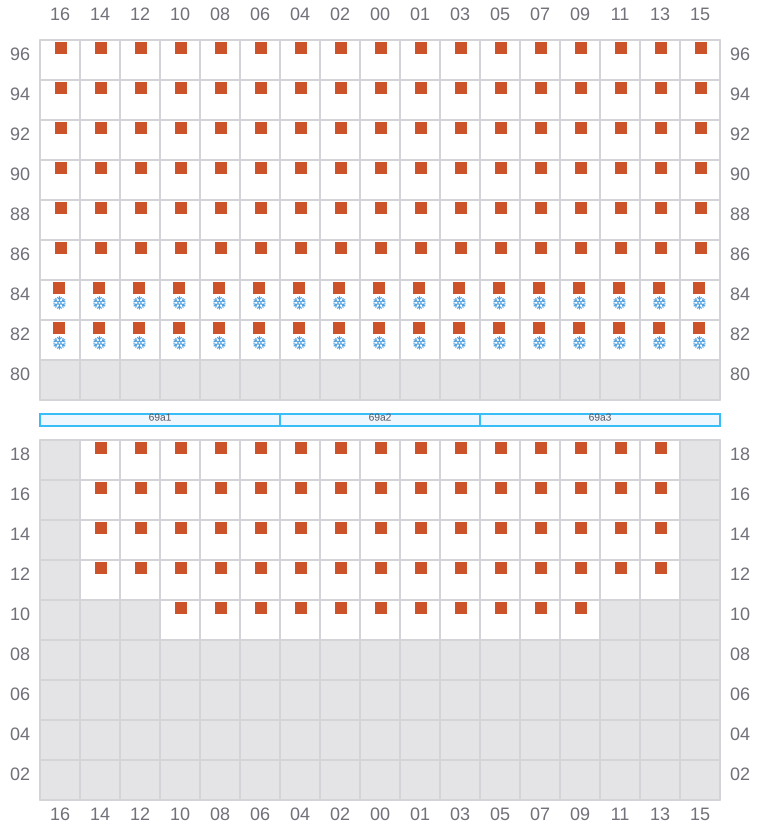

Bay 071 view and slots of MAERSK TAURUS

073 (074)

→

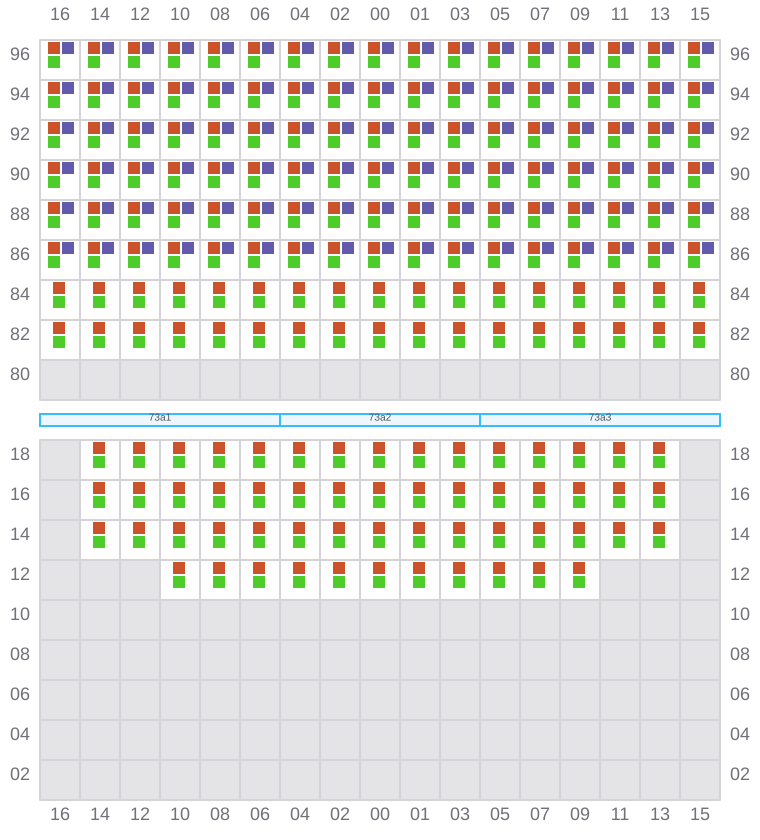

Bay 073 view and slots of MAERSK TAURUS

075

←
^→ / _?

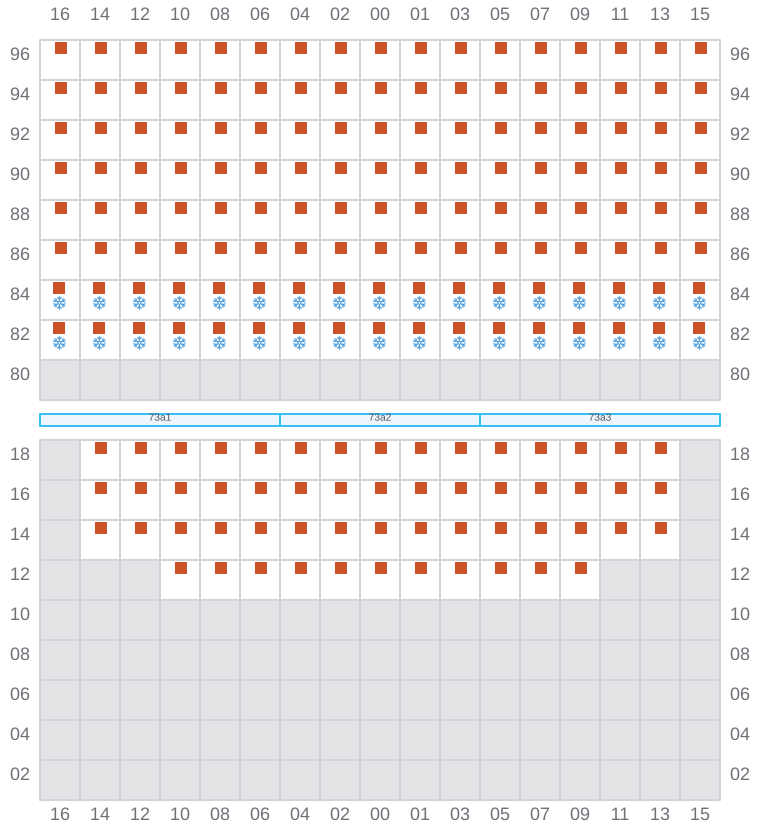

Bay 075 view and slots of MAERSK TAURUS

077 (078)

^→ / _?

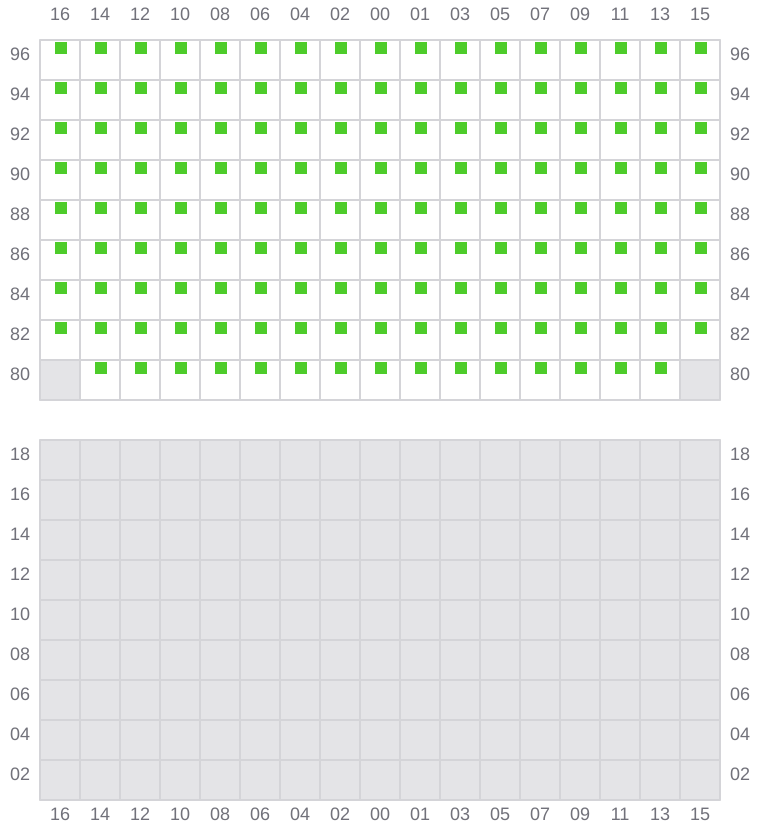

Bay 077 view and slots of MAERSK TAURUS
