MAERSK UTAH
9305300 | 9V3588 | MSK by ************************** Last update: Thu Jun 29 2023

General Info

Ship Name:MAERSK UTAH
IMO Code:9305300
Call Sign:9V3588
Line Operator:MSK
Class Name for Sister Ships:UTH
Year Built:2006
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):277.00
LOA (Length Overall):292.08
Stern to AFT PP:-
Features Informed:
Also Known As (old names):-

Size Summary

ISO Bays:069
Max ISO Row:12
Center Line Row:Yes
Max Above ISO Tier:94
Min Above ISO Tier:80
Max Below ISO Tier:16
Min Below ISO Tier:02
Total TEU:4,648

Centers of Gravity

LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

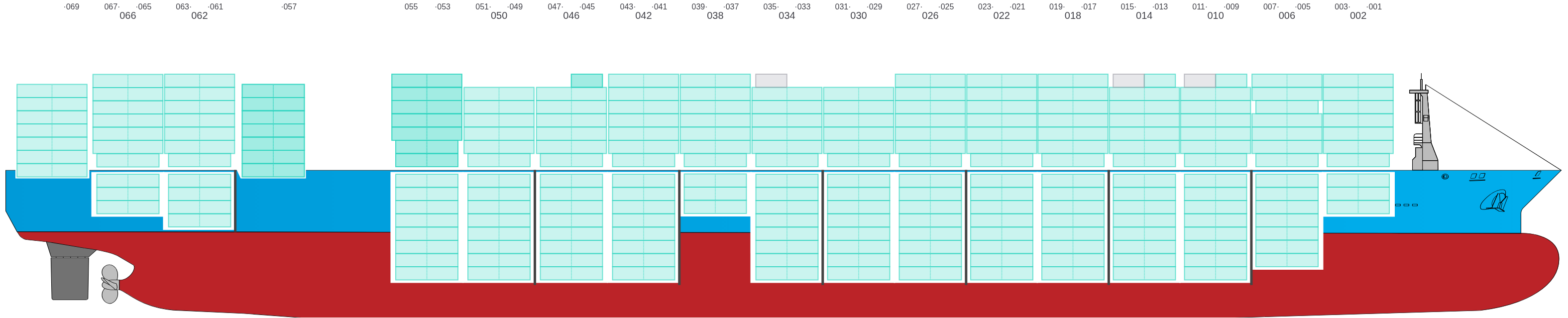

Side View

Side view of MAERSK UTAH

Hatch-Covers View

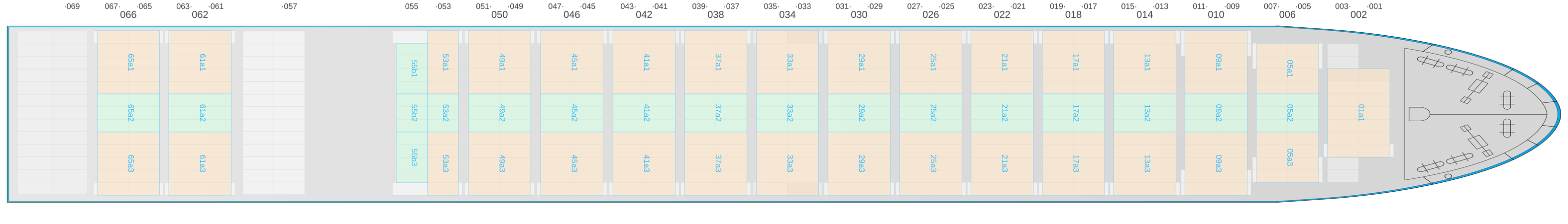

Deck view of MAERSK UTAH

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot

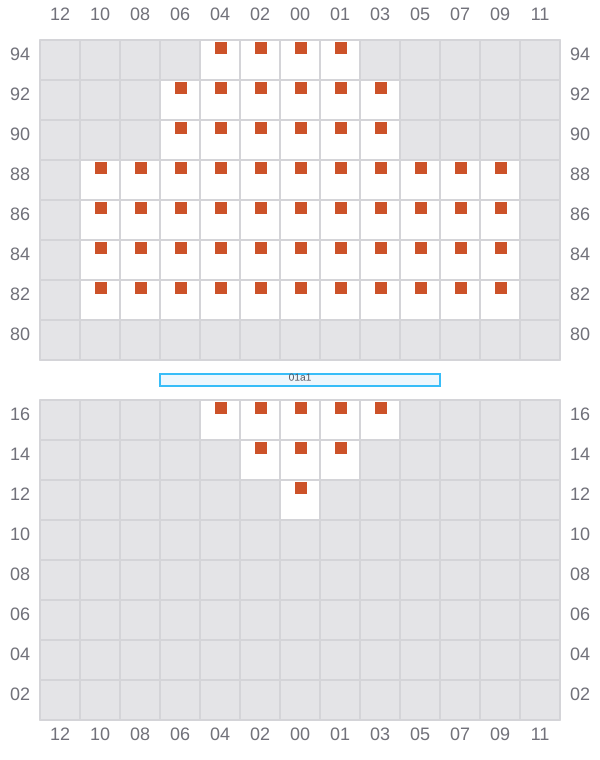

001 (002)

  • →

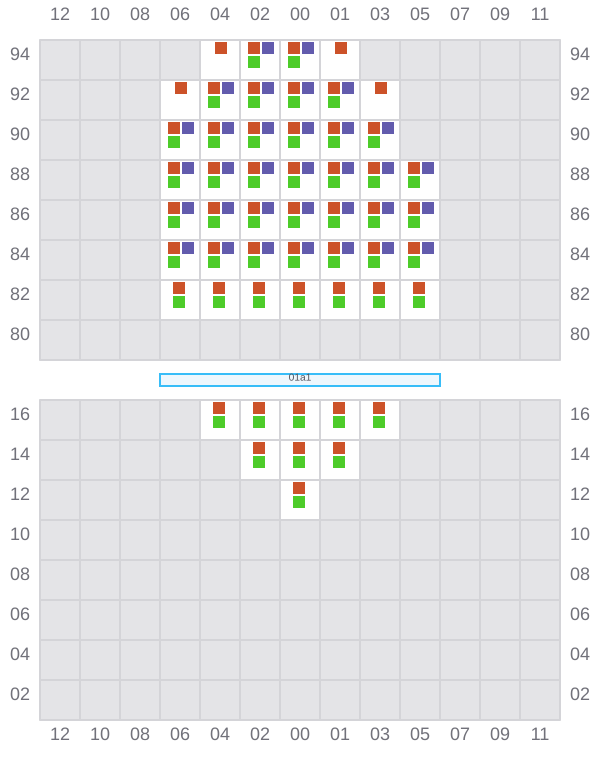

Bay 001 view and slots of MAERSK UTAH

003

  • ←
Bay 003 view and slots of MAERSK UTAH

005 (006)

  • →

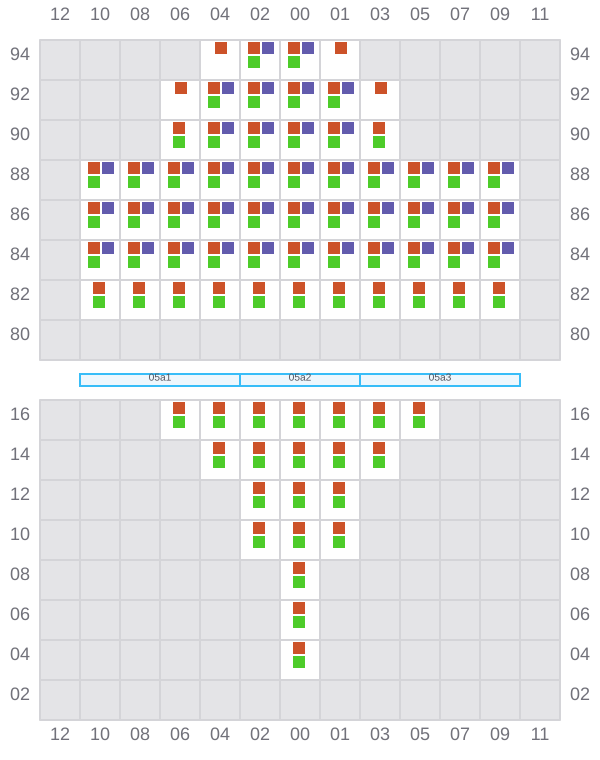

Bay 005 view and slots of MAERSK UTAH

007

  • ←
  • → / ?

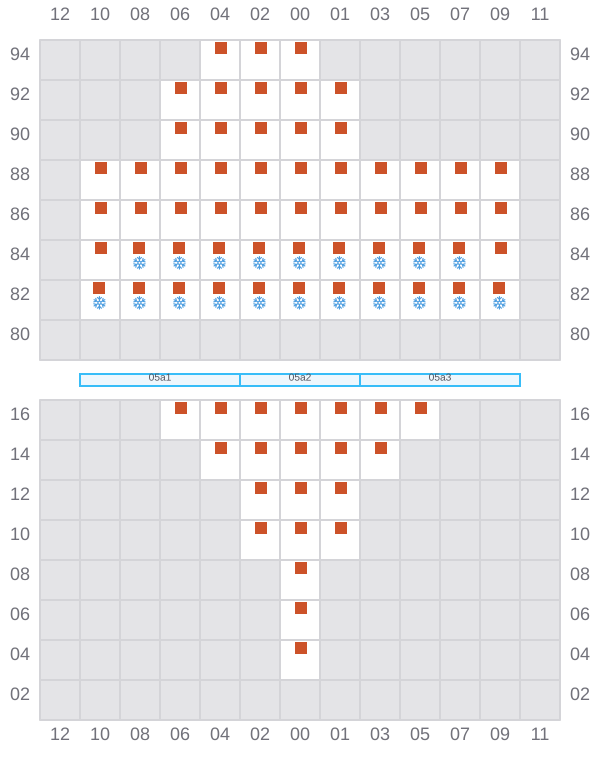

Bay 007 view and slots of MAERSK UTAH

009 (010)

  • →

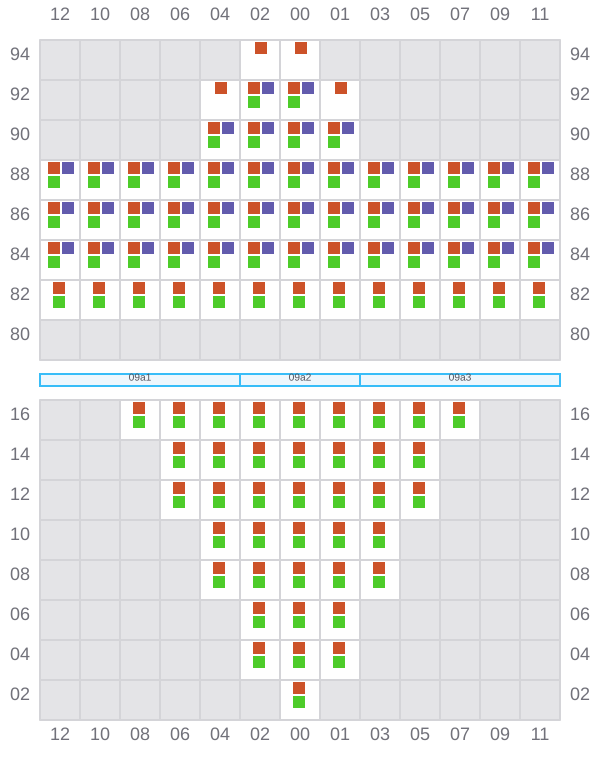

Bay 009 view and slots of MAERSK UTAH

011

  • ←
  • → / ?

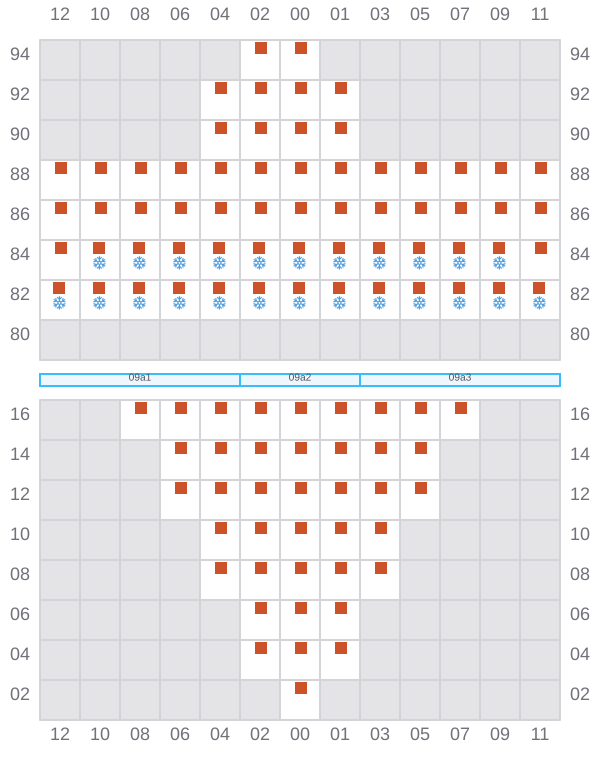

Bay 011 view and slots of MAERSK UTAH

013 (014)

  • →

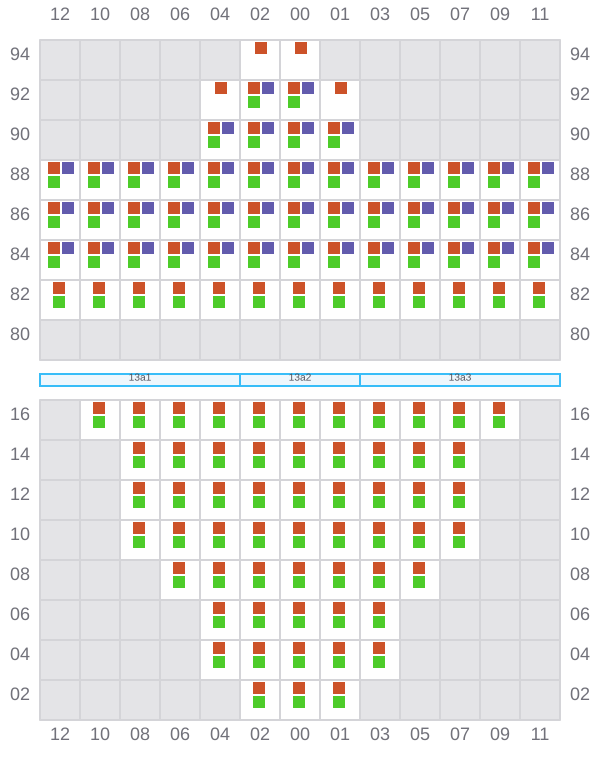

Bay 013 view and slots of MAERSK UTAH

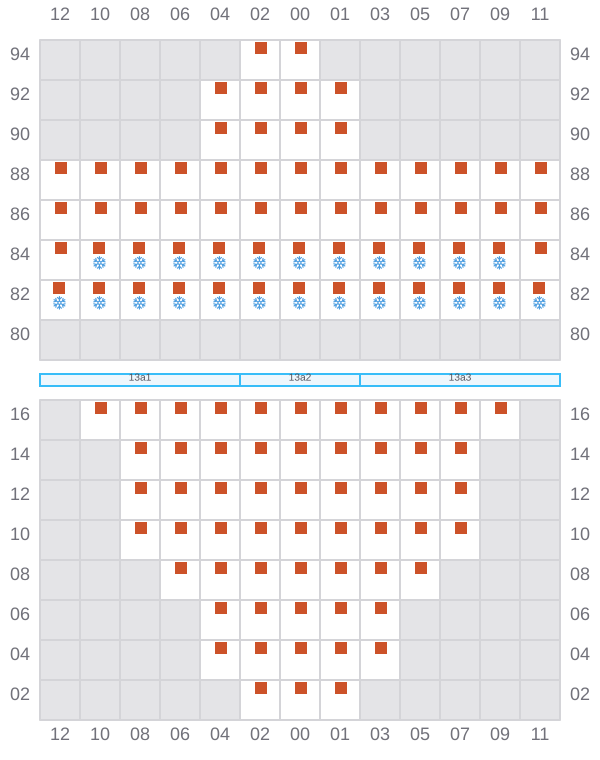

015

  • ←
  • → / ?
Bay 015 view and slots of MAERSK UTAH

017 (018)

  • →

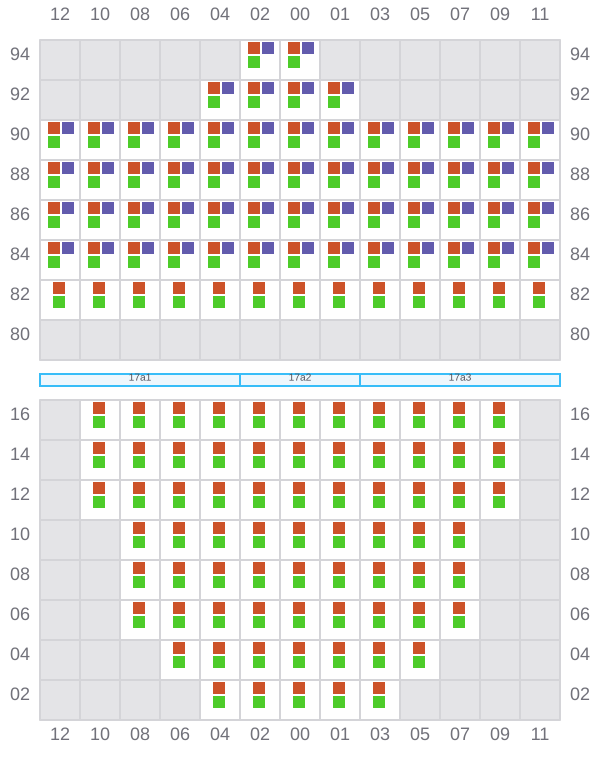

Bay 017 view and slots of MAERSK UTAH

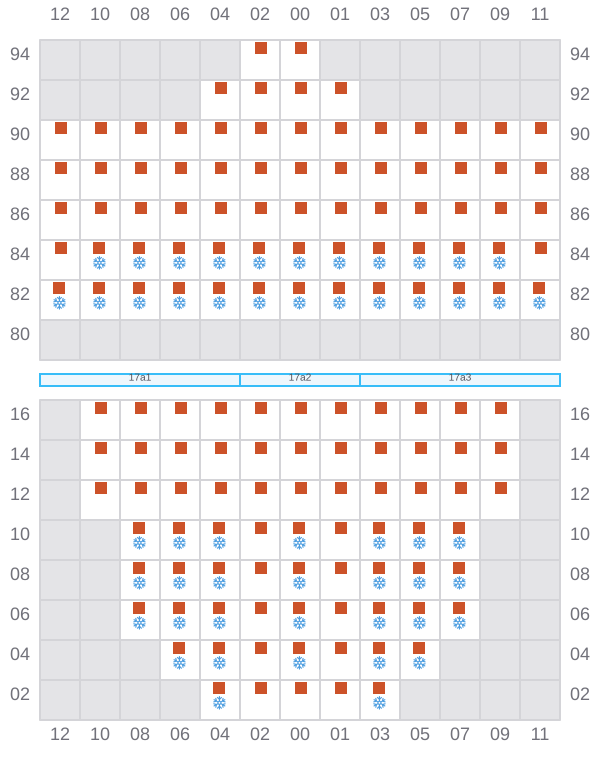

019

  • ←
  • →
Bay 019 view and slots of MAERSK UTAH

021 (022)

  • →

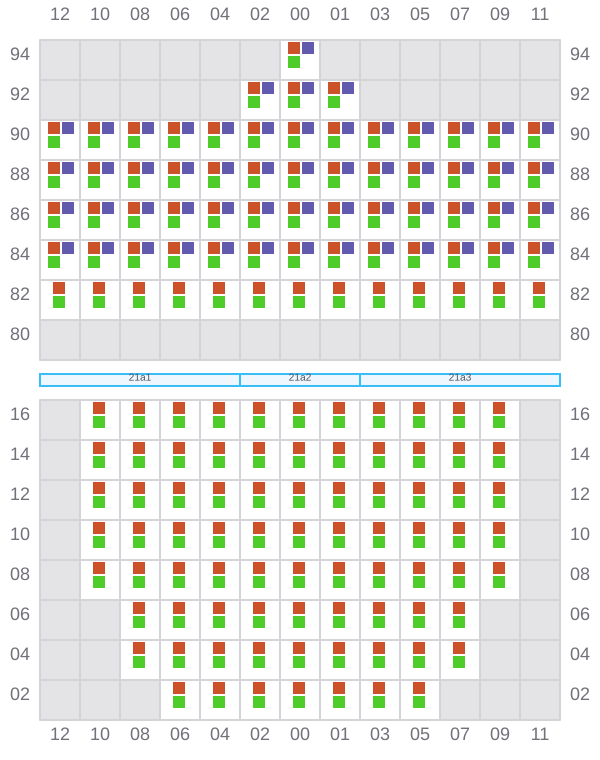

Bay 021 view and slots of MAERSK UTAH

023

  • ←
  • →
Bay 023 view and slots of MAERSK UTAH

025 (026)

  • →

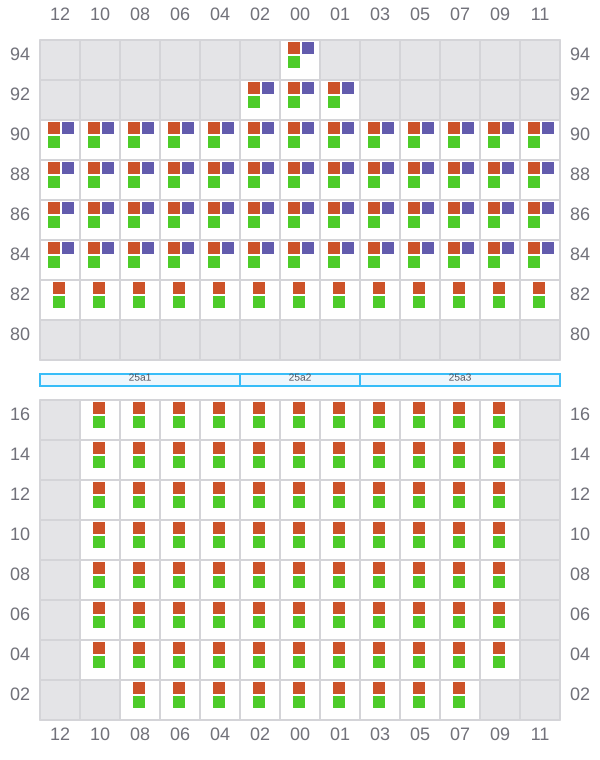

Bay 025 view and slots of MAERSK UTAH

027

  • ←
  • →

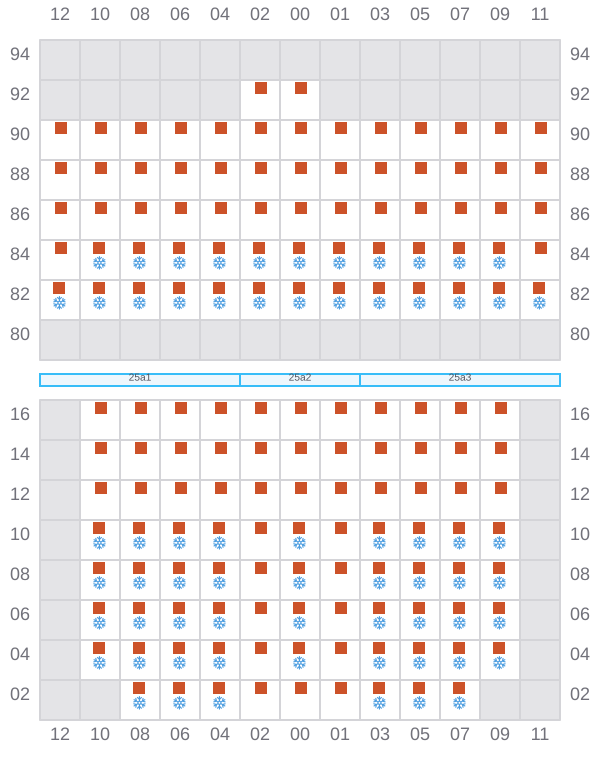

Bay 027 view and slots of MAERSK UTAH

029 (030)

  • →
Bay 029 view and slots of MAERSK UTAH

031

  • ←
  • → / ?
Bay 031 view and slots of MAERSK UTAH

033 (034)

  • →

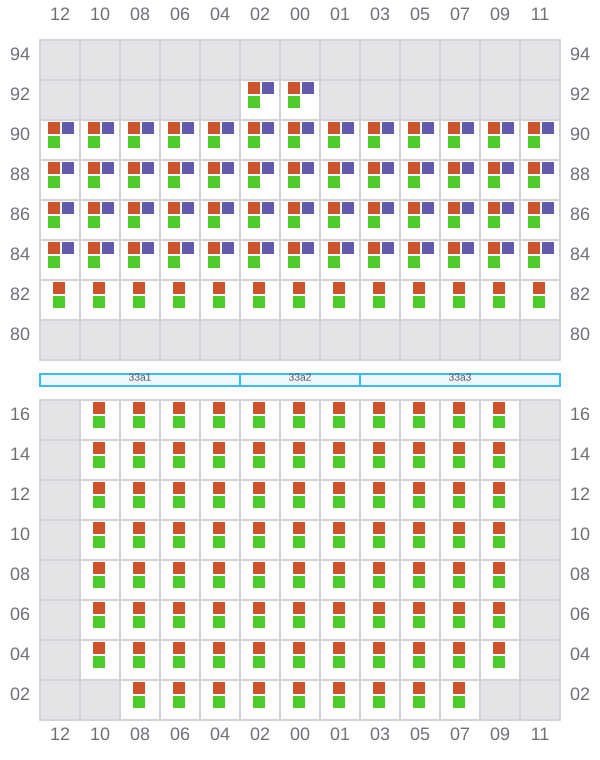

Bay 033 view and slots of MAERSK UTAH

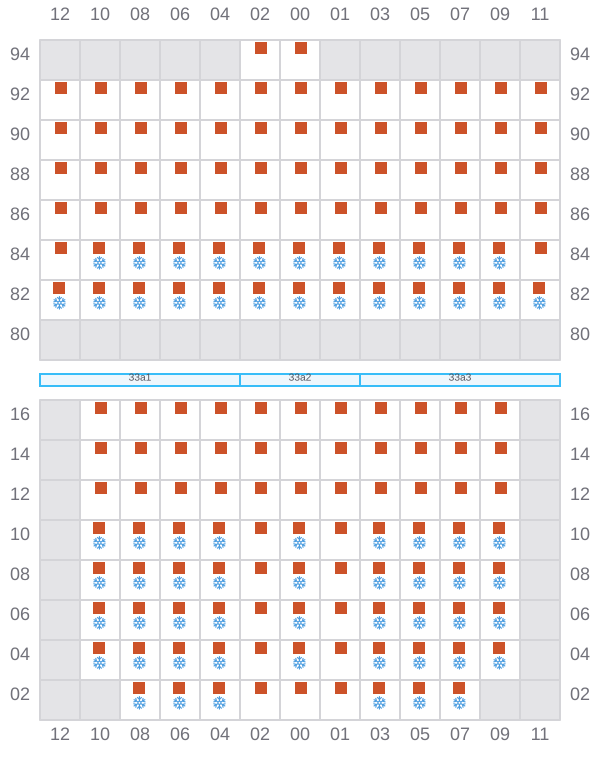

035

  • ←
  • →
Bay 035 view and slots of MAERSK UTAH

037 (038)

  • →

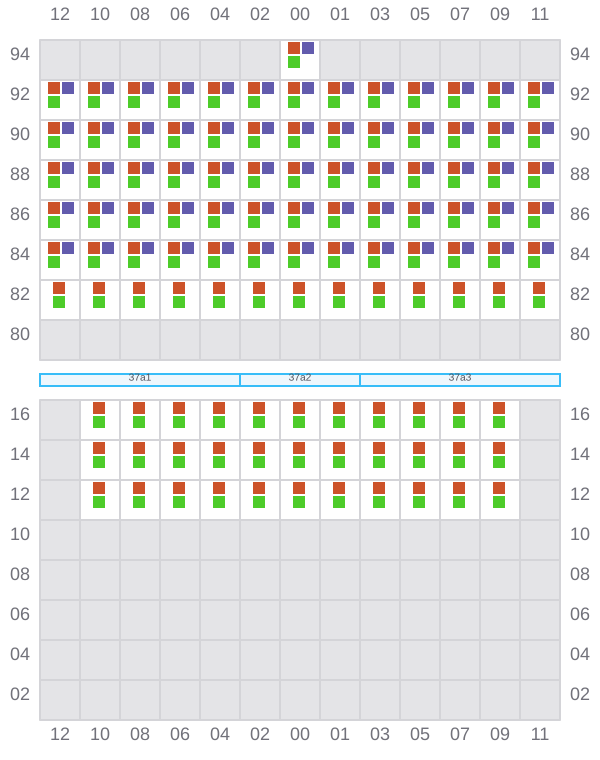

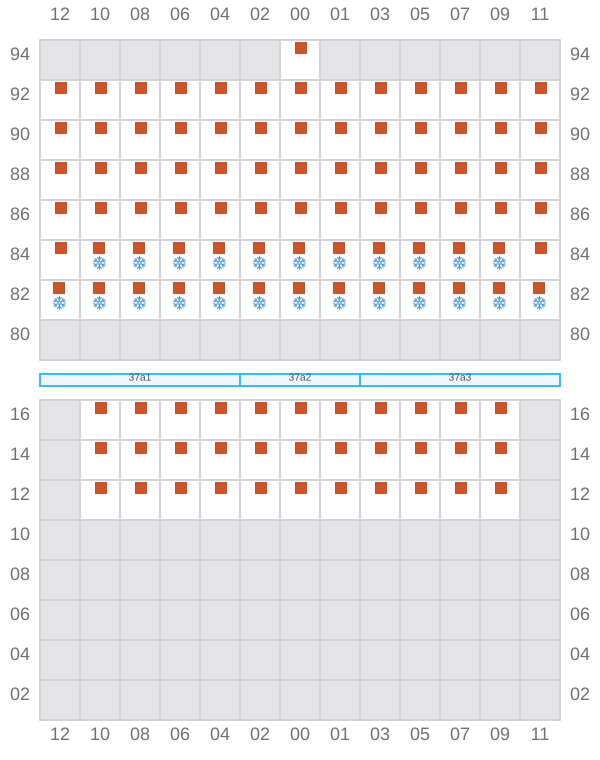

Bay 037 view and slots of MAERSK UTAH

039

  • ←
  • → / ?
Bay 039 view and slots of MAERSK UTAH

041 (042)

  • →

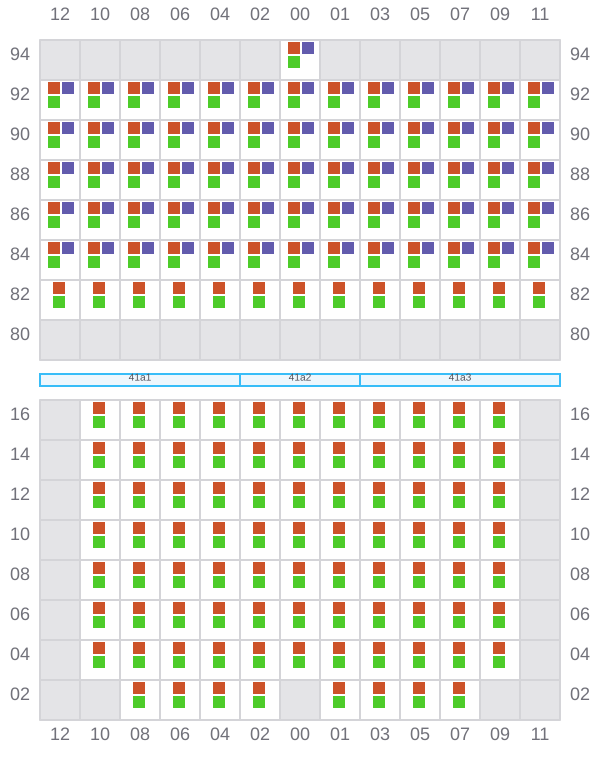

Bay 041 view and slots of MAERSK UTAH

043

  • ←
  • →

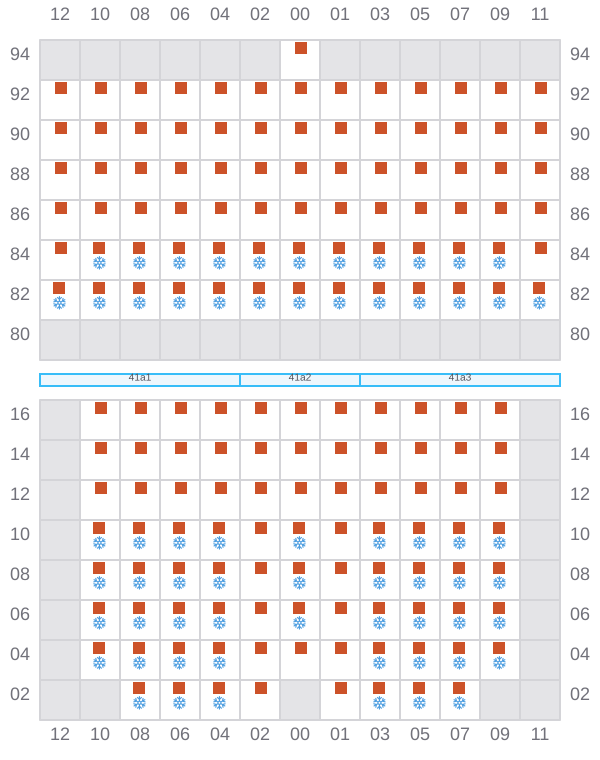

Bay 043 view and slots of MAERSK UTAH

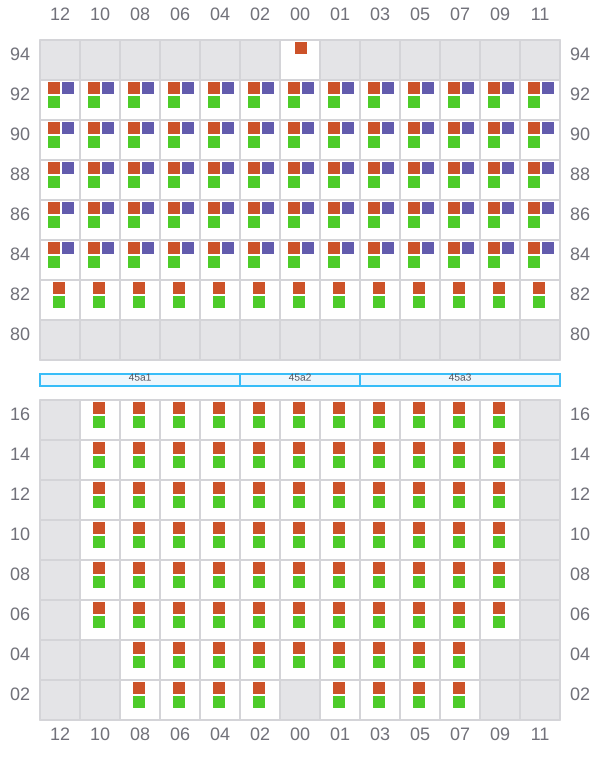

045 (046)

  • →
Bay 045 view and slots of MAERSK UTAH

047

  • ←
  • →

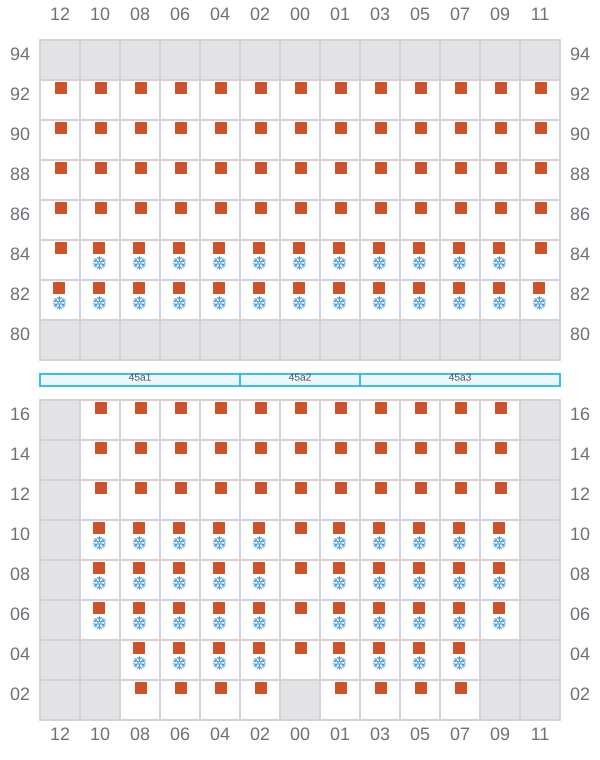

Bay 047 view and slots of MAERSK UTAH

049 (050)

  • →

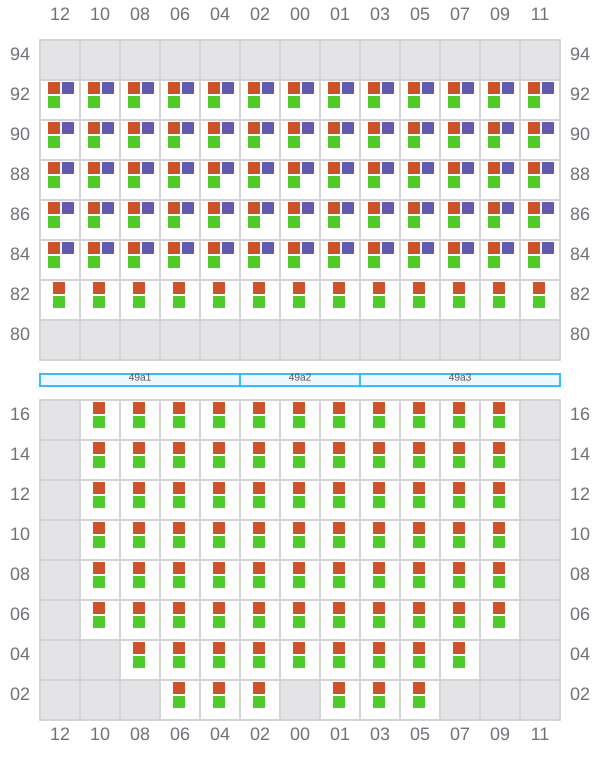

Bay 049 view and slots of MAERSK UTAH

051

  • ←
  • →

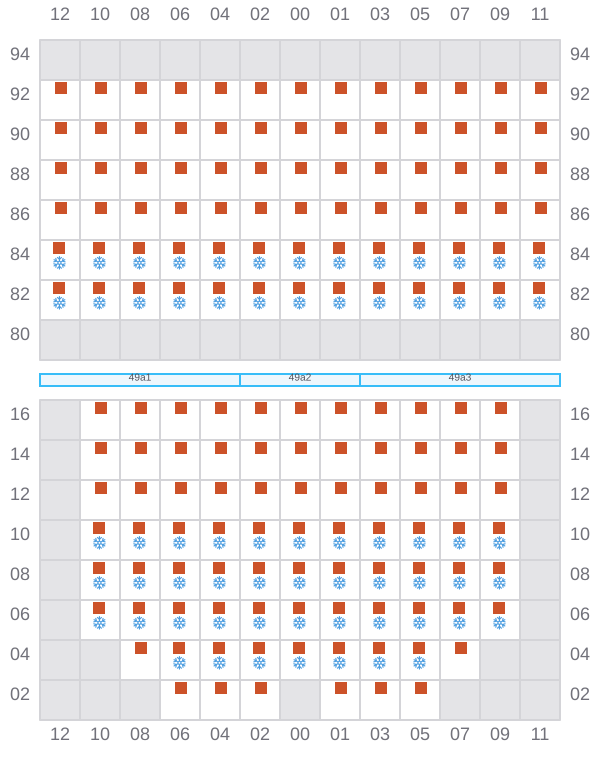

Bay 051 view and slots of MAERSK UTAH

053 (054)

  • →
  • → / ?

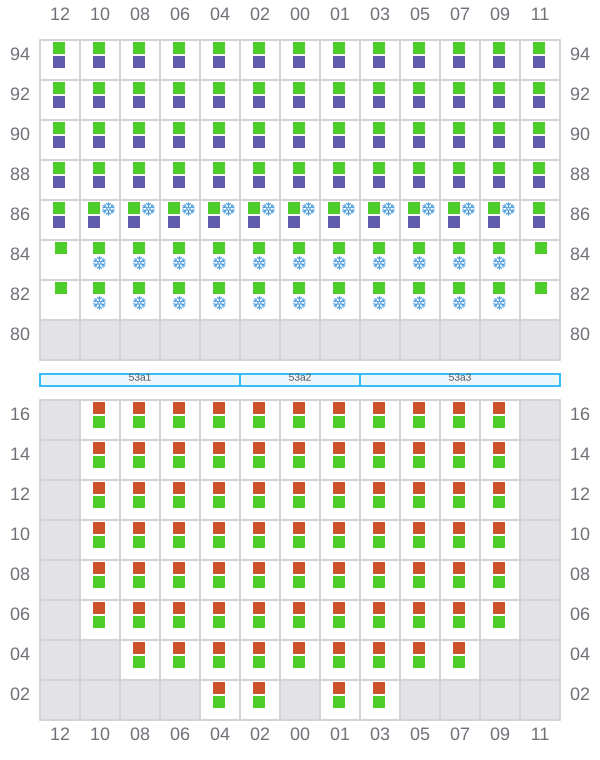

Bay 053 view and slots of MAERSK UTAH

055

  • ? / ←
  • ? / →

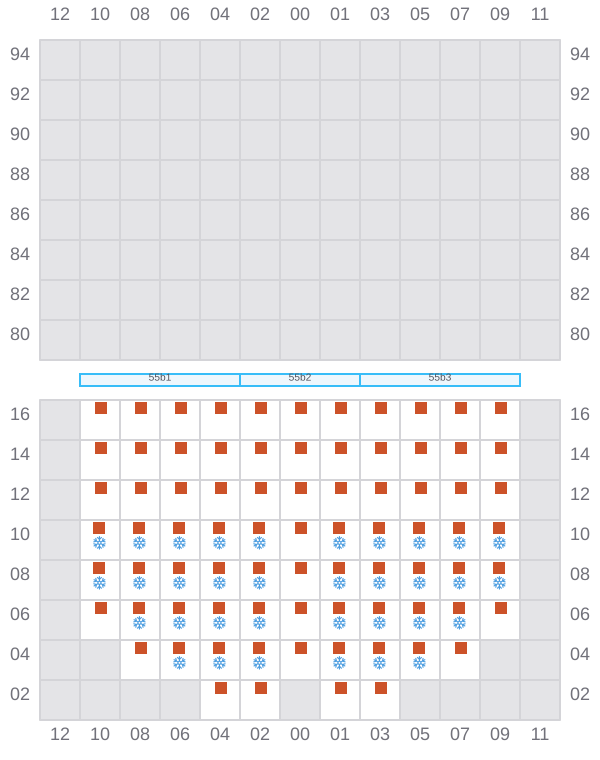

Bay 055 view and slots of MAERSK UTAH

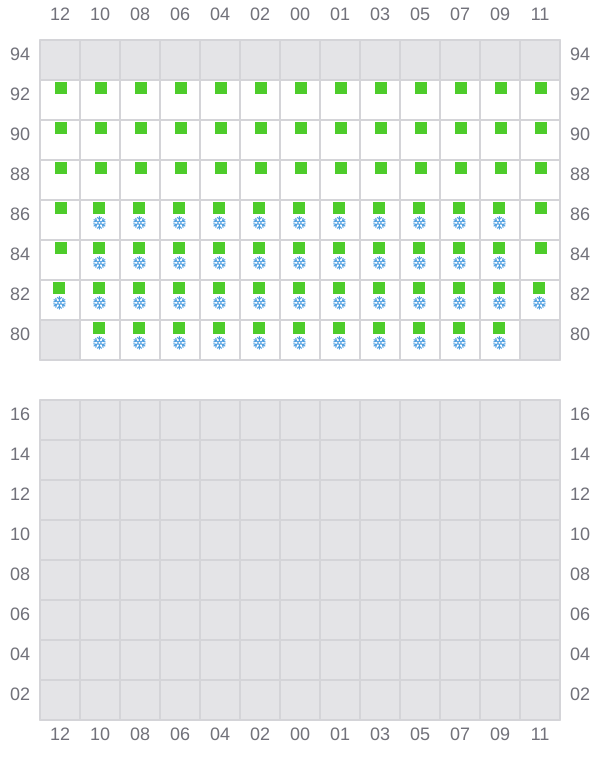

057 (058)

  • → / ?
  • ← / ?
Bay 057 view and slots of MAERSK UTAH

059

Bay 059 view and slots of MAERSK UTAH

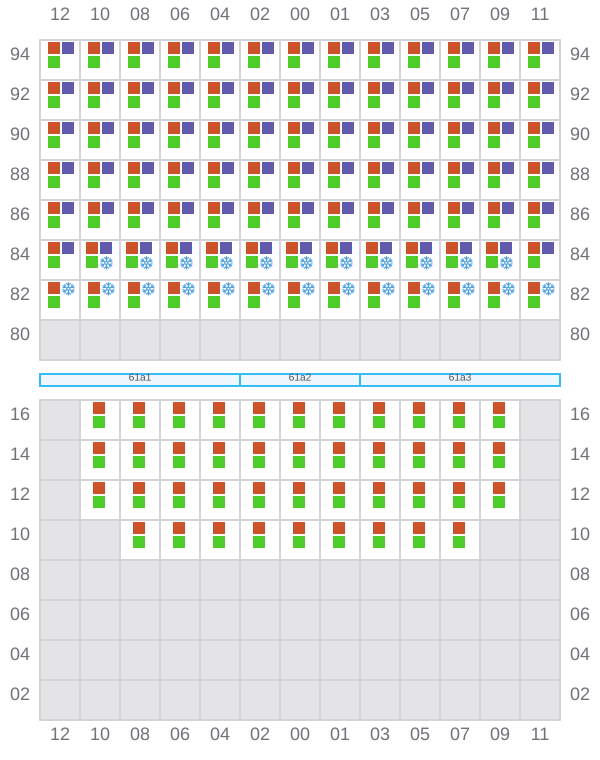

061 (062)

  • →
  • ← / ?
Bay 061 view and slots of MAERSK UTAH

063

  • ←
  • ? / →

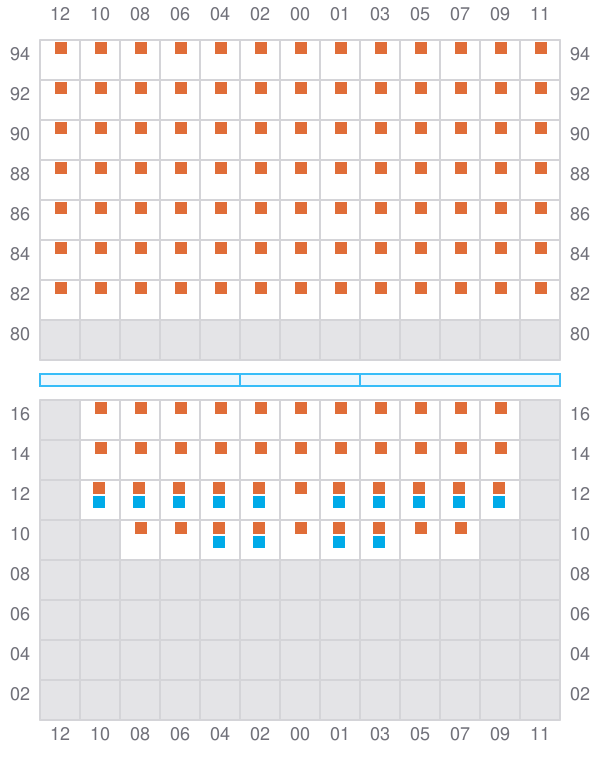

Bay 063 view and slots of MAERSK UTAH

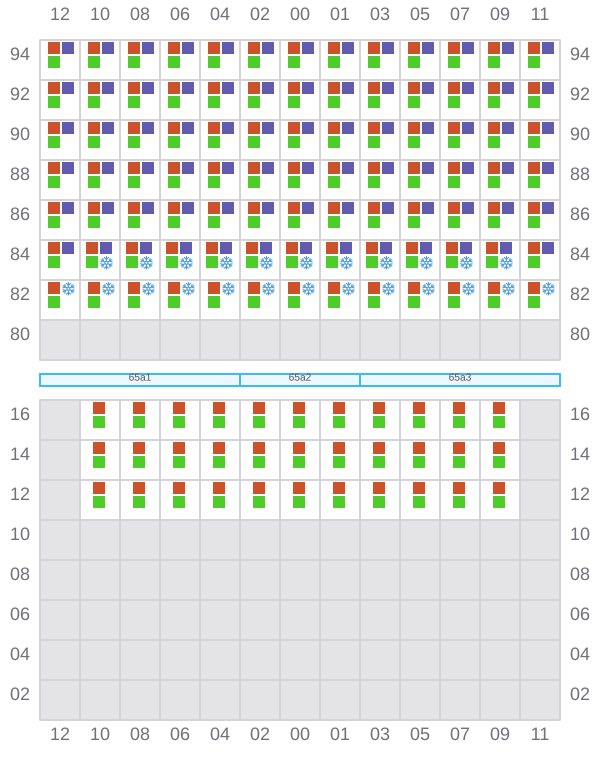

065 (066)

  • →
  • ← / ?
Bay 065 view and slots of MAERSK UTAH

067

  • ←

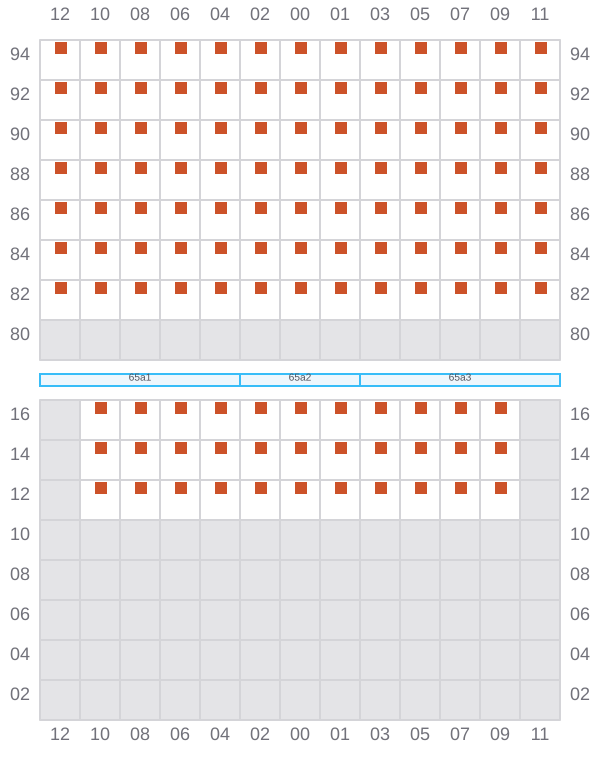

Bay 067 view and slots of MAERSK UTAH

069 (070)

  • → / ?
  • ← / ?

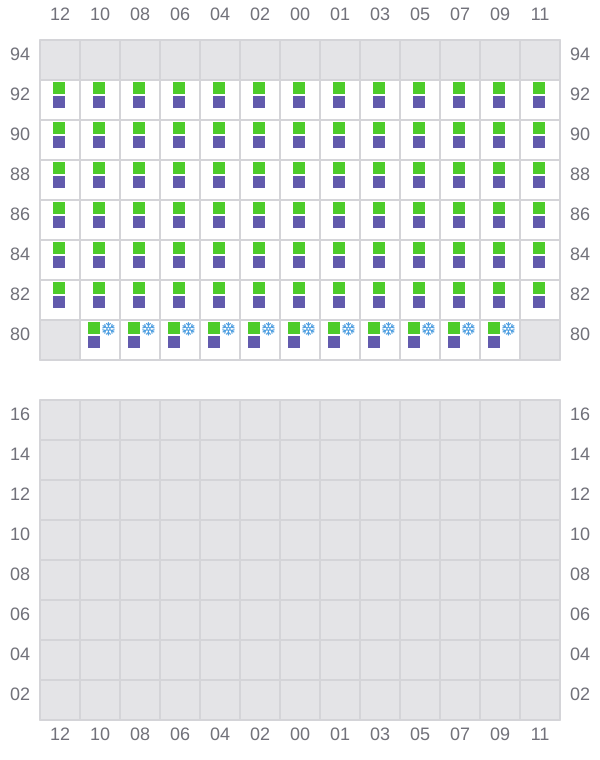

Bay 069 view and slots of MAERSK UTAH
