MAERSK VALLVIK
9411381 | 9V8839 | MSK by ************************** Last update: Thu Jun 29 2023
General Info
Ship Name:MAERSK VALLVIK
IMO Code:9411381
Call Sign:9V8839
Line Operator:MSK
Class Name for Sister Ships:VLK
Year Built:2011
Position Format:Bay, Row, Tier
Allowed Containers:40, 45, 20
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:
Also Known As...:-
Size Summary
ISO Bays:037
Max ISO Row:10
Center Line Row:Yes
Max Above ISO Tier:92
Min Above ISO Tier:82
Max Below ISO Tier:12
Min Below ISO Tier:02
Total TEU:1,788
Centers of Gravity
LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%
Side View
Hatch-Covers View
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot
001 (002)
- →
- → / ?
003
- ←
- → / ?
005 (006)
- →
007
- ←
- → / ?

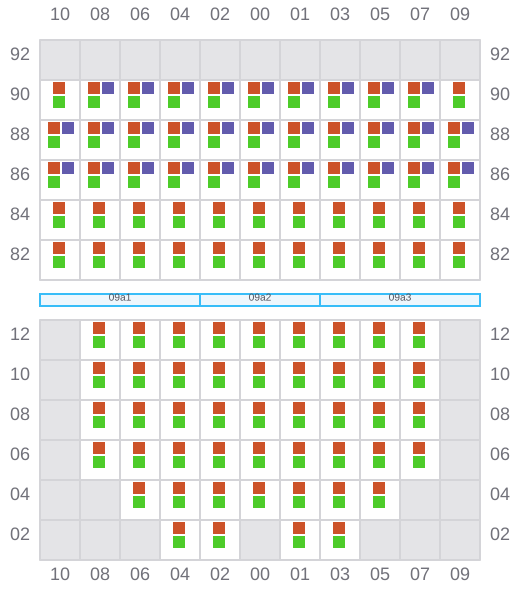

009 (010)
- →
011
- ←
- →

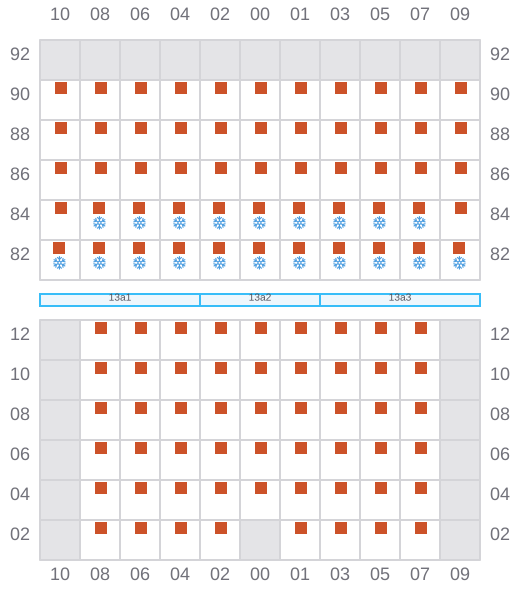

013 (014)
- →
- ? / ←
015
- ←
- → / ?

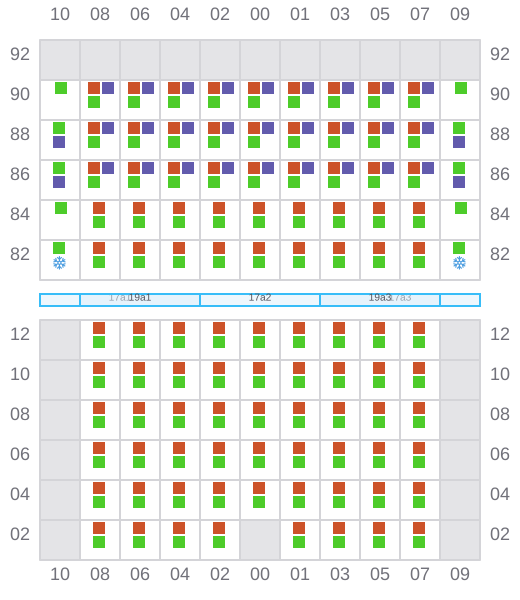

017 (018)
- →
- → / ?
019
- ←
- → / ?
021 (022)
- →
023
- ←
- → / ?
025 (026)
- →
027
- ←
- →
029 (030)
- →
- ? / ←
031
- ←
- → / ?
033 (034)
- → / ?
- → / ?
035
037
- → / ?
