MAERSK VALPARAISO
9433054 | 9V8104 | 9433054 by ********* Last update: Tue Jun 18 2024
General Info
Ship Name:MAERSK VALPARAISO
IMO Code:9433054
Call Sign:9V8104
Line Operator:9433054
Class Name for Sister Ships:MCC
Year Built:2010
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-
Size Summary
ISO Bays:035
Max ISO Row:10
Center Line Row:Yes
Max Above ISO Tier:94
Min Above ISO Tier:82
Max Below ISO Tier:14
Min Below ISO Tier:02
Total TEU:1,736
Centers of Gravity
LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%
Side View
Hatch-Covers View

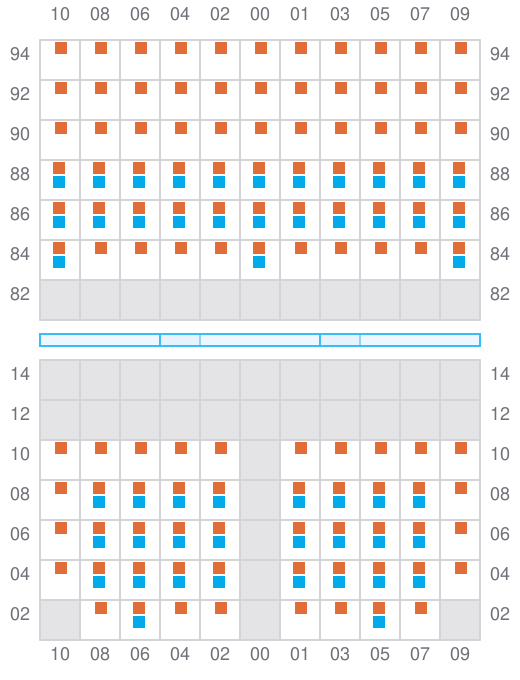

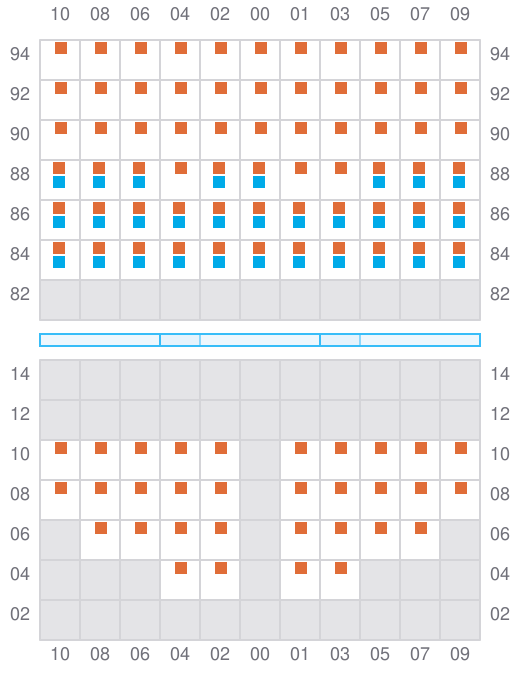

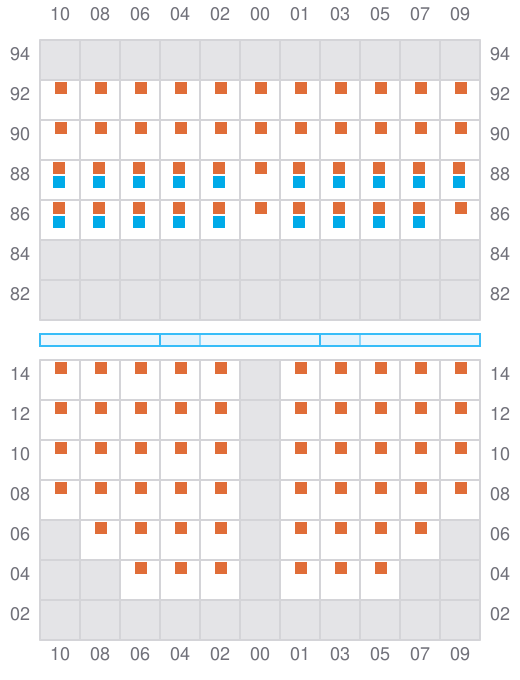

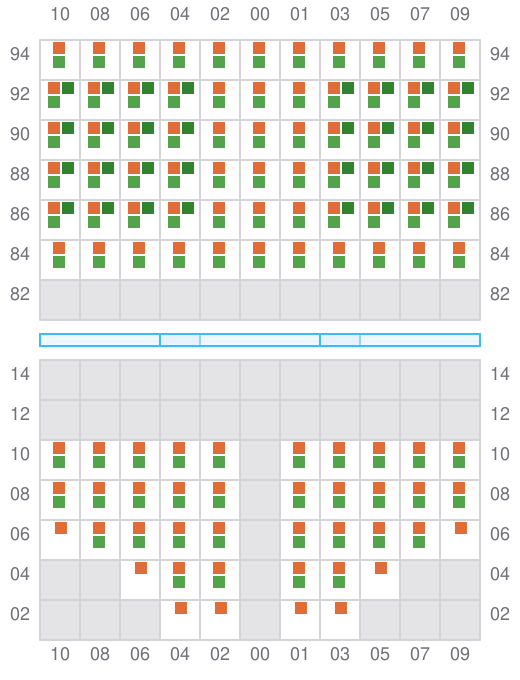

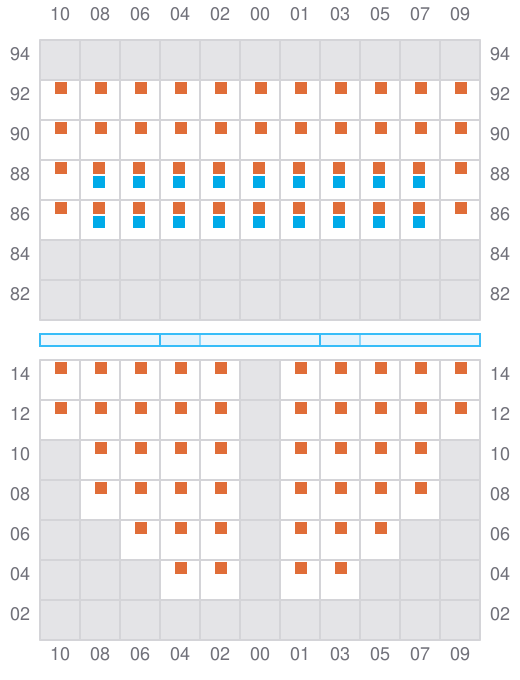

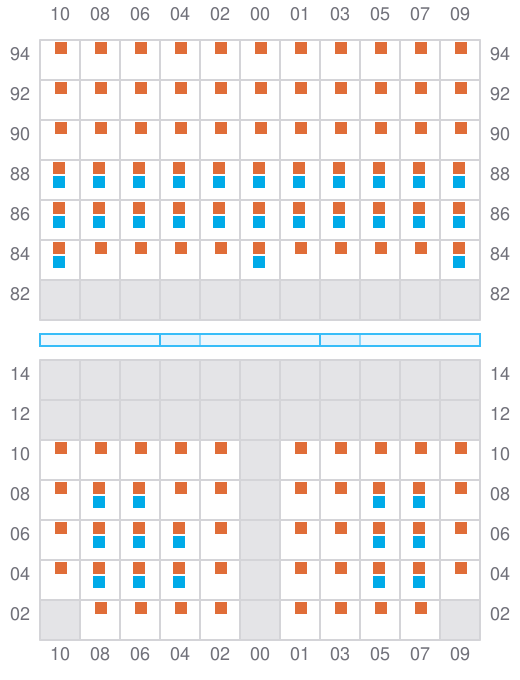

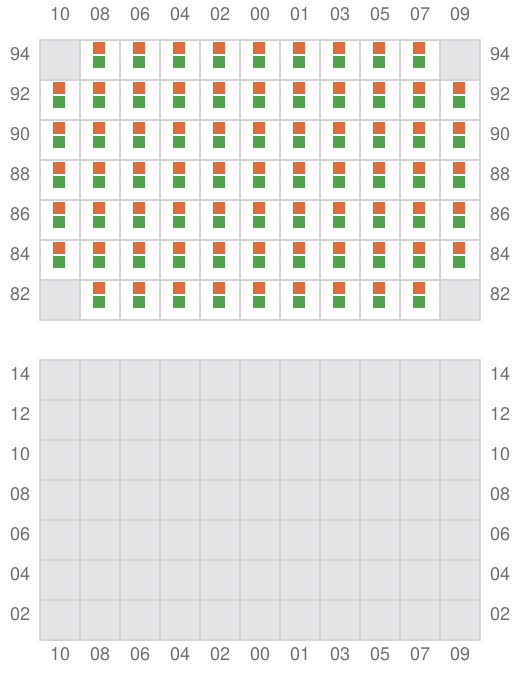

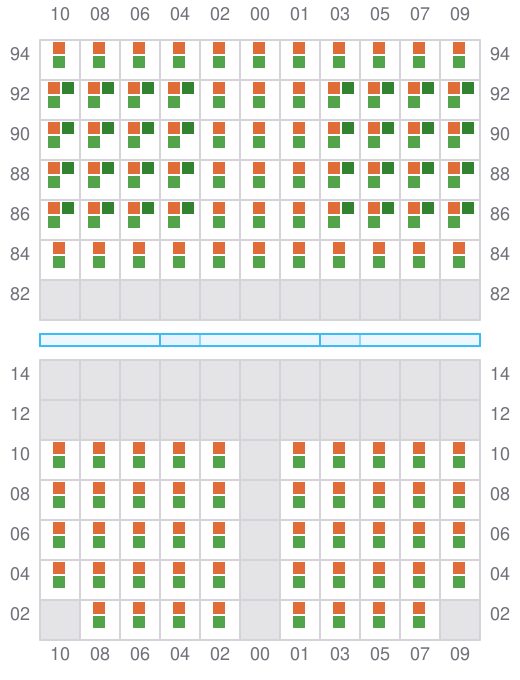

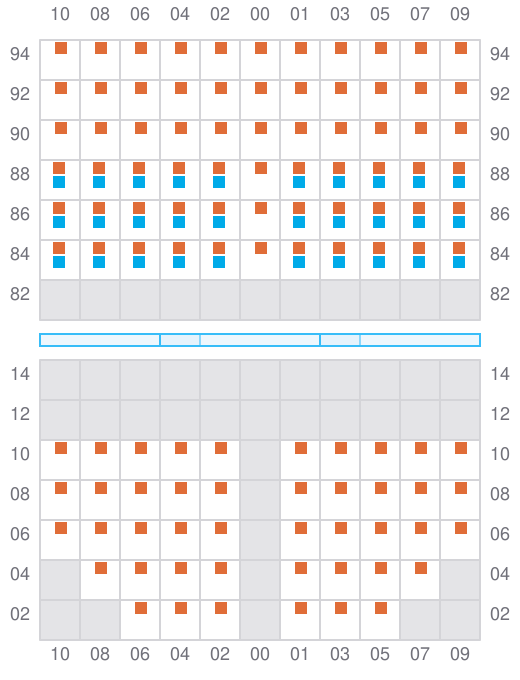

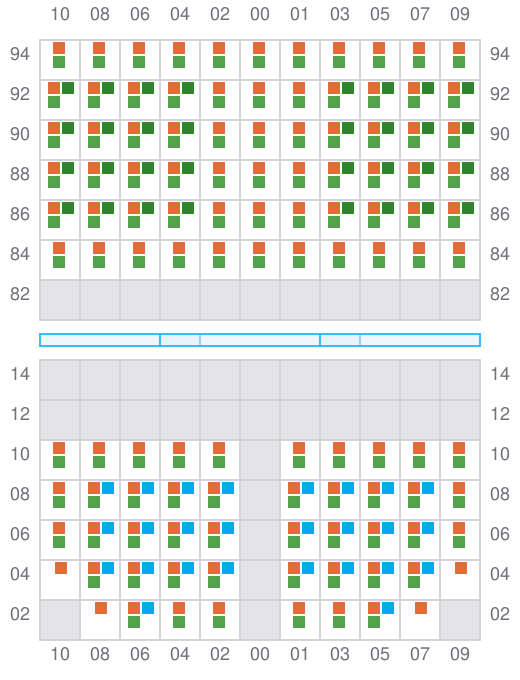

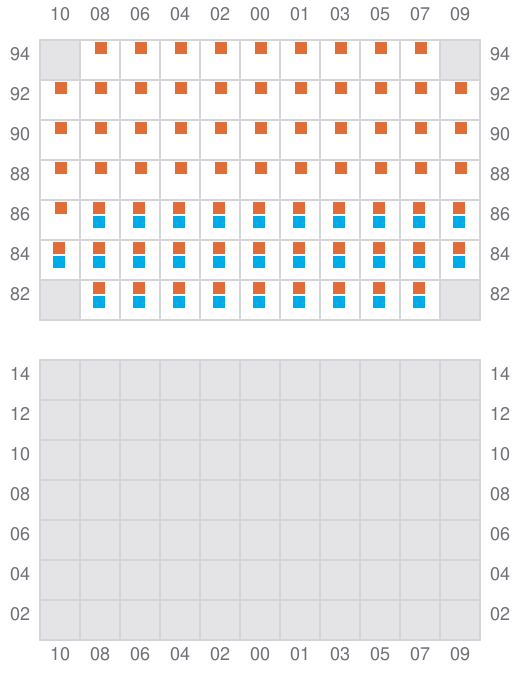

ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

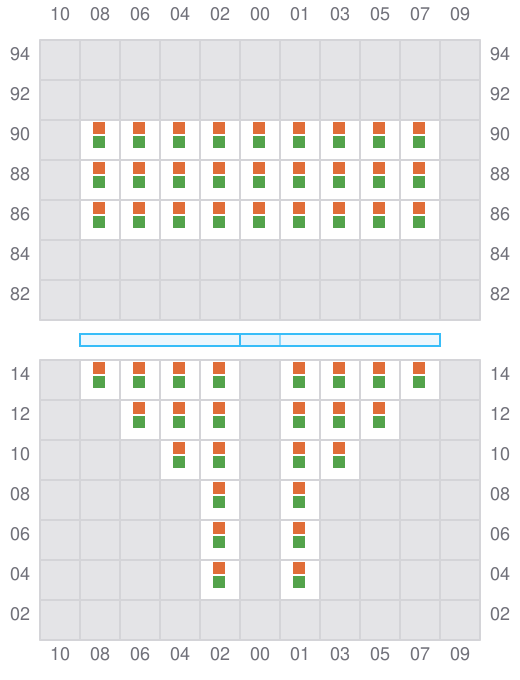

001 (002)
- →

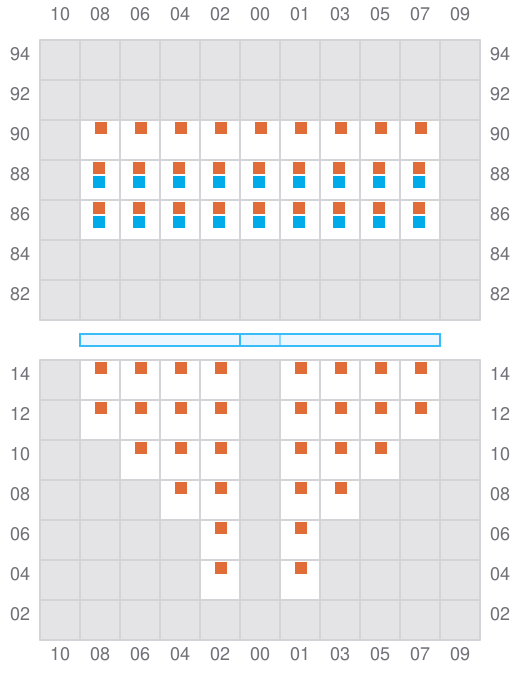

003
- ←
- → / ?

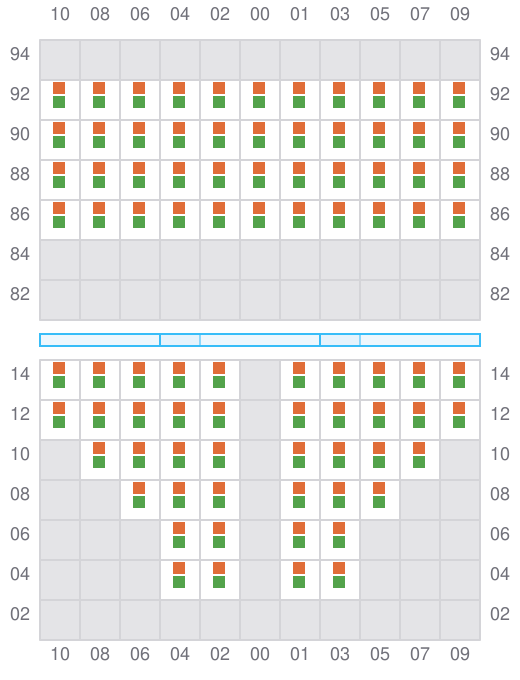

005 (006)
- →
007
- ←
- → / ?

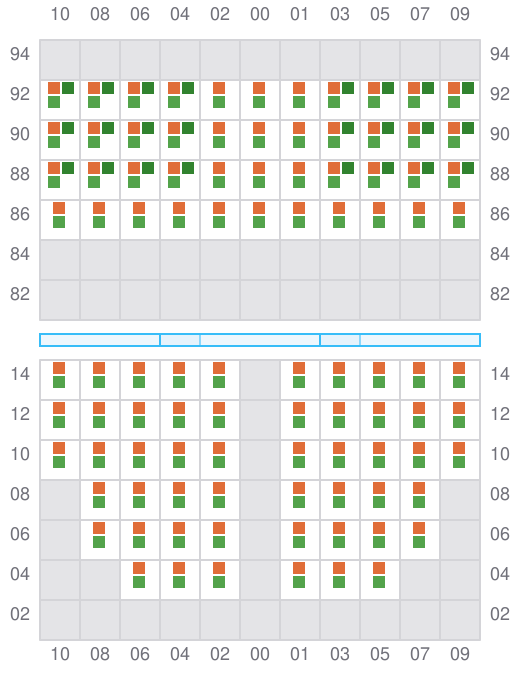

009 (010)
- →
011
- ←
- → / ?
013 (014)
- →
015
- ←
- →

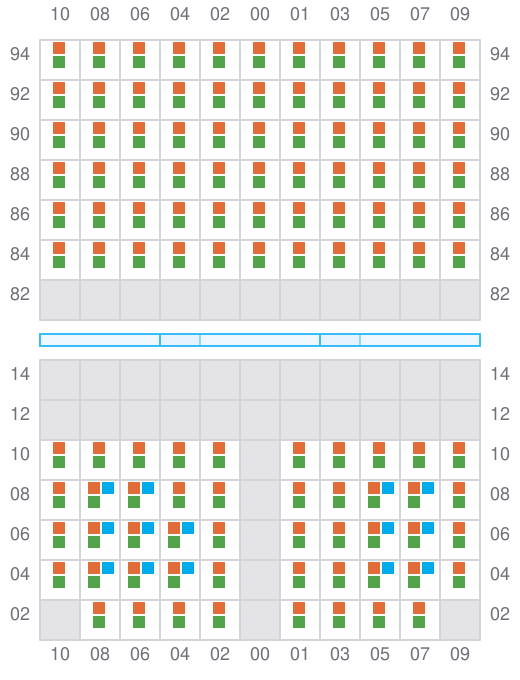

017 (018)
- →
- ? / ←

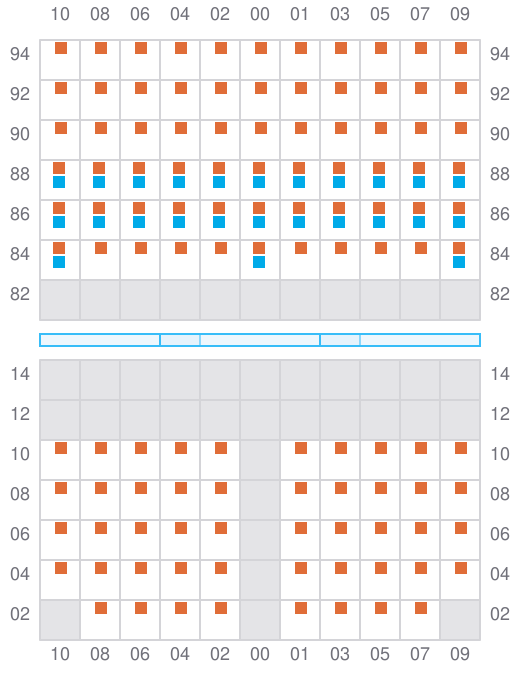

019
- ←
- →

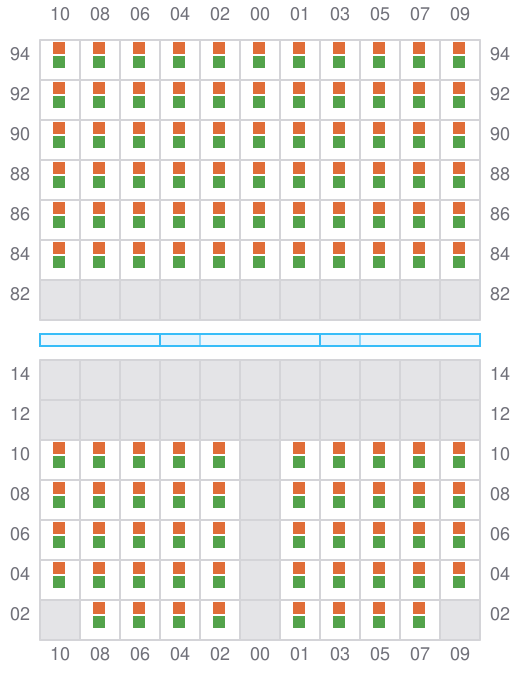

021 (022)
- →
023
- ←
- →
025 (026)
- →
- ? / ←
027
- ←
- →
029 (030)
- →
031
- ←
- → / ?
033 (034)
- → / ?
035
- ← / ?
- → / ?
