MAERSK VARNA
9411379 | 9V8838 | MSK by ************************** Last update: Thu Jun 29 2023
General Info
Ship Name:MAERSK VARNA
IMO Code:9411379
Call Sign:9V8838
Line Operator:MSK
Class Name for Sister Ships:VAR
Year Built:2011
Position Format:Bay, Row, Tier
Allowed Containers:40, 45, 20
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:
Also Known As (old names):-
Size Summary
ISO Bays:037
Max ISO Row:10
Center Line Row:Yes
Max Above ISO Tier:94
Min Above ISO Tier:82
Max Below ISO Tier:12
Min Below ISO Tier:02
Total TEU:1,810
Centers of Gravity
LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%
Side View
![Side view of MAERSK VARNA](/vessel-images/6674a7f4-ad85-44a2-ac8e-5d452a44edf9-sideView.png?v=1688063309989)
Hatch-Covers View
![Deck view of MAERSK VARNA](/vessel-images/6674a7f4-ad85-44a2-ac8e-5d452a44edf9-deckView.png?v=1688063309989)
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot
001 (002)
- →
![Bay 001 view and slots of MAERSK VARNA](/vessel-images/6674a7f4-ad85-44a2-ac8e-5d452a44edf9-b001.png?v=1688063309989)

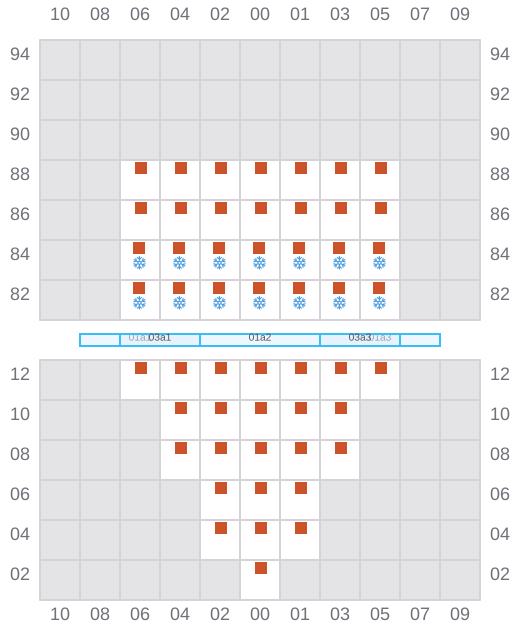

003
- ←
- → / ?
![Bay 003 view and slots of MAERSK VARNA](/vessel-images/6674a7f4-ad85-44a2-ac8e-5d452a44edf9-b003.png?v=1688063309989)
005 (006)
- →
![Bay 005 view and slots of MAERSK VARNA](/vessel-images/6674a7f4-ad85-44a2-ac8e-5d452a44edf9-b005.png?v=1688063309989)

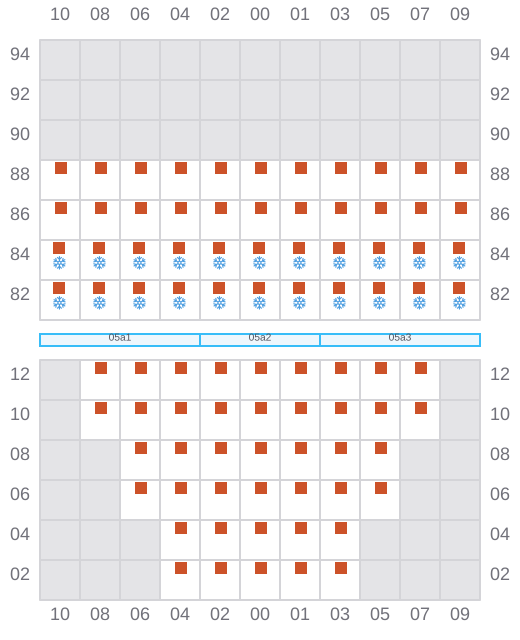

007
- ←
- → / ?
![Bay 007 view and slots of MAERSK VARNA](/vessel-images/6674a7f4-ad85-44a2-ac8e-5d452a44edf9-b007.png?v=1688063309989)

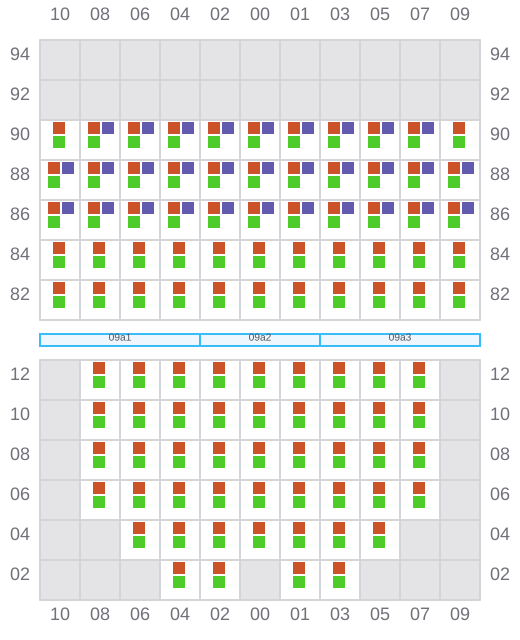

009 (010)
- →
![Bay 009 view and slots of MAERSK VARNA](/vessel-images/6674a7f4-ad85-44a2-ac8e-5d452a44edf9-b009.png?v=1688063309989)
011
- ←
- →
![Bay 011 view and slots of MAERSK VARNA](/vessel-images/6674a7f4-ad85-44a2-ac8e-5d452a44edf9-b011.png?v=1688063309989)
013 (014)
- →
- ? / ←
![Bay 013 view and slots of MAERSK VARNA](/vessel-images/6674a7f4-ad85-44a2-ac8e-5d452a44edf9-b013.png?v=1688063309989)

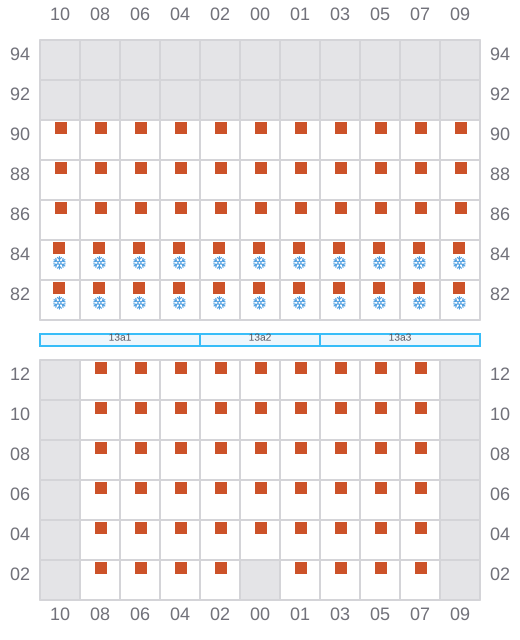

015
- ←
- → / ?
![Bay 015 view and slots of MAERSK VARNA](/vessel-images/6674a7f4-ad85-44a2-ac8e-5d452a44edf9-b015.png?v=1688063309989)
017 (018)
- →
- → / ?
![Bay 017 view and slots of MAERSK VARNA](/vessel-images/6674a7f4-ad85-44a2-ac8e-5d452a44edf9-b017.png?v=1688063309989)
019
- ←
- → / ?
![Bay 019 view and slots of MAERSK VARNA](/vessel-images/6674a7f4-ad85-44a2-ac8e-5d452a44edf9-b019.png?v=1688063309989)

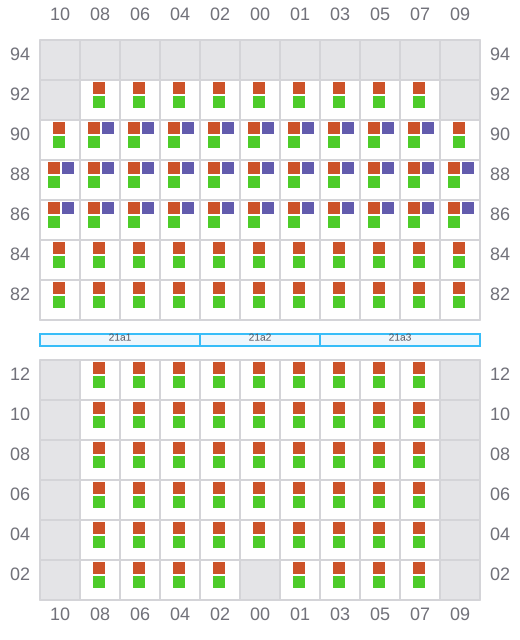

021 (022)
- →
![Bay 021 view and slots of MAERSK VARNA](/vessel-images/6674a7f4-ad85-44a2-ac8e-5d452a44edf9-b021.png?v=1688063309989)

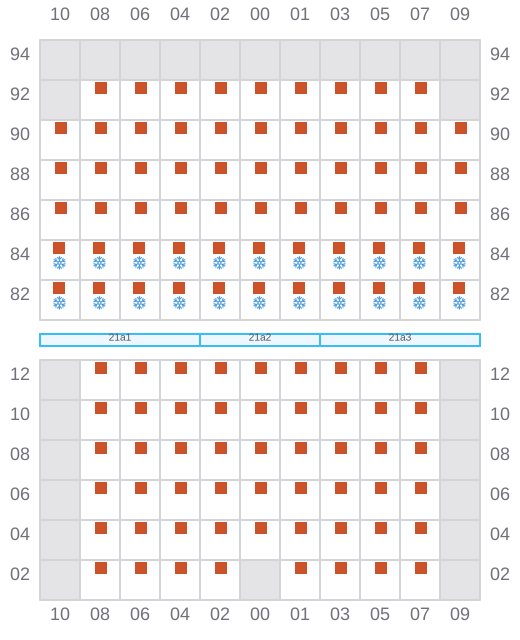

023
- ←
- → / ?
![Bay 023 view and slots of MAERSK VARNA](/vessel-images/6674a7f4-ad85-44a2-ac8e-5d452a44edf9-b023.png?v=1688063309989)
025 (026)
- →
![Bay 025 view and slots of MAERSK VARNA](/vessel-images/6674a7f4-ad85-44a2-ac8e-5d452a44edf9-b025.png?v=1688063309989)

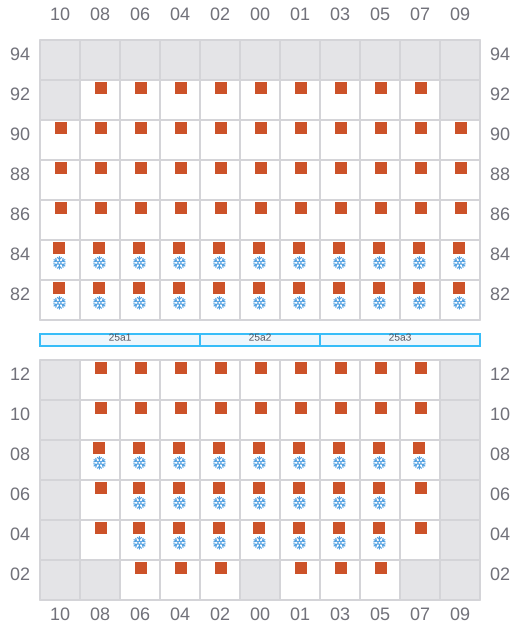

027
- ←
- →
![Bay 027 view and slots of MAERSK VARNA](/vessel-images/6674a7f4-ad85-44a2-ac8e-5d452a44edf9-b027.png?v=1688063309989)

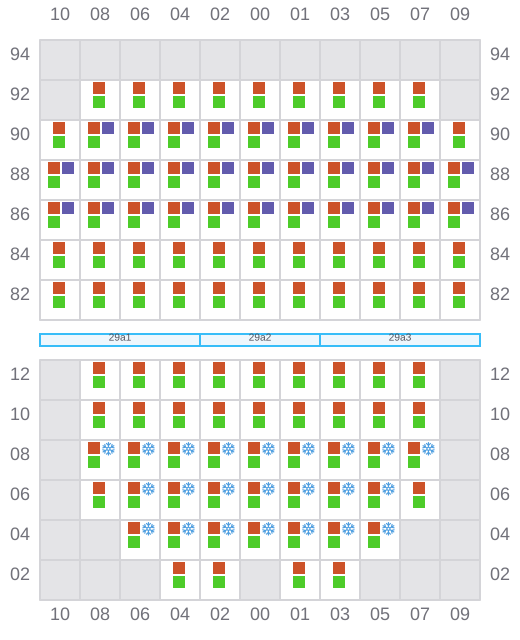

029 (030)
- →
- ? / ←
![Bay 029 view and slots of MAERSK VARNA](/vessel-images/6674a7f4-ad85-44a2-ac8e-5d452a44edf9-b029.png?v=1688063309989)
031
- ←
- → / ?
![Bay 031 view and slots of MAERSK VARNA](/vessel-images/6674a7f4-ad85-44a2-ac8e-5d452a44edf9-b031.png?v=1688063309989)
033 (034)
- → / ?
- → / ?
![Bay 033 view and slots of MAERSK VARNA](/vessel-images/6674a7f4-ad85-44a2-ac8e-5d452a44edf9-b033.png?v=1688063309989)

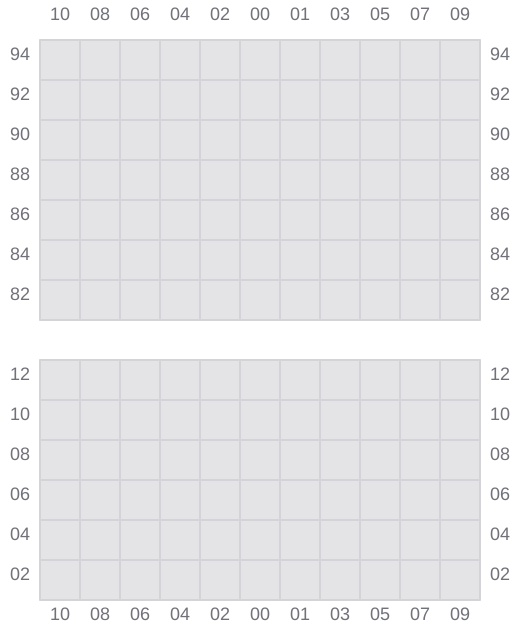

035
![Bay 035 view and slots of MAERSK VARNA](/vessel-images/6674a7f4-ad85-44a2-ac8e-5d452a44edf9-b035.png?v=1688063309989)
037
- → / ?
![Bay 037 view and slots of MAERSK VARNA](/vessel-images/6674a7f4-ad85-44a2-ac8e-5d452a44edf9-b037.png?v=1688063309989)
